USER MANUAL Plancha Pro LAGRANGE

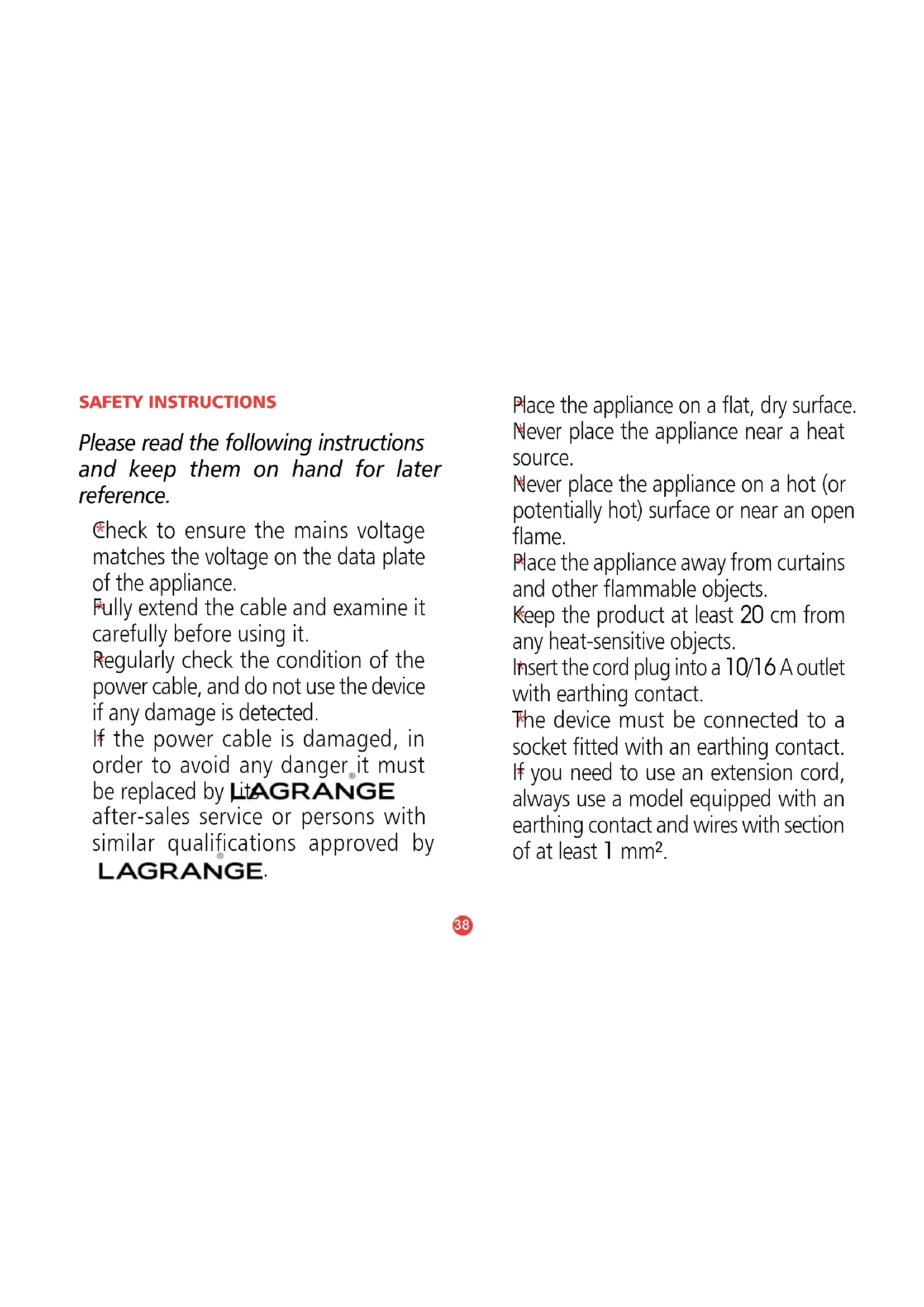

DEUSAFETY INSTRUCTIONS Please read the following instructions and keep them on hand for later reference.

Check to ensure the mains voltage matches the voltage on the data plate of the appliance.

Fully extend the cable and examine it carefully before using it.

Regularly check the condition of the power cable, and do not use the device if any damage is detected.

If the power cable is damaged, in order to avoid any danger it must be replaced by , its after-sales service or persons with similar qualications approved by

Place the appliance on a at, dry surface.

Never place the appliance near a heat source.

Never place the appliance on a hot (or potentially hot) surface or near an open ame.

Place the appliance away from curtains and other ammable objects.

Keep the product at least 20 cm from any heat-sensitive objects.

Insert the cord plug into a 10/16 A outlet with earthing contact.

The device must be connected to a socket tted with an earthing contact.

If you need to use an extension cord, always use a model equipped with an earthing contact and wires with section of at least 1 mm². 38* Never leave the appliance unmonitored when it is operating.

This appliance is designed only for household use and only in accordance with the instructions for use.

Never submerse the appliance in water or any other liquid for cleaning or any other purpose. Never put it in the dishwasher.

Do not use spray water (either high or low pressure) to clean the product.

Be careful not to use or leave the appliance outdoors if it is raining. Store in a dry place.

Never move the appliance by pulling on its cord.

To prevent the appliance from falling, take care to ensure that the power cord does not accidentally catch on other items. Do not twist the cord or wrap it around the appliance, and do not allow the cord to come into contact with the appliance’s hot parts.

Do not touch the appliance’s metal parts during operation as they become very hot.

Do not block the air vents located on the sides of the appliance.

This device can be used by children from the age of 8 and up, and persons with limited physical, sensory or cognitive capacities or who lack adequate experience or knowledge, provided they are supervised or receive instructions for the safe use of the device and insofar as they fully understand the potential dangers. Children should not play with the device. Cleaning and upkeep should not be performed by children unless

ENGthey are over the age of 8 and are under supervision.

Keep the device and its power cord out of the reach of children younger than 8 years old.

This appliance is not designed for activation through use of an external timer or any type of remote control system.

When not in use or left unmonitored, and before assembly or disassembly, disconnect the appliance from electrical power.

CAUTION: Risk of injury if the product is used incorrectly.

The surface of the heating element remains hot after it has been used.

If your appliance is damaged, stop using it, and contact customer service at .

For your safety, use only accessories and replacement parts designed specically for your appliance.

Retain the appliance’s original packaging for storage purposes.

Do not clean the cooking surface or any other stainless steel parts on the appliance with products containing chlorine.

The unit must be supplied by a circuit including a differential residual current device with an assigned differential operating current not exceeding 30 mA.

This unit is intended for use in household and similar applications such as: - kitchen areas reserved for the personnel of stores, offices and other professional environments; - farms;

40- use by customers of hotels, motels

and other residential environments; - bed and breakfast type environments.

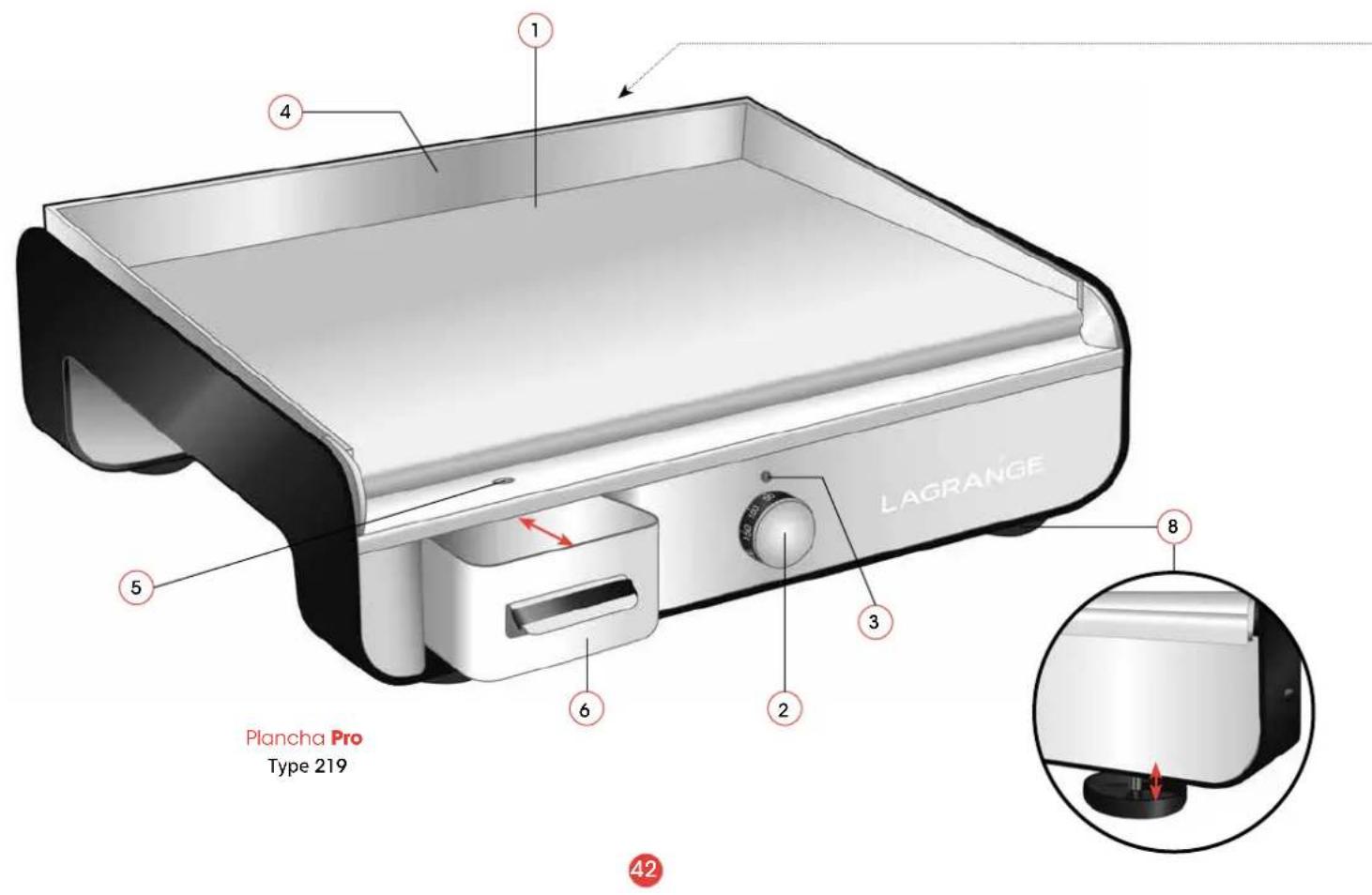

DESCRIPTION OF APPLIANCE

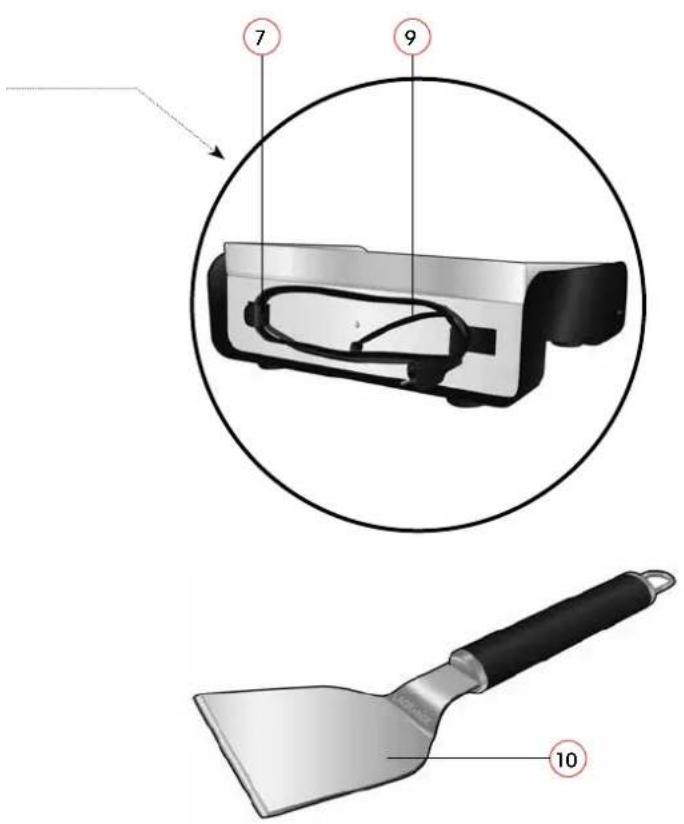

1 . Cooking surface 2 . Adjustable thermostat 3 . Power indicator light 4 . Rear and side splash guards 5 . Grease trough with hole 6 . Removable grease drip drawer 7 . Cord winder 8 . 4 adjustable feet 9 . Fixed cord

Painted galvanised steel base

Stainless steel front

Stainless steel cooking surface

Cooking surface dimensions: 45 x 33 cm (serves 4-6)

Cooking surface thickness: 3 mm

Rear and side splash guards

Maximum splash guard height: 4.5 cm

Removable grease drip drawer

Splash and weather-resistant (IPX4-rated appliance)

Built-in cord winder

Stainless steel spatula/scraper

The cord used is a HO5VV-F 3 G 1 mm². This appliance complies with Directives

EU, WEEE 2012/19/EU and RoHs 2011/65/EU and with CE Regulation 1935/2004. ENVIRONMENT Environmental Protection – DIRECTIVE 2012/19/EU To protect the environment and people’s health, it is important for everyone, including all suppliers and users, to follow specic guidelines for the disposal of any electrical appliance at the end of its useful life. For this reason and as indicated by the symbol on its data plate, you may not dispose of this appliance in any public or private bin meant for household rubbish. To dispose of your appliance, you are instead responsible for taking it to a public collection centre equipped for recycling electrical or electronic devices. For information on collection and recycling centres for discarded appliances, please contact the local authorities or household rubbish collection service in your region or the shop where you purchased the appliance.

When unpacking the appliance, take care to remove and check all packing for parts as well as packets and additional packing information.

Make sure that no parts or accessories are missing or defective.

Before using the appliance, clean the cooking surface thoroughly with soapy water to remove any impurities from the packaging. Dry thoroughly.

A new appliance may smoke and/or give off an odour when used for the rst time. To reduce the chance of smoking or odour, it is recommended to allow the appliance to heat for 10 minutes and then cool for approximately 30 minutes before the rst use.

You may then proceed with curing the surface which helps both to protect it and to keep food from sticking. To cure the cooking surface, wipe down the surface thoroughly using alcohol vinegar, heat the appliance and then slide a slice of bacon or ham fat around over the entire cooking surface. After coating with a layer of fat in this manner, the surface will gradually turn brown. The plancha is now cured and ready for use.

Place the appliance on a at, stable, heat-resistant surface.

The device is suitable for outside use. It can be used inside under an extraction hood.

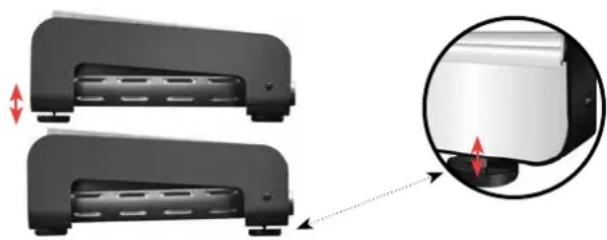

Adjust the feet depending on the type of cooking desired. - If the feet are left retracted, the cooking surface will be nearly level and sloping very slightly forward to allow for slow drainage of grease and cooking juices for traditional plancha cooking. - Unscrewing the feet on the front causes the plancha to tip toward the rear to prevent any cooking juices from draining off, e.g. for cooking mussels marinière. - Unscrewing the feet on the rear causes more grease to run off into the grease trough for more diet-friendly cooking, e.g. for cooking duck breasts. Always adjust the front or rear feet in pairs, i.e. either both front feet or both rear feet, to avoid throwing the appliance off-balance. To protect the screw threads, do not use the product with the feet unscrewed excessively (i.e. to more than 3 mm or more than 7 turns).

ENG* Before each use, turn on the plancha and allow it to heat for 10 minutes on high.

Brush the cooking surface with oil.

Important: do not cut foods directly on the cooking surface as this could leave deep scratches on the surface.

Do not overheat the cooking surface as this could cause it to turn black and make it difcult to clean.

Remember to empty the drip drawer regularly to prevent it from overowing.

Adjust the thermostat to the appropriate temperature for the type, size and thickness of food you wish to cook and to suit your cooking preferences. HERE ARE SOME RECOMMENDATIONS FOR SETTING THE THERMOSTAT TO COOK SPECIFIC FOODS:

Duck breasts: 240°C for 10 min on the skin side and then 200°C for 5 min on the other side

Fish (whole): 260°C and then reduce temperature to 220°C

To turn off the appliance, turn the thermostat down to the lowest setting.

Allow the appliance to cool and then unplug the cord.

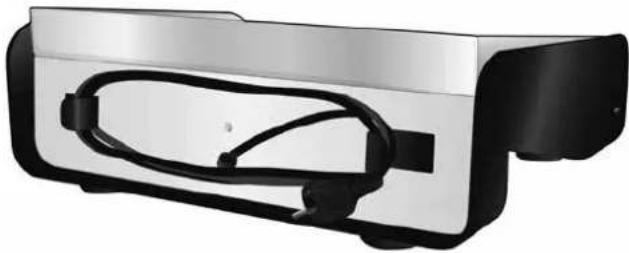

You may then wrap the cord around the cord winder on the rear of the appliance for ease of storage. LONG-TERM STORAGE If the appliance will not be used for an extended period, we strongly recommend storing it in a dry place. 46MAINTENANCE Never submerse the appliance in water, spray with water or place in dishwasher. COOKING SURFACE: Before use, the plate of your Plancha Pro has a brushed appearance. With the use of utensils and acidic foods, the plate will become scratched and take on a patina. This change in appearance is normal and does not affect the functioning of your unit. Unplug the appliance and clean while still hot. Allow the surface to cool for approximately a minute. Pour a glass of water onto the surface and scrape with the supplied spatula, pushing the residue and liquid into the grease trough. Important: never use ice to clean the hot plancha as this could cause thermal shock and warp the stainless steel cooking surface. The permanent brown staining that develops with cooking is part of the curing process and is a natural chemical reaction that protects the surface and prevents foods from sticking. Important: never attempt to remove the brown layer to regain the original colour of the cooking surface as this will cause foods to stick. For deep cleaning, spray the entire stainless steel surface with white vinegar and clean using a sponge and the supplied spatula/scraper. This will leave the layer of grease intact, preventing the need to repeat previous steps. Always wipe the surface off before storing or reuse. GREASE DRIP DRAWER: This container is used to collect the cooking juices which you may then save or discard. Empty the grease drip drawer and wipe it out using a wet sponge and dishwashing liquid. This container is also dishwasher-safe.

ENGAPPLIANCE BODY: Clean the appliance body using a wet sponge and, if desired, a little dishwashing liquid. GREASE TROUGH: Wipe out the grease trough using a wet sponge and, if desired, a little dishwashing liquid.

STATEMENT OF WARRANTY

Household Appliance Warranty. Your appliance is subject to a 2-year warranty. The cooking surface is guaranteed for 10 years*. To extend your warranty by an additional year at no charge, simply register at the website (www.lagrange.fr). The warranty covers parts and labour and applies to manufacturing defects. The warranty does not cover damage due to misuse, failure to follow the user instructions, or dropping the appliance. THIS WARRANTY APPLIES TO DOMESTIC USE; UNDER NO CIRCUMS- TANCES DOES IT COVER PROFESSIONAL USE. LThe vendor’s legal warranty obligations in no way exclude the manufacturer’s legal warranty obligations relating to faults or manufacturing defects in accordance with Articles

et seq. of the French Civil Code. In the event of a breakdown or malfunction, contact your retailer. The appliance will be exchanged in the event of a technical defect within 8 days after purchase. After this period, repairs will be carried out by ’s after-sales service. To qualify for the warranty, users must present a copy of the purchase receipt indicating the date of purchase of the appliance. 48*Specic warranty terms applicable to cooking surface The cooking surface is guaranteed for 10 years. This warranty covers defects in materials and workmanship. It does not cover:

Deterioration due to misuse of the appliance’s stainless steel surfaces.

Warping of the cooking surface due to thermal shock (e.g. by placing ice on hot cooking surface)

Breakage due to dropping or impact.

Discolouration of the cooking surface (it is normal for the surface to darken after repeated use; this is part of the curing process and does not affect cooking whatsoever).

Sticking foods: this is due not to any surface defect but rather to misuse (inadequate greasing or failure to follow curing instructions) Availability period of replacement parts In accordance with Article L 111-2 of the French Consumer Code, we anticipate an availability period for replacement parts for repairable products of ve years from the date of manufacture. However, this availability is guaranteed only in the country in which the product was purchased. Return shipping costs Following the rst year, during which the distributor warranty is applicable, you are liable only for the cost of shipping to the manufacturer; we will return the product to you promptly at our own cost. If you have additional questions about our products, please contact us at: Service consommateurs 17, chemin de la Plaine ZA Les Plattes CS30228
