USER MANUAL MGK7221 BRAUN

Black and white photo of a Braun brand hairbrush with a power button and grille (no text or symbols on the device itself)

Type 5544

www.braun.com

Braun Infolines

English 5

Français 9

Polski 14

Český 19

Slovenský 23

Magyar 27

Hrvatski 33

Slovenski 38

Türkçe 43

Română (RO/MD) 50

Български 55

Русский 60

Українська 67

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

PL 801 127 286

801 1 BRAUN

CZ 221 804 335

SK 02/5710 1135

HU (06-1) 451-1256

HR 091 66 01 777

SI 080 2822

TR 0850 220 09 11

RO 021.224.30.35

RU 8 800 200 20 20

UA 0 800 505 000

HK (852) 2986 9886

(DKSH Consumer Service Centre)

Braun GmbH

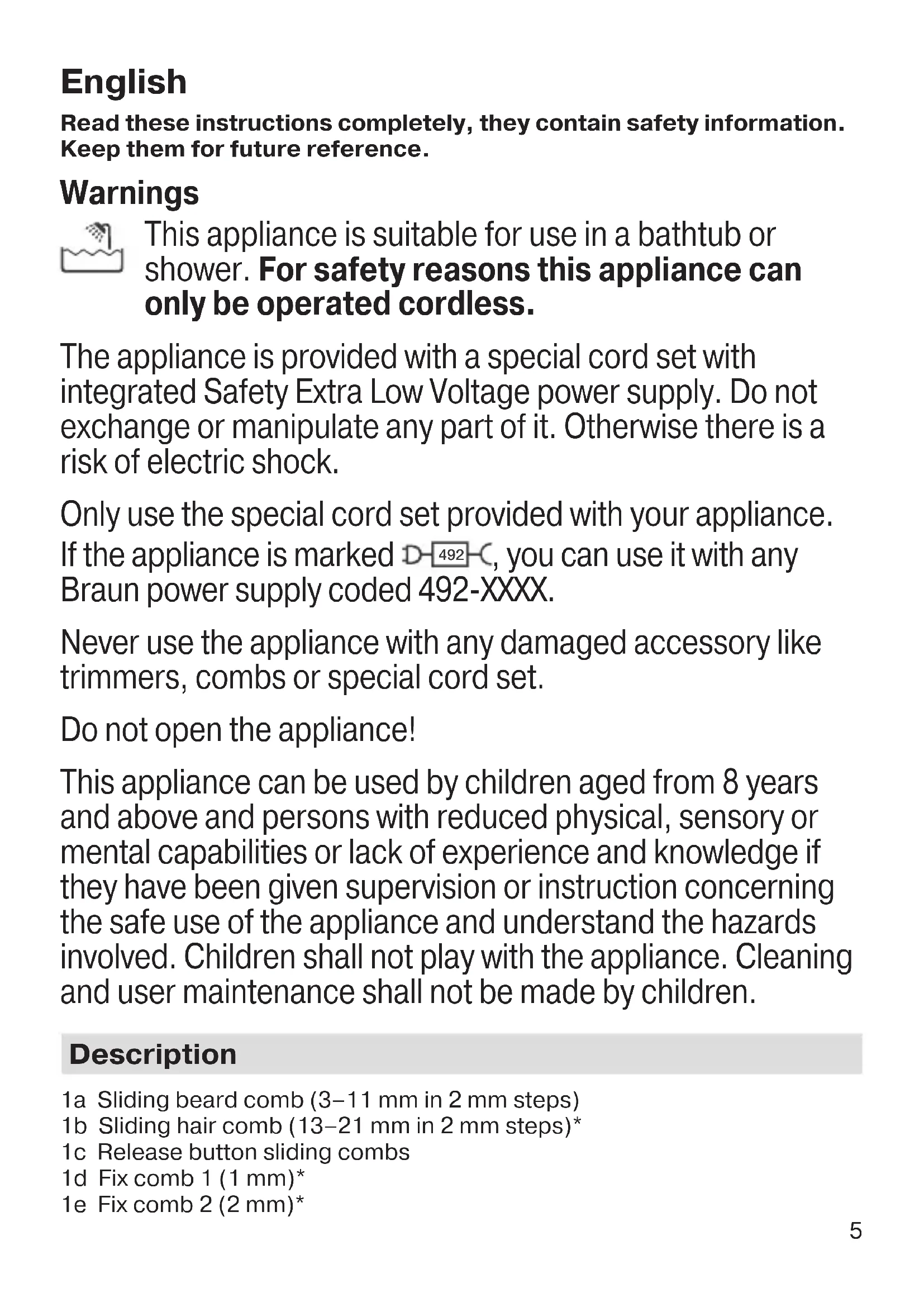

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

This appliance is suitable for use in a bathtub or shower. For safety reasons this appliance can only be operated cordless.

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance. If the appliance is marked D-492-C, you can use it with any Braun power supply coded 492-XXXX.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Do not open the appliance!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

Description

1a Sliding beard comb (3–11 mm in 2 mm steps)
1b Sliding hair comb (13–21 mm in 2 mm steps)*
1c Release button sliding combs
1d Fix comb 1 (1 mm)*
1e Fix comb 2 (2 mm) ^*

2a Trimmer head
2b Ear & nose trimmer head*
2c Detailed trimmer head*
2d Body groomer head*
2e Mini foil shaver head*
3 On/off button
4 Charging indicator
5 Power socket
6 Special cord set (design can differ)
7 Charging stand*

* not with all models

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C . Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Connect the appliance (switched off) via the special cord set (6) to an electrical outlet.
• A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Charging indicator (4)

• The charging indicator blinks green when the appliance is being charged.
• It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green.
• The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains.

Usage

Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button (3).

Travel lock

Press the on/off button (3) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button

3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains.

Beard Trimming / Hair Clipping

Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length.

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

• Trim against hair growth by guiding the flat comb part over the skin.
• Do not force the appliance through the hair faster than it can be cut.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming

Use the trimmer head (2a) without comb attachment, the detailed trimmer head (2c) or the mini foil shaver (2e) for shaping sideburns, moustaches and partial short beards.

Ear/Nose Trimming

• Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.
• Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4") into nose or ear.

Body grooming

Remove any head and click the body groomer head (2d) onto the handle. It is designed for shaving and trimming of hair on legs, chest and underarms. Use it on dry skin only.

Cleaning and maintenance

• Switch off the appliance.
  • Take off any head and comb.
• Use the brush to clean the heads, combs and the appliance. Do not clean the foil of the body groomer head and mini foil shaver head with the brush as this may damage it.
• The mini foil shaver head can be disassembled for proper cleaning. In case the foil frame is pulled out, it can just be clicked into the housing again.
• The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them.
• To keep the attachments working properly, oil the trimmer and the foils with a drop of light machine oil (not included) regularly.

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver

foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

ELMIN, Đurđevac 48 350,

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski Brod 35 000,

J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33 000,

J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42 000,

Krešimira Filića 9, Tel. [phone], [e-mail]

RADAN ELEKTR ONIK CENTAR d.o.o., Dubrovnik 20 000,

Ob. Pape I.Pavlall.17, Tel. [phone], [e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000,

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43, Tel. [phone]

(u sklopu poslovnog prostora ROBOT COMMERCE d.o.o. (TTTS))

[e-mail]

ili nazovite Call centar singuli: 072 700 707

Slovenski

Blocare la transport

Stand. Fact. C-4, Export Poc. Zone 20, DaTong Road, 215151 SUZHOU NEW DISTRICT, CHINA.

Country of origin: China

To determine the year of manufacture, remove the head and find the 3-digit production code located inside the housing. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: “527” – The product was manufactured in week 27 of 2015.
