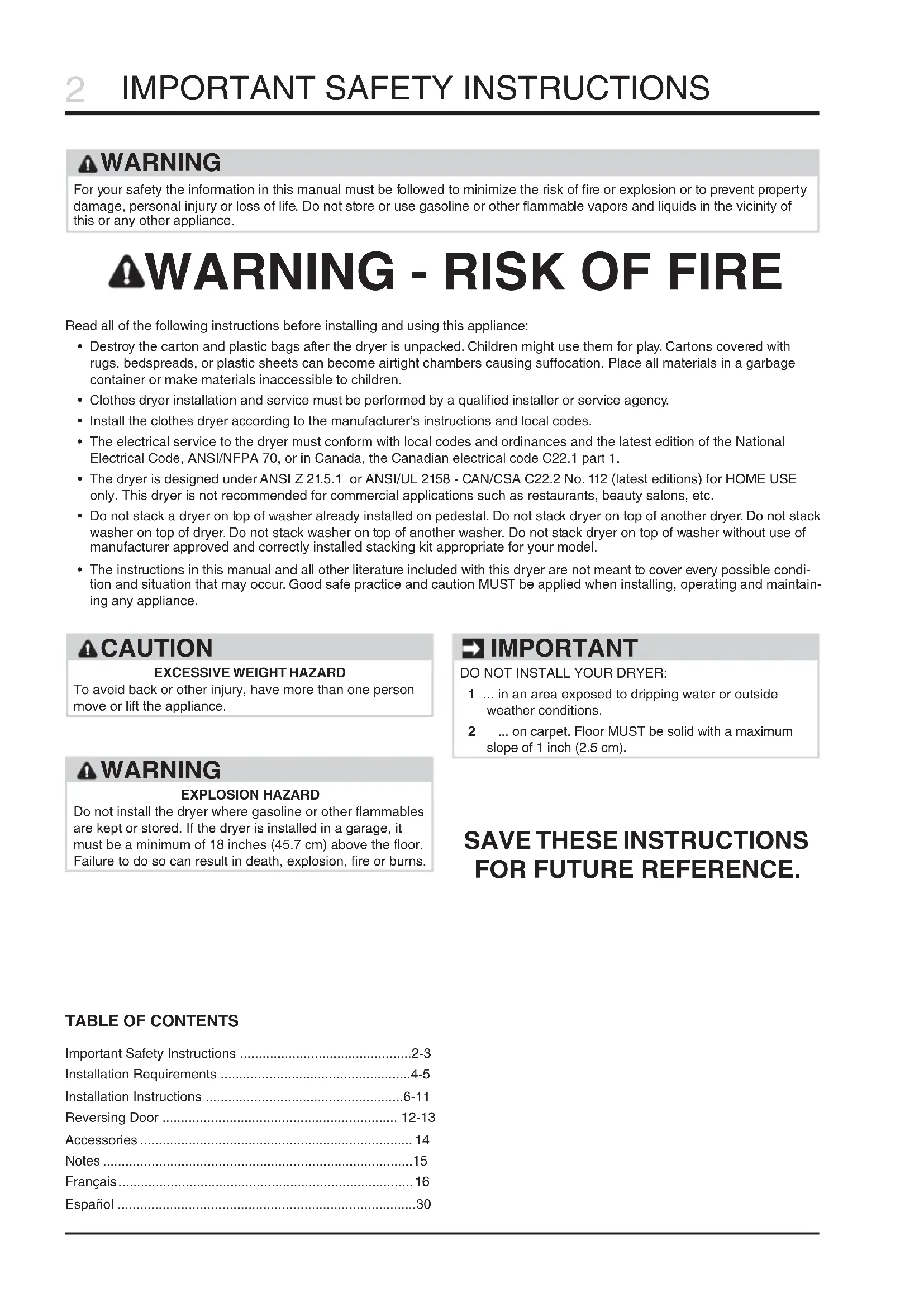

WARNING For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. CAUTION EXCESSIVE WEIGHT HAZARDTo avoid back or other injury, have more than one person move or lift the appliance.Read all of the following instructions before installing and using this appliance:

• Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in a garbage container or make materials inaccessible to children.
• Clothes dryer installation and service must be performed by a qualified installer or service agency.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.
• The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for HOME USE only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.
• Do not stack a dryer on top of washer already installed on pedestal. Do not stack dryer on top of another dryer. Do not stack washer on top of dryer. Do not stack washer on top of another washer. Do not stack dryer on top of washer without use of manufacturer approved and correctly installed stacking kit appropriate for your model.
• The instructions in this manual and all other literature included with this dryer are not meant to cover every possible condi- tion and situation that may occur. Good safe practice and caution MUST be applied when installing, operating and maintain- ing any appliance.

WARNING - RISK OF FIRE

WARNING EXPLOSION HAZARDDo not install the dryer where gasoline or other flammables are kept or stored. If the dryer is installed in a garage, it must be a minimum of 18 inches (45.7 cm) above the floor. Failure to do so can result in death, explosion, fire or burns. IMPORTANT DO NOT INSTALL YOUR DRYER:1 ... in an area exposed to dripping water or outside weather conditions.2 ... on carpet. Floor MUST be solid with a maximum slope of 1 inch (2.5 cm).

SAVE THESE INSTRUCTIONS

Unpacking Plastic film (lining drum interior) is removed and discarded. See also image below. Leveling Dryer is level, side-to-side and front-to-back Cabinet is setting solid on all corners 240v Electric Supply Approved NEMA 10-30R or 14-30R service cord with all screws tight on terminal block Terminal access cover/strain relief installed before initial operation Door Reversal Follow detailed instructions in this guide Test hinge and latch for function Electrical Power House power turned on Dryer plugged in Final Checks Installation Instructions and Use and Care Guide read thoroughly Door latches and drum tumbles when cycle starts Registration card sent in Installation Checklist Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Recognize safety symbols, words and labels Safety items throughout this manual are labeled with a WARNING or CAUTION based on the risk type as described below: IMPORTANT IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. WARNING Please read all instructions before using this dryer. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Tools and materials needed for installation: Adjustable pliersAND AND ANDOROptional uni-versal wrench available from dealer3 or 4-wire 240 volt cord kitPhillips screwdriver Carpenter’s level4 Installation Requirements MINIMUM INSTALLATION CLEARANCES - Inches (cm)SIDES REAR TOP FRONT Alcove 0” (0 cm) 0” (0 cm)* 0” (0 cm) n/a Under Counter 0” (0 cm) 0” (0 cm)* 0” (0 cm) n/a Clearance requirements Closet Installation NOTE Because of potentially inconsistent voltage capabilities, the use of this dryer with power created by gas powered generators, solar powered generators, wind powered generators or any other generator other than the local utility company is not recommended. NOTE Dryers manufactured for sale in Canada have factory- installed, 4-wire power supply cord (NEMA 14-30R). Electrical requirements for electric dryer 3-WIRE POWER SUPPLY CORD KIT (not supplied) OUTLET RECEPTACLE - NEMA 10-30R or NEMA 14-30R receptacle to be located so the power supply cord is accessible when the dryer is in the installed position. GROUNDING CONNECTION - See “Grounding requirements” in Electrical Installation section. The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 type SRDT rated at 240 volt AC minimum, 30 amp, with 3 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. For 3-wire cord connection instructions see ELECTRICAL CONNECTIONS FOR A 3-WIRE SYSTEM. 4-WIRE POWER SUPPLY CORD KIT (not supplied) The dryer MUST employ a 4-conductor power supply cord NEMA 14-30 type SRDT or ST (as required) rated at 240 volt AC minimum, 30 amp, with 4 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. For 4-wire cord connection instructions see ELECTRICAL CONNECTIONS FOR A 4-WIRE SYSTEM. 3-wire receptacle (NEMA type 10-30R) 4-wire receptacle (NEMA type 14-30R) IMPORTANT This dryer is internally grounded to neutral unless it was manufactured for sale in Canada. Only a 4-conductor cord shall be used when the appliance is installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral link is prohibited for: (1) new branch circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes do not permit grounding through the neutral. Manufactured or mobile home installation Installation MUST conform to current Manufactured Home Construction & Safety Standard, Title 24 CFR, Part 32-80 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280) or Standard CAN/ CSAZ240 MH. CIRCUIT - Individual 30 amp. branch circuit fused with 30 amp. time delay fuses or circuit breakers. Use separately fused circuits for washer and dryer. DO NOT operate a washer and a dryer on the same circuit. POWER SUPPLY - 3-wire or 4-wire, 208-240 volt, single phase, 60 Hz, Alternating Current. If installing the dryer in a closet, the unit must only be operated with the door in the open position to allow correct air circulation. See Use and Care Guide for more information.

(0cm) (0cm) (0cm)5 Installation Requirements Dryer Dimensions

Power supply cord length on Canadian dryer approximately 59 inches (150 cm).

Drain hose length on washer approximately 55 inches (140 cm).

Power supply cord length on washer approximately 59 inches (150 cm). water supply connection on rear of unit drain hose on rear of unit

floor line 68.5” (174 cm) 24” (60.5 cm) electrical supply on rear of unit

electrical supply on rear of unit

power cord on rear of unit

26” (66 cm) to front of closed door 43” (109 cm) to clear open door floor line floor line 24” (61 cm) to front of closed door freestand dryer on floor dryer mounted on optional pedestal 43” (109 cm) to clear open door 33.5” (85 cm) 46” (116.5 cm) 24” (60.5 cm)6 Installation Instructions The following are specific requirements for proper and safe electrical installation of your dryer. Failure to follow these instructions can create electrical shock and/or a fire hazard. Electrical installation Grounding requirements - Electric dryer (USA) For a grounded, cord-connected dryer: 1 The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of least resistance for electrical current. 2 After you purchase and install a 3 wire or 4 wire power supply cord having an equipment-grounding conductor and a grounding plug that matches you wiring system, the plug MUST be plugged into an appropriate, copper wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician. 3 DO NOT modify the plug you’ve installed on this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. Grounding requirements - Electric dryer (Canada) For a grounded, cord-connected dryer: 1 The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of least resistance for electrical current. 2 Since your dryer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician. 3 DO NOT modify the plug provided with this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. NOTE Dryers operating on 208 volt power supply will have longer drying times than dryers operating on 240 volt power supply. WARNING

ELECTRICAL SHOCK HAZARD

• A U.L.-approved strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.

• Do not use an aluminum wired receptacle with a copper wired power cord and plug (or vice versa). A chemical reaction occurs between copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper wired power cord with a copper wired receptacle. WARNING

ELECTRICAL SHOCK HAZARD

• This appliance MUST be properly grounded. Electrical shock can result if the dryer is not properly grounded. Follow the instructions in this manual for proper grounding.

• Do not use an extension cord with this dryer. Some extension cords are not designed to withstand the amounts of electrical current this dryer utilizes and can melt, creating electrical shock and/or fire hazard. Locate the dryer within reach of the receptacle for the length power cord to be purchased, allowing some slack in the cord. Refer to the pre-installation requirements in this manual for the proper power cord to be purchased. WARNING

ELECTRICAL SHOCK HAZARD

Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded. WARNING

ELECTRICAL SHOCK HAZARD

Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.7 Installation Instructions WARNING

ELECTRICAL SHOCK HAZARD

Do not operate dryer without terminal cover in place. A correctly installed terminal block cover also acts a qualified strain relief for the power cord. Electrical connection (non-Canada) - 3 wire cord 3-wire receptacle (NEMA type 10-30R) Neutral Neutral (center wire) (center wire) 30 AMP 30 AMP NEMA 10-30 NEMA 10-30 1 Turn off power supply to outlet. 2 Remove the three screws securing the terminal block access cover in the upper corner on the back of the dryer. 3 Using an UNPLUGGED, UL-approved, 30 amp. power cord, NEMA 10-30 type SRDT, attach the neutral (center wire) conductor to the SILVER colored center terminal on the terminal block. Tighten the screw securely. 5 Reinstall the terminal block cover. WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death. WARNING

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring/conductor at connections. IMPORTANT If moving dryer from a 4-wire system and installing it now in a 3-wire system, move the internal ground wire from the center terminal back to the GREEN screw under the terminal block. neutral terminal DO NOT move internal ground in a 3-wire system! access cover screw terminal cover DO NOT REMOVE THIS SCREW access cover screw access cover screw line 2 - L2 (BRASS terminal) internal ground (GREEN screw) route cord here neutral - N (SILVER terminal) line 1 - L1 (BRASS terminal) 4 Attach the remaining two power cord outer conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely. NOTE Terminal screws were shipped from the factory temporarily attached inside the access cover.8 Installation Instructions 4-wire receptacle (NEMA type 14-30R) Neutral Neutral (WHITE wire) (WHITE wire) 30 AMP 30 AMP NEMA 14-30 NEMA 14-30 Ground Ground (GREEN wire) (GREEN wire) Electrical connection (non-Canada) - 4 wire cord 1 Turn off power supply to outlet. 2 Remove the three screws securing the terminal block access cover in the upper corner on the back of the dryer. 3 Disconnect the internal (WHITE) dryer harness ground wire from the (GREEN) ground screw next to the terminal block. 4 Using an UNPLUGGED, UL-approved, 30 amp. power cord, NEMA 14-30 type ST or SRDT, attach the ground (GREEN) power cord wire to the cabinet with the ground (GREEN) screw. Tighten the screw securely. 7 Reinstall the terminal block cover. WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death. WARNING

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring/conductor at connections. WARNING

ELECTRICAL SHOCK HAZARD

Do not operate dryer without terminal cover in place. A correctly installed terminal block cover also acts a qualified strain relief for the power cord. access cover screw terminal cover DO NOT REMOVE THIS SCREW access cover screw access cover screw line 2 - L2 (BRASS terminal) move internal ground wire to the center terminal for 4-wire system route cord here neutral - N (SILVER terminal) line 1 - L1 (BRASS terminal) 5 Move the internal dryer harness ground (WHITE) wire to the terminal block and attach it along with the neutral (WHITE) power cord wire conductor to the center, SILVER colored terminal on the terminal block. Tighten the screw securely. 6 Attach the RED and BLACK power cord conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely. NOTE Terminal screws were shipped from the factory temporarily attached inside the access cover. neutral terminal GREEN ground wire BLACK or RED power wire BLACK or RED power wire WHITE neutral wire GREEN ground screw9 Installation Instructions Direct Drain Kit (on some models) Direct Drain Kit continued on next page... If your model included a direct drain kit, you may follow the instructions below to install it on your dryer for convenient drainage of your dryer’s condensed water. 1 Locate the red tubing and plastic fitting on the back of the dryer. 2 With a pair of pliers, release the hose clamp and remove the tubing from the plastic fitting. 3 Retrieve the 90 degree plastic elbow from the direct drain installation kit that came with your dryer and install it onto the red tubing. 4 Retrieve the clear tubing that came in the kit and install it also onto the elbow. 5 With the plastic cable tie that came with the kit, secure the elbow and tubes to the plastic fitting.10 Installation Instructions Direct Drain Kit, continued 6 To route the drain tube to the left of the dryer, secure the tube with the “P” clamp from the kit to the back of the dryer with the cabinet screw shown below. 7 To route the drain tube to the right of the dryer, route the tube across the back of the dryer and snap it into the “C” clips shown as below. 8 Install the hose hanger from the kit onto the end of the hose and insert in drain. IMPORTANT Follow these guidelines for proper drain hose installation: 1 The distance from the bottom of the drain tube sag to the top of highest part of drain tube should be no more than 20” (50 cm). Drain tube may need to be shortened with scissors if sag is greater than allowed. 2 The drain height location should be no more than 40” (100 cm) above the bottom of the dryer feet. MAX 40” (100 cm) MAX 20” (50 cm)11 Installation Instructions General installation 1 Use a carpenter’s level to level your dryer front-to-back and side-to-side. 2 Use adjustable pliers to adjust the leveling legs so the dryer is level front-to-rear and side-to-side, and stable corner-to-corner. 3 Press down on alternate corners and sides and feel for the slightest movement. Adjust the appropriate leg(s) so the dryer sits solidly on the floor on ALL four legs. Keep the leveling leg extension at a minimum for best performance of the dryer. 4 Plug the power cord into a grounded outlet. 5 Turn on the power at the circuit breaker/fuse box. 6 Read the Use & Care Guide provided with the dryer. It contains valuable and helpful information that will save you time and money. 7 If you have any questions during initial operation, please review the “Avoid Service Checklist” in your Use & Care Guide before calling for service. 8 Place these instructions in a location near the dryer for future reference. NOTE A wiring diagram is located next to the water container behind the left cabinet panel. IMPORTANT Be sure the power is off at a circuit breaker/fuse box before plugging the power cord into an outlet.12 Reversing Door 1 Protect flat work surface, such as top of dryer or floor near dryer, with a soft cloth or towel. 2 Open dryer door and remove the two hinge screws. Remove lower screw first, then upper screw. 3 Gently place dryer door face down on flat, covered work surface. 4 Locate the 12 screws (no. 1-12) on the inner door ring. Remove and save these 12 screws. 5 Separate inner door ring from the rest of the door. 7 Lift the inner lens and set it aside. 6 Release the door switch striker and move it to the opposite location and reinstall. Set the inner door ring aside. 8 If your model has 8 screws securing the outer lens in place, remove and save them for later. Lift and rotate the outer lens 180°. Lower the outer lens back in place. 9 Reinstall the 8 screws if removed in previous step. If no screws were present, move to next step.

10 Rotate inner lens 180° and place back into door assembly. 11 Reinstall inner door ring with 12 screws removed earlier. 12 Gently pry the plastic latch cover from the front panel and set it aside. Remove the 3 screws securing the door latch and release the latch. 13 Rotate the latch 180° and reinstall it in the opposite location. 14 Rotate the plastic latch cover 180° and snap it in place around the door latch. 15 While supporting the door, install the 2 hinge mounting screws removed in first step. Attach the upper screw first and then the lower one. 16 Close the door and test operation of hinge, strike and latch.

Accessories Replacement parts: If replacements parts are needed for your dryer, contact the source where you purchased your dryer or refer to your Use and Care Guide for more information. CAUTION Failure to use accessories manufactured by (or approved by) the manufacturer could result in personal injury, property damage or damage to the dryer. WARNING ELECTRICAL SHOCK HAZARDLabel all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.MATCHING STORAGE PEDESTAL*White Pedestal - P/N EPWD200QSWA storage pedestal accessory, specifically designed for this dryer may be used to elevate the dryer for ease of use.*Other colors may be available. Contact the source where you purchased your dryer.DIRECT DRAIN KITP/N DK11Depending on the model you purchased, a direct draining kit for your condensing dryer’s water collection system may have been included in the initial purchase of your dryer. If your model did not include a direct draining kit, you may order one.DRYER STACKING KITP/N STACKIT24Depending on the model you purchased, a kit for stacking this dryer on top of matching washer may have been included in the initial purchase of your dryer. If your model did not include a stacking kit or you desire another stacking kit, you may order one.DRYING RACKP/N 916093163Depending on the model you purchased, a drying rack may have been included in the initial purchase of your dryer. If your model did not include a drying rack or you desire another drying rack, you may order one.UNIVERSAL APPLIANCE WRENCHP/N 137019200A UNIVERSAL APPLIANCE WRENCH is available to aid in dryer/washer/pedestal feet adjustment.15 Notes16
