USER MANUAL EWF1440 ELECTROLUX

T/Min. ChangeOptions Exit Witte/Bonte was Wassen

T/Min. ChangeOptions Exit Witte/Bonte was Max 1400

T/Min. ChangeOptions Exit Cotton Cycle end at

Die Maschine befindet sich in der Heizphase bzw. der Wasserstand in der Maschine geht über den unteren Bereich der Tür hinaus. Wenn auf dem Display die Meldung “Tür entriegelt” angezeigt wird, kann man die Tür öffnen. 132986251D.qxd 24/02/2005 16:16 Pagina 81 (Nero/Process Black pellicola)82 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre. The symbols you will see on some paragraphs of this booklet have the following meaning: The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance. The information marked with this symbol provides additional instructions and practical tips on the use of the appliance. Tips and information about economical and ecological use of the machine are marked with this symbol. Our contribution to the protection of the environment: we use recycled paper. Contents Warnings 83-84 Disposal 84 Tips for environmental protection 84 Technical specifications 84 Installation 85 Unpacking 85 Positioning and levelling 85 Water inlet 86 Water drainage 86 Electrical connection 86 Your new washing machine 87 Detergent dispenser drawer 87 Use 88 Control panel 88 Controls 88-93 Programme information 93 Washing hints 94 Sorting the laundry 94 Temperatures 94 Before loading the laundry 94 Maximum loads 94 Laundry weights 94 Removing stains 95 Detergents and additives 95 International wash code symbols 96 Operating sequence 97-99 Programme tables 100-101 Maintenance 102 Bodywork 102 Door seal 102 Detergent dispenser drawer 102 Water inlet filter 102 Drain pump 102-103 Emergency emptying out 103 Frost precautions 103 Something not working? 104-105 132986251GB.qxd 24/02/2005 16:17 Pagina 82 (Nero/Process Black pellicola)83 Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.

• Any electrical work required to install this appliance must be carried out by a qualified electrician.

• Any plumbing work required to install this appliance must be carried out by a qualified plumber.

• After having installed the machine, check that it is not standing on its electrical supply cable.

• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor. Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.

• Do not overload the appliance. Follow the instructions in the instruction book.

• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.

• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.

• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.

• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.

• Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book. Warnings

• Always unplug the appliance and shut the water tap after use. General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• During high temperature wash programmes the door glass may get hot. Do not touch it! Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• This machine incorporates a special child safety feature to prevent small children from being trapped inside the machine. To activate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin. To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until the groove is vertical.

• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing. P1131 The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. 132986251GB.qxd 24/02/2005 16:17 Pagina 83 (Nero/Process Black pellicola)84 ENGLISH Disposal Tips for environmental protection Packaging materials The materials marked with the symbol are recyclable. >PE<=polyethylene >PS<=polystyrene >PP<=polypropylene This means that they can be recycled by disposing of them properly in appropriate collection containers. Machine Use authorised disposal sites for your old appliance. Help to keep your country tidy! Het symbool op het product of op de verpakking wijst erop dat dit product niet als huishoudafval mag worden behandeld. Het moet echter naar een plaats worden gebracht waar elektrische en elektronische apparatuur wordt gerecycled. Als u ervoor zorgt dat dit product op de correcte manier wordt verwijderd, voorkomt u mogelijk voor mens en milieu negatieve gevolgen die zich zouden kunnen voordoen in geval van verkeerde afvalbehandeling. Voor meer details in verband met het recyclen van dit product, neemt u het best contact op met de gemeentelijke instanties, het bedrijf of de dienst belast met de verwijdering van huishoudafval of de winkel waar u het product hebt gekocht. To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded. Do not overload!

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed. DIMENSIONS Height 85 cm Width 60 cm Depth 63 cm MAXIMUM LOAD Cotton 6 kg Synthetics 3 kg Delicates 3 kg Handwash/Woollens 2 kg Silk 1 kg SPIN SPEED 1400 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz

WATER PRESSURE Minimum 0,05 MPa Maximum 0,8 MPa This appliance complies with the following EEC Directives: 73/23/EEC of 19/02/73 relating to low voltage 89/336/EEC of 03/05/89 relating to electromagnetic compatibility. Technical specifications 132986251GB.qxd 24/02/2005 16:17 Pagina 84 (Nero/Process Black pellicola)85 Installation Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

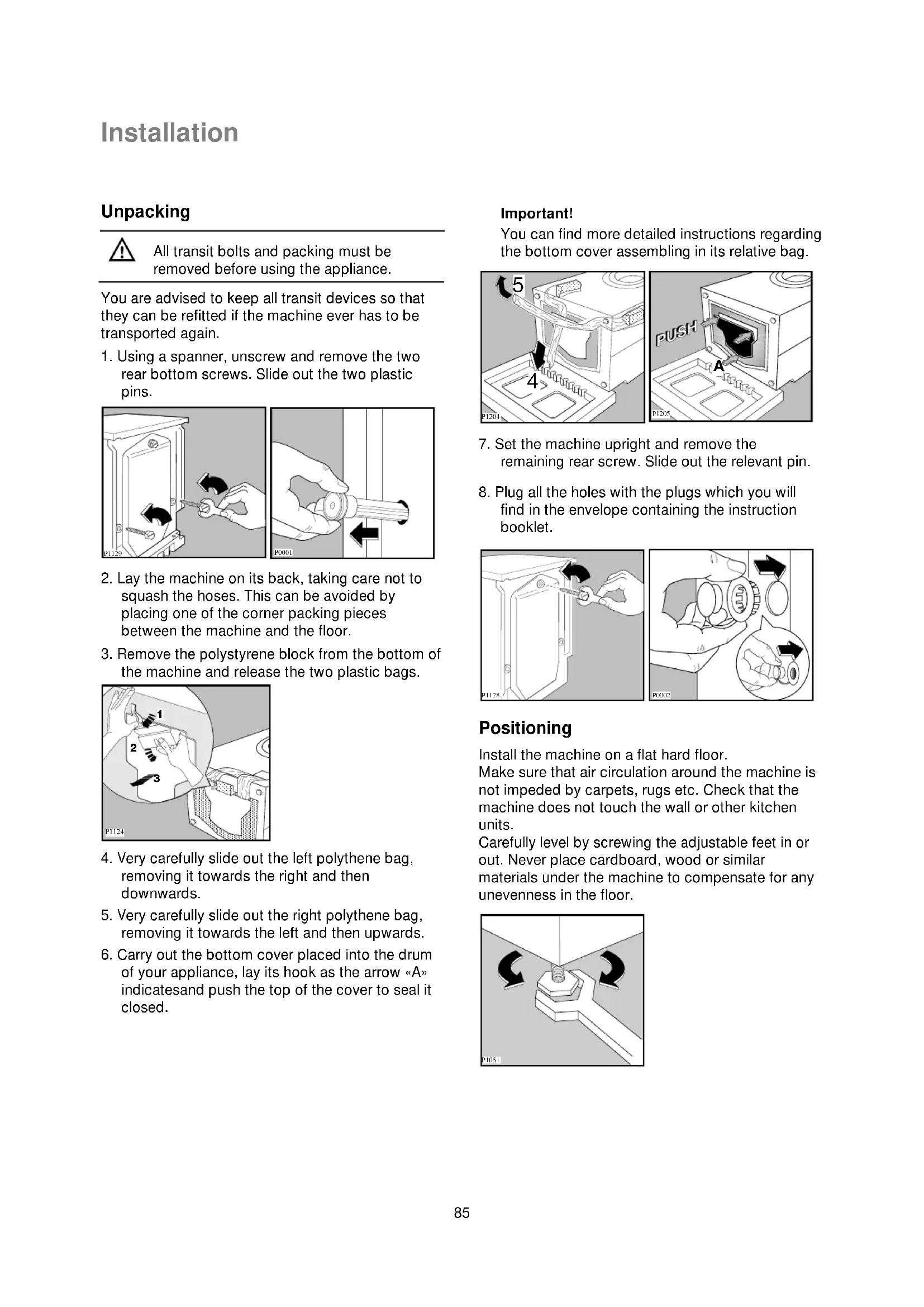

1. Using a spanner, unscrew and remove the two

rear bottom screws. Slide out the two plastic pins.

2. Lay the machine on its back, taking care not to

squash the hoses. This can be avoided by placing one of the corner packing pieces between the machine and the floor.

3. Remove the polystyrene block from the bottom of

the machine and release the two plastic bags.

4. Very carefully slide out the left polythene bag,

removing it towards the right and then downwards.

5. Very carefully slide out the right polythene bag,

removing it towards the left and then upwards.

6. Carry out the bottom cover placed into the drum

of your appliance, lay its hook as the arrow «A» indicatesand push the top of the cover to seal it closed. P1124

P0001 P1129 Important! You can find more detailed instructions regarding the bottom cover assembling in its relative bag.

7. Set the machine upright and remove the

remaining rear screw. Slide out the relevant pin.

8. Plug all the holes with the plugs which you will

find in the envelope containing the instruction booklet. Positioning Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Carefully level by screwing the adjustable feet in or out. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor. P1051 P0002 P1128

132986251GB.qxd 24/02/2005 16:17 Pagina 85 (Nero/Process Black pellicola)86 ENGLISH Water inlet Connect the water inlet hose to a separate tap with a 3/4" thread. Do not use already employed hoses for water connection. The inlet hose is provided with a water stop device, which protects against damage caused by water leaks in the hose which could develop due to natural ageing of the hose. This fault is shown by a red sector in the window “A”. Should this occur, turn the water tap off and refer to your Service Centre to replace the hose. The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks. The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use. Water drainage The end of the drain hose can be positioned in three ways: Hooked over the edge of a sink using the plastic hose guide supplied with the machine. In this case, make sure the end cannot come unhooked when the machine is emptying. P0021

P0352 This could be done by tying it to the tap with a piece of string or attaching it to the wall. In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground. Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm. The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose. The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be raised. Electrical connection This machine is designed to operate on a 220-230 V, single-phase, 50 Hz supply. Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use. Connect the machine to an earthed socket. The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre. Please ensure that when the appliance is installed the power supply cable is easily accessible. P0023 P0022 132986251GB.qxd 24/02/2005 16:17 Pagina 86 (Nero/Process Black pellicola)87 This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

• The programme selector dial combines the possibility of selecting between different fabrics, special cycles and memories, making it easier to set the programmes.

• The display shows the programme selected and the programme phase which is running.

• The special wool programme with its new delicate wash system treats your woollens with extreme care.

• The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes from being deformed and will reduce thermal shock to fabrics, helping to prevent creasing.

• The unbalance detection device prevents vibration during spinning.

• Your appliance is provided of a new «antiflood device». To make active this feature is necessary to close the bottom of the machine with the bottom cover that you can find inside the drum. Please read the instructions inserted into bottom cover bag. 1 Detergent dispenser drawer 2 Control panel 3 Door handle 4 Drain pump 5 Adjustable feet Your new washing machine

Detergent dispenser drawer Prewash Main wash Fabric softener, starch P1206 132986251GB.qxd 24/02/2005 16:17 Pagina 87 (Nero/Process Black pellicola)88 ENGLISH Use 1 Programme selector dial The selector dial is divided into 4 sections:

• Cotton, synthetics and delicates (blue section)

• Handwash, wool, silk and mini 30 programme (30 MIN.) (green section)

• Rinses, drain, spin and delicate spin (grey section)

• Memory 1, memory 2, memory 3 (green section) The select or dial can be turned either clockwise or anticlockwise. Position Cottons Economy corresponds to the ENERGY SAVING programme for cotton and position STOP to Reset programme/Switching OFF of the machine. At the end of the programme the selector dial must be turned to position STOP, to switch the machine OFF. Attention! If you turn the programme selector dial to another programme when the machine is working, a warning message appears for 4 seconds on the display while the buzzer sounds for 3 times .

2 Display The DISPLAY is used for setting a large number of functions and combine them with each other using only a few control elements (1 programme selector dial and 6 buttons). This simple control method is made easy thanks to the interactive display. Interactive means that the washing machine display changes to reflect each step you have entered. This ensures that only those settings that make sense are made. You are able to see the current settings at any time in the information panel and in the option row.

1. Information panel shows the current settings

4. Selection shows temperature, spin speed,

options and extras. 3 Temperature button (Temp. °C) Press this button repeatedly to increase or decrease the temperature, if you want your laundry to be washed at a temperature different from the one proposed by the washing machine. Maximum temperatures are 90°C for cotton, 60°C for synthetic fabrics, 40°C for delicate fabrics, wool and fabrics to be hand-washed, 30°C for silk and MINI 30, while «0» corresponds to cold wash. ChangeOptions Exit CottonCycle and at08.3010.5590°C 1600

Control panel 132986251GB.qxd 24/02/2005 16:17 Pagina 88 (Nero/Process Black pellicola)89 By depressing Temperature Temp. °C button, the relevant message will appear on the second row of the display (instead of «cycle end at»). In the corner of the third row appears the indication of the selected temperature. 4 Spin Speed button (T/Min.) Press this button repeatedly to change the spin speed, if you want your laundry to be spun at a speed different from the one proposed by the washing machine. Maximum speeds are:

• for cotton: 1400 rpm;

• for synthetic, wool, and fabrics to be handwashed: 900 rpm;

• for delicate, silk fabrics, MINI 30: 700 rpm; By depressing the Spin speed button you can also choose No Spin option «0», Rinse Hold option and Night Cycle option . No spin «0» option eliminates all the spin phases and increases the rinses number for cottons and synthetics. Rinse hold position : when you choose this option, the machine will not drain the water of the last rinse, so as not to wrinkle the laundry. ChangeOptions Exit COTTON MAX 1400

T/Min. Night Cycle position : when you choose this option, the machine will not drain the water of the last rinse, so as not to wrinkle the laundry. As all spinning phases are suppressed, this washing cycle is very noiseless and it can be selectionned at night or in times with a more economical power rate. On cotton and synthetic programmes the rinses will be performed with more water. To complete the cycle, choose one of the following programmes: Drain To drain the water select Drain programme by means of the selector dial, then press the START/PAUSE button. Spin To spin the laundry choose spin or delicate spin programme by means of the selector dial; select spin speed by means of button T/Min. and then press the START/PAUSE button. Important! Before choosing the programme (Drain), (Spin) or (Gentle spin) the selector dial has to be positioned on STOP. 5 «Options», «Change » and «Exit» buttons Options button allows you to move through the option icons. Change button allows you to select/change the status of the different icons. Exit button allows you to return to the previous selection. ChangeOptions Exit Extra Rinse: Yes 10.55 Temp.

T/Min. 132986251GB.qxd 24/02/2005 16:17 Pagina 89 (Nero/Process Black pellicola)90 ENGLISH Depending on the program, different functions can be combined. These must be selected after choosing the desired program and before depressing the START/PAUSE button. By depressing the "Options" button, all the symbol icons, allowed for the selected programme will appear in the display (allowed for the selected programme). The first option will start flashing. Its name and status will appear in the display. If you want to change the option status, press "Change" button. There will appear a line below the selected icon, indicating that the option is set. To select the other options press again the «Options» button and proceed as before. Once you have completed the selection of the options, pressing the «Exit» button, the selected icons will remain fixed in the display. Note: To modify the already chosen option selections, repeat the previous procedure. Important! While selecting the option, if you press the temperature Temp. °C, spin T/Min., or Start/Pause button, or you move the selector dial, the relative function will be executed. EXTRA RINSE: this option can be selected with all programmes, except the wool program and handwash.The machine will add 2 rinses for cottons and 1 rinse for synthetics, delicates and silk. This option is recommended for people who are allergic to detergents, and in areas where the water is very soft. TIME SAVING: this option can be used for lightly soiled cotton, synthetic or delicate items in order to obtain a good washing program in a short time. The washing time will be reduced according to the type of fabric and the selected temperature. Selecting this option «Short» or «Very Short» will be shown in the display. DELAY START: this option makes it possible to delay the starting of the washing program by 30 min - 60 min - 90 min, 2 hours and then by 1 hour till 20 hours. The delay you have selected is indicated in the display. ChangeOptions Exit COTTON

T/Min. You must select this option after you have set the program and before you press the START/PAUSE button. You can cancel the delay time at any moment, before you press the START/PAUSE button. If you have already pressed the START/PAUSE button and you wish to cancel the Delay time proceed as follows:

1. set the washing machine to PAUSE by pressing

the START/PAUSE button;

2. deselect the Delay start option, changing the

program. Important! The selected delay can be changed only after selecting the washing program again. The door will be locked throughout the delay time. If you need to open the door, you must first set the washing machine to PAUSE by pressing the START/PAUSE button. After you have closed the door, press the START/PAUSE button again. The Delay Start cannot be selected with SPIN and DRAIN programmes. PREWASH: select this option if you wish your laundry to be prewashed before the main wash (not available for wool and handwash cycle, MINI 30 and silk). The Prewash ends with a short spin at 650 rpm in programmes for cotton and synthetic fabrics, whereas in the program for delicate fabrics the water is only drained. INTENSIVE: for heavy soiled laundry. This option can be selected only for cottons and synthetics. The washing time will be prolonged according to the cycle temperature and the fabric type. EASY IRON: selecting this button the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the machine will perform 6 rinses instead of 3 for cotton and 4 rinses instead of 3 for synthetics. This function can be used for cotton and synthetic fabrics. If this option is selected for cotton programmes, the spin speed automaticaly will reduce to 1000 rpm. ChangeOptions Exit Delay Start Start in 30 min 11.25 Temp.

T/Min. 132986251GB.qxd 24/02/2005 16:17 Pagina 90 (Nero/Process Black pellicola)91 ENERGY SAVING: this option can be selected only for synthetics lightly or normally soiled with a temperature of 40°C or higher. The washing time will be prolonged. If you select 60°C-50°C-40°C, the washing temperature will be reduced to 42°C. SETUP: Setup option is used for selecting various basic settings without affecting the particular wash programme. These basic settings will remain active until they are deselected/modified. To move through the different Setup settings use the «Options» button. To change/confirm the selected setting use the «Change» button. MEMORY Programme settings that are frequently used can be saved (e.g. cotton, 90°C, 1400 rpm, with time saving). There are 3 memory spaces available for this purpose. The saved programme can be selected in the same way as any other wash programme by means of the selector dial. Example: Cotton , 90°C, 1400 rpm, with Time saving.

1. Select the cycle and programme settings.

2. Enter the Setup option and select one of the

T/Min. ChangeOptions Exit Cotton Cycle and at

T/Min. To change the memorized programme setting repeat the procedure from the beginning. SOUND The sound setting permits you to modify the volume of the sound emitter. You can choose between different levels: low, no sound and normal. Example:

level. RINSE + The washing machine is set such that its water consumption is extremely economical. For people with allergies and in areas where the water is very soft, it can however be helpful to use more water when rinsing. When you select RINSE + 2 additional rinses will be carried out for cottons and 1 additional rinse for synthetics, delicates and silk items. If RINSE + has been selected, will appear in the option row. Change Options Exit Sound: Low or No Sound Temp.

T/Min. 132986251GB.qxd 24/02/2005 16:17 Pagina 91 (Nero/Process Black pellicola)92 ENGLISH LANGUAGE You can change the language setting if you would like the indicators in the display to appear in a different language. Example:

Language. CLOCK The clock setting permits you to modify/set up the current time. It is important to keep it updated as the current END Cycle Time depends on it. Example:

1. Enter the Setup option and select the Clock

2. With a short/single time pressure of the

1. Enter the Setup option and select the

2. Use the "Change" button to set up the desired

brightness level. Note: At the end of the programme if no button is pressed for approximately 10 minutes the backlight intensity goes off. ChangeOptions Exit Brightness

T/Min. ChangeOptions Exit Brightness

T/Min. 132986251GB.qxd 24/02/2005 16:17 Pagina 92 (Nero/Process Black pellicola)93 6 START/PAUSE button This button has 2 functions: ● Start: after you have selected the desired programme and options, press this button to start the washing machine. The light close to the button will stop flashing and remain lit. If you have selected a delay time option, the countdown will begin and will be shown on the display. ● Pause: when you press this button again, the programme in progress is interrupted. The light close to the button will start flashing. To restart the programme, press the button again. When you PAUSE the cycle, it becomes possible to open the door if: ● The washing machine is not in the heating phase;● The level of the water is not high;● The drum is not turning. The door could be opened only when «Door openable» message appears in the display. Important! You must set the washing machine to PAUSE before you make any change in the programme in progress. Programme information Wool The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. Licence No. M9605. Rinses With this programme it is possible to rinse and spin the garments which have been washed by hand. The machine performs 3 rinses, followed by a final long spin at the maximum speed. START/PAUSE The spin speed can be reduced by depressing the T/Min. button. The final spin is foreseen only for cotton items as in the spin programme. Drain For emptying out the water of the last rinse in programmes with the or option. Turn first the programme selector dial to STOP, then select the Drain programme and depress the START/PAUSE button. Spin Separate long spin at the max speed for hand washed garments. It has to be used for cotton items. You can reduce the speed by means of T/Min. button to adapt it to the fabrics to be spun. Gentle spin Separate spin at max. 700 rpm for hand washed garments. It has to be used for synthetic, delicate, wool/handwashed, silk items. You can reduce the speed by means of T/Min. button to adapt it to the fabrics to be spun. MINI 30 This is a complete programme that can be combined with the following options: Spin speed reduction,

and Delay start. To be used for laundry which is lightly soiled or which needs freshening up. Max. load 3 kg. Washing temperature 30° C. Programme duration 30 minutes. Final spin speed 700 rpm. STOP= Off/Reset / Switching the machine off To reset a programme and to switch off the machine turn the selector dial to STOP. Now can a new programme be selected. 132986251GB.qxd 24/02/2005 16:17 Pagina 93 (Nero/Process Black pellicola)94 ENGLISH Washing hints Sorting the laundry Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens. Temperatures 90° for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets...) 60° for normally soiled, colour fast garments (e.g. shirts, night dresses, pyjamas....) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear). 0 (cold) for delicate items (e.g. net curtains), mixed 30°-40° laundry including synthetic fibres and woollens bearing the label «pure new wool, machine washable, non-shrink». The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M9605. Before loading the laundry Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash. New coloured items may run in the first wash; they should therefore be washed separately the first time. Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins). Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes. Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or net. Maximum loads Recommended loads are indicated in the programme charts. General rules: Cotton, linen: drum full but not too tightly packed; Synthetics: drum no more than half full; Delicate fabrics and woollens: drum no more than one third full. Washing a maximum load makes the most efficient use of water and energy. For heavily soiled laundry, reduce the load size. Laundry weights The following weights are indicative: bathrobe 1200 g napkin 100 g quilt cover 700 g sheet 500 g pillow case 200 g tablecloth 250 g towelling towel 200 g tea cloth 100 g night dress 200 g ladies’ briefs 100 g man’s work shirt 600 g man’s shirt 200 g man’s pyjamas 500 g blouse 100 g men’s underpants 100 g Removing stains Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing. Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water. Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times. Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth. Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole. Mould stains: treat with bleach, rinse well (whites and fast coloureds only). Grass: soap lightly and treat with bleach (whites and fast coloureds only). 132986251GB.qxd 24/02/2005 16:17 Pagina 94 (Nero/Process Black pellicola)95 Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain. Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach. Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach. Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly. Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste. (*) do not use acetone on artificial silk. Detergents and additives Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature. The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling. All commonly available washing machine detergents may be used in this appliance: – powder detergents for all types of fabric, – powder detergents for delicate fabrics (60°C max) and woollens, – liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only. The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme. If using concentrated powder or liquid detergents, a programme without prewash must be selected. Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme. Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme. Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Quantity of detergent to be used The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used. Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority. Follow the product manufacturers’ instructions on quantities to use. Use less detergent if: – you are washing a small load, – the laundry is lightly soiled, – large amounts of foam form during washing. Degrees of water hardness Level Characteristic Degrees German °dH French °T.H. soft medium hard very hard

8-14 15-21 more than 21 0-15 16-25 26-37 more than 37

132986251GB.qxd 24/02/2005 16:17 Pagina 95 (Nero/Process Black pellicola)96 ENGLISH International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.Energetic washDelicate washMax. washtemperature 95°C Max. washtemperature 60°C Max. washtemperature 40°C Max. washtemperature 30°C Hand wash Do not wash at allBleaching Bleach in cold water Do not bleachIroning Hot ironmax 200°CWarm ironmax 150°CLukewarm ironmax 110°CDo not ironDry cleaning Dry cleaningin all solventsDry cleaning inperchlorethylene,petrol, pure alcohol,R 111 & R 113Dry cleaningin petrol,pure alcoholand R 113Do notdry cleanDrying Flat On the line On clotheshangerTumble dry high temperature low temperatureDo nottumble dry

132986251GB.qxd 24/02/2005 16:17 Pagina 96 (Nero/Process Black pellicola)97 Switching the appliance for the first time. LANGUAGE When switching on the appliance for the first time you must set the language in which you want the indicators in the display to appear. Important! If the display is not showing any language, the appliance has already been switched on once. In such case, go to the chapter «Change language» if you would like to change the language setting. Example:

1. Press the CHANGE button until the desired

language appears in the display.

2. Press the EXIT button to confirm the selection.

All indicators in the display will appear in this language from now on. When the appliance is switched on again all indicators in the display will appear in this language. Note: If the undesired language has been set, press contemporary T/Min. + OPTIONS buttons for about 2 seconds in order to change the language. Follow the instructions as before.

You should set the time prior to the first wash and when changing to and from daylight savings time. See «Clock setting», Setup. ChangeOptions Exit Einstellungen Temp.

T/Min. Operating sequence Before washing your first load of laundry, we recommend that you run a cotton cycle at 90°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine.

1. Place the laundry in the drum

Open the door. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the manufacturer in a graduated cup and pour it into the main wash compartment . If you have selected the prewash option, pour detergent into the appropriate compartment marked

3. Measure out the additive

If required, pour fabric softener into the compartment marked , without exceeding the «MAX» mark.

4. Select the desired programme

Switch the machine on turning the programme selector dial to the desired position. To switch the appliance off turn it to STOP.

Turn the selector dial, in order to select the desired programme/fabric. The relevant message will appear in the display. The display will show the “End cycle time” of the selected programme, calculated on the basis of the maximum load for each type of fabric. The START/PAUSE button light will start flashing. If the load of laundry to be washed is small, at the beginning of the cycle the display will still indicate the “End cycle” relevant to the maximum load. The duration value will be gradually adjusted during the execution of the cycle.

6. Select the temperature

Press the TEMP. °C button if you wish to select a temperature value different from the one proposed by the washing machine. The message of the maximum available temperature appears on the second row of the display (instead of «cycle end at»). In the corner of the third row appears the indication of the selected temperature. ChangeOptions Exit COTTON MAX 90°C

or Night cycle . Press the SPIN button repeatedly, in order to select the desired spin speed or No Spin «0» or the Rinse Hold or the Night Cycle options. The relevant message will appear on the second row of the display. The selected spin level will be shown on the third row next to the spin button. If you select the Rinse Hold or Night Cycle options, the machine will stop at the end of the programme with the water still in the tub.

8. Select the desired options

Depress the relevant buttons to select the required options. Depending on the selected programme only certain options are available and shown during the selection phase. Note: Not all the options are compatible between themselves. The uncompatible option icons will disappear.

9. Select the DELAY TIME

Before you start the programme, if you wish the starting to be delayed, choose the DELAY option. The selected delay time value (up to 20 hours) will appear on the display while selecting. The end cycle will be updated and shown on the relative position of the display. ChangeOptions Exit Delay Start Start in 30 min 11.25 Temp.

Press the START/PAUSE button. The relevant light will stop flashing. The message relevant to the phase that is in progress will be shown in the display. If you have chosen a delayed start, the washing machine will begin the countdown.

11. Altering an option or a programme

Before you make any change, you must pause the washing machine by pressing the START/PAUSE button. It is possible to change any phase before the programme carries it out. When the programme has started, you can only reset it by turning the programme selector dial to STOP and then you can select the new programme. The washing water remains in the tub. Start the new programme by depressing the START/PAUSE button. Note: To drain the water before starting the new cycle, you have to cancel the programme and select the cycle.

12. Cancelling a programme

Turn the selector dial to STOP to cancel a programme which is running. Now you can select a new programme.

13. Opening the door after the

programme has started First set the machine to PAUSE by pressing the START/PAUSE button. If the door does not open, this means that the water temperature is above 55°C, that the water level is above the bottom edge of the door or that the drum is turning. If you cannot open the door but you need to open it you have to switch the machine off by turning the programme selector dial to STOP. After about 3 minutes the door can be opened (pay attention to the water level and temperature!). Select the programme again and depress START/PAUSE to restart it. ChangeOptions Exit COTTON Washing

14. At the end of the programme

At the end of the programme, the washing machine stops automatically, gives an audible signal (if option no sound has not been selected), and displays the relevant message. If the anti-crease (rinse hold)

r (night cycle) options have been selected, the START/PAUSE button light is off. The message “Door locked” appears in the display. To drain or spin, first turn the programme selector dial to STOP and then to drain programme or spin/delicate spin programme / . Release of the lock is also indicated by the coming on of the message "Door openable" (cycle ended). Switch the machine off by turning the programme selector dial to STOP. Remove the laundry from the drum and carefully check that the drum is empty so as to avoid any forgotten items being damaged in a subsequent wash (e.g. shrinking) or their colour running into a load of whites. If you do not intend to carry out another wash, close the water tap. Leave the door open to prevent the formation of mildew and unpleasant smells. 132986251GB.qxd 24/02/2005 16:17 Pagina 99 (Nero/Process Black pellicola)100 ENGLISH Programme table ECONOMY PROGRAMME For slightly/normally soiled cottons you can use the relevant Economy programme: you will obtain good washing results by saving energy. In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the Cottons Economy at 60º C wash programme for cotton.

• The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It refers to the highest temperature for each wash programme. WASHING PROGRAMMES Type of laundry and symbols on labels White and coloured cotton: e.g. sheets, tablecloths, household linen White and coloured cotton Economy**: e.g. shirts, blouses, underwear, towels, house-hold linen Synthetic fabrics: e.g. shirts, blouses, underwear Delicate fabrics: e.g. acrylic fabrics, viscose, polyester, synthetic blends Wool Handwash 6 kg 6 kg 3 kg 3 kg 2 kg 2 kg Max load Programme/ temperature Available options Consumption* Energy kWh Water litres Time min. Cottons 0 (cold)-90°C Cottons Economy 60°-50°-40°C Synthetic 0 (cold)-60°C Delicate 0 (cold)-40°C Wool 0 (cold)-40°C Handwash 0 (cold)-40°C Description of programme Main wash at 0 (cold)-95°C 3 rinses Long spin Main wash at 60°-50°-40°C 2 rinses Long spin Main wash at 0 (cold)-60°C 3 rinses Short spin Main wash at 0 (cold)-40°C 3 rinses Short spin Main wash at 0 (cold)-40°C 3 rinses Short spin Main wash at 0 (cold)-40°C 3 rinses Short spin Silk 1 kg Silk 30°C Main wash at 30°C 3 rinses Short spin Mini 30 programme 3 kg MINI 30 30°C Main wash at 30°C 3 rinses Short spin

• The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. Programme selector dial position

Wash load max. Programme Addictional functions Consumption* Energy kWh Water litres Time min. For rinsing items For empting out the water of the last rinses of program- mes with option and Night Cycle Separate spin for cottons Separate spin for synthetics, delicates, wool/hanwash and silk For cancelling the programme which is running or to switch the machine off. Programme description 3 rinses with liquid additive, if required. Long spin at max. speed Water draining Drain and long spin at the max. speed Drain and delicate spin

Clean the outside of the machine with soap and water only. Rinse with clean water and dry with a soft cloth. Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

Check from time to time the door seal and eliminate eventual possible objects that could be trapped in the fold.

3. Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer. Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner. To facilitate cleaning, the top part of the additive compartments can be removed. P1207 P1211 P1050 Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

4. Water inlet filter

If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked. Turn off the water tap. Unscrew the hose from the tap. Clean the filter with a stiff brush. Screw the hose back onto the tap.

The pump should be inspected regularly and particularly if

• the machine does not empty and/or spin

• the machine makes an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump. Proceed as follows:

• Disconnect the appliance.

• If necessary wait until the water has cooled down.

• Open the pump door. P1114 P1090 P0038 Maintenance 132986251GB.qxd 24/02/2005 16:17 Pagina 102 (Nero/Process Black pellicola)103

• Place a bowl on the floor to collect any spillage.

• Pull out the emergency emptying hose, place it in the bowl and remove its cap.

• When no more water comes out, unscrew the pump cover and remove it.

• Remove any objects from the pump impeller by rotating it.

• Put the cap back on the emergency emptying hose and place the latter back in its seat.

• Screw the pump cover fully in.

• Close the pump door.

6. Emergency emptying out

If the water is not discharged, proceed as follows to empty out the machine:

• pull out the plug from the power socket;

• close the water tap;

• if necessary, wait until the water has cooled down;

• place a bowl on the floor and place the end of the emergency emptying hose into the bowl. Remove its cap. The water should drain by gravity into the bowl. Whe the bowl is full, put the cap back on the hose. Empty the bowl. Repeat the procedure until water stops flowing out;

• clean the pump if necessary as previously described;

• replace the emergency emptying hose in its seat after having plugged it;

• screw the pump cover again and close the door. P1117

7. Frost precautions

If the machine is installed in a place where the temperature could drop below 0°C, proceed as follows:

• Remove the plug from the socket.

• Close the water tap and unscrew the water inlet hose from the tap.

• Place the end of the emergency emptying hose and that of the inlet hose in a bowl placed on the floor and let water drain out.

• Screw the water inlet hose back on and reposition the emergency emptying hose after having put the cap on again. By doing this, any water remaining in the machine is removed, avoiding the formation of ice and, consequently, breakage of the affected parts. When you use the machine again, make sure that the ambient temperature is above 0°C. P1115 132986251GB.qxd 24/02/2005 16:17 Pagina 103 (Nero/Process Black pellicola)104 ENGLISH Problems which you can resolve yourself, before calling the After Sales Service. During machine operation it is possible that one of the following messages appears on the display: Problem with the water supply ......“No incoming water. Check tap & hose” Problem with water draining ..........“No drain. Check drain hose/filter” Door open ......................................“Door not closed. Please check” Once the problem has been eliminated, press the START/PAUSE button to restart the programme. If after all checks, the problem persists, contact your local Service Centre. Problem Possible cause

• The machine does not start up:

• The door is not firmly closed. (Door not closed. Please check)

• The machine is not plugged in or there is no power at the socket.

• The main fuse has blown.

• The programme selector dial is not positioned correctly and the START/PAUSE button has not been depressed.

• The Delay Start has been selected.

• The machine does not fill:

• The water tap is closed. (No incoming water. Check tap & hose)

• The inlet hose is squashed or kinked. (No incoming water. Check tap & hose)

• The filter in the inlet hose is blocked. (No incoming water. Check tap & hose)

• The door is not properly closed. (Door not closed. Please check)

• The machine fills then empties immediately:

• The end of the drain hose is too low. Refer to relevant paragraph in “water drainage” section.

• The machine does not empty and/or does not spin:

• The drain hose is squashed or kinked. (No drain. Check drain hose/filter)

• A programme which ends with water in tub (option

) has been selected.

• The option no spin “0” has been selected.

• The drain pump is clogged. (No drain. Check drain hose/filter)

• There is water on the floor:

• Too much detergent or unsuitable detergent (creates too much foam) has been used.

• Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.

• The drain hose is damaged.

• The cap on the emergency emptying hose has not been replaced after cleaning the pump.

• Unsatisfactory washing results:

• Too little or too much detergent has been used.

• An unsuitable detergent has been used.

• Stubborn stains have not been treated prior to washing.

• The correct temperature was not selected.

• Excessive laundry load. Something not working? 132986251GB.qxd 24/02/2005 16:17 Pagina 104 (Nero/Process Black pellicola)105 If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information. Mod. .......... Prod. No. ........... Ser. No. .........

• Water is not visible in the machine:

• The machine, which is the result of modern technology, runs in a very economical way with low water consumption. Performance is nevertheless excellent.

• Spinning starts late or the machine does not spin:

• The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin programme.

• The machine makes an unusual noise

• The machine is fitted with a type of motor which makes an unusual noise compared with other traditional motors. This new motor ensures a softer start and more even distribution of the laundry in the drum when spinning, as well as increased stability of the machine.

• Detergent residue is left after the wash cycle

• This is most probably due to non soluble components contained in modern detergents. It is not a sign of inadequate rinsing. Brush or shake the garments and, if necessary, wash them again.

• Foam remains after the last rinse

• Modern detergents can produce foam even after rinsing, but this will not affect the quality of the wash.

• The door will not open:

• The programme is still running, the drum is turning.

• The door lock has not been released.

• The water level is above the bottom edge of the door.

• The machine is heating the water. The door could be opened only when «Door openable» message appears in the display.

• The machine vibrates or is noisy:

• The transit bolts and packing have not been removed.

• The support feet have not been adjusted.

• The laundry is not evenly distributed in the drum.

• Maybe there is very little laundry in the drum. 132986251GB.qxd 24/02/2005 16:17 Pagina 105 (Nero/Process Black pellicola)The Electrolux Group. The world’s No. 1 choice. The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world. 132986251NL.qxd 24/02/2005 16:12 Pagina 29 (Nero/Process Black pellicola)
