USER MANUAL 550VB Reliable

At Reliable, we do what we love, and take pride in doing it right. You want what's best for the people, places and things that matter in your life - from where you live to what you wear. So do we. From the start, we approach every product with a craftsman's attention to detail and passion for making it right. Quality, functionality, design and customer service play an equally important part in delivering what's right for you. With its powerful vacuum and up-air (500VB only) features, they will allow you to obtain the benefits of professional pressing in a compact and convenient format.

For your safety and to fully enjoy the advantages of this product, please take a few minutes to read all of the important safeguards and care instructions. Keep this manual handy and review the product warranty for your reference.

HOW TO ASSEMBLE AND USE

READ ALL INSTRUCTIONS BEFORE USE

1. Unfolding: Hold the ironing board in a vertical position with the tip downwards; press the handle (5) placed underneath the board and lift up the working surface by pulling with the foot outwards until the desired height is reached.
2. Unfold the boiler support (3) and place the steam generator on the shelf.
3. Insert the electrical plug into an electrical outlet.
4. Place the pedal (1) near the working area.
5. Push the on/off switch (2) on the "l" position.
6. For the 500VB model, the "I" position is for vacuum, "O" is neutral, and "II" is for the up-air (blowing) function.
7. Wait for a few minutes until the working surface is warmed up.
8. Start ironing.
9. To activate the vacuum or up-air function, simply press on the foot pedal (1).
10. You can use the vacuum or the blowing function at the same time as you are ironing, or you can use it after the ironing (for very light fabrics this may be the preferred way).
11. At the end of the ironing we suggest you leave the on/off switch (2) on for a few minutes to ensure the inside of the table is dry and free of condensation.
12. Folding: turn the on/off switch (2) off, remove the plug from the outlet. Take the boiler and the iron off of the boiler support (3), fold the boiler support (3), and make sure there is no garment on the working surface and/or on the catch tray (4).
13. As soon as the working surface is cool, position the ironing board vertically with the tip downwards, press the handle (5) placed under the working surface and at the same time pull the legs (6) inward.

FOR HOUSEHOLD AND LIGHT COMMERCIAL USE ONLY. SAVE THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.

ATTENTION

IMPORTANT: When you want to dispose of the appliance, NEVER throw it in the garbage. Instead, go to your closest recycling station or waste collection centre for treatment.

FEATURES

• Powerful vacuum (550VB) and vacuum / up-air (500VB model)
  Sturdy tube frame construction
  Built-in heating element
  Large pressing surface
  Useable from either side of table
• Folds up quickly for easy storage and transportation

MAINTENANCE

We suggest checking the ironing board cover (7) periodically and, if it is necessary, replacing it with an original one (part #500VBCR).

TECHNICAL DATA

Voltage:120V 60 Hz

Working power: 650 W

Power of heating element: 600

Working surface: cm 125

WARRANTY CONDITIONS

Reliable Corporation accepts no liability for faults in your iron in the event of noncompliance with the specifications of the warranty conditions or failure to follow the operating or maintenance directions included in instruction book.

The warranty card may be found separately.

We remind you that the damage caused by the effects of scale is not covered by the warranty.

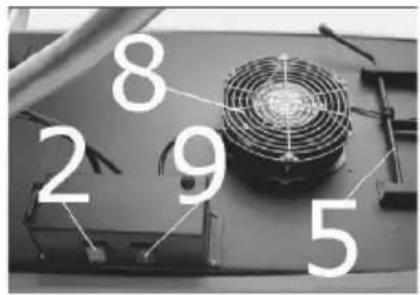

DESCRIPTION OF THE 500VB

1. Pedal
2. On/off switch
3. Boiler support
4. Catch tray
5. Handle
6. Legs
7. Working surface cover
8. Motor
9. Blowing/vacuum switch

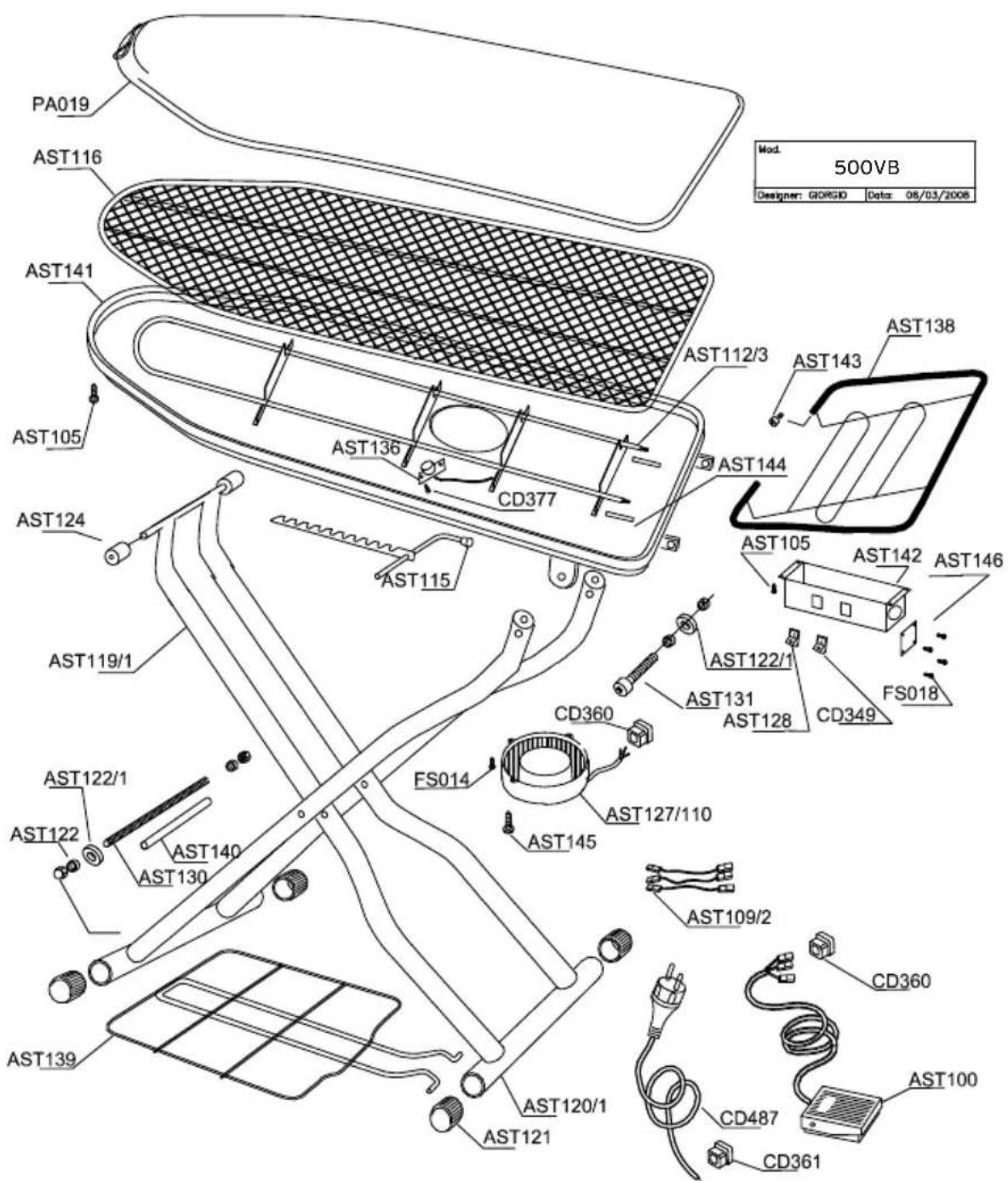

PARTS DRAWING 500VB

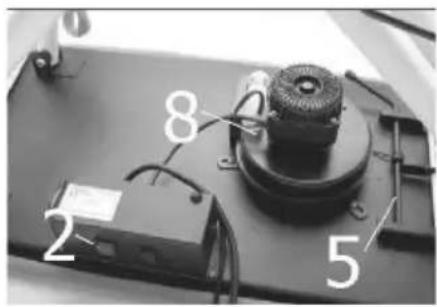

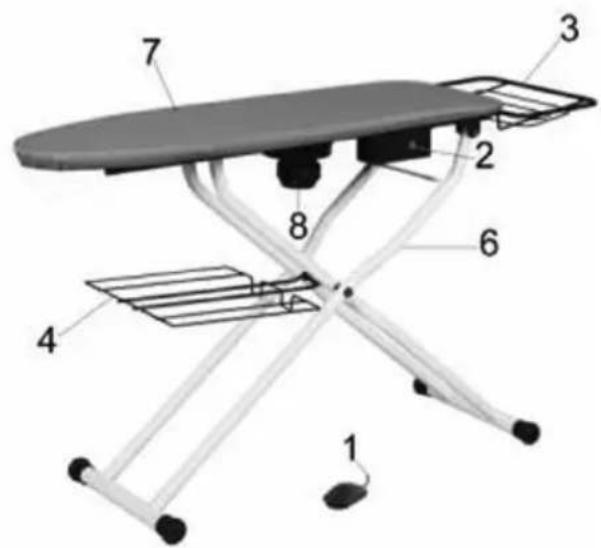

DESCRIPTION OF THE 550VB

1. Pedal
2. On/off switch
3. Boiler support
4. Catch tray
5. Handle
6. Legs
7. Working surface cover
8. Motor

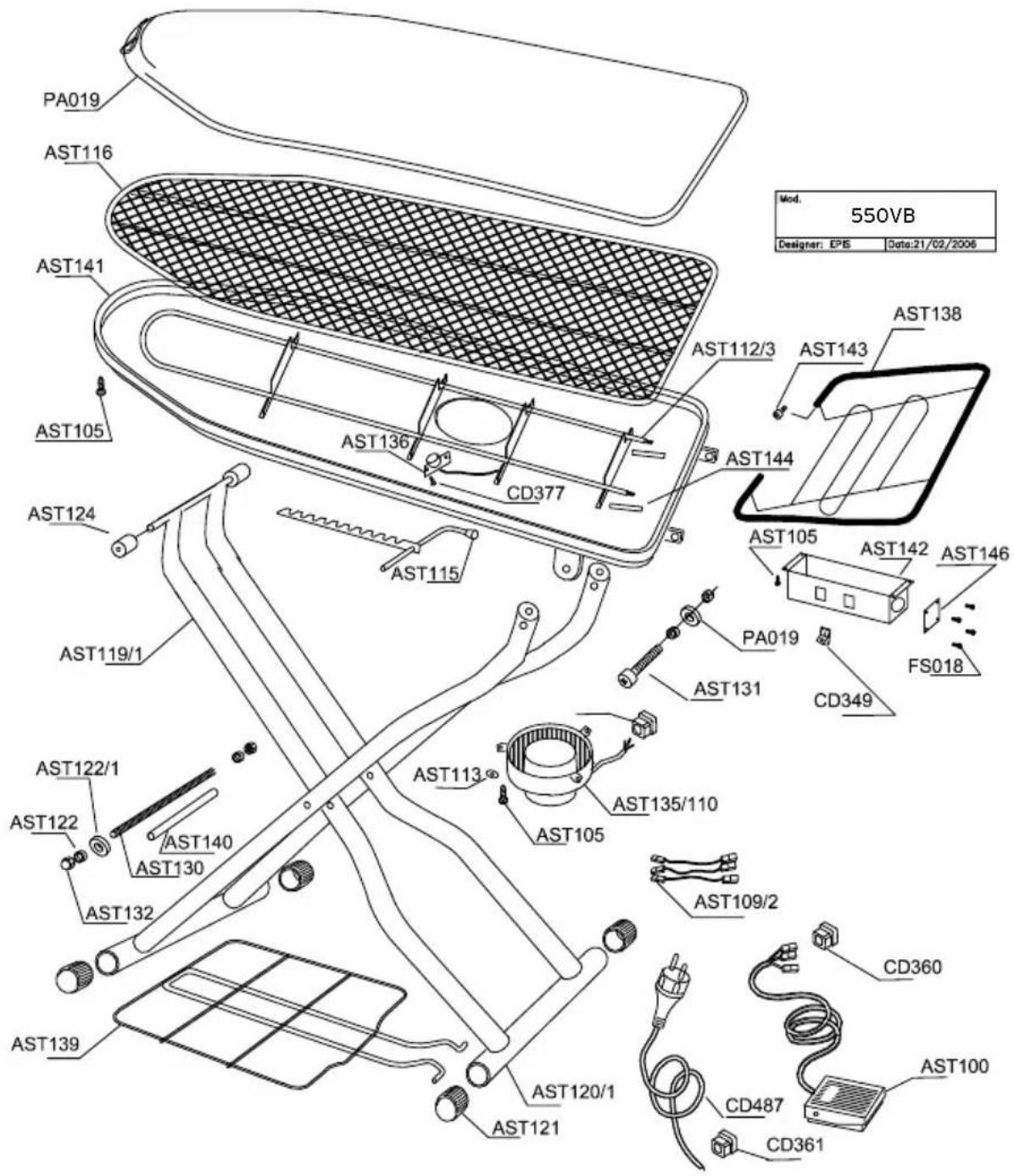

PARTS DRAWING 550VB

Reliable Corporation ("Reliable") warrants to original purchaser of its products that every product sold by Reliable (a "Reliable Product") is free from defects in material and workmanship for a period of one year from the date of purchase if properly used and maintained. Subject to the conditions and limitations set forth below, Reliable will either repair or replace any part of a Reliable Product that proves defective by reason of improper workmanship or materials. If the defective Reliable Product is no longer available and cannot be repaired effectively or replaced with an identical model, Reliable shall replace the defective Reliable Product with a current Reliable Product of equal or greater value. Repaired parts or replacement products will be provided by Reliable on an exchange basis, and will be either new or refurbished to be functionally equivalent to new. If Reliable is unable to repair or replace a Reliable Product, it will refund the current value of that Reliable Product at the time the warranty claim is made.

This limited warranty does not cover any damage to a Reliable Product that results from improper installation, accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or envsteamermental conditions, wear and tear resulting from normal use of the product, or any unauthorized disassembly, repair, or modification. This limited warranty does not extend to any indirect, consequential or incidental damages that may be suffered by a user or from the use of a Reliable Product, including without limitation, any liability for third party claims for damage, and is limited to the amount paid by the original purchaser Reliable Product with respect to which this limited warranty protection applies. This limited warranty does not apply with respect to products that have been altered or which are missing serial numbers or for products not purchased directly from Reliable or a dealer authorized by us to sell Reliable Products.

This limited warranty is the only warranty that applies to any Reliable Product, supersedes any and all terms that may be contained in any other document or purchase order and may not be altered or amended except expressly in writing by Reliable.

To obtain a repair or replacement under the terms of this warranty, please contact our customer service group at 1-800-268-1649 or at [e-mail]. You will be required to submit an original receipt via fax or e-mail. The receipt must reflect that you are the original purchaser, the product was bought directly from us or from an authorized Reliable dealer and that the warranty claim is being made within the warranty period. You will be issued a return authorization number (RA#) and asked to ship the defective product together with proof of purchase and RA#, prepaid insured to the following address:

Reliable Corporation, 5-100 Wingold Avenue, Toronto, ON M6B 4K7. Freight collect shipments will be refused. The risk of loss or damage in transit will be borne by the customer. Once Reliable receives the defective product, it will initiate the repair or replacement process.

If you have any questions regarding this warranty, you may write to:

Reliable Corporation
100 Wingold Avenue, Unit 5
Toronto, Ontario
Canada M6B 4K7
www.reliablecorporation.com
