USER MANUAL KCM4212SX KITCHENAID

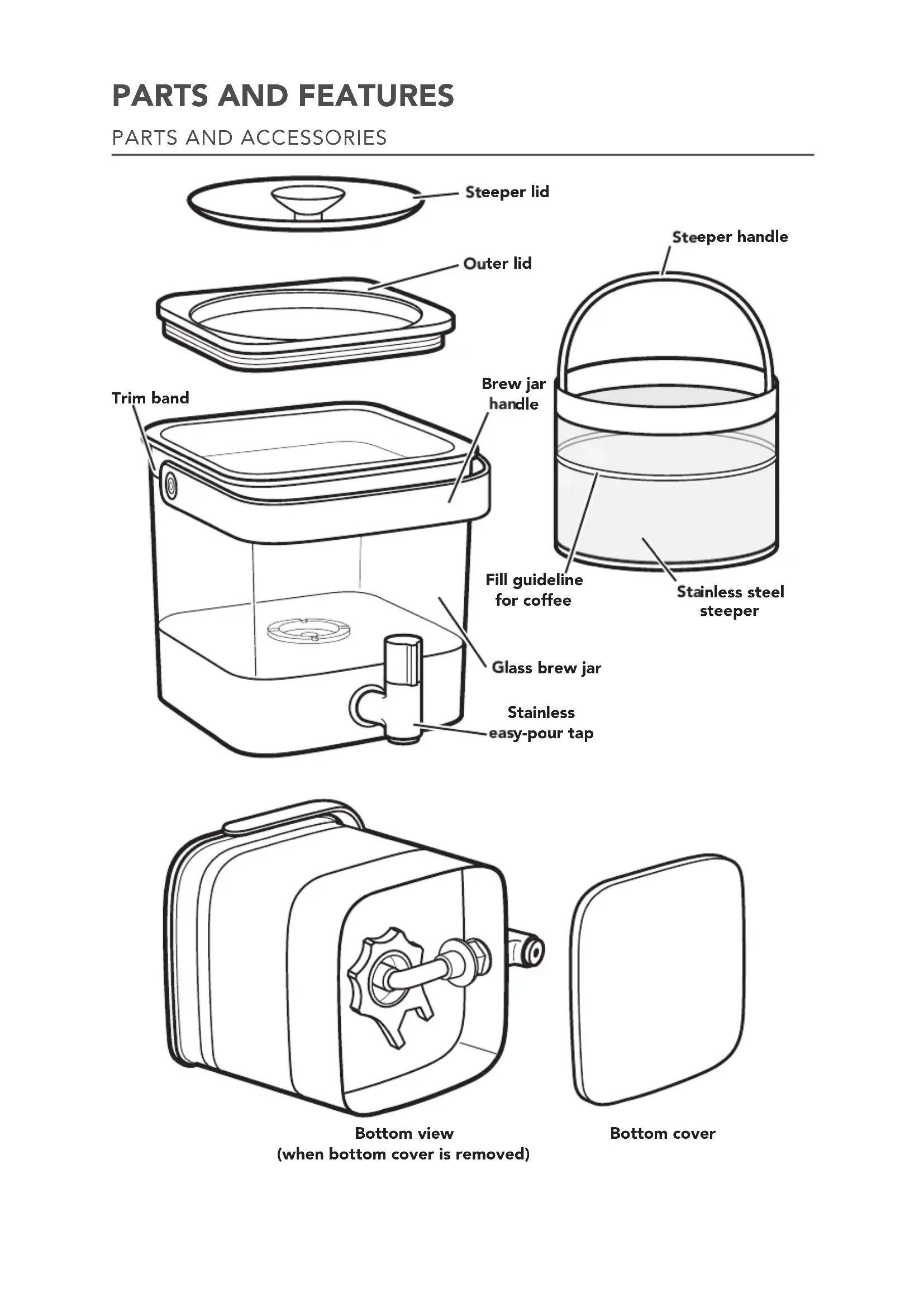

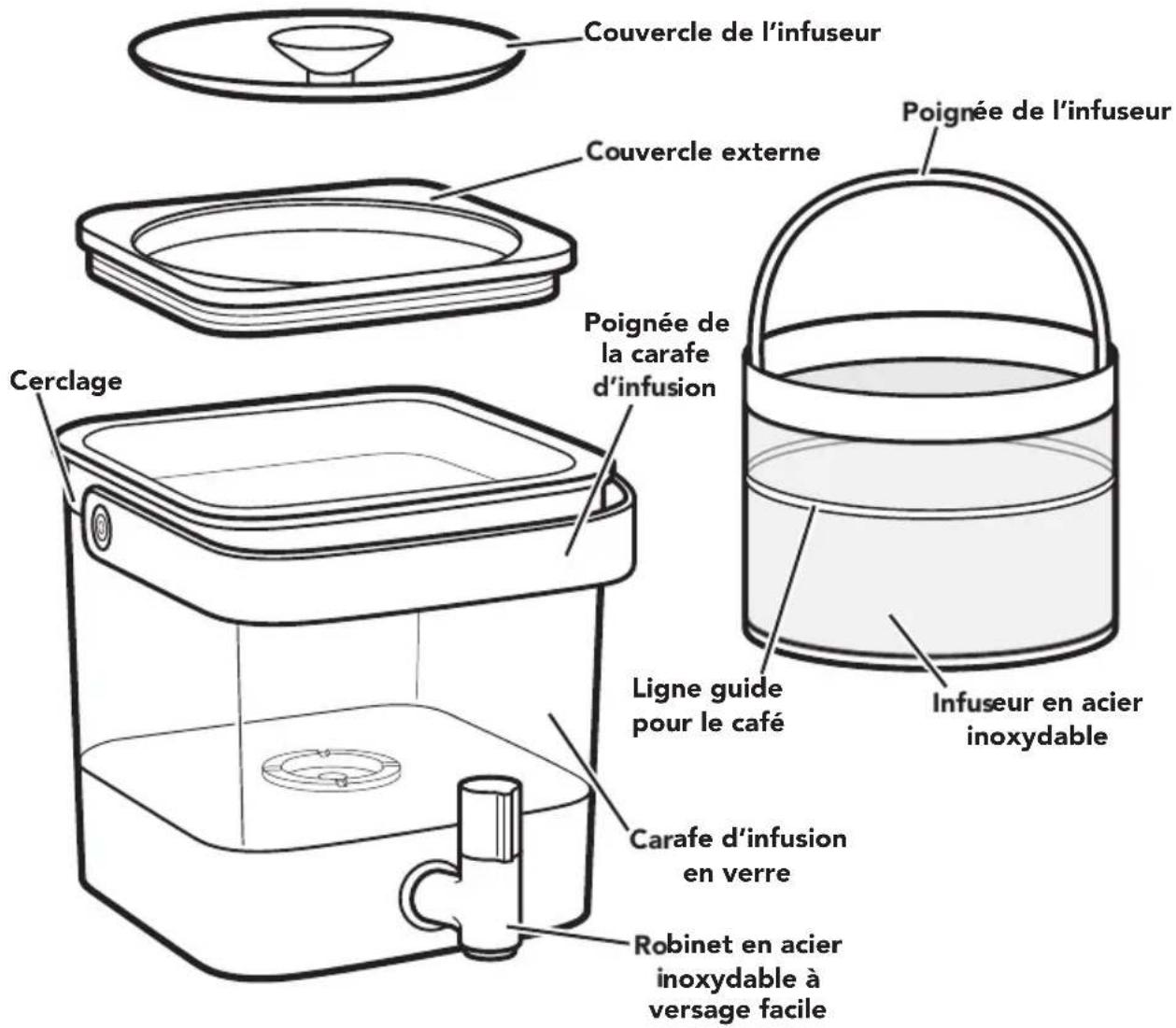

PARTS AND ACCESSORIES

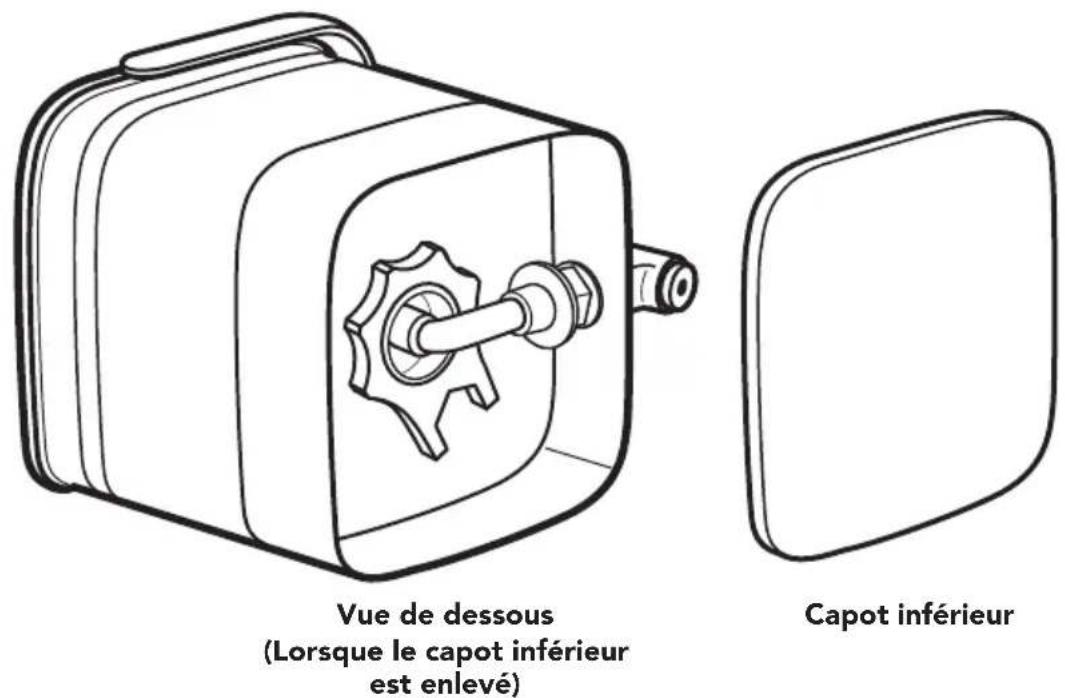

Glass brew jar Stainless steel steeper Steeper lid Outer lid Steeper handle Brew jar handle Stainless easy-pour tap Bottom view (when bottom cover is removed) Bottom cover Trim band Fill guideline for coffee W11027076A_EN_v20.indd 2 11/29/16 1:57 PMENGLISH

IMPORTANT SAFEGUARDS When using appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.

2. Close supervision is necessary when any appliance is used by or near children.

3. Do not operate any appliance after the appliance malfunctions, or has been

damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

4. Do not use outdoors.

5. Do not use near or on a hot gas or electric burner stove, or in a heated oven.

6. Do not use the appliance for other than intended use.

7. Do not use the Coffee Maker without lid properly closed.

8. Do not use the Coffee Maker with loose or weakened handle.

9. Do not clean the Coffee Maker with abrasive cleaners, steel wool, or other

10. This product is designed for indoor household use only. Not designed

12. Use only coarsely ground coffee.

13. Place the Coffee Maker on a nonslip surface.

SAVE THESE INSTRUCTIONS

The classic cold brew coffee brewing method uses coarsely ground coffee steeped in cold water over a period of 12-24 hours. This no-heat brew method produces a smooth, balanced avor that’s less bitter. The KitchenAid

Cold Brew Coffee Maker makes roughly 28oz (840mL) of coffee concentrate. To serve your cold brew beverage, we recommend using a 1:3 coffee to water/milk ratio. This means you add 1 part coffee concentrate to 3 parts water or milk. Example of recommended coarsely ground coffee.

INTRODUCTION TO COLD BREWING

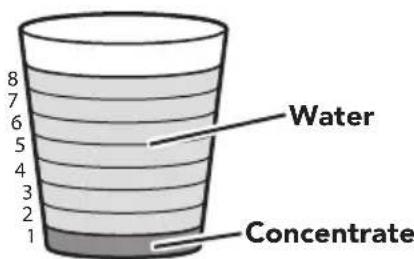

The Cold Brew Coffee Maker can also be used to make tea concentrate (approximately 32-34oz [960-1020mL]). Cold brewed tea is steeped in cold water over a period of 6-12hours. To serve your tea beverage, we recommend using a 1:7 tea to water ratio. This means you add 1 part tea concentrate to 7 parts water. Enjoy your cold brew tea the way you like by mixing concentrate with ice, water, milk, or sweeteners. TIP: The longer you steep and the more tea you use, the more bitter the tea will become.

RECIPES USING COFFEE CONCENTRATE

2oz (60mL) coffee concentrate

Cold coffee: 6oz (180mL) cold water or milk, add ice/sweeteners to taste Hot coffee: 6oz (180mL) hot water, add milk/sweeteners to taste

Concentrate Water or milk Adjust amount of coffee concentrate to achieve desired taste. FOR DETAILED INFORMATION ON THE COLD BREW COFFEE MAKER: Visit kitchenaid.com/quickstart for additional Instructions with videos and tips on how to use your Cold Brew Coffee Maker.

RECIPES USING TEA CONCENTRATE

1oz (30mL) tea concentrate

IMPORTANT: Before using the Cold Brew Coffee Maker, wash all parts by hand in warm, soapy water, making sure to rinse and drain the coffee tube before use. Dry thoroughly. To avoid damage, do not wash in the dishwasher.

USING THE COFFEE MAKER

NOTE: The height of your coffee grounds in relation to the fill guideline may vary depending on the roast of your coffee. 250grams of a light roast may be below the line, while a dark roast may be above the line. TIP: If making tea, scoop 120 grams of tea leaves into the steeper. TIP: The part in the coffee brewing process when gases from the coffee are released as the water hits the grounds is called the “bloom,” because it causes the grounds to grow and rise.

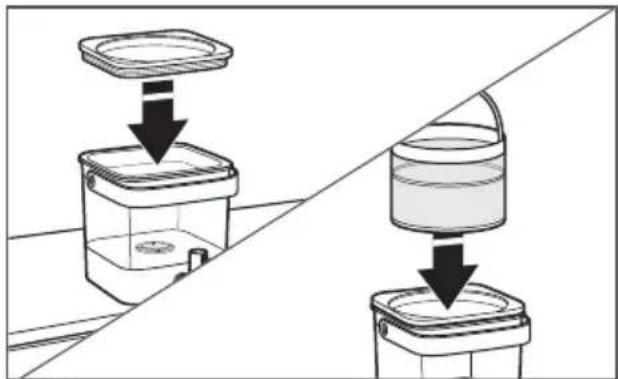

To assemble the Cold Brew Coffee Maker: Place the outer lid on the brew jar, then insert the steeper. Make sure steeper handle is lying flat.

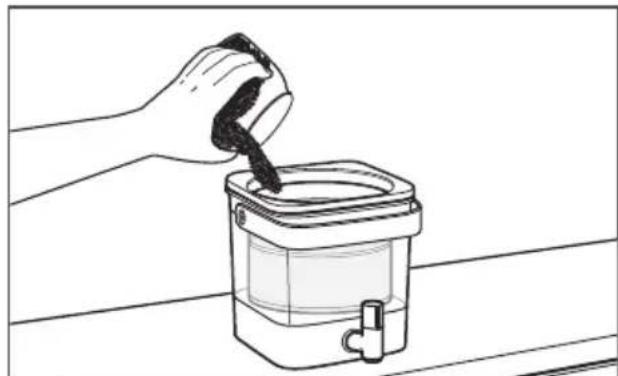

Scoop 250 grams of coarsely ground coffee into the steeper. The grounds should come close to touching the fill guideline on the steeper.

Make sure the brew jar tap is in the closed position.

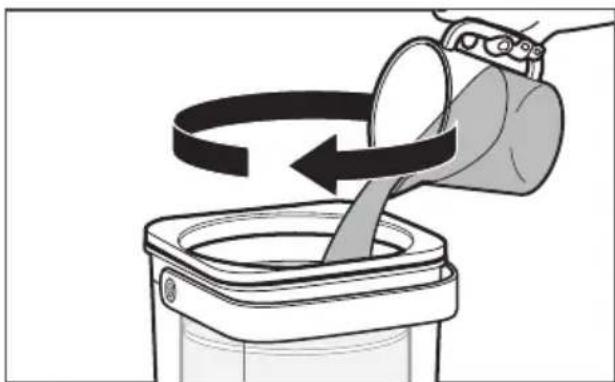

Pour approximately 1L of cold water over the grounds, using a circular motion and being sure to coat the grounds well. Pause for 1 minute to let the grounds bloom. W11027076A_EN_v20.indd 5 11/29/16 1:57 PM6 | USING THE COFFEE MAKER

After the coffee blooms, pour an additional 1/4 L of water over the grounds. Once comfortable with the process, you can use the trim band as a visual pouring guide. At the first pour, fill the jar until the water level is about 1" below the trim band. Then, let the coffee bloom, and add water until the level is at the bottom of the trim band.

Use a spoon to press the grounds down into the water, ensuring all of the grounds are fully saturated. There should be no dry coffee grounds.

Place the lid on the steeper, and allow the coffee to brew for 12-24 hours. Brew either at room temperature or in the refrigerator.

After brewing for 12-24 hours, take off the steeper lid.

Using the steeper handle, lift the steeper above the brew jar. Rest the steeper at an angle on the brew jar and allow to drain for 3 minutes, then change steeper rest angle and allow to drain for another 2 minutes. W11027076A_EN_v20.indd 6 11/29/16 1:57 PMENGLISH

NOTE: Because of its compact design, it fits neatly where you want on the refrigerator shelf or door. NOTE: Do not mix ingredients in the brew jar. Pour concentrate into a glass, then add water or milk.

Pull the steeper all the way out of the brew jar, and compost or discard the used grounds. Wash the steeper according to the “Care and cleaning” directions.

Return the steeper lid to the brew jar, and store your coffee concentrate in the refrigerator.

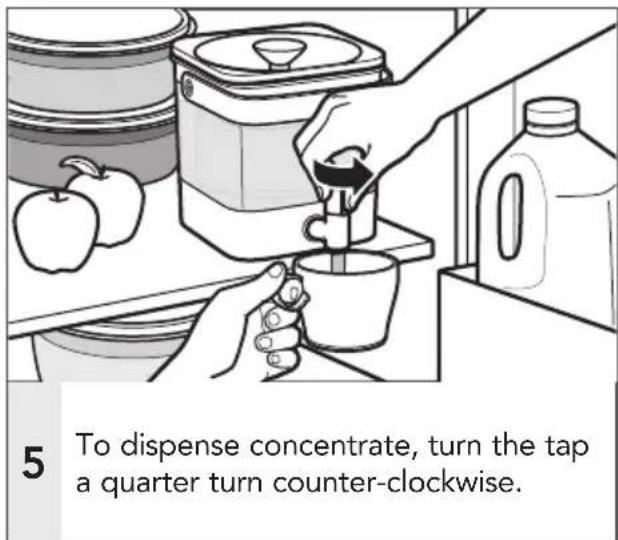

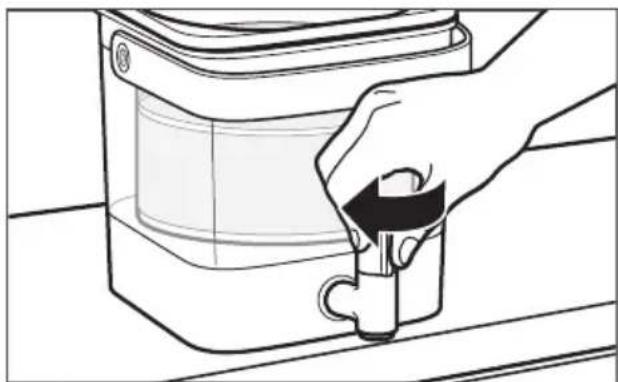

To dispense concentrate, turn the tap a quarter turn counter-clockwise.

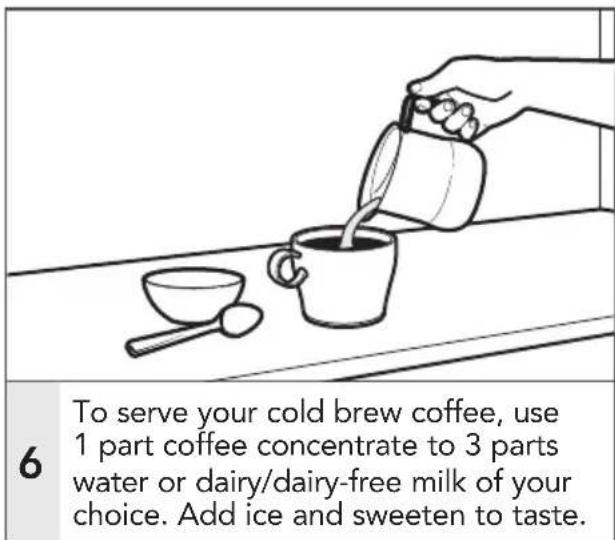

To serve your cold brew coffee, use 1 part coffee concentrate to 3 parts water or dairy/dairy-free milk of your choice. Add ice and sweeten to taste. NOTE: The coffee concentrate stays cold and fresh for up to 2 weeks in the refrigerator. FOR RECIPES AND DETAILED INFORMATION ON THE COLD BREW COFFEE MAKER: Visit kitchenaid.com/quickstart for additional recipes and Instructions with videos and tips on how to use your Cold Brew Coffee Maker. W11027076A_EN_v20.indd 7 11/29/16 1:57 PM8 | CARE AND CLEANING

IMPORTANT: It is critical to thoroughly clean the Cold Brew Coffee Maker after each use. To avoid damage, do not wash in the dishwasher. The taste of your coffee can be impacted if the brew jar and steeper assembly is not thoroughly cleaned of all grounds, coffee oil residue, or soap after each use.

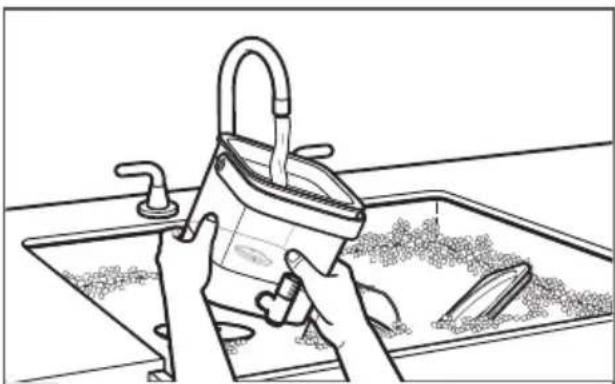

Clean all parts of the Cold Brew Coffee Maker by hand only. Rinse coffee residue from each part. Wash with warm, soapy water, then open the tap and run warm water through until tube and tap are empty. Dry each part with a dry, soft towel.

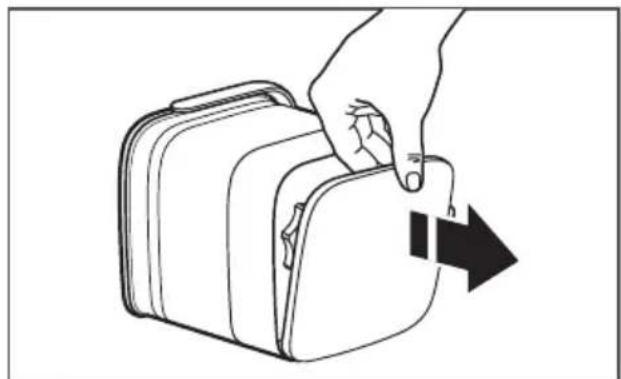

For occasional deeper cleaning: First, push the clasp to release the door located on the bottom of the brew jar.

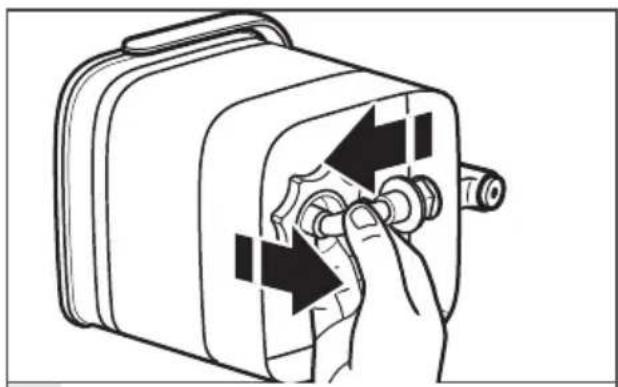

Next, gently loosen the hose nozzle from both ends to remove.

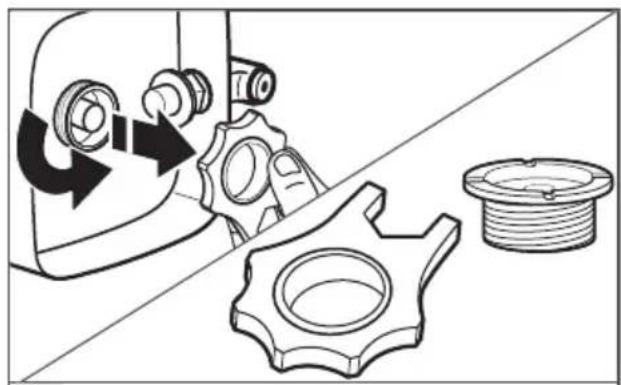

Then, twist the nut/wrench that holds the coffee drain in place and remove both of these parts. W11027076A_EN_v20.indd 8 11/29/16 1:57 PMENGLISH TROUBLESHOOTING | 9

TROUBLESHOOTING If your Cold Brew Coffee Maker should fail to operate as expected, please check the following: - If coffee is too bold: Grind your coffee at a coarser grind level, and/or steep for less time. The Cold Brew Coffee Maker produces a coffee concentrate. To serve at the proper strength, dilute your coffee concentrate with water or any dairy/dairy-free milk of your choice. - If coffee is too weak: Either grind your beans to a ner consistency, or brew for more time. Cold Brew coffee uses more coffee to brew than other methods. Make certain you use 250 grams of coffee to brew. - If coffee tastes bitter or unpleasant after use: Taste can be impacted if the Cold Brew Coffee Maker isn’t thoroughly cleaned. Make certain that all soap, grounds, and oily residue are thoroughly rinsed off of all parts after each use. See the “Care and cleaning” section for more information. If the problem is not due to one of the above items, see the “Arranging for service” chapter in the “Warranty and service” section. Do not return the Cold Brew Coffee Maker to the retailer, as they do not provide service. FOR DETAILED INFORMATION ON THE COLD BREW COFFEE MAKER: Visit kitchenaid.com/quickstart for additional Instructions with videos and tips on how to use your Cold Brew Coffee Maker.

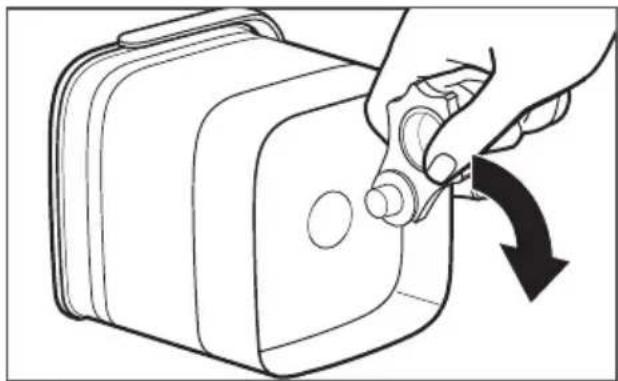

Finally, using the nut/wrench as a tool, loosen the tap and remove.

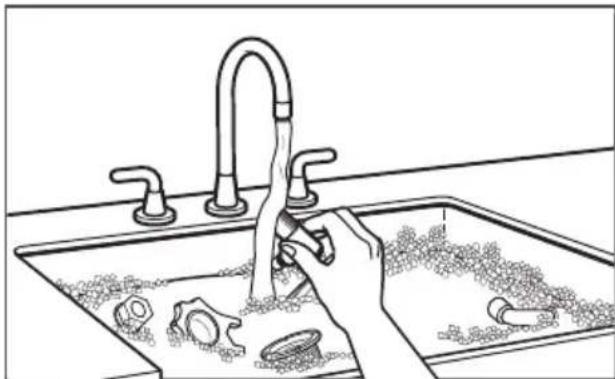

Hand wash all parts in warm, soapy water. Dry all parts thoroughly and reassemble. Ensure coffee drain seal is in place when reassembling. W11027076A_EN_v20.indd 9 11/29/16 1:57 PM10 | WARRANTY AND SERVICE

This warranty extends to the purchaser and any succeeding owner for Cold Brew Coffee Makers operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada. Length of Warranty: One Year Full Warranty from date of purchase. KitchenAid Will Pay for Your Choice of: Hassle-Free Replacement of your Cold Brew Coffee Maker. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.

The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. KitchenAid Will Not Pay for: A. Repairs when your Cold Brew Coffee Maker is used in other than normal single family home use. B. Damage resulting from accident, alteration, misuse or abuse. C. Any shipping or handling costs to deliver your Cold Brew Coffee Maker to an Authorized Service Center. D. Replacement parts or repair labor costs for Cold Brew Coffee Makers operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specic legal rights and you may also have other rights which vary from state to state or province to province. W11027076A_EN_v20.indd 10 11/29/16 1:57 PMENGLISH

WARRANTY AND SERVICE | 11

®/™ © 2016 KitchenAid. All rights reserved. KITCHENAID and the design of the Stand Mixer are trademarks in the U.S. and elsewhere. Used under license in Canada. In the United States and Puerto Rico: For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218 Outside the United States and Puerto Rico: Consult your local KitchenAid dealer or the store where you purchased the Cold Brew Coffee Maker for information on how to obtain service. For service information in Canada: Call toll-free 1-800-807-6777. For service information in Mexico: Call toll-free 01-800-0022-767. We’re so condent the quality of our products meets the exacting standards of KitchenAid that, if your Cold Brew Coffee Maker should fail within the rst year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Cold Brew Coffee Maker returned to us. Your replacement unit will also be covered by our one year limited warranty. If your Cold Brew Coffee Maker should fail within the rst year of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Cold Brew Coffee Maker, use the carton, packing materials, and prepaid shipping label to pack up your original Cold Brew Coffee Maker and send it back to KitchenAid. We’re so condent the quality of our products meets the exacting standards of the KitchenAid brand that, if your Cold Brew Coffee Maker should fail within the rst year of ownership, we will replace your Cold Brew Coffee Maker with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. If your Cold Brew Coffee Maker should fail within the rst year of ownership, simply call our toll-free Customer eXperience Center at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. When you receive your replacement Cold Brew Coffee Maker, use the carton, packing materials, and prepaid shipping label to pack up your original Cold Brew Coffee Maker and send it back to KitchenAid.
