AirX² Wireless Transmitter

OPERATING INSTRUCTIONS

ELAC The life of sound.

Important Safety Instructions

1. General information

• Please read and follow these safety instructions.
• Keep them safe for future reference.
• Observe all warnings on the unit and in the manual. Please check the speaker for damage before use. The unit must be in perfect working condition. Damaged parts may lead to personal injury.

2. Use only as directed

• Connect the unit according to the instructions in the manual.

3. Location

Install the unit on a level surface only
- When choosing the location for this device do not place them in locations that are:

• In direct sunlight
• Very humid
• Prone to vibrations
  Exceptionally hot or cold

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install this device in a closed rack or in a closed cupboard.
• Do not put burning candles on or near the device.
• Do not install the device near transformers because electromagnetic stray fields can cause hum noise on woofers.

4. Service

DANGER! Do not open the cabinet because the components and conductors may carry dangerous levels electricity! Servicing to be carried out by qualified service personnel only.

Servicing is required when the loudspeaker has been damaged in any way, such as damage to the power supply cord or the plug, or when liquid has been spilled or objects have fallen into the loudspeaker, the speaker has been exposed to rain or moisture, does not operate normally, or has been dropped. To reduce the risk of electric shock, do not open the loudspeaker. Servicing to be carried out by qualified service personnel only.

5. Cleaning

NOTE: Clean only with soft, smooth cloth or with dust brush. Do not use scouring agents, alcohol, benzene, furniture polish or other agents for cleaning! Modern furniture is often coated with multiple varnishes and plastics which can be treated with chemical agents. Some of these agents contain substances which degrade or soften the rubber feet.

6. Disposal

The packaging is made from recyclable materials. Dispose of this in an environmentally friendly manner. At end of life do not dispose the speaker with the standard household waste. The speaker must be recycled in accordance with local legislation. Ask your local government for further information on recycling as the device contains valuable raw materials. Disable the speaker before disposal.

7. Power

This unit is only intended to be connected to voltages that are listed on the rear panel of the cabinet. Connection to any other voltage may cause irreversible damage to the subwoofer and will void the warranty. Use of plug adapters is not recommended because they may allow connection to voltages other than those printed on the back of this subwoofer.

8. Compliance Information for the Wireless Transmitter

The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met. This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotopically radiated power is not more than that permitted for successful communication.

Philosophy

Thank you for purchasing this ELAC product.

Since the time we started (1926), ELAC has always striven to achieve the very best.

Your new ELAC speakers are built to the highest standards using high-quality components that are carefully constructed to deliver the best-in-class sound quality. They are developed by a passionate group of individuals whose sole purpose is to bring a new dimension of sound quality into your home. Enjoy!

Controls and Indicators

1. LED/Activity Monitor—This LED is used to show the current status of the AirX² Transmitter
2. Power Input- Used for providing power to the unit from the included AC power supply.
3. Audio Input—Used to connect an audio source to the transmitter.

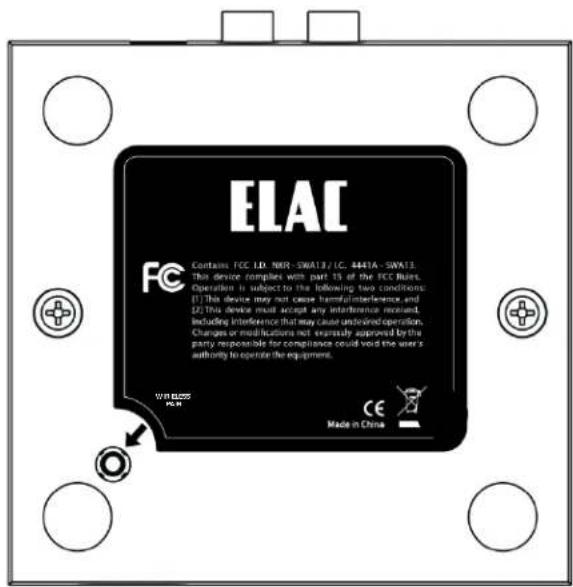

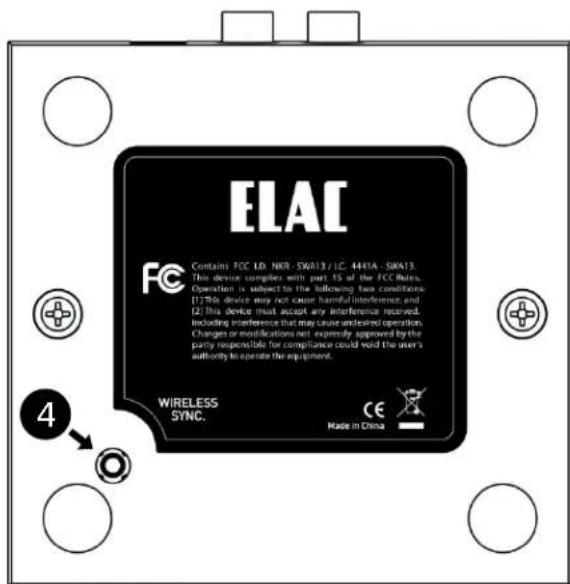

4. SYNC Button—Located on the bottom of the unit is used to pair the transmitter with other AirX² products.—See Page 7 for syncing instructions

Connecting the transmitter for Subwoofer Use

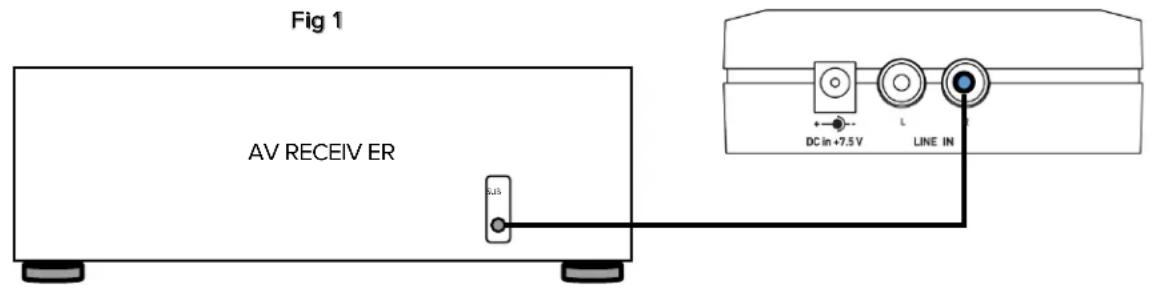

• If you are connecting the transmitter to an AV receiver or pre-Amp with a dedicated subwoofer or LFE output, connect a RCA cable (not supplied) from the LFE/Subwoofer output on the AV Receiver/Pre-Amp to the Right RCA input on the subwoofer (Fig 1).

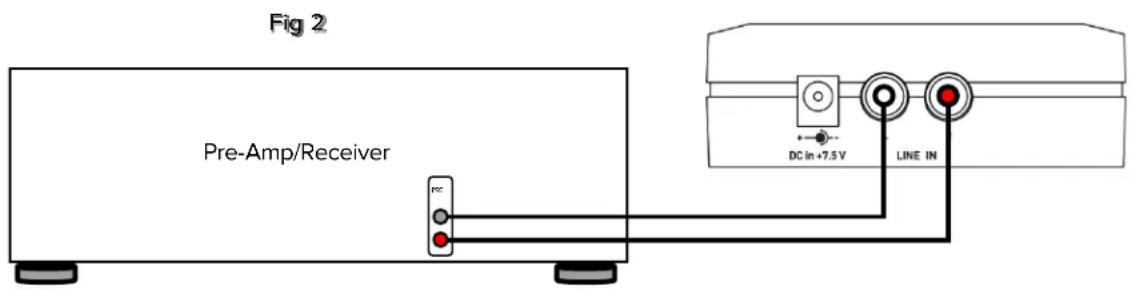

• If you are connecting the subwoofer to a pre-amp or receiver without a dedicated LFE/Subwoofer output, connect a set of stereo RCA connectors from pre-outs on the pre-amp to the left and right RCA inputs on the subwoofer (Fig 2). If you are using a pre-amp with only one set of pre-outs, use a splitter for each output on the pre-amp and connect two sets of stereo RCA cables to both the amplifier and to the subwoofer.

Connecting the transmitter with ELAC Argo Speakers

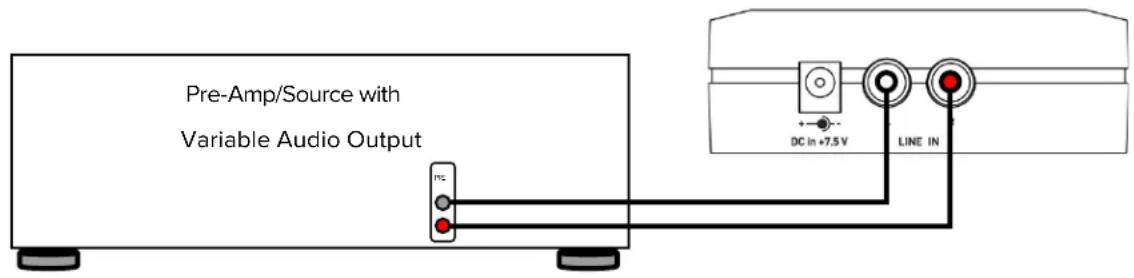

• When using the AirX² transmitter with ELAC's Argo wireless speakers connect the variable audio outputs from you pre-amp/source as shown in Fig 1. (PLEASE NOTE THAT THE TRANSMITTER DOES NOT CONTROL VOLUME! A FIXED LEVEL SOURCE WILL OUTPUT AT FULL VOLUME!)
• Please follow the pairing process on page 7 to wirelessly connect the Argo speakers to the transmitter

Wireless Pairing

• Pairing the wireless transmitter with other AirX² products is very simple. Please follow the below steps to complete the process.

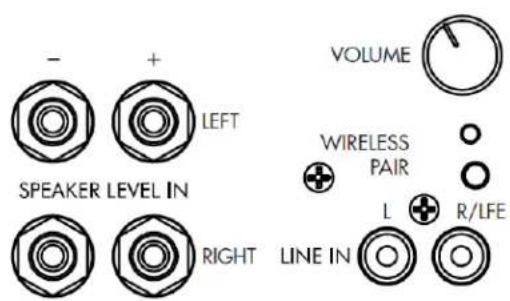

• Press and hold the Wireless Pair button on the AirX² compatible subwoofer or speakers until the LED begins to flash rapidly (Around 2 times per second).

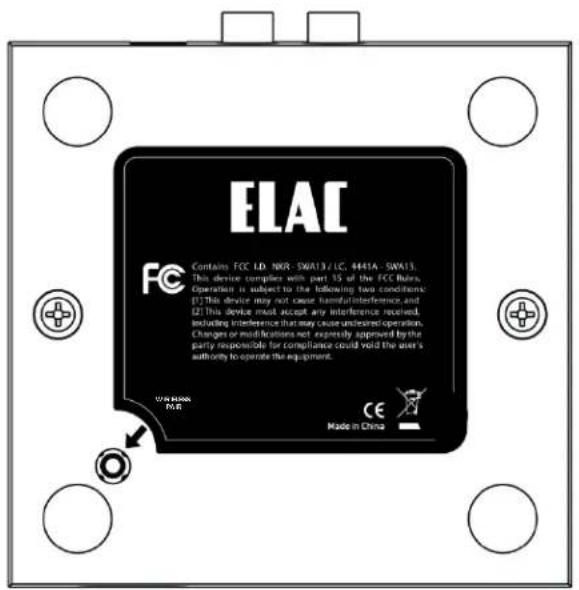

• Press and hold the Wireless Pair button on the bottom of the transmitter until the wireless pair LED on the subwoofer or Argo Speakers stops flashing and goes off (No LED means the speaker is wirelessly paired.)
• Repeat with additional speakers/subwoofer (Up to 3 units)

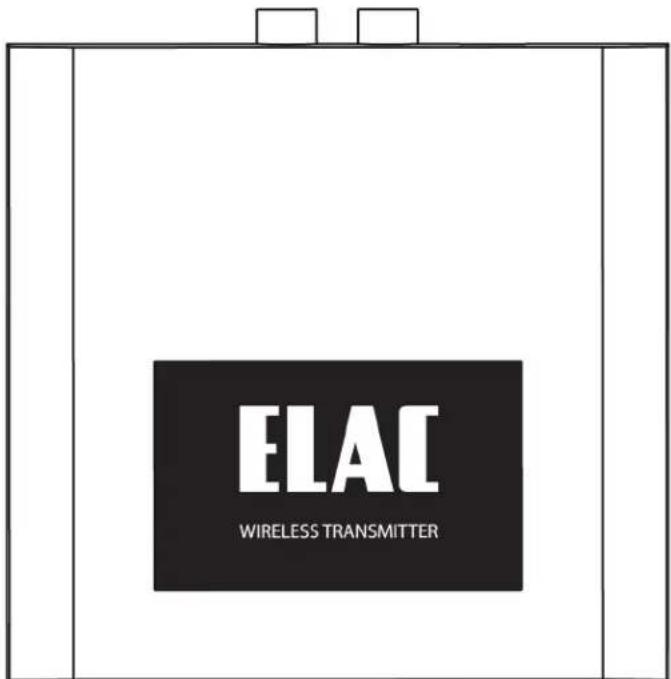

Wireless Pair Button AirX² Transmitter

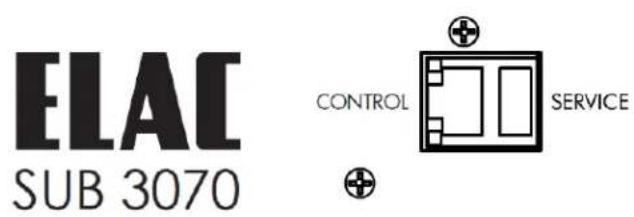

Wireless Pair Button SUB3070 Subwoofer

ELAC Americas Inc.

North America Limited Liability Warranty

Passive Speakers (No built-in amplifier)

ELAC Americas INC. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 3 (Three) years from the original date of purchase. During this time period, repair or replacement of parts will be free of charge to the original owner (See below limitations). Shipping to and return from the repair center will be the responsibility of the original purchaser.

Powered Subwoofoers

ELAC Americas INC. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 3 (Three) years on the cabinet and speaker driver and 1 (One) year on the amplifier from the original date of purchase. During this time period, repair or replacement of parts will be free of charge to the original owner (See below limitations). Shipping to and return from the repair center will be the responsibility of the original purchaser.

Electronics (Including Wireless Speakers)

ELAC Americas INC. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 1 (One) years from the original date of purchase. During this time period, repair or replacement of parts will be free of charge to the original owner (See below limitations). Shipping to and return from the repair center will be the responsibility of the original purchaser.

B-Stock (Reconditioned/Open Box) Product Warranty

ELAC Americas INC. warrants to the original purchaser that this product be free from defects and or workmanship, unless otherwise stated in product description, for a period of 90 days from the original date of purchase. During this time period, repair or replacement of parts will be free of charge to the original owner (See below limitations). Shipping to and return from the repair center will be the responsibility of the original purchaser.

Limitations

Warranty begins on the date of original purchase from an authorized ELAC Americas LLC dealer.
- Product is warranted only if used in home applications within the max power rating specified in this manual. Commercial use of this product is not warranted.
- Product that has been modified or altered in anyway will not be warranted.
- Product that has been abused or subjected to faulty equipment will not be warranted.
- Products with defaced or removed serial numbers will not be warranted.

If service is required

In the event that service is required, please contact ELAC America at 888-541-0996 or at customerservice@elac. us to arrange for service or replacement. You will be responsible to provide proof of purchase (Copy or original sales receipt). Shipping to and from our repair center will be the responsibility of the original purchaser.

Warranty Outside of North America

This warranty applies to products purchased in the United States and Canada. For warranty claims outside of North America please contact the local dealer/distributor in the country of purchase.

ELAC The life of sound.

ELAC The life of sound.

Wireless Pair Button AirX² Transmitter

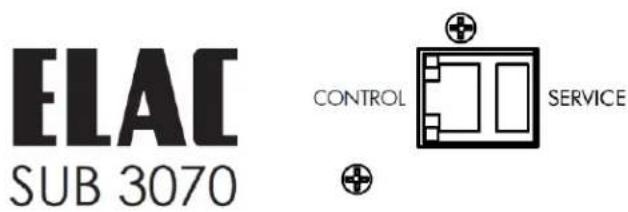

Wireless Pair Button SUB3070 Subwoofer
