USER MANUAL Premium SR1200E IBANEZ

6-strings 7-strings MTM100 1st2nd3rd4th5th6th7th8th

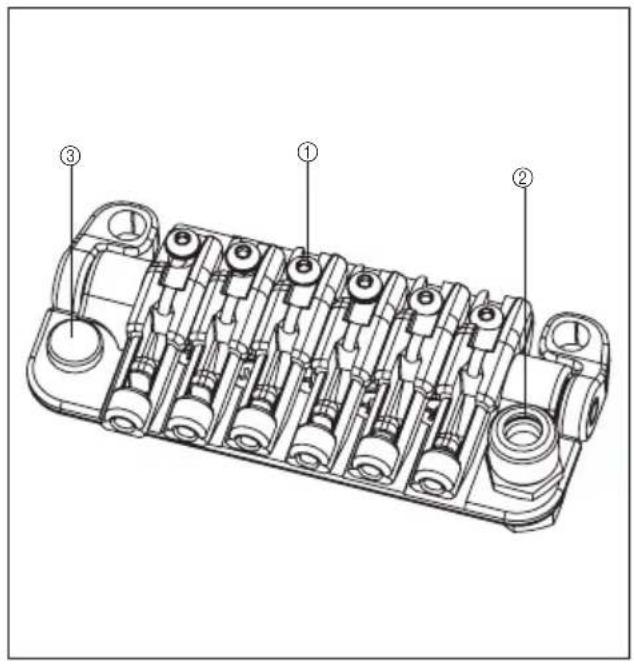

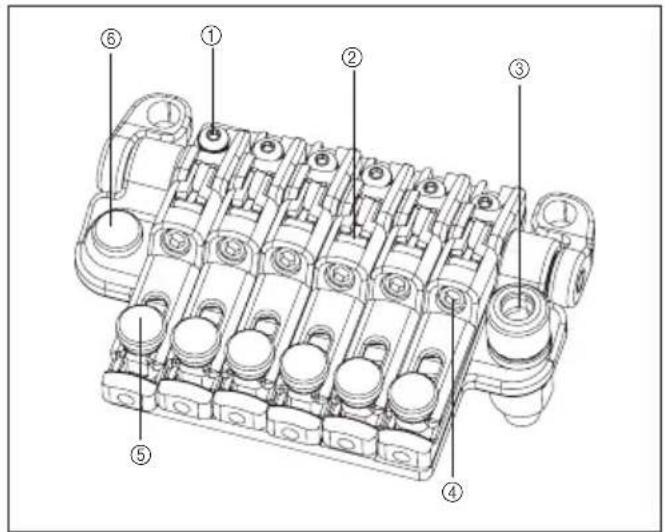

PREMIUM series ZR tremolo bridge w/ZPS2

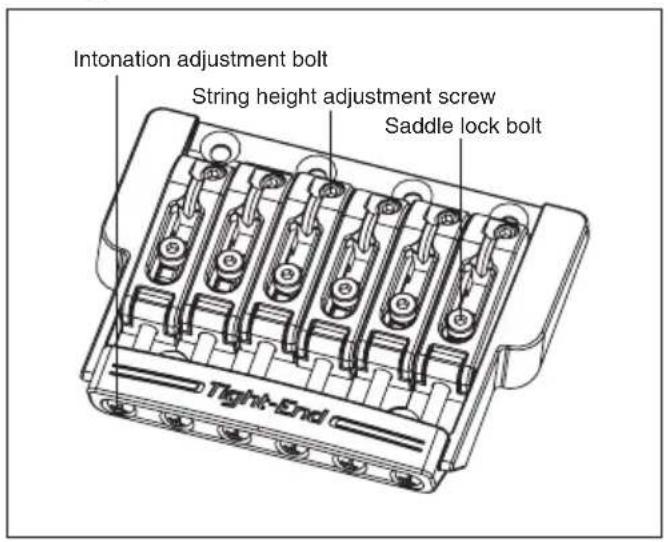

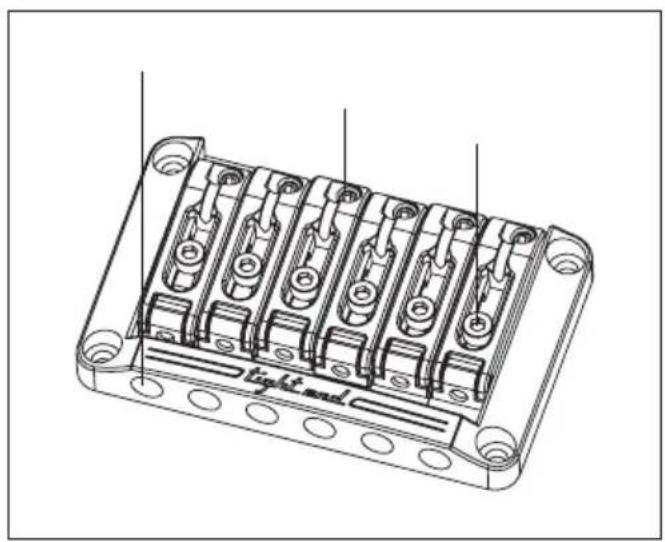

PREMIUM series Tight-End R bridge

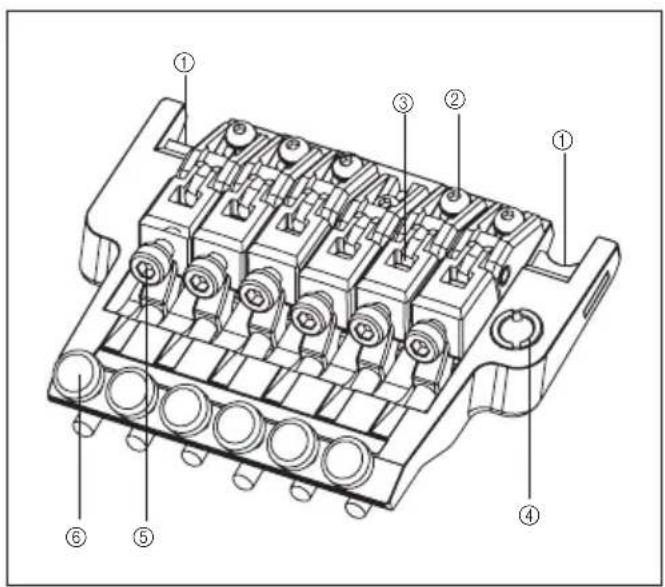

EdgeⅢ tremolo bridge  ○ ○○○○ Edge-ZeroⅡ w/ ZPS  ○ ○ ○○ Edge-ZeroⅡ w/o ZPS  ○ ○ ○○ FAT6 tremolo bridge  ○○  ○○ FAT10 tremolo bridge  ○○  ○○ FX EdgeⅢ bridge     ○○○ FX EdgeⅢ-8 bridge     ○○○ Gibraltar Standard 6/7/8 bridge   ○ ○ ○ SAT10 tremolo bridge  ○○  ○○ SAT-ProⅡ tremolo bridge  ○○  ○○ STD tremolo bridge ○ STD-DL tremolo bridge ○ Tight-End bridge ○○ Tight-Tune bridge    ○ ○○ ZR tremolo bridge w/ZPS2  ○ ○ ○○ SynchroniZR tremolo bridge ○○ GIBRALTAR BRIDGE 08 /

Models equipped with DiMarzio pickups are shipped with an Allen wrench for adjusting the height of the pole pieces. ※ Seven-string guitars equipped with an Edge-Zero ※Ⅱ tremolo bridge w/ZPS3Fe are supplied with heavy-duty springs.

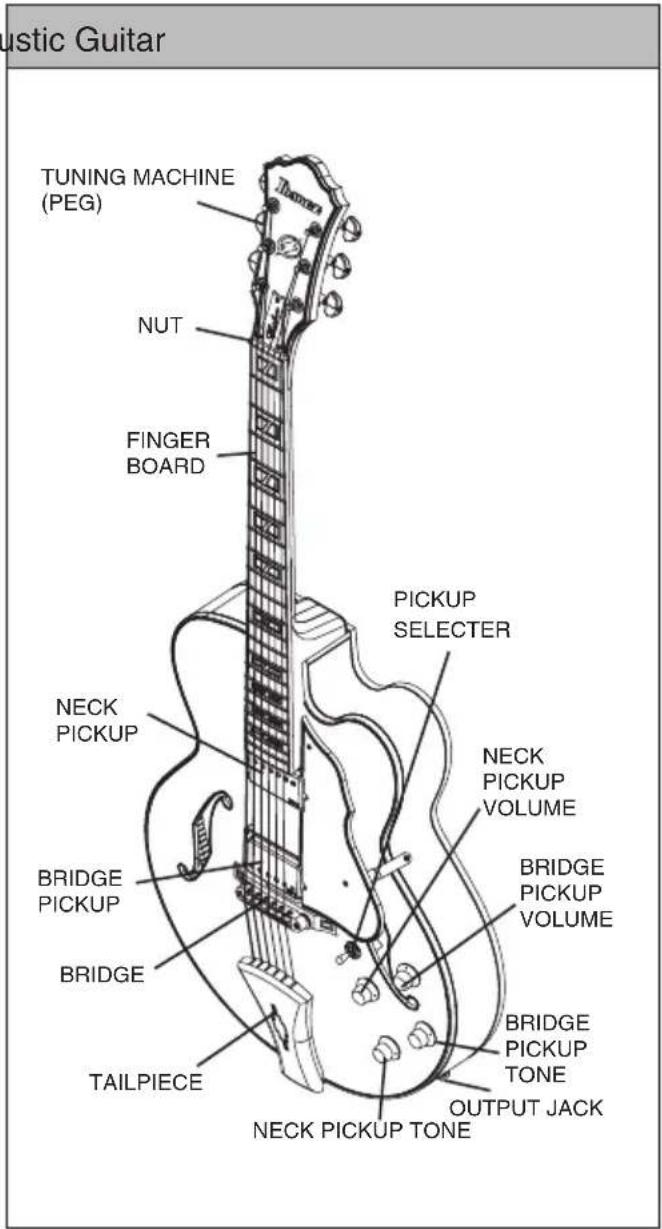

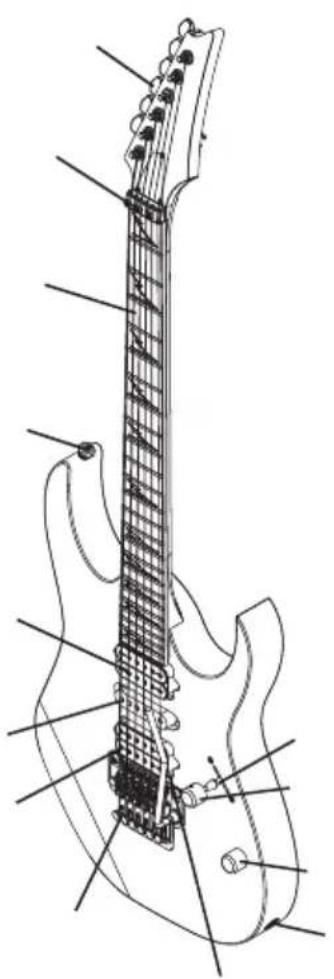

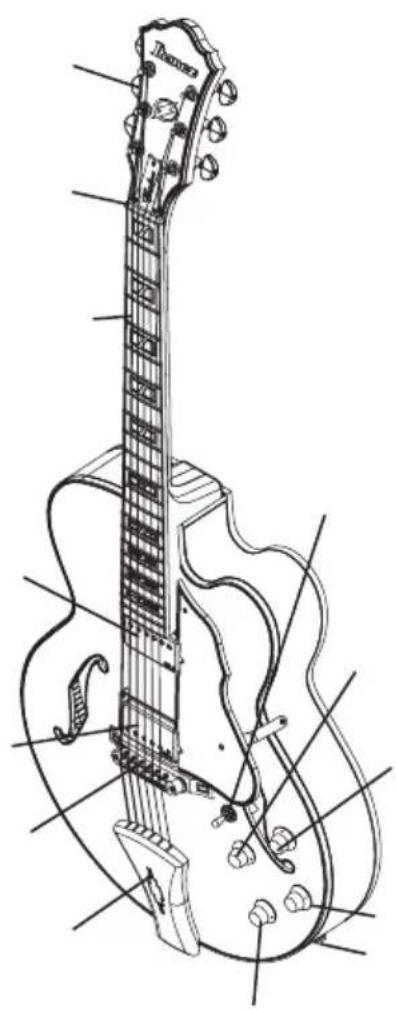

Electric Guitar Semi or Full Acoustic Guitar These illustrations show typical Ibanez models. The guitar you purchased might not match the illustration. ※ Tremolo/bridge adjustments will differ depending on the type of tremolo/bridge that is installed. ※ For details, refer to the applicable tremolo/bridge section. For details on the controls of each model, refer to the “Controls” section (p.228). ※ TUNING MACHINE (PEG) NUT FINGER BOARD PICKUP SELECTER NECK PICKUP VOLUME BRIDGE PICKUP VOLUME BRIDGE PICKUP TONE NECK PICKUP BRIDGE PICKUP BRIDGE TAILPIECE OUTPUT JACK

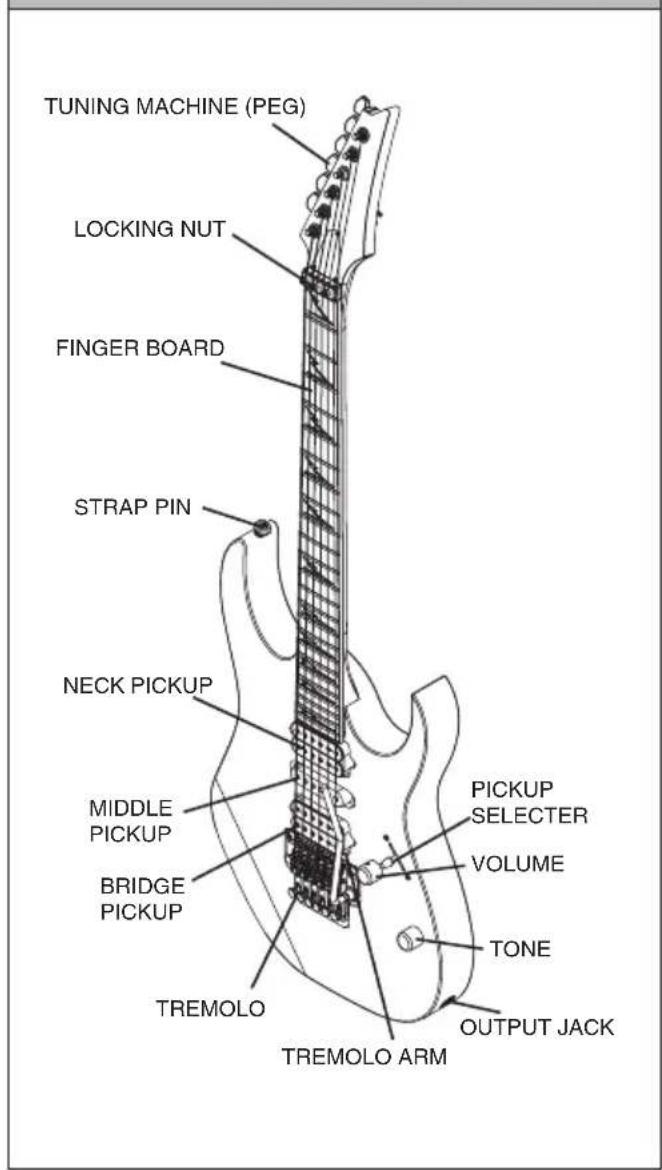

TUNING MACHINE (PEG) LOCKING NUT FINGER BOARD STRAP PIN NECK PICKUP MIDDLE PICKUP BRIDGE PICKUP TREMOLO TREMOLO ARM PICKUP SELECTER VOLUME TONE OUTPUT JACK NA13G222_Regular.indb 36NA13G222_Regular.indb 362013-8-9 17:07:392013-8-9 17:07:3937 ENGLISH TUNING When shipped from the factory, Ibanez guitars are set up using the following tunings.  1st 2nd 3rd 4th 5th 6th 7th 8th 6-strings E4 B3 G3 D3 A2 E2 - - 7-strings E4 B3 G3 D3 A2 E2 B1 - 8-strings D#4 A#3 F#3 C#3 G#2 D#2 D#2 F1 Note that following models are set up differently. Baritone guitar 1st 2nd 3rd 4th 5th 6th 7th 8th B F# D A E B - - RGD、APEX  1st 2nd 3rd 4th 5th 6th 7th 6-strings D4 A3 F3 C3 G2 D2 - 7-strings D4 A3 F3 C3 G2 D2 A1 MTM100 1st 2nd 3rd 4th 5th 6th 7th 8th C# G# E B F# B - - TAM10 1st 2nd 3rd 4th 5th 6th 7th 8th E B G D A E B E Use a tuner or tuning fork to tune up the sound of each open string to the above frequencies. If the pitch is higher than the above frequency, loosen the string to lower the pitch, and wind the string in small increments to tune it up. This is an easy way to stabilize your tuning. You may need to adjust the neck or the intonation if you tune your guitar to pitches other than those shown in these tables, or if you use strings of other than standard gauge. For details on adjusting the neck or the intonation, refer to the sections “NECK ADJUSTMENT” (p. 38) or “INTONATION” (p. 38). Memo Please note that extreme tuning or use of strings not intended for electric guitar may cause parts to break, •฀ and may cause unexpected injury. STRING REPLACEMENT Strings will deteriorate over time, causing buzzing or inaccurate pitch. Replace the strings whenever your strings begin to rust or become discolored. We recommend that you replace all of the strings as a set at the same time. Bent, twisted, or damaged strings will not produce the appropriate quality sound and therefore should not be used. Wind the string around the tuning machine post two or three times from above, using about 5--7 cm of length and taking care that the string does not cross itself. The strings should be replaced one by one instead of removing all the strings at once. This is done to avoid stress on the neck and to reduce the risk of affecting tremolo balance.

The method for removing and installing strings attached to a tremolo/bridge will differ depending on the type of tremolo/bridge. For details, refer to the section for the tremolo/bridge installed on your guitar. NA13G222_Regular.indb 372013-8-9 17:07:4138 STRING HEIGHT Action refers to the distance between the frets and the string. To measure the action, tune the guitar accurately; then place a ruler at the 14th fret and measure the distance from the top of the fret to the bottom of the string. In general, this distance should be 1.5--1.7 mm for the fi rst string, and 2.0 mm--

2.2 mm for the sixth string.

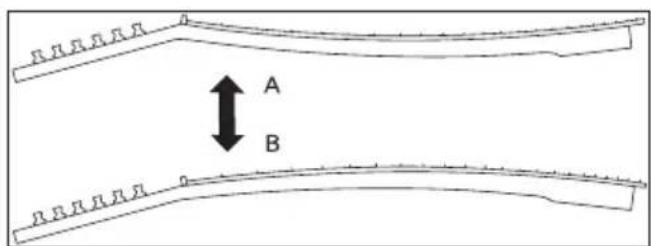

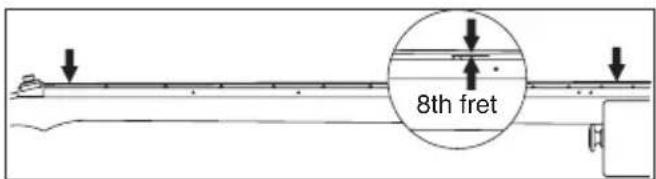

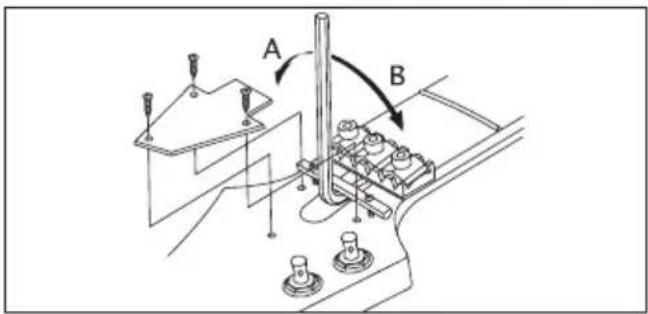

For a seven-string guitar, the seventh string should be at 2.2 mm--2.4 mm. For an eight-string guitar, the eighth string should be at 2.4 mm--2.6 mm. For strings other than those listed above, adjust the action so that the distance gradually increases from the fi rst string toward the lowest string. If the action is too high, the instrument will be diffi cult to play. If the action is too low, you may experience string buzz, muted notes, or poor sustain. If you experience string buzz or muted notes even when the action is adjusted correctly, you might need to adjust the neck bow. For details, refer to “Neck” (p. 38). The method of adjusting the action will depend on the type of tremolo/bridge with which your guitar is equipped. ※ For details, refer to the appropriate tremolo/bridge section. INTONATION If youʼve changed string gauges or are using your guitar with an alternative tuning, youʼll need to adjust the string length (intonation) to ensure that the correct pitch is sounded at all frets. After tuning your guitar accurately, hold the guitar in playing position and compare the pitch of each string pressed down at the 12th fret with the pitch of the harmonic played at the 12th fret. If the pitch of the fretted note at the 12th fret is lower than the harmonic at that fret, move the saddle of the tremolo/bridge forward to shorten the string. Conversely, if the pitch of the fretted note is higher than the pitch of the harmonic, move the saddle backward to lengthen the string. Use a tuning meter to ensure accurate intonation adjustments. ※ The method of adjusting the saddle position will differ depending on the installed model of tremolo/bridge. For ※ details, refer to the section for the tremolo/bridge thatʼs installed on your guitar. NECK ADJUSTMENT The neck is constantly bearing the tension of the strings, and its curvature will be subtly affected not only by the state of tuning and the string gauge, but also by changes in temperature and humidity. If you experience problems such as string buzz or muted notes even after the action and tuning are adjusted correctly, you should check and adjust the curvature of the neck. 1 Check the curvature of the neck. After tuning accurately, hold the guitar in playing position. Then press the fi rst string at the fi rst fret and also at the fret that is nearest to the point where the neck joins the body, and measure the gap between the string and fret at the eighth fret. In the same way, measure this gap for the lowest string, and make adjustments so that the gaps are in the range of 0.3 mm--0.5 mm. 2 If the gap is less than 0.3 mm, use the Allen wrench or socket wrench included with the guitar to turn the truss rod nut located at the headstock end of the neck in direction ʻAʼ, causing the neck curvature to be more convex. 12F 8th fret NA13G222_Regular.indb 38NA13G222_Regular.indb 382013-8-9 17:07:412013-8-9 17:07:4139 ENGLISH 3 If the gap is greater than 0.5 mm, turn the Allen wrench or socket wrench in direction ʻBʼ, causing the neck curvature to be more concave. Adjust the truss rod nut in small increments of a quarter ※ turn, checking the tuning while you do so. Memo You must take care when adjusting the neck.•฀ Forced adjustments can damage your guitar. If you are unable to adjust the neck correctly, please contact your Ibanez authorized dealer. CLEANING After playing, wipe sweat and oil off metal parts such as the underside of the strings, the frets, bridge saddles and nut. This will help to prevent rust. Dirt or dust that adheres to metal parts may adversely affect their function. Wipe off stubborn dirt with a soft cloth moistened with a small amount of oil. If the tremolo arm should squeak when turning, apply some grease to the notch on the shorter side of the tremolo arm. To clean the fi nished surface, do not use volatile or abrasive cleaning compounds; instead gently wipe using a soft cloth with polish formulated specifi cally for musical instruments. To clean off dirt that has adhered to an oil fi nished body or neck, use a pencil eraser, fi ne sandpaper of #1000 or fi ner grade, or #0000 steel wool. You can prevent drying by polishing once or twice a year with a colorless furniture fi nish oil or gun oil applied to #0000 steel wool or a cloth. Unfi nished fi ngerboards should be carefully wiped with a cloth moistened with a small amount of fi ngerboard oil or high-quality lemon oil, wiping carefully to the edge of the frets. BATTERY If your guitar has a built-in pre-amplifi er or equalizer, it will be powered by a battery. Replace the battery when you notice that the volume level has decreased or the sound has become distorted. Some models use a 006P (9V) battery, and other models use two AA (1.5V) batteries. Check the type of batteries used by your guitar, and replace them with the same type of batteries. The batteries are found in the battery box located on the back of the body. On models equipped with a battery, the output jack also functions as a power switch; inserting a plug into the jack will turn on the power. Memo To prevent the battery from running down, remove the plug from the output jack if you will not be using •฀ it for an extended period. NA13G222_Regular.indb 392013-8-9 17:07:4140 Guitar Bridges GIBRALTAR III (GUITAR & BASS), CB3, & FULL TUNE III, ART1, ART2 The action can be adjusted by using a slot head (-) screwdriver to turn the adjustment bolt at either end (A). Intonation can be adjusted by moving the saddle forward or backward by turning the intonation adjustment screw (B) at the rear of the bridge. You can use either a Phillips (+), a fl at head (-) screwdriver, or the optional hex wrench.

REPLACING THE STRINGS : CB3

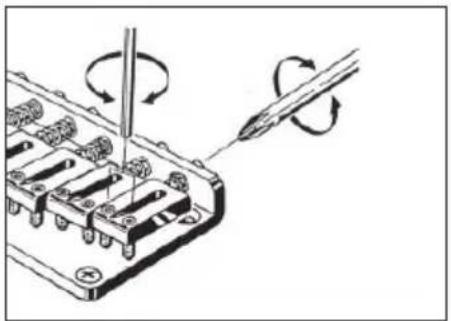

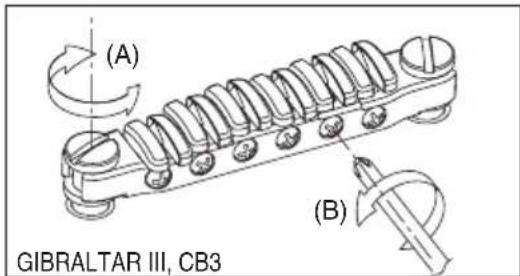

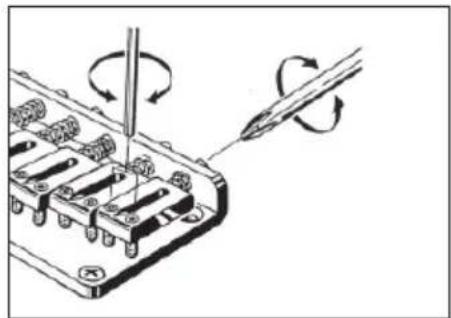

Install strings by inserting them from the front of the bridge. Before adjusting the action on the Gibraltar III bridge, loosen the strings suf- ※ fi ciently so that you will not need to turn the screws with excessive force, which could damage the screw holes. HARDTAIL BRIDGE To change strings, thread the new strings through the string grommets located on the back of the guitar and bring them up and over the saddle. The intonation can be adjusted by adjusting the saddle forward or backward using a Phillips (+) head screwdriver on the intonation adjustment screw at the rear of the bridge. String height is controlled by raising or lowering the small Allen screws using a wrench on either side of the saddle. The adjustment method is the same for 7-string and 8-string models. ※

GIBRALTER STANDARD BRIDGE （7-STRING / 8-STRING MODELS）

To install a new string, pass it through the string stopper ferrule from the back of the guitar body. To adjust the height of the strings, use a 1.5mm hexagonal wrench to turn and adjust the height of each saddle (A). To adjust the intonation, use a 2.5mm hexagonal wrench to turn the intonation adjustment screws of each saddle on the back of the bridge (B). The adjustment method is the same for 7-string and 8-string models. ※

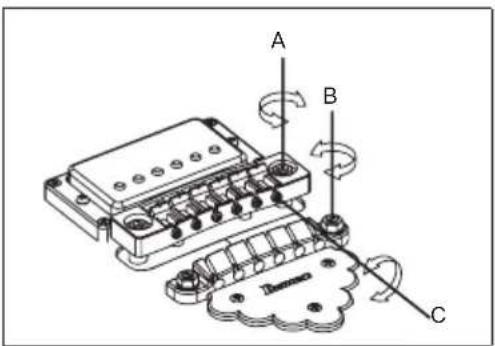

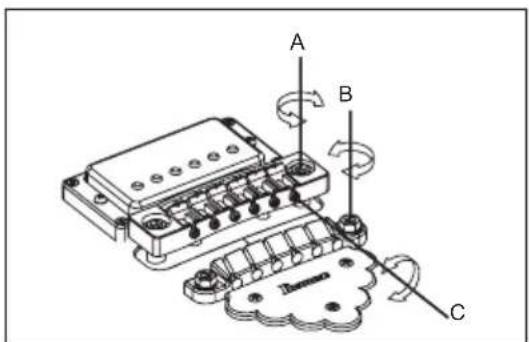

GIBRALTAR BRIDGE 08 / QUICK CHANGE 08 TAILPIECE

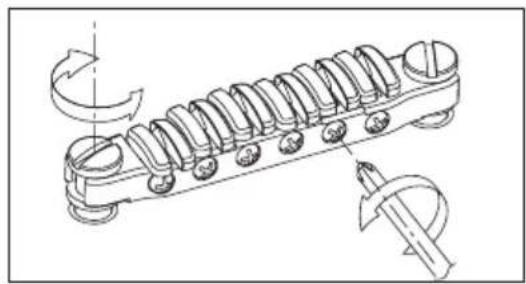

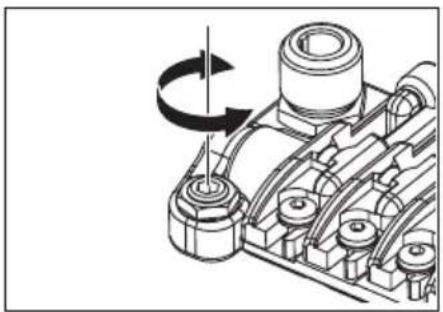

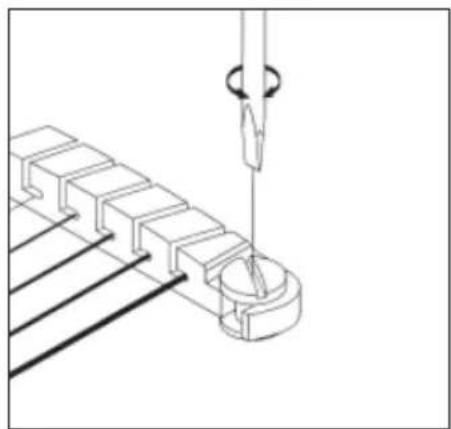

To adjust the string height, turn the stud bolts located at the left and right ends of the bridge (A) using a slotted (-) screw driver. Before adjustment, loosen the lock nut using an 8mm nut driver. After adjustment, tighten the lock nut again to fi x the bridge. To adjust the tailpiece height, turn the adjustment screws (B) on both sides with a slotted (-) screw driver. Before adjustment, loosen the lock nut. After adjustment, fi x it again in the same way as the bridge. If the lock nut of the bridge and tailpiece is loose, it may cause distortion or resonance. Raising the tailpiece will reduce the string tension, which will provide a softer feel and make it easier to bend the strings. To adjust the intonation of each saddle, turn the intonation adjustment screw using a slotted (-) screw driver (C). (A) (B) (A) (B)

To adjust the string height, adjust the height of the entire bridge by using your fi ngers to turn the thumb wheel screws (A) located at either side of the bridge. (It is not possible to individually adjust the height of each string.) To adjust the intonation, loosen the strings and move the entire bridge forward or backward; then tune the guitar and check the intonation. Repeat this adjustment until the intonation is correct. Take care that the bridge does not fall over. When replacing the strings, it is recommended that they be replaced one by one so that the bridge does not become displaced. Vintage Vibrato Replace the strings one by one. Fix the ball end onto the post of the bar (B), extend the string over the bar, and then wrap it around the peg. For a model with a retainer bar (A), VBX60/VBX80, pass the string over the bar and then beneath the retainer bar before wrapping it around the peg. While replacing strings, always pull the string lightly toward the headstock and exercise care not to allow the ball-end to go off the post. Check that the string is correctly placed on the saddle while tuning. After completing tuning, proceed to replacement of the next string. After fi nishing replacing all strings, carry out tuning again for the entire unit. Memo Removing all strings at the same time may have a serious impact on the state of each section of the guitar due to sudden changes of tension imposed on the guitar. Be sure to replace the strings one by one. VBX60 VBS80 (B) (A) VBF70 (B) Tailpieces

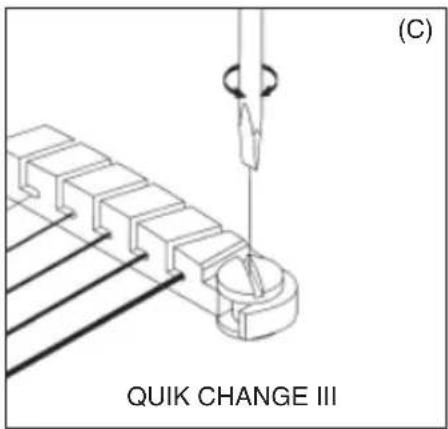

QUIK CHANGE TAILPIECES

To adjust the height of the tailpiece, turn the stud bolt on the right and left ends of the tailpiece with a slot head screwdriver or a coin. To install a new string, pass it through the slot of the tailpiece and hook the ball end into the back of the tailpiece.

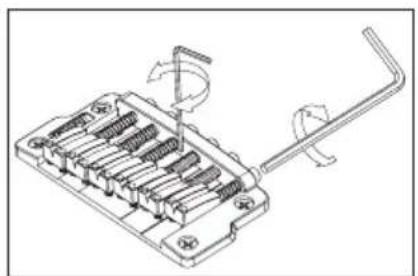

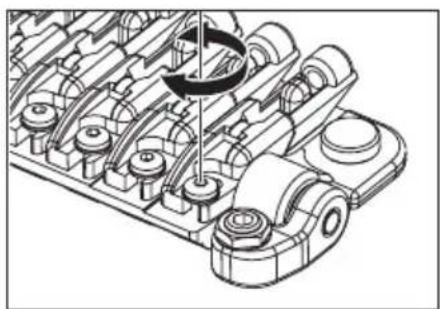

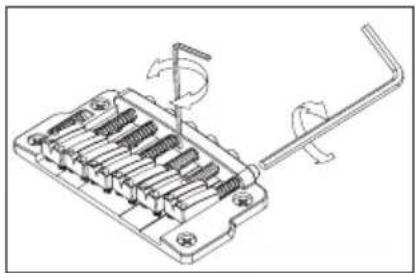

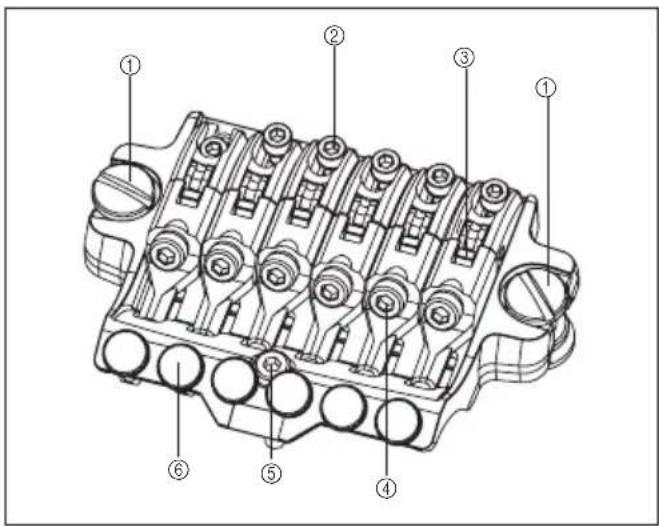

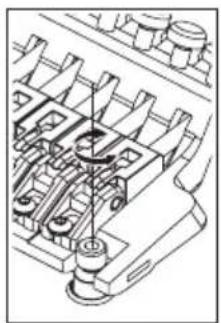

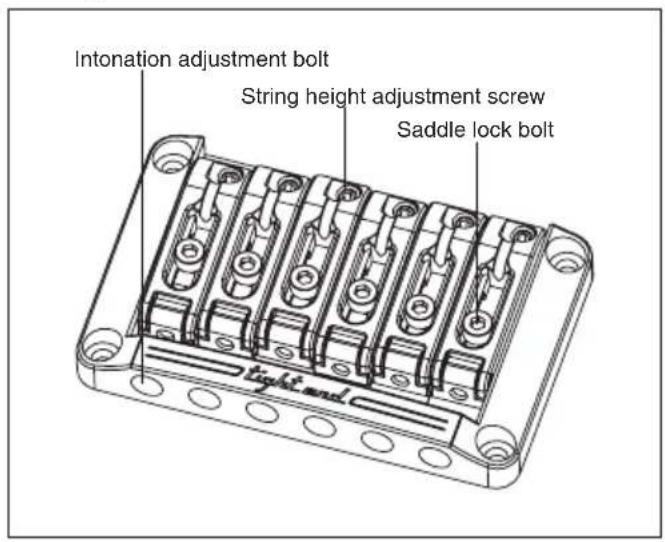

1 Use an Allen wrench (2 mm) to loosen the saddle lock bolts. 2 To adjust the saddle height, use the Allen wrench (2 mm) to turn the saddle height adjustment screws. When youʼve fi nished making adjustments, tighten the saddle lock bolts. ※

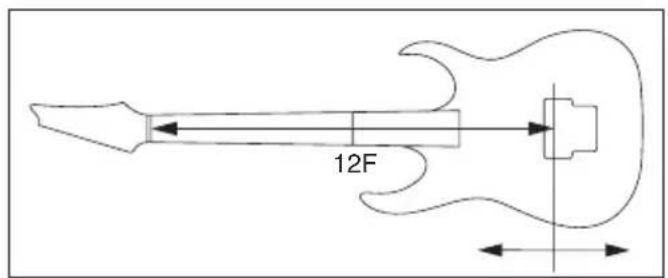

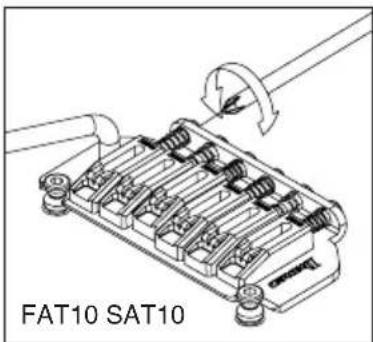

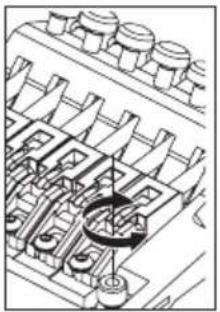

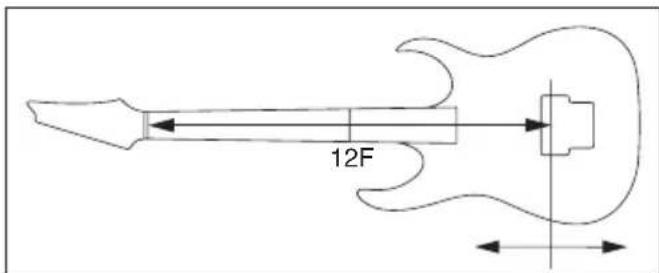

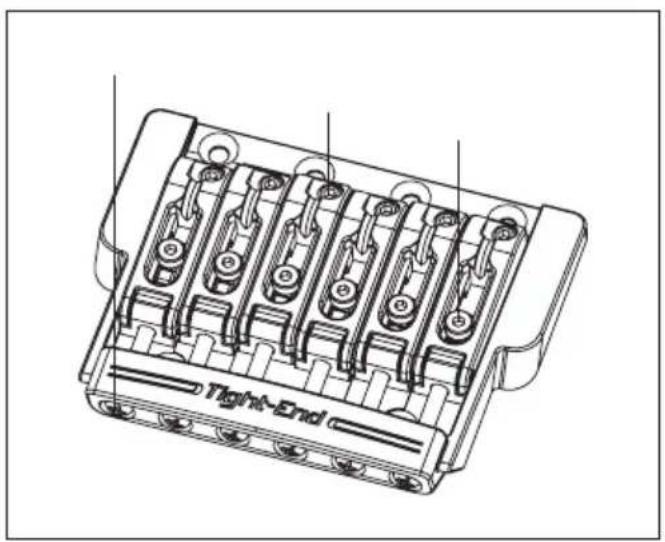

ADJUSTING THE INTONATION

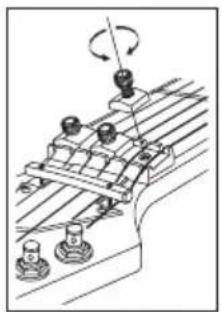

1 Use an Allen wrench (2 mm) to loosen the saddle lock bolts. 2 Use a Phillips screwdriver to adjust the saddle position by turning the intonation adjustment bolt. 3 Use an Allen wrench (2 mm) to tighten the saddle lock bolts, and use a Phillips screwdriver to lightly tighten the intonation adjustment screw in the clockwise direction. (Tighten lightly, so as not to affect the saddle position.) Makesurethattheguitaristunedcorrectlybeforeyouchecktheintonation.※ STRING REPLACEMENT To install a new string, pass it through the string stopper ferrule from the back of the guitar body. NA13G222_Regular.indb 42NA13G222_Regular.indb 422013-8-9 17:07:422013-8-9 17:07:4243 ENGLISH TIGHT-TUNE BRIDGE The Tight-Tune bridge achieves the optimum level of stability and sound transference while suppressing unnecessary vibrations by allowing each movable part of the bridge to be locked. The bridge has a stud lock function for fi xing the bridge more securely onto the body. Furthermore, the tailpiece is equipped with a ball-end lock function to retain the ball end so that it will not come off.

ADJUSTING THE ACTION

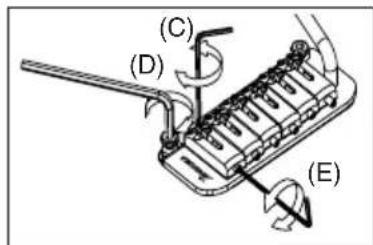

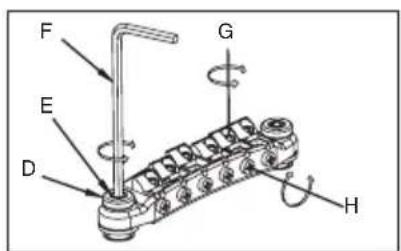

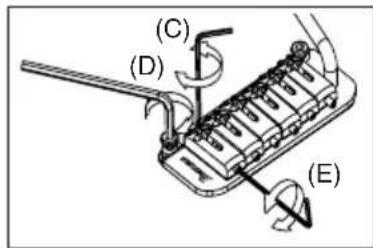

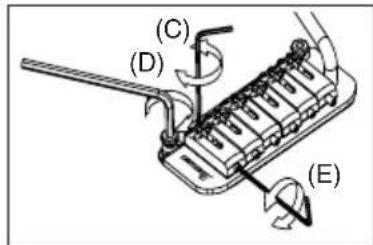

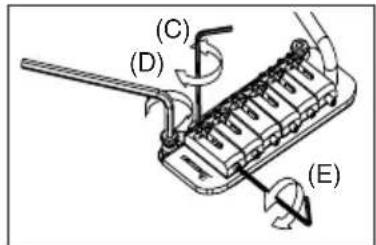

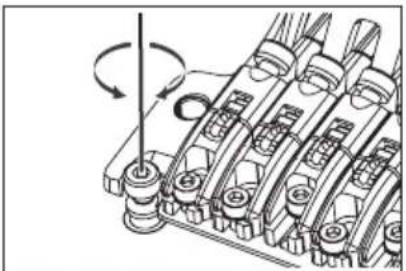

Loosen the locking nuts (D) on the right and left sides of the bridge unit, and adjust the height of the bridge unit by turning the stud lock screws (E) with a 3 mm Allen wrench. Note that it is not possible to adjust the height of individual strings. After completing the adjustment, tighten the locking nuts.

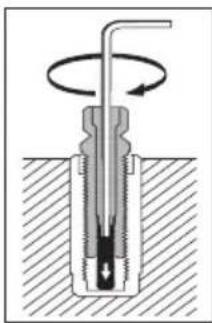

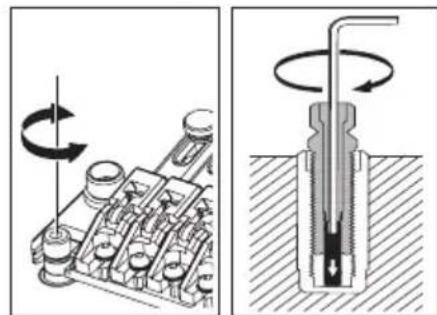

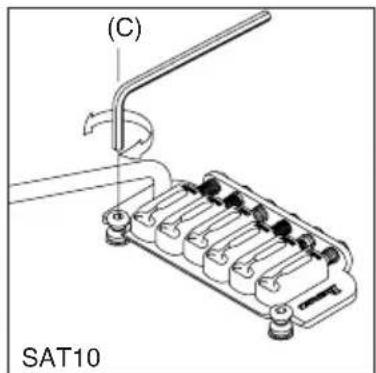

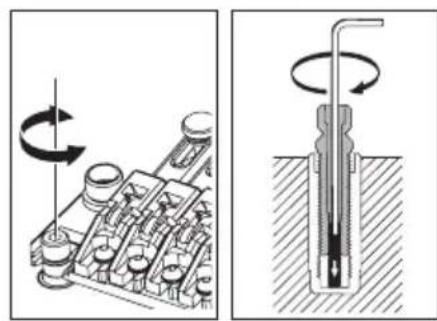

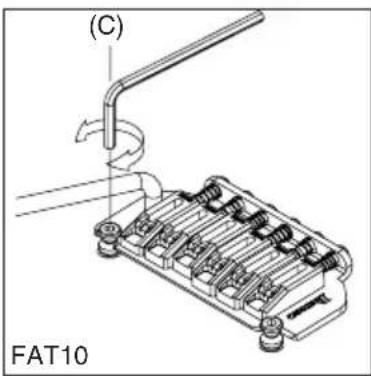

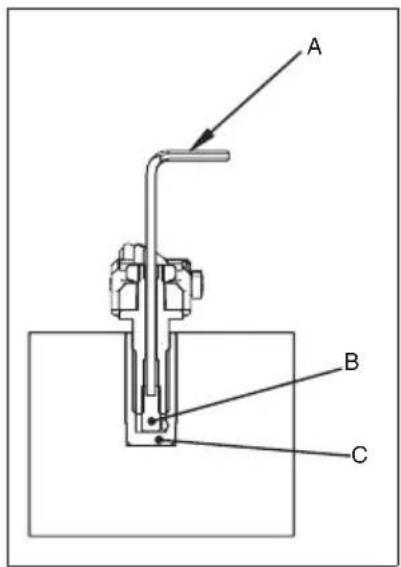

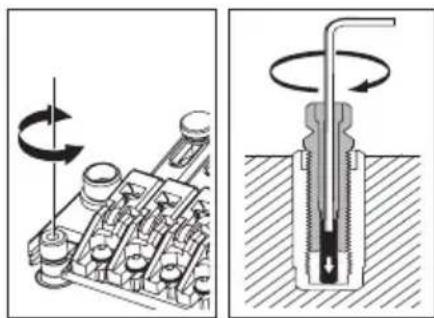

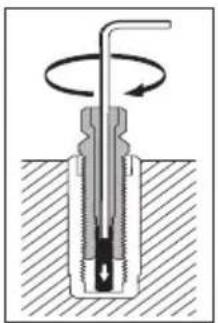

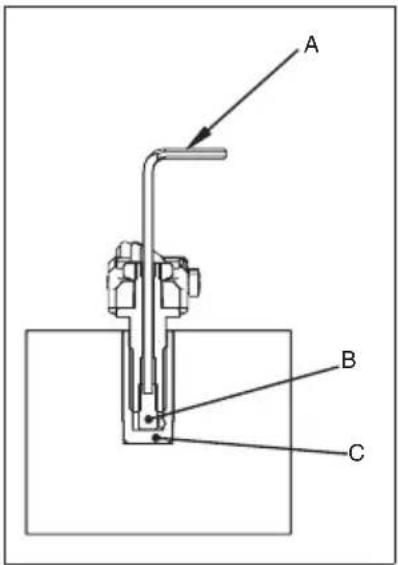

After adjusting the action, turn the stud lock bolt (B) clockwise inside the stud bolt with a 2 mm Allen wrench. Keep tightening until the stud lock bolt contacts the anchor bolt (C) and the bolt cannot be turned any further. Memo When adjusting the action, be sure to fully loosen the stud lock bolt (B) beforehand by turning it counterclockwise with a 2 mm Allen wrench. Otherwise, damage may occur.

ADJUSTING THE INTONATION

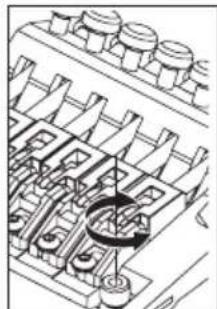

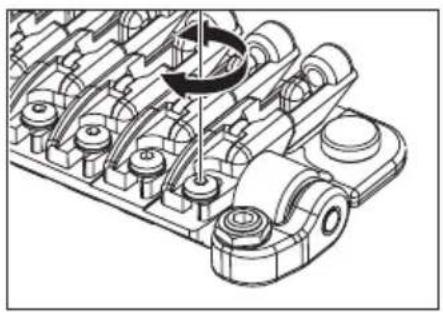

Loosen the saddle lock screws (G) with a Phillips screwdriver, and turn the intonation adjustment screw (H) with a Phillips screwdriver to adjust the saddle position. Tune the guitar and check the intonation. Repeat these adjustments until the required intonation is reached, and then tighten the saddle lock screws. Memo A loose intonation adjustment screw (H) may cause resonance. If this occurs, gently tighten the intonation adjustment screw, exercis- ing care not to allow the saddle to move.

REPLACING THE STRINGS

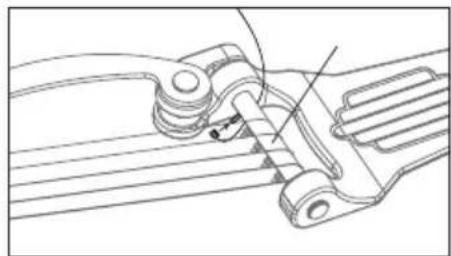

Insert the ball-end of the string into the slot of the tailpiece in the direction shown by arrow (J). The ball-end lock function retains the ball- end. To remove the string, pull it toward direction (K).

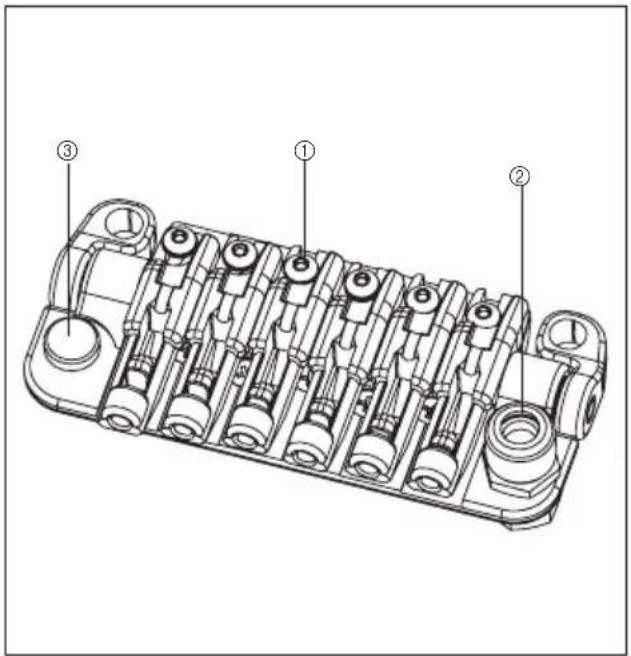

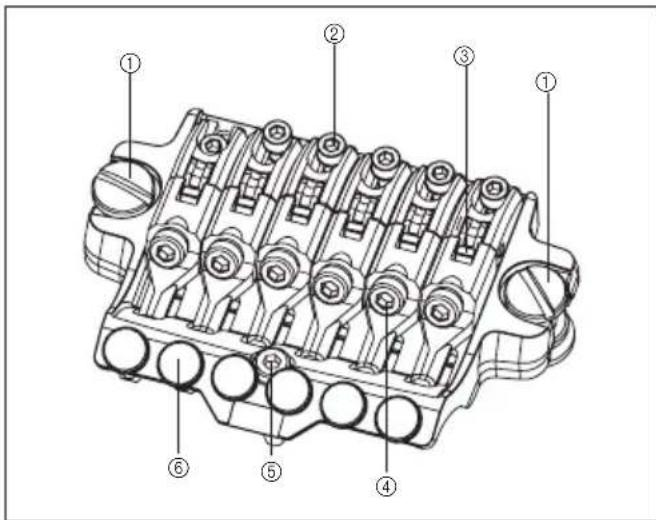

1 To adjust the string height, use a slotted screwdriver to turn the main studs at the left and right of the bridge unit to adjust the height of the entire tremolo unit. (It is not possible to adjust the height of individual strings.) 2 Use an Allen wrench (3 mm) to turn the rear studs, adjusting them so that the bridge is approximately parallel with the surface of the guitar body. As the action will change when you adjust the rear studs, it is recommended ※ that you check the fi nal action after youʼve adjusted the rear studs. To prevent the screw holes from being damaged, loosen the strings suffi ciently before you adjust the main studs so that you will not have to use excessive force when turning the studs.

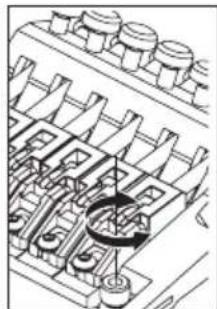

ADJUSTING THE INTONATION

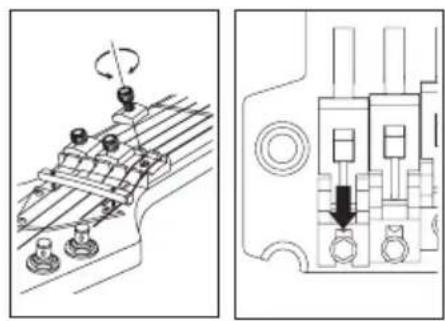

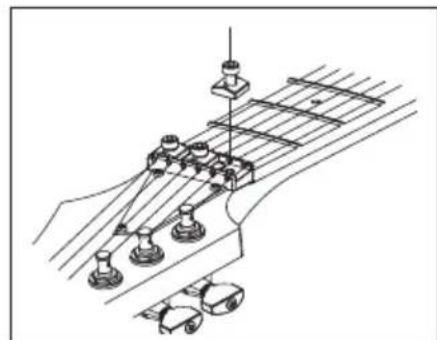

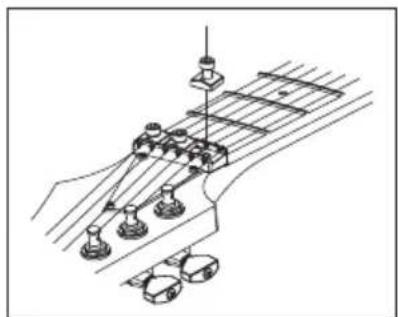

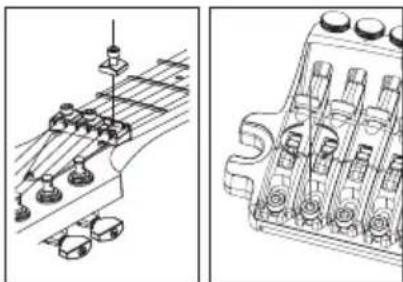

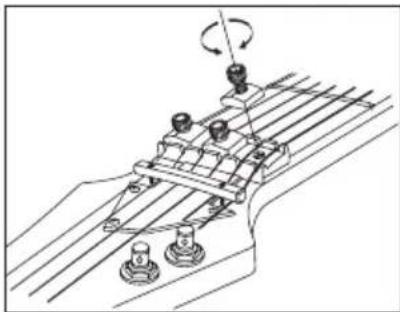

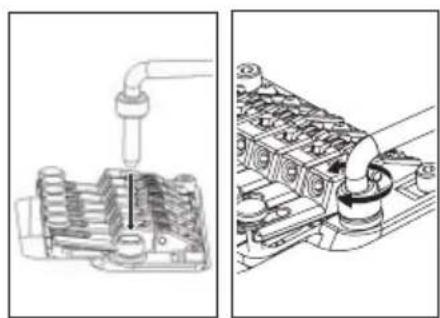

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings suffi ciently. 2 Use an Allen wrench (2 mm) to loosen the saddle lock bolt, and adjust the saddle position. Before checking the intonation, fi rmly tighten the saddle lock bolts and tune ※ the guitar correctly. When youʼve fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut. NA13G222_Regular.indb 44NA13G222_Regular.indb 442013-8-9 17:07:442013-8-9 17:07:4445 ENGLISH

REPLACING THE STRINGS

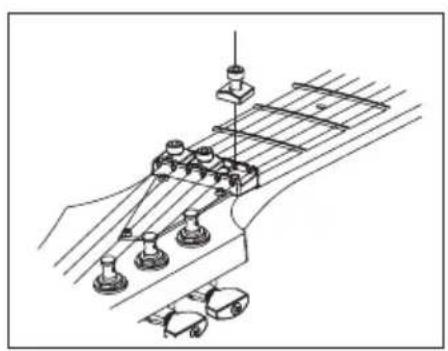

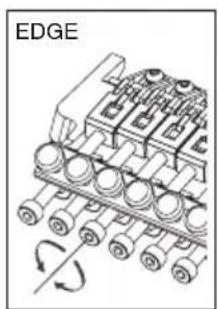

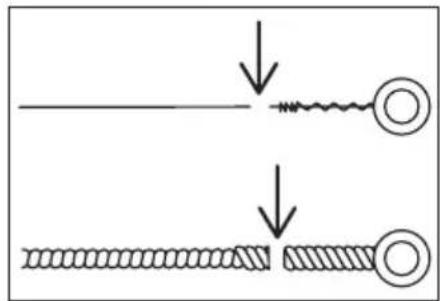

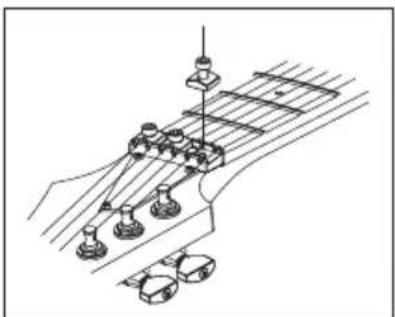

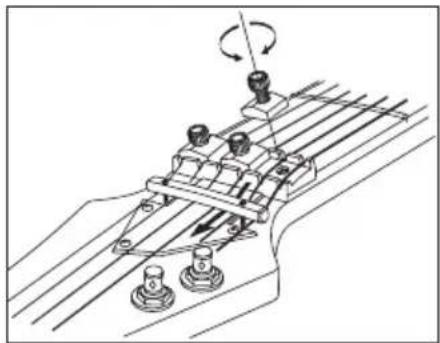

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg. 2 Use an Allen wrench (3 mm) to loosen the string stopper bolt of the bridge unit, then pull the string out of the saddle and remove it. 3 Use wire cutters to cut off the ball end of the new string. 4 Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string. 5 Wind the string onto the tuning peg, and tune it.

When youʼve fi nished tuning, tighten the pressure pad bolts of the locking nut

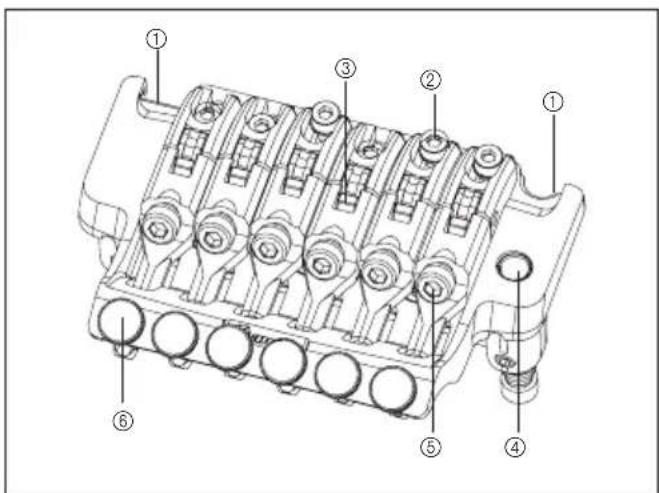

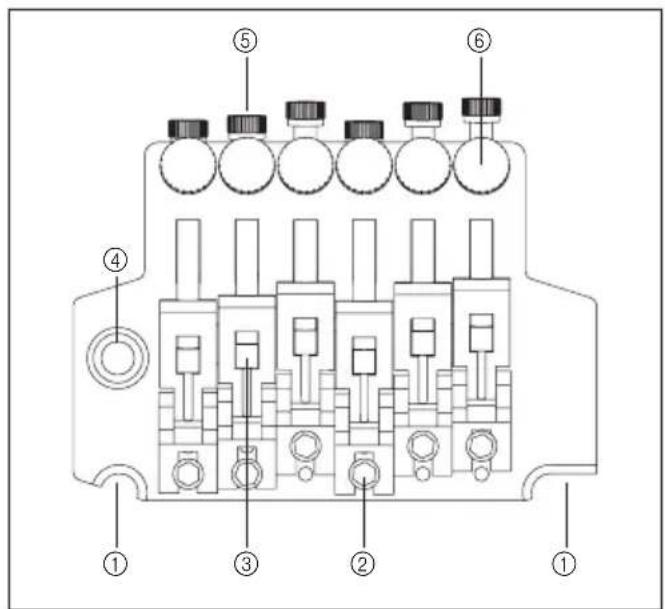

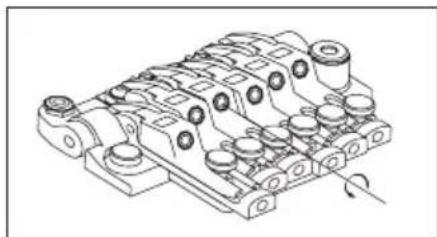

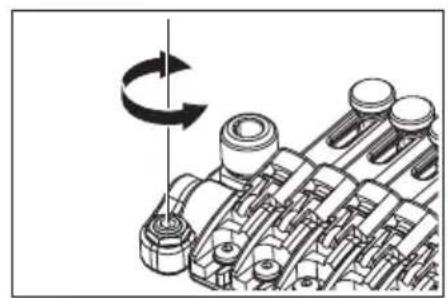

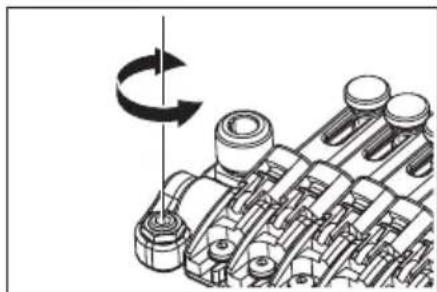

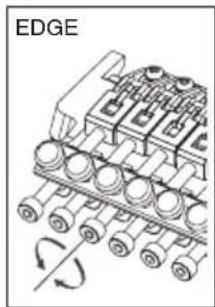

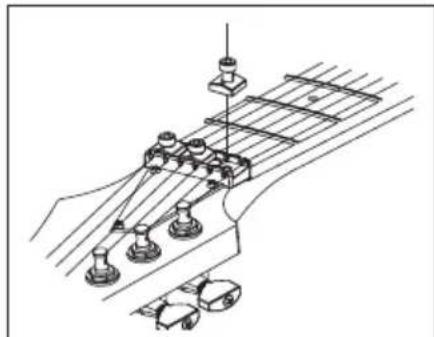

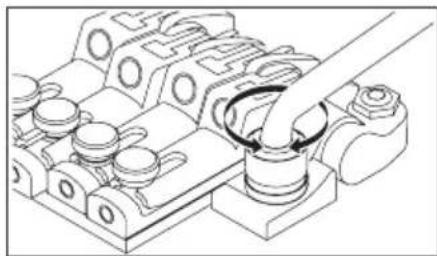

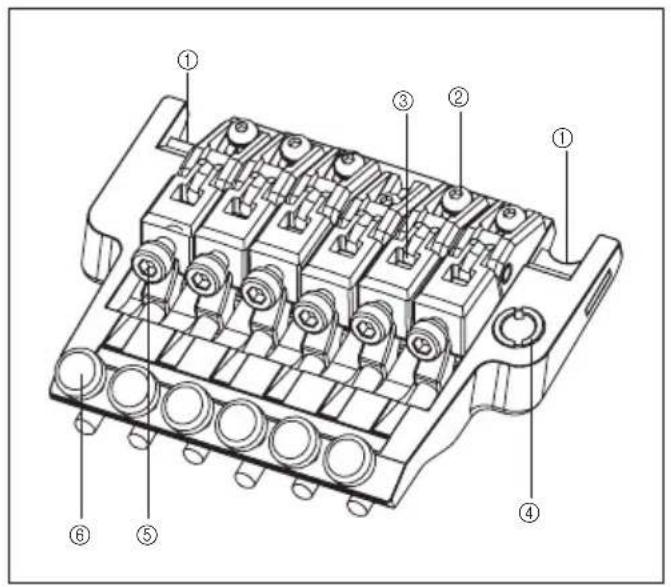

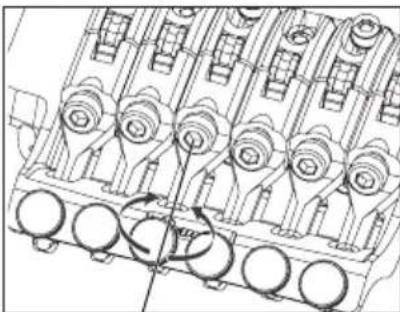

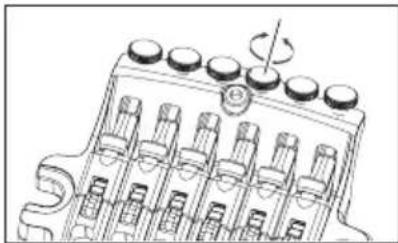

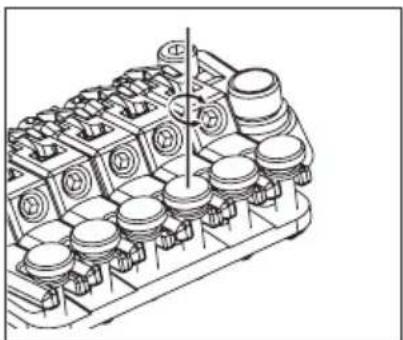

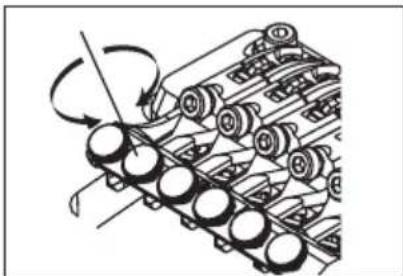

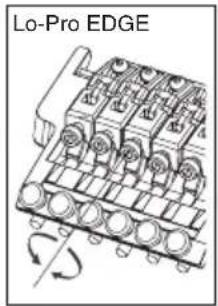

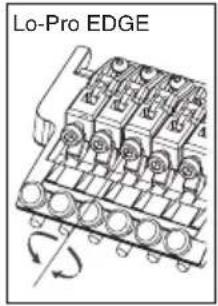

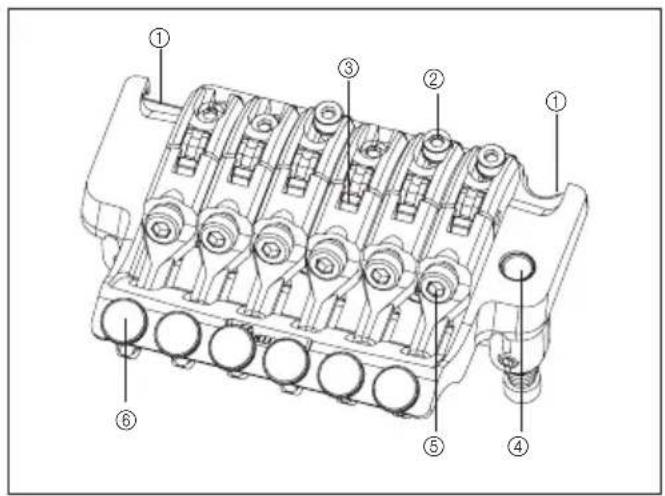

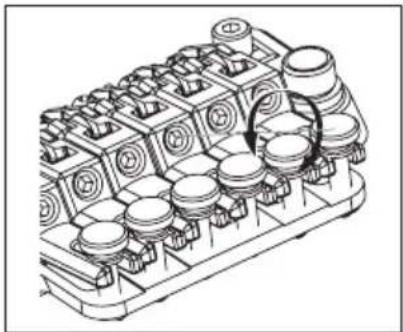

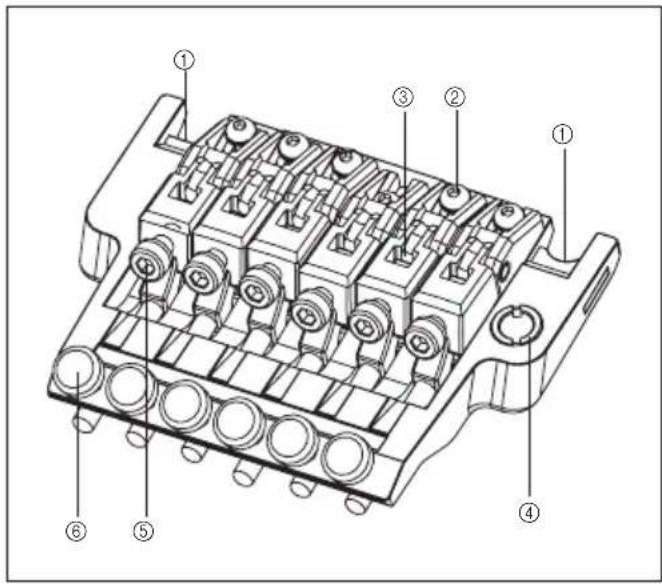

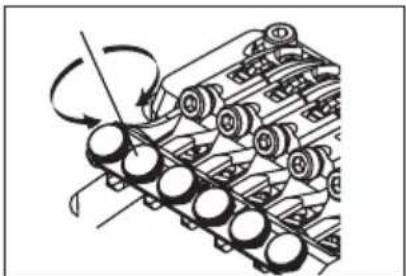

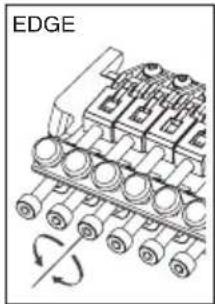

Memo Before you tune, make sure that the string stopper bolts are fi rmly tightened.• FINE TUNING Even after youʼve used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string. The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune. NA13G222_Regular.indb 45NA13G222_Regular.indb 452013-8-9 17:07:442013-8-9 17:07:4446 Locking Tremolos

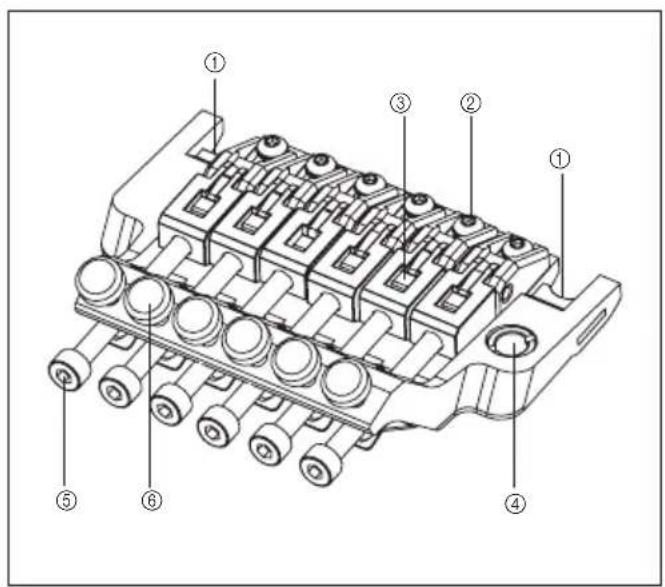

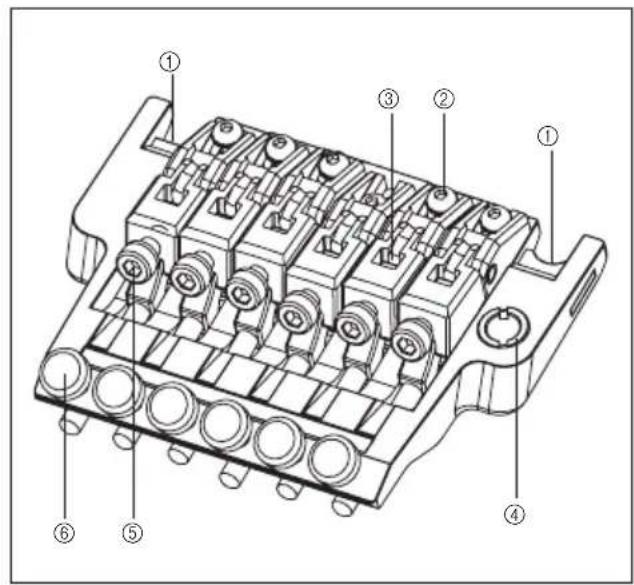

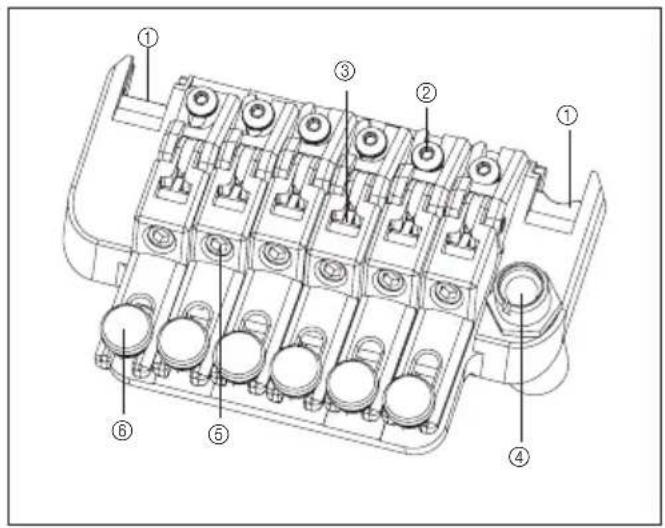

The tightness of the tremolo arm attachment can be adjusted by adding or removing Tefl on washers. Using a larger number of washers will make the attachment tighter, and removing all the washers will leave the arm free. The Tefl on washers can be added or removed diagonally via the slit. Memo If the arm is no longer held fi rmly in place even after youʼve added • Tefl on washers, replace the old Tefl on washers with new ones.

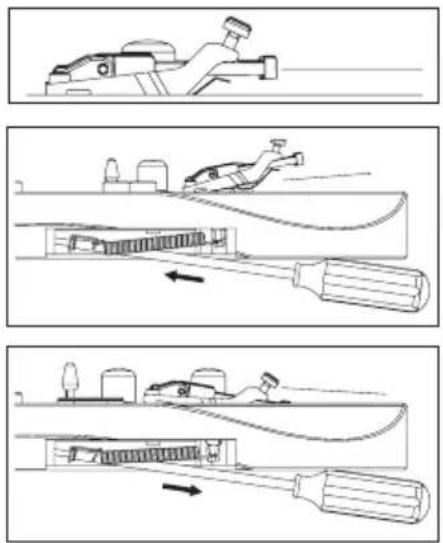

ADJUSTING THE TREMOLO ATTACHMENT ANGLE

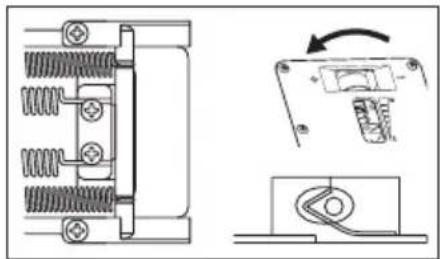

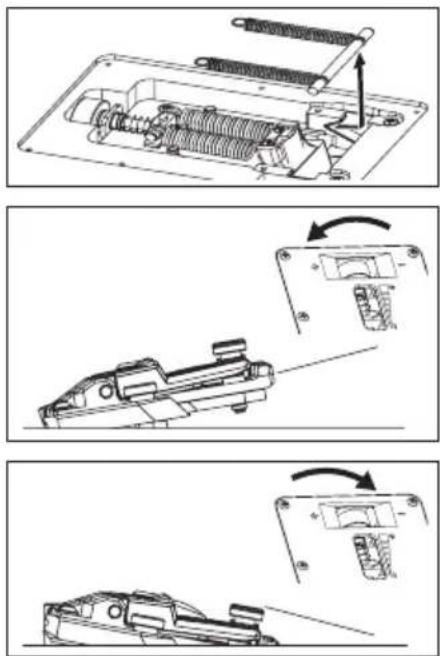

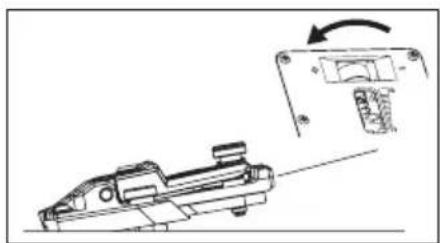

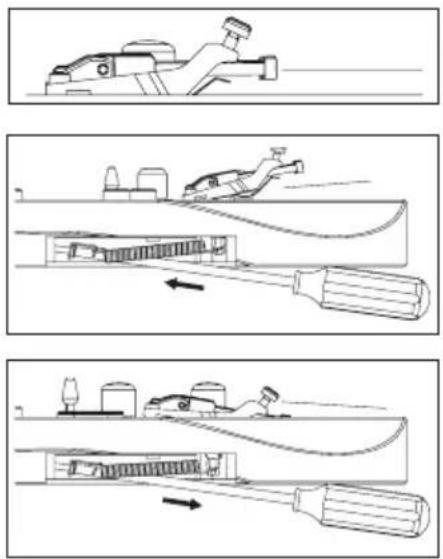

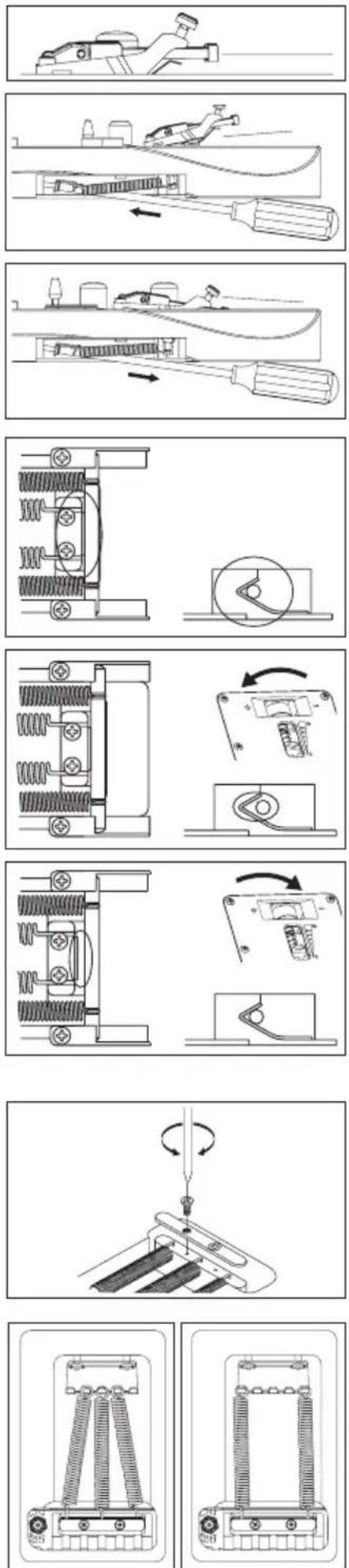

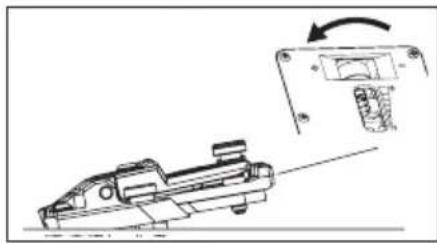

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the tremolo springs installed on the back of the guitar body. Youʼll obtain the optimal performance by adjusting this so that the tremolo is approximately horizontal to the surface of the guitar body.

With the guitar tuned correctly, check the angle of the tremolo.

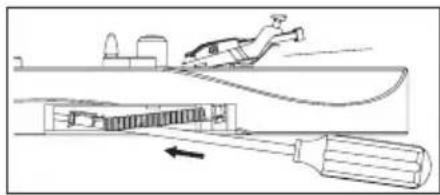

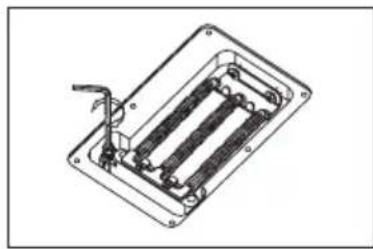

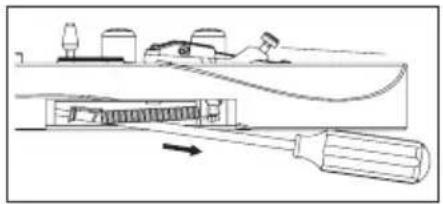

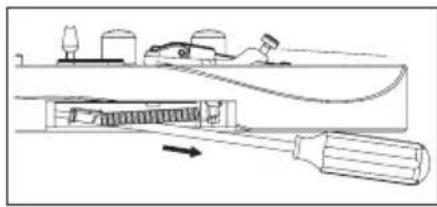

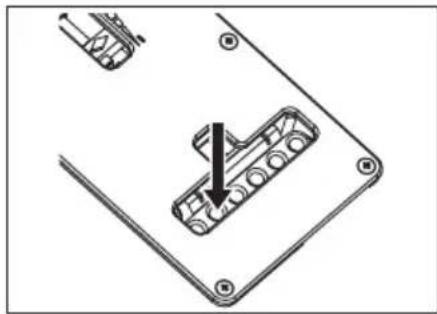

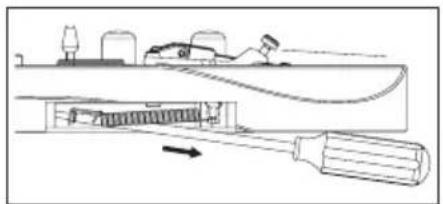

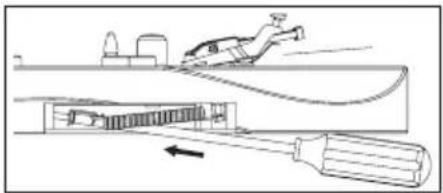

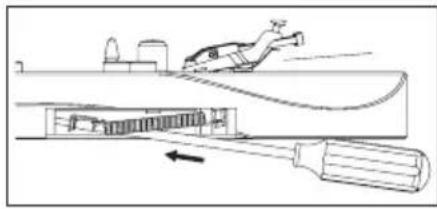

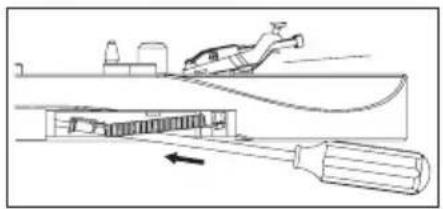

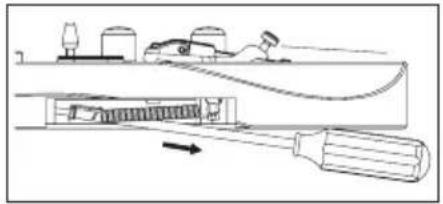

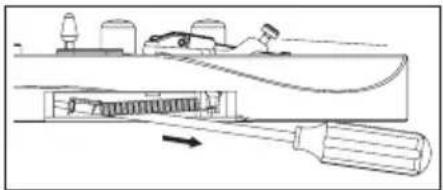

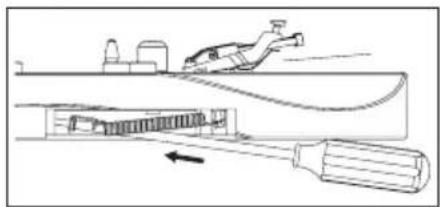

If the tremolo is tilted toward the front, insert a Philips screwdriver through the slit in the tremolo spring cover on the back of the body, and tighten the screw to increase the tension of the tremolo springs.

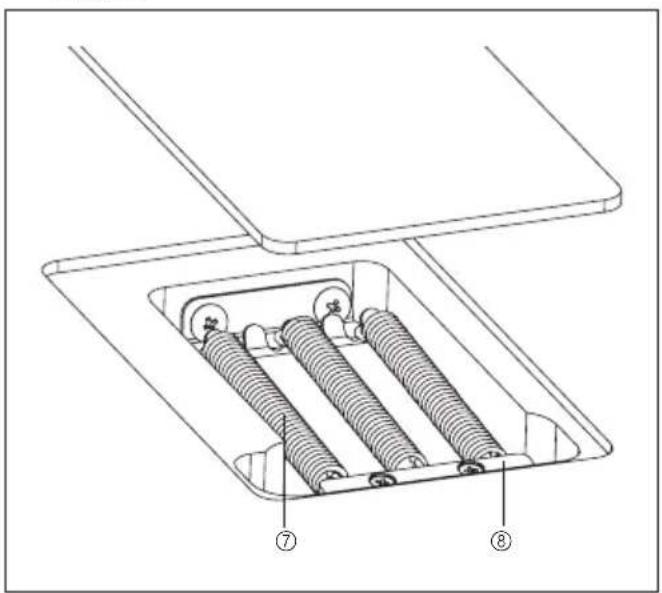

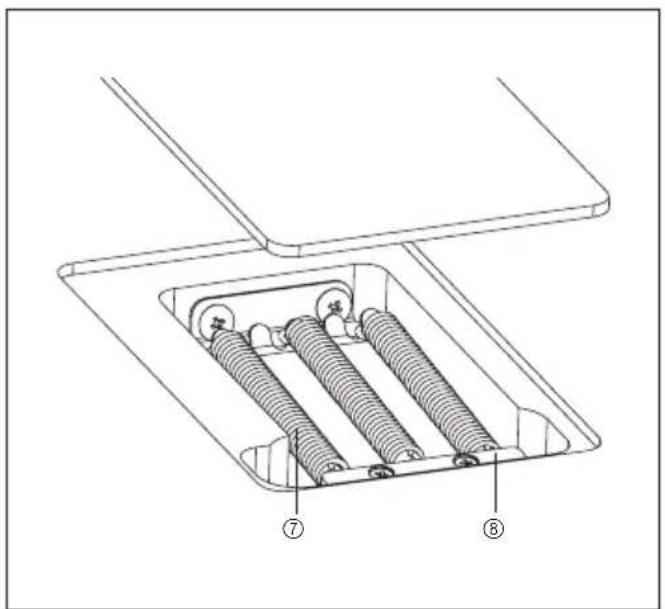

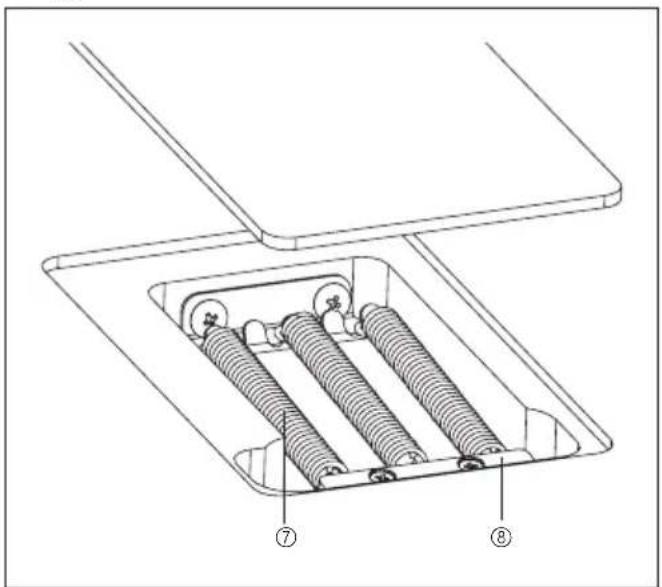

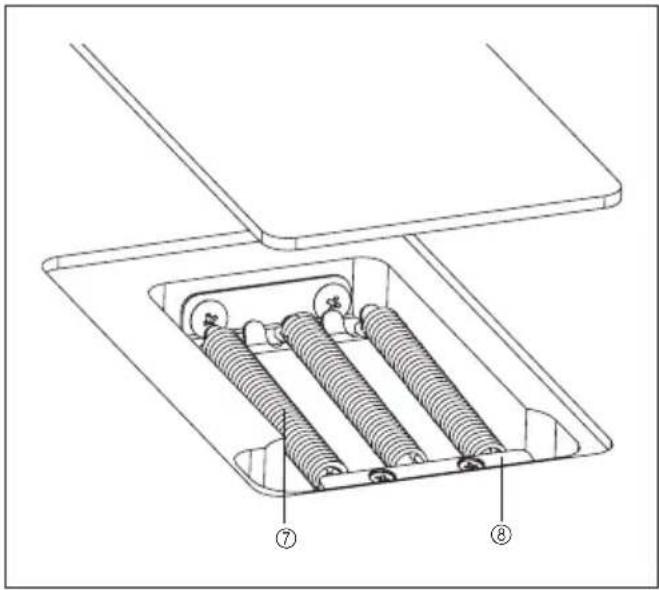

If the tremolo is tilted toward the rear, loosen the screw to decrease the ten- sion of the tremolo springs. The tremolo angle adjustment will affect the tuning, because the balance ※ of tension between the strings and the springs will change each time you adjust the tension of the tremolo springs. Youʼll need to tune repeatedly while making this adjustment. TREMOLO SPRINGS When the guitar is shipped from the factory, it is set up with three tremolo springs installed in parallel. If the balance of tension between the strings and the tremolo springs has changed signifi cantly, such as when youʼve switched string gauges or are using a dropped tuning, you may need to change the number of tremolo springs or change the way in which they are installed.

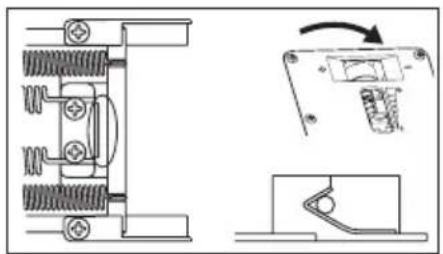

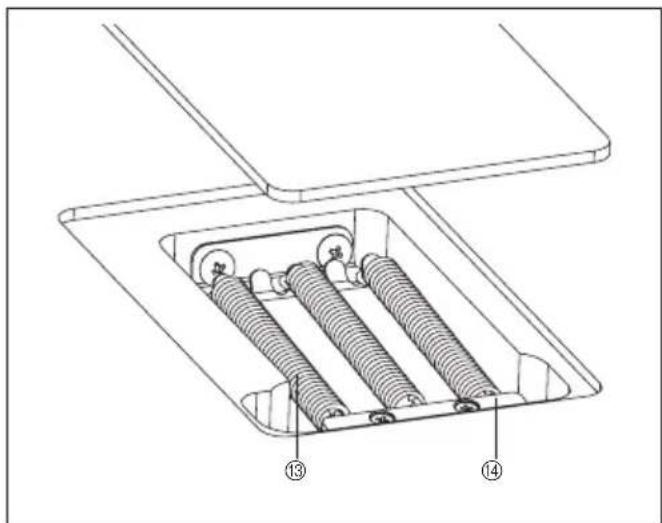

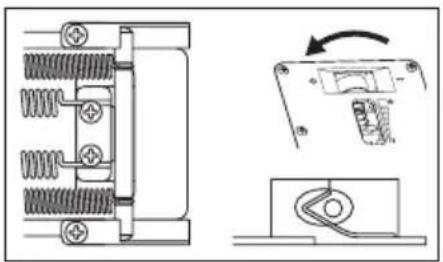

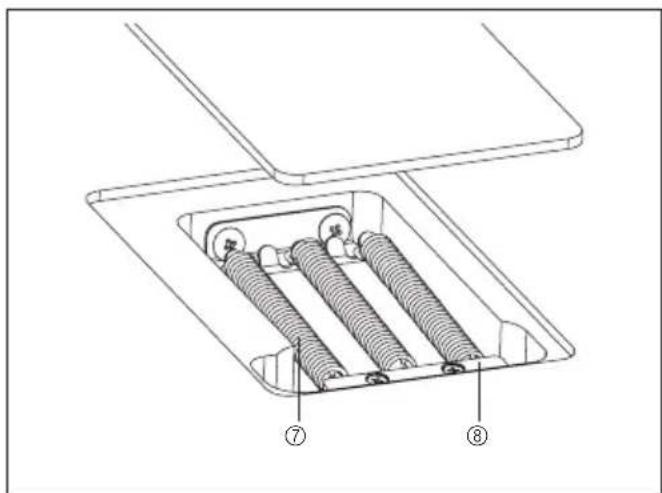

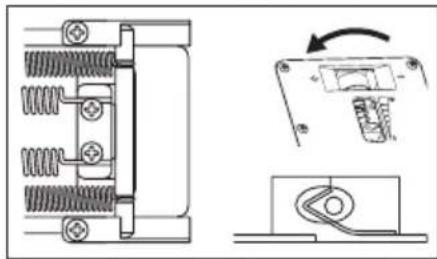

Use a Philips screwdriver to remove the spring lock.

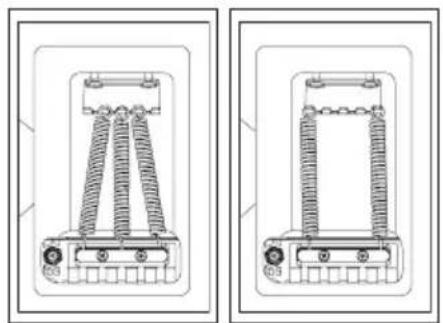

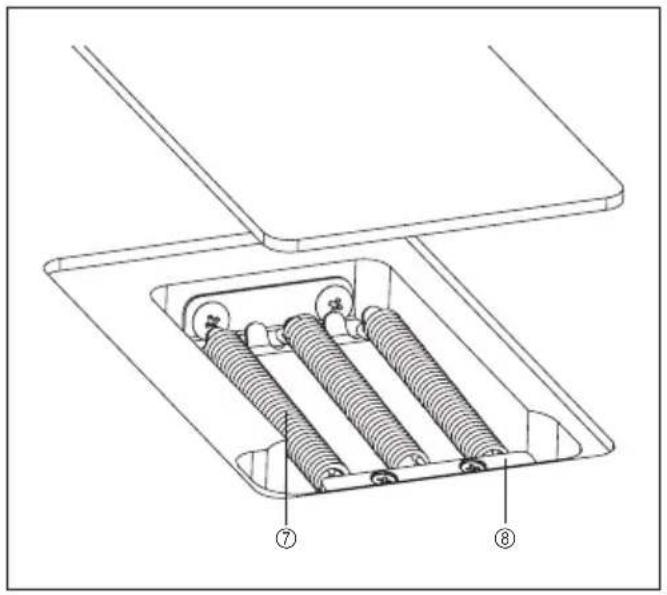

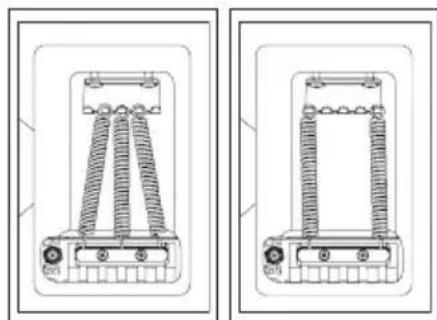

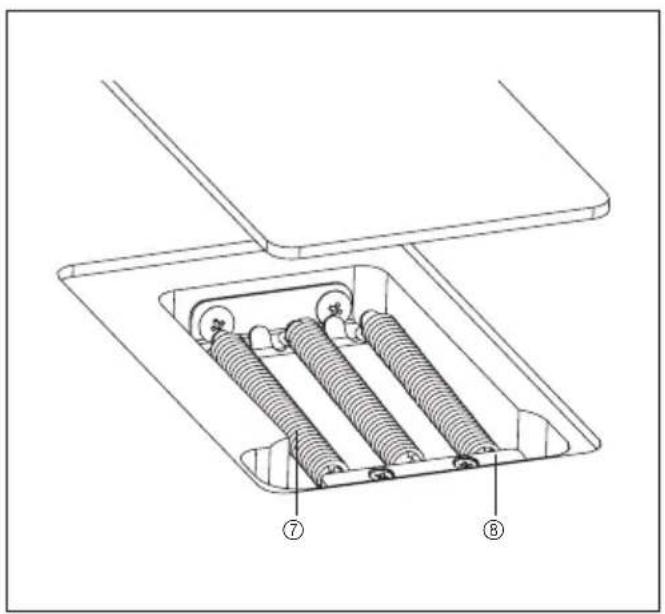

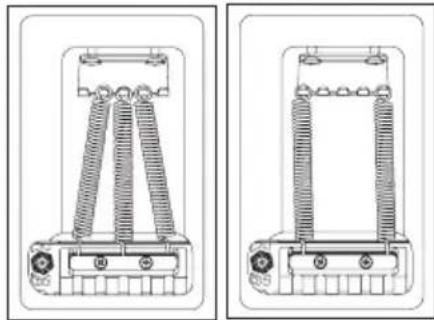

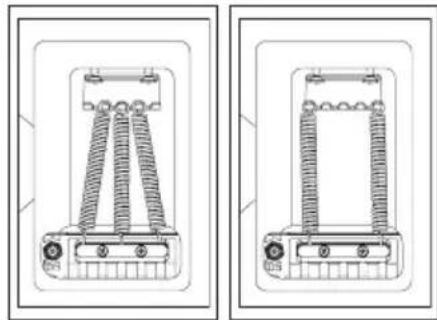

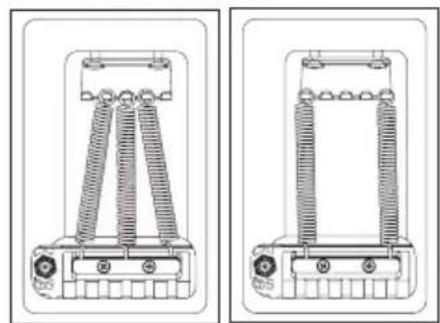

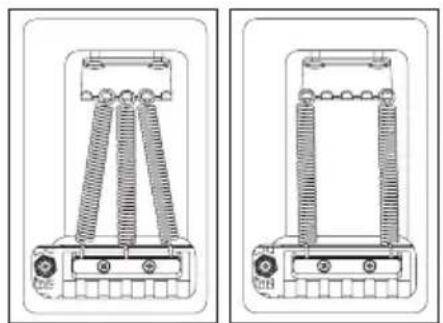

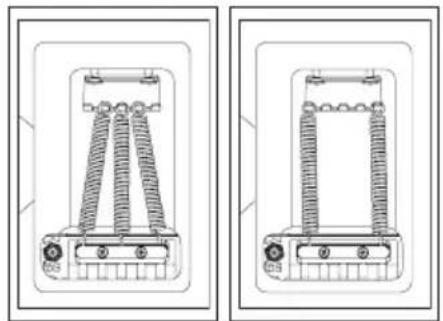

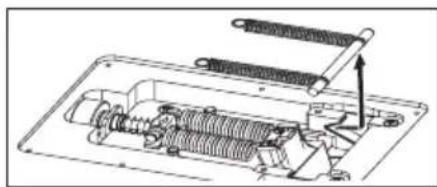

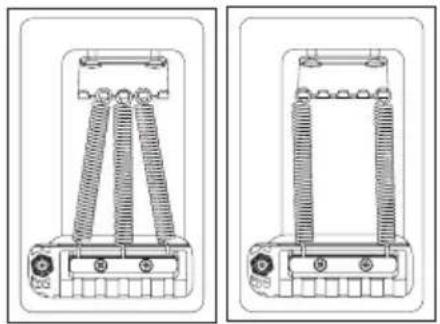

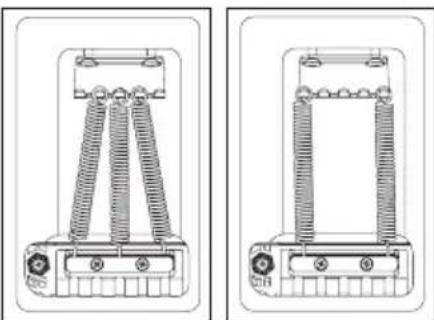

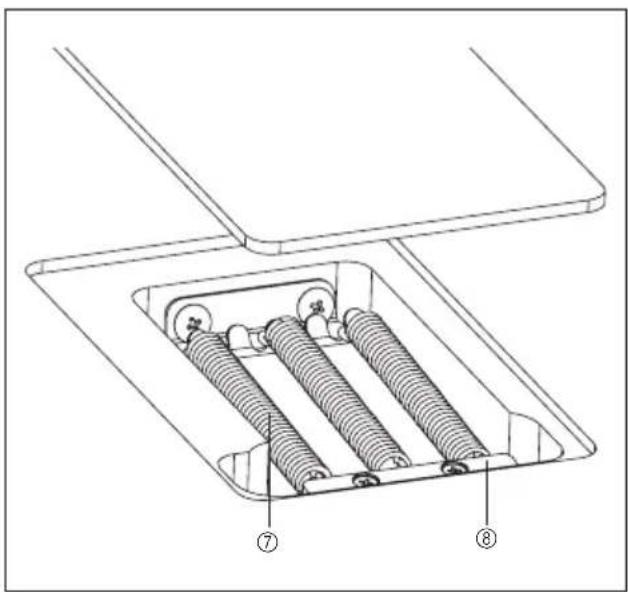

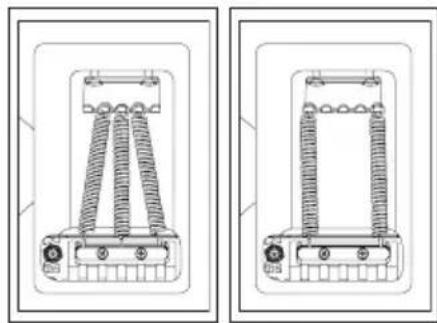

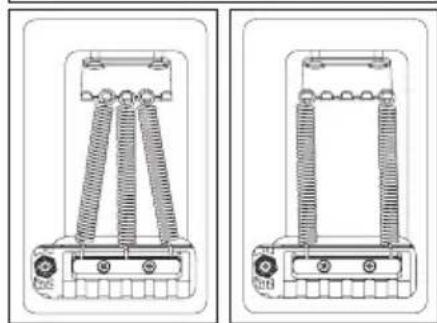

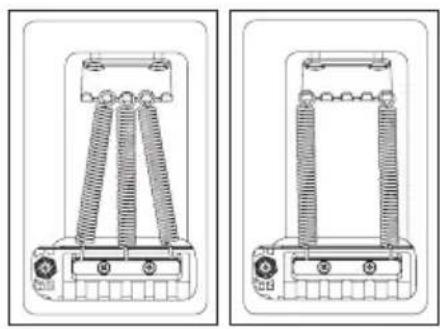

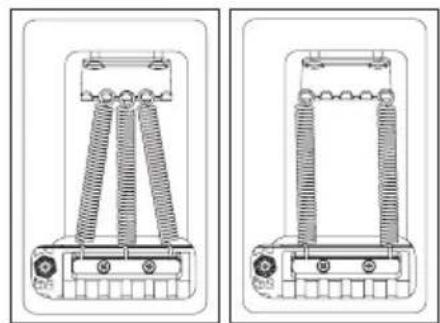

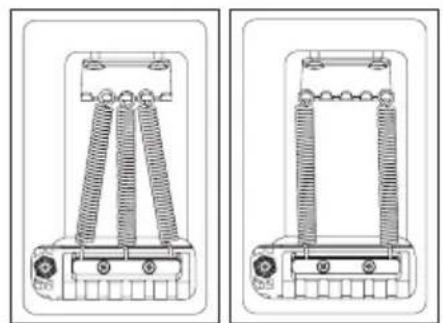

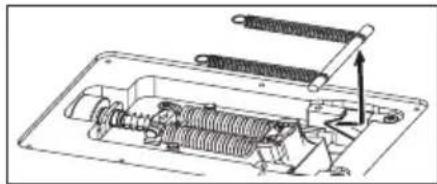

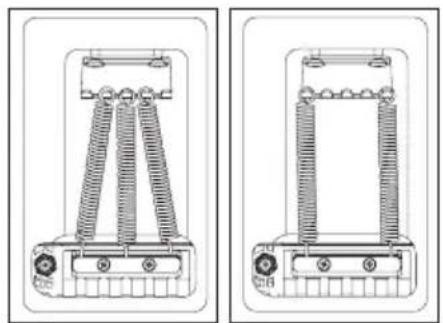

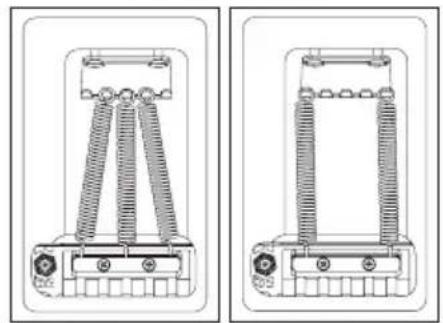

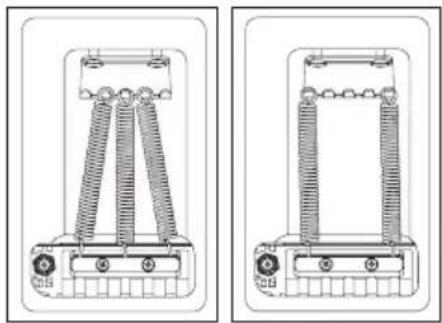

If you want to increase the tension, install the outer two tremolo springs diagonally.

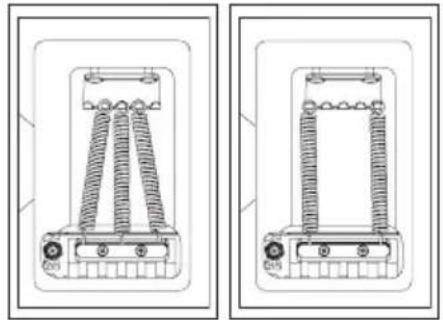

If you want to decrease the tension, remove the center tremolo spring. If you want to install four or more tremolo springs, attach them using the screw holes that were being used to attach the spring lock. (It will no longer be possible to attach the spring lock.) NA13G222_Regular.indb 47NA13G222_Regular.indb 472013-8-9 17:07:452013-8-9 17:07:4548 Memo Loosen the strings suffi ciently before you install or remove tremolo springs. Be aware that if you remove • all of the springs, the tremolo unit will detach from the guitar. To reattach the tremolo, insert the knife edge of the tremolo securely into the groove of the stud bolts, • and then install the tremolo springs. STUD LOCK The Edge/Lo-Pro Edge tremolo bridge uses a stud lock mechanism.

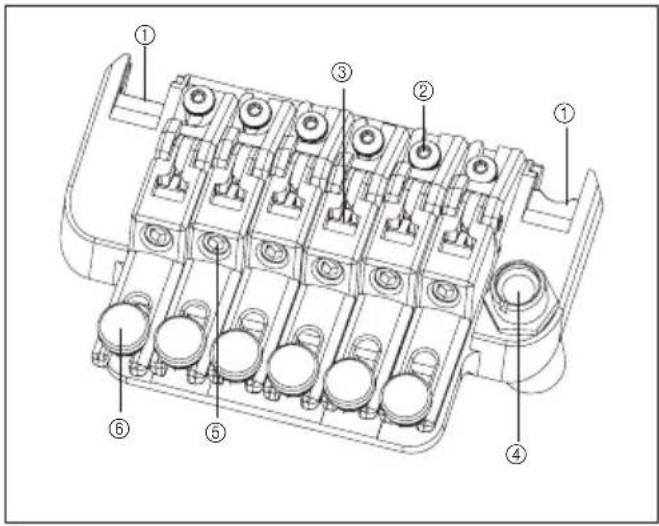

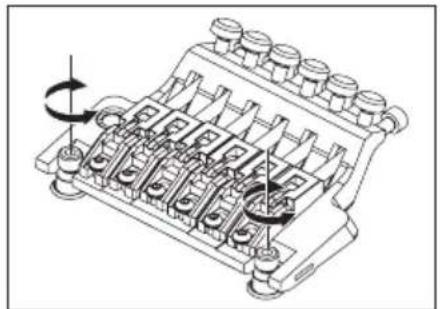

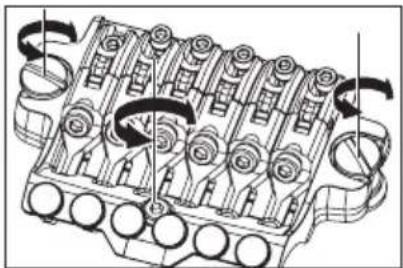

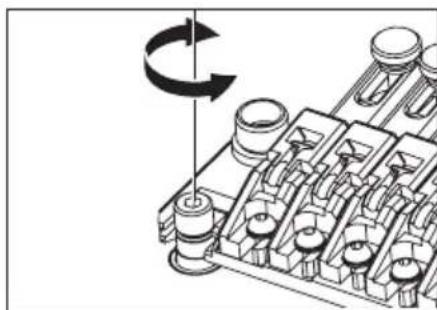

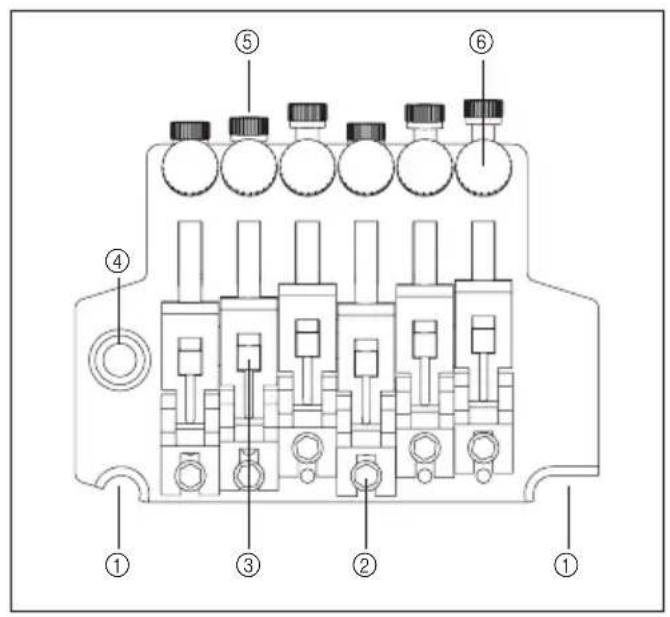

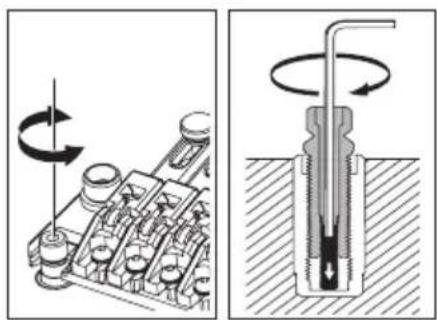

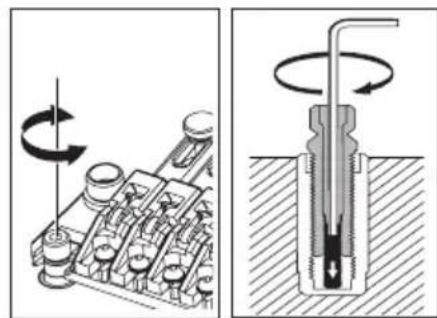

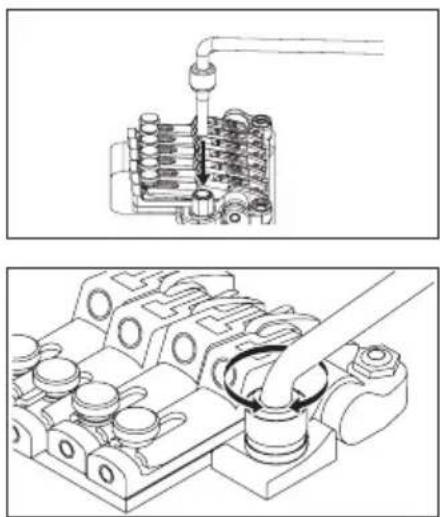

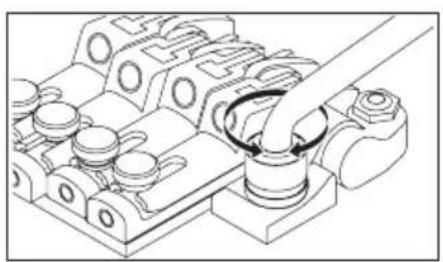

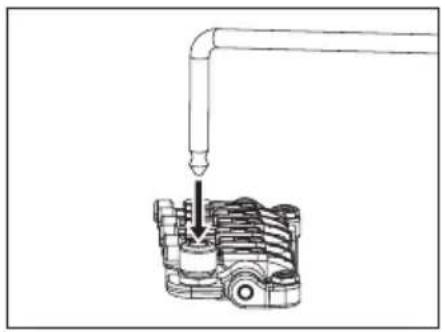

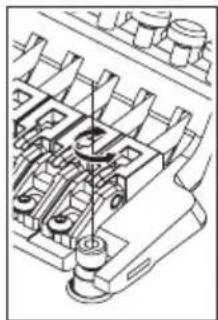

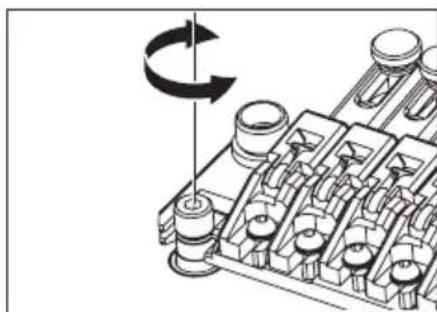

To adjust the height of the entire tremolo unit, use an Allen wrench (4mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.) Memo Make sure that the stud lock is released before you adjust the action.•

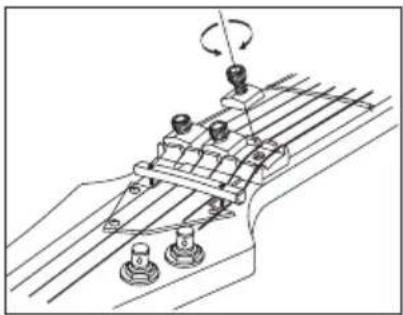

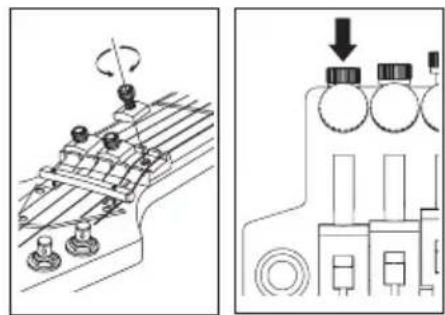

Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings suffi ciently.

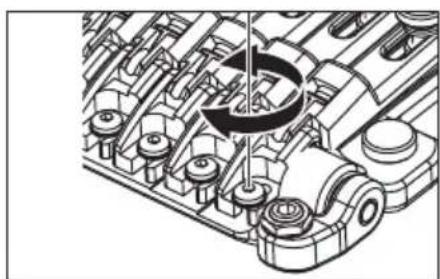

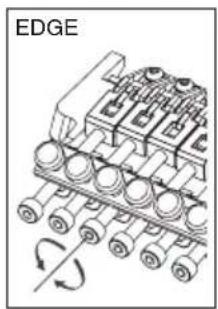

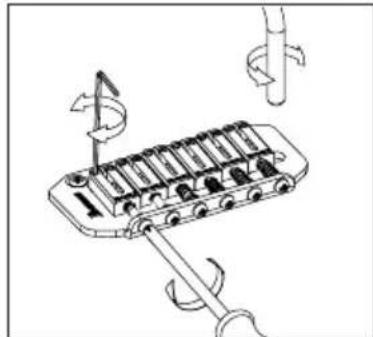

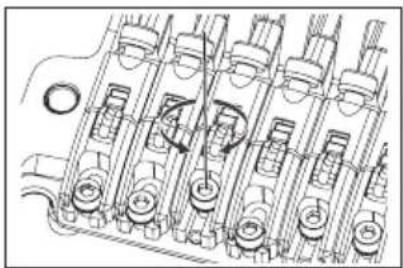

Use an Allen wrench (2 mm) to loosen the saddle lock bolts, and adjust the saddle position. Before checking the intonation, fi rmly tighten the saddle lock bolts and ※ tune the guitar correctly. When youʼve fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut. NA13G222_Regular.indb 48NA13G222_Regular.indb 482013-8-9 17:07:462013-8-9 17:07:4649 ENGLISH

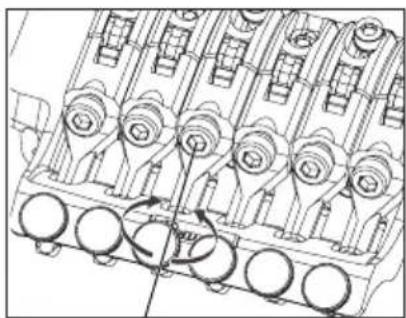

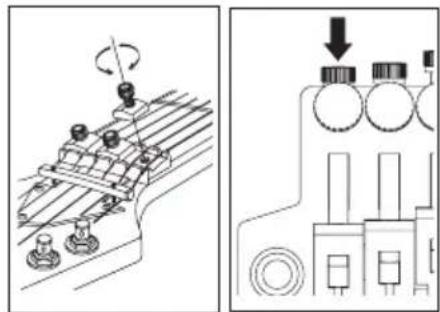

REPLACING THE STRINGS

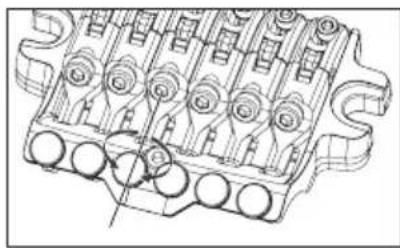

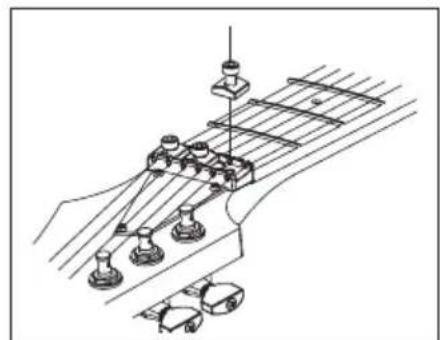

Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg.

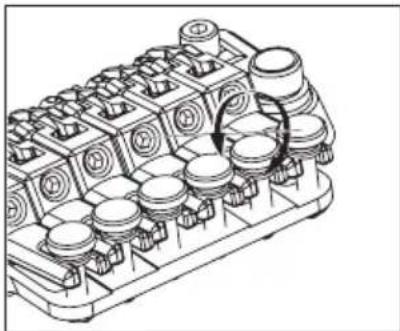

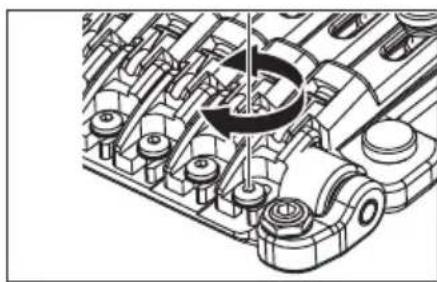

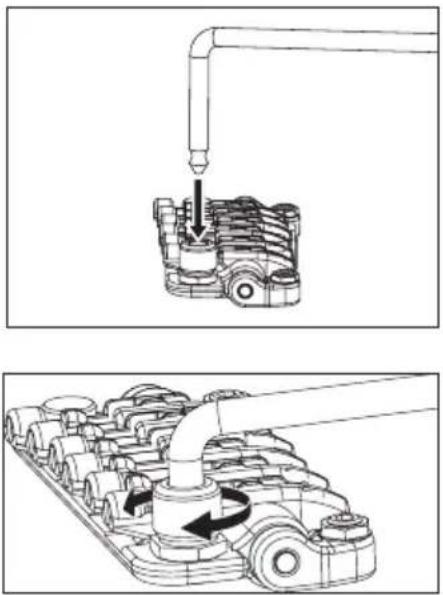

Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it.

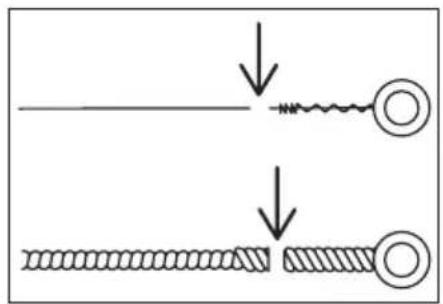

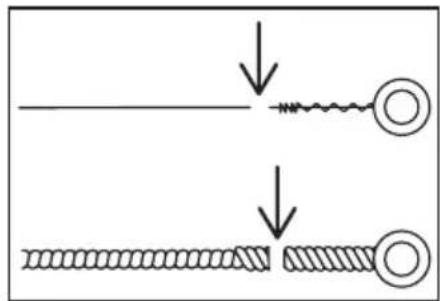

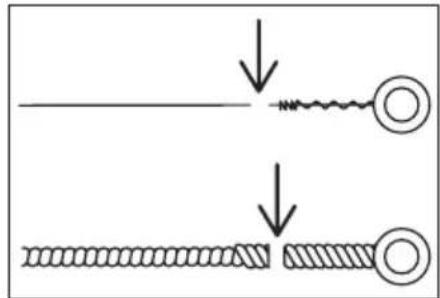

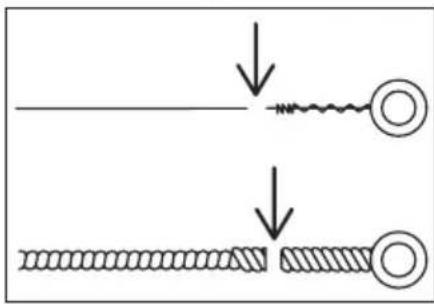

Use wire cutters to cut off the ball end of the new string.

Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string.

Wind the string onto the tuning peg, and tune it.

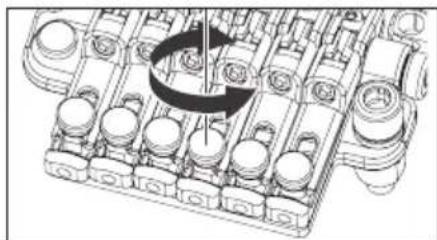

When youʼve fi nished tuning, tighten the pressure pad bolts of the locking nut. Removing all strings at the same time will cause the tremolo attachment ※ angle to change signifi cantly, so we recommend that you replace the strings one at a time. If you remove all strings at the same time, tuning will be easier if you wedge a piece of cloth below the tremolo to secure it so that the tremolo attachment angle wonʼt change signifi cantly. Memo Before you tune, make sure that the string stopper bolts are fi rmly tightened.• FINE TUNING Even after youʼve used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string. The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune. EDGE Lo-Pro EDGE EDGE Lo-Pro EDGE NA13G222_Regular.indb 49NA13G222_Regular.indb 492013-8-9 17:07:472013-8-9 17:07:4750

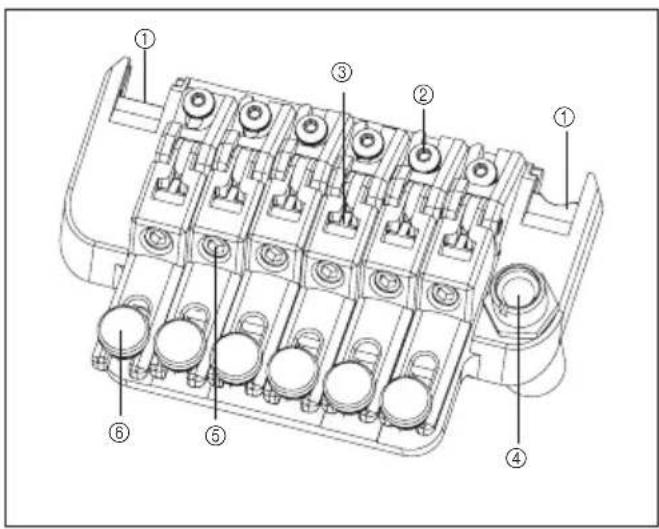

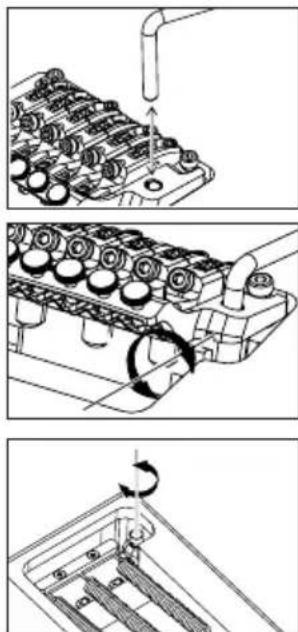

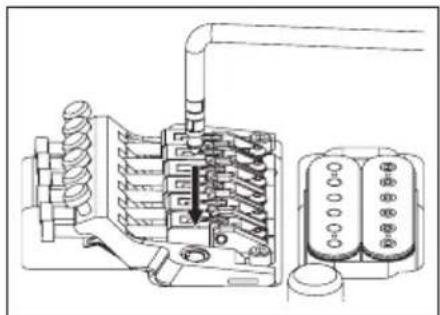

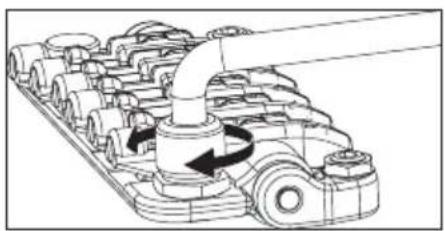

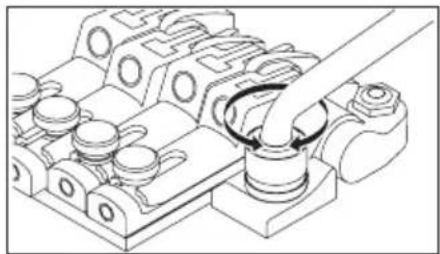

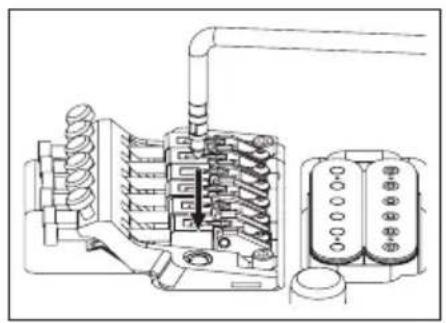

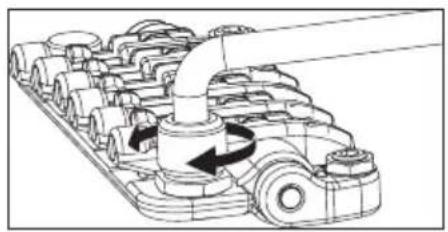

1 The tremolo arm employs a snap-in/snap-out design. Hold the corner of the tremolo arm, and press it fi rmly into the arm socket of the base plate. ※ The tremolo arm of the EDGE III Herman Li Ver. installed on the EGEN8 is a screw-in type. After inserting the tremolo arm into the arm socket, rotate it to fasten it in place. 2 To adjust the tightness of the tremolo arm, use an Allen wrench (2 mm) to adjust the torque adjustment screw via the adjustment hole on the side of the tremolo block. Tightening the torque adjustment screw clockwise will make the tremolo arm tighter; loosing the screw will make the arm looser. 3 To adjust the height of the tremolo arm, remove the tremolo spring cover on the back of the guitar and use an Allen wrench (3 mm) to turn the height adjustment screws located on the bottom of the tremolo block. Tightening the screws clockwise will increase the height. Memo In addition to the one described above, the tremolo arm also has a torque adjustment screw located at • the bottom of the tremolo block. The torque adjustment screw at the bottom of the tremolo block is already adjusted when the guitar is shipped from the factory; if it should require adjustment, remove the tremolo unit from the guitar and then adjust the screw. Before attaching the tremolo arm, make sure that the torque adjustment screw has not come loose or fallen out.• NA13G222_Regular.indb 50NA13G222_Regular.indb 502013-8-9 17:07:472013-8-9 17:07:4751 ENGLISH

ADJUSTING THE TREMOLO ATTACHMENT ANGLE

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the tremolo springs installed on the back of the guitar body. Youʼll obtain the optimal performance by adjusting this so that the tremolo is approximately horizontal to the surface of the guitar body. 1 With the guitar tuned correctly, check the angle of the tremolo.

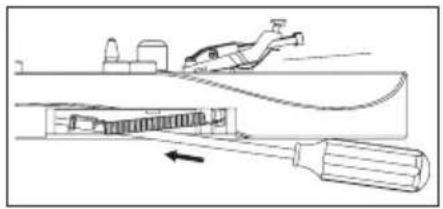

If the tremolo is tilted toward the front, insert a Philips screwdriver through the slit in the tremolo spring cover on the back of the body, and tighten the screw to increase the tension of the tremolo springs.

If the tremolo is tilted toward the rear, loosen the screw to decrease the ten- sion of the tremolo springs. The tremolo angle adjustment will affect the tuning, because the balance of tension between the strings and the ※ springs will change each time you adjust the tension of the tremolo springs. Youʼll need to tune repeatedly while making this adjustment. TREMOLO SPRINGS When the guitar is shipped from the factory, it is set up with three tremolo springs installed in parallel. If the balance of tension between the strings and the tremolo springs has changed signifi cantly, such as when youʼve switched string gauges or are using a dropped tuning, you may need to change the number of tremolo springs or change the way in which they are installed. 1 Use a Philips screwdriver to remove the spring lock. 2 If you want to increase the tension, install the outer two tremolo springs diagonally. 3 If you want to decrease the tension, remove the center tremolo spring. If you want to install four or more tremolo springs, attach them using the screw holes that were being used to attach the spring lock. (It will no longer be possible to attach the spring lock.) Memo Loosen the strings suffi ciently before you install or remove tremolo springs.• Be aware that if you remove all of the springs, the tremolo unit will detach from the guitar. To reattach the tremolo, insert the knife edge of the tremolo securely into the groove of the stud bolts, • and then install the tremolo springs.

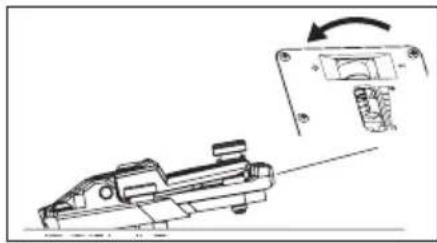

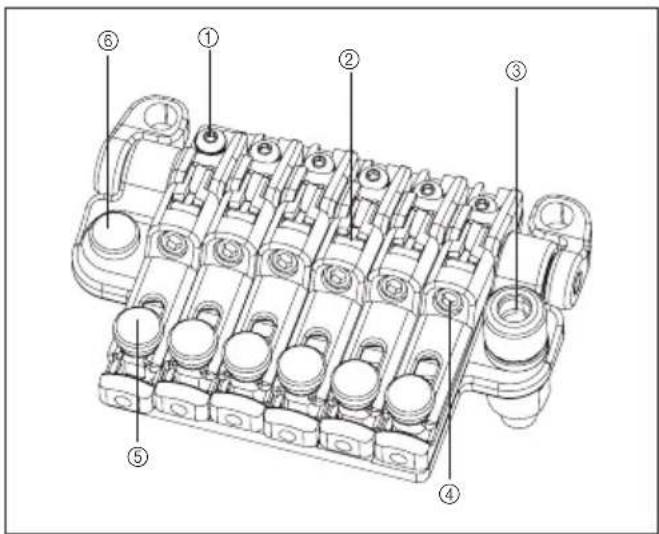

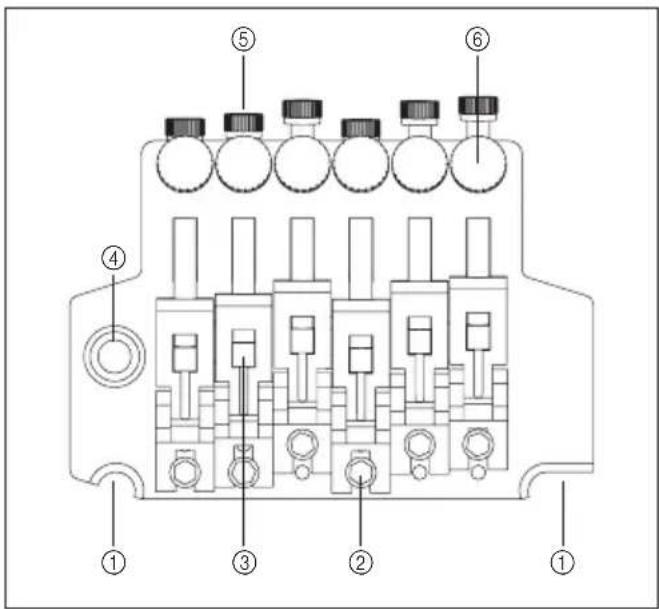

ADJUSTING THE ACTION

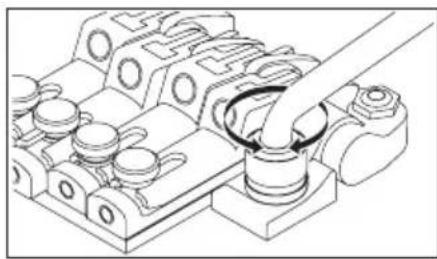

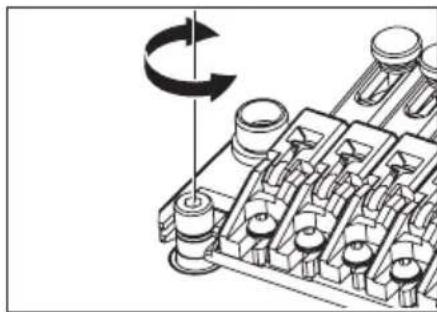

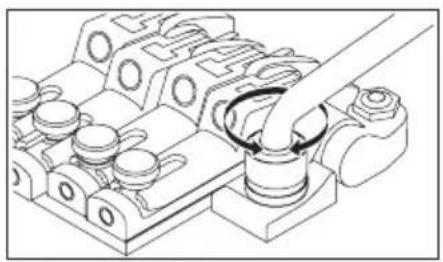

To adjust the height of the entire tremolo unit, use an Allen wrench (3 mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.) NA13G222_Regular.indb 51NA13G222_Regular.indb 512013-8-9 17:07:482013-8-9 17:07:4852

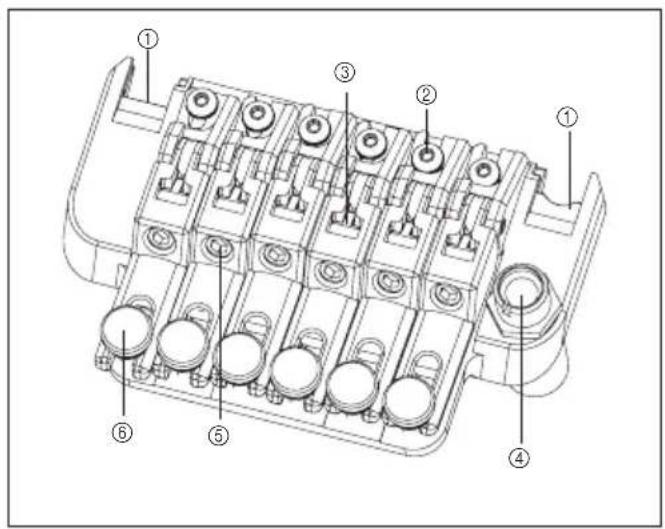

ADJUSTING THE INTONATION

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings suffi ciently. 2 Use an Allen wrench (2 mm) to loosen the saddle lock bolts, and adjust the saddle position. Before checking the intonation, fi rmly tighten the saddle lock bolts and tune the guitar correctly. When youʼve ※ fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut.

REPLACING THE STRINGS

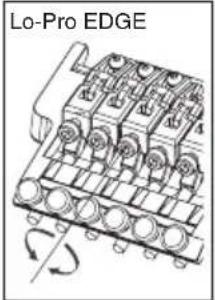

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg. 2 Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it.

Use wire cutters to cut off the ball end of the new string. 4 Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string. 5 Wind the string onto the tuning peg, and tune it.

When youʼve fi nished tuning, tighten the pressure pad bolts of the locking nut. Removing all strings at the same time will cause the tremolo attachment angle to change signifi cantly, so we rec- ※ ommend that you replace the strings one at a time. If you remove all strings at the same time, tuning will be easier if you wedge a piece of cloth below the tremolo to secure it so that the tremolo attachment angle wonʼt change signifi cantly. Memo Before you tune, make sure that the string stopper bolts are fi rmly tightened.• FINE TUNING Even after you've used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string. The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune. NA13G222_Regular.indb 52NA13G222_Regular.indb 522013-8-9 17:07:492013-8-9 17:07:4953 ENGLISH

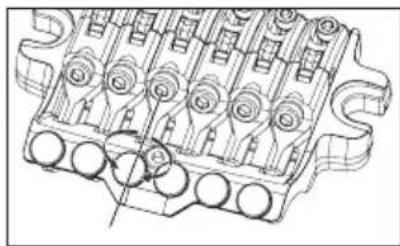

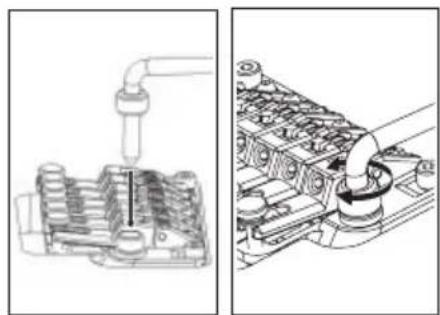

1 The tremolo arm employs a one-piece snap-in design with an adjustable- torque cap. Insert the tremolo arm into the arm socket of the base plate. 2 Tighten the torque adjustment cap to secure the tremolo arm. The tremolo arm will become tighter as you tighten the torque adjustment cap. TREMOLO ANGLE ADJUSTMENT / ZERO POINT SYSTEM TREMOLO

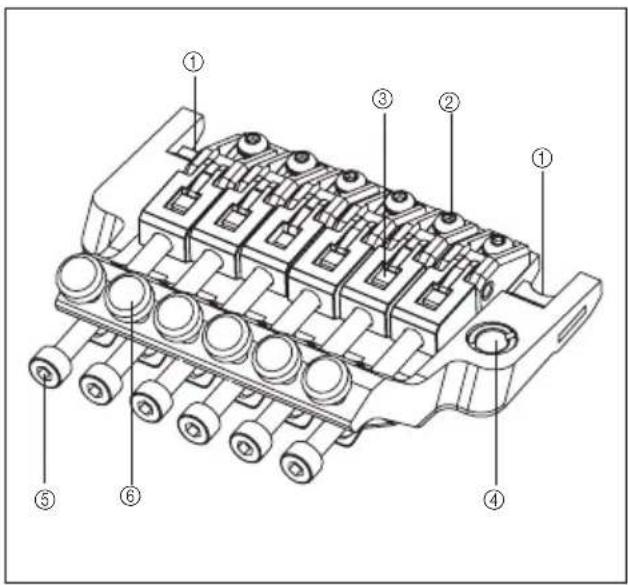

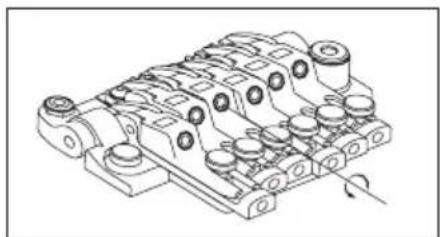

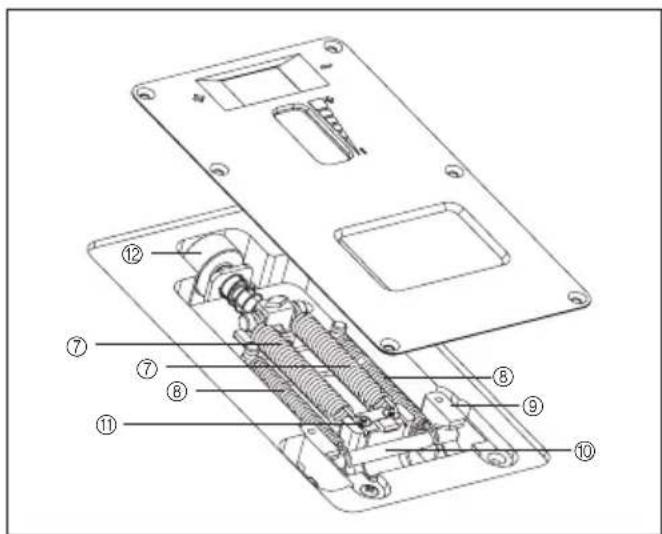

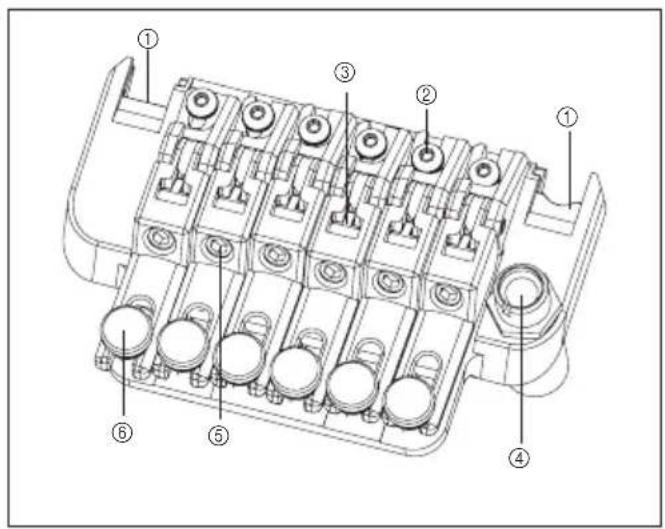

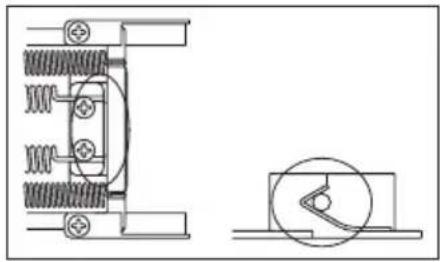

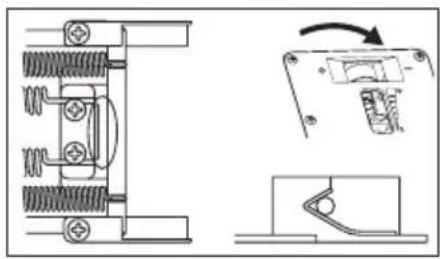

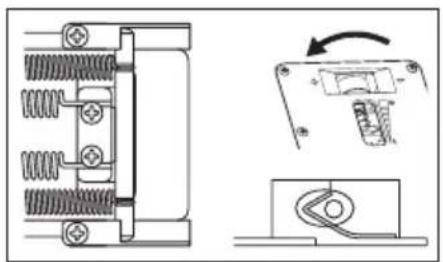

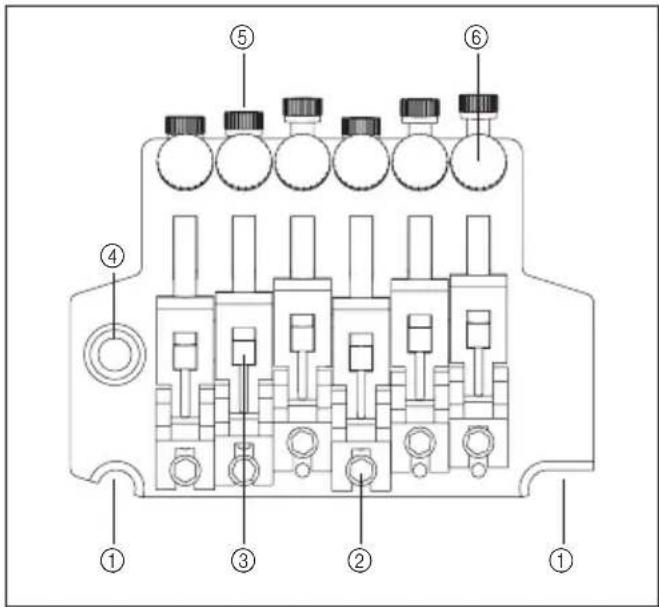

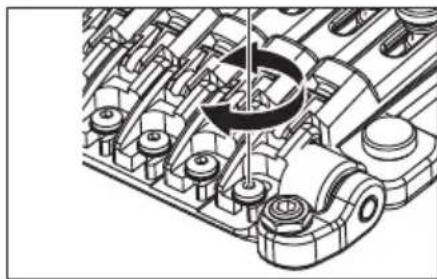

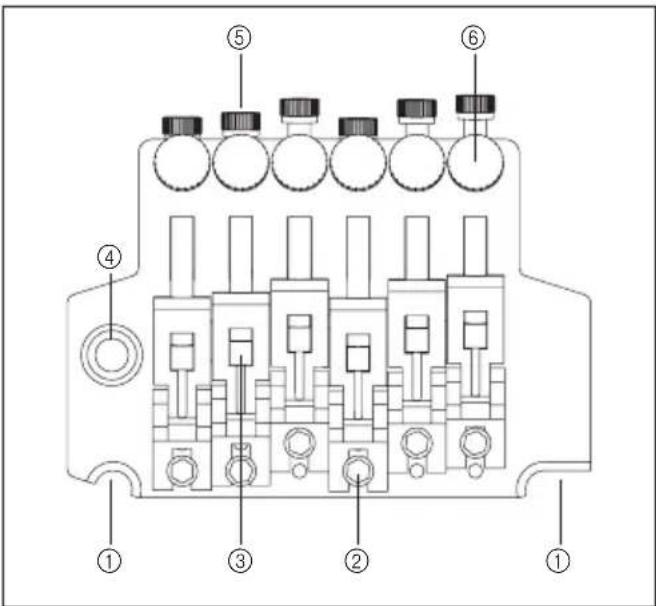

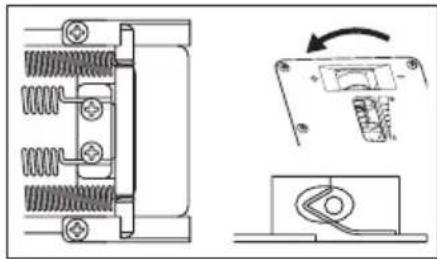

ANGLE ADJUSTMENT / ZERO POINT SYSTEM ADJUSTMENT

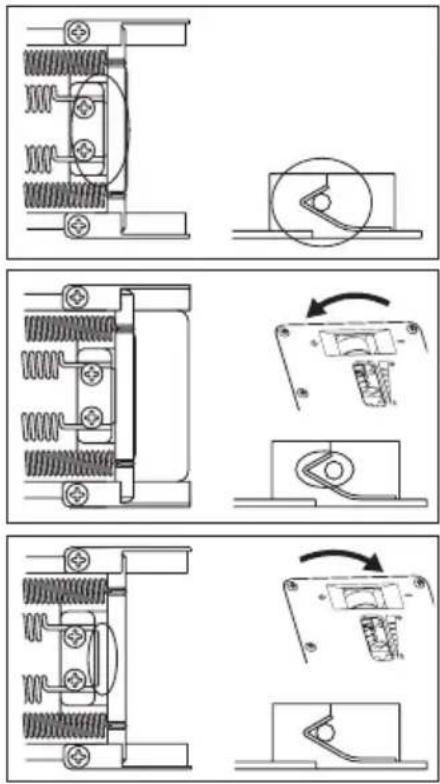

・ Models not equipped with the zero point system The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the tremolo springs installed on the back of the guitar body. Youʼll obtain the best performance by adjusting the tremolo arm so that it is approximately parallel with the surface of the guitar body. NA13G222_Regular.indb 53NA13G222_Regular.indb 532013-8-9 17:07:502013-8-9 17:07:5054 1 With the guitar tuned correctly, check the angle of the tremolo. 2 If the tremolo is tilted forward, insert a Philips screwdriver through the slit in the tremolo spring cover on the back of the body, and tighten the screws to increase the tension of the tremolo springs. 3 If the tremolo is tilted toward the rear, loosen the screws to weaken the tension of the tremolo springs. Because the balance of tension between the strings and the springs will ※ change each time you adjust the tension of the tremolo springs, adjust- ing the tremolo angle will affect the tuning. Youʼll need to tune the guitar repeatedly while performing this adjustment. ・Models equipped with the zero point system The angle at which the tremolo is attached is adjusted by the balance between the tension of the strings and the zero point system installed on the back of the guitar body. The Edge-Zero 2 tremolo bridge is designed so that when the zero point system is correctly adjusted, the tremolo will be approximately parallel with the surface of the guitar body, and will perform optimally when in that state. When the zero point system is correctly adjusted, the stop rod will be in fi rm contact with the tremolo block and the stop rod will be touching the stopper. 1 With the guitar tuned correctly, check the zero point system. 2 If the stop rod is not touching the stopper (i.e., if the tremolo block is pushing up the stop rod), turn the spring adjustment knob located on the back of the body toward the “plus” direction to tighten the main spring. 3 If the tremolo block is not in fi rm contact with the stop rod (i.e., if the tremolo is tilted toward the rear), turn the spring adjustment knob toward the “minus” direction to loosen the main spring.

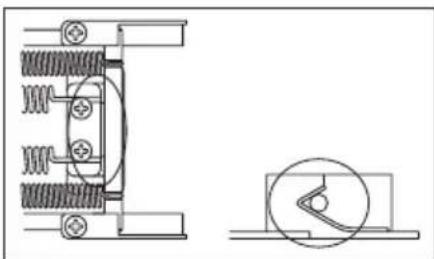

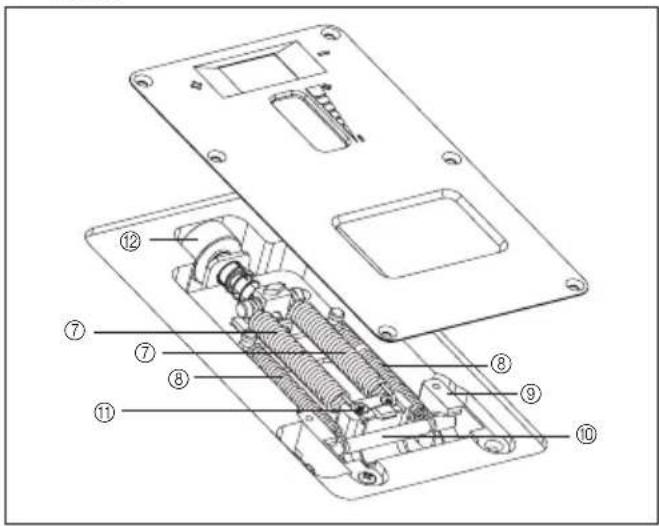

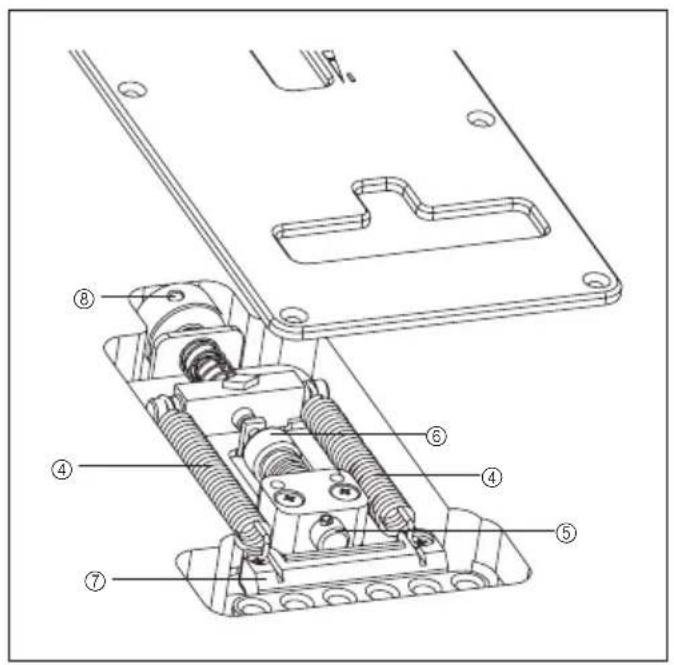

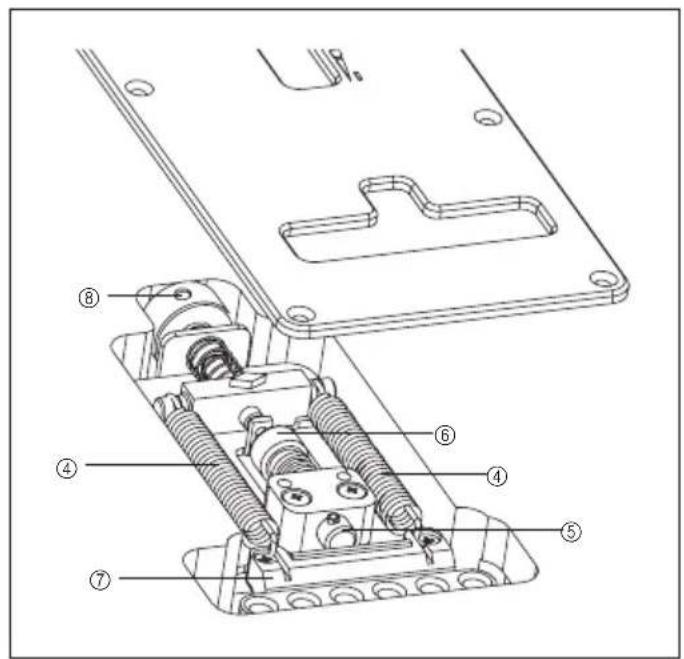

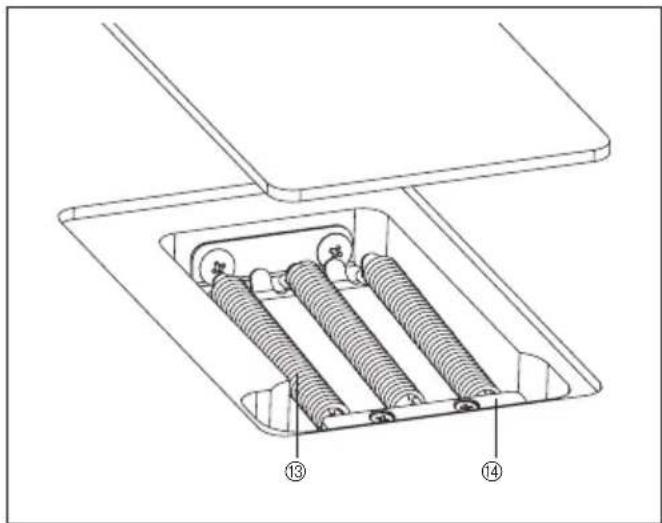

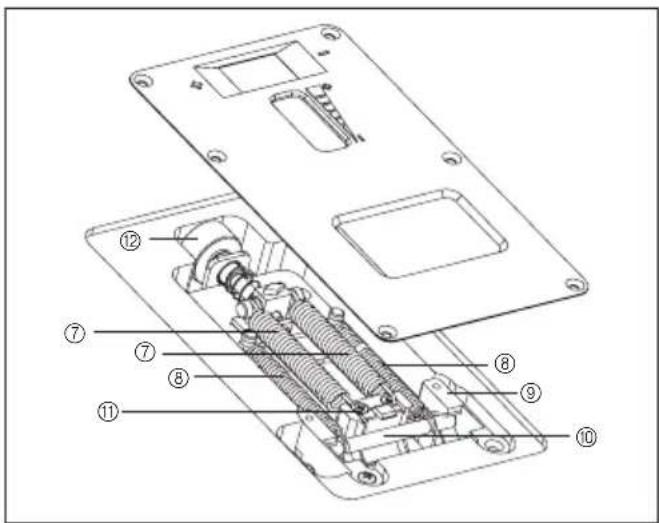

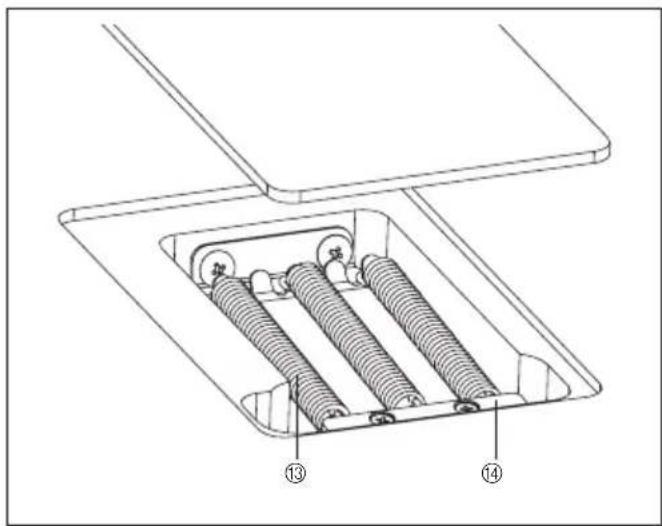

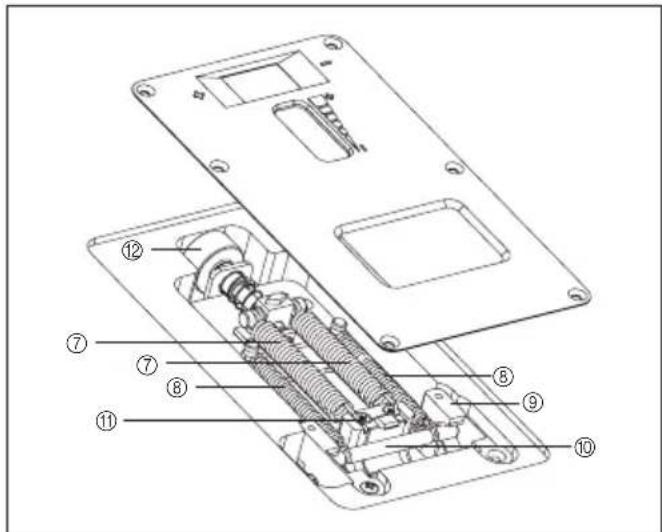

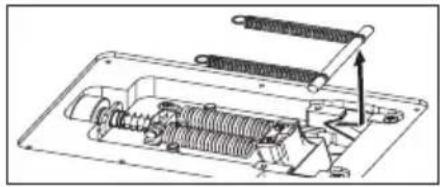

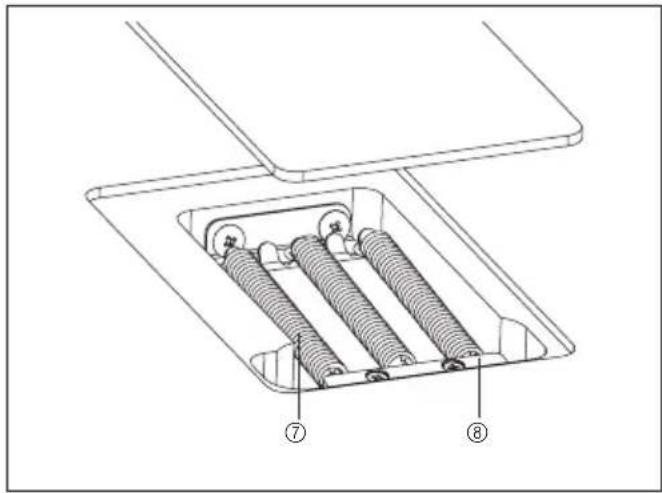

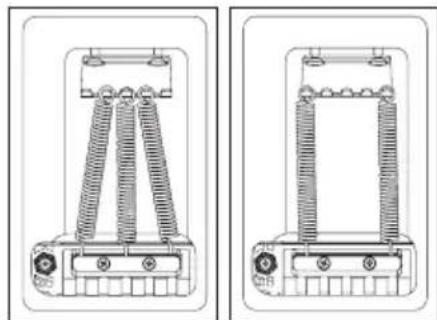

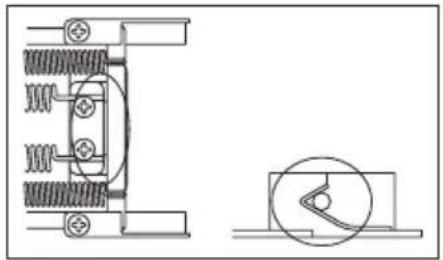

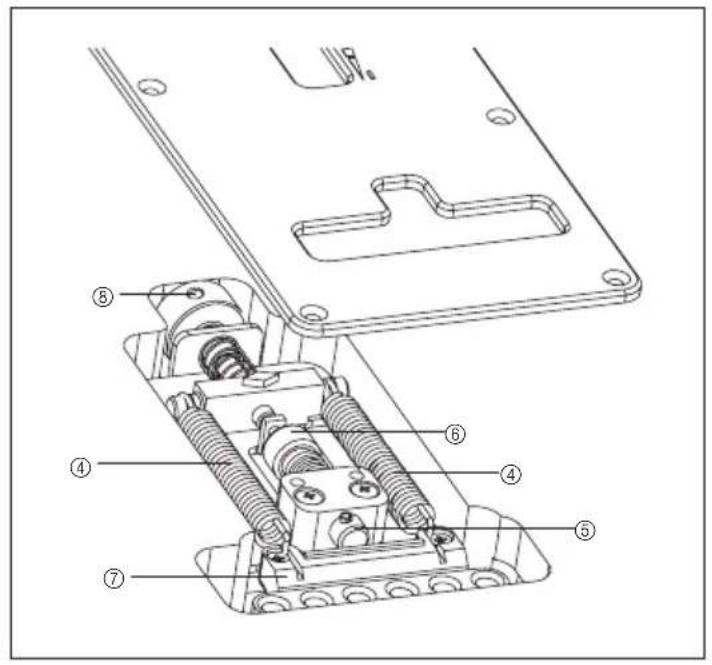

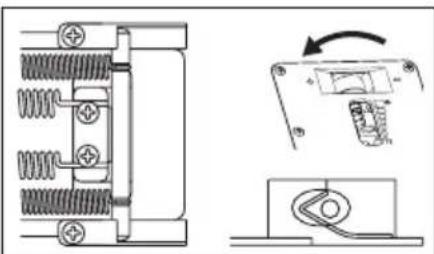

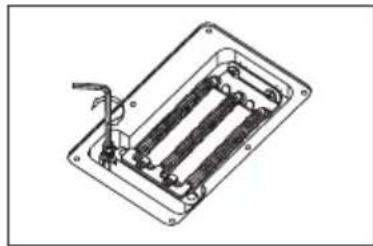

TREMOLO SPRING / ZERO POINT SYSTEM

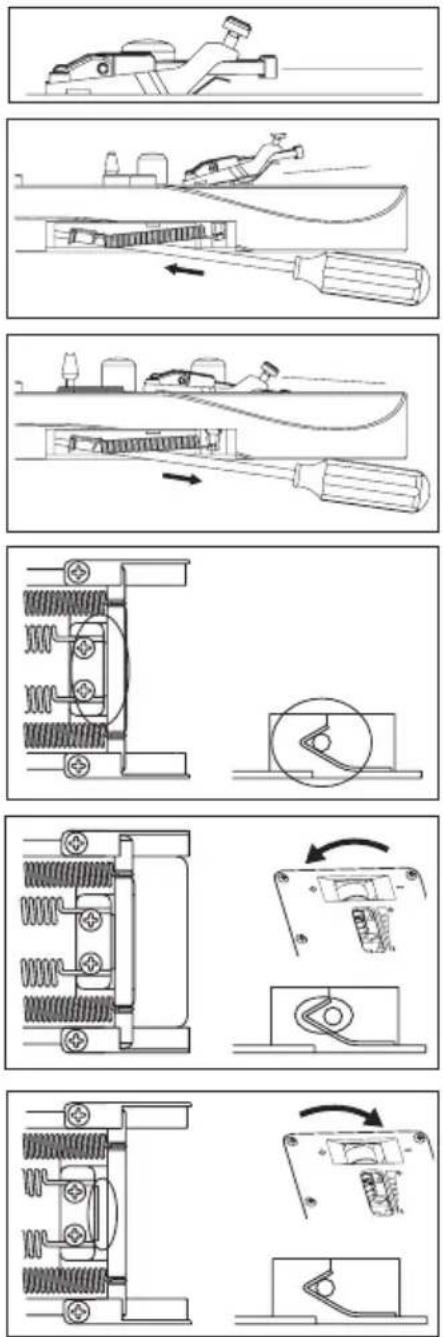

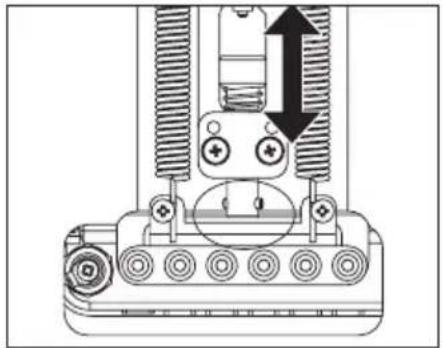

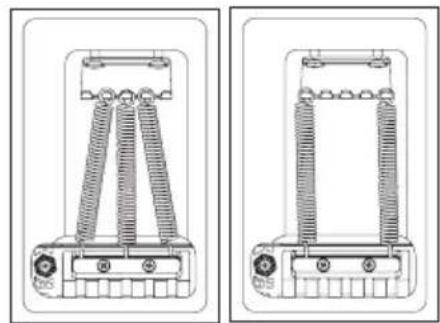

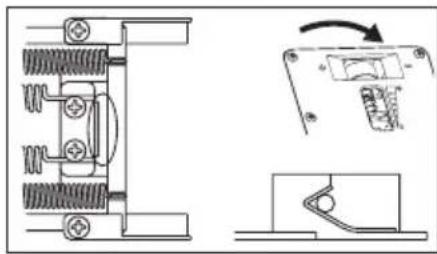

・Models not equipped with the zero point system When shipped from the factory, the guitar is set up with three tremolo springs installed in parallel. If the balance of tension between the strings and the tremolo springs has changed signifi cantly, such as when you switch to a different gauge of strings or use a dropped tuning, you may need to change the number of tremolo springs or change the way in which they are installed. 1 Use a Philips screwdriver to remove the spring lock. 2 If you want to increase the tension, install the outer two tremolo springs diagonally. 3 If you want to decrease the tension, remove the center tremolo spring. If you want to install four or more tremolo springs, attach them using the screw holes that were being used to attach the spring lock. (It will no longer be possible to attach the spring lock.) NA13G222_Regular.indb 54NA13G222_Regular.indb 542013-8-9 17:07:512013-8-9 17:07:5155 ENGLISH Memo Loosen the strings suffi ciently before you install or remove tremolo springs.• Be aware that if you remove all of the springs, the tremolo unit will detach from the guitar. To reattach the tremolo, insert the knife edge of the tremolo securely into the groove of the stud bolts, and • then install the tremolo springs. ・Models equipped with the zero point system By disabling the zero point system you can use the unit as a conventional fl oating bridge. When the zero point system is disabled, the angle at which the tremolo is attached will be adjusted by the balance between the tension of the strings and the tension of the main springs attached to the tremolo block. For optimal performance, adjust the tremolo so that it is approximately parallel with the surface of the guitar body. 1 While holding the arm in the upward position (i.e., with the tremolo block away from the stop rod), remove the stop rod and the sub-spring. 2 With the guitar tuned correctly, check the angle of the tremolo. 3 If the tremolo is tilted toward the front, turn the spring adjustment knob toward the “plus” direction to tighten the main spring. 4 If the tremolo is tilted toward the rear, turn the spring adjustment knob toward the “minus” direction to loosen the main spring. The tuning will be affected when you adjust the tremolo angle with the zero ※ point system disabled, because the balance between the tension of the strings and the springs will change each time you adjust the tension of the tremolo springs. Youʼll need to tune repeatedly while making this adjustment. STUD LOCK The Edge-Zero2 tremolo bridge uses a stud lock mechanism.

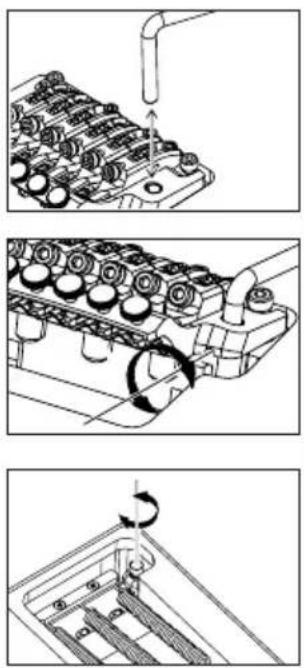

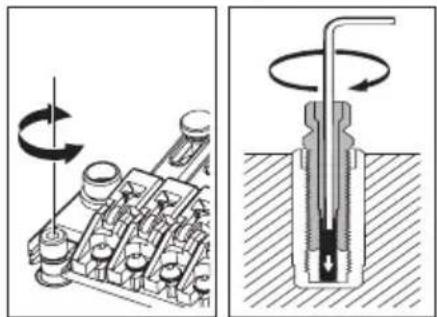

To adjust the height of the entire tremolo unit, use an Allen wrench (3 mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.) Memo Before you tune, make sure that the string stopper bolts are fi rmly tightened.•

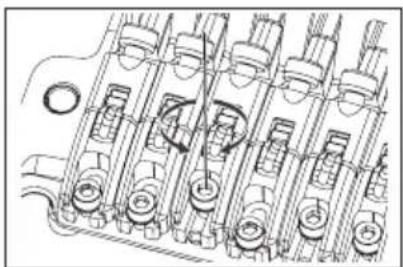

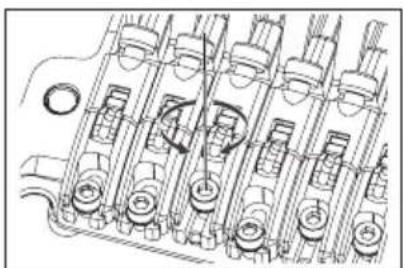

ADJUSTING THE INTONATION

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings suffi ciently. 2 Use an Allen wrench (2 mm) to loosen the saddle lock bolts, and adjust the saddle position. NA13G222_Regular.indb 55NA13G222_Regular.indb 552013-8-9 17:07:522013-8-9 17:07:5256 Before checking the intonation, fi rmly tighten the saddle lock bolts and tune the guitar correctly. When youʼve ※ fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut.

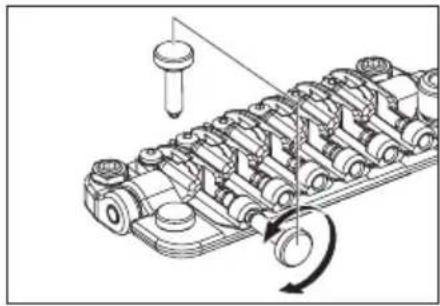

REPLACING THE STRINGS

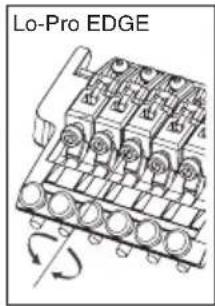

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg. 2 Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it. 3 Use wire cutters to cut off the ball end of the new string. 4 Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string. 5 Wind the string onto the tuning peg, and tune it.

When youʼve fi nished tuning, tighten the pressure pad bolts of the locking nut. On tremolo bridges not equipped with the zero cross system, removing all ※ strings at the same time will cause the tremolo attachment angle to change signifi cantly, so we recommend that you replace the strings one at a time. If you remove all strings at the same time, tuning will be easier if you wedge a piece of cloth below the tremolo to secure it so that the tremolo attachment angle wonʼt change signifi cantly. Memo Before you tune, make sure that the string stopper bolts are fi rmly tightened.• FINE TUNING Even after youʼve used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string. The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune. NA13G222_Regular.indb 56NA13G222_Regular.indb 562013-8-9 17:07:542013-8-9 17:07:5457 ENGLISH

1 The tremolo arm employs a one-piece snap-in design with an adjustable- torque cap. Insert the tremolo arm into the arm socket of the base plate. 2 Tighten the torque adjustment cap to secure the tremolo arm. The tremolo arm will become tighter as you tighten the torque adjustment cap. NA13G222_Regular.indb 57NA13G222_Regular.indb 572013-8-9 17:07:542013-8-9 17:07:5458

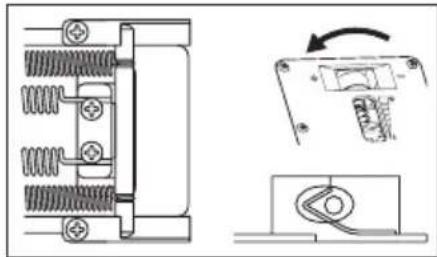

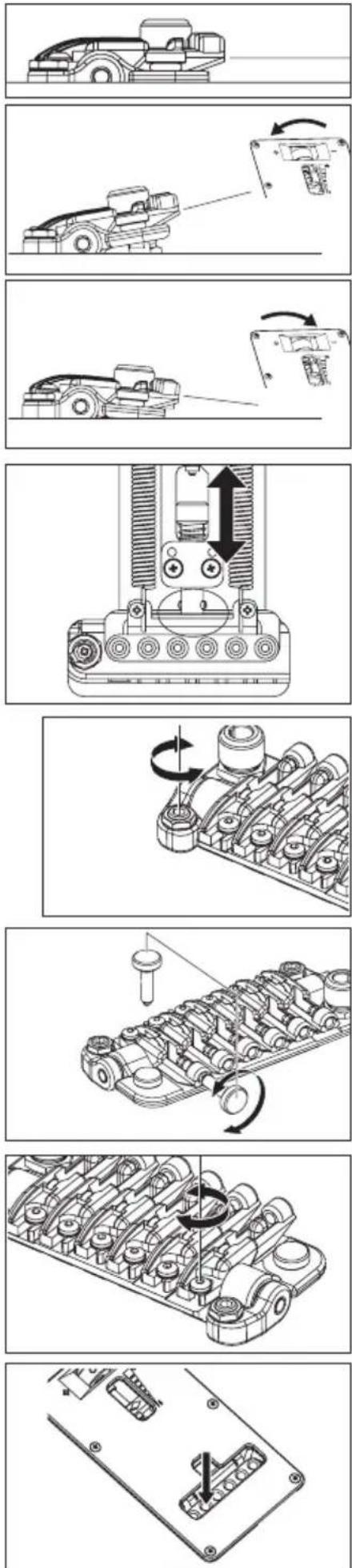

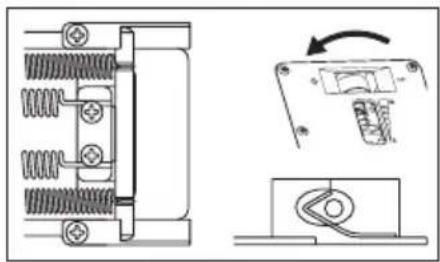

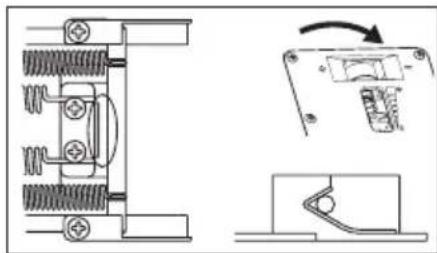

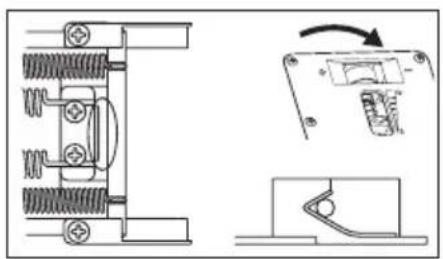

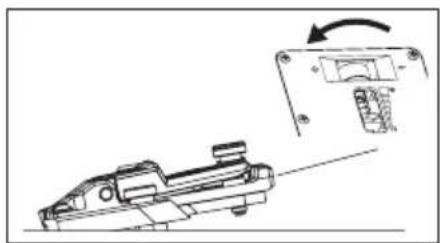

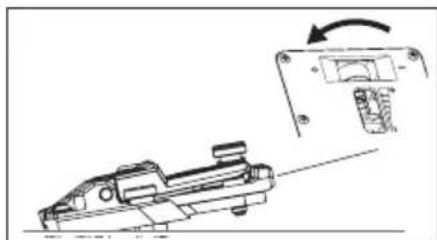

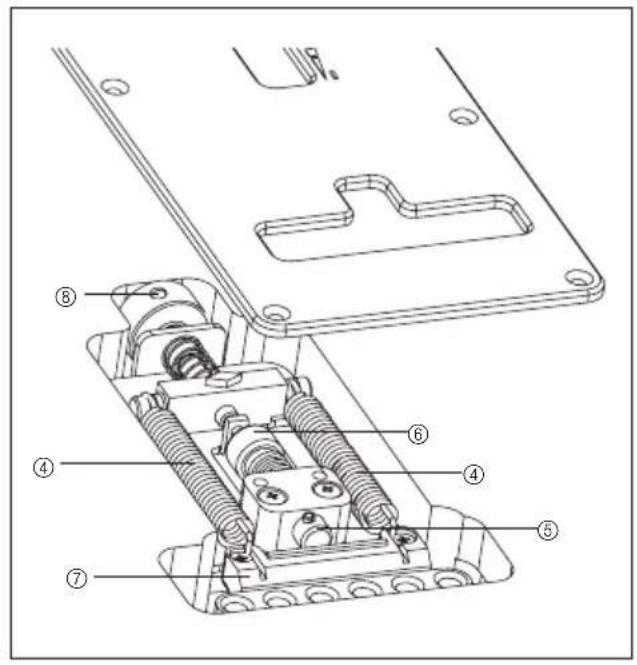

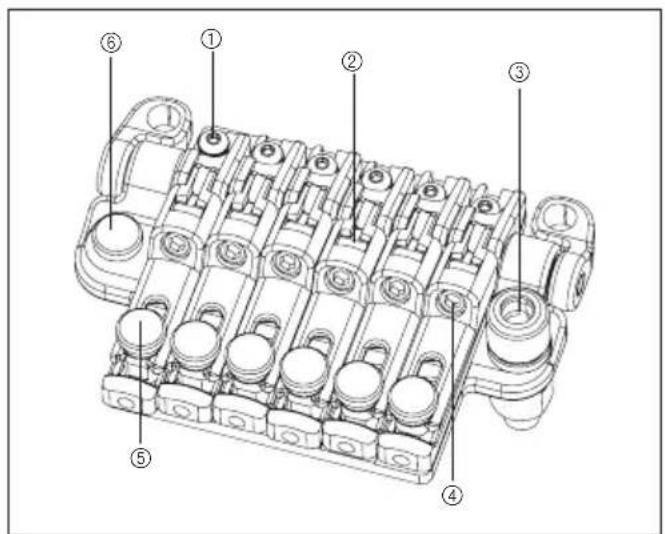

ANGLE ADJUSTMENT / ZERO POINT SYSTEM ADJUSTMENT

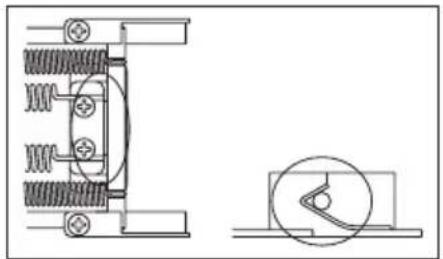

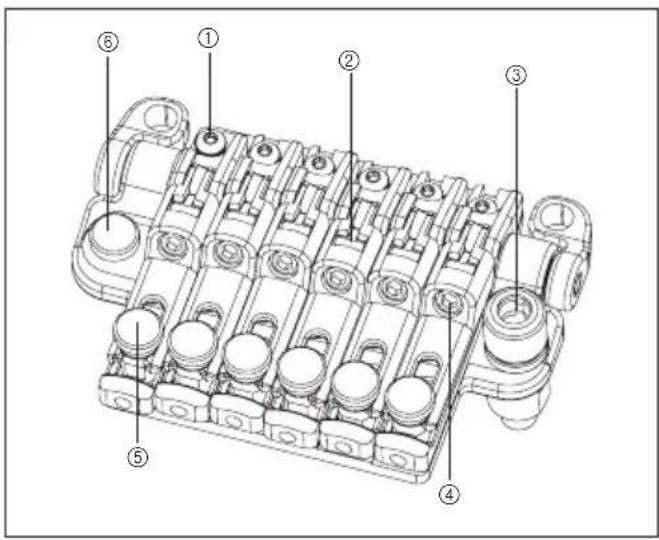

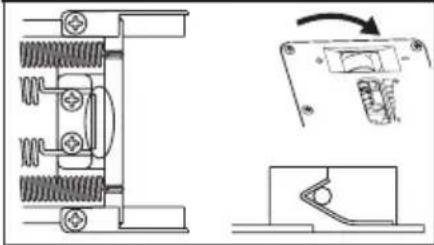

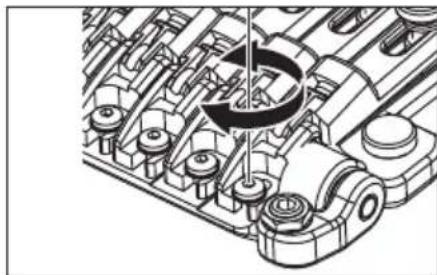

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the zero point system installed on the back of the guitar body. The ZR tremolo bridge is designed so that the tremolo will be approximately parallel with the surface of the guitar body when the zero point system is adjusted correctly, and will perform optimally in this state. When the zero point system is correctly adjusted, the stop rod will be in fi rm contact with the tremolo block and the stop rod will be touching the stopper. 1 With the guitar tuned correctly, check the zero point system. 2 If the stop rod is not touching the stopper (i.e., if the tremolo block is pushing up the stop rod), turn the spring adjustment knob located on the back of the body toward the “plus” direction to tighten the main spring. 3 If the tremolo block is not in fi rm contact with the stop rod (i.e., if the tremolo is tilted toward the rear), turn the spring adjustment knob toward the “minus” direction to loosen the main spring. DISABLING THE ZERO POINT SYSTEM (USING THE UNIT AS A DISABLING THE ZERO POINT SYSTEM (USING THE UNIT AS A CONVENTIONAL FLOATING By disabling the zero point system you can also use the unit as a conventional fl oating bridge. When the zero point system is disabled, the angle at which the tremolo is attached will be adjusted by the balance between the tension of the strings and the tension of the main springs attached to the tremolo block. For optimal performance, adjust the tremolo so that it is approximately parallel with the surface of the guitar body. 1 While holding the arm in the upward position (i.e., with the tremolo block away from the stop rod), remove the stop rod and the sub-spring. 2 With the guitar tuned correctly, check the angle of the tremolo. 3 If the tremolo is tilted toward the front, turn the spring adjustment knob toward the “plus” direction to tighten the main spring. 4 If the tremolo is tilted toward the rear, turn the spring adjustment knob toward the “minus” direction to loosen the main spring. ※The tuning will be affected when you adjust the tremolo angle with the zero point system disabled, because the balance between the tension of the strings and the springs will change each time you adjust the tension of the tremolo springs. Youʼll need to tune repeatedly while making this adjustment. NA13G222_Regular.indb 58NA13G222_Regular.indb 582013-8-9 17:07:552013-8-9 17:07:5559 ENGLISH

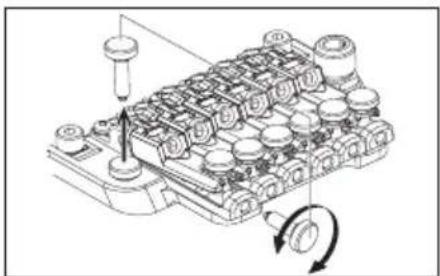

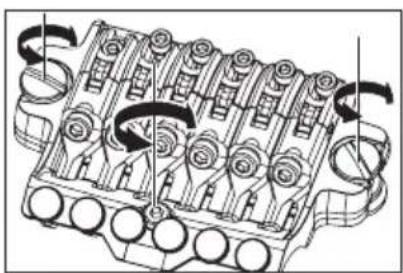

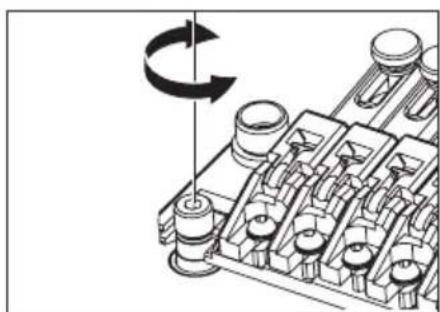

ADJUSTING THE ACTION

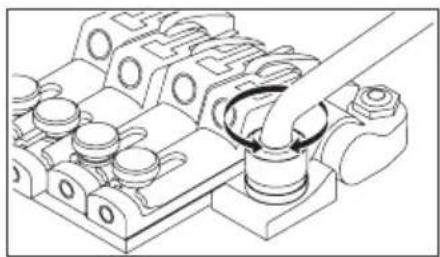

To adjust the height of the entire tremolo unit, use an Allen wrench (3 mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.)

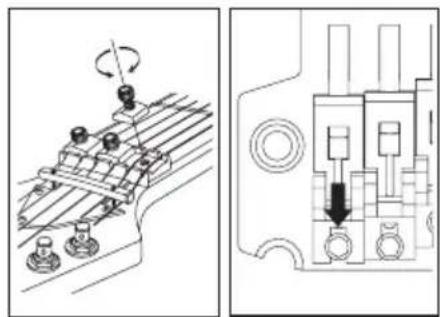

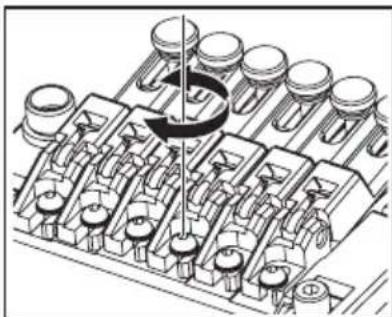

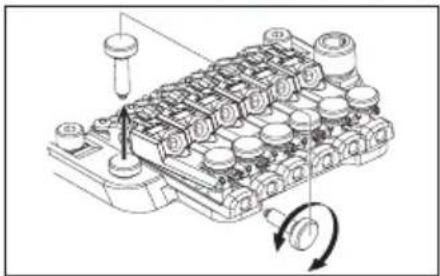

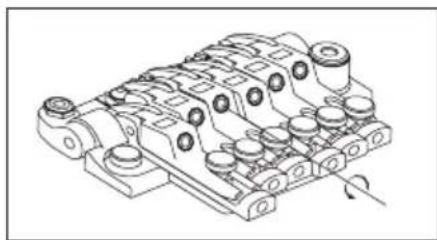

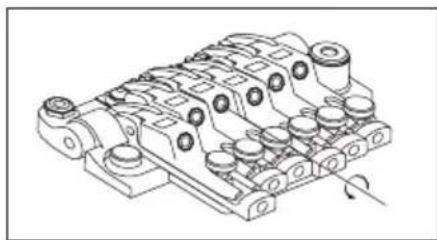

ADJUSTING THE INTONATION

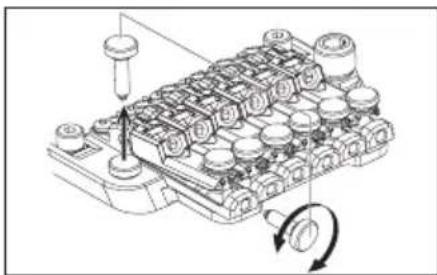

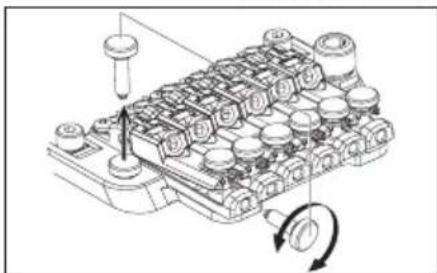

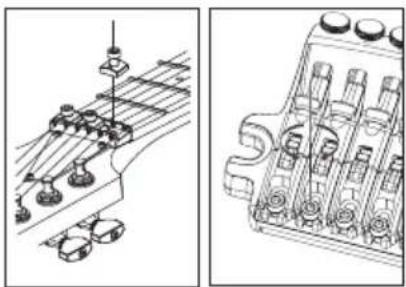

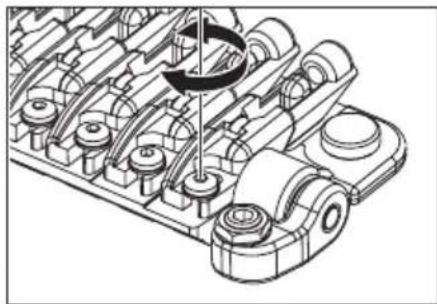

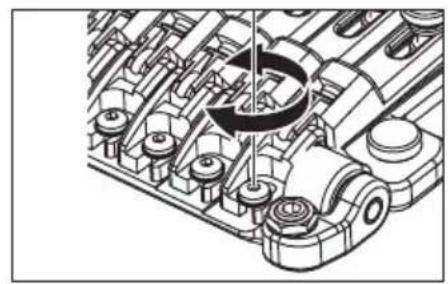

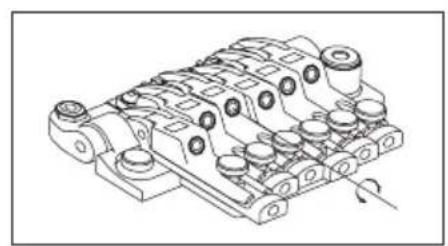

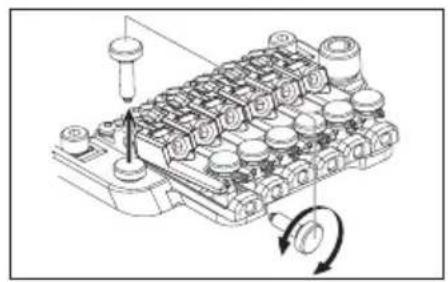

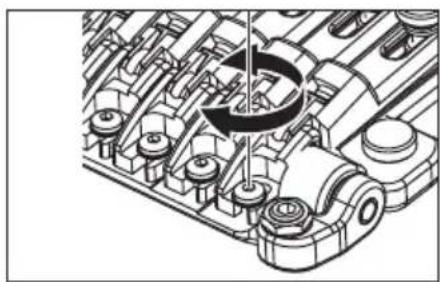

1 Remove the intonation adjustment bolts stored inside the tremolo unit, and screw them into the adjustment holes at the back of the saddle until the tip of each bolt contacts the wall of the tremolo unit. 2 Use an Allen wrench (2 mm) to loosen the saddle lock bolt, and turn the intonation adjustment bolt to adjust the saddle position. Before checking the intonation, fi rmly tighten the saddle lock bolts and ※ tune the guitar correctly. Before tuning, use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut. When youʼve fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut, and store the intonation adjustment bolts inside the tremolo unit.

REPLACING THE STRINGS

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the lock- ing nut, and remove the string from the tuning peg. 2 Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremo- lo unit; then pull the string out of the saddle and remove it. 3 Use wire cutters to cut off the ball end of the new string. 4 Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string. 5 Wind the string onto the tuning peg, and tune it.

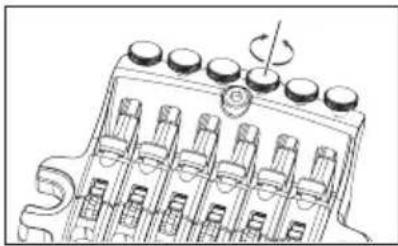

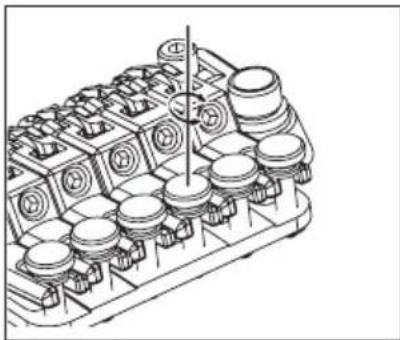

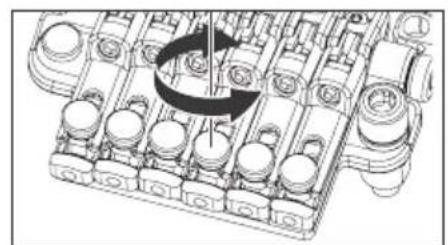

When youʼve fi nished tuning, tighten the pressure pad bolts of the locking nut. Memo Before you tune, make sure that the string stopper bolts are fi rmly • tightened. FINE TUNING Even after youʼve used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string. The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune. NA13G222_Regular.indb 59NA13G222_Regular.indb 592013-8-9 17:07:572013-8-9 17:07:5760

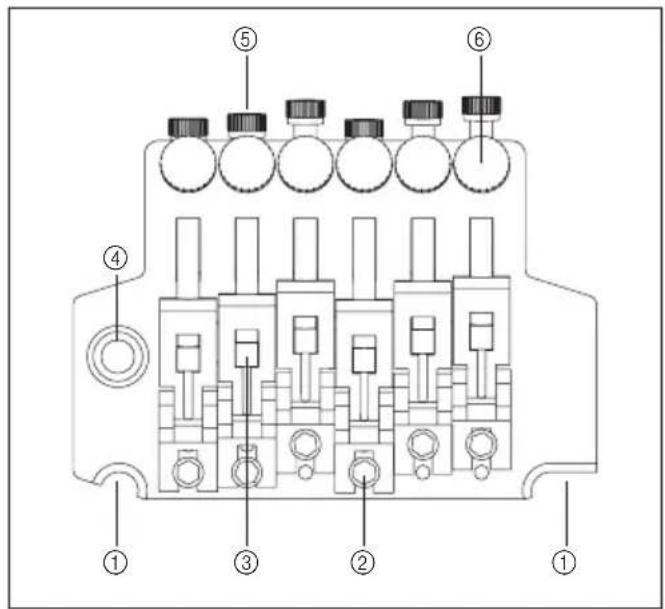

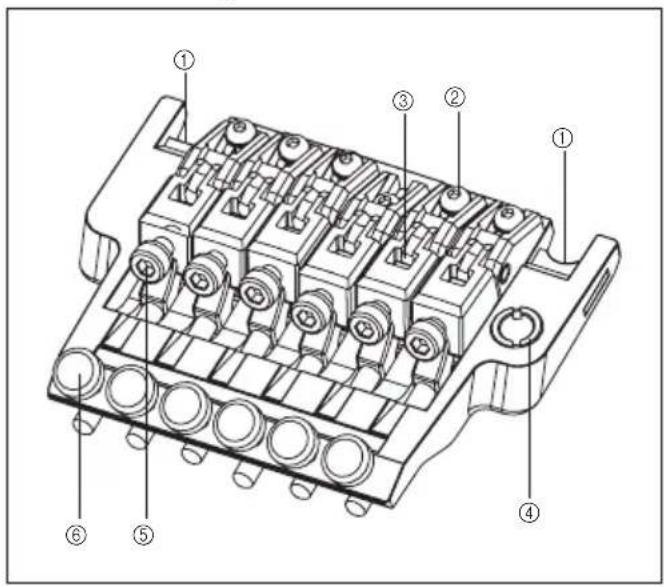

STD-DL TREMOLO BRIDGE

1 The tremolo arm employs a one-piece snap-in design with an adjustable-torque cap. Insert the tremolo arm into the arm socket of the base plate. 2 Tighten the torque adjustment cap to secure the tremolo arm. The tremolo arm will become tighter as you tighten the torque adjustment cap.

ADJUSTING THE TREMOLO ATTACHMENT ANGLE

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the tremolo springs installed on the back of the guitar body. Yo u ʼll obtain the optimal performance by adjusting this so that the tremolo is approximately horizontal to the surface of the guitar body. 1 With the guitar tuned correctly, check the angle of the tremolo. 2 If the tremolo is tilted toward the front, insert a Philips screwdriver through the slit in the tremolo spring cover on the back of the body, and tighten the screw to increase the tension of the tremolo springs.

If the tremolo is tilted toward the rear, loosen the screw to decrease the ten- sion of the tremolo springs. The tremolo angle adjustment will affect the tuning, because the balance of tension between the strings and the ※ springs will change each time you adjust the tension of the tremolo springs. Youʼll need to tune repeatedly while making this adjustment. NA13G222_Regular.indb 60NA13G222_Regular.indb 602013-8-9 17:08:002013-8-9 17:08:0061 ENGLISH TREMOLO SPRINGS When the guitar is shipped from the factory, it is set up with three tremolo springs installed in parallel. If the balance of tension between the strings and the tremolo springs has changed signifi cantly, such as when youʼve switched string gauges or are using a dropped tuning, you may need to change the number of tremolo springs or change the way in which they are installed. 1 If you want to increase the tension, install the outer two tremolo springs diagonally. 2 If you want to decrease the tension, remove the center tremolo spring. Memo Loosen the strings suffi ciently before you install or remove tremolo springs.• Be aware that if you remove all of the springs, the tremolo unit will detach from the guitar. To reattach the tremolo, insert the knife edge of the tremolo securely into the groove of the stud bolts, • and then install the tremolo springs.

ADJUSTING THE ACTION

To adjust the height of the entire tremolo unit, use an Allen wrench (3mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.)

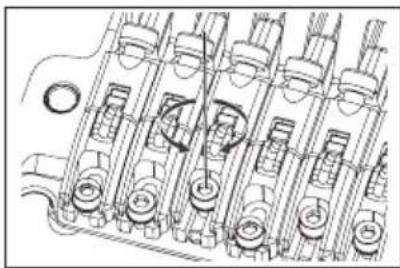

ADJUSTING THE INTONATION

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings suffi ciently. 2 Use an Allen wrench (2 mm) to loosen the saddle lock bolts, and adjust the saddle position. Before checking the intonation, fi rmly tighten the saddle lock bolts and ※ tune the guitar correctly. When youʼve fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut.

REPLACING THE STRINGS

1 Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg. 2 Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it. 3 Use wire cutters to cut off the ball end of the new string. 4 Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string. 5 Wind the string onto the tuning peg, and tune it.

When youʼve fi nished tuning, tighten the pressure pad bolts of the locking nut

Removing all strings at the same time will cause the tremolo attachment ※ angle to change signifi cantly, so we recommend that you replace the strings one at a time. If you remove all strings at the same time, tuning will be easier if you wedge a piece of cloth below the tremolo to secure it so that the tremolo attachment angle wonʼt change signifi cantly. Memo Before you tune, make sure that the string stopper bolts are fi rmly tightened.• FINE TUNING Even after youʼve used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string. The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune. NA13G222_Regular.indb 61NA13G222_Regular.indb 612013-8-9 17:08:012013-8-9 17:08:0162 Non Locking Tremolo SynchroniZR Overview■ Rear■

1 The tremolo arm employs a snap-in design. Holding the corner of the tremolo arm, press it fi rmly into the arm socket of the base plate until it clicks into place. 2 The tightness of the tremolo arm can be adjusted by the torque adjustment cap. Turning the cap clockwise will make the arm tighter, and turning it counterclockwise will make the arm looser. NA13G222_Regular.indb 62NA13G222_Regular.indb 622013-8-9 17:08:042013-8-9 17:08:0463 ENGLISH

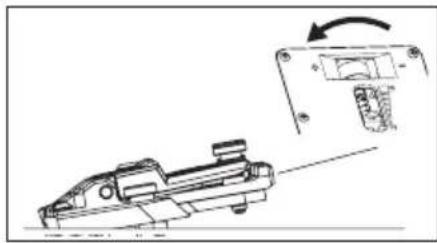

ADJUSTING THE TREMOLO ATTACHMENT ANGLE

Theangleatwhichthetremoloisattachedisadjustedbythebalance betweenthetensionofthestringsandthetensionofthetremolo springsinstalledinthebackoftheguitarbody. Thetremolowillperformoptimallywhenadjustedsothatitis approximatelyparallelwiththesurfaceoftheguitarbody. 1 With the guitar tuned correctly, check the angle of the tremolo. 2 If the tremolo is tilted forward, turn the spring adjustment knob located on the back of the body toward the “plus” direction to tighten the tremolo springs. 3 If the tremolo is tilted toward the rear, turn the spring adjustment knob toward the “minus” direction to loosen the tremolo springs. Becausethebalanceoftensionbetweenthestringsandthespringswillchange※ eachtimeyouadjustthetensionofthetremolosprings,adjustingthetremolo angleinthefloatingstatewillaffectthetuning.Youʼllneedtotunetheguitar repeatedlywhileperformingthisadjustment. ARM-UP STOPPER TheSynchroniZRhasanarm-upstopperfeature.Thisfeaturedisablesthefloatingstatebylockingthearm- uprangeofmovement. 1 Make sure that the tremolo is adjusted so that it is approximately parallel with the surface of the guitar body. 2 Remove the tremolo spring cover, and turn the arm-up stopper knob so that the tip of the arm-up stopper contacts the tremolo block. 3 Once again make sure that that the tremolo is approximately parallel with the surface of the guitar body, and turn the spring adjustment knob several times in the “plus” direction. Ifthetremolospringtensionistooweak,thetremoloblockwillbe※ pulledbythestrings,possiblycausingthetuningtobeunstable.Ifyou experiencethisproblemwhiletuning,turnthespringadjustmentknob evenfartherinthe“plus”direction.

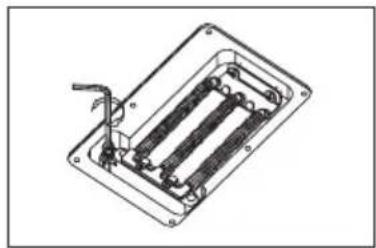

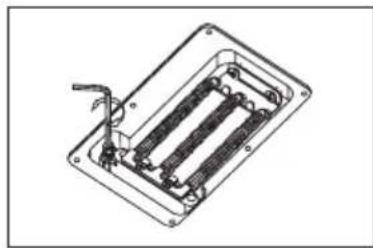

The tremolo arm can be inserted and removed very easily. Insert the arm into the armhole on the tremolo base plate. Pull up on the arm to remove it. TREMOLO ARM ADJUSTMENT (SAT PRO2) To adjust the height of the arm, remove the tremolo spring cover from the back of the guitar, and use a 3 mm Allen wrench to turn the height adjustment screw attached to the bottom of the tremolo block. Tightening this in the clockwise direction will raise the height.

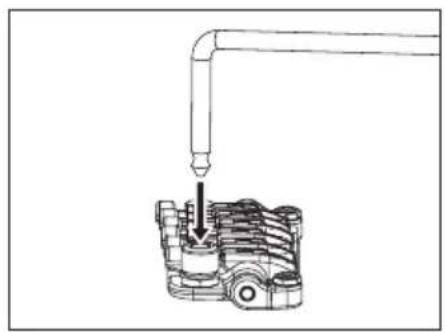

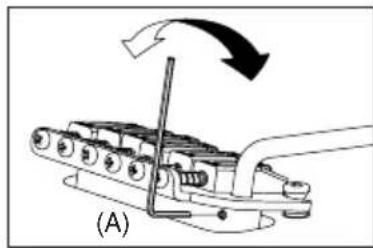

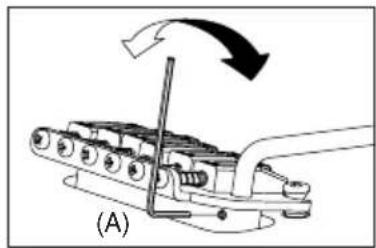

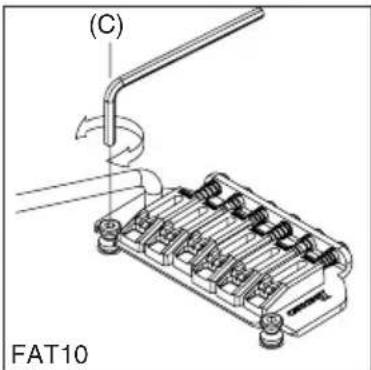

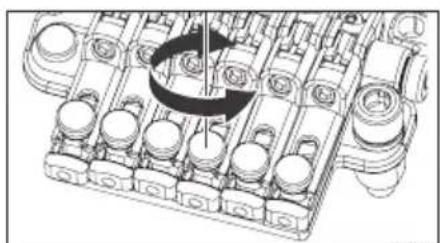

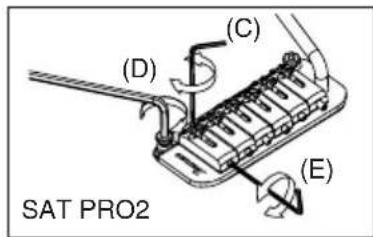

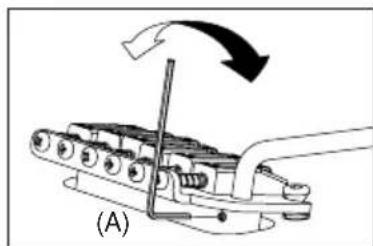

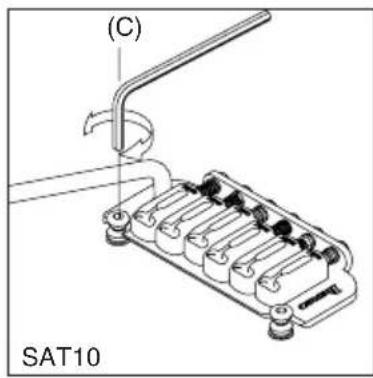

The rotation torque of the arm can be adjusted by raising the tremolo and inserting a 1.5mm Allen wrench in the screw (A) on the tremolo block, Turning this screw clockwise will tighten the arm torque and turning the screw counter clockwise will loosen the arm torque. ADJUSTING THE STRING HEIGHT (SAT PRO2) To adjust the action of each string, use a 1.5 mm Allen wrench to turn the screw on the saddle (C). The overall height can be adjusted on either side of the SAT PRO2 tremolo unit. To adjust the height, use a 3 mm Allen wrench to turn the stud (D) located on either side of the unit. Use caution when adjusting the height of the entire tremolo unit; adjust both sides to the same height to ensure optimum tremolo operation. ADJUSTING THE STRING HEIGHT (FAT10/SAT10) The height adjustment of the tremolo can be raised or lowered by adjusting the pivot studs (C) that the tremolo mounts on. These are located at either side of the front of the bridge. Clockwise lowers the tremolo and counter clockwise raises the tremolo. INTONATION ADJUSTMENT (SAT PRO2) To adjust the intonation, use a 1.5 mm Allen wrench to turn the screw located at the rear of the saddle (E). Turn the screw clockwise to move the saddle toward the rear, or counter-clockwise to move the saddle forward. (C) (D) (E) (C) FAT10 (C) SAT10 (A) (C) (D) (E) SAT PRO2 NA13G222_Regular.indb 65NA13G222_Regular.indb 652013-8-9 17:08:082013-8-9 17:08:0866 ADJUSTING THE INTONATION & THE STRING HEIGHT (FAT 6/STD) The intonation can be adjusted by adjusting the saddle forward or backward using a philips(+) head adjustment screw at the rear of the bridge. String height is controlled by raising or lowering the small allen screws using a wrench on either side of the saddle. INTONATION ADJUSTMENT (FAT10/SAT10) The intonation can be adjusted by adjusting the saddle forward or backward using a Phillips (+) head screwdriver on the intonation adjustment screw at the rear of the bridge.

REPLACING THE STRINGS

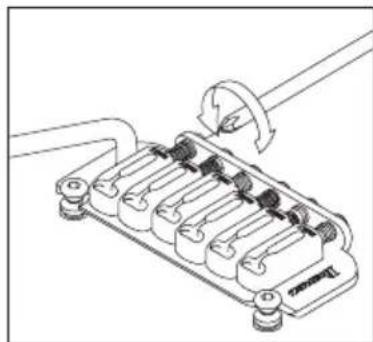

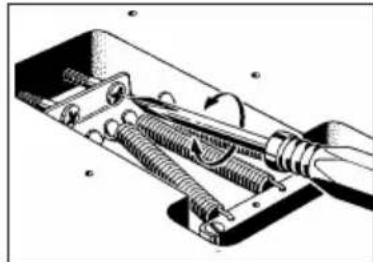

To replace strings, thread the new strings through the string holes located on the back of the guitar. The strings are then threaded through the tremolo block and up and over the saddle. FAT/SAT (EXPECT FAT6) ADJUSTING THE TREMOLO SPRING A standard tremolo can be adjusted so that the pitch can be raised when the tremolo arm is pulled up to loosen the tremolo springs located under the tremolo cavity on the back of the guitar. One disadvantage of this procedure is that it can cause the pitch to go sharp if string breaks. To remedy this, adjust the tremolo plate so it sits fl ush on the body by tightening the tremolo springs. Choose the number and placement of the tremolo springs according to the string gauge and the tremolo adjustment . FAT10 SAT10 Floating PARALLEL NA13G222_Regular.indb 66NA13G222_Regular.indb 662013-8-9 17:08:082013-8-9 17:08:0867 DEUTSCH Wartung ANBAUTEN Multi- tool Tremolo- hebel Inbusschlussel 8-mm-Steck- schlüssel 1.5mm 2mm 2.5mm 3mm 4mm PREMIUM-Serie Edge-Tremo- losteg
