Operating Instructions

Bedienungsanleitung

Line drawing of two LUMIX cameras on a dark background, no text or symbols present

What is the O-ring?....9

Preparation -Setting the O-ring- 10

Preparation - Checking the Case is Waterproof- ..... 14

Preparation - Attaching the Digital Camera- ..... 15

Taking Pictures....18

Tips for Taking Pictures in the Water ..... 19

After Use....20

Cleaning and Storing 21

Caution for Use....21

Specifications 23

Sales and Support Information

Customer Care Centre

• For customers within the UK: 08705 357357
• For customers within the Republic of Ireland: 01 289 8333
• Visit our website for product information
  • E-mail: [e-mail]

Technical Support for AV Software

• For UK, ROI: 08701 505610

Direct Sales at Panasonic UK

- Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday – Thursday 9.00 a.m.–5.30 p.m., Friday 9.30 a.m.–5.30 p.m.

(Excluding public holidays)

• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.
• It couldn't be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details.

Interested in purchasing an extended guarantee?

Please call 0870 240 6284 or visit our website www.panasonic.co.uk/guarantee.

• This Case is designed only for Panasonic Digital Camera DMC-TZ1. You can enjoy taking pictures underwater at depths up to 40 m.
• In the case of water leakage due to insufficient care, Matsushita is in no way liable for damage to any products (digital camera, batteries, card etc.) inside this Case, photography costs or any other expenses.
• Matsushita also offers no compensation for accidents resulting in injury or damage to property.
• Read the operating instructions for your digital camera.
• Before attaching the digital camera, submerge the case in water for about 3 minutes or more to check that there is no water leakage.

■ About handling this Case

- Use under the following conditions.

• Water depth: Up to 40 m
- Ambient temperature: 0 °C to 40 °C

- Do not use the Case in water over 40 °C. The heat may damage the Case or cause water leakage.

- The Case is made of impact resistant polycarbonate however be careful when you are using it. It can be easily scratched when taking pictures in rocky places etc. and can be damaged by the impact if dropped etc. When travelling, pack the Case carefully to prevent any direct impact if it is dropped etc. and do not leave the digital camera in the Case. Only attach the digital camera to the case if you are transporting it a short distance such as from the airport to the diving spot. (You cannot reuse the material the Case was packed in at the time of purchase to transport it.)

- When boarding a plane, the change in atmospheric pressure may cause the inside of the Case to expand causing damage to the Case. Remove the O-ring before boarding a plane.

- Do not leave the digital camera in the Case for a long period of time in a car, a ship, exposed to direct sunlight etc. The Case is an airtight device so the temperature inside the Case will become very high and the digital camera may stop operating properly. Do not let the temperature inside the Case become too high.

■ Using the Case in high or low temperatures

• If you open or close the Case where it is humid or hot and then move to a place that is cold or dive underwater, condensation may appear inside the Case, the glass surface may become cloudy and the digital camera may be damaged.
• If you suddenly move the Case from a cold place or cold water to a warm place, the glass surface may become cloudy. Wait until the Case becomes close to the air temperature before taking pictures.

■ About preparation

• Do not open or close the Case where it may be splashed by water or sand may get in it. We recommend opening or closing the Case indoors.
• Replace the battery, card etc. and attach the digital camera indoors where there is little moisture.

• If you must open or close the Case at the diving spot to replace the battery or the card, be sure to follow the steps below.

• Select a place where the Case will not be splashed by water and sand will not get in it.

• Blow off any drops of water in the gap between the rear case and the front case and on the buckle. Thoroughly wipe off any remaining drops of water with a dry cloth.
• Thoroughly wipe off any drops of water on your body or hair.
• Be particularly careful about any water coming from the sleeves of your thermal suit.
• Do not touch the digital camera if your hands are wet from sea water. Wet a towel with fresh water and place it in a polyester bag beforehand. Use this towel to wipe off any drops of water or sand on your hands or body.

- This Case does not absorb shock. If you place a heavy object on the Case or cause shock to it, the digital camera may be damaged. Be careful when you are using the case.

When you first open the package, check that the Case and all the accessories are included and that there has been no damage to the Case or any of the accessories during distribution or transportation. If you find something unusual, consult your dealer before using the Case.

Do not use any accessories except those specified below.

	O-ringVMG1743
	Grease (for O-ring)VZG0372
	Silica Gel (Desiccant)(1 g/5 pieces)VZG0371
	Hand StrapVFC4190

- Do not place the Case where it may fall.

- If the Case falls on your head or foot, it will injure you and cause the Case to malfunction.

- Never alter the Case.

• If water leaks into the digital camera because the Case was altered, the digital camera may be damaged beyond repair.
• If you continue to use the digital camera after water has leaked into it, this may cause a fire.

- Do not use the Case while scuba diving without proper training.

- You should only operate the Case while scuba diving if you have been properly trained and certified for this sport.

- Never place the Case, grease, silica gel or O-ring within the reach of infants.

• If any part of an infant's body is caught in the Case, it may cause an injury.
• Infants may accidentally swallow the grease, silica gel or O-ring.
• Consult a doctor immediately if you think an infant may have swallowed the grease, silica gel or O-ring.

- Do not hang the strap around your neck underwater.

- It may become wound around your neck causing suffocation or other serious injuries.

- Thoroughly wash any grease on your hands.

- Do not allow the grease on your hands to come into contact with your mouth or eyes.

- If water leaks into the case, stop using it immediately.

• This may cause an electric shock, burning or a fire.
• Consult your dealer.

- If anything abnormal occurs while using the Case underwater, please follow all necessary procedures and guidelines for decompressing when you ascend.

- If you ascend too quickly, you may get caisson disease.

- If smoke or abnormal heat, smells or sounds come from the Case, stop using it immediately.

• These may cause an electric shock, burning or fire.
- Remove the digital camera from the Case and then immediately remove the battery from the digital camera.
- Consult your dealer.

- Be careful when opening the Case after water leakage.

- The leaked water may blow out or the rear case may flip.

- Do not leave the Case where the temperature is high.

• The temperature inside the Case becomes very high particularly when it is exposed to direct sunlight on a beach, a ship etc. or when it is left in an airtight car in the summer. The heat may damage the Case or its inner parts.
• If a digital camera is attached to the Case, it may also be damaged.
• If you use the attached digital camera when the temperature inside the Case is very high, it may cause leakage, short-circuiting or insulation failure resulting in fire or malfunction.

- Do not handle the digital camera or the battery with wet hands.

- This may cause an electric shock or malfunction.

■ When taking pictures with the flash

• When taking pictures with the flash, the corners of the picture may be vignetted or the picture may not be lit evenly.
• When taking pictures with the flash, the available flash range is less underwater than on land.

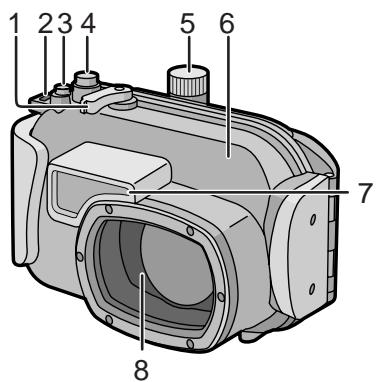

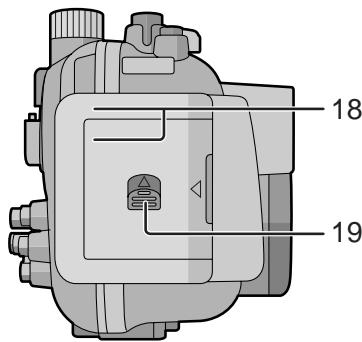

1. Zoom Lever
2. Strap Eyelet (for attaching the supplied hand strap)

Illustration of a medical device with tubing and connectors (no text or symbols)

1. Optical Image Stabilizer Button
2. Shutter Button
3. Mode Dial
4. Front Case
5. Diffuser

- You cannot remove this.

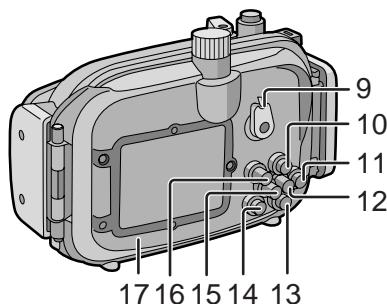

1. Front Glass

2. Camera ON/OFF Switch

3. ▲/Exposure Compensation/Auto Bracket/White Balance Fine Adjustment Button

4. ▶/Flash Setting Button
5. MENU/SET Button
6. ▼/REV Button
7. Delete/Single/Burst Mode Button
8. ◀/Self-timer Button
9. DISPLAY/LCD MODE Button
10. Rear Case
11. Buckle

12. Lock Release Button

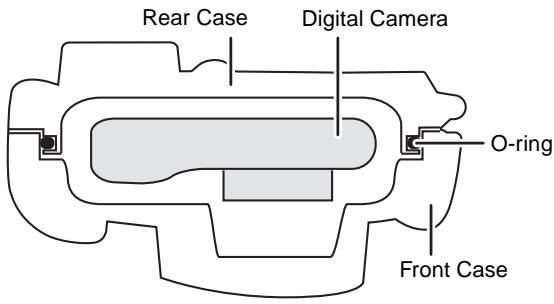

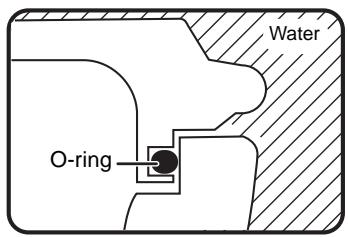

13. The O-ring is a waterproofing packing used for underwater cameras, watches and diving equipment.

14. The O-ring keeps the Case waterproof by sealing the gap between the rear case and the front case.

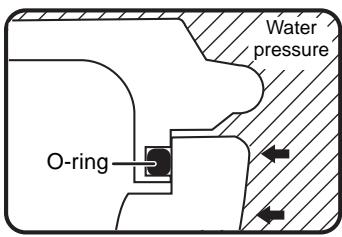

■ How the O-ring keeps the Case waterproof

The gum comes into contact with the sides of the Case making the Case waterproof and stopping water from entering from the gap.

When the O-ring is crushed by water pressure, the surface of the O-ring expands and the Case is sealed more tightly.

The O-ring prevents water leakage by coming into uniform contact with the sides of the Case. Therefore, good care of the O-ring is very important. Incorrect care of the O-ring may cause water leakage.

Be sure to set the O-ring before attaching a digital camera.

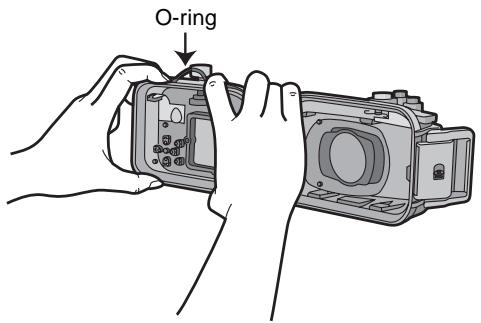

Thoroughly wash and dry your hands before handling the O-ring. Place the O-ring where there is no sand or dust.

1 Loosen the O-ring with your fingers to remove it.

- Loosen part of the O-ring with the tips of two fingers and then lift the loosened part. Be careful not to scratch the O-ring with your fingernails.

Note

- Do not use a pointed object to remove the O-ring. This may scratch the O-ring.

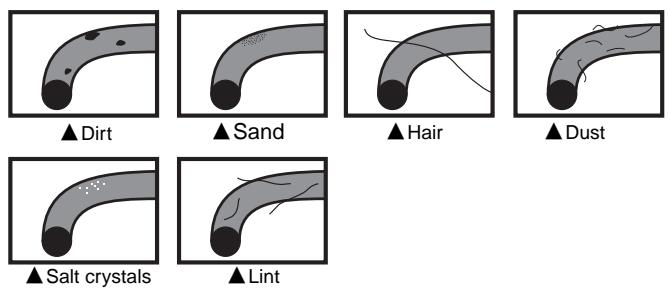

2 Check the O-ring.

- Check that there is no dirt, sand, hair, dust, salt crystals, lint or old grease on the O-ring. If you find any of these, remove them with a soft, dry cloth.

• There may be dirt on the O-ring that you cannot see. Check if there is any dirt by rubbing your finger over the O-ring.
• Be careful not to leave any fibers from the dry cloth on the O-ring when wiping it.
• Check that the O-ring is not ripped, twisted, squashed, frayed or scratched and that there is no sand sticking to it. Replace the O-ring in these cases.

Simple illustration of a curved pipe or duct with no text or symbols

▲ Ripped

Simple illustration of a curved pipe or tube with a black end (no text or symbols)

▲ Twisted

Simple illustration of a curved pipe or tube with a central hole, no text or symbols present.

▲ Squashed

Illustration of a curved pipe or duct with internal debris (no text or symbols)

▲ Frayed

Simple illustration of a curved pipe or tube with a circular end (no text or symbols)

▲ Scratched

Simple illustration of a curved pipe with a circular end and dotted fill (no text or symbols)

▲Sand sticking

3 Inspect the O-ring groove.

- Grains of sand or hardened salt crystals may get into the O-ring groove. Remove them carefully with an air spray or a cotton swab. If you use a cotton swab, be careful not to leave any fibers from it in the O-ring groove.

4 Inspect the opposite side of the O-ring in the same way.
5 Apply the grease (supplied).

Illustration showing two hands performing a tool manipulation technique (no text or symbols present)

• Apply a rice-grain size of grease (supplied) evenly to the O-ring with the tip of your finger.
• Dirt or dust will stick to the O-ring if you apply too much grease.
• Use only the specified grease. If you use other types of grease, the surface of the O-ring may be damaged causing water leakage.
• Do not apply the grease with paper or a cloth. The fibers from the paper or cloth may stick to the O-ring.

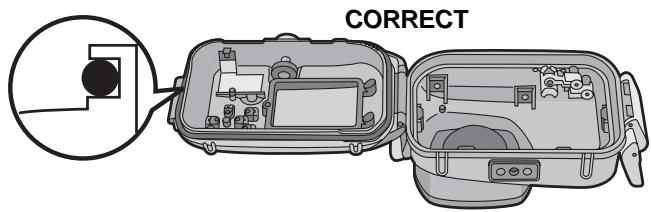

6 Fit the O-ring evenly into the O-ring groove.

Check the following:

• There is no dirt sticking to the O-ring.
  ● The O-ring has not come out.
  ● The O-ring is not twisted.
  ● The O-ring is not stretched too much.

7 Inspect the O-ring one last time.

Check the following one more time:

● There is no dirt sticking to the O-ring.
● The O-ring has not come out.
- The O-ring is not twisted.

- There are no scratches or squashed parts on the O-ring.

Thoroughly wipe any grease off your hands with a dry cloth and then wash your hands with water.

8 Close the buckle.

- Check that no foreign materials are sticking to the outer surface of the O-ring and the buckle on the front case and then close the Case.

Notes

• To keep the Case completely airtight, do not scratch the surface of the O-ring that comes into contact with the sides of the Case.
• Never use an O-ring that has been scratched or damaged by dirt etc. This will cause water leakage.
• Each time you use the Case, remove the O-ring and check that there is no dirt, sand, hair or other foreign materials in the O-ring groove and then apply a thin coat of grease (supplied). If you apply too much grease, dirt and the dust may stick to the O-ring causing water leakage.
• Be sure to bring a spare O-ring in case the O-ring that you are using becomes damaged or scratched.

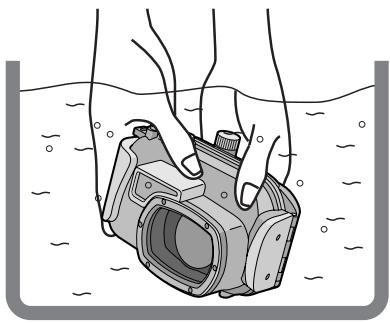

After setting the O-ring, check that no water leaks into the Case by submerging it in a water tank, bath tub etc. for more than about 3 minutes before attaching a digital camera.

- Do not use the Case in water over 40 °C. The heat may damage the Case or cause water leakage.

Illustration of hands holding a digital camera partially submerged in water (no text or symbols visible)

Carry out the same test after attaching the digital camera to the Case. (P15)

Notes

• If bubbles rise from the Case when it is submerged in water or there is water inside the Case when you take it out the water, there is water leakage. In these cases, consult your dealer.
• If water leaks into the Case while you are using it and the digital camera is submerged in water, remove the battery immediately. Hydrogen gas can cause burning or explosion if there is a fire nearby.
• If you dive quickly while holding the Case or throw the Case from a ship into the sea, some water leakage may occur because of high pressure. This is not a malfunction of the Case. Always dive slowly into the water.
• The Case is designed to be used at a depth of up to 40 m. If you dive deeper than 40 m, part of the Case may be damaged beyond repair.
• When closing the Case, be careful that no foreign materials get caught between the O-ring and the O-ring groove. Even one strand of hair or one grain of sand can cause water leakage.

Check that the ON/OFF Switch on the camera and the case is set to [OFF].

- Remove the strap and the lens cap from the digital camera.

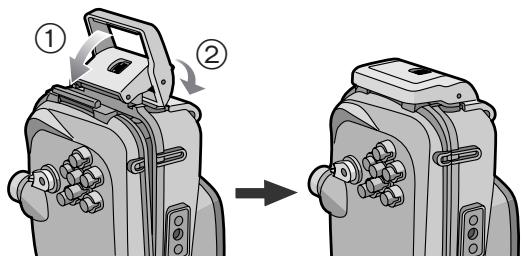

1 Push ② up with your finger while sliding ① to open the buckle.

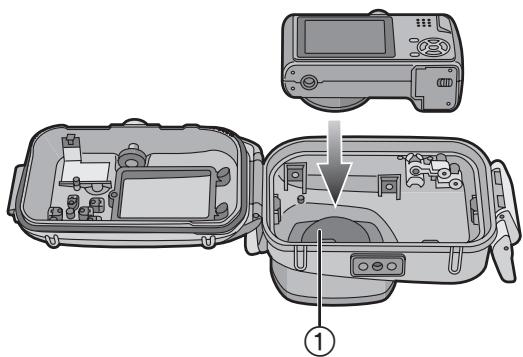

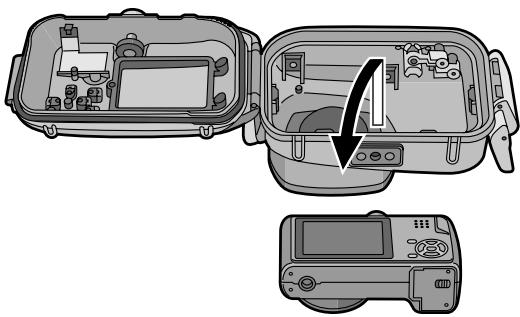

2 Attach the digital camera to the Case.

- Be careful not to catch the shading ring ①.

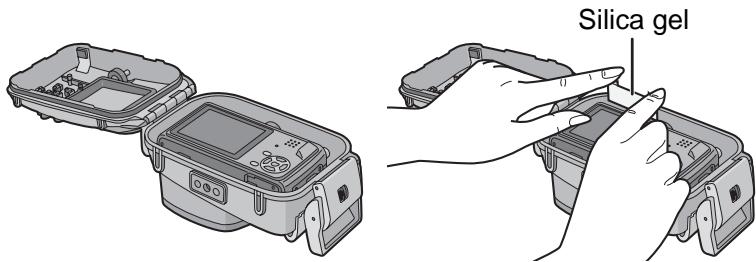

3 Insert the silica gel (supplied).

● Always use new silica gel.

- When inserting the silica gel, bend it as shown in the illustration below and then insert it as far as possible. If you close the Case with the silica gel not fully inserted, the silica gel will get caught in the O-ring causing water leakage.

Illustration of two hands holding a small object with a curved arrow indicating rotation (no text or symbols)

- If the air temperature is high and the water temperature is low, condensation may appear inside the Case. To prevent condensation, make sure that the silica gel (supplied) does not come into contact with the digital camera lens. To prevent the Case from becoming fogged up, insert the silica gel about 1 to 2 hours before using the Case.

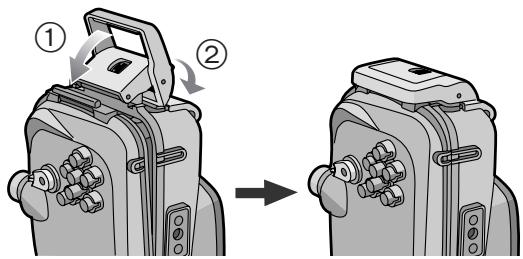

4 Close the buckle.

Check that the buckle is closed firmly.

Line drawing of a hand holding a DSLR camera (no text or symbols)

5 After you have attached the digital camera, check one more time that no water leaks into the Case. (P14)

Notes

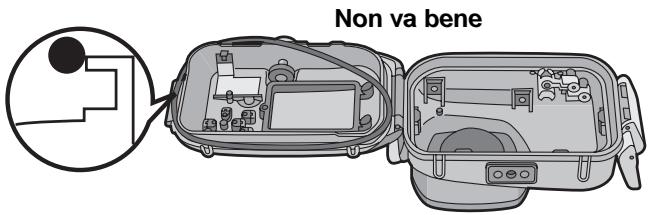

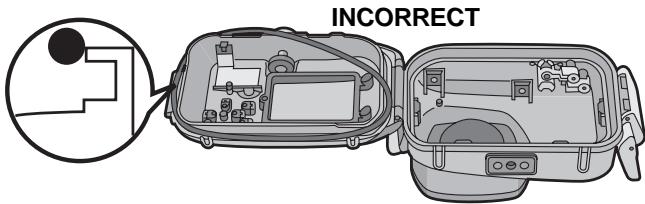

• Check one more time that the O-ring is fitted evenly into the O-ring groove.
• Avoid opening or closing the Case where there is a lot of sand or dust and in humid or wet places.
• If there is a sudden change in temperature, condensation may appear inside the Case.
• If sunscreen or sun oil sticks to the Case, wash it off immediately with lukewarm water to prevent reduced waterproofness or discolouration.

■ Before taking pictures underwater Check the following before diving.

• Is there sufficient remaining battery power?
• Is there sufficient memory in the card?
• Is the O-ring fitted evenly into the O-ring groove?
  ● Have you checked that no water leaks into the Case?
• Is the buckle closed firmly?

■ Taking pictures

1 Turn the camera on.

Press ① to release the lock and then set to [ON].

Press ② to lock.

2 Display the scene mode menu and then set [UNDERWATER].

- Read the operating instructions of the digital camera for details.

3 Aim the AF area on the LCD monitor at the subject you want to focus on.

4 Press ◀ (💡) to focus.

- Press ◀ (💡) again to cancel.

5 Press the shutter button fully to take the picture.

Notes

• Before attaching the camera to the Case, we recommend setting the clock again. (Read the operating instructions of the digital camera for details.)
• If there are any particles floating in front of the camera, it may focus on them instead of the subject.
• If there are drops of water or dirt sticking to the front glass, you may not be able to focus properly. Be sure to wipe the front glass before taking pictures.

When the image is too bluish in the water

① Press ▲ (＋) several times until [WB±] appears.
② Press ◀ (💡)/▶ (⚡) to adjust the white balance.
③ Press [MENU/SET] to finish.

- You can also press the shutter button halfway to finish.

Select the best picture

Set the flash to [⚡].

Use auto bracket

- Each time the shutter button is pressed, 3 pictures with different exposures are automatically recorded. You can select the desired picture from the 3 pictures.

Use Burst mode

- Each time the shutter button is pressed in Burst mode, more than one picture of a fast moving subject etc. is recorded. You can select the desired picture from the recorded pictures.

Note

- For more information, read the operating instructions of the digital camera.

After finishing taking pictures, follow the steps below.

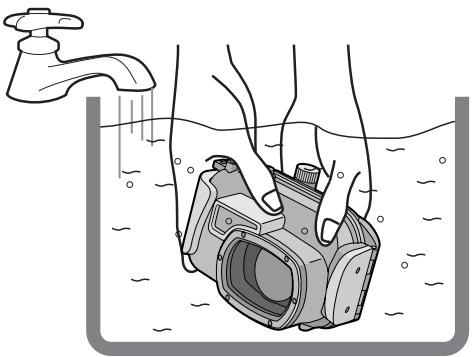

1 Submerge the Case in fresh water for about 30 minutes or more without removing the digital camera to remove any salt crystals etc.

Illustration of hands cleaning a water tank with a camera module (no text or symbols)

• Press all the operation buttons etc. on the Case to wash away any seawater. If the salt crystals are not removed from the buttons etc., they will harden and the buttons will become unoperable.
• Do not wash the Case with fast-running or pressurized water etc. as it may cause water leakage.

2 Wipe the water with a dry cloth that has no salt crystals sticking to it and then dry the Case completely.

- Do not dry the Case by exposing it to direct sunlight. This may discolour or damage the Case or may hasten deterioration of the O-ring.

3 Open the rear case to remove the digital camera.

Diagram showing a device open into a box with internal components, and finally to a digital camera module (no text or symbols present)

4 Remove the O-ring from the Case and check that there is no rubbish etc. in the O-ring groove.
5 Check that there are no scratches etc. on the O-ring while you are applying the grease.

Notes

Be careful when removing the digital camera from the Case so that it does not get wet.

• Remove the camera with clean hands. (Wash your hands with fresh water and then thoroughly dry them.)
• Thoroughly dry any moisture on your body or hair. (Be particularly careful about any water coming from the sleeves of your thermal suit.)
• When the weather or the sea is particularly bad, select a place where the digital camera will not get wet e.g. indoors or where there is a roof overhead.

Cleaning and Storing

1 Wash the outside of the Case with water.

● Wash the outside of the Case until it is clean. (P20)
- Be sure to close the Case and then wash the outside only with water.
● Wipe off any dirt inside the Case with a wet, soft cloth.

Notes

• Do not wash the Case with high-pressure water as it may cause water leakage. Remove the digital camera before washing the Case with water.
• Do not leave the digital camera inside the Case when storing it.
• Store the Case in a cool, well-ventilated place.

Caution for Use

■ Handling of the O-ring

• Do not use alcohol, thinner or a chemical cleaning agent for cleaning the O-ring. Thus will hasten damage to, or deterioration of, the O-ring.

• If you will not be using the Case for a long period of time, remove the O-ring from the O-ring groove, apply a thin coat of grease (supplied), place it in a clean polyester bag and then store it in a cool, dark place to prevent the surface from being damaged. When you use the O-ring again, thoroughly check that it is not scratched or split.

• Use only the specified grease. If you use other types of grease, the surface of the O-ring may be damaged causing water leakage.

• The O-ring comes into contact with the sides of the Case making the Case waterproof. Do not knock, insert foreign materials (dirt, sand, hair etc.) or scratch the O-ring or sides of the Case.
• Use the tips of your fingers to remove the O-ring. Do not use a pointed object as it may scratch the O-ring.
• After removing the O-ring from the rear case, wipe off any dirt, sand, hair or other foreign materials on it. Also wipe the O-ring groove and the inner sides of the front case which come into contact with the O-ring.
• Never use an O-ring that has been scratched or damaged by dirt etc. This will cause water leakage. Replace it with a new O-ring.
• After replacing an O-ring, not using the Case for a long period of time or opening the Case to attach a digital camera, replace the battery etc., thoroughly check that the O-ring is not scratched or split. Then, close the Case and check that no water leaks into it by submerging it in a water tank, bath tub etc. for about 3 minutes. (P14)
• O-rings are consumable products. Although the lifespan of O-rings will depend on how well they are maintained, how often they are used and their storage conditions, we recommend replacing them every year even if you cannot see any scratches.

■ About maintenance

- Do not use the chemicals shown below for cleaning, rustproofing, defogging or repair. Using them directly or indirectly (with a chemical spray etc.) on the Case may cause it to crack under high pressure.

Prohibited chemicals	Cautions
Volatile organic solvents/ Chemical cleansers	Do not clean the Case with volatile organic solvents such as alcohol, gasoline or thinner or with chemical cleansers. Clean it with fresh water or lukewarm water.
Anti-corrosives	Do not use anti-corrosives as the metal parts of the Case are made from stainless steel or brass. Clean it with fresh water.
Anticlouding agents	Do not use commercially available anticlouding agents. Be sure to use the silica gel indicated in these operating instructions.
Adhesives	Do not use adhesives for repair. If the Case needs to be repaired, consult your dealer.

• If grease sticks to the digital camera, wipe it off with a soft, dry cloth.
• When wiping the inside of the Case, only use a soft, dry cloth. Wipe the inside of the front glass with a soft, dry cloth before and after use to keep the glass clear.

■ About storage and inspection after use

● Always take the digital camera out of the Case.
● Make sure that no dirt or dust sticks to the O-ring.
- Thoroughly dry the Case at room temperature and then store it in a cool, dark place.
- We recommend that the Case is inspected about 3 years after purchase. This inspection involves dismantling and cleaning the Case, inspecting all the parts and repairing them if necessary and checking the waterproofness of the Case using the same hydrostatic test equipment that was used to check the waterproofness before purchase. The customer is responsible for all transportation costs.
- Do not dismantle any parts or use any accessories not specified in these operating instructions and do not alter the Case. If the Case does not work properly, consult your dealer.

Specifications

Compatible model:	DMC-TZ1
Mass:	Approx. 383 g
Dimensions:	Approx. 154 mm (W)×91 mm (H)×79 mm (D)(excluding the projection part)
Material:	Polycarbonate
Waterproof construction:	O-ring sealing
Water resistant depth:	40 m

Inhalt

Diagram of a medical device with tubing and connector (no text or symbols)

Simple illustration of a curved pipe or tube with black circular marks indicating points (no text or symbols)

▲ Schmutz

Simple illustration of a curved pipe or tube with a circular end (no text or symbols)

▲ Sand

Abstract curved line drawing with shaded segments and a central circular element (no text or symbols)

▲Haare

Illustration of a curved pipe or tube with internal markings (no text or symbols)

▲ Staub

Simple illustration of a curved pipe or duct with a black end and dotted markings (no text or symbols)

▲ Salzkristalle

Illustration of a curved pipe or tube with a black circular end (no text or symbols)

▲Fusseln

Simple illustration of a curved pipe or duct with a circular end (no text or symbols)

▲Risse

Simple illustration of a curved pipe or tube with a black end (no text or symbols)

▲ Verdrehung

Simple illustration of a curved pipe or tube with a black end (no text or symbols)

▲ Quetschung

Simple illustration of a curved pipe or tube with no text or symbols

▲ Abblättern

Simple illustration of a curved pipe or tube with a black circular end (no text or symbols)

▲ Kratzer

Simple illustration of a curved pipe with a circular end and dotted fill (no text or symbols)

▲ Staub,
anhaftender Sand

Illustration showing a hand holding a cylindrical object and a curved pipe with an arrow indicating motion (no text or symbols)

Illustration of hands holding a camera partially submerged in water (no text or symbols)

Illustration of two hands holding a rectangular object with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a DSLR camera (no text or symbols)

Illustration of hands cleaning a water-filled mechanical device (no text or symbols)

Diagram showing a device open into a box with internal components, and finally to a digital camera module (no text or symbols present)

Diagram of a medical or laboratory device with tubing and connector (no text or symbols)

■ Remarque

Simple illustration of a curved pipe with black circular marks indicating points (no text or symbols)

▲ Saleté

Simple illustration of a curved pipe or duct with a circular end (no text or symbols)

▲ Sable

Abstract curved line drawing with shaded segments and a central circle (no text or symbols)

▲ Cheveux

Illustration of a curved pipe with visible cracks and texture (no text or symbols)

▲ Poussière

Simple illustration of a curved pipe with a circular end and dotted markings (no text or symbols)

▲Cristaux de sel

Illustration of a curved pipe or tube with a circular end, no text or symbols present

▲ Fils de tissu

Simple illustration of a curved pipe or tube with a circular end (no text or symbols)

▲ Fissures

Simple illustration of a curved pipe or tube with a black end (no text or symbols)

▲Distorsions

Simple illustration of a curved pipe or tube with a central circular opening, no text or symbols present.

▲ Écrasements

Illustration of a curved pipe or duct with a circular end, showing no text or symbols.

▲ Écaillements

Simple illustration of a curved pipe or tube with a circular end (no text or symbols)

▲ Rayures

Simple illustration of a curved pipe with a circular end and dotted fill (no text or symbols)

▲ Dépôts de sable

Illustration showing two hands performing a tool manipulation technique (no text or symbols present)

Illustration of hands holding a digital camera inside a water channel (no text or symbols)

Line drawing of two hands holding a rectangular object with a curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a DSLR camera (no text or symbols visible)

Illustration of hands cleaning a water tank with a digital camera (no text or symbols)

Diagram showing a device open into a compact case with a close-up of its internal components (no text or symbols present)

Environ 154 mm (L)×91 mm (H)×79 mm (P)

(parties en saillie non comprises)

Polycarbonate

Diagram of a mechanical device with hoses and connectors (no text or symbols)

Simple illustration of a curved pipe or tube with black circular marks indicating points (no text or symbols)

▲ Suciedad

Simple illustration of a curved pipe or tube with a circular end (no text or symbols)

▲ Arena

Abstract curved line drawing with shaded segments and a black circular end (no text or symbols)

▲Pelo

Illustration of a curved pipe with visible cracks and texture (no text or symbols)

▲ Polvo

Simple illustration of a curved pipe or duct with a black end and dotted markings (no text or symbols)

▲Sal

Illustration of a curved pipe or tube with a black circular end (no text or symbols)

▲Hilas

Simple illustration of a curved pipe or tube with a black end (no text or symbols)

▲Hendedura

Simple illustration of a curved pipe or tube with a black end (no text or symbols)

▲Distorsión

Simple illustration of a curved pipe or tube with a central hole, no text or symbols present.

▲ Aplastamiento

Illustration of a curved pipe with a circular end, showing internal texture and minor fluctuations (no text or symbols)

▲ Peladura

Simple illustration of a curved pipe or tube with a black circular end (no text or symbols)

▲Arañazo

Simple illustration of a curved pipe with a circular end and dotted fill (no text or symbols)

▲ Arena pegada

3 Controle la ranura del anillo tórico.

Illustration showing a hand holding a pen and a curved object with an arrow indicating motion (no text or symbols)

Illustration of hands holding a camera underwater, no text or symbols present

Illustration of two hands holding a rectangular object with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a DSLR camera (no text or symbols)

Illustration of hands cleaning a water tank with a camera module (no text or symbols)

Diagram of a device open with internal components, showing a close-up and side-view views (no text or symbols)

154 mm (W)×91 mm (H)×79 mm (D)

Diagram of a medical device with tubing and connector (no text or symbols)

2 Controllare l'O-ring.

Simple illustration of a curved pipe or tube with black circular marks indicating points (no text or symbols)

▲ Sporcizia

Simple illustration of a curved pipe or tube with a circular end (no text or symbols)

▲Sabbia

Abstract curved line drawing with shaded segments and a black circular end (no text or symbols)

▲ Capelli

Illustration of a curved pipe with visible cracks and texture (no text or symbols)

▲Polvere

Simple illustration of a curved pipe or duct with a black end and dotted pattern on the left (no text or symbols)

▲Cristalli di sale

Illustration of a curved pipe or tube with a black circular end (no text or symbols)

▲ Fili di tessuto

Simple illustration of a curved pipe or duct with a circular end (no text or symbols)

▲ Fessure

Simple illustration of a curved pipe or tube with a black end (no text or symbols)

▲Distorsioni

Simple illustration of a curved pipe or tube with a black end (no text or symbols)

▲ Schiacciamenti

Simple illustration of a curved pipe or tube with a circular end, no text or symbols present.

▲ Spellature

Simple illustration of a curved pipe or tube with a black circular end (no text or symbols)

▲ Graffi

Simple illustration of a curved pipe with a circular end and dotted fill (no text or symbols)

Illustration showing two hands performing a tool manipulation technique (no text or symbols present)

Diagram of a two-part electronic device casing with internal components, showing open and closed views (no text or symbols)

Illustration of hands holding a digital camera partially submerged in water (no text or symbols visible)

Illustration of two hands holding a rectangular object with a curved arrow indicating rotation (no text or symbols)

Illustration of hands using a camera to adjust the lens (no text or symbols visible)

Illustration of hands cleaning a water-filled mechanical device (no text or symbols)

Diagram of a device open with internal components, showing a close-up and side-view views (no text or symbols)
