U208002IND - Interface Tripp Lite - Free user manual and instructions
Find the device manual for free U208002IND Tripp Lite in PDF.
| Product Type | Industrial-Grade USB to RS-422/RS-485 Serial Adapter |
| Brand | Tripp Lite |
| Model | U208-002-IND |
| Input Connection | USB Type-B Female |
| Output Connection | 2 × DB9 Male |
| Number of Serial Ports | 2 |
| Supported Protocols | RS-422, RS-485 (2-Wire and 4-Wire) |
| Maximum Transfer Speed | 1 Mbps |
| Power Supply | USB Bus-Powered (5 V DC, 500 mA max) |
| LED Indicators | Green (RxD Receive), Yellow (TxD Transmit) |
| ESD Protection | ±15 kV |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -10 to 55°C (14 to 131°F) |
| Relative Humidity | 5 to 90% RH, Non-Condensing |
| Warranty | 2 Years (Limited) |
| Package Contents | Adapter, USB A to B Cable (1 m), Jumper Caps (2 per port), Installation CD, Manual |
| OS Compatibility | Windows XP and Later, Mac OS X 10.4 and Later, Linux 2.6.31 and Later |
| Special Features | Auto-Detect RS-422/485, ATTA (RS-485), Transmit Echo, COM Retention (FTDI) |
| Mounting | Wall-Mountable (Optional) |
| Housing Material | Rugged Metal |
| Integrated Chip | FTDI with COM Retention |
| Configuration | DIP Switches per Port (Auto-Detect, 4-Wire) |
| Termination Resistors | Jumper Caps (120 Ohms, Adjustable) |
Frequently Asked Questions - U208002IND Tripp Lite
User questions about U208002IND Tripp Lite
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Interface in PDF format for free! Find your manual U208002IND - Tripp Lite and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. U208002IND by Tripp Lite.
USER MANUAL U208002IND Tripp Lite
Industrial-Grade USB to RS-422/485 Serial Adapter
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector— a \$100 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2017 Tripp Lite. All rights reserved.
Important Safety Instructions
• Always read the safety instructions carefully
- Keep this Owner's Manual for future reference
- If any of the following situations arise, schedule an appointment to have your equipment inspected by a service technician:
o The equipment has been exposed to moisture
o The equipment has been dropped and damaged
o The equipment shows obvious signs of breakage
o The equipment is not functioning properly or is not functioning according to the Owner's Manual instructions
Product Features
- Add up to four RS-422 or RS-485 serial devices via the USB port on your desktop or notebook computer
- Integrated FTDI chipset with COM retention automatically reassigns COM values to ports in the event of a disconnection or reboot
- Rugged all-metal enclosure designed for industrial applications
- DIP switch controls provide easy port configuration with minimal software requirements
- Features auto-detect and auto-switching of RS-422 and RS-485 devices
• RS-485 mode supports Auto Transceiver Turn Around (ATTA)
• Supports USB 2.0 specifications and earlier
• Supports serial communications speeds up to 1 Mbps
• Transmission Echo for RS-485 collision detection
• Wall-mount option provides a secure installation
• ESD protection to +/- 15 kV
• LED for indicate TxD or RxD activity - USB-powered—no external power adapter required
System Requirements
- Computer with an available USB port
- Windows™ XP or later
• Mac® OS X 10.4 or later - Linux 2.6.31 or later
Package Includes
- Industrial-Grade USB to Serial Adapter
• USB A to B Cable (M/M), 3 ft. (1 m) - Jumper Connectors (2 per port)
- Driver CD
- Owner's Manual
DIP Switch Settings
The U280-00X-IND USB to Serial Adapter features an independent DIP switch for each serial port. See below for DIP switch settings:
1 Auto RS-422/485 Detection (Default): Automatically detects the RS-422 or RS-485 mode and sets the port accordingly.
2 RS-422 (4-Wire) or RS-485 (4-Wire): Sets the port specifically for use in 4-Wire mode.
Pin Assignment

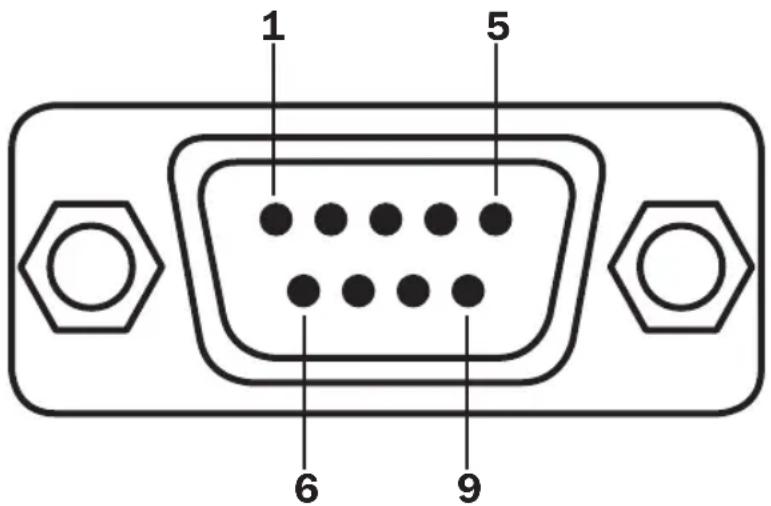

The included serial adapter uses a male DB9 connector. Please see the connector's pin assignment below:
| Pin RS-422 RS-485 | (2-Wire) RS-485 (4-Wire) | |
| 1 Tx- D- Tx- | ||
| 2 Tx+ D+ Tx+ | ||
| 3 Rx+ N/A Rx+ | ||
| 4 Rx- N/A Rx- | ||
| 5 GND GND GND |
Jumper Settings
The included serial adapters feature independent TX and RX termination resistors for each serial port. The jumper settings (short pins) can be modified to avoid impedance mismatch problems when operating under a multi-drop transmission. To modify the settings, open the metal covers and set the jumper setting with the included connectors to enable or disable 120 ohm termination resistors. The factory default setting is OPEN (disable 120 ohm termination resistors across two wires).
Open (Default)
Short
Installation
Note: In most cases, the U208-004-IND will receive sufficient power from the connected computer to operate. In the event that additional power is required, connect a user-supplied external power supply between the external power connection on the unit and an external power source. The U208-004-IND is compatible with listed LPS 5V DC power supplies using a 5.5 x 2.1 x 9.5 mm output plug with a positive tip and negative sleeve.
1 Using the included USB cable, connect the USB to Serial adapter to an available USB port on your computer.
2 Insert the included Driver CD into the computer's CD/DVD drive. If your computer does not have a CD/DVD drive, you can download the software at www.tripplite.com/support.
3 In the Driver CD, navigate to the Drivers folder and the driver file applicable to your operating system.
4 Run the driver file and follow the install prompts to complete installation.
5 Set the DIP switches on the unit to the appropriate serial mode (see DIP Switch Settings for more information).
6 Connect the serial cable between the serial device and the serial ports on the unit.
Note: The RX status LED will blink green when serial data is being received. The TX status LED will blink yellow when serial data is being sent.
Specifications
| Input Connector USB Type-B, | Female |
| Output Connector U208-001- | ND - (x1) DB9, MaleU208-002-IND - (x2) DB9, MaleU208-004-IND - (x4) DB9, Male |
| LEDs Green: Serial Data Received | Yellow: Serial Data Transmitted |
| Supported Protocols RS-422, | RS-485 |
| Max Baud Rate 921.6 Kbps | |
| Max Data Transfer Speeds 1 Mbps | |
| Stop Bits 1, 2 | |
| Data Bits 7, 8 | |
| FIFO U208-001-IND - Tx: 256B Rx: 128BU208-002-IND - Tx: 4 kB per port Rx: 4 kB per portU208-004-IND - Tx: 2 kB per port Rx: 2 kB per port | |
| Flow Control Xon/Xoff | |
| Parity Odd, Even, Mark, Space, No Parity | |
| Operating Temperature 32 to 104°F (0 to 40°C) | |
| Storage Temperature 14 to 131°F (-10 to 55°C) | |
| Relative Humidity | 5% to 90% RH, Non-Condensing |
Warranty and Product Registration
2-YEAR LIMITED WARRANTY
TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of two (2) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
PRODUCT REGISTRATION
Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.
Warranty and Product Registration
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:
- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
- Send the new equipment back for recycling when this ultimately becomes waste
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
