U442DOCK20VMB - Video conferencing system Tripp Lite - Free user manual and instructions

Product Type	VESA Mounting Plate
Brand	Tripp Lite
Model	U442-DOCK20-VMB
VESA Compatibility	100 x 100 mm and 75 x 75 mm
Material	Commercial grade cold-rolled electro-galvanized steel
Package Contents	Mounting plate, 2 M3 screws, 2 M4 screws
Approximate Dimensions	110 x 110 x 2 mm
Approximate Weight	250 g
Usage	Mounting the U442-DOCK20-B USB-C docking station to the back of a monitor
Cable Management	Yes, allows hiding cables behind the monitor
Fastening	M3 screws for docking station, M4 screws for monitor
Installation	Simple, instructions included; requires a screwdriver
Warranty	Limited lifetime warranty (repair or replacement)
Maintenance	Clean with a soft, dry cloth
Safety	Check monitor load capacity before installation; use only provided screws
Docking Station Compatibility	Tripp Lite U442-DOCK20-B only
Color	Metallic gray (steel)
Manufacturer	Tripp Lite, Chicago, IL, USA

Frequently Asked Questions - U442DOCK20VMB Tripp Lite

What are the dimensions of the U442-DOCK20-VMB mounting plate?

The plate measures approximately 110 x 110 mm with a thickness of 2 mm. These dimensions are suitable for VESA 100x100 and 75x75 standards.

Is it compatible with all VESA monitors?

It is compatible with monitors that have VESA mounting holes in 100x100 mm or 75x75 mm standards. Ensure your monitor can support the additional weight of the docking station.

Can I use this plate with a docking station other than the U442-DOCK20-B?

No, this plate is specifically designed for the Tripp Lite U442-DOCK20-B docking station. Use with other models is not guaranteed.

What tools are needed for installation?

You will need a Phillips screwdriver to tighten the provided M3 and M4 screws. No other tools are required.

How do I clean the mounting plate?

Use a soft, dry cloth to remove dust. Avoid harsh chemicals that could damage the electro-galvanized steel coating.

What warranty is offered with this product?

Tripp Lite offers a limited lifetime warranty covering defects in materials and workmanship. In case of issues, contact Tripp Lite for repair or replacement.

Can I mount the plate on a wall instead of a monitor?

The plate is designed to be attached to the back of a monitor via VESA holes. Wall mounting would require a separate VESA wall mount and is not intended for this product.

Does the plate support the weight of the docking station?

Yes, the electro-galvanized steel plate is sturdy enough to support the weight of the U442-DOCK20-B docking station (approximately 500 g). Ensure your monitor can also handle this weight.

How do I install the mounting plate?

1) Attach the plate to the docking station using the provided M3 screws. 2) Attach the assembly to the back of the monitor using the M4 screws into compatible VESA holes. Tighten securely.

Are there any safety precautions?

Ensure the monitor is strong enough to support the added weight. Use only the provided screws. Do not overtighten to avoid damaging the threads.

USER MANUAL U442DOCK20VMB Tripp Lite

VESA Mounting Plate for the U442-DOCK20-B

Model: U442-DOCK20-VMB

Espanol 8 • Français 15 Pusskny 22 • Deutsch 29

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

Product Features

• Securely mounts Tripp Lite's U442-DOCK20-B USB-C Docking Station to the back of a monitor
  Supports 100 × 100 ~mm and 75 × 75 ~mm VESA mounting patterns
• Constructed of durable SECC metal to withstand commercial application use
• Provides a clutter-free workstation with behind-monitor cable management

Package Includes

U442-DOCK20-VMB
(x2) M3 Screws
(x2) M4 Screws

System Requirements

U442-DOCK20-B USB-C Docking Station

Mounting Instructions

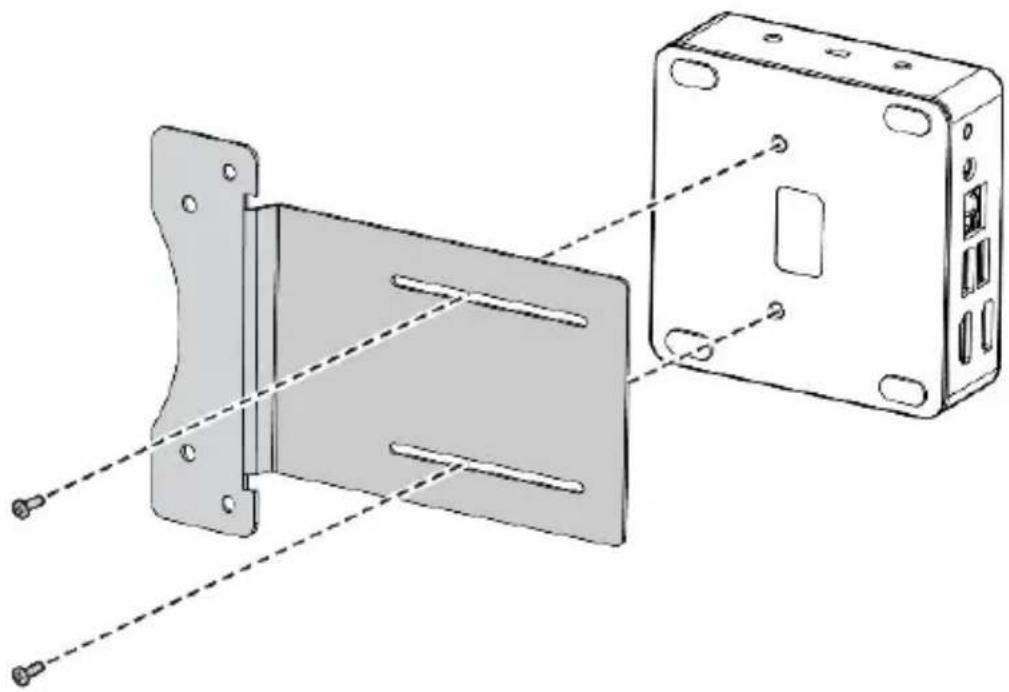

Using the included M3 screws, secure the VESA mounting plate to the bottom of the U442-DOCK20-B.

Mounting Instructions

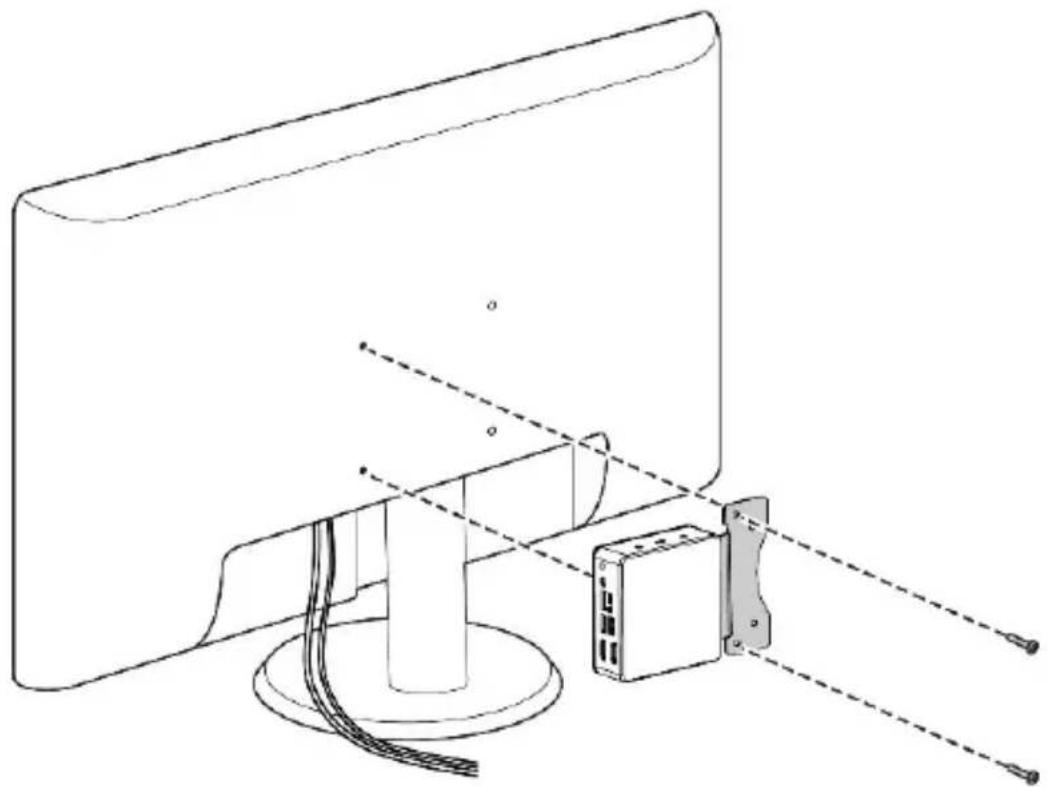

Using the included M4 screws, secure the mounting plate to the back of the monitor.

Note: Only 100 × 100 mm and 75 × 75 mm VESA mounting patterns are supported.

Mounting Instructions

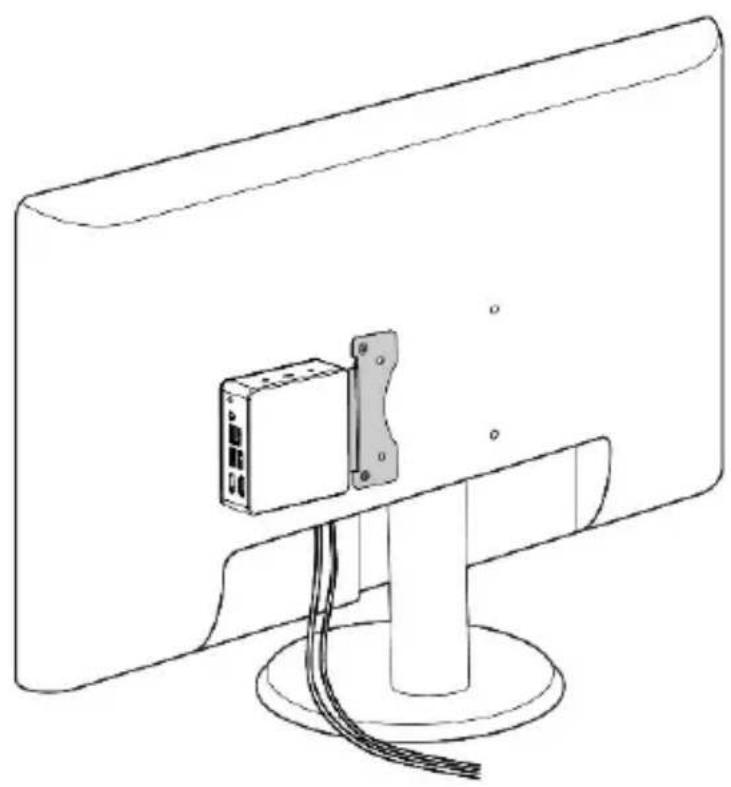

3 Installation is complete. Refer to U442-DOCK20-B Owner's Manual for installation and operation instructions.

Warranty & Product Registration

Lifetime Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th St., Chicago, IL 60609. Seller will pay return shipping charges.

The warranties of all TRIPP LITE surge protectors are null and void if they have been connected to the output of any UPS system. The warranties of all TRIPP LITE UPS Systems are null and void if a surge protector has been connected to its output receptacles.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

Warranty & Product Registration

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

20-10-166 93-3CD1_RevB

Guía de Instalación

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support

14

20-10-166 93-3CD1_RevB

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21

20-10-166 93-3CD1_RevB

PyKOBODCTBO NO yCTaHOBKe

U442-DOCK20-VMB
BnHTbIM3(2wT.)
BnHTbIM4(2wT.)

CnCTeMHbIe Tpe6ObaHnA

-ДOK-станения мд. U442-DOCK20-B USB-C

yka3aHnno moHTaxy

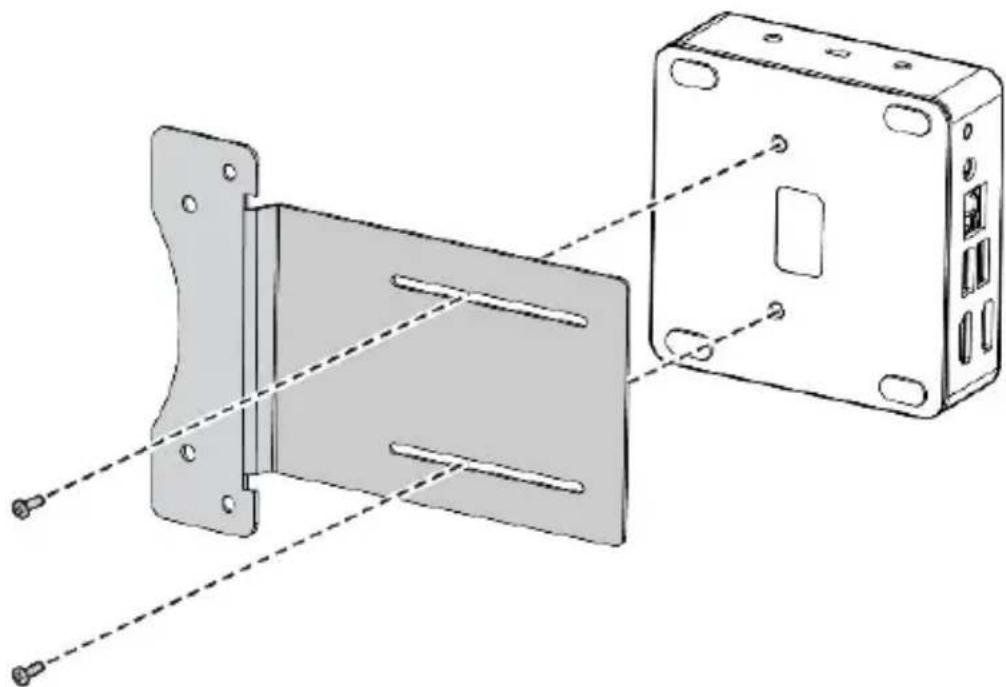

1 C nomoubIO BnHTOB M3, noCTaBnaeMbIX B KOMnIeKTe, npNKpeNITe MOHTaXHyIO nlaCTnHy VESA K HxKHe NOBepxHocTn DOK-CTaHcU U442-DOCK20-B.
