PDUH30HV19 - Power strip Tripp Lite - Free user manual and instructions

Product Type	Basic PDU (Power Distribution Unit)
Brand	Tripp Lite
Model	PDUH30HV19
Category	Power Strip
Input Voltage	200-240 V AC
Input Plug	L6-30P (single-phase, 30 A)
Output Outlets	200-240 V IEC 60320 C19 (heavy-duty)
Number of Outlets	30 (depending on model)
Electrical Protection	Integrated circuit breaker (overload protection)
Grounding	Grounding lug for equipment requiring chassis bonding
Installation	Rack 1U, rack 0U, wall-mount, under-counter
Operating Temperature	0°C to 40°C
Intended Use	Indoor, controlled environment (no excessive humidity, dust, conductive contaminants)
Maintenance and Cleaning	No user-serviceable parts; do not open; clean with a dry cloth
Warranty	5 years (material and workmanship defects)
Certifications	Complies with local electrical codes; unique serial number for regulatory identification

Frequently Asked Questions - PDUH30HV19 Tripp Lite

What is the input voltage of the PDU PDUH30HV19?

The input voltage is 200-240 V AC, with an L6-30P plug.

Can I use this power strip for surge protection?

No, this PDU provides no protection against surges or line noise. It only distributes power.

How do I install the PDU in a rack?

The unit can be mounted in a 1U (horizontal) or 0U (vertical) rack. Use the provided screws for attachment to rack rails or mounting brackets.

What should I do if the circuit breaker trips?

Unplug excess devices, allow the circuit breaker to cool for at least one minute, then press the toggle to reset it. Total load must not exceed the rating.

Where is the grounding lug located and what is it for?

The grounding lug is located on the enclosure. It allows connection of any equipment requiring grounding to the PDU chassis.

What are the recommended operating conditions?

Indoor use only, away from excessive humidity, extreme temperatures (0-40°C), dust, and conductive contaminants. Avoid direct sunlight.

Can I repair the PDU myself?

No, there are no user-serviceable parts. Do not attempt to open the enclosure. Contact a qualified technician for any repairs.

What is the warranty on this power strip?

Tripp Lite offers a 5-year warranty against material and workmanship defects from the original purchase date.

What types of input plugs are available for this model?

For the PDUH30HV19, the input plug is an L6-30P. Other models in the series may have a blue IEC 309 32 A plug.

Is the PDU suitable for outdoor use?

No, it is designed for indoor use only, in a controlled and dry environment.

USER MANUAL PDUH30HV19 Tripp Lite

Important Safety Instructions 2

ImportantWarnings 2

Installation 3

Features 4

Warranty & Product Registration 4

Espanol 5

Français 9

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a $50 value!

www.triplite.com/warranty

TRIPP·LITE

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

Copyright © 2014 Tripp Lite. All rights reserved.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the installation, operation and storage of this product. Failure to heed these instructions and warnings will void the product warranty.

ImportantWarnings

• The PDU provides the convenience of multiple outlets, but DOES NOT provide surge or line noise protection for connected equipment.
• The PDU is designed for indoor use only, in a controlled environment, away from excess moisture, temperature extremes, conductive contaminants, dust or direct sunlight.
• Keep indoor ambient temperature between 32^ and 104^ ( 0^ and 40^ ).
• The PDU must be installed by a qualified technician only.
• Do not attempt to mount the PDU to an insecure or unstable surface.
• Install in accordance with National Electrical Code standards. Be sure to use the proper overcurrent protection for the installation, in accordance with the plug/equipment rating.
• Connect the PDU to an outlet that is in accordance with your local building codes and that is adequately protected against excess currents, short circuits and earth faults.
• The electrical outlets supplying power to the equipment should be installed near the equipment and easily accessible.
• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that eliminate the connection to ground.
• Be sure to provide a local disconnect device on any models that are permanently installed without a plug that is easily accessible.
• Never attempt to install electrical equipment during a thunderstorm.
• Individual equipment connected to the PDU should not draw more current than the individual PDU's outlet's rating.
• The total load connected to the PDU must not exceed the maximum load rating for the PDU.
• Do not attempt to modify the PDU, input plugs or power cables.
• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable parts inside.
• Do not attempt to use the PDU if any part of it becomes damaged.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Installation

Note: The illustrations may differ somewhat from your PDU model.

1 Determine Installation Configuration. The PDU supports four primary installation configurations: 1U Rack, 0U Rack, Wall and Under-Counter. Choose a configuration and follow the installation instructions in the appropriate section of Step 1 before proceeding to Step 2.
Note: Regardless of installation configuration, the user must determine the fitness of hardware and procedures before mounting. The PDU and included hardware are designed for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting configurations may vary.

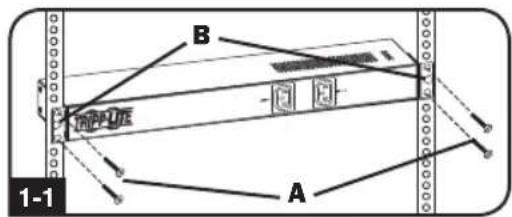

1-1 1U Rack Installation. Attach the PDU to the rack by inserting four user-supplied screws (A) through the PDU mounting brackets (B) and into the mounting holes of the rack rail as shown.

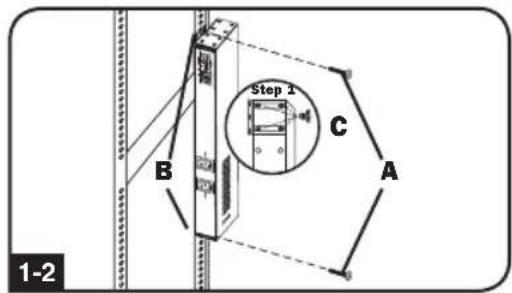

1-2 OU Rack Installation. Part 1: Remove the screws (C) attaching the mounting brackets to the PDU, change the orientation of the brackets as shown and reattach the brackets. Use only the screws supplied by the manufacturer or their exact equivalent (#6-32, 1 / 4 flat head). Part 2: Attach the PDU vertically by inserting two or more user-supplied screws (A) through the PDU mounting brackets (B) and into mounting points in the rack or rack enclosure.

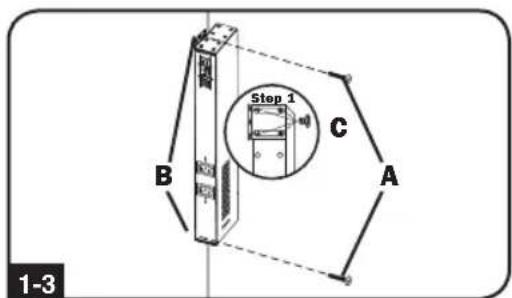

1-3 Wall Installation. After repeating Part 1 above, attach the PDU to a stable mounting surface by inserting two or more user-supplied screws (A) through the PDU mounting brackets (B) and into secure mounting points on the mounting surface.

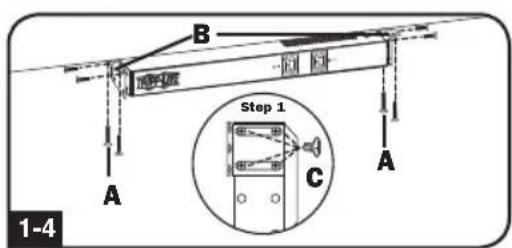

1-4 Under-Counter Installation. After repeating Part 1 above, attach the PDU to a stable mounting surface by inserting four user-supplied screws (A) through the PDU mounting brackets (B) and into secure mounting points on the mounting surface.

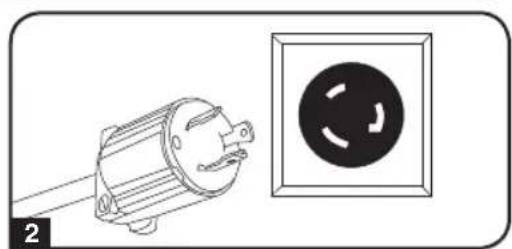

2 Attach the input plug of the PDU to a grounded outlet. Insert the plug directly into a grounded outlet that does not share a circuit with a heavy electrical load (such as an air conditioner or refrigerator).

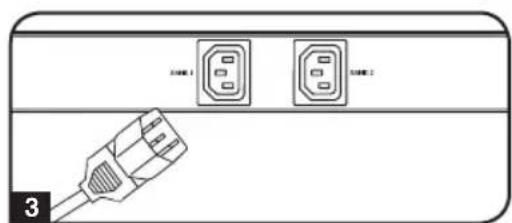

3 Attach equipment to the PDU. Do not exceed the load rating of the PDU. The total electrical current used by the PDU will be displayed on the digital meter in amperes.

Features

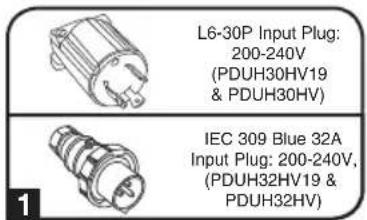

1 Input Plug (Varies by Model)

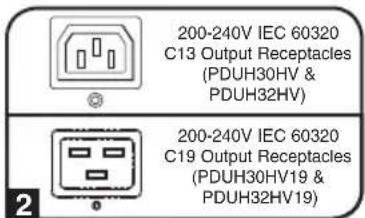

2 Outlets (Vary by Model): During normal operation, the outlets distribute AC power to connected equipment.
3 Circuit Breaker: If the current drawn by the equipment connected to the PDU exceeds the Maximum Current Rating, the circuit breaker will trip to prevent possible damage. When a circuit breaker trips, its rocker will pop up. Disconnect excess equipment and allow the breaker to cool at least one minute before depressing the rocker to reset the breaker.
4 Grounding Lug: Use this terminal to connect any equipment that requires a chassis ground.

Warranty & Product Registration

LIMITED WARRANTY

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years (except internal UPS system batteries outside USA and Canada, 1 year) from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609 USA. Seller will pay return shipping charges. Visit www.triplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marking name or model number of the product.

The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change without notice.
