USER MANUAL U4600042A2C Tripp Lite

USB 3.2 Gen 1 USB-C to USB-A and USB-C Hub

U460-004-2A2C

U460-004-2A2CB

USB Type-C® and

USB-C are

registered

trademarks of USB

Implementers Forum.

Espanol 5

Français 9

Deutsch 13

Italiano 17

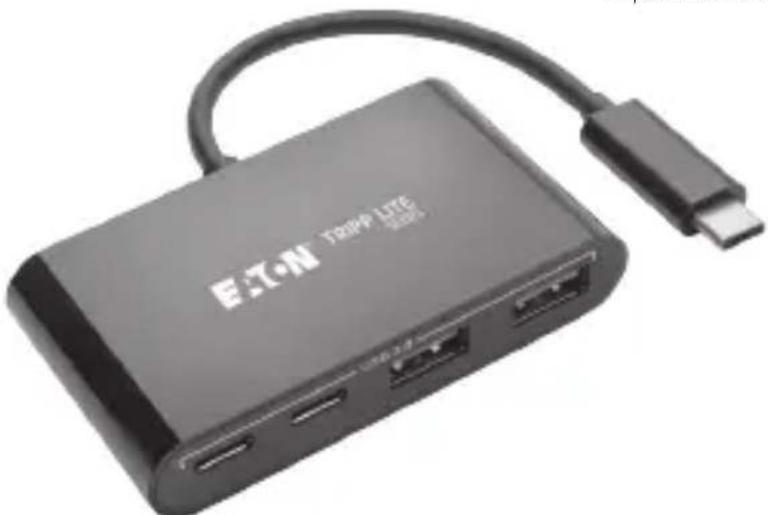

Purchased product may differ from image.

Package Contents

U460-004-2A2C (white) or U460-004-2A2CB (black)
- Owner's Manual

Optional Accessories

U322-Series USB 3.0 A/B Device Cables
- U326-Series USB 3.0 Micro-B Device Cables
U420-003 USB 3.2 Gen 1 USB-C Cable (M/M), 3 ft.
- U422-003 USB 3.2 Gen 1 USB-C to USB 3.0 Type-B Cable (M/M), 3 ft.
- U426-003 USB 3.2 Gen 1 USB-C to USB 3.0 Micro-B Cable (M/M), 3 ft.

Product Features

• Connects up to 4 USB devices at the same time
• Portable bus-powered design with built-in cable perfect for travel—fits comfortably in purse, backpack or laptop bag
  Each USB-A port supports up to 900mA of power; each USB-C port supports up to 1.5A^
  Supports data transfer rates up to 5 Gbps
• Backward compatible with previous USB generations
• Plug-and-play—no software, drivers or external power supply required

*All 4 ports share up to 1.5A of bus power. See your devices' documentation for details on what they support. Higher-powered devices will need their own external power supply.

2

Installation

1. Connect the USB-C plug to the USB-C port on your laptop, tablet or other device.
2. Connect up to 2 USB devices to the USB-A hub ports.
3. Connect up to 2 USB devices to the USB-C hub ports.

Specifications

Input Connectors
USB USB-C (Male)
Output Connectors
USB	(x2) USB-A (Female) (x2) USB-C (Female)
Environmental
Operating Temperature	32 to 113°F (0 to 45°C)
Operating Humidity	10% to 85% RH, Non-Condensing
Storage Temperature 14	to 158°F (-10 to 70°C)
Storage Humidity 5% to 9	0% RH, Non-Condensing

Warranty

3-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products.

Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

Warranty

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

Powering Business Worldwide

Eaton

1000 Eaton Boulevard
Cleveland, OH 44122

United States Eaton.com

933760

© 2024 Eaton

All Rights Reserved Publication No.

23-09-014/

93-3760 RevC

March 2024

Eaton is a registered trademark.

All trademarks are property of their respective owners.
