USER MANUAL CS16USBWHG Tripp Lite

4.2 Powering the USB Charger/Hub Unit 4

5.1 USB Charger/Hub Features 5

5.2 Connecting Devices to the 5

5.3 Connecting a Computer to the 6

8. Ultraviolet Light Operation 6

10. Storage, Service and Cleaning 8

11. Optional Casters and Handle 8

12. Warranty and Product Registration 8

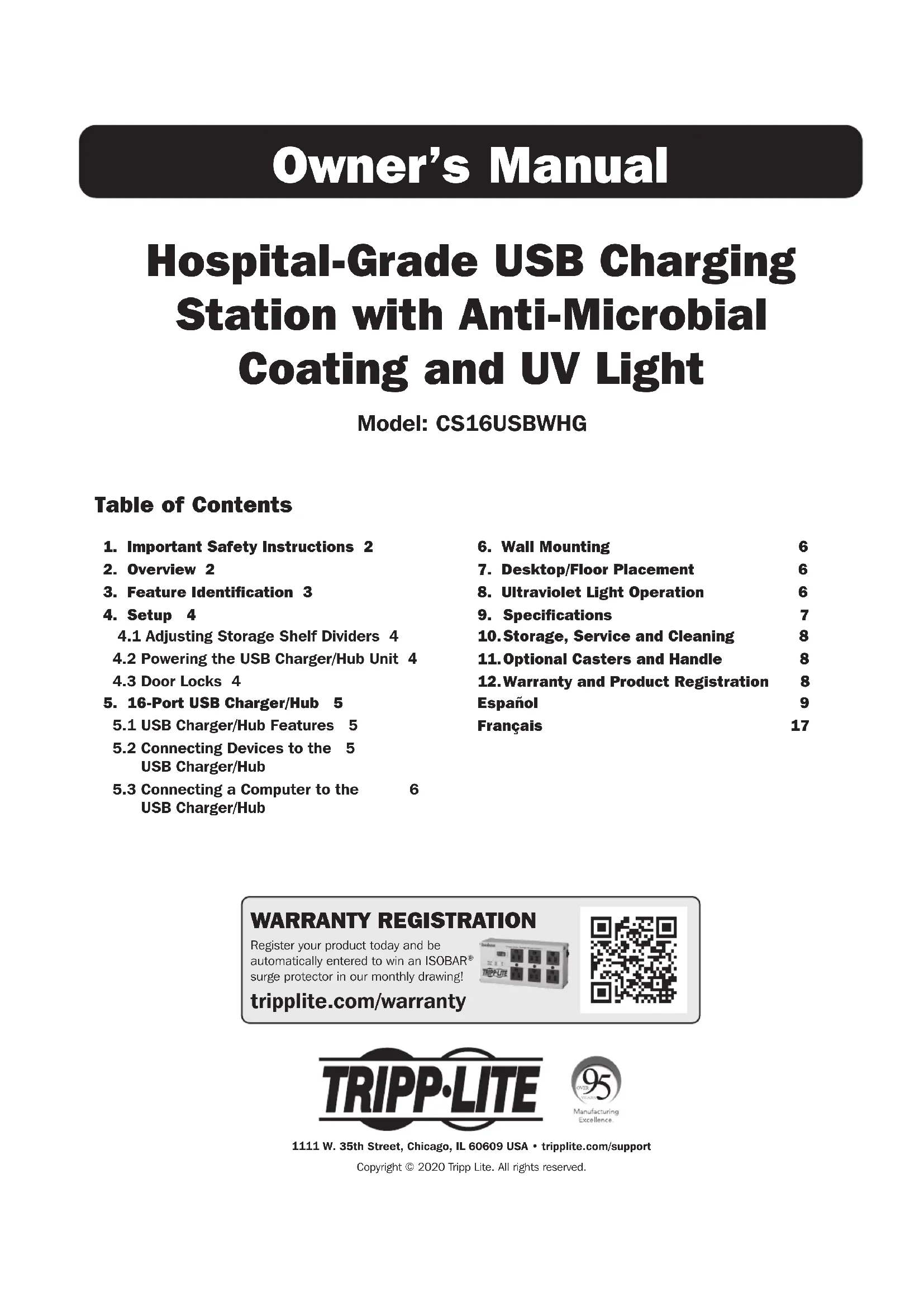

Español 9 Français 17 Hospital-Grade USB Charging Station with Anti-Microbial Coating and UV Light Model: CS16USBWHG Owner’s Manual WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR

surge protector in our monthly drawing! tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/supportCopyright © 2020 Tripp Lite. All rights reserved.2

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury. WARNING!

• The charging station is intended to sanitize mobile devices and non-critical medical devices. The subsequent use of the devices disinfected by the charging station is the sole responsibility of the user.

• Non-protected eyes or skin should never be exposed directly to the ultraviolet light.

• Ultraviolet (UVC) bulbs contain mercury and must be properly recycled or disposed of as hazardous waste in accordance with local, state and federal regulations.

• Only Tripp Lite-approved replacement UVC bulbs should be used in the device.

• Only qualified personnel should perform UVC bulb replacement. Take precautions with broken UVC bulbs to avoid inhalation, ingestion or contact with eyes or skin. Refer to your local codes for disposal requirements.

• Do not bypass any of the safety precautions built into the device. Failure to comply may result in exposing skin to the UV light. Prolonged skin exposure may generate redness and a sunburn-like condition.

• The charging station should not be operated by children.

• Do not remove any warnings, cautions or descriptive labeling from the charging station. USB Charger/Hub Unit:

• To remove the USB Charger/Hub unit from the supply mains, the power cord serves as a disconnect device.

• If any of the following situations arise, schedule an appointment with a service technician to have your equipment inspected:

• The equipment has been exposed to moisture

• The equipment has been dropped and damaged

• The equipment shows obvious signs of breakage

• The equipment is not functioning properly or is not functioning according to the instructions described in this Owner’s Manual

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Charging Station Cabinet:

• Keep the charging station in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.

• Leave adequate space around the charging station for proper ventilation. Do not block, cover or insert objects into the charging station’s external ventilation openings.

• The charging station is extremely heavy. Use caution when handling the charging station. Do not attempt to unpack or mount it unassisted. Use a mechanical device such as a forklift or pallet jack to move the charging station in the shipping container.

• Do not place containers of liquid or stack items on the cabinet.

• Inspect the shipping container and the charging station for shipping damage. Do not use the charging station if it is damaged.

• Use caution when cutting packing materials. The charging station could be scratched, causing damage not covered by the warranty.

• Save all packing materials for later use. Repacking and shipping the charging station cabinet or equipment without the original packing materials may cause product damage that will void the warranty. For Wall-Mount and Desktop Installations:

• Before mounting, first make sure that the wall surface can safely support the combined load of the charging station, equipment stored and all attached hardware and components.

• Always use suitable mounting means when installing to cinder block, concrete, drywall or wood studs.

• For desktop installations, the mounting brackets that shipped with the unit can also be used to secure the charging station to a desktop surface. The hospital-grade charging station is an all-in-one solution for sanitizing, storing and charging for up to 16 tablets, such as iPad

and Android™ devices. The unit’s built-in ultraviolet lights help disinfect electronic devices at the touch of a button. The UV lights destroy most microbes on the devices without the use of damaging heat, liquids or chemicals. The surface of the charging station is protected by a patented antimicrobial coating with EPA-registered and FDA-compliant silver ionic technology. The antimicrobial protection is 99.9% effective in inhibiting bacteria and viruses, such as C. diff and MRSA. The coating meets the requirements of JIS Z 2801:2000, an international standard for evaluating efficacy in antimicrobial products. Your charging station can be conveniently mounted to walls, as well as used for stationary desktop or floor placement installations. You can also convert it to a mobile cart with Tripp Lite’s optional CSHANDLEKIT2 (sold separately), and roll it where needed. To prevent theft and device tampering, your charging station enclosure comes equipped with locking steel doors.3

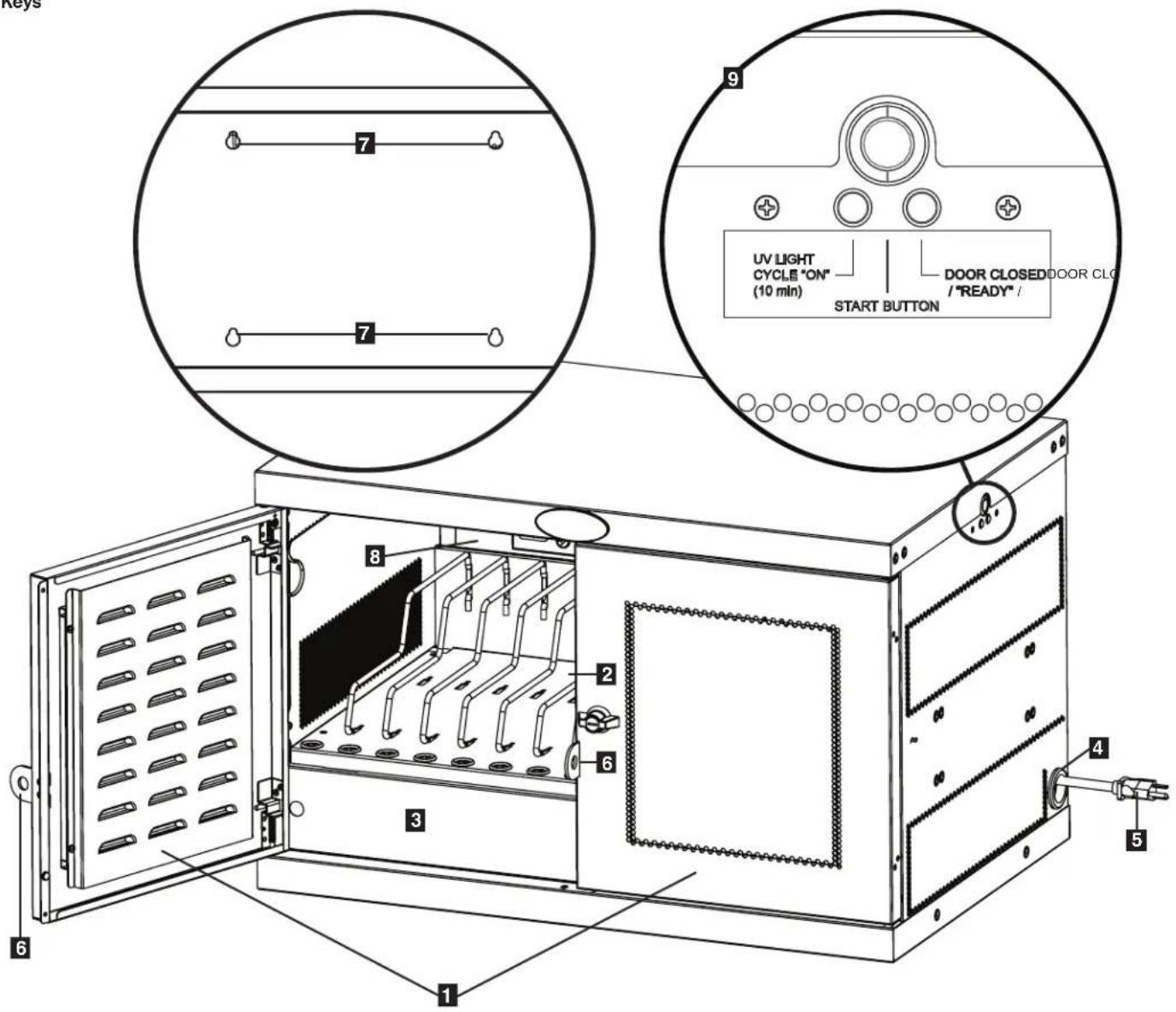

3. Feature Identification

Adjustable Storage Shelf (Holds up to 16 Devices)

Blanking Panel (Removable)

Power Cord Access Holes (1 Located on Each Side)

5-15P HG Hospital-Grade Input Plug with 10 ft. Cord

Padlock Hasp (Lock Not Included)

Rear Panel with Keyhole Wall-Mount Slots (See Section 6 for More Information)

Start Button and LED Status Indicators Not Shown: USB Charger/Hub Units (In Interior of Unit) Keys

Caution! Read All Instructions and Warnings Before Installation!

Warning: Charging stations can be extremely heavy. Do not attempt to unpack or mount the charging station without

assistance. Use extreme caution when handling the charging station and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the charging station.

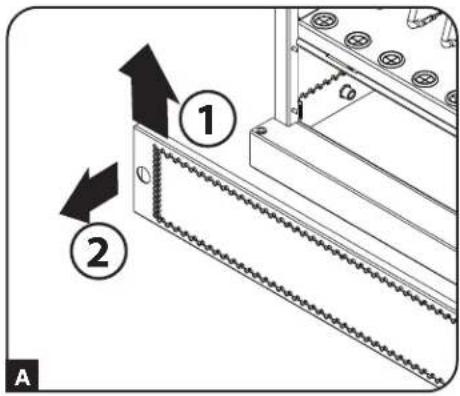

4.1 Adjusting Storage Shelf Dividers

4.2 Powering the USB Charger/Hub Unit

Your charging station comes with a storage shelf containing adjustable dividers that can accommodate up to 16 personal electronic devices. Remove any personal electronic devices stored on the shelf tray. Then remove the blanking panel by inserting your fingers into its left and right holes, and lifting the blanking panel up and pulling out

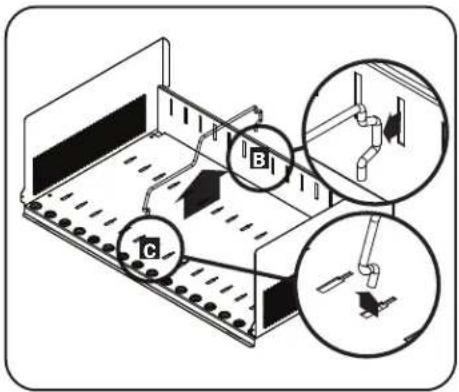

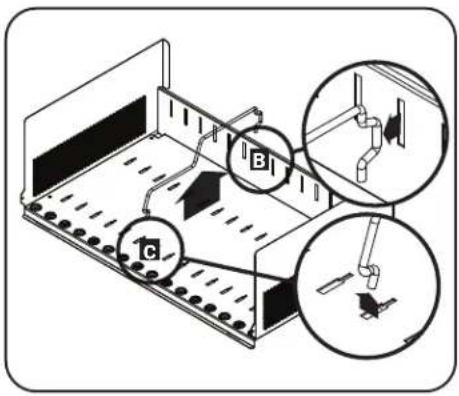

. To remove the shelf tray from the cabinet, push the shelf tray forward to disengage from the mounting hook, then pull the tray up and out. Once the shelf is removed, remove or rearrange a spring-wire divider by first pulling it gently forward to disengage it from the rear end

, then pull it up from the front of the tray

. Repeat as necessary for additional shelf dividers. Once the blanking panel has been removed as shown in Section 4.1, find the USB Charger/Hub unit’s input plug and cable located in the charging station’s bottom compartment. Push the input plug through one of the power cord access holes located on either side of the charging station cabinet (using the power cord access hole on the same side as the power cord manager is recommended). Plug the power cord into the nearest 3-prong, grounded wall outlet. Note: The power cord can optionally be routed through the charging station’s rear panel. To do so, first remove the rubber grommet from either power cord access hole and attach it to the cable lock routing hole on the back of the unit (see 3. Feature Identification for routing locations).

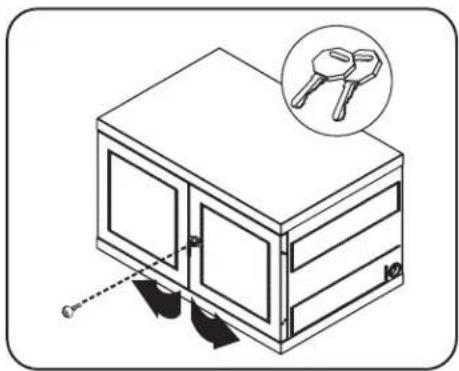

The split doors contain a lock that is accessible with the included keys.

• Professional-grade USB charger/hub charges and syncs up to 16 USB devices, including the iPad

and Android™ tablets and smartphones.

• Provides each USB port with an optimum charge level for a particular device (up to 2.4 amps).

• Allows syncing to be performed with any device designed for USB data communications, per compatible file management software.

• Mini-USB Firmware Upgrade Port enables future software upgrades to support newer devices.

• 2U housing can be configured for professional, educational or personal installations.

• IEC C14 inlet makes power connections easy, using the dedicated region power supply cords (included).

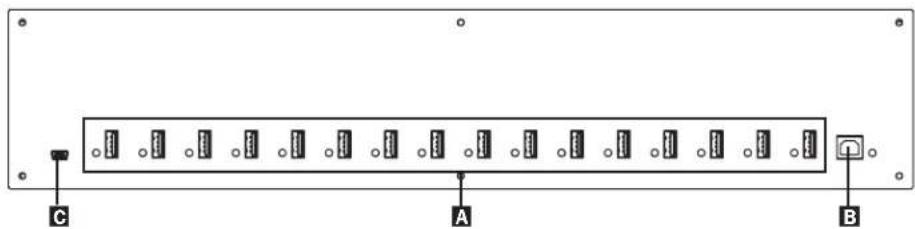

5.1 USB Charger/Hub Features

2.4A USB Device Ports with LED Indicator Lights (16 total)

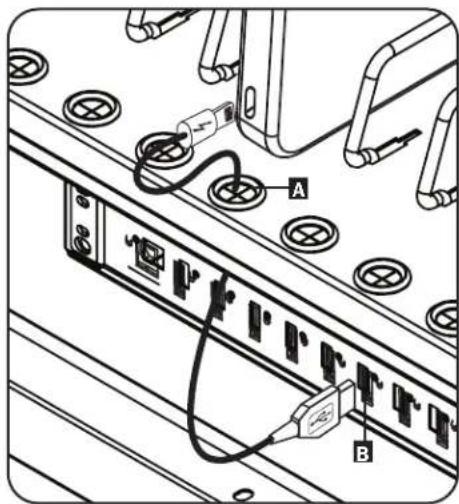

Firmware Upgrade Port The charging station’s storage shelf features 16 strain relief bushings that prevent the USB cable’s device connectors from slipping through the bushing

. Using a user-supplied or device manufacturer’s shielded USB cable, connect the USB cable to the device to be charged. Then pass the cable end through the strain relief bushing on the storage shelf and connect the USB connector to a USB charging port

. Repeat for all devices and reattach the blanking panel removed in

Section 4.1 to the unit.

Tripp Lite offers individual and 10-pack cables for Apple devices using USB to 30-Pin or USB to Lightning™ cables, as well as individual and 10-pack cables for USB 3.0 or 2.0 devices using USB A (male) to 5-Pin Micro B (male) cables. Cable Type Individual Cable Model Number 10-Pack Cable Model Number Apple USB to 30-Pin Connector, 10 in. M110-10N-BK M110-10N-BK-10 Apple USB to 30-Pin Connector, 3 ft. M110-003-WH — Apple USB to 8-Pin Lightning Connector, 10 in. M100-10N-BK M100-10N-BK-10 Apple USB to 8-Pin Lightning Connector, 3 ft. M100-003-BK M100-003-WH

Apple USB to 8-Pin Lightning Connector, 6 ft. M100-006-BK M100-006-WH

USB 3.0 SuperSpeed A (Male) to 5-Pin Micro-B (Male), 1 ft. U326-001-BK U326-001-BK-10 USB 3.0 SuperSpeed A (Male) to 5-Pin Micro-B (Male), 3 ft. U326-003 U326-003-BK

• Features a reversible USB-A (male) connector for simplified installations. Visit tripplite.com for more information on our selection of premium USB cables.

5.2 Connecting Devices to the USB Charger/Hub

12” 16” For wall mounting, you will need:

• Appropriate tools for wall mounting

• Appropriate hardware for wall mounting (not included)

Warning: Do not attempt to mount the charging station to the wall with any personal

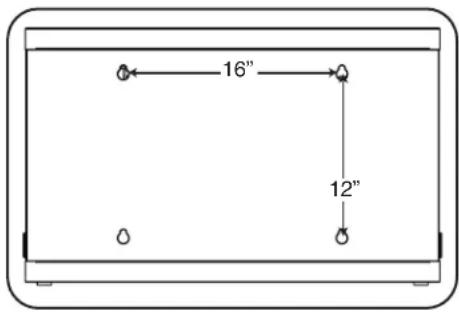

electronic devices inside. There are 4 keyhole cutouts on the charging station cabinet’s rear panel. Each keyhole can accommodate an M5 or 3/16” bolt. Each of the keyhole sets are centered 16” apart horizontally and 12” vertically (see the corresponding model diagram for exact keyhole locations). Using a level and tape measure, measure to position your mounting areas precisely. Use appropriate fasteners (not included) to secure the charging station to the wall. Note: The charging station must be installed by a qualified technician. Use suitable mounting means when installing to cinder block, concrete, drywall or wood studs. Warning: The supporting surface must be able to safely support the combined load of the charging station, equipment stored and all attached hardware and components. See Section 9. Specifications for more information on your model’s weight and dimensions.

7. Desktop/Floor Placement

8. Ultraviolet Light Operation

WARNING: For desktop and floor applications, always install the charging station in a structurally sound area with a level surface that is able to bear the weight of the charging station, all equipment that will be installed in the charging station and any other enclosures and/or equipment that will be installed nearby. Never attempt to lift or install the charging station without adequate help. See Section 9. Specifications for more information on the charging station’s rated load capacity. Note: The mounting brackets that shipped with the unit can also be used to secure the charging station to a desktop surface.

5. 16-Port USB Charger Hub

5.3 Connecting a Computer to the USB Charger/Hub

In addition to device charging, the USB Charger/Hub is equipped with a hub function that syncs devices and their respective software applications via a connected computer. To enable the hub function, use the included USB cable to connect the USB-B connector to the unit’s Computer Sync Port and the USB-A connector to a computer’s USB port. Note: When a computer connection is established and multiple devices are connected to the USB Charger/Hub, the charge rate will reduce during syncing and resume to the normal charge rate upon completion. Note: The Firmware Upgrade Port requires a mini-USB connection (cable not included). To download the most recent firmware updates, go to tripplite.com/support. Overview This product is designed to help disinfect the surfaces of hand-held devices, such as tablets and other shareable systems. Bacteria and viruses trans- mitted via the hands of multiple individuals sharing the stored devices will be reduced. The result is an improved level of shared-system hygiene. The ultraviolet lamps within this unit emit UV light at a frequency proven effective in arresting microorganisms such as viruses, bacteria, yeast and molds. This process either destroys the microorganism or neutralizes its ability to reproduce. The unit features a 10-minute sanitizing cycle.7

Model CS16USBWHG Dimensions (H x W x D) 24.3 x 34.8 x 20.2 in. / 617 x 884 x 513 mm Unit Weight 130.7 lb. / 59 kg Load Capacity* 200 lb. / 90 kg Charger/Hub Ports 16 x USB 2.0 A (Female); 1 x USB 2.0 B (Female); 1 x USB 2.0 Mini (Female) Transmission Speed Up to 480 Mbps Power Requirement Input: 100-240V, 2.5A, 50/60 Hz; Output: 5.0V, 2.4A Max (per USB port) Operating Temperature 32° to 104° F / 0° to 40° C Operating Humidity 5 to 95% RH, Non-Condensing Enclosure Material Metal *Full wall-mount load capacity requires a mounting surface capable of bearing the full load of the charging station and all connected components. Specifications may be subject to change without further notice.

8. Ultraviolet Light Operation

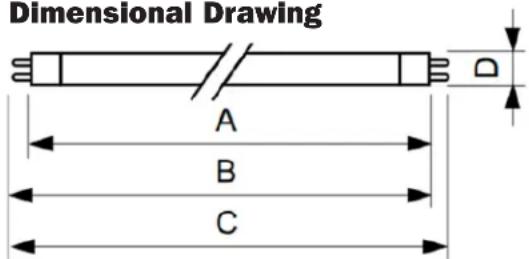

Product A (max.) B (max.) B (min.) C (max.) D (max.) TUV 8W

Usage Once the user opens and closes the doors on the unit, the internal timer resets. The timer cycles for 10 minutes when the “START” button is pressed.

1. Open the door of the CS16USBWHG Charging Station.

2. Insert devices and ensure the unit is plugged in.

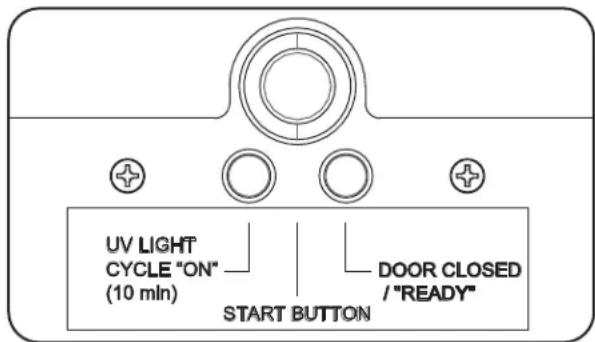

3. Close the door. The “DOOR CLOSED / READY” LED will illuminate. Press the

“START” button and the UV lights will turn on automatically.

4. If the door is opened before the timer finishes its 10-minute cycle, the lights will

turn off and the timer will be reset for the next sanitizing cycle. Note: Both charging station doors must be closed before the start button is pressed. The UV lights will not turn on if either door is open. This helps ensure non-protected eyes or skin are never exposed directly to UV light.

DOOR CLOSEDDOOR CLOSED / "READY" / "

UV LIGHT CYCLE “ON” (10 min) Maintenance and Troubleshooting

• Check that the lamp connector is securely attached to lamp.

• Check that the fuse is in good working order. Replace if necessary.

• Check that proper power is being supplied to the device and that the switch lights when turned on.

• Lamps should be cleaned every six months to remove any dust accumulation on the bulbs that might reduce the effectiveness of the UVC light.

• Check if switch is working properly by opening and closing the cabinet doors and see the light turning off/on. The timer should operate for 10 minutes before shutting off. Warnings and Safety

• A broken UV lamp is extremely unlikely to have any negative impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts while wearing gloves. Put the parts in a sealed plastic bag and take it to your local waste facility for recycling. Do not use a vacuum cleaner.

• CAUTION! The lamps are a Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to the skin and eyes. Avoid skin and eye exposure to unshielded product. Use only in an enclosed environment that shields users from radiation. Dimensional Drawing8 2-Year Limited Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 2 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction). WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application. Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.Regulatory Compliance Identification Numbers For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.FCC Notice, Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)• Send the new equipment back for recycling when this ultimately becomes wasteTripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

12. Warranty and Product Registration

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support 20-07-070 93-3BFB_revA

10. Storage, Service and Cleaning

Storage The enclosure should be stored in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible. Service The enclosure is covered by the limited warranty described in this manual. For more information, visit tripplite.com/support. Cleaning Before cleaning, always power off the charging station by unplugging it from its AC source. Dampen a clean, lint-free cloth with water and wipe down the unit, as necessary. Allow the surface area to dry before plugging in the unit. Note: Avoid using abrasive cloths, solvents or aerosol sprays to clean the charging station; doing so can damage the unit.

11. Optional Casters and Handle
