Owner’s Manual 2-Port USB/DP Cable KVM Switch with Audio Model: B032-DPUA2 Español 8 • Français 16 • Русский 24 PROTECT YOUR INVESTMENT! Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/supportCopyright © 2018 Tripp Lite. All rights reserved.18-10-178-933895.indb 1 10/23/2018 1:49:33 PM2 Product Features Optional Accessories Package Contents

• Control two computers or devices from a single USB keyboard, mouse and DisplayPort monitor

• Compact design features built-in 4 ft. KVM and audio cables

• USB mouse port can be used to connect a USB 1.1 hub for peripheral sharing

• Supports 4K x 2K video resolutions up to 4096 x 2160 @ 30 Hz

• Features Remote Port Switching

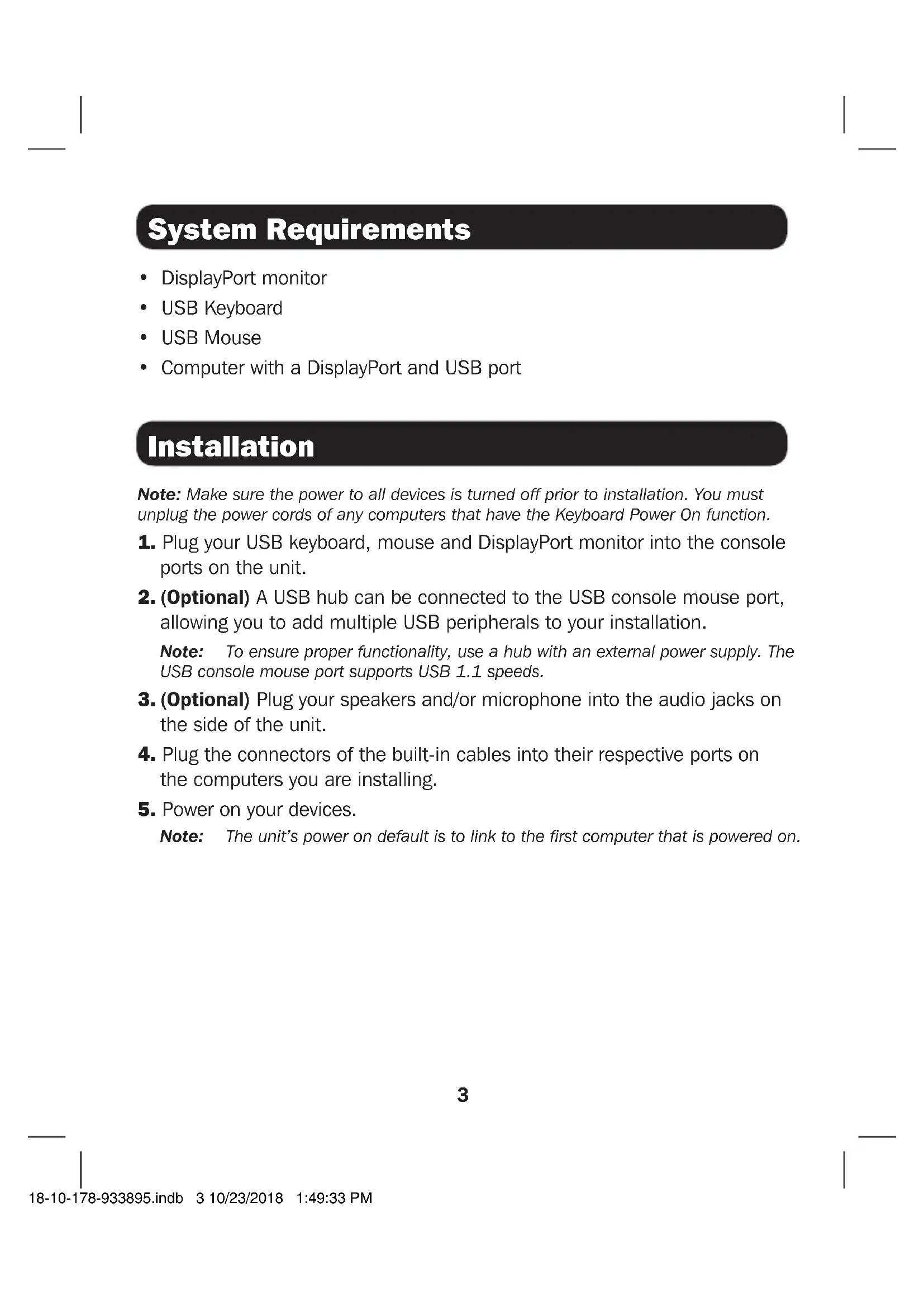

• Computer with a DisplayPort and USB port Installation Note: Make sure the power to all devices is turned off prior to installation. You must unplug the power cords of any computers that have the Keyboard Power On function.

1. Plug your USB keyboard, mouse and DisplayPort monitor into the console

2. (Optional) A USB hub can be connected to the USB console mouse port,

allowing you to add multiple USB peripherals to your installation. Note: To ensure proper functionality, use a hub with an external power supply. The USB console mouse port supports USB 1.1 speeds.

3. (Optional) Plug your speakers and/or microphone into the audio jacks on

the side of the unit.

4. Plug the connectors of the built-in cables into their respective ports on

the computers you are installing.

5. Power on your devices.

Note: The unit’s power on default is to link to the first computer that is powered on. 18-10-178-933895.indb 3 10/23/2018 1:49:33 PM4 Troubleshooting Symptom Possible Cause Action Monitor does not display after the KVM cable set is hot-plugged HD audio/video graphics card is not compatible with cable set hot-plugging Power off all devices on the installation; power off the B032-DPUA2; confirm all KVM cables are properly connected; power on the B032-DPUA2; power on the computers Graphics card driver is not up-to-date Upgrade to the latest graphics card driver Mouse and/or keyboard is not responding Switch needs to be reset Power off all devices on the installation; power off the B032-DPUA2; wait five seconds; power on the B032-DPUA2 18-10-178-933895.indb 4 10/23/2018 1:49:33 PM5 Specifications Computer Connections 2 Console Connections 1 Port Selection Remote Port Selector Connectors (Console Ports) Keyboard and Mouse: 2x USB Type-A (Female) Video: DisplayPort (Female) Speakers/Microphone: 2x 3.5mm Mini-Stereo (Female) Connectors (KVM Ports) Keyboard and Mouse: 2x USB Type-A (Male) Video: 2x DisplayPort (Male) Speakers/Microphone: 4x 3.5mm Mini-Stereo (Male) LED Quantity and Color (KVM) 2x Green Built-In Cable Length (KVM) 2x 4 ft. / 2x 1.2 m Built-In Cable Length (Remote Port Selector) 6 ft. / 1.8 m Video Resolution 4096 x 2160 @ 30 Hz Power Consumption DC 5V, 1.38W Operating Temperature 32° to 122° F / 0° to 50° C Storage Temperature -4° to 140° F / -20° to 60° C Humidity 0% to 80% RH, Non-Condensing Housing Material Plastic Weight 0.9 lb. / 0.41 kg Dimensions (L x W x H) 3.63 x 3.28 x 1.17 in. / 9.22 x 8.32 x 2.97 cm 18-10-178-933895.indb 5 10/23/2018 1:49:33 PM6 Warranty & Product Registration 3-Year Limited Warranty TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser. EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise. Product Registration Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details. FCC Notice, Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. 18-10-178-933895.indb 6 10/23/2018 1:49:33 PM7 Warranty & Product Registration WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support 18-10-178-933895.indb 7 10/23/2018 1:49:34 PM8 Manual del Propietario Cable USB / DP de 2 Puertos KVM con Audio Modelo: B032-DPUA2 English 1 • Français 16 • Русский 24 1111 W. 35th Street, Chicago, IL 60609 EE UU www.tripplite.com/support Copyright © 2018 Tripp Lite. Todos los derechos reservados. 18-10-178-933895.indb 8 10/23/2018 1:49:34 PM9 Características del Producto
