Product Type	Laptop Charging Station
Brand	Tripp Lite
Model	CSC16ACW
Number of Outlets	16 AC outlets (NEMA 5-15R) + 1 future expansion outlet
Dimensions (H x W x D)	617 x 884 x 513 mm (24.3 x 34.8 x 20.2 in)
Maximum Load Capacity	113.4 kg (250 lb)
Input Power	120 V AC, 50/60 Hz, 12 A
Maximum Total Power	1440 watts
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	5 to 95% RH non-condensing
Housing Material	Steel with lockable doors
Mounting Type	Wall, desk, or floor
Main Features	Securely charge and store up to 16 devices; adjustable shelves; removable suppression panels
Security	Lockable doors with built-in keys; additional padlock possible; compliance with electrical standards
Maintenance and Cleaning	Unplug before cleaning; use a damp, lint-free cloth; avoid solvents and abrasives
Available Spare Parts	Optional caster and handle kit (CSHANDLEKIT2)
Warranty	2 years (manufacturer's limited warranty)
Color	White (model W)

Frequently Asked Questions - CSC16ACW Tripp Lite

How many devices can I charge simultaneously with the CSC16ACW?

The CSC16ACW can charge up to 16 devices simultaneously via its built-in AC outlets.

What type of electrical outlet is required for the CSC16ACW?

It is recommended to use a 20 amp dedicated circuit (NEMA 5-20R) for optimal performance.

Can I mount the charging station on the wall?

Yes, the CSC16ACW is designed for wall mounting with keyhole cutouts. Use fasteners suitable for the wall type and ensure the surface can support the total weight.

Does the CSC16ACW come with power cables for devices?

No, the unit only provides AC outlets. Each device must use its own power adapter.

What is the maximum weight the station can support?

The maximum load capacity is 113.4 kg (250 lb), including devices and shelves.

How to clean the CSC16ACW?

First unplug the power. Clean with a damp, lint-free cloth. Do not use solvents or abrasive cleaners.

Are there optional accessories for mobility?

Yes, an optional caster and handle kit (part CSHANDLEKIT2) is available to facilitate movement.

What if the charging station does not power on?

Check that the power cord is plugged into a working outlet. Ensure the circuit breaker hasn't tripped. If the issue persists, contact Tripp Lite support.

Can I use this station for life-sustaining medical devices?

No, the manufacturer advises against use for life-support devices where failure could cause bodily harm.

What is the warranty period for the CSC16ACW?

The charging station is covered by a limited 2-year warranty from the date of purchase.

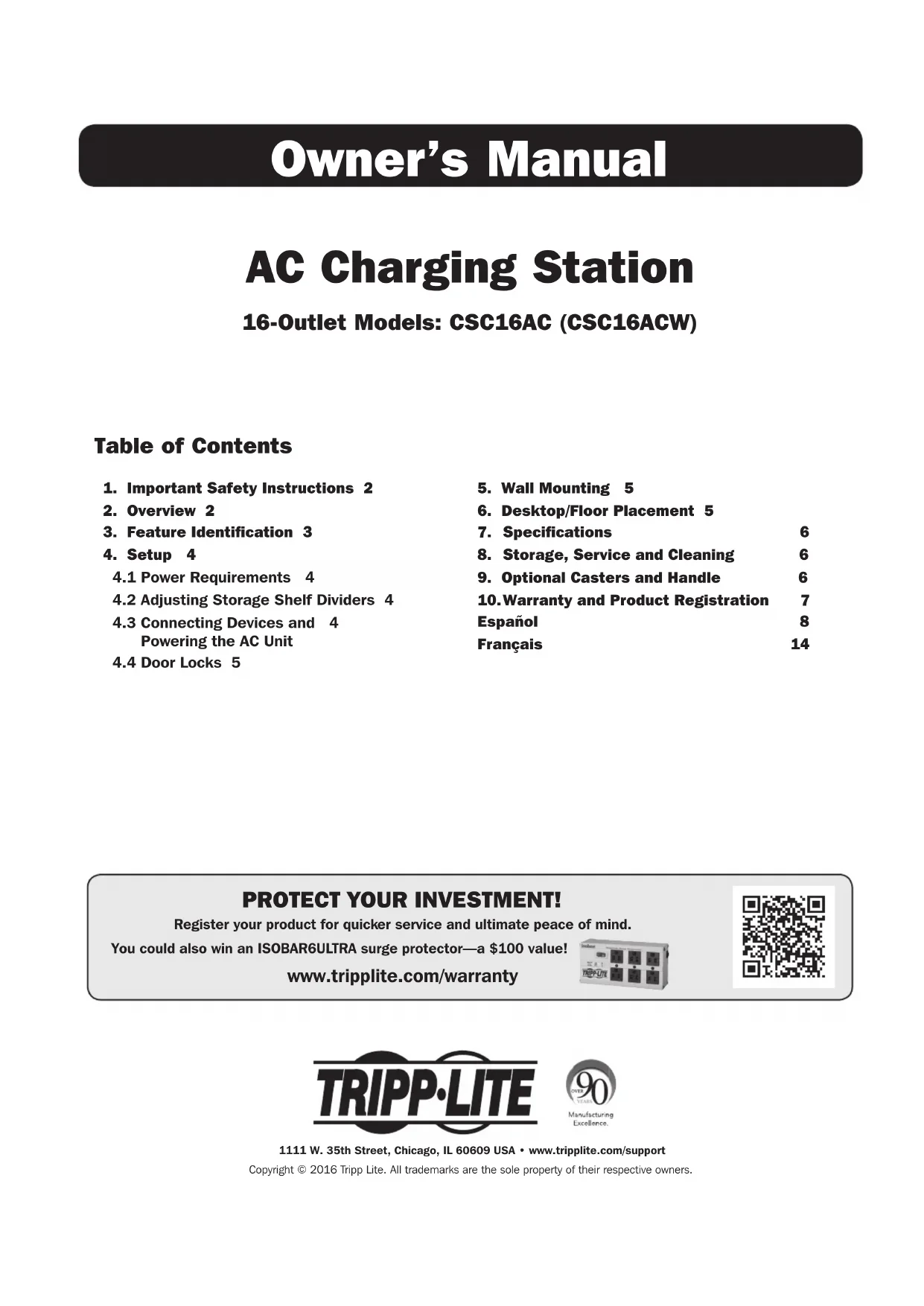

USER MANUAL CSC16ACW Tripp Lite

1. Important Safety Instructions 2
2. Overview 2
3. Feature Identification 3
4. Setup 4

4.1 Power Requirements 4
4.2 Adjusting Storage Shelf Dividers 4
4.3 Connecting Devices and 4 Powering the AC Unit
4.4 Door Locks 5

1. Wall Mounting 5
2. Desktop/Floor Placement 5
3. Specifications 6
   8.Storage,Service and Cleaning 6
4. Optional Casters and Handle 6
   10.Warranty and Product Registration 7

Espanol 8

Français 14

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.triplite.com/warranty

Manufacturing Excellence.

1. Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

AC Unit:

• To remove the AC unit from the supply mains, the power cord serves as a disconnect device.
  If any of the following situations arise, schedule an appointment to have your equipment inspected by a service technician:

• The equipment has been exposed to moisture
  The equipment has been dropped and damaged
  The equipment shows obvious signs of breakage
  The equipment is not functioning properly or is not functioning according to the instructions described in this Owner's Manual.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Charging Station Cabinet:

• Keep the charging station in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• Leave adequate space around the charging station for proper ventilation. Do not block, cover or insert objects into the charging station's external ventilation openings.
• The charging station is extremely heavy. Use caution when handling the charging station. Do not attempt to unpack or mount it unassisted. Use a mechanical device such as a forklift or pallet jack to move the charging station in the shipping container.
• Do not place any object on the charging station, especially containers of liquid, and do not stack items on the cabinet.
• Inspect the shipping container and the charging station for shipping damage. Do not use the charging station if it is damaged.
• Use caution when cutting packing materials. The charging station could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the charging station cabinet or equipment without the original packing materials may cause product damage that will void the warranty.

For Wall-Mount and Desktop Installations:

• Before mounting, first make sure that the wall or desk surface can safely support the combined load of the charging station, equipment stored and all attached hardware and components.
• Always use suitable mounting means when installing to cinder block, concrete, drywall or wood studs.
• For desktop installations, the mounting brackets that shipped with the unit can also be used to secure the charging station to a desktop surface.

2. Overview

Your charging station is an all-in-one solution for storing and charging up to 16 devices. Your charging station can be conveniently mounted to walls, as well as used for stationary desktop or floor placement installations. To prevent theft and device tampering, your charging station enclosure comes equipped with locking steel doors.

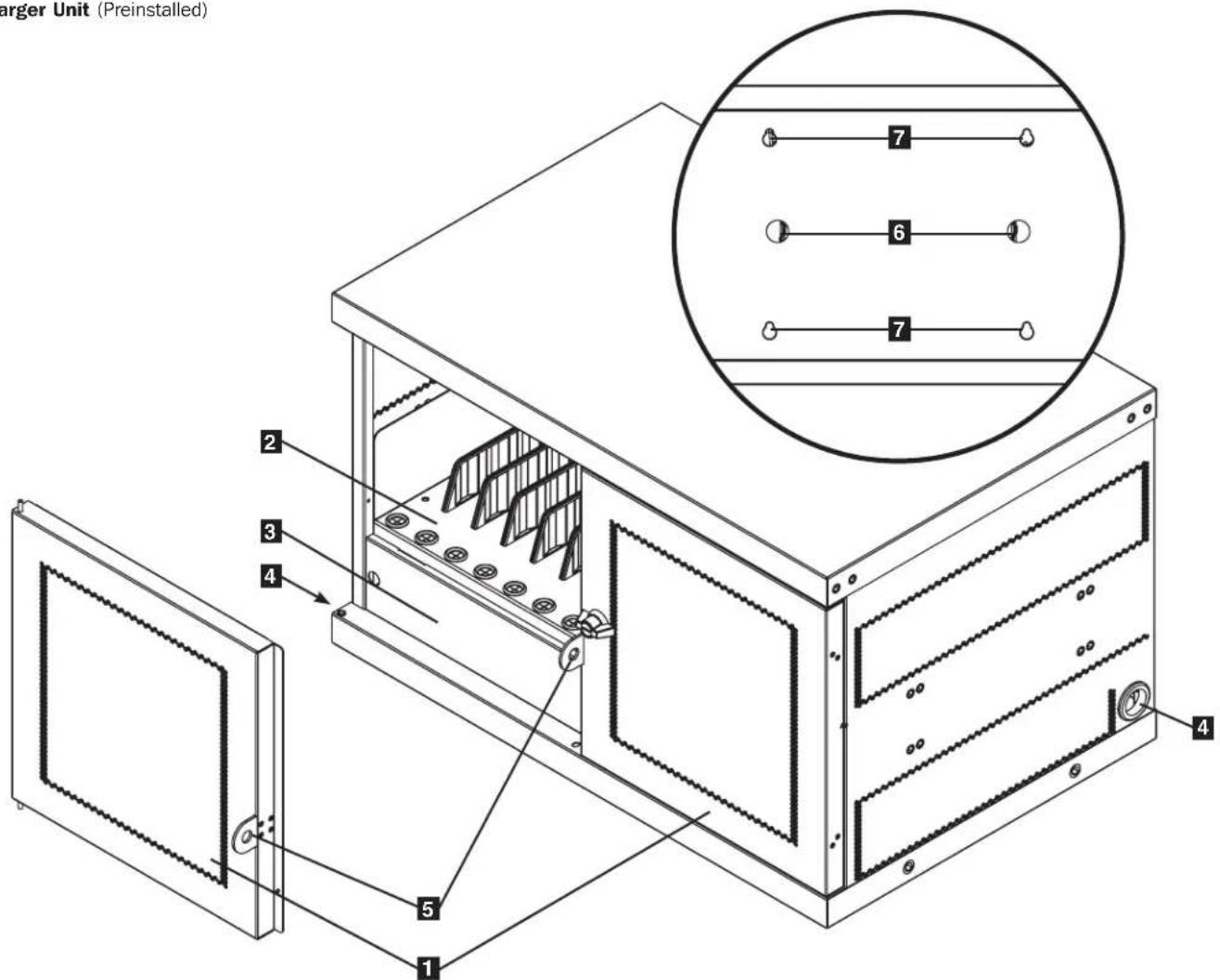

3. Feature Identification

CSC16AC(W)

1 Locking Split Doors
2 Adjustable Storage Shelves (Holds up to 16 Devices)
3 Blanking Panel (Removable)
4 Power Cord Access Holes (1 Located on Each Side)
5 Padlock Hasp (User Supplies Lock)
6 Cable Lock Routing Holes (User Supplies Lock)
7 Rear Panel with Keyhole Wall Mount Slots (See Section 5 for More Information)

Not Shown:

AC Charger Unit (Preinstalled)

Keys

4. Setup

Caution! Read All Instructions andWarnings Before Installation!

Warning: Charging stations can be extremely heavy. Do not attempt to unpack or mount the charging station without assistance. Use extreme caution when handling the charging station and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the charging station.

4.1 Power Requirements

The charging station can be plugged into an AC outlet with a dedicated circuit. An AC outlet with a 20-amp (NEMA 5-20R) AC circuit is recommended for powering the charging station. The AC outlet used to power the charging station should not be shared. The total wattage of the charging station and all connected components should not exceed 1440 watts.

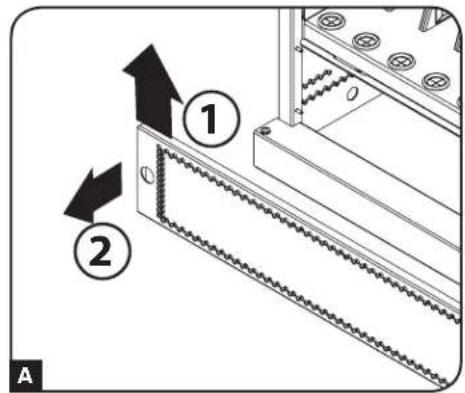

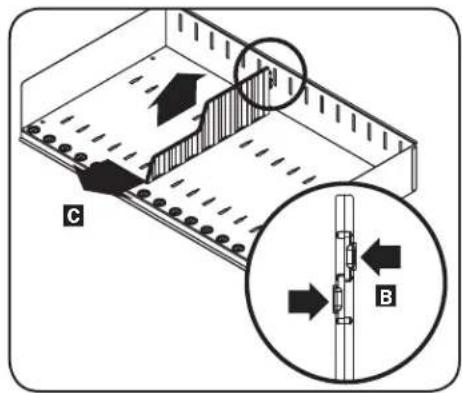

4.2 Adjusting Storage Shelf Dividers

Your charging station comes with a storage shelf containing adjustable dividers that can accommodate up to 16 personal electronic devices.

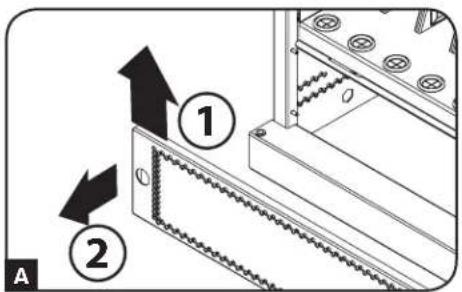

Remove any personal electronic devices stored on the shelf tray. Then remove the blanking panel by inserting your fingers into its left and right holes, and lifting the blanking panel up and pulling out A. To remove the shelf tray from the cabinet, push the shelf tray forward to disengage from the mounting hook, then pull the tray up and out. Once the shelf is removed, remove or rearrange the dividers by pushing in the two tabs securing the divider to the rear end B, then push the divider forward to disengage from the shelf tray C. Repeat as necessary for additional shelf dividers.

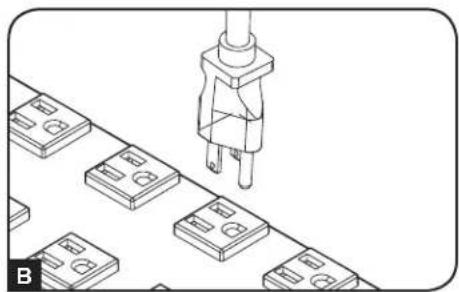

4.3 Connecting Devices and Powering the AC Unit

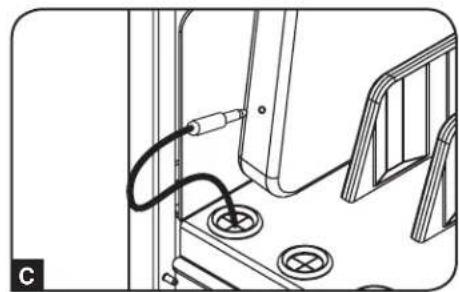

The charging station's storage shelf features 16 strain relief bushings that prevent the devices' power connectors from slipping through the bushing. If the blanking panel has not been removed in Section 4.2, first remove the blanking panel by inserting your fingers into its left and right holes, and lifting the blanking panel up and pulling out A. Connect the device's power plug into one of the AC charger unit's receptacles B, then run the power connector through the storage shelf's strain relief bushing to establish a power connection C. Repeat for all devices.

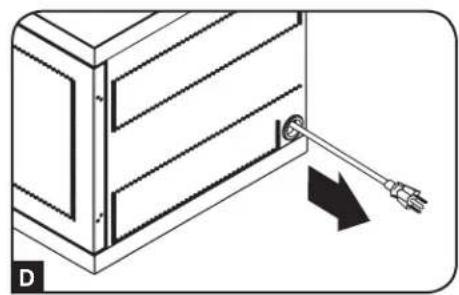

With the blanking panel removed, find the AC unit's input plug and cable located in the charging station's bottom compartment, then push the input plug through one of the power cord access holes located on either side of the charging station cabinet (using the power cord access hole on the same side as the power cord manager is recommended). Plug the power cord into the nearest 3-prong, grounded wall outlet and reattach the blanking panel to the unit.

Note: The power cord can optionally be routed through the charging station's rear panel. To do so, first remove the rubber grommet from either power cord access hole and attach it to the cable lock routing hole on the back of the unit (see 3. Feature Identification for routing locations).

4. Setup

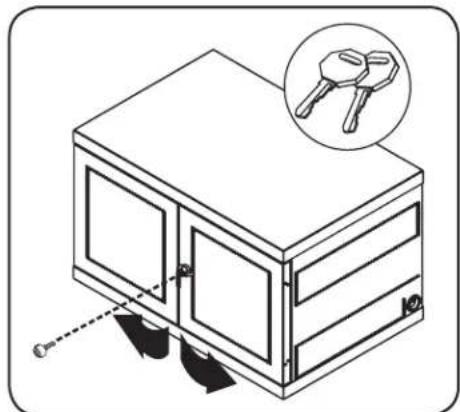

4.4 Door Locks

The split doors contain a lock that is accessible with the included keys.

5. Wall Mounting

For wall mounting, you will need:

• Level
• Appropriate tools for wall mounting
• Appropriate hardware for wall mounting (not included)

Warning: Do not attempt to mount the charging station to the wall with any personal electronic devices inside.

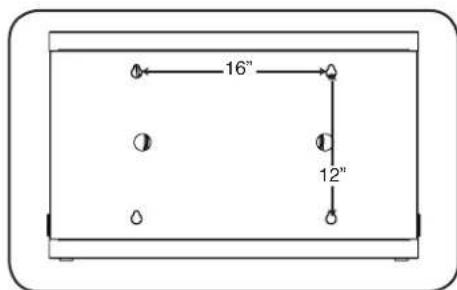

There are 4 keyhole cutouts on the charging station cabinet's rear panel. Each keyhole can accommodate an M5 or 3/16'' bolt. Each of the keyhole sets are centered 16'' apart horizontally and 12'' vertically (see the corresponding model diagram for exact keyhole locations).

Using a level and tape measure, measure to position your mounting areas precisely. Use appropriate fasteners (not included) to secure the charging station to the wall.

Note: The charging station must be installed by a qualified technician. Use suitable mounting means when installing to cinder block, concrete, drywall or wood studs. Warning: The supporting surface must be able to safely support the combined load of the charging station, equipment stored and all attached hardware and components. See Section 7. Specifications for more information on your model's weight and dimensions.

6. Desktop/Floor Placement

WARNING: For desktop and floor applications, always install the charging station in a structurally sound area with a level surface that is able to bear the weight of the charging station, all equipment that will be installed in the charging station and any other enclosures and/or equipment that will be installed nearby. Never attempt to lift or install the charging station without adequate help. See Section 7. Specifications for more information on the charging station's rated load capacity.

Note: The mounting brackets that shipped with unit can also be used to secure the charging station to a desktop surface

7. Specifications

Model CSC16AC/CSC16ACW
Cabinet Dimensions (H x W x D) 24.3 x 34.8 x 20.2 in. (617 x 884 x 513 mm)
Load Capacity* 250 lb. (113 kg)
AC Receptacles 16 x 5-15R, 1 x 5-15R AC Donge (Reserved for Future Expansion)
Power Requirement Input: 120V AC, 50/60 Hz, 12 Amps
Operating Temperature 32° to 104°F (0° to 40°C)
Operating Humidity 5 to 95% RH, Non-Condensing

*Full wall-mount load capacity requires a mounting surface capable of bearing the full load of the charging station and all connected components. Specifications may be subject to change without further notice.

8. Storage, Service and Cleaning

Storage

The enclosure should be stored in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible.

Service

The enclosure is covered by the limited warranty described in this manual. For more information, visit www.triplite.com/support.

Cleaning

Before cleaning, always power off the charging station by unplugging it from its AC source. Dampen a clean, lint-free cloth with water and wipe down the unit, as necessary. Allow the surface area to dry before plugging in the unit.

Note: Avoid using abrasive cloths, solvents or aerosol sprays to clean the charging station; doing so can damage the unit.

9. Optional Casters and Handle

For applications requiring extra mobility, an optional caster and handle accessory kit (Model: CSHANDLEKIT2) contains two swivel/locking casters, two swivel-only casters and a handle that attaches to the top of the charging station unit. Visit www.triplite.com for more information.

10. Warranty and Product Registration

2-Year Limited Warranty

Sell wth i t r t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t d

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support
