USER MANUAL DMC-GM1LEC PANASONIC

DMC-GM1L_VQC9831.book 1 ページ

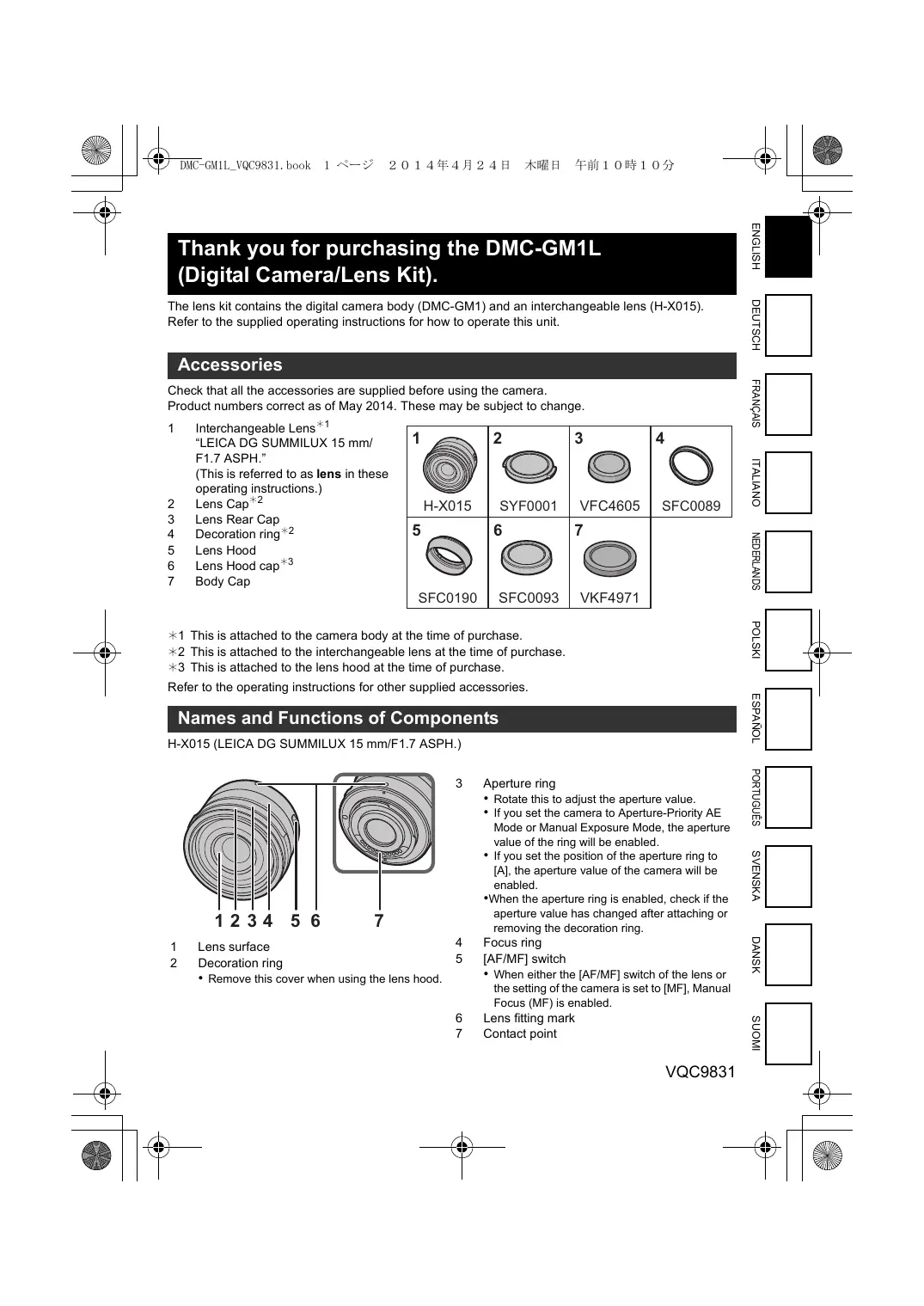

ENGLISH Thank you for purchasing the DMC-GM1L (Digital Camera/Lens Kit). DEUTSCH The lens kit contains the digital camera body (DMC-GM1) and an interchangeable lens (H-X015). Refer to the supplied operating instructions for how to operate this unit. Accessories FRANÇAIS Check that all the accessories are supplied before using the camera. Product numbers correct as of May 2014. These may be subject to change.

SFC0093 NEDERLANDS SFC0190 VFC4605 SYF0001

VKF4971 POLSKI ¢1 This is attached to the camera body at the time of purchase. ¢2 This is attached to the interchangeable lens at the time of purchase. ¢3 This is attached to the lens hood at the time of purchase. ESPAÑOL Refer to the operating instructions for other supplied accessories. Names and Functions of Components H-X015 (LEICA DG SUMMILUX 15 mm/F1.7 ASPH.) Aperture ring

• Rotate this to adjust the aperture value.
• If you set the camera to Aperture-Priority AE

Focus ring [AF/MF] switch

• When either the [AF/MF] switch of the lens or

• Remove this cover when using the lens hood. DANSK Lens surface Decoration ring SVENSKA

Mode or Manual Exposure Mode, the aperture value of the ring will be enabled.

• If you set the position of the aperture ring to [A], the aperture value of the camera will be enabled.
• When the aperture ring is enabled, check if the aperture value has changed after attaching or removing the decoration ring. PORTUGUÊS

Interchangeable Lens¢1 “LEICA DG SUMMILUX 15 mm/ F1.7 ASPH.” (This is referred to as lens in these operating instructions.) Lens Cap¢2 Lens Rear Cap Decoration ring¢2 Lens Hood Lens Hood cap¢3 Body Cap the setting of the camera is set to [MF], Manual Focus (MF) is enabled. Lens fitting mark Contact point SUOMI

VQC9831 DMC-GM1L_VQC9831.book 2 ページ

Attaching the Lens Hood ∫ Interchangeable Lens (H-X015)

• Before attaching the lens hood, make sure to remove the lens cap. The lens hood cannot be attached unless you remove the lens cap.

Rotate the decoration ring A in the direction of the arrow to remove it.

Align the mounting index B on the lens hood with the mark on the tip of the lens. Rotate the lens hood in the direction of the arrow until it clicks into place, and align the stop position C on the lens hood with the index on the tip of the lens.

∫ Attaching the decoration ring

• Before attaching the decoration ring, make sure to remove the lens cap.

Align the mounting position D on the decoration ring with a position approximately 90x away from the lens fitting mark E to fit the decoration ring into place. Rotate the decoration ring in the direction of the arrow to align the mounting position D on the decoration ring with the lens fitting mark E. VQC9831 (ENG)

DMC-GM1L_VQC9831.book 3 ページ

ENGLISH Specifications Power Consumption: When the interchangeable lens (H-X015) is used

2.2 W (When recording)

1.5 W (When playing back)

Minimum Illumination Approx. 5 lx (when i-Low light is used, the shutter speed is 1/25th of a second) Flash Flash range: Approx. 0.5 m (1.6 feet) to 9.4 m (31 feet) (When [ISO AUTO] is set) Mass Approx. 319 g/0.70 lb [with the interchangeable lens (H-X015), card and battery] Refer to the operating instructions for other specifications. Interchangeable Lens (H-X015) “LEICA DG SUMMILUX 15 mm/F1.7 ASPH.” Focal length f=15 mm (35 mm film camera equivalent: 30 mm) Aperture type 9 elements in 7 groups (3 aspherical lenses) Nano surface coating Yes In focus distance

0.2 m (0.66 feet) to ¶ (from the focus distance reference line)

Maximum image magnification 0.1k (35 mm film camera equivalent: 0.2k) Optical Image Stabiliser Not available [AF/MF] switch Available (Switching AF/MF) Mount “Micro Four Thirds Mount” Angle of view 72x Filter diameter 46 mm Max. diameter Approx. 57.5 mm (2.3 inch) Overall length Approx. 36 mm (1.4 inch) (from the tip of the lens to the base side of the lens mount) Mass Approx. 115 g (0.25 lb)

• LEICA is a registered trademark of Leica Microsystems IR GmbH. SUMMILUX is a registered trademark of Leica Camera AG. The LEICA DG lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company’s quality standards. (ENG) VQC9831

DMC-GM1L_VQC9831.book 4 ページ

∫ Approximate operating time and number of recordable pictures When the interchangeable lens (H-X015) is used Recording still pictures (By CIPA standard in Programme AE Mode)

• Number of recordable pictures: Approx. 240 pictures
• Recording time: Approx. 120 min Recording motion pictures [AVCHD] (Recording with picture quality set to [FHD/50i])

• Recordable time: Approx. 90 min [MP4] (Recording with picture quality set to [FHD/25p])

• Recordable time: Approx. 90 min Playback

• Playback time: Approx. 160 min

• Actual recordable time: Approx. 45 min
• Actual recordable time: Approx. 45 min DMC-GM1L_VQC9831.book 5 ページ
