DMC-GM1LEB - Camera PANASONIC - Free user manual and instructions

Product type	Digital interchangeable lens camera
Brand	PANASONIC
Model	DMC-GM1LEB
Included lens	LEICA DG SUMMILUX 15 mm F1.7 ASPH.
Mount	Micro Four Thirds
Focal length	15 mm (equiv. 30 mm in 35 mm)
Maximum aperture	F1.7
Minimum aperture	F16
Optical construction	9 elements in 7 groups (3 aspherical lenses)
Minimum focus	0.2 m
Maximum magnification	0.1× (equiv. 0.2×)
Angle of view	72°
Filter diameter	46 mm
Lens dimensions	Ø57.5 mm × 36 mm
Lens weight	115 g
Total weight	Approx. 319 g (with lens, battery, card)
Power consumption (recording)	2.2 W
Power consumption (playback)	1.5 W
Minimum illumination	Approx. 5 lx (i-Low)
Built-in flash	Range 0.5 m - 9.4 m (ISO AUTO)
Battery life (photos)	Approx. 240 shots (CIPA standard)
Battery life (video)	Approx. 90 min (AVCHD/MP4 FHD)
Playback time	Approx. 160 min
AF/MF switching	Yes (switch on lens)
Image stabilization	Not available (lens)

Frequently Asked Questions - DMC-GM1LEB PANASONIC

How to install the lens hood on the lens?

First remove the lens cap, then turn the decoration ring in the direction of the arrow to remove it. Align the mounting notch of the lens hood with the mark on the lens, turn until it clicks, then align the stop position.

What is the range of the built-in flash?

The flash range is approximately 0.5 m to 9.4 m when the ISO setting is set to AUTO.

How to switch between autofocus and manual focus?

Use the [AF/MF] switch located on the lens. If the switch is set to MF or the camera setting is MF, manual focus is activated.

What is the battery life in photo mode?

Battery life is approximately 240 shots according to CIPA standard in Program AE mode.

How to clean the lens?

Use a soft, dry cloth to clean the lens surface. Avoid solvents such as alcohol or thinner. Refer to the instruction manual for details.

Can I use other lenses on this camera?

Yes, this camera uses the Micro Four Thirds mount, you can mount other compatible lenses.

What is the maximum video recording time?

Video recording time is approximately 90 minutes in AVCHD or MP4 with FHD quality.

What to do if the camera does not turn on?

Check that the battery is properly charged and inserted. If the problem persists, contact PANASONIC customer service.

How to adjust the aperture manually?

Turn the aperture ring on the lens. If it is set to [A], the camera controls the aperture. In Aperture Priority or Manual mode, the ring is active.

Where to find the camera serial number?

The serial number is usually found on the bottom of the camera body or in the settings menu. Check the label located underneath.

USER MANUAL DMC-GM1LEB PANASONIC

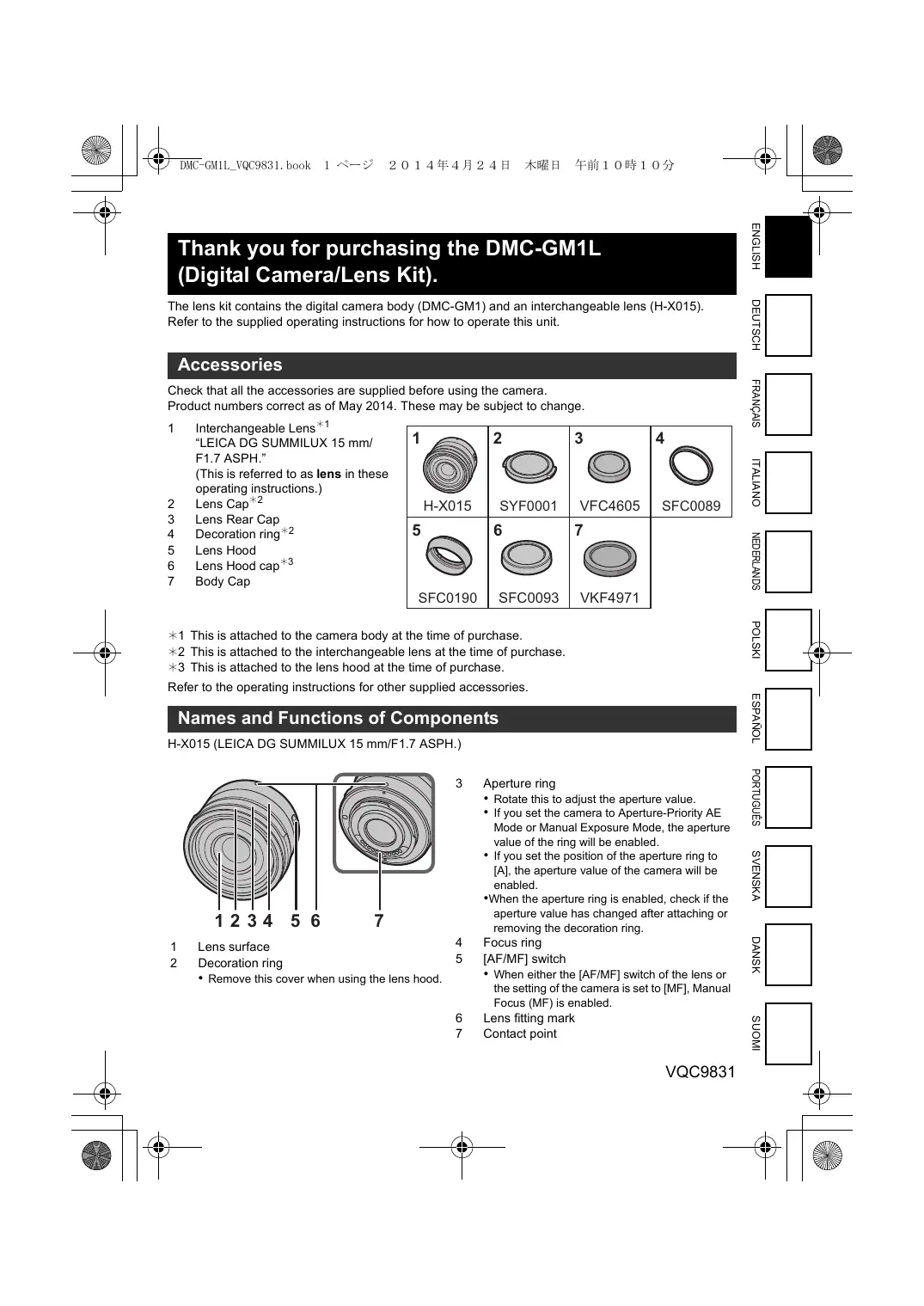

Thank you for purchasing the DMC-GM1L (Digital Camera/Lens Kit).

The lens kit contains the digital camera body (DMC-GM1) and an interchangeable lens (H-X015).

Refer to the supplied operating instructions for how to operate this unit.

Accessories

Check that all the accessories are supplied before using the camera.

Product numbers correct as of May 2014. These may be subject to change.

1 Interchangeable Lens*1

"LEICA DG SUMMILUX 15 mm/ F1.7 ASPH."

(This is referred to as lens in these operating instructions.)

2 Lens Cap*2
3 Lens Rear Cap
4 Decoration ring*2
5 Lens Hood
6 Lens Hood cap*3
7 Body Cap

1 H-X015	2 SYF0001	3 VFC4605	4 SFC0089
5 SFC0190	6 SFC0093	7 VKF4971

1 This is attached to the camera body at the time of purchase.
2 This is attached to the interchangeable lens at the time of purchase.
*3 This is attached to the lens hood at the time of purchase.

Refer to the operating instructions for other supplied accessories.

Names and Functions of Components

H-X015 (LEICA DG SUMMILUX 15 mm/F1.7 ASPH.)

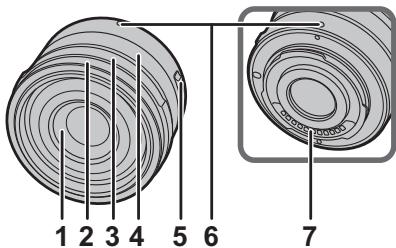

1 Lens surface
2 Decoration ring

• Remove this cover when using the lens hood.

3 Aperture ring

• Rotate this to adjust the aperture value.
• If you set the camera to Aperture-Priority AE Mode or Manual Exposure Mode, the aperture value of the ring will be enabled.
• If you set the position of the aperture ring to [A], the aperture value of the camera will be enabled.
• When the aperture ring is enabled, check if the aperture value has changed after attaching or removing the decoration ring.

4 Focus ring

5 [AF/MF] switch

• When either the [AF/MF] switch of the lens or the setting of the camera is set to [MF], Manual Focus (MF) is enabled.
  6 Lens fitting mark
  7 Contact point

Attaching the Lens Hood

Interchangeable Lens (H-X015)

• Before attaching the lens hood, make sure to remove the lens cap. The lens hood cannot be attached unless you remove the lens cap.

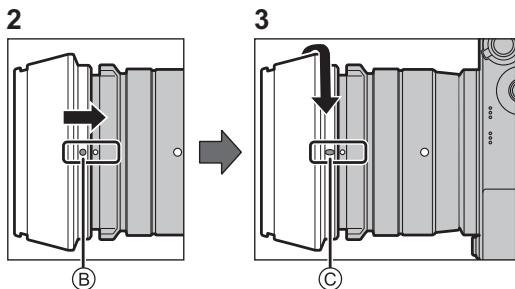

1 Rotate the decoration ring in the direction of the arrow to remove it.

2 Align the mounting index on the lens hood with the mark on the tip of the lens.
3 Rotate the lens hood in the direction of the arrow until it clicks into place, and align the stop position ⑥ on the lens hood with the index on the tip of the lens.

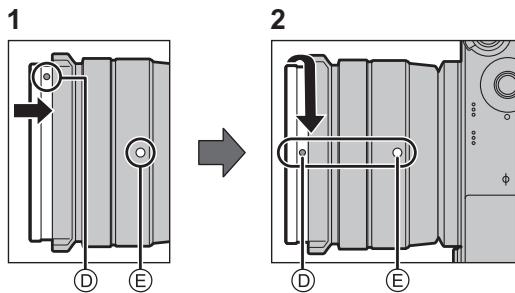

■ Attaching the decoration ring

• Before attaching the decoration ring, make sure to remove the lens cap.
  1 Align the mounting position ① on the decoration ring with a position approximately 90^ away from the lens fitting mark E to fit the decoration ring into place.
  2 Rotate the decoration ring in the direction of the arrow to align the mounting position ① on the decoration ring with the lens fitting mark E.

Specifications

Power Consumption: When the interchangeable lens (H-X015) is used

2.2 W (When recording)

1.5 W (When playing back)

Minimum Illumination	Approx. 5 lx (when i-Low light is used, the shutter speed is 1/25th of a second)
Flash	Flash range: Approx. 0.5 m (1.6 feet) to 9.4 m (31 feet) (When [ISO AUTO] is set)
Mass	Approx. 319 g/0.70 lb [with the interchangeable lens (H-X015), card and battery]

Refer to the operating instructions for other specifications.

Interchangeable Lens (H-X015) "LEICA DG SUMMILUX 15 mm/F1.7 ASPH."

Focal length	f=15 mm (35 mm film camera equivalent: 30 mm)
Aperture type	7 diaphragm blades/circular aperture diaphragm
Maximum aperture	F1.7
Minimum aperture value	F16
Lens construction	9 elements in 7 groups (3 aspherical lenses)
Nano surface coating	Yes
In focus distance	0.2 m (0.66 feet) to ∞ (from the focus distance reference line)
Maximum image magnification	0.1× (35 mm film camera equivalent: 0.2×)
Optical Image Stabiliser	Not available
[AF/MF] switch	Available (Switching AF/MF)
Mount	"Micro Four Thirds Mount"
Angle of view	72°
Filter diameter	46 mm
Max. diameter	Approx. 57.5 mm (2.3 inch)
Overall length	Approx. 36 mm (1.4 inch) (from the tip of the lens to the base side of the lens mount)
Mass	Approx. 115 g (0.25 lb)

• LEICA is a registered trademark of Leica Microsystems IR GmbH. SUMMILUX is a registered trademark of Leica Camera AG. The LEICA DG lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.

Approximate operating time and number of recordable pictures

When the interchangeable lens (H-X015) is used

Recording still pictures (By CIPA standard in Programme AE Mode)
• Number of recordable pictures: Approx. 240 pictures • Recording time: Approx. 120 min
Recording motion pictures
[AVCHD] (Recording with picture quality set to [FHD/50])	• Recordable time: Approx. 90 min
	• Actual recordable time: Approx. 45 min
[MP4] (Recording with picture quality set to [FHD/25p])	• Recordable time: Approx. 90 min
	• Actual recordable time: Approx. 45 min
Playback
•Playback time: Approx. 160 min

1 Lensoppersvlak
2 Decorative ring
