USER MANUAL U442DOCK3B Tripp Lite
Portable USB 3.1 Gen 1 USB-C™ Docking Station - Black
Model: U442-DOCK3-B
Espanol 12 • Français 22 • Pycckn 32
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.triplite.com/warranty
TRIPP·LITE
Manufacturing Excellence
1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support
Copyright © 2018 Tripp Lite. All rights reserved.
Package Contents
U442-DOCK3-B
- Owner's Manual
Optional Accessories
N201-Series Cat6 Gigabit Snagless Patch Cables
P502-Series High-Resolution VGA Cables
P566-Series HDMI to DVI Adapter Cables
P568-Series High-Speed HDMI Cables
U322-Series USB 3.0 A/B Device Cables
U326-Series USB 3.0 Micro-B Device Cables
- U420-003-G2-5A USB 3.1 Gen 2 USB-C M/M Cable, 3 ft.
System Requirements
- Computer with USB-C or Thunderbolt™ 3 port that supports USB DisplayPort Alternate Mode
VGA, DVI* or HDMI monitor - Ethernet network with speeds up to 10/100/1000 Mbps
*Requires an adapter, such as Tripp Lite's P566-Series.
See Optional Accessories.
USB Type-C and USB-C are trademarks of USB Implementers Forum.
Product Features
Supports USB DisplayPort Alternate Mode for connecting a VGA or an HDMI monitor via a USB-C or Thunderbolt 3 port
Supports connection of DVI monitor via HDMI to DVI adapter (see Optional Accessories)
- HDMI port supports video resolutions up to 3840x2160 (4K x 2K) @ 30 Hz
VGA port supports video resolutions up to 1920x1200, including 1080p @ 60 Hz
- Ethernet port supports true 10/100/1000 Mbps network speeds
- USB-A hub and Type-C data ports support data transfer rates up to 5 Gbps
- Dedicated BC 1.2-compliant USB-A port provides up to 1.5A of fast charging power to mobile devices
- USB-C PD charging port for charging your device; supports power input up to 20V 5A (100W)
- Micro SD and SD/MMC Memory Card Slots allow external memory access via a USB-C or Thunderbolt port
- Two USB-A and one Type-C data ports share a maximum 10W (5V 2A) of power
Supports PD 3.0 Fast Role Swap to maintain data and power connection upon removal of charging power
Product Features
- Automatically resumes operation from hibernation and suspend mode
- IEEE 802.3az (Energy Efficient Ethernet) compliant
Supports full-duplex and half-duplex operations
Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading
Supports Wake-on-LAN - Compact design fits easily into your laptop bag for travel
- Plug-and-play; no software or drivers required

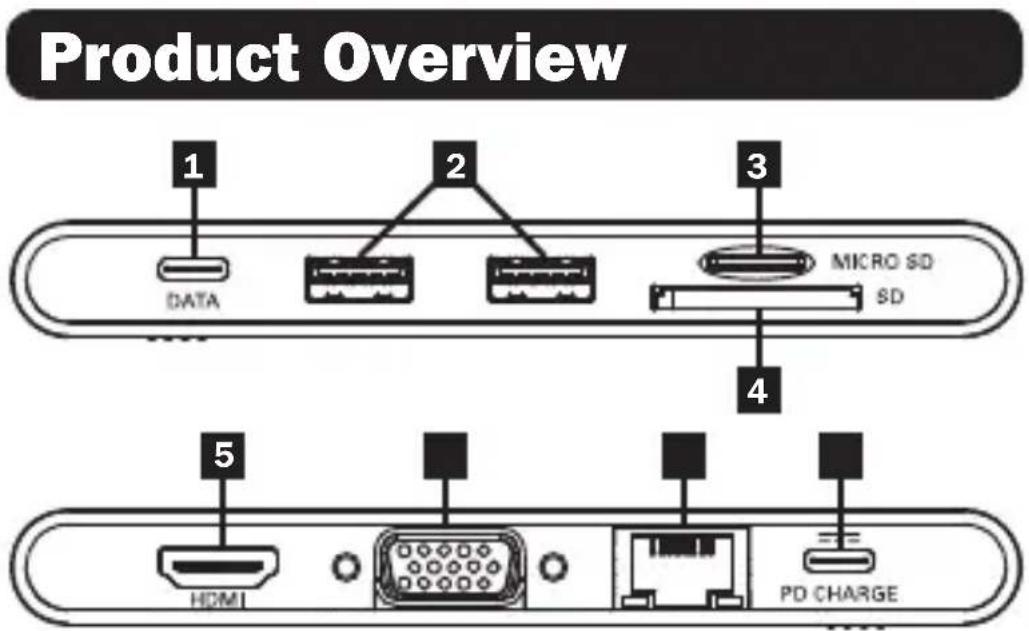

USB-C 3.0 Data Port (Female): connects to USB-C device
2 USB-A 3.0 Ports (Female): connect up to 2 USB peripherals.
Note: Port located next to the memory card slots is BC 1.2 compliant.
3 Micro SD Memory Card Slot: insert Micro SD Memory Card
SD/MMC Memory Card Slot: insert SD/MMC Memory Card
5 HDMI Port (Female): connects HDMI monitor
6 VGA Port (Female): connects VGA Monitor
7 RJ45 Port (Female): connects to 10/100/1000 Mbps network
USB-C PD Charging Port (Female): connects device to USB-C charger
Installation
Notes:
Only one monitor can be connected at a time.
- Only one memory card slot can be used at a time.
- When connected to power through USB-C charging port, 15W of power is dedicated to the docking station and connected USB peripherals. The rest is used to charge the connected device.
See Optional Accessories section for suggested cables.
- When the unit is connected to the USB-C port on your computer and to a network via Cat5e/6 cabling, a network connection will be automatically established. If no connection is made, you can manually establish one by going to your computer's network settings page. For example, on a Mac you would navigate to the Network section found in System Preferences, click the "Assist Me" button to get to the Network Setup Assistant and follow the prompts to establish a connection.
Installation
- Connect the dock's USB Type-C connector to the USB-C or Thunderbolt 3 port on your laptop, tablet or other device.
- Connect the dock's VGA port to the VGA port on a monitor using a VGA cable.
OR
Connect the dock's HDMI port to the HDMI port on a monitor using a HDMI cable.
- Connect up to 2 USB devices to the dock's USB-A hub ports.
- Connect a USB Type-C device to the dock's Type-C data port.
- Connect the adapter's RJ45 port to a network using a UTP cable.
- Insert Micro SD or SD/MMC card into the corresponding memory card slot to access external memory.
- Charge your device by connecting its USB-C charger to the adapter's USB-C port.
Specifications
| Input Connectors | |
| USB USB-C (M) | |
| Charging USB-C (F) | |
| Output Connectors | |
| USB-A (2x) USB 3.0 A (F) | |
| USB-C USB 3.0 Type-C Data (F) | |
| 10/100/1000 Ethernet | RJ45 (F) |
| VGA VGA (F) | |
| HDMI HDMI (F) | |
| Memory Card Slots Micro SD and SD/MMC | |
| Environmental | |
| Operating Temperature 3 | 2° to 113°F (0° to 45°C) |
| Operating Humidity 10% | to 90% RH, Non-Condensing |
| Storage Temperature 14° | to 158°F (-10° to 70°C) |
| Storage Humidity 10% to | 90% RH, Non-Condensing |
| Power Requirements | |
| USB-C Charging Port Supp | ports up to 20V 5A (100W) Input |
Warranty and Product Registration
3-Year Limited Warranty
Tripp Lite warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Tripp Lite's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Warranty and Product Registration
PRODUCT REGISTRATION
Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
- No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warranty and Product Registration
Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:
- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
- Send the new equipment back for recycling when this ultimately becomes waste
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
