PDU1226 - Power strip Tripp Lite - Free user manual and instructions

Product Type	PDU (Power Distribution Unit) for rack mounting
Brand	Tripp Lite
Model	PDU1226
Intended Use	Power distribution for 19" rack IT equipment
Nominal Voltage	120 V AC, 50/60 Hz
Maximum Nominal Current	20 A
Number of Outlets	13 NEMA 5-15/20R outlets
Outlet Layout	12 rear, 1 front
Power Cord Length	1.8 m (6 ft)
Power Plug Type	NEMA 5-20P
Circuit Breaker	1 resettable 20 A circuit breaker
Grounding	Grounding lug with screw
Mounting	Horizontal in 19" rack (1U) or under-counter wall mount
Dimensions (H x W x D)	4.45 x 43.8 x 9.5 cm
Approximate Weight	1.5 kg
Warranty	5 years
Maintenance and Cleaning	Unplug before cleaning. Use a dry cloth. Do not immerse.
Safety	Do not use with ungrounded outlets. Avoid moisture and heat sources.

Frequently Asked Questions - PDU1226 Tripp Lite

How to install the PDU1226 in a 19-inch rack?

Attach the included mounting ears with four suitable screws (not included) to the rack rails. The PDU occupies 1U of space (4.45 cm).

Can I mount the PDU1226 on the wall?

Yes, the mounting ears can be reoriented for wall or under-counter mounting. Use suitable screws (not included) based on the surface.

What to do if the circuit breaker trips?

Unplug excess equipment, let it cool for a minute, then press the circuit breaker plunger to reset.

What type of electrical outlet is required?

The PDU1226 comes with a NEMA 5-20P power cord. It must be plugged into a 120 V, 20 A, grounded outlet.

Can all connected devices run simultaneously?

Yes, but the total current must not exceed 20 A. Each NEMA 5-15/20R outlet provides up to 15 A or 20 A depending on the plug, but the total load is limited by the circuit breaker.

Does the PDU1226 provide surge protection?

No, it is a basic power distribution unit. It does not include surge protection. For surge protection, use a UPS or a surge protector power strip.

Can I use the PDU1226 with a longer power cord?

It is not recommended to replace the original cord, as safety depends on gauge and length. Use only a replacement cord with the same specifications.

How to ground the PDU1226?

The PDU has a grounding lug with screw. Connect it to a reliable ground via a copper wire to ensure safety in case of a fault.

Can I plug in an adapter or extension cord?

No, do not use extension cords or adapters that break the ground connection. This could cause electrical hazards.

What to do if the power cord is damaged?

The cord is not user-replaceable. Contact Tripp Lite or a qualified technician for replacement or repair.

USER MANUAL PDU1226 Tripp Lite

Designed for Mounting in 19 in. Racks

(Series Numbers: AG-IP120V6IPRM, AG-IP120V20RM)

Important Safety Instructions 2

Installation 2

Features 3

Specifications 3

Warranty & Product Registration 4

Espanol 5

Français 9

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

Important Safety Instructions

This manual contains information concerning the proper installation and use of Tripp Lite's Rackmount Power Strips.

SAVE THESE INSTRUCTIONS.

Do not connect your power strip to an ungrounded outlet. Do not use it with extension cords or adapters that eliminate its connection to ground. Your power strip is designed for indoor use only. Install it away from heat emitting devices such as radiators and heat registers. Do not install where excessive moisture or other conductive contaminants are present. Never install electrical wiring during a lightning storm.

The power requirement of each device connected to an outlet of your power strip must not exceed the Outlet Power Rating of your power strip (see Specifications). The total power requirements of all devices connected to your power strip must not exceed the Maximum Load Rating of your power strip (see Specifications).

Installation

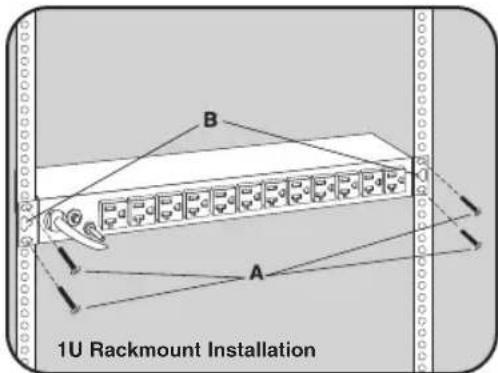

1U Rackmount Installation

To Mount Unit in Rack: Put four user-supplied rackmount screws (A) through the unit's mounting ears (B) and into the rack rails as shown. The user must determine the fitness of the rackmount screws to hold the unit in the rack before installation.

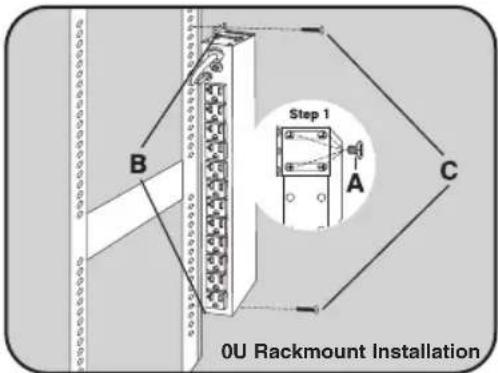

OU Rackmount Installation

1. Reorient Mounting Ears: Unscrew the screws (A) holding the unit's mounting ears (B) to the sides of the unit. Use the screws from Step 1 (A) to reattach the mounting ears (B) to the unit as shown. Use only the manufacturer-supplied screws or their equivalent (#6-32, 14 flat head) to reattach the mounting ears.

2. Mount Unit on Outside of Rack Rails: Put four user-supplied screws (C) or similar mounting hardware through the unit's mounting ears (B) and into the side of the rack as shown. The user must determine the fitness of the user-supplied mounting hardware to support the unit before mounting.

Wallmount/Under Counter Installation

Reorient the unit's mounting ears as per the OU Rackmount Installation above, then put four user-supplied screws or similar mounting hardware through the unit's mounting ears and into the mounting surface. The user must determine the fitness of the user-supplied mounting hardware to support the unit before mounting.

Features

Circuit Breaker(s)

If the current draw of the equipment connected to your power strip exceeds your model's Maximum Load Rating (see Specifications) for longer than a few seconds, a circuit breaker will trip to prevent any possible damage. When a circuit breaker trips, its plunger will pop up. Remove excess equipment and allow the breaker to cool one minute before depressing its plunger to reset the breaker.

Grounding Lug

Use this screw (located by the power strip's receptacles) to connect your power strip to ground.

Input Receptacle (IEC Model Only)

The PDU12IEC has no power cord. Instead, it has a IEC320-C20 inlet receptacle. To connect a PDU12IEC to utility power, use a user-supplied detachable power cord with an IEC plug on one end and a plug appropriate to your local utility outlets on the other.

Specifications

PDU1215	PDU1220	PDU2430
Nominal Voltage/Frequency: 120V/50 or 60 Hz 120V/50 or 60 Hz 120V/50 or 60 Hz
Output Power Rating (amps): 15 amps 20 amps 24 amps
AC Receptacles: 13 x NEMA 5-15R 13 x NEMA 5-15/20R 24 x NEMA 5-15R(12 rear/1 front) (12 rear/1 front) (12 rear/1 front)
AC Line Cord:	15', w/NEMA 5-15P plug	15', w/NEMA 5-20P plug	15', w/NEMA L5-30P plug
Circuit Breaker(s) (Resettable):	15 amps 20 amps 2 x 15 amps
Dimensions (HxWxD, inches):	1¾ × 17¼ × 3¾	1¾ × 17¼ × 3¾	1¾ × 17¼ × 3¾
PDU121506	PDU1226	PDU1220T6
Nominal Voltage/Frequency	120V/50 or 60 Hz	120V/50 or 60 Hz	120V/50 or 60 Hz
Output Power Rating (amps): 15 amps 20 amps 20 amps
AC Receptacles(12 rear/1 front) (12 rear/1 front) (12 rear/1 front)	13 x NEMA 5-15Rrear/1 front	13 x NEMA 5-15/20R	13 x NEMA 5-15/20R
AC Line Cord:	6', w/NEMA 5-15P plug	6', w/NEMA 5-20P plug	6', w/NEMA L5-20P plug
Circuit Breaker(s) (Resettable) 15 amps	20 amps 20 amps
Dimensions (HxWxD, inches):	1¾ × 17¼ × 3¾	1¾ × 17¼ × 3¾	1¾ × 17¼ × 3¾
PDU12IEC	PDU1220T
Nominal Voltage/Frequency:	100V to 240V/50 or 60Hz		120V/50 or 60 Hz
Output Power Rating (amps):16 amps for 208 to 240V	15 amps for 100V to 120V or		20 amps
AC Receptacles:	4 x IEC-C13(front),8 x IEC-C13/2 x IEC-C19 (rear)		13 x NEMA 5-15/20R(12 rear/1 front)
AC Line Cord:	N/A (IEC320-C20 inlet)		15', w NEMA L5-20P plug
Circuit Breaker(s) (Resettable):	2 x 16 amps		20 amps
Dimensions (HxWxD, inches):	1¾ × 17¼ × 3¾		1¾ × 17¼ × 3¾

Warranty & Product Registration

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years (except internal UPS system batteries outside USA and Canada, 1 year) from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609 USA. Seller will pay return shipping charges. Visit tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTEND PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support
