Table of Contents

Gather these items (box contents).... 3

Attach the strap .... 3

Prepare the battery 4

Turn the camera on.... 5

Set the date and time.... 6

About the date and time setting screen....6

Set the language 8

Take a picture....9

Review your pictures.... 10

Erase pictures .... 10

Basic operation.... 11

Shooting Mode Buttons 11

Scene Modes 12

Macro Mode 12

Flash Modes....13

Self-Timer....13

Power Save Feature....13

Menus and settings 14

Top Menu 14

Erase All Pictures 14

Connecting the camera 15

Playback on a TV 15

Direct Printing (PictBridge) 16

Transfer images 17

OLYMPUS Master software.... 19

Specifications 20

Safety Precautions.... 22

● Before using your camera, read this manual carefully to ensure correct use.

- We recommend that you take test shots to get accustomed to your camera before taking important photographs.

- Please observe the safety precautions at the end of this manual.

- The images on the LCD screen and illustrations of the camera used in this manual may differ from the actual product. Unless otherwise specified, the explanation about these illustrations is provided for FE-230/X-790.

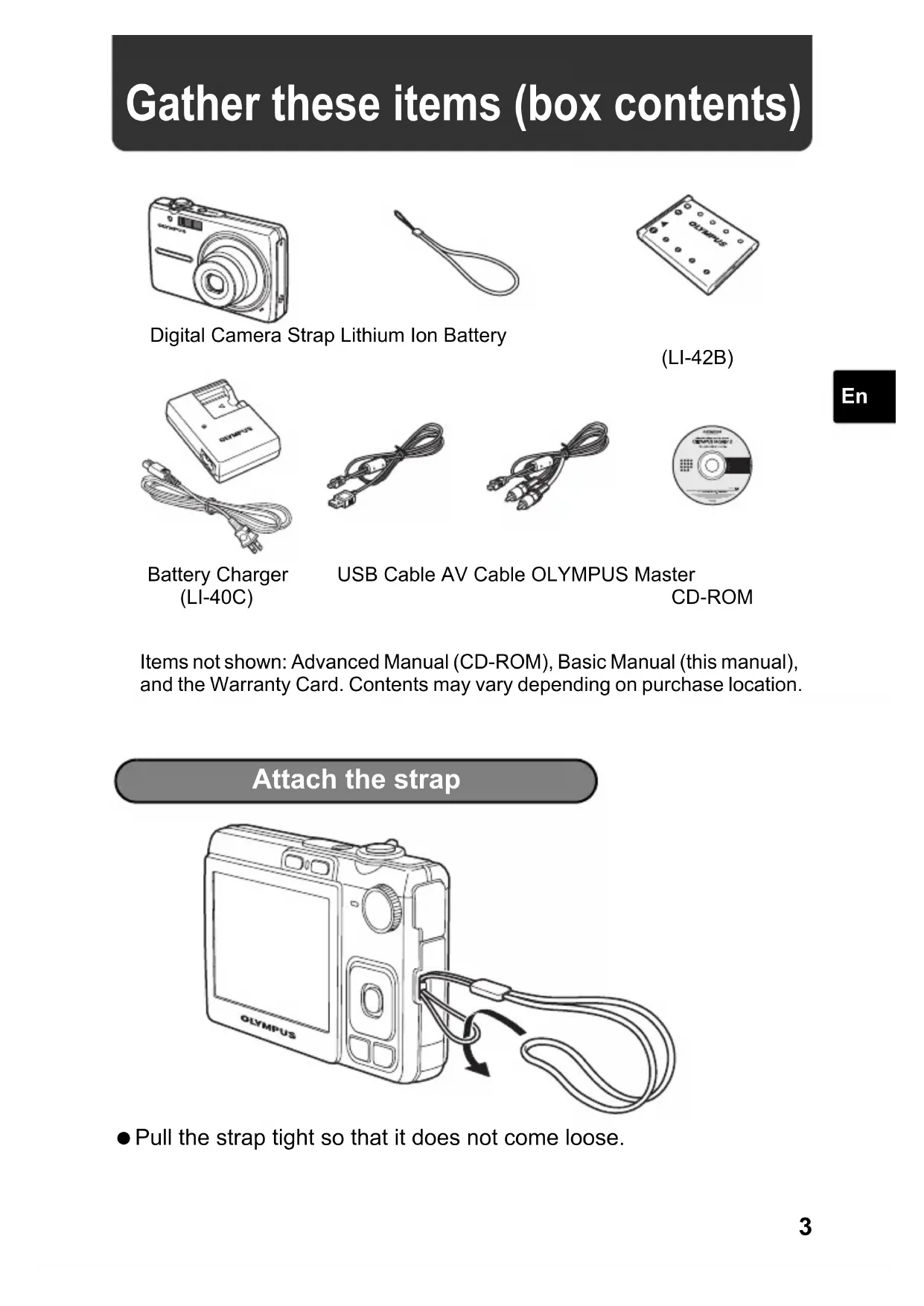

Gather these items (box contents)

Line drawing of a compact digital camera with no visible text or symbols

Illustration of a Olympus battery pack with mounting holes (no text or symbols on body)

(LI-42B)

Digital Camera Strap Lithium Ion Battery

Line drawing of a GEVS device with a coiled cable and power plug (no text or symbols)

Battery Charger (LI-40C)

USB Cable AV Cable OLYMPUS Master
CD-ROM

Items not shown: Advanced Manual (CD-ROM), Basic Manual (this manual), and the Warranty Card. Contents may vary depending on purchase location.

Attach the strap

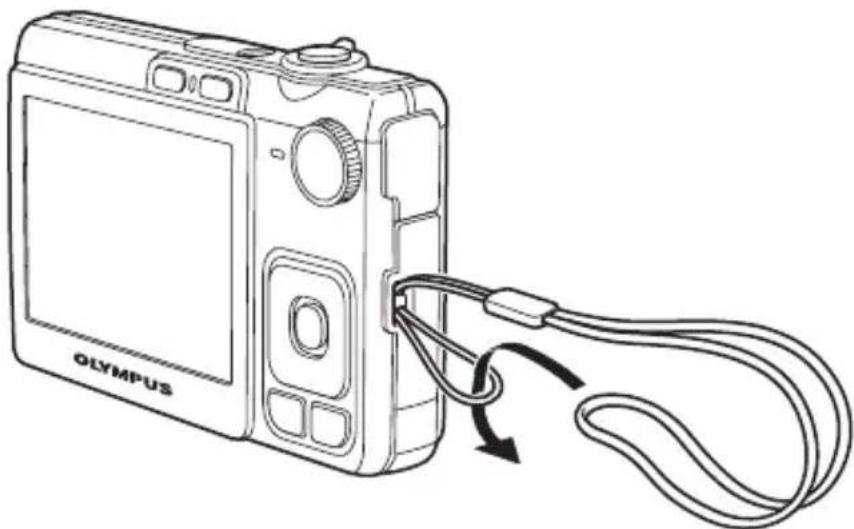

Line drawing of a Olympus digital camera with cable being inserted into the case (no text or symbols on device)

● Pull the strap tight so that it does not come loose.

Prepare the battery

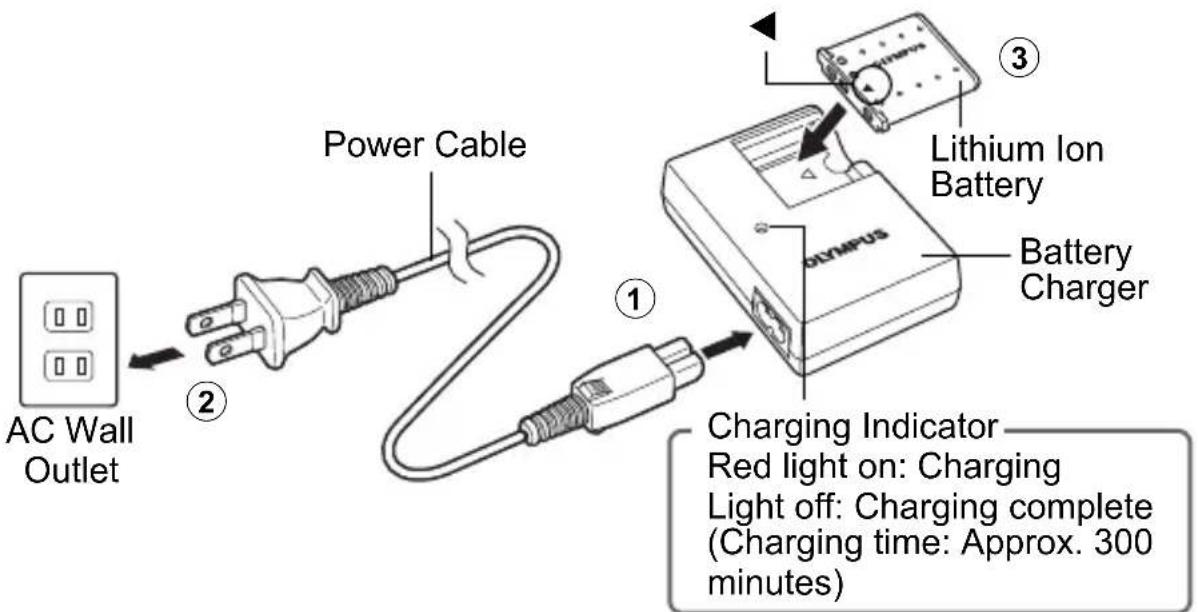

a. Charge the battery.

AC Wall Outlet Power Cable Lithium Ion Battery Battery Charger ① ② ③ ① Charging Indicator Red light on: Charging Light off: Charging complete (Charging time: Approx. 300 minutes)

● Battery comes partially charged.

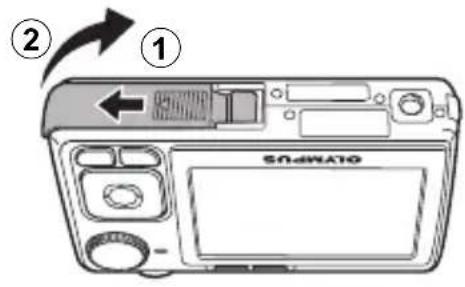

b. Insert the battery in the camera.

② ① SdnATO

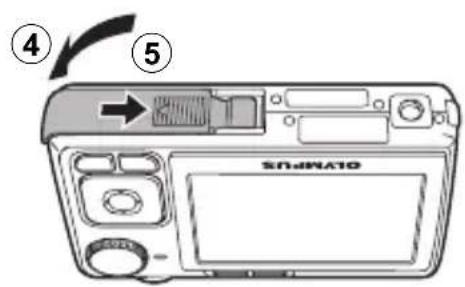

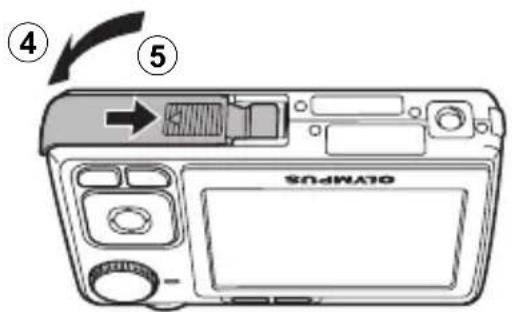

④ ⑤ SUNATO

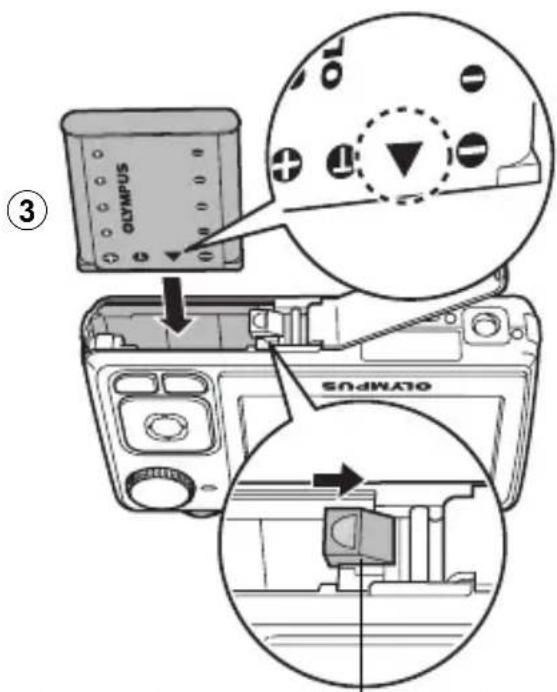

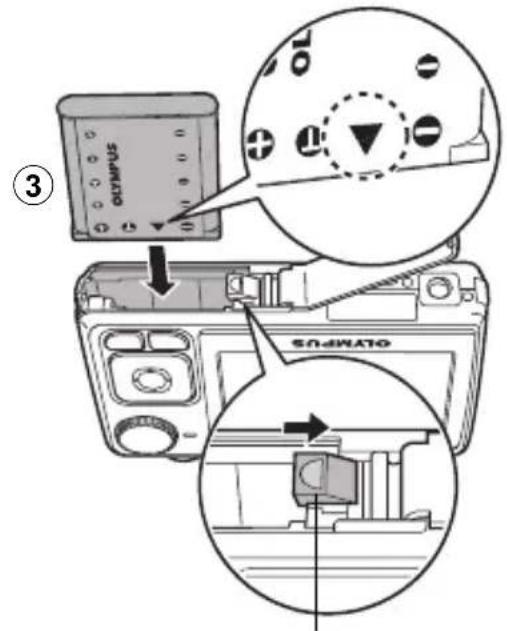

- Insert the battery in the direction indicated by the ▼mark.

Olympus ③ SNDATO

Battery lock knob

● To remove the battery, press the battery lock knob in the direction of the arrow.

- With this camera, you can take pictures without inserting the optional xD-Picture Card™ (hereinafter referred to as “the card”). For details on inserting the card, please refer to the Advanced Manual.

Turn the camera on

This explains how to turn on the camera in shooting mode.

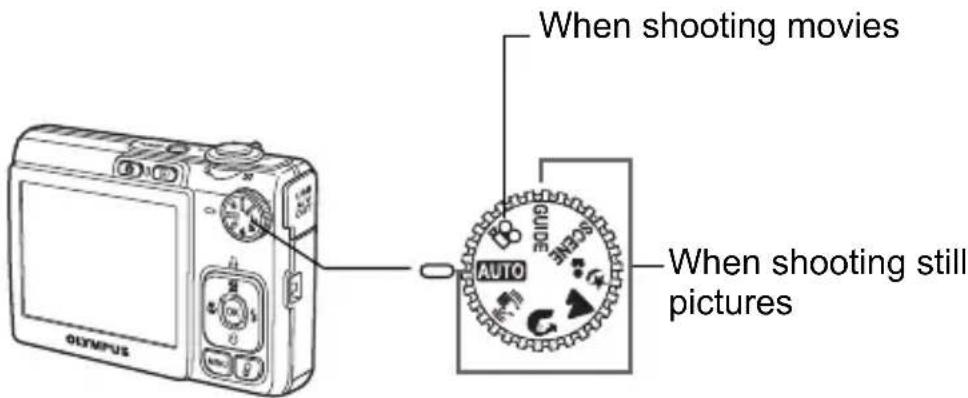

a. Set the mode dial to AUTO.

When shooting movies When shooting still pictures

En

Still picture shooting modes

AUTOFor normal shooting.

This function reduces the blur incurred by a moving subject or camera movement when taking pictures.

Suitable for taking pictures of people.

Suitable for taking pictures of a landscape.

★Suitable for taking pictures of people at night.

SCENE Select from 10 available scene modes (FE-240/X-795) or 13 available scene modes (FE-230/X-790), according to the shooting conditions.

GUIDE Use the shooting guide displayed on the screen to shoot pictures according to the situation.

b. Press the POWER button.

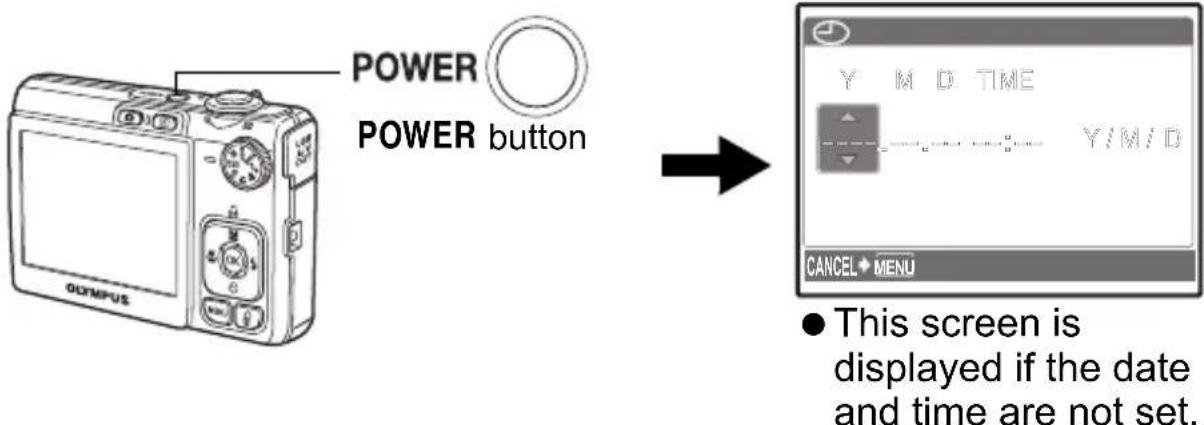

POWER POWER button Y M D TIME Y/M/D CANCEL MENU ● This screen is displayed if the date and time are not set.

● To turn off the camera, press the POWER button once again.

Hint

The directions of the arrow pad is indicated with in the supplied instruction manual.

Set the date and time

About the date and time setting screen

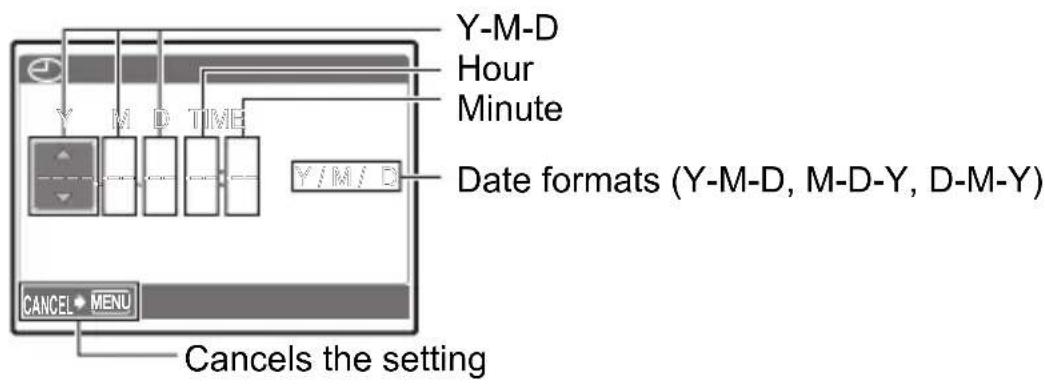

Y-M-D Hour Minute Y M D TIME Y/M D Date formats (Y-M-D, M-D-Y, D-M-Y) CANCEL MENU Cancels the setting

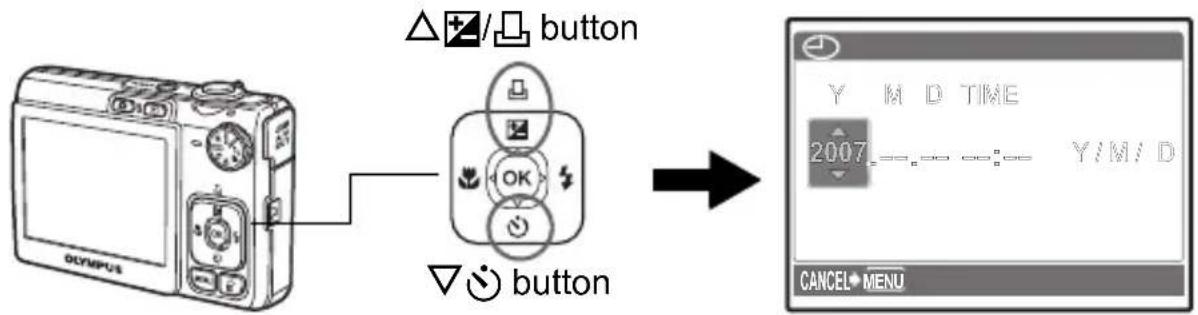

a. Press the △/□ and ▽ √ buttons to select [Y].

• The first two digits of the year are fixed.


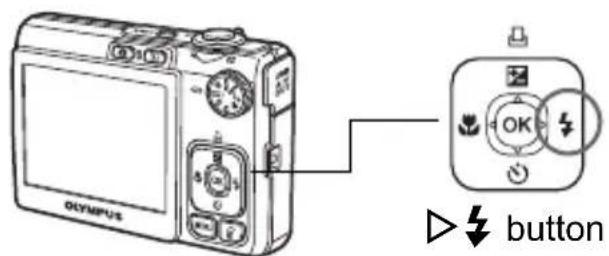

b. Press the ▷↓ button.

OLYMPUS button

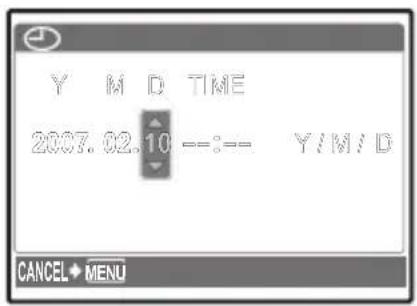

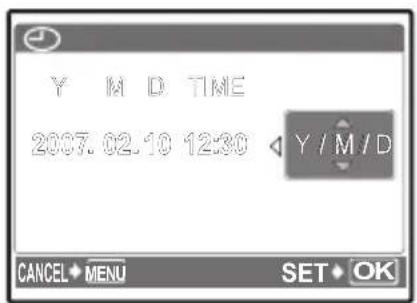

c. Press the △/□ and ▽ √ buttons to select [M].

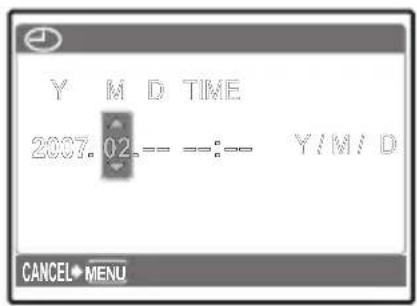

Y M D TIME 2007.02.-- --:-- Y/M/D CANCEL MENU

d. Press the ▷↓ button.
e. Press the △/□ and ▽ √ buttons to select [D].

f. Press the ▷↓ button.

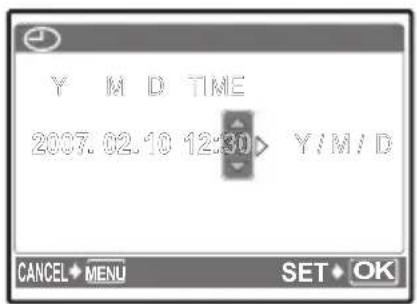

g. Press the △/□ and ▽/□ buttons to select the hours and minutes.

• The time is displayed in the 24-hour format.

Y M D TIME 2007.02.10 ---:--- Y/M/D CANCEL MENU

h. Press the ▷↓ button.

i. Press the △/□ and ▽ ∙ buttons to select [Y/M/D].

Y M D TIME 2007.02.10 12:30 Y/M/D CANCEL MENU SET OK

Y M D TIME 2007.02.10 12:30 Y / M / D CANCEL MENU SET OK

j. After all settings have been set, press OK.

- For a more accurate setting, press OK when the time signal hits 00 seconds.

OK button HQ 3072×2304 [IN]

Set the language

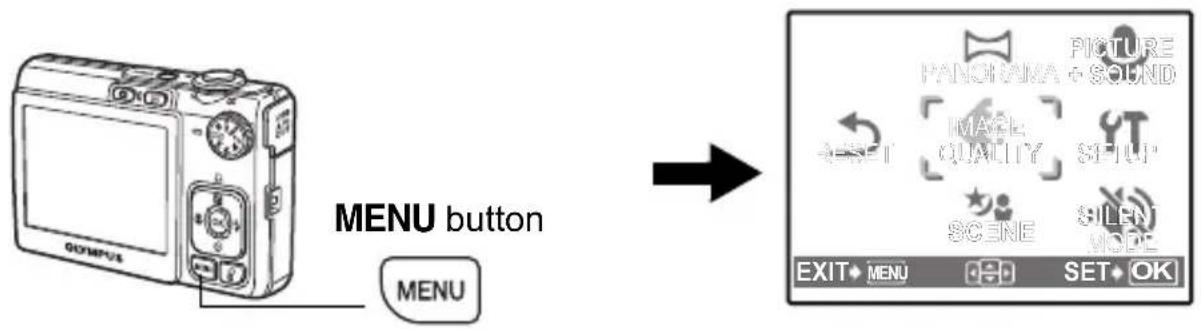

a. Press the MENU button to display the top menu.

MENU button MENU PANORAMA + SOUND IMAGE QUALITY SETUP SCENE SILENT NOTE EXIT MENU SET OK

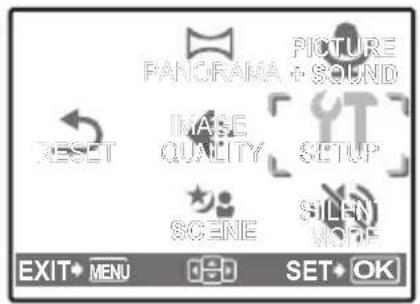

b. Press the ▷↓ button to select [SETUP], and press OK.

PANORAMA + SOUND PICTURE RESET IMAGE QUALITY SETUP SCENE SILEN MODE EXIT MENU SET OK

c. Press the △/□ and ▽ ∙ buttons to select [☐], and press OK.

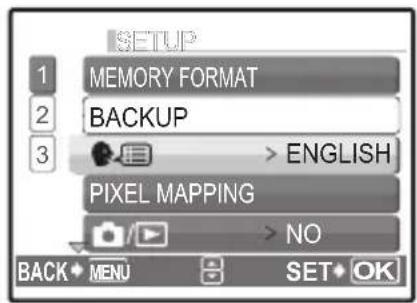

SETUP 1 MEMORY FORMAT 2 BACKUP 3 > ENGLISH PIXEL MAPPING > NO BACK MENU SET OK

d. Press the arrow pad (△▽◀▶) to select a language, and press OK.

- You can add other languages to your camera with the provided OLYMPUS Master software. Please refer to the Advanced Manual.

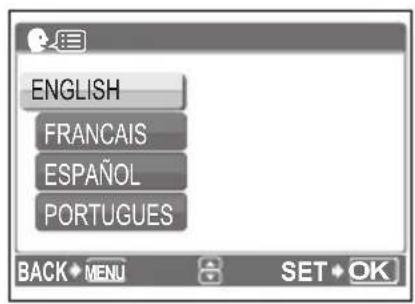

ENGLISH FRANCAIS ESPAÑOL PORTUGUES BACK MENU SET OK

Take a picture

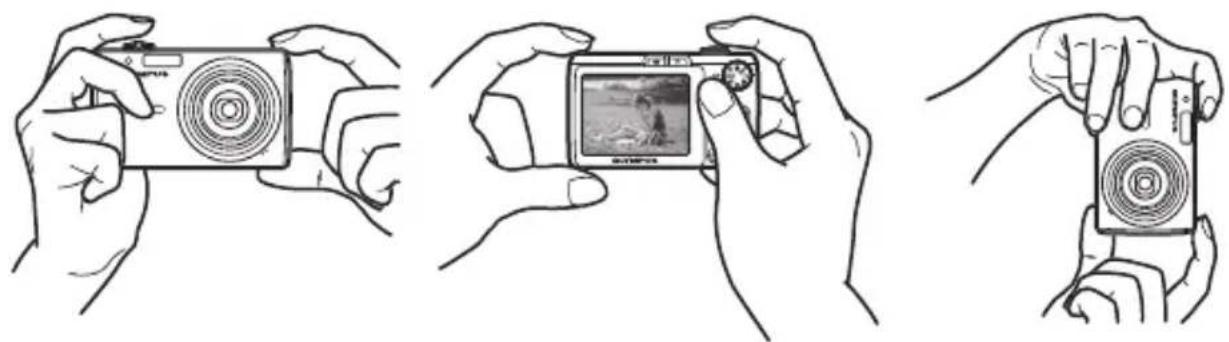

a. Hold the camera.

Horizontal grip Vertical grip

Line drawings of hands holding a digital camera, showing front, side, and top views (no text or symbols)

En

b. Focus.

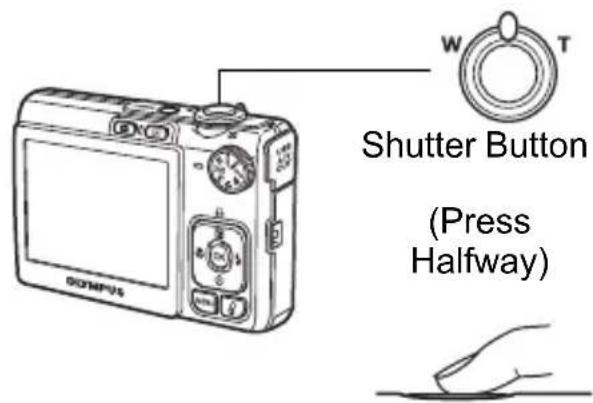

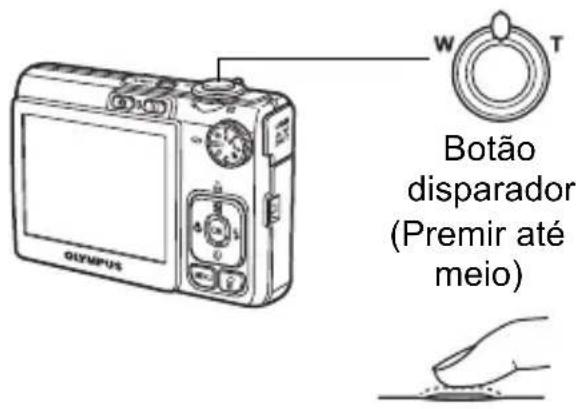

OIMPUS W T Shutter Button (Press Halfway)

Place this mark over your subject.

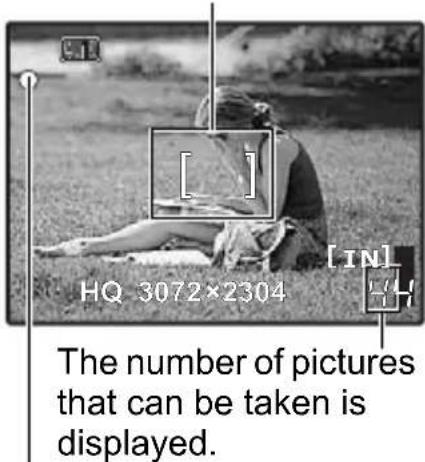

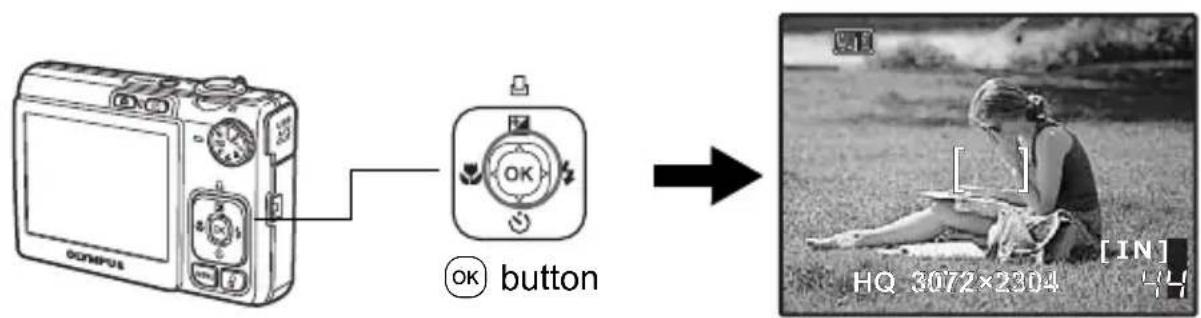

[ ] HQ 3072×2304 [IN] The number of pictures that can be taken is displayed.

The green lamp indicates the focus and exposure are locked.

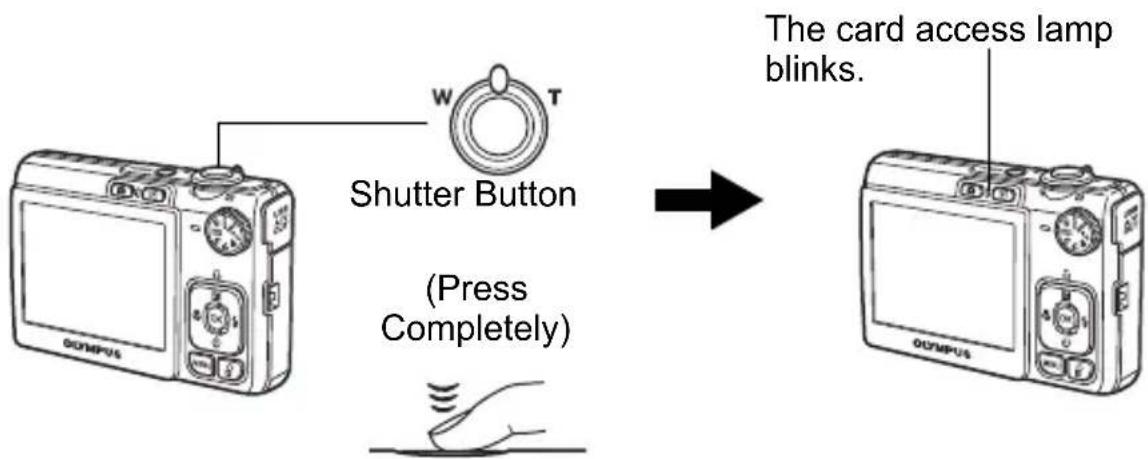

c. Shoot.

Shutter Button (Press Completely) The card access lamp blinks.

Review your pictures

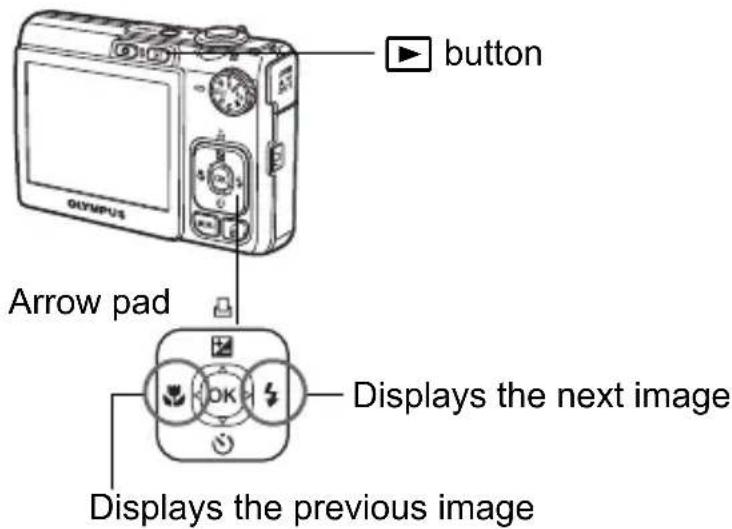

a. Press the ▶ button.

button Arrow pad Displays the next image Displays the previous image

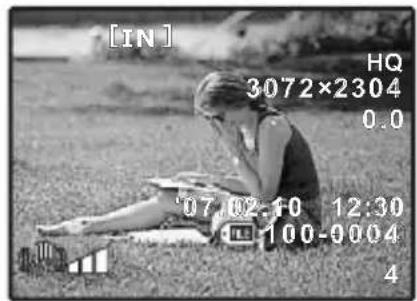

[IN] HQ 3072×2304 0.0 '07.02.10 12:30 100-0004 4

Erase pictures

a. Press the ◀ and ▷ buttons to display the picture you want to erase.

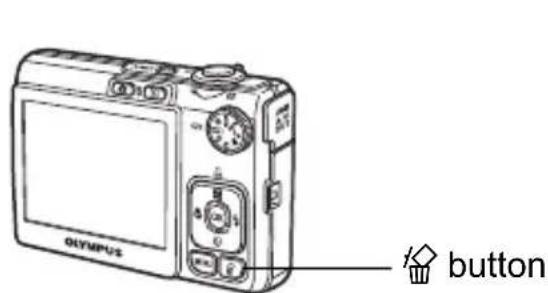

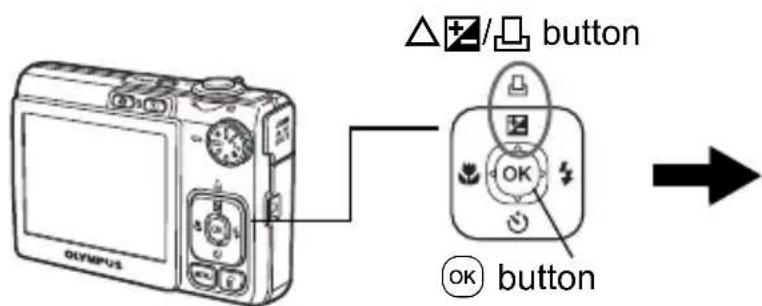

b. Press the 🎨 button.

Olympus button

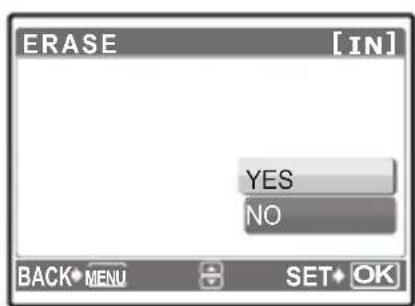

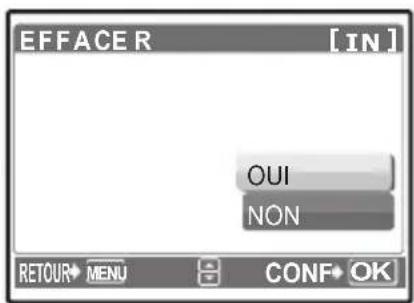

ERASE [IN] YES NO BACK MENU SET OK

c. Press the △/□ button, select [YES], and press OK.

△/□ button OK button OK button

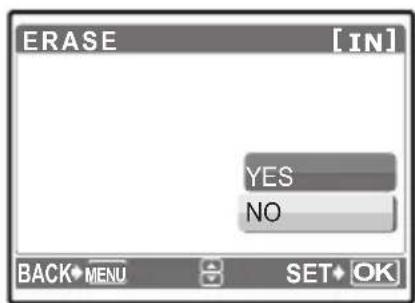

ERASE [IN] YES NO BACK MENU SET OK

Basic operation

Shooting Mode Buttons

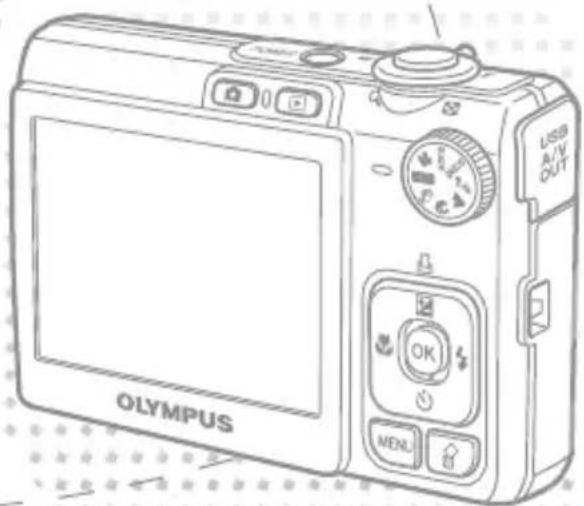

While in shooting mode, use these buttons for quick access to some of the more commonly used features.

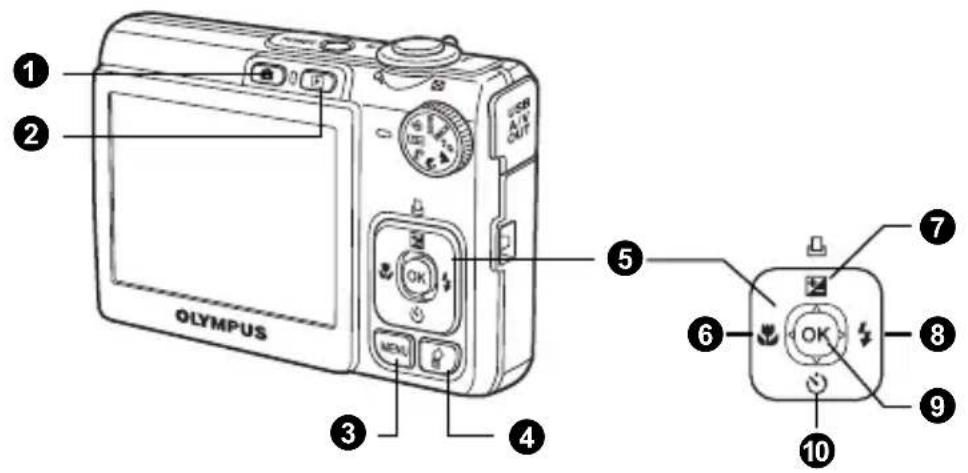

1 2 3 4 5 6 7 8 9 10 OLYMPUS

En

① button (Shooting)

Selects the shooting mode.

② button (Playback)

Selects the playback mode.

③MENU button

Displays the top menu.

④ button (Erase)

Selects the picture you want to erase in playback mode.

⑤ Arrow pad (△▽◀◀)

Selects scenes, playback pictures and menu items.

6 ◀ button (Macro Mode)

Enables macro or super macro mode for taking close-up pictures.

⑦ △/□ button (Exposure Compensation/Print)

While in shooting mode, press this button to adjust the exposure compensation value, which affects picture brightness.

8▷↓ button (Flash Mode)

Selects from 4 flash modes - AUTO, Ⓞ (Red-eye reduction), ↗ (Fill-in flash), or ⬇ (Flash off).

9 OK button (OK)

Confirms settings.

10 ∇ button (Self-timer)

Sets the self-timer to take the shot approximately 12 seconds after the shutter button is pressed.

Scene Modes

This function allows you to switch the SCENE (scene mode) according to the subject.

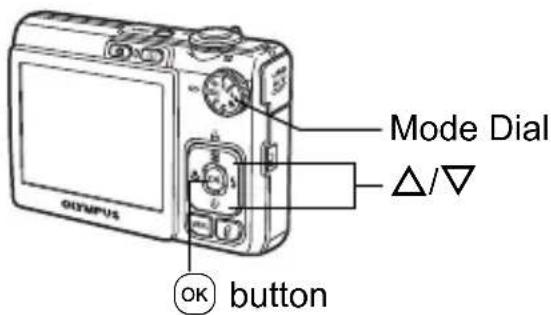

① Set the mode dial to SCENE.

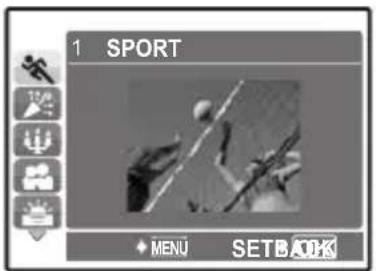

1 SPORT MENU SETBACK

Mode Dial Δ/Δ OK button

② Press / to select the scene modes and press OK.

Shooting Scene Modes

• SPORT
  • SELF PORTRAIT
  BEHIND GLASS
  • AUCTION •
  • UNDER WATER MACRO*1
  INDOOR
• SUNSET
  • 🍾1 CUISINE
  UNDER WATER WIDE1 ^1 • 2 UNDER WATER WIDE2 ^1

*1 Available for the FE-230/X-790 only.

Macro Mode

This mode lets you take pictures as close as 10 cm (3.9 in.) with FE-230/X-790, 20 cm (7.9 in.) with FE-240/X-795 to your subject. (at the widest angle)
Use this mode to take pictures as close as 5 cm (2.0 in.) with FE-230/X-790, 3 cm (1.2 in.) with FE-240/X-795 to your subject. In mode, the position of the zoom lens is fixed.

① Press the ◀ button repeatedly to select [◀] or [s◀] and press OK.

Flash Modes

① Press the ▷↓ button repeatedly to select the flash mode and press OK.
②Press the shutter button halfway.
- When the flash is set to fire, the ↓ mark lights.
3 Press the shutter button completely to take the picture.

Icon Flash Mode Description
No indication	Auto flash The flash	flash fires automatically in low light or backlight conditions.
	Red-eye reduction flash	The red-eye reduction flash mode significantly reduces this phenomenon by emitting pre-flashes before firing the regular flash.
	Fill-in flash The flash	flash fires regardless of the available light.
	Flash off	The flash does not fire even in low light conditions.

Self-Timer

① Press the ▽ button to select [icon] and press Ⓞ.
②Press the shutter button fully to take the picture.

- The self-timer lamp lights for approximately 10 seconds after the shutter button is pressed, then starts blinking. After blinking for approximately 2 seconds, the picture is taken.

Self-timer Lamp

Line drawing of a compact digital camera with no visible text or symbols

Power Save Feature

• To save the battery power, the camera automatically enters sleep mode and stops operating if not used for approximately 3 minutes. Operate the shutter button or zoom lever to reactivate the camera.
• If the camera is not operated for approximately 12 minutes after the camera enters sleep mode, it automatically retracts the lens and turns off. To resume operation, turn on the power again.

Menus and settings

Top Menu

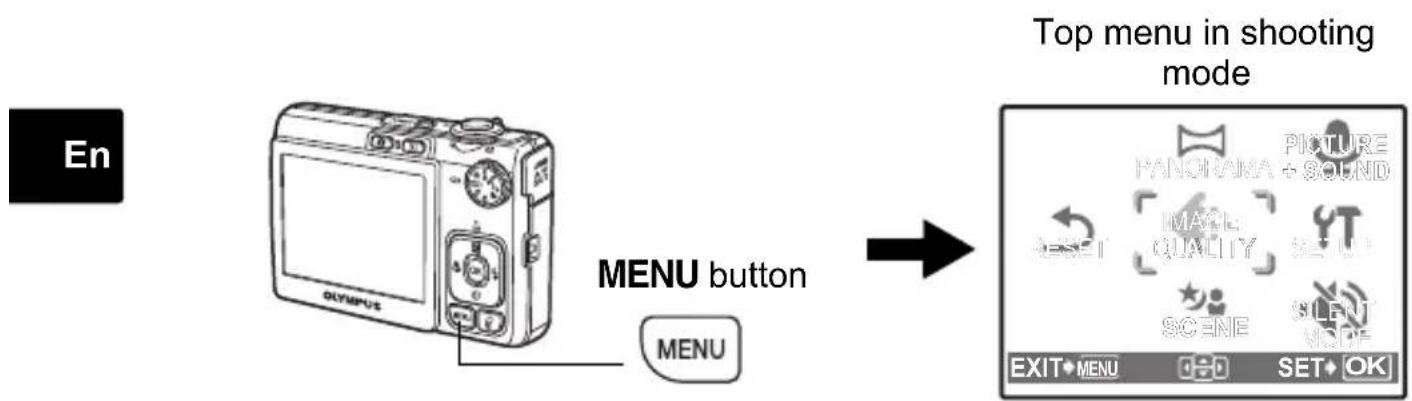

① Press the MENU button to display the top menu on the monitor.
② Use the arrow pad ( ) to select menu items.

En MENU button MENU Top menu in shooting mode PANORAMA + SOUND IMAGE QUALITY SCENE SLENT MODE EXIT MENU 0-0 SET OK

IMAGE QUALITY

Sets image quality and resolution.

PANORAMA

Creates a panoramic picture.

RESET

Resets to the factory default settings.

SCENE

Select a scene according to the subject and shooting condition.

SILENT MODE

Mutes the operation sounds, warning sounds, shutter sound, etc... during shooting and playback.

SETUP

Sets the date and time, language and other settings.

PICTURE+SOUND/MOVIE W/SOUND

Records sound during shooting.

Erase All Pictures

① Press the MENU button to display the top menu in playback mode.
② Select [ERASE], [ALL ERASE], and press OK.
③Select [YES], and press OK.

● ● All the pictures are erased.

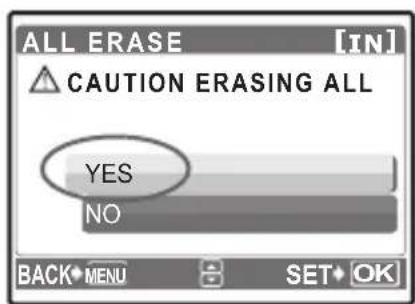

ALL ERASE [IN] CAUTION ERASING ALL YES NO BACK MENU SET OK

Connecting the camera

Playback on a TV

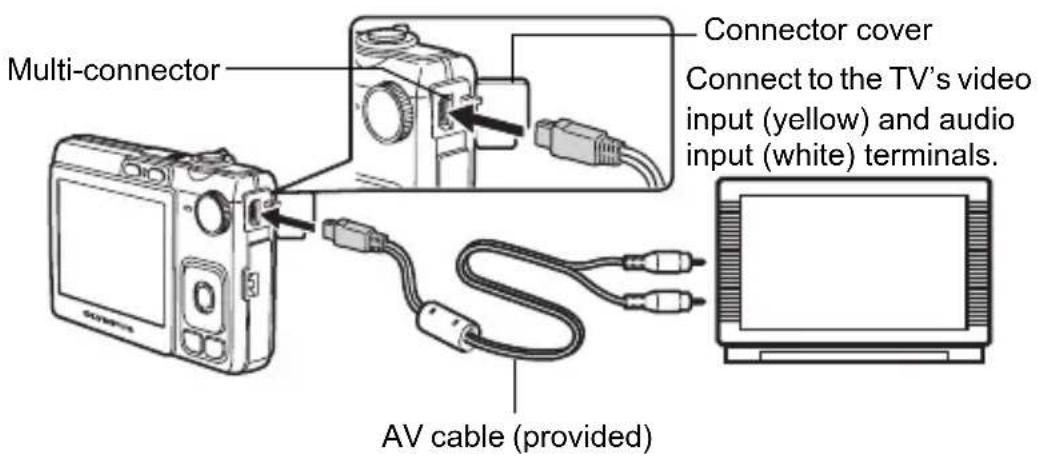

Use the AV cable provided with the camera to playback recorded images on your TV. Both still pictures and movies can be played back.

① Make sure that the TV and camera are turned off. Connect the multi-connector on the camera to the video input terminal on the TV using the AV cable.

Multi-connector Connector cover Connect to the TV's video input (yellow) and audio input (white) terminals. AV cable (provided)

②Turn the TV on and set it to the video input mode.

- For details on switching to video input, refer to your TV's instruction manual.

3 Turn the camera on and press the ▶ button to select the playback mode.

- The last picture taken is displayed on the TV. Use the arrow pad (△▽◀▶) to select the picture you want to display.

Direct Printing (PictBridge)

Using the provided USB cable, you may connect your camera directly to a PictBridge compatible printer to make prints. You can print a picture with simple operations.

① In playback mode, display the picture you want to print out on the monitor.

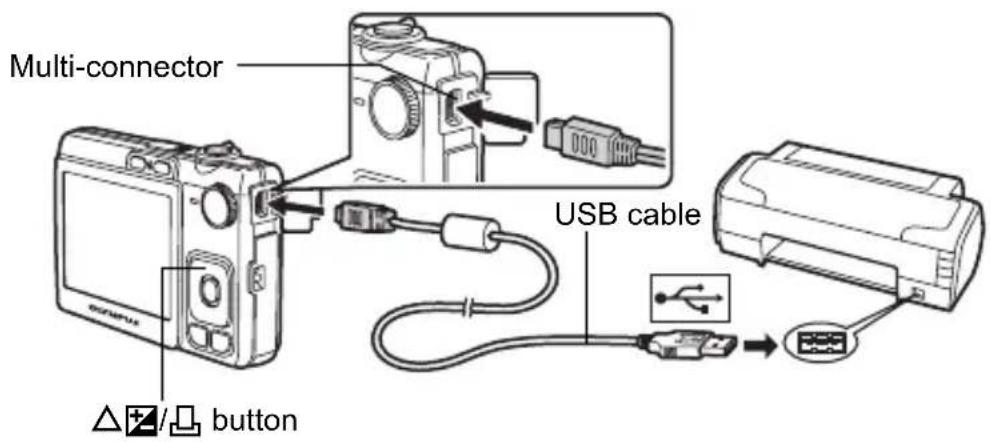

2 Connect one end of the provided USB cable into the camera's multi-connector and the other end into the printer's USB connector.

Multi-connector USB cable button

③ Press the △/□ button.

• Printing starts.
• When you are finished, disconnect the USB cable from the camera with the picture selection screen displayed.

EASY PRINT START♦ PC / CUSTOM PRINT♦ OK

Transfer images

a. Install the software

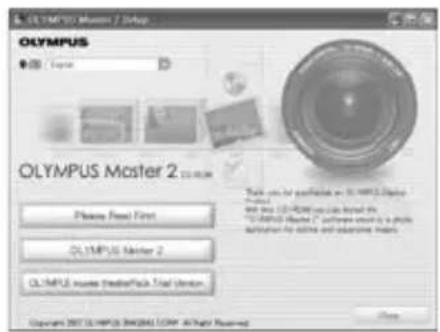

① Insert the OLYMPUS Master CD-ROM.
②Windows: Click the "OLYMPUS Master 2" button.

Macintosh: Double-click the "Setup" icon.

③Simply follow the on-screen instructions.

OLYMPUS Master 2 Setup OLEMPUS OLEMPUS Master 2 Please Find First OLYMPUS Master 2 OLYMPUS Master Pack Trial Version This can be performed on OLYMPUS Master 2. With less OLYMPUS you can look like: "OLYMPUS Master 2", please confirm this to play definition for active and adaptive modes. Copyright: 2007 OLYMPUS IMPERIAL COPY. All rights reserved.

En

b. Connect the camera to the computer

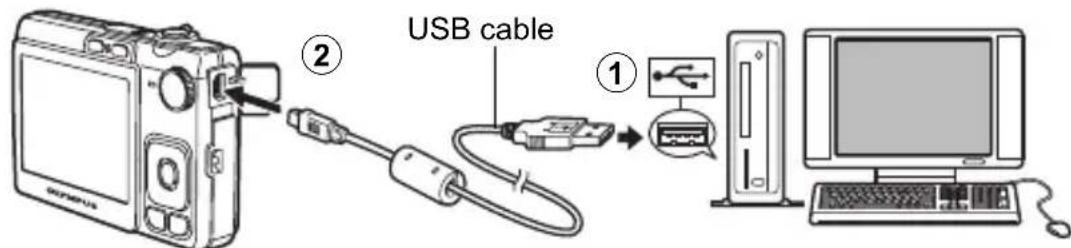

① Connect the camera and computer using the USB cable (provided).

● ● The monitor will turn on automatically.

USB cable ②

② Select [PC] on the monitor, and press OK.

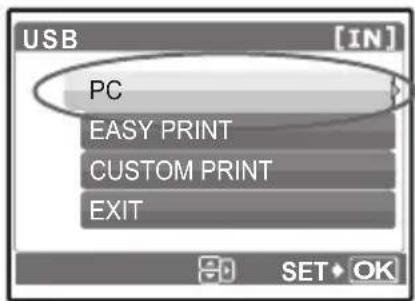

USB PC EASY PRINT CUSTOM PRINT EXIT SET OK

- Your PC will now recognize your camera as a removable storage drive.

c. Transfer images to the computer

① With the camera now connected, open OLYMPUS Master.

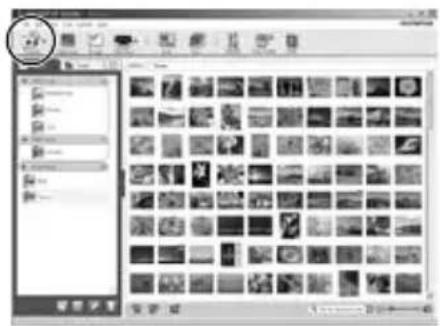

② Click “Transfer Images” on the browse window, and then click “From Camera”

③Simply follow the on-screen instructions.

Screenshot of a software interface displaying a grid of grayscale image thumbnails with Chinese labels, likely from an older photo editing application.

En

Tips

• For more detailed information regarding camera setup and usage, please refer to the camera's "Advanced Manual" provided on CD-ROM.
• For additional assistance, refer to the "Help" file in the OLYMPUS Master software.

OLYMPUS Master software

OLYMPUS Master Software: Use this software to download pictures from the camera, view, organize, retouch, e-mail and print your digital pictures, movies and more!

OLYMPUS Olympus Master 2 100%

●System Requirements

OS Windows	2000 Professional/XP Home Edition/XP Professional/Vista or Mac OS X (v10.3 or later)
CPU Pentium	III 500 MHz/Power PC G3 500 MHz/Intel Core Solo/Duo 1.5 GHz, or later
RAM 256 MB	or more
Hard Disk 500	MB or more free space
Connection US	SB port/IEEE 1394 port
Monitor	1024 × 768 pixels resolution or more with minimum 65,536 colors (Windows), 32,000 colors (Macintosh)
Other Internet	Explorer 6 or later (Windows), Safari 1.0 or later, QuickTime 6 or later (Macintosh)

For the latest support information, visit the Olympus website (http://www.olympus.com/)

User Registration

Register your camera when you install OLYMPUS Master to activate your warranty, receive notifications for software and camera firmware updates, and more.

Specifications

●Camera

Product type : Digital camera (for shooting and displaying)

Recording system

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Applicable : Exif 2.2, Digital Print Order Format (DPOF), PRINT

standards Image Matching III, PictBridge

Sound with still : Wave format

Number of effective : 7,100,000 pixels

pixels

Image pickup device : 1/2.5" CCD (primary color filter),

7,400,000 pixels (gross)

Olympus lens 6.3 to 18.9 mm, f3.1 to 5.9

(equivalent to 38 to 114 mm on a 35 mm camera)

FE-240/X-795:

Olympus lens 6.4 to 32 mm, f3.3 to 5.0

(equivalent to 38 to 190 mm on a 35 mm camera)

Photometric system : Digital ESP metering

Shutter speed : 4 to 1/2000 sec.

Shooting range : FE-230/X-790:

0.05 m (0.2 ft.) (super macro mode)

FE-240/X-795:

0.7 m (2.3 ft.) to ∞ (normal)

0.2 m (0.7 ft.) to ∞ (W), 0.6 m (2.0 ft.) to ∞ (T) (macro mode)

0.03 m (0.1 ft.) (super macro mode)

Monitor : 2.5" TFT color LCD display, 115,000 pixels

Outer connector : USB connector, A/V OUT jack (multi-connector)

Automatic calendar : 2000 up to 2099

system

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

-20°C to 60°C (-4°F to 140°F) (storage)

Humidity : 30% to 90% (operation)/10% to 90% (storage)

Power supply : One Olympus lithium ion battery (LI-42B/LI-40B)

Dimensions : FE-230/X-790:

$$ 9 0. 5 \mathrm{mm} (\mathrm{W}) \times 5 5. 0 \mathrm{mm} (\mathrm{H}) \times 1 6. 5 \mathrm{mm} (\mathrm{D}) $$

$$ (3. 6 \times 2. 2 \times 0. 6 \text {in.}) $$

$$ (e x c l u d i n g p r o t r u s i o n s) $$

$$ F E - 2 4 0 / X - 7 9 5: $$

$$ 9 3. 5 \mathrm{mm} (\mathrm{W}) \times 5 6. 0 \mathrm{mm} (\mathrm{H}) \times 2 0. 0 \mathrm{mm} (\mathrm{D}) $$

$$ (3. 7 \times 2. 2 \times 0. 8 \text {in.}) $$

$$ (e x c l u d i n g p r o t r u s i o n s) $$

Weight : FE-230/X-790: 105 g (3.7 oz) without battery and card

FE-240/X-795: 115 g (4.0 oz) without battery and card

● Lithium ion battery (LI-42B)

Product type : Lithium ion rechargeable battery

Standard voltage : DC 3.7 V

Standard capacity : 740 mAh

Battery life : Approx. 300 full charges (varies on usage)

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

$$ - 1 0 ^ {\circ} \mathrm{C} \text { to } 6 0 ^ {\circ} \mathrm{C} (1 4 ^ {\circ} \mathrm{F} \text { to } 1 4 0 ^ {\circ} \mathrm{F}) (\text { operation }) / $$

$$ - 2 0 ^ {\circ} \mathrm{C} \text { to } 3 5 ^ {\circ} \mathrm{C} (- 4 ^ {\circ} \mathrm{F} \text { to } 9 5 ^ {\circ} \mathrm{F}) (\text { storage }) $$

Dimensions : 31.5 × 39.5 × 6 mm ( 1.2 × 1.5 × 0.2 in.)

Weight : Approx. 15 g (0.5 oz)

●Battery charger (LI-40C)

Power requirements : AC 100 to 240 V (50 to 60 Hz)

$$ 3. 2 \mathrm{VA} (1 0 0 \mathrm{V}) \text {to} 5. 0 \mathrm{VA} (2 4 0 \mathrm{V}) $$

Output : DC 4.2 V, 200 mA

Charging time : Approx. 300 min.

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

$$ - 2 0 ^ {\circ} \mathrm{C} \text {to} 6 0 ^ {\circ} \mathrm{C} (- 4 ^ {\circ} \mathrm{F} \text {to} 1 4 0 ^ {\circ} \mathrm{F}) (\text {storage}) $$

Dimensions : 62 × 23 × 90 mm (2.4 × 0.9 × 3.5 in.)

Weight : Approx. 65 g (2.3 oz)

Design and specifications subject to change without notice.

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.

DANGER

If the product is used without observing the information given under this symbol, serious injury or death may result.

WARNING

If the product is used without observing the information given under this symbol, injury or death may result.

CAUTION

If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections.

Location — To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the product label.

Foreign Objects — To avoid personal injury, never insert a metal object into the product.

Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

WARNING

●Do not use the camera near flammable or explosive gases.
- Do not use the flash on people (infants, small children, etc.) at close range.

• You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject's eyes could cause a momentary loss of vision.
• Keep young children and infants away from the camera.
  • Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:
• Becoming entangled in the camera strap, causing strangulation.
• Accidentally swallowing the battery, cards or other small parts.

• Accidentally firing the flash into their own eyes or those of another child.
  • Accidentally being injured by the moving parts of the camera.

• Do not look at the sun or strong lights with the camera.
  ●Do not use or store the camera in dusty or humid places.
  ●Do not cover the flash with a hand while firing.

CAUTION

- Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

- Never remove the batteries with bare hands, which may cause a fire or burn your hands.

●Never hold or operate the camera with wet hands.
- Do not leave the camera in places where it may be subject to extremely high temperatures.

- Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger if it is covered (such as a blanket). This could cause overheating, resulting in fire.

●Handle the camera with care to avoid getting a low-temperature burn.

• When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:
• When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.
• In places subject to extremely cold temperatures, the temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

● Be careful with the strap.

- Be careful with the strap when you carry the camera. It could easily catch on stray objects - and cause serious damage.

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

• The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified charger. Do not use any other chargers.
• Never heat or incinerate batteries.
  • Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.
• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.
• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, by soldering, etc.
• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.
• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

WARNING

• Keep batteries dry at all times.
• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.
• Insert the battery carefully as described in the operating instructions.
• If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.
• Do not use a battery if it is cracked or broken.
• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.
• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.
• Never subject batteries to strong shocks or continuous vibration.

CAUTION

• Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.
• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.
• Always unload the battery from the camera before storing the camera for a long period.

For customers in North and South America

For customers in USA

Declaration of Conformity

Address: 3500 Corporate Parkway, P.O. Box 610, Center Valley,

PA 18034-0610, U.S.A.

Telephone Number: 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.
- Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Computer Inc.
- xD-Picture Card™ is a trademark.
- All other company and product names are registered trademarks and/or trademarks of their respective owners.
- The standards for camera file systems referred to in this manual are the "Design Rule for Camera File System/DCF" standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

Table des matières

Menu principal ....38

Line drawing of a standard digital camera with no text or symbols

Simple line drawing of a knotted rope or cord (no text or symbols)

Line drawing of a Olympus battery pack with mounting holes (no text or symbols on body)

Line drawing of a device with a USB cable and a GCMPSA connector (no text or symbols visible)

Line drawing of a Olympus digital camera with cable being inserted into the case (no text or symbols on device)

4 ⑤ SDWATO

③ Olympus SODATO

Line drawings of hands holding a digital camera with a screen, showing three different states of action (no text or symbols present)

Touche △+/□ Touche OK

EFFACER [IN] OUI NON RETOUR→ MENU → CONF→ OK

②Touche ▶ (Affichage)

Line drawing of a digital camera with lens and control panel (no text or symbols)

Programme Instaluation de OLYMPUS Master 7 OLYMPUS OLEMPUS OLEMPUS Master 2 A line in printer OLEMPUS Master 2 OLEMPUS music adapterface. The version New user installed from the old digital number (OLEMPUS) this is the OLYMPUS video file. This image is a video file named "OLEMPUS Master 2" and is also displayed in the image file.

Câble USB ②

Screenshot of a photo editing software interface showing a grid of grayscale image thumbnails and tool panels.

Fr

Conseils

OLYMPUS Olympus Master 2 Control buttons for the OLYMPUS Master 2

90,5 mm (P) × 55,0 mm (H) × 16,5 mm (D)

(hors saillies)

FE-240/X-795:

93,5 mm (P) × 56,0 mm (H) × 20,0 mm (D)

(hors saillies)

Adresse : 3500 Corporate Parkway, P.O. Box 610, Center Valley,

PA 18034-0610, U.S.A.

Line drawing of a standard Sony DS480 digital camera (no text or symbols)

Simple line drawing of a knotted rope or cord (no text or symbols)

Line drawing of a Olympus battery pack with mounting holes (no text or symbols on body)

Line drawing of a device with a USB cable and connector (no text or symbols visible)

Cable USB Cable AV OLYMPUS Master

CD-ROM

Line drawing of a Olympus digital camera with cable being inserted (no text or symbols)

② ① OILAWA5

④ ⑤ SDWATO

③ OLYMPUS OLNPS

Line drawings of hands holding a digital camera with a screen, showing three different states of action (no text or symbols present)

b. Enfoque.

W T Botón disparador (Presionar a medias) Olympus

[IN] HQ 3072×2304 0.0 '07:00:10 12:30 100-00:04 4

Es

Borrado de imágenes

Line drawing of a digital camera with lens and control panel (no text or symbols)

OLYMPUS ● Complete OLYMPUS Master 2.10.2016 Post offer, last printer to navigate OLYMPUS Master 2 OLYMPUS master interface: Top version Copyright ©OLYMPUS® (COPY) as Right Reserved.

Cable USB ② ①

Screenshot of a legacy photo editing software interface showing a grid of grayscale image thumbnails and tool panels.

Es

Consejos

OLYMPUS Olympus Master 2 Control Panel & Control

Line drawing of a generic digital camera with no text or symbols

Simple line drawing of a knotted rope or cord (no text or symbols)

Line drawing of a Olympus battery pack with mounting holes (no text or symbols on body)

Line drawing of a device with an attached cable and power plug (no text or symbols visible)

Carregador de bateria (LI-40C)

Cabo USB Cabo AV CD-ROM

OLYMPUS Master

Line drawing of a Olympus digital camera with attached cable and scroll (no text or symbols)

③ OLYMPUS OLYMPUS

Travão da bateria

Line drawings of three hands holding a digital camera, showing front, side, and top views (no text or symbols)

b. Focagem.

Line drawing of a digital camera with lens and screen (no text or symbols)

PANORAMA IMAGEM + SCR RD STAWAR QUHLD IMAGEM CONFIG. SCENE HOT STANDO SAIR MENU DEF OK

QUALID IMAGEM

IMAGEM + SOM/VÍDEO C/SOM

Grava som durante o disparo.

Apagar todas as imagens

OLYMPUS ● Template OLYMPUS Master 2 Line primers OLYMPUS Master 2 OLYMPUS moves MasterPack. The version Copyright © 2017 OLYMPUS MACHINE COPY & Print Process

Screenshot of a legacy photo editing software interface showing a grid of grayscale and image thumbnails with Chinese labels.

Pt

Dicas

90,5 mm (L) × 55,0 mm (A) × 16,5 mm (P)

93,5 mm (L) × 56,0 mm (A) × 20,0 mm (P)

Morada : 3500 Corporate Parkway, P.O. Box 610, Center Valley,

PA 18034-0610. U.S.A.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm (Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://www.olympusamerica.com/digital

To find the nearest Service Centers, please visit: http://www.olympusamerica.com/digital, and click on the Worldwide Warranty icon at the bottom of the page.

Service Centers

U.S.A.:		Brazil:
California	Olympus Imaging America Inc.10805 Holder Street Suite 170Cypress, CA 90630-5145Tel: [phone]	Rio de Janeiro	AssistecRua Uruguaiana, 94-SobrelojaCentro-Rio de Janeiro CEP 20050-091Tel: [phone] Fax: [phone]E-Mail: [e-mail]
New York	Olympus Imaging America Inc.400 Rabro DriveHauppauge, NY 11788-4258Tel: [phone]	Sao Paulo	AssistecRua Avanhandava 126, 3 AndarConsolação, São PauloTel: [phone] Fax: [phone]E-mail: [e-mail]
Canada:Mississauga	Olympus Canada Inc.Consumer Products Group151 Telson RoadMarkham, Ontario Canada L3R 1E7Tel. [phone]		AssistecFilial Shopping EldoradoAv. Rebouças 3970, 1 Subsolo, Loja 1035Pinheiros, Sao PauloTel: [phone] Fax: [phone]E-mail: [e-mail]
Mexico:	Olympus Imaging de Mexico S.A. de C.V.WTC Mexico,Montecito No.38 - Lobby - Office 3Col. Napoles, Mexico D.F. 03810Tel. [phone]E-mail: [e-mail]	Chile:	REIFSCHNEIDER S.A.Camino El Conquistador del Monte 5024Huechuraba, SantiagoTel: 56-2-6781200Fax: [phone]E-mail : [e-mail],[e-mail]
Argentina:	Jesus Labrador S.A.Paraguay 755 PB, C1057 AAI Buenos AiresTel: [phone] Fax: [phone]E-Mail: [e-mail] Labrador S.A.Sucrursal Mitre, Bartolome Mitrte 860C1036AAP Buenos Aires Tel: [phone]E-mail: [e-mail]	Colombia:	CV Tronica LTDACalle 68 No 12-57, BogotaTel: [phone]/348-1573Fax: [phone]E-mail: [e-mail]
		Panama:	FOTOSEREdif. El Paical, Oficina No3, P.A.Urb. Herbruger, Transistmica(Detras del S/M Riba Smith),Tel/Fax: [phone]E-mail: [e-mail]
		Uruguay:	Fotocamara S.R.L.Rondeau 1470 MontevideoTel: [phone] Fax: [phone]E-mail: [e-mail]
		Venezuela:	Micron C.A.4ta. transversal Urb. Horizonte,Edificio América, Mezanine, Caracas 1070-ATel: [phone] Fax: [phone]E-mail: [e-mail]
