• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

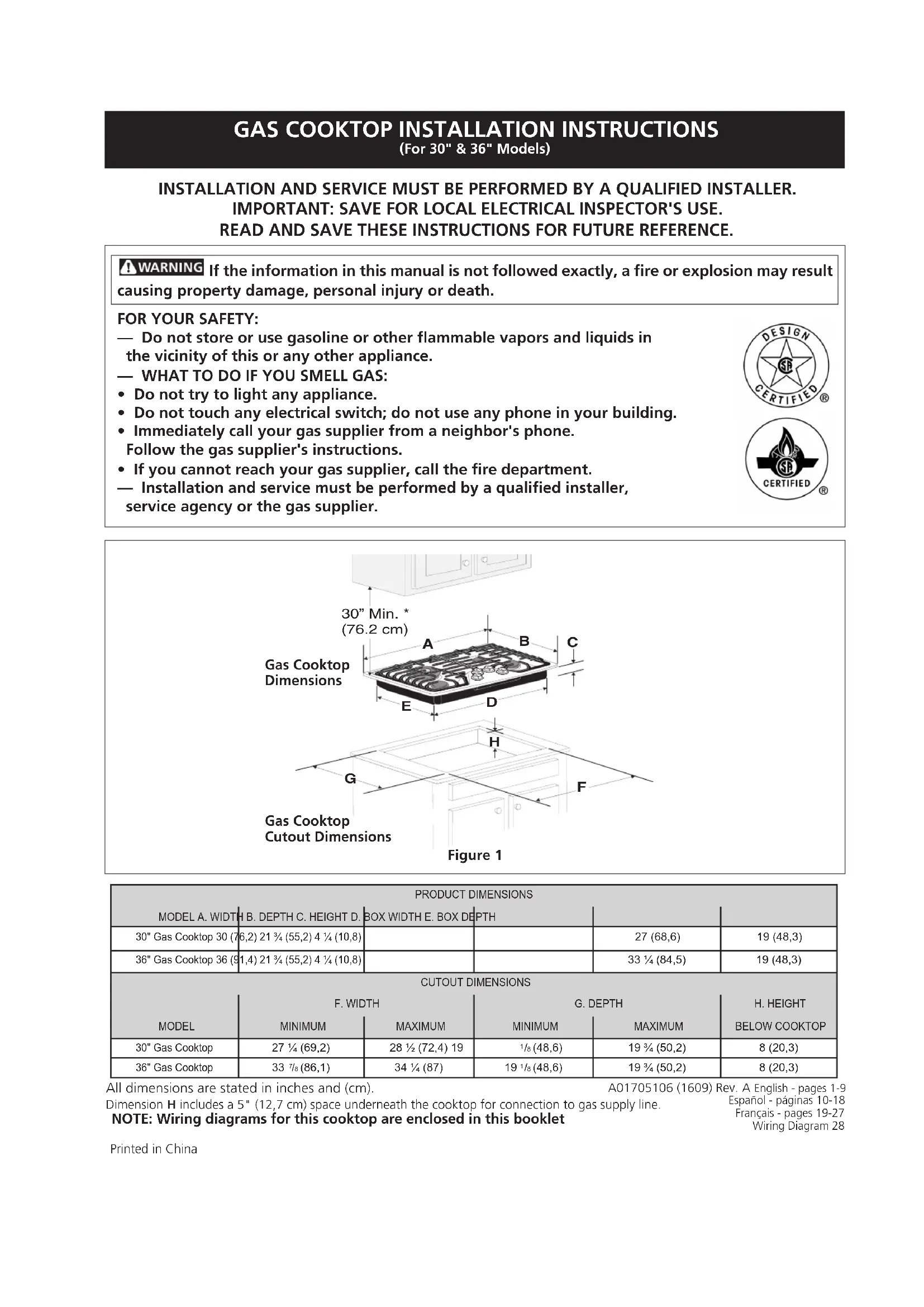

• If you cannot reach your gas supplier, call the fire department. — Installation and service must be performed by a qualified installer, service agency or the gas supplier. All dimensions are stated in inches and (cm). Dimension H includes a 5" (12,7 cm) space underneath the cooktop for connection to gas supply line. NOTE: Wiring diagrams for this cooktop are enclosed in this booklet Figure 1 Printed in China Gas Cooktop Cutout Dimensions Gas Cooktop Dimensions PRODUCT DIMENSIONSMODEL A. WIDTH B. DEPTH C. HEIGHT D. BOX WIDTH E. BOX DEPTH30" Gas Cooktop 30 (76,2) 21 ¾ (55,2) 4 ¼ (10,8)27 (68,6) 19 (48,3)36" Gas Cooktop 36 (91,4) 21 ¾ (55,2) 4 ¼ (10,8)33 ¼ (84,5) 19 (48,3) CUTOUT DIMENSIONSF. WIDTH G. DEPTH H. HEIGHT MODEL MINIMUM MAXIMUM MINIMUM MAXIMUM BELOW COOKTOP 30" Gas Cooktop27 ¼ (69,2) 28 ½ (72,4) 19

Important Notes to the Installer

1. Read all instructions contained in these installation

instructions before installing the cooktop.

2. Remove all packing material before connecting the

electrical supply to the cooktop.

3. Observe all governing codes and ordinances.

4. Be sure to leave these instructions with the consumer.

5. Note: For operation at 2000 ft. elevations above see

level, appliance rating shall be reduced by 4 percent for each additional 1000 ft. Important Note to the Consumer Keep these instructions with your Use and Care Guide for future reference. IMPORTANT SAFETY INSTRUCTIONS Installation of this cooktop must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA 54 in the United States, or in Canada, with the Canadian Fuel Gas Code, CAN/CGA B149 and CAN/CGA B149.2.

• When installed in a manufactured (mobile) home installation must conform with the Manufactured Home Construction and Safety Standard, title 24 CFR,

part 3280 [Formerly the Federal Standard for Mobile

Home Construction and Safety, title 24, HUD (part 280)] or, when such standard is not applicable, the Standard for Manufactured Home Installation, ANSI/ NCSBCS A225.1 or with local codes where applicable. This cooktop has been design certified by CSA International. As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find them in the Use and Care Guide, read it carefully.

• Air curtain or other overhead hoods, which operate by blowing a downward air flow on to a range, shall not be used in conjunction with gas ranges other than when the hood and range have been designed, tested and listen by an independent test laboratory for use in combination with each other.

• Be sure your cooktop is installed and grounded properly by a qualified installer or service technician.

• This cooktop must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70—latest edition in the United States, or in Canada, with the Canadian Electrical Code, CSA C22.1 Part 1.

• The burners can be lit manually during an electrical power outage. To light a burner, hold a lit match to the burner head, then slowly turn the Surface Control knob to LITE. Use caution when lighting burners manually.

• Do not store items of interest to children in cabinets above the cooktop. Children could be seriously burned climbing on the cooktop to reach items.

• To eliminate the need to reach over the surface burners, cabinet storage space above the burners should be avoided.

• Adjust surface burner flame size so it does not extend beyond the edge of the cooking utensil. Excessive flame is hazardous.

• Never use your cooktop for warming or heating the room. Prolonged use of the cooktop without adequate ventilation can be hazardous.

• Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance. Explosions or fires could result. The electrical power to the cooktop must be shut off while gas line connections are being made. Failure to do so could result in serious injury or death.GAS COOKTOP INSTALLATION INSTRUCTIONS (For 30" & 36" Models)

Figure 2 – CABINET DESIGN To eliminate the risk of burns or fire from reaching over heated surfaces, cabinet storage space located above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12,7 cm) beyond the bottom of the cabinets.

Allow a minimum of 6½" (16,5 cm) below the countertop for drawer. Make sure there will be no interference with gas or electrical connection. MODEL A. B. Min. distance between rear edge and nearest combustible surface above C. Min. distance from left side and min. clear- ance from right side 30" Cooktop 30" (76,2 cm) 2 ½" (6,4 cm) 9" (22,9 cm) 36" Cooktop 36" (91,4 cm) 2 ¾" (7 cm) 9" (22,9 cm)GAS COOKTOP INSTALLATION INSTRUCTIONS (For 30" & 36" Models)

• If no cooktop is installed directly over the oven unit,

(12,7 cm) maximum is allowed. Typical Under Counter Installation of an Electric Built-in Oven with a Cooktop Mounted Above Cut an opening in wood base minimum 4" (10,2 cm) x 4" (10,2 cm) to route armored cable to junction box. 4 1/2" (11,4 cm) Max.* 208/240 Volt grounded junction box for built-in oven. All mounting hardware must be used to secure the built-in oven to the cabinets. Refer to the built-in oven installation instructions. Side filler panels are necessary to isolate the unit from adjoining cabinets. Panel height should allow for installation of approved cooktop models. See "Typical Gas Cooktop Installation Over an Electric Built-in Oven Installed Under the Counter" on next page. 36" (91,4 cm) Min. Junction box must be located approx. 3" (7,6 cm) to the left of the built-in oven cutout. This cooktop may be installed over certain built-in electric oven models. Figure 3 Use 3/4" (1,9 cm) plywood, installed on two runners, flush with toe plate. Base must be capable of supporting 150 pounds (68 kg) for 27" models and 200 pounds (90 kg) for 30" models. Unit will overlap cutout (minimum) edges by 1" (2.5cm) CUTOUT DIMENSIONS (INCHES (cm)) OVEN SIZE E F

Wall Oven Cabinet Typical Gas Cooktop Installation Over an Electric Built-in Oven Installed Under the Counter GAS COOKTOP

(10,2 cm) 120V/60Hz Grounded Outlet Right Side of Cabinet Pressure Regulator Flare Union Flexible Connector Cabinet sides or filler panel

To clamp down, insert an angle bracket into the slot on each side of the unit as shown. Run thumb screw up through the bracket, up against the bottom of the counter. Tighten until the unit draws down and is secure. Provide an Adequate Gas Supply This cooktop is designed to operate on natural gas at 4" of manifold pressure only. A pressure regulator is connected in series with the manifold on the cooktop and must remain in series with the supply line. For proper operation, the maximum inlet pressure to the regulator must be no more than 14" of water column (W.C.) pressure. For checking the regulator, the inlet pressure must be at least 1" (or 2,5 kPa) greater than the regulator manifold pressure setting. The regulator is set for 4" of manifold pressure, the inlet pressure must be at least 5". The gas supply line to the range should be 1/2" or 3/4" pipe. LP/Propane Gas Conversion This appliance can be used with Natural gas or LP/ Propane gas. It is shipped from the factory for use with natural gas. A kit for converting to LP gas is supplied with your cooktop. The kit is marked "FOR LP/PROPANE GAS CONVERSION". The conversion must be performed by a qualified service technician in accordance with the kit instructions and all local codes and requirements. Failure to follow instructions could result in serious injury or property damage. The qualified agency performing this work assumes responsibility for the conversion. Failure to make the appropriate conversion can result in serious personal injury and property damage. Important: Remove all packing material and literature from cooktop before connecting gas and electrical supply to cooktop. Wall Outlet Location Figure 5 Cooktop Installation

1. Visually inspect the cooktop for damage.

2. Set the cooktop into the countertop cutout.

NOTE: Do not use caulking compound; cooktop should be removable for service when needed. Granite countertop Installation Kit A Granite Countertop Installation kit # 903103-9010 can be ordered through a Service Center or by phone at 1-877- ELECTROLUX (1-877-435-3287). Clamp Down Information Once the cooktop is installed in the counter opening, you must clamp the unit down as shown. Countertop Cooktop Angle Bracket Seal Thumb Screw Figure 6GAS COOKTOP INSTALLATION INSTRUCTIONS (For 30" & 36" Models)

Once regulator is in place, open the shutoff valve in the gas supply line. Wait a few minutes for gas to move through the gas line. Check for leaks. After connecting the cooktop to the gas supply, check the system for leaks with a manometer. If a manometer is not available, turn on the gas supply and use a liquid leak detector (or soap and water) at all joints and connections to check for leaks. Do not use a flame to check for leaks from gas connections. Checking for leaks with a flame may result in a fire or explosion. Tighten all connections if necessary to prevent gas leakage in the cooktop or supply line. Check alignment of control knob valves after connecting the cooktop to the gas supply to be sure the cooktop manifold pipe has not moved. A misalignment could cause the valve stems to rub on the control panel, resulting in a gas leak at the valve. Disconnect this cooktop and its individual manual shutoff valve from the gas supply piping system during any pressure testing of that system at test pressures greater than 1/2 psig (3.5 kPa or 14" water column). Isolate the cooktop from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa or 14" water column). Electrical Requirements 120 volt, 60 Hertz, properly grounded branch circuit protected by a 15 amp circuit breaker or time delay fuse. Do not use an extension cord with this cooktop. Grounding Instructions IMPORTANT Please read carefully. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong grounding wall receptacle (see Figure 9) to minimize the possibility of electric shock hazard from the appliance. The wall receptacle and circuit should be checked by a qualified electrician to make sure the receptacle is properly grounded. Where a standard 2-prong wall receptacle is installed, it is the personal responsibility and obligation of the consumer to have it replaced by a properly grounded 3-prong wall receptacle. Install Pressure Regulator Install the pressure regulator with the arrow on the regulator pointing up toward the unit in a position where you can reach the access cap. Do not make the connection too tight. The regulator is die cast. Overtightening may crack the regulator resulting in a gas leak and possible fire or explosion. Figure 8 Shutoff Valve - Open position to applianceto gas supply line All connections must be wrench-tightened Figure 7 FlareUnionFlareUnion GAS FLOW ManualShutoffValvePressureRegulator

Off FlexibleConnectorAccess Cap Nipple Nipple Assemble the flexible connector from the gas supply pipe to the pressure regulator in the following order:

1. manual shutoff valve

2. 1/2" (1.3 cm) nipple

3. 1/2" (1.3 cm) flare union adapter

4. flexible connector

5. 1/2" (1.3 cm) flare union adapter

6. 1/2" (1.3 cm) nipple

7. pressure regulator

Use pipe-joint compound made for use with Natural and LP/Propane gas to seal all gas connections. If flexible connectors are used, be certain connectors are not kinked. The supply line must be equipped with an approved manual shutoff valve. This valve should be located in the same room as the cooktop and should be in a location that allows ease of opening and closing. Do not block access to the shutoff valve. The valve is for turning on or shutting off gas to the appliance.GAS COOKTOP INSTALLATION INSTRUCTIONS (For 30" & 36" Models)

Check Operation Refer to the Use and Care Guide packaged with the appliance for operating instructions and for care and cleaning of your cooktop. Do not touch the burners. They may be hot enough to cause burns.

1. Check Burner Cap Placement

Regular burner It is very important to be sure that all surface burner caps and burner grates are properly installed and in the correct locations before operating the appliance. Please Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Disconnect electrical supply cord from wall receptacle before servicing cooktop. Model and Serial Number Location The serial plate is located on the underside of the cooktop (see Figure 10). When ordering parts for or making inquires about your range, always be sure to include the model and serial numbers and a lot number or letter from the serial plate of your cooktop. Your serial plate also tells you the rating of the burners, the type of fuel and the pressure the cooktop was adjusted for when it left the factory. Preferred Method Grounding type wall receptacle Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power supply cord with 3-prong grounding plug. Figure 9 Serial plate is located under the burner box. Figure 10 Burner Head Fig. 11 Burner Cap Lip Correct Burner Cap Placement Fig. 12 Incorrect Burner Cap Placement Fig. 13 note that the burner heads are secured to the cooktop. The cooktop is not removable. Do not attempt to remove or lift the cooktop. To prevent flare-ups and avoid creation of harmful by-products, do not use the cooktop without all burner caps properly installed to insure proper ignition and gas flame size. Always keep the burner caps and burner grates in place whenever the surface burners are in use. DO not allow spills, food, cleaning agents or any other material to enter the gas orifice holder openings. Check and be sure the size of each burner cap matches the size of the burner head. Check and be sure that all round style burner caps are correctly in place on round burner heads. Check and be sure that all oval style burner caps are correctly in place on oval burner heads (if equipped). Check and be sure that all dual or twin style burner caps are correctly in place on dual or twin heads (if equipped). On round style burners, the burner cap lip (Figure 11) should fit snug into the center of burner head and be level. Refer to figures 12 & 13 for correct and incorrect burner cap placement. Once in place, you may check the fit by gently sliding the burner cap from side to side (Figure 14) to be sure it is centered and firmly seated. When the burner cap lip makes contact inside the center of the burner head you will be able to hear the burner cap click. Please note that the burner cap should NOT move off the center of the burner head when sliding from side to side.GAS COOKTOP INSTALLATION INSTRUCTIONS (For 30" & 36" Models)

2. Turn on Electrical Power and Open Main Shutoff

Operation of electric igniters should be checked after range and supply line connectors have been carefully checked for leaks and range has been connected to electric power. a. To check for proper lighting, push in and turn a surface burner knob to the LITE position. You will hear the igniter sparking. b. The surface burner should ignite when gas is available to the burner. Purge air from supply lines by leaving knob in the LITE position until burner ignites. Each burner should light within four (4) seconds in normal operation after air has been purged from supply lines. c. Visually check that burner has a flame, Once the burner ignites, the control knob should be turned out of the LITE position. d. Try each surface control knob separately until all burner valves have been checked. Each burner location is equipped with a separate electrode. Fig. 14 Figure 15 Burner Cap

Burner Simmer Precision Flame Burner Head Figure 16 Hollow Valve Stem Dual Flame burner (If equipped) Remove all tapes from burner cap Be sure that the dual flame burner caps are correctly placed BEFORE using your cooktop. Note: There are no burner adjustments necessary on this cooktop.

4. Adjust the "LOW" Setting of Surface Burner Valves
