Product Type	Pedestal for washer or dryer
Brand	Electrolux
Model	EPWD15MB
Dimensions (L x W x H)	68.5 x 68.5 x 30.5 cm
Weight	18 kg
Power supply	None (passive pedestal)
Maximum load capacity (drawer)	29.5 kg (65 lb)
Maximum load capacity (stacked appliance)	Refer to appliance specifications
Material	Painted steel and plastic
Color	White
Compatibility	Electrolux front-load washers and dryers
Main functions	Elevates the appliance; built-in storage drawer
Adjustable feet	Yes, 4 feet with lock nuts
Mounting brackets included	Front and rear brackets with screws
Recommended rear clearance	12.5 cm (5 in) minimum; + 2 cm (3/4 in) for steam models
Maintenance	Clean with a soft, damp cloth
Warranty	2 years (parts)
Repairability	Spare parts available from Electrolux after-sales service
Safety standards	UL / CSA

Frequently Asked Questions - EPWD15MB ELECTROLUX

How to install the pedestal under my washer or dryer?

To install the pedestal, start by placing it a few centimeters from its final location. Level it by adjusting the four feet. Attach the front and rear mounting brackets according to your appliance type (washer or dryer). Tilt the pedestal, slide it under the appliance, align the holes and screw the brackets to the base of the appliance. Stand the assembly upright and check the level. For more details, follow the steps in the provided manual.

How to level the pedestal?

Use the four leveling feet located under the pedestal. Turn each foot to adjust the height, then check the level front to back and side to side using a bubble level. Once the pedestal is stable, lock each foot by tightening the lock nut against the base of the pedestal.

What is the maximum weight that can be placed in the drawer?

The total weight in the closed drawer or the combination of weight in and on the open drawer must not exceed 29.5 kg (65 lb). Do not exceed this limit to avoid damaging the drawer or pedestal.

Is this pedestal compatible with all Electrolux washer models?

The EPWD15MB pedestal is designed for Electrolux front-load washers and dryers. Check the dimensions of your appliance and the alignment of the mounting holes. If in doubt, consult the compatibility list on the Electrolux website or contact customer service.

Can I stack a dryer on a washer already installed on a pedestal?

No, it is strongly discouraged to stack a dryer on a washer already installed on a pedestal. The manual states: 'Do not stack a dryer on a washer already installed on a pedestal'. This could cause a risk of tipping or injury.

What is the warranty for the Electrolux EPWD15MB pedestal?

The pedestal is covered by a limited two-year warranty from the date of purchase. During this period, Electrolux will repair or replace parts that are defective in material or workmanship, subject to installation and use in accordance with the instructions.

How to clean the pedestal?

Clean the pedestal with a soft, damp cloth. Do not use abrasive products, solvents, or harsh cleaners that could damage the finish. Then wipe with a dry cloth to avoid streaks.

How to lock the leveling feet?

After adjusting the height of each foot, lock it by firmly tightening the lock nut against the base of the pedestal, without turning the rubber foot. This prevents the feet from unscrewing during use.

How to identify the position of the rear brackets for my washer or dryer?

Each rear bracket has tabs marked 'A' and 'B', and slots on the back of the pedestal marked '1', '2', and '3'. For a dryer, insert tab A into slot 1 with the arrow pointing to the rear. For a washer, insert tab A into slot 1 with the arrow pointing to the front. Refer to the table in the manual for confirmation.

What tools are needed for installation?

Installation requires a screwdriver (not supplied) to screw the mounting brackets. It is also recommended to have a bubble level to check levelness. Prepare a cardboard sheet to protect the floor when tilting the appliance.

USER MANUAL EPWD15MB ELECTROLUX

A 2 Front brackets.
B 2 Rear brackets.

COMPOSANTS DU NÉCESSAIRE :

A 2 supports avant.
B 2 supports arrriere.

PIEZAS DEL KIT:

C 14 #10 (16 x .500) screws.

COMPOSANTS DU NÉCESSAIRE DE VIS:

C 14 vis n° 10 (16 x .500).

PIEZAS DEL KIT (TORNILLOS):

C 14 tornillos n.° 10 (16 x .500).

IMPORTANT

Total weight IN closed drawer or combination of IN and ON TOP OF open drawer should not exceed 65 lb. (29.5 kg).

IMPORTANT

Universal wrench supplied with washer

Failure to disconnect from power source before stacking could result in personal injury or even death.

Improper installation of dryer venting could result in personal injury or damage to property.

To avoid back or other injury, have more than one person move or lift the washer or dryer.

Do not stack a dryer on top of washer already installed on pedestal.

AVERTISSEMENT

Prepare appliance for mounting

NOTE

Due to higher center of gravity of appliance on pedestals, some side-to-side rocking is normal during operation. Vibration can be minimized by assuring appliance is installed properly, including being level and solid on all four (4) legs by following these directions.

If washer or dryer is new and has not been installed yet, skip 1. to step 4.

If dryer is already installed, disconnect dryer from electrical 2. and gas connections and exhaust venting. On models with Steam Option, turn off cold water supply and disconnect water supply hose to dryer.

If washer is already installed, disconnect washer from electri-3. cal connection. Turn off hot and cold water supply and disconnect hot and cold water supply hoses from water supply outlets. Disconnect drain hose from drain pipe.

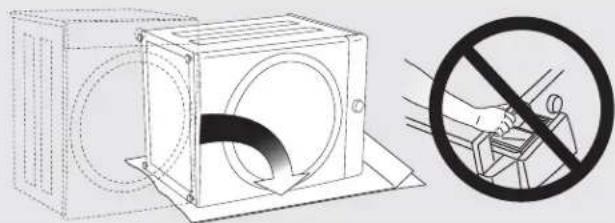

Protect foor and unit with cardboard or rug and carefully lay 4. the appliance on its side and screw each leg completely into the base.

CAUTION

EXCESSIVE WEIGHT HAZARD

To avoid back or other injury, have more than one person move or lift the appliance.

IMPORTANT

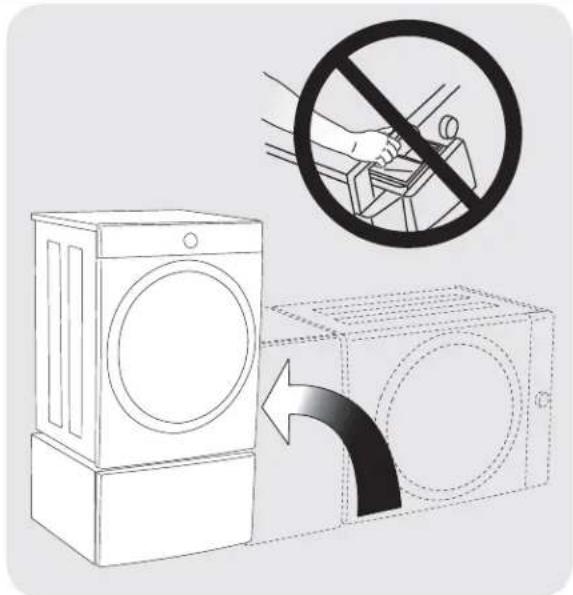

DO NOT use open dispenser drawer of washer or dispenser cavity as hand-hold location when tipping washer on its side. Serious damage could occur to your washer.

IMPORTANT

If feet are not completely screwed in, mounting holes in appliance will not align to mounting holes in brackets.

Prepare pedestal before mounting

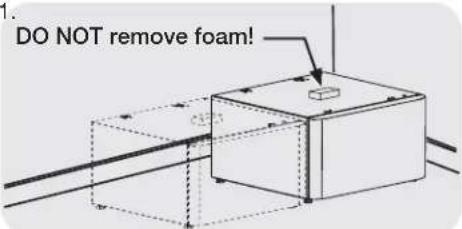

Locate pedestal 1. to within a few inches of its final location.

NOTE

Allow for approximately 5 in. (12.5 cm) behind the pedestal for clearance of back of washer or dryer to the wall. Allow an additional 3/4 in. (2 cm) for water inlet on Steam Model Dryers and additional space if venting dryer upward or downward.

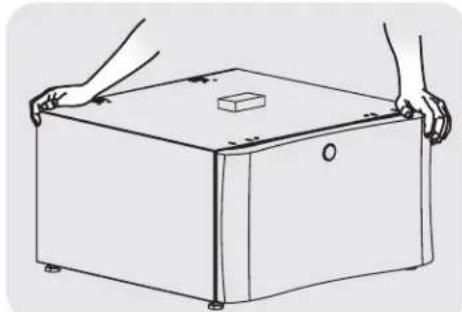

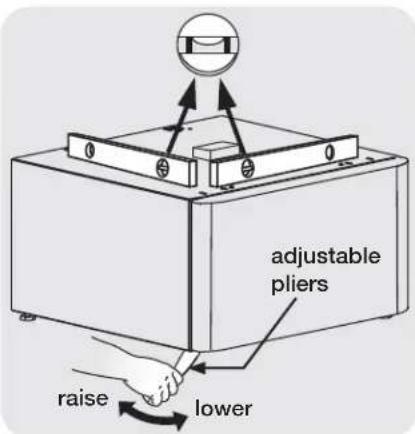

Level the pedestal 2. front-to-back and side-to-side by adjusting each leveling leg. Keep leg extension to a minimum.

Rock the pedestal from corner-to-corner to check for stability. 3. Repeat leveling and rocking until all four (4) feet are sturdy on the floor and pedestal is level.

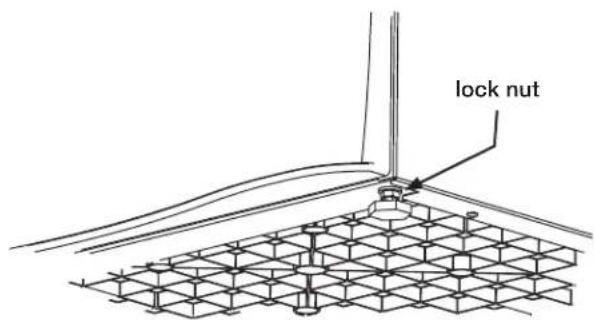

Without turning the rubber foot, lock each pedestal leg in 4. place by tightening its lock nut tight against the pedestal base.

Attach front mounting brackets

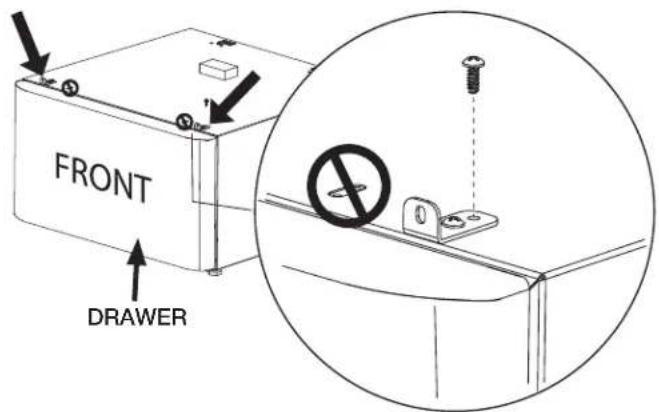

Attach each front bracket to outer-1. most set of holes with 2 screws.

Front brackets from kit.

Attach rear mounting brackets

Each rear bracket has tabs marked "A" and "B".

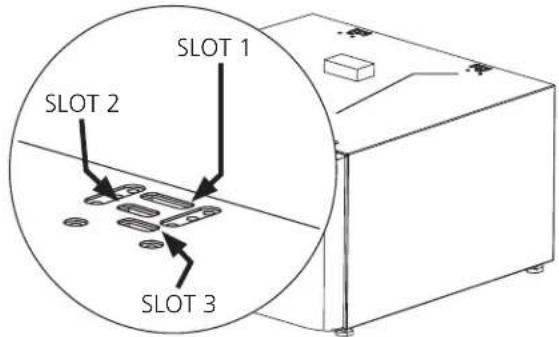

Each pedestal has slots in the rear marked "1", "2" and "3".

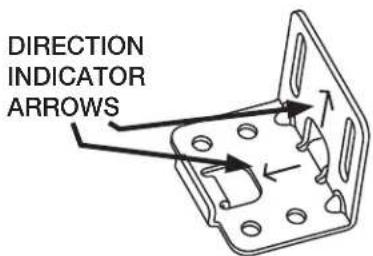

Each rear bracket also has 2 arrows indicating - bracket direction when mounted on the pedestal.

Determine your appliance type (washer or dryer) according to column 1. 1 in table below.

Orient rear brackets according to column 2 for your particular model.2.

Attach each bracket with 2 screws through the holes that line up on 3. pedestal.

1 - Appliance 2 - Fear bracket orientation
DRYER	Tab A into* Slot 1* Arrow pointing to back*
WASHER	Tab A into* Slot 1* Arrow pointing to front*

Attach pedestal to appliance

Turn pedestal on its side to match orientation to appliance.1. Slide pedestal up to appliance and line up holes in mounting 2. brackets with holes in appliance base.

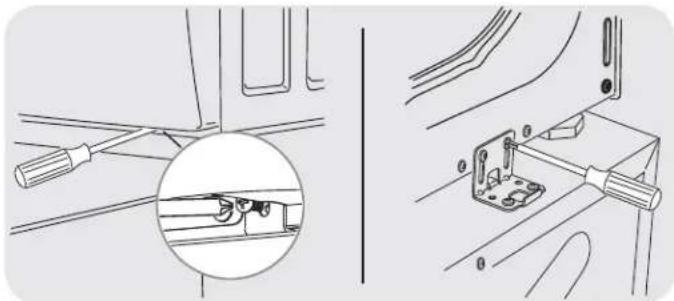

Attach rear and front brackets to appliance base with supplied 3. screws into aligning holes - one in each front bracket and two in each rear bracket.

Using more than one person, carefully return appliance and ped-4. estal to upright position.

CAUTION

EXCESSIVE WEIGHT HAZARD

To avoid back or other injury, have more than one person move or lift the appliance.

IMPORTANT

DO NOT use open dispenser drawer of washer or dispenser cavity as hand-hold location when tipping washer upright. Serious damage could occur to your washer.

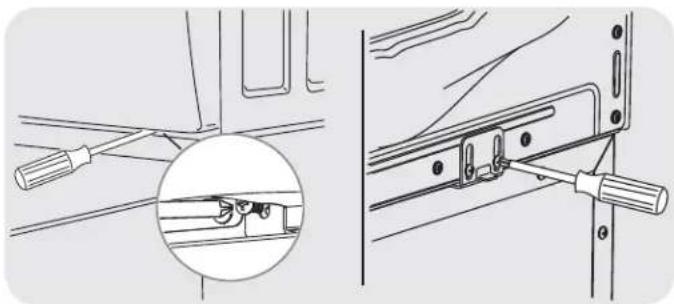

After retuning appliance upright, loosen each mounting screw 5. going into appliance base. Allow the appliance to settle in the brackets and retighten each mounting screw.

WASHER:

DRYER:

Installing or re-installing appliance

Washer on pedestal: Dryer on pedestal:

Slide washer/pedestal into place.1.

Check for levelness and rock all four (4) legs again. Repeat 2. until level and solid.

Refer to Wa3. sher Installation Instructions for complete details on installing water, drain, or electrical.

Slide dryer/pedestal into place.1.

Check for levelness and rock all four (4) legs again. Repeat 2. until level and solid.

Refer to 3. Dryer Installation Instructions for complete details on installing electrical, gas, or exhaust venting.

REMARQUE

Your pedestal is covered by a two year limited warranty. For two years from your original date of purchase, Electrolux will repair or replace any parts of this pedestal that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not In ordinary household use or used other than in accordance with the provided instructions.
Any Labor or In-home service costs.

Damages to the fi nish of appliance or home incurred during transportation or installation, including but not ● limited to fl oors, cabinets, walls, etc.

Damages caused by: services performed by unauthorized service companies; use of parts other than . genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers listed in your Use and Care manual.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. in Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specific cations as described or illustrated are subject to change without notice.

PRODUCT RECORD

In the space below, record the date of purchase and model number of the product.

Model No.:

Date of Purchase:

Save these instructions and your sales receipt for future reference.

For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287).

For online support and product information visit http://www.electroluxappliances.com.
