USER MANUAL BSSA970RVS Pelgrim

Hand holding a dark plastic tray with open compartments, no visible text or symbols

BSSA670____

BSSA970____

BSGA970---

Handleiding

Afzuigkap

Instructions for use

Cooker hood

NL

Handleiding 3 - 14

FR

Instructions for use 3 - 14

Gebruikte pictogrammen / Pictogrammes utilisés Verwendete Piktogramme / Pictograms used

Diagram of a microwave oven with a door and lid, showing internal components and a hand inserting a component (no text or symbols)

Technical line drawing of a mechanical device with a hand holding a circular component (no text or symbols)

Technical line drawing of a door-shaped device with a grating and mounting holes, shown with a magnified inset (no text or symbols)

Verlichting

Let op!

Prohibition sign with crossed-out trash bin and no text, likely indicating no waste or disposal.

Illustration of a microwave oven with a hand inserting a clip into it (no text or symbols)

Technical line drawing of a mechanical device with a hand holding a circular component (no text or symbols)

Technical line drawing of a mechanical device with a door and mounting holes, showing internal components (no text or symbols)

Remarque!

Prohibition sign with crossed-out trash bin and no text, likely indicating no waste or disposal.

Illustration of a microwave oven with a door and front panel, being cut with a hand (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical device with a door and mounting holes (no text or symbols)

Achtung!

Prohibition sign with crossed-out trash bin and no text, likely indicating no waste or disposal.

Operation
Cleaning	the	filters

Operation with a connected hob

Making the connection between cooker hood and hob 9

Automatic setting

Activated intensive setting on the hob 10

Activated timer function on the hob 10

Lighting 11

Maintenance

Cleaning 12

Grease filters

Replacing the odor/fine dust filter 13

Lighting 13

Environmental aspects

Disposal of packaging and appliance 14

Introduction

Congratulations on choosing this Pelgrim cooker hood. This product is designed with simple operation and optimum comfort in mind.

This extractor hood has AutoAir functionality. Via a hob with AutoAir function, the cooker hood can then be controlled in 3 different ways: manually, semi-automatically, and fully automatically. Choose the way that suits you best. Of course, you can always adjust the settings yourself.

These instructions for use explain how you can make best use of this appliance. These instructions contain information about the operation of the appliance and background information that may be of help to you during its use.

First read the safety instructions before using the appliance!

Read these instructions thoroughly before you first use the appliance, and keep the instructions for future use.

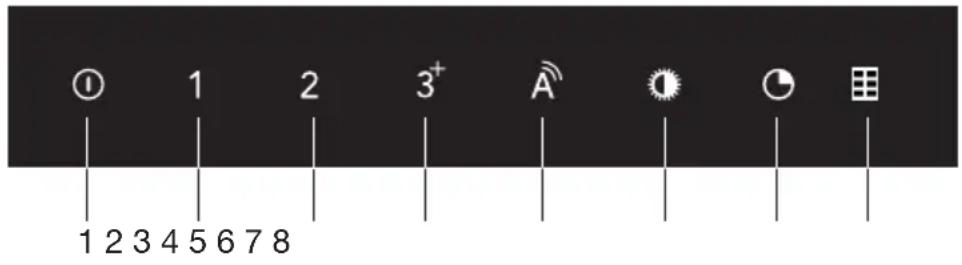

Control panel

The additional AutoAir functions that are available if a connection has been made with a hob, are described in a separate chapter (see 'Operation with a connected hob').

1 2 3 4 5 6 7 8 3⁺ A¹ C L G

1. Switching fan on/off and key lock function
2. Speed setting 1
3. Speed setting 2
4. Speed setting 3 and intensive setting (Boost)
5. Automatic mode
6. Switching on/off and dimming the lighting
7. Timer function/Clean Air function
8. Filter indicator

Note!

If you have a cooker hood with a odor/fine dust filter, you should activate the odor/fine dust filter indicator as described in the ‘Cleaning the filters’ paragraph.

Operation

2

I

Switching extraction on and off

1. Select the desired extraction setting by touching the corresponding key.
   The cooker hood switches on.
   The on/off key and speed setting key are illuminated.
2. Shortly touch and release the on/off key.
   The cooker hood switches off.

3^+

Switching on the intensive setting (Boost)

The cooker hood is switched on.

1. Touch and hold speed key 3 for approximately 3 seconds.
   The intensive setting (boost setting 'B') is switched on for six minutes. The on/off key is illuminated and speed key 3 will flash during this period.
   The original extraction setting will be reactivated after this period.

2. Touch the on/off key or any other speed key to stop the intensive setting at any time.

[Non-Text]

Switching the lighting on and off

1. Shortly touch and release the lighting key.
   The lighting key is illuminated.
   The light switches on at maximum strength.

2. Touch and hold the lighting key for approximately 3 seconds to dim the lighting strength.

3. To set the lighting back to maximum strength, shortly touch and release the lighting key.
4. To turn off the lighting when the light is dimmed, touch and hold the lighting key for approximately 3 seconds.
5. To turn off the lighting when the light is at maximum strength, shortly touch and release the lighting key.

When a connected hob is switched on, the lighting of the cooker hood always switches on automatically. You can continuously adjust the brightness of the hood via the hob.

When switching off a connected hob, the lighting remains on. Manually switch off the lighting with the lighting key on your AutoAir hob or via your hood.

Switching on the timer

1. Shortly touch and release the timer key.

The timer key will light up.

The cooker hood will switch off automatically after 15 minutes. If the lighting is lit, it switches off automatically once the timer is finished.

1. Switch off the timer function in the meantime by touching the timer key again.

The timer function cannot be activated when the intensive setting is switched on.

Clean Air function:

The Clean Air function allows you to freshen the air in your kitchen for a maximum of 24 hours.

1. Switch off the cooker hood by touching the on/off key.
2. Switch off the lighting by touching the lighting key.
3. Touch and hold the timer key for approximately 3 seconds.

The cooker hood switches on automatically for 10 minutes every hour at the lowest speed setting.

During this period, the on/off key will be lit continuously while the speed setting 1 key and the timer key will flash.

1. Switch off the Clean Air function in the meantime by touching the timer key, or by switching off the cooker hood by touching the on/off key.

Note!

The Clean Air function cannot be activated when the intensive setting or the timer function is switched on.

Key lock function

The key lock function allows you to lock the keys for cleaning purposes or for child safety.

1. Switch off the cooker hood by touching the on/off key.
2. Touch and hold the on/off key for approximately three seconds until all keys will flash from the right to the left.
   All keys are locked.
3. To unlock the keys, touch and hold the on/off key again for approximately three seconds.

Cleaning the filters

Saturation grease and odor/fine dust filters

The filters should be replaced or cleaned when the filter indicator key is flashing.

Grease filter

The filter indicator key and speed key 1 will flash after 100 operating hours.

- The grease filters should then be cleaned.

Odor/fine dust filter

The filter indicator key and speed key 2 will flash after 200 operating hours.

- The odor/fine dust filter should then be replaced.

Reset the filter indicator

1

1. Switch off the cooker hood by touching the on/off key.

2. Switch off the lighting by touching the lighting key.

3. Reset the memory: touch and hold speed key 1 for approximately three seconds.

All keys will flash three times.

If you have a cooker hood with a odor/fine dust filter, you should activate the odor/fine dust filter indicator.

2

Switching on the odor/fine dust filter indicator (if necessary)

1. Switch off the cooker hood by touching the on/off key.

2. Switch off the lighting by touching the lighting key.

3. Touch and hold speed key 2 for approximately three seconds until all keys flash twice.

The odor/fine dust filter indicator is activated.

2

Switching off the odor/fine dust filter indicator

1. Switch off the cooker hood by touching the on/off key.

2. Switch off the lighting by touching the lighting key.

3. Touch and hold speed key 2 for approximately three seconds until all keys flash once.

The odor/fine dust filter indicator is deactivated.

Making the connection between cooker hood and hob

The connection to an AutoAir hob is not active by default. First the connection to the hob must be activated.

At the same time, a setting must also be made on the hob; see the hob manual for this.

Check our website for the full range of hobs that can be connected to your cooker hood.

Making a connection

1. Turn off the hood and the lighting.
2. Touch and hold the automatic mode key 3 for three seconds.

The automatic mode key, the lighting key, the timer key and the filter indicator key will flash simultaneously for a maximum of two minutes.

On your hob, activate the pairing mode in the user menu (see the hob manual). The connection to the hob is established.

1. The connection is successful when the automatic mode key, the lighting key, the timer key and the filter indicator key are illuminated continuously for two seconds.

If the automatic mode key, the lighting key, the timer key and the filter indicator key are no longer illuminated within two minutes, the connection was not successful. Repeat the procedure. If necessary, clear the hood's memory (see “Disconnecting”).

Disconnecting

1. Turn off the hood and the lighting.
2. Touch and hold the filter indicator key 3 for three seconds.

The automatic mode key, the lighting key, the timer key and the filter indicator key will blink five times simultaneously.

The hob is no longer connected.

Automatic mode

The hob can control the extraction of the cooker hood in 3 different ways: manually, semi-automatically, and fully automatically. The automatic mode is for the user who wants the extraction level to be automatically adjusted to the cooking intensity. Extraction starts automatically as soon as a cooking zone is active and the extraction level depends on how the hob is used. When the hob is switched off, the extraction continues for 10 minutes and then stops automatically.

In automatic mode, the hob can only switch on speed 1 or 2 for this hood.

Switching on/off the automatic mode on the cooker hood

The key for the automatic mode on the cooker hood only lights up when the hob is active and set to automatic mode.

The hood is switched on and on the hob the automatic mode is active.

1. Shortly touch and release the automatic mode key. The automatic mode key illuminates; the automatic mode on your cooker hood is now switched on.

2. Shortly touch and release the automatic mode key. The automatic mode key is no longer illuminated; the automatic mode on your cooker hood is switched off.

Activated intensive setting on the hob

If the intensive setting for the hood has been set on the hob, it will automatically switch back to speed 3 after six minutes.

Activated timer function on the hob

If the timer for the hood is set on the hob, the hood will continue to operate at speed 1 (according to the countdown time that is displayed) after switching off the hob until the set time has elapsed.

Lighting

When a connected hob is switched on, the lighting of the cooker hood always switches on automatically. You can continuously adjust the brightness of the hood via the hob. When you use the hob again (after you have switched the hob off), the lighting comes on at the preset brightness.

When switching off a connected hob, the lighting remains on. Manually switch off the lighting with the lighting key on your AutoAir hob or via your hood.

Cleaning

Important!

For all maintenance first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least in the same frequency as the grease filter cleaning). Do not use abrasive cleaning products. Do not use alcohol!

Important!

If the instructions regarding cleaning the appliance or replacing the filters are not followed, this can cause a fire. These instructions should be followed! The manufacturer is not liable for damage to the hood or fire damage resulting from incompetent maintenance or from non-adherence to the above safety instructions.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wash off with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker hood finish stays in good condition if it is buffed periodically following the application of wax.

Stainless steel cooker hoods

Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with a non-abrasive, non-polishing agent and buff the stainless steel in the direction of the grain.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator – if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminium grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Grease filters

Diagram of a microwave oven with a door and lid, showing internal components and a hand inserting a component (no text or symbols)

Removing the grease filters

1. Switch off the motor and lighting.
2. Remove the grease filters from the hood by pulling the special handle.

Replacing the odor/fine dust filter

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

1. Remove the grease filters.
2. Fit the odor/fine dust filter. Slot the notches of the odor/fine dust filter in the specially designed opening.
3. Fit the grease filters.

Note!

• The odor/fine dust filter must always be used if the cooker hood is not ducted.
• Using a odor/fine dust filter creates more sound than when using the cooker hood with an outlet.
• The odor/fine dust filter's operation is optimal at a lower motor speed. You should, therefore, avoid using the intensive setting.
• Saturation of the odor/fine dust filter will eventually occur after more or less prolonged use, depending on the type of cooking and how frequently the grease filter is cleaned.
• It is necessary to replace the odor/fine dust filter when indicated by the filter indicator.
• The odor/fine dust filter must be replaced at least every year.
• DO NOT wash or reuse the odor/fine dust filter. Saturated carbon is not environmentally friendly, change the filter regularly.

Lighting

Attention!

This hood is fitted with LED light! These have to be replaced by an authorized technician. Do not attempt to replace LED light by yourself.

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

Disposal of packaging and appliance

This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method.

The packaging of the appliance is recyclable. The following materials may have been used:

• Cardboard;
  • Polyethylene film (PE);
  • CFC-free polystyrene (hard PS foam).

These materials must be disposed of in a responsible manner and in accordance with government regulations.

Prohibition sign with crossed-out trash bin and no text or symbols

The appliance is marked with a crossed out wheeled bin symbol to draw your attention to the requirement for the separate disposal of domestic electrical appliances. This means that the appliance may not be disposed of in unsorted household waste

at the end of its service life. The appliance must be taken to a special municipal waste processing location for separated waste or to a dealer who provides this service.

Collecting and disposing of domestic appliances separately avoids detrimental consequences for humans and the environment. This ensures that the materials used to make the appliance can be recovered and that substantial savings in the use of energy and raw materials can be achieved.

Declaration of conformity

We hereby declare that our products conform to the applicable European Directives, Regulations and requirements, as well as all requirements in the standards to which reference is made.

Barcode image with black and white vertical bars, no visible text or symbols beyond the pattern

844172
