TABLE OF CONTENTS

Service....1

Safety 2

Know Your Unit ....5

Specifications 5

Assembly 6

Oil and Fuel 7

Starting and Stopping 8

Operation 9

Maintenance 10

Cleaning and Storage 13

Troubleshooting....14

Warranty 16

SAVE THESE INSTRUCTIONS

SERVICE

DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

For assistance regarding the assembly, controls, operation or maintenance of the unit, please call the Customer Support Department at 1-866-206-2707 in the United States or 1-877-696-5533 in Canada. Additional information about the unit can be found on our website at www.remingtonpowertools.com.

For service, please call the Customer Support Department to obtain a list of authorized service dealers near you. Service on this unit, both within and after the warranty period, should only be performed by an authorized and approved service dealer. When servicing, use only identical replacement parts.

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

Copyright© 2012 MTD SOUTHWEST INC, All Rights Reserved.

SAFETY

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

SYMBOL MEANING

DANGER: Signals an EXTREME hazard.

Failure to obey a safety DANGER signal WILL result in serious injury or death to yourself or to others.

WARNING: Signals a SERIOUS hazard.

Failure to obey a safety WARNING signal CAN result in serious injury to yourself or to others.

CAUTION: Signals a MODERATE hazard.

Failure to obey a safety CAUTION signal MAY result in property damage or injury to yourself or to others.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, ask your LOCAL SERVICE DEALER to install the Accessory Part #753-06792 Muffler Assembly.

CALIFORNIA PROPOSITION 65

WARNING: Engine exhaust, some of its constituents and certain finished components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Read the operator's manual and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• IMPORTANT SAFETY INSTRUCTIONS •

READ ALL INSTRUCTIONS BEFORE OPERATING

WARNING: When using the unit, all safety rules must be followed. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.
• Do not operate this unit when tired, ill or under the influence of alcohol, drugs or medication.
• Children must not operate the unit. Teens must be accompanied and guided by an adult.
• All guards and safety attachments must be installed properly before operating the unit.
• Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts.
• Be aware of risk of injury to the head, hands and feet.
• Carefully inspect the area before starting the unit. Remove rocks, broken glass, nails, wire, string and other objects that may be thrown or become entangled with the unit.
• Clear the area of children, bystanders and pets; keep them outside a 50-foot (15 m) radius, at a minimum. Even then, they are still at risk from thrown objects. Encourage bystanders to wear eye protection. If you are approached, stop the unit immediately.
• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using the unit.

SAFETY WARNINGS FOR GAS UNITS

WARNING: Gasoline is highly flammable and its vapors can explode if ignited. Take the following precautions:

• Store fuel only in containers specifically designed and approved for the storage of such materials.
• Always stop the engine and allow it to cool before filling the tank. Never remove the fuel tank cap or add fuel when the engine is hot. Always loosen the fuel tank cap slowly to relieve any pressure in the tank before fueling.
• Always mix and add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. Do not smoke.
• Never operate the unit without the fuel cap securely in place.
• Avoid creating a source of ignition for spilled fuel. Wipe up any spilled fuel from the unit immediately, before starting the unit. Move the unit at least 30 ft. (9.1 m) from the fueling source and site before starting the engine. DO NOT smoke.
• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can kill. Operate this unit only in a well ventilated outdoor area.

WHILE OPERATING

- Wear safety glasses or goggles that meet current ANSI Z87.1 standards and are marked as such. Wear ear/hearing protection when operating this unit. Wear a face mask or dust mask if the operation is dusty.

- Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.

- This unit has a clutch. The tines remain stationary when the engine is idling. If they do not, take the unit to an authorized service dealer for an adjustment.

- Make sure the tines are not in contact with anything before starting the unit.

- Use the unit only in daylight or good artificial light.

- Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. Refer to Starting and Stopping.

- Use the right tool. Only use this tool for its intended purpose.

- Always hold the unit with both hands when operating. Keep a firm grip on both handles or grips.

- Do not overreach. Always keep proper footing and balance. Take extra care when working on steep slopes or inclines.

- Use extreme caution when reversing or pulling the unit towards you.

- Keep hands, face, and feet away from all moving parts. Do not touch or try to stop moving parts.

- Do not touch the engine or muffler. These parts get extremely hot from operation, even after the unit is turned off.

- Do not operate the unit faster than the speed needed to do the job. Do not run the unit at high speed when not in use.

- Do not force the unit. It will do a better, safer job when used at the intended rate.

- Always stop the unit when operation is delayed or when walking from one location to another.

- If you strike or become entangled with a foreign object, stop the unit immediately and check for damage. Do not operate the unit before repairing damage. Do not operate the unit with loose or damaged parts.

- Turn the engine to off and disconnect the spark plug for maintenance or repair.

- Use only original equipment manufacturer (OEM) replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any other parts or accessories could lead to serious injury to the user, or damage to the unit, and void the warranty.

- Keep the unit clean. Carefully remove vegetation and other debris that could block moving parts.

- To reduce fire hazard, replace a faulty muffler and spark arrestor. Keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

- If the unit starts to vibrate abnormally, stop the unit immediately. Inspect the unit for the cause of the vibration. Vibration is generally an indicator of trouble.

OTHER SAFETY WARNINGS

- All service, other than the maintenance procedures described in this manual, should be performed by a authorized service dealer.

- Before inspecting, servicing, cleaning, storing, transporting or replacing any parts on the unit:

1. Stop the unit.

2. Make sure all moving parts have stopped.

3. Allow the unit to cool.

4. Disconnect the spark plug wire.

- Secure the unit while transporting.

- Never store the unit with fuel in the tank, inside a building where fumes may reach an open flame (pilot lights, etc.) or sparks (switches, electrical motors, etc.).

- Store the unit in a dry place, secured or at a height to prevent unauthorized use or damage. Keep the unit out of the reach of children.

- Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean the unit after each use. Refer to Cleaning and Storage.

- Clean the tines with a household cleaner to remove any gum buildup. Oil the tines with machine oil to prevent rust.

- Keep these instructions. Refer to them often and use them to instruct other users. If you loan this unit to others, also loan them these instructions.

SAVE THESE INSTRUCTIONS

• SAFETY & INTERNATIONAL SYMBOLS •

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING SYMBOL MEANING

	• SAFETY ALERT SYMBOLIndicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.
	• READ OPERATOR'S MANUALWARNING: Read the operator's manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.
	• WEAR EYE AND HEARING PROTECTIONWARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting current ANSI Z87.1 standards and ear protection when operating this unit. Use a full face shield when needed.
	• UNLEADED FUELAlways use clean, fresh unleaded fuel.
	• OILRefer to operator's manual for the proper type of oil.
	• DO NOT USE E85 FUEL IN THIS UNITWARNING: It has been proven that fuel containing greater than 10% ethanol will likely damage this engine and void the warranty.

	• ON/OFF STOP CONTROLON / START / RUN
	• ON/OFF STOP CONTROLOFF or STOP
	• PRIMER BULBPush primer bulb, fully and slowly, 10 times.
H | N | H |	• CHOKE CONTROL1. • FULL choke position2. • PARTIAL choke position3. • RUN choke position
	• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURYWARNING: Small objects can be propelled at high speed, causing injury. Keep away from the rotating rotor.
	• KEEP BYSTANDERS AWAYWARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m) from the operating area.
	• HOT SURFACEWARNING: Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off they remain hot for a short time.
	• GARDEN CULTIVATORS - ROTATING TINES CAN CAUSE SEVERE INJURYWARNING: Stop the engine and allow the tines to stop moving before installing or removing the tines, or before cleaning or performing any maintenance. Keep hands and feet away from rotating tines.
	• NO STEPAlways keep proper footing and balance. Do not overreach, take extra care when working on steep slopes or inclines.
	• PLACE RIGHT FOOT HEREAvoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting.

KNOW YOUR UNIT

APPLICATION

• Cultivating sod and light to medium soil
• Cultivating in garden areas, around trees, etc.

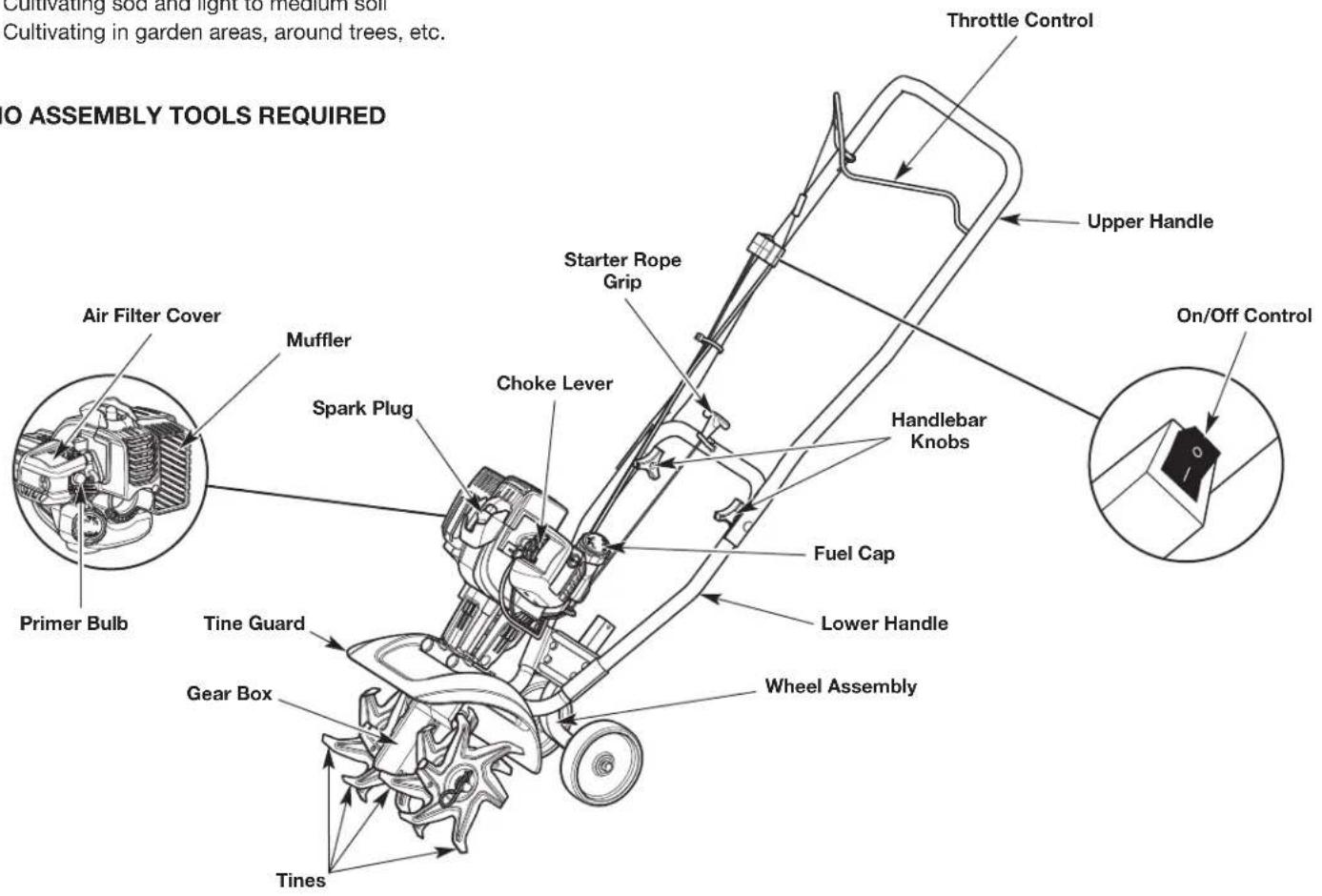

Cultivating sod and light to medium soil Cultivating in garden areas, around trees, etc. NO ASSEMBLY TOOLS REQUIRED Throttle Control Upper Handle Starter Rope Grip Choke Lever Muffler Spark Plug Air Filter Cover Primer Bulb Tine Guard Gear Box Tines Handlebar Knobs Fuel Cap Lower Handle Wheel Assembly On/Off Control

SPECIFICATIONS\*

Engine Type ...... Air-Cooled, 2-Cycle

Displacement 25 cc (1.52 cu. in.)

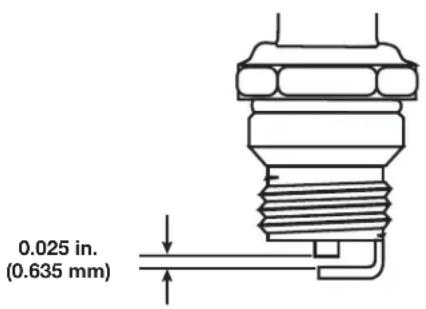

Spark Plug Gap 0.025 inch (0.635 mm)

Spark Plug .... Champion® RDJ7J or equivalent plug

Lubrication Fuel/Oil Mixture

Fuel/Oil Ratio 40:1

Fuel Tank Capacity 10 ounces (295 ml)

Cultivating Path Width (Maximum) 9 inches (22.86 cm)

Cultivating Depth (Maximum) 5 inches (12.7 cm)

Approximate Weight (no fuel) 23 - 24 lb (10.4 - 10.9 kg)

ASSEMBLY

INSTALLING AND ADJUSTING THE WHEEL ASSEMBLY

WARNING: To prevent serious personal injury, the wheel assembly must be installed when operating the unit.

WARNING: To avoid injury from the tines, wear heavy gloves and a long sleeve shirt when installing the wheel assembly.

Installing the Wheel Assembly

1. Set the unit on its side (Fig. 1).
2. Insert the wheel assembly into the wheel bracket (Fig. 1).
3. Insert the clevis pin through the wheel bracket and wheel assembly and lock it in place with the cotter pin (Fig. 1).

NOTE: It may be necessary to adjust the position of the wheel assembly before using the unit.

Adjusting the Wheel Assembly

1. Set the unit on its side (Fig. 1).
2. Remove the cotter pin and the clevis pin from the wheel bracket and wheel assembly (Fig. 1).
3. Adjust the height by moving the wheel assembly along the wheel bracket.
4. Insert the clevis pin through the wheel bracket and assembly and lock it in place with the cotter pin (Fig. 1).

NOTE: Moving the wheel assembly down will raise the wheel height. Moving the wheel assembly up will lower the wheel height.

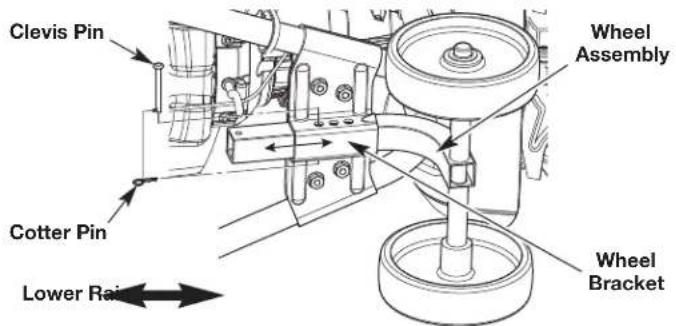

Clevis Pin Cotter Pin Lower Rail Wheel Assembly Wheel Bracket

Fig. 1

POSITIONING THE HANDLEBARS

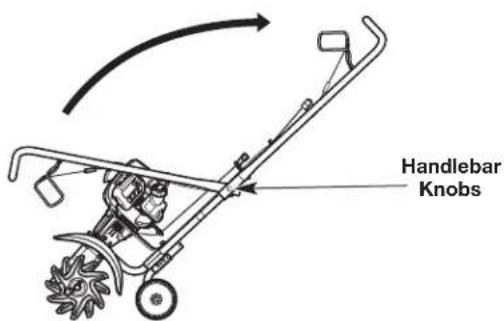

1. Loosen the two knobs on the inside of the handlebars (Fig. 3).
2. With the unit upright, swing the handlebars up into the operating position (Fig. 2).

NOTE: Take care not to pinch the throttle cable or switch wires when positioning the handlebar (Fig. 3).

1. Tighten the knobs to secure the handlebars in place (Fig. 3).
   NOTE: Do not over tighten the knobs.
2. Readjust the throttle cable and switch wires so they are smooth and tight against the handlebar assembly. This will help prevent them from catching or snagging during normal operation.

Handlebar Knobs

Fig. 2

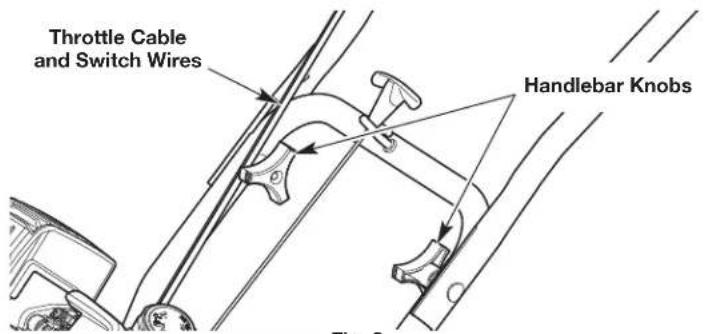

Throttle Cable and Switch Wires Handlebar Knobs Fig. 3

Fig. 3

OIL AND FUEL

OIL AND FUEL MIXING INSTRUCTIONS

Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to use fresh, clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol, or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate. It forms acids when stored. When using alcohol-blended fuel, use fresh fuel (less than 30 days old).

Using Blended Fuels

If you choose to use a blended fuel, or its use is unavoidable, follow recommended precautions:

• Always use the fresh fuel mix explained in your operator's manual
- Use the fuel additive STA-BIL® or an equivalent
• Always agitate the fuel mix before fueling the unit
- Drain the tank and run the engine dry before storing the unit

Using Fuel Additives

The bottle of 2-cycle oil that came with your unit contains a fuel additive which will help inhibit corrosion and minimize the formation of gum deposits. It is recommended that you use our 2-cycle oil with this unit.

If unavailable, use a good 2-cycle oil designed for air-cooled engines along with a fuel additive, such as STA-BIL Gas Stabilizer or an equivalent. Add 0.8 oz. (23 ml) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

\*WARNING: DO NOT USE E85 FUEL IN THIS UNIT.

It has been proven that fuel containing greater than 10% ethanol will likely damage this engine and void the warranty.

Mixing the Fuel

CAUTION: For proper engine operation and maximum reliability, pay strict attention to the oil and fuel mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine.

Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio. Do not mix them directly in the engine fuel tank. See the table below for specific gas and oil mixing ratios.

NOTE: One gallon (3.8 liters) of unleaded gasoline mixed with one 3.2 oz. (95 ml) bottle of 2-cycle oil makes a 40:1 fuel/oil ratio.

NOTE: Dispose of the old fuel/oil mix according to federal, state and local regulations.

Unleaded gasoline*	2-cycle oil
1 gallon U.S.(3.8 liters)	3.2 fl. oz.(95 ml)
1 liter 25 ml

MIXING RATIO - 40:1

FUELING THE UNIT

WARNING: Gasoline is extremely flammable. Ignited vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING: Remove fuel cap slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place.

WARNING: Add fuel in a clean, well ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilt fuel. Do not start the engine until fuel vapors dissipate.

1. Position the unit with the fuel cap facing up.
2. Remove the fuel cap.
3. Place the fuel container spout into the fill hole on the fuel tank and fill the tank.
   NOTE: Do not overfill the tank.
4. Wipe up any fuel that may have spilled.
5. Reinstall the fuel cap.
6. Move the unit at least 30 ft. (9.1 m) from the fuel container and the fueling site before starting the engine.

STARTING AND STOPPING

WARNING: Avoid accidental starting. Make sure you are in the starting position when pulling the starter rope (Fig. 6). To avoid serious injury, the operator and unit must be in a stable position while starting.

STARTING INSTRUCTIONS

1. Mix gasoline with oil. Refer to Oil and Fuel Mixing Instructions.
2. Fill the fuel tank. Refer to Fueling the Unit.
   NOTE: There is no need to turn the unit on. The On/Off Control is in the ON (1) position at all times (Fig. 4).
3. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb (Fig. 5). If fuel can not be seen in the bulb, press and release the bulb until fuel is visible.

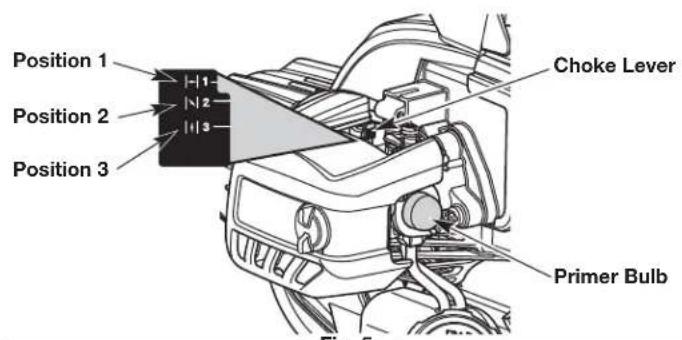

4. Move the choke lever to Position 1 (Fig. 5).

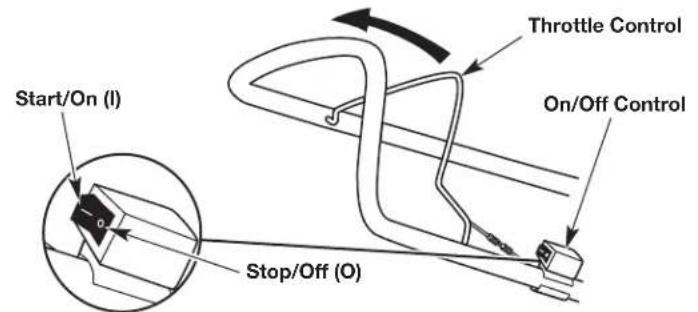

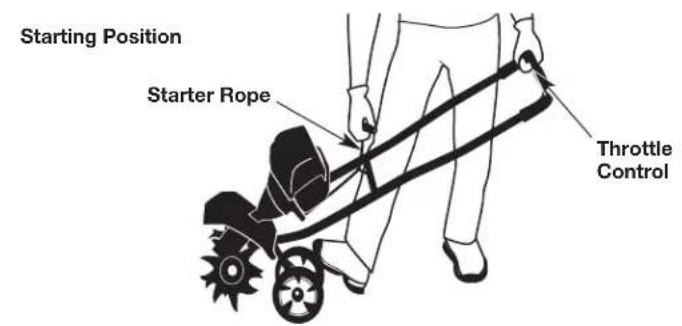

5. Stand in the starting position (Fig. 6). Hold the handlebar and squeeze the throttle control with one hand. Hold the starter rope with the other hand. Use one foot to hold the wheels in place.
   NOTE: Always tilt the unit back slightly to bring the tines off the ground when starting the unit (Fig. 6).
6. SQUEEZE and HOLD the throttle control for ALL further steps. Pull the starter rope 5 times.
7. Continue to squeeze the throttle control. Move the choke lever to Position 2 (Fig. 5).
8. Continue to squeeze the throttle control. Pull the starter rope 3-5 times to start the engine.
9. Continue to squeeze the throttle control. Allow the engine to warm up for 30-60 seconds.
10. Continue to squeeze the throttle control. Move the choke lever to Position 3 (Fig. 5).
11. Continue to squeeze the throttle control. Run the unit for an additional 60 seconds to complete the warm-up. The unit may be used during this step.
    NOTE: The unit is properly warmed up when the engine accelerates without hesitation.
    IF... The engine hesitates, return the choke lever to Position 2 and continue the warm-up.
    IF... the engine does not start, begin the starting procedure with step 3.
    IF... The engine fails to start after 2 attempts, move the choke lever to Position 3 and squeeze the throttle control. Pull the starter rope 3-8 times in a controlled and steady motion. The engine should start. If not, repeat.
    IF... the engine is already warm, begin the starting procedure with step 7.

Start/On (I) Stop/Off (O) Throttle Control On/Off Control

Fig. 4

Position 1 Position 2 Position 3 Choke Lever Primer Bulb

Fig. 5

Starting Position Starter Rope Throttle Control

Fig. 6

STOPPING INSTRUCTIONS

1. Release the throttle control. Allow the engine to cool down by idling.
2. Press and hold the On/Off Control in the OFF (O) position until the unit comes to a complete stop (Fig. 4).

OPERATION

WARNING: Dress properly to reduce the risk of injury when operating this unit. Do not wear loose clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy long pants, boots and gloves. Do not wear short pants, sandals or operate barefoot.

OPERATING TIPS

1. Move the cultivator to the work area prior to starting the engine. Refer to Moving the Unit.

CAUTION: To prevent serious personal injury, never pick-up or carry the unit while the engine is running.

1. Start the unit as described in the Starting Instructions.
2. With the tines off the ground, squeeze the throttle control to increase the engine speed.
3. Hold the handlebar firmly with both hands and slowly lower the unit until the tines make contact with the ground (Fig. 7).
4. As cultivating action begins, pull back on the cultivator so that the tines can penetrate the ground.

WARNING: To prevent serious personal injury, use extreme caution when reversing or pulling the unit towards you.

1. Once the ground has been broken, continue at a moderate pace until you are familiar with the controls and the handling of the cultivator.
2. Pull the cultivator backwards to improve the depth of cultivation and reduce your effort.
3. If the tines are digging too deep or not deep enough, adjust them according to Adjusting Tine Depth.

ADJUSTING THE TINE DEPTH

The tines should penetrate most garden soils approximately 4 to 5 inches. If necessary, adjust the tines as follows:

1. Stop the engine and allow it to cool. Grasp the spark plug wire firmly and pull the cap from the spark plug.
2. Raise the wheel height for shallower tine penetration or lower the wheel height for deeper tine penetration. Refer to Adjusting the Wheel Assembly in the Assembly Instructions section.
3. Reconnect the spark plug wire and continue use.

MOVING THE UNIT

WARNING: To prevent serious personal injury, always stop the engine when operation is delayed or when moving the unit from one location to another.

1. Stop the engine.
2. Tilt the unit back until the tines clear the ground.
3. Push or pull the unit to the next location.

Line drawing of a person using a lawn mower to cut a small object (no text or symbols)

Fig. 7

MAINTENANCE

WARNING: To prevent serious injury, never perform maintenance or repairs while the unit is running. Always allow the unit to cool before servicing or repairing the unit. Disconnect the spark plug wire to prevent the unit from starting accidentally.

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these procedures, take the unit to an MTD authorized service dealer.

NOTE: Maintenance, replacement, or repair of the emission control devices and system may be performed by an MTD authorized service dealer.

NOTE: Please read the California/EPA statement that came with the unit for a complete listing of terms and coverage for the emissions control devices, such as the spark arrestor, muffler, carburetor, etc.

FREQUENCY MAINTENANCE REQUIRED
Every 10 hours	Clean and re-oil the air filter. Refer to Maintaining the Air Filter.
Every 25 hours	Check the spark plug condition and gap. Refer to Maintaining the Spark Plug.

TINE REMOVAL AND REPLACEMENT

WARNING: To prevent serious personal injury, always wear heavy gloves when handling the tines.

NOTE: All installation instructions are explained from the operating position.

All 4 tines should be replaced at the same time because they will wear evenly through normal use. Work on one side at a time.

1. Stop the engine and allow it to cool. Grasp the spark plug wire firmly and pull the cap from the spark plug.

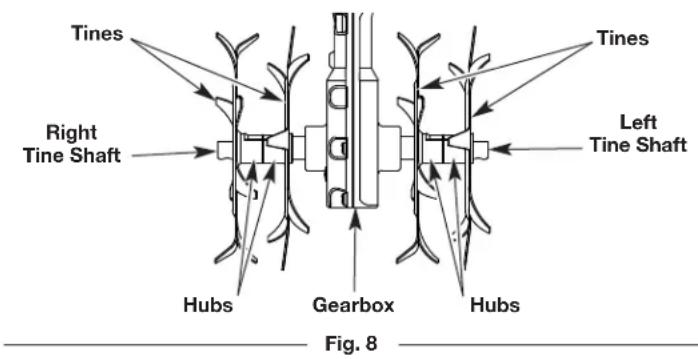

2. Lay the cultivator back on a flat level surface with the handles touching the ground so that the cultivator is in a horizontal position.

NOTE: It may be necessary to wash any dirt off the tines and shaft for easier tine removal.

1. Remove the cotter pins from each end of the tine shaft (Fig. 9). Slide the tines off of the shaft (Fig. 8).

2. Clean and oil the shaft.

3. Slide on the new tines with the hubs facing in towards each other (Fig. 8). Making sure that the rotation arrows are facing the gearbox when installing the tines on left tine shaft and away from the gearbox for the right tine shaft. (Fig. 9)

4. Secure the new tines to the shaft with cotter pins (Fig. 9).

5. Reconnect the spark plug wire.

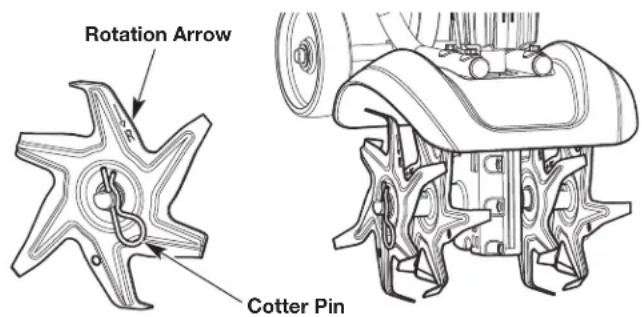

Rotation Arrow Cotter Pin

Fig. 9

AIR FILTER MAINTENANCE

Cleaning the Air Filter

Failure to maintain your air filter properly can result in poor performance or can cause permanent damage to your engine.

1. Open the air filter cover by unscrewing the cover screw (Fig. 10).
2. Remove the air filter and the screen that sits behind it (Fig. 10).
3. Wash the filter in detergent and water. Rinse the filter thoroughly and allow it to dry.
4. Apply enough clean SAE 30 motor oil to lightly coat the filter.
5. Squeeze the filter to spread and remove excess oil.
6. Replace the air filter and the screen that sits behind it (Fig. 10).

NOTE: Operating the unit without the air filter will VOID the warranty.

1. Reinstall the air filter cover. Insert the hooks on the air filter housing into the slots on the air filter cover (Fig. 11).
2. Swing the air filter cover to the right and align the cover screw with the cover screw hole (Fig. 11). Tighten the cover screw to secure the air filter cover.

NOTE: Do not over tighten as this may strip the screw.

IDLE SPEED ADJUSTMENT

WARNING: The tines may turn during idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

NOTE: Careless adjustments can seriously damage your unit. An authorized service dealer should make carburetor adjustments.

If after checking the fuel mixture and cleaning the air filter the engine still will not idle, adjust the idle speed screw as follows:

1. Start the engine and let it run for about 2-3 minutes at a high speed (full throttle) to warm up. Refer to the Starting and Stopping Instructions.
   NOTE: Ensure the tines are not in contact with the ground when adjusting the idle.
2. Release the throttle control and let the engine idle. If the engine stops, use a small Phillips screwdriver to turn the idle speed screw clockwise, 1/8 of a turn at a time (as needed) until the engine idles smoothly (Fig. 12).
   NOTE: The tines should not rotate during engine idle.
3. If the tines rotate when the engine idles, turn the idle speed screw counterclockwise 1/8 of a turn at a time (as needed), to reduce idle speed.

Checking the fuel mixture, cleaning the air filter, and adjusting the idle speed screw should solve most engine problems. If not and all the following are true:

• The engine will not idle
• The engine hesitates or stalls on acceleration
• There is a loss of engine power

Have the carburetor adjusted by an authorized service dealer.

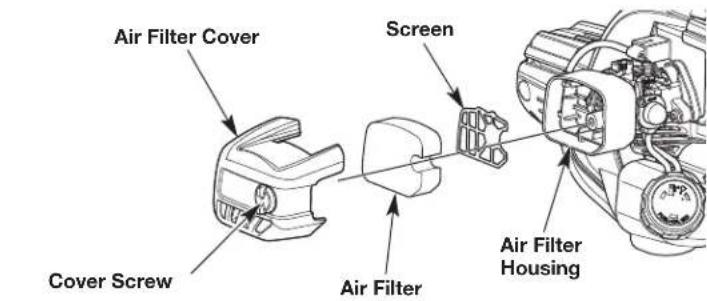

Air Filter Cover Screen Cover Screw Air Filter Air Filter Housing

Fig. 10

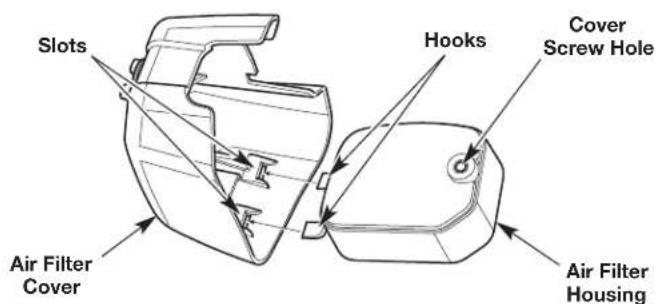

Slots Air Filter Cover Hooks Cover Screw Hole Air Filter Housing

Fig. 11

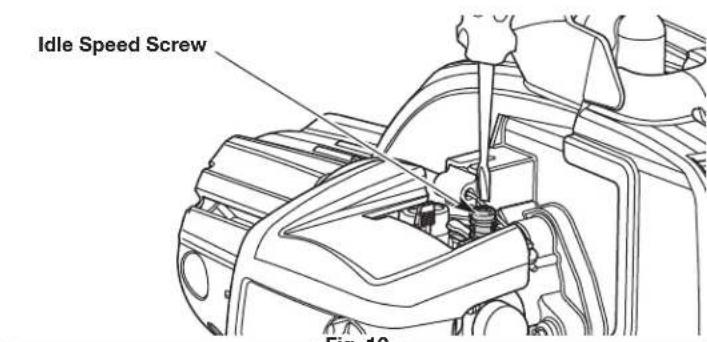

Idle Speed Screw Fig. 12

Fig. 12

REPLACING THE SPARK PLUG

1. Stop the engine and allow it to cool. Grasp the spark plug wire firmly and pull the cap from the spark plug.
2. Clean dirt from around the spark plug. Remove the spark plug from the cylinder head by turning a 5/8 in. socket counterclockwise.

WARNING: Do not sand blast, scrape or clean electrodes. Grit in the engine could damage the cylinder.

1. Inspect the spark plug. If the spark plug is cracked, fouled or dirty, replace it with a replacement part #753-06193, Champion® RDJ7J or equivalent spark plug.

2. Use a feeler gauge to set the air gap at 0.025 in. (0.635 mm) (Fig. 22).

3. Install the spark plug in the cylinder head. Tighten the spark plug with a 5/8-inch socket, turning it clockwise until snug.

NOTE: If using a torque wrench, torque to: 110-120 in.·lb. (12.3-13.5 N·m). Do not over tighten.

1. Reconnect the spark plug wire.

0.025 in. (0.635 mm)

Fig. 13

CLEANING AND STORAGE

CLEANING

WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining the unit.

Use a small brush to clean the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic. Wipe off any moisture with a soft cloth.

Clean the tines with water. Wipe the tines with a light machine oil to prevent rust.

STORAGE

• Never store a fueled unit where fumes may reach an open flame or spark.
• Allow the engine to cool before storing.
• Lock up the unit to prevent unauthorized use or damage.
• Store the unit in a dry, well-ventilated area.
• Store the unit out of the reach of children.

Long-term Storage

1. Remove the fuel cap, tip the unit and drain the fuel into an approved container. Reinstall the fuel cap.
2. Start the engine and allow it to run until it stalls. This ensures that all fuel has been drained from the carburetor.
3. Allow the engine to cool. Remove the spark plug and put 5 drops of any high quality motor oil or 2-cycle oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.
4. Thoroughly clean the unit and inspect it for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts.

Preparing the Unit for Use after Long-term Storage

1. Remove the spark plug and drain all of the oil from the cylinder.
   NOTE: Do not use fuel that has been stored for more than 30 days. Dispose of old fuel according to federal, state and local regulations.

TROUBLESHOOTING

PROBLEM SOLUTION
THE ENGINE WILL NOT START
The fuel tank is empty Fill the fuel tank with properly mixed fuel
The primer bulb was not pressed enough Press the primer bulb 10 times or until fuel is visible
The engine is flooded	Move the choke lever to Position 3, squeeze the throttle control and pull the starter rope
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel
The spark plug is fouled Replace the spark plug
THE ENGINE WILL NOT IDLE
The air filter is dirty Clean or replace the air filter
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel
The idle speed is incorrect Adjust the idle speed
THE ENGINE WILL NOT ACCELERATE
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel
The air filter is dirty Clean or replace the air filter
THE ENGINE LACKS POWER OR STALLS
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel
The air filter is dirty Clean or replace the air filter
The spark plug is fouled Replace the spark plug

If further assistance is required, contact an authorized service dealer.

NOTES

MANUFACTURER'S LIMITED WARRANTY FOR:

REMINGTON®

The limited warranty set forth below is given by Remington LLC (Remington) with respect to new merchandise purchased and used in the United States, its possessions and territories.

Remington warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator's Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by Remington for use with the product(s) covered by this manual will void your warranty as to any resulting damage. This warranty is limited to ninety (90) days from the date of original retail purchase for any Remington product that is used for rental or commercial purposes, or any other income-producing purpose.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate the dealer in your area, visit our website at www.remingtonpowertools.com, check for a listing in the Yellow Pages, call 1-866-206-2707 or 1-877-696-5533 in Canada, or write to P.O. Box 361032, Cleveland, OH 44136. No product returned directly to the factory will be accepted unless prior written permission has been extended by the Customer Service Department of Remington.

This limited warranty does not provide coverage in the following cases:

A. Tune-ups - Spark Plugs, Carburetor Adjustments, Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts, Saw Chains, Guide Bars, Cultivator Tines, Blades.
C. Remington does not extend any warranty for products sold or exported outside of the United States of America, its possessions and territories, except those sold through Remington's authorized channels of export distribution.

Remington reserves the right to change or improve the design of any Remington Product without assuming any obligation to modify any product previously manufactured.

No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty or guaranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product shall bind Remington. During the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth above. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. Remington shall not be liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement lawn care services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of the safety features of the product shall void this Warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased as a gift.

How State Law Relates to this Warranty: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To locate your nearest service dealer, dial 1-866-206-2707 in the United States or 1-877-696-5533 in Canada.

REMINGTON LLC

P.O. Box 361032

Cleveland, OH 44136

REMINGTON®

Line drawing of a manual lawn mower with a cutting tool and blade (no text or symbols)

TABLE DES MATIÈRES

Service....17

Sécurité ....18

INSTRUCTIONS D'ARRÊT

Line drawing of a person using a lawn power tool to cut a small object (no text or symbols present)

Fig. 7

ENTRETIEN

0.635 mm (0.025 in.)

Fig. 13

NETTOYAGE ET ENTREPOSAGE

NETTOYAGE

Line drawing of a manual tiller machine tool (no text or symbols)

TABLA DE CONTENIDO

Servicio ....33

Seguridad 34

Line drawing of a person using a lawn power tool to cut a small object (no text or symbols present)

Fig. 7

MANTENIMIENTO

0.025 in. (0.635 mm)

Fig. 13

LIMPIEZA Y ALMACENAMIENTO

LIMPIEZA
