USER MANUAL DDLE Basis 182124 AEG

Electronically controlled instantaneous water heater

Operation and installation 17

Technical diagram of a water purifier system with labeled components and flow indicators

26_02_02_1345

Technical diagram showing a mechanical or fluid system with labeled components 1 and 2, including directional arrows and a rectangular component below.

26_02_02_1344

Simple line drawing of a door with a knob and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with internal components and an arrow indicating rotation (no text or symbols)

D0000041615

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

26 02 02 0762

Mechanical assembly diagram showing a component with screws and a shaft, enclosed in a grid frame (no text or symbols)

Technical diagram showing a mechanical assembly with a screwdriver inserted into a component, labeled with part numbers and reference number.

Technical diagram showing mechanical assembly with pulleys and shafts (no text or symbols)

Technical line drawing of an industrial machine interior with no visible text or symbols

Technical line drawing of an internal electrical enclosure with labeled components and a magnified inset showing a speaker (no text or symbols present)

Technical diagram of an electrical cabinet with labeled components and wiring connections

D0000047341

Technical diagram of a mechanical assembly with no visible text or symbols

26 02 02 1348

Technical diagram of an electrical control panel with labeled components and directional arrows indicating assembly or movement.

Two-step diagram showing a mechanical assembly with a cylindrical component being inserted, no text or symbols present.

26_02_02_0765

Technical diagram of a mechanical assembly with no visible text or symbols

26_02_02_1006

Mechanical assembly diagram showing a motor or actuator with rotating arm and cable (no text or symbols)

Technical diagram of an electrical enclosure with labeled components and a magnified inset showing internal wiring connections.

D0000041794

1 Diagnoseampel

Technical diagram showing two mechanical assembly steps with directional arrows indicating movement or force direction.

26_02_02_0949

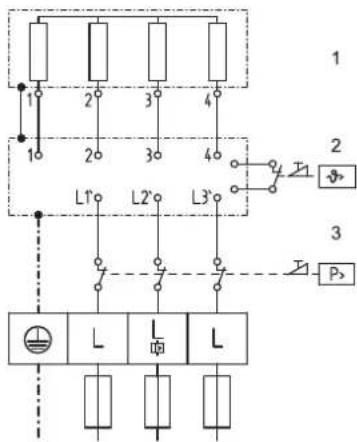

1 2 3 4 L1' L2' L3' 1 2 3 4 2 3 P> L L L

85_02_02_0005

L L L 2 1

85 02 02 0003

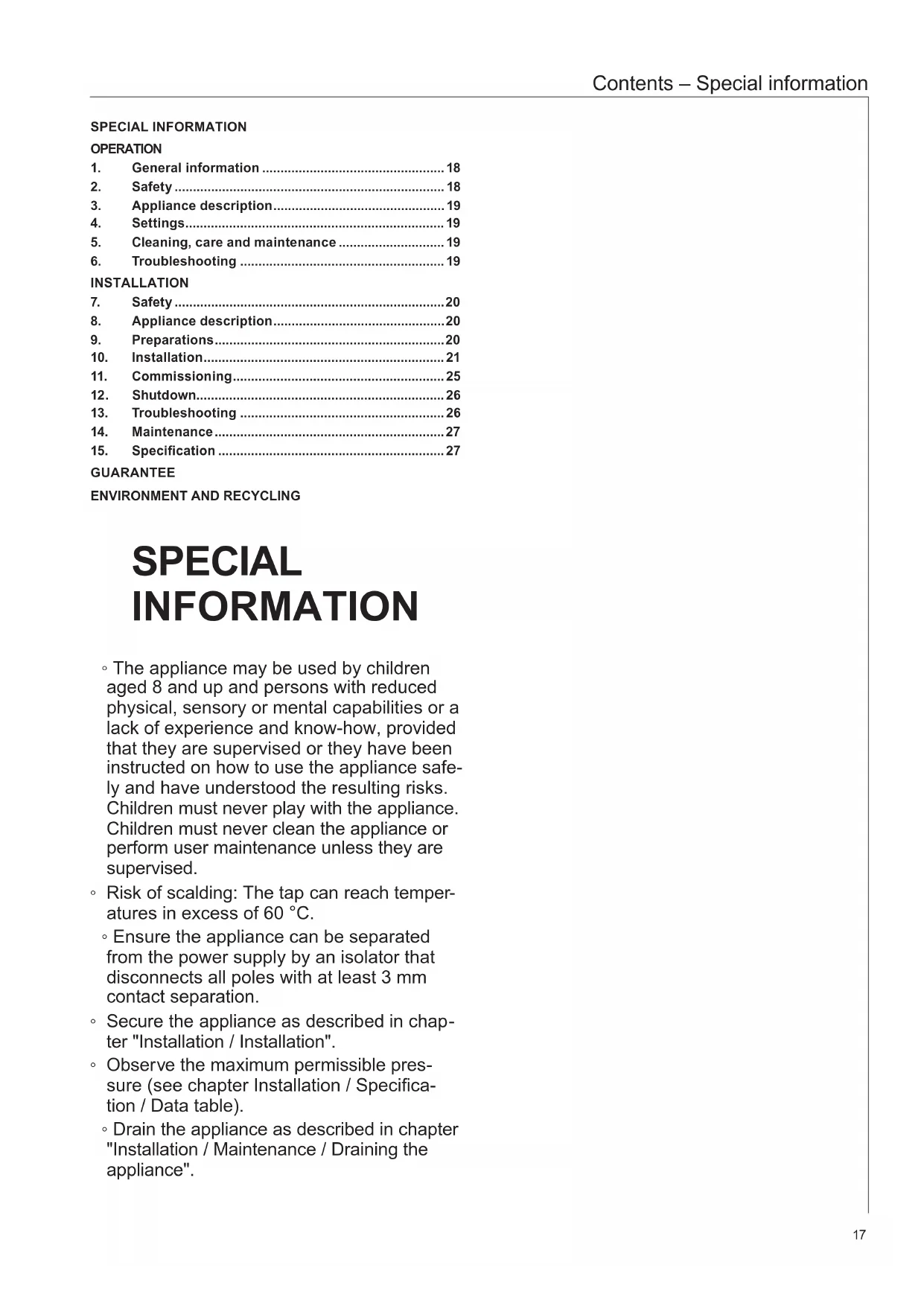

1. General information....18
2. Safety 18
3. Appliance description....19
4. Settings....19
5. Cleaning, care and maintenance 19
6. Troubleshooting 19

INSTALLATION

1. Safety 20
2. Appliance description....20
3. Preparations....20
4. Installation....21
5. Commissioning....25
6. Shutdown....26
7. Troubleshooting 26
8. Maintenance....27
9. Specification 27

GUARANTEE

ENVIRONMENT AND RECYCLING

SPECIAL INFORMATION

• The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.
- Risk of scalding: The tap can reach temperatures in excess of 60 °C.
- Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3 mm contact separation.
- Secure the appliance as described in chapter "Installation / Installation".
- Observe the maximum permissible pressure (see chapter Installation / Specification / Data table).
- Drain the appliance as described in chapter "Installation / Maintenance / Draining the appliance".

OPERATION

1. General information

The chapters "Special Information" and "Operation" are intended for both the user and qualified contractors.

The chapter "Installation" is intended for qualified contractors.

Note

Read these instructions carefully before using the appliance and retain them for future reference. Pass on the instructions to a new user if required.

1.1 Safety instructions

1.1.1 Structure of safety instructions

KEYWORD Type of risk

Here, possible consequences are listed that may result from failure to observe the safety instructions.

» Steps to prevent the risk are listed.

1.1.2 Symbols, type of risk

Symbol Type of risk
	Injury
	Electrocution
	Burns(burns, scalding)

1.1.3 Keywords

KEYWORD Meaning
DANGER	Failure to observe this information will result in serious injury or death.
WARNING	Failure to observe this information may result in serious injury or death.
CAUTION	Failure to observe this information may result in non-serious or minor injury.

1.2 Other symbols in this documentation

Note

General information is identified by the adjacent symbol.

» Read these texts carefully.

Symbol Meaning
	Material losses(appliance damage, consequential losses and environmental pollution)
	Appliance disposal

» This symbol indicates that you have to do something. The action you need to take is described step by step.

1.3 Units of measurement

Note

All measurements are given in mm unless stated otherwise.

2. Safety

2.1 Intended use

This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.

This pressurised appliance is suitable for heating domestic hot water or for reheating preheated water. The appliance can supply one or more draw-off points.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.

2.2 General safety instructions

CAUTION Burns

During operation, the tap can reach temperatures in excess of 60 °C.

There is a risk of scalding at outlet temperatures in excess of 43 °C.

CAUTION Burns

If operating with preheated water, e.g. from a solar thermal system, the DHW temperature may vary from the selected set temperature.

WARNING Injury

The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

Where children or persons with limited physical, sensory or mental abilities are allowed to use this appliance, we recommend a permanent temperature limit. A qualified contractor can set the limit for you.

Material losses

The user should protect the appliance and its tap against frost.

2.3 CE designation

The CE designation shows that the appliance meets all essential requirements according to the:

• Low Voltage Directive
  Electromagnetic Compatibility Directive The maximum permissible mains impedance is indicated in chapter "Installation / Specification / Data table".

2.4 Test symbols

See type plate on the appliance.

Country-specific approvals and certifications: Germany

A general test certificate as verification of suitability regarding noise emissions has been issued for this appliance, based on the State Building Regulations [Germany].

AEG HOL DIN 4109 PA-IX 6814/I MPA NRW.

3. Appliance description

The electronically controlled instantaneous water heater with automatic output matching keeps the outlet temperature constant up to the output limit. The temperature is then selected via the draw-off tap.

Heating system

The bare wire heating system has a pressure-tested plastic casing. The heating system is suitable for hard and soft water areas. This heating system has a low susceptibility to scale build-up. This system ensures rapid and efficient DHW availability.

Note

The appliance is equipped with an air detector that largely prevents damage to the heating system. If, during operation, air is drawn into the appliance, the appliance shuts down for one minute, thereby protecting the heating system.

4. Settings

The DHW outlet temperature can be variably adjusted.

	Hand wash basin (approx. 35 °C)
	Shower (approx. 40 °C)
	Bath (approx. 45 °C)
	Kitchen sink (approx. 55 °C)

» Turn the temperature selector to the required temperature.

Temperature limit

Your qualified contractor can set a temperature limit of up to 43 °C inside the appliance. With the temperature limit enabled you can turn the temperature selector across its full range. You can now set the outlet temperature only between 30 °C and 43 °C.

Note

Should the outlet temperature fail to reach the required level with the draw-off valve fully open and the temperature selector set to maximum, then more water is flowing through the appliance than can be heated by the heating system. The appliance is at its output limit.

» Reduce the water volume at the draw-off valve.

Recommended setting for operation with a thermostatic valve

Set the temperature at the appliance to the maximum temperature.

Following an interruption of the water supply

Material losses

In order to prevent the destruction of the bare wire heating system, return the appliance into use following an interruption of the water supply as follows:

» Disconnect the appliance from the power supply by removing the fuses/tripping the MCBs.
» Open the tap for one minute until the appliance
and its upstream cold water inlet line are free of air.
» Switch the mains power back ON again.

5. Cleaning, care and maintenance

» Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning the appliance.
» Check the taps regularly. Limescale deposits at the tap outlets can be removed using commercially available descaling agents.

6. Troubleshooting

Problem Cause Remedy
The appliance will not start despite the DHW valve being fully open.	There is no voltage at the appliance.	Check the fuses/ MCBs in your fuse box/distribution panel.
	The flow rate is too low. The aerator in the tap or the shower head is scaled up or contaminated.	Clean and/or descale the aerator or shower head.
Required temperature >45 °C is not achieved.	The water supply has been interrupted.	Vent the appliance and the cold water inlet line (see chapter "Operation / Settings").
	The cold water inlet temperature is >45 °C.	Reduce the cold water inlet temperature.

If you cannot remedy the fault, notify your qualified contractor. To facilitate and speed up your enquiry, please provide the serial number from the type plate (000000-0000-00000):

Nr.: 000000-0000-00000

D0000041614

INSTALLATION

7. Safety

Only a qualified contractor should carry out installation, commissioning, maintenance and repair of the appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the appliance are used.

Material losses Observe the maximum inlet temperature. Higher temperatures may damage the appliance. You can limit the maximum inlet temperature by installing a central thermostatic valve.

72 Instructions, standards and regulations

Note Observe all applicable national and regional regulations and instructions.

• The protection rating IP 25 (hoseproof) can only be ensured with a correctly fitted cable grommet.
  The specific electrical resistance of the water must not fall below that stated on the type plate. In a linked water network, factor in the lowest electrical resistance of the water (see chapter "Installation / Specification / Data table"). Your water supply utility will advise you of the specific electrical water resistance or conductivity.

8. Appliance description

8.1 Standard delivery

The following are delivered with the appliance:

• Wall mounting bracket
• Threaded studs, screws and rawl plugs for the wall mounting bracket
• Installation template
• 2 twin connectors (cold water with shut-off valve)
• Flat gaskets
  • Cable grommet (power cable from above / below)
• Screws / rawl plugs for fixing the back panel in the case of water connection on finished walls
  • Additional flow limiter in the cold water pipe (only DDLE Basis 18/21/24)

8.2 Accessories

Tap

ADEo 70 WD Mono lever mixer tap with bath / shower changeover

Stove connection set

Connection set for the power connection of the DDLE Basis 11 and DDLE Basis 13

Installation accessories

Pipe assembly, undersink installation UT 104, connections: Finished walls, G 3/8, top. Water connections with 12 mm compression fitting.

Universal mounting frame

Mounting frame with electrical connections.

Pipe assembly for undersink appliances

You will need the undersink installation set if you use the water connections (G 3/8 A) at the top of the appliance.

Pipe assembly for offset installation

You will need the pipe assembly with bends if you intend to offset the appliance by 90 mm downwards from the water connection.

Pipe assembly for replacing a gas water heater

You will need the pipe assembly if you are using the existing gas water heater connections (cold water connection on the left-hand side DHW connection on the right-hand side).

Load shedding relay (LR 1-A)

The load shedding relay for installation in the distribution board provides priority control for the instantaneous water heater when other appliances, such as electric storage heaters, are being operated simultaneously.

ZTA 3/4 – Central thermostatic valve

The thermostatic valve is for central premixing, for example on an instantaneous water heater with solar thermal system.

9. Preparations

9.1 Installation site

Material losses Install the appliance in a room free from the risk of frost.

» Always install the appliance vertically and near the draw-off point.

The appliance is suitable for undersink and oversink installations.

Undersink installation

Diagram of a water purifier system with labeled components and directional arrows indicating flow or movement.

26 02 02 1345

Oversink installation

Technical diagram showing a mechanical or fluid system with labeled components 1 and 2, including directional arrows and a rectangular component below.

26 02 02 1344

» Mount the appliance on the wall. The wall must have a sufficient load-bearing capacity.

9.2 Water installation

• A safety valve is not required.
  » Flush the water line thoroughly.
  » Ensure that the flow rate for switching on the appliance is achieved (see chapter "Installation / Specification / Data table", On). If the flow rate is not achieved, remove the flow limiter (see chapter "Installation / Installation, Removing the flow limiter").
  » If the required flow rate is not achieved when the draw-off valve is fully opened, increase the water line pressure.

Taps

Use appropriate pressure taps. Open taps are not permitted.

Note

Never use the shut-off valve in the cold water inlet to reduce the flow rate. The shut-off valve is intended to shut off the appliance.

Permissible water line materials

• Cold water inlet line:
  Galvanised steel pipe, stainless steel pipe, copper pipe or plastic pipe
• DHW outlet line:
  Stainless steel pipe, copper pipe or plastic pipe

Material losses

If plastic pipework is used, take into account the maximum inlet temperature and the maximum permissible pressure (see chapter "Installation / Specification / Data table").

Flexible water connection lines

» If the appliance is installed with flexible water connection lines, ensure that the bayonet fittings of the pipe bends do not become twisted inside the appliance.

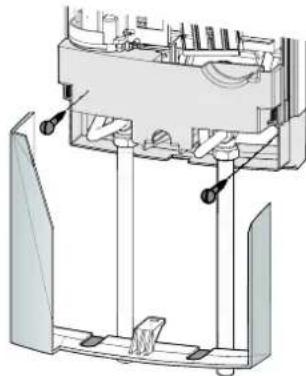

» Secure the back panel at the bottom with two additional screws.

10. Installation

10.1 Standard installation

• Electrical connection from above; installation on unfinished walls
• Water connection on unfinished walls
- DDLE Basis 18/21/24: Connected load 21 kW preset
For further installation options, see chapter "Installation / Installation / Installation options":
• Electrical connection from below on unfinished walls
- Electrical connection on finished walls
- Connecting a load shedding relay
• Undersink installation, water connections from above
• Water installation on finished walls
• Operation with preheated water
- Temperature limit

Opening the appliance

Technical line drawing of a door panel with two views showing internal components and directional arrows (no text or symbols)

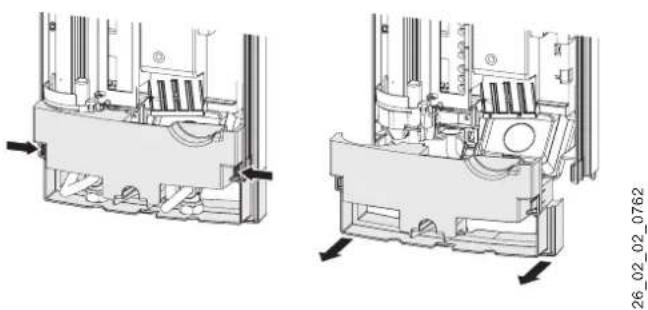

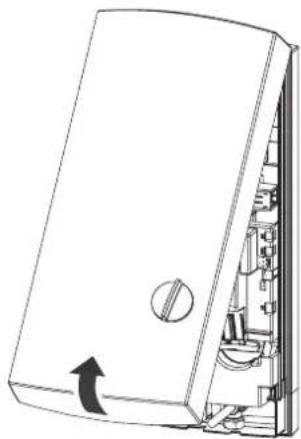

» Open the appliance by releasing the snap lock.

Technical diagram of a mechanical assembly with two views (top and side), showing internal components and directional arrows (no text or symbols)

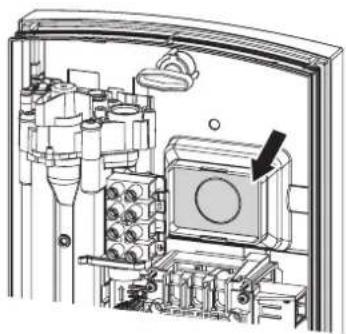

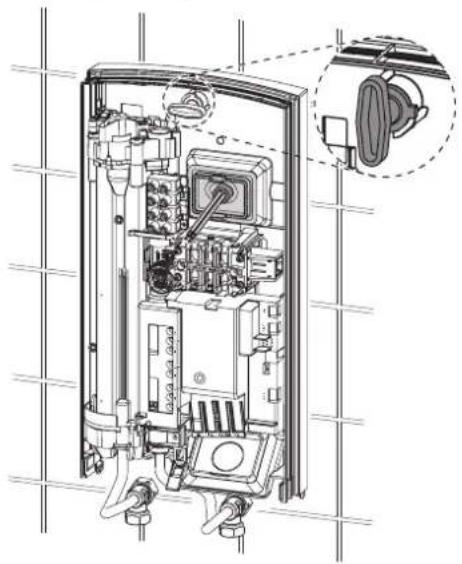

» Remove the back panel by pressing the two locking hooks and pulling the lower section of the back panel forwards.

Preparing the power cable

160 ≥ 30 26_02_02_0887

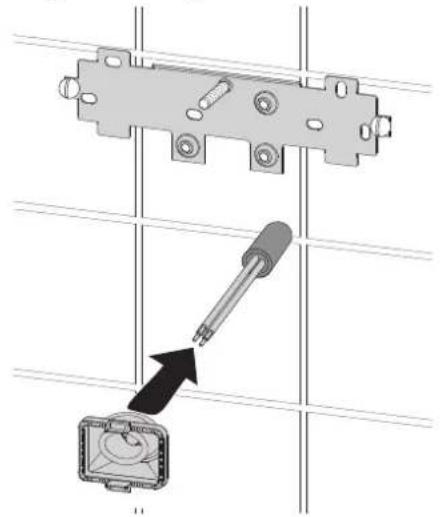

Fitting the wall mounting bracket

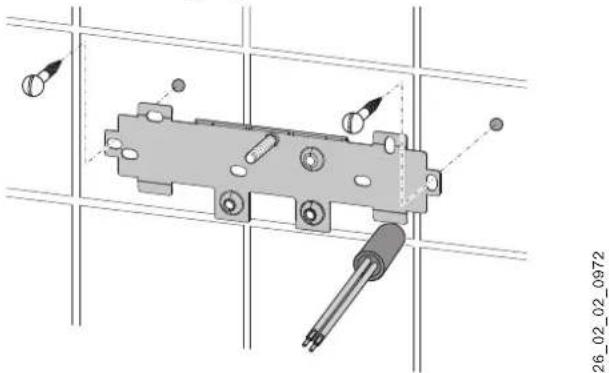

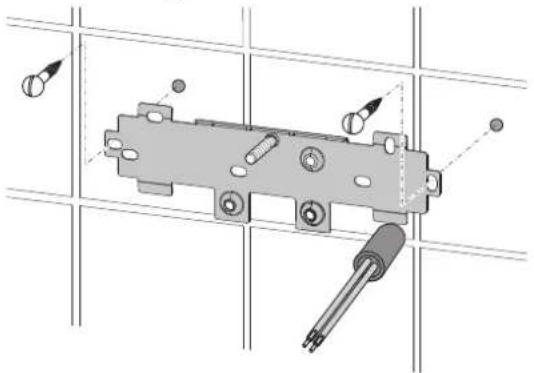

Technical diagram of a mechanical assembly with mounting holes and a tool, shown within a grid-like frame (no text or symbols)

» Mark out the holes for drilling with the installation template. If the appliance is to be installed with water connections on finished walls, also mark out the fixing holes in the lower part of the template.

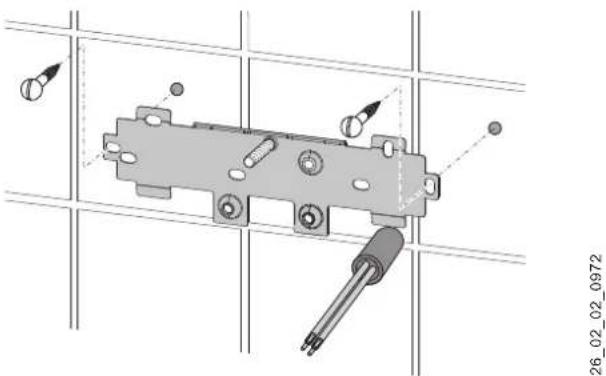

» Drill the holes and secure the wall mounting bracket with 2 screws and 2 rawl plugs (screws and rawl plugs are part of the standard delivery).
» Fit the threaded stud provided.
» Mount the wall mounting bracket.

Fitting the cable grommet

Technical diagram showing a mechanical bracket mounted on a vertical grid, with a screwdriver inserted and a close-up of the component (no text or symbols present)

26_02_02_0950

» Fit the cable grommet. For connecting cables >6 mm ^2 , enlarge the hole in the cable grommet.

Making the water connection

Material losses Carry out all water connection and installation work in accordance with regulations.

Technical diagram showing two mechanical assembly states with arrows indicating direction of motion (no text or symbols present)

26_02_02_0948

» Seal and insert the twin connectors.

Material losses Never use the shut-off valve in the cold water inlet to reduce the flow rate.

Preparing the back panel

Material losses ! If you break out the wrong knock-out by mistake, use a new back panel.

Technical line drawing of an industrial machine interior with no visible text or symbols

D0000041893

» Break out the cable grommet knock-out in the back panel. Deburr the sharp edges with a file if necessary.

Installing the appliance

Technical line drawing of an electrical enclosure with internal components and a magnified inset showing a speaker (no text or symbols present)

D0000041894

» Push the back panel over the threaded stud and the cable grommet. Pull the cable grommet by the locking hooks into the back panel using pliers, until both locking hooks audibly click into place.
» Remove the transport plugs from the water connections.
» Push the back panel firmly against the wall. Lock the fixing toggle by turning it 90° clockwise.

Diagram showing three mechanical components with labeled parts and directional arrows indicating assembly or connection.

D0000041925

» Screw the water connection pipes with flat gaskets onto the twin connectors.

Material losses The strainer must be fitted for the appliance to function.

» When replacing an appliance, check whether the strainer is installed (see chapter "Installation / Maintenance").

Removing / replacing the flow limiter

Note

Never remove the flow limiter if you are using a thermostatic valve.

90° 1 2

26_02_02_0771

1 Plastic profile washer

2 Flow limiter

» Remove the flow limiter. Re-insert the plastic profile washer.

DDLE Basis 18/21/24: Replace the flow limiter

» If 24 kW connected load has been selected, replace the fitted flow limiter (white) with the flow limiter supplied (orange, fixed to the cold water pipe).

Making the electrical connection

WARNING Electrocution

Carry out all electrical connection and installation work in accordance with relevant regulations.

WARNING Electrocution

The connection to the power supply must be in the form of a permanent connection in conjunction with the removable cable grommet. Ensure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3 mm contact separation.

WARNING Electrocution

Ensure that the appliance is earthed.

Material losses

Observe the type plate. The specified voltage must match the mains voltage.

» Connect the power cable to the mains terminal (see chapter "Installation / Specification / Wiring diagram").

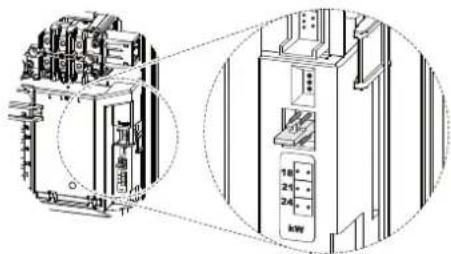

DDLE Basis 18/21/24: Re-plugging the coding card

In its delivered condition, the appliance is plugged to 21 kW. When changing to a different connected load, carry out the following steps:

Technical line drawing of an electrical enclosure with internal components and a control panel (no text or symbols)

D0000047341

» Re-plug the coding card according to the actual connected load (for connected load options and fuse protection of the appliance, see chapter "Installation / Specification / Data table").

» Tick the selected connected load on the type plate. Please use a ballpoint pen to do this.

Fitting the lower section of the back panel

Technical line drawing of a mechanical assembly with no visible text or symbols

26_02_02_1348

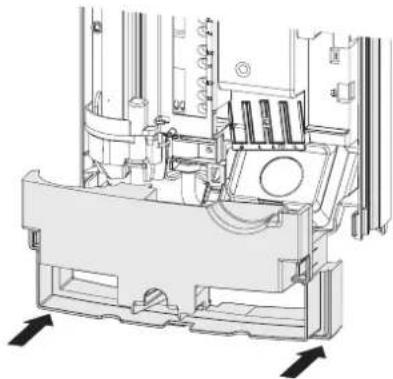

» Fit the lower section into the back panel. Click the lower section of the back panel into place.
» Align the mounted appliance by loosening the fixing toggle, aligning the power supply and back panel, and then re-tightening the fixing toggle. If the appliance back panel does not rest against the wall, you can secure the appliance with two additional screws (see chapter "Installation / Installation options / Water installation on finished walls").

10.2 Installation options

10.2.1 Electrical connection from below on unfinished walls

Technical diagram of an electrical switchgear assembly with labeled components and wiring connections

» Fit the cable grommet.

Material losses If you break out the wrong knock-out by mistake, use a new back panel.

» Break out the cable grommet knock-out in the back panel. Deburr the sharp edges with a file if necessary.
» Reposition the mains terminal in the appliance from the top to the bottom.
» Push the back panel over the threaded stud and the cable grommet. Pull the cable grommet by the locking hooks into the back panel using pliers, until both locking hooks audibly click into place.
» Push the back panel firmly against the wall. Lock the fixing toggle by turning it 90° clockwise.

10.2.2 Electrical connection on finished walls

Note

This type of connection changes the protection rating of the appliance.

» Change the type plate. Cross out "IP 25" and mark the box "IP 24". Please use a ballpoint pen to do this.

Material losses

If you break out the wrong knock-out by mistake, use a new back panel.

» Cleanly cut or break out the required opening in the appliance back panel (see chapter "Installation / Specification / Dimensions and connections"). De-burr the sharp edges with a file if necessary.

» Route the power cable through the cable grommet and connect it to the mains terminal.

10.2.3 Connecting a load shedding relay

Install a load shedding relay in the distribution board in conjunction with other electric appliances, e.g. electric storage heaters. The relay responds when the instantaneous water heater starts.

Material losses

Connect the phase that switches the load shedding relay to the indicated terminal of the mains terminal in the appliance (see chapter "Installation / Specification / Wiring diagram").

10.2.4 Undersink installation, water connections – from above

An undersink installation with water connections from above can be achieved with an additional pipe assembly for undersink appliances. Cleanly break out the water pipe knock-outs in the back panel and fit the pipe assembly.

10.2.5 Water installation on finished walls

Note

This type of connection changes the protection rating of the appliance.

» Change the type plate. Cross out "IP 25" and mark the box "IP 24". Please use a ballpoint pen to do this.

Two-step diagram showing a mechanical assembly with no visible text or symbols

26_02_02_0765

» Fit the water plugs with gaskets in order to seal the connection for unfinished walls.
» Fit a suitable pressure tap.

Technical diagram of a mechanical assembly with no visible text or symbols

26_02_02_1006

» Click the lower section of the back panel into place in the upper section of the back panel.
» Secure the connection pipes to the appliance.
» Secure the back panel at the bottom with two additional screws.

Material losses

If you break out the wrong knock-out by mistake, use a new back panel.

» Cleanly break out the knock-outs in the appliance cover. Deburr the sharp edges with a file if necessary.
» Slide the lower section of the back panel under the tap connection pipes. Click the lower section of the back panel into place.
» Secure the connection pipes to the appliance.

10.2.6 Operation with preheated water

You can limit the maximum inlet temperature by installing a central thermostatic valve.

10.2.7 Temperature limit

CAUTION Burns

If operating with preheated water, the set temperature limit and anti-scalding protection may be ineffective.

» In this case, limit the temperature with an upstream central thermostatic valve.

You can set the temperature limit inside the appliance cover to 43 °C.

Pure mechanical diagram showing a clamping device with wires and a rotating arrow (no text or symbols)

» Push the set value transducer cable plug onto the 43 °C temperature limiter.

After enabling the temperature limit, you can only select temperatures between 30 and 43 °C.

10.3 Completing the installation

» Open the shut-off valve in the twin connector or the cold water inlet line.

11. Commissioning

WARNING Electrocution

Commissioning may only be carried out by a qualified contractor in accordance with safety regulations.

11.1 Initial start-up

26_02_02_0769

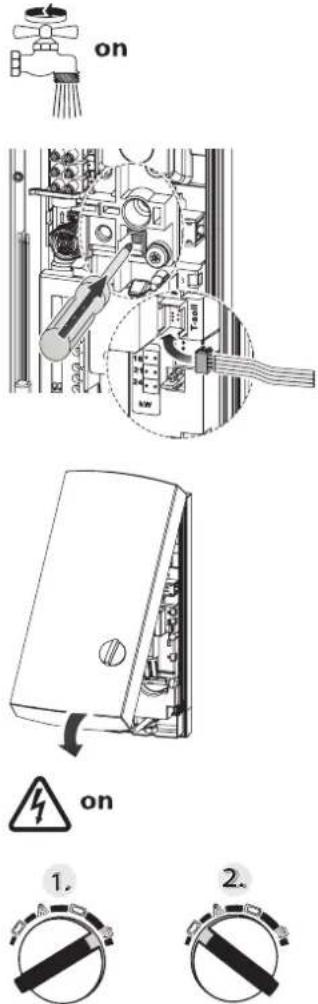

» Open and close all connected draw-off valves several times, until all air has been vented from the pipework and the appliance.
» Carry out a tightness check.
» Activate the safety pressure limiter by firmly pressing in the reset button (safety pressure limiter disabled in the delivered condition).
» Plug the temperature selector cable plug into the PCB.
» Fit the appliance cover. The appliance cover must audibly click into place. Check that the appliance cover is seated correctly.
» Switch the mains power ON.
» Calibrate the temperature. Turn the temperature selector fully clockwise then fully anti-clockwise.
» Check the function of the appliance.

Appliance handover

» Explain the functions of the appliance to the user. Show the user how to operate the appliance.
» Make the user aware of potential dangers, especially the risk of scalding.
» Hand over these instructions.

11.2 Recommissioning

» Vent the appliance and the cold water inlet line (see chapter "Operation / Settings").
» See chapter "Installation / Installation / Commissioning / Initial start-up".

12. Shutdown

» Isolate all poles of the appliance from the power supply.
» Drain the appliance (see chapter "Installation / Maintenance").

13. Troubleshooting

WARNING Electrocution To test the appliance, it must be supplied with power.

Possible indications of diagnostic traffic light (LED)

	Red Illuminates in the event of a fault
	Yellow Illuminates during heating mode
	Green Flashing: Appliance is supplied with mains power

Technical diagram of an electrical enclosure with labeled components and a magnified inset showing internal wiring connections.

D0000041794

1 Diagnostic traffic light

Fault / diagnostic traffic light LED display	Cause Remedy
The flow rate is too low. The strainer in the appliance is dirty. Clean the strainer.
The set temperature is not achieved.	One phase down.	Check the fuse/MCB in your fuse box/distribution panel.
The heating system does not switch on.	The system detects air in the water. Heating output stops temporarily.	The appliance restarts after one minute.
No hot water and no traffic light display.	The MCB/fuse has responded/blown.	Check the fuse/MCB in your fuse box/distribution panel.
	The safety pressure limiter has tripped.	Remove the cause of the fault (e.g. faulty pressure washer).
		Protect the heating system against overheating by opening a draw-off valve downstream of the appli-ance for one minute. This depressurises and cools down the heating system.
		Activate the safety pressure limiter at flow pressure by pressing the reset button (see chapter "Installation / Commissioning / Initial start-up").
	The PCB is faulty.	Check the PCB and replace if required.
Traffic light display: Green flashing or constantly on No hot water at a flow rate of >3 l/min.	The PCB is faulty.	Check the PCB and replace if required.
	The flow meter DFE is not plugged in.	Plug the flow meter plug back in.
	The flow meter plug is faulty.	Check the flow meter and replace if required.
Traffic light display: Yellow constantly on; green flashing No hot water at a flow rate of >3 l/min.	The high limit safety cut-out has responded or its lead is broken.	Check the high limit safety cut-out and replace if required.
	The heating system is faulty.	Check the heating system resistor and replace if required.
	The PCB is faulty.	Check the PCB and replace if required.
Traffic light display: Yellow constantly on; green flashing	The outlet sensor has been pulled off. A lead is broken.	Plug in the outlet sensor or replace if required.
Traffic light display: Red constantly on; green flashing	The cold water sensor is faulty.	Check the PCB and replace if required.
No hot water Required temperature >45 °C is not achieved.	The cold water inlet temperature exceeds 45 °C.	Reduce the cold water inlet temperature to the ap-pliance.
Traffic light display: Red constantly on; green flashing	The outlet sensor is faulty (short circuit).	Check the outlet sensor and replace if required.

14. Maintenance

WARNING Electrocution Before any work on the appliance, disconnect all poles from the power supply.

Draining the appliance

You can drain the appliance for maintenance work or to protect it from frost.

WARNING Burns Hot water may escape when the appliance is being drained.

» Close the shut-off valve in the twin connector or the cold water inlet line.
» Open all draw-off valves.
» Undo the water connections on the appliance.
» If dismantled, store the appliance in a room free from the risk of frost, as water residues remaining inside the appliance can freeze and cause damage.

Cleaning the strainer

Technical diagram showing two mechanical assembly steps with directional arrows indicating movement or force direction.

26_02_02_0949

If dirty, clean the strainer in the threaded cold water fitting. Close the shut-off valve in the cold water inlet line before removing, cleaning and refitting the strainer.

15. Specification

15.1 Dimensions and connections

226 190 485 395 35 b02 325 45 100 c06 c01 190

93 50 112

D0000017757

b02 Entry electrical cables I
c01 Cold water Inlet Male thread G 1/2 A
c06 DHW outlet	Male thread	G 1/2 A

Alternative connection options

b04 35 b02 b03 40 b04 325 50 50

D0000019778

b02	Entry electrical cables I
b03	Entry electrical cables II
b04	Entry electrical cables III

15.2 Wiring diagram

3/PE \~ 380 - 415 V

1 2 3 4 L1' L2' L3' 1 2 3 4 2 3 P2

85_02_02_0005

1 Heater
2 High limit safety cut-out
3 Safety pressure limiter

Load shedding relay LR 1-A

L L L 2 1 1>

85_02_02_0003_

1 Control cable to the contactor of the second appliance (electrical storage heater for example).
2 Control contact opens when switching the instantaneous water heater on.

15.3 DHW output

The DHW output is subject to the mains voltage, the appliance's connected load and the cold water inlet temperature. The rated voltage and rated output can be found on the type plate (see chapter "Operation / Troubleshooting").

Specific electrical resistance and specific electrical conductivity (see chapter "Installation / Specification / Data table").

Standard specification at 15 °C			20 °C			25 °C
Resistance ρ	Conductivity σ		Resistance ρ	Conductivity σ		Resistance ρ	Conductivity σ
Ωcm	mS/m	μS/cm	Ωcm	mS/m	μS/cm	Ωcm	mS/m	μS/cm
900	111	1111	800	125	1250	735	136	1361
1000	100	1000	890	112	1124	815	123	1227
1100	91	909	970	103	1031	895	112	1117
1200	83	833	1070	93	935	985	102	1015
1300	77	769	1175	85	851	1072	93	933

15.5 Pressure drop

Taps

Pressure drop at taps at flow rate of 10 l/min
Mono lever mixer tap, approx.	MPa	0.04 - 0.08
Thermostatic valve, approx.	MPa	0.03 - 0.05
Hand shower, approx.	MPa	0.03 - 0.15

Sizing the pipework

When calculating the size of the pipework, a pressure drop for the appliance of 0.1 MPa is recommended.

15.6 Fault conditions

In case of faults, loads up to a maximum of 95 °C at a pressure of 1.2 MPa can occur temporarily in the installation.

15.7 Details on energy consumption

Product data complies with EU regulations relating to the Directive on the eco-design of energy related products (ErP).

		DDLE Basis 11	DDLE Basis 13	DDLE Basis 18	DDLE Basis 18/21/24	DDLE Basis 27
		229296	229297	222388	222390	222391
Manufacturer		AEG Haustechnik	AEG Haustechnik	AEG Haustechnik	AEG Haustechnik	AEG Haustechnik
Load profile		XS	XS	S	S	S
Energy efficiency class		A	A	A	A	A
Annual power consumption	kWh	473	473	477	477	481
Energy conversion efficiency	%	39	39	39	39	39
Default temperature setting	°C	60	60	60	60	60
Sound power level	dB(A)	15	15
Special information on measuring effi-ciency		none	none	none	Data at Pmax.	none

15.8 Data table

DDLE Basis		11		DDLE Basis 13			DDLE Basis 18			DDLE Basis 18/21/24			DDLE Basis 27
229296 229297 222	388 222	390 222391
Electrical data
Rated voltage	V	380	400	380	400	415	380	400	415	380	400	415	380	400
Rated output	kW	10.1	11	12.2	13.5	14.5	16.2	18	19.4	16.2/19/21.7	18/21/24	19.4/22.6/25.8	24.4	27
Rated current	A	15.4	16	18.5	19.5	20.2	24.7	26	27	27.6/29.5/35	29/31/35	30.1/32.2/36.3	37.1	39
Fuse	A	16	16	20	20	20	25	25	32	32/32/35	32/32/35	32/32/40	40	40
Phases		3/PE		3/PE			3/PE			3/PE			3/PE
Frequency	Hz	50/60	50/60	50/60	50/60	50/-	50/60	50/60	50/-	50/60	50/60	50/-	50/60	50/60
Specific resistance ρ15≥ (at δcold ≤25 °C)	Ω cm	900	900	900	900	1000	900	900	1000	900	900	1000	900	900
Specific conductivity σ15≤ (at δcold ≤25 °C)	μS/cm	1111	1111	1111	1111	1000	1111	1111	1000	1111	1111	1000	1111	1111
Specific resistance ρ15≥ (at δcold ≤45 °C)	Ω cm	1200	1200	1200	1200	1300	833	1200	1300	833	1200	1300	833	1200
Specific conductivity σ15≤ (at δcold ≤45 °C)	μS/cm	830	830	830	830	770	1200	833	770	1200	833	770	1200	833
Max. mains impedance at 50Hz	Ω						0.379	0.360	0.347	0.284	0.270	0.260	0.254	0.241
Connections
Water connection		G 1/2 A		G 1/2 A			G 1/2 A			G 1/2 A			G 1/2 A
Application limits
Max. permissible pressure	MPa	1		1			1			1			1
Max. inlet temperature for reheating	°C	45		45			45			45			45
Values
Max. permissible inlet temperature	°C	60		60			60			60			60
On	l/min	>3		>3			>3			>3			>3
Flow rate for pressure drop	l/min	3.1		3.9			5.2			5.2/6.0/6.9			7.7
Pressure drop at flow rate	MPa	0.07 (0.02 without DMB)		0.11 (0.03 without DMB)			0.08 (0.06 without DMB)			0.08/0.10/0.13 (0.06/0.08/0.10 without DMB)			0.16(0.12 without DMB)
Flow rate limit at	l/min	4.0		4.0			8.0			8.0 / 8.0 / 9.0			9.0
DHW delivery	l/min	5.6		6.9			9.2			9.2/10.7/12.3			12.7
Δδ on delivery	K	28		28			28			28			28
Hydraulic data
Nominal capacity	I	0.4		0.4			0.4			0.4			0.4
Versions
Connected load adjustable		-		-			-			X			-
Temperature setting range	°C	ca. 30-60		ca. 30-60			approx. 30-60			approx. 30-60			approx. 30-60
Insulating block		Plastic		Plastic			Plastic			Plastic			Plastic
Heating system heat generator		Bare wire		Bare wire			Bare wire			Bare wire			Bare wire
Cover and back panel		Plastic		Plastic			Plastic			Plastic			Plastic
Colour		White		White			White			White			White
IP rating		IP25		IP25			IP25			IP25			IP25
Dimensions
Height	mm	485		485			485			485			485
Width	mm	226		226			226			226			226
Depth	mm	93		93			93			93			93
Weights
Weight	kg	3.6		3.6			3.6			3.6			3.6

Guarantee

The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only granted if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted.

We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.

REMARQUES PARTICULIÈRES

Kit de raccordement fourneau

Technical diagram of a water purifier system with labeled components and directional arrows indicating flow or movement.

26_02_02_1345

Technical diagram showing a pipe system with labeled components and directional arrows, including a valve and a tank.

26_02_02_1344

Technical line drawing of a door panel with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components and directional arrows (no text or symbols)

160 ≥ 30 26_02_02_0887

Pose du support mural

Mechanical assembly diagram showing a bracket with screws and a tool, mounted on a grid background (no text or symbols)

26_02_02_0972

Technical diagram showing a mechanical assembly with a screwdriver inserted into a component, no text or symbols present.

26_02_02_0950

Mechanical assembly diagram showing two stages of a bolted joint with pulley and nut components (no text or labels)

26_02_02_0948

Technical line drawing of an industrial machine interior with no visible text or symbols

D0000041893

Technical line drawing of an electrical enclosure with internal components and a magnified inset showing a close-up detail (no text or symbols)

D0000041894

Diagram showing three mechanical components connected by a pipe, with arrows indicating motion direction (no text or symbols)

D0000041925

Technical line drawing of an electrical enclosure with internal components and a close-up view of the cabinet (no text or symbols)

D0000047341

Technical line drawing of a mechanical assembly with no visible text or symbols

26_02_02_1348

Technical diagram of a device interior with labeled components and directional arrows indicating flow or movement.

Two mechanical assembly diagrams showing a cylindrical component being inserted into a housing, with arrows indicating direction (no text or symbols present)

26_02_02_0765

Technical diagram of a mechanical device with internal components and mounting brackets (no text or symbols)

26_02_02_1006

Technical line drawing of a mechanical device with no visible text or symbols

D0000046203

Technical diagram of an electrical panel with labeled components and a magnified inset showing a device with 'kW' and 'Fusal'.

D0000041794

1 Voyant de diagnostic

26_02_02_0949

1 2 3 4 L1' L2' L3' 10 20 30 40 2 3 P> L L L

85_02_02_0005

L L L 2 1

85_02_02_0003_

Diagram of a water purifier system with labeled components and directional arrows indicating flow or movement.

26_02_02_1345

1 Koudwatertoevoer
2 Warmwateruitloop

Bovenbouw

Technical diagram showing a mechanical or fluid system with labeled components 1, 2, and directional arrows indicating flow or movement.

26_02_02_1344

1 Koudwatertoevoer

2 Warmwateruitloop

Info

Technical line drawing of a door panel with two views showing internal components and directional arrows (no text or symbols)

Technical line drawing of mechanical components with directional arrows indicating assembly or movement (no text or symbols present)

160 ≥30 26_02_02_0887

Wandbevestiging monteren

Mechanical assembly diagram showing a bracket with screws and a tool, mounted on a grid background (no text or symbols)

26_02_02_0950

Technical diagram showing mechanical assembly with bolted components and directional arrows (no text or symbols)

» Dicht af en schroef de nippel erin.

Interior view of a device showing internal components and a central screen (no visible text or symbols)

D0000041893

Technical line drawing of an electrical enclosure with internal components and a magnified inset showing a speaker (no text or symbols present)

D0000041894

Diagram showing three stages of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

D0000041925

Technical line drawing of an electrical enclosure with internal components and a close-up view of the main panel (no text or symbols)

D0000047341

Technical line drawing of a mechanical assembly with no visible text or symbols

26_02_02_1348

Technical diagram of an industrial electrical control unit with labeled components and a magnified inset showing internal wiring connections.

Two-step diagram showing a hand holding a cylindrical object with a separate inset view of the same component (no text or symbols present)

26 02 02 0765

Technical diagram of a mechanical assembly with no visible text or symbols

26 02 02 1006

Mechanical component diagram showing a motor or actuator with rotating arm and cable (no text or symbols)

on on 1. 2.

26_02_02_0769

Technical diagram of an electrical cabinet with labeled components and a magnified inset showing internal wiring layout.

D0000041794

1 Diagnoselampje

Technical illustration of two mechanical components with arrows indicating assembly or movement (no text or symbols)

26_02_02_0949

1 2 3 4 L1' L2' L3' 1 2 3 4 2 3 P2

85_02_02_0005

L L L 2 1 I>

85_02_02_0003_

Technical diagram of a water purifier system with labeled components and flow indicators

26_02_02_1345

Technical diagram showing a tank connected to a drain with labeled components 1 and 2, including directional arrows indicating flow or movement.

26_02_02_1344

Technical line drawing of a door panel with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components and directional arrows (no text or symbols)

160 ≥ 30 26_02_02_0887

Mechanical assembly diagram showing a component with bolts and a shaft, enclosed in a grid frame (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an internal electrical enclosure with labeled components and a magnified inset showing a separate view (no text or symbols present)

Technical diagram of an electrical enclosure with labeled components and a magnified view showing internal structure and terminal labels.

D0000047341

Technical line drawing of a mechanical assembly with no visible text or symbols

26_02_02_1348

Technical diagram of an electrical switchgear assembly with labeled components and a magnified inset showing internal wiring connections.

Two mechanical assembly diagrams showing a valve mechanism with arrows indicating direction (no text or symbols present)

26_02_02_0765

Technical diagram of a mechanical assembly with no visible text or symbols

26_02_02_1006

Mechanical assembly diagram showing a clamping mechanism with rotating components (no text or symbols)

D0000046203

Technical diagram of an electrical enclosure with labeled components and a magnified inset showing internal wiring layout.

Technical diagram showing two mechanical assembly steps with directional arrows indicating movement or force direction.

26 02 02 0949

1 2 3 4 L1' L2' L3' P> 3

85_02_02_0005

L L L 2 1

85_02_02_0003_

Urzhumskaya street 4,

building 2

129343 Moscow

Tel. [phone]

Fax [phone]

Switzerland

STIEBEL ELTRON AG

Industrie West

Gass 8

5242 Lupfig

Tel. [phone]

Fax [phone]
