Mixr - Headphones MONSTER - Free user manual and instructions

Product Type	On-ear audio headset
Brand	Monster
Model	Mixr
Connection Type	Wired with 3.5 mm jack
Microphone	Integrated into remote control
Remote control	Yes, with control buttons
Remote control functions	Play/Pause, track skip, volume, call management, voice command
Recommended use	Music listening and phone calls
Power source	None (powered by connected device)
Cable length	Approximately 1.2 m
Weight	Approximately 200 g
Earpad material	Memory foam (estimate)
Compatibility	Devices with 3.5 mm jack (iOS, Android, etc.)
Included accessories	Audio cable with remote control
Care	Wipe with a soft, dry cloth
Safety	Do not use while driving; respect recommended sound levels
Frequency response	20 Hz - 20 kHz (standard estimate)
Impedance	32 ohms (estimate)
Sensitivity	110 dB (estimate)
Warranty	Consult the retailer

Frequently Asked Questions - Mixr MONSTER

How to adjust the volume on the Mixr headset?

Use the volume buttons on the cable remote: press the top button to increase the volume and the bottom button to decrease it. This function varies depending on the connected device.

How to answer a call with the remote control?

To answer an incoming call, press the central button on the remote once and release it. To hang up, repeat the same operation.

How to reject an incoming call?

Press and hold the central button for two seconds, then release. You will hear two beeps confirming the call has been rejected.

How to use voice command?

Press and hold the central button until voice command activates. This feature depends on your device.

How to skip to the next or previous track?

Press the central button twice quickly to skip to the next track, and three times to return to the previous one.

What are the risks of hearing loss?

Exposure to sounds of 85 dB or more can gradually cause hearing loss. The louder the sound, the less time you should be exposed to it. Use a moderate volume and limit listening time.

Can I wear the headset while driving?

No, it is dangerous and often illegal to drive with headphones because it reduces your ability to hear important sounds (horns, sirens). Use an FM transmitter to listen in the car.

How to clean the Mixr headset?

Clean the headset with a soft, dry cloth. Do not use harsh chemicals or liquids. Store it in a dry place.

What to do if the sound is low or distorted?

Check the volume of your device and the headset. Make sure the jack is fully inserted. Try with another device to isolate the problem. If the issue persists, contact customer support.

How to register my Beats headset?

Register your headphones on the official website www.beatsbydre.com/register to benefit from support and warranty.

USER MANUAL Mixr MONSTER

Using the Remote Mic 7

Connect, Listen, Enjoy 9

To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume until you reach a comfortable listening level. Noise levels are measured in decibels (dB), exposure to any noise at or above 85 dB can cause gradual hearing loss. Monitor your use; hearing loss is a function of loudness versus time. The louder it is, the less time you can be exposed to it. The softer it is, the more time you can listen to it.

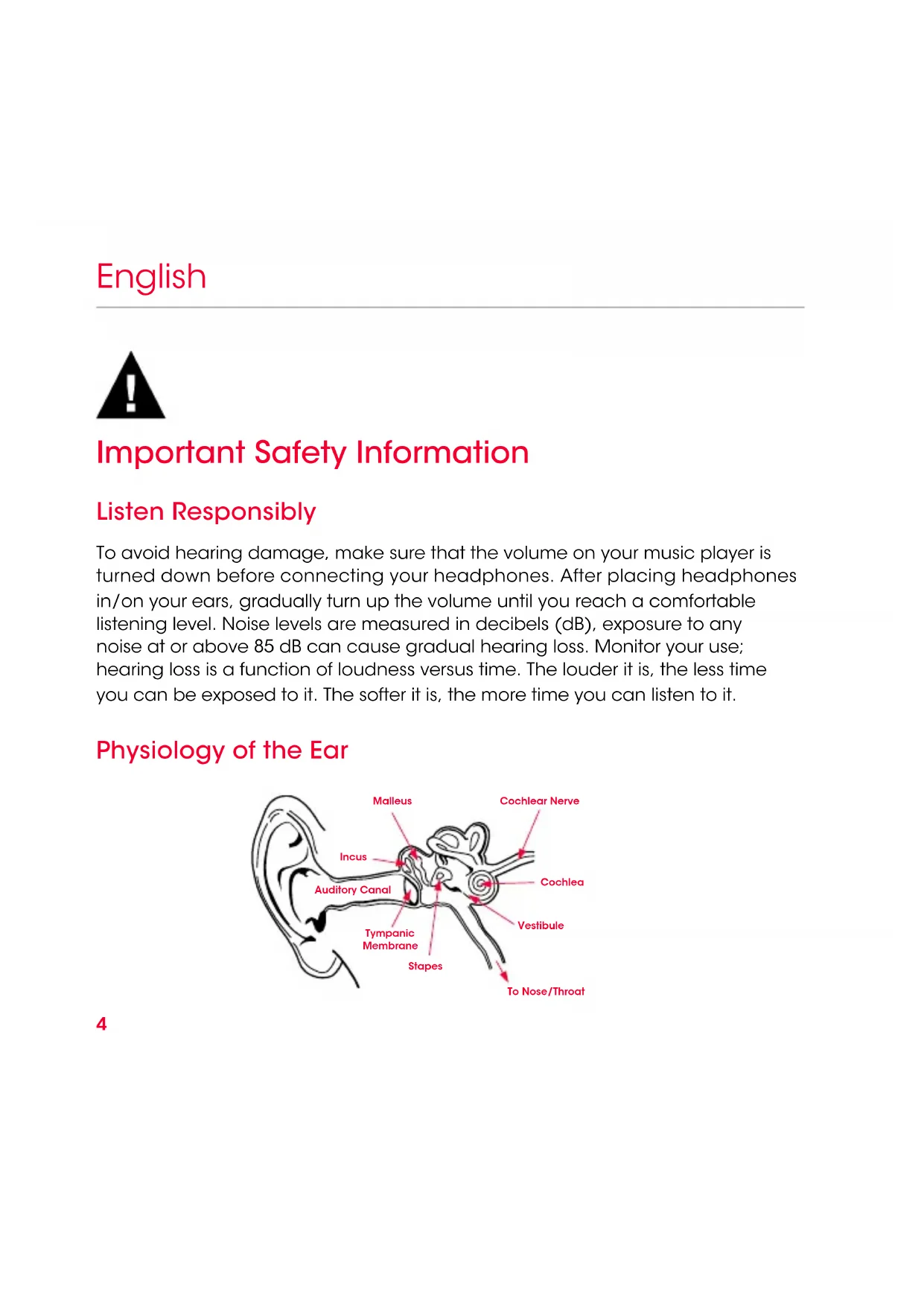

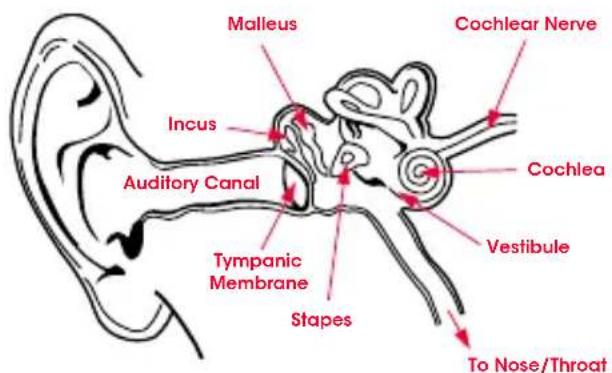

Physiology of the Ear

This decibel (dB) table compares some common sounds and shows how they rank in potential harm to hearing.

SOUND NOISE LEVEL	(dB)	EFFECT
Whisper 30 Very quiet
Quiet Office 50-60 comfortable hearing levels are under 60dB
Vacuum Cleaner, Hair Dryer	70 Intrusive; interferes with telephone conversations
Food Blender 85-90 85 dB is the level at which hearing damage (8 hrs.) begins
Garbage Truck, Cement Mixer	100 No more than 15 minutes of unprotected exposure recommended for sounds between 90-100 dB
Power Saw, Drill/Jackhammer	110Regular exposure to sound over 100 dB of more than 1 minute risks permanent hearing loss
Rock Concert (varies)	110-140	Threshold of pain begins around 125 dB

• Chart information from http://www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

English

"... a typical person can safely listen to an iPod for 4.6 hours per day at 70% volume."

"... knowing the levels one is listening to music at, and for how long is extremely important."

From http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

Get the most out of your equipment and enjoy great audio performance even at safe levels. Our headphones will allow you to hear more details at lower volume levels than ever before.

Use Responsibly

Do not use headphones when it's unsafe to do so—while operating a vehicle, crossing streets, or during any activity or in an environment where your full attention to your surroundings is required.

It's dangerous to drive while wearing headphones, and in many places, illegal because it decreases your chances of hearing life-saving sounds outside of your vehicle, such as another car's horn and emergency vehicle sirens. Please avoid wearing your headphones while driving. Use an FM transmitter to listen to your mobile media devices instead.

Learn how to establish a safe listening level and review other important safety guidelines from the Consumer Electronics Association at www.ce.org and the Deafness Research Foundation at www.drf.org.

English

Using the Remote Mic

Beats Mixr headphone comes equipped with a remote mic cable that gives you more freedom to control your phone or music player.

Functions include:

• Play

HTC,Blackberry&AndroidiPod,iPhone&iP

• Pause II
• Skip Forward/ Backward
• Scan Forward/ Backward
• Answer
  End Call
  Voice Command
  Volume Control + -

Note: Functionality varies by device.

English

Play or pause a song or video: Press and release the center button. Repeat to resume.

Skip track or backward to next song or video: Press and release the center button twice quickly to skip forward. Press and release three times quickly to skip back.

Scan forward or backward through a song or video: In quick motion, press the center button twice, hold on the second press to scan forward. Release when you want to stop scanning. To scan backward, press the center button three times, holding on the third press.

Answer or end a call: Press and release the center button once to answer. Repeat to end the call.

Decline an incoming call: Press and hold the center button for two seconds, then release. There will be two beeps when you let go to indicate successful operation.

Voice Command: Press and hold the center button until voice activation starts up. Functionality will vary by device.

Control volume: Press the top button to increase volume. Press the bottom button to decrease volume. Functionality will vary by device.

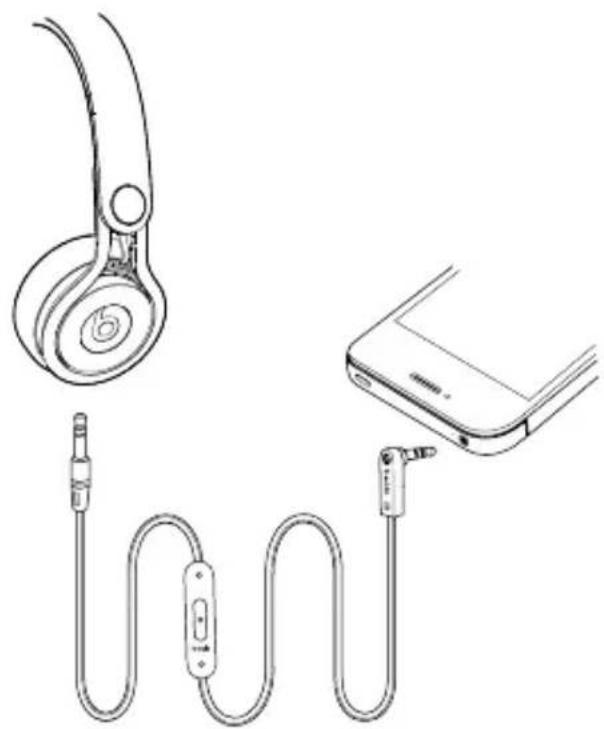

Connect, Listen and Enjoy

Register Your Beats Today

www.beatsbydre.com/register

Utilisation responsible

Tire du site http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

Utilisation responsible

De http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

*Informacoes da tabela em http://www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

Português

Fonte http://www.cbc.ca/health/story/2006/10/19/music-earphones.html

Beats Electronics, LLC

1601 Cloverfield Blvd

Suite 5000N

Santa Monica

CA 90404

beats by dr. dre.

771-00011-01-C
