USER MANUAL AccuSync LCD72VXM NEC

Index1 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. WARNING CAUTION Canadian Department of Communications Compliance Statement DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1. FCC Information

Use the attached specified cables with the AccuSync LCD72VXM (L174F1) and AccuSync LCD92VXM (L194F2) color monitors so as not to interfere with radio and television recep- tion. (1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable and audio cable. Use of other cables and adapters may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. If necessary, the user should contact the dealer or an experienced radio/television techni- cian for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4. TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING

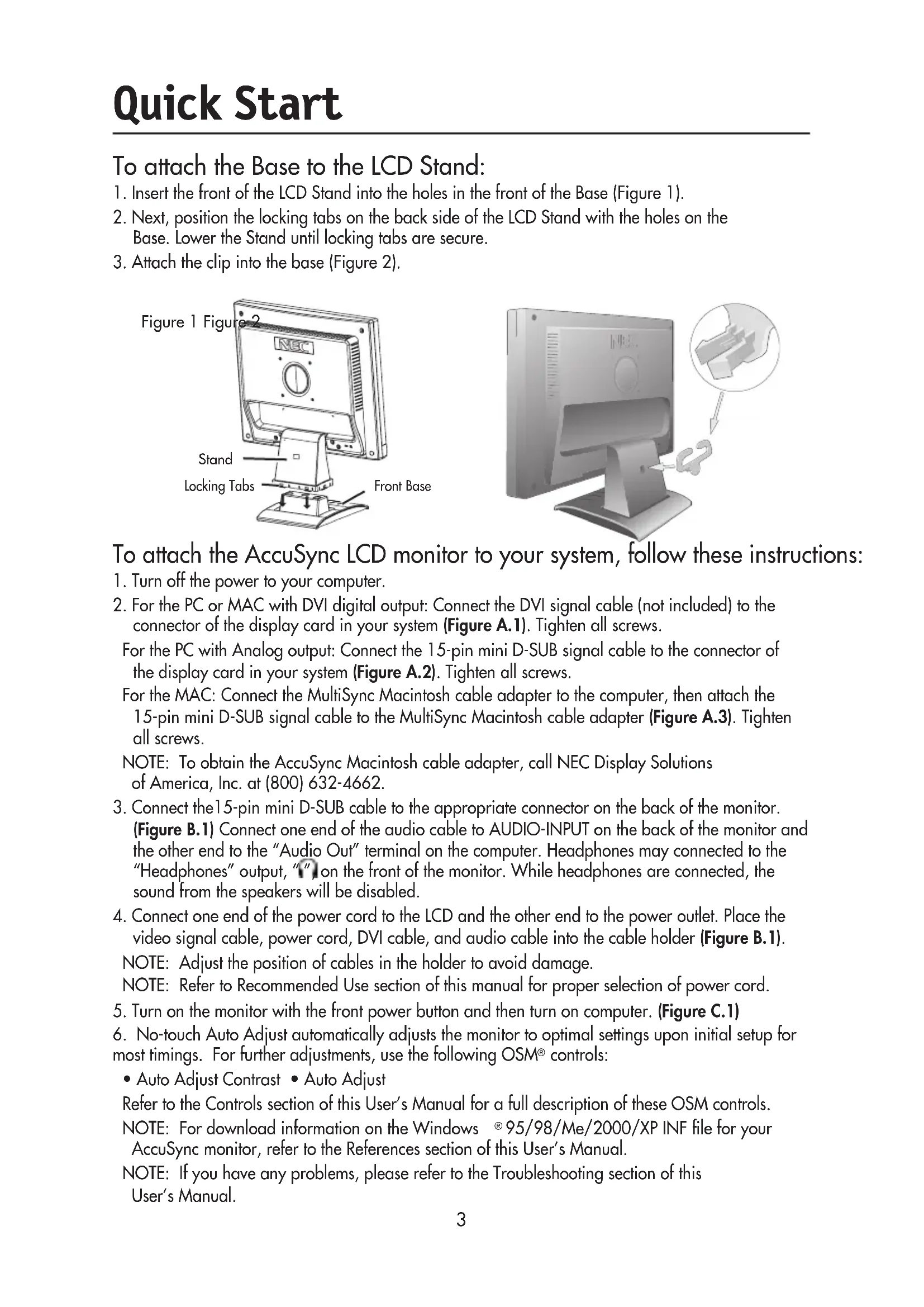

• .Cable.Holder Audio.Cable3 Quick Start To attach the Base to the LCD Stand:

1. Insert the front of the LCD Stand into the holes in the front of the Base (Figure 1).

2. Next, position the locking tabs on the back side of the LCD Stand with the holes on the

Base. Lower the Stand until locking tabs are secure.

3. Attach the clip into the base (Figure 2).

Stand Figure 1 Figure 2 To attach the AccuSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable (not included) to the

connector of the display card in your system (Figure A.1). Tighten all screws. For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your system (Figure A.2). Tighten all screws. For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure A.3). Tighten all screws. NOTE: To obtain the AccuSync Macintosh cable adapter, call NEC Display Solutions of America, Inc. at (800) 632-4662.

3. Connect the15-pin mini D-SUB cable to the appropriate connector on the back of the monitor.

(Figure B.1) Connect one end of the audio cable to AUDIO-INPUT on the back of the monitor and the other end to the “Audio Out” terminal on the computer. Headphones may connected to the “Headphones” output, “ ”, on the front of the monitor. While headphones are connected, the sound from the speakers will be disabled.

4. Connect one end of the power cord to the LCD and the other end to the power outlet. Place the

video signal cable, power cord, DVI cable, and audio cable into the cable holder (Figure B.1). NOTE: Adjust the position of cables in the holder to avoid damage. NOTE: Refer to Recommended Use section of this manual for proper selection of power cord.

5. Turn on the monitor with the front power button and then turn on computer. (Figure C.1)

6. No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for

most timings. For further adjustments, use the following OSM

• Auto Adjust Contrast • Auto Adjust Refer to the Controls section of this User’s Manual for a full description of these OSM controls. NOTE: For download information on the Windows

95/98/Me/2000/XP INF file for your AccuSync monitor, refer to the References section of this User’s Manual. NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual. Front Base Locking Tabs4 Quick Start –continued Note: Some Macintosh systems do not require a Macintosh Cable Adapter Figure A.2 Figure C.1 Figure A.3 Macintosh Cable Adapter (not included) Figure B.1 Input (VGA) Cable holder Power button Power Cable Input (DVI) Figure A.1 Audio Cable DVI Signal Cable (not included)5 Tilt Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1). NOTE: Handle with care when tilting the monitor screen. Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes:

3. Remove the 4 screws connecting the monitor to the stand and slide the

stand off from the LCD (Figure R.1). The monitor is now ready for mounting in an alternate manner.

Connect the AC cord and signal cable to the back of the monitor (Figure R.2).

5. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method. NOTE: Handle with care when removing monitor stand. Quick Start –continued Figure TS.1 Figure R.1 Figure R.2 non-abrasive surface6 Quick Start –continued Removing the Base Note: Always remove the Base when shipping the LCD.

Place monitor face down on a non-abrasive surface.

2. While using your thumbs, press the tabs in the

direction of the arrows to unlock the stand.

3. Pull the unlocked base off the stand.

Connecting a Flexible Arm This LCD monitor is designed for use with a flexible arm. Please use the attached screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark). Replace screws Specifications If using other screws, check depth of holes. 4-SCREWS (M4) Tighten all screws. Thickness of Bracket (Arm) 2.0~3.2 mm (MAX depth: 8.5 mm) 100 mm100 mm Weight of LCD assembly: LCD72VXM - 4.3 kg (MAX) LCD92VXM - 5.5 kg (MAX)7 Controls OSM

(On-Screen Manager) control buttons on the front of the monitor function as follows: OSM displayed Shortcut to bright adjust window Button OSM Off Shortcut to volume adjust window Input signal select OSM On (Icon selection stage) Go to Adjustment stage Cursor moves left Cursor moves right OSM On (Adjustment stage) Go to Icon selection stage Adjust value decrease or Cursor for adjust moves left Adjust value increase or Cursor for adjust moves right Reset operation SELECT

Main Menu (Icon Select, Analog Input) Sub Menu (Icon Select) Press “SELECT” key Press “SELECT” key Press “–“ or “ +” Adjust by using “–“ or “ +”. Main Menu (Adjust) Sub Menu (Adjust) Press “SELECT” key Press “SELECT” key Press “–“ or “ +” Adjust by using “–“ or “ +”. Press “SELECT” key Press “SELECT” key8 Controls –continued AUDIO Controls the volume of the speakers or headphones. To mute the speaker output, press the “1<->2 / RESET” button. BRIGHTNESS Adjusts the overall image and background screen brightness. CONTRAST Adjusts the image brightness in relation to the background. AUTO CONTRAST (Analog Input Only) Adjusts the image displayed for non-standard video inputs. AUTO ADJUST (Analog Input Only) Automatically adjusts the Image Position, H. Size and Fine setting. LEFT/RIGHT (Analog Input Only) Controls Horizontal Image Position within the display area of the LCD. DOWN/UP (Analog Input Only) Controls Vertical Image Position within the display area of the LCD. H. SIZE (Analog Input Only) Adjusts the horizontal size by increasing or decreasing this setting. FINE (Analog Input Only) Improves focus, clarity and image stability by increasing or decreasing this setting.

COLOR CONTROL SYSTEMS

Four color presets (9300/7500/6500/USER) select the desired color setting. COLOR RED Increase or decreases Red. The change will appear on screen. COLOR GREEN Increase or decreases Green. The change will appear on screen. COLOR BLUE Increase or decreases Blue. The change will appear on screen. TOOL Selecting TOOL allows you to get into the sub menu. FACTORY PRESET Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The “1 <-> 2 RESET” button will need to be held down for several seconds to tage effect. Individual settings can be reset by highlighting the control to be reset and pressing the “1 <-> 2 RESET” button.9 Controls –continued OSM

NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear. RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu. OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the Out Of Range menu will appear. EXIT Selecting EXIT allows you exit OSM menu/sub menu. LANGUAGE OSM control menus are available in seven languages.

The OSM control menu will stay on as long as it is in use. In the OSM Turn OFF submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10 - 120 seconds in 5 second intervals.

This control completely locks out access to all OSM control functions without Brightness and Contrast. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM are locked out. To activate the OSM Lock Out function, press “1 <–> 2 / RESET“, then “+“ key and hold down simultaneously. To de-activate the OSM Lock Out, press “1 <–> 2 / RESET“, then “+“ key and hold down simultaneously. RESOLUTION NOTIFIER If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at optimal resolution. MONITOR INFO Indicates the model and serial numbers of your monitor.10 Recommended Use Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE ACCUSYNC LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• When operating the AccuSync LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperature, humid, dusty, or oily areas.

• If glass is broken, handle with care.

• Do not cover vent on monitor. Immediately unplug your monitor from the wall outlet and refer servicing to qualified service person- nel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting. Image Persistence Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. NOTE: As with all personal display devices, NEC Display Solution of America recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. CAUTION11 Recommended Use –continued CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an antiglare filter.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups. Ergonomics To realize the maximum ergonomics benefits, we recommend the following:

Use the preset Size and Position controls with standard signals

Use non-interlaced signals with a vertical refresh rate between 60-75Hz

Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast. Cleaning the LCD Panel

• When the liquid crystal panel becomes dusty or dirty, wipe grntly with a soft cloth.

• Do not rub the LCD panel with coarse or hard material.

• Do not apply pressure to the LCD surface

• Do not use OA cleaner as it will cause deterioration or discoloration to the LCD sur- face. Cleaning the Cabinet

• Unplug the power supply.

• Dampen a soft cloth with water and a neutral detergent. Gently wipe the cabinet then dry gently with a soft cloth. NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean with benzene, thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Do not touch rubber or vinyl to the cabinet for a long period of time. These type of fluids and fanrics can cause the paint to deteriorate crack or peel. For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.12 Specications Monitor AccuSync LCD72VXM Notes Specifications Monitor LCD Module Diagonal: 17.0 inch Active matrix; thin film transistor (TFT) Viewable Image Size: 17.0 inch liquid crystal display (LCD); 0.264 mm dot Native Resolution (Pixel Count): 1280 x 1024 pitch; 250cd/m

: VGA text Some systems may not support 640 x 480*

at 56 Hz to 75 Hz 832 x 624*

at 60 Hz to 75 Hz 1152 x 864*

at 75 Hz NEC DISPLAY SOLUTIONS cites 1280 x 960

at 60 Hz to 75 Hz recommended resolution at 60 Hz for 1280 x 1024 at 60 Hz to 75 Hz................ optimal display performance. Active Display Area Horizontal :

Environmental Considerations Operating Temperature: 5°C to 35°C/41°F to 95°F Humidity: 30% to 80% Altitude: 0 to 10,000 Feet Storage Temperature: -10°C to +60°C/14°F to 140°F Humidity: 10% to 85% Altitude: 0 to 40,000 Feet

Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice.13 Specications –continued Monitor AccuSync LCD92VXM Notes Specifications Monitor LCD Module Diagonal: 19.0 inch Active matrix; thin film transistor (TFT) Viewable Image Size: 19.0 inch liquid crystal display (LCD); 0.294 mm dot Native Resolution (Pixel Count): 1280 x 1024 pitch; 250cd/m

: VGA text Some systems may not support 640 x 480*

at 56 Hz to 75 Hz 832 x 624*

at 60 Hz to 75 Hz 1152 x 864*

at 75 Hz NEC DISPLAY SOLUTIONS cites 1280 x 960

at 60 Hz to 75 Hz recommended resolution at 60 Hz for 1280 x 1024 at 60 Hz to 75 Hz................ optimal display performance. Active Display Area Horizontal :

Environmental Considerations Operating Temperature: 5°C to 35°C/41°F to 95°F Humidity: 30% to 80% Altitude: 0 to 10,000 Feet Storage Temperature: -10°C to +60°C/14°F to 140°F Humidity: 10% to 85% Altitude: 0 to 40,000 Feet

Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice.14 Features Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another. AccuColor

Control Systems: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards. OSM

(On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus. NaViSet™ Software: NaViSet offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSM display settings via mouse and keyboard. No-touch Auto Adjust™: No-touch Auto Adjust automatically adjusts the monitor to opti- mal settings upon initial setup. ErgoDesign

Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions

Plug and Play: The Microsoft

solution with the Windows

95/98/Me/2000/XP operat- ing system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance. IPM

(Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace. Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scan- ning frequency, thus displaying the resolution required. FullScan

Capability: Allows you to use the entire screen area in most resolutions, signifi- cantly expanding image size. VESA

Standard Mounting Interface: Allows users to connect their AccuSync monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device. OSM Display Screen Copyright 2004 by NEC Display Solutions of America, Inc.15 Troubleshooting No picture

The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Front Power Switch and computer power switch should be in the ON position.

Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recom- mended settings.

• Check the signal input. Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor. Image Persistence

Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual im- age remains, the monitor should be turned off for one hour to erase the image. NOTE: As with all personal display devices, NEC Display Solutions of America, Inc. recommends displaying moving images or using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the FINE control. When the display mode is changed, the OSM Image Adjust settings may need to be readjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate. LED on monitor is not lit (no green or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected. Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the H.SIZE.

Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.) No Video

• If no video is present on the screen, turn the Power button off and on again.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse). No Sound

• Make sure the speaker cable is proper connected.

• Check to see if mute is activated.

Drivers and Downloads www.necdisplay.com17 Limited Warranty NEC Display Solutions of America, Inc. (hereinafter “NEC DISPLAY SOLUTIONS”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NEC DISPLAY SOLUTIONS’ sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NEC DISPLAY SOLUTIONS-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NEC DISPLAY SOLUTIONS No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NEC DISPLAY SOLUTIONS to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product. It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NEC DISPLAY SOLU- TIONS to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NEC DISPLAY SOLUTIONS for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NEC DISPLAY SOLUTIONS to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty. NEC DISPLAY SOLUTIONS SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUEN- TIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NEC DISPLAY SOLUTIONS PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NEC DISPLAY SOLUTIONS Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NEC DISPLAY SOLUTIONS. For the name of your nearest authorized NEC Display Solutions of America, Inc. service facility, contact NEC Display Solutions of America, Inc. at 1-800-632-4662.18 TCO’99 – (AccuSync LCD72VXM) Congratulations! You have just purchased a TCO’99 approved and la- belled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encourag- ing the adaptation of goods and services to the environment. With the growing manufacture and usage of electronic equipment throughout the world, there is a recognized concern for the materials and substances used by electronic products with regards to their eventual recycling and disposal. By proper selection of these materials and substances, the impact on the environment can be minimized. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environ- ments. Electronic equipment in offices is often left running continuously, resulting in unneces- sary consumption of large amounts of energy and additional power generation. From the standpoint of carbon dioxide emissions alone, it is vital to save energy. What does labelling involve? The product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers and/or displays. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: ecology, ergonomics, emission of electrical and magnetical fields, energy consumption and electrical safety. Ecological criteria impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, and other substances. The product must be prepared for recycling and the manufacturing site(s) shall be certified according to ISO14001 or EMAS registered. Energy requirements include a demand that the system unit and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the system unit shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electrical and magnetical fields as well as work load and visual ergonomics.19 TCO’99 –continued Below you will find a brief summary of the ecological requirements met by this product. The complete ecological criteria document can be found at TCO Development’s website http://www. tcodevelopment.com or may be ordered from: TCO Development SE-114 94 STOCKHOLM, Sweden Fax: +46 8 782 92 07 E-mail: development@tco.se Information regarding TCO’99 approved and labelled products may also be obtained at http://www.tcodevelopment.com Ecological requirements Flame retardants Flame retardants may be present in printed wiring board laminates, cables, and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% by weight of the plastic in a computer casing can consist of flame retardant substances. Many flame retardants contain bromine or chlorine, and these flame retardants are chemically related to PCBs (polychlorinated biphenyls). Both the flame retardants containing bromine or chlorine and the PCBs are suspected of giving rise to health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes when not disposed of in accordance with strict standards for disposal. TCO’99 requires that plastic components weighing more than 25 grams shall not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed wiring board laminates due to the lack of commercially available alternatives. Cadmium** Cadmium is present in rechargeable batteries and in the colour-generating layers of certain com- puter displays. TCO’99 requires that batteries, the colour-generating layers of display screens, and the electrical or electronics components shall not contain any cadmium. Mercury** Mercury is sometimes found in batteries, relays and switches. TCO’99 requires that batteries shall not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is available. Lead** Lead can be found in picture tubes, display screens, solders and capacitors. TCO’99 permits the use of lead due to the lack of commercially available alternatives, but in future requirements TCO Development aims at restricting the use of lead. *Bio-accumulative is defined as substances which accumulate within living organisms. **Lead, Cadmium and Mercury are heavy metals which are bio-accumulative.20 TCO’03 – (AccuSync LCD92VXM) Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment. Some of the features of the TCO’03 Display requirements: Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment

• Electrical safety Emissions

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14

• Restrictions on: – chlorinated and brominated flame retardants and polymers – heavy metals such as cadmium, mercury and lead. The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit www.tcodevelopment.com21 Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organization for Standardization) and TCO (Swedish Trades Union). For more information, and for help in recycling your old NEC monitors, please visit our website at: USA: http://www.necdisplay.com Europe: http://www.nec-display-solutions.com Japan: http://www.nec-display.com Country-specific recycling programs can also be found at: Sweden - http://www.el-retur.se Germany - http://www.recyclingpartner.de/ Holland - http://www.mirec.nl/ Japan - http://www.diarcs.com/ Energy saving: This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPMS) Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode. LCD92VXM Mode Power Consumption LED Color Normal Operation Approx. 40W Green or Blue Energy Saving Mode Less than 2W Amber Off Mode Less than 2W Unlit22 Declaration of the Manufacturer We hereby certify that the color monitors AccuSync LCD72VXM (L174F1) and LCD92VXM (L194F2) are in compliance with Council Directive 73/23/EEC: – EN 60950-1 Council Directive 89/336/EEC: – EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024 and marked with NEC Display Solutions, Ltd. 4-13-23, Shibaura, Minato-Ku Tokyo 108-0023, Japan Disposing of your old NEC Products Within the European Union EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separetly from normal household waste. This includes moni- tors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC. The mark on electricall and electronic products only applies to the current European Union Member States. Outside the European Union If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.23 AFIN D’ÉVITER TOUT RISQUE D’INCENDIE OU D’ÉLECTROCUTION, NE PAS EXPOSER CET APPAREIL À LA PLUIE OU À L’HUMIDITÉ. NE PAS UTILISER LA FICHE D’ALIMENTATION POLARISÉE AVEC UNE PRISE DE CORDON DE RALLONGE OU AUTRE PRISE SAUF SI LES BROCHES PEUVENT ÊTRE ENTIÈREMENT INTRODUITES. NE PAS OUVRIR LE BOÎTIER, LEQUEL CONTIENT DES COMPOSANTS À HAUTE TENSION. CONFIER TOUS TRAVAUX À DU PERSONNEL TECHNIQUE QUALIFIÉ. AVERTISSEMENT ATTENTION ATTENTION : POUR ÉVITER TOUT RISQUE D’ÉLECTROCUTION, NE PAS OUVRIR LE COUVERCLE (L’ARRIÈRE). À L’INTÉRIEUR, AUCUNE PIÈCE NE NÉCESSITE L’INTERVENTION DE L’UTILISATEUR. EN CAS DE PROBLÈME, S’ADRESSER À DU PERSONNEL TECHNIQUE QUALIFIÉ. Ce symbole est une mise en garde contre les risques d’électrocution que présentent certaines parties dépourvues d’isolation à l’intérieur de l’appareil. Il est donc dangereux d’établir le moindre contact avec ces parties

NEC DISPLAY SOLUTIONS

NEC DISPLAY SOLUTIONS

, vous devez d’abord obtenir une autorisation de retour de marchandise en composant le 1-800-632-4662. Le produit ne pourra avoir été enlevé ou modifié, réparé ou entretenu au préalable par personne d’autre que du personnel technique autorisé par

NEC DISPLAY SOLUTIONS

, et le numéro de série du produit ne pourra pas avoir été enlevé. Pour être couvert par cette garantie, le produit ne pourra pas avoir été soumis à l’affichage d’une image fixe pendant de longues périodes de temps résultant en une persistance de l’image, un accident, une utilisation incorrecte ou abusive ou une utilisation contraire aux directives contenues dans le guide de l’utilisateur. Une seule de ces conditions annulera la garantie.

NEC DISPLAY SOLUTIONS

NE POURRA ÊTRE TENUE RESPONSABLE DE DOMMAGES DIRECTS, INDIRECTS, ACCIDENTELS, SECONDAIRES OU D’AUTRES TYPES DE DOMMAGES RÉSULTANT DE L’UTILISATION D’UN PRODUIT QUI N’ENTRENT PAS SOUS LA RESPONSABILITÉ DÉCRITE CI-DESSUS. CES GARANTIES REMPLACENT TOUTE AUTRE GARANTIE EXPLICITE OU IMPLICITE, Y COMPRIS, MAIS SANS S’Y LIMITER, TOUTE GARANTIE DE QUALITÉ MARCHANDE OU D’APTITUDE À UNE FIN PAR- TICULIÈRE. CERTAINES JURIDICTIONS NE PERMETTANT PAS L’EXCLUSION DE GARANTIES IMPLICITES OU LA LIMITATION OU L’EXCLUSION DE RESPONSABILITÉ POUR DOMMAGES ACCIDENTELS OU SECONDAIRES, LES EXCLUSIONS OU LIMITATIONS CI-DESSUS POURRAIENT NE PAS S’APPLIQUER DANS VOTRE CAS. Ce produit est garanti selon les termes de cette garantie limitée. Les consommateurs doivent savoir que les performances du produit peuvent varier selon la configuration du système, le logiciel, l’application, les données du client et la manière dont le produit est utilisé par l’opérateur, ainsi que d’autres facteurs. Bien que les produits

NEC DISPLAY SOLUTIONS

soient considérés compatibles avec de nombreux systèmes, la mise en oeuvre fonctionnelle du produit peut varier d’un client à l ’autre. Par conséquent, l’adéquation d’un produit à un besoin ou une application spécifique doit être déterminée par le consom- mateur et n’est pas garantie par

NEC DISPLAY SOLUTIONS

at 60 Hz to 75 Hz 1152 x 864*

at 60 Hz to 75 Hz 1152 x 864*

The information disclosed in this document, including all designs and related materials, is the valuable property of NEC Display Solutions of America, Inc. and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use and sales rights thereto, except to the extent said rights are expressly granted to others. The NEC Display Solutions of America, Inc. product(s) discussed in this document are warranted in accordance with the terms of the Limited Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factors such as system configuration, customer data and operator control. Since implementa- tion by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NEC Display Solutions of America, Inc.. To allow for design and specification improvements, the information in this document is subject to change at any time without notice. Reproduction of this document or portions thereof without prior approval of NEC Display Solutions of America, Inc. is prohibited.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. U.S. Responsible Party: NEC Display Solutions of America, Inc. Address: 500 Park Blvd, Suite 1100 Itasca, Illinois 60143 Tel. No.: (630) 467-3000 Type of Product: Display Monitor Equipment Classification: Class B Peripheral Model: AccuSync LCD72VXM (L174F1) and AccuSync LCD92VXM (L194F2) We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules. Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. EnErgy Star is a U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of their respective owners. As an EnErgy Star

Partner, NEC Display Solutions of America, Inc. has determined that this product meets the EnErgy Star guidelines for energy efficiency. The EnErgy Star emblem does not represent EPA endorsement of any product or service. NEC LCD Series
