USER MANUAL MultiSync LCD1770V NEC

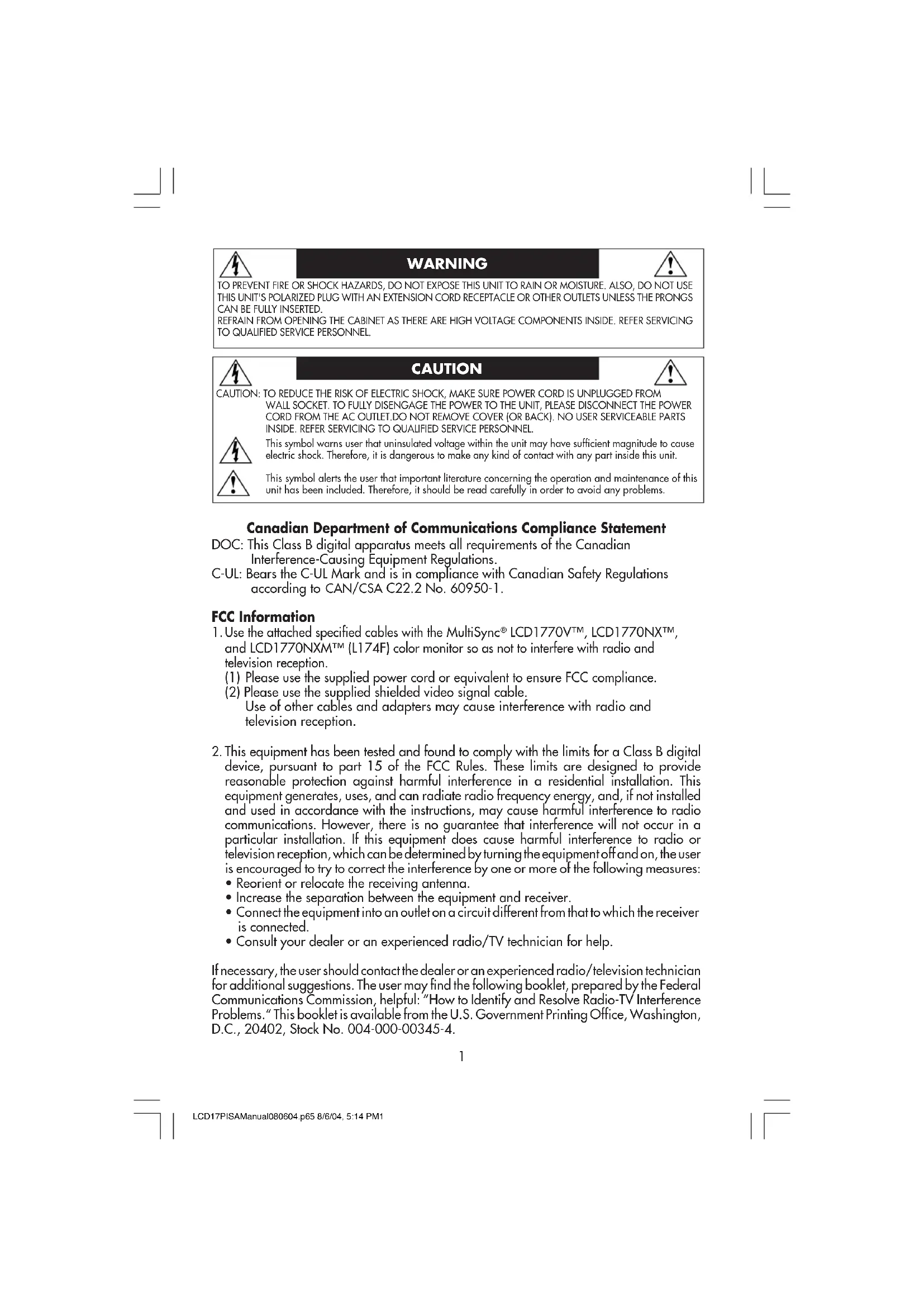

LCD1770V™, LCD1770NX™, and LCD1770NXM™ (L174F) color monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable. Use of other cables and adapters may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help. If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4. TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. LCD17PISAManual080604.p65 8/6/04, 5:14 PM12 Contents *Remember to save your original box and packing material to transport or ship the monitor. Your new NEC MultiSync

LCD monitor box* should contain the following:

MultiSync LCD1770V, LCD1770NX, or LCD1770NXM monitor with height adjustable stand

• Power Cord • User’s Manual

• Video Signal Cable • Cable Management Cover

• USB Cable (NX/NXM only)

• Audio Cable (NXM only)

• Sound bar (NXM only)

• Thumbscrews x 2 (NXM only) User's ManualMultiSync LCD1770VMultiSync LCD1770NXMultiSync LCD1770NXM Power Cord Video Signal Cable User’s Manual Cable Management Cover USB Cable (NX/NXM only) Audio Cable (NXM only) Thumbscrews (NXM only) Sound bar (NXM only) LCD17PISAManual080604.p65 8/6/04, 5:14 PM23 Sound bar Setup To attach the Sound bar to your LCD1770NXM, follow these instructions. Note: this setup is only for the LCD1770NXM. If you have purchase an LCD1770V or LCD1770NX, please move to the next page.

Turn off the computer.

2. Place hands on each side of the display to tilt up the panel and then lift up to the

Use the two thumb screws included to attach the Sound bar to the display (Figure SB.1). 4.Turn the volume control down on the

Connect the light blue color audio cable plug to the light blue jack of Sound bar (Figure SB.1 ). Connect the other end of the audio cable into the back of your computer. NOTE: Headphones may be connected to the headphones jack on the right side of the Sound bar (Figure SB.2). Headphones can be purchased from your local electronics store.

Connect the DC power cable of Sound bar to DC-OUT terminal of display (Figure SB.1). 7.You are now ready to move to the next step in setting up your MultiSync LCD. VOL. Headphone JackVolume Control VOL. Figure SB.2AudioCableDC PowerCableThumbScrewThumbScrewDC-OUT Terminalof DisplayFigure SB.1LCD17PISAManual080604.p65 8/6/04, 5:14 PM34 Display Setup To attach the MultiSync

LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

For the PC or MAC with DVI digital output (NX and NXM only) : Connect the DVI signal cable (not included) to the connector of the display card in your system (Figure 1). Tighten all screws. For the PC with Analog output : Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your system (Figure 2). Tighten all screws. For MAC setup : Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure 3). Tighten all screws. NOTE: To obtain the MultiSync Macintosh cable adapter, call NEC-Mitsubishi Electronics Display of America, Inc. at (800) 632-4662.

3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift

up to the highest position (Figure 4).

4. Connect all cables to the appropriate connectors (Figure 4). NOTE: If connecting both

DVI and D-sub cable, the DVI cable must be connected along side the rib on the power cord side (Figure 4).

5. For successful cable management, place the cables in this order into the cable

management: audio cable (NXM only) , power cable, and DVI cable (Figure 5).

6. Place DVI cable, audio cable

(NXM only) , and power cable into the specific hooks indicated in Figure 6.

7. Place the D-Sub and the USB cable

(NX and NXM only) into the specific hooks indicated in Figure 7.

8. Make sure all cables are resting flat against the stand (Figure 7).

9. Hold the all cables firmly and place the cable cover onto the stand (Figure 8). To

remove the cable cover, lift the cover off as shown in Figure 9.

10. Connect the power cord to the power outlet (Figure 10).

NOTE: If you use this monitor at AC125-240V, please refer to Recommended Use section of this manual for proper selection of power cord.

11. The vacation switch on the back side of the monitor must be turned on (Figure 10).

Turn on the monitor with the front power button and the computer. NOTE: The vacation switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

12. Analog input only: No-Touch Auto Adjust automatically adjusts the monitor to optimal

settings upon initial setup for most timings. For further adjustments, use the following OSM

• Auto Adjust Contrast • Auto Adjust Refer to the Controls section of this User ’s Manual for a full description of these OSM controls. NOTE: For download information on the Windows

95/98/Me/2000/XP INF file for your monitor, refer to the References section of this User’s Manual. NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual. LCD17PISAManual080604.p65 8/6/04, 5:14 PM45 Display Setup –continued Figure 4 30˚ TiltHighestStandPositionDVI Cable Figure 5 DVI Cable(Top)Power Cable(Middle)Audio Cable(Bottom)(NMX only) Figure 1 Figure 2 Figure 3 DVI Signal Cable(not included)Macintosh Cable Adapter (not included)Note: Some Macintosh systems do not require aMacintosh Cable Adapter Figure 6 DVI Cable Ridge Audio Cable Power Cable (NMX only) (NX and NXM only) LCD17PISAManual080604.p65 8/6/04, 5:14 PM56 Display Setup –continued Figure 10Power ButtonVacationSwitchFigure 9Figure 8 Insert Top Firs

Then Bottom Figure 7D-Sub Cable USB Cable (NX and NMX only) Fla

OFF PositionON PositionLCD17PISAManual080604.p65 8/6/04, 5:14 PM67 Display Setup –continued Raise and Lower Monitor Screen The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1). NOTE: Handle with care when raising or lowering the monitor screen. Tilt and Swivel Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1)

NOTE: Handle with care when tilting and swiveling the monitor screen. Figure RL.1 Figure TS.1 LCD17PISAManual080604.p65 8/6/04, 5:14 PM78 Mounting Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes:

1. Place hands on each side of the monitor and lift up to the highest position.

Remove the cable cover (Figure M.1).

4. Remove the 2 screws connecting the stand to the monitor (FigureM.2).

5. Lift up the stand to unlatch the upper hooks and remove the stand

6. Remove the 2 screws on the top of the monitor (FigureM.4). The monitor is

now ready for mounting in an alternate manner.

Connect the cables to the back of the monitor.

8. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method. Handle with care when removing stand. Figure M.1 Figure M.2 Figure M.3 Figure M.4 LCD17PISAManual080604.p65 8/6/04, 5:15 PM89 Flexible Arm Installation This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:

1. Follow the instructions on how Remove Monitor Stand for Mounting to

2. Using the 4 screws from the stand removal and attach the arm to the monitor

(Figure F.1). NOTE : The LCD monitor should only be used with an approved arm (e.g. GS mark). To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. Thickness of Bracket (Arm) 2.0~3.2mm 100mm 100mm Weight of LCD assembly: 4.7kg (MAX) 4.2kg (LCD1770V) 4.3kg (LCD1770NX) 4.7kg (LCD1770NXM) 4 Screws (4M) (Max Depth: 8.5mm) Figure F.1 LCD17PISAManual080604.p65 8/6/04, 5:15 PM910 Controls OSM

(On-Screen Manager) control buttons on the front of the monitor function as follows: To access OSM menu, press any of the control buttons (MENU/EXIT, Left, Right, Down, Up). To change signal input, press the SELECT button (NX and NXM only)

NOTE: OSM must be closed in order to change signal input. NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the MENU/EXIT button. Button Menu MENU/EXIT Exits the OSM controls. Exits to the OSM main menu. Left/Right Moves the highlighted area left/right to select control menus. Moves the bar left/right to increase or decrease the adjustment. Down/Up Moves the highlighted area down/up to select one of the controls. SELECT Active Auto Adjust function. Enter the OSM sub menu. RESET Resets the highlighted control menu to the factory setting. Brightness/Contrast Controls BRIGHTNESS Adjusts the overall image and background screen brightness. CONTRAST Adjusts the image brightness in relation to the background. AUTO Contrast (Analog input only) Adjusts the image displayed to optimal settings. Auto Adjust (Analog input only) Automatically adjusts the Image Position, H. Size and Fine settings. Image Controls (Analog input only) LEFT / RIGHT Controls Horizontal Image Position within the display area of the LCD. DOWN / UP Controls Vertical Image Position within the display area of the LCD. H.SIZE Adjusts the horizontal size by increasing or decreasing this setting. FINE Improves focus, clarity and image stability by increasing or decreasing this setting. AccuColor

Control Systems AccuColor

Control Systems: Six color presets select the desired color setting (sRGB and NATIVE color presets are standard and cannot be changed). R,G,B: Increases or decreases Red, Green or Blue color depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the bars. LCD17PISAManual080604.p65 8/6/04, 5:15 PM1011 Controls –continued NATIVE: Original color presented by the LCD panel that is unadjustable. sRGB: sRGB mode dramatically improves the color fidelity in the desktop environment by a single standard RGB color space. With this color supported environment, the operator could easily and confidently communicate color without further color management overhead in the most common situations. Tools OFF TIMER: Monitor will automatically power-down when the end user has selected a predetermined amount of time. HOT KEY: You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with left or right control and contrast with up or down control while the OSM menu is off. FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button. Menu Tools LANGUAGE: OSM

control menus are available in eight languages. OSM LEFT/RIGHT: You can choose where you would like the OSM control image to appear horizontally on your screen. OSM DOWN/UP: You can choose where you would like the OSM control image to appear vertically on your screen. OSM TURN OFF: The OSM control menu will stay on as long as it is in use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. OSM LOCK OUT: This control completely locks out access to all OSM control functions without Brightness and Contrast. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then right control button and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then left control button and hold down simultaneously while in the OSM menu. RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024. Information The Information menu indicates the current input, display resolution, horizontal and vertical frequency, and polarity settings of the monitor. The model and serial numbers of your monitor are also indicated. LCD17PISAManual080604.p65 8/6/04, 5:15 PM1112 Safety Precautions and Maintenance

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• When operating the MultiSync LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the flourescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• Do not cover vent on monitor. Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• If glass is broken, handle with care.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting. Image Persistence Please be aware that LCD Technology may experience a phenomena known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. As with all personal display devices, NEC-Mitsubishi Electronics Display recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. Recommended Use CAUTION LCD17PISAManual080604.p65 8/6/04, 5:15 PM1213 Recommended Use –continued CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance, allow 20 minutes forwarm-up. Adjust the monitor height so that the top of the screen is at orslightly below eye level. Your eyes should look slightly downwardwhen viewing the middle of the screen. Position your monitor no closer than 16 inches and no furtheraway than 28 inches from your eyes. The optimal distance is20 inches.• Rest your eyes periodically by focusing on an object at least20 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitortilt so that ceiling lights do not reflect on your screen.• If reflected light makes it hard for you to see your screen, use an anti-glare filter.• Adjust the monitor’s brightness and contrast controls to enhance readability.• Use a document holder placed close to the screen.• Position whatever you are looking at most of the time (the screen orreference material) directly in front of you to minimize turning your headwhile you are typing.• Get regular eye checkups.ErgonomicsTo realize the maximum ergonomics benefits, we recommend the following: Use the preset Size and Position controls with standard signals Use the preset Color Setting Use non-interlaced signals with a vertical refresh rate between 60-75Hz Do not use primary color blue on a dark background, as it is difficult to see andmay produce eye fatigue to insufficient contrast. For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406. Cleaning the LCD Panel
• When the liquid crystal panel is stained with dust or dirt, please wipe with soft cloth gently.
• Please do not rub the LCD panel with hard material.• Please do not apply pressure to the LCD surface.• Please do not use OA cleaner it will cause deterioration or discolor on the LCD surface.Cleaning the Cabinet• Unplug the power supply• Gently wipe the cabinet with a soft cloth
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean with benzene,thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soappowder, or insecticide. Do not touch rubber or vinyl to the cabinet for a long time. These typesof fluids and fabrics can cause the paint to deteriorate, crack or peel.LCD17PISAManual080604.p65 8/6/04, 5:15 PM1314 Monitor MultiSync

:VGA text Some systems may not support all modes listed. 640 x 480*

Environmental Considerations Operating Temperature : 5°C to 35°C/41°F to 95°F Humidity : 30% to 80% Feet : 0 to 10,000 Feet Storage Temperature : -10°C to 60°C/14°F to 140°F Humidity : 10% to 85% Feet : 0 to 30,000 Feet

Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice. Specifications LCD17PISAManual080604.p65 8/6/04, 5:15 PM1415 Monitor MultiSync

Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice. Specifications –continued LCD17PISAManual080604.p65 8/6/04, 5:15 PM1516 Monitor MultiSync

Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice. Specifications –continued LCD17PISAManual080604.p65 8/6/04, 5:15 PM1617 Features Thin-frame design creates more desktop space for you to work and play, while the flat screen’s crisp, bright images and crystal-clear text deliver a comfortable viewing experience. No Touch Auto Adjust™ automatically adjusts your optimal image settings upon initial power-on. AccuColor

Control System allows you to change between five color settings on your display to match your personal preference. Redesigned OSM

controls allow you to quickly and easily adjust all elements of your screen image. NaViSet™ software offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSM

display settings via mouse and keyboard. Height adjustable stand with tilt, swivel and cable management adds flexibility to your viewing preferences. USB 2.0 hub adds excitement to your computing by connecting you to digital cameras, scanners and more (NX and NXM only). The flat screen’s crisp, bright images and crystal-clear text deliver a comfortable viewing experience. ErgoDesign

Features: Enhance human ergonomics to improve the working environ- ment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions. Plug and Play: The Microsoft

solution with the Windows

95/98/Me/2000/XP operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance. IPM

(Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace. Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required. FullScan

Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size. VESA Standard Mounting Interface: Allows users to connect their MultiSync

monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device. LCD17PISAManual080604.p65 8/6/04, 5:15 PM1718 Troubleshooting No picture

The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Check the Vacation Switch should be in the ON position.

• Front Power Switch and computer power switch should be in the ON position.

Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recom- mended settings.

• Check the signal cable connector for bent or pushed-in pins. Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

• Check the Vacation Switch on the back side of the monitor. Image Persistence

Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the fine total. When the display mode is changed, the OSM Image Adjust settings may need to be re-adjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate. LED on monitor is not lit (no green or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected. Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the Coarse total.

Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.) No Video

• If no video is present on the screen, turn the Power button off and on again.

Make certain the computer is not in a power-saving mode (touch the keyboard or mouse). No Sound (NX and NXM only)

• Check to see if audio cable and DC power cable is properly connected.

• Check volume setting. No Sound from Speakers (NX and NXM only)

• Check to see if the headphones connected. No Sound from Headphones (NX and NXM only)

• Check to see if headphones are properly connected. LCD17PISAManual080604.p65 8/6/04, 5:15 PM1819 References NEC-Mitsubishi Monitor Customer Service & Support Customer Service and Technical Support: (800) 632-4662 Fax: (800) 695-3044 Parts and Accessories/Macintosh Cable Adapter: (888) NEC-MITS [888-632-6487] Warranty Information: www.necmitsubishi.com/warranty Online Technical Support www.necmitsubishi.com/support Sales and Product Information Sales Information Line: (888) NEC-MITS [888-632-6487] Canadian Customers: (866) 771-0266, Ext#: 4037 Government Sales: (800) 284-6320 Government Sales email: gov@necmitsubishi.com Electronic Channels World Wide Web: www.necmitsubishi.com Product Registration: www.necmitsubishi.com/productregistration European Operations: www.nec-mitsubishi.com Drivers and Downloads www.necmitsubishi.com/downloads LCD17PISAManual080604.p65 8/6/04, 5:15 PM1920 Limited Warranty NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NMD-A”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NMD-A’s sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NMD-A-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NMD-A No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NMD-A to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product. It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NMD-A to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NMD-A for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NMD-A to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty. NMD-A SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NMD-A PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAM- AGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NMD-A Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NMD-A. For the name of your nearest authorized NEC-Mitsubishi Electronics Display service facility, contact NEC-Mitsubishi Electronics Display of America at 1-800-632-4662. LCD17PISAManual080604.p65 8/6/04, 5:15 PM2021 TCO’99 MultiSync LCD1770V, LCD1770V-BK, LCD1770NX-BK and LCD1770NXM-BK Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encourag- ing the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously. What does labelling involve? This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration). The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety. The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability. Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are LCD17PISAManual080604.p65 8/6/04, 5:15 PM2122 TCO’99 –continued related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bio- accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur. TCO’99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available. Lead** Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. TCO’99 requirement permits the inclusion of lead since no replacement has yet been developed. Cadmium** Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. TCO’99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium. Mercury** Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses. TCO’99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit. CFCs (freons) CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma). The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging. *Bio-accumulative is defined as substances which accumulate within living organisms. **Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative. To obtain complete information on the environmental criteria document, order from: TCO Development Unit SE-114 94 Stockholm SWEDEN FAX Number: +46 8 782 92 07 E-mail (Internet): development@tco.se You may also obtain current information on TCO’99 approved and labelled products by visiting their website at: http://www.tcodevelopment.com/ LCD17PISAManual080604.p65 8/6/04, 5:15 PM2223 TCO’03 -MultiSync LCD1770NX and LCD1770NXM White Models Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment. Some of the features of the TCO’03 Display requirements: Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, color rendition and image stability. Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment

• Electrical safety Emissions

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001

• Restrictions on – chlorinated and brominated flame retardants and polymers – heavy metals such as cadmium, mercury and lead. The requirements included in this label have been developed by TCO Development in co- operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit www.tcodevelopment.com LCD17PISAManual080604.p65 8/6/04, 5:15 PM2324 NEC-Mitsubishi Electric Visual Systems Corp. is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organization for Standardization) and TCO (Swedish Trades Union). For more information, and for help in recycling your old NEC or Mitsubishi monitors, please visit our website at: USA: http://www.necmitsubishi.com/markets-solutions/totaltrade Europe: http://www.nec-mitsubishi.com Japan: http://www.nmv.co.jp/environment Country-specific recycling programs can also be found at: Sweden - http://www.el-retur.se Germany - http://www.recyclingpartner.de/ Holland - http://www.mirec.nl/ Japan - http://www.diarcs.com/ Energy saving: This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPM) Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode. Mode Power consumption LED color Normal Operation Approx. TBDW (LCD1770V) Green Approx. TBDW (LCD1770NX) Approx. TBDW (LCD1770NXM ) Energy Saving Mode Less than 2W Amber Off Mode Less than 0.1W Unlit Manufacturer’s Recycling and Energy Information LCD17PISAManual080604.p65 8/6/04, 5:15 PM2425 Declaration of the Manufacturer We hereby certify that the color monitor MultiSync

Turn off the computer.

2. Place hands on each side of the display to tilt up the panel and then lift up to the

highest position. 3.Use the two thumb screws included to attach the MultiSync sound bar 70 to the display (Figure SB.1). 4.Turn the volume control down on the MultiSync soundbar 70 (Figure SB.2).

Connect the light blue color audio cable plug to the light blue jack of MultiSync sound bar 70 (Figure SB.1 ). Connect the other end of the audio cable into the back of your computer. NOTE: Headphones may be connected to the headphones jack on the right side of the MultiSync sound bar 70 (Figure SB.2). Headphones can be purchased from your local electronics store. 6.Connect the DC power cable of sound bar 70 to DC-OUT terminal of display (Figure SB.1). 7.You are now ready to move to the next step in setting up your MultiSync LCD. VOL. Headphone JackVolume Control VOL. Figure SB.2AudioCableDC PowerCableThumbScrewThumbScrewDC-OUT Terminalof DisplayFigure SB.1LCD17PISAManual080604.p65 8/6/04, 5:15 PM2829 Display Setup Suivez ces instructions pour fixer le moniteur ACL MultiSync

• Check to see if audio cable and DC power cable is properly connected.

• Check volume setting. No Sound from Speakers

• Check to see if the headphones connected. No Sound from Headphones

, NEC-Mitsubishi Electronics Display of America a veillé à ce que ce produit respecte les normes ENERGY STAR en matière de rendement énergétique. Le logo ENERGY STAR ne représente aucun aval par l’EPA de quelque produit ou service que ce soit. Série LCD NEC LCD17PISAManual080604.p65 8/6/04, 5:16 PM52PROPRIETARY NOTICE AND LIABILITY DISCLAIMER The information disclosed in this document, including all designs and related materials, is the valuable property of NEC- Mitsubishi Electronics Display of America and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use and sales rights thereto, except to the extent said rights are expressly granted to others. The NEC-Mitsubishi Electronics Display of America product(s) discussed in this document are warranted in accordance with the terms of the Limited Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factors such as system configuration, customer data and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NEC-Mitsubishi Electronics Display of America. To allow for design and specification improvements, the information in this document is subject to change at any time without notice. Reproduction of this document or portions thereof without prior approval of NEC-Mitsubishi Electronics Display of America is prohibited.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. U.S. Responsible Party: NEC-Mitsubishi Electronics Display of America, Inc. Address: 500 Park Blvd, Suite 1100 Itasca, Illinois 60143 Tel. No.: (630) 467-3000 Type of Product: Display Monitor Equipment Classification: Class B Peripheral Model: MultiSync LCD1770V / LCD1770NX / LCD1770NXM (L174F) We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules. Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. ENERGY STAR is a U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of their respective owners. As an ENERGY STAR

Partner, NEC-Mitsubishi Electronics Display of America has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service. NEC LCD Series LCD17PISAManual080604.p65 8/6/04, 5:16 PM53
