Index1 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. WARNING CAUTION Canadian Department of Communications Compliance Statement DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1. FCC Information

Use the attached specified cables with the AccuSync

LCD193WXM™(L196H5) / AccuSync

LCD203WXM™ (L206H6) / AccuSync

LCD223WXM™ (L226H7) color monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable. Use of other cables and adapters may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason

able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. If necessary, the user should contact the dealer or an experienced radio/television techni

cian for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4. TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING

• AccuSync LCD monitor

• Cable Holder AccuSync LCD Monitor (Stand not connected) User’s Manual Video Signal Cable Power Cord Cable Holder Audio Cable Contents3 To attach the Base to the LCD Stand:

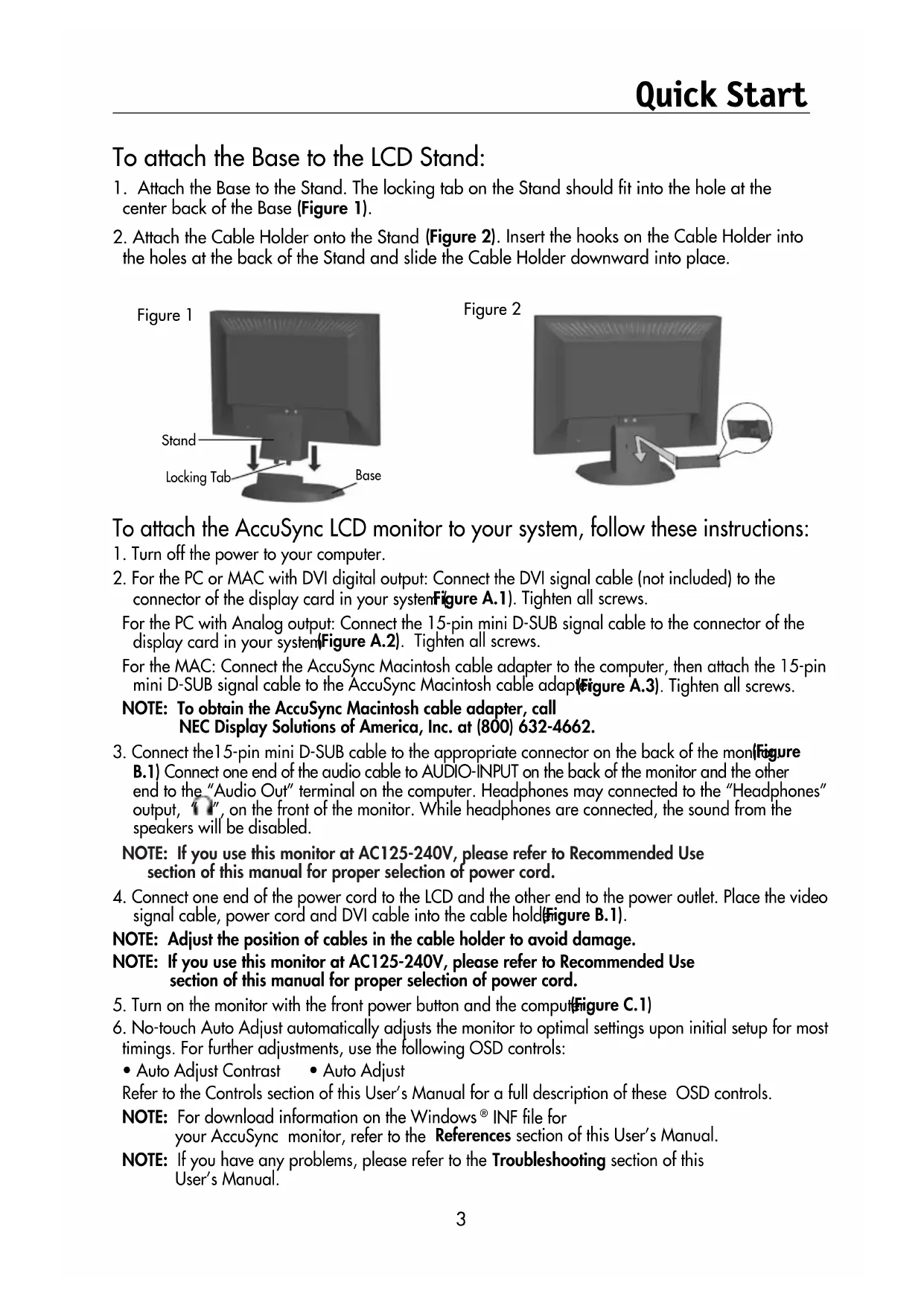

1. Attach the Base to the Stand. The locking tab on the Stand should fit into the hole at the

center back of the Base (Figure 1).

2. Attach the Cable Holder onto the Stand

(Figure 2). Insert the hooks on the Cable Holder into the holes at the back of the Stand and slide the Cable Holder downward into place. Locking TabBase StandFigure 1Figure 2 To attach the AccuSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable (not included) to the

connector of the display card in your system ( Figure A.1). Tighten all screws. For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your system (Figure A.2). Tighten all screws. For the MAC: Connect the AccuSync Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the AccuSync Macintosh cable adapter (Figure A.3). Tighten all screws. NOTE: To obtain the AccuSync Macintosh cable adapter, call NEC Display Solutions of America, Inc. at (800) 632-4662.

3. Connect the15-pin mini D-SUB cable to the appropriate connector on the back of the monitor.

(Figure B.1) Connect one end of the audio cable to AUDIO-INPUT on the back of the monitor and the other end to the “Audio Out” terminal on the computer. Headphones may connected to the “Headphones” output, “ ”, on the front of the monitor. While headphones are connected, the sound from the speakers will be disabled. NOTE: If you use this monitor at AC125-240V, please refer to Recommended Use section of this manual for proper selection of power cord.

4. Connect one end of the power cord to the LCD and the other end to the power outlet. Place the video

signal cable, power cord and DVI cable into the cable holder (Figure B.1). NOTE: Adjust the position of cables in the cable holder to avoid damage. NOTE: If you use this monitor at AC125-240V, please refer to Recommended Use section of this manual for proper selection of power cord.

5. Turn on the monitor with the front power button and the computer.

6. No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most

timings. For further adjustments, use the following OSD controls:

• Auto Adjust Contrast • Auto Adjust Refer to the Controls section of this User’s Manual for a full description of these OSD controls. NOTE: For download information on the Windows

INF file for your AccuSync monitor, refer to the References section of this User’s Manual. NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual. Quick Start4 Macintosh Cable Adapter (not included) Note: Some Macintosh systems do not require a Macintosh Cable Adapter Figure A.2 Figure C.1 Figure A.3 Figure B.1 Input (VGA) Cable holder Power button Power Cable Figure A.1 Input (DVI) DVI Signal Cable (not included) Input (Audio) Quick Start - continued5 Tilt Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1). NOTE: Handle with care when tilting the monitor screen. Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place monitor face down on a nonabrasive surface and remove Hinge

3. Remove the screws (3 screws for LCD193WXM; 4 screws for LCD203WXM

and LCD223WXM) that connect the monitor to the stand and slide the stand off from the LCD (Figures R.2 and R.3). The monitor is now ready for mounting in an alternate manner.

Connect the AC cord and signal cable to the back of the monitor (Figure R.4).

5. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method. NOTE: Handle with care when removing monitor stand. Figure TS.1 Figure R.1 Figure R.4 Quick Start - continued Figure R.2 Figure R.36 Removing the Base Note: Always remove the Base when shipping the LCD.

Place monitor face down on a non-abrasive surface.

2. Using your fingers, press the

release tab to unlock the stand.

3. Pull the unlocked base off the stand.

Connecting a Flexible Arm This LCD monitor is designed for use with a flexible arm. Please use the screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark). Tighten all screws. 4 SCREWS (M4) (MAX depth: 10.0 mm) Weight of LCD assembly: LCD193WXM : 4.3 kg (MAX) LCD203WXM : 4.9 kg (MAX) LCD223WXM : 5.3 kg (MAX) Release Tab Quick Start - continued Thickness of Bracket (Arm) 2.0~3.2 mm100 mm100 mm 12mm 4 x 12mm with lock washer and flat washer If using other screws,check depth of holes.7 OSD (On-Screen Display) control buttons on the front of the monitor function as follows: OSD displayed Shortcut to bright adjust window Button OSD Off Shortcut to volume adjust window Select Input Signal OSD On (Icon selection stage) Go to Adjustment stage Cursor moves left Cursor moves right OSD On (Adjustment stage) Go to Icon selection stage Decrease value or Move highlighed selection to the left. Increase value or Move highlighed selection to the right. Reset operation Turn MUTE on/off Open Volume adjust window. SELECT

Main Menu (Icon Select, Analog Input) Sub Menu (Icon Select) Press “SELECT” key Press “SELECT” key Adjust by using “–“ or “ +”. Main Menu (Adjust) Sub Menu (Adjust) Press “SELECT” key Press “SELECT” key Adjust by using “–“ or “ +”. Press “SELECT” key Press “SELECT” key Press “–“ or

Controls Press “–“ or “ +”8 AUDIO Controls the volume of the speakers or headphones. To mute the speaker output, press the “1<->2 / RESET” button. BRIGHTNESS Adjusts the overall image and background screen brightness. CONTRAST Adjusts the image brightness in relation to the background. AUTO CONTRAST (Analog Input Only) Adjusts the image displayed for non-standard video inputs. AUTO ADJUST (Analog Input Only) Automatically adjusts the Image Position, H. Size and Fine setting. LEFT/RIGHT (Analog Input Only) Controls Horizontal Image Position within the display area of the LCD. DOWN/UP (Analog Input Only) Controls Vertical Image Position within the display area of the LCD. H. SIZE (Analog Input Only) Adjusts the horizontal size by increasing or decreasing this setting. FINE (Analog Input Only) Improves focus, clarity and image stability by increasing or decreasing this setting.

COLOR CONTROL SYSTEMS

Five color presets (9300/7500/sRGB/USER/NATIVE) select the desired color setting. COLOR RED Increase or decreases Red. The change will appear on screen. COLOR GREEN Increase or decreases Green. The change will appear on screen. COLOR BLUE Increase or decreases Blue. The change will appear on screen. TOOL Selecting TOOL allows you to get into the sub menu. FACTORY PRESET Selecting Factory Preset allows you to reset all OSD control settings back to the factory settings. The “1<->2 / RESET“ button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the “1<->2 / RESET” button. Controls - continued9 OSD Warning: OSD Warning menus disappear with SELECT button. NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear. RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu. OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the Out Of Range menu will appear. EXIT Selecting EXIT allows you exit OSD menu/sub menu. LANGUAGE OSD control menus are available in nine languages.

The OSD control menu will stay on as long as it is in use. In the OSD Turn OFF submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSD control menu. The preset choices are 10 - 120 seconds in 5 second intervals.

This control completely locks out access to all OSD control functions without Brightness and Contrast. When attempting to activate OSD controls while in the Lock Out mode, a screen will appear indicating the OSD are locked out. To activate the OSD Lock Out function, press “1<->2 / RESET“, then “+“ key and hold down simultaneously. To deactivate the OSD Lock Out, press “1<->2 / RESET“, then “+“ key and hold down simultaneously. RESOLUTION NOTIFIER If ON is selected, a message will appear on the screen after 45 seconds, notifying you that the resolution is not at optimal resolution. EXPANSION Selects the zoom mode. FULL: The image is expanded to 1440 x 900 (LCD193WXM) or 1680 x 1050 (LCD203WXM / LCD223WXM), regardless of resolution. ASPECT: The image is expanded without changing the aspect ratio. DDC/CI Turns on or off the two-way communication and control of the monitor. With DDC/CI turned on, some monitor settings can be adjusted through the graphics card using a computer. MONITOR INFO Indicates the model and serial numbers of your monitor. Controls - continued10 Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE ACCUSYNC LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• When operating the AccuSync LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The lamps in this product contain mercury. Please dispose according to state, local or federal law.

• Do not bend power cord.

• Do not use monitor in high temperature, humid, dusty, or oily areas.

• If glass is broken, handle with care.

• Do not cover vent on monitor. Immediately unplug your monitor from the wall outlet and refer servicing to qualified service person- nel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting. Image Persistence Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. As with all personal display devices, NEC Display Solutions of America, Inc. recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. CAUTION Recommended Use11

• For optimum performance, allow 20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an antiglare filter.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups. Ergonomics To realize the maximum ergonomics benefits, we recommend the following:

Use the preset Size and Position controls with standard signals.

Use non-interlaced signals with a vertical refresh rate between 60-75Hz.

Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast. Cleaning the LCD Panel

• When the liquid crystal panel becomes dusty or dirty, wipe gently with a soft cloth.

• Do not rub the LCD panel with coarse or hard material.

• Do not apply pressure to the LCD surface

• Do not use OA cleaner as it will cause deterioration or discoloration to the LCD surface. Cleaning the Cabinet

• Unplug the power supply.

• Dampen a soft cloth with water and a neutral detergent. Gently wipe the cabinet then dry gently with a soft cloth. NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean with benzene, thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner,soap powder, or insecticide. Do not touch rubber or vinyl to the cabinet for a long period of time. These types of fluids and fabrics can cause the paint to deteriorate, crack or peel. For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406. CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR: Recommended Use- continued12 LCD Module Diagonal: 19.0 inch Active matrix; thin film transistor (TFT) Viewable Image Size: 19.0 inch liquid crystal display (LCD); 0.284 mm dot Native Resolution (Pixel Count): 1440 x 900 pitch; 300cd/m

Environmental Considerations Operating Temperature: 5°C to 35°C/41°F to 95°F Humidity: 30% to 80% Altitude: 0 to 15,000 Feet Storage Temperature: -10°C to +60°C/14°F to 140°F Humidity: 10% to 85% Altitude: 0 to 40,000 Feet Monitor AccuSync Specifications LCD193WXM Notes *1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice. Specications13 LCD Module Diagonal: 20.1 inch Active matrix; thin film transistor (TFT) Viewable Image Size: 20.1 inch liquid crystal display (LCD); 0.258 mm dot Native Resolution (Pixel Count): 1680 x 1050 pitch; 300cd/m

Environmental Considerations Operating Temperature: 5°C to 35°C/41°F to 95°F Humidity: 30% to 80% Altitude: 0 to 10,000 Feet Storage Temperature: -10°C to +60°C/14°F to 140°F Humidity: 10% to 85% Altitude: 0 to 40,000 Feet Monitor AccuSync Specifications LCD203WXM Notes *1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice. Specications14 LCD Module Diagonal: 22.0 inch Active matrix; thin film transistor (TFT) Viewable Image Size: 22.0 inch liquid crystal display (LCD); 0.282 mm dot Native Resolution (Pixel Count): 1680 x 1050 pitch; 300cd/m

Environmental Considerations Operating Temperature: 5°C to 35°C/41°F to 95°F Humidity: 30% to 80% Altitude: 0 to 15,000 Feet Storage Temperature: -10°C to +60°C/14°F to 140°F Humidity: 10% to 85% Altitude: 0 to 40,000 Feet Monitor AccuSync Specifications LCD223WXM Notes *1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice. Specications15 Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another. AccuColor

Control System: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards. NaViSet™ Software: NaViSet offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSD display settings via mouse and keyboard. No-touch Auto Adjust™: No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup. ErgoDesign

Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSD controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions

Plug and Play: The Microsoft

solution with the Windows

operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance. IPM

(Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace. Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required. FullScan

Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size. VESA

Standard Mounting Interface: Allows users to connect their AccuSync monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device. Features16 No picture

The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Front Power Switch and computer power switch should be in the ON position.

Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal cable connector for bent or pushed-in pins.

• Check the signal input. Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor. Image Persistence

Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. NOTE: As with all personal display devices, NEC Display Solutions of America, Inc. recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSD Image Adjust controls to focus and adjust display by increasing or de- creasing the FINE control. When the display mode is changed, the OSD Image Adjust settings may need to be readjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate. LED on monitor is not lit (no green or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected. Display image is not sized properly

• Use the OSD Image Adjust controls to increase or decrease the H.SIZE.

Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.) No Video

• If no video is present on the screen, turn the Power button off and on again.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse). No Sound

• Make sure the speaker cable is proper connected.

• Check to see if mute is activated.

Drivers and Downloads www.necdisplay.com References18 NEC Display Solutions of America, Inc. (hereinafter “NEC DISPLAY SOLUTIONS”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NEC DISPLAY SOLUTIONS’ sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NEC DISPLAY SOLUTIONS-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NEC DISPLAY SOLUTIONS No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NEC DISPLAY SOLUTIONS to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product. It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NEC DISPLAY SOLU
