Syrene SR71_SR01011 - Broom HOOVER - Free user manual and instructions

Product type	Canister vacuum
Brand	Hoover
Model	Syrene SR71_SR01011
Power source	Mains (wall plug)
Cord length	Not specified, but with storage hooks
Bag capacity	Paper dust bag (model H80)
Filters	Pre-motor filter (standard) and permanent post-motor filter
Main brush type	Combined hard floor and carpet brush (with pedal selector)
Parquet brush	Included on some models
Functions	Dry cleaning, powerful suction, floor mode selector
Safety	Stop and unplug before maintenance, do not vacuum liquids or hot objects
Maintenance	Change bag after filling, replace filters every 5 bags
Accessories	Hard floor and carpet brush, parquet brush (depending on model), crevice tool (not listed)
Spare parts available	H80 bag, professional brush G233PE, parquet brush G87PC, turbo brush J48
Repairability	Repair by Hoover authorized service, use of original parts
Warranty	According to country of sale conditions
Standards	Compliant with European directives 2014/35/EU, 2014/30/EU, 2011/65/EU

Frequently Asked Questions - Syrene SR71_SR01011 HOOVER

How to assemble the Syrene vacuum?

Mount the handle on the body and secure it with the provided screw. Open the bag cover to check that the bag is properly in place, and ensure the motor filter is correctly installed. Finally, clip on the main brush.

How to use the combined hard floor and carpet brush?

Press the pedal on the brush to select the mode: for hard floor, the bristles are lowered to protect the floor; for carpet, the bristles are raised for deep cleaning.

How to change the dust bag?

Stop the vacuum and unplug it. Lay the appliance flat, pull the latch to open the bag door. Remove the full bag by applying the adhesive strip on the collar. Insert a new bag (model H80) by folding the collar corners. Close the door.

When and how to replace the filters?

Hoover recommends replacing the pre-motor filter after about 5 full bags. To change it, remove the bag, lift the filter, and install a new one. Never use the vacuum without a filter.

What to do if the vacuum no longer sucks properly?

First check that the outlet works. Then check the bag: if it's full or clogged, replace it. Also check the condition of the filters (dirty?). Finally, inspect the hose and brush for any blockages.

How to store the power cord?

After use, unplug the cord from the handle if used in portable mode. Wrap it around the storage hooks (upper and lower) and secure it with the built-in clip.

Can I vacuum liquids with this vacuum?

No, this vacuum is designed only for dry cleaning. Never vacuum liquids, wet objects, or flammable substances.

What is the power of the Syrene vacuum?

The power is not specified in the manual, but the appliance is designed for standard household use with effective suction on hard floors and carpets.

How to obtain spare parts or consumables?

Use only genuine Hoover parts. You can order them from your retailer or directly from Hoover by specifying the model number. Examples: H80 bag (ref. 35601774), professional brush G233PE (ref. 35601672).

What does the warranty cover?

Warranty conditions are defined by the Hoover representative in the country of sale. For any claim, present the purchase invoice or receipt. Conditions can be obtained from the retailer.

USER MANUAL Syrene SR71_SR01011 HOOVER

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only attachments, consumables or spares recommended or supplied by HOOVER.

Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

GB

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

HOOVER service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not use the appliance to clean animals or people.

Do not position the appliance above you when cleaning the stairs.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY HOOVER GROUP s.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

GETTING TO KNOW YOUR CLEANER

A. Handle
B. Permanent Exhaust Filter
C. ON/OFF Button
D. Bag Door
E. Bag Door Release Button
F. Carpet and Hard Floor Nozzle* (GP)
G. Screw
H. Carry Handle
I. Rotating Upper Cord Hook
J. Power Cord
K. Lower Cord Hook
L. Parquet Nozzle

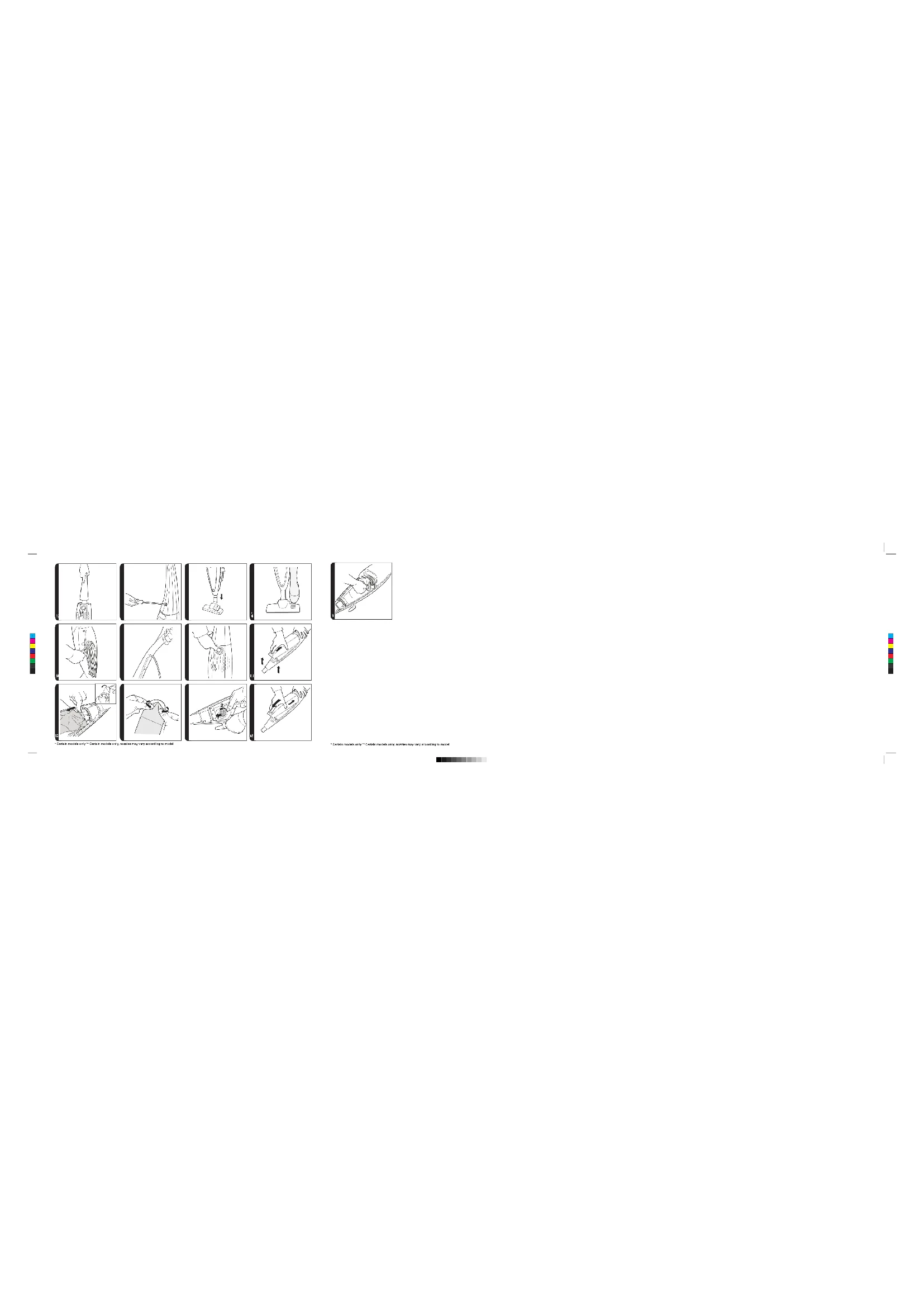

GETTING TO KNOW YOUR CLEANER

Remove all components from the packaging.

• Assemble the cleaner handle and fix in position with the supplied screw. [1,2]
• Open the bag door and check if the dust bag paper is correctly fitted. [8.1]
• Ensure the pre-motor sponge filter is correctly fitted. [9]
• Fit the Carpet and Floor Nozzle. [3]

USING YOUR CLEANER

POWER CORD STORAGE

1. Before use undo integrated clip, turn top hook and release power cord. [5]

2. During use as a stick cleaner clip power cord into back of main handle. [6]

After use, unclip power cord from handle and wind it around storage hooks before securing with integrated clip.

CONTROLS

1. On/Off switch. Push to switch On. Push again to switch Off. [7]

CLEANER MAINTENANCE

BAG & FILTERS

IMPORTANT: Switch cleaner Off and remove plug from electricity supply before changing paper bag or removing any filters.

CHANGING THE BAG

1. Lay the cleaner on a flat surface, pull back catch and remove bag door. [8.1]
2. Remove bag by pulling bag collar from hose inlet. Remove sticky backing from the dust flap and fold it over the inlet to avoid dust escaping from the bag. [8.2]
3. Before fitting a new bag, fold the corners of the bag behind the collar. [8.3]
4. Slide the collar along the guides and lift over the inlet tube. Collar should 'click' into place. [8,4]
5. Locate tabs on bag door as shown and close bag door. [8.5]
   Replace the bag frequently when picking up material such as powder or fine dust or when cleaning new carpets.
   DO NOT overfill the bag.
   DO NOT use the vacuum cleaner without a bag in place.
   IMPORTANT: Hoover recommends that filters are replaced after five full bags have been used.

REPLACING THE STANDARD PRE-MOTOR FILTER [9]

With bag removed lift the pre-motor filter from the bag housing.

The new filter and replace the paper bag.

DO NOT use the vacuum cleaner without the pre-motor filter in place.

Replace the standard pre-motor filter after five full bags have been used.

SPECIALITIES

NOZZLES

1. Carpet & Floor nozzle

Press the Floor type selector pedal on the nozzle [4] to select the ideal cleaning mode for the floor type.

Hard Floor - Brushes are lowered to protect the floor.

Carpet - Brushes are raised for the deepest clean.

1. Parquet nozzle* for wooden and delicate floors.

ACCESSIONS

To obtain the best performance and energy efficiency #1 it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA.

A nozzle type GP can be used to clean both carpet and hard floor.

A nozzle type HF is suitable for use only on hard floor.

A nozzle of type CA is suitable for use only on carpet.

The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only.

It is important to note that this vacuum cleaner is supplied with an Energy Label as required by European Regulation (EU) 665/2013.

GBF

If the label shows a red prohibition circle on the left covering the carpet symbol, then this indicates that the vacuum cleaner is not suitable use on carpets.

If the label shows a red prohibition circle on the right covering the hard floor symbol, then this indicates that the vacuum cleaner is not suitable for use on hard floors.

1 NOTE: Dust pick up ability carpet, dust pick up ability hard floor, and energy efficiency in accord with Commission Regulations (EU) 665/2013 and (EU) 666/2013.

USER CHECKLIST

A charge will be made if the cleaner is found to be in working order, has not been assembled in accordance with these instructions or has been used incorrectly.

Before calling Hoover Service run through the following checklist:

Is there a working electricity supply to the cleaner? Check with another appliance.
2. Is the paper bag full? See 'Bag & Filters' section.
3. Are the filters blocked? See 'Bag & Filters' section.
4. Is the hose or inlet blocked? Remove any obstruction.

If there is any doubt call your local Hoover Service Office for advice, they may be able to assist you over the telephone.

IMPORTANT INFORMATION

HOOVER spares and Consumables

Always replace parts with genuine HOOVER spares. These are available from your local HOOVER dealer or direct from Hoover. When ordering parts always quote your model number.

Consumables

• Paper Purefit Bag H80 35601774
• Carpet & Floor Pro Nozzle G233PE 35601672
• Parquet Extra Nozzle
  Grand Turbo Nozzle

G87PC 35600655

J48 35601151

Quality

HOOVER's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
