USER MANUAL KM84LCW KICKER

Owner's Manual | English

KM Coaxial Speakers Owner's Manual

Authorized KICKER Dealer:

Purchase Date:

Speaker Model Number:

The KICKER KM coaxial speakers are specifcally designed for mounting in free-air applications. The speakers do not require a sealed enclosure for optimum performance. It is important to isolate the sound coming off the front of the driver from the sound radiating from the back of the driver. This isolation is usually accomplished by using the driver in a factory speaker location, or in a location with a semi-isolated rear chamber.

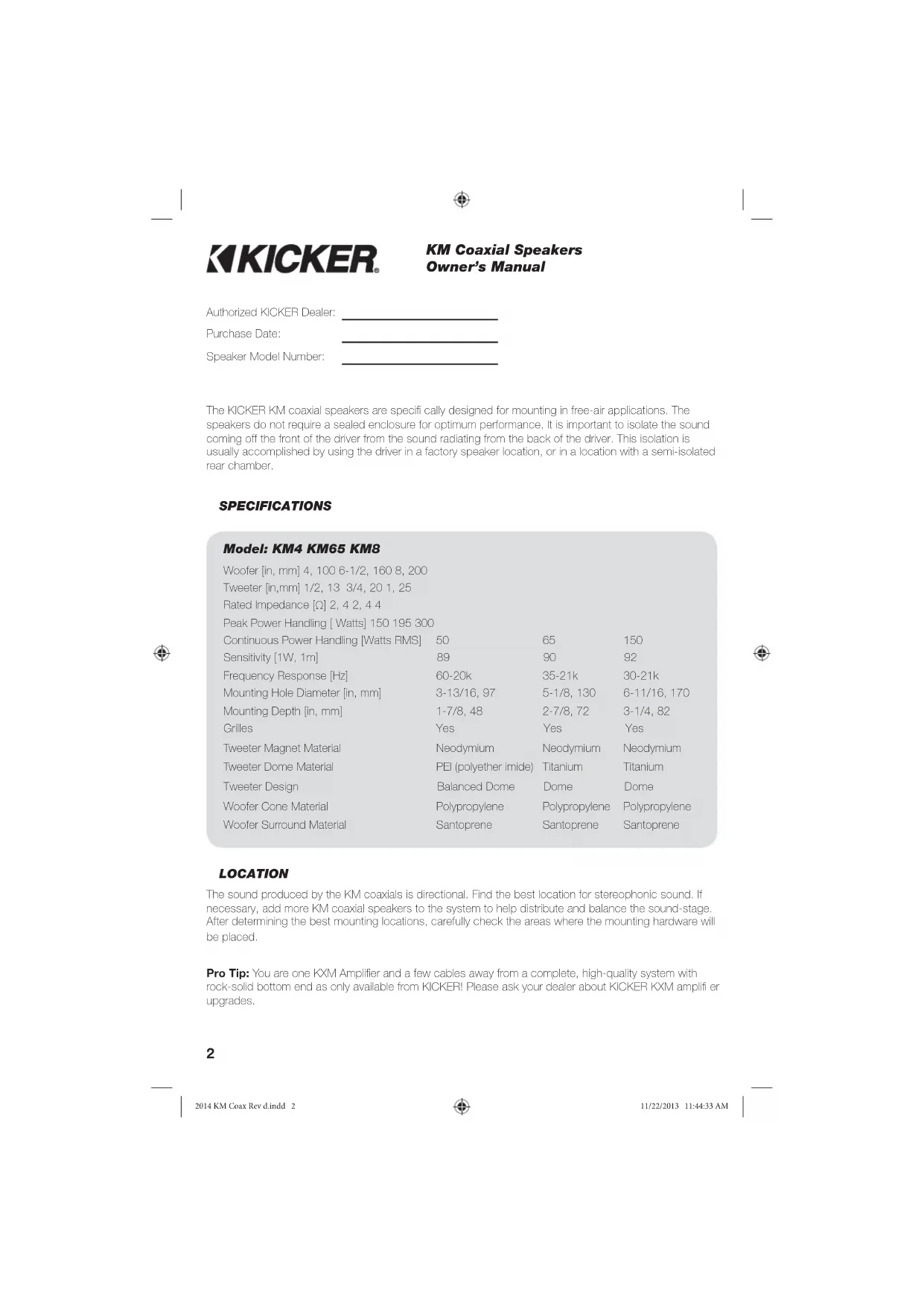

SPECIFICATIONS

Model: KM4 KM65 KM8

Wooler [n, mm] 4, 100 6-1/2, 160 8, 200

Tweeter [n,mm] 1/2, 13 3/4, 20 1, 25

Rated Impedance [Ω] 2, 4, 2, 4, 4

Peak Power Handling | Wattage | 150 195 300

Continuous Power Handling [Watts RMS]

Sensitivity [1W, 1m]

50 65 150

89 90 92

Frequency Response [Hz]

60-20k 35-21k 30-21k

Mounting Hole Diameter [in, mm]

3-13/16,97 5-1/8,130 6-11/16,170

Mounting Depth [in, mm]

1-7/8,48 2-7/8,72 3-1/4,82

Grilles

Yes Yes Yes

Tweeter Magnel Material

Neodymium Neodymium Neodymium

Tweeler Dome Material

P(oylether imide) Titanium

Tweeter Design

Balanced Dome Dome

Woofer Cone Material

Polypropylene Polypropylene Polypropylene

Woofer Surround Material

Santoprene Santoprene Santoprene

LOCATION

The sound produced by the KM coaxial is directional. Find the best location for stereophonic sound. If necessary, add more KM coaxial speakers to the system to help distribute and balance the sound-stage. After determining the best mounting locations, carefully check the areas where the mounting hardware will be placed.

Pro Tip: You are one KXM Amplifier and a few cables away from a complete, high-quality system with rock-solid bottom end as only available from KICKER! Please ask your dealer about KICKER KXM amplifiers upgrades.

2

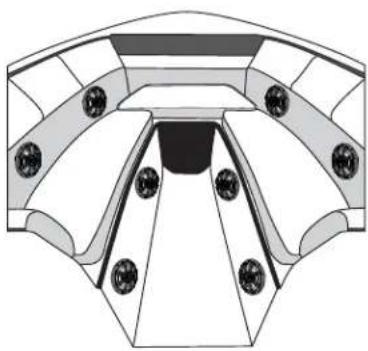

Mounted in the Bow

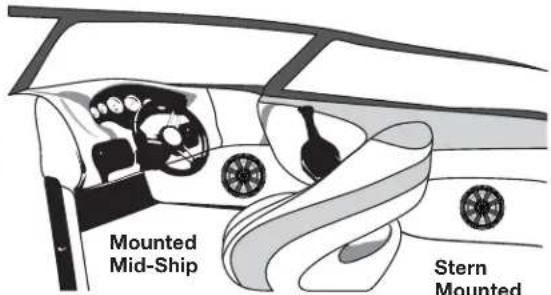

Possible locations for KM Coaxial Speaker Mounting

INSTALLATION

Mounting: Make sure the stainless steel mounting screws and U-type speed clips will not puncture the fuel cell, wiring, or interfere with any mechanical parts on the underside of the mounting surface. Pro-drill the mounting screw holes using a 7/61" (2.5mm) bit, and attach the KM coaxial speakers to the boat by fastening the supplied stainless steel coarse threaded screws to the boat's structure. If applicable, use the enclosed stainless steel U-type speed clips. If the supplied hardware is not applicable to your installation, some other means of securely attaching the speakers to the boat must be used.

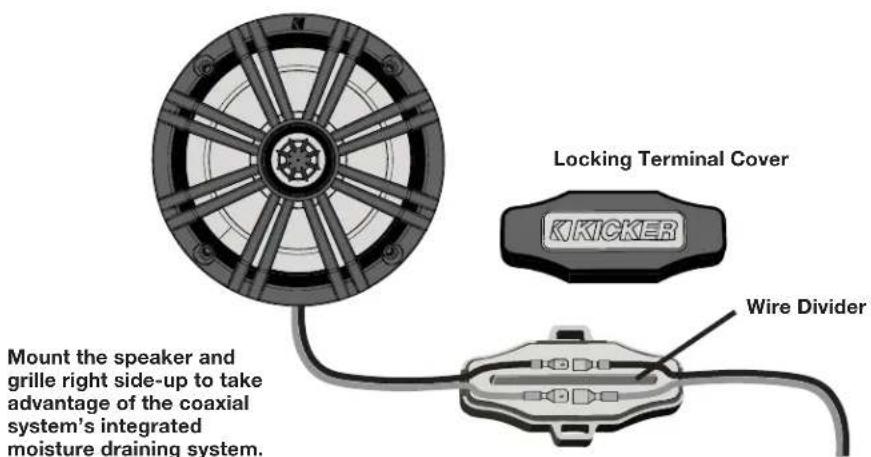

Wiring: Carefully place the speaker wire in a location that is clear of standing water and moving components of the boat. For reference, the Blue wire is Positive and the Grey wire is Negative. The locking terminal cover with water resistant gasket is removable for wiring installation; it helps prevent terminal corrosion and electrical shorting. Connect the gold-plated male quick disconnect on the end of the 18 inch (46cm) speaker wire leads coming out of the sealed speaker basket to the wires from your amplifier or source unit. Place the connected wires into the locking terminal, making sure the divider separates the blue and silver wire quick disconnects, and snap the locking terminal cover into place. Connect the other end of the wire to your amplifier or in accordance with its owner's manual. Mount the locking terminal cover in a location free and clear of standing water by utilizing the supplied zip ties through the integrated loops in the locking terminal cover.

Loops for mounting with Zip Ties

3

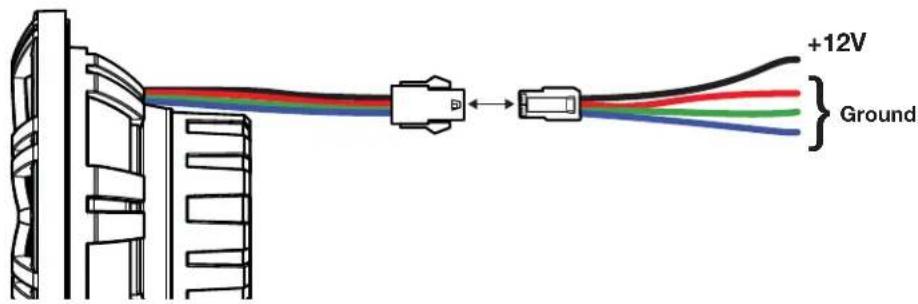

LED Wiring (KM654LCW/KM84LCW only): When hard-wring the RGB lighting, the black lead is +12V and the red, green, and blue leads are ground. There are seven colors available, depending on your wiring configuration. KICKER recommends using the KMLC Lighting controller (sold separately) for more colors, patterns, and special effects.

Color Combinations: Splice and combine the ground wires to yield a different color.

Red Red

Green Green

Blue Blue

Red/Green Lime Green

Red/Blue Magenta

Blue/Green Aquamarine

Red/Green/Blue Blue-White

Please E-mail [e-mail] or call Technical Services at [phone] for specific or unanswered questions.

Note: KICKER Marine speakers meet or exceed industry standards for environmental humility and corrosion, and for material degradation due to UV exposure. All specif cations and performance it gures are subject to change. Please visit www.klicker.com for the most current information.

KICKER

Sensibility [1W, 1m] 89.90.92

Puisance continue [Watts RMS] 50

Matire du calsson do basses

65150

89

90 92

60 à 20 K

35△2*K

313/16:97

51/8:130

1-7/6;48

2-7/8;72

Out

Oui

Nodyme

Néodyme

Polyether-imide (I-III)

Titane

Dome equilore

Dome

Polyprop

Polypropylene

Dome

Santoprine Santop

LIEUX DE MONTAGE

Montage: assures you that the views of Montage are confidential. All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the prior written permission. This is an electronic journal distributed for distribution to all users worldwide. The copyright holder will be responsible for ensuring that the original work is properly cited and that no unauthorized copying, redistribution, or distribution are made without the prior written permission. Use of this work may not be found in other forums without the prior written permission.

When purchased from an Authorized KICKER Dealer, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase with receipt. If this product is identified as "Refurbish" or "B Goods", the warranty is limited to a period of THREE (3) MONTHS from the date of original purchase. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER w/ repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product, subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore, these exclusions may not apply to you. This warranty gives you specific legal rights; however you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE

Defective merchandise should be returned to your local Authorized Stillwater Designs (KICKER) Dealer for warranty service. Assistance in locating an Authorized Deter can be found at www.kicker.com or by contacting Stillwater Designe directly. You can contir m trial a doar is authorized by asking to see a current authorized doer window docal.

It becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package all defective items in the original container or in a package that will prevent shipping carriage, and return to:

Stillwater Designs, 3100 North Husband Road, Stillwater, OK 74075

The RWA number must be clearly marked on the outside of the package. Please return only defective components. The return of functioning items increases your return freight charges. Non defective items will be returned freight collect to you.

In o copy of the original roocpt with the pucase datc clearly visible and a "proof-of-purchase" statern listing the Customer's name, Deaier's name and invoice number, and product purchased. Warranty expation on items without proof of purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freightcollect, or COD) will be refueled.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. If does not cover
o Damage due to improper installation
a Subsequent damage to other components
Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation
a Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse
o Any cost or expense related to the removal or reinstallation of product
o Speakers damaged due to amplifier clipping or distortion
o Items previously repaired or modified by any unauthorized repair facility
o Return shipping or non-defective items
o Products with ampered or missing barpce labels
o Products with tampered or missing serial numbers
o Products returned without a Return Merchandise Authorization (RMA) number
o Products purchased from an UNAUTHORIZED dealer
o Freight Damage
o The cost of shipping product to KICKER
o Service performed by anyone other than KICKER

HOW LONG WILL IT TAKE?

5 stillwaterdesigns

KICKER strivos to maintain a goal of 1 work service for all acoustics (subwoelers, midrange orvors, wooters, crosovero, o) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may vio your warranty. Any questions can be directed to the KICKER Customer Service Department at [phone]. Contact your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

KMCOAX-0-20131122

INTERNATIONAL WARRANTY

Contact: your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing! Turning up a system to a level that has audible distortion is more damaging to your ears than listening to an undistorted system at the same volume level. The threshold of pain is always an indicator that the sound level is too loud and may permanently damage your hearing. Please use common sense when controlling volume.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and/or compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptability due to any that failure does not amount to a major failure.
