MWTK30FGUD - Microwave Oven FRIGIDAIRE - Free user manual and instructions

Product Type	Built-in Microwave Oven
Brand	Frigidaire
Model	MWTK30FGUD
Compatible Models	MWTK27FGUF, MWTK30FPUF, MWTK30FGUF, MWTK27FGUD
Cutout Dimensions (H x W x D)	16.75 - 17 in x 24.75 - 25 in x max 20 in (42.5 - 43.2 cm x 62.9 - 63.5 cm x max 50.8 cm)
Approximate Weight	45 kg (100 lb)
Power Supply	120 V, 60 Hz, AC
Microwave Power	1000 W (estimated)
Main Functions	Microwave cooking, defrosting, reheating
Installation Type	Built into a cabinet or wall, alone or above a wall oven
Trim Kit Included	Front frame, exhaust duct, mounting rails, screws
Skill Level Required	Basic mechanical and electrical skills
Care and Cleaning	Clean with a damp cloth and mild detergent. Do not use abrasive cleaners.
Safety	Child safety lock (standard), disconnect before installation
Customer Service (United States)	1-800-944-9044
Customer Service (Canada)	1-800-265-8352 (English) / 1-800-668-4606 ext. 8199 (French)

Frequently Asked Questions - MWTK30FGUD FRIGIDAIRE

What are the required cutout dimensions for installing the Frigidaire MWTK30FGUD built-in microwave oven?

The cutout dimensions are: height between 16 3/4 in and 17 in (42.5 to 43.2 cm), width between 24 3/4 in and 25 in (62.9 to 63.5 cm), maximum depth of 20 in (50.8 cm).

Can I install this microwave above a wall oven?

Yes, the trim kit allows installation above an electric wall oven. A clearance of at least 3 inches (7.6 cm) between the wall oven and the microwave is required.

What is the weight of the Frigidaire MWTK30FGUD microwave?

The approximate weight is 45 kg (100 lb). Ensure the opening floor is strong enough to support this load.

Is the trim kit included with the appliance?

Yes, the trim kit (front frame, exhaust duct, mounting rails, and screws) is provided for built-in installation.

What microwave power does this model have?

The microwave power is estimated at 1000 W, typical for a built-in oven in this range.

How to clean the appliance?

Use a damp cloth with a mild detergent. Avoid abrasive cleaners that could scratch the surface.

Can I use this microwave without installing it built-in?

This model is designed to be built-in. Freestanding use is not recommended as it requires the trim kit for proper ventilation and support.

What are the customer service numbers for this product?

In the United States: 1-800-944-9044. In Canada: 1-800-265-8352 (English) or 1-800-668-4606 ext. 8199 (French).

Does the installation require special skills?

Installation requires basic mechanical and electrical skills. It is recommended to carefully follow the provided instructions.

Is there a child safety lock on this model?

Most Frigidaire built-in microwaves are equipped with a child safety lock. Consult the user manual to activate this function.

USER MANUAL MWTK30FGUD FRIGIDAIRE

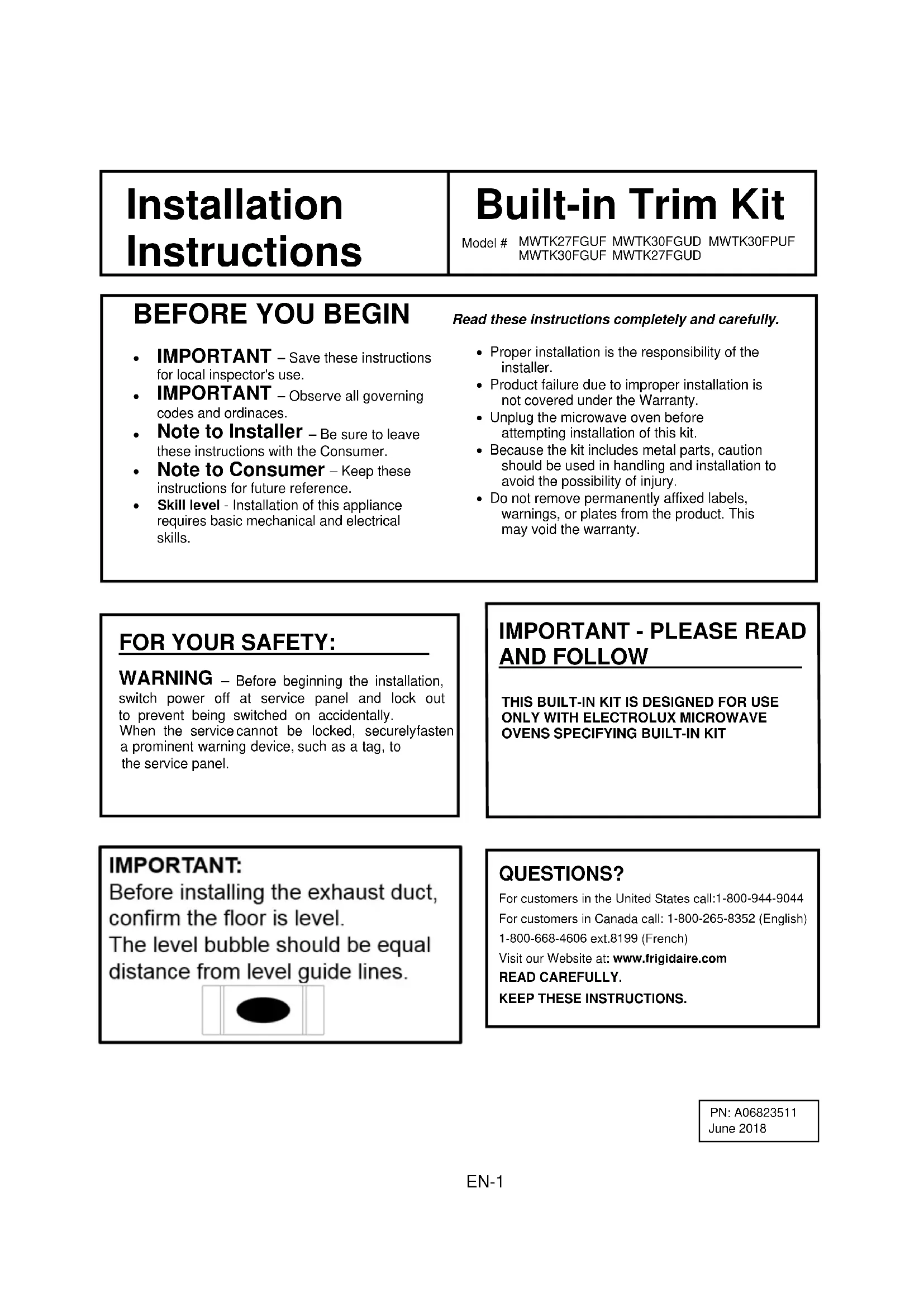

Installation Instructions

Built-in Trim Kit

Model # MWTK27FGUF MWTK30FGUD MWTK30FPUF MWTK30FGUF MWTK27FGUD

BEFORE YOU BEGIN

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinaces.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills.

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING – Before beginning the installation, switch power off at service panel and lock out to prevent being switched on accidentally. When the service cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH ELECTROLUX MICROWAVE OVENS SPECIFYING BUILT-IN KIT

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level.

The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-800-944-9044

For customers in Canada call: 1-800-265-8352 (English)

1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN: A06823511

June 2018

Installation Instructions

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly- QTY 1
2. Exhaust Duct - QTY 1
   Bottom Mounting Rail – QTY 2
3. Screw A - QTY 11 3 extra
4. Screw B - QTY 4 + 2 extra

Screw A

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Screw B

Front Frame Assembly

Microwave Models:

FGMO226NUF FGMO226NUD FPMO227NUF

CGMO226NUF CPMO227NUF

See Illustration 1 for proper location and when building in above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches. See illustration 2.

Exhaust Duct

Bottom Mounting Rail

Illustration 1

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non self-clean single cavity wall oven.

3"Min

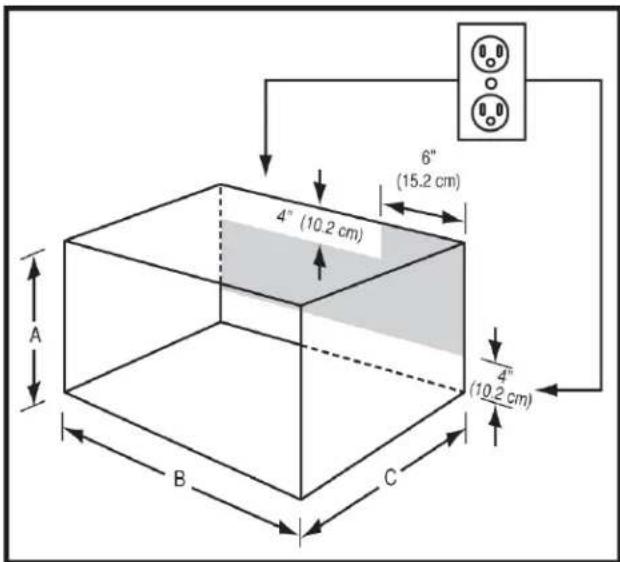

CABINET OR WALL CUTOUT

Cutout Dimensions See illustration 3

Height (A)
Minimum	16 3/4 (42.5 cm)
Maximum	17 (43.2 cm)
Width (B)
Minimum	24 3/4 (62.9 cm)
Maximum	25 (63.5 cm)
Depth (C)
Minimum	20 (50.8 cm)

Illustration 2

Trim Kit Overall Dimensions
	MWTK27	MWTK30
Height	18" (458mm)	18" (458mm)
Width	27" (686mm)	30" (762mm)
Depth	1 1/2" (38.9cm)	1 1/2" (38.9cm)

Installation Instructions

Illustration 3

Illustration 4

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

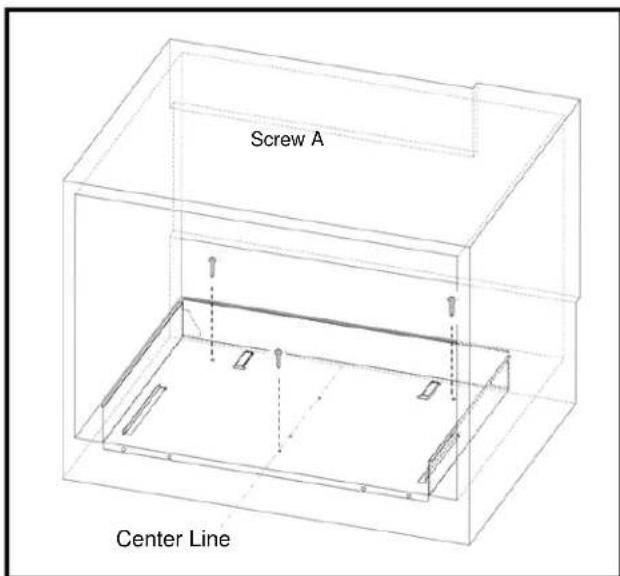

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening. When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 pere needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level.

The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

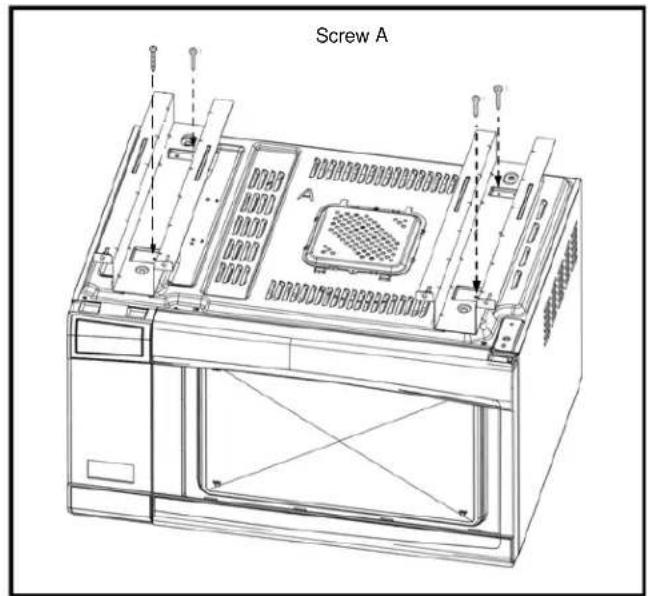

Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four SCREWS A. See Illustration 5.

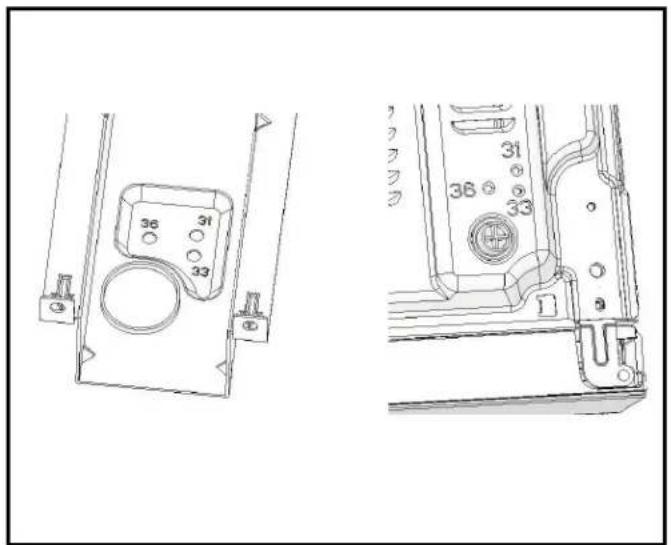

NOTE: Please make sure to align the holes(marked with "36") of bottom mounting rail and the holes(marked with "36") of microwave oven's bottom plate.

Illustration 5

OVEN INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.

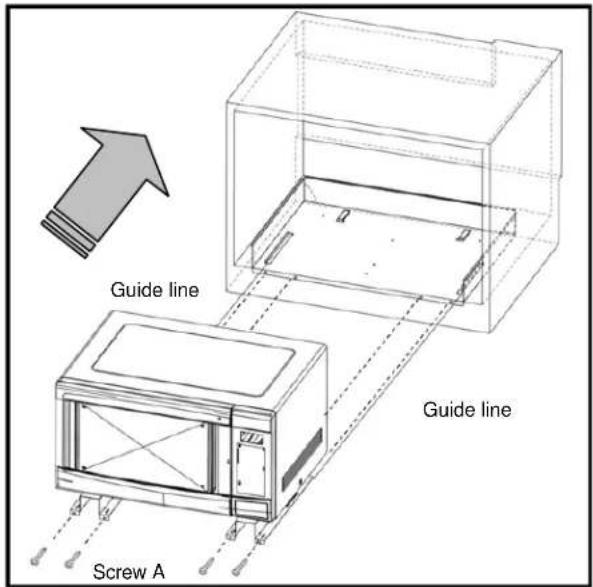

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6
3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

Technical line drawings of mechanical components with numbered parts (no text or symbols)

Installation Instructions

FRAME INSTALLATION

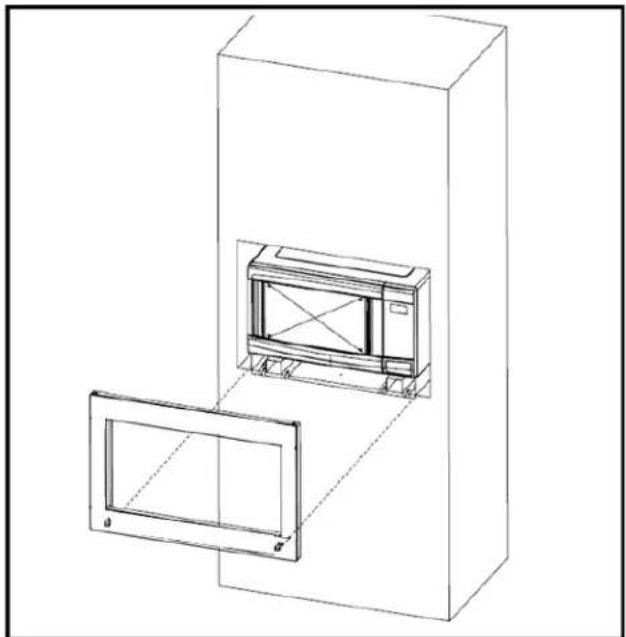

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

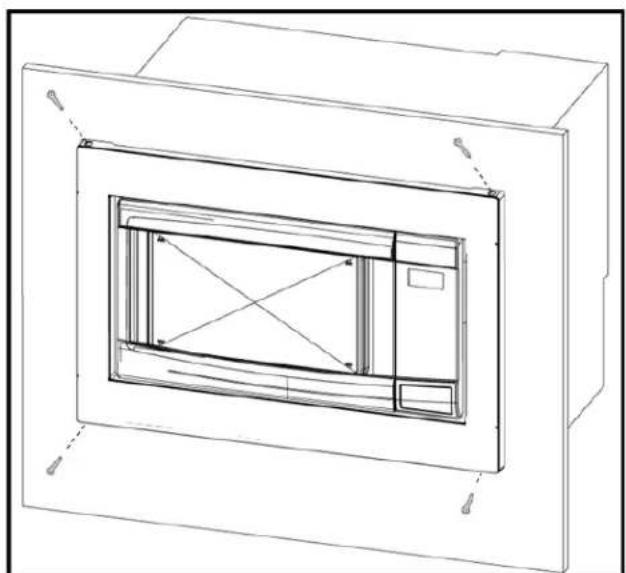

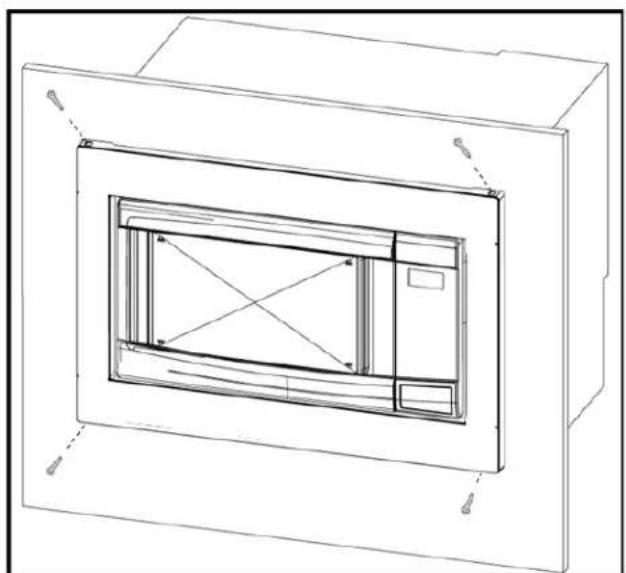

2. Check that it is level and then secure with two SCREWS B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining SCREWS B. See Illustration 8.

Technical line drawing of a microwave oven mounted on a rectangular base, with no visible text or symbols.

Illustration 7

Technical line drawing of a cabinet or enclosure with internal frame and mounting holes (no text or symbols)

Illustration 8

FGM0226NUF FGM0226NUD FPM0227NUF

CGM0226NUF CPM0227NUF

Simple line drawing of a rectangular frame with no text or symbols

Tornillo A

Tornillo B

Isometric line drawing of a rectangular tray or enclosure with internal slots and mounting holes (no text or symbols)

Ilustración 3

Technical line drawings of a mechanical component with numbered parts (no text or symbols)

Technical line drawing of a microwave oven mounted on a rectangular base, with no visible text or symbols.

Ilustración 7

Technical line drawing of a cabinet or enclosure with internal frame and mounting holes (no text or symbols)

Ilustración 8

PIÈCES INCLUDES DANS LE KIT

FGM0226NUF FGM0226NUD FPM0227NUF

CGM0226NUF CPM0227NUF

Simple line drawing of a rectangular frame with no text or symbols

Vis A

Vis B

Isometric line drawing of a rectangular tray or enclosure with internal compartments and mounting holes (no text or symbols)

Illustration 3

SORTIE ÉLECTRIQUE

INSTALLATION DU FOUR

Technical line drawing of a microwave oven mounted on a rectangular base, with no visible text or symbols.

Illustration 7

Technical line drawing of a 3D cabinet or enclosure with internal frame structure (no text or symbols)

Illustration 8
