Product Type	Built-in microwave oven with trim kit
Brand	Frigidaire
Model	MWTK30FPUF
Trim kit dimensions (H x W x D)	458 mm x 762 mm x 38.9 mm
Cutout dimensions (H x W x D)	425-432 mm x 629-635 mm x max 508 mm
Weight	Approximately 45 kg (with microwave)
Power supply	120 V, 60 Hz, 15 A (standard outlet)
Microwave power	Approximately 1000 W (estimated)
Capacity	Approximately 1.6 cu ft (estimated)
Trim kit material	Painted steel
Main functions	Microwave cooking, defrost, multi-stage cooking, timer, child lock
Installation	Built-in in a cabinet or above a wall oven
Safety	Unplug before installation; child safety lock
Care and cleaning	Clean with a damp cloth; do not use abrasive cleaners
Spare parts and repairability	Trim kit compatible with specific Frigidaire microwaves; parts available via customer service
General information	Warranty: 1 year (estimated); phone support: 1-800-944-9044 (USA)

Frequently Asked Questions - MWTK30FPUF FRIGIDAIRE

Is this trim kit compatible with all Frigidaire microwaves?

No, this trim kit (MWTK30FPUF) is designed to be used only with specific Frigidaire/Electrolux microwave models listed in the manual. Check the list of compatible models before purchase.

What are the exact cutout dimensions required for this kit?

The cutout height must be between 16 3/4 inches (42.5 cm) and 17 inches (43.2 cm). The width must be between 24 3/4 inches (62.9 cm) and 25 inches (63.5 cm). The maximum depth is 20 inches (50.8 cm).

Can I install the microwave above a wall oven?

Yes, this kit allows installation of the microwave above an electric wall oven. Ensure a clearance of at least 3 inches between the two appliances and follow the wall oven installation instructions.

What tools are needed for installing the kit?

Installation requires basic mechanical and electrical skills. You will need a screwdriver, a spirit level, a drill (if needed for screws), and possibly a saw for cabinet cutout.

Does the trim kit come with all necessary screws?

Yes, the kit includes screws A (11+3 extra) and screws B (4+2 extra) to secure the exhaust duct, mounting rails, and front frame.

Should I cut off the power supply before installation?

Yes, for your safety, unplug the microwave oven and turn off power at the service panel before starting installation. Lock the panel or attach a warning label.

Does the microwave need to be level to operate correctly?

Yes, it is imperative that the floor is level. Use a spirit level to check that the bubble is centered between the level lines before installing the exhaust duct.

Can I use this kit if my cabinet depth exceeds 20 inches?

The maximum cutout depth is 20 inches (50.8 cm). If the cabinet is deeper, the microwave may not align with the front frame. It is not recommended to use the kit in this case.

Where can I find the user manual for the microwave itself?

The microwave manual is usually provided with the appliance. You can also download it from the Frigidaire website by entering the microwave model number, or contact customer service at 1-800-944-9044.

What should I do if I lose screws or a component of the kit?

Contact Frigidaire customer service in the USA at 1-800-944-9044 or in Canada at 1-800-265-8352. Spare parts can be ordered separately.

USER MANUAL MWTK30FPUF FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Model # MWTK27FGUF MWTK30FGUD MWTK30FPUF MWTK30FGUF MWTK27FGUD

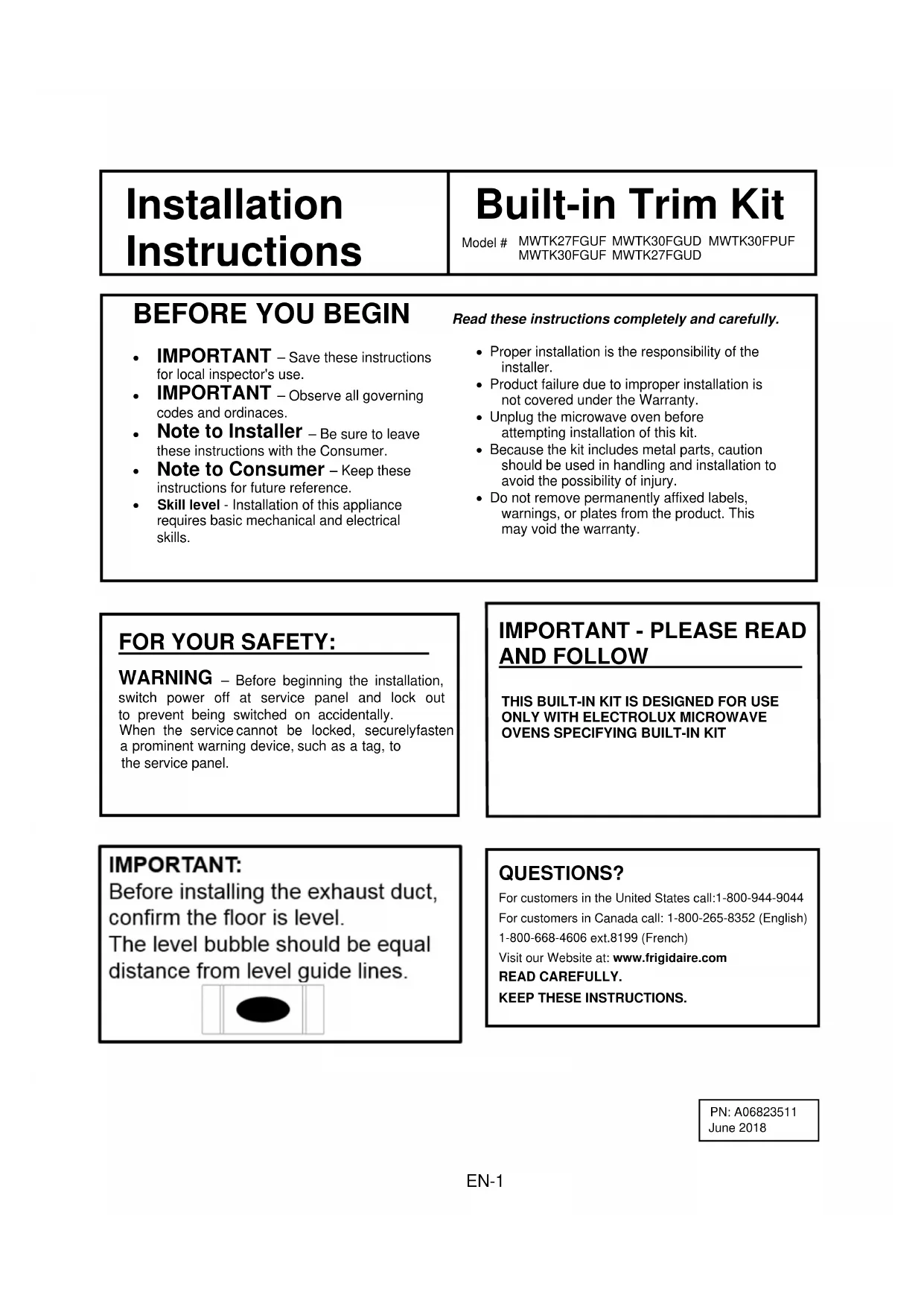

BEFORE YOU BEGIN

• IMPORTANT - Save these instructions for local inspector's use.
• IMPORTANT - Observe all governing codes and ordinances.
  Note to Installer - Be sure to leave these instructions with the Consumer.
  Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills.

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
  Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING - Before beginning the installation, switch power off at service panel and lock out to prevent being switched on accidentally. When the service cannot be locked, securelyfasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH ELECTROLUX MICROWAVE OVENS SPECIFYING BUILT-IN KIT

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-800-944-9044

For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com
READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN:A06823511

June 2018

Installation Instructions

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly-QTY 1
   2.Exhaust Duct - QTY 1

Bottom Mounting Rail - QTY 2

1. Screw A - QTY 11 3 extra
2. Screw B - QTY 4 + 2 extra

Screw A

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Microwave Models:

FGMO226NUF FGMO226NUD FPMO227NUF

CGMO226NUF CPMO227NUF

See Illustration 1 for proper location and when building in above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches. See illustration 2.

Screw B

Front Frame Assembly

Exhaust Duct

Bottom Mounting Rail

Illustration 1

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non self-clean single cavity wall oven.

3"Min

CABINET OR WALL CUTOUT

Cutout Dimensions See illustration 3

Height (A)

Minimum 163/4 (42.5cm)

Maximum 17 (43.2 cm)

Width (B)

Minimum 24 3/4 (62.9 cm)

Maximum 25 (63.5 cm)

Depth (C)

Minimum 20 (50.8 cm)

Illustration 2

Trim Kit Overall Dimensions

MWTK27

MWTK30

Height 18" (458mm)

18"（458mm）

Width 27"（686mm）

Installation Instructions

Illustration 3

Illustration 4

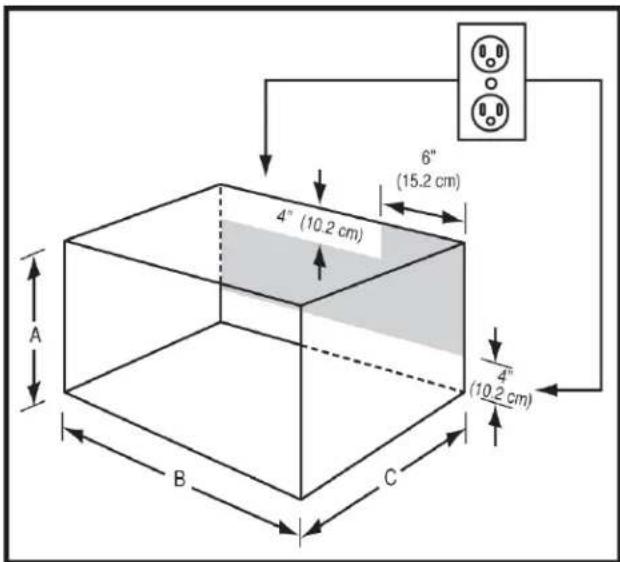

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

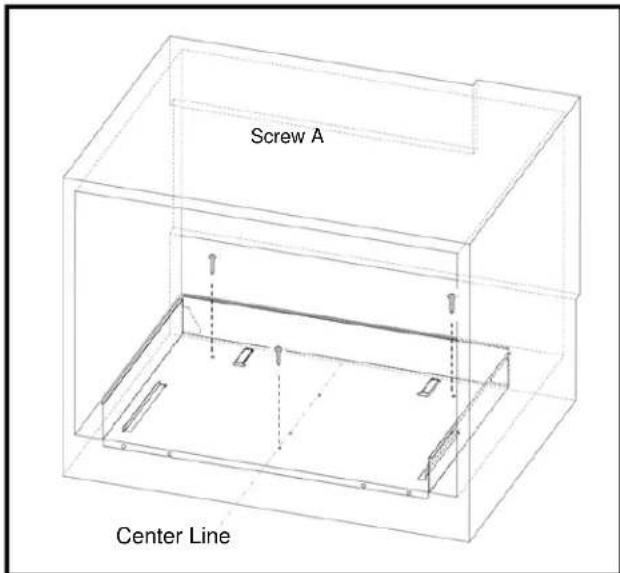

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 peae needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level.

The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

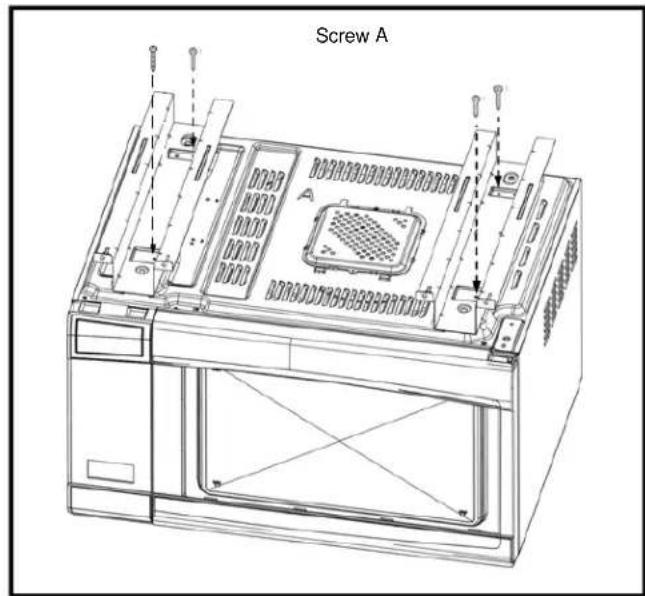

Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four SCREWS A. See Illustration 5.

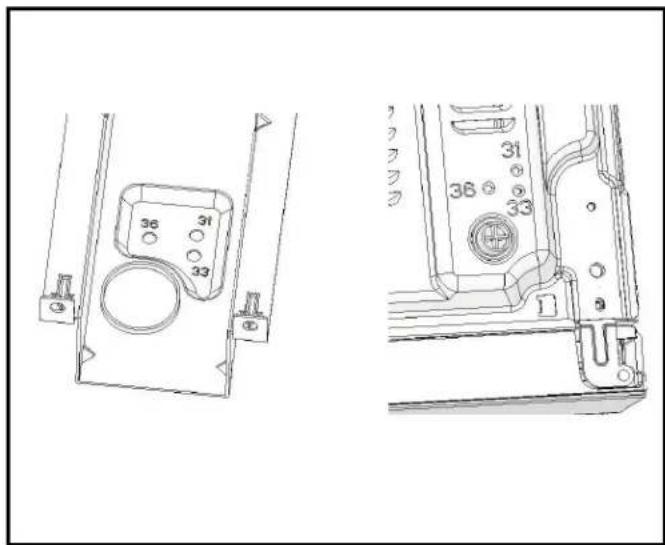

NOTE: Please make sure to align the holes(marked with "36") of bottom mounting rail and the holes(marked with "36") of microwave oven's bottom plate.

Illustration 5

OVEN INSTALLATION

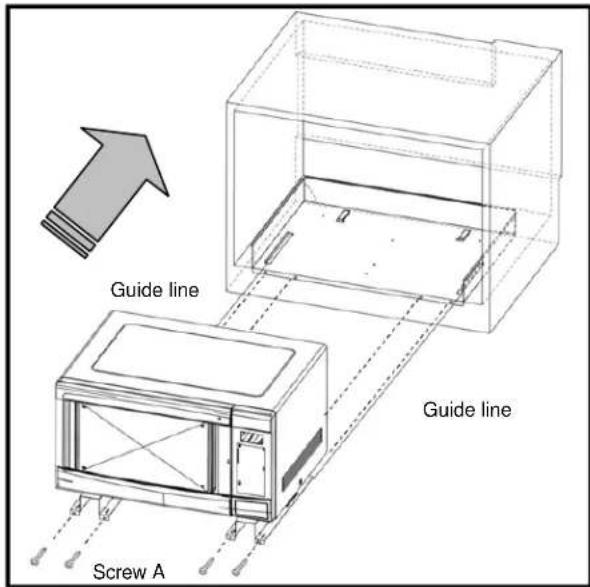

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.
2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6
3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

Installation Instructions

FRAME INSTALLATION

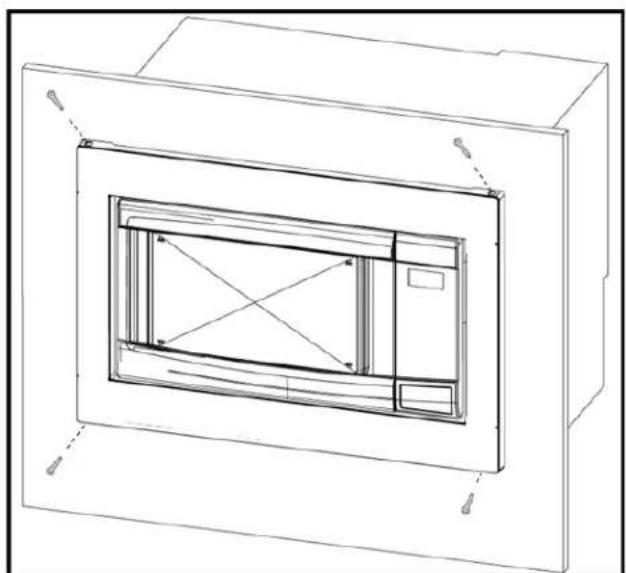

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

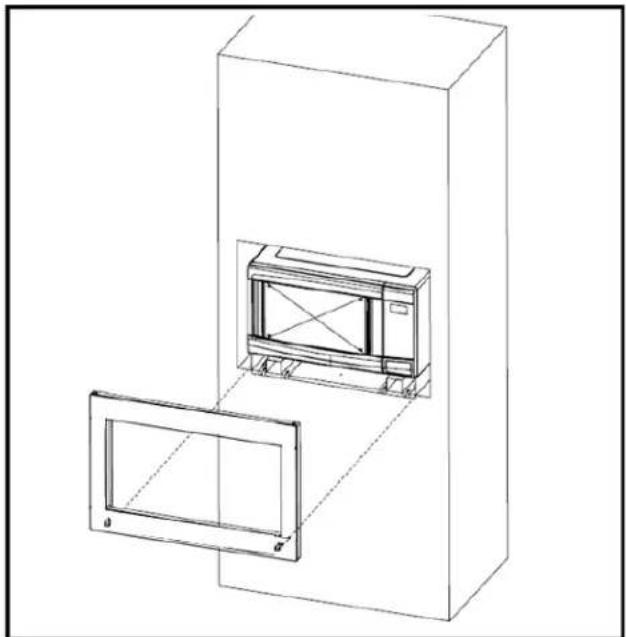

2. Check that it is level and then secure with two SCREWS B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining SCREWS B. See Illustration 8.

Illustration 7

Illustration 8

FGM0226NUF FGM0226NUD FPM0227NUF

CGM0226NUF CPM0227NUF
