USER MANUAL ADMWTK301S Dacor

• Part No. 106952 Rev. C TINSKB211MRR0 Use and Care Manual Microwave Oven Model DMW2420 S = Stainless Steel B = Black T a b l e o f C o n T e n T s ImporTanT safeTy InsTruCTIons p. 1
• -2 InformaTIon you need To Know p. 3
• -6 parT names p. 7
• before operaTIng p. 8
• manual operaTIon p. 9
• sensor CooKIng p. 10
• -11 frozen foods p. 12
• menu opTIons p. 12
• -19 oTher feaTures p. 19
• -21 CleanIng and Care p. 22
• servICe Call CheCK p. 23
• speCIfICaTIons p. 23

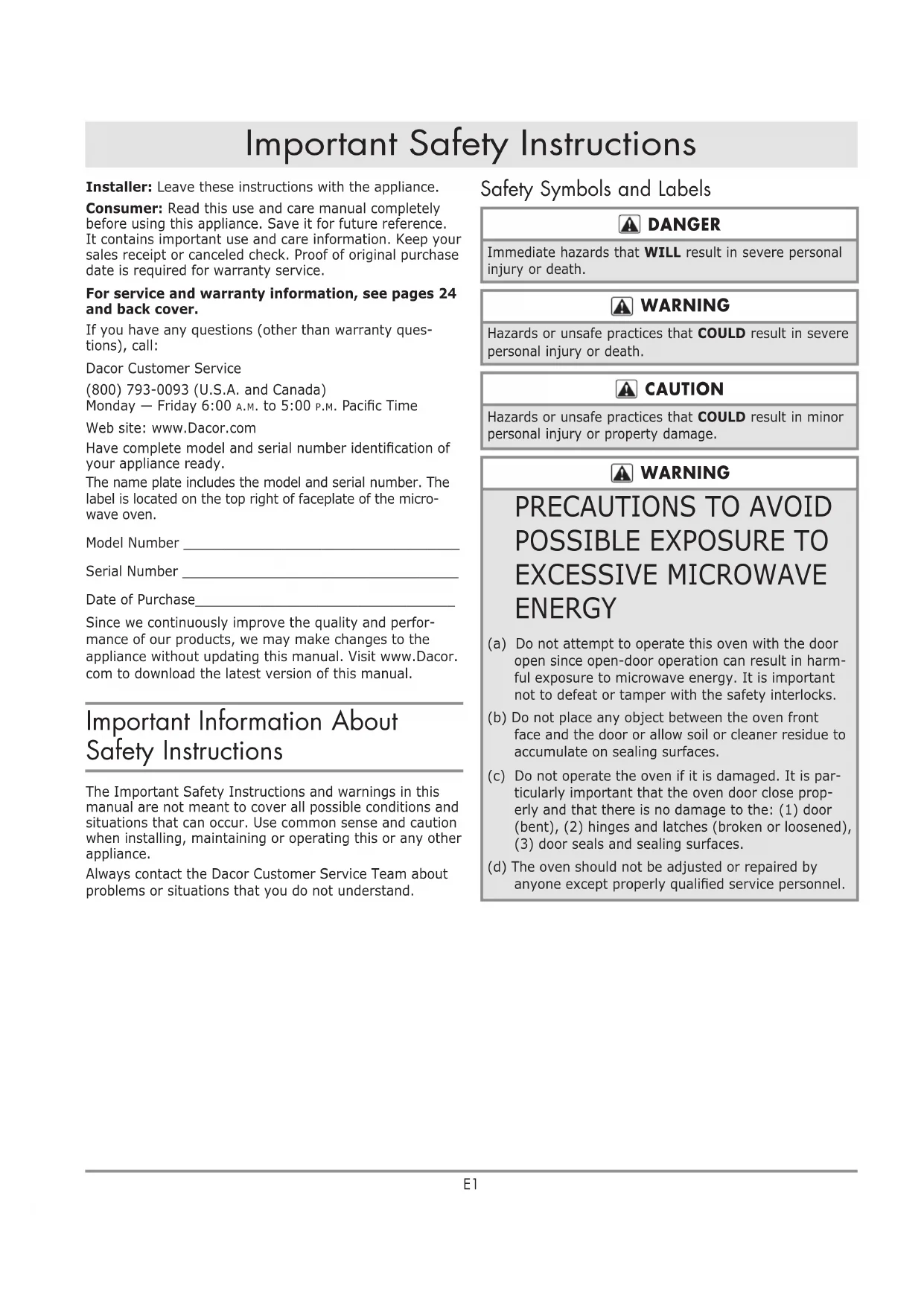

• produCT warranTy E1 Installer: Leave these instructions with the appliance.Consumer: Read this use and care manual completely before using this appliance. Save it for future reference. It contains important use and care information. Keep your sales receipt or canceled check. Proof of original purchase date is required for warranty service.For service and warranty information, see pages 24 and back cover.If you have any questions (other than warranty ques-tions), call:Dacor Customer Service(800) 793-0093 (U.S.A. and Canada) Monday — Friday 6:00 a.m. to 5:00 p.m. Pacic Time Web site: www.Dacor.comHave complete model and serial number identication of your appliance ready. The name plate includes the model and serial number. The label is located on the top right of faceplate of the micro-wave oven. Model Number __________________________________Serial Number __________________________________Date of Purchase________________________________Since we continuously improve the quality and perfor-mance of our products, we may make changes to the appliance without updating this manual. Visit www.Dacor.com to download the latest version of this manual. Important Information About Safety Instructions The Important Safety Instructions and warnings in this manual are not meant to cover all possible conditions and situations that can occur. Use common sense and caution when installing, maintaining or operating this or any other appliance.Always contact the Dacor Customer Service Team about problems or situations that you do not understand. Important Safety Instructions Safety Symbols and Labels DANGER Immediate hazards that WILL result in severe personal injury or death. WARNING Hazards or unsafe practices that COULD result in severe personal injury or death. CAUTION Hazards or unsafe practices that COULD result in minor personal injury or property damage. WARNING p. 24

PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harm-ful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.(c) Do not operate the oven if it is damaged. It is par-ticularly important that the oven door close prop-erly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.(d) The oven should not be adjusted or repaired by anyone except properly qualied service personnel.E2 READ AND SAvE ThESE INSTRucTIoNS ImportAnt SAfEty InStructIonS WARNING

1. Read all instructions before using the appliance.

2. Read and follow the specic “PRECAUTIONS TO

3. This appliance must be grounded. Connect only

to properly grounded outlet. See “GROUNDING INSTRUCTIONS” on page 3.

4. Install or locate this appliance only in accordance

with the provided installation instructions.

5. Some products such as whole eggs and sealed

containers—for example, closed glass jars—are able to explode and should not be heated in this oven.

6. Use this appliance only for its intended use as de-

scribed in this manual. Do not use corrosive chem- icals or vapors in this appliance. This type of oven is specically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is neces-

sary when used by children.

8. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly or if it has been damaged or dropped.

9. This appliance should be serviced only by qualied

service personnel. Contact the nearest Dacor Authorized Servicer for examination, repair or adjustment.

10. Do not cover or block any openings on the

11. Do not store or use this appliance outdoors. Do

not use this product near water—for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

16. To reduce the risk of re in the oven cavity:

a. Do not overcook food. Carefully attend to appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

17. Liquids, such as water, coffee or tea are able to

be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: a. Do not overheat the liquid. b. Stir the liquid both before and halfway through heating it. c. Do not use straight-sided containers with nar- row necks. Use a wide-mouthed container. d. After heating, allow the container to stand in the microwave oven at least for 20 seconds before removing the container. e. Use extreme care when inserting a spoon or other utensil into the container.

18. If the oven is installed as a built-in, observe the

following instructions: a. Do not mount over a sink. b. Do not store anything directly on top of the ap- pliance surface when the appliance is in opera- tion.

19. If the oven light fails, consult a DACOR AUTHO-

RIZED SERVICER. When using the appliance, basic safety precautions should be followed, including the following: WARNING To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:E3 About Unpacking And Examining Your Microwave Oven 1. Remove all packing materials from inside the oven cavity; however, DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the right cavity wall. Read enclosures and SAVE this use and care manual.2. Remove the feature sticker, if there is one. Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces, bro-ken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact your dealer or DACOR AUTHORIZED SERVICER.Safety door latchesWaveguide CodverDoor seals and sealing surfacesHinges About Choosing A Location For Your Oven On The Counter You will use the oven frequently so plan its location for ease of use. It is wise, if possible, to have counter space on at least one side of the oven. Allow at least 2 inches on the sides, top and at the rear of the oven for air circulation. About Choosing A Location For Your Oven If Built-In Your microwave oven can be built into a cabinet or wall by itself or above certain Dacor wall ovens or warming drawers using Dacor built-in kits: AMTK27S (stainless), AMTK27B (black), AMTK30S (stainless), AMTK36S (stainless), AOMTK27S (stainless), AOMTK27B (black), AOMTK30S (stainless), AOMTK30B (black), AOMTK30G (stone gray). Consult your Dacor dealer for compatibility. Information You Need To Know GROUNDING INSTRUCTIONS WARNING Improper use of the grounding plug can result in a risk of electric shock.This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. Electrical Requirements The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected electri-cal supply. It is recommended that a separate circuit serving only this appliance be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. Should you only have a 2-prong outlet, have a qualied electrician in-stall a correct wall receptacle.A 3-prong adapter may be purchased and used temporar-ily if local codes allow. Follow package directions.A short power-supply cord is provided to reduce risk of becoming entangled in or tripping over a longer cord. Extension Cord If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the microwave oven. The marked rating of the extension cord should be AC 115-120 volt, 15 amp. or more.Be careful not to drape the cord over the countertop or table where it can be pulled on by children or tripped over accidentally.NOTES:• If you have any questions about the grounding or electrical instructions, consult a qualied electrician or service person.• Neither Dacor nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connec-tion procedures.E4 Information You Need To Know Radio or TV Interference Should there be any interference caused by the micro- wave oven to your radio or TV, check that the microwave oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check posi- tion and signal of receiving antenna. About Your Microwave Oven NEVER use the oven without the turntable and support nor turn the turntable over so that a large dish could be placed in the oven. The turntable will turn both clockwise and counterclockwise. ALWAYS have food in the oven when it is on to absorb the microwave energy. When using the oven at power levels below 100%, you may hear the magnetron cycling on and off. It is normal for the exterior of the oven to be warm to the touch when cooking or reheating. Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will inuence the amount of moisture that condenses in the oven. Gener- ally, covered foods will not cause as much condensation as uncovered ones. Vents on the oven back must not be blocked. The oven is for food preparation only. It should not be used to dry clothes or newspapers. Your oven is rated 1100 watts by using the IEC Test Pro- cedure. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly. About Microwave Cooking

• Arrange food carefully. Place thickest areas towards outside of dish.

• Watch the cooking time. Cook for the shortest amount of time indicated and add more as needed. Food se- verely overcooked can smoke or ignite.

• Cover foods while cooking. Check a recipe or cook- book for suggestions like: paper towels, wax paper, microwave plastic wrap or a lid. Covers prevent spat- tering and help foods to cook evenly.

• Shield with small at pieces of aluminum foil any thin areas of meat or poultry to prevent overcooking be- fore dense, thick areas are cooked thoroughly.

• Stir foods from outside to center of dish once or twice during cooking, if possible.

• Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from right to left.

• Add standing time. Remove food from oven and stir, if possible. Cover during standing time, allowing the food to nish cooking without overcooking.

• Check for doneness. Look for signs indicating that cooking temperatures have been reached. Signs of doneness include: - Food steams throughout, not just at edge. - Poultry thigh joints move easily. - Meat and poultry show no pinkness. - Fish is opaque and akes easily with a fork. About Utensils And Coverings It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new microwave. Make sure the utensil does not touch the interior walls during cooking. Use these utensils for safe microwave cooking and reheating:

• Glass ceramic (Pyroceram

), such as Corningware

• Heat-resistant glass (Pyrex

• Microwave-safe plastics

• Microwave-safe paper plates

• Microwave-safe pottery, stoneware and porcelain

• Browning dish (Do not exceed recommended preheat- ing time. Follow manufacturer’s directions.) These items can be used for short time reheating of foods that have little fat or sugar in them:

• Dishes with metallic trim

• Non-heat-resistant glass

• Non-microwave-safe plastics (margarine tubs)

• Recycled paper products

• Metal twist-tiesE5 HeadingInformation You Need To Know Should you wish to check if a dish is safe for microwaving, place the empty dish in the microwave on HIGH for 30 sec- onds. A dish which becomes very hot should not be used. The following coverings are ideal:

• Paper towels are good for covering foods for reheating and absorbing fat while cooking bacon.

• Wax paper can be used for cooking and reheating.

• Plastic wrap that is specially marked for microwave use can be used for cooking and reheating. DO NOT allow plastic wrap to touch food. Vent so steam can escape.

• Lids that are microwave-safe are a good choice because heat is kept near the food to hasten cooking.

• Oven cooking bags are good for large meats or foods that need tenderizing. DO NOT use metal twist ties. Remember to slit the bag so steam can escape. How to use aluminum foil in your Oven:

• Small at pieces of aluminum foil placed smoothly on the food can be used to shield areas that are either defrosting or cooking too quickly.

• Foil should not come closer than 1 inch to any surface of the oven. Should you have questions about utensils or coverings, check a good microwave cookbook or follow recipe suggestions. Accessories: There are many microwave accessories available for purchase. Evaluate carefully before you purchase to make sure that they meet your needs. A microwave-safe thermometer will assist you in determining correct done- ness and assure you that foods have been cooked to safe temperatures. Dacor is not responsible for any damage to the appliance when accessories are used. About Children And The Microwave Children below the age of 7 should use the microwave oven with a supervising person very near to them. Be- tween the ages of 7 and 12, the supervising person should be in the same room. The child must be able to reach the oven comfortably. At no time should anyone be allowed to lean or sit on the oven. Children should be taught all safety precautions: how to use potholders, remove coverings carefully and pay special attention to packages that crisp food because they may be extra hot. Do not assume because a child has mastered one cooking skill that he/she can cook everything. Children need to learn that the microwave oven is not a toy. See page 20 for Child Lock feature. About Safety Check foods to see that they are cooked to the United States Department of Agriculture’s recommended tem- peratures. 160˚F - For fresh pork, ground meat, boneless white poultry, sh, seafood, egg dishes and frozen prepared food. 165˚F - For leftovers, ready-to-reheat refrigerated; deli and carry-out “fresh” food. 170˚F - White meat of poultry. 180˚F - Dark meat of poultry. To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave use.

• ALWAYS use potholders to prevent burns when handling utensils that are in contact with hot food. Enough heat from the food can transfer through uten- sils to cause skin burns.

• Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish’s covering and carefully open popcorn and oven cooking bags away from the face.

• Stay near the microwave oven while it’s in use and check cooking progress frequently so that there is no chance of overcooking food.

• NEVER use the microwave oven for storing cookbooks or other items.

• Select, store and handle food carefully to preserve its high quality and minimize the spread of foodborne bacteria.

• Keep waveguide cover clean. Food residue can cause arcing and/or res.

• Use care when removing items from the oven so that the utensil, your clothes or accessories do not touch the safety door latches.E6 HeadingInformation You Need To Know About Foods Food Do Don’t Eggs, sausages, nuts, seeds, fruits and vegetables

• Puncture egg yolks before cooking to prevent “explosion.”

• Pierce skins of potatoes, apples, squash, hot dogs and sausages so that steam escapes.

• Cook eggs in shells.

• Dry nuts or seeds in shells. Popcorn • Use specially bagged popcorn for the microwave.

• Listen while popping corn for the pop- ping to slow to 1 or 2 seconds or use the special POPCORN key.

• Pop popcorn in regular brown bags or glass bowls.

• Exceed maximum time on popcorn package. Baby food • Transfer baby food to small dish and heat carefully, stirring often. Check temperature before serving.

• Put nipples on bottles after heating and shake thoroughly. “Wrist” test before feeding.

• Heat disposable bottles.

• Heat bottles with nipples on.

• Heat baby food in original jars. General • Cut baked goods with lling after heating to release steam and avoid burns.

• Stir liquids briskly before and after heating to avoid “eruption”.

• Use a deep bowl, when cooking liq- uids or cereals, to prevent boilovers.

• Heat or cook in closed glass jars or airtight containers.

• Heat cans in the microwave as harmful bacte- ria may not be destroyed.

• Dry wood, gourds, herbs or wet papers.E7 Heading Microwave Oven Parts

2. Oven door with see-through window

3. Safety door latches

The oven will not operate unless the door is securely closed.

5. Door seals and sealing surfaces

6. Turntable motor shaft

7. Removable turntable support

Carefully place the turntable support in the center of the oven oor.

8. Removable turntable

Place the turntable on the turntable support securely. The turntable will rotate clockwise or counterclockwise. Only remove for cleaning.

It will light when oven is operating or door is open.

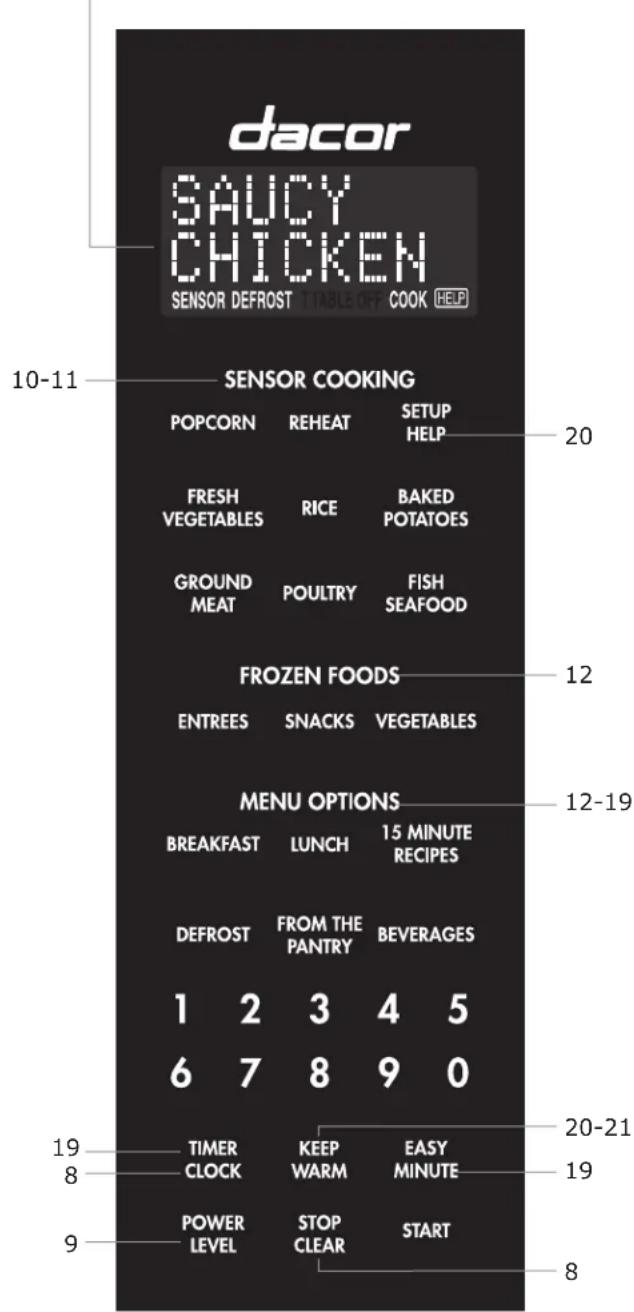

Control Panel The two-line, Interactive Display spells out the operating steps and shows cooking hints. When HELP is lit in the display, touch the HeLP key to read a specic hint which may assist you. Number next to the control panel illustration indicates page numbers where feature descriptions and usage information is located. 10-11

Part NamesE8 Heading Before operating your new microwave oven make sure you read and understand this manual completely. Before the microwave oven can be used, you must follow these steps:

1. Plug in the microwave oven. Close the door. The oven

2. Touch the StOP/CLeAR key.

2. Touch the number keys for correct time of day and

touch the tIMeR/CLOCK key again. This is a 12 hour clock. If you attempt to enter an incorrect clock time, ERROR will appear in the display. Touch the StOP/CLeAR key and re-enter the time. Should the electrical power supply to your microwave oven be interrupted, the display will intermittently show

WELCOME PRESS CLEAR AND PRESS CLOCK

after the power is restored. If power is interrupted during cooking, the program will be erased. The time of day will also be erased. Simply touch the StOP/CLeAR key and reset the clock for the correct time of day. Before Operating Stop/Clear Touch the StOP/CLeAR key to:

• Clear a mistake made during programming.

• Stop the microwave oven temporarily during timed cooking.

• Return the time of day to the display.

• Cancel a program during cooking, touch twice for timed cooking.E9 Heading Time Cooking Your microwave oven can be programmed for 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes, even if they are both zeros. For example, to cook for 5 minutes at 100%:

1. Enter the cooking time by touching the number

2. To cook at 100% power (High), touch the StARt key.

Manual Defrost If the food that you wish to defrost is not listed on the Defrost Chart or is above or below the limits in the Amount column on the Super Defrost or Compu Defrost Charts on page 18, you need to defrost manually. You can defrost any frozen food, either raw or previously cooked, by setting the Power Level to 30%. Follow the exact 3 step procedure found under To Set Power Level. Estimate defrosting time and press the POWER LEVEL key eight times for 30% power. For either raw or previously cooked frozen food, the rule of thumb is approximately 4 minutes per pound. For example, defrost 4 minutes for 1 pound of frozen spa- ghetti sauce. Always stop the microwave oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the microwave oven in 1 minute increments at a Power Level of 30% until totally defrosted. When using plastic containers from the freezer, defrost only long enough to remove from the plastic, then place in a microwave-safe dish. Manual Operation To Set Power Level There are 11 preset power levels. Using lower power levels increases the cooking time, which is recommended for foods such as cheese, milk and long slow cooked meats. Consult a microwave cookbook or recipes for specic recommendations. For example, to defrost for 5 minutes at 30%:

1. Enter the defrost time by touching the number

until the desired power appears.

3. Touch the StARt key.

Defrost Chart Touch Power Level Key Number Of Times For Desired Power Approximate Percentage Of Power Common Words For Power Levels Power Level x 1 100% High Power Level x 2 90% Power Level x 3 80% Power Level x 4 70% Medium high Power Level x 5 60% Power Level x 6 50% Medium Power Level x 7 40% Power Level x 8 30% Med low/Defrost Power Level x 9 20% Power Level x 10 10% Low Power Level x 11 0%E10 HeadingSensor Cooking Sensor Cooking Chart Food Amount Procedure Popcorn 1 package Use only popcorn packaged for the microwave. Try several brands to decide your favorite. Do not try to pop unpopped kernels.

1.5 - 3.5 oz. bag Touch the POPCORN key and touch StARt.

Dacor's sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power levels for various foods and quantities. Using Sensor Settings:

1. After the microwave oven is plugged in, wait 2 min-

utes before using any sensor setting.

2. Be sure the exterior of the cooking container and the

interior of the microwave oven are dry. Wipe off any moisture with a dry cloth or paper towel.

3. The sensor works with foods at normal storage tem-

perature. For example, popcorn would be at room temperature.

4. Any sensor selection can be programmed with More or

Less Time Adjustment. See page 20.

5. More or less food than the quantity listed in the charts

should be cooked following the guidelines in any mi- crowave cookbook.

6. During the rst part of sensor use, the food name will

appear on the display. Do not open the microwave oven or touch StOP/CLeAR during this part of the cycle. The measurement of vapor will be interrupted. If this occurs, an error message will appear. To con- tinue cooking, touch the StOP/CLeAR key and cook manually. When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear. The microwave oven may be opened when the remaining time appears on the display. At this time, you may stir or season food, as desired.

7. If the sensor does not detect vapor properly when

popping popcorn, the microwave oven will turn off, and the time of day will be displayed. If the sensor does not detect vapor properly when cooking other foods, ERROR will be displayed, and the microwave will turn off.

8. Check the food temperature after cooking. If addition-

al time is needed, continue to cook manually.

9. Each food has a cooking hint. Touch the Set UP/

HeLP key when the HELP indicator is lighted in the display. Covering Foods: Some foods cook best when covered. Use the cover rec- ommended in the charts for these foods. You may refer to the hints by touching the Set UP/HeLP key.

• Plastic wrap: Use plastic wrap recommended for microwave cooking. Cover dish loosely; allow approxi- mately 1/2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.

• Wax paper: Cover dish completely; fold excess wrap under dish to secure. If dish is wider than paper, over- lap two pieces at least one inch to cover. Be careful when removing any covering to allow steam to escape away from you. You can cook many foods by simply selecting the food and touching StARt. You don’t need to calculate cooking time or power level. For example, to reheat canned chili:

1. Touch the ReHeAt key.

2. Touch the StARt key.

• When the sensor detects the vapor emitted from the food, the remainder of the cooking time will appear. NOte: The Fresh Vegetables and Poultry settings have 2 choices. Follow directions in the display to choose desired option.E11 Heading Sensor Cooking Chart (continued) Food Amount Procedure Reheat 4 - 36 oz. Place food to be reheated in a dish or casserole slightly larger than the amount. Flatten, if possible. Cover with a lid, plastic wrap or wax paper. Use covers such as plastic wrap or lids, with larger quantities of more dense foods such as stews. After reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes. Foods should be very hot. If not, con- tinue to heat with variable power and time. Fresh vegetables, soft: Broccoli Brussel sprouts Cabbage Cauliower (owerets) Cauliower (whole) Spinach Zucchini Baked apples .25 - 2.0 lb p. 25
• - 2.0 lb p. 25
• - 2.0 lb p. 25
• - 2.0 lb. 1 med p. 25
• - 1.0 lb - 2.0 lb. p. 25

Wash and place in casserole. Do not add water if vegetables have just been washed. Cover with lid for tender vegetables. Use plastic wrap for tender- crisp vegetables. Touch FRESH VEGETABLES, number

and START. After cooking, stir, if possible. Let stand covered for 2 to 5 minutes. Fresh vegetables, hard: Carrots, sliced Corn on the cob Green beans Winter squash: diced halves .25 - 1.5 lb.

Place in casserole. Add 1 - 4 tablespoons water. Cover with lid for tender vegetables. Use plastic wrap cover for tender-crisp vegetables. Touch FRESH VEGETABLES, number

and START. After cooking, stir, if pos- sible. Let stand covered for 2 to 5 minutes. Rice .5 - 2.0 cup Place rice into a deep casserole and add a double quantity of water. Cover with lid or plastic wrap. After cooking, stir, cover and let stand 3 to 5 min- utes or until all liquid has been absorbed. Rice Water Size of casserole .5 cup 1 cup 1.5 quart 1 cup 2 cups 2 quart

1.5 cups 3 cups 2.5 or 3 quart

2 cups 4 cups 3 quart or larger Baked potatoes 1 - 8 med. Pierce. Place on paper-towel-lined turntable. After cooking, remove from microwave, wrap in aluminum foil and let stand 5 to 10 minutes. Ground meat .25 - 2.0 lb. Use this setting to cook ground beef or turkey as patties or in a casserole to be added to other ingredients. Place patties on a microwave-safe rack and cover with wax paper. Place ground meat in a casserole and cover with wax paper or plastic wrap. When the microwave stops, turn the patties over or stir the meat in the casserole to break up large pieces. Re-cover and touch START. After cooking, let stand covered for 2 to 3 minutes. Poultry : Boneless .5 - 2.0 lb. Use boneless breast of chicken or turkey. Cover with vented plastic wrap. Touch POULTRY, number

and START. When the oven stops, rearrange. Re-cover and touch START. After cooking, let stand, covered, 3 to 5 minutes. Poultry should be 160˚F. Bone-in .5 - 3.0 lb. Arrange pieces with meatiest portions toward outside of glass dish or microwave safe rack. Cover with vented plastic wrap. Touch POULTRY, number

and START. After cooking, let stand, covered, 3 to 5 minutes. Dark meat should be 180°F and white meat should be 170˚F. Fish/seafood .25 - 2.0 lb. Arrange in ring around shallow glass dish (roll llet with edges under- neath). Cover with vented plastic wrap. After cooking, let stand covered for 3 minutes. Sensor CookingE12 Heading Your oven has 6 convenience keys to assist with meal preparation. There are some foods in the Breakfast, Lunch, 15 Minute Recipes and From the Pantry that use the sensor. See the sensor cooking information on page

10. For foods not using the sensor, follow the directions in

the display to enter quantity. Breakfast and Lunch Breakfast and Lunch are for cooking and heating popular foods that take a short amount of time.

2. See the Menu Label. Select desired food by touching

3. Enter the quantity by touching a number key.

4. Touch the StARt key.

After cooking, follow the directions in the display. NOteS:

• Heat rolls/mufns setting has 2 choices. Follow direc- tions in the display to choose desired option.

• Breakfast can be programmed with More or Less Time Adjustment. Touch the POWeR LeVeL key once or twice before touching StARt key. See page 20.

• Each food has a cooking hint. Touch Set UP/ HeLP key when the HELP indicator is lighted in the display.

• Should you attempt to enter more or less than the allowed amount, an error message will appear in the display. More or less than the quantity listed in the chart should be cooked following the guidelines in any microwave book.

• The nal cooking result will vary according to the food condition (e.g. initial temperature, shape, quality, cov- ering). Check food for temperature after cooking. If additional time is needed, continue to cook manually. Frozen Foods Menu Options Frozen Foods Chart Food Amount Procedure Entrees 6 - 17 oz. Use this key for frozen convenience foods. It will give satisfactory results for most brands. You may wish to try several and choose your favorite. Remove package from outer wrapping and follow package directions for covering. After cooking, let stand cov- ered for 1-3 minutes. Snacks 3 - 8 oz. Use for frozen French fries, cheese sticks, appetizers etc. Remove from outer package. Follow package directions for how to wrap or cover. Be careful when removing from the oven as snack may be very hot. Vegetables .25 - 1.5 lb. Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand, covered, for 3 minutes. Breakfast Chart Food Amount Procedure

1 - 9 eggs For each egg, use 1 teaspoon of butter or margarine and 1 tablespoon of milk. Place the

butter or margarine in a dish, measuring cup or casserole large enough for the egg to expand. Mix the egg and milk together. Pour it onto butter or margarine in a dish. Place in the oven and program. When audible signals are heard, stir the egg mixture moving the cooked portion to the center of the dish and uncooked portion to the outside. After cooking, stir and let stand, covered, until set. Note that eggs will be slightly undercooked when removed from the oven.

2. Bacon 2 - 6 slices Place bacon on paper plate, lined with a paper towel. Bacon should not extend over the

rim of plate. Cover it with another paper towel. Allow bacon to stand a few minutes after removing from the oven to complete the cooking.E13 HeadingMenu Options Breakfast Chart (continued) *It is not necessary to enter amount. Food Amount Procedure

3. Hot cereal 1 - 6 servings Use individual packets or bulk cereal in your favorite variety: oatmeal, oat bran,

cream of wheat, farina or wheatena. Follow the package directions for the correct amount of water or milk. To prevent boil overs, it is very important to choose a large container because microwave cooking of cereal causes high boiling. If the oven stops, stir and touch START. After cooking, stir and let stand, covered, for 2 minutes.

mufns: Use this key to warm rolls, mufns, biscuits, bagels etc. Large items should be considered as 2 or 3 regular size. Arrange on a plate and cover with a paper towel. Fresh 1 - 10 pcs. To warm fresh rolls and mufns, touch BREAKFAST, number

Then, enter the desired quantity and touch START. For refrigerated rolls or muf- ns, it may be necessary to double the entered amount to ensure the proper serv- ing temperature. For example, enter a quantity of 2 for 1 refrigerated mufn. Frozen 1 - 10 pcs. For frozen rolls and mufns, touch BREAKFAST, touch number

Then, enter the desired quantity and touch START.

breakfast foods* 1 (3 -6 oz.) This setting works well for frozen breakfast entrees, pancakes, wafes, burritos etc. Follow manufacturer’s directions for how to prepare for microwaving. Allow to stand 1 or 2 minutes after cooking. Lunch Chart *It is not necessary to enter amount. Food Amount Procedure

cup* 1 cup This setting is ideal for individual portions of canned food packed in a small microwaveable container, usually 6 to 8 ounces. Remove the inner metal lid and replace the outer microwaveable lid. After cooking, stir the food and allow it to stand for 1 or 2 minutes.

1 - 4 pcs. Place the hot dog in a bun. Wrap each with a paper towel or napkin.

3. Soup* 1 - 8 cups Place in a bowl or casserole. Cover it with a lid or plastic wrap. At the end, stir, re-

cover and let it stand for 1 to 3 minutes.

pizza* 1 (6 - 8 oz.) Use for frozen microwave pizza. Remove it from the package and unwrap. Follow the package directions for package use and/or the silver crisping disk.

sandwich* 1 (3 - 6 oz.) Use for frozen microwaveable sandwiches. Remove it from the package and follow the directions for placing it in the oven.E14 Menu Options 15 Minute Recipes and From The Pantry 15 Minute Recipes and From the Pantry each offer ve simple-to-prepare but great tasting meals. Follow the spe- cic directions on the Recipe Card and in the display. For example, to use 15 Minute Recipes to cook Saucy Chicken.

2. See the Menu Label. Select the desired food by touch-

for Saucy Chicken. Follow the Recipe Card for ingre- dients and instructions.

3. Touch the StARt key.

4. When the oven stops, the display will show the

instruction number on the Recipe Card. Follow the instructions on the Recipe Card. CHECK RECIPE INSTRUCTIONS 2 PRESS START.

5. Touch the StARt key.

6. At the end, the display will show the instruction

number on the Recipe Card. Follow the instructions on the Recipe Card. CHECK RECIPE INSTRUCTIONS 3. From The Pantry (ReCIPeS SeRVe 6)

/2 pound mushrooms, sliced 1 onion, chopped 1 tablespoon minced garlic Stir well and cover. Touch FROM tHe PANtRy and number

to select SAUCY CHICKEN, then touch StARt.

8 ounces reduced fat cream cheese, softened

3. Stir into the cream cheese mixture:

1 10 ounce package of frozen peas 2 cups cooked thinly sliced chicken breast Salt and pepper to taste At pause, drain liquid from mushrooms, etc. Add cream cheese/peas/chicken mixture and stir together. Re-cover. Touch StARt.

4. At the end, stir in 1 cup shredded Monterey jack

cheese. Serve on top of baked potatoes or cooked pasta.

1 tablespoon oil 1 pound boneless pork loin, cut into 1 inch strips, seasoned with salt and pepper Stir well and cover. Touch FROM tHe PANtRy, number

to select HAWAIIAN PORK and then touch StARt.

2. Combine well in a large bowl:

/4 cup barbecue sauce 2 tablespoons soy sauce 2 tablespoons cornstarch 1 cup coarsely chopped onions At pause, add preserves/barbecue mixture and stir together well. Re-cover. Touch StARt.

1 8 ounce can sliced water chestnuts, drained 1 green pepper, seeded and cut into 2 inch thin strips 1 red pepper, seeded and cut into 2 inch thin strips 1 20 ounce can pineapple chunks, drained Stir to combine. Re-cover. Touch StARt.

4. At the end, stir again.

Serve on cooked rice.E15 Menu Options From The Pantry (ReCIPeS SeRVe 6) CONtINUeD

/4 pounds ground turkey

/2 cup diced red pepper Break up turkey and stir in onions and red pepper. Cover. Touch FROM tHe PANtRy, number

to se- lect FIESTA CHILI and then touch StARt.

2. At pause, drain and add to the casserole:

8 ounces chunky salsa 1 11 ounce can of Mexican corn, drained 1 15 ounce can chili with beans 1-3 teaspoons chili powder Stir together well. Re-cover. Touch StARt.

3. At the end, stir well.

Serve over cooked rice or nacho chips. Top with 2 cups shredded Monterey jack or cheddar cheese.

/4 cup orange juice concentrate 2 tablespoons honey mustard 1 tablespoon grated fresh ginger or 2 teaspoons ground ginger

/2 of the orange mixture over top of salmon. Cover with plastic wrap. Touch FROM tHe PANtRy, number

3. At pause, place around edge of salmon:

3 cups broccoli orets 1 red pepper, cut into thin strips Drizzle remaining orange mixture over vegetables. Top all with 2 tablespoons toasted sesame seeds. Touch StARt.

4. At the end, allow to stand, covered, for 3 to 5 minutes.

Serve with buttered rice, pasta or potatoes garnished with parsley.

/2 pound mushrooms, sliced

/4 cup chopped onion 1 tablespoon minced garlic

/4 pound chopped low-fat smoked sausage Cover with plastic wrap. Touch FROM tHe PANtRy and number

to select HEALTHY FRITTATA, then touch StARt.

2. At pause, drain and set aside.

In a medium bowl, combine and stir together well: 3 large eggs

3. Add and stir together:

/2 10 ounce package frozen chopped spinach, thawed and squeezed dry 1 cup shredded Swiss cheese Pour mixture in bowl over top of mushroom/onion/ sausage mixture. Mix together carefully. Do not cover. Touch StARt.

4. At the end, remove from oven and allow to stand for

3 to 5 minutes. Serve with tossed salad and sliced tomatoes for brunch.E16 Menu Options 15 Minute Recipes (ReCIPeS SeRVe 6)

1 pound ground beef Break apart and cover. Touch 15 MINUte ReCIPeS and number

2. At pause, drain the fat and break the ground beef into

small pieces. Add it to the casserole: 1 10 ounce package frozen chopped spinach, thawed and drained

/2 cups salsa 1-3 teaspoons chili powder Stir together well. Re-cover. Touch StARt.

3. At the end, stir well and place in 8 warmed corn torti-

llas. Top with 1 cup shredded cheddar cheese.

2 cups instant rice 1 cup prepared fajita sauce mixed with 1/2 cup chicken broth or bouillon 2 10 ounce packages frozen seasoning mix (onion, peppers, parsley and celery) 1 pound boneless chicken breast, cut into 1 inch thin strips Cover. Touch 15 MINUte ReCIPeS, number

2. At pause, stir together being sure that chicken

strips are separated and mixed into the rice/sauce. Re-cover. Touch StARt.

3. At the end, stir.

Serve with buttered green beans and toasted tortillas.

Place in 3 quart casserole: 6 cups very hot tap water Cover. Touch 15 MINUte ReCIPeS and number

8 ounces tricolored rotini or fusilli pasta 1 teaspoon salad oil Do not cover. Touch StARt.

3. At the end, drain pasta and set aside.

To cook chicken: Place in greased 9” pie plate: 1 pound boneless chicken breast, cut into 1 inch thin strips Cover. Touch StARt.

4. At pause, rearrange, moving less done pieces to the

outside of the pie plate. Re-cover. Touch StARt.

5. Drain and set aside.

To make salad: Place in large salad bowl: Cooked rotini or fusilli Cooked chicken breast 2 tomatoes, cut into eighths

/2 cup sliced black olives 1 cup mozzarella cheese, shredded

/4-1 cup oil-vinegar type dressing with pesto Toss together to coat all pieces. Serve immediately or chill to serve later. Ideal when served with warm crusty rolls.E17 Menu Options 15 Minute Recipes (ReCIPeS SeRVe 6) CONtINUeD

Place in 3-quart casserole: 6 cups very hot tap water Cover. Touch 15 MINUte ReCIPeS and number

2 cups elbow macaroni 1 teaspoon salad oil Do not cover. Touch StARt.

3. At the end, drain macaroni and set aside in the cas-

serole. Combine in a bowl: 1 can cream of celery soup

/2 cup nonfat sour cream Cover. Touch StARt. Add to macaroni in casserole: Soup/milk/sour cream mixture

/2 ounce can solid white water packed tuna sh, drained and aked 1 cup frozen peas 1 cup shredded cheddar cheese Salt and pepper to taste Stir together until well mixed. Cover. Touch StARt.

4. At the end, stir again.

Serve with fresh carrot sticks, tossed salad and dinner rolls.

/2 quart casserole: 1 pound peeled baking potatoes, cut into eighths and thinly sliced

/2 ounce can diced tomatoes 2 teaspoons minced garlic 1 teaspoon thyme leaves Cover with a lid. Touch 15 MINUte ReCIPeS and number

2. At pause, stir well and add:

1 16 ounce package frozen stir fry mixed vegetables 2 cups thinly sliced summer squash Re-cover. Touch StARt.

3. At the end, sprinkle top with 4 ounces shredded

cheddar cheese. Serve with spinach salad and chilled melon. Defrost Defrost automatically defrosts all the foods found in the Super Defrost and Compu Defrost Charts. Super Defrost Super Defrost rapidly defrosts specic foods and weights found in the Super Defrost Chart (number 1-3). For these choices, it is not necessary to enter the weight.

1. Touch the DeFROSt key.

2. See the Menu Label. Select desired food by touching

for boneless poultry.

1.0 POUND BONELESS CHICKEN PRESS START.

3. Touch the StARt key.

The oven will stop so the food can be checked. The display will show: TURN OVER SEPARATE INTO PIECES. Close the door.

4. Touch the StARt key.

5. After the defrost cycle ends, follow the directions.

LET STAND 3-5 MINUTES.NOteS:

• To defrost other foods above or below the weights allowed on the Super Defrost and Compu Defrost Charts, use time and 30% power. See Manual Defrost on page 9.

• Any setting in Defrost can be programmed with More or Less Time Adjustment. Touch the POWeR LeVeL key once or twice before touching StARt key.

• Touch the SetUP/HeLP key when the HELP indicator is lighted in the display for a helpful hint.

• If you attempt to enter more or less than the amount indicated in the Compu Defrost Chart, an error mes- sage will appear in the display.E18 Menu Options Super Defrost Chart *It is not necessary to enter amount. Food Amount Procedure

1. Ground meat* 1.0 lb. At pause, turn over, remove any thawed pieces and break the remainder apart.

At the end, let stand, covered, for 3 to 5 minutes.

2. Boneless chicken* 1.0 lb. At pause, turn over and separate into pieces. At the end, let stand, covered, for

2.0 lb. At pause, turn over and separate into pieces. At the end, let stand, covered, for

3 to 5 minutes. NOTE FOR SUPER DEFROST: Super Defrost provides just enough defrosting so that the foods can be used in recipes or for cooking. There will be some ice crystals remaining. Compu Defrost Chart Food Amount Procedure

4. Ground meat .5 - 3.0 lb. Remove any thawed pieces after each stage. Let stand, covered, for 5 to 10

or sh .5 - 4.0 lb. After each stage, rearrange and if there are warm or thawed portions, shield with small at pieces of aluminum foil. Remove any meat or sh that is almost defrosted. Let stand, covered, for 10 to 20 minutes.

6. Chicken pieces .5 - 3.0 lb. After each stage, rearrange the pieces or remove portions should they become

warm or thawed. Let stand, covered, for 10 to 20 minutes.

7. Roast 2.0 - 4.0 lb. Start defrosting with the fat side down. After each stage, turn the roast over and

shield the warm portions with aluminum foil. Let stand, covered, for 30 to 60 minutes.

1 - 8 cups After the audible signal, stir if possible. At the end, stir well and let stand, cov-

ered, for 5 to 10 minutes. NOTE FOR COMPU DEFROST: Check foods when the oven signals. After the nal stage, small sections may still be icy. Let stand to continue thawing. Do not defrost until all ice crystals are thawed. Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of alumi- num foil to cover the edges and thinner sections of the food. Compu Defrost

2. See the Menu Label. Select the desired food by

for steak. STEAKS CHOPS OR FISH ENTER WEIGHT IN POUNDS. Enter the weight by touching the number keys. For example: touch number

3. Touch the START key.

The oven will stop so the food can be checked. The display will show: TURN FOOD OVER COVER EDGES.

4. After the 1st stage, open the door. Turn the steak

over and shield any warm portions. Close the door. Touch the START key.

5. After the 2nd stage, open the door. Shield any warm

portions. CHECK FOOD COVER EDGES. Close the door. Touch the START key.

6. After defrost cycle ends, follow the directions.

Menu Options Beverages Chart Food Amount Procedure

1 - 4 cups Use this setting for heating COLD TAP WATER to a temperature somewhat below

the boiling point to make instant coffee or tea. Touch the number

key for 1 cup increase per touch. Stir the liquid briskly before and after heating to avoid “eruption”.

beverage .5 - 2.0 cups This setting is good for restoring a cooled beverage to a better drinking tempera- ture. Touch the number

key for a 0.5 cup increase per touch. Stir after heating. Beverages Beverages enables you to reheat coffee or tea to a more suitable drinking temperature or to make instant coffee or tea.

2. See the Menu Label. Select desired setting by touch-

to reheat coffee. REHEAT CONTINUE PRESSING 2 FOR CUPS. Enter quantity by touching same number key

repeatedly. For example: Touch number

3. Touch the StARt key.

• Beverages can be programmed with More or Less Time Adjustment. Touch the POWeR LeVeL key once or twice after selecting the amount. See page 20.

• Touch SetUP/HeLP key when the HELP indicator is lighted in the display, for a helpful hint.

• More or less than the quantity listed in the chart should be made following the guidelines in any microwave book. Other Features Timer To set the timer:

3. Touch the number keys to enter the time.

4. Touch tIMeR/CLOCK. The timer will count down.

After the timer cycle ends, the display will show:

NOte: To cancel the timer during programming, touch the StOP/CLeAR key. Easy Minute Easy Minute allows you to cook for a minute at 100% by simply touching the eASy MINUte key. You can also ex- tend cooking time in multiples of 1 minute by repeatedly touching the eASy MINUte key during manual cooking. NOteS:

• To use Easy Minute , touch the key within 3 min- utes after cooking, closing the door, touching the StOP/CLeAR key or during cooking.

• Easy Minute cannot be used with Sensor Cooking, Menu Options or Keep Warm.E20 HeadingOther Features Setup/Help Setup/Help provides 4 features which make using your oven easy because specic instructions are provided on the display.

The Child Lock prevents unwanted oven operation, for example by small children. The oven can be set so that the control panel is deactivated or locked. To set, touch SetUP/HeLP, the number

and StARt. Should a key be touched, CHILD LOCK will appear in the display. To cancel, touch SetUP/HeLP and StOP/CLeAR.

2. Audible Signal Elimination

If you wish to have the oven operate with no audible signals, touch SetUP/HeLP, the number

and StOP/ CLeAR. To cancel and restore the audible signal, touch SetUP/ HeLP, the number

Use this feature if you wish to program the microwave oven to begin cooking automatically at a designated time of day. Before setting, check to make sure the clock is showing the correct time of day. For example, to start cooking a stew for 20 minutes on 50% at 4:30:

1. Touch the SetUP/HeLP and number

2. Enter the start time by touching the number keys

4. Enter the cooking time

. Touch the POWeR LeVeL key six times for 50% power.

5. Touch the StARt key.

• Auto Start can be used for manual cooking if the clock is set.

• If the oven door is opened after programming Auto Start, it is necessary to touch the StARt key for Auto Start time to appear in the readout so that the oven will automatically begin programmed cooking at the chosen Auto Start time.

• Be sure to choose foods that can be left in the oven safely until the Auto Start time. Acorn or butternut squash are often a good choice.

• If you wish to know the time of day, simply touch the Clock key. As long as your nger is touching the Clock key, the time of day will be displayed.

4. Language/Weight Selection

The oven comes set for English and U.S. Customary Unit- pounds. To change, touch SetUP/HeLP and the number

. Continue to touch the number

key until your choice is selected from the table below. Then, touch StARt key. Touch number

key for language and standard of weight. Touch number 4 Language Standard Of Weight Diaplay Once English LBS ENGLISH LB Twice English KG ENGLISH KG 3 times Spanish LBS ESPANOL LB 4 times Spanish KG ESPANOL KG 5 times French LBS FRANCAIS LB 6 times French KG FRANCAIS KG Help Each setting of Sensor Cooking has a cooking hint. If you wish to check, touch Set UP/HeLP whenever HELP is lit in the interactive display for these and other manual operation hints. More Or Less Time Adjustment Should you discover that you like any of the Sensor, Reheat or Defrost settings slightly more done, touch the POWeR LeVeL key once before touching the StARt key. The display will show MORE

For slightly less done, touch the POWeR LeVeL key twice before touching StARt. The display will show LESS

Keep Warm Keep Warm allows you to keep food warm up to 30 minutes. To use, simply touch the KeeP WARM key and enter the appropriate time (up to 30 minutes). You can also pro- gram Keep Warm with manual cooking to keep food warm continuously after cooking. Direct Use

1. Touch the KeeP WARM key.

2. Enter the desired time by touching the number keys.

HeadingOther Features The microwave oven will start. The display will show 30:00 and count down. KEEP WARM will be displayed intermittently during the count down. With Manual Cooking

1. Enter the desired cooking time and power level.

2. Touch the KeeP WARM key.

3. Enter the desired warming time, up to 30 minutes.

4. Touch the StARt key.

The operation will start. When the cooking time is com- plete, a long tone will sound and Keep Warm will start. The display will count down. KEEP WARM will be displayed intermittently during the count down for 15 minutes. NOte:

• Keep Warm cannot be programmed with Popcorn, Reheat, Sensor Cooking, Defrost or Reheat. Multiple Sequence Cooking Your microwave oven can be programmed for up to 4 automatic cooking sequences, switching from one power level setting to another automatically. Sometimes cooking directions tell you to start on one power level and then change to a different power level. Your microwave oven can do this automatically.

1. First enter the cooking time. Then touch the POWeR

LeVeL key once for 100% cooking or repeat touching the POWeR LeVeL key for a lower power level.

2. Enter the second cooking time. Touch the POWeR

LeVeL key repeatedly for desired level. You can follow this procedure up to 4 times.

3. Touch the StARt key.

• If 100% is selected as the nal sequence, it is not necessary to touch the POWeR LeVeL key.

• If you wish to know the power level during cooking, simply touch the POWeR LeVeL key. As long as your nger is touching the POWeR LeVeL key, the power level will be displayed.

• Keep Warm can be programmed even if 4 cooking sequences have been set. Start Start allows you to cook at 100% power by touching the StARt key continuously. Start is ideal for melting cheese, bringing milk to just below boiling, etc. The maximum cooking time is 3 minutes.

1. Continuously touch the StARt key. The cooking time

will begin counting up.

2. When the cheese is melted to the desired degree,

remove your nger from the StARt key. The oven stops immediately. NOteS:

• Note the time it takes for frequently used foods and program that time in the future.

• Touch the StARt key within 3 minutes after cooking, opening and closing the door or touching the StOP/ CLeAR key.

• Start can only be used 3 times in a row. If more times are needed, open and close door or touch the StOP/ CLeAR key. Demonstration Mode To demonstrate, touch tIMeR/CLOCK, the number

and then touch the StARt key and hold for 3 seconds. DEMO ON DURING DEMO NO OVEN POWER will appear in the display. Cooking operations and specic special features can now be demonstrated with no power in the oven. For example, touch the eASy MINUte key and the display will show 1:00 and count down quickly to END

and StOP/CLeAR. If easier, unplug the oven from the electri- cal outlet and replug.E22 Heading Control Panel Care should be taken in cleaning the control panel. If the control panel becomes soiled, open the oven door before cleaning. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close door and touch STOP/CLEAR. Door Wipe the window on both sides with a damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a damp cloth. Cleaners which are marked specically for use with stain- less steel may be used for the stainless steel model. Follow package directions exactly. Avoid the use of any harsh cleaners or one not marked for use with stainless steel because they may stain, streak or dull the door surface. Other Exterior Surfaces The outside surface is painted. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner. Waveguide Cover The waveguide cover is made from mica so it requires special care. Keep the waveguide cover clean to assure good oven performance. Carefully wipe with a damp cloth any food spatters from the surface of the cover immedi- ately after they occur. Built-up splashes may overheat and cause smoke or possibly catch re. Do not remove the waveguide cover. Turntable/Turntable Support The turntable and turntable support can be removed for easy cleaning. Wash them in mild, sudsy water; for stub- born stains use a mild cleanser and non abrasive scouring sponge. They are also dishwasher-safe. Use the upper rack of the dishwasher. The turntable motor shaft is not sealed, so excess water or spills should be wiped up im- mediately. Other Interior Surfaces Cleaning is easy because little heat is generated to the interior surfaces; therefore, there is no baking, setting of spills or spattering. To clean the interior surfaces, wipe with a soft cloth and warm water. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use baking soda or a mild soap; rinse thoroughly with hot water. NEVER SPRAY OVEN CLEANERS DIRECTLY ONTO ANY PART OF THE OVEN. Odor Removal Occasionally, a cooking odor may remain in the oven. To remove, combine 1 cup water, grated peel and juice of 1 lemon and several whole cloves in a 2 cup glass measur- ing cup. Boil for several minutes using 100% power. Allow to set in oven until cool. Wipe interior with a soft cloth. Cleaning and Care Disconnect the power cord before cleaning or leave the door open to inactivate the microwave oven during cleaning.E23 Heading Please check the following before calling for service: Place one cup of water in a glass measuring cup in the oven and close the door securely. Operate the oven for one minute at HIGH 100%. A Does the oven light come on? YES _______ NO _______ B Does the cooling fan work? (Put your hand over the rear ventilating openings.) YES _______ NO _______ C Does the turntable rotate? (It is normal for the turntable to turn in either direction.) YES _______ NO _______ D Is the water in the oven warm? YES _______ NO _______ If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit breaker. If they are functioning properly, CONTACT YOUR NEAREST DACOR AUTHORIZED SERVICER. A microwave oven should never be serviced by a “do-it-yourself” repair person. NOTE: If the time appearing on the display is counting down very rapidly, check Demonstration Mode on page 21 and cancel. Specifications AC Line Voltage: Single phase 120V, 60Hz, AC only AC Power Required: 1500 Watts, 13.0 amps. Output Power:* 1100 Watts Frequency: 2450 MHz Outside Dimensions: 24"(W) x 13

"(D) Cavity Dimensions: 17

"(D) Oven Capacity:** 2.0 Cu. Ft. Cooking Uniformity: Turntable system, diameter 16" Weight: Approx. 46 lb

• The International Electrotechnical Commission’s standardized method for measuring output wattage. This test method is widely recognized. ** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less. In compliance with standards set by: NHW – Department of National Health and Welfare of Canada. FCC – Federal Communications Commission authorized. DHHS – Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I, Subchapter J. – This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc. for use in USA or Canada. Service Call CheckE24 Heading What Is Covered

FULL ONE YEAR WARRANTY

If your DACOR product fails to function within one year of the original date of purchase, due to a defect in material or workmanship, DACOR will remedy the defect without charge to you or subsequent users. The owner must provide proof of purchase upon request and have the appliance accessible for service.

• Warranty is null and void if non-CSA approved product is transported from the U.S. OUTSIDE THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND CANADA:

LIMITED FIRST YEAR WARRANTY

If your DACOR product fails to function within one year of the original date of purchase, due to a defect in material or workmanship, DACOR will furnish a new part, F.O.B. factory, to replace the defective part. All delivery, installation and labor costs are the responsibility of the purchaser. The owner must provide proof of purchase upon request and have the appliance accessible for service. What Is Not Covered

• Failure of the product caused by faulty installation, improper usage, or neglect of required maintenance.

• Service calls to educate the customer in the proper use and care of the product.

• Failure of the product when used for commercial, business, rental or any application other than for residential consumer use.

• Replacement of house fuses or fuse boxes, or resetting of circuit breakers.

• Damage to the product caused by accident, re, ood or other acts of God.

FIRST-CLASS MAIL CITY OF INDUSTRY CAPERMIT NO 1600 POSTAGE WILL BE PAID BY ADDRESSEEWeb site: www.Dacor.com Corporate phone: [phone] WARRANTY INFORMATION IMPORTANT: Your warranty will not be activated until you activate it online or return this form to Dacor. If you have purchased more than one Dacor product, please return all forms in one envelope or activate the warranty for each product online. Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We are very grateful that you have chosen Dacor products for your home and do not consider the sale of such information to be a proper way of expressing our gratitude! Your willingness to take a few seconds to fill in the section below will be sincerely appreciated. Thank you.

1. How were you first exposed to Dacor products? (Please check one only.)

A. T.V. Cooking Show F Builder B. Magazine G. Architect/Designer C. Appliance Dealer Showroom H. Another Dacor Owner D. Kitchen Dealer Showroom I. Model Home E. Home Show J. Other

2. Where did you buy your Dacor appliances?

A. Appliance Dealer D. Builder B. Kitchen Dealer E. Other C. Builder Supplier

3. For what purpose was the product purchased?

A. Replacement only C. New Home B. Part of a Remodel D. Other

4. What is your household income?

A. Under $75,000 D. $150,000 – $200,000 B. $75,000 – $100,000 E. $200,000 – $250,000 C. $100,000 – $150,000 F. Over $250,000

5. What other brands of appliances do you have in your kitchen?

A. Cooktop C. Dishwasher B. Oven D. Refrigerator

6. Would you buy or recommend another Dacor product?

Yes No Comments: Owner’s Name: Street: City: State: Zip: Purchase Date: Email: Telephone: Dealer: City: State: Zip: (Please Print or Type) Last First Middle cut here cut here Please visit www.Dacor.com to activate your warranty online. Thank you very much for your assistance. The information you have provided will be extremely valuable in helping us plan for the future and giving you the support you deserve.
