USER MANUAL Senso Touch 3D RQ1265 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

RQ1200 series

Question? Contact Philips

Close-up of a Philips SenseTouch 3D scanner with black and gold casing (no visible text or symbols on body)

User manual

PHILIPS

Technical diagram of a hair dryer with labeled parts and component numbers

ENGLISH 4

DEUTSCH 28

ΕΛΛΗΝΙΚΑ 52

SUOMI 77

FRANÇAIS 101

DANSK 126

NEDERLANDS 150

ESPAÑOL 175

ITALIANO 199

NORSK 223

PORTUGUÊS 247

SVENSKA 272

TÜRKÇE 296

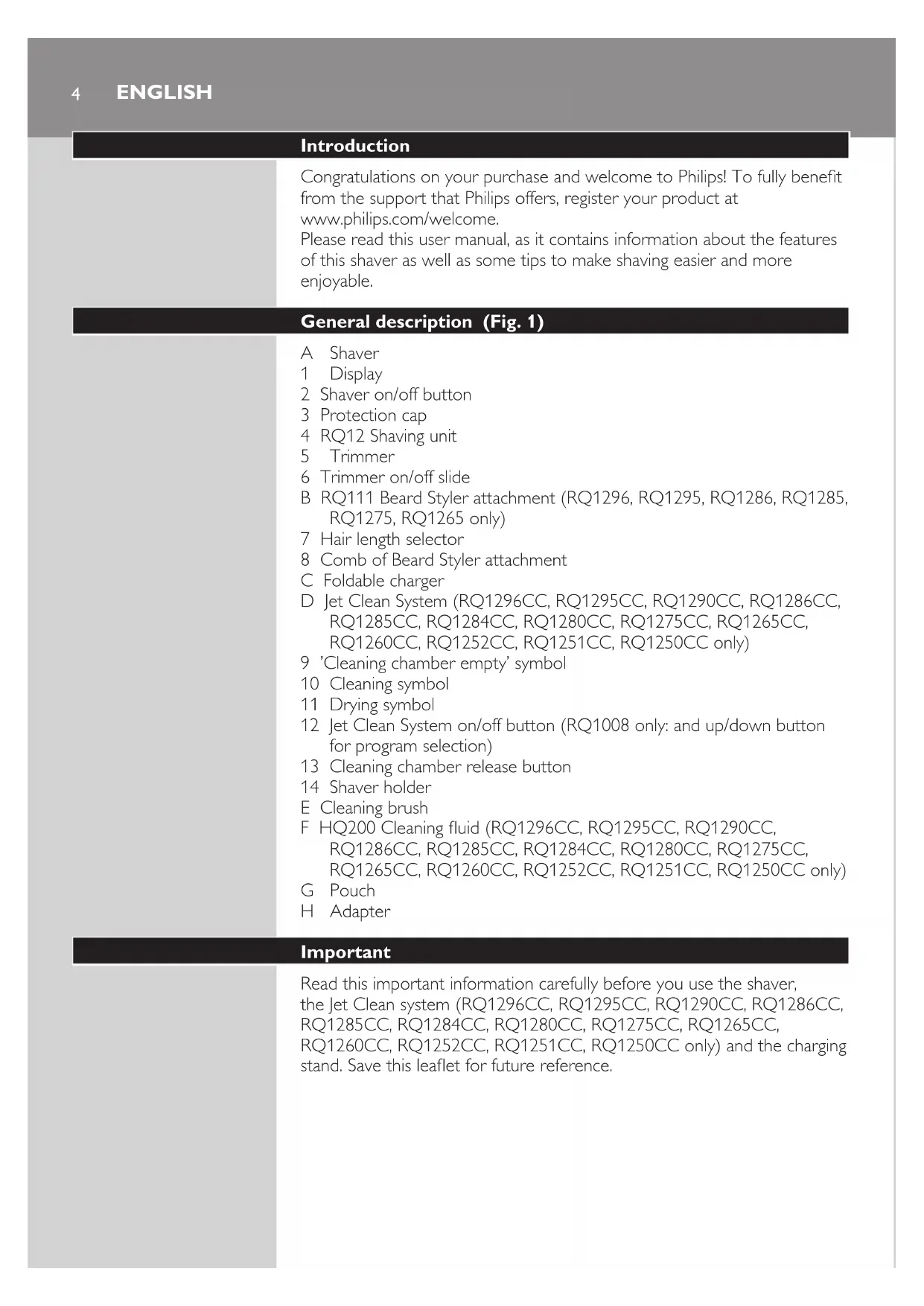

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

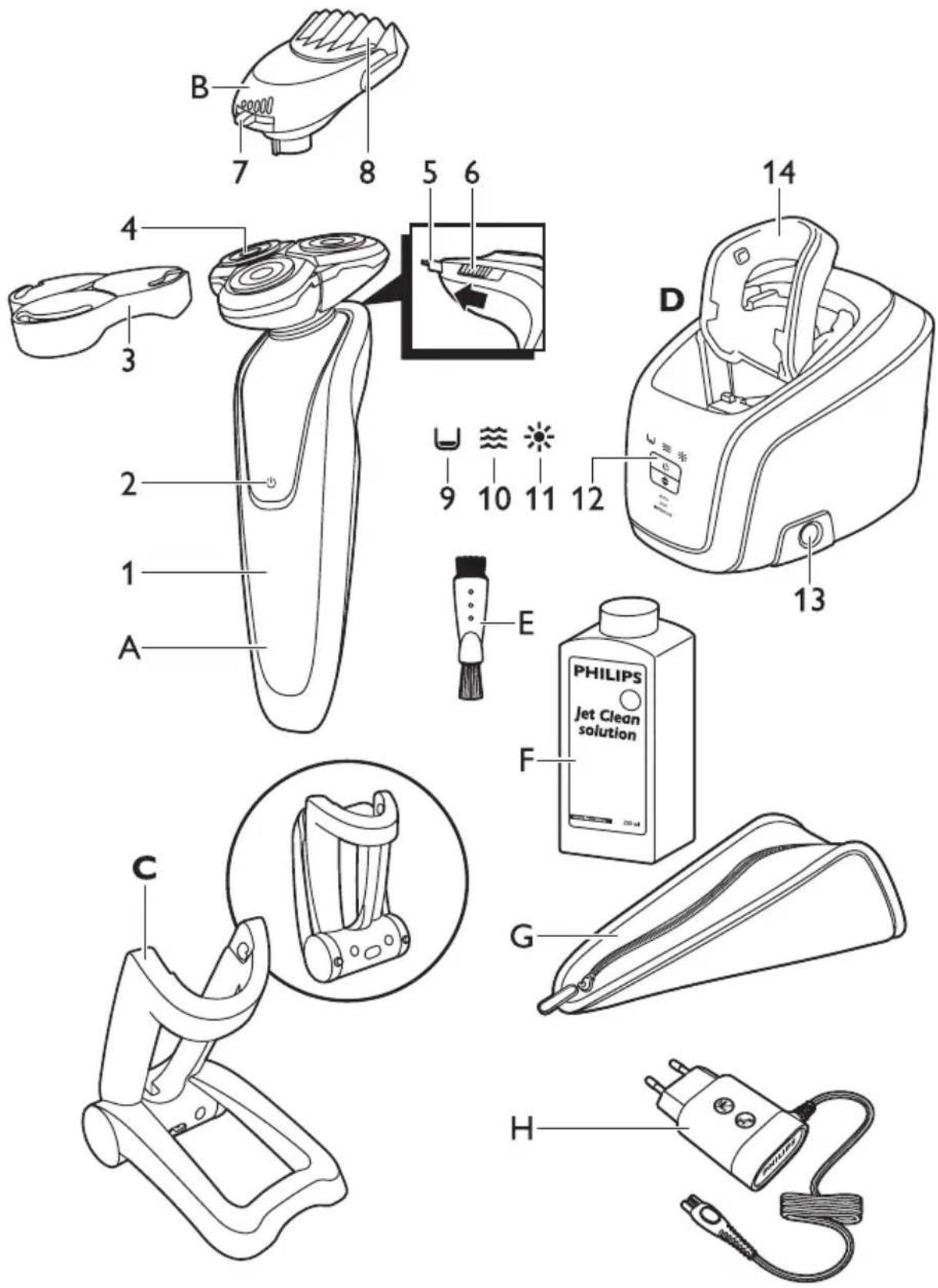

General description (Fig. 1)

A Shaver
1 Display
2 Shaver on/off button
3 Protection cap
4 RQ12 Shaving unit
5 Trimmer
6 Trimmer on/off slide
B RQ111 Beard Styler attachment (RQ1296, RQ1295, RQ1286, RQ1285, RQ1275, RQ1265 only)
7 Hair length selector
8 Comb of Beard Styler attachment
C Foldable charger
D Jet Clean System (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only)
9 'Cleaning chamber empty' symbol
10 Cleaning symbol
11 Drying symbol
12 Jet Clean System on/off button (RQ1008 only: and up/down button for program selection)

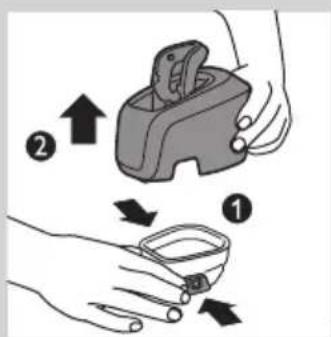

13 Cleaning chamber release button
14 Shaver holder
E Cleaning brush
F HQ200 Cleaning fluid (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only)
G Pouch
H Adapter

Important

Read this important information carefully before you use the shaver, the Jet Clean system (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) and the charging stand. Save this leaflet for future reference.

Prohibition sign of a faucet with diagonal line and diagonal lines, no text or symbols present

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or fire resistance (no text present)

Simple line drawing of a showerhead spraying over a water-filled basin (no text or symbols)

Danger

- Keep the adapter dry.

Warning

- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

- The shaver, the Jet Clean system and the charging stand are not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of these appliances by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the shaver, the Jet Clean system and the charging stand.

- Always unplug the shaver before you clean it under the tap.

Caution

- Never immerse the Jet Clean system or the charging stand in water nor rinse it under the tap.

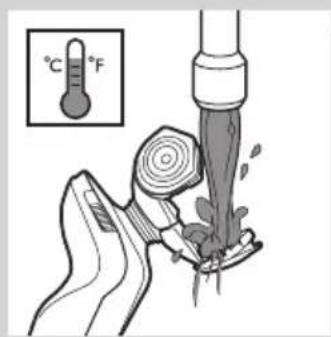

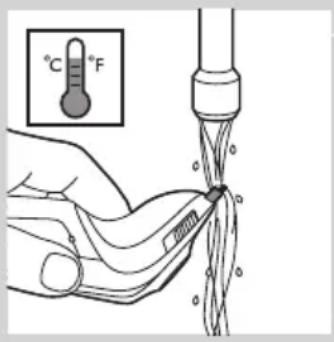

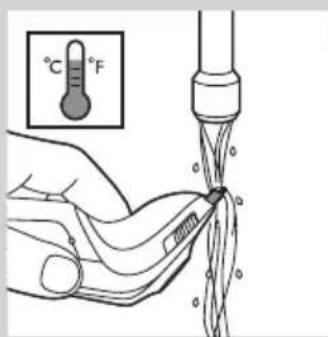

- Never use water hotter than 80^ C to rinse the shaver.

- Do not use the shaver, Jet Clean system, adapter, charging stand or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter, charging stand or part with one of the original type.

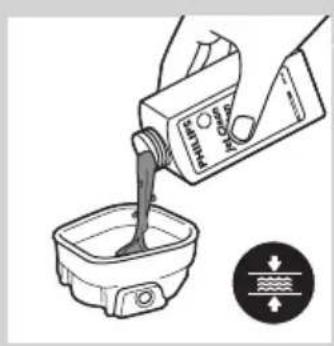

- Only use the Jet Clean system with the original HQ200 Jet Clean solution.

- Always place the Jet Clean system on a stable, level and horizontal surface to prevent leakage.

- When the Jet Clean system is ready for use, do not move it to prevent leakage of cleaning fluid.

- The Jet Clean system thoroughly cleans but does not disinfect your shaver, therefore do not share the shaver with others.

- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

- Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Compliance with standards

- This shaver is waterproof and complies with the internationally approved safety regulations. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used cordlessly.

- The shaver and the Jet Clean system comply with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

- The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.

- The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

- Maximum noise level: Lc = 69dB(A)

The display

LEFT SELLWIN 60 MINUTS LEFT

Note: Before you use the shaver for the first time, remove the protective foil from the display.

The various shaver types have different displays, which are shown in the figures below.

Illustration of a remote control tower with ventilation grille and navigation buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Diagram of a device with labeled icons including plus, minus, minus, and lock symbols

- RQ1273, RQ1252, RQ1251, RQ1250

Charging

LEFT SOLONIK 45 MINUTES LEFT + ! (😊) lock

- Charging takes approx. 1 hour.

RQ129x, RQ128x

• When the shaver is charging, the minutes indication flashes.
• The shaving minutes increase until the shaver is fully charged.
• Quick charge: When the shaver contains enough energy for one shave, the display shows 5 minutes in red.

RQ127x, RQ126x, RQ125x

Note: The displays of the various shaver types look different, but the charging lights work in the same way.

• When the shaver is charging, first the bottom charging light flashes, then the second charging light, and so on until the shaver is fully charged.
• Quick charge: When the shaver contains enough energy for one shave, the bottom charging light alternately flashes orange and white.

Battery fully charged

LEFT SELL'NIN 60 MINUTES LEFT ! (@)

Diagram of a showerhead with water tap and power button, no text or symbols present

RQ129x, RQ128x

- When the battery is fully charged, the minutes indication lights up continuously. After approx. 30 minutes, the display automatically switches off again.

Note: The shaver is equipped with an intelligent self-learning system that monitors the shaver's energy consumption and converts the remaining battery capacity into shaving minutes. The energy consumption and therefore the remaining number of shaving minutes depend on your skin and beard type and your shaving behaviour (e.g. the use of shaving gel). If the number of shaving minutes of the fully charged shaver is less than 60 minutes, this is completely normal and does not mean that the battery capacity of the shaver has diminished.

RQ127x, RQ126x, RQ125x

Note: The displays of the various shaver types look different, but the charging lights work in the same way.

- When the battery is fully charged, all charging lights light up continuously. After approx. 30 minutes, the display automatically switches off again.

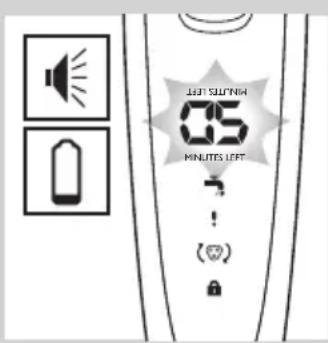

Battery low

LEFT SOUTYNEK 05 MINUTES LEFT ! (∞) Lock

Diagram showing a battery symbol and a vertical waveform with star patterns, including a plus sign and a circled icon.

RQ129x, RQ128x

• When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the minutes indication starts to flash.
• When you switch off the shaver, the shaving minutes continue to flash for a few more seconds. You hear a beep when there are no shaving minutes left.

RQ127x, RQ126x, RQ125x

Note: The displays of the various shaver types look different, but the charging lights work in the same way.

• When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the bottom charging light flashes orange.
• When you switch off the shaver, the bottom charging light continues to flash orange for a few seconds.

Remaining battery capacity

RQ129x, RQ128x

- The remaining battery capacity is indicated by the number of shaving minutes shown on the display.

RQ127x, RQ126x, RQ125x

Note: The displays of the various shaver types look different, but the charging lights work in the same way.

- The remaining battery capacity is indicated by the flashing charging lights.

LEFT SELECTIN 45 MINUTES LEFT ! (0)

Pure electrical circuit lines without any symbols

Clean shaver

For optimal shaving performance, we advise you to clean the shaver after every use.

Note: The displays of the various shaver types look different, but show the same symbol.

- The tap symbol flashes to remind you to clean the shaver.

LEFT SUPPLYING 60 MINUTES LEFT ! (♡) Lock

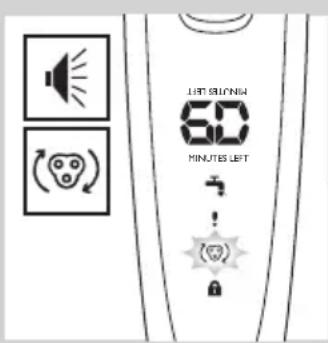

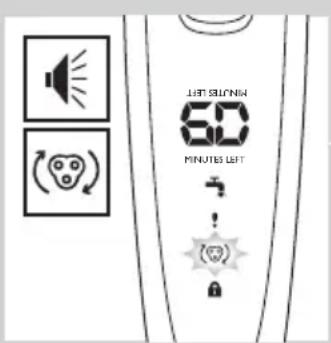

Replace shaving unit

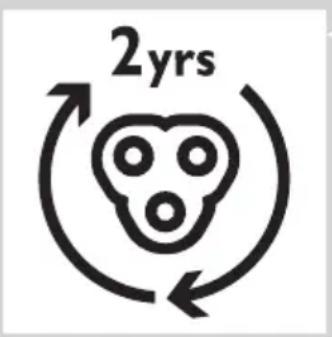

For maximum shaving performance, we advise you to replace the shaving unit every two years.

Note: The displays of the various shaver types look different, but show the same symbol.

- To remind you to replace the shaving unit, the appliance is equipped with a replacement reminder which is activated automatically after approx. two years. The replacement reminder is repeated at 9 successive shaves(RQ128x, RQ127x, RQ126x, RQ125x only) or until you reset the shaver.

LEFT TURN ON 60 MINUTES LEFT

Travel lock (RQ128x, RQ127x, RQ126x, RQ125x only)

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Note: The displays of the various shaver types look different, but show the same symbol.

3 sec.

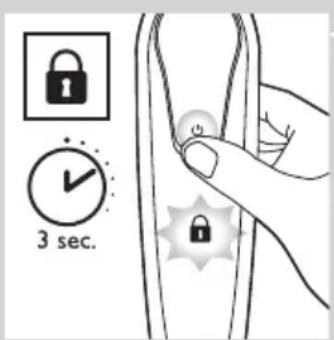

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode.
RQ128x: The display starts to count down from 3. At 1, the appliance beeps to indicate that it is locked.
The lock symbol lights up on the display. After a few seconds it goes out.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

The motor starts running to indicate that the travel lock has been deactivated.

The shaver is now ready for use again.

Note: When you place the shaver in the plugged-in charger or Jet Clean System, the travel lock is automatically deactivated.

Power-saving mode (RQ129x only)

Diagram showing a U-shaped container with icons including a faucet, an exclamation mark, a warning symbol, and a lock.

The appliance is equipped with an automatic power-saving mode. When the shaver enters the power-saving mode, the light in the on/off button goes out to save energy.

- When the appliance is switched off but detects movement for 5 minutes (for instance when you are travelling with the shaver in your suitcase), it automatically goes into power-saving mode. This mode prevents the shaver from being switched on by accident.

The lock symbol flashes on the display to indicate that the appliance is in power-saving mode.

- To deactivate the power-saving mode, simply press the on/off button.

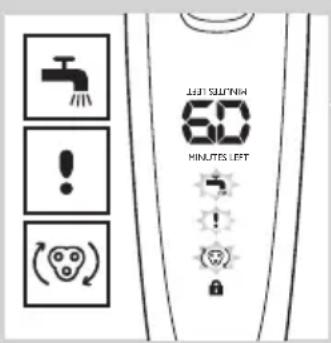

Blocked shaving heads

LEFT SULF 60 MINUTES LEFT

Note: The displays of the various shaver types look different, but show the same symbol.

• If the shaving heads are blocked, the shaving unit symbol, the tap symbol and the exclamation mark flash. In this case, the motor cannot run because the shaving heads are soiled or damaged.
• When this happens, you have to clean the shaving unit or replace it.
• The shaving unit symbol, the tap symbol and the exclamation mark continue to flash until you unblock the shaving heads.

Charging

Charging takes approx. 1 hour.

RQ129x, RQ128x, RQ127x, RQ126x: A fully charged shaver has a shaving time of up to 60 minutes.

Note: RQ129x, RQ128x: When the battery is fully charged, the display shows the actual remaining shaving minutes (see section 'Battery fully charged' in chapter 'The display').

RQ125x: A fully charged shaver has a shaving time of up to 50 minutes.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty (see section ‘Battery low’ in chapter ‘The display’).

Quick charge

After the shaver has charged for 3 minutes, it contains enough energy for one shave.

Charging in the charger

Diagram of a mechanical device with a tool inserted, showing no text or symbols

1 Insert the small plug into the charger.

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

2 Unfold the charger ('click').

3 Put the adapter in the wall socket.

Diagram of a handheld device with a cable and power outlet, showing a downward arrow indicating motion (no text or symbols present)

4 Put the shaver in the charger.

The display shows that the shaver is charging (see chapter 'The display').

Charging in the Jet Clean System (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only)

Line drawing of a vacuum cleaner with a top-mounted blade and base device (no text or symbols)

1 Put the small plug in the Jet Clean System.

2 Put the adapter in the wall socket.

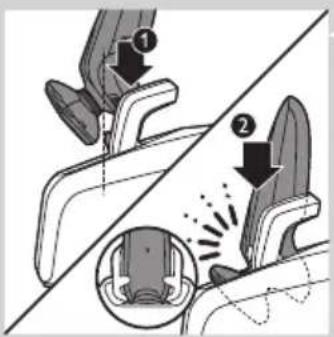

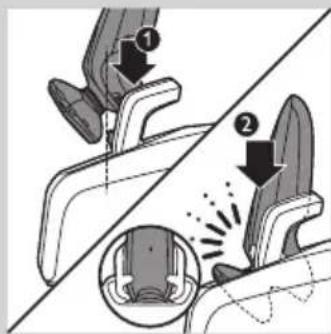

3 Hold the shaver upside down above the holder with the back of the shaver pointing towards the holder.

Note: The shaver cannot be placed in the Jet Clean System when the protection cap is on the shaving unit.

Note: RQ129x only: when you turn the shaver upside down, the minutes indication on the display is also turned upside down so you can still see to what level the battery is charged.

Diagram illustrating foot movement and impact technique on a car seatbelt, with numbered arrows indicating direction of movement.

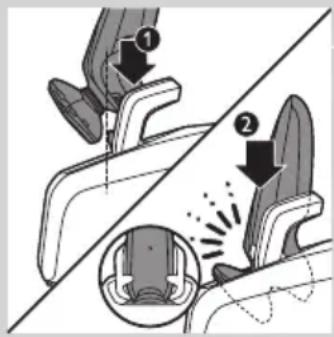

4 Place the shaver body in the holder behind the two clips (1) and press it down until it locks into place (2).
The display shows that the shaver is charging (see section 'Charging' in chapter 'The display').

Using the shaver

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) for a period of 3 weeks to allow your skin to adapt to the new shaver. During this period, use your new electric shaver exclusively and do not use other shaving methods. If you use different shaving methods, it is more difficult for your skin to adapt to the new shaving system.

Illustration of a person using a tool to cut the face area, showing two different angles (no text or symbols present)

1 Press the on/off button once to switch on the shaver. The display lights up for a few seconds.

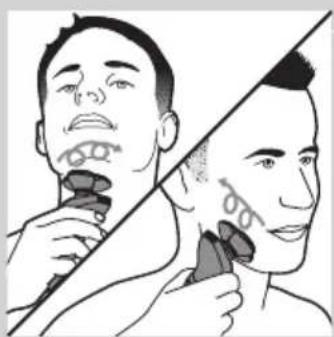

2 Move the shaving heads over your skin in circular movements. - Do not make straight movements.
3 Press the on/off button once to switch off the shaver. The display lights up for a few seconds and then shows the remaining battery capacity.

Wet shaving

You can also use this shaver on a wet face with shaving foam or shaving gel. To shave with shaving foam or shaving gel, follow the steps below:

1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.
4 Press the on/off button once to switch on the shaver.
5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter 'Cleaning and maintenance').

Note: Make sure you rinse all foam or shaving gel off the shaver.

Trimming

You can use the trimmer to groom your sideburns and moustache.

Illustration of a light bulb with a cross symbol and an upward arrow, no text or symbols present

1 Pull the shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

2 Press the on/off button once to switch on the shaver.

The display lights up for a few seconds.

Line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

3 Slide the trimmer slide forwards to slide out the trimmer.
4 You can now start trimming.
5 Slide the trimmer slide backwards to retract the trimmer.
6 Press the on/off button once to switch off the shaver.

The display lights up for a few seconds and shows the remaining battery capacity.

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

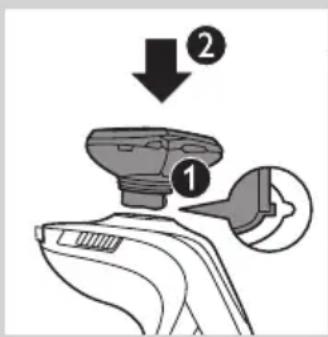

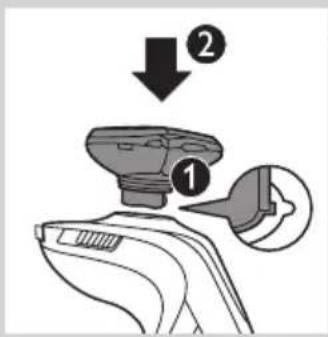

7 Insert the lug of the shaving unit into the slot in the top of the shaver (1). Then press down the shaving unit (2) to attach it to the shaver ('click').

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Using the Beard Styler attachment (RQ1296, RQ1295, RQ1286, RQ1285, RQ1275, RQ1265 only)

1 Make sure the shaver is switched off.
2 Pull the shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

Illustration of a hand holding a device with a magnified inset showing internal components (no text or symbols)

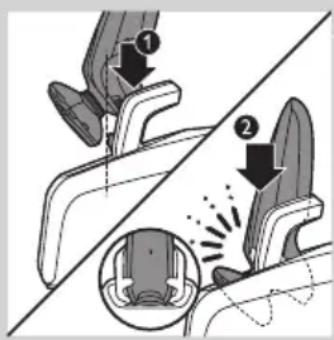

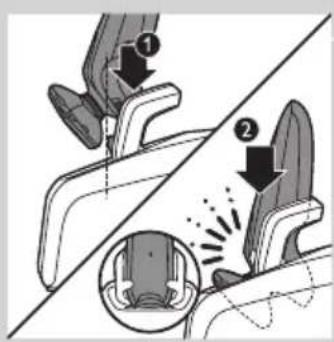

3 Insert the lug of the Beard Styler attachment into the slot in the top of the shaver (1). Then press down the beard styler attachment (2) to attach it to the shaver ('click').

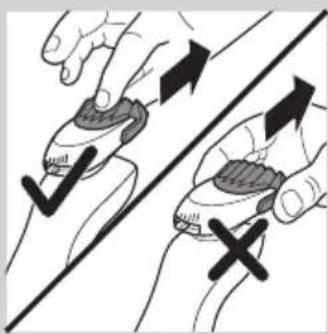

Using the Beard Styler attachment with comb

You can use the Beard Styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. The hair length settings on the Beard Styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

Illustration of a hand holding a handheld device with a lightning bolt indicating compression (no text or symbols)

1 Slide the comb straight into the guiding grooves on both sides of the beard stylist attachment ('click').

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

2 Press the length selector (1) and then push it to the left or right (2) to select the desired hair length setting.

Diagram showing a person using a power shaver with a 'Power' button and a cursor pointer, likely indicating a power switch function.

3 Press the on/off button on the shaver to switch it on.

Line drawing of a person applying a hair product to their beaded neck (no text or symbols)

4 You can now start styling your beard.

Line drawing of a hand holding a small electronic device with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a man's head and beard (no text or symbols)

Using the Beard Styler attachment without comb

You can use the Beard Styler attachment without the comb to contour your beard, moustache or sideburns.

1 Pull the comb off the Beard Styler attachment.

Note: Grab the comb in the centre to pull it off the Beard Styler attachment. Do not pull at the sides of the comb.

2 Press the on/off button to switch on the shaver.

3 You can now start contouring your beard, moustache, sideburns or neckline.

Beard styles

Below you find some examples of beard styles you can create.

- A stubble look

- A full beard

Line drawing of a male's face with short hair and mustache (no text or symbols)

- A moustache

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- A goatee

Cleaning and maintenance

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the shaver, its accessories and the Jet Clean System (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only).

• The best and most hygienic way to clean the shaver is in the Jet Clean System. You can also rinse the shaver under the tap or clean it with the cleaning brush supplied.
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.
• Clean the shaver after every shave for optimal shaving performance.
• You can clean the outside of the shaver with a damp cloth.
• Regular cleaning guarantees better shaving performance.

Cleaning the shaving unit

Diagram illustrating a medical procedure with temperature indicators (°C and °F) and fluid flow, showing fluid movement in a container.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

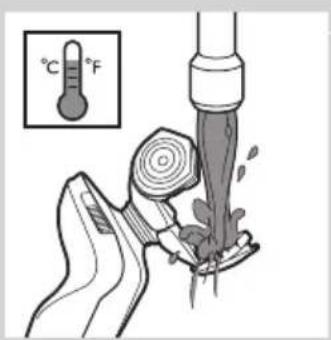

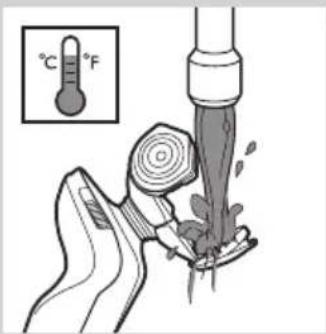

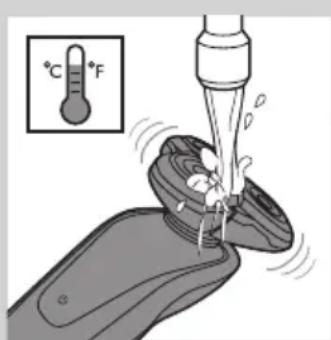

1 Rinse the shaving unit under a hot tap for some time.

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Diagram illustrating a process with temperature and Fahrenheit indicators, showing fluid flow from a pipe to a drain.

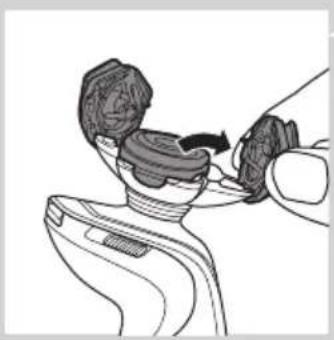

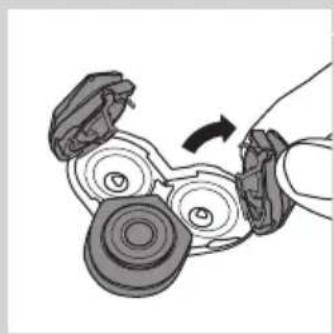

2 Pull open the three shaving heads one by one.

3 Rinse all three shaving heads and all three hair chambers under a hot tap for 30 seconds.

Note: You can also brush the shaving heads and hair chambers with the cleaning brush supplied.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

4 Carefully shake off excess water and leave the shaving heads open to let the shaving unit dry completely.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

Cleaning the shaving unit in the Jet Clean System (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only)

RQ1008

The Jet Clean System comes in two types:

- Type RQ1008 has three cleaning programs: the eco program, the auto program and the intensive program. Press the up/down button to select the cleaning program you prefer.

Note: The eco program has a shorter drying time, to save energy. The intensive program is a more thorough cleaning program.

RQ1007 PFGJ2

- Type RQ1007 has one automatic cleaning program. When you press the on/off button, the Jet Clean System starts cleaning in the automatic cleaning program.

Preparing the Jet Clean System for use

Fill the cleaning chamber before first use.

1 Put the small plug in the Jet Clean System.

2 Put the adapter in the wall socket. The holder automatically moves to the highest position.

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (1 and 2)

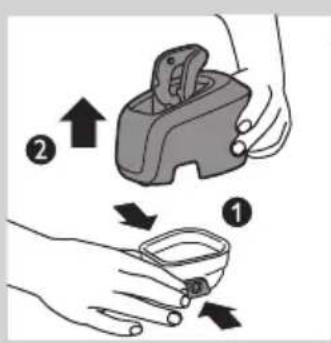

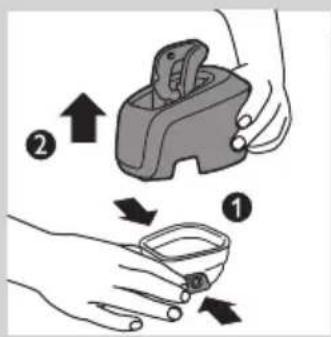

3 Simultaneously press the release buttons on both sides of the cleaning chamber (1). Then lift the Jet Clean System off the cleaning chamber (2).

The cleaning chamber remains behind.

4 Unscrew the cap from the bottle with HQ200 cleaning fluid.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

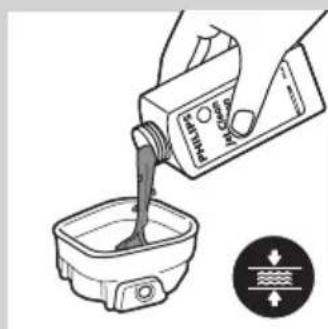

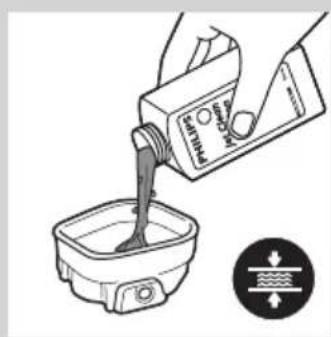

5 Fill the cleaning chamber with HQ200 cleaning fluid to a level between the two lines.

Illustration of hands holding a small container with a downward arrow indicating compression or disassembly (no text or symbols)

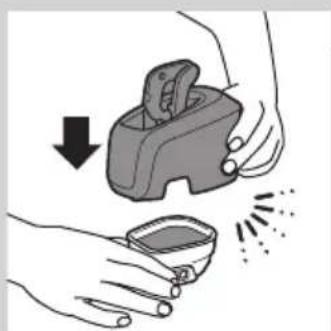

6 Place the Jet Clean System back onto the cleaning chamber.

Make sure the release buttons click back into place.

Using the Jet Clean System

Note: If you use the shaver with shaving foam or shaving gel, we advise you to rinse it under the hot tap before you clean it in the Jet Clean System. This guarantees an optimal lifetime for the cleaning fluid.

Line drawing of a hairdryer with a flat blade and a closed handle (no text or symbols)

1 Hold the shaver upside down above the holder with the back of the shaver pointing towards the holder.

Diagram illustrating seatbelting technique with numbered arrows indicating movement from seat to seat.

2 Place the shaver body in the holder behind the two clips (1) and press it down until it locks into place (2).

The display shows that the shaver is charging (see chapter 'The display').

3 RQ1008: Press the up/down button to select a cleaning program.

AUTO SCO INTENSIVE

Simple line drawing of a handbag with a handle and internal components, no text or symbols present.

Simple line drawing of a hairdryer with a sun icon above (no text or symbols)

Illustration of a handbag with a circular logo and a calendar icon (no text or symbols)

4 Press the on/off button on the Jet Clean System to start the cleaning program.

The shaver display stops showing the charging indication.

The cleaning light starts to flash and the shaver is automatically lowered into the cleaning fluid.

The cleaning light flashes throughout the cleaning program, which takes a few minutes.

Note: RQ1007: The cleaning program takes 4 to 6 minutes.

Note: RQ1008: The auto and eco cleaning programs take 4 to 6 minutes. The intensive program takes approx. 35 minutes.

During the first phase of the cleaning program, the shaver automatically switches on and off several times and moves up and down.

During the second phase of the cleaning program, the shaver is placed in the drying position, indicated by the flashing drying symbol. This phase takes approx. 2 hours. The shaver stays in this position until the end of the program.

Note: RQ1008: The drying phase takes 1 hour when you have selected the eco program.

After the cleaning program, the charging indication appears on the shaver display (see chapter 'The display').

Note: If you press the on/off button of the Jet Clean System during the cleaning program, the program aborts. In this case, the cleaning or drying light stops flashing and the holder moves to the highest position.

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts. The holder remains in its current position. When you put the adapter back into the wall socket, the holder moves to the highest position.

- When the cleaning fluid drops below the minimum level, the ‘cleaning chamber empty’ symbol starts to flash and the holder returns to its starting position.

- If you use the Jet Clean System to clean your shaver every day, you need to refill the cleaning chamber approx. every 15 days.

Cleaning the Jet Clean System

Clean the cleaning chamber every 15 days.

You can wipe the outside of the Jet Clean System with a damp cloth.

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (① and ②)

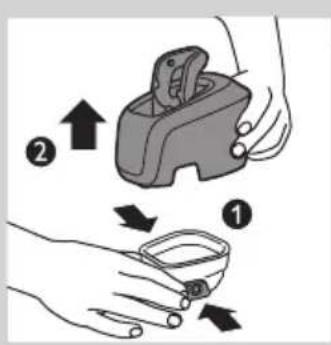

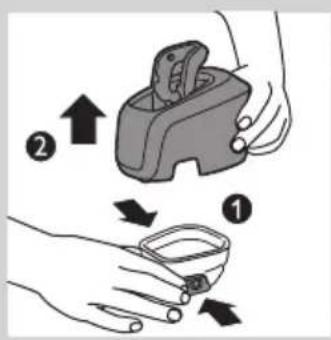

1 Simultaneously press the release buttons on both sides of the Jet Clean System (1). Then lift the Jet Clean System off the cleaning chamber (2).

The cleaning chamber remains behind.

Illustration of a hand holding a small object with a string attached, showing internal structure (no text or symbols)

2 Pour any remaining cleaning fluid out of the cleaning chamber. You can simply pour the cleaning fluid down the sink.

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

3 Rinse the cleaning chamber under the tap.

The cleaning chamber is not dishwasher-proof.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

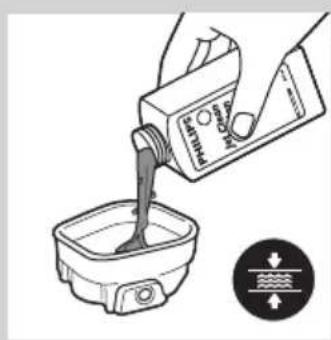

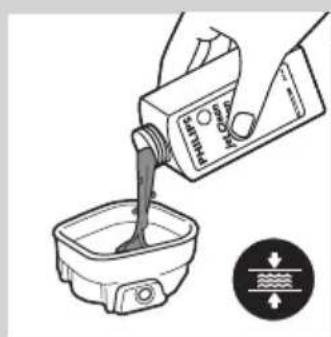

4 Fill the cleaning chamber with HQ200 cleaning fluid to a level between the two lines.

Illustration of hands using a tool to remove a small container with liquid, showing a downward arrow and scattered particles (no text or symbols)

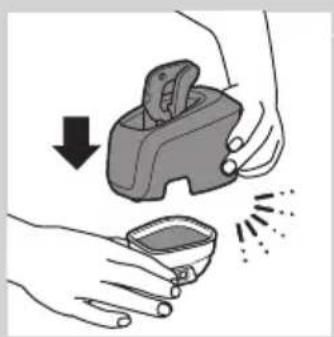

5 Place the Jet Clean System back onto the cleaning chamber.

Make sure the release buttons click back into place.

Extra-thorough cleaning method

Make sure the appliance is switched off.

1 Pull the shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

Illustration of a hand holding a light bulb with an upward arrow, symbolizing mechanical or electrical hazard (no text or symbols present)

Diagram of a hand holding a mechanical device with rotating components (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical gear assembly diagram showing a rotating shaft and housing (no text or symbols)

Diagram showing a hand holding a gear with arrows indicating direction of motion or force (no text or symbols present)

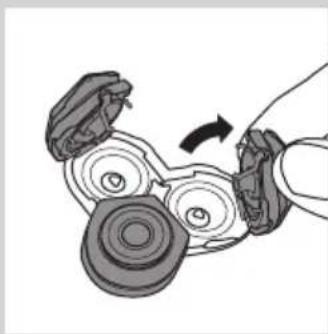

2 Pull open the three shaving heads one by one.

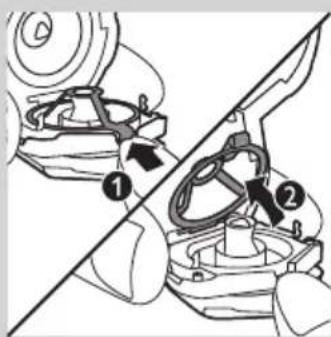

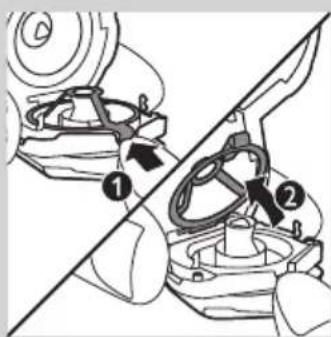

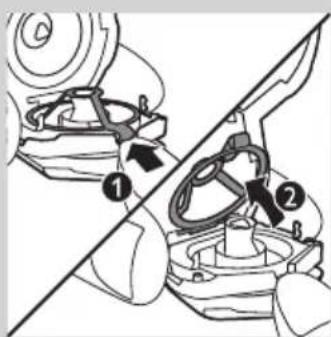

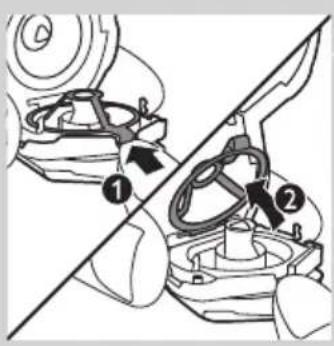

3 Press the retainer release tab (1) until the retainer opens (2).

Note: Do not clean more than one cutter and shaving guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

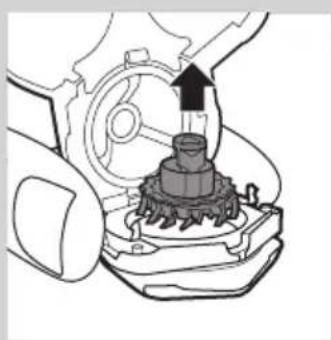

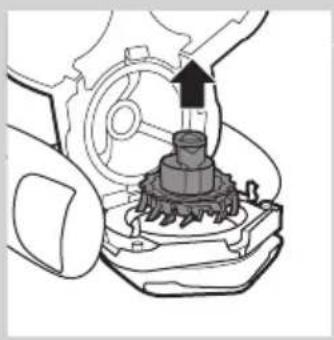

4 Remove the cutter from the shaving guard.

5 Clean the cutter with the cleaning brush supplied.

Mechanical assembly diagram showing a piston inside a housing with gears and a handle (no text or symbols)

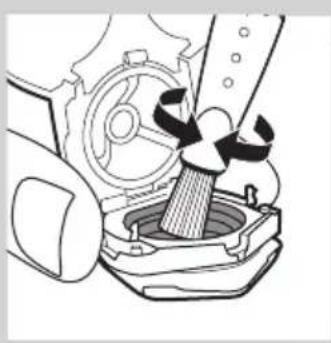

6 Clean the inside of the shaving guard.

Mechanical assembly diagram showing a gear and motor component with a downward arrow indicating motion (no text or symbols)

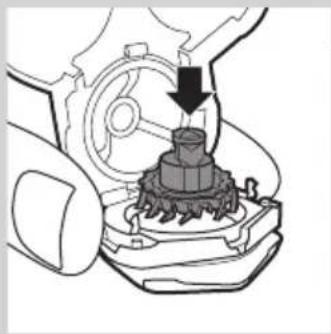

7 After cleaning, place the cutter back into the shaving guard with the cutter legs pointing downwards.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

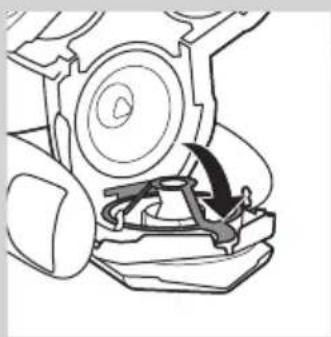

8 Press down the retainer over the cutter.

9 Close the shaving heads.

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

10 Insert the lug of the shaving unit into the slot in the top of the shaver (1). Then press the shaving unit downwards (2) to attach it to the shaver ('click').

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Cleaning the trimmer

Clean the trimmer every time you have used it.

1 Slide the trimmer slide forwards to slide out the trimmer.

Diagram illustrating a medical procedure with temperature and force indicators, showing fluid flow from a bottle to a tool.

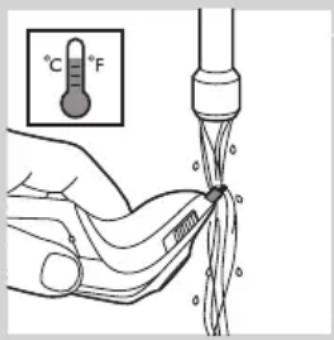

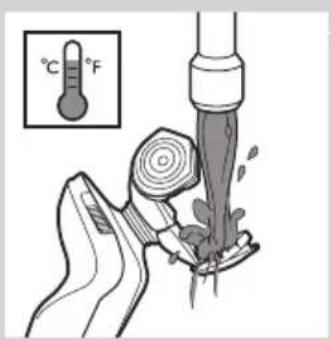

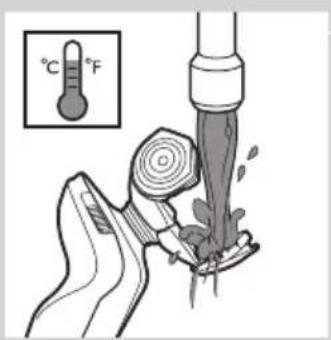

2 Rinse the trimmer under a hot tap for some time.
3 Slide the trimmer slide backwards to retract the trimmer.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the Beard Styler attachment (RQ1296, RQ1295, RQ1286, RQ1285, RQ1275, RQ1265 only)

Illustration of a hand washing clothes with a fork and spoon (no text or symbols)

Clean the Beard Styler attachment every time you have used it.

1 Pull the comb off the Beard Styler attachment.

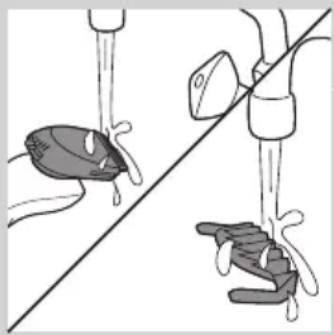

2 Rinse the Beard Styler attachment and the comb separately under a hot tap for some time.

Note: You can also clean the Beard Styler attachment and the comb with the cleaning brush supplied.

3 Lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

Line drawing of a pliers with an arrow indicating motion (no text or symbols)

1 Slide the protection cap onto the shaving unit to prevent damage to the shaving heads.
2 Store the shaver in the pouch supplied.

Replacement

LET SUNNING 60 MINUTE LET

For maximum shaving performance, we advise you to replace the shaving unit every two years.

Only replace the shaving unit with an original RQ12 Philips Shaving unit.

1 The shaving unit symbol flashes (all types) and you hear a beep (RQ129x, RQ128x only) when you switch off the shaver.

Note: The displays of the different types look different, but show the same symbol.

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

2 Pull the old shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

Diagram showing a device with labeled parts, including a downward arrow and numbered callouts ① and ②.

3 Insert the lug of the new RQ12 shaving unit into the slot in the top of the shaver (1). Then press down the shaving unit (2) to attach it to the shaver ('click').

(5) 10 sec.

4 RQ128x/RQ127x/RQ126x/RQ125x: To reset the shaver, press and hold the on/off button for approx. 10 seconds.

Note: If you do not reset the shaver at the first replacement reminder, it continues to beep (RQ128x only) and show the shaving unit symbol at 8 more shaves or until you reset the shaver.

Note for RQ129x: You do not need to reset the shaver. After 3 shaves, the replacement reminder (flashing shaving unit symbol and beeping) is deactivated automatically.

Ordering accessories

To purchase accessories for this appliance, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.

The following parts are available:

• HQ8505 adapter
• RQ12 Philips Shaving Unit
• HQ110 Philips Shaving Head Cleaning Spray
• HQ200 Philips Cleaning Fluid
• RQ111 Beard Styler attachment

2yrs

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace the shaving unit with an original RQ12 Philips Shaving Unit.

Cleaning

- Specific types only: use Jet Clean Solution (HQ200) for regular cleaning of the shaving heads.

Environment

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

- Do not throw away the appliances with the normal household waste at the end of their life, but hand them in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

1 Remove the back panel of the shaver with a screwdriver.
2 Remove the rechargeable battery.

Guarantee and support

If you need support or if you have a problem, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and shaving guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn. Replace the shaving unit (see chapter 'Replacement').
	Long hairs obstruct the shaving heads. Clean the shaving heads by following the steps of the extra-thorough cleaning method (see chapter 'Cleaning and maintenance').
	Specific types only: The Jet Clean System has not cleaned the shaver properly, because the cleaning fluid in the cleaning chamber is soiled or the cleaning fluid level is too low.	Clean the shaver thoroughly before you continue shaving. If necessary, clean and refill the cleaning chamber (see chapter 'Cleaning and maintenance').
The shaver does not work when I press the on/off button.	The rechargeable battery is empty. Recharge the battery (see chapter 'Charging').
	Specific types only: The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run. In this case, the shaving unit symbol, the tap symbol and the exclamation mark flash.	Clean the shaving unit or replace it (see chapters 'Cleaning and maintenance' and 'Replacement').
	The temperature of the shaver is too high. In this case, the shaver does not work and the exclamation mark on the display flashes.	Switch off the shaver and let it cool down. As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.

Problem Possible cause Solution

RQ1296CC,RQ1295CC,RQ1290CC,RQ1286CC,RQ1285CC,RQ1284CC,RQ1280CC,RQ1275CC,RQ1265CC,RQ1260CC,RQ1252CC,RQ1251CC,RQ1250CC only: The shaver is not entirely clean after I clean it in the Jet Clean System.	The cleaning fluid in the cleaning chamber is soiled.	Empty and rinse the cleaning chamber and refill it with new cleaning fluid.
	The cleaning fluid level is too low. If the fluid volume in the cleaning chamber drops below the minimum level during the cleaning program, the program aborts.The cleaning light and the ‘cleaning chamber empty’ symbol flash at intervals and the holder returns to its starting position.	Refill the cleaning chamber with cleaning fluid to a level between the two lines (see chapter ‘Cleaning and maintenance’).
	You have used another cleaning fluid than the original Philips cleaning fluid.	Only use HQ200Philips Cleaning Fluid.
The Jet Clean System does not work when I press the on/off button.	The Jet Clean System is not connected to the mains.	Put the small plug in the Jet Clean System and put the adapter in the wall socket.
	You have not placed the shaver in the Jet Clean System properly, so there is no electrical connection between the Jet Clean System and the shaver.	Press the shaver tightly into the holder to lock it into place.
The shaver is not fully charged after I charge it in the charger/Jet Clean System.	You have not placed the shaver in the charger/Jet Clean System (specific types only) properly.	Make sure you press the shaver until it locks into place.

Problem Possible cause Solution

RQ129x/RQ128x: The shaver is fully charged, but the display shows less than 60 shaving minutes.	The shaver is equipped with an intelligent self-learning system that monitors the shaver's energy consumption and converts the remaining battery capacity into shaving minutes. The energy consumption and therefore the remaining number of shaving minutes depend on your skin and beard type and your shaving behaviour (e.g. the use of shaving gel).	If the number of shaving minutes of the fully charged shaver is less than 60 minutes, this is completely normal and does not mean that the battery capacity of the shaver has diminished.
RQ1008: The operating time of the Jet Clean System is suddenly shorter or longer than it used to be.	You have selected another cleaning program. The Jet Clean System has three cleaning programs: the eco program, the normal program and the intensive program. Each of these programs has a different operating time.	Press the up/down button on the Jet Clean System to select the cleaning program of your preference (see chapter 'Cleaning and maintenance').

Einführung

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Gefahr

Illustration of a remote control device with ventilation grille and function buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Top-down view of a device with a vertical line and control buttons (no text or symbols)

- RQ1273, RQ1252, RQ1251, RQ1250

LEET SELTIN 45 MINUTES LEFT ! (😊) lock

Laden

Pure electrical circuit lines without any symbols

LEFT TURN MININ 60 MINUTES LEFT ! (@) lock

RQ129x, RQ128x

Diagram of a showerhead with water tap and power button, no text or symbols present

RQ127x, RQ126x, RQ125x

Diagram showing a battery icon and a vertical panel with waveform patterns and a plus sign, likely illustrating a digital or electrical system interface.

LEFT LEFT 45 MINUTES LEFT ! (😊) lock

RQ129x, RQ128x

Pure electrical circuit lines without any symbols

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a warning symbol, and a lock icon.

Line drawing of a mechanical device with a tool inserted, showing no text or symbols

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a power outlet connected to a wall-mounted cable, showing a scroll wheel and a black arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a top view and base view (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Illustration of a person applying facial contour to another person's face, showing different facial contours (no text or symbols present)

Diagram showing a device with a light bulb and a handle, indicating upward movement (no text or symbols present)

Line drawing of a handheld device with a black arrow pointing to the handle (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Diagram showing a lamp with a cross symbol above a handle, indicating an upward movement (no text or labels present)

Illustration of a hand holding a medical device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a small electronic device with a lightning bolt symbol (no text or labels)

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

Line drawing of a person using a power shaver with a 'Power' button (no text or symbols on the diagram itself)

Line drawing of a man brushing his neck with a comb (no text or symbols)

Line drawing of a hand holding a small electronic device with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols)

Illustration of a person applying a hair product to their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

- Ein Dreitagebart

Line drawing of a man's head and beard (no text or symbols)

- Ein Vollbart

Line drawing of a male face with short hair and mustache (no text or symbols)

- Ein Schnurrbart

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

- Ein Spitzbart

Diagram illustrating temperature measurement with labeled thermometer and force indicators (C, F)

Illustration of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

°C °F

Line drawing of a vacuum cleaner with a lid and handle (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

AUTO ECO INTENSIVE

Simple line drawing of a handbag with decorative elements and a circular icon (no text or symbols)

Diagram of a mechanical device with a base and fan, accompanied by a sun icon (no text or symbols)

Illustration of a hand holding a device with a downward arrow and a small bowl nearby, emitting powder (no text or symbols)

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Diagram of a hand holding a mechanical device with rotating components (no text or symbols)

Diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Mechanical assembly diagram showing gear and shaft components (no text or labels)

Diagram showing gear meshing with arrows indicating direction (no text or symbols)

Line drawing of a mechanical device with a brush applying material into a housing (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows (no text or labels)

Diagram showing a device with labeled parts, including a numbered arrow indicating direction of movement or assembly.

Line drawing of a handheld device with a black arrow pointing to the handle (no text or symbols)

Diagram illustrating a medical procedure with temperature and force indicators, showing fluid flow from a bottle to a tube.

Illustration of two hands performing a water droplet drop operation, showing liquid transfer and spray (no text or symbols)

Line drawing of a tool on a pliers with an arrow indicating motion (no text or symbols)

Diagram showing a device with an upward arrow and cross symbol, no text or labels present

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text)

Κίνδυνος

Illustration of a remote control device with ventilation grille and function buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Image of a gray cylindrical object with vertical dotted lines and small symbols below it, including a smiley face icon and lock.

- RQ1273, RQ1252, RQ1251, RQ1250

Φόρτιση

Pure electrical circuit lines without any symbols

LEFT SELLONING 60 MINUTES LEFT

Simple diagram of a device with a central oval and downward arrow, no text or symbols present.

Diagram showing a device with power button, waveform, and star symbol, labeled with an icon and a heart symbol at the bottom.

LEFT MINUTE 45 MINUTES LEFT + ! (3)

RQ129x, RQ128x

Pure electrical circuit lines without any symbols

LEFT SUNNING 60 MINUTES LEFT ! (😊)

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a warning symbol, and a lock icon.

Line drawing of a mechanical device with a tool inserted, no text or symbols present

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a cable and plug, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a top-mounted blade and base device (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Illustration of a person applying facial contour to another person's face, showing different shading techniques (no text or symbols present)

Diagram showing a device with a light bulb and a plus sign, pointing upward (no text or symbols present)

Line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts, including a numbered callout (1) and a downward arrow (2)

Diagram showing a device with a light bulb and a plus sign, no text or symbols present

Illustration of a hand holding a medical or laboratory device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a small electronic device with a lightning bolt and arrow indicating action (no text or symbols)

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

Illustration of a person using a power shaver with a 'Power' button (no text or symbols on the diagram itself)

Illustration of a person brushing a beaded neck with a comb (no text or symbols)

Line drawing of a handheld device with a scroll wheel and directional arrow (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Αξύριστο λουκ

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Γενειάδα

Line drawing of a male's face with short hair and mustache (no text or symbols)

- Mouotáki

Line drawing of a man's head and shoulders (no text or symbols)

- Mouσάκι

Diagram illustrating temperature measurement with thermometer and labeled components, showing fluid flow or heat transfer in a container.

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Diagram illustrating two-step cleaning or cleaning process: step ① shows hand holding a container while moving, step ② shows hand holding a tool with an upward arrow.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove a small container with liquid, no text or symbols present

Line drawing of a device with a top view and a bottom view (no text or symbols)

Diagram illustrating seatbelting technique with labeled arrows and motion indicators

AUTO ECO INTENSIVE

Simple line drawing of a handbag with decorative elements and a circular symbol (no text or symbols)

Simple line drawing of a hairdryer with a sun icon above it (no text or symbols)

Illustration of a handbag with a padlock and a calendar icon (no text or symbols)

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

Illustration of a hand holding a small object with a dark container and a thin filament, no text or symbols present.

Illustration of a faucet dispensing water into a square basin (no text or symbols)

PHILIPS OCH2

Illustration of hands using a handheld device to remove or clean a small container, with arrows indicating action (no text or symbols)

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Diagram of a hand holding a mechanical device with a rotating arrow indicating rotation (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical assembly diagram showing a gear and shaft assembly (no text or symbols)

Diagram showing a hand turning a gear with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a gear and piston mechanism (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows (no text or labels)

Diagram showing a device with labeled parts, including a downward arrow and numbered annotations ① and ②.

Line drawing of a handheld device with a black arrow pointing to the tip (no text or symbols)

Diagram illustrating a hand pouring liquid into a pipe with a thermometer inset showing temperature readings (C and F)

Illustration of a hand pouring liquid into a pair of boots, showing different shapes (no text or symbols)

Line drawing of a tool with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

(1) 10 sec.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

No sign depicting a faucet without a shower, enclosed in a circle (no text or symbols)

No sign depicting a faucet with a showerhead, crossed out by a diagonal line (no text or symbols)

Vaara

LEFT SOUTONIN 60 MINUTES LEFT

Illustration of a remote control device with ventilation grille and control buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Top-down view of a remote control panel with indicator lights and navigation buttons (no text or symbols)

- RQ1273, RQ1252, RQ1251, RQ1250

LEFT 45 MINUTES LEFT MINUTES LEFT ! (@)

Lataaminen

Pure electrical circuit lines without any symbols

LEFT 50 LONW 60 MINUTES LEFT ! (×) lock

RQ129x, RQ128x

Diagram of a water level sensor with a water tap and power button (no text or symbols)

RQ127x, RQ126x, RQ125x

Diagram showing electrical component symbols including a battery icon, power line, and star-shaped indicators with plus and minus signs.

Diagram of a device with a power button, three-tiered sensor or sensor array, and a water tap (no text or symbols)

JUST SULFNING 60 MINUTES LEFT ! (∞)

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a warning symbol, and a lock icon.

Line drawing of a mechanical device with a tool inserted, showing no text or symbols

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a cable and plug, showing a black arrow indicating direction (no text or symbols present)

Line drawing of a vacuum cleaner with a top-mounted blade and base (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Lataaminen Jet Clean-järjestelmässä (vain RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC)

Illustration of a person applying facial hair to another person's face, separated by a diagonal line (no text or symbols)

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Line drawing of a handheld device with a black arrow pointing to the handle (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Diagram showing a device with a funnel and an upward arrow, no text or symbols present

Illustration of a hand holding an electric shaver with a magnified inset showing the tip and internal mechanism (no text or symbols)

Illustration of a hand holding a small electronic device with a black arrow indicating motion or force (no text or symbols)

Diagram showing a person's head with two numbered arrows indicating movement or force direction, labeled 1 and 2.

Line drawing of a person using a power shaver with a 'Power' button (no text or symbols on the diagram itself)

Line drawing of a person applying a hair to their beache, no text or symbols present

Line drawing of a hand holding a small electronic device with a handle and arrow indicating motion (no text or symbols)

Illustration of two hands holding a medical or robotic device with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying hair to their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

- Sänki

Line drawing of a man's head and beard (no text or symbols)

- Kokoparta

Line drawing of a man's head and shoulders (no text or symbols)

- Viikset

Line drawing of a man's head and shoulders (no text or symbols)

- Pukinparta

Puhdistus ja hoito

Diagram illustrating temperature measurement using a thermometer, showing heat transfer from Celsius to Fahrenheit with labeled parts and motion arrows.

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Illustration of a handheld electronic device labeled RQ1007, with no visible text or symbols on the device itself.

Illustration showing two-step instructions for handling a mechanical device, labeled with arrows and numbered parts.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to clean or store contents (no text or symbols)

Line drawing of a vacuum cleaner with a handle and top component (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Simple line drawing of a handbag with a handle and decorative base, no text or symbols present.

Diagram of a hairdryer with a sun icon and circular symbol (no text or labels)

Illustration of a handbag with a lock and a calendar icon (no text or symbols)

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet dispensing water into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove a small container with powder spikes (no text or symbols)

Illustration of a light bulb being held by a hand, with an upward arrow indicating motion (no text or symbols present)

Diagram of a hand turning a mechanical component with a rotating arrow (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical gear assembly diagram showing a rotating shaft and gear mechanism (no text or labels)

Diagram showing gear meshing with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a hammer inside a gear with a handle, no text or symbols present

Mechanical assembly diagram showing a gear and motor component with an arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows (no text or labels)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

Line drawing of a handheld device with a black arrow pointing to the handle (no text or symbols)

Illustration of a hand holding a fish and a small object above another, separated by a diagonal line (no text or symbols)

Line drawing of a pliers or tool with an arrow indicating motion (no text or symbols)

Diagram showing a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Danger

Illustration of a remote control device with ventilation grille and function buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Diagram of a device control panel with labeled buttons and icons

- RQ1273, RQ1252, RQ1251, RQ1250

Charge

Illustration of a remote control device with ventilation grille and function buttons (no text or symbols)

Top-down view of a computer monitor with control buttons and icons (no text or symbols)

LEFT MINUTES LEFT 45 ! (@)

Pure electrical circuit lines without any symbols

RQ127x, RQ126x, RQ125x

Simple line drawing of a showerhead with water tap, no text or symbols present

RQ127x, RQ126x, RQ125x

LEFT SU PNEA 05 MINUTES LEFT ! (∞) Lock

RQ129x, RQ128x

Diagram showing a battery symbol and a waveform with an 'OK' button, likely indicating a process or signal.

RQ127x, RQ126x, RQ125x

Diagram of a device with a power button and a water tap, no text or symbols present

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a heart symbol, and a lock icon.

Line drawing of a mechanical device with a tool inserted, no text or symbols present

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a cable and plug, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a top-mounted blade and base device (no text or symbols)

Diagram illustrating foot massage technique with labeled steps ① and ② showing motion directions on a vehicle seat.

Illustration of a person applying facial contour to another person's lower face, showing both angles (no text or symbols)

Diagram showing a light bulb being lifted by an arrow, with no text or symbols present.

Line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Illustration of a hand holding a device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a lightning bolt indicating compression (no text or symbols)

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

Diagram showing a person using a power shaver with a 'Power' button, indicating left-hand rule or control.

Line drawing of a person applying a hair product to their beaded neck (no text or symbols)

Line drawing of a hand holding a small electric shaver with a curved blade and arrow indicating motion (no text or symbols)

Illustration of two hands holding a small object with checkmark and cross symbols, separated by a diagonal line (no text or labels)

Line drawing of a person applying a hair product to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a male's face with short hair and mustache (no text or symbols)

- Une moustache

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Un bouc

Diagram illustrating temperature measurement with labeled thermometer and force indicators (C, F)

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

°C °F

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (① and ②)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands holding a small container with a downward arrow indicating compression or disassembly (no text or symbols)

Line drawing of a hairdryer with a flat blade and a closed lid (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Simple line drawing of a handbag with a handle and water level, no text or symbols present

Simple line drawing of a mechanical device with a sun icon and a base, no text or symbols present.

Illustration of a medical device with a 1M calendar icon and a U-shaped magnet symbol (no text or labels)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (① and ②)

Illustration of a hand holding a small object with a string attached, showing internal structure (no text or symbols)

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to clean or spray liquid, with no text or symbols present.

Illustration of a hand holding a light bulb with an upward arrow indicating motion or force (no text or symbols)

Diagram of a hand holding a mechanical device with rotating components (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical gear assembly diagram showing a rotating shaft and housing (no text or labels)

Diagram showing a hand turning a gear with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a piston inside a motor (no text or symbols)

Mechanical assembly diagram showing a gear and motor component with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or labels)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Diagram illustrating a medical procedure with temperature and force indicators, including a thermometer and labeled parts.

Illustration of a hand pouring liquid into a pair of water, showing two different shapes (no text or symbols present)

Line drawing of a tool with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts, including a downward arrow and numbered callouts ① and ②.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign of a faucet with no text or symbols

No smoking sign with faucet symbol (no text or numbers)

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Fare

Illustration of a remote control device with ventilation grille and function buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Simple grayscale illustration of a vertical object with four small icons below (no text or symbols)

- RQ1273, RQ1252, RQ1251, RQ1250

Opladning

LEFT SELLON 45 MINUTES LEFT ! (😊) lock

Diagram of a scientific apparatus with a central oval component and labeled ports (no readable text or symbols)

RQ129x, RQ128x

Diagram showing a battery symbol with power, current, and warning symbols below it

RQ129x, RQ128x

Pure electrical circuit lines without any symbols

Rengør shaveren

Diagram showing a U-shaped container with icons for faucet, warning symbol, and lock mechanism

Line drawing of a mechanical device with a tool inserted, no text or symbols present

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a power outlet connected to a wall-mounted cable, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a lid and handle (no text or symbols)

Diagram illustrating foot massage technique with labeled steps ① and ② showing motion directions on a vehicle seat.

Illustration of a person using a tool to cut the face area, showing two different angles (no text or symbols present)

Trimming

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Line drawing of a handheld device with a curved handle and arrow indicating direction (no text or symbols)

3 Skub trimmer-skydekontakten fremad for at skubbe trimmeren ud.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Illustration of a hand holding a device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a lightning bolt indicating compression (no text or symbols)

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

Diagram showing a person using a power shaver with a 'Power' button and a cursor pointer, likely indicating a power switch function.

Line drawing of a person applying a hair product to their beaded neck (no text or symbols)

Line drawing of a hand holding a small electronic device with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a male's face with short hair and mustache (no text or symbols)

- Et overskæg

Line drawing of a man's head and shoulders (no text or symbols)

- Et gedeskæg

Diagram illustrating temperature measurement with labeled thermometer and force indicators (C, F)

Line drawing of a hand pouring liquid into a container with a brush (no text or symbols)

°C °F

Diagram illustrating a hand holding a device with two labeled steps (1 and 2) showing mechanical or electrical components.

Illustration of a hand pouring liquid into a container with a pressure gauge (no text or symbols)

Illustration of hands using a tool to remove or clean a small container, with no text or symbols present.

Line drawing of a hairdryer with a flat blade and a closed handle (no text or symbols)

Diagram illustrating shoe seat assembly steps with numbered instructions and a magnified view of the seat interior.

2 Placer selve shaveren i holderen bag de to klemmer (1), og tryk den ned, indtil den låses på plads (2).

▶Displayet viser, at shaveren oplader (se afsnittet "Display").

Simple line drawing of a handbag with a handle and decorative base, no text or symbols present.

Simple line drawing of a hairdryer with a sun icon nearby (no text or symbols)

Illustration of a handbag with a decorative swirl design, accompanied by a calendar icon and a U-shaped symbol (no text or symbols present)

Illustration showing two-step instructions for handling a device, labeled with arrows and numbered parts (1 and 2)

Illustration of a hand holding a small object with a string, no text or symbols present

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

3 Skyl rensekammeret under vandhanen.

Illustration of a hand pouring liquid into a bowl with a pressure gauge (no text or symbols)

Illustration of hands using a handheld device to remove a small container with liquid, no text or symbols present

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Diagram of a hand holding a mechanical device with rotating components (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical gear assembly diagram showing a rotating shaft and gear mechanism (no text or labels)

Diagram showing a hand turning a gear with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a piston inside a motor (no text or symbols)

Mechanical assembly diagram showing a gear and motor component with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Diagram illustrating a medical procedure with temperature and force indicators, including a thermometer and magnified view of the tube.

Illustration of a hand washing clothes with a fork and spoon (no text or symbols)

Line drawing of a handheld tool with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Diagram showing a device with labeled parts, including a downward arrow and numbered annotations ① and ②.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Gevaar

- Houd de adapter droog.

Waarschuwing

Illustration of a remote control device with ventilation grille and function buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Image of a grayscale object with vertical dotted lines and symbols including an arrow, plus, and lock icons.

- RQ1273, RQ1252, RQ1251, RQ1250

Opladen

Simple diagram of a device with a bulb and power button, no text or symbols present

RQ127x, RQ126x, RQ125x

Diagram showing a device with power button, waveform, and indicator lights labeled in Chinese

Pure electrical circuit lines without any symbols

LEFT SUNNING 60 MINUTES LEFT ! (😊)

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a warning sign, and a lock icon.

Line drawing of a mechanical device with a tool inserted, no text or symbols present

Illustration of a mechanical device with a curved arrow indicating rotational motion (no text or symbols)

Diagram of a handheld device with a cable and plug, showing a directional arrow (no text or symbols present)

Line drawing of a vacuum cleaner with a top-mounted blade and a closed lid (no text or symbols)

Diagram illustrating seatbelt usage with numbered arrows and magnified view of seatbelt component

Illustration of a person applying facial contour to another person's face, showing different facial contours (no text or symbols present)

Diagram showing a light bulb being lifted by a hand with an upward arrow, no text or symbols present

Line drawing of a handheld device with a black arrow pointing to the handle (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Diagram illustrating a medical or laboratory procedure with an inset showing a device and a magnified view of the device's internal structure.

Illustration of a hand holding a small electronic device with a lightning bolt and arrow indicating action (no text or symbols)

Diagram illustrating a neck massage technique with numbered instructions for timing and direction of movement

Diagram showing a person using a power shaver with a 'Power' button and a small electrical symbol

Line drawing of a person applying a hair to their beache, no text or symbols present

4 U kunt nu beginnen uw baard te stylen.

Line drawing of a hand holding a small electric shaver with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Een stoppelbaard

Line drawing of a man's head and beard (no text or symbols)

- Een volle baard

Line drawing of a male's face with short hair and mustache (no text or symbols)

- Een snor

Line drawing of a man's head and shoulders (no text or symbols)

- Een sik

Diagram illustrating a medical procedure with temperature measurement using a thermometer, showing fluid flow and injection steps.

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

°C °F

Illustration showing two-step instructions for handling a device, labeled with arrows and numbered parts.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove liquid from a small bowl (no text or symbols)

Line drawing of a vacuum cleaner with a top component (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Simple line drawing of a handbag with liquid and a circular icon containing wave symbols (no text or labels)

Diagram of a hairdryer with a sun icon nearby (no text or symbols)

Illustration of a handbag with a handle and a circular icon containing the letter 'U' (no text or symbols on the main diagram)

Illustration showing two-step instructions for handling a device, labeled with arrows and numbered parts.

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet dispensing water into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a water level indicator (no text or symbols)

Illustration of hands holding a device with a downward arrow and a small bowl nearby (no text or symbols)

Diagram showing a device with a light bulb and a cross symbol, with an upward arrow indicating motion or change (no text or symbols present)

Diagram of a hand turning a mechanical component with rotating parts (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts 1 and 2, likely illustrating a gear or cam mechanism.

Mechanical gear assembly diagram showing a shaft and gear mechanism (no text or labels)

Diagram showing a hand turning a gear with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a hammer inside a gear with a handle (no text or symbols)

Mechanical assembly diagram showing a gear and motor component with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Line drawing of a handheld device with a black arrow pointing to the tip (no text or symbols)

De trimmer schoonmaken

Diagram illustrating a medical procedure with temperature and force indicators, showing fluid flow from a bottle to a tube.

Illustration of two water droplets spraying from a pipe, no text or symbols present

Line drawing of a pliers with an arrow indicating force application (no text or symbols)

Diagram showing a device with a light bulb and a hand holding a tool, with an upward arrow indicating motion (no text or symbols present)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

(5) 10 sec.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Schoonmaken

Symbol of a trash bin crossed out by two crossed lines, representing no waste or discharge (no text or labels)

No smoking sign with faucet symbol (no text or numbers)

Prohibition sign with a faucet symbol and diagonal line, indicating no pollution or leakage

Simple line drawing of a showerhead spraying over water (no text or symbols)

Peligro

LEFT SOUTONIN 60 MINUTES LEFT

Illustration of a remote control device with ventilation grille and function buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Diagram of a device control panel with labeled buttons and icons

- RQ1273, RQ1252, RQ1251, RQ1250

LEFT SELLINIK 45 MINUTES LEFT ! (😊)

Carga

Pure electrical circuit lines without any symbols

LEFT SELL'IN 60 MINUTES LEFT ! (○)

RQ129x, RQ128x

Simple line drawing of a showerhead with water tap and power button (no text or symbols)

RQ127x, RQ126x, RQ125x

Diagram showing a battery symbol and a waveform with an 'OK' button, likely indicating a process or signal.

RQ127x, RQ126x, RQ125x

Pure electrical circuit lines without any symbols

Diagram showing a U-shaped object with icons including a faucet, an exclamation mark, a warning symbol, and a lock icon.

Line drawing of a mechanical device with a tool inserted, no text or symbols present

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a power outlet connected to a wall-mounted cable, showing a black arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a top component and base device (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Illustration of a person applying facial contour to another person's lower face, showing different facial expressions (no text or symbols present)

Illustration of a hand holding a light bulb with an upward arrow, symbolizing mechanical or electrical hazard (no text or symbols present)

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Illustration of a hand holding a device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a small electronic device with a lightning bolt and arrow indicating action (no text or symbols)

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

Line drawing of a person using a power shaver with a 'Power' button (no text or symbols on the figure itself)

Line drawing of a man brushing his neck with a comb (no text or symbols)

Line drawing of a handheld device with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols)

Illustration of a person applying a hair product to their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

Line drawing of a man's head and beard (no text or symbols)

- Barba completa

Line drawing of a male face with short hair and mustache (no text or symbols)

- Bigote

Line drawing of a man's head and shoulders (no text or symbols)

- Perilla

Diagram illustrating a medical procedure with temperature indicators (°C and °F) and a thermometer symbol, showing fluid flow or fluid behavior.

RQ1007 U = 5 3 PERSYS

Diagram illustrating two-step cleaning or cleaning process: step 1 shows hand holding a tool, step 2 shows hand holding a device with upward arrow and bottom arrow.

Illustration of a hand pouring liquid into a container with a pump bottle, showing fluid flow and a water level indicator (no text or symbols)

Illustration of hands using a handheld device to remove liquid from a small bowl (no text or symbols)

Line drawing of a vacuum cleaner with a pointed tip and handle (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

AUTO ECO INTENSIVE

Simple line drawing of a handbag with decorative elements and a circular icon (no text or symbols)

Simple line drawing of a mechanical device with a sun icon and gear-like base (no text or symbols)

Illustration of a handbag with a patterned lid and a calendar icon above it, alongside a U-shaped symbol (no text or symbols on the main diagram)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered positions (1 and 2).

Illustration of a hand holding a medical device with a catheter inserted (no text or symbols)

Illustration of a faucet dispensing water into a square basin (no text or symbols)

Diagram showing a hand pouring liquid into a container with a label indicating 'PANANA' and directional arrows, likely illustrating a chemical or industrial process.

Illustration of a hand holding a device with a downward arrow and a small bowl nearby, emitting powder (no text or symbols)

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Diagram of a hand holding a mechanical device with rotating components (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical assembly diagram showing gear and shaft components (no text or labels)

4 Extraiga la cuchilla del protector.

Diagram showing gear meshing with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a piston inside a housing with gears and a handle (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows (no text or labels)

Diagram showing a device with labeled parts, including a numbered arrow indicating direction of movement or assembly.

Line drawing of a handheld device with a black arrow pointing to the tip (no text or symbols)

Diagram illustrating a medical procedure with labeled temperature and force indicators, showing fluid flow from a bottle to a tube.

Illustration of a hand pouring liquid from a bottle onto a pair of shoes, separated by a diagonal line (no text or symbols)

Illustration of a pliers or tool with an arrow indicating motion (no text or symbols present)

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

No smoking sign with faucet symbol (no text)

Pericolo

Illustration of a remote control tower with ventilation grille and function buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Image of a device control panel with icons for ignition, function, and lock symbols

- RQ1273, RQ1252, RQ1251, RQ1250

LEFT SOLIN W 45 MINUTES LEFT ! (😊) lock

Pure electrical circuit lines without any symbols

RQ127x, RQ126x, RQ125x

Simple line drawing of a showerhead with water tap, no text or symbols present

RQ127x, RQ126x, RQ125x

Diagram showing electrical connections with a battery icon and waveform symbols, including a plus sign and a warning symbol.

RQ127x, RQ126x, RQ125x

Pure electrical circuit lines without any symbols

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a warning icon, and a lock symbol.

Line drawing of a mechanical device with a tool inserted, no text or symbols present

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a power outlet connected to a wall-mounted cable, showing a black arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a top view and base view (no text or symbols)

Diagram illustrating seatbelt usage with numbered arrows and a magnified inset showing motion or vibration effects.

Illustration of a person applying facial hair to another person's face, showing different facial expressions (no text or symbols present)

Diagram showing a device with a lamp and a cross symbol, no text or labels present

Line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Diagram showing a device with a handle and a lamp, indicating upward motion (no text or symbols)

Diagram illustrating a medical or laboratory procedure with labeled components and directional arrows indicating flow or movement.

Illustration of a hand holding a small electronic device with a black arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating a hand massage technique with numbered instructions for each step

Line drawing of a person using a power shaver with a 'Power' button (no text or symbols on the diagram itself)

Illustration of a person brushing a beaded neck with a comb (no text or symbols)

Line drawing of a hand holding a small electronic device with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or change (no text or symbols present)

Illustration of a person applying a hair product to their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

Tipi di barba

Line drawing of a man's head and beard (no text or symbols)

- Barba lunga

Line drawing of a male's head and shoulders (no text or symbols)

- Baffi

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Pizzetto

Line drawing of a hand using a tool to lift a small object, no text or symbols present

Diagram illustrating a chemical process with temperature and force indicators, showing a droplet being poured into a container.

Line drawing of a vacuum cleaner with a pointed tip and handle (no text or symbols)

Diagram illustrating seatbelting technique with labeled steps ① and ② showing how to shift seatbelt to a circular component.

AUTO ECO INTENSIVE

Simple line drawing of a handbag with decorative elements and a circular icon (no text or symbols)

Diagram of a mechanical device with a fan and base, accompanied by a sun icon (no text or symbols)

Illustration of a handbag with a circular icon showing '1M' and a U symbol, no text or symbols present.

Diagram illustrating two-step cleaning or packaging process: step ① shows hand holding a small container while moving upward, step ② shows hand holding a plastic clip.

Illustration of a hand holding a small container with liquid, no text or symbols present

Illustration of a faucet pouring liquid into a container with a handle (no text or symbols)

Illustration of a hand pouring liquid into a container with a sensor icon (no text or symbols)

Illustration of hands using a tool to remove a small container with liquid, showing a downward arrow and motion lines (no text or symbols)

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Diagram of a hand holding a mechanical device with rotating components (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical assembly diagram showing gear and motor components with an arrow indicating motion (no text or symbols)

Diagram showing gear meshing with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a piston inside a housing with gears and a handle (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrows (no text or labels)

Diagram showing a device with labeled parts, including a numbered arrow indicating direction of movement or assembly.

Line drawing of a handheld device with a black arrow indicating direction (no text or symbols)

Diagram illustrating a medical procedure with labeled temperature and force indicators, showing fluid flow from a bottle to a tube.

Illustration of a hand pouring liquid from a bottle onto a pair of shoes, separated by a diagonal line (no text or symbols)

Illustration of a pliers or tool with an arrow indicating direction (no text or symbols present)

Diagram showing a device with a light bulb and a cross symbol, with an upward arrow indicating motion or change (no text or symbols present)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

(5) 10 sec.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Fare

- Hold adapteren tørr.

Advarsel

Illustration of a remote control device with ventilation grille and navigation buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Image of a remote control panel with four labeled buttons: plus, minus, minus sign, and lock.

- RQ1273, RQ1252, RQ1251, RQ1250

Lading

- Ladingen tar ca. én time.

RQ129x, RQ128x

Pure electrical circuit lines without any symbols

RQ127x, RQ126x, RQ125x

Simple line drawing of a showerhead with water tap, no text or symbols present

RQ127x, RQ126x, RQ125x

LEFT SUNNING 05 MINUTES LEFT ! (♥) Lock

RQ129x, RQ128x

Diagram showing a battery symbol and a waveform with an 'OK' button, likely indicating a process or signal.

RQ127x, RQ126x, RQ125x

Pure electrical circuit lines without any symbols

Diagram showing a U-shaped container with symbols including a faucet, an exclamation mark, a warning symbol, and a lock icon.

Ladingen tar ca. én time.

RQ129x, RQ128x, RQ127x, RQ126x: En fulladet barbermaskin har en barberingstid på opptil 60 minutter.

Diagram of a mechanical device with a tool inserted, showing no text or symbols

1 Sett den lille kontakten i laderen.

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

2 Slå ut laderen (du skal høre et klikk).
3 Sett adapteren i stikkontakten.

Diagram of a handheld device with a power outlet connected to a wall-mounted cable, showing a black arrow indicating motion (no text or symbols present)

4 Sett barbermaskinen i laderen.

Line drawing of a vacuum cleaner with a top view and base view (no text or symbols)

1 Koble den lille kontakten til Jet Clean-systemet.

2 Sett adapteren i stikkontakten.

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Illustration of a person applying facial contour to another person's lower face, showing different shading patterns (no text or symbols)

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Diagram showing a device with a handle and a lamp, indicating upward motion (no text or symbols)

Diagram illustrating a medical or laboratory procedure with labeled components and directional arrows indicating flow or movement.

Illustration of a hand holding a small electronic device with a black arrow indicating compression or disassembly (no text or symbols present)

Diagram showing a person's head with labeled parts and directional arrows indicating movement or force.

Line drawing of a person using a power shaver with a 'Power' button (no text or symbols on the diagram itself)

Illustration of a person brushing a beaded neck with a comb (no text or symbols)

Line drawing of a hand holding a small electronic device with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or change (no text or symbols present)

Illustration of a person applying a hair product to their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

Skjeggfrisyrer

Line drawing of a man's head and beard (no text or symbols)

- Helskjegg

Line drawing of a male's head and shoulders (no text or symbols)

- Bart

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Fippskjegg

Diagram illustrating temperature measurement using a thermometer, showing heat transfer from a bottle to a container with labeled temperature ranges.

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

2 Løsne ett og ett av de tre skjærehodene.

°C °F

3 Skyll de tre skjærehodene og de tre skjeggkamrene i varmt vann i 30 sekunder.

Line drawing of a vacuum cleaner with a pointed tip and handle (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

AUTO SCO INTENSIVE

Simple line drawing of a handbag with a handle and internal components, no text or symbols present.

Diagram of a hairdryer with a sun icon and gear base (no text or symbols)

Bruke Jet Clean-systemet

Illustration of a handbag with a circular icon containing the letter 'U' and a calendar-like symbol (no text or symbols on the main diagram)

Illustration showing two hands holding a device with directional arrows indicating movement or force, labeled ① and ②.

Illustration of a hand holding a small object with a pointed tip, no text or symbols present

Illustration of a faucet dispensing water into a square basin (no text or symbols)

Merk: RQ1008: Tørkefasen tar én time när du velger spareprogrammet.

Illustration of a hand pouring liquid into a small bowl with a directional arrow symbol (no text or labels)

Illustration of hands using a tool to remove a small container with liquid, showing a downward arrow and motion lines (no text or symbols)

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Diagram of a hand turning a mechanical component with a rotating arrow (no text or symbols)

2 Løsne ett og ett av de tre skjærehodene.

Technical diagram showing mechanical assembly steps with numbered annotations

Mechanical gear assembly diagram showing a rotating shaft and gear mechanism (no text or labels)

4 Fjern kniven fra barberlamelltoppen.

Diagram showing a hand turning a gear with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a piston inside a motor (no text or symbols)

Mechanical assembly diagram showing a gear and shaft assembly with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

8 Trykk festet ned over kniven.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Line drawing of a handheld device with a black arrow pointing to the tip (no text or symbols)

Diagram illustrating a medical procedure with labeled temperature and force indicators (°C, °F) and a thermometer inset.

2 Skyll trimmeren under varmt vann.
3 Skyv trimmerbryteren bakover for å skyve tilbake trimmeren.

Illustration of two hands performing a manual water tap stroke technique (no text or symbols)

Line drawing of a handheld tool with an arrow indicating motion (no text or symbols)

Lift Swing 60 MINUTES LEFT

Diagram showing a device with a light bulb and a hand holding a tool, with an upward arrow indicating motion or change (no text or symbols present)

Diagram showing a device with labeled parts, including a downward arrow and numbered callouts ① and ②.

(5) 10 sec.

Symbol of a trash bin crossed with a diagonal line, representing no waste or elimination (no text or numbers present)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without shower, enclosed in a circle (no text or symbols)

Perigo

Illustration of a remote control device with ventilation grille and function buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Simple grayscale illustration of a vertical bar with four small icons below (no text or symbols)

- RQ1273, RQ1252, RQ1251, RQ1250

Carregamento

Diagram of a device with a power button and a water tap, no text or symbols present

RQ127x, RQ126x, RQ125x

Simple line drawing of a showerhead with water tap, no text or symbols present

RQ127x, RQ126x, RQ125x

Diagram showing a battery icon and a vertical panel with waveform patterns and a plus sign, likely illustrating a power or signal processing system.

RQ127x, RQ126x, RQ125x

Pure electrical circuit lines without any symbols

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a warning icon, and a lock symbol.

Line drawing of a mechanical device with a tool inserted, no text or symbols present

1 Introduza a ficha pequena no carregador.

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a cable and plug, showing a downward arrow indicating motion (no text or symbols present)

4 Coloque a máquina de barbear no carregador.

O visor indica que a máquina de barbear está a carregar (consulte o capítulo "Visor").

Carregar no sistema Jet Clean (apenas RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC)

Line drawing of a vacuum cleaner with a pointed tip and handle (no text or symbols)

1 Introduza a ficha pequena no sistema Jet Clean.

2 Ligue o adaptador à tomada eléctrica.

Diagram illustrating foot massage technique with labeled steps ① and ② showing motion directions on a vehicle seat.

Illustration of a person applying facial contour to another person's lower face, showing both angles (no text or symbols)

Illustration of a person applying facial contour to another person's lower face, showing both angles (no text or symbols)

Diagram showing a device with a light bulb and a plus sign, no text or symbols present

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

Illustration of a hand holding a lamp with a light bulb above and an upward arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a lightning bolt indicating compression (no text or symbols)

Diagram illustrating a neck massage technique with labeled arrows and numbered points

Diagram showing a person using a power shaver with a 'Power' button, indicating action or activation.

Line drawing of a person applying a hair product to their beak (no text or symbols)

Line drawing of a hand holding a small electric shaver with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person applying makeup to their ear (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a man's head and beard (no text or symbols)

Line drawing of a male's head and shoulders (no text or symbols)

- Um bigode

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Uma barbicha

Diagram illustrating a medical procedure with temperature indicators (°C and °F) and fluid flow, showing fluid movement in a container.

Line drawing of a hand inserting a plug into a device (no text or symbols)

°C °F

Diagram illustrating a hand holding a device with two labeled steps (1 and 2) showing mechanical or electrical components.

Illustration of a hand pouring liquid into a container with a pressure gauge (no text or symbols)

Illustration of hands using a tool to lift a small container with liquid, showing motion (no text or symbols)

Line drawing of a hairdryer with a flat blade and a closed lid (no text or symbols)

Diagram illustrating shoe seatbelting technique with labeled parts and directional arrows

Simple line drawing of a handbag with a handle and a circular icon showing wave symbols (no text or labels)

Simple line drawing of a hairdryer with a sun icon nearby (no text or symbols)

Nota: RQ1008: A fase de secagem demora 1 hora se tiver seleccionado o programa ecológico.

Illustration of a handbag with a circular object on the side, next to a calendar icon labeled '1M' and a U symbol (no text or symbols on the main subject)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (① and ②)

Illustration of a hand holding a small object with a string attached, showing internal structure (no text or symbols)

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to clean or spray liquid, with no text or symbols present.

Illustration of a hand holding a light bulb with an upward arrow indicating motion or force (no text or symbols present)

Diagram of a hand turning a mechanical component with rotating parts (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical gear assembly diagram showing a rotating shaft and housing (no text or labels)

Diagram showing a hand turning a gear with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a piston inside a motor (no text or symbols)

Mechanical assembly diagram showing a gear and motor component with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Limpeza do aparador

Diagram illustrating a medical procedure with temperature and force indicators, showing fluid flow from a bottle to a tube.

Illustration of two hands pouring liquid from a bottle onto a surface, with no text or symbols present.

Limpe o acessório do estilizador de barba cada vez que o utilizar.

Line drawing of a tool with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Diagram showing a device with labeled parts, including a downward arrow and numbered callouts ① and ②.

(5) 10 sec.

4 RQ128x/RQ127x/RQ126x/RQ125x: para reiniciar a máquina de barbear, mantenha premido o botão ligar/desligar durante aproximadamente 10 segundos.

Encomendar acessórios

Symbol of a waste sorting machine crossed out by a diagonal line, with no text or labels present.

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Fara

Illustration of a stylized computer monitor with ventilation grille and control buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261, RQ1260

Simple diagram of a device with four labeled icons: plus, minus, minus sign, and lock (no text or symbols)

- RQ1273, RQ1252, RQ1251, RQ1250

Laddning

LEFT SELLONIK 45 MINUTES LEFT ! (😊)

LEFT SOLDER 60 MINUTES LEFT ! (○) lock

Simple line drawing of a showerhead with water tap, no text or symbols present

RQ129x, RQ128x

LEFT SPLIT 05 MINUTES LEFT ! (○)

Diagram of a device control panel with power, current, and warning symbols

RQ129x, RQ128x

Pure electrical circuit lines without any symbols

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a warning symbol, and a lock icon.

Line drawing of a mechanical device with a tool inserted, no text or symbols present

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a power outlet connected to a wall-mounted cable, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a lid and handle (no text or symbols)

Diagram illustrating foot movement and impact technique with numbered arrows indicating direction of movement

Illustration of a person applying facial expressions to another person's face, separated by a diagonal line (no text or symbols)

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small electronic device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a lightning bolt indicating compression (no text or symbols)

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

Diagram showing a person using a power shaver with a 'Power' button and a cursor pointer, likely indicating a power switch function.

Line drawing of a person brushing their beard with a comb (no text or symbols)

Line drawing of a hand holding a small electronic device with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person applying hair to their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a male's face with short hair and mustache (no text or symbols)

- Mustasch

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Bockskägg

Diagram illustrating a medical procedure with labeled temperature indicators (°C and °F) and fluid flow arrows, likely from a scientific or medical context.

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

°C °F

Diagram illustrating a hand holding a device with two labeled steps (1 and 2) showing mechanical or electrical components.

Illustration of a hand pouring liquid into a container with a pressure gauge (no text or symbols)

Illustration of hands using a tool to remove or clean material, showing a drop and droplet (no text or symbols)

Line drawing of a hairdryer with a flat blade and a closed handle (no text or symbols)

Diagram illustrating a mechanical assembly or disassembly process with labeled steps ① and ②, showing directional arrows and a magnified inset.

Simple line drawing of a handbag with a handle and internal components, no text or symbols present.

Simple line drawing of a hairdryer with a sun icon nearby (no text or symbols)

Illustration of a hand holding a device with a circular icon showing 'U' and a calendar-like symbol (no text or labels)

Diagram illustrating two-step cleaning or packaging process with labeled steps ① and ②

Illustration of a hand holding a small object with internal lines, possibly a medical or laboratory device (no text or symbols present)

Illustration of a bucket being inserted into a basin with a water pipe (no text or symbols)

Illustration of a hand pouring liquid into a container with a directional control symbol (no text or labels)

Illustration of hands using a handheld device to remove a small container with powder spikes (no text or symbols)

Illustration of a hand holding a device with a light bulb above and an upward arrow indicating motion (no text or symbols)

Diagram of a hand holding a mechanical device with rotating components (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical gear assembly diagram showing a rotating shaft and housing (no text or labels)

Diagram showing a mechanical component being inserted into a toothbrush, with arrows indicating direction (no text or symbols present)

Mechanical assembly diagram showing a piston inside a motor (no text or symbols)

Mechanical assembly diagram showing a gear and motor component with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Rengöra trimmern

Diagram illustrating a medical procedure with temperature and force indicators, showing fluid flow from a bottle to a tool.

Illustration of a hand washing clothes with a fork and spoon (no text or symbols)

Line drawing of a handheld tool with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Diagram showing a device with labeled parts, including a downward arrow and numbered callouts ① and ②.

(5) 10 sec.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC ve

No sign depicting a faucet crossed out by a diagonal line, indicating no pollution or leakage (no text present)

No smoking sign with a faucet symbol crossed out by a diagonal line (no text)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Tehlike

LEFT SOUTONIN 60 MINUTES LEFT

Illustration of a remote control tower with ventilation grille and navigation buttons (no text or symbols)

- RQ1275, RQ1265, RQ1261 ve RQ1260

Diagram of a device with labeled buttons and icons, including a plus sign and a lock symbol

- RQ1273, RQ1252, RQ1251 ve RQ1250

LEFT SOLTION 45 MINUTES LEFT ! (😊) lock

Şarj etme

Simple line drawing of a showerhead with water tap, no text or symbols present

RQ129x ve RQ128x

Diagram of a device control panel with power, current, and warning symbols

RQ129x ve RQ128x

Pure electrical circuit lines without any symbols

Diagram showing a U-shaped structure with symbols including a faucet, an exclamation mark, a heart icon, and a lock.

Diagram of a mechanical device with a tool inserted, showing no text or symbols

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a handheld device with a cable and plug, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner with a pointed tip and handle (no text or symbols)

Diagram illustrating seatbelting technique with labeled arrows and magnified view of seatbelt structure

Illustration of a person applying facial contour to another person's lower face, showing both methods (no text or symbols)

Diagram showing a light bulb above a curved surface with an upward arrow, indicating a process or operation (no text or symbols present)

Line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Illustration of a hand holding a device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with a lightning bolt indicating compression (no text or symbols)

Diagram illustrating a neck massage technique with labeled parts 1 and 2, showing directional arrows indicating movement.

Diagram showing a person using a power shaver with a 'Power' button and a cursor pointer, likely indicating a power switch function.

Line drawing of a person applying a hair product to their beaded neck (no text or symbols)

Line drawing of a hand holding a small electronic device with a black arrow indicating motion (no text or symbols)

Illustration of two hands holding a device with checkmark and cross symbols, no text or labels present

Line drawing of a person applying hair to their ear (no text or symbols)

Line drawing of a man's head and shoulders with short hair and beard (no text or symbols)

Line drawing of a man's head and shoulders with a beard (no text or symbols)

Line drawing of a male's face with short hair and mustache (no text or symbols)

- Bıyıklı

Line drawing of a man's head and shoulders with a beard (no text or symbols)

- Keçi sakal

Temizlik ve bakım

Diagram illustrating temperature measurement with labeled thermometer and force indicators (C, F)

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

°C °F

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered steps ① and ②.

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands holding a small container with a downward arrow indicating compression or disassembly (no text or symbols)

Line drawing of a hairdryer with a flat blade and a closed handle (no text or symbols)

Diagram illustrating seatbelting technique with labeled parts and directional arrows

Simple line drawing of a handbag with a handle and decorative base, no text or symbols present.

Simple line drawing of a hairdryer with a sun icon nearby (no text or symbols)

Illustration of a handbag with a circular design and a calendar icon showing '1M' (no text or symbols on the bag itself)

Diagram illustrating two-step instructions for handling a device, labeled with arrows and numbered parts (① and ②)

Illustration of a hand holding a small object with a string attached, no text or symbols present

Illustration of a faucet pouring liquid into a square basin (no text or symbols)

Illustration of a hand pouring liquid into a container with a water level indicator (no text or symbols)

Illustration of hands using a handheld device to clean or spray liquid, with no text or symbols present.

Illustration of a hand holding a light bulb with an upward arrow indicating motion or force (no text or symbols present)

Diagram of a hand holding a mechanical device with rotating components (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Mechanical gear assembly diagram showing a rotating shaft and housing (no text or labels)

Diagram showing a hand turning a gear with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a piston inside a housing with gears and a handle (no text or symbols)

Mechanical assembly diagram showing a gear and motor component with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Line drawing of a handheld device with a black arrow pointing to a component (no text or symbols)

Diagram illustrating a medical procedure with temperature and force indicators, including a thermometer and magnified view of the tube.

Illustration of a hand washing clothes with a fork and spoon (no text or symbols)

Line drawing of a handheld tool with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a light bulb and an upward arrow, no text or symbols present.

Diagram showing a device with labeled parts, including a downward arrow and numbered callouts ① and ②.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)
