Product Type	Freezer Refrigerator
Brand	LG
Model	GBB530SWQWB
Dimensions (W x H x D)	595 x 1860/2030 x 682/718 mm depending on handle
Total Net Volume	Approximately 340 L (freezer + refrigerator)
Climate Class	SN to T (10 °C to 43 °C)
Power Supply	230 V ~ 50 Hz
Energy Consumption	Energy Class G (according to EU 2019/2016)
Refrigerant	Isobutane (R600a)

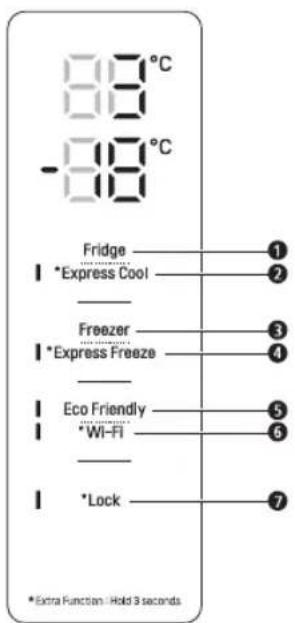

Control Panel	Electronic with LED display
Smart Functions	LG ThinQ, Wi-Fi, Smart Diagnosis, Express Freeze
Temperature Alarm	Yes, in case of temperature rise
Lighting	LED, efficiency class G
Freshness Converter	Yes, adjustable for meat/fish/vegetables
Fresh Vegetable Crisper	With humidity controller
Defrost	Automatic (no-frost system)
Freezing Capacity	Up to 24 kg/24h (Express Freeze mode)
Power Failure Autonomy	Approximately 10 hours
Maintenance and Cleaning	Clean with a soft cloth and mild detergent; do not use abrasive products
Spare Parts and Repairability	Spare parts available for 7 years (seals 10 years)

Frequently Asked Questions - GBB530SWQWB LG

How to adjust the freezer temperature?

Press the Freezer button to adjust the temperature between -15 °C and -23 °C. The recommended temperature is -18 °C.

What to do in case of high temperature alarm?

The alarm triggers if the refrigerator temperature rises (e.g., power outage). Press the Freezer button to stop it. If the temperature drops, the alarm stops automatically.

How to use the Express Freeze function?

Activate Express Freeze 7 hours before adding fresh food for quick freezing. The function lasts about 24 hours and stops automatically.

How to connect the freezer to the LG ThinQ app?

Download the LG ThinQ app on your smartphone, connect to the Wi-Fi network (2.4 GHz), then follow the instructions in the app. Press and hold the Wi-Fi button for 3 seconds to register.

How to maintain and clean my freezer?

Unplug the appliance before cleaning. Use a soft cloth and mild detergent. Do not spray water directly. Clean the door seals and ventilation grilles regularly.

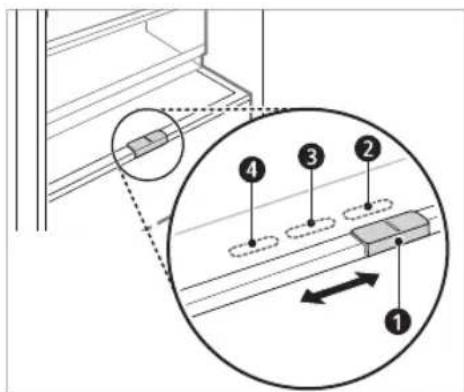

How to set the Freshness Converter?

Slide the lever at the front of the drawer to the desired position: for vegetables, fish or meat. This adjusts the compartment temperature.

Why is ice forming in my freezer?

The automatic defrost system prevents ice buildup under normal conditions. If frost appears, check that the door is properly closed and the seals are in good condition. Contact customer service if the problem persists.

What is the maximum freezing capacity?

With the Express Freeze function, the freezer can freeze up to 24 kg of fresh food in 24 hours. For better air circulation, remove the drawers if necessary.

How to save energy with this freezer?

Leave enough space between food for cold air circulation. Do not set the temperature lower than necessary. Open the door briefly. Do not place hot food directly.

What to do in case of prolonged power outage?

The appliance maintains its temperature for approximately 10 hours. Avoid opening the door. If the alarm sounds when power returns, press the Freezer button to stop it. Check the condition of the food.

USER MANUAL GBB530SWQWB LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

EN ENGLISH ES ESPANOL IT ITALIANO PL POLSKI SR SRPSKI

BG BULGARIAN ET ESTONIAN LT LITHUANIAN PT PORTUGUES SV SVENSKA

CZ CZECH FI FINNISH LV LATVIAN RO ROMANIAN

DA DANISH FR FRENCH MK MACEDONIAN SK SLOVAK

DE GERMAN HR CROATIAN NL DUTCH SL SLOVENIAN

EL GREEK HU HUNGARIAN NO NORWEGIAN SQ ALBANIAN

TABLE OF CONTENTS

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS 3

IMPORTANT SAFETY INSTRUCTIONS 3

INSTALLATION 10

Dimensions and Clearances 10

Ambient Temperature 10

OPERATION 11

Notes for Operation 11

Fresh Converter 12

Fresh Vegetable Painter 12

SMART FUNCTIONS 14

LG ThinQ Application 14

MAINTENANCE 16

Notes for Cleaning 16

Disposal of Your Old Appliance 16

TROUBLESHOOTING 17

Additional Information Of The Manual

Troubleshooting

This is a short version of Owner's Manual. For more information, please visit the LG website at http://www.lg.com

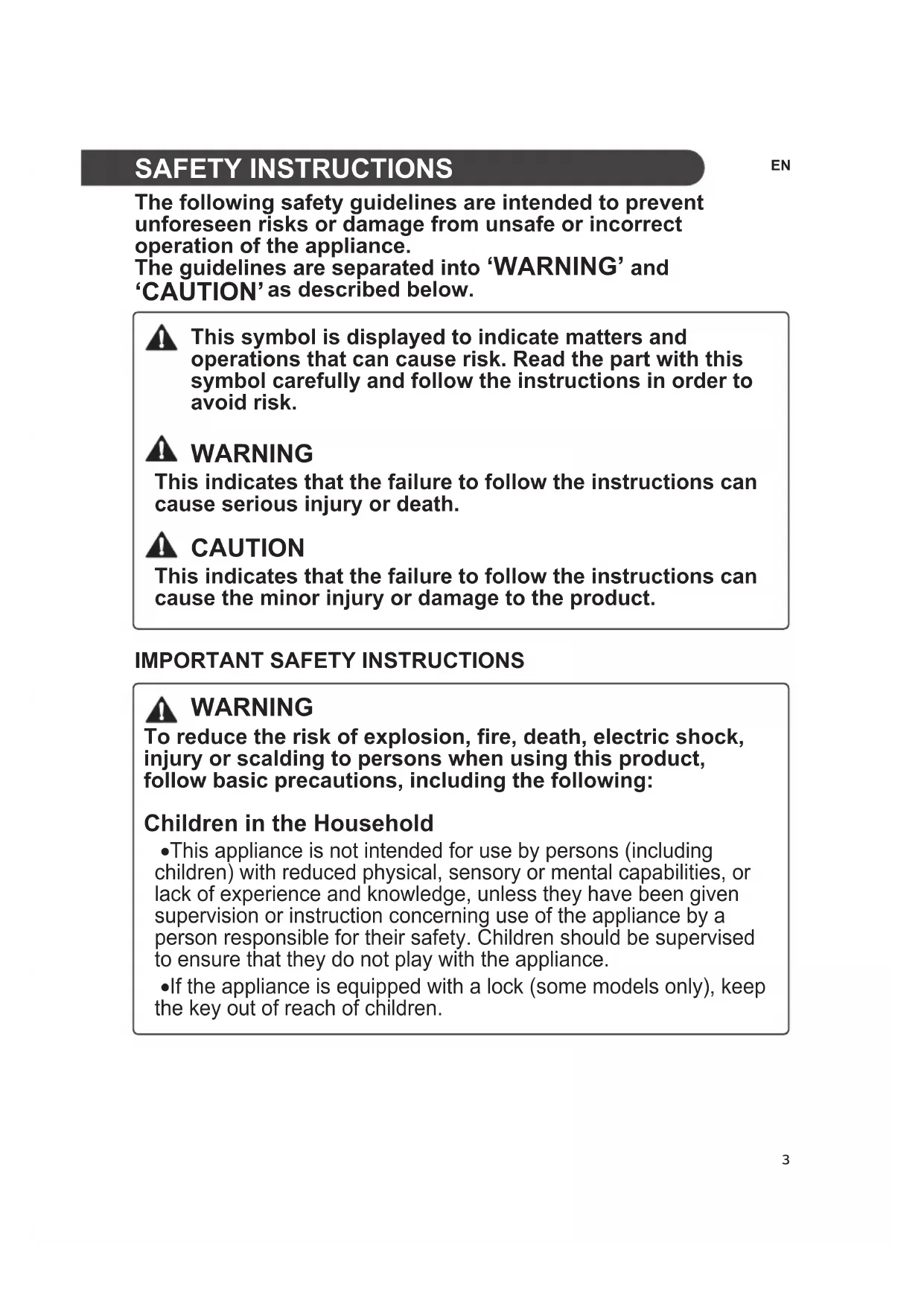

SAFETY INSTRUCTIONS

EN

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the appliance is equipped with a lock (some models only), keep the key out of reach of children.

For use in Europe:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Installation

• This appliance should only be transported by two or more people holding the appliance securely.
• Ensure that the socket outlet is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.
• This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.
• If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.
• Do not plug the appliance into a multi socket adapter which does not have a power cable (mounted).
• Do not modify or extend the power cable.
• The appliance should be connected to a dedicated power line which is separately fused.
• Do not use a multi socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi socket outlet (portable), use the multi socket outlet with the current capacity of the power code rating or higher and use the multi socket outlet only for the appliance.
• Install the appliance in a place where is easy to unplug the power plug of the appliance.
• Be careful not to point the power plug up or let the appliance lean against the power plug. Install the appliance on a firm and level floor.
• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.
• Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Be careful not to let the appliance door fall during assembly or disassembly.
• Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.
• Do not connect a plug adapter or other accessories to the power plug.

Operation

• Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.
• Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet hands.
• Do not bend the power cable excessively or place a heavy object on it.
• If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.
• Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.
• Do not apply excessive force or impact to the back cover of the appliance.
• Do not put animals, such as pets, into the appliance.
• Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.
• Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects (such as candles, lamps, etc.), or heating devices (such as stoves, heaters, etc.) on the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane, R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.
• Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
• Fill with potable water only into icemaker or dispenser water tank.
• Do not damage the refrigerant circuit.
• Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.

Maintenance

• Disconnect the power cord before cleaning the appliance or replacing the inside lamp (where fitted).
• Securely plug the power plug in the socket outlet after completely removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.
• Do not spray water or inflammable substances (toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
• Do not use a hair drier to dry the inside of the appliance or place a candle inside to remove the odours.
• Do not use mechanical devices or other means to accelerate the defrosting process.

Disposal

• When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.
• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

Technical Safety

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use electrical appliances inside the refrigerator.

• The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with service agent or a similarly qualified person before disposing of them.
• Refrigerant leaking out of the pipes could ignite or cause an explosion.

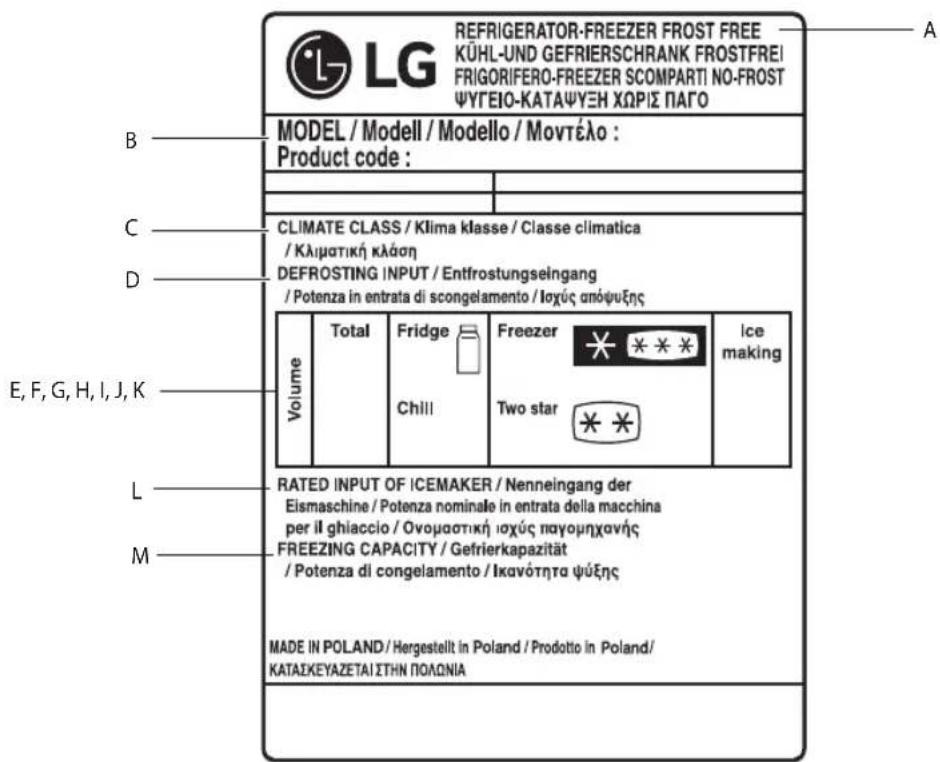

• The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• This appliance is intended to be used in household and similar applications only. It should not be used for commercial, or catering purposes, or in any mobile application such as a caravan or boat.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This refrigerating appliance is not intended to be used as a built-in appliance.

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

• This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
• If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1 m² in size for every 8 g of R600a refrigerant inside the appliance.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Do not tilt the appliance to pull or push it when transporting.
• Make sure not to get a body part such as a hand or foot stuck while moving the appliance.

Operation

• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with hands.
• Do not hang from the appliance doors, storage room, shelf or climb up into it.
• Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.
• Prevent animals from nibbling on the power cable or water hose.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.
• Do not clean glass shelves or covers with warm water when they are cold.
• Never eat frozen foods immediately after they have been taken out in the freezer compartment.
• Make sure not to get a hand or foot stuck upon opening or closing the appliance door.

Maintenance

• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics customer information centre.

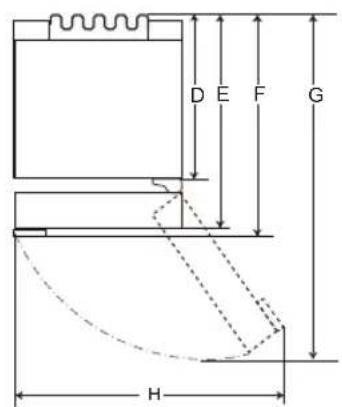

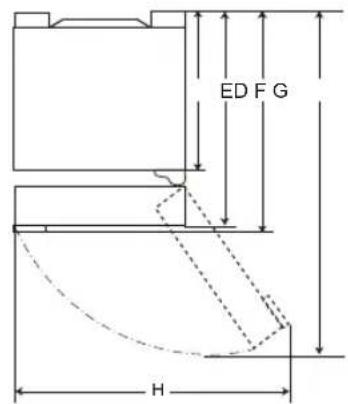

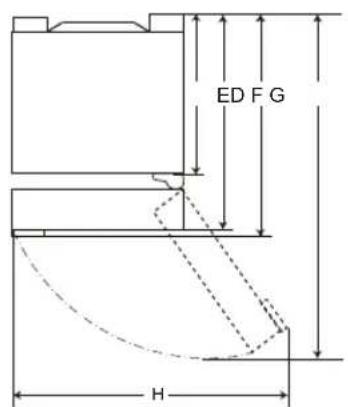

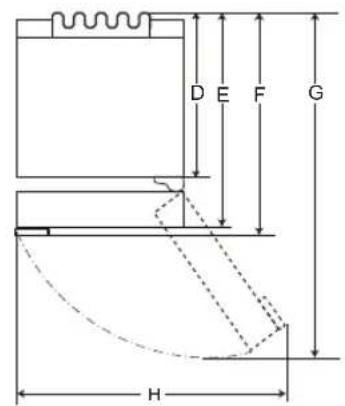

Dimensions and Clearances

Too small a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50 mm of clearance from each adjacent wall when installing the appliance.

1

2

	1		2
	Size [mm]
	Pocket Handle	Bar Handle	Pocket Handle	Bar Handle
A 595 595 595				595
B 1 860 / 2 030 1 860 / 2 030	1 860 / 2 030 1 860 / 2 030
C 682 718 675	712
D 616 616 610	610
E 682 682			675	675
F -	718	-		712
G 1 230	1 237	1 225	1 232
H 995 995 995	995

Ambient Temperature

• The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone.
• The internal temperature could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on.

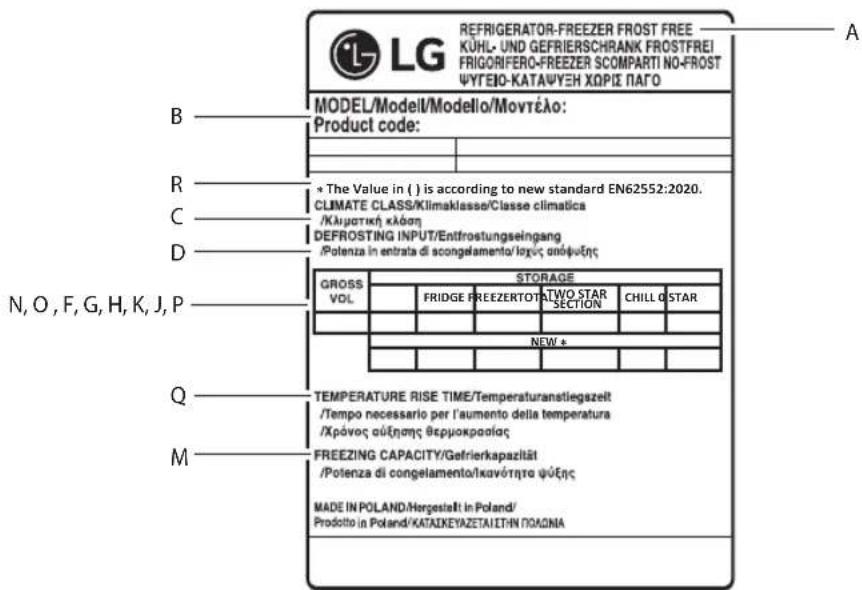

• The climate class can be found on the rating label.

Climate Class	Ambient Temperature Range °C
SN (Extended Temperate)	+10 - +32
N (Temperate)	+16 - +32
ST (Subtropical)	+16 - +38
T (Tropical)	+16 - +43 / +10 - +43*

*Australia, India, Kenya

NOTE

• The appliances rated from SN to T are intended to be used at an ambient temperature between 10°C and 43°C.

Notes for Operation

• Users should keep in mind that frost can form if the door is not closed completely, if the humidity is high during the summer, or if the freezer door is opened frequently.
• Ensure there is sufficient space between food stored on the shelf or door basket to allow the door to close completely.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Suggestion for Energy Saving

• Ensure there is sufficient space between stored foods. This allows cold air to be circulated evenly and lowers electricity bills.
• Store hot food only after it has cooled in order to prevent dew or frost.
• When storing food in the freezer compartment, set the freezer temperature lower than the temperature indicated on the food.
• Do not put food near the temperature sensor of the fridge compartment. Keep a distance of at least 3 cm from the sensor.
• Note that a temperature rise after defrosting has a permissible range in the appliance specifications. If you wish to minimise the impact this may have on the food storage due to a temperature rise, seal or wrap the stored food in several layers.
• The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions.
• For the most efficient use of energy, keep all inner parts (e.g. door bins, drawers and shelves) on their original location.
• Do not set the temperature of the appliance lower than needed.

Storing Foods Effectively

• Store frozen food or refrigerated food inside sealed containers.
• Check the expiration date and label (storage instructions) before storing food in the appliance.
• Do not store food for a long period of time if it spoils easily at a low temperature.
• Avoid refreezing any food which has been completely thawed. Freezing any food which has been completely thawed again will lower its taste and nutrition.
• Do not wrap and store vegetables with newspaper. Printing material of newspaper or other foreign substances may smear and contaminate food.
• Do not overfill the appliance. Cold air can not circulate properly if the appliance is overfilled.
• If you set an excessively low temperature for food, it may become frozen. Do not set a temperature lower than the required temperature for the food to be stored correctly.
• For more space, you can remove bottle rack, egg tray, ice tray and fresh converter drawer.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.
• Food may freeze or spoil if stored at the wrong temperature. Set the refrigerator to the correct temperature for the food being stored.

Max Freezing Capacity

• The Express Freeze function will set the freezer to its maximum freezing capacity. This generally takes up to 24 hours and automatically switches off.
• If the maximum freezing capacity is to be used, Express Freeze must be switched on for 7 hours before fresh produce is placed in the freezer compartment.

Freezing the Maximum Amount of Food

• To get better air circulation, insert all drawers.
• If large quantities of food are to be stored, all the freezer drawers shall be taken out of the appliance and the food shall be stacked directly on the freezer shelf (or shelves) in the freezer compartment.

NOTE

• To remove the drawers, first remove the food from drawers and then pull out the drawers carefully. Not doing so could cause injury or damage to the drawers. The shape of each drawer may be different, insert in the right position.

Setting the Temperature

This sets the fridge temperature or freezer temperature

Press the Fridge button or Freezer button to adjust the temperature.

The temperature can be adjusted.

Fridge: from 1°C to 7°C Freezer: from -15°C to -23°C

The initial temperature is set.

Fridge: 3°C - Freezer: -18°C

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within the appliance.

NOTE

• The default temperature setting may vary depending on the appliance.
• For optimal food preservation, increasing or decreasing 1°C or one level from the default temperature is recommended for each compartment.
• Wait until 2 or 3 hours have passed after connecting the appliance to the outlet before storing food in the appliance.
• For ice making in normal climates, the freezer temperatures should be set to -18°C or colder.

High Temperature Alarm

When the freezer temperature goes too high due to power failure, the freezer temperature LED lamp blinks and an alarm sounds.

• Press the Freezer button to stop. If the temperature is sufficiently cold, the blinking and alarm will automatically stop. This function operates:
• When the refrigerator is turned on.
• When the freezer compartment gets too warm.
• When there is a power outage that lasts for a long period of time.
• When large amounts of warm food are placed in the freezer compartment.
• When the freezer door is open for too long or too frequently.

Fresh Converter (*)

As a chill compartment, the temperature in the fresh converter can be controlled by sliding the lever 1, located in front of the compartment, in either direction.

When keeping vegetables after setting up Meat or Fish, cold injury may occur.

For storing vegetables. (Recommended) 3 For storing fish. 4 For storing meat.

NOTE

(*): This feature varies depending on the model purchased.

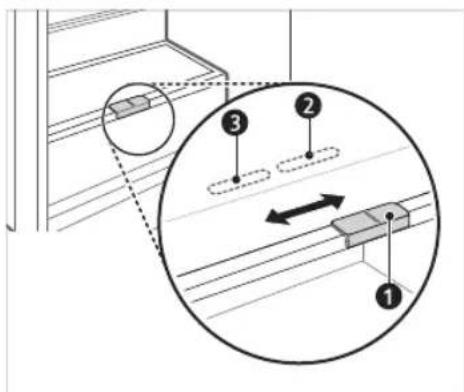

Fresh Vegetable Painter (*)

The vegetable compartment can adjust the humidity by moving the knob 1.

For storing vegetables. (Recommended) For storing fruit.

NOTE

• (*): This feature varies depending on the model purchased.

Food Storage Compartments Storing Food in the Fridge Compartment

Fridge Shelf

• This is where refrigerated foods and other items are stored. The shelf height can be adjusted by inserting the shelf in another groove of different height.
• Store the foods with higher moisture content at the front of the shelf. The actual number of shelves will differ from model to model.
• Bottle Rack (*)
• This is where drinks tall bottles or containers are stored.
• Folding Shelf (*)
• This is where refrigerated foods and high items are stored.
• Fresh Vegetable Printer
• This is where fruits and vegetables are stored to help maintain freshness by adjusting the humidity controller. The appearance or components of the appliance may differ from model to model.
• Fresh Converter (*)
• As a chill compartment, this is where meat, fish and vegetables are stored. Help maintain freshness by adjusting the humidity controller located in the back of the fridge compartment.
• For more space, you can use chill area without chill compartment drawer.
• Movable Egg Tray
• This is where eggs are stored.
• You can move it to and use it at a desired position as needed. However, do not use it as the ice bin or place it on the shelf on top of the fridge or the vegetables drawer. Fridge Door Basket
• This is where small packages of refrigerated foods, drinks and sauce containers are stored.

Water Dispenser Tank (^*)

• This is where water to supply the dispenser or the automatic icemaker is stored. It requires manual filling. (Non plumbed models only)

Storing Food in the Freezer Compartment

Ice Tray

• This is where ice is produced and stored.
• For more space, you can remove the ice tray or ice cubes bucket.
• Freezer Drawer
• This is for long-term storage of frozen items.
• To freeze food items quickly, store the food on the left side of the top drawer. Food items will freeze most quickly in the drawer.

NOTE

• (^*) : This feature varies depending on the model purchased.
• For more information about other compartments, visit lg.com and download owner's manuals.

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Smart Diagnosis

• If you experience a problem while using the appliance, this smart diagnosis feature will help you diagnose the problem.

Settings

• Allows you to set various options on the appliance and in the application.

NOTE

• If you change your wireless router, internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again.
• The application is subject to change for appliance improvement purposes without notice to users.
• Functions may vary by model.

Before Using LG ThinQ Application

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

• If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

3 Connect your smartphone to the wireless router.

NOTE

To verify the Wi-Fi connection, check that the icon on the control panel is lit. - The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual. LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection. - If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength. - The Wi-Fi connection may not connect or may be interrupted because of the home network environment. - The network connection may not work properly depending on the Internet service provider. - The surrounding wireless environment can make the wireless network service run slowly. - The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again. - If the firewall on your wireless router is enabled, disable the firewall or add an exception to it. - The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone.

• Follow instructions to download and install the application.

Connecting to Wi-Fi

The Wi-Fi button, when used with the LG ThinQ application, allows the appliance to connect to a home Wi-Fi network. The icon shows the status of the appliance's network connection. The icon illuminates when the appliance is connected to the Wi-Fi network.

Initial Appliance Registration

• Run the LG ThinQ application and follow the instructions in the application to register the appliance.

Re-registering the Appliance or Registering Another User

• Press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to register the appliance.

NOTE

• To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. The icon will be turned off.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses that have the obligations to disclose source code, that is contained in this product, and to access all referred license terms, copyright notices and other relevant documents please visit http://opensource.lge.com. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Notes for Cleaning

• When removing a shelf or drawer from inside the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to the appliance.
• Otherwise, injury may occur due to the weight of stored foods.
• If cleaning the outside air vents of the appliance by means of vacuuming, then the power cord should be unplugged from the outlet to avoid any static discharge that can damage the electronics or cause an electric shock.
• Detach the shelves and drawers and clean them with water, and then dry them sufficiently, before replacing them.

Regularly wipe the door gaskets with a wet soft towel.

• Door basket spills and stains should be cleaned as they can compromise storage ability of the basket and could even be damaged.
• After cleaning, check if the power cable is damaged, warm or improperly plugged.
• Keep the air vents on the exterior of the appliance clean.
• Blocked air vents can cause fire or appliance damage.
• When cleaning the inside or outside of the appliance pot, wipe it with a rough brush, toothpaste, or flammable materials. Do not use cleaning agents containing flammable substances.
• This may cause discoloration or damage to the appliance.
• Flammable substances: alcohol (ethanol, methanol, isopropyl alcohol, isobutyl alcohol, etc.), thinner, bleach, benzene, flammable liquid, abrasive, etc.
• For the appliance exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.
• Never clean the shelves or containers in the dishwasher.

The parts may become deformed due to the heat.

Regularly clean surfaces that can come in contact with food. - If the appliance is equipped with an LED lamp, do not remove lamp cover and LED lamp in any attempt to repair or service it. Please, contact an LG Electronics customer information centre.

Disposal of Your Old Appliance

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances, so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country, please see www.lg.com/global/recycling.

Before Calling for Service

Customer Care and Service

Contact an LG Electronics customer information centre.

To find information on LG authorized service centres, visit our website at www.lg.com. - Only qualified service personnel from LG authorized service centres should disassemble, repair, or modify the appliance. - The minimum warranty period of this refrigerating appliance is 24 months. - To purchase spare parts, contact an LG Electronics customer information centre or our website at www.lg.com. - Spare parts referenced in Regulation EU 2019/2019 are available for 7 years (only door gaskets are available for 10 years).

NOTE

• For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name (valid from 1st March 2021).
• Regulation EU 2019/2019, valid from 1st March 2021, is related to the Energy Efficiency classes by Regulation EU 2019/2016.
• Scan the QR code on the energy label supplied with the appliance, which provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference and all other documents supplied with the appliance (valid from 1st March 2021).
• The model name can be found on the rating label of the appliance.

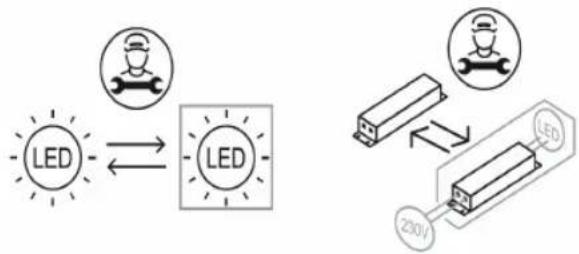

• This product contains a light source of energy efficiency class G.

Operating Instructions

Refrigerator-Freezer

Read the operating instructions carefully before using the appliance, and keep them in a convenient place for reference at all times.

www/lg.com

INSTRUCTIONS FOR SAFETY 3

Important Safety Instructions 3

INSTALLATION 10

Dimensions and Clearances 10

Ambient Temperature 10

OPERATION 11

Notes for Operation 11

Converter for Pressed Products (*) 12

Yeast Dough for Green Vegetables (*) 13

SMART FUNCTIONS 15

Using LG ThinQ 15

MAINTENANCE 17

Cleaning and Care 17

Disposal of Old Appliances 17

TROUBLESHOOTING 18

Information about the instructions

This is a brief version of the operating instructions. For more information, please visit the website http://www.lg.com

TROUBLESHOOTING

SAFETY INSTRUCTIONS

EN

The safety instructions below are intended to prevent unforeseen risks or damage from dangerous or incorrect use of the product. The instructions are divided into "WARNING" and "CAUTION" sections, as described below.

This symbol is used to draw attention to factors and usage that could pose risks. Read the part marked with this symbol carefully and follow the instructions to avoid risks.

WARNING

This indicates that failure to follow the instructions may cause serious injury or death.

CAUTION

This indicates that failure to follow the instructions may cause minor injury or damage to the product.

Important safety instructions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using the product, basic safety precautions should always be followed, including the following:

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• If the appliance is equipped with a plug (only for certain models), place the plug in an accessible place for children.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Installation

This appliance must be transported only by an adult or a responsible person, holding the appliance upright. - Make sure the contact is properly grounded and that the grounding wire is not damaged or disconnected. For more information regarding grounding, contact the LG Electronics customer information center.

The appliance is equipped with a power cord with a grounding wire for grounding the appliance and with a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

• If the power cord is damaged or the outlet is loose, do not use the cord and contact an authorized service center. Do not plug the appliance into a multi-outlet adapter that has a power cord (extension). Do not modify or extend the power cord.
• The appliance must be connected to a dedicated electrical circuit with a separate fuse. Do not use a multi-outlet contact that is not properly grounded (earthed). In case of using a properly grounded multi-outlet contact (earthed), use a multi-outlet contact with a current rating equal to or higher than that of the power cord and use it only for the appliance. - Place the appliance in a location where the plug can be easily disconnected from the outlet.

Be careful not to damage the power cord and do not place the appliance on top of it. - Place the appliance on a stable, flat surface. - Do not install the appliance in a damp or dusty place. Do not install the appliance outdoors or in a place exposed to atmospheric conditions such as direct sunlight, wind, rain, or temperature extremes. Do not place the appliance near heat sources such as heaters or radiators. Be careful not to expose the rear part of the appliance during installation. Be careful that the door of the appliance does not fall during installation or removal. Be careful not to puncture, crush, or damage the cord during installation or removal of the appliance door. - Do not connect adapters or extension cords to the outlet.

Operation

- Do not use the appliance for any purpose other than its intended use (preservation of medical or experimental materials or for transport), different from the purpose of preserving food and household items. - The appliance is intended for use in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses; by clients in hotels, motels, and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. - Do not touch the appliance or its controls with wet hands. - Do not place heavy objects on the appliance. - If water penetrates the electrical parts of the appliance, unplug it and contact the LG Electronics customer information service. Do not place containers with water or metal objects on the appliance, near the cold air outlet, on the top of the appliance, or on the rear panel. - Do not apply excessive force to the door of the appliance. - Do not place live animals inside the product. The animal may suffocate.

Be careful if there are children around when you open or close the appliance door. The door may be heavy and could cause injury. Do not allow anyone to sit or climb on the door, as this could damage the appliance and cause serious injury. - Be careful of the risk of children getting trapped inside the appliance. A child trapped inside the appliance may suffocate. Do not place heavy or sharp objects, objects with sharp edges, flammable substances, or objects that emit strong odors (e.g., candles, lamps, etc.) or heating devices (e.g., stoves, radiators, etc.) on top of the appliance. - If you smell gas (butane, propane, natural gas, etc.), do not operate the appliance, do not turn on the ventilation, and immediately ventilate the area. This appliance uses a flammable refrigerant (isobutane, R600a). Although it uses a small amount of gas, it is still flammable. Gas leakage during transport, installation, or operation may cause a fire, explosion, or injury if sparks occur. Do not use or store flammable substances (ether, benzene, alcohol, chemicals, liquefied petroleum gas, flammable sprays, insecticides, air fresheners, cosmetics, etc.) near the appliance. Immediately unplug the appliance and contact the LG Electronics customer information service if you notice any unusual noise, smell, or smoke coming from the appliance. - Fill the ice maker or water tank only with drinking water. Do not damage the refrigerant pipes. Do not place other electrical appliances (such as a heater or mobile phone) inside the appliance.

Maintenance

Unplug the power cord before cleaning the appliance or replacing the interior light (if applicable). Insert the plug firmly into the outlet, after removing any moisture or dust. - Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull it straight out of the outlet.

• Do not use water or flammable substances (such as benzene, thinner, alcohol, or abrasive cleaners) to clean the appliance. Do not clean the appliance with a brush, brush, or rough surface cloth, or with metal materials.
• Only qualified service personnel from an LG Electronics service center should disassemble, repair, or modify the appliance. Contact the LG Electronics customer information center if you have any questions about installing or using the appliance. Do not use a hairdryer to dry the inside of the appliance, and do not place a candle inside to remove odors.
• Do not use mechanical devices or other means to accelerate the defrosting process.

Disposal

When disposing of the appliance, remove the door gasket, leave the shelves and bins in place, and do not allow children to approach the appliance. Dispose of the packaging material (such as plastic bags and styrofoam) away from children. Packaging materials can cause suffocation.

Technical Safety

Do not place obstacles in front of the ventilation openings or in the walls of the appliance or in the built-in enclosure. Do not use electrical appliances inside the refrigerator. Special disposal procedures are required for the refrigerant and insulation blowing gas. Consult a technician or similarly qualified person before disposing of them. The refrigerant that escapes from the pipes may be flammable or cause an explosion. The amount of refrigerant for your specific appliance is indicated on the identification label in the appliance. Never operate an appliance that shows signs of damage. If you have any doubts, consult your dealer.

This appliance is intended for household and similar use only. It should not be used for commercial purposes, catering, or similar applications, such as in caravans or mobile homes. Do not store explosive substances such as aerosol cans with flammable gas in the appliance. This refrigerator is not intended to be used as a built-in appliance.

Risk of fire and flammable materials

This symbol warns of flammable materials that can ignite and cause fire if not handled carefully.

The appliance contains a small quantity of the refrigerant isobutane (R600a), which is flammable. When transporting and installing the appliance, be careful not to damage any part of the cooling circuit. - If a leak is detected, avoid open flames or potential ignition sources and ventilate the room in which the appliance is located for a few minutes. To avoid the formation of a flammable gas-air mixture, if a leak occurs in the cooling circuit, the size of the room in which the appliance is used must correspond to the amount of refrigerant used. The room must be at least 1 m² for every 8 g of refrigerant R600a in the appliance. When positioning the appliance, make sure that the power cord is not pinched or damaged. Do not place multiple portable sockets or portable power supplies at the rear of the appliance.

WARNING

To reduce the risk of minor or serious injury, malfunction, or damage to the product or property, follow the basic safety precautions, including:

Installation

• Do not place the appliance to hold it or to lift it during transport.
• Be careful not to press on parts of the appliance (e.g., legs or pipes) while moving it.

Operation

Do not touch frozen food or metal parts in the freezer compartment with wet or damp hands. This may cause frostbite. Do not place glass containers, bottles, or cans (especially those with carbonated drinks) in the freezer compartment, on the shelves, or in the ice cube trays, where they will be exposed to temperatures below freezing. - The glass in the front part of the appliance door or on the shelves may break if hit. Do not hit it with your hand if it is frozen. Do not lean on the appliance door, on the storage compartment, or on the drawers. Do not climb on them. - Do not store an excessive amount of water bottles or glass containers in the door bins. - Do not allow pets to chew on the power cord or the water connection. - Do not open or close the appliance door with excessive force. - If the appliance door is damaged or does not work properly, stop using the appliance and contact an authorized service center.

Do not place hot dishes or hot water containers on cold surfaces.

• Never eat frozen food immediately after it has been removed from the freezer. Be careful not to touch your hands or feet when opening or closing the appliance door.

Maintenance

Do not place the dishes upside down. They may fall. - To remove the frost from the appliance, contact the LG Electronics service center for information on defrosting.

Dimensions and Clearances

The distance to the surrounding objects may lead to an increase in the start of the freezing capacity and increased energy consumption. Leave more than 50 mm distance to any surrounding walls when installing the device.

1

2

	1		2
	Размер [MM]
	Джобна дрьжka	Лостова дрьжka	Джобна дрьжka	Лostова дрьжka
A	595	595	595	595
B	1860/2030	1860/2030	1860/2030	1860/2030
C	682	718	675	712
D	616	616	610	610
E	682	682	675	675
F	-	718	-	712
G	1230	1237	1225	1232
H	995	995	995	995

Ambient temperature

• The device is intended for operation in a limited temperature range depending on the climate zone. The temperature of the device may be affected by its location, ambient temperature, frequency of door openings, etc.
• The climate class can be found on the data plate.

Климатinueн Клас	Диапазон на okолна Температура в °C
SN (Рашируе умeperи) +10 - +32
N (Умeperи) +16 - +32
ST (Субтошиче) +16 - +38
T (Троче) +16 - +43 / +10 - +43*

*Appliance, plug, hinge

INSTALLATION

The device with category from SN to T is intended for use at ambient temperatures from 10°C to 43°C

Operating instructions

• Consumers should be aware that frost can form if the door is not closed properly, if the humidity is high during the summer, or if the freezer door is opened frequently.
• Make sure there is enough space between the stored items on the top shelf and the door seal, so that the door can close completely.

- Leaving the door open for a long time can lead to a significant increase in the temperature of the device. - If the cooling device is left open for a long time, you should turn it off, defrost, clean, dry, and leave the door open to prevent mold from forming in the device.

Tips for saving energy

• Make sure there is enough space between the stored food items. This allows for even circulation of cold air and reduces electricity bills.
• Let the food in the freezer cool down before storing it, to avoid the formation of ice crystals. When storing food in the freezer, set the freezer temperature to a lower value than the temperature indicated on the food. Do not place food close to the temperature sensor of the freezer. Leave a distance of at least 3 cm from the sensor. Note that the temperature increase after defrosting is within the permissible range in the appliance specifications. If you want to minimize the impact that this temperature increase may have on food storage, close the freezer hermetically or store the food in several portions.
• The automatic defrosting system of the appliance guarantees that under normal operating conditions, no ice accumulates in it. For the most efficient use of energy, place all internal parts (e.g., door shelves, drawers, and shelves) in their original position.

Do not set the temperature of the appliance lower than necessary.

Efficient food storage

Store frozen or chilled food in sealed containers. - Check the expiration date (storage instructions) before placing food for storage in the appliance. - Do not store food for a long time if it spoils easily at low temperatures. - Place chilled or frozen food in the refrigerator or freezer immediately after purchase. Store raw meat first in suitable containers in the refrigerator, so that it does not come into contact with other food or drip onto it. - Avoid refreezing food that has been completely defrosted. Refreezing food that has been completely defrosted will affect the taste and nutritional qualities. - Do not store vegetables in the vegetable drawer. The vegetable drawer's moisture or other substances may damage or block the food. Do not overload the appliance. The cold air cannot circulate properly if the appliance is overloaded. - If you set a low temperature, the food may freeze. Do not set the temperature lower than necessary for proper food storage. For more space, you can remove the bottle rack, the can rack, the egg tray, and the shelves for all products. Food may freeze or spoil if stored at the wrong temperature. Set the refrigerator to the correct temperature for the food being stored.

Max. freezing capacity

The Express Freeze function sets the freezer to its maximum freezing capacity. This usually lasts up to 24 hours and turns off automatically. If you need to use the maximum freezing capacity, Express Freeze should be turned on seven hours before placing fresh products in the freezer compartment.

Freezing the maximum amount of food

For better air circulation, insert all drawers. If large quantities of food need to be stored, all drawers of the freezer must be removed and the food placed directly on the shelves (or racks) in the freezer compartment.

NOTE

Before placing the food in the refrigerator, first remove the food from the refrigerator and then clean it. Failure to follow this instruction may lead to premature damage or damage to the refrigerator. - The format of each refrigerator may be different, place it in the correct position.

Temperature setting

This sets the temperature of the refrigerator or freezer.

• Press the Fridge button or the Freezer button to adjust the temperature.
• The temperature can be adjusted. -Refrigerator: from 1 °C to 7 °C -Freezer: from -15 °C to -23 °C -The initial temperature is set. -Refrigerator: 3°C -Freezer: -18°C

The actual temperature varies depending on the state of the food, as the set temperature is the target, not the actual temperature in the environment.

NOTE

The set temperature may differ from the actual temperature depending on the environment. For optimal food storage, it is recommended to increase or decrease by 1°C and then adjust the temperature for each compartment. -Wait 2 to 3 hours after connecting the device to the power supply before storing food in it.

For normal operation of the freezer, it is necessary to set the temperature to -18°C or lower.

End of refrigerator door

-Store packaged chilled food, drinks, and sauces with condiments here.

-Water dispenser reservoir (^*)

-Store water for the dispenser or automatic ice maker here. This is optional. (Only for models not connected to the water supply)

Storing food in the deep freeze compartment

Table for

This is a place where food is produced and stored. For more space, you can remove the drawers or the baskets for the doors.

Refrigerator compartment

This is a place for long-term storage of frozen items. To freeze fresh food quickly, store food on the left side of the top drawer. Food will freeze fastest in the drawer.

WARNING

This function may vary depending on the model purchased. For more information regarding the functions, visit lg.com or refer to the user manual.

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ app allows you to communicate with the appliance using a smartphone.

Features of the LG ThinQ Application

Communicate with the appliance from a smartphone using convenient smart features.

Smart Diagnosis

• If you encounter problems while using the application, this smart diagnosis feature will help you diagnose the problem.

Settings

• Allows you to set various options on the appliance and in the application.

SUPPRIMER

When you change your wireless router, internet service provider, or password, reset the product registration from the LG ThinQ app and register it again. - The app is subject to change without prior notice for product improvement. - Functions may differ by model.

Before using the LG ThinQ app

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

If the distance between the appliance and the wireless router is too far, the signal strength weakens. It may take a long time to register or installation may fail.

2 Turn off mobile data or cellular data on your smartphone.

3 Connect your smartphone to the wireless router.

NOTE

To check the Wi-Fi connection, turn on the appliance's control panel light. - The appliance supports only 2.4 GHz Wi-Fi networks. To check the network frequency, contact your internet service provider or check the wireless router's manual. LG ThinQ is not responsible for connectivity problems or for damages, malfunctions, or errors caused by network interference. If the appliance has difficulty connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength. The Wi-Fi connection may not work or may be interrupted due to the environment in which the home network is located. - The network connection may not work properly due to the internet service provider. - The surrounding wireless environment may cause delays in the wireless network. - The appliance cannot be registered if there are problems with the wireless signal transmission. Turn off the appliance and wait about one minute before trying again. - If the firewall on your wireless router is enabled, disable it or add an exception for it.

• The name of the wireless network (SSID) must be a combination of letters and numbers. (Do not use special characters.)
• The user interface (UI) of the smartphone may differ depending on the mobile operating system (OS) and manufacturer. If the router's security protocol is set to WEP, you may not be able to set up the network. Change the security protocol to another one (WPA2 is recommended) and register the product again.

Temperature setting

Press the Fridge or Freezer button to adjust the temperature.

Installing the LG ThinQ application

Search for the LG ThinQ app from the Google Play Store or Apple's App Store on a smartphone.

Important safety instructions

PAIGALDAMINE 10

OLULISED OHUTUSJUHISED

OHT

Additional Information Of The Manual

Plateau a oeufs mobile

Application LG ThinQ

IMPORTANT SAFETY INSTRUCTIONS 3

INSTALLATION 10

Dimensions and free space 10

Ambient temperature 10

OPERATION 11

Operating notes 11

12

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury, or burns to persons when using this product, follow basic precautions, including the following:

Children in the household

• This appliance should not be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are supervised or given instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the appliance is equipped with a lock (only on some models), keep the key out of reach of children.

For use in Europe:

Frozen or chilled food should be placed in closed containers. - Check the expiration date on the label and place the food in the appliance. - Do not store food for long periods (more than 4 weeks) if it is easily perishable at low temperatures. Place chilled or frozen food in the refrigerator or freezer after purchase. Avoid refreezing food that has been completely thawed. Refreezing any food that has been completely thawed will reduce its taste and nutritional value. - Store fresh meat and fish in the appropriate part of the refrigerator to avoid contact or dripping onto other food. Do not place vegetables in the crisper. The material of the crisper or other containers may contaminate and spoil the food. Do not overload the appliance. Cold air cannot circulate properly if the freezer is overfilled. - If you set a very low temperature, food may freeze. Do not set the temperature lower than necessary for proper food storage.

For more space, you can remove the shelves for bottles, jars, trays, and the fresh food drawer.

Food may freeze or spoil if stored at the wrong temperature. Set the temperature in the refrigerator that is correct for the food being stored.

Maximum freezing capacity

- The Express Freeze function allows the maximum freezing capacity to be set. - The function is automatically activated for 24 hours, then it turns off automatically. - If you want to use the maximum freezing capacity, the Express Freeze function must be turned on 24 hours in advance, and then fresh products can be placed in the freezer compartment.

Freezing maximum quantity of food

To remove the drawers, first remove the food from them, then carefully pull them out. If you need to store larger quantities of food, then the drawers should be removed and the food should be placed directly on the shelves (or shelves) in the freezer.

NOTE

To remove the drawers, first remove the food from them, then carefully pull them out. If you do not do this, you may damage or tear the drawers. - The shape of each drawer may be different, so place them in the appropriate slot.

Setting the temperature

Set the temperature of the refrigerator or freezer.

Press the SET button to adjust the temperature. - The temperature can be adjusted. - Refrigerator: from 1°C to 7°C - Freezer: from -15°C to -23°C - Recommended temperature setting. - Refrigerator: 3°C - Freezer: -18°C

The actual temperature varies depending on the status of the food. The recommended temperature setting is the set temperature, not the actual temperature in the appliance.

NOTE

The factory setting of the temperature may differ from the recommended one. For optimal food storage, it is recommended to increase or decrease the standard temperature for each compartment by 1°C or one level. - Wait 2 to 3 hours after connecting the appliance to the power supply before placing food in it. To make ice in normal climate, the temperature of the freezer should be set to -18 °C or lower.

High temperature alarm

When the temperature of the freezer is too high due to a defect, the LED light of the freezer will start blinking and an alarm will sound.

• Press the SET button to turn it off. - As soon as the temperature is sufficiently low, the blinking and the alarm will turn off automatically.
• The function is activated in the following cases:

-The refrigerator is turned on.

-When the temperature in the freezer compartment increases significantly. -In case of a prolonged power failure. -In case of placing a large amount of warm food in the freezer. -In case the freezer door is left open for a long time or is opened very often.

TROUBLESHOOTING 17

Connecting to Wi-Fi

Recommendations for power saving

Foldable shelf (*)

TROUBLESHOOTING 17

Copyright © 2019-2022 LG Electronics Inc. All Rights Reserved

SAFETY INSTRUCTIONS. 3

IMPORTANT SAFETY INSTRUCTIONS

WARNING

TABLE OF CONTENTS

There may be images or content in this manual that differ from the model you purchased.

for more information.

Troubleshooting

SAFETY INSTRUCTIONS

SV

Set the temperature

Press the button to set the refrigerator or freezer temperature.

Press the Fridge button or the

Freezer button to adjust the temperature.

• The temperature can be adjusted.

Refrigerator: from 1°C to 7°C - Freezer: from -15 °C to -23 °C

• The initial temperature is set.

Refrigerator: 3°C - Freezer: -18 °C

• (*): This feature varies depending on the model purchased.

Control Panel

Units and Functions

On the Refrigerator Door

Inside the Refrigerator

Fridge Temperature

This sets the fridge target temperature.

Eco Friendly

This controls the Power Save mode for lowering energy consumption.

Express Cool

This sets the Express Cool Functions.

Wi-Fi

This sets the refrigerator to connect to your home's Wi-Fi network.

Freezer Temperature

This sets the freezer target temperature.

Lock

This locks the buttons on the control panel.

Express Freeze

This sets the Express Freeze Functions.

NOTE

The actual control panel may differ from model to model. - The control panel will turn off automatically for energy saving.

• Take care when cleaning the control panel, as contact with fingers or skin can accidentally activate buttons. To turn functions on/off, press and hold the center of the text until you hear a sound or the LED indicator turns on/off.

Warning for flammable material

Warning: Risk of fire / Flammable materials / (BG) Пedlyрждени: Рск OT похар / Залиму matерпан / (CZ) Varovani: Nebezpeci vzniku požaru / Hořlavе materially / (DA) Adversel: brandrisiko /brandbare materialer / (DE) Warning: Brandgefahr / Brennbare Materialien / (ES) Advertencia: Riesgo de incendio Mat eriales inflamables / (ET) Hoiatus: tuleoht / Tuleohtlikud materjalid / (FI) Varoitus: Tulipalovaara/sytyviá materiaaleja / (FR) Avertissement: Risque d'incendie / Materiaux inflammables / (GR) Пождбогон: Kivduvoč φωτιαc / (EUφλεκτα ωικα / (HR) Upozorenje: Opasnost(68) požara / Zapaljivi materijali / (HU) Figyelmeztêtes: Tuzveszély/Gyulékony anyagok/ (M) Attenzione: rischio d'incendio / Materiale inflammabile (LT) Jspejimas: gaisro rizika / Degiosios medziagos / (LV) Brīdinajums: Ugunsgreka risks / Viegli uzliesmojsi materiali / (MK) Пedlyредува bene: Onachoct od požap / 3anannu mapecjani / (NL) Waarschuwing: Brandgevaar / Brandbare materialen / (NO) Adversel: Brannfare / Brennbar e materialer / (PL) Ostrzezenia: Rzyko požaru / Materialy latwopalne / (PT) Aviso: Risco de incendió/Materiais inflamáveis / (RO) Avertissement: Risc de incendiu / Materiale inflamabile / (SK) Varovanie: Nebezpečestvo požiaru / Horlavé materially / (SL) Opozorilo: nevarnost požara / Vnetljivi materiali / (SQ) Paralajmerim: Rrezik zjarri / Materiale te ndeshme / (SR) Upozorenje: Opasnost od požar a / Zapaljivi materijali / (SV) Varning: Brandrisk / Brandfarligt material B (BN) Isobutane, R600a / (BG) N3o6yraH, R600a / (CZ) Izobutan, R600a / (DA) Isobutan, R600a / (DE) Isobutan, R600a / (ES) Isobutano, R600a / (ETD) Isobutaan, R600a / (FJ) Isobutaani, R600a / (FR) Isobutane, R600a / (GR) IooBoutavio, R600a / (HR) Izobutan, R600a / (HU) Izobutan, R600a / (IT) Isobutano, R600a / (LT) Izobutanas, R600a / (LV) Izobutans, R600a / (MK) N3o6yraH, R600a / (NL) Isobutaan, R600a / (NO) Isobutan, R600a / (PL) Izobutan, R600a / (PT) Isobutano, R600a / (RO) Izobutan, R600a / (SR) Izobutan, R600a / (SL) Izobutan, R600a / (SQ) Izobutan, R600a / (SR) Izobutan, R600a / (SV) Isobuten, R600a C (EN) Cyclopentane/ (BG) LknonenTah/ (CZ) Cyklopentan/ (DA) Cyklopentan/ (DE) Zyklo-Pentan / (ES) Ciclopentano/ (ET) Tsuklopentaan/ (FI) syklopentaani/ (FR) Cyclopentane/ (GR) Kuklonevtavio / (HR) Ciklopentan/ (HU) Ciklopentan/ (IT) Ciclopentano/ (LT) Ciklopentanas / (LV) Ciklopentans / (MK) LknonenTah/ (NL) Cyclopentaan/ (NO) Syklopentan/ (PL) Cyklopentan/ (PT) Ciclopentano/ (RO) Ciclopentan/ (SK) Cyklopentan/ (SL) Ciklopentan/ (SQ) Ciklopentan/ (SR) Ciklopentan / (SV) Cyclopentan

Rating label

A (EN) Refrigerator-freezer Frost free / (BG) Xладинik-фризер без скреж / (CZ) Chladnička s mrazničkou, bez námrazy / (DA) No frost-køleskab/fryser / (ES) Refrigerador-congelador Libre de escarcha / (ET) Külmik-sügavkülmik Külmumiskindel / (FI) Jääkaappi-pakastin, automaattisulatteinen / (FR) Réfrigérateur-congélateur Sans givre / (HR) Hladnjak-zamrzivač Bez nakupljanja leda / (HU) Hűtőszekrény-fagyasztó Jégmentesítő / (LT) Šaldytuvas-šaldiklis Be šerkšno / (LV) Ledusskapis-saldētava Bez apsarmojuma / (MK) Фрижидер-замрзнувач без мраз / (NL) Koel-vriescombinatie No-frost / (NO) Frostfri kjøleskap med fryser / (PL) Chłodziarko-zamrażarka System bezszronowy / (PT) Frigorífico-congelador Sem gelo / (RO) Frigider-congelator Fără gheață / (SK) Chladnička s mrazničkou Beznámrazový systém / (SL) Hladilnik-zamrzovalnik Brez ledu / (SQ) Frigorifer-ngrirës pa ngricë / (SR) Frižider-zamrzivač Bez zamrzavanja / (SV) Frostfritt Kyl-och frysskåp B (EN) Model / (BG) Модел / (CZ) Model / (DA) Model / (ES) Model / (ET) Model / (FI) Malli / (FR) Modèle / (HR) Model / (HU) Modell / (LT) Modelis / (LV) Modelis / (MK) Модел / (NL) Model / (NO) Modell / (PL) Model / (PT) Model / (RO) Model / (SK) Model / (SL) Model / (SQ) Model / (SR) Model / (SV) Modell C (EN) Climate class / (BG) Климатичен клас / (CZ) Klimatická třída / (DA) Klimaklasse / (ES) Clase climática / (ET) Kliimaklass / (FI) Ilmastoluokka / (FR) Classe climatique / (HR) Klimatski razred / (HU) Klíma osztály / (LT) Klimato klasė / (LV) Klimata klase / (MK) Климатска класа / (NL) Klimaatklasse / (NO) Klimaklasse / (PL) Klasa klimatyczna / (PT) Classe climática / (RO) Clasă de climatizare / (SK) Klimatická trieda / (SL) Klimatski razred / (SQ) Kategoria e klimës / (SR) Klimatska klasa / (SV) Klimatklass D (EN) Defrosting input / (BG) Потребление при размразяване / (CZ) Příkon pro rozmrazování / (DA) Afrimningsindgang / (ES) Entrada de descongelación / (ET) Sulatamise sisend / (FI) Sulatuksen tulo / (FR) Entrée de décongélation / (HR) Ulaz odmrzavanja / (HU) Leolvasztási bemenet / (LT) Energijos poreikis atšildymui / (LV) Atsaldēšanas ievade / (MK) Влезна моќ за одмрзнување / (NL) Ingang ontdooien / (NO) Nominell avtining / (PL) Pobór mocy przy rozmrażaniu / (PT) Entrada para descongelação / (RO) Putere dezghețare / (SK) Príkon rozmrazovania / (SL) Odjemna moč za odleditev / (SQ) Hyrja e shkrirjes / (SR) Ulazna snaga za odmrzavanje / (SV) Avfrostningseffekt E (EN) Volume / (BG) Обем / (CZ) Objem / (DA) Volume / (DE) Volumen / (EL) Όγκος / (ES) Volumen / (ET) Maht / (FI) Tilavuus / (FR) Volume / (HR) Zapremina / (HU) Térfogat / (IT) Volume / (LT) Talpa / (LV) Tilpums / (MK) Волумен / (NL) Volume / (NO) Volum / (PL) Objętość / (PT) Volume / (RO) Volum / (SK) Objem / (SL) Prostornina / (SQ) Vëllimi / (SR) Zapremina / (SV) Volym F (EN) Total / (BG) Общо / (CZ) Celkem / (DA) Total / (DE) Gesamt / (EL) Σύνολο / (ES) Total / (ET) Kokku / (FI) Yhteensä / (FR) Total / (HR) Ukupno / (HU) Összesen / (IT) Totale / (LT) Iš viso / (LV) Kopā / (MK) Вкупно / (NL) Totaal / (NO) Totalt / (PL) Łącznie / (PT) Total / (RO) Total / (SK) Celkovo / (SL) Skupaj / (SQ) Totali / (SR) Ukupno / (SV) Totalt G (EN) Fridge / (BG) Хладилник / (CZ) Chladnička / (DE) Kühlschrank / (DA) Køleskab / (EL) Ψυγείο / (ES) Frigorífico / (ET) Külmik / (FI) Jääkaappi / (FR) Réfrigérateur / (HR) Hladnjak / (HU) Hűtőszekrény / (IT) Frigorifero / (LT) Šaldytuvas / (LV) Ledusskapis / (MK) Фрижидер / (NL) Koelkast / (NO) Kjøleskap / (PL) Lodówka / (PT) Frigorífico / (RO) Frigider / (SK) Chladnička / (SL) Hladilnik / (SQ) Frigoriferi / (SR) Frižider / (SV) Kylskåp H (EN) Freezer / (BG) Фризер / (CZ) Mraznička / (DA) Fryser / (DE) Gefrierschrank / (ES) Congelador / (ET) Sügavkülmik / (FI) Pakastin / (FR) Congélateur / (GR) Καταψύκτης / (HR) Zamrzivač / (HU) Fagyasztó / (IT) Freezer / (LT) Šaldiklis / (LV) Saldētava / (MK) Замрзнувач / (NL) Vriezer / (NO) Fryser / (PL) Zamrażarka / (PT) Congelador / (RO) Congelator / (SK) Mraznička / (SL) Zamrzovalnik / (SQ) Ngrirës / (SR) Замрзивач / (SV) Frysskåp I (EN) Ice making / (BG) Производство на лед / (CZ) Výroba ledu / (DA) Isterningmaskine / (DE) Eisherstellung / (EL) Παραγωγή πάγου / (ES) Fabricación de hielo / (ET) Jää valmistamine / (FI) Jääpalojen valmistus / (FR) Fabrication de glace / (HR) Pravljenje leda / (HU) Jégkészítés / (IT) Produzione ghiaccio / (LT) Ledo gaminimas / (LV) Ledus gatavošana / (MK) Правене мраз / (NL) IJs maken / (NO) Ismaskin / (PL) Wytwarzanie lodu / (PT) Produção de gelo / (RO) Utilizarea dozatorului de gheață / (SK) Výrobník ľadu / (SL) Izdelava ledu / (SQ) Prodhimi i akullit / (SR) Ледомат / (SV) Istillverkning J (EN) Chill / (BG) Студено / (CZ) Chlad / (DA) Kold / (DE) Kühle / (ES) Frío / (EL) Ψύχος / (ET) Külmus / (FI) Jäähdytys / (FR) Fraîcheur / (HR) Hladnoća / (HU) Hűtés / (IT) Freddo / (LT) Šaltumas / (LV) Aukstums / (MK) Студено / (NL) Koude / (NO) Avkjøling / (PL) Komora chłodzenia / (PT) Frio / (RO) Răcire / (SK) Chlad / (SL) Hladnost / (SQ) Ftohtësi / (SR) Hladnoća / (SV) Kyla K (EN) Two star / (BG) 2 звезди / (CZ) Dvě hvězdičky / (DA) To stjerner / (DE) Zwei Sterne / (EL) 2 αστέρων / (ES) 2 estrellas / (ET) Kahetärniline / (FI) Kaksi tähteä / (FR) Deux étoiles / (HR) Dvije zvijezde / (HU) Két csillag / (IT) 2 stelle / (LT) Dvi žvaigždutės / (LV) Divas zvaigznes / (MK) 2 ѕвезди / (NL) Twee sterren / (NO) To stjerner / (PL) Dwie gwiazdki / (PT) Duas estrelas / (RO) Două stele / (SK) Dve hviezdičky / (SL) Dve zvezdici / (SQ) Me dy yje / (SR) Dve zvezdice / (SV) Två stjärnor

L (EN) Rated input of icemaker / (BG) Номинална мощност на ледогенератора / (CZ) Jmenovitý vstup výrobníku ledu / (DA) Vurderet input af isterningsmaskine / (DE) Nennlast von Eisbereiter / (EL) Ονομαστική είσοδος παγομηχανής / (ES) Entrada nominal del fabricador de hielo / (ET) Hinnanguline jäämasina sisend / (FI) Jääpalakoneen nimellissyöttö / (FR) Puissance nominale machine à glace / (HR) Nazivna ulazna snaga ledomata / (HU) A jégkészítő névleges bemenete / (IT) Potenza nominale di ingresso della macchina per il ghiaccio / (LT) Ledo gaminimo aparato vardinė įėjimo galia / (LV) Ledus ražotāja nominālā ieeja / (MK) Номинална моќност на апарат за мраз / (NL) Nominale ingang van de ijsmachine / (NO) Rangert inngang av ismaskin / (PL) Znamionowa moc wejściowa kostkarki do lodu / (PT) Potência de entrada nominal da máquina de gelo / (RO) Putere consumată dozatorului de gheață / (SK) Menovitý príkon výrobníka ľadu / (SL) Nazivni vhod aparata za led / (SQ) Inputi i vlerësuar i makinës së akullit / (SR) Nazivni ulaz ledomata / (SV) Märkeffekt för ismaskin / M (EN) Freezing Capacity / (BG) Капацитет на замразяване / (CZ) Mrazicí výkon / (DA) Nedfrysningskapacitet / (ES) Capacidad de congelación / (ET) Külmutusvõimsus / (FI) Pakastuskapasiteetti / (FR) Capacité de congélation / (HR) Kapacitet zamrzavanja / (HU) Fagyasztási kapacitás / (LT) Šaldymo geba / (LV) Saldēšanas jauda / (MK) Капацитет за замрзнување / (NL) Vriesvermogen / (NO) Frysekapasitet / (PL) Wydajność zamrażania / (PT) Capacidade de congelamento / (RO) Capacitatea frigiderului / (SK) Kapacita mrazenia / (SL) Zmrzovalna zmogljivost / (SQ) Kapaciteti ngrirës / (SR) Kapacitet zamrzavanja / (SV) Fryskapacitet / N (EN) Gross Volume / (BG) Бруто обем / (CZ) Hrubý objem úložného prostoru / (DA) Bruttokapacitet / (DE) Bruttovolumen / (EL) Συνολικός όγκος / (ES) Volumen bruto / (ET) Kogumaht / (FI) Bruttotilavuus / (FR) Volume brut / (HR) Bruto obujam / (HU) Bruttó térfogat / (IT) Volume lordo / (LT) Bendroji talpa / (LV) Bruto tilpums / (MK) Бруто волумен / (NL) Brutovolume / (NO) Bruttovolum / (PL) Pojemność brutto / (PT) Volume bruto / (RO) Volum brut / (SK) Hrubý objem / (SL) Bruto prostornina / (SQ) Volumi bruto / (SR) Bruto zapremina / (SV) Bruttovolym / O (EN) Storage Volume / (BG) Полезен обем / (CZ) Úložný prostor / (DA) Opbevaringskapacitet / (DE) Speichervolumen / (EL) Αποθηκευτικός όγκος / (ES) Volumen de almacenaje / (ET) Hoiustamise kogumaht / (FI) Säilytystilavuus / (FR) Volume de stockage / (HR) Obujam skladištenja / (HU) Tároló térfogat / (IT) Volume di conservazione / (LT) Sandėliavimo talpa / (LV) Nodalījuma tilpums / (MK) Волумен за складирање / (NL) Opslagvolume / (NO) Lagringsvolum / (PL) Pojemność przechowywania / (PT) Volume de armazenamento / (RO) Volum de depozitare / (SK) Objem úložného priestoru / (SL) Prostornina shranjevalnega prostora / (SQ) Volumi i ruajtjes / (SR) Skladišna zapremina / (SV) Lagringsvolym / P (EN) 0 star / (BG) 0 звезди / (CZ) 0 hvězdiček / (DA) 0-stjernet / (DE) 0 Sterne / (EL) 0 αστέρων / (ES) 0 estrella / (ET) 0-tärniline / (FI) 0 tähteä / (FR) 0 étoile / (HR) 0 zvjezdica / (HU) 0 csillagos / (IT) 0 stelle / (LT) 0 žvaigždučių / (LV) 0 zvaigžņu / (MK) 0 ѕвезди / (NL) 0-ster / (NO) 0-stjerners / (PL) 0 gwiazdek / (PT) 0 estrelas / (RO) 0 stele / (SK) 0 hviezdičkový / (SL) Oddelek z 0 / (SQ) 0 yje / (SR) 0 zvezdica / (SV) 0 stjärnig / Q (EN) Temperature rise time / (BG) Време за повишаване на температурата / (CZ) Bezpečná doba uchování bez napájení / (DA) Temperaturstigningstid / (ES) Tiempo de incremento de temperatura / (ET) Temperatuuri tõusmise aeg / (FI) Lämpötilan nousuaika / (FR) Durée de l'augmentation de température / (HR) Vrijeme porasta temperature / (HU) Visszamelegedési idő / (LT) Temperatūros nuostatos pasiekimo trukmė / (LV) Temperatūras paaugstināšanās laiks / (MK) Време на зголемување на температурата / (NL) Tijd temperatuurstijging / (NO) Temperaturstigningstid / (PL) Czas wzrostu temperatury / (PT) Tempo de subida da temperatura / (RO) Timp de creștere a temperaturii / (SK) Doba bezpečného uchovania pri vypnutom napájaní / (SL) Čas dviga temperature / (SQ) Koha e ngritjes së temperaturës / (SR) Vreme rasta temperature / (SV) Temperaturökningstid / R (EN) The value in () is according to new standard EN62552:2020. / (BG) Стойността в () е съгласно новия стандарт EN62552:2020. / (CZ) Hodnota v () je podle nové normy EN62552:2020. / (DA) Værdien i () er ifølge ny standard EN62552:2020. / (DE) Der Wert in () entspricht der neuen Norm EN62552:2020. / (ES) El valor de () es conforme al nuevo estándar EN62552:2020. / (EL) Η τιμή στο () είναι σύμφωνη με το νέο πρότυπο EN62552:2020. / (ET) Sulgudes toodud väärtus () vastab uuele standardile EN62552:2020. / (FI) Arvo kohdassa () on uuden standardin EN62552:2020 mukainen. / (FR) La valeur dans () correspond à la nouvelle norme EN62552:2020. / (HR) Vrijednost u () u skladu je s novim standardom EN62552:2020. / (HU) A zárójelben () az új, EN62552:2020 szabvány szerinti érték látható. / (IT) Il valore in () è secondo la nuova norma EN62552:2020. / (LT) Reikšmė () pateikta pagal naująjį standartą EN62552:2020. / (LV) Vērtība () ir saskaņā ar jauno standartu EN62552:2020. / (MK) Вредноста во () е во согласност со новиот стандард EN62552:2020. / (NO) Verdien i () er i henhold til ny standard EN62552:2020. / (NL) De waarde in () is volgens de nieuwe norm EN62552:2020. / (PL) Wartość podana w () jest zgodna z nową normą EN62552:2020. / (PT) O valor de () está de acordo com a nova norma EN62552:2020. / (RO) Valoarea din () este conformă noului standard EN62552:2020. / (SK) Hodnota v () je podľa novej normy EN62552:2020. / (SL) Vrednost v () je v skladu z novim standardom EN62552:2020. / (SQ) Vlera në () është vendosur sipas standardit të ri EN62552:2020. / (SR) Vrednost u () je po novom standardu EN62552:2020. / (SV) Värdet i () är enligt nya standarden EN62552:2020.

Life's Good
