USER MANUAL Mi MotionActivated Night Light 2 Xiaomi

Read this manual carefully before use, and retain it for future reference.

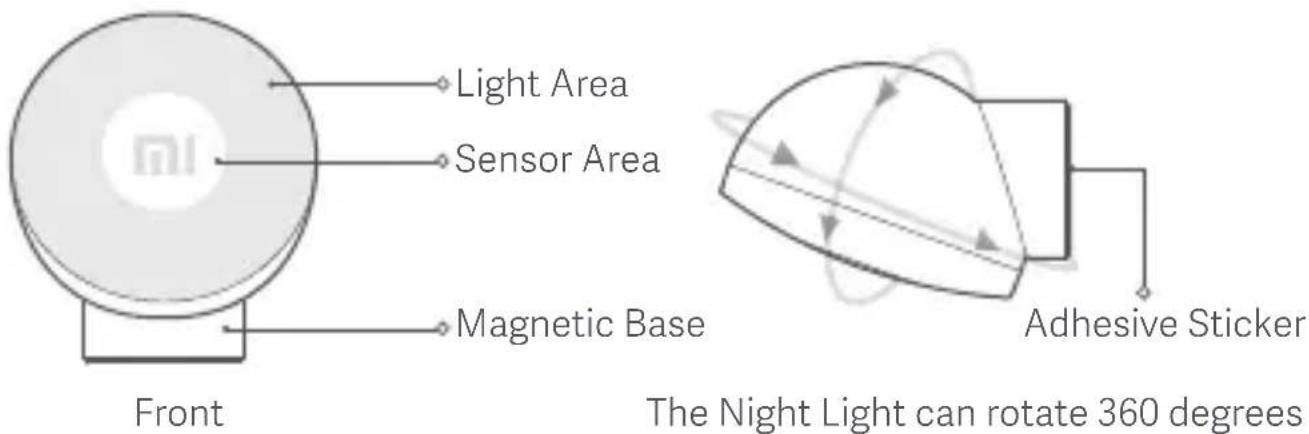

Light Area Sensor Area Magnetic Base Front The Night Light can rotate 360 degrees Adhesive Sticker

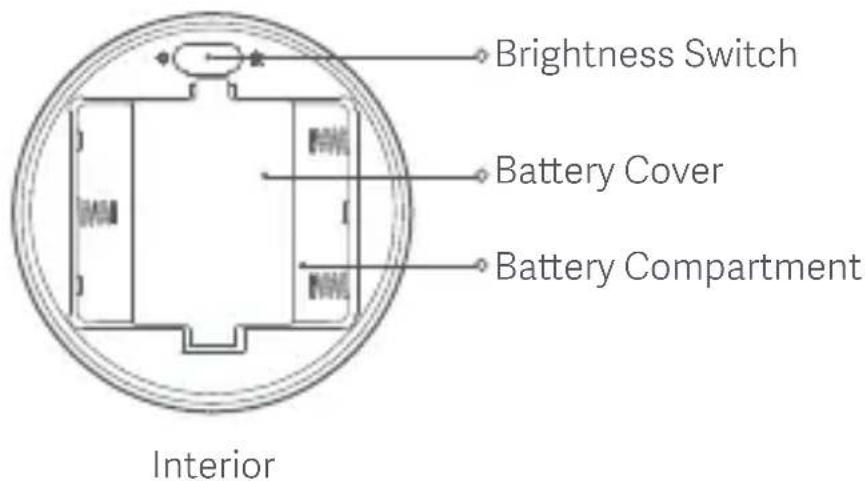

Brightness Switch Battery Cover Battery Compartment Interior

Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

How to Use

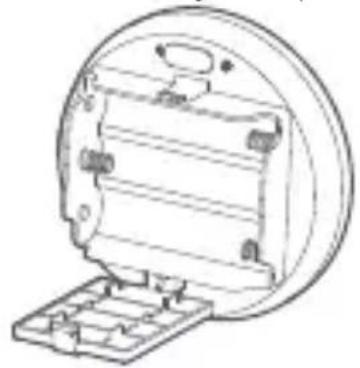

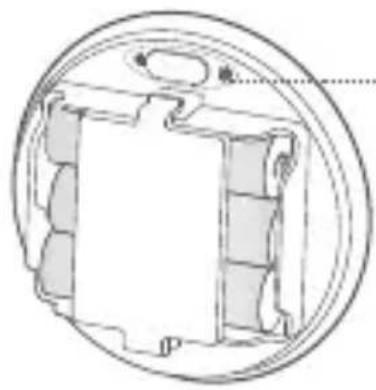

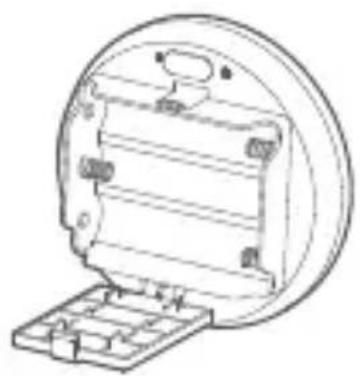

1. Installing the batteries

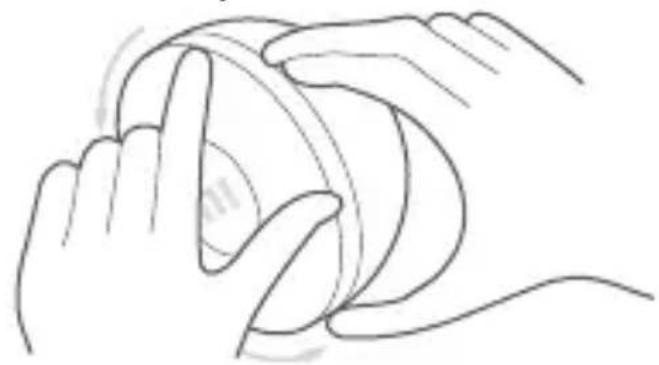

Turn the front cover counterclockwise to unscrew it from its hemispherical housing. Open the battery cover and install three AA batteries in the battery compartment.

Line drawing of two hands holding a circular object, no text or symbols present

Technical line drawing of a mechanical component with housing and mounting bracket (no text or symbols)

1. Toggle the brightness switch to the desired brightness level before screwing the lamp back into its hemispherical housing.

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or symbols)

3 lm 25

Places that are suitable for use as a night light: bathrooms, hallways, bedrooms, and children's rooms.

aces that are suitable r use as an auxiliary ht: doorways, trances, wardrobes, all surfaces, and balconies.

EN

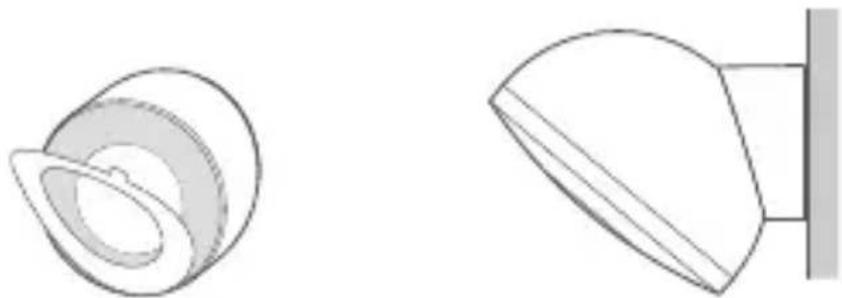

3. Mounting the light

Select a flat and dry mounting surface, wipe the surface clean first, and then peel off the release liner from the base. Stick the base in the desired location and press it down firmly to make sure it is properly secured. Finally, attach the light to the magnetic base and adjust it to a suitable angle. Make sure it is firmly installed with the magnet, so as to avoid the risk of accidental dropping.

Two technical line drawings of a mechanical component, one with a circular feature and the other a curved housing (no text or symbols)

Note: For accurate detection, it is recommended to face the light downwards when the base has been mounted over 1.9 m above the floor.

Mounting point is over 1.9 m above the floor

Simple line drawing of a 3D geometric shape resembling a truncated pyramid or sector (no text or symbols)

Facing downwards

Mounting point is between 0.5–1.5 m above the floor

Simple geometric diagram of a symmetrical shape with a diagonal line (no text or symbols)

Facing straight forward

Mounting point is below 0.5 m above the floor

Simple line drawing of a curved object resembling a bowl or container (no text or symbols)

Facing upwards

Note: For different mounting heights, the angle needs to be adjusted based on the user's height and the desired usage scenario to achieve the optimal result.

1. When it is dark and body movement is detected, the light will turn on automatically, and turn off automatically after 15 seconds if no further body movement is detected.

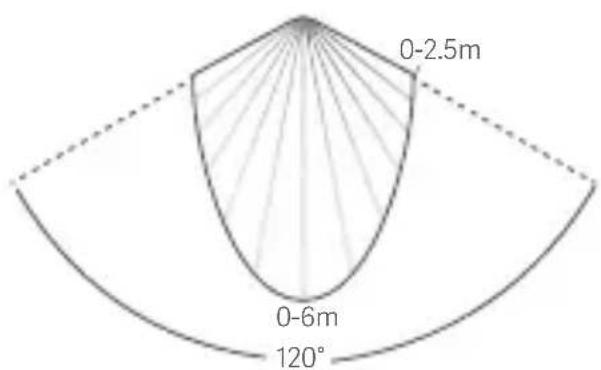

0-2.5m 0-6m 120°

Detection Area

Simple line drawing of a Xiaomi brand CD with a circular center and rectangular base (no text or symbols)

Note: The detection area is a 120^ area directly at the center in front of the night light. The detection area covers 0–6 m in front of the light, and 0–2.5 m to the sides. The detection effect depends on the angle of the light, ambient temperature, body size, and moving speed. The illustrated detection area is based on the direction the logo is facing.

EN

Specifications

Model: MJYD02YL

Luminous Flux: 3 lm, 25 lm

Rated Voltage: 4.5 V—

Rated Power: 0.34 W

Operating Temperature: -10°C to 40°C

Item Dimensions: 80 mm × 62 mm

Net Weight: Approx. 121 g

Precautions

* Do not cover the detection area of the light.
- When cleaning the surface of the light, wipe it clean with a soft cotton cloth and do not use any corrosive solvents.
- Do not install the light near heat sources such as AC or heating vents, or in direct sunlight. Nor install the light near sources of humidity such as humidifiers or water heaters.
• Make sure the Mi logo is upright at all times when installing and using the night light.
- When the brightness of the night light is reduced after a period of normal use, the battery level may be insufficient. Please replace the batteries with new ones and dispose of the used batteries in accordance with local rules and regulations, so as to avoid environmental pollution.
* The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- For indoor use only.

EN

• Please pay attention to the positive (+) and negative (-) poles when installing the batteries.
  • After non-rechargeable batteries are depleted, they cannot be charged.
• Different types of batteries, and old and new batteries should not be mixed.
• The batteries must be removed from the night light when it is not used for a long time, or when the night light is being disposed of.
• Remove leaking batteries from the night light, and dispose of them in accordance with local rules and regulations, so as to avoid environmental pollution.

EU Declaration of Conformity

We Qingdao Yeelink Information Technology Co., Ltd., hereby, declare that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address:

http://www.mi.com/global/service/support/declaration.html

WEEE Disposal and Recycling

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.

Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

DE

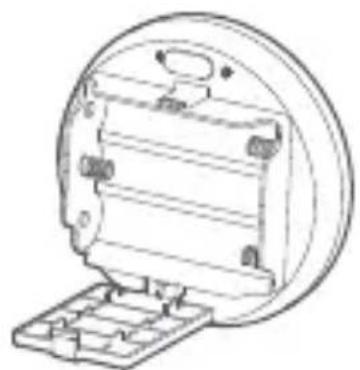

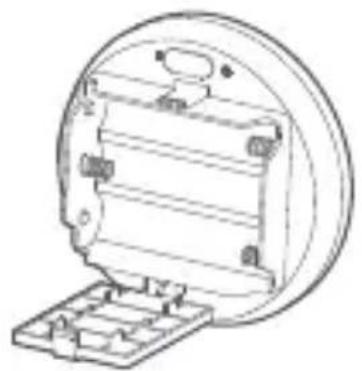

Produktübersicht

Pure diagram of a curved structure with directional arrows and a connecting line, no text or symbols present.

Line drawing of a hand holding a circular object with a curved handle (no text or symbols)

Technical line drawing of a mechanical component with housing and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

3 lm 25

Technical line drawing of two wall-mounted fixtures, one circular and one rectangular, with no visible text or symbols.

Two abstract geometric shapes with curved and straight lines, no text or symbols present

Simple line drawing of a symmetrical geometric shape with a diagonal line (no text or symbols)

Simple line drawing of a Xiaomi brand CD with a circular center and rectangular base (no text or symbols)

Pure diagram of a curved structure with directional arrows and a connecting line, no text or symbols present

Bande collante

Line drawing of two hands holding a circular object, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

3 lm 25

Simple line drawing of a 3D toroidal object with a flat top and circular base (no text or symbols)

Simple line drawing of a curved object mounted on a vertical surface (no text or symbols)

Two abstract geometric shapes with curved and straight lines, no text or symbols present

Simple line drawing of a symmetrical geometric shape with a diagonal line (no text or symbols)

Simple line drawing of a Xiaomi brand CD with a circular top and base (no text or symbols)

http://www.mi.com/global/service/support/declaration.html

Pure diagram of a curved structure with directional arrows and a connecting line, no text or symbols present.

Pegatina Adhesiva

Line drawing of two hands holding a circular object, no text or symbols present

Technical line drawing of a mechanical component with housing and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

3 lm 25

Simple line drawing of a mechanical component or housing (no text or symbols)

Simple line drawing of a curved mechanical component mounted on a vertical surface (no text or symbols)

Two abstract geometric shapes with curved and straight lines, no text or symbols present

Simple line drawing of a 3D geometric shape resembling a lens or wedge (no text or symbols)

Simple illustration of a Xiaomi brand CD with a circular top and base (no text or symbols)

http://www.mi.com/global/service/support/declaration.html

Line drawing of two hands holding a circular object, no text or symbols present

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

Cross-sectional diagram of a mechanical component with internal layered structure (no text or symbols)

3 lm 25

Simple line drawing of a mechanical component or housing (no text or symbols)

Simple line drawing of a curved object mounted on a vertical surface (no text or symbols)

Two abstract geometric shapes with curved and straight lines, no text or symbols present

Simple line drawing of a 3D geometric shape resembling a lens or wedge (no text or symbols)

Simple line drawing of a circular object with a central circle and a base, no text or symbols present.

Line drawing of two hands holding a circular object, no text or symbols present

Technical line drawing of a mechanical component with housing and mounting brackets (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

3 lm 25 lm

Two technical line drawings of a mechanical component, one with a circular feature and the other a curved housing (no text or symbols)

Two abstract geometric shapes with curved and straight lines, no text or symbols present

Simple line drawing of a curved object resembling a lens or container (no text or symbols)

Circular device with central logo and base, no visible text or symbols on the device itself

Line drawing of two hands holding a circular object, no text or symbols present

Technical line drawing of a mechanical component with internal channels and mounting base (no text or symbols)

Technical line drawing of a mechanical component with internal layered structure (no text or symbols)

야간 조명 사용에

적합: 화장실, 복도,

침실,어린이 방

3 lm 25 lm

보조 조명에

적합: 출입구, 현관,

옷장,벽 랼프,발코니

KR

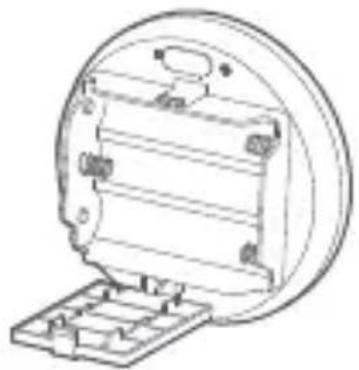

3.야간 조명 고정

Simple line drawing of a curved mechanical component or housing (no text or symbols)

Simple line drawing of a curved object mounted on a vertical surface (no text or symbols)

Simple line drawing of a curved object with a rectangular base and diagonal line (no text or symbols)

본체를 위로 조절 합니다

Simple line drawing of a Xiaomi logo with a circular center and rectangular base (no text or symbols)

Pure diagram of a curved structure with directional arrows and a connecting line, no text or symbols present.

اصق

Line drawing of two hands holding a circular object, no text or symbols present

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure (no text or symbols)

3lm

Simple line drawing of a mechanical component or housing (no text or symbols)

Simple line drawing of a curved object mounted on a vertical surface (no text or symbols)

Two abstract geometric shapes with curved and angular lines, no text or symbols present

مواجه لأسفل

موجه مباشرة للأمام

AE

Simple line drawing of a symmetrical geometric shape resembling a lens or fan (no text or symbols)

موجه لأعلى

Simple line drawing of a Xiaomi logo with a circular design and base (no text or symbols)

http://www.mi.com/global/service/support/declaration.html

(NFAYAT ALMEODAT ALKEHYPICALS ANDALKETRONIC) EEEW

Line drawing of two hands holding a circular object, no text or symbols present

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure (no text or symbols)

3 lm 25 lm

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a curved object mounted on a vertical surface (no text or symbols)

Simple geometric diagram of a curved shape with a dashed line, no text or symbols present

燈體朝下

黏貼角度 0.5 公尺至 1.5 公尺

Simple line drawing of a symmetrical geometric shape resembling a funnel or wedge (no text or symbols)

燈體平放

黏貼角度低於 0.5 公尺 燈體朝上

Simple line drawing of a curved shape with a rectangular base (no text or symbols)

Simple illustration of a Xiaomi brand CD with a circular top and base (no text or symbols)

F10-B4, Bldg.B, International Innovation Park,

Indirizzo: F10-B4, Bldg. B, International Innovation Park, 1# Keyuanweiyi Rd.,

Laoshan District, Qingdao, 266101, Shandong, Cina

상품업체: Xiaomi Communications Co., Ltd.

제조업체: Qingdao Yeelink Information Technology Co., Ltd.

(Mi 에코시스템 컴퍼니)

주소: F10-B4, Bldg. B, International Innovation Park, 1# Keyuanweiyi

Rd., Laoshan District, Qingdao, 266101, Shandong, China

Manufactured for: Xiaomi Communications Co., Ltd.

Manufactured by: Qingdao Yeelink Information Technology Co., Ltd.

(a Mi Ecosystem company)

Address: 10F-B4, Building B, Qingdao International Innovation Park,

No.1 Keyuan Weiyi Road, Laoshan District, Qingdao City, Shandong

Province, P.R.China

For further information, please go to www.mi.com

1# Keyuanweiyi Rd., Laoshan District, Qingdao, 266101, Shandong, China

1# Keyuanweiyi Rd., Laoshan District, Qingdao, 266101, Shandong, Chine
