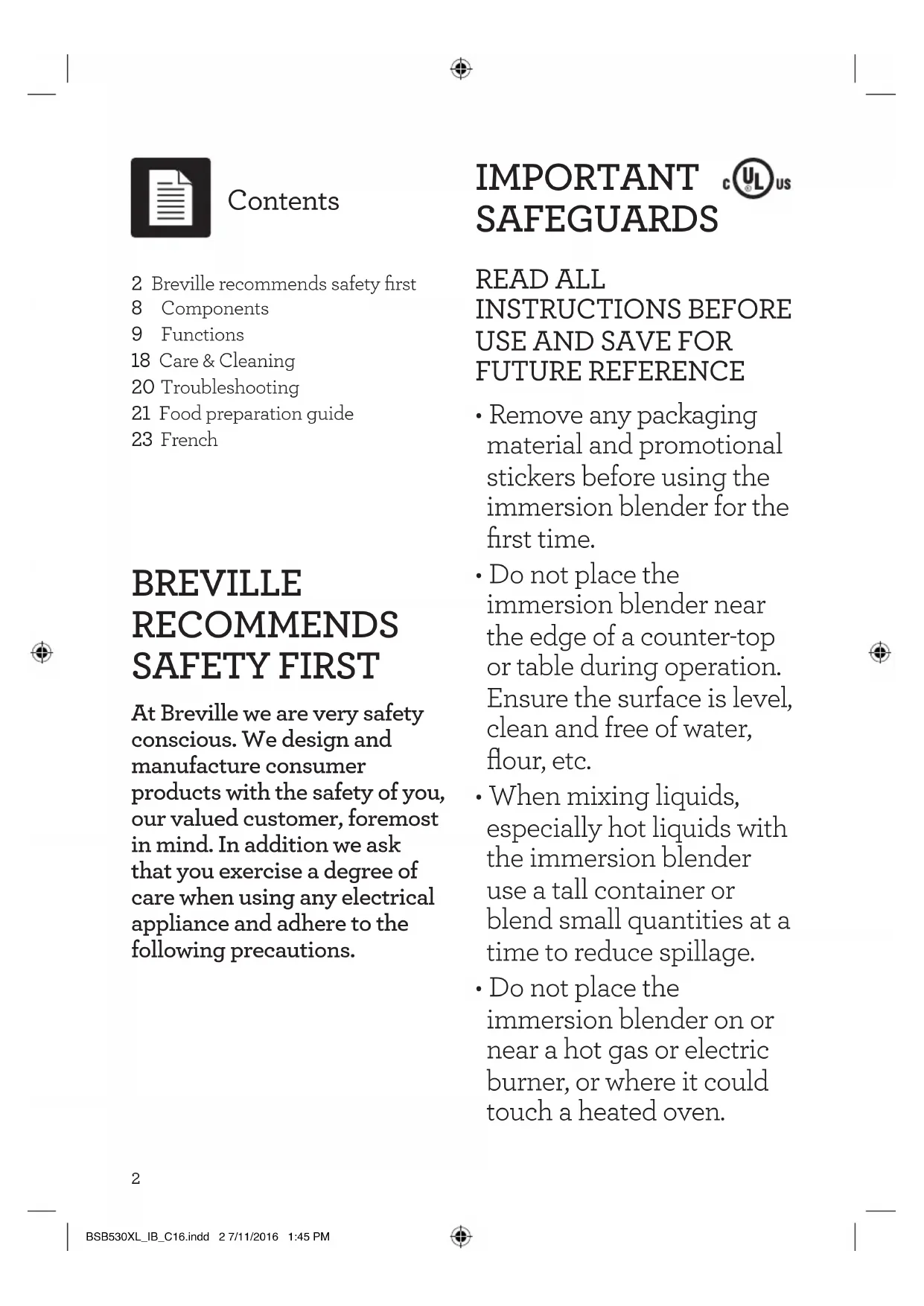

BREVILLE RECOMMENDS SAFETY FIRST

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

• Remove any packaging material and promotional stickers before using the immersion blender for the first time.
• Do not place the immersion blender near the edge of a counter-top or table during operation. Ensure the surface is level, clean and free of water, flour, etc.
• When mixing liquids, especially hot liquids with the immersion blender use a tall container or blend small quantities at a time to reduce spillage.

• Do not place the immersion blender on or near a hot gas or electric burner, or where it could touch a heated oven.

• If using the immersion blender to blend hot food in a saucepan over heat, remove the saucepan from the heat source and ensure the power cord and body of appliance are also kept away from any heat source.

• Blades are sharp. Handle carefully.
  • Take care when handling the immersion blender, attachments and sharp cutting blades, when emptying the bowl and during cleaning. Remember the blades and attachments are very sharp and should be kept out of the reach of children.
  • Always make sure the immersion blender is completely and properly assembled before operating.

• Ensure the immersion blender is turned off and the cord is unplugged from the power outlet before attempting to attach any of the accessories.

• Do not use attachments other than those provided with the immersion blender.
• Do not use the whisk attachment for anything other than its intended use.
• Do not attempt to operate the immersion blender by any method other than those described in this booklet.
• Do not process hot or boiling liquids in food processor bowl – allow liquids to cool before placing into the food processor bowl.

• Do not operate the appliance continuously for more than 1 minute. Allow the motor to rest for 1 minute between each use.

• Never mix dry, thick or heavy mixtures for more than 30 seconds. Stop the operation and stir the ingredients before continuing. Allow the motor to rest for 1 minute between each use.

• When using heavy loads, the appliance should not be operated for more than 30 seconds.
• Keep hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage to the unit. A spatula may be used but must be used only when the unit is not running.
  • Always ensure the immersion blender is turned off and the cord is unplugged from the power outlet before attempting to move the appliance, when not in use, if left unattended and before disassembling, cleaning or storing.

• Always assemble processing bowl lid and insure it is locked into place before use.
- If food becomes lodged around the processing blades or in the blade guard, release the trigger switch and unplug the cord. Use a spatula to dislodge the food. Do not use fingers as the blades are sharp.
- Do not remove the immersion blender from ingredients during operation. Ensure the appliance is off and has stopped before removing, to avoid contact with moving blades or whisk.
- While processing food to reduce the risk of severe injury to persons or damage to the appliance a spatula may be used, but must be used only when the food processor is not running.

• Do not leave the immersion blender unattended when in use.
  • To protect against electric shock do not immerse the motor body, cord or power plug in water or any other liquid.
• Keep the appliance clean. Follow the cleaning instructions provided in this book.
• Do not use the immersion blender with wet hands.
• Do not push food into the feed chute with your fingers or other utensils. Always use the food pusher provided.
• Keep fingers, hands, knives and other utensils away from moving blade and discs.

- Do not place hands or fingers in the processing bowl of the food processor unless the motor, processing blades or disc have come to a complete stop. Ensure the trigger switch has been released to turn the motor off and the power cord is unplugged from the power outlet before removing the lid from the processing bowl.

- The BSB530XL includes several attachments. The rating for this appliance is based on the immersion blending leg and food processor attachments which draw the greatest load. Other included attachments may draw significantly less load during their use.

- The appliance is also fitted with a polarised plug (one blade is wider than the other). To reduce the risk of electric shock this plug will fit in a polarised outlet only one way. If the plug does not fit, contact a qualified electrician. Do not modify the plug in any way.

IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

• Unwind the cord fully before use.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

Do not modify the plug in any way.

• Do not let the cord hang over the edge of a table or counter, touch hot surfaces or become knotted.
  • This appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
• It is recommended to regularly inspect the appliance. Do not use the appliance if power supply cord, plug or appliance becomes damaged in any way. Call Breville Consumer Support for examination, adjustment and/or repair.
• For any maintenance other than cleaning, call Breville Consumer Support.

• This appliance is for household use only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.

BREVILLE ASSIST® PLUG

Your Breville appliance comes with a unique Assist® Plug, conveniently designed with a finger hole to ease removal from the power outlet.

SHORT CORD INSTRUCTIONS

Your Breville appliance is fitted with a short power supply cord to reduce personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord.

If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

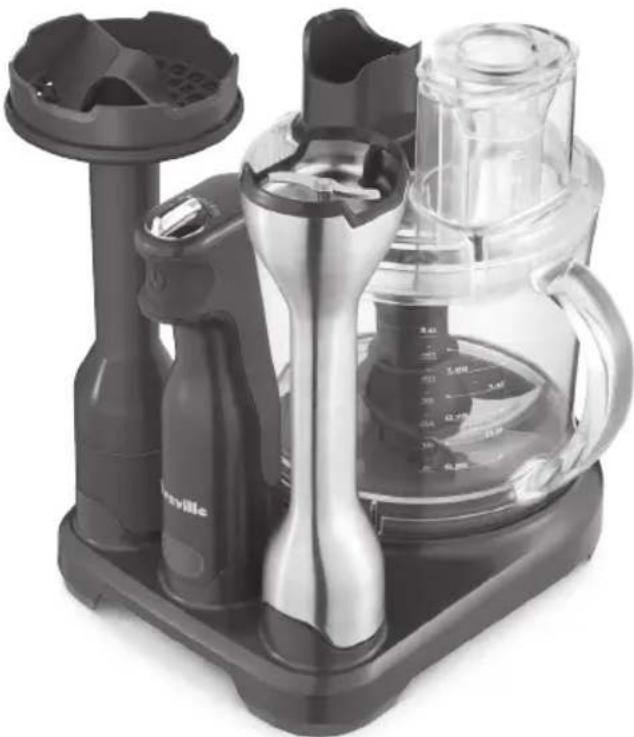

Components

A B C D E F G H I J K

L

M

N

O

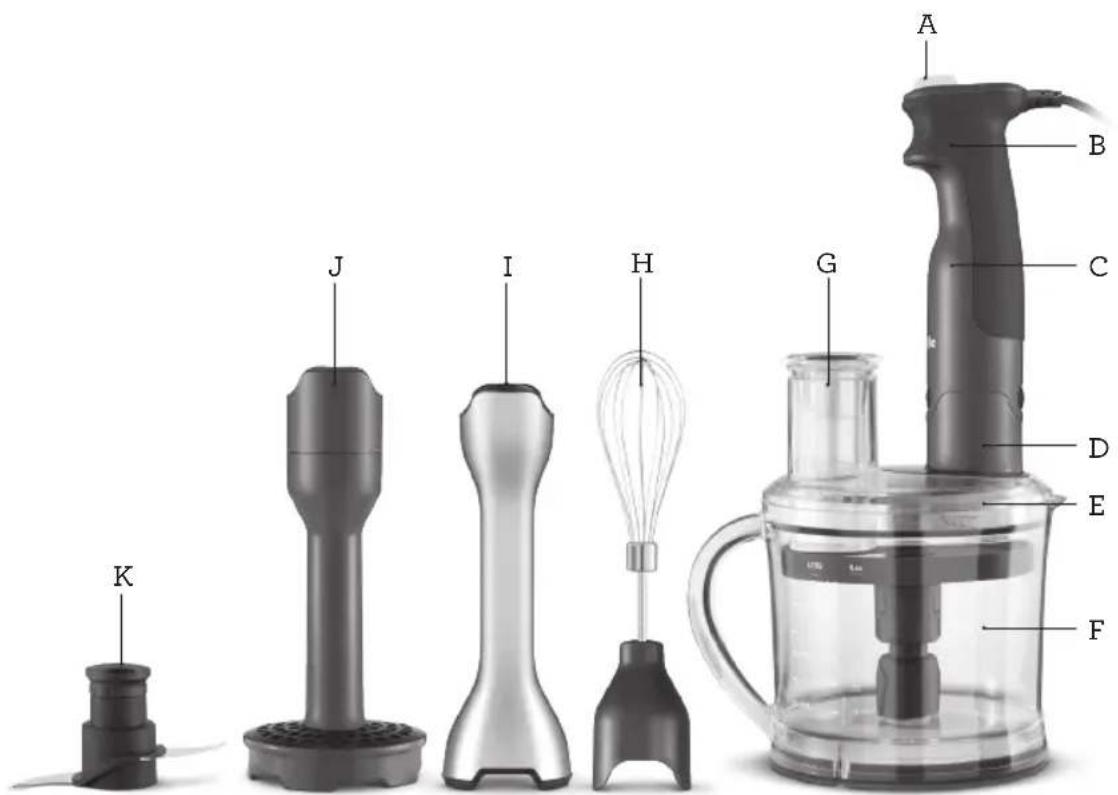

A. Speed Control Dial

B. Easy Grip Trigger Switch

C. Motor Body

D. Processing Gear Box

E. Processing Bowl Lid

F. 6 Cup (1.6L) Processing Bowl

G. Food Pusher & Feed Chute

H. Whisk

I. Stainless Steel Blending Leg

J. Variable Mashing Leg

K. Micro-serrated S Blade™

L. Adjustable Slicing Disc

M. Reversible Shredding Disc

N. Storage Base

O. Spindle

NOT SHOWN

Blade Covers

Functions

BEFORE FIRST USE

Remove any packaging material and promotional labels. Remove the blending leg and wash it in warm soapy water (refer to assembly instructions in this booklet). Rinse and dry thoroughly.

Ensure no water remains inside the blending leg to avoid water running into the motor body when reattached. Disassemble and wash the food processor bowl, bowl lid (ensure that the removable gear box has been removed from the lid prior to washing), whisk, S Blade™, variable mashing leg and adjustable slicing disc in warm soapy water, rinse and dry thoroughly. Ensure no water remains on the chopper bowl lid or whisk attachment to avoid water running into the motor body when reattached.

NOTE

The detachable blending leg, processing bowl (without the gearbox), S Blade™, variable mashing leg and whisk can also be washed in the dishwasher (top shelf only). The whisk gear box, processor gear box and motor body are not dishwasher safe – see the care and cleaning section of this booklet for cleaning instructions of these parts.

This immersion blender is a versatile appliance that can be attached to:

• The stainless steel blending leg – for use as an immersion blender.
• The food processor bowl with S Blade™, adjustable slicing disc, reversible shredding disc - for use as a mini food processor.
• The variable mashing leg – for use in mashing fruits and vegetables.
• The whisk attachment – for use as a hand whisk.

TO ATTACH THE BLENDING LEG

Hold the blending leg with the blades down, and align the top end of the blending leg with the corresponding end of the motor body and push until the blending leg clicks and locks onto the motor body.

Always ensure blending leg is dry, and no water left inside, before reattaching.

Close-up of a hand holding a white handheld device with a metallic screw, showing a downward arrow (no text or symbols visible)

USING AS AN IMMERSION BLENDER

Ensure the blending leg is assembled to the motor body as detailed above.

1. Place food to be processed into a jug (or a sufficiently large mixing bowl or saucepan). The jug should be only be 12 full or less when blending liquids or when making a puree of fruit and/or vegetables.
2. Insert the plug into a 110/120V power outlet and turn the power on.
3. By turning the dial at the top of motor body, select a speed from 1 to 15.

NOTE

If selecting a higher speed, it is recommended that you start on a slow speed and then increase to high speed to avoid splattering and over-processing.

1. Place the blending leg as deeply as possible into the jug and press the trigger switch to turn the immersion blender on. The button must be held for the required duration of operation.

2. Work through the ingredients in the jug with a gentle raising and lowering motion.

3. Turn the motor off by releasing the trigger switch.

4. Ensure the motor has completely stopped before lifting the blender out of the jug.
5. When processing has finished remove the power plug.

TO DETACH THE BLENDING LEG

Ensure the trigger switch is released and the appliance is unplugged. Hold the motor body with one hand, and using thumb and finger of the other hand, press on the two EJECT buttons on either side of the motor body. Pull the motor body away from the blending leg to detach.

Hand holding a white cylindrical device with black arrows pointing to the side (no text or symbols visible)

RECOMMENDATIONS WHEN USING AS AN IMMERSION BLENDER

• The immersion blender blends foods and liquids rapidly, therefore it is easy to over process. Remember when using the blending leg to stop the immersion blender and check food throughout the operation.
• Allow food to cool before blending.
• The stainless steel blending leg allows for hot food to be processed directly in the saucepan. This makes blending soups and sauces very easy.
• For safety reasons remove saucepan away from the heat before processing.
• Ensure the body of the appliance and power cord are kept away from any heat source.

• When puréeing and blending, cut food into uniform sizes. This will ensure smooth and consistent results.

• Warm all liquids to be added to soups and purées, this will ensure even blending.

• Do not operate the appliance continuously for more than 1 minute. Allow the motor to rest for 1 minute between each use.

If food becomes lodged around the processing blade or in the blade guard, follow the following safety instructions:

1. Release the trigger switch to power off and unplug the cord.
2. Use a spatula to carefully dislodge the food. Do not use fingers as the blades are sharp.
3. After the food has been removed and blades are clear, plug the appliance back into the power supply and continue blending.

USING THE FOOD PROCESSOR BOWL

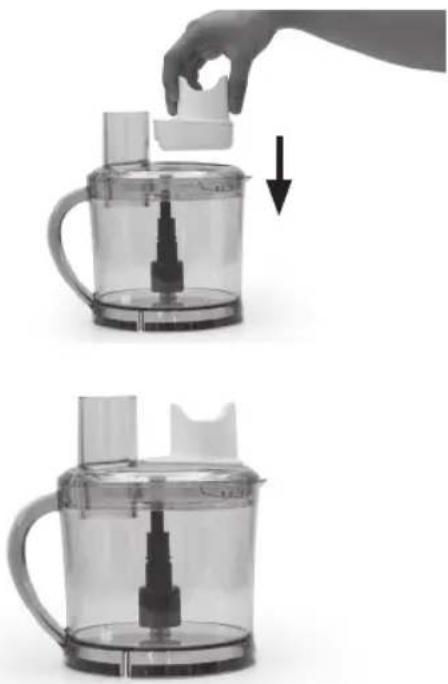

Attaching gearbox to food processing bowl lid

1. Place the gearbox into the food processor lid, it will click into place.

Two-step illustration of a hand placing a small object into a clear container, showing the process (no text or symbols)

1. To attach the motor click it into place on the gearbox.

Hand holding a handheld device with a downward arrow indicating compression or disassembly (no text or symbols visible)

To attach the food processing bowl, food processor attachments and lid

1. Remove the food processing bowl from the storage unit and place onto a counter-top or table ensuring that the surface is clean and level.

2. Choose one of the following food processor attachments:

3. S Blade ^TM

4. Adjustable slicer

5. Reversible shredder

6. There is a common spindle that is used across all of the three food processor attachments.

When using the reversible shredder

1. Place the spindle into the center of the food processing bowl.

Hand pouring liquid into a mug with a downward arrow indicating flow (no text or symbols)

CAUTION

Caution should be taken when handling the shredding disc.

1. Holding the reversible shredding disc, notice that there is a side for coarse shredding and a side for fine shredding. Place the side you require up. Align the hole in the center of the disc with the spindle and ensure that it is pushed down firmly.

Close-up of a hand placing a lid onto a clear container with a downward arrow indicating action (no text or symbols visible)

1. Place the processing bowl lid into position and ensure that it is on correctly aligned and locked into place.

Close-up of a transparent kitchen blender with a handle and internal component (no visible text or symbols)

When using the adjustable slicer

1. Place the spindle into the center of the food processing bowl.

Close-up of a hand using a tool to press or press a small object into a transparent container, with a downward arrow indicating action (no text or symbols visible)

CAUTION

Caution should be taken when handling the adjustable slicing disc.

1. The adjustable slicing disc has 19 precise settings. To adjust the settings hold the adjustable slicing disc by the edge (on the opposite side of the cutting blade) with one hand and turn the rotating collar on the bottom of the disc to the desired setting with the other hand.

Close-up of hands holding a glossy black sphere with a small hole, no visible text or symbols

1. Place the adjustable slicing disc onto the spindle. Ensure that it is pushed down into place.

Hand using a mechanical presser to press a small object into a clear glass container, with a downward arrow indicating motion (no text or symbols visible)

1. Place the processing bowl lid into position and ensure that it is on correctly aligned and locked into place.

Close-up of a transparent kitchen blender with a handle and internal structure (no visible text or symbols)

When using the S Blade™

1. Using care, hold the S Blade ^™ in one hand, with the other hand, place the spindle through the center of the S Blade ^™ from underneath. The blade should self-locate at the base of the spindle. The blade will sit loosely on the spindle but will lock into place during processing.

Hand pressing down on a small container with arrows indicating process (no text or symbols)

CAUTION

Caution should be taken when handling the S Blade ^™ as the blades are extremely sharp.

1. Place the S Blade ^™ and spindle into the center of the food processing bowl.

2. Align and lock the processing bowl lid into place.

Close-up of a kitchen blender with handle and side panel (no visible text or symbols)

Once the blade or disc has been selected for the food processor and you have assembled as listed in the previous instructions, you can now process food.

Place the ingredients inside the processing bowl or in the feed chute (depending on the task). Do not exceed the maximum (MAX) marking. Insert the gear box into the lid of the food processor.

Close-up of a kitchen blender with a handle and lid, showing internal components and a downward arrow (no text or symbols visible)

NOTE

Always place the S Blade™ into the food processor prior to placing the food into the food processor. If using the adjustable slicer or the reversible shredding disc, you are able to assemble the processor before adding ingredients to the bowl. Ingredients used with these discs will need to be added through the small or large feed chute. Some foods, such as nuts, can stop the S Blade™ from engaging the built in safety mechanism. If you have difficulty closing the lid with ingredients such as these we advise to load them through the feed chute after the processor has been fully assembled.

TO USE THE FOOD PROCESSOR

1. Insert the plug into a 110/120V outlet.
2. Select a speed between 1-15 on the speed control dial.

Close-up of hands adjusting a small electronic component with directional arrows (no text or symbols visible)

1. Press the trigger switch to turn the appliance on and start the processing action.

Hand holding a handheld device with a black handle and white body, mounted on a stand (no visible text or symbols)

1. Feed the food through the feed chute of the food processor, using the food pusher to push it down.

Hand placing a glass container into a plastic bottle on a stand, with an arrow indicating the process (no text or symbols visible)

1. When processing has finished turn the motor off by releasing the trigger switch and remove the power plug.
2. Detach the motor from the gear box and remove the lid from the bowl (refer to instructions). Carefully remove the food processing disc or S Blade™ and use a spatula to remove any excess food from the discs or blades and to remove processed food from the bowl.

NOTE

When processing food through the feed chute(s) you must keep pressing the trigger switch in order to keep the motor on.

TO DETACH THE FOOD PROCESSING BOWL AND LID

Ensure the trigger switch is released and the appliance is unplugged.

Hold the motor body with one hand and using thumb and finger of the other hand, press on the two EJECT buttons on either side of the motor body. Pull the motor body away from the processing bowl gearbox to detach.

Hand holding a handheld device with an upward arrow, next to a container (no text or symbols visible)

TO DETACH THE GEARBOX FROM THE LID

Lift the gear box up from the processing bowl lid.

Close-up of a kitchen blender with a handle and lid, showing internal components and a white top component (no text or symbols visible)

RECOMMENDATIONS WHEN USING THE IMMERSION BLENDER WITH THE PROCESSING BOWL

• Do not operate the immersion blender when the processing bowl is empty.
• The bottom of the processing bowl features a anti-slip rubber rim around the bottom of the bowl. This keeps the processing bowl stable, however it is recommended during processing to hold the motor body with one hand and the processing bowl and lid with the other.
• When processing, cut food into uniform sizes to ensure quicker, even and more consistent results.
  • The immersion blender blends foods and liquids rapidly, therefore it is easy to over process. Remember to check food throughout the operation.

CAUTION

• DO NOT process hard foods such as ice, coffee, cereal or chocolate in lumps in the processing bowl, as damage to the blades may result.
- DO NOT process boiling or hot foods in the processing bowl.
- NEVER remove the blades from the bowl before processing is completed.

BEFORE FIRST USE

Remove any packaging material and promotional labels. Wash blade and two parts of the mashing leg before use.

CAUTION

Never immerse the motor body or gearbox in water or any other liquid.

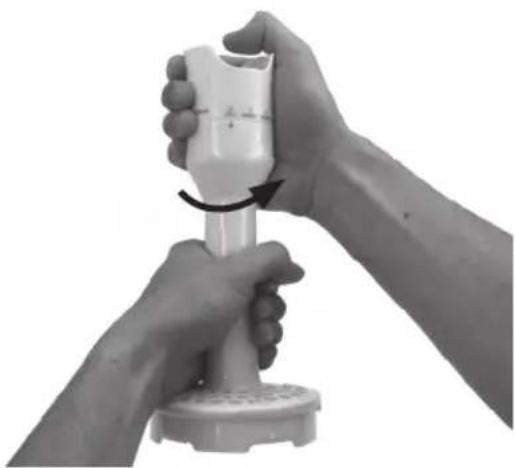

ASSEMBLY OF THE MASHING LEG

1. Hold the outer leg and insert the gearbox making sure ALIGN arrows are aligned.

Close-up of hands holding a white plastic bottle with black arrows indicating downward motion (no text or symbols)

1. Hold both outer leg and gearbox firmly with one hand and insert inner leg until it clicks into place.

Close-up of a hand holding a white cylindrical device with a base, showing mechanical components and an upward arrow (no text or symbols visible)

1. Holding gearbox twist outer leg to lock.

Close-up of hands using a tool to press or adjust a white plastic component, no text or symbols visible

1. Align the mashing leg with the motor body and push the two parts together until it clicks.

Close-up of a hand holding a white electric toothbrush with a perforated circular component, showing mechanical adjustment (no text or symbols visible)

1. Place blade on underside of the mashing head. To lock the blade rotate in a counterclockwise direction. Blade will not attach if the leg is not attached to the motor body.

Close-up of hands holding a white plastic object with a black clip, no visible text or symbols

TO USE THE VARIABLE MASHING LEG

For food preparation tips and recipes refer to the recipes section. Ensure the variable mashing leg is completely and properly assembled.

1. Place food to be mashed into a blending jug or a sufficiently large mixing bowl or container.
2. Insert the plug into a 110/120V power outlet.
3. Select the desired setting on the variable mashing leg.
4. Select a high speed on the speed control dial of the motor.
5. Place the variable mashing leg into ingredients and press the trigger switch to turn the mashing leg on.
6. Move the mashing leg through the ingredients with a gentle raising and lowering action until desired texture is achieved.
7. Turn the motor off by releasing the trigger switch before lifting the mashing leg out of the bowl and remove the power plug.

TO DETACH THE VARIABLE MASHING LEG

Ensure the trigger switch is released and the appliance is unplugged.

Hold the motor body with one hand, and, using thumb and finger of the other hand, press on the two EJECT buttons on either side of the motor body. Pull the motor body away from the mashing leg to detach.

Hand holding a white cylindrical device with black arrows pointing to the side (no text or symbols visible)

RECOMMENDATIONS WHEN USING WITH THE VARIABLE MASHING LEG

• Release the trigger switch and ensure the mashing leg has completely stopped turning before removing the mashing leg from the food during operation.
• Place the mixing bowl on a damp cloth during mashing. This will keep the mixing bowl stable.

USING AS A WHISK

Remove blending leg from motor body (follow the instructions "To detach the blending leg"). Align the top end of the whisk gearbox with the corresponding end of the motor body and push until the gearbox clicks into place. Align the shaft of the whisk with the hole in the gearbox and push until the whisk clicks and locks into place.

Close-up of a hand holding a white cylindrical device with a downward arrow indicating motion (no text or symbols visible)

TO USE THE WHISK

For food preparation tips and recipes refer to the recipes section. Ensure the whisk is completely and properly assembled.

1. Place food to be processed into a blending jug or a sufficiently large mixing bowl or container.
2. Insert the plug into a 110/120V power outlet.
3. Select a speed between 1-15 on the speed control dial.
4. Place the whisk into ingredients and press the trigger switch to start whisking.
5. Move the whisk through the ingredients with a gentle raising and lowering action until desired texture is achieved.
6. Turn the motor off by releasing the trigger switch before lifting the whisk out of the bowl remove the power plug.

TO DETACH THE WHISK

Ensure the trigger switch is released and the appliance is unplugged. Hold the motor body with one hand, and, using thumb and finger of the other hand, press on the two EJECT buttons on either side of the motor body. Pull the motor body away from the whisk to detach.

RECOMMENDATIONS WHEN USING THE WHISK ATTACHMENT

• Do not allow the whisk to touch the bottom or sides of mixing bowl while the appliance is in operation, as this may damage the whisk.
• To incorporate air into the ingredients when whisking, use a deep and wide enough container for the amount of ingredients and move the whisk with a gentle raising and lowering action.
• Release the trigger switch and ensure the whisk has completely stopped turning before removing the whisk from the food during operation.
• Place the mixing bowl on a damp cloth during whisking. This will keep the mixing bowl stable.
  • Always use fresh chilled cream and fresh eggs at room temperature to achieve greater and more stable volume when whisking.
  • Always ensure the whisk and mixing bowl are completely clean and free of fat before whisking egg whites.
• It is recommended to use the highest speed when whisking egg whites and cream.

Hand holding a white cylindrical device with black arrows pointing to the handle (no text or symbols visible)

Care & Cleaning

MOTOR BODY

To remove any food residue wipe the motor body and cord with a damp cloth only. Do not use abrasive cleaners or steel wool. Never immerse the motor body in water or any other liquid. Do not place motor body in dishwasher.

BLENDING LEG

Before cleaning remove the plug from the power outlet. Remove the motor body from the stainless steel blending leg. The stainless steel blending leg can be hand washed in hot soapy water, rinsed and dried thoroughly after each use. Alternatively, the blending leg can also be washed in the dishwasher. (TOP SHELF ONLY) Do not use abrasive cleaners or steel wool.

QUICK WASH: Between each processing task, with the motor body attached place the stainless steel blending leg and blade assembly only in to a jug of water and press the trigger switch to turn on for 5 seconds. This will remove any food on the blade and leg and allow you to continue onto the next processing task.

FOOD PROCESSING BOWL, FOOD PROCESSING BOWL LID, S BLADE™, ADJUSTABLE SLICING DISC & REVERSIBLE SHREDDER

Before cleaning remove the plug from the power outlet. Remove the motor body from the food processing bowl lid and gear box. Remove the food processing bowl lid and S Blade ^™ or processing disc from the food processing bowl.

NOTE

The processing bowl lid is dishwasher safe. Simply remove the removable gear box from the lid prior to placing in the dishwasher.

The food processing bowl, bowl lid, S Blade ^™ and processing discs should be hand washed in hot soapy water, rinsed and dried thoroughly after each use. Alternatively, the food processing bowl, bowl lid, S Blade ^™ , adjustable slicing disc and reversible shredder can also be washed in the dishwasher (TOP SHELF ONLY). The S Blade ^™ comes with a cover for your safety. This cover can be used on the blade in the dishwasher. Do not use abrasive cleaners or steel wool.

CARE & CLEANING OF THE GEARBOX

The gearbox should always be removed from the lid prior to any cleaning.

The gearbox simply lifts out of the lid by pulling it up.

Hand placing a small white object into a clear kitchen blender with an upward arrow indicating motion (no text or symbols)

NOTE

The gear box is not dishwasher safe and should never be immersed in liquid at all.

To clean the gearbox, remove from the lid and wipe down with a damp cloth only. Do not use abrasive cleansers or steel wool.

Before cleaning remove the plug from the power outlet. Remove the motor body and mashing leg gearbox from the mashing leg. The mashing leg can be hand washed in hot soapy water, rinsed and dried thoroughly after each use.

TO DISASSEMBLE THE VARIABLE MASHING LEG

1. Ensure the motor is unplugged and attached to the mashing leg. Remove the mashing blade that is found under the base of the leg by turning it clockwise.

Close-up of hands holding a white plastic container with a black clip, showing a curved arrow indicating rotation (no text or symbols visible)

1. Disassemble the gear box from motor body, then turn the mashing leg to align and remove the inner and outer legs from the gear box together.

Close-up of hands performing a mechanical press or stamping operation on a perforated surface (no text or symbols visible)

1. Lift the outer leg up to separate from the inner leg.

Close-up of two hands holding a white object with a cylindrical object, showing a double-headed arrow indicating vertical motion (no text or symbols)

Both of the legs can now be washed in hot soapy water, then rinsed and dried thoroughly. Alternatively, the mashing leg can be washed in the dishwasher (TOP SHELF ONLY).

CAUTION

Do not use abrasive cleaners or steel wool.

NOTE

Mashing leg gear box is not dishwasher safe.

WHISK

Before cleaning remove the plug from the power outlet. Remove the motor body from the whisk and the gearbox from the whisk. The whisk can be hand washed in hot soapy water, rinsed and dried thoroughly after each use. Alternatively, the whisk can also be washed in the dishwasher. (TOP SHELF ONLY) Do not use abrasive cleaners or steel wool. Whisk gear box is not dishwasher safe.

STORAGE

Before storage remove the plug from the power outlet. Ensure the appliance is clean and completely dry.

Insert assembled S Blade™ and spindle into the processing bowl, then place the reversible shredder on the spindle. Align and lock the processing bowl lid to the processing bowl and place processing bowl onto the storage unit with all of the accessories on the built in accessory holders.

Black and white photo of a cleaning or cleaning tool holder with a glass container (no visible text or symbols)

NOTE

The adjustable slicing disc is stored under the food processing bowl, make sure that the adjustable blade is set to STORAGE POSITION.

Troubleshooting

PROBLEM SOLUTION

Blades don’t turn when processing.	• May be too much food in bowl; reduce quantity.• Pieces of food, such as meat are too large, reduce size.
Unable to lock lid into place.	• Spindle may be out of position. Remove lid, straighten spindle as vertical as possible and reposition lid.• Food may stuck underneath the S BladeTM preventing the lid from being locked into place. Food such as nuts can be loaded through the feed chute.
Gear box in lid jumps out of lid when processing.	• Replace gear box and ensure that the control grip is held vertically and firmly.
Mashing leg won’t attach onto mashing leg gear box.	• Ensure mashing leg and gear box arrow graphics are vertically aligned. Twist mashing leg counter-clockwise to lock for use.
Blades won’t remove from mashing leg.	• Mashing leg should still be assembled to the gear box assembly and to the unplugged motor body. Rotate blades clockwise.
Shredding disc slows down when in use.	• Shredding has exceeded Max level. Empty bowl and continue to shred.• Too much force is being used when shredding. Reduce force when pushing.
Processing bowl does not sit flat on storage base.	• Ensure adjustable slicing disc is set to ‘Storage Position’.
Motor sounds like it is not able to process load.	• Speed may not be correct. Refer to processing guide for correct speeds.

Food Preparation Guide

FOOD TYPE ATTACHMENT TYPE		DISK TYPE SPEED SETTING	BLADE THICKNESS	RECOMMENDED QUANTITY
Carrot	Food Processor Shredder fine 9-13 1-2 carrots at a time,			depending on size
	Food Processor Shredder coarse 9-13 1-2 carrots at a time,			depending on size
	Food Processor Adjustable slicer 9-13 1-6mm 1-2 carrots at a time,			depending on size
Zucchini	Food Processor Shredder fine 11-15 1-2 zucchini at a time,			depending on size
	Food Processor Shredder coarse 11-15 1-2 zucchini at a time,			depending on size
	Food Processor Adjustable slicer 9-13 1-6mm 1-2 zucchini at a time,			depending on size
Cucumber	Food Processor Adjustable slicer 9-13 2-5mm 1-2 cucumber at a time,			depending on size
Tomato	Food Processor Adjustable slicer 9-11 4-6mm Use firm tomatoes
Cabbage	Food Processor Adjustable slicer 9-11 2-6mm Cut to size to fit chute
	Food Processor Shredder coarse 11-15 Cut to size to fit chute
Leek	Food Processor Shredder slicer	9-13 2-6mm White part only
Onion	Food Processor Adjustable slicer 9-13 2-6mm Cut in half to fit in chute
	Food Processor S BladeTM	15		Cut in 1⁄4 for pulse processing
Chicken (boneless breast/thigh fillets)	Food Processor S BladeTM	15		1.5lb (700g) max cut into 1 inch cubes
Lean Beef	Food Processor S BladeTM	15		1.5lb (700g) max cut into 1 inch cubes
Lean Pork	Food Processor S BladeTM	15		1.5lb (700g) max cut into 1 inch cubes
Fish Fillets	Food Processor S BladeTM	15		1.5lb (700g) max cut into 1 inch cubes
Cheddar	Food Processor Shredder fine 15 Must be well chilled
	Food Processor Shredder coarse 15 Must be well chilled
Mozzarella	Food Processor Shredder coarse 15 Place in freezer for 20 minutes before grating
Parmesan	Food Processor Shredder fine 15 Must be well chilled; rind removed
	Food Processor Shredder coarse 15 Must be well chilled; rind removed
FOOD TYPE	ATTACHMENT TYPE	DISK TYPE SPEED	BLADE	RECOMMENDED
		SETTING	THICKNESS	QUANTITY
Milkshakes, smoothies, fruit frappes, cocktails	Blending Leg 11-15 Use chilled milk. Blend			for 30 seconds at a time
Soups, baby food	Blending Leg 11-15 Blend until smooth,			checking desired consistency every 30 seconds
Ice	Blending Leg-Do not use Processing Bowl	15 Crush ice for 20-30		seconds
Cream	Whisk 11-15 Whisk for 1 minute at a			time, rest for 1 minute between each use
Nuts	Food Processor S BladeTM 15 9oz (250g) for			30 seconds at time until desired consistency is achieved.Wait 30 seconds between each interval.
Bread Crumbs	Food Processor S BladeTM 15 2-3 slices cut into			quarters
Cookie Crumbs	Food Processor S BladeTM 15 9oz (250g) max
Cooked Fruits or Vegetables	Variable mashing leg 15 Mash to desired			consistency

the All In One™

Manuel d'instructions - BSB530XL

Black and white photo of a Keville brand blender with clear glass and mechanical components (no visible text or symbols)

Breville®

Table des matières

A B C D E F G H I J K

L

M

N

O

Close-up of a hand holding a white handheld device with a black handle, showing a downward arrow (no text or symbols visible)

UTILISER COMME MÉLANGEUR À IMMERSION

Hand holding a white cylindrical device with a black arrow pointing to the left side (no text or symbols visible)

Hand placing a small white object into a clear container with a black arrow indicating downward motion (no text or symbols)

Close-up of a transparent kitchen blender with a black plastic component inside (no visible text or symbols)

Hand holding a handheld device with a downward arrow indicating compression or disassembly (no text or symbols visible)

Hand pouring liquid into a mug with an arrow indicating downward motion (no text or symbols)

ATTENTION

Close-up of a hand pressing down on a small container with a downward arrow indicating action (no text or symbols visible)

Close-up of a transparent kitchen blender with a handle and internal component (no visible text or symbols)

Close-up of a hand using a tool to press or press a small object into a clear glass container, with a downward arrow indicating action (no text or symbols visible)

ATTENTION

Close-up of hands holding a glossy black sphere with a small hole, no visible text or symbols

Hand using a mechanical presser to lift a cylindrical object into a clear container, with a downward arrow indicating motion (no text or symbols visible)

Clear kitchen blender with handle and side panel (no visible text or symbols)

Hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

ATTENTION

Close-up of a transparent kitchen blender with handle and side panel (no visible text or symbols)

Close-up of a kitchen blender with a handle and lid, showing internal components and a downward arrow (no text or symbols visible)

NOTE

Close-up of hands adjusting a white plastic component with arrows indicating rotation (no text or symbols visible)

Hand holding a handheld device with a black handle and white body, no visible text or symbols

Hand placing a glass container into a plastic bottle on a tray, with an arrow indicating the process (no text or symbols visible)

Hand holding a handheld device with an upward arrow, next to a small container (no text or symbols visible)

POUR DÉTACHER LA BOÎTE D'ENGRENAGE DU COUVERCLE

Close-up of a kitchen blender with a handle and lid, showing internal structure and a white top component (no text or symbols visible)

RECOMMANDATIONS POUR UTILISER LE MÉLANGEUR À IMMERSION AVEC LE BOL MÉLANGEUR

Close-up of hands holding a white plastic cup with black arrows indicating force or movement (no text or symbols)

Close-up of a hand holding a white cylindrical device with a base, showing a force or motion indicator (no text or symbols visible)

Close-up of hands using a handheld device to press or install a white plastic bottle (no text or symbols visible)

Close-up of a hand holding a white cylindrical tool with a perforated circular component, being pointed at by an arrow (no text or symbols visible)

Close-up of hands holding a small transparent object with a curved arrow indicating rotation (no text or symbols visible)

POUR UTILISER LE PIED PRESSE-PURÉE VARIABLE

Hand holding a white cylindrical device with black buttons, showing a finger pressing a button (no text or symbols visible)

RECOMANDATIONS POUR UTILISER LE PIED PRESSE-PURÉE VARIABLE

Close-up of a hand holding a white cylindrical object with a downward arrow indicating motion (no text or symbols visible)

POUR UTILISER LE FOUET

Hand holding a white cylindrical device with black arrows indicating direction (no text or symbols visible)

RECOMANDATIONS POUR UTILISER LE FOUET

Hand placing a white object into a clear container with an upward arrow indicating motion (no text or symbols)

NOTE

Close-up of hands holding a white plastic container with a black clip, showing a curved arrow indicating rotation (no text or symbols visible)

Close-up of hands performing a mechanical press or stamping operation on a white cylindrical object, with arrows indicating motion direction (no text or symbols visible)

Close-up of hands holding a white plastic tool with a cylindrical component, showing a double-headed arrow indicating vertical motion (no text or symbols)

Black and white photo of a laboratory filtration setup with glassware and a stand (no visible text or labels)

NOTE

Breville Consumer Support

USA

Mail: Breville USA 19400 S. Western Ave Torrance CA 90501-1119

Phone: [phone]-BREVILLE

Email: [e-mail]

Canada

Mail: Breville Canada 3595 boulevard Côte-Vertu, Saint-Laurent, Québec H4R1R2

Phone: [phone]

Email: [e-mail]

Web: www.breville.ca/supportWeb: www.breville

Breville®

Thought for food

Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928. Copyright Breville Pty. Ltd. 2016.

Due to continued product improvement, the products illustrated/photographed in this booklet may vary slightly from the actual product.

BSB530XL C16
