ALGEMENE INFORMATIE

Diagram showing a device with labeled buttons and a circular diagram below indicating a numeric display or measurement.

L = Verlichting
1 = Snelheid 1
2 = Snelheid 2
3 = Snelheid 3
4 = Snelheid 4

Technical diagram of a ceiling structure with labeled components and directional arrows indicating assembly or movement.

Technical diagram showing a ceiling structure with labeled components and an inset magnified view of a component detail.

Technical diagram of a ceiling structure with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a roof structure with a magnified inset showing a component detail (no text or symbols)

Technical diagram of a ceiling structure with labeled components and directional arrows indicating assembly or movement.

• Please read these operating instructions carefully. They contain information about installation, operation, safety and maintenance you need to be aware of.
  • This hood is for domestic use only.
• It is recommended to have the installation done by a qualified professional. Any damage due to faulty or unprofessional installation relieves the manufacturer of any form of responsibility.
• Check the condition of the hood and the installation material before installing. Carefully remove the hood out of the packaging. Be careful not to use sharp knives to open the box.
• Please keep these instructions to pass on to future users.

- Disposal of transport packaging and old appliance

Your new appliance was sent to you in protective packaging. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. This appliance is identified according to the European Directive 2002/96/EC on waste electrical and electronic equipment. Please ask your dealer or inquire at your local authority about current means of disposal.

- Technical problem

In case of technical problems please contact Novy Service Department:

For Belgium: Tel.: [phone]

For France: Tel.: [phone]

For Germany: Tel.: [phone]

For all other countries: your local installer or Novy Belgium: +32 (0)56/36.51.02

Please supply us with the model number of your hood. The model number can be found on the engraved plaque behind the filter.

You can make a note of the number here: ....

- For all remarks or questions to which this manual doesn't answer please contact our Customer Service:

For Belgium: Tel.: [phone]

For France: Tel.: [phone]

For Germany: Tel.: [phone]

For all other countrys: your local installer or Novy Belgium: +32 (0)56/36.51.02

Use

NOTE: These operating instructions apply to several appliance models It is possible that individual features are described which do not apply to your appliance.

When using a hood sufficient air flow is necessary. However large your kitchen may be, there is only so much air available in that space. Opening a door or window or the installation of a ventilation grid close to the hood insures a good quality of air flow.

Insufficient air flow will impair the extraction efficiency of your hood immensely.

Insufficient air flow can cause reflux from other air ducts such as chimneys or combustion appliances.

When using a cooker hood and appliances using energy other than electrical in the same space, the pressure in the room may not surpass 4 Pa (=0.04mBar).

Safety

• Deep frying under the hood is only allowed under constant supervision.
• Under no circumstances is it allowed to flambé under the hood.
  • In case of fire always switch off the hood.
• Never extinguish burning fat or oil with water. Cover the pot with a well fitting lid or a burn-blanket.

Advice

For maximum efficiency please follow this advice:

• When cooking make sure pots are positioned properly under the hood surface.
• Activate the hood a few minutes prior to cooking.
• Switch the hood off 10 minutes after cooking is finished (delay function if present).
• Avoid drafts under the hood surface.
• When using induction: adapt the intensity of both hob and hood to the lowest possible level in order to avoid excessive creation of damp fumes.

Operation

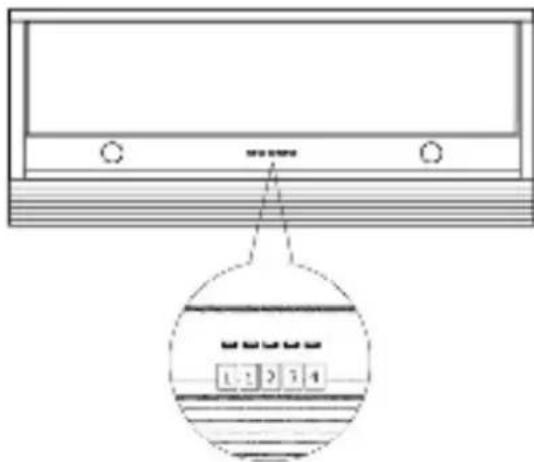

Diagram showing a device with labeled buttons and a circular diagram below indicating a numeric display.

L = Lights
1 = Speed level 1
2 = Speed level 2
3 = Speed level 3
4 = Speed level 4

Switch on - switch off

You can switch on the motor with key 1. You can only start and stop the motor with this key.

Levels of intensity

The hood has 4 speed levels. With buttons 1 to 4 you can choose the speed level. The illuminated buttons shows the level in use

Illumination

you can switch on and off the illumination as soon as the drawer is opened.

Maintenance

Access to the filter

The hood is equipped with on or two metal grease filters, which, according to the frequency of use, have to be cleaned at least every month.

Access to the grease filter

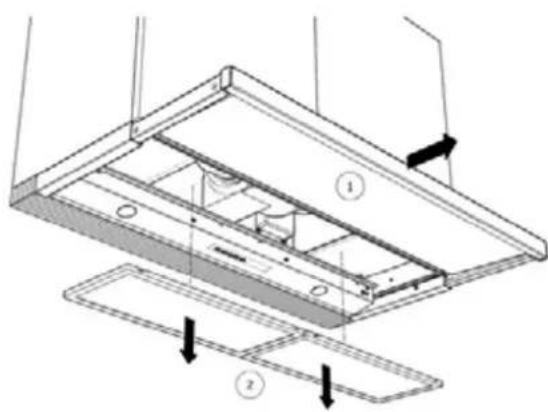

The grease filters can be taken out of the hood by opening the drawer (1). The grease filter has been placed behind this. The type 650 has 1 metal grease filter and type 655 has 2 grease filters. You can remove the filter by pulling the handle in the filter (2).

Technical diagram of a ceiling structure with labeled components and directional arrows indicating assembly or movement.

Protect the cooking plate. You can take the grease filter out of the hood by pulling the handle that has been placed on the filter. The filter will come down.

Cleaning the filter:

• in the dishwasher
- manually: in a hot solution of water and a liquid detergent. Rince and allow to dry completely

Important! The previous instructions need to be followed. If not an increased fire hazard may occur.

Maintenance of the hood

Please allow the lights to cool down sufficiently before cleaning the hood.

Use a soft, wet cloth and a mild detergent to clean the hood.

Never use aggressive, abrasive detergents or sponges. Bleach will damage stainless steel.

The stainless steel surfaces can be treated with Novy Inoxcleaner (906.060) after cleaning.

Replacing the lamps

First take the plug from the wall socket or switch off the power group. Let the lamps cool down sufficiently before replacing them.

60000

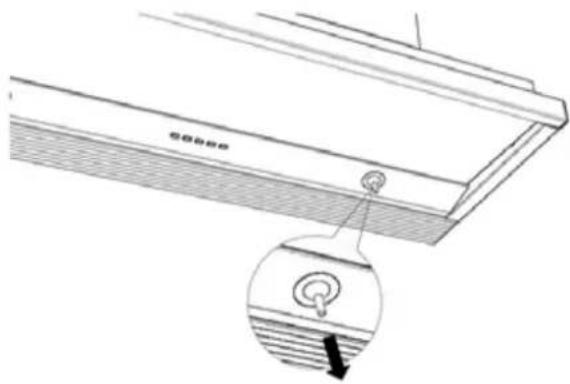

A suction cup for removing the lamps has been delivered with the hood. Place the suction cup onto the halogen spot and draw it towards you. The lamp will now come out. You can also install the new lamp using the suction cup.

Electrical connection

Electrical output: electrical cord + plug with ground. To be plugged into socket with ground. Check for compatibility with information on type plate (behind filter).

Socket must be within reach.

Changes or replacement of the electrical cord should be performed by a professional only.

Dimensions: p. 14

Electrical scheme: p. 15

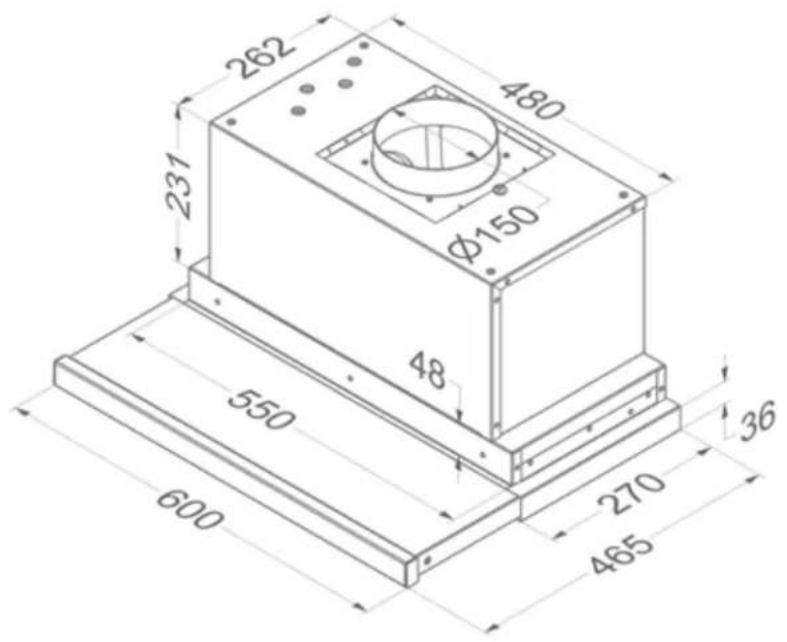

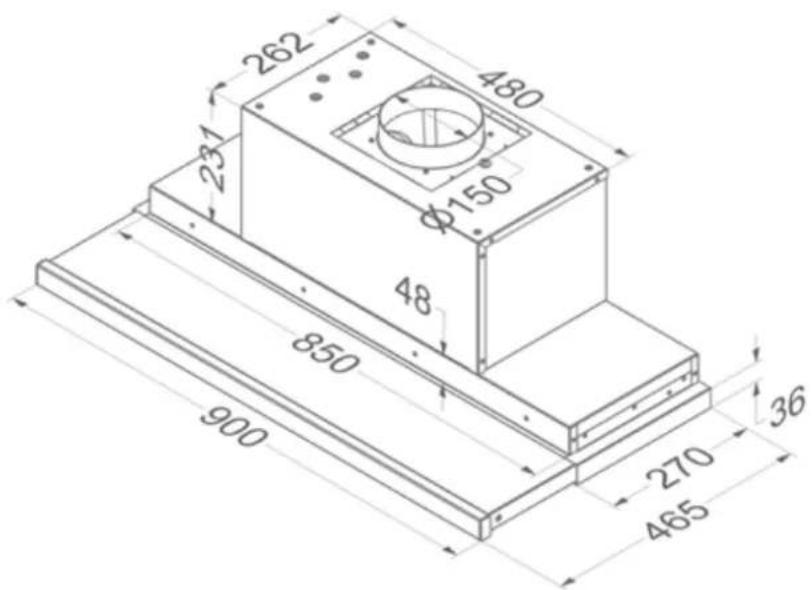

Afmetingen - Dimensions - Abmessungen - Dimensions

262 480 231 Ø150 48 550 36 600 270 465

650

262 480 231 Ø150 48 850 900 36 270 465

655
