USER MANUAL the Juice Fountain Crush BJS600XL BREVILLE

Phone: Customer Service 1-(855)-683-3535

Email: Customer Service: [e-mail]

www.breville.com

Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98000 092 928. Copyright Breville Pty. Ltd. 2012.

Due to continued product improvement, the products illustrated/photographed in this booklet may vary slightly from the actual product.

Model BJS600XL Issue - F12

Breville

the Juice Fountain™ Crush

on the purchase of your Breville product

Register online for product support and exclusive offers.*

USA Consumers: www.brevilleusa.com

Canadian Consumers: www.breville.ca

CONTENTS

4 Breville recommends safety first
6 Know your Breville product
8 Assembling your Breville product
12 Operating your Breville product
15 Disassembling your Breville product
17 Care & cleaning
19 Troubleshooting
22 French

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAvE FOR FUTURE REFERENCE

When using electrical appliances, basic safety precautions should always be followed including the following:

• Carefully read all instructions before operating the appliance for the first time and save for future reference.
• Remove and safely discard any packaging materials and promotional labels before using the appliance for the first time.
  To protect against electrical shock, do not immerse the power cord, power plug or motor base in water or any other liquid.
  Always use the appliance on a dry, level surface.
• Do not use the appliance on a sink drain board.
• Do not place the appliance near the edge of a counter-top during operation. Vibration during operation may cause the appliance to move.
• Do not place the appliance on or near a hot gas or electric burner, or where it could touch any other source of heat.
  Unwind the power cord fully before use.
• Do not allow the power cord to hang over the edge of a table or counter, touch hot surfaces or become knotted.
  Always ensure the appliance is completely assembled before connecting to the power outlet and operating. The appliance will not turn on unless properly assembled. Follow the instructions provided in this book.

Always make sure to close the lid aligned to lock position before the motor is turned on. Do not move the lid from the locked position while the appliance is in operation.
Always avoid contact with moving parts.
- Strictly follow the care and cleaning instructions described in this book.
- This appliance is for household use only. Do not use the appliance for anything other than its intended purpose as described in this book. Do not use outdoors. Do not use in moving vehicles or boats.
The use of attachments not sold or recommended by Breville may cause fire, electric shock or injury.
- Do not leave the appliance unattended when in use.
- Do not operate the juice extractor without the pulp container in place
- Do not use the juice extractor if the rotating filter basket is damaged.
- Do not put your fingers or other objects into the juicer opening while it is in operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push it down. When this method is not possible, turn the motor off and disassemble the juicer to remove the remaining food.
- Do not load feed chute with food before the motor is running.
- Do not juice stone fruit unless seeds and/or stones have been removed.
- Do not operate juicer longer than 20 seconds before inserting ingredients.

Always turn the juice extractor off after each use. Ensure the motor stops completely and unplug the power cord from the wall outlet before attempting to move the appliance, before cleaning, disassembling, assembling and when storing the appliance.
- Close supervision is necessary when any appliance is used by or near children.
- It is recommended to regularly inspect the appliance. To avoid a hazard do not use the appliance if power cord, power plug or appliance becomes damaged in any way or if appliance malfunctions. Immediately cease use and call Breville Consumer Service for adjustment, replacement, or repair.
- For any maintenance other than cleaning, call Breville Consumer Service.

SHORT CORD INSTRUCTIONS

Your Breville appliance is fitted with a short power supply cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Do not allow children to use or be near this appliance without close adult supervision. Longer detachable power supply cords or extension cords are not recommended but may be used if care is exercised. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug.

SAvE THESE INSTRUCTIONS

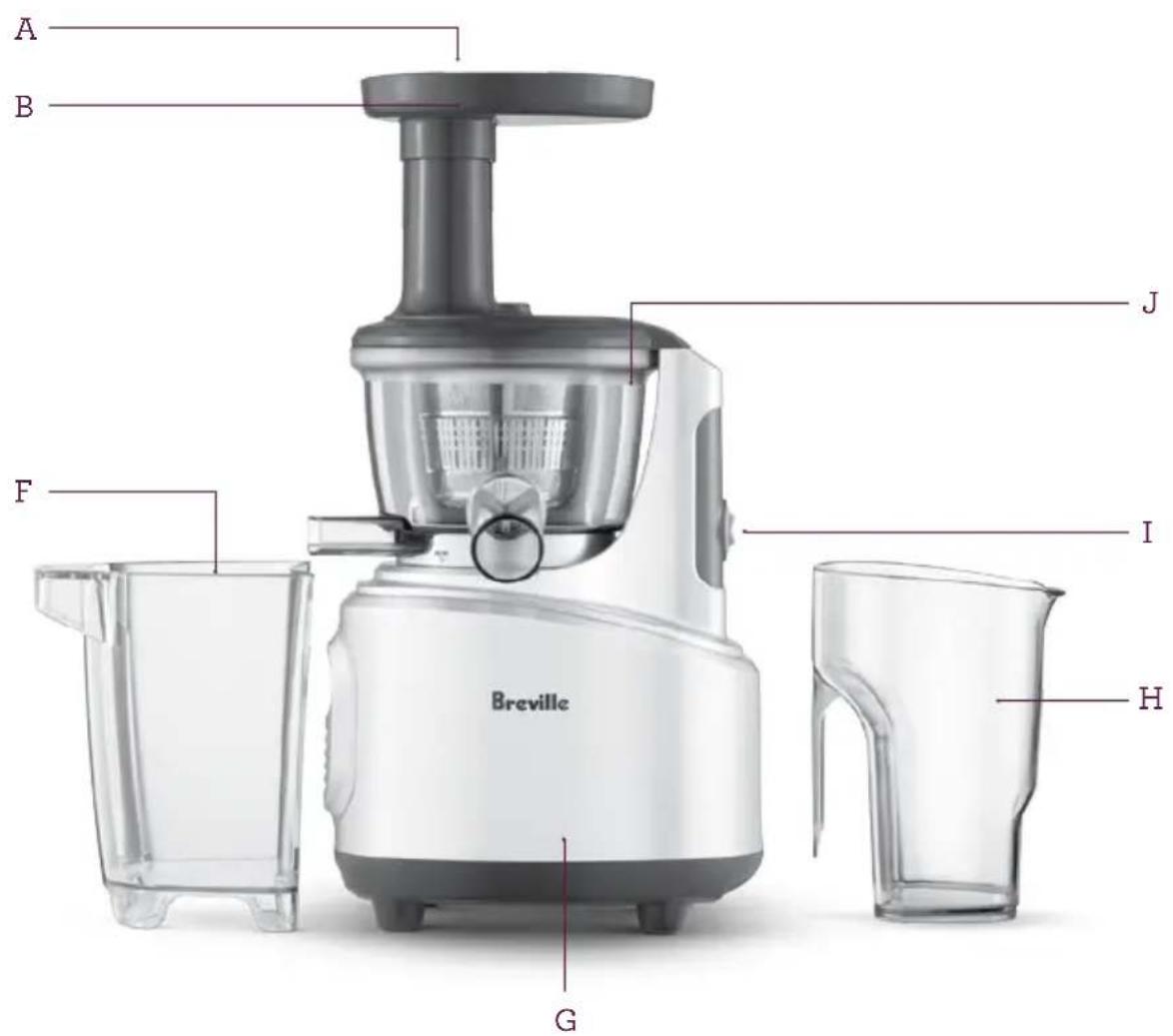

KNOW

your Breville product

A. Food pusher
B. Hopper and lid
C. Juicing screw
D. Filter basket
E. Scaper wiper

F. Pulp container
G. Motor base
H. Juicing jug
I. ON|Off|Reverse
J. Juicing bowl

ASSEMBLING

your Breville product

ASSEMBLING YOUR BREVILLE PRODUCT

BEFORE FIRST USE

Before using the Juice Extractor for the first time, remove and safely discard any packaging material and promotional labels. Ensure the power cord is unplugged from the wall outlet.

Wipe the Motor Base with a damp cloth. Dry thoroughly.

Wash the Filter Bowl Surround, Filter Basket, Juicer Cover, Food Pusher, Juice Jug and Pulp Container in warm soapy water with a soft cloth or nylon brush. Rinse and dry thoroughly.

NOTE

These parts are not dishwasher safe.

1. Place the Motor Base on a flat dry surface such as a counter-top. Ensure the power cord is unplugged from the wall outlet.

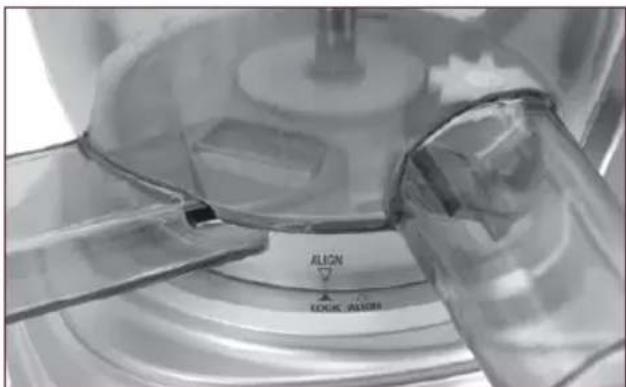

2. Place the filter bowl surround on top of the motor base. Align the arrows to the ALIGN position then turn slightly to the left to the ALIGN/LOCK (closed) position.

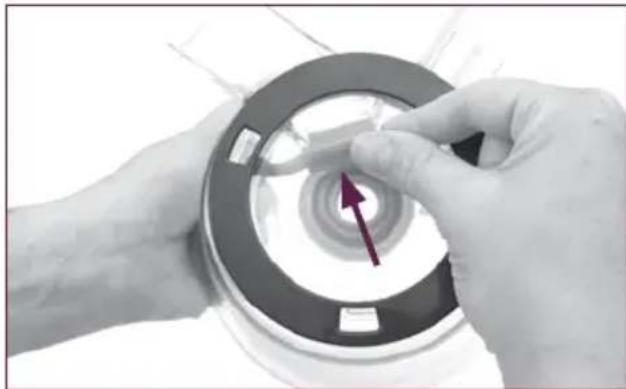

1. Underneath the Filter Bowl Surround is the pulp extraction silicon, which is used to remove the pulp from the spout of the juicing bowl. Ensure that the silicon is firmly inserted into the juicing spout.

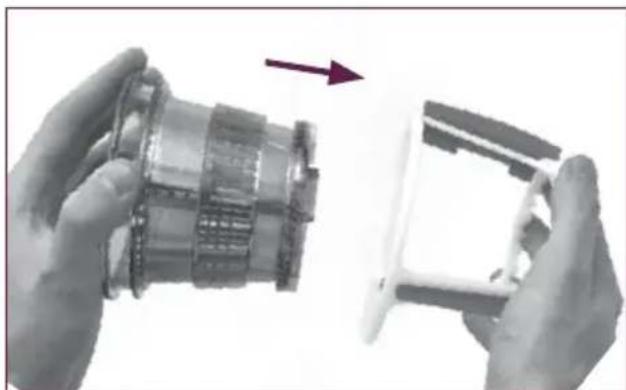

1. Assemble the filter basket into the scraper wiper then place this assembly in to the juicing bowl.

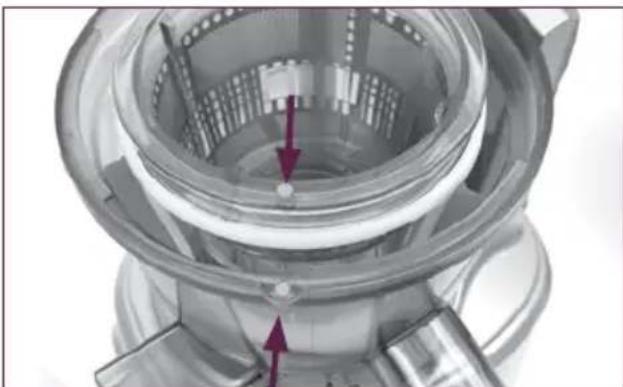

1. Note that the orange dot on the filter needs to align with the orange dot on the juicing bowl and motor base. Ensure that the filter basket is completely pushed down.

ASSEMBLING YOUR BREVILLE PRODUCT

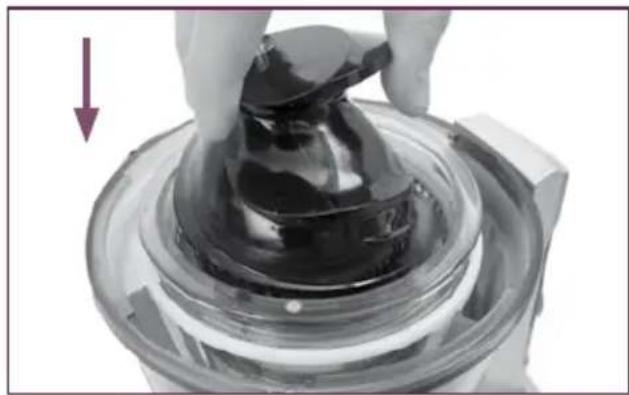

1. Place the juicing screw into the filter basket. Ensure that the juicing screw is in position by pressing down on it, and feel it click into place.

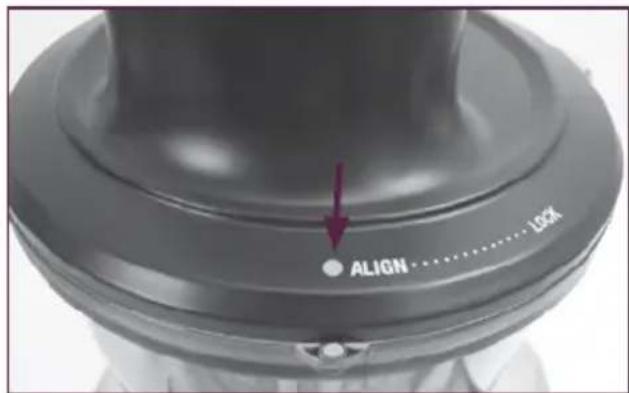

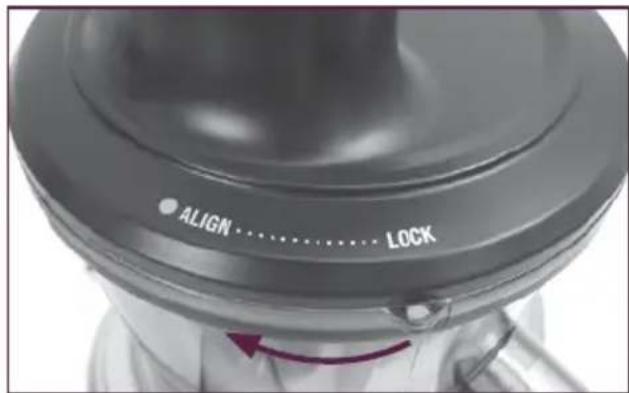

1. Place the lid on to the filter bowl surround. Align the orange dot on the lid with the orange dot on the motor base and turn clockwise to the closed position. The lid will click into position.

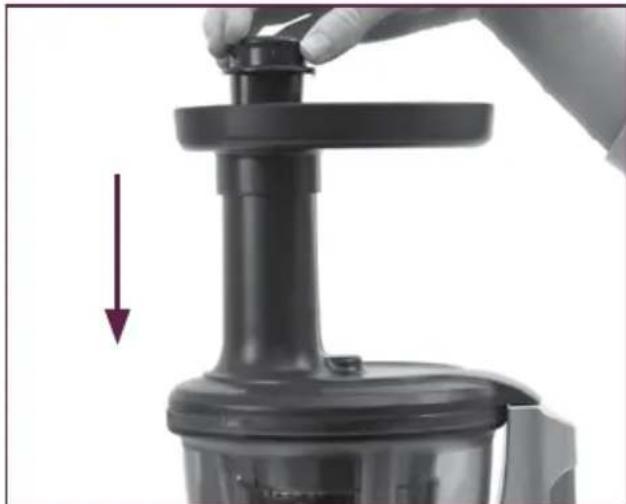

1. Ensure that the hopper is placed on the feed chute. Place the food pusher into the hopper.

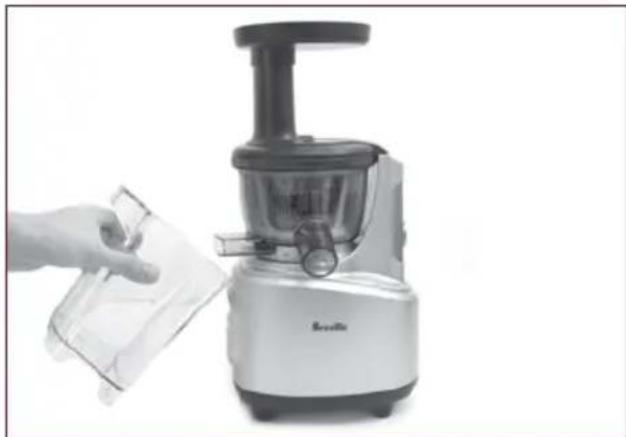

1. Place the pulp container supplied into position by tilting slightly and placing under the pulp spout.

NOTE

To minimize clean up, place a produce bag into the pulp container to collect the pulp.

ASSEMBLING YOUR BREVILLE PRODUCT

1. Place the juice jug under the juicier spout; ensure that it is placed in position under the spout.

OPERATING

your Breville product

OPERATING YOUR BREVILLE PRODUCT

1. Wash and prepare your selection of fruit and/or vegetables: Fruits with hard or inedible skins such as citrus fruit and melons should be peeled before juicing. Pineapple can be juiced with or without the rind removed. Fruits with pits, hard seeds or stones such as nectarines, peaches, mangoes, apricots, plums and cherries must be pitted before juicing.
2. Ensure the Juice Extractor is correctly assembled with the Juice Jug and pulp container is under the spout.

NOTE

As a safety precaution, the juicer will not operate if it has not been assembled correctly.

1. Plug the power cord into a 110V/120V power outlet.
2. Cut fruit and vegetables into pieces that will fit down the feed chute.

NOTE

As a guide, apples should be cut in to 14 's.

1. Push the ON button.

1. With the motor running gently guide food down the Feed Chute. To extract the maximum amount of juice, always push the Food Pusher down slowly.

NOTE

Do not exert excess pressure, the fruit or vegetable should almost be pulled down by the screw.

NOTE

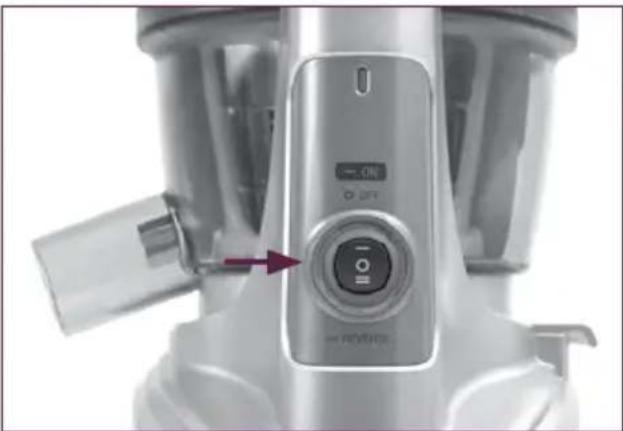

If the fruit or vegetables become jammed in the screw and the juicer stops operating press the OFF button to the center. Ensure that the juicer comes to a complete stop. Press the REVERSE button and hold it until the fruit or vegetables become dislodged.

OPERATING YOUR BREVILLE PRODUCT

NOTE

The screw will move in reverse and release the food that is caught in the screw. Once the food is released, press the ON button and start juicing again.

IMPORTANT

Do not load the feed chute with food until the motor is running.

1. As the fruits and vegetables are processed, juice will flow into the juice jug and the separated pulp will accumulate in the pulp container.

NOTE

The pulp container can be emptied during juicing by turning the juicer to the off position and removing the pulp container. Replace the empty pulp container into position before continuing to juice.

WARNING

Do not operate juicer longer than 20 seconds before inserting ingredients.

1. Immediately after use, pour a glass of water through the juicer. Ensure that there is a separate jug under the spout as the water will pour directly into the juice jug that you juiced into. This is a cleaning aspect and will help when cleaning the filter basket.

NOTE

If you are making different fruit juices you can pour a glass of water (about 6oz) in between the different juices to rinse any left over flavors. It is not always necessary to completely clean the juicer in between making multiple juices.

Overload Protection

This protection device safeguards against overloading the motor with excessive loads. If overloading occurs, the motor will stop. The overload protection will automatically de-activate the motor. When this occurs, unplug the power cord from the wall outlet and allow the appliance to cool for at least 1 hour. Then reconnect the power cord to the wall outlet and press the reset button on the underside of the juicer. Then recommence normal use.

DISASSEMBLING

your Breville product

DISASSEMBLING yOUR BREVILLE PRODUCT

1. Ensure the juicer is turned off and the power cord is unplugged from the power outlet.
2. Remove the pulp container and juicing jug.

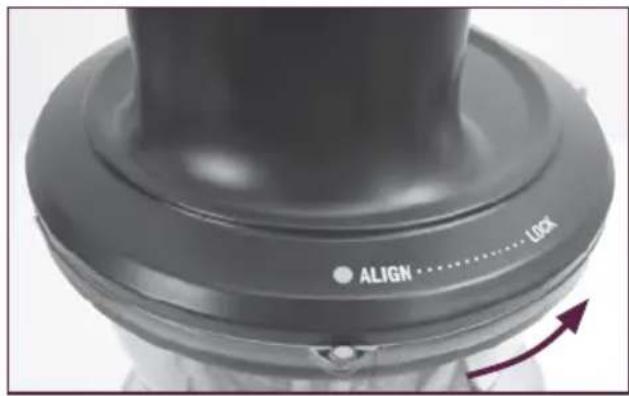

3. Remove the lid by turning it to the open position (right).

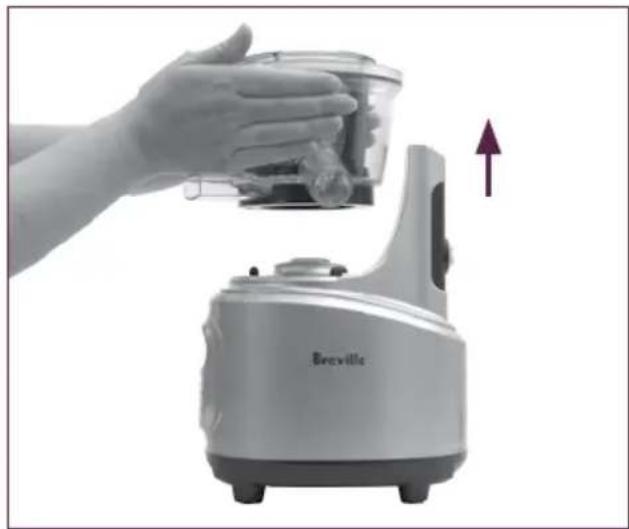

1. The filter bowl surround, scraper wiper, filter basket and juicing screw can all be removed together. Grip the filter bowl surround and turn to the open position (right) slightly, it will click out of position. This is a very small movement. The juicing bowl and all the internals can now be lifted off the motor base for cleaning.

WARNING

The juicing screw is a very heavy object. Take care when removing the juicing screw. Be careful not to drop the juicing screw.

CARE & CLEANING

CARE & CLEANING

Always ensure that the juicer is turned off and the power cord is unplugged from the power outlet before cleaning, disassembling or assembling and storing the appliance.

1. Immediately after each use, use the provided nylon brush to thoroughly clean the fine mesh holes of the filter basket. Brush the inside and outside of the filter basket under running water, holding it up towards the light to ensure the fine mesh holes are not blocked.

If the holes are blocked, soak the filter basket in hot water with 10% lemon juice to loosen the blocked holes.

TIP

If the Filter Basket cannot be cleaned immediately after use, soak the Filter Basket in hot soapy water immediately after juicing is complete. If pulp is left to dry on the Filter Basket, it may clog the fine mesh holes, thereby lessening the effectiveness of the juicer. Do not soak the Filter Basket in bleach.

1. Wash the filter bowl surround, scraper wiper, juicing screw, pulp container and juicing jug in warm soapy water with the provided small nylon brush or a soft cloth. Rinse and dry thoroughly.

NOTE

Do not place any part of the juicer in the dishwasher.

TIP

Discoloration of the plastic parts may occur with brightly colored fruit and vegetables. To help prevent this, wash parts immediately after use. If discoloration does occur, the plastic parts can be soaked in 10% lemon juice and water or they can be cleaned with a non abrasive cleaner. Do not soak the Filter Basket in bleach.

1. Wipe the motor base with a soft damp cloth and dry thoroughly. Do not use abrasive scouring pads or cleaners when cleaning the motor base as these may scratch the surface. Wipe any excess food particles from the power cord.

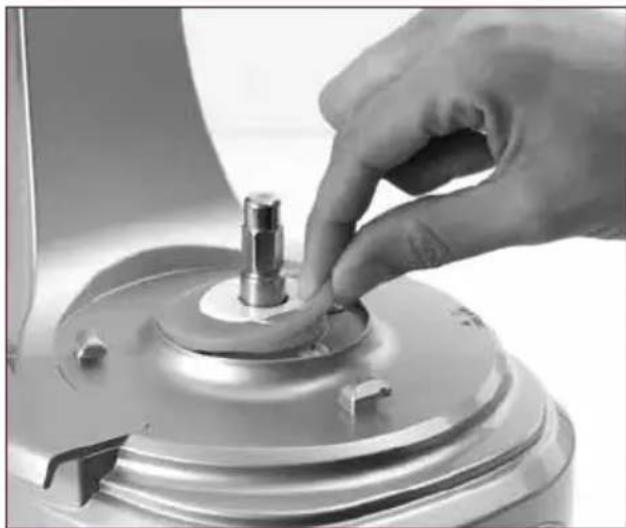

2. There is a rubber ring located on the motor base, where the filter bowl surround is placed upon assembly. This ring can be removed for "hand wash only" cleaning as necessary. Be sure to replace the ring before next use.

TROUBLESHOOTING

TROUBLESHOOTING

POSSIBLE PROBLEM EASY SOLUTION
Juicer will not work or suddenly turns off during juicing	·Check that the power plug is securely inserted into wall outlet. ·Insert the power plug into an independent outlet. ·Insert the power plug into a different outlet. ·Reset the circuit breaker if necessary. ·Ensure the juicer is assembled correctly. ·The Overload Protection may have automatically deactivated the motor. Unplug the power cord from the wall outlet and allow the appliance to cool for at least 1 hour. Insufficient cooling time may result in the motor de-activating again. After sufficient cooling time, reconnect the power cord to the wall outlet, press the reset button under the base of the motor and recommence normal use.
Motor appears to stall when juicing	·The Electronic Protection device will automatically de-activate the motor if the motor is stalled. Unplug the power cord from the wall outlet and clear the Feed Chute. Either too much food is being processed at one time or the pieces are not small enough. Try trimming food, cutting food into smaller pieces of even size and/or processing a smaller amount per batch. Then reconnect the power cord to the wall outlet and recommence normal use. ·Ensure the motor is running before loading the feed chute with food. ·Hard fruits and vegetables will put excess strain onto the motor.
Reduced juice extraction	·Stop the juicing process and remove the power cord from the wall outlet. Use the provided nylon brush to thoroughly clean the fine mesh holes of the Filter Basket. Brush the inside of the Filter Basket under running water, holding it up towards a light to ensure the fine mesh holes are not blocked. If the holes are blocked, soak the Filter Basket in hot water with 10% lemon juice to loosen the blocked holes. Cleaning the Filter Basket will remove excess fiber build up (from juicing the fruit or vegetables) which could be inhibiting the juice flow.

PURCHASING AND STORAGE OF FRUIT AND VEGETABLES

Always wash fruit and vegetables before juicing.
Always use fresh fruit and vegetables for juicing.
To save money and obtain fresher produce, purchase fruit or vegetables that are in season.
- Keep your fruit and vegetables ready for juicing by washing them before storing.
- Most fruits and hardier type vegetables can be stored at room temperature. The more delicate and perishable items such as berries, leafy greens, celery, cucumbers and herbs should be stored in the refrigerator until required.

PREPARATION OF FRUIT AND VEGETABLES FOR JUICING

• If using fruits with hard or inedible skins such as mangoes, citrus, melons and pineapples, always peel before juicing.
  Some vegetables, such as cucumbers, can be processed un-peeled depending on the softness of the skin and the juicing requirements.
• All fruits with large pits, hard seeds or stones such as nectarines, peaches, mangoes, apricots, plums and cherries must be pitted before juicing.
• Ensure vegetables such as beetroots, carrots etc have all soil removed, are washed well and trimmed of leaves before juicing.
• Citrus fruits can be juiced in the juicer but remove the skin and excess pith before juicing.
• A small amount of lemon juice can be added to apple juice to reduce discoloration.
