USER MANUAL JUICE FOUNTAIN PLUS BREVILLE

CONGRATULATIONS on the purchase of your new Juice FountainTM Plus JE98XL_IB_Issuet,09indd 2 16/12/09 11:26 AM

CONTENTS 4 Breville recommends safety first 7 Know your Juice Fountain'M Plus 10 Assembling your Juice Fountain'M Plus 14 Operating your Juice Fountaint" Plus 18 Disassembling your Juice Fountain'" Plus 21 Care and cleaning 24 Troubleshooting 26 Tips on juicing 28 Recipe Instructions One Year Limited Warranty French Instructions EE D | . JE98XL_IB_Issuet,09indd 3 11:26 AM

We at Brevill are very safety conscious. We design and manufacture consumer products with the safety of youour valued customer foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions: IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS

Remove and safely discard any packaging materials and promotional labels before using the appliance for the first time. To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance. Do not push produce into the feed chute with your fingers. Always use the food pusher provided. Do not touch the small cutting blades in the base of the stainless steel filter basket. Do not leave the Juice FountainT# Plus unattended when in use. Close supervision is necessary when this appliance is being used near children. Do not allow children to use this appliance. Always make sure the Juice FountainTM Plus is properly and completely assembled before operating. The unit will not turn ‘On’ unless properly assembled. Always use the Juice Fountain'M Plus on a dry, level surface. Always turn the Juice FountainTM Plus ‘Off, then disconnect from the power outlet when not in use or when assembling. Regularly inspect the supply cord,plug and actual appliance for any damage. lf found damaged in any way.immediately cease use of the appliance and return the entire appliance to the nearest authorized Breville Service Center for examination,replacement or repair. Do not immerse power cord or motor base in water or any other liquid. | HU «ODindd 4 + This appliance is not intended for use by young children or infirm persons without supervision. Do not operate any electrical appliance with a damaged cord or plug or after the appliance has malfunctioned or been damaged in any manner. Return the appliance to the nearest authorized Breville Service Center for examination adjustment or repair. Do not let the cord hang over the edge of a table or counter,or touch hot surfaces or become knotted. Do not place this appliance on or near a hot gas or electric burner,or where it could touch a heated oven. Always turn the Juice FountainT" Plus ‘Off’ and remove cord if the appliance is left unattendediif not in use, before cleaning,or before attempting to move the appliance. Any maintenance other than cleaning should be performed at an authorized Breville Service Center. This appliance is for household use only. The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice. Always make sure the cover is clamped (safety locking arm) securely in place and before the motor is turned on. Do not unfasten the clamps (safety locking arm) while the juicer is in operation. 16/12/09 11:26 AM

BREVILLE RECOMMENDS SAFETY FIRST

+ Do not use appliance if the rotating sieve (filter basket) is damaged. + Do not juice stone fruit unless seed stone has been removed. Do not run the Juice FountainT" Plus for more than one minute at a time when juicing hard fruit or vegetables, at a rapid rate and with firm pressure. Carefully read all instructions before operating and save for future reference. Strictly follow cleaning and care instructions. NOTE: Your Breville appliance comes with the unique Assist Plug'",conveniently designed with a finger hole in the power plug,for easy and safe removal from the outlet. For safety reasons it is recommended that you plug your Breville appliance directly into the power outlet. Do not use in conjunction with a power strip or extension cord. SUPER WIDE FEED CHUTE.

DO NOT PLACE HANDS OR

FOREIGN OBJECTS DOWN

FEED CHUTE, ALWAYS USE

FOOD PUSHER PROVIDED. JE98XL_IB_Issuet,09indd 5

APPLIANCES + Fully unwind the cord before use. + To protect against electric shock, do not immerse the cord, plug or appliance in water or any other liquid. Do not allow the cord to hang over the edge of a table or bench, touch hot surfaces or become knotted. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. It is recommended to regularly inspect the appliance. Do not use the appliance if the power supply cord, plug or appliance becomes damaged in any way. Return the entire appliance to the nearest authorized Breville Service Center for examination and/or repair. Any maintenance other than cleaning should be performed at an authorized Breville Service Center. This appliance is for household use only. Do not use in moving vehicles or boats. Do not use outdoors. Do not use this appliance for anything other than its intended use. Misuse may cause injury. J 1126 au |

ELECTRIC CORD INSTRUCTIONS Your Juice Fountain'" Plus has a short cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with the cord. Do not allow children to be near or use this appliance Without close adult supervision. If you must use a longer power cord or an extension cord when using the appliance, the cord must be arranged so it will not drape or hang over the edge of a counter top, tabletop or surface area where it can be pulled on by children or tripped over. To prevent electric shock, personal injury or fire, the electrical rating of the extension cord you use must be the same or more than the wattage of the appliance (wattage is marked on the underside of the appliance).

SAVE THESE INSTRUCTIONS

CR ‘ind 6 16/12/09 11:26 AM

KNOW your Breville Juice FountainTM Plus JE98XL_IB_Issuet,09indd 7 16/12/09 11:26 AM

JE8xL_ IE Extra Wide Feed Chute fits whole apples, carrots, tomatoes and peeled oranges. Makes juicing fruit and vegetables fast and easy Large Pulp Container with integrated handle(dishwasher safe) Juicer Cover Heavy Duty 850 Watt Motor Cord Storage in Base Cord wraps around feet and clips into position under base fsuet09indd 8 Food Pusher for pushing whole fruit and vegetables down the patented wide feed chute Safety Locking Arm uicer will not operate without iuicer cover in place and safety locking arm in place in the vertical operating position Stainless Steel Micro Mesh Filter Basket {dishwasher safe) Froth Separator for removing froth from juice when pouring 3 Position Switch with two speeds and Off. Low speed for juicing soft fruits with high water content such as watermelon High speed for iuicing hard fruit and vegetables Features the Breville Assist Plug" Easier to insert, easier to remove. 16/12/09 11:26 AM

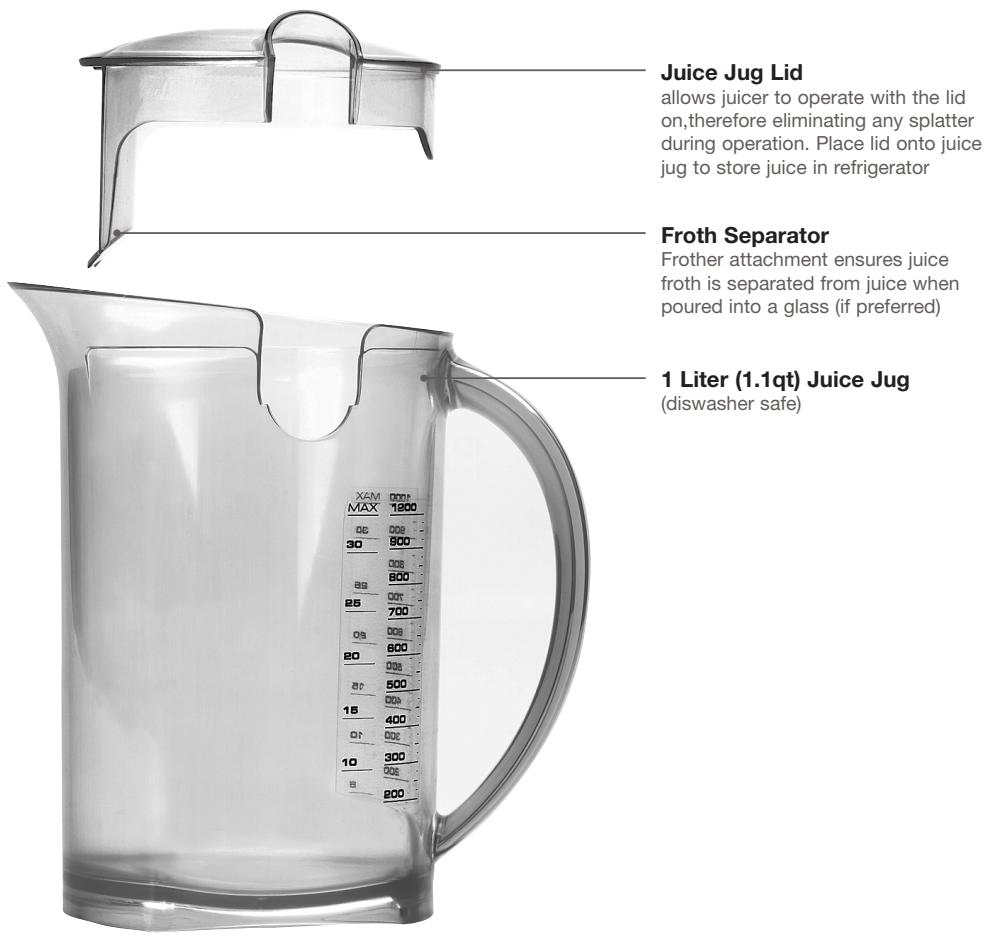

JUICE JUG Juice Jug Lid allows juicer to operate with the lid on.therefore eliminating any splatter during operation. Place lid onto juice iug to store juice in refrigerator JE98XL_IB_Issuet,09indd 9 Froth Separator Frother attachment ensures juice froth is separated from juice when poured into a glass (if preferred) 1 Liter (1.1qt) Juice Jug (diswasher safe) NOTE: To have froth in the juice simply remove the le-in froth separator attachment before juicing. D 11:26 AM

ASSEMBLING your Breville Juice FountainTM Plus JE98XL_IB_Issuet,09indd 10 16/12/09 11:26 AM

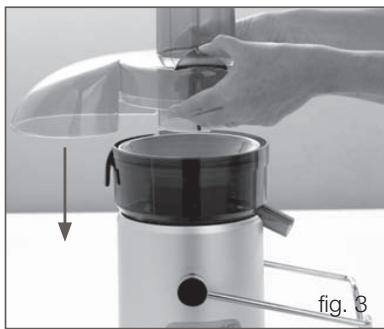

BEFORE FIRST USE 3. Place the juicer cover over the filter Before using your Juice Fountain' Plus bowl surround. positioning the feed for the first time, remove and safely discard chute over the stainless steel filter any packaging materials and promotional basket and lower into position. stickers and labels. Ensure the appliance is switched off at the power outlet and the power cord is unplugged. Wash the filter bowi surround, filter basket, juicer cover, food pusher, pulp container and juice jug and lid in warm, soapy water with a soft cloth. Rinse and dry thoroughly. The motor base can be wiped with a damp cloth. Dry thoroughly.

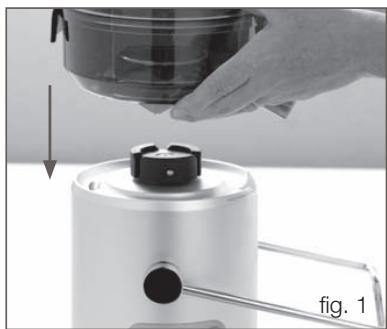

1. Place filter bowl surround on top of the

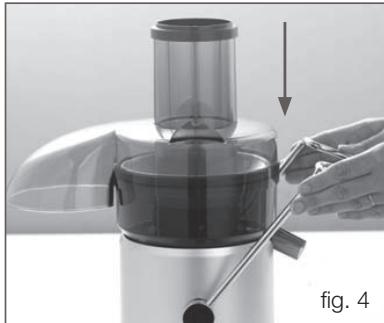

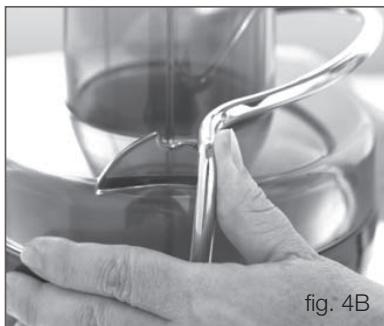

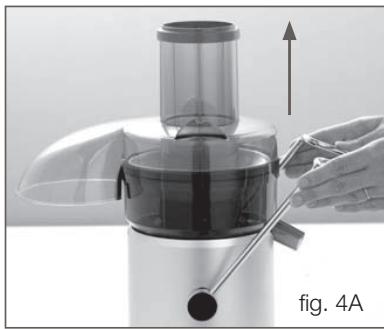

4. Raise the safety locking arm up and

locate into the two grooves on either side of the juice cover. The safety locking arm should now be in a vertical position and locked into place on top of the juicer cover.

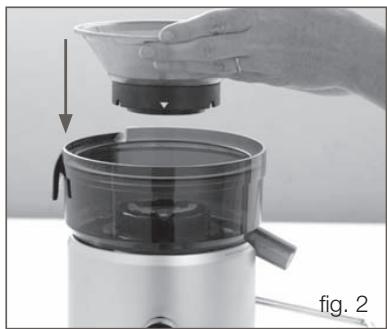

2. Align the arrows on the filter basket with

the arrows on the motor drive coupling and push down until it clicks into place. Ensure the stainless steel filter basket is fitted securely inside the filter bowl surround and on to the motor base.

JE98XL 18 Issue O9indd 11 J 1126 AM |

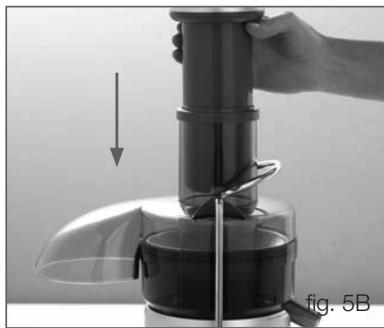

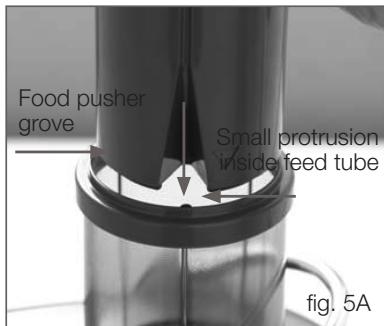

5. Slide the food pusher down the feed

chute by aligning the groove in the food pusher with the small protrusion on NOTE: To minimize washing up we suggest the inside of the top of the feed tube. you place a plastic freezer bag (or Continue to slide the food pusher down plastic grocery bag) into the pulp the feed chute. container to collect the pulp.

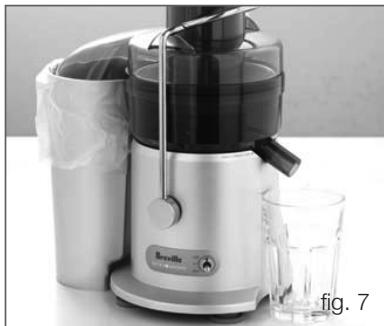

7. Place the juice jug provided under the

spout on the right hand side of the Juice Fountain. The lid can be placed on to avoid any splatter. NOTE: A glass could also be used to collect the juice.

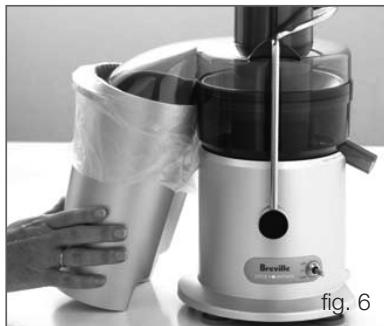

6. Place the pulp container into position

by titing slightly. | eoex. BL … 2 161200 11:26 AM

1. Wash your selection of fruit and WHEN USING THE JUICE

vegetables ready for juicing. FOUNTAIN ON HIGH SPEED,DO

Most fruit and vegetables such as A TIME WHEN CONTINUOUSLY apples,carrots and cucumbers will JUICING HARD FRUITS AND not need to be cut to size as these VEGETABLES, SUCH AS will fit into the feed chute whole. APPLES,CARROTS,AND BEET. When juicing carrots place the tip of AFTER SUCH TIME, WAIT 1 the carrot into the feed chute last. MINUTE BEFORE RESUMING

2. Ensure the Juice Fountain is correctly FEED CHUTE

assembled. Ensure the stainless steel filter is thoroughly cleaned before each use (refer to care and cleaning on page 21). Ensure you place the juice jug (or a glass)under the spout before commencing juicing.

3. Plug the power cord into a 110/120V

power outlet. Push the two speed switch either up for low speed or down for high speed depending on the type of fruit or vegetable being juiced. Use the speed selector table as a guide for juicing different fruits and vegetables. NOTE: Be sure to start the motor first before placing any fruits or vegetables down the feed chute. Failure to start the motor prior, can cause the motor to overheat.

JE98XLIB Issue OSindé 15 J 1126 AM |

Apples High Apricots (stone removed) Low Beet (trimmed) High Blueberries Low Broccoli Low Brussels sprouts (trimmed) High Cabbage Low Carrots High Cauliflower Low Celery High Cucumber (peeled) Low Cucumber, soft skinned High Fennel High Grapes (seedless) Low Ki Fruit (peeled) Low Mangoes (peeled, stone removed) | Low Melons (peeled) Low Nectarines (stone removed) Low

4. With the motor running,place food

into the feed chute. Using the food pusher gently guide food down the feed chute. To extract the maximum amount of juice, always push the food pusher down slowly. NOTE: Electronic Protection The Juice Fountain will automatically stop operating if the motor is stalled. This is an electronic safety feature. Either too much food is being processed at one time or the pieces are not small enough. Try trimming food, cutting food into smaller pieces or even | HU. «DDindd 16 Oranges (peeled) High or Low size and/or processing a smaller Peaches (stone removed) Low amount per batch. Pears (stalks removed) High fo hard or this occurs, the Overload Low for soft Protection LED will flash red. To — continue juicing, turn the juicer OFF, Pineapple (peeled) High unplug from the power outlet and Plums (stone removed) Low clear the feed chute. Once the feed - chute has been cleared, plug the Raspberries Low power cord into the power outlet Tomatoes Low Watermelon (peeled) Low

5. Juice will flow into the juice jug and the

separated pulp will accumulate in the pulp container. 16/12/09 11:26 AM

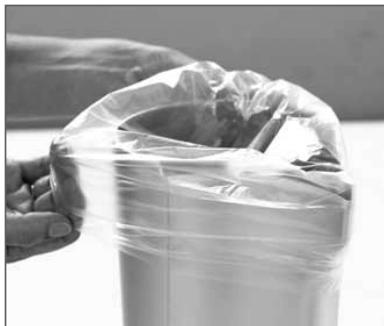

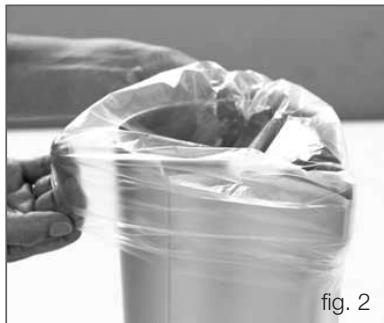

NOTE: The pulp container can be emptied during juicing by turning the Juice Fountain ’Off‘ and then carefully removing the pulp container. (Replace empty pulp container before continuing to juice). Do not allow the pulp container to overfill as this may prevent correct operation or damage the unit. NOTE: Self-Reset Overheating Protection The Juice Fountain is fitted with a self-resetting safety device which safeguards against overheating on the motor with excessive loads. If overheating occurs, the juicer Will automatically activate the overheating protection device and the motor will switch itself off. If this occurs, the Overload Protection LED Will flash red. When the overheating protection is activated, allow the unit to cool for at least 15 minutes prior to continuing juicing. LED will continue to flash until the motor has reached below the temperature threshold. The Juice Fountain will be more prone to overheai immediately after the overheating protection device has been activated, light loads are recommended. inimize washing up place a freezer bag into the pulp container to collect the pulp. JE9BXL_IB_Issuet,09indd 17

CHUTE OR TO CLEAR THE

1. Turn Juice Fountain ‘Off and unplug. 5. Lift the juicer cover off the Juicer.

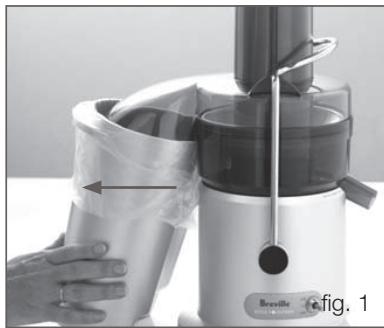

2. Remove the pulp container by holding

the handle and pivoting the bottom of the pulp container away from the juicer.

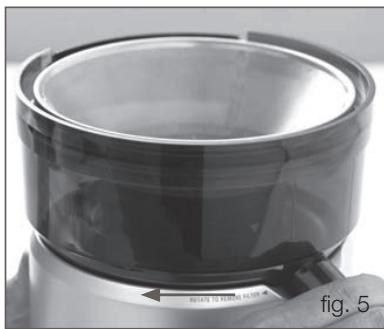

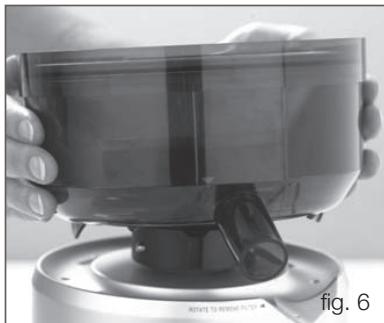

6. To remove stainless steel filter basket,

hold base of juicer and turn filter bowl surround by the juice spout.

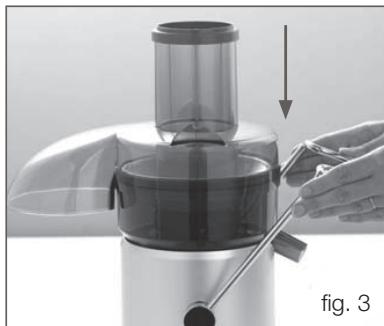

3. Place both hands on either side of

the locking arm and pull back and li over the grooves on either side of the juicer cover.

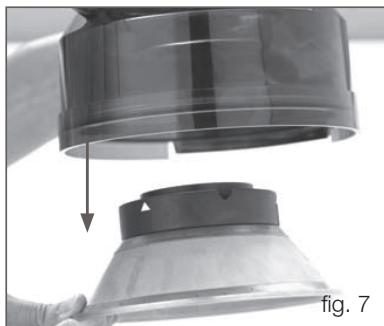

7. Lift off the filter bowl surround with the

stainless steel filter basket still in place.

4. Move the locking arm down.

JE98XLIB. Issue Onde 19 J 1126 AM |

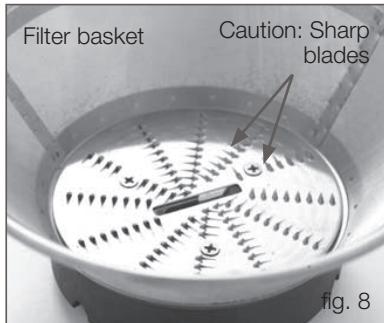

8. To remove the stainless steel filter

basket,turn the filter bowl surround upside down and carefully remove the filter basket.(It is recommended to remove the filter basket over the sink). | eoex. h. «ODindd 20 16/12/09 11:26 AM

CARE & CLEANING your Breville Juice FountainTM Plus JE98XL_IB_Issuet,09indd 21 16/12/09 11:26 AM

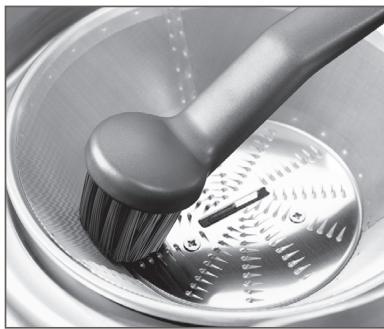

+ For easy cleaning - immediately after each use rinse removable parts under running water (to remove wet pulp).Allow parts to air dry. The Juice Fountain juicer coverfilter bowl surround, pulp container,staintess steel filter basket and 1 liter juice jug are dishwasher safe(top shelf only). Wipe the motor base with a damp cloth. Before washing juice jug, remove froth attachment and rinse under running water. For consistent juicing results always ensure that the stainless steel filter basket is thoroughly cleaned using the supplied nylon brush. Using the nylon washing up brush, hold the filter basket under running water and brush from the inside of the basket to outer rim. After cleaning the filter basket, hold it up towards a light to ensure the fine mesh holes are not blocked. If the holes are blocked soak the filter basket in hot water with 10% lemon juice to loosen the blocked holes. Alternatively wash the filter basket in the top shelf of any dishwasher. Do not soak the stainless steel filter basket in bleach. Always treat the filter basket with care as it can be easily damaged. | Hi. «DDindd 22 NOTE: To assist with cleaning, soak the stainless steel filter basket in hot soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on the filter, it may clog the fine pores of the filter mesh thereby lessening the effectiveness of the juicer. For your convenience a nylon cleaning brush has been included with your Juice Fountain. NOTE: Do not wash the Food Pusher in the dishwasher. 16/12/09 11:27 AM

MOTOR BASE IN WATER OR NOTE . ANY OTHER LIQUID. THE When juicing is complete,simply CENTER OF THE FILTER place the bag containing the pulp BASKET AND FEED CHUTE into a bin,or you can refer to page 27 CONTAIN SMALL SHARP for ideas on using the pulp.

OR FEED CHUTE. + Discoloration of the plastic may occur with strongly colored fruit and vegetables. To help prevent this wash parts immediately after use. + lfdiscoloration does occurithe plastic parts can be soaked in 10% lemon juice and water or they can be cleaned with a non abrasive cleaner. JESXL IE Issue O9indd 23 J 1127 au |

TROUBLESHOOTING Machine will not work when switched ‘ON’ +_ The safety locking arm may not be correctly engaged in the vertical operating position with the locking arm located into the two grooves on either side of the juicer cover (page 11 step 4). Motor appears to stall when juicing +_ Wet pulp can build up under the juicer cover if the juicing action is too vigorous. Try slower juicing action by pushing the food pusher down more slowiy (page 16 step 4). Follow Disassembling and Cleaning instructions and clean the filter bowl surround, the stainless steel filter basket and the juicer cover. Hard fruit and vegetables will put excess strain onto the motor if a low speed is selected. Please refer to the juicing guide on Page 16 to determine the correct speed for the fruit and vegetables selected for juicing: The Juice Fountain will automatically stop operating if the motor is stalled. This is an electronic safety feature. Either too much food is being processed at one time or the pieces are not small enough. Try trimming food, cutting food into smaller pieces or even size and/or processing a smaller amount per batch. Ifthis occurs, the Overload Protection LED wl flash red To continue juicing, turn the juicer OFF, unplug from the power outlet and clear the feed chute. Once the feed chute has been cleared, plug the power cord into the power outlet and resume juicing. Excess pulp building up in the stainless steel filter basket Stop the juicing process and follow Disassembling instructions. Remove the juicer cover, scrape off pulp, reassemble and begin juicing again. Try alternating (soft and hard) vegetables and fruit varieties. Pulp too wet and reduced extracted juice Try a slower juicing action. Remove the stainless steel filter basket and thoroughly clean mesh walls with a cleaning brush. Rinse the filter basket under hot water. Ifthe fine mesh holes are blocked, soak the basket in a solution of hot water with 10% lemon juice to unlock the holes or wash in the dishwasher. This will remove excess fiber build up (from fruit and vegetables) which could be inhibiting the flow. Juice leaks between the rim of the Juicer and the juicer cover Try a slower juicing speed and push the food pusher down the feed chute more slowiy (page 16 step 4). Juice sprays out from spout The juice is being extracted too fast — try a slower juicing speed and push the food pusher down the feed chute more slowiy (page 16 step 4) 16/12/09 11:27 AM

TROUBLESHOOTING Red light flashing + The Juice Fountain is fitted with a self-resetting safety device which safeguards against overheating on the motor with excessive loads. If overheating occurs, the juicer will automatically activate the overheating protection device and the motor will switch itself off. If this occurs, the Overload Protection LED will flash red. When the overheating protection is activated, allow the unit to cool for at least 15 minutes prior to continuing juicing. The Juice Fountain will be more prone to overheating immediately after the overheating protection device has been activated, light loads are recommended. The Juice Fountain will automatically stop operating if the motor is stalled. This is an electronic safety feature. Either too much food is being processed at one time or the pieces are not small enough. Try trimming food, cutting food into smaller pieces or even size and/or processing a smaller amount per batch. Ifthis occurs, the Overload Protection LED wl flash red To continue juicing, turn the juicer OFF, unplug from the power outlet and clear the feed chute. Once the feed chute has been cleared, plug the power cord into the power outlet and resume juicing. JESBXL_IB_Issuet,09indd 25

ON JUICING Although the juice drinks contained in this booklet were developed with flavor, texture and aroma at the forefront, the health benefits certainly add to the pleasurable taste experience. 95% of the nutrient content of fruit and vegetables is found in the juice. Liquids extracted from fresh fruit and vegetables form an important part of a well-balanced healthy diet. Fresh fruit and vegetables juices are an easy source of vitamins and minerals. Juices are rapidly absorbed into the blood stream therefore being the quickest way in which the body can digest nutrients. When you make your own fruit and vegetable juices, you have complete control over what is included. Select the ingredients and decide if you need to add sugar, salt or other flavoring agents after juicing. Freshly extracted juices should be consumed immediately after they have been processed to avoid a loss of vitamin content.

PURCHASING AND STORAGE OF

+ Always wash fruit and vegetables before juicing. Always use fresh fruit and vegetables for juicing. To save money and obtain fresher produce, purchase fruit or vegetables that are in season. Refer to the Fruit and Vegetable Facts chart (page 19-20). Keep your fruit and vegetables ready for juicing by washing and drying them before storing. Most fruits and hardier type vegetables can be stored at room temperature. The more delicate and perishable items such as tomatoes, berries, leafy greens, celery, cucumbers and herbs should be stored in the refrigerator until required. | Hi. «DDindd 26

PREPARATION OF FRUIT

AND VEGETABLES + If using fruits with hard or inedible skins such as mangoes, guava, melons or pineapple, always peel before juicing. Some vegetables, such as cucumbers can be processed unpeeled depending on the softness of the skin and the juicing requirements. All fruits with large pits, hard seeds or stones such as nectarines, peaches, mangoes, apricots, plums and cherries must be pitted before juicing. Ensure vegetables such as beets, carrots, etc. have all soil removed, are well washed and trimmed of leaves before juicing. Ensure fruits such as strawberries are hulled before juicing and pears have their stalks removed. Citrus fruit can be juiced in the Juice FountainM Plus but remove the skin and excess pit before juicing. A small amount of lemon juice can be added to apple juice to reduce discoloration. NOTE: Your Juice Fountain'" Plus makes invigorating, frothy orange juice. Simply peel the oranges and remove any excess pith before juicing. It is best to refrigerate oranges before juicing. 16/12/09 11:27 AM

When juicing a variety of ingredients with varying textures, start with the softer texture ingredients on low speed and then gradually change to high speed for the harder textured ingredients. If you are juicing herbs, sprouts or other leafy green vegetables, either wrap them together to form a bundle or juice them in the middle of a combination of ingredients on low speed to obtain the best extraction. ing herbs or leafy green vegetables on their own, the juice yield will be low due to the nature of centrifugal juicing. It is advised to juice them with a combination of other fruit and vegetables. Al fruit and vegetables produce different amounts of liquids. This varies within the same group i.e. one batch of tomatoes can produce more juice than another batch. Since juice recipes are not exact, the precise quantities of any juice are not crucial to the success of a particular mixture. To extract the maximum amount of juice always push the food pusher down slowly.

GETTING THE RIGHT BLEND

It is easy to create great tasting juice. lf you have been making your own vegetable or fruit juices, then you know how simple it is to invent new combinations. Taste, color, texture and ingredient preferences are a personal choice. Think of some flavors and foods — would they work well together or would they clash. Some strong flavors could over power the more subtle flavors of others. It is however, a good rule to combine starchy, pulpy fruit and vegetables with those high in moisture. JESBXL_IB_Issuet,09indd 27

The remaining pulp left after juicing fruit and vegetables is mostly fiber and cellulose which, like the nutrients in juice, are necessary for the daily diet and can be used in many ways. However, like the juice, pulp should be used that day to avoid loss of vitamins. Some of the uses of pulp are to bulk out rissoles, thicken casseroles or soups or in the case of fruit, simply placed in a bowl topped with meringue and baked for a simple dessert. Apart from consumption use, pulp is great to create compost for the garden. NOTE: When using the pulp, there may be some pieces of fruit or vegetables remaining. These should be removed before using the pulp in any recipes. J 1127 au |

CELERY JUICE Makes 2 cups You may alter the amounts of either the carrots or apple to make the juice sweeter or savory to suit your taste buds: 4 small Granny Smith apples 3 medium sized carrots 4 sticks celery . Process apples, carrots and celery through Juice Fountain'M Plus using high speed. Mix well and serve immediately.

TOMATO, CARROT, CELERY AND

LIME JUICE Makes 2 cups 2 medium tomatoes 1 large carrot, trimmed 2 celery stalks, trimmed 1 lime, peeled . Process tomatoes, carrot, celery and lime through Juice Fountain'M Plus using low and high speeds. Serve immediately. JE98XL_IB_Issuet,09indd 29

ORANGE JUICE Makes 2 cups 2 medium carrots, trimmed 3 medium beet, trimmed 4 oranges, peeled . Process carrots, beets and oranges thought Juice FountainT" Plus using high speed. Serve immediately.

GRAPEFRUIT JUICE Makes 2 cups 1 small Delicious apple 2 large peaches, halved and seeds removed 2 grapefruits, peeled . Process apple, peaches and grapefruit through Juice Fountain'M Plus using high and low speed Serve immediately. J 1127 au |

PINEAPPLE, PEACH AND

PEAR JUICE Makes 2 cups % small pineapple, peeled and halved 2 peaches, halved and seeds removed 2 small ripe pears

1. Process pineapple, peaches and pears

through Juice Fountain'M Plus using high and low speed Serve immediately.

STRAWBERRY JUICE Makes 2 cups 1 small Granny Smith apple 3 small ripe pears 1 cup strawberries, trimmed

1. Process apples, pears and strawberries

through Juice Fountain'M Plus using high and low speeds. Serve immediately.

though Juice Fountain'M Plus using low speed. Serve immediately.

TOMATO, CUCUMBER, PARSLEY

Makes 2 cups 3 medium tomatoes 1 large cucumber 1 large bunch fresh parsley 3 medium carrots, trimmed . Process tomatoes, cucumber, parsley and carrots through Juice FountainTM Plus using high and low speeds. Serve immediately.

SWEET POTATO, CELERY, GINGER

Makes 3 cups 4 sticks celery, trimmed 1 small sweet potato, peeled and halved inch (2.5cm) piece fresh ginger 4 oranges, peeled . Process celery, sweet potato, ginger and oranges through Juice Fountain'M Plus using high speed. Serve immediately.

PEAR JUICE Makes 3 cups 2 parsnips, trimmed 4 sticks celery, trimmed 4 medium pears, stalks removed . Process parsnips, celery and pears through Juice Fountain'M Plus using high speed. Serve immediately. 16/12/09 11:27 AM

1. Trim base of bell pepper and

1. Process tomatoes, carrots, parsley and

bell peppers through Juice FountainTM Plus using high and low speedl. Serve immediately.

BLACKBERRY, PEAR AND

GRAPEFRUIT JUICE Makes 2 cups 80z (250g) blackberries 3 ripe pears 2 grapefruits, peeled

1. Process blackberries, pears and

grapefruit through the Juice FountainTM Plus using low and high speeds. Serve immediately.

CELERY JUICE Makes 2 cups 4 medium sized beet, trimmed 2 medium Granny Smith apples 4 sticks celery

1. Process beets, apples and celery

through Juice Fountain'M Plus using high speed. Serve immediately. JE98XL_IB_Issuet,09indd 31 BLUEBERRY, BLACKBERRY,

STRAWBERRY AND LIME JUICE

Makes 2 cups 160z (5009) blackberries 160z (5009) blueberries 160z (500g) strawberries 1 lime, peeled . Process blackberries, blueberries, strawberries and lime through Juice Fountain'" Plus using low and high speeds. Serve immediately.

CUCUMBER, CELERY, FENNEL

AND BEAN SPROUT JUICE

Makes 2 cups 1 large cucumber 3 sticks celery 1 bulb fennel, trimmed 2 cups bean sprouts . Process cucumber, celery, fennel and bean sprouts through Juice FountainTM Plus using high speed. Serve immediately.

1. Process oranges through Juice

Fountain'" Plus using high or low speed. Serve immediately. (Best to refrigerate oranges before juicing)

WITH NOODLES Serves 4 1 small tomato 1 small onion, peeled and trimmed 2 carrots 1 green bell pepper, base removed and seeded 1 tablespoon butter 1 tablespoon wholemeal flour 120z (375ml) vegetable stock 140z (425g) canned baked beans 1 packet 2 Minute Noodles Freshly ground black pepper . Process tomato, onion, carrots and green pepper through Juice FountainT" Plus using low and high speed.

2. Melt butter in a large saucepan over a

3. Stir in flour, cook for one minute,

stirring continuously.

4. Stir in the extracted juice, vegetable

stock and baked beans

5. Bring to the boil, then reduce heat and

allow to simmer for 10 minutes

6. Add noodies, cook for 2 minutes or until

noodles are tender. Pour into 4 soup bowis, sprinkle with black pepper to taste and serve immediately. GAZPACHO Serves 4 4 medium tomatoes 4 sprigs fresh parsley 1 large clove garlic, peeled 1 small onion, peeled and trimmed 2 carrots 2 stalks celery 1 red bell pepper, base removed and seeded 1 Lebanese cucumber 2 tablespoons red wine vinegar Freshly ground black pepper 1 cup crushed ice 3 tablespoons chopped fresh basil Process tomatoes, parsley, garic, onion, carrots, celery, red bell pepper and cucumber through Juice FountainTM Plus using low and high speeds.

2. Stir in vinegar and black pepper.

3. Arrange ice in four soup bowls.

Pour in extracted juice, sprinkle with basil and serve immediately. 16/12/09 11:27 AM

PASTA WITH PROVENCALE

STYLE SAUCE Serves 4 4 tomatoes 2 sprigs fresh parsley 1 stick celery 2 large clove garlic 1 small onion, peeled and trimmed 1 red bell pepper, base removed and seeded 1 tablespoon tomato paste % cup red wine 2 teaspoons dried oregano 160z (500g) cooked pasta 3 tablespoons grated Parmesan cheese

1. Process tomatoes, parsley, celery,

garlic, onion and red bell pepper through Juice Fountain'" Plus using low and high speeds.

2. Blend tomato paste with red wine, stir in

the extracted juice.

3. Pour into a saucepan and cook over

medium heat for 3-4 minutes.

4. Add pasta and toss to coat

pasta well. Divide mixture between 4 serving bowis.

5. Sprinkle with oregano and

Parmesan cheese. Serve immediately. JE98XL_IB_Issuet,09indd 33

MANGO, CANTALOUPE AND

Serves 4 1 mango, halved, peeled and seeded Y small cantaloupe, peeled, seeded and cut into two equal portions 5 oranges, peeled 3 tablespoons natural yoghurt . Process mango, cantaloupe and oranges through Juice Fountain'M Plus using low speed.

2. Pour into a large bowl whisk in yoghurt.

Serve immediately. J 1127 au |

APRICOT COOLER Serves 4 4 large apricots, halved and seeded 3 large pears 1 cup (250ml) mineral water 1 cup crushed ice

1. Process apricots and pears through

Juice FountainT Plus using low and high speed.

2. Scoop ice into 4 tall glasses.

3. Divide extract juice between

4. Top with mineral water, stir well

to blend. Serve immediately.

CANTALOUPE, STRAWBERRY AND

PASSION CRUSH Serves 4 % cantaloupe, peeled, seeded and divided into 2 equal portions lb (250g) strawberries, hulled Pulp of 2 passion fruit 1 cup crushed ice

1. Process cantaloupe and strawberries

through Juice Fountain'" Plus using low speed.

2. Stir in passion fruit pulp.

3. Scoop ice into 4 glasses, pour over

juice, mix well to combine. Serve immediately. TROPICAL BLEND Serves 4 2 mangoes, halved, seeded and peeled 3 kiwi fruit, peeled % small pineapple, peeled and halved Y cup fresh mint leaves 1 cup crushed ice . Process mangoes, kiwi fruit, pineapple and mint through Juice FountainT" Plus using low and high speed.

2. Scoop ice into 4 glasses, pour over

juice, mix well to combine. Serve immediately. TOMATO, NECTARINE,

PASSIONFRUIT AND MINT ICER

Serves 4 6 tomatoes 2 nectarines % cup fresh mint leaves Pulp of 4 passion fruit 1 cup crushed ice . Process tomatoes, nectarines and mint through Juice FountainTM Plus using low speed.

2. Stir in passion fruit pulp.

3. Scoop ice into 4 glasses, pour over

juice, mix well to combine. Serve immediately. 16/12/09 11:27 AM

CUCUMBER, PINEAPPLE AND

CORIANDER ICE Serves 4 % small pineapple, peeled and halved 2 cucumbers % cup fresh cilantro leaves 1 cup crushed ice

1. Process pineapple, cucumbers and

coriander through Juice Fountain”" Plus using high speed.

2. Scoop ice into 4 glasses, pour over

juice, mix well to combine. Serve immediately.

CELERY CRUSH Serves 4 3 medium pears 4 radishes, trimmed 3 sticks celery 1 cup crushed ice

1. Process pears, radishes and celery

through Juice Fountain'" Plus using high speed.

2. Scoop ice into 4 glasses, pour over

juice, mix well to combine. Serve immediately. JESXL IE Issue O9indd 25 J 1127 au |

COCONUT PINEAPPLE COLADA

Serves 4 4 large pineapple, peeled and quartered 2 tablespoons coconut cream 3 tablespoons Malibu liqueur 160z (500ml) soda water 1 cup crushed ice

1. Process pineapple through Juice

FountainT" Plus using high speed.

2. Stir in liqueur, coconut cream and

juice mixture, mix well to combine. Serve immediately. HONEYDEW DREAM Serves 4 1 honeydew melon, peeled, seeded and quartered 3 tablespoons Midori liqueur 160z (500ml) soda water 1 cup crushed ice

1. Process honeydew melon through Juice

FountainT" Plus using low speed.

2. Stir in liqueur and soda water.

3. Scoop ice into 4 tall glasses, pour over

melon mixture, mix well to combine. Serve immediately. BLOODY MARY Serves 4 4 medium tomatoes 2 sticks celery 1 large red bell pepper, base removed and seeded

• cup vodka 1 cup crushed ice . Process tomatoes, celery and red bell pepper through Juice FountainT" Plus using low and high speeds.

2. Stir in vodka. Scoop ice into 4 glasses,

pour over tomato mixture, mix well to combine. Serve immediately.

PEACH AND MINT JULEP

Serves 4 6 peaches, halved and seeded % cup fresh mint leaves 2 tablespoons Crème de Menthe 2 teaspoons sugar Y cup crushed ice 160z (500mi) mineral water . Process peaches and mint leaves through Juice Fountain'" Plus using low speed.

peach mixture, mix well to combine. Serve immediately. 16/12/09 11:27 AM

GRAPE, KIWI FRUIT AND

BERRY BOOSTER Serves 2 Grapes contain potassium and iron, providing a great pick-me-up after a strenuous day. 160z (500g) green seedlless grapes, stems removed 2 kiwi fruit, peeled lb (250g) strawberries, hulled 160z (500mI) skim milk 2 tablespoons powdered protein drink mix % cup crushed ice

1. Process grapes, kiwi fruit and

strawberries through Juice FountainTM Plus using low speed.

2. Mix in milk, protein drink mix and

crushed ice. Serve immediately.

PEAR SPARKLE Serves 4 4 large apricots, halved and seeded 4 small red apples 3 medium pears 1 cup (250mi) sparkling mineral water % cup crushed ice

1. Process apricots, apples and pears

through Juice Fountain'" Plus using high speed.

2. Stir in mineral water and ice.

Serve immediately. JE98XL_IB_Issuet,09indd 37

ORANGE, CARROT, MINT AND

BEET QUENCHER Serves 2 4 oranges, peeled 8 carrots Y cup fresh mint leaves 2 small beets, trimmed . Process, oranges, carrots, mint leaves and beet through Juice Fountain" Plus using high speed. Serve immediately. J 1127 au |

Rather than waste the fiber from the fruit and vegetables that have been juiced, the following recipes have been developed using the left over pulp.

1. Layer the sheets of pastry, brushing

between each sheet with butter.

2. Lift pastry into a 10in (25cm) flan tin,

press over base and side. Trim pastry edge to about .5in (1.5cm) higher than side of tin.

3. Combine leek, pumpkin, carrot, feta

cheese, eggs, egg white, milk, orange rind and parsley.

4. Pour into pastry case and bake at

850°F (180°C) for 25-30 minutes or until golden and set.

VEGETABLE AND BACON SOUP

Serves 4 3 teaspoons butter 1 onion, finely chopped 1 ham bone 120z (3509) beet pulp, strained and juice reserved 1 oz (50g) potato pulp, strained and juice reserved 1 oz (30 g) carrot pulp, strained and juice reserved 30z (100g) tomato pulp, strained and juice reserved 1 oz (50g) cabbage pulp, strained and juice reserved Reserved juices and enough water to make up 2 litres 4 bacon rashers, chopped 1 tablespoon lemon juice Y cup sour cream

1. Melt butter in a large saucepan, cook

onion over a medium heat for 2-3 minutes or until golden.

2. Add ham bone to pan, stir in beetroot

pulp, potato pulp, carrot pulp, tomato pulp, cabbage pulp, reserved juices and water, bacon and lemon juice.

3. Bring to the boil, reduce heat and

simmer for 30-40 minutes.

4. Remove ham bone, discard bone, finely

chop meat and return to the pan. Serve topped with sour cream. 16/12/09 11:27 AM

CELERY STRUDELS Serves 4 30g butter 1 small onion, finely chopped 4% cups carrot, apple and celery pulp, strained (See Recipe - Fresh Starts) % lb (250g) cottage cheese 2 tablespoons chopped fresh mint 1 x egg, beaten 12 sheets filo pastry 20z (609) butter, melted extra 1 cup grated fresh Parmesan cheese Melt butter in a saucepan, add onion, cook for 2-3 minutes, or until soft, seasoning to taste.

2. Combine onion, carrot, apple and

celery pulp, cottage cheese, mint and egg in a bowl. Mix well.

3. Cut filo sheets in half, place 3 sheets

on bench, cover remaining pastry with greaseproof paper, then a damp cloth to prevent drying.

4. Brush 1 sheet of pastry with extra

butter, sprinkle with Parmesan cheese, top with another sheet of pastry, brush With butter, sprinkle with more cheese. Repeat with last sheet of pastry.

5. Place tablespoons of carrot mixture

on one end of pastry, fold in sides and roll up like a Swiss roll. Repeat with remaining pastry and pulp mixture.

6. Place on a greased oven tray and bake

at 400°F (200°C) for 20-25 minutes or until golden. JE98XL_IB_Issuet,09indd 39

PARSNIP, HERB AND POLENTA

HOT CAKES Serves 6 2 cups parsnip pulp, strained Y cup milk 2 x eggs, separated Y cup polenta (corn meal) Y cup self-raising flour 1 teaspoon chopped fresh thyme 1 teaspoon chopped fresh rosemary 1 teaspoon cajun seasoning 1 small red bell pepper, finely chopped 1 tablespoon oil . Combine parsnip pulp, milk, egg yolks, self raising flour, polenta, thyme, rosemary, Cajun seasoning and red bell pepper in a large mixing bowil.

2. Beat egg whites until soft peaks form,

fold into parsnip mixture.

3. Heat oil in a large frying pan, drop

spoonfuls of mixture into pan. Cook for about 1 minute on each side or until golden. Serve immediately. J 1127 au |

1. Melt chocolate over hot water, cool,

being careful not to let it set.

2. Combine strawberry pulp and raspberry

mixture and egg yolks, whisk until pale and glossy.

4. Beat cream and icing sugar together

until soft peaks form, fold through chocolate mixture with berry pulp and Grand Marnier.

5. Pour into a moistened 5 cup

capacity mould. Refrigerate several hours or overnight. CARROT CAKE Serves 8 1% cups plain flour 2 teaspoons baking powder à teaspoon nutmeg Y teaspoon cinnamon Y teaspoon cardamom Y cup peanuts, chopped Y cup sultanas % cup brown sugar, firmly packed 1% cups carrot pulp Y cup oil 2 x eggs, lightly beaten Y cup sour cream . Grease and line a 10in x Gin loaf pan.

2. Sift flour, baking powder, nutmeg,

cinnamon, and cardamom into a large mixing bowi.

3. Add peanuts, sultanas, brown sugar

and carrot pulp, stir to combine. Add eggs, oil and sour cream.

4. Beat with electric mixer using

medium speed until all ingredients are well blended.

5. Pour into loaf pan and bake at 350°F

for 1 hour or until cake is cooked when tested with a skewer

6. Remove from oven, stand in cake pan

for 5 minutes before inverting out onto a wire cake rack to cool 16/12/09 11:27 AM

FAMILY MEAT LOAF 4. To make glaze, place stock, tomato sauce, coffee powder, Worcestershire Serves 4 sauce, vinegar, lemon juice, sugar and 11b (500g) lean beef mince butter in a saucepan and bring to the 11b (500) sausage mince boil over a medium heat. 2 onions, fined chopped 5. Reduce heat and simmer, stirring % cup carrot pulp, strained frequently, for 8-10 minutes or until % cup potato pulp, strained glaze reduces and thickens slightly. 2 teaspoons curry powder 1 teaspoon ground cumin 1 tablespoon chopped fresh parsley 1 x egg, lightly beaten % cup evaporated milk % cup beef stock Freshly ground black pepper 2 tablespoons slivered almonds TOMATO GLAZE 4 cup beef stock 4 tablespoons tomato sauce 1 teaspoon instant coffee powder 3 tablespoons Worcestershire sauce 1% tablespoons vinegar 1% tablespoons lemon juice 3 tablespoons brown sugar % cup butter

1. Place beef, sausage mince, onions, carrot

pulp, potato pulp, curry powder, cumin, parsley, egg, evaporated milk, stock and black pepper in a bowi, mix to combine.

2. Press mixture into a lightly greased

3. Pour glaze over meatloaf, sprinkle with

almonds and bake, basting often with glaze, for 40 minutes. JESBXLIB_Issuet COindd 41 J 1127 au |

Breville®* warrants this Breville® appliance against defects that are due to faulty material or workmanship for a period of one (1) year from the date of original consumer purchase. This warranty does not cover damage from abuse, neglect, use for commercial purposes, or any other use not found in the printed “Instructions for use” booklet. There is no warranty for glass parts, glass containers, filter basket, blades and agitators. HW! Breville® expressly disclaim all responsibility for consequential damages for incidental losses caused by use of this appliance. Some states or provinces do not allow this exclusion or limitation for incidental or consequential losses, so the foregoing disclaimer may not apply to you.

ANY WARRANTY OF MERCHANTABILITY

OR FITNESS WITH RESPECT TO THIS

PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD. Some states or provinces do not allow disclaimer of the implied warranty with respect to consumer goods, so the foregoing disclaimer may not apply to you.

| Hi. .OSindd 42 This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state or province to province. If the appliance should become defective within the warranty period, do not return the appliance to the store. Please contact our Customer Service Center. US Customers Mail: Brevile USA 19400 S. Western Ave Torrance CA 90501-1119 Customer Service: 1(866) BREVILLE Customer Service: askus@brevilleusa.com Phone: Email: Canadian Customers Mail: Breville Canada 2555, Avenue de l'aviation Pointe-Claire (Montreal) Quebec H9P 272 Customer Service: 1(866) BREVILLE Customer Service: askus@breville.ca Phone: Email: 16/12/09 11:27 AM
