USER MANUAL GD2SHAXNQ WHIRLPOOL

ASSISTANCE OR SERVICE 1

REFRIGERATOR SAFETY. 2

REFRIGERATOR USE 3

REFRIGERATOR CARE. 6

TROUBLESHOOTING 7

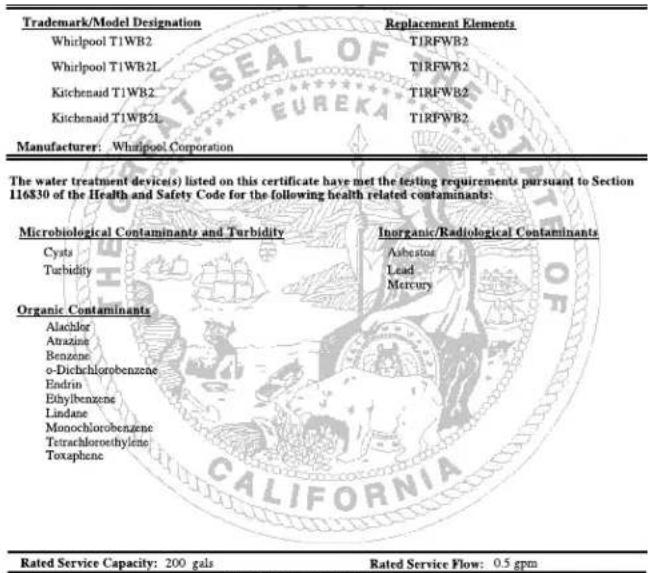

WATER FILTER CERTIFICATIONS 9

PRODUCT DATA SHEETS 10

WARRANTY 11

AYUDA O SERVICIO TECNICO 12

ASSISTANCE OU SERVICE 22

SECURITE DU REFRIGERATEUR. 22

UTILISATION DU REFRIGERATEUR 23

ENTRETIEN DU REFRIGERATEUR 27

DEPANNAGE 28

FEUILLES DE DONNÉES

SUR LE PRODUIT 30

GARANTIE 31

Assistance or Service

If you need assistance or service, first see the "Troubleshooting" section. Additional help is available by calling our Customer Interaction Center at 1-800-253-1301 from anywhere in the U.S.A., or write:

Whirlpool Corporation

Customer Interaction Center

553 Benson Road

Benton Harbor, MI 49022-2692

In Canada, for installation and service call, 1-800-807-6777. For assistance call 1-800-461-5681 Monday to Friday 8:00 a.m. - 6:00 p.m. (EST), Saturday 8:30 - 4:30 p.m. (EST), or write:

Whirlpool Canada Inc.

Customer Interaction Center

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

Information may also be obtained by visiting our website at www.whirlpool.com.

In Canada, visit www.whirlpoolappliances.ca. Please include a daytime phone number in your correspondence.

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your appliance to help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label, located on the inside wall of the refrigerator compartment.

Dealer name

Serial number

Address

Phone number

Model number

Purchase date

Accessories

To order replacement filters, call 1-800-442-9991 and ask for the appropriate part number listed below or contact your authorized Whirlpool dealer. In Canada, call 1-800-807-6777.

Stainless Steel Cleaner and Polish: Order Part #4396095

Standard Filter: Order Part #4396710 (T1RFWB2)

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
- Do not use an adapter.
- Do not use an extension cord.
Disconnect power before servicing.
Replace all panels before operating.
Remove doors from your old refrigerator.

Use nonflammable cleaner.
- Keep flammable materials and vapors, such as gasoline, away from refrigerator.
Use two or more people to move and install refrigerator.
- Disconnect power before installing ice maker (on ice maker kit ready models only).
Use a sturdy glass when dispensing ice or water (on some models).

SAVE THESE INSTRUCTIONS

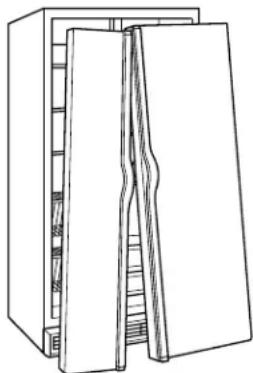

Proper Disposal of Your Old Refrigerator

WARNING

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Before you throw away your old refrigerator or freezer:

Take off the doors.
Leave the shelves in place so that children may not easily climb inside.

REFRIGERATOR USE

Using the Controls

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

NOTE: Make sure the refrigerator is plugged into a grounded 3 prong outlet.

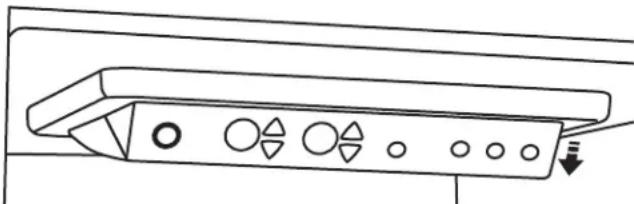

The control panel is located in the top of the refrigerator compartment. To view or adjust the controls, push up on the control panel and release.

For your convenience, your refrigerator controls are preset at the factory. When you first install your refrigerator, make sure that the controls are still preset to the mid-settings as shown.

IMPORTANT:

The refrigerator control adjusts the refrigerator compartment temperature. The freezer control adjusts the freezer compartment temperature.
The displays normally show the actual temperature inside the refrigerator and freezer. For information on displaying set point temperatures, see "Viewing Set Points."
Wait 24 hours before you put food into the refrigerator. If you add food before the refrigerator has cooled completely, your food may spoil.

NOTE: Adjusting the refrigerator and freezer controls to a lower (colder) setting will not cool the compartments any faster.

Turning Refrigerator On

If the refrigerator is not on, press COOLING ON/OFF to turn the cooling on.
To turn your refrigerator off, press COOLING ON/OFF. Your refrigerator will not cool when the control is set to Off.

NOTE: Pressing the Cooling On/Off button does not disconnect power to the refrigerator. The interior lights will turn off if either compartment door is open for more than 10 minutes. Simply close and open the door to turn on the interior lights.

Viewing Set Points

The factory recommended set points are 0^(-18^) for the freezer and 37^(3^) for the refrigerator.

Set point range for the freezer: -6^ to 6^ (-21^ to -14^)

Set point range for the refrigerator: 32^ to 46^ (0^ to 8^)

To view the set point temperatures, press either the up or down button for the refrigerator or freezer temperature. The display will become brighter to indicate that you are viewing the set points. Five seconds after an adjustment is made, the display lights will dim and return to the actual temperature.

NOTE: During automatic defrost cycles, the actual temperature displayed may be higher than the set point. This is normal. The actual temperatures should return to the set points within a few hours following completion of the defrost cycle.

Adjusting Controls

The mid-settings indicated in the previous section should be correct for normal household refrigerator usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked. If you need to adjust temperatures, use the settings listed in the chart below as a guide. Wait at least 24 hours between adjustments.

CONDITION/REASON:ADJUSTMENT

REFRIGERATOR too warm REFRIGERATOR

Control 1^ lower

FREEZER too warm/too little ice FREEZER Control 1^ lower

REFRIGERATOR too cold REFRIGERATOR

Control 1^ higher

FREEZER too cold FREEZER Control 1^

higher

Additional Control Panel Features

Temp Mode

Press TEMP MODE to select either Celsius or Fahrenheit temperature displays.

Temp Mode

Quick Cool

Use Quick Cool to speed the cooling of large grocery loads. Quick Cool sets the refrigerator temperature to 34^ (1^) and the freezer temperature to -6^ (-21^) for 24 hours.

NOTE: While Quick Cool is on, the display shows the Quick Cool temperature set points. After 24 hours or when Quick Cool is manually turned off, the set points will be returned to their previous setting.

Press QUICK COOL to select this mode. Quick Cool will stay on for 24 hours or until it is manually turned off.

Quick Cool

IceMagic System

Use the IceMagic System during periods of heavy ice usage. NOTE: While using the IceMagic System, you may need to set the meat pan temperature control to a higher (less cool) setting. See "Convertible Printer Temperature Control."

Press ICEMAGIC function to select this mode. IceMagic will stay on until it is manually turned off.

NOTE: Using the IceMagic® System may make some foods in the freezer, such as ice cream, harder.

■Press ICEMAGIC function a second time to deselect this mode.

IceMagic

Door Alarm

Use the Door Alarm to hear and see a signal when the door has been left open.

Press DOOR ALARM to turn the alarm on. If either compartment door is left open for more than 10 minutes, the alarm will sound every 2 minutes and the indicator light will flash.

NOTE: The refrigerator and freezer interior lights will turn off if a door is left open for more than 10 minutes, whether the alarm is turned on or off.

Door Alarm

Reset the Door Alarm by simply closing the door.

Convertible Printer Temperature Control

The control can be adjusted to properly chill meats or vegetables. The air inside the pan is cooled to prevent "spot" freezing and can be set to keep meats at the National Livestock and Meat Board recommended storage temperatures of 28^ to 32^ (-2^ to 0^) . The convertible drawer temperature control is preset to the VEG setting.

To Store Meat

Set the control to one of the three MEAT settings to store meat at its optimal storage temperature.

To Store Vegetables:

Set the control to VEG to store vegetables at their optimal storage temperatures.

NOTE: If food starts to freeze, move the control to the left (less cold). Remember to wait 24 hours between adjustments.

Crisper Humidity Control

(on some models)

You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH. LOW (open) for best storage of fruits and vegetables with skins.

HIGH (closed) for best storage of fresh, leafy vegetables.

Door Chill Control

The door chill control is located on the left-hand side of the refrigerator compartment.

Turn the control clockwise (right) to reduce the flow of cold air to the door and make it less cold.
Turn the control counterclockwise (left) to increase the flow of cold air to the door and make it colder.

Water and Ice Dispensers

(on some models)

WARNING

Cut Hazard

Use a sturdy glass when dispensing ice or water.

Failure to do so can result in cuts.

The Water Dispenser

IMPORTANT:

The dispensing system will not operate when the freezer door is open.
After connecting the refrigerator to a water source, flush the water system by dispensing water into a sturdy container until you draw and discard 2 to 3 gal. (8 to 12 L) of water, or for approximately 5 minutes after the water begins dispensing. The flushing process cleans the water system and clears air from the lines. As the air is cleared from the lines, water may spurt out of the dispenser.
■Allow several hours for the refrigerator to cool down and chill water.
Dispense enough water every week to maintain a fresh supply.

To Dispense Water:

1. Press a sturdy glass against the water dispenser lever.
2. Remove the glass to stop dispensing.

The Ice Dispenser

The dispensing system will not operate when the freezer door is open. Ice dispenses from the ice maker storage bin in the freezer when the dispenser lever is pressed.

Depending on your model, you may have one or more of the following options: the ability to select either crushed or cubed ice, a special light that turns on when you use the dispenser, or a lock option to avoid unintentional dispensing.

NOTE: Some models dispense both cubed and crushed ice.

Before dispensing ice, select which type of ice you prefer.

For crushed ice, cubes are crushed before being dispensed. This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal, and pieces of ice may vary in size. When changing from crush to cube, a few ounces of crushed ice will be dispensed along with the first cubes.

To Dispense Ice:

1. Press the button to select the desired type of ice.
2. Press a sturdy glass against the ice dispenser lever. Hold the glass close to the dispenser opening so ice does not fall outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to the lever in order to activate the ice dispenser. Pressing hard will not make the ice dispense faster or in greater quantities.

1. Remove the glass to stop dispensing.

The Dispenser Light

Style 1: The dispenser light can be turned on by pressing the ON button.
Style 2: When you use the dispenser, the lever will automatically turn the light on. If you want the light to be on continuously, you may choose either ON or NIGHT LIGHT.

ON: Press the LIGHT button to turn the dispenser light on.

NIGHT LIGHT: Press the LIGHT button a second time to select the Night Light. The dispenser light will automatically adjust to become brighter as the room brightens, dimmer as the room darkens.

OFF: Press the LIGHT button a third time to turn the dispenser light off.

The dispenser lights are LEDs which should not need to be changed. If it appears that your dispenser lights are not working, check to be sure that the light sensor is not blocked (in Night Light mode). See "Troubleshooting" for more information.

The Dispenser Lock (on some models)

Your dispenser can be turned off for easy cleaning or to prevent unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the product, to the ice maker, or to the dispenser light. It simply deactivates the dispenser levers. The ice and water dispensers will not work.

Style 1: Press the LOCK BUTTON to lock the dispenser. Press the UNLOCK button to unlock the dispenser.

Style 2: Press and hold the LOCK OUT button to lock the dispenser. Press and hold the LOCK OUT button a second time to unlock the dispenser.

Ice Maker and Storage Bin

Turning the Ice Maker On/Off

The ON/OFF switch is located on the top right side of the freezer compartment.

To turn the ice maker on, slide the control to the ON (left) position. To manually turn the ice maker off, slide the control to the OFF (right) position.

NOTE: Your ice maker has an automatic shutoff. The ice maker sensors will automatically stop ice production, but the control will remain in the ON (left) position.

REMEMBER:

■Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.
The quality of your ice will be only as good as the quality of the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.
- Do not use anything sharp to break up the ice in the bin or bucket. This can cause damage to the ice container and the dispenser mechanism.
■Do not store anything on top of or in the ice maker or storage bin.

Removing and Replacing Ice Storage Bin

1. Hold the base of the storage bin with both hands and press the release button to lift the storage bin up and out.

NOTE: It is not necessary to turn the ice maker control to the OFF (right) position when removing the storage bin. The sensor cover ("flipper door") on the left wall of the freezer stops the ice maker from producing ice if the door is open or the storage bin is removed.

1. Replace the storage bin on the door and push down to make sure it is securely in place.

Water Filtration System

NOTE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Water Filter Status Light (on some models)

The filter status light will help you know when to change your water filter. The light will change from green to yellow. This tells you that it is almost time to change the filter. It is recommended that you replace the filter when the status light changes to red OR water flow to your water dispenser or ice maker decreases noticeably.

After changing the filter, reset the filter status light by pressing the button. The status light will change from red to green when the system is reset.

Non-indicator Water Filter (on some models)

If your refrigerator does not have the status light, you should change the water filter every 6 months depending upon your usage. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter more often.

Changing the Water Filter

1. Press the eject button to release the filter from the base grille.
2. Pull the filter straight out.
3. Turn the cap counterclockwise to remove it from the filter.
   IMPORTANT: Do not discard the cap. It is part of your refrigerator. Keep the cap to use with the replacement filter.
4. Align the ridge on the cap with the arrow on the new filter and turn the cap until it snaps into place.

NOTE: You can run the dispenser without a filter. Your water will not be filtered. Simply insert the cap all of the way into the base grille and rotate the cap until it is firmly in place.

1. Remove the protective covers from the O-rings.
2. Push the filter into the base grille. The eject button will pop back out when the filter is fully engaged.
3. Flush the water system. See "Water and Ice Dispensers."

REFRIGERATOR CARE

Cleaning

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to prevent odors from building up. Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To prevent odor transfer and drying out of food, wrap or cover foods tightly.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.
3. Wash stainless steel and painted metal exteriors with a clean sponge or soft cloth and a mild detergent in warm water.
4. There is no need for routine condenser cleaning in normal home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.

If you need to clean the condenser:

Remove the base grille.
Use a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille and the front surface area of the condenser.
Replace the base grille when finished.

1. Plug in refrigerator or reconnect power.

Changing the Light Bulbs

NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape and wattage. The dispenser light requires a heavy duty 10-watt bulb. All other lights require a 40-watt bulb. Replacement bulbs are available from your dealer.

1. Unplug refrigerator or disconnect power.
2. Remove light shield when applicable.

NOTE: To clean the light shield, wash it with warm water and liquid detergent. Rinse and dry the shield well.

1. Remove light bulb and replace with one of the same size, shape and wattage.
2. Replace light shield when applicable.
3. Plug in refrigerator or reconnect power.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Refrigerator Operation

The refrigerator will not operate

Check the following:

■Is the power cord unplugged?
Has a household fuse blown, or has a circuit breaker tripped?
Are the temperature controls set at the mid-settings?

NOTE: The refrigerator may take several hours to cool initially. Adjusting the controls to coldest setting will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.

The refrigerator is noisy

Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with an explanation.

• Buzzing - heard when the water valve opens to fill the ice maker
  Pulsating - fans/compressor adjusting to optimize performance
  Rattling - flow of refrigerant, water line, or from items placed on top of the refrigerator
  Sizzling/Gurgling - water dripping on the heater during defrost cycle
• Popping - contraction/expansion of inside walls, especially during initial cool-down
  Water running - may be heard when water melts during the defrost cycle and runs into the drain pan
• Creaking/Cracking - occurs as ice is being ejected from the ice maker mold.

The doors will not close completely

Check the following:

Are food packages blocking the door open?
Are all bins and shelves pushed back into the correct positions?

The doors are difficult to open

Are the gaskets dirty or sticky? Clean gaskets with mild soap and warm water.
■Has the door been opened and closed within the last few seconds? Wait at least 30 seconds to reopen the doors.

Temperature and Moisture

Temperature is too warm

Check the following:

Are the air vents blocked in either compartment?
Are the door(s) opened often?
Has a large amount of food just been added to the refrigerator or freezer?
Are the controls set correctly for the surrounding conditions?

There is interior moisture buildup

NOTE: Some moisture is normal.
Are the air vents blocked in the refrigerator?
Are the door(s) opened often?
■Is the room humid?
Are the controls set correctly for the surrounding conditions?
Was an automatic self-defrost cycle completed?

Items in meat pan/crisper are freezing

The temperature inside the meat pan/crisper may become too cold, especially when using some additional control panel features. Adjust the meat pan control to the closed setting.

Ice and Water

The ice maker is not producing ice or not enough ice

■Is the ice maker wire shutoff arm or switch (depending on models) in the OFF position?
■Is the water line shutoff valve to the refrigerator turned on?
■ Is the freezer temperature cold enough to produce ice? Wait 24 hours after ice maker hookup for ice production.
- Has the ice maker just been installed? Wait 72 hours for full ice production to begin.

Does the ice maker mold have water in it or has no ice been produced? Make sure your refrigerator has been connected to a water supply and the supply shutoff valve is turned on.

Has a large amount of ice just been removed? Allow 24 hours for ice maker to produce more ice.
Is there a water filter installed on the refrigerator? The filter may be clogged or installed incorrectly.

■Is an ice cube jammed in the ice maker ejector arm? For models with an interior ice bin, remove the ice from the ejector arm with a plastic utensil.
■Is a reverse osmosis water filtration system connected to your cold water supply? See "Water Supply Requirements" in either the Installation Instruction booklet or the Use & Care Guide.

The ice cubes are hollow or small

This is an indication of low water pressure.

Check the following:

■Is the water shutoff valve fully open?
■Are there kinks in the water lines that could restrict water flow?
If you are using a water filter, remove the filter and operate the dispenser. If water flow increases, the filter is clogged or incorrectly installed.
■Is a reverse osmosis water filtration system connected to your cold water supply? See "Water Supply Requirements" in either the Installation Instructions or the Use & Care Guide.
If you still have questions regarding your water pressure, call a licensed, qualified plumber.

Off-taste, odor or gray color in the ice

Check the following:

■Are the plumbing connections new, causing discolored or off-flavored ice?
Have the ice cubes been stored too long?
Does the freezer and ice bin need to be cleaned?
Has food in the freezer or refrigerator been wrapped properly?
Does the water contain minerals (such as sulfur)? A filter may need to be installed to remove the minerals.
■Is there a water filter installed on the refrigerator? Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing.

The ice dispenser will not operate properly

Check the following:

■Is the freezer door closed completely?
■Is the ice bin installed correctly?
■Is there ice in the bin?
Has the ice frozen in the ice bin?
■Is ice stuck in the delivery chute?

Has the wrong ice been added to the bin? Use only cubes produced by the current ice maker.
■Has the ice melted around the auger (metal spiral) in the ice bin? Dump the ice cubes and clean the ice bin. See "Ice Maker and Storage Bin."
Is the ice dispenser stalling while dispensing "crushed" ice? Change the ice button from "crushed" to "cubed." If cubed ice dispenses correctly, depress the button for "crushed" ice and begin dispensing again.
- Has the dispenser arm been held in too long? Ice will stop dispensing when the arm is held in too long. Wait 3 minutes for dispenser motor to reset before using again.

The water dispenser will not operate properly

Check the following:

■Is the freezer door closed completely?
■Is the water shutoff valve not turned on, incorrectly installed or clogged?
■Is the water line connected at the source?
Is there a kink in the home water source line?
- Has the water system not filled? The water system needs to be filled the first time it is used.
■Is the refrigerator connected to a cold water line with water pressure of at least 30 psi? The water pressure to the home determines the flow from the dispenser.
Is there a water filter installed on the refrigerator? The filter may be clogged or incorrectly installed.
■Is a reverse osmosis water filtration system connected to your cold water supply? See "Water Supply Requirements" in either the Installation Instructions or the Use & Care Guide.

Water is leaking from the dispenser

Check the following:

■Is the glass not being held under the dispenser long enough?
Has the water system been flushed since installation or changing filters?

The dispenser water is not cool enough

NOTE: Water from the dispenser is only chilled to 50^ (10^)

■Has the refrigerator been newly installed or a large amount of water recently dispensed? Allow 24 hours for the refrigerator to cool completely.
Has water not been recently dispensed? The first glass of water may not be cool. Discard the first glass of water.

WATER FILTER CERTIFICATIONS

State of California

Department of Health Services

Water Treatment Device

Certificate Number

04-1635

Date Issued: April 8, 2004

Rated Service Capacity: 200 gals

Rated Service Flow: 0.5 gpm

Conditions of Certification:

Do not use water where is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

PRODUCT DATA SHEETS

Base Grille Water Filtration System Model T1WB2L/T1RFWB2 Capacity 200 Gallons (758 Liters) Model T1WB2/T1RFWB2 Capacity 200 Gallons (758 Liters)

Tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Atrazine, Benzene, Toxaphene, O-Dichlorobenzene, Cysts, Turbidity, Asbestos, Lindane, Tetrachloroethylene, Endrin, Alachlor, Chlorobenzene and Ethylbenzene.

This system has been tested according to NSF/ANSI 42/53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.

Substance Reduction Aesthetic Effects	NSF Reduction Requirements	Average Influent	Influent Challenge Concentration	Maximum Effluent	Average Effluent	Minimum % Reduction	Average % Reduction
Chlorine Taste/Odor Particulate Class I*	50% reduction85% reduction	2.0 mg/L3533333#/mL	2.0 mg/L ± 10%At least 10,000 particles/mL	0.08 mg/L22000 #/mL**	2.0 mg/L11567 #/mL	95.9399.38	97.3699.67
Contaminant Reduction	NSF Reduction Requirements	Average Influent	Influent Challenge Concentration	Maximum Effluent	Average Effluent	Minimum % Reduction	Average % Reduction
Lead: @ pH 6.5Lead: @ pH 8.5	0.010 mg/L0.010 mg/L	150 ug/L†157 ug/L†	0.15 mg/L ± 10%0.15 mg/L ± 10%	1.0 ug/L2.0 ug/L	1 ug/L1.08 ug/L	99.3398.72	99.3399.31
Mercury: @ pH 6.5Mercury: @ pH 8.5	0.002 mg/L0.002 mg/L	0.0058 mg/L0.0057 mg/L	0.006 mg/L ± 10%0.006 mg/L ± 10%	0.0002 mg/L0.0002 mg/L	0.0002 mg/L0.0002 mg/L	96.5396.5	96.5396.5
Benzene 0.005 mg/L 15 ug/L 0.015 mg/L ± 10% 0.5 ug/L 0.5			ug/L 96.67 96.67
O-Dichlorobenzene 0.6 mg/L 1750 ug/L 1.8 ± 10% 1.0 ug/L 99.94 99.94
Toxaphene	0.003 mg/L	15 ug/L	0.015 ± 10%	1.0 ug/L	1.0 ug/L	93.33	93.33
Atrazine	0.003 mg/L	10 ug/L	0.009 mg/L ± 10%	2 ug/L	2 ug/L	80.8	80.8
Asbestos	99%	101 MFL 10	to 10#fibers/L†	0.17 MFL	0.17 MFL	99.83 99.83
Live Cysts+Turbidity	>99.95%0.5 NTU	120,000/L11.4 NTU	50,000/L min.11 ± 1 NTU	8/L†0.41 NTU	1/L†0.24 NTU	99.9996.4	>99.9997.89
Alachlor	0.002 mg/L	41.3 ug/L	0.04 ± 10%	0.2 ug/L	0.2 ug/L	99.52	99.52
Endrin	0.002 mg/L	5.9 ug/L	0.006 ± 10%	0.5 ug/L	0.3 ug/L	91.5	95.47
Ethylbenzene	0.7 mg/L	1867 ug/L	2.1 ± 10%	0.70 ug/L	0.0588 ug/L	99.96	100
Lindane	0.002 mg/L	1.9 ug/L	0.002 ± 10%	0.02 ug/L	0.02 ug/L	98.93	98.93
Chlorobenzene	0.6 mg/L	2.0 ug/L	2.0 ± 10%	0.0005 ug/L	0.0005 ug/L	99.98	99.98
Tetrachloroethylene	0.005 mg/L	14.2 ug/L	0.015 ± 10%	0.5 ug/L	0.5 ug/L	96.47	96.47

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C).
It is essential that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised.
■Use replacement cartridge T1RFWB2, part #4396710. 2004 suggested retail price of 39.99 U.S.A./ 49.99 Canada. Prices are subject to change without notice.

Refer to the back cover or "Accessories" section for the Manufacturer's name, address and telephone number.
Refer to the "Warranty" section for the Manufacturer's limited warranty.

Model T1WB2L: Style 1-When the filter indicator reads 10% order a new filter. When the filter indicator reads 0% it is recommended that you replace the filter.

Style 2-When the filter indicator light changes from green to yellow, order a new filter. When the filter indicator light changes from yellow to red, it is recommended that you replace the filter.

Model T1WB2: Change the water filter cartridge every 6 months depending upon your usage. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter cartridge more often.

The product is for cold water use only.
■Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Application Guidelines/Water Supply Parameters

Water Supply	City or Well
Water Pressure	30 - 120 psi (207 - 827 kPa)
Water Temperature	33° - 100°F (0.6° - 37.8°C)
Service Flow Rate	0.5 gpm (1.9 L/min.) @ 60 psi.

Class I particle size: >0.5 to <1 um
*Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
†These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.
^+ Fibers greater than 10 um in length
^ Based on the use of Cryptosporidium parvum oocysts

NSF is a registered trademark of NSF International.

WHIRLPOOL® REFRIGERATOR WARRANTY

ONE-YEAR FULL WARRANTY ON REFRIGERATOR

For one year from the date of purchase, when this refrigerator (excluding the water filter) is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation will pay for FSP® replacement parts and repair labor costs to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.

On models with a water filter: 30 day limited warranty on water filter. For 30 days from the date of purchase, when this filter is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation will pay for replacement parts to correct defects in materials and workmanship.

SECOND THROUGH FIFTH YEAR FULL WARRANTY ON SEATED REFRIGERATION SYSTEM PARTS AS LISTED

In the second through fifth years from the date of purchase, when this refrigerator is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation will pay for FSP replacement parts and repair labor costs to correct defects in materials or workmanship in the sealed refrigeration system. These parts are: compressor, evaporator, condenser, dryer, and connecting tubing. Service must be provided by a Whirlpool designated service company.

Whirlpool Corporation will not pay for:

1. Service calls to correct the installation of your refrigerator, to instruct you how to use your refrigerator, to replace house fuses or correct house wiring or plumbing, to replace light bulbs, or replacement water filters other than as noted above.
2. Repairs when your refrigerator is used in other than normal, single-family household use.
3. Pickup and delivery. Your refrigerator is designed to be repaired in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of products not approved by Whirlpool Corporation or Whirlpool Canada Inc.
5. Any food loss due to product failure.
6. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
7. Replacement parts or repair labor costs for units operated outside the United States or Canada.
8. In Canada, travel or transportation expenses for customers who reside in remote areas.

WHIRLPOOL CORPORATION AND WHIRLPOOL CANADA INC. SHALL NOT BE LIABLE FORINCIDENTALORCONSEQUENTIALDAMAGES

Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see the "Troubleshooting" section of this book. After checking "Troubleshooting," additional help can be found by checking the "Assistance or Service" section or by calling the Whirlpool Customer Interaction Center, 1-800-253-1301 (toll-free), from anywhere in the U.S.A. In Canada, contact your Whirlpool Canada Inc. designated service company or call 1-800-807-6777.

Customer Interaction Center

553 Benson Road

Benton Harbor, MI 49022-2692

Whirlpool Canada Inc.

Customer Interaction Center

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

WHIRLPOOL CORPORATION Y WHIRLPOOL CANADA INC. NO SE RESPONSABILIZARAN POR DANOS INCIDENTALES O CONSEVENTES

Customer Interaction Center

553 Benson Road

Benton Harbor, MI 49022-2692

Whirlpool Canada Inc.

1901 Minnesota Court

Mississauga, Ontario L5N 3A7
