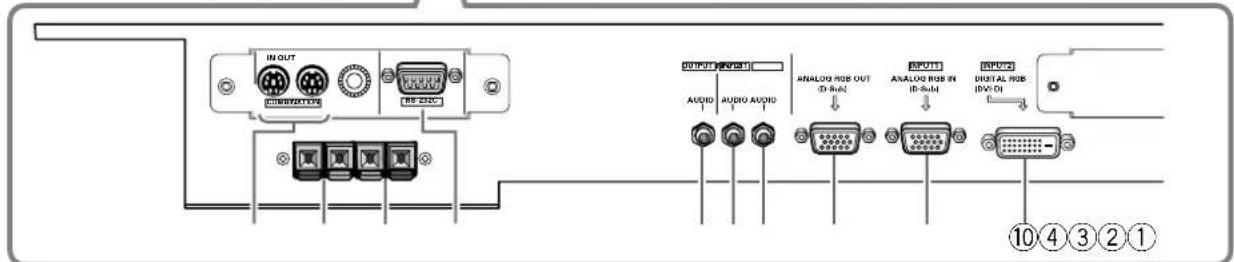

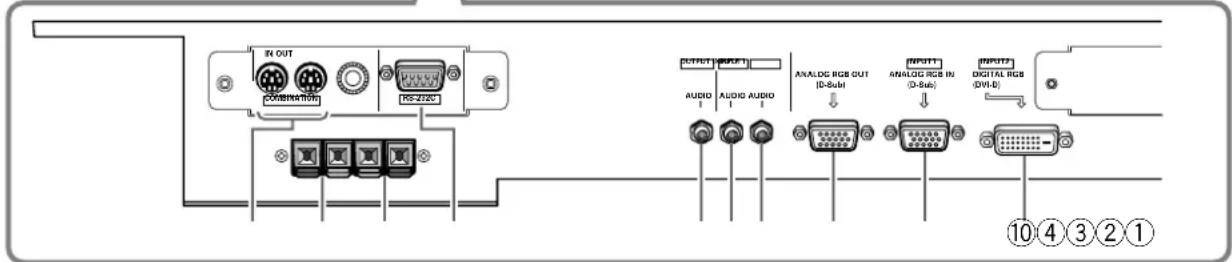

Connection panel (PDP-607CMX) 9

Connection panel (PDP-507CMX) 10

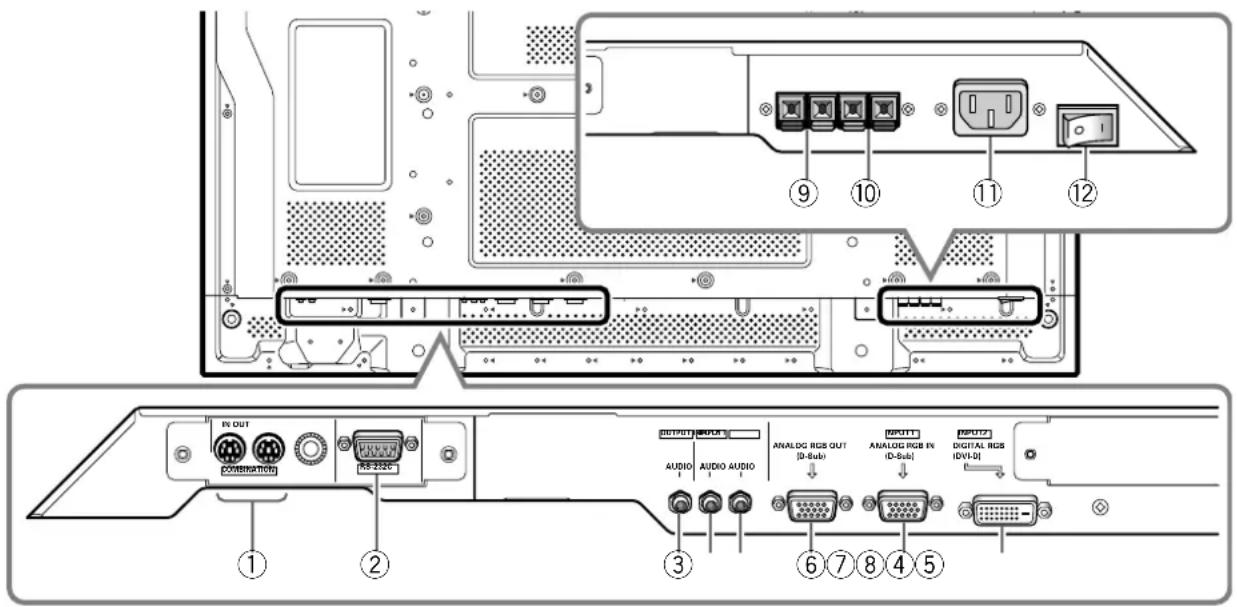

Connection panel (PDP-427CMX) 11

Installation and Connections ...... 12

Installation of the unit 12

Connection to a personal computer 14

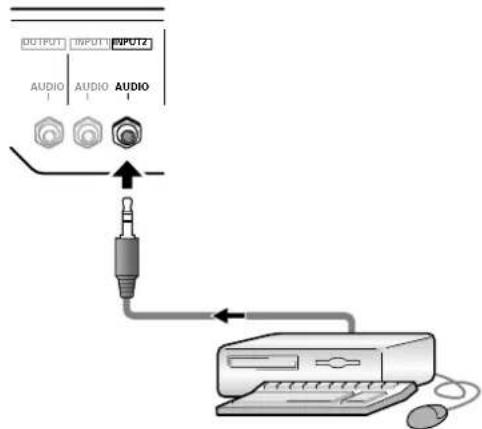

Audio connections 15

Power cord connection 16

Attaching the ferrite cores 16

How to route cables 17

System Settings 18

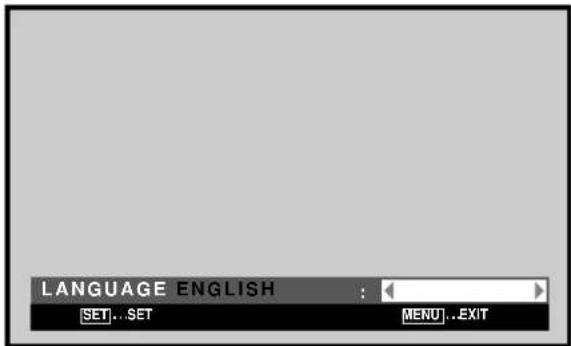

Setting the onscreen display language ..... 18

Settings after connections 19

Operation 20

Selecting input source 20

Adjusting sound volume 21

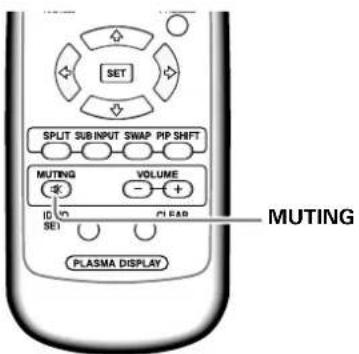

Muting the sound 21

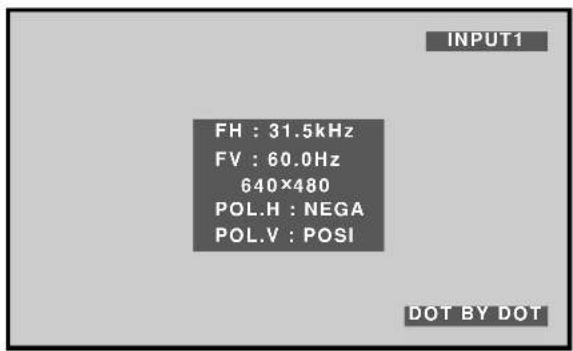

Confirming current status 21

Changing screen size 22

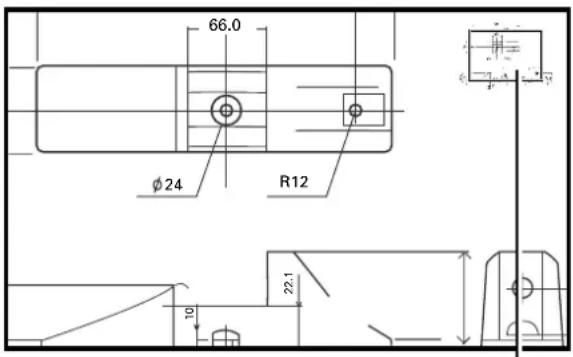

Enlarging one part of the screen

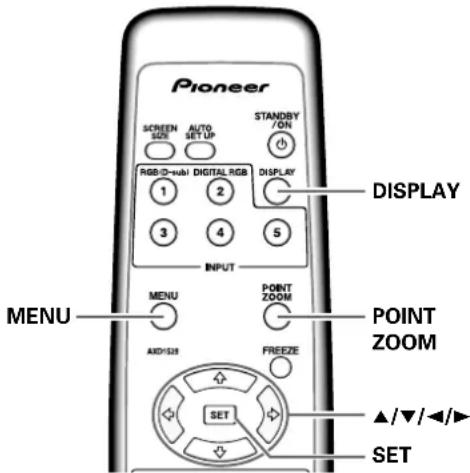

(POINT ZOOM) 23

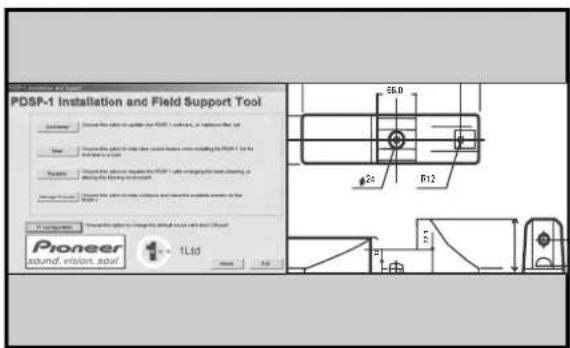

Multiscreen display 24

Automatic power-off

(POWER MANAGEMENT) 25

PICTURE/SCREEN Adjustment ..... 26

PICTURE adjustment 26

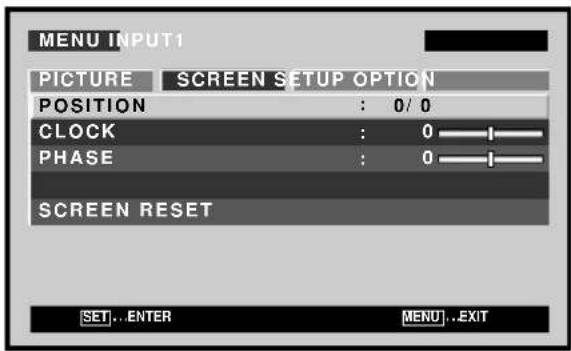

Adjusting screen POSITION, CLOCK,

and PHASE 27

Adjusting screen POSITION, CLOCK,

and PHASE 28

Other Operations 30

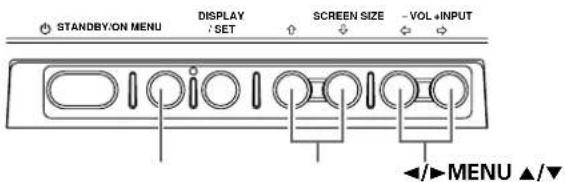

Setting the ORBITER 30

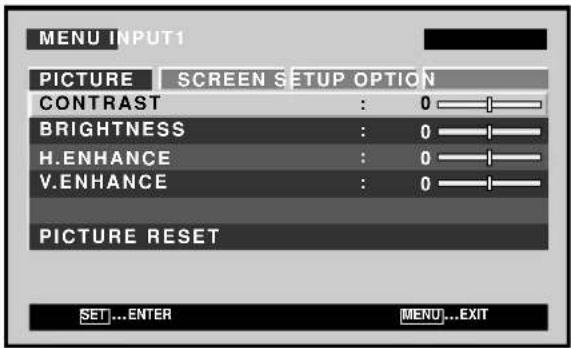

Setting the SOFT FOCUS 31

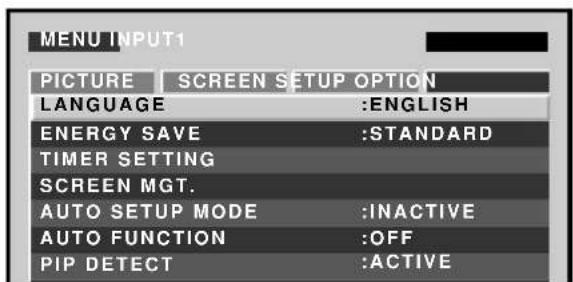

Energy saving settings (ENERGY SAVE) ...... 32

Automatic input switching

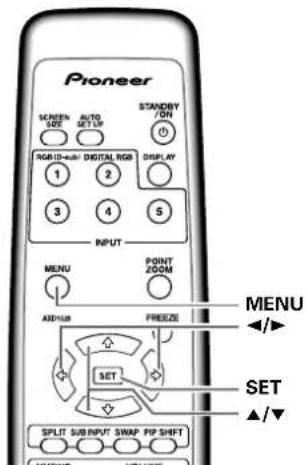

(AUTO FUNCTION) 33

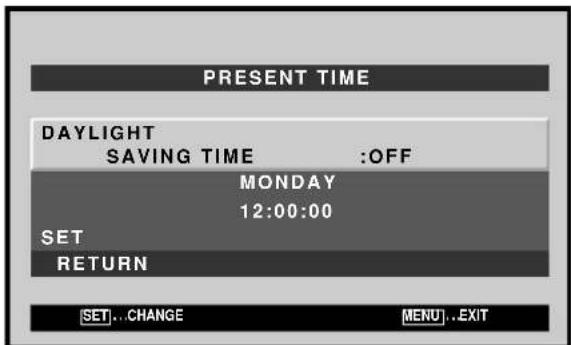

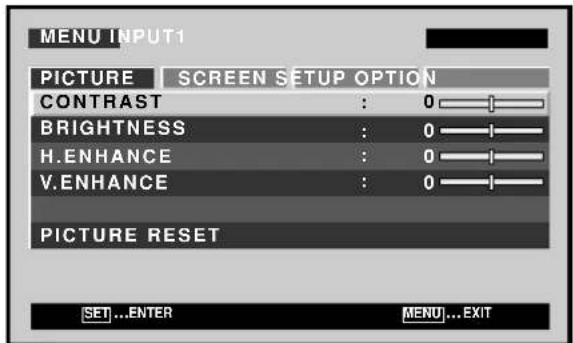

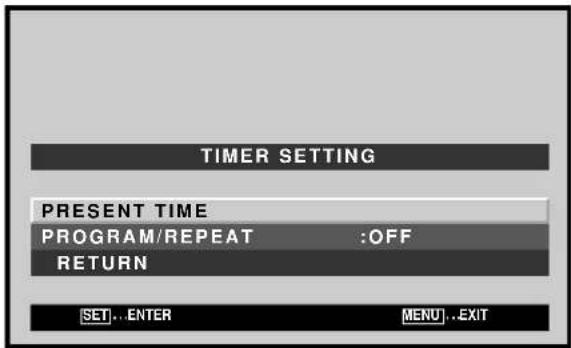

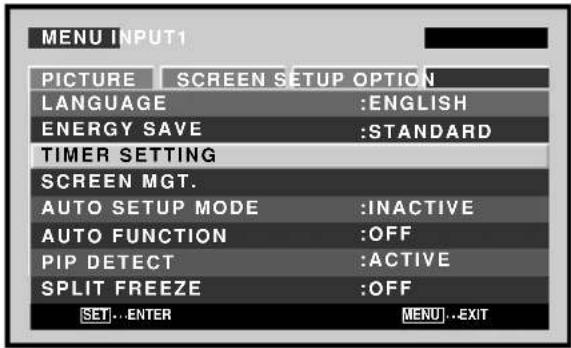

Setting the PRESENT TIME 34

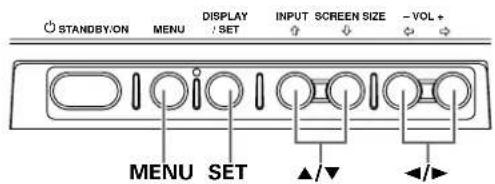

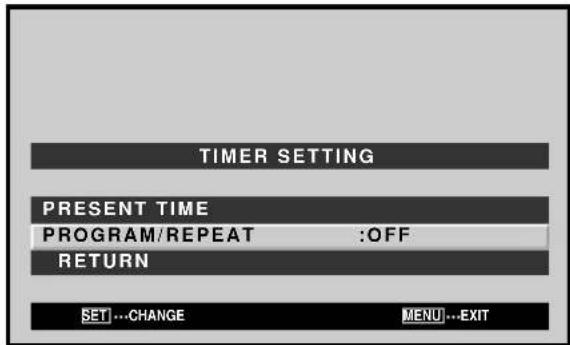

Activating the timer 35

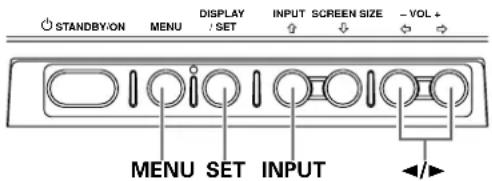

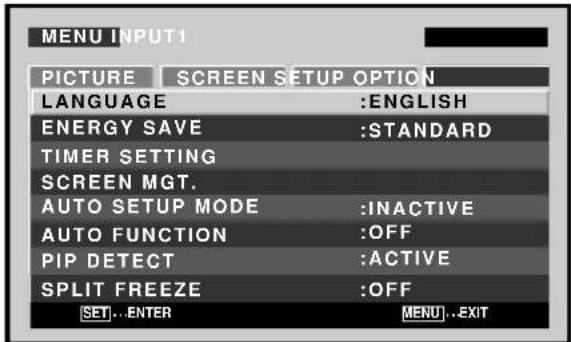

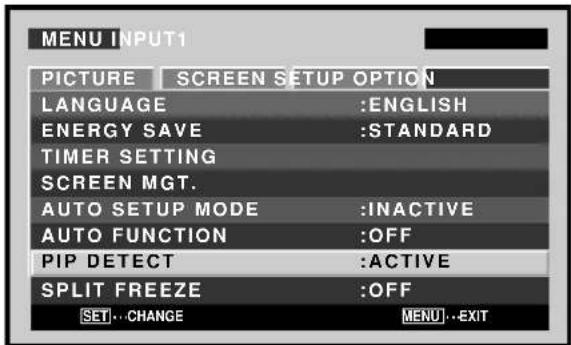

Setting the subscreen mode (PIP DETECT) .... 36

Setting the memo screen (SPLIT FREEZE) ..... 37

Additional Information 38

Cleaning 38

Troubleshooting 39

Precautions regarding use 41

STANDBY/ON indicator 41

Specifications 42

Appendix 1: Computer signal

compatibility table 43

Appendix 2: INPUT1/2 pin assignments ..... 49

Explanation of terms 50

Features

● Introduces newly developed Wide Plasma Panel PDP-607CMX/PDP-507CMX:

The new wide high-precision plasma panel (1365x768 / 16:9) pushes the envelope of previous high-luminance panels, producing brighter, clearer images with higher contrast.

PDP-427CMX:

The new wide high-precision plasma panel (1024x768 / 16:9) pushes the envelope of previous high-luminance panels, producing brighter, clearer images with higher contrast.

● ES Slot interface for enhanced potential

The display is provided with a built-in ES Slot Interface to allow the installation of cards for the connection of external devices, thus enhancing its expansion potential.

● Supports wide range of computer signals (analog/digital)

Supports non-compressed display of signals ranging from 640x400 and 640x480 (VGA) to 1024x768 (XGA), and compressed display of 1280x1024 (SXGA), 1400x1050 (SXGA+) and 1600x1200 (UXGA) signals. Further, aspect ratio and screen size settings supported include [DOT BY DOT], [4:3] and [FULL] (*1).

* Supported signals are different on INPUT1 and INPUT2.
*1 Aspect ratio and screen size appearance will differ depending on input signal.

- Free Installation Configuration - Broader installation possibilities with thinner, lighter, high-endurance design -

PDP-607CMX:

While producing a large 60" screen image, the display is only 122 mm thick, and weighs in at only 62.0 kg.

PDP-507CMX:

While producing a large 50" screen image, the display is only 99 mm thick, and weighs in at only 35.5 kg.

PDP-427CMX:

While producing a large 42" screen image, the display is only 98 mm thick, and weighs in at only 30.5 kg.

On the other hand, the efficient heat-radiating design greatly improves environmental operating conditions. The thinner, lighter design, coupled to high-endurance construction greatly broadens the range of possible installation locations and styles.

● High reliability for commercial applications

This display is provided with features giving it high dependability in commercial applications, including the ability to suppress peak luminance in accordance with the viewing program, and to change the cooling fan's speed in accordance with changes in operating environment. Such features provide safety and high-endurance under conditions of commercial use.

- Improved usability

User convenience has been improved by the inclusion of features making the display even more compatible with your computer. Some of these include the one-touch screen adjustment, [AUTO SET UP] function for computer connections, and the POINT ZOOM function to enlarge local portions of the screen image to display important detailed program data.

● Power-Saving Design

The display is provided with a variety of power-saving functions, including an automatic brightness function with ambient light sensor.

- Optional line (sold separately) (For details, please consult the dealer where this unit was purchased.)

1 Table top stand: Display stand.
2 W all installation unit: Wall installation bracket designed as a wall interface for securing the unit.
3 Speaker system designed specifically for Plasma Displays (width: 9 cm (3-9/16 in.)): 2-way speaker units featuring 5 cm (2 in.) tweeter and 8 cm (3-3/16 in.) woofer in vertical arrangement.
4 Video card: Expansion card allows viewing of video signals and computer analog RGB signals. Cards used in the expansion slots should be manufactured or recommended by Pioneer. Using other expansion cards may result in malfunction.

How to use this manual

This manual is set up to follow the course of actions and operations in the order that would seem most logical for someone setting up this unit.

Once the unit has been taken out of the box and it has been confirmed that all the parts have been received (page 5), it may be beneficial to look over the section "Part Names and Functions" starting on page 6 to become acquainted with the plasma monitor and remote control unit, as their respective buttons and controls will be referred to throughout this manual.

The section "Installation and Connections" starting on page 12 covers all the necessary points regarding installation of the Plasma Display and connections to a wide variety of components.

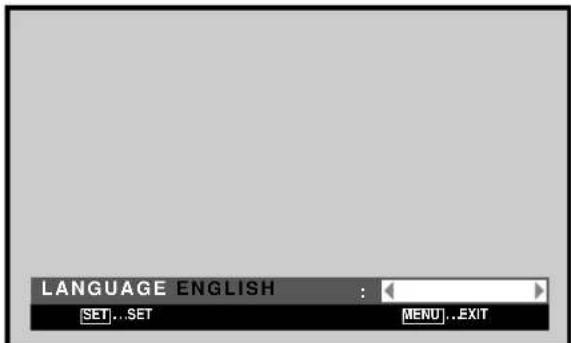

The section "System Settings" starting on page 18 covers the on-screen settings necessary for correct operation of the Plasma Display with its connected components. Depending on the connections made, this section may or may not be necessary.

The remainder of the sections in this manual is dedicated to the basic operations associated with selecting a source component up to the more complex operations associated with adjusting the Plasma Display picture to match the requirements of specific components and personal preferences.

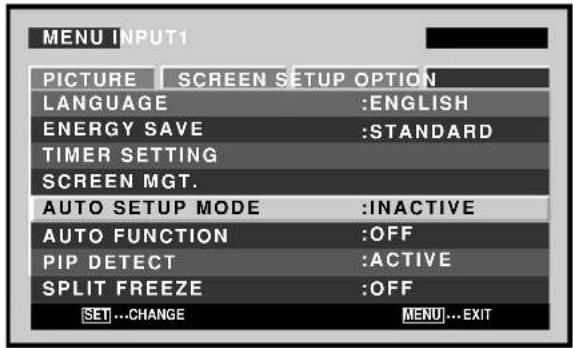

Menu display examples

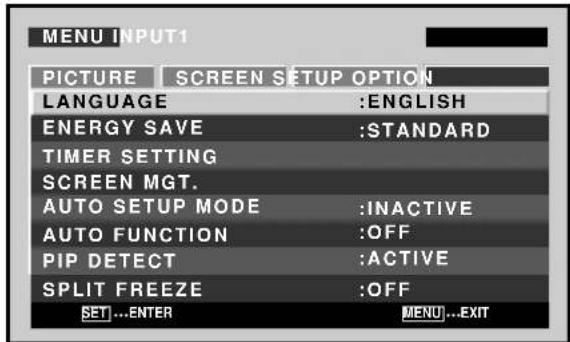

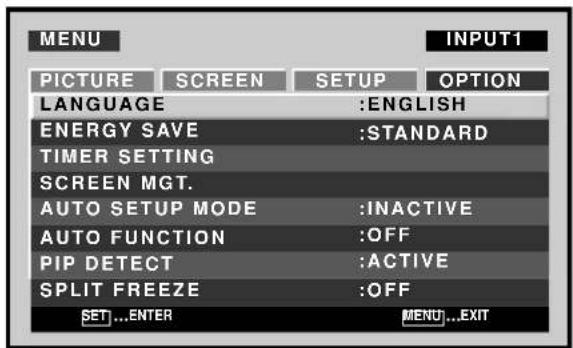

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

Images shown here may differ from the actual display image.

About operations in this manual

Each operation is described in its proper operating order. These Operating Instructions will refer to the operating controls found on the remote control unit, with the exception of those buttons found only on the main Plasma Display itself. When the Plasma Display controls include equivalent buttons to those found on the remote control unit, the commands can be performed on the main unit as well.

The following illustrations are an example of the actual operations used for the section "PICTURE adjustment". The examples are provided to allow you to confirm whether the operation is performed correctly or not.

Note

The screen images depicted in these Operating Instructions should be considered typical images; some difference will be seen in practice, depending on the screen item displayed and its contents, the input source and various other control settings.

English

PICTURE/SCREEN Adjustment

PICTURE adjustment

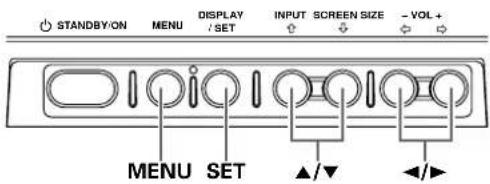

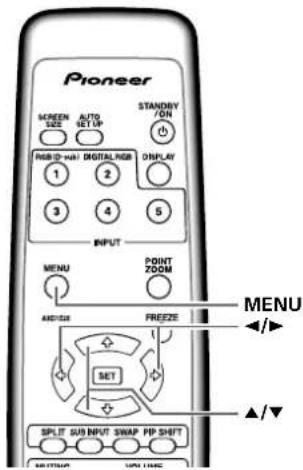

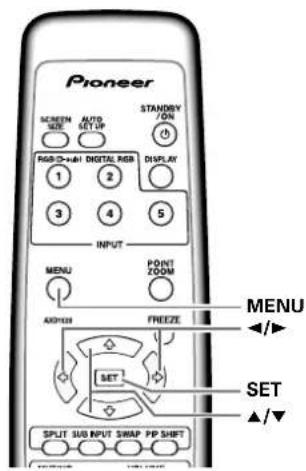

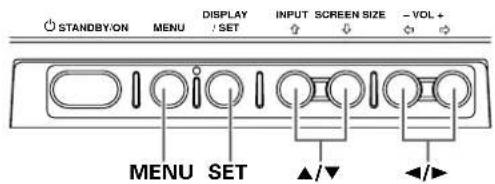

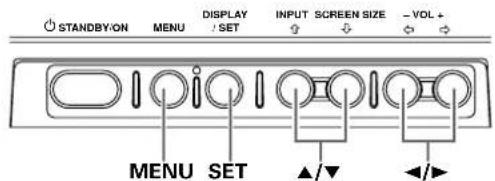

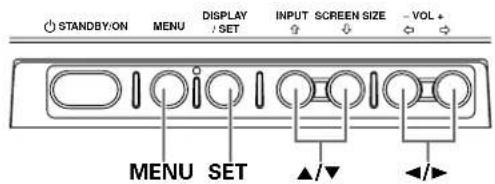

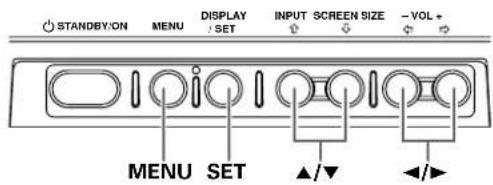

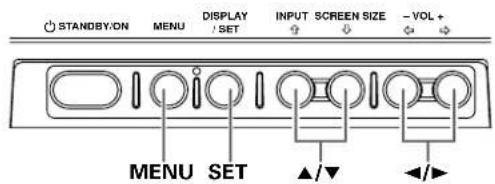

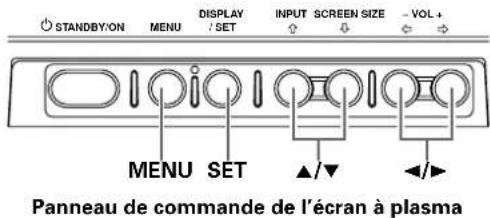

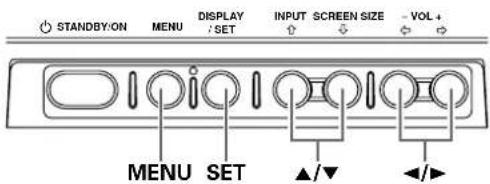

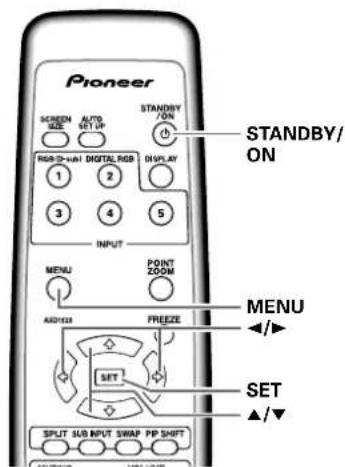

Pioneer MENU SET ▲/▼

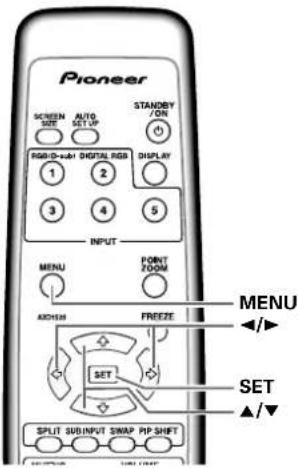

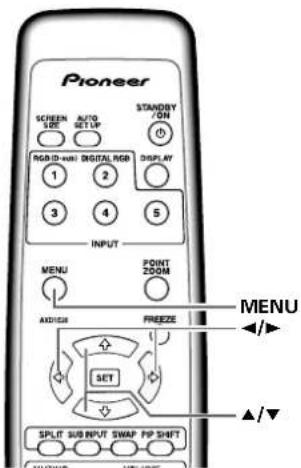

Remote control unit

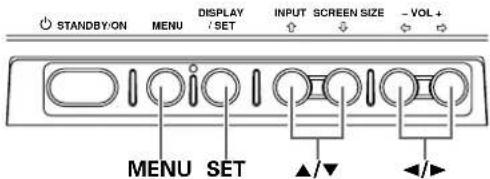

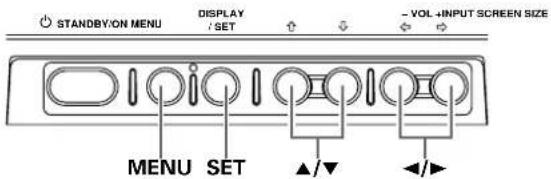

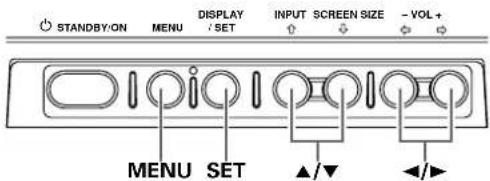

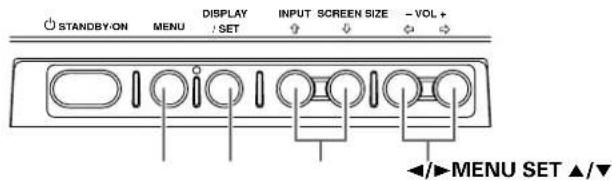

Main unit operating panel

PICTURE/SCREEN Adjustment

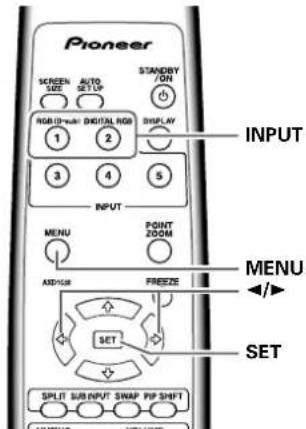

1 Press the MENU button to display the menu screen.

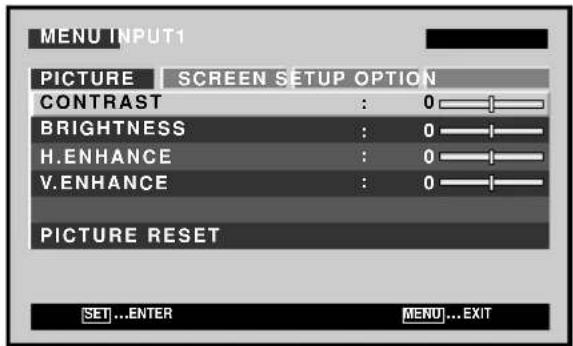

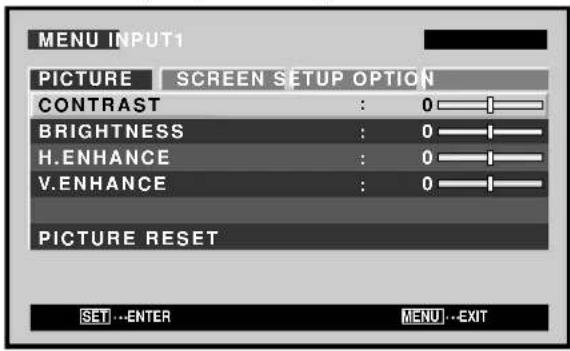

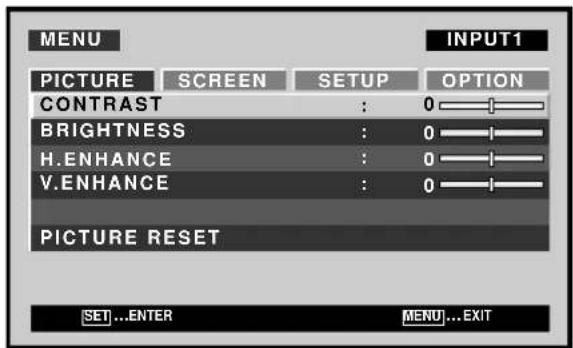

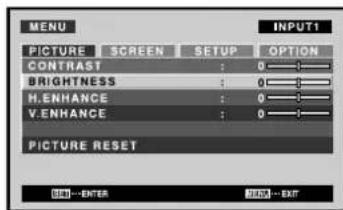

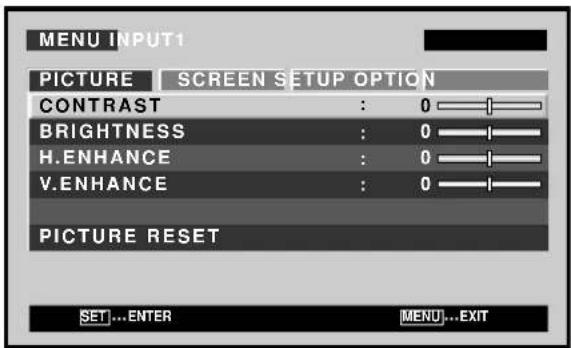

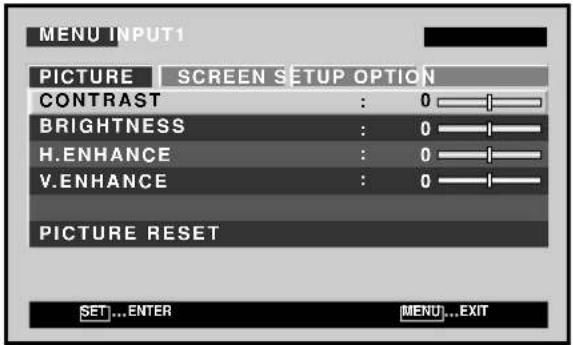

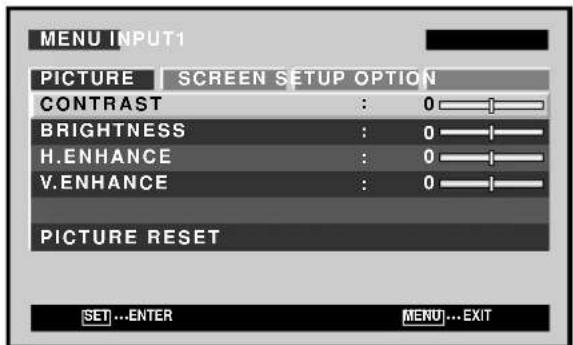

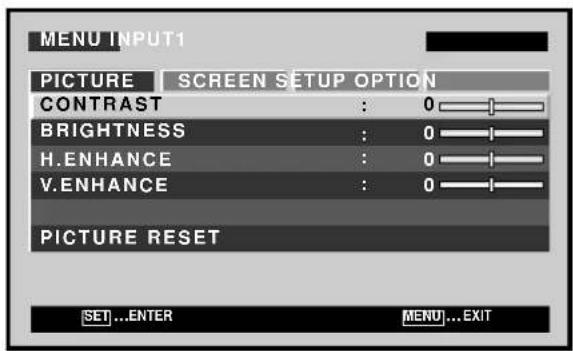

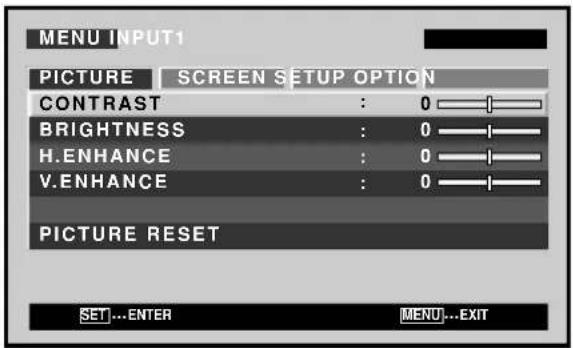

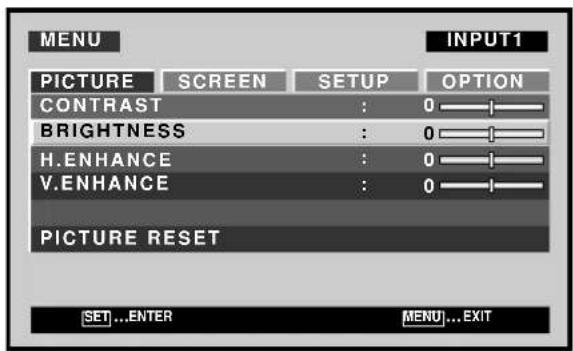

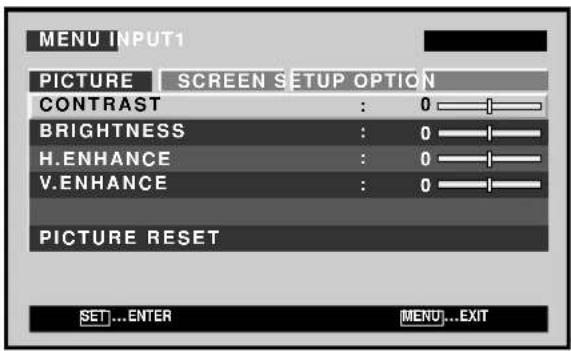

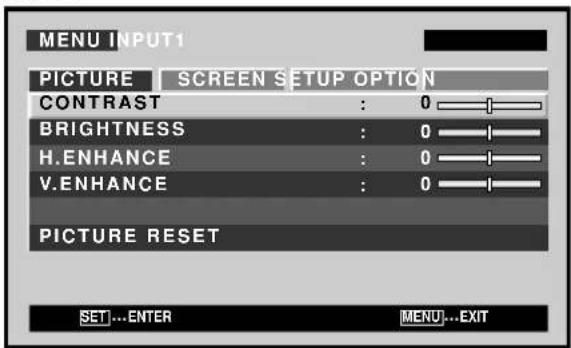

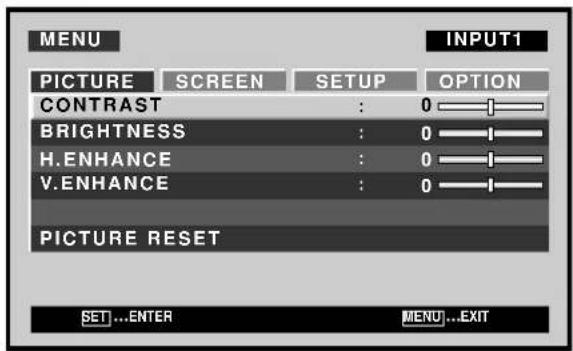

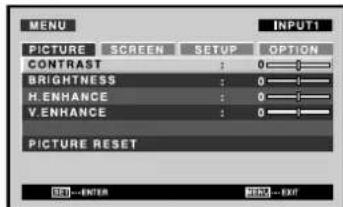

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET - ENTER RESET - Export

2 Use the ▲/▼ buttons to select the adjustment item, then press the SET button.

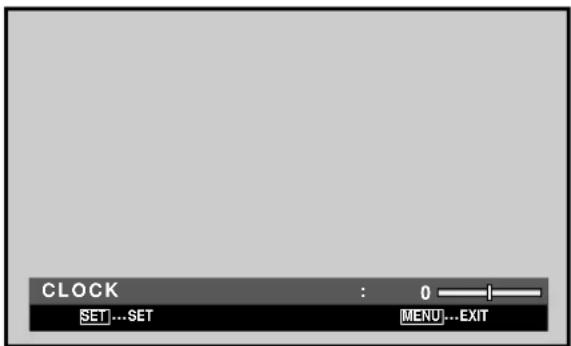

3 Use the ◀/▶ buttons to adjust the picture quality as desired.

4 Press the SET button.

Pressing the SET button writes the value into the memory and returns the display to the step 2 screen.

5 When the setup is finished, press the MENU button to exit the menu screen.

Note

Make these adjustments for each input (INPUT1 or INPUT2) and signals.

[PICTURE] mode adjustment items

Below are brief descriptions of the options that can be set in the [PICTURE] mode.

CONTRAST ....Adjust according to the surrounding brightness so that the picture can be seen clearly.

BRIGHTNESS ....Adjust so that the dark parts of the picture can be seen clearly.

H. ENHANCE…… Sharpens the image in the horizontal direction.

V. ENHANCE …… Sharpens the image in the vertical direction.

To reset [PICTURE] mode settings to the default If settings have been adjusted excessively or the picture on the screen no longer appears natural, it may prove more beneficial to reset the [PICTURE] mode to default settings instead of trying to make adjustments under already adjusted conditions.

1 In step 2 in the previous procedure, use the ▲/▼ buttons to select [PICTURE RESET], then press the SET button.

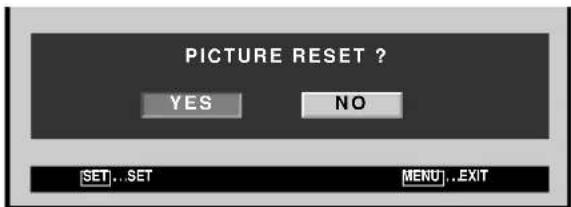

PICTURE RESET ? YES NO SET---SET SELL---EXIT

2 Use the ◀/▶ buttons to select [YES], and press the SET button.

All [PICTURE] mode settings are returned to the factory set default.

26

En

Checking supplied accessories

Check that the following accessories were supplied.

①Power cord (2 m/6.6 feet)

② Remote control unit

unit

③AA (R6) batteries (x 2)

④Cleaning cloth (for screen)

⑤Speed clamps (x 3)

Pure technical line drawing of four identical metal bars with mounting holes (no text or symbols)

⑥Bead bands (x 3)

⑦Ferrite cores (x 3) (for audio cables)

Three identical cylindrical electronic components with mounting holes, shown in isometric view (no text or symbols)

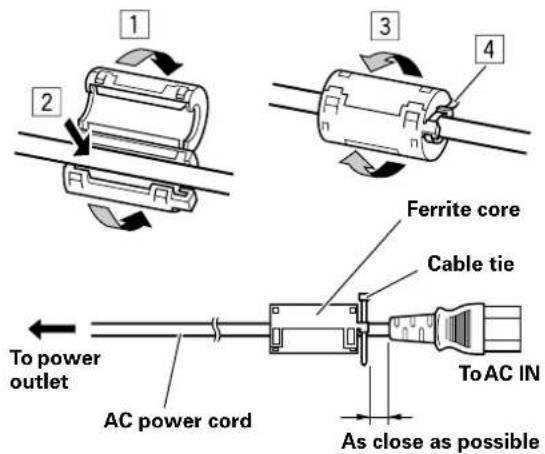

⑧Ferrite cores (x 2) (PDP-427CMX: for power cord)

Two identical cylindrical mechanical components with mounting flanges and internal slots (no text or symbols)

⑨ Cable ties (x 2) (PDP-427CMX)

Two identical metal tools with clamps, shown in side profile (no text or symbols)

⑩Display stands (x 2) (PDP-427CMX)

Technical line drawing of two mechanical bracket components (no text or symbols)

⑪ Washers (x 2) (PDP-427CMX)

⑫Hex hole bolts (M8 x 40 mm) (x 2) (PDP-427CMX)

⑬ Remote control unit holder (PDP-427CMX)

Use as a holder for the remote control unit. When attaching to the rear of the main unit, be careful not to cover the vents.

• These Operating Instructions
- Warranty

Part Names and Functions

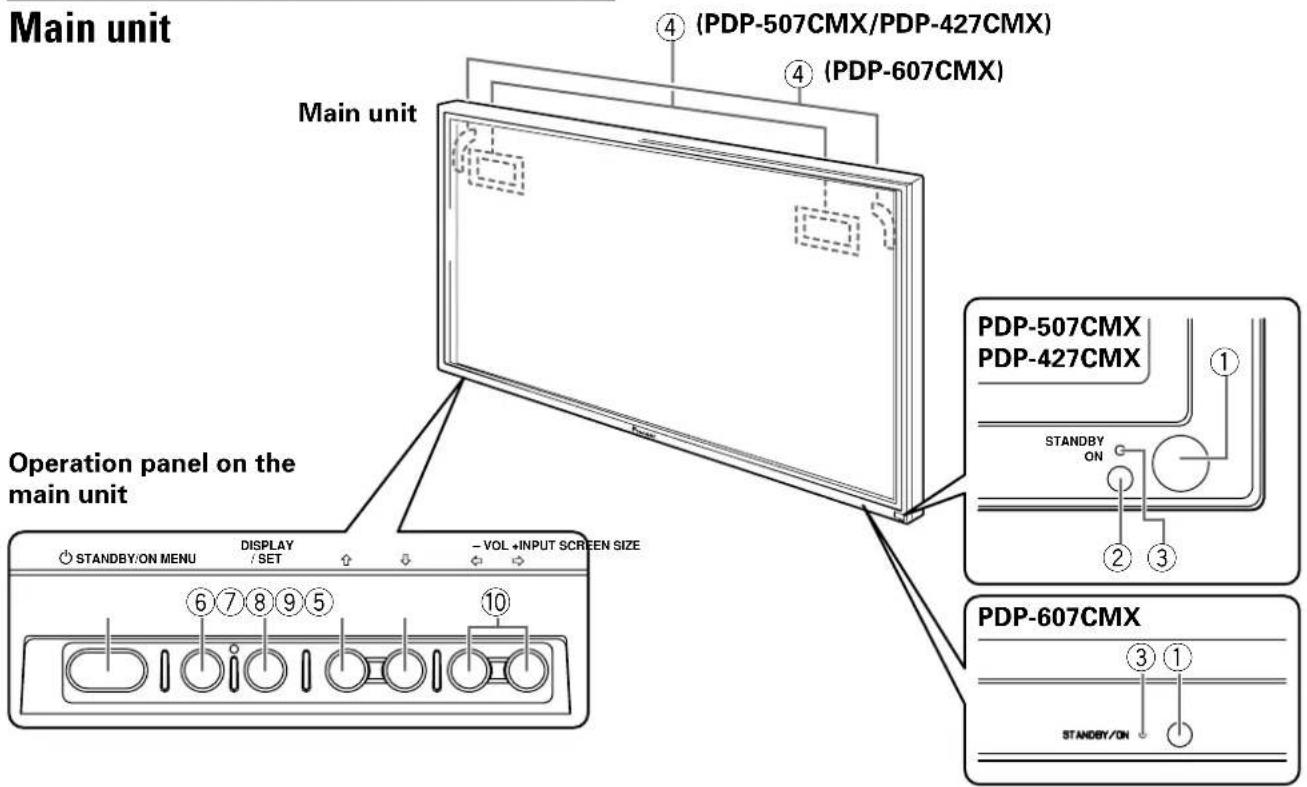

Main unit ④ (PDP-507CMX/PDP-427CMX) ④ (PDP-607CMX) Main unit Operation panel on the main unit STANDBY/ON MENU DISPLAY / SET -VOL +INPUT SCREEN SIZE ⑥⑦⑧⑨⑤ ⑩ PDP-507CMX PDP-427CMX STANDBY ON ②③ PDP-607CMX STANDBY/ON

Main unit

① Remote control sensor

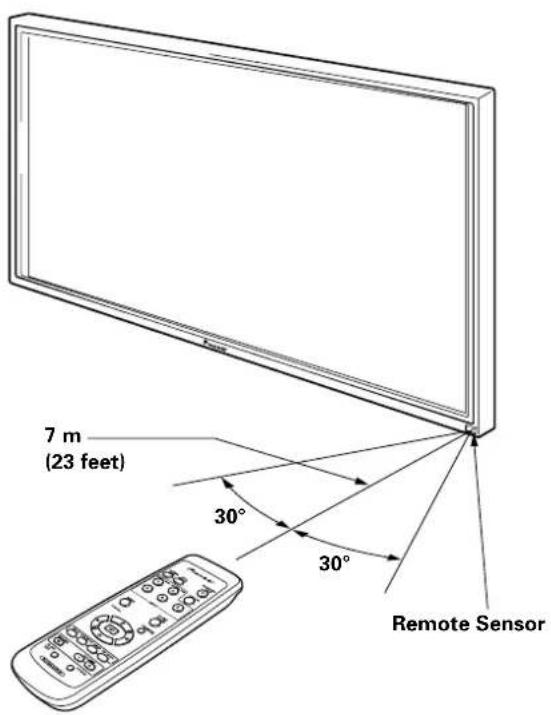

Point the remote control toward the remote sensor to operate the unit (page 8).
② Ambient light sensor (PDP-507CMX/PDP-427CMX)
This sensor measures the level of light inside the viewing room; it is enabled when the [ENERGY SAVE] option is set to [AUTO] (page 32).
③ STANDBY/ON indicator
When the unit is operating:
The indicator lights green (page 20).
When flashing, the indicator is used to indicate error messages (page 41).

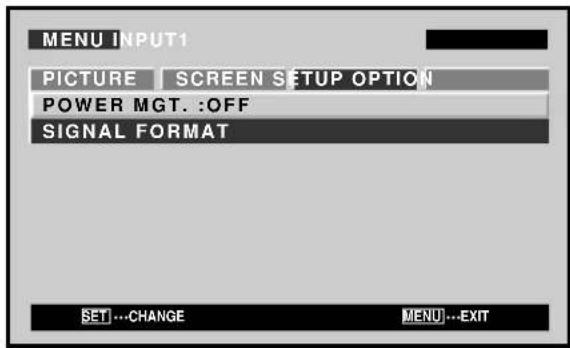

The indicator flashes green once every one second when the [POWER MGT.] function is operating (page 25).
When the unit is in standby mode:
The indicator lights red (page 20).
When flashing, the indicator is used to indicate error messages (page 41).

④ Handles

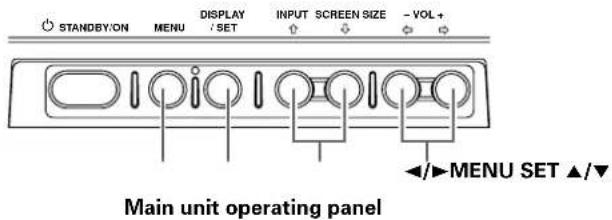

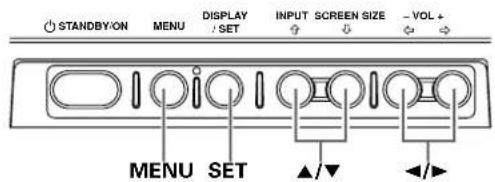

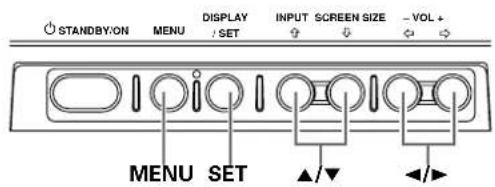

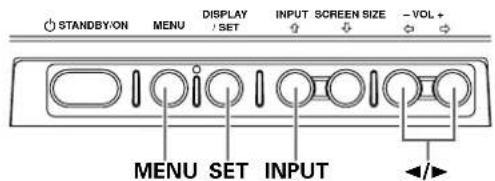

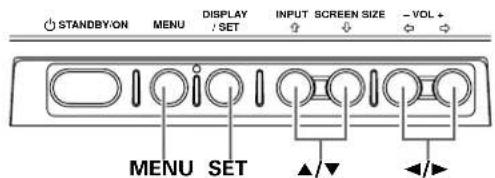

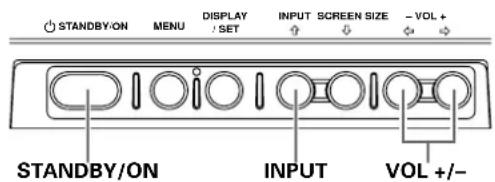

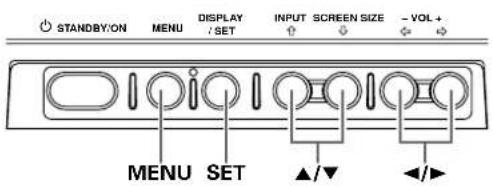

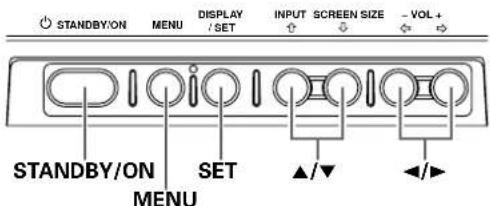

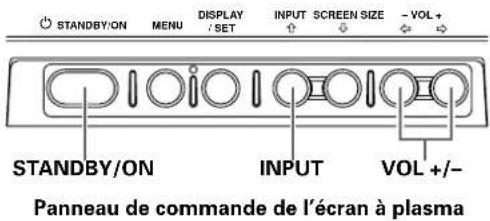

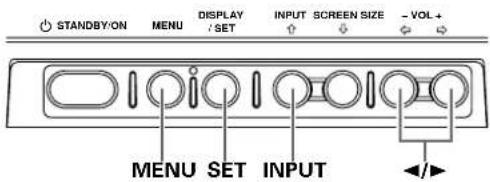

Operation panel on the main unit

⑤ STANDBY/ON button (○)
Press to put the display in operation or standby mode (page 20).
⑥ MENU button
Press to open and close the on-screen menu (pages 18 to 37).

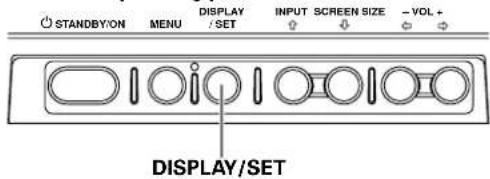

⑦ DISPLAY/SET button
Use to confirm onscreen menu selections, and to change settings (pages 18 to 37).
When not indicated by onscreen menus, used to display the current set status (page 21).
⑧ INPUT (↑) button
Except when menu screen is displayed, this button operates to change the input.

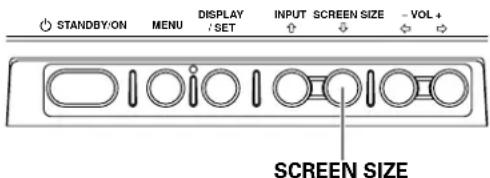

⑨ SCREEN SIZE (↓) button
Except when menu screen is displayed, this button operates to change the screen size.

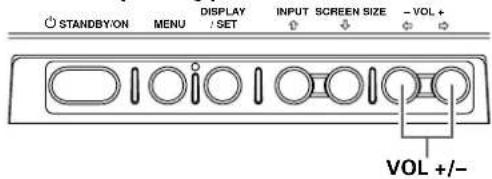

⑩ VOL +/− (⇐/⇒) buttons
When not indicated for use in onscreen menu items, these buttons are used for adjusting the sound volume (pages 20 and 21).

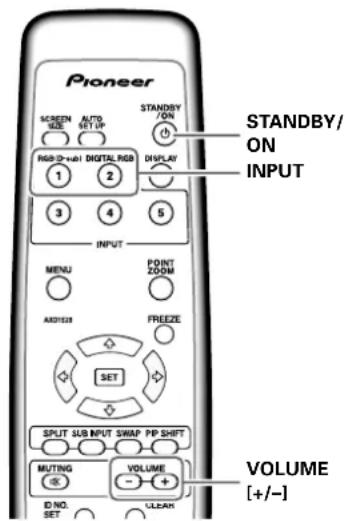

Remote control unit

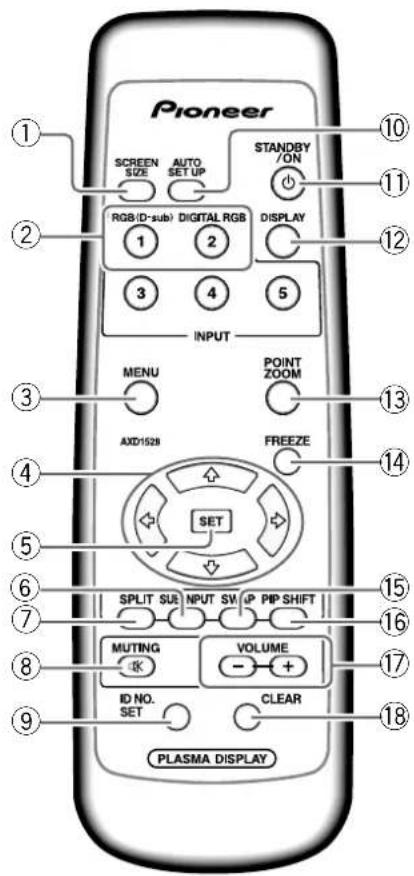

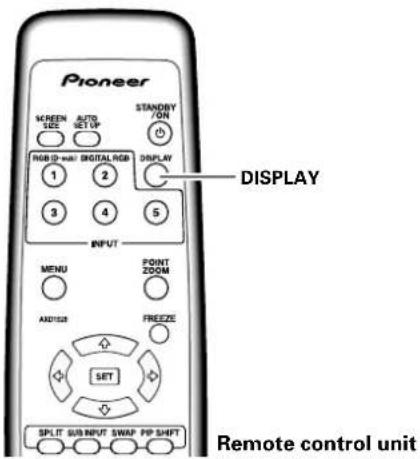

Pioneer SCREEN SIZE AUTO SET UP STANDBY/ON RGB(D-sub) DIGITAL RGB 1 2 DISPLAY 3 4 5 INPUT MENU AXD1528 POINT ZOOM FREEZE SET SPLIT SUE INPUT SW IP PIP SHIFT MUTING VOLUME ID NO. CLEAR SET PLASMA DISPLAY

When handling the remote control unit

• Do not drop the remote control unit or expose it to moisture.
• Do not use the remote control unit in a location subject to direct sunlight, heat radiation from a heater, or in a place subject to excessive humidity.
• When the remote control unit's batteries begin to wear out, the operable distance will gradually become shorter. When this occurs, replace all batteries with new ones as soon as possible.

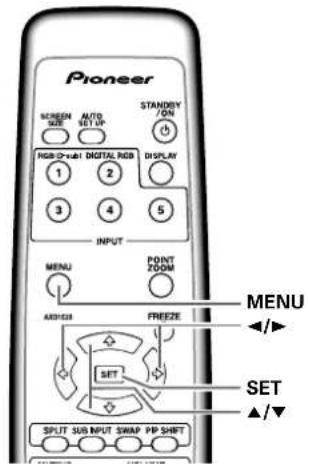

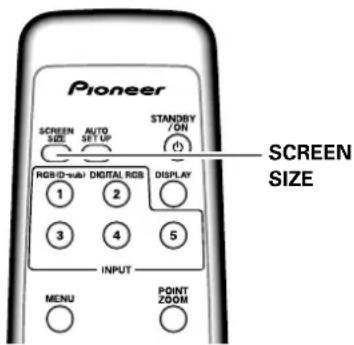

① SCREEN SIZE button

Press to select the screen size (page 22).

②INPUT buttons

Press to select the input (page 20).

③MENU button

Press to open and close the on-screen menu (pages 18 to 37).

④ ADJUST (▲/▼/►/◄) buttons

Use to navigate menu screens and to adjust various settings on the unit (pages 18 to 37).

⑤SET button

Press to adjust or enter various settings on the unit (pages 18 to 37).

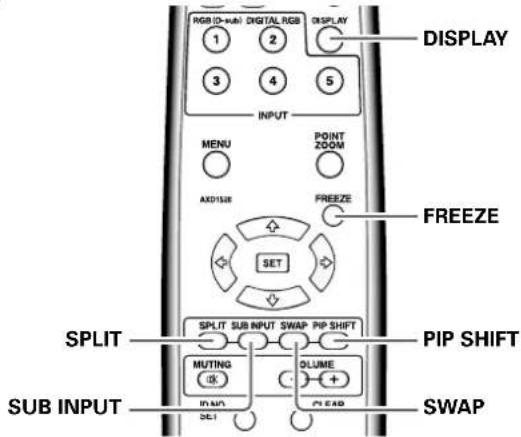

⑥SUB INPUT button

During multi-screen display, use this button to change inputs to subscreens (page 24).

⑦SPLIT button

Press to switch to multi-screen display (page 24).

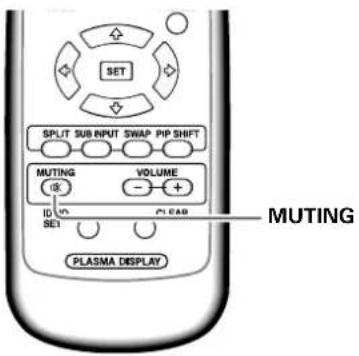

⑧MUTING button

Press to mute the volume (page 21).

⑨ID NO. SET button

Button used by professional installers.

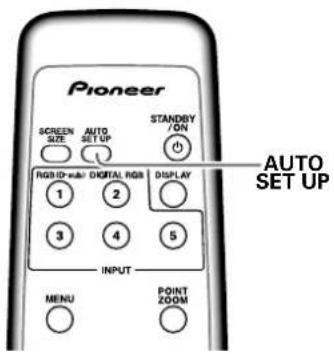

⑩ AUTO SET UP button

When using computer signal input, automatically sets the [POSITION], [ICLOCK] and [PHASE] to optimum values (page 27).

⑪STANDBY/ON button ( )

Press to put the unit in operation or standby mode (page 20).

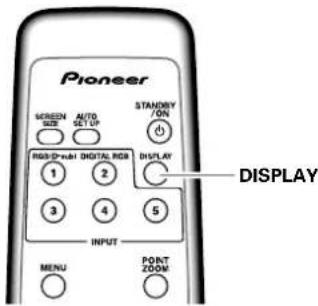

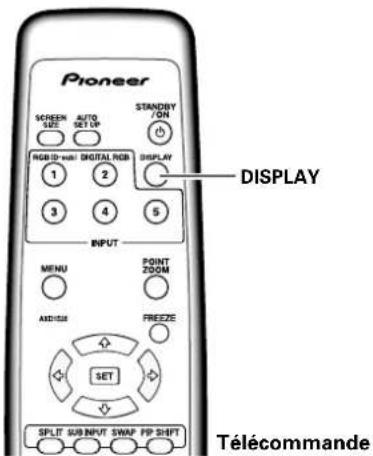

⑫DISPLAY button

Press to view the unit's current input and setup mode (page 21).

⑬POINT ZOOM button

Use to select and enlarge one part of the screen (page 23).

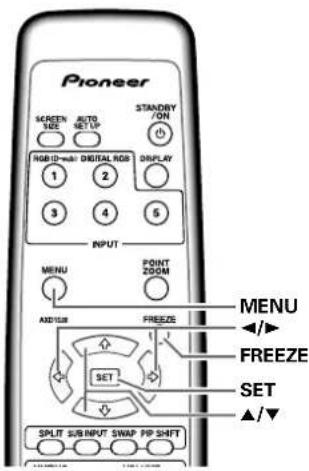

⑭FREEZE button

When memo screen function is enabled, a still image is displayed in the subscreen (page 37).

⑮SWAP button

During multi-screen display, use this button to switch between main screen and subscreen (page 24).

⑯PIP SHIFT button

When using the picture-in-picture mode with multi-screen display, use this button to move the position of subscreen (page 24).

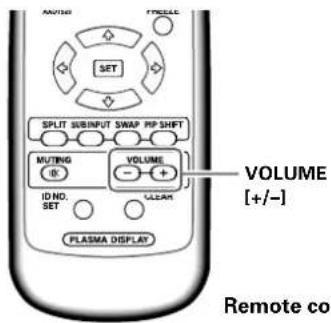

⑰VOLUME (+/-) buttons

Use to adjust the volume (pages 20 and 21).

⑱CLEAR button

Button used by professional installers.

Operating range of the remote control unit

When operating the remote control unit, point it at the remote sensor located on the front panel of the main unit. The remote control unit is operable up to 7 m from the unit and within a 30 angle on each side of the sensor.

7 m (23 feet) 30° 30° Remote Sensor

If you are having difficulty with operation of the remote control unit

● The remote control unit may not operate if there are objects placed between it and the display.
● Operational distance will gradually become shorter as the batteries begin to wear out, replace weak batteries with new ones as soon as possible.
- This unit discharges infrared rays from the screen. Placing a video deck or other component that is operated by an infrared remote control unit near this unit may hamper that component's reception of the remote control's signal, or prevent it from receiving the signal entirely. Should this occur, move the component to a position further away from this unit.
- Depending on the installation surroundings, this unit's remote control unit may be influenced by the infrared rays discharged from the Plasma Display, hampering reception of its rays or limiting its operational distance. The strength of infrared rays discharged from the screen will differ according to the picture displayed.

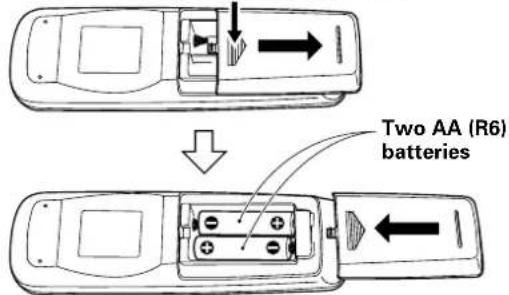

Inserting the batteries in the remote control unit

While pressing down lightly, slide in the direction of the arrow.

Two AA (R6) batteries

Designated batteries

Please use size AA (R6) or AA (LR6).

CAUTION

• Do not use batteries other than those designated, and do not mix old and new batteries together, since rupture or leakage may result, leading to danger of fire, personal injury, or contamination.
• When loading batteries into the remote control unit, insert the batteries with (+) and (−) polarities matching those indicated in the diagram. Inserting batteries incorrectly may result in battery rupture or leakage, leading to danger of fire, personal injury, or contamination.
• Do not heat or disassemble batteries, and do not dispose of batteries in fire or water, since battery rupture or leakage may result, leading to danger of fire or personal injury.
• When not using the remote control unit for extended periods of time, remove the batteries and store them separately. Leaving batteries unused in the unit may result in battery leakage, leading to danger of fire, personal injury, or contamination.

When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area. D3-4-2-3-1_En

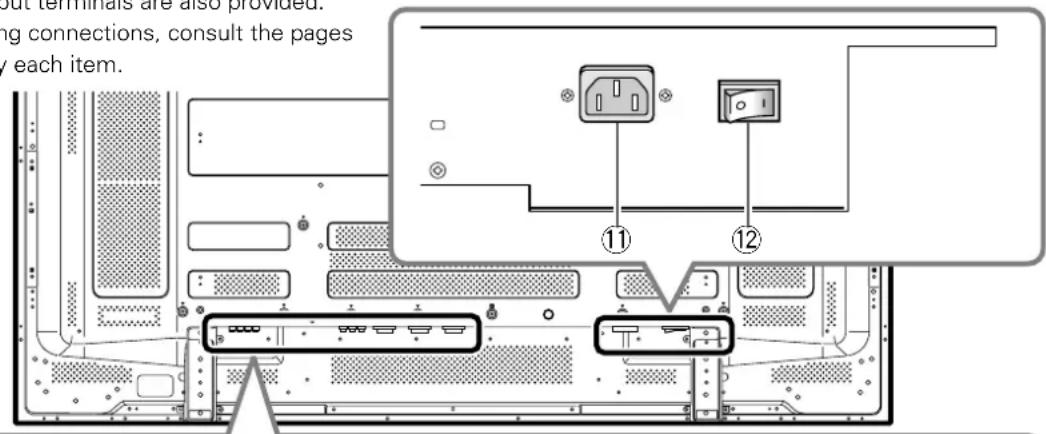

Connection panel (PDP-607CMX)

The connection panel is provided with two video input terminals and one video output terminal. Audio input/output and speaker output terminals are also provided. For instructions regarding connections, consult the pages noted in parentheses by each item.

but terminals are also provided. ng connections, consult the pages y each item. ⑪ ⑫

IN OUT CONTRATION USB-27267 AUDIO AUDIO AUDIO ANALOG RGS OUT (D-Sub) ANALOG RGS IN (D-Sub) DIGITAL RGS (DVI-D) 10④③②①

①COMBINATION IN/OUT

Never connect any component to these connectors without first consulting your Pioneer installation technician.

These connectors are used for Plasma Display setup adjustments.

②SPEAKER (R) terminal

For connection of an external right speaker. Connect a speaker that has an impedance of 6 Ω to 16 Ω (page 15).

③SPEAKER (L) terminal

For connection of an external left speaker. Connect a speaker that has an impedance of 6 to 16 (page 15).

④RS-232C

Never connect any component to this connector without first consulting your Pioneer installation technician.

This connector is used for Plasma Display setup adjustments.

⑤AUDIO (OUTPUT) (Stereo mini jack)

Use to output the audio of the selected source component connected to this unit to an AV amplifier or similar component.

Note: No sound is produced from the AUDIO (OUTPUT) jack when the MAIN POWER switch is set to OFF or ON (standby) (page 15).

Use to obtain sound when INPUT1 is selected. Connect the audio output jack of components connected to INPUT1 to this unit (page 15).

Use to obtain sound when INPUT2 is selected. Connect the audio output jack of components connected to INPUT2 to this unit (page 15).

⑧ANALOG RGB OUT (INPUT1) (mini D-sub 15 pin)

Use the ANALOG RGB OUT (INPUT1) terminal to output the video signal to an external monitor or other component.

Note: The video signal will not be output from the ANALOG RGB OUT (INPUT1) terminal when the main power of this unit is off or in standby mode (page 14).

⑨ANALOG RGB IN (INPUT1) (mini D-sub 15 pin)

For connection of a personal computer (PC) or similar component. Make sure that the connection made corresponds to the format of the signal output from the connected component (page 14).

⑩ DIGITAL RGB (INPUT2) (DVI-D jack)

Use to connect a computer.

Note: This unit does not support the display of copyguard-protected video signals (page 14).

⑪AC IN

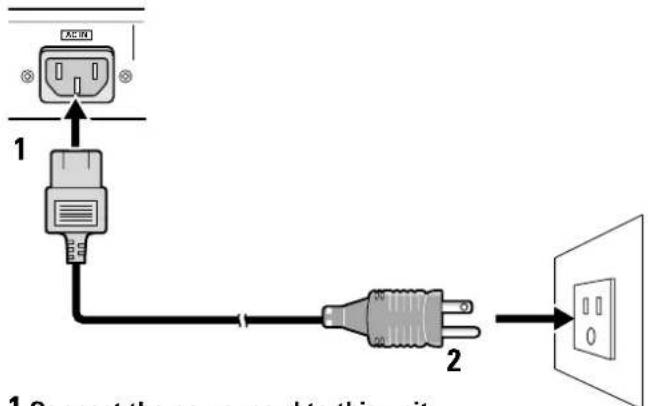

Use to connect the supplied power cord to an AC outlet (page 16).

⑫MAIN POWER switch

Use to switch the main power of the unit on and off.

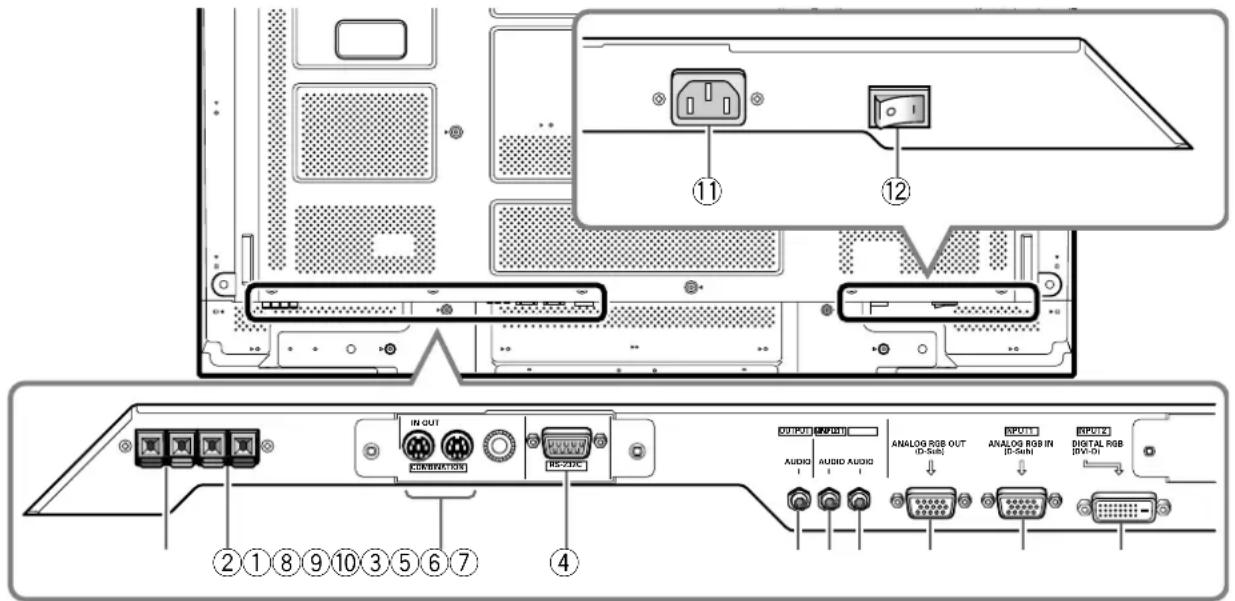

Connection panel (PDP-507CMX)

The connection panel is provided with two video input terminals and one video output terminal. Audio input/output and speaker output terminals are also provided. For instructions regarding connections, consult the pages noted in parentheses by each item.

Diagram of computer rear panel with labeled ports and connectors, showing internal components like USB drive, audio, and I/O ports.

①SPEAKER (R) terminal

For connection of an external right speaker.

Connect a speaker that has an impedance of 6 Ω to 16 Ω (page 15).

②SPEAKER (L) terminal

For connection of an external left speaker. Connect a speaker that has an impedance of 6 to 16 (page 15).

③COMBINATION IN/OUT

Never connect any component to these connectors without first consulting your Pioneer installation technician.

These connectors are used for Plasma Display setup adjustments.

④RS-232C

Never connect any component to this connector without first consulting your Pioneer installation technician.

This connector is used for Plasma Display setup adjustments.

⑤AUDIO (OUTPUT) (Stereo mini jack)

Use to output the audio of the selected source component connected to this unit to an AV amplifier or similar component.

Note: No sound is produced from the AUDIO (OUTPUT) jack when the MAIN POWER switch is set to OFF or ON (standby) (page 15).

Use to obtain sound when INPUT1 is selected. Connect the audio output jack of components connected to INPUT1 to this unit (page 15).

Use to obtain sound when INPUT2 is selected. Connect the audio output jack of components connected to INPUT2 to this unit (page 15).

⑧ANALOG RGB OUT (INPUT1) (mini D-sub 15 pin)

Use the ANALOG RGB OUT (INPUT1) terminal to output the video signal to an external monitor or other component.

Note: The video signal will not be output from the ANALOG RGB OUT (INPUT1) terminal when the main power of this unit is off or in standby mode (page 14).

⑨ANALOG RGB IN (INPUT1) (mini D-sub 15 pin)

For connection of a personal computer (PC) or similar component. Make sure that the connection made corresponds to the format of the signal output from the connected component (page 14).

⑩ DIGITAL RGB (INPUT2) (DVI-D jack)

Use to connect a computer.

Note: This unit does not support the display of copyguard-protected video signals (page 14).

⑪AC IN

Use to connect the supplied power cord to an AC outlet (page 16).

⑫MAIN POWER switch

Use to switch the main power of the unit on and off.

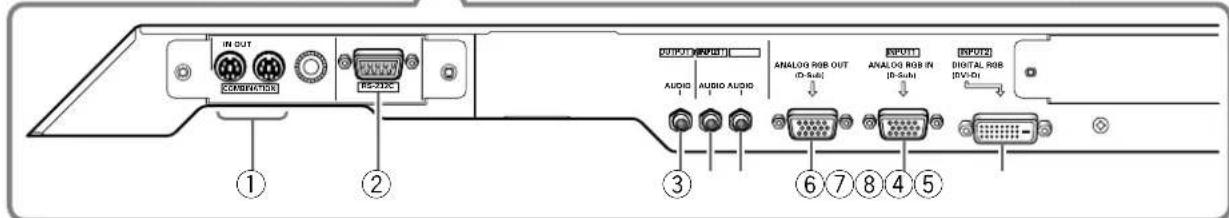

Connection panel (PDP-427CMX)

The connection panel is provided with two video input terminals and one video output terminal. Audio input/output and speaker output terminals are also provided. For instructions regarding connections, consult the pages noted in parentheses by each item.

Diagram of computer rear panel with labeled ports and connectors, showing internal components like audio, digital audio, and I/O ports.

①COMBINATION IN/OUT

Never connect any component to these connectors without first consulting your Pioneer installation technician.

These connectors are used for Plasma Display setup adjustments.

②RS-232C

Never connect any component to this connector without first consulting your Pioneer installation technician.

This connector is used for Plasma Display setup adjustments.

③AUDIO (OUTPUT) (Stereo mini jack)

Use to output the audio of the selected source component connected to this unit to an AV amplifier or similar component.

Note: No sound is produced from the AUDIO (OUTPUT) jack when the MAIN POWER switch is set to OFF or ON (standby) (page 15).

Use to obtain sound when INPUT1 is selected. Connect the audio output jack of components connected to INPUT1 to this unit (page 15).

Use to obtain sound when INPUT2 is selected. Connect the audio output jack of components connected to INPUT2 to this unit (page 15).

⑥ANALOG RGB OUT (INPUT1) (mini D-sub 15 pin)

Use the ANALOG RGB OUT (INPUT1) terminal to output the video signal to an external monitor or other component.

Note: The video signal will not be output from the ANALOG RGB OUT (INPUT1) terminal when the main power of this unit is off or in standby mode (page 14).

⑦ANALOG RGB IN (INPUT1) (mini D-sub 15 pin)

For connection of a personal computer (PC) or similar component. Make sure that the connection made corresponds to the format of the signal output from the connected component (page 14).

⑧ DIGITAL RGB (INPUT2) (DVI-D jack)

Use to connect a computer.

Note: This unit does not support the display of copyguard-protected video signals (page 14).

⑨SPEAKER (R) terminal

For connection of an external right speaker.

Connect a speaker that has an impedance of 6 Ω to 16 Ω (page 15).

⑩SPEAKER (L) terminal

For connection of an external left speaker. Connect a speaker that has an impedance of 6 to 16 (page 15).

⑪AC IN

Use to connect the supplied power cord to an AC outlet (page 16).

⑫MAIN POWER switch

Use to switch the main power of the unit on and off.

Installation of the unit

Installation using the supplied display stands (PDP-427CMX)

Be sure to fix the supplied stands to the installation surface. Use commercially available M8 bolts that are 25 mm (1 in.) longer than the thickness of the installation surface.

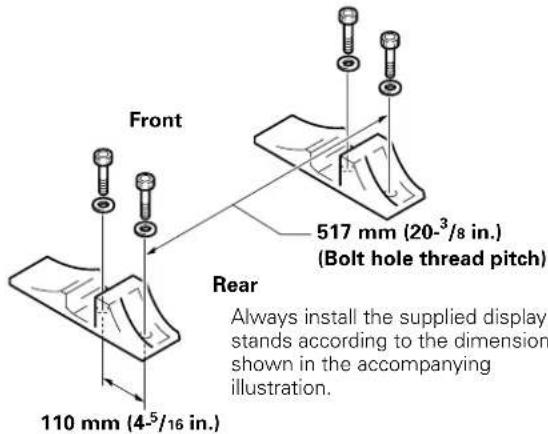

1 Fix the supplied stands to the installation surface at each of the 4 prepared holes using commercially available M8 bolts.

Front 517 mm (20-3/8 in.) (Bolt hole thread pitch) Rear 110 mm (4-5/16 in.) Always install the supplied display stands according to the dimension shown in the accompanying illustration.

CAUTION

Please be sure to use an M8 (Pitch = 1.25 mm) bolt. (Only this size bolt can be used.)

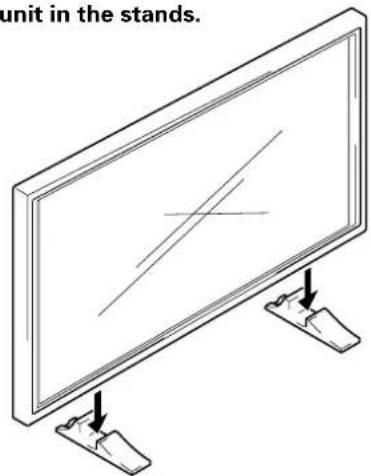

2 Set this unit in the stands.

unit in the stands.

3 Fix this unit using the supplied washers and hex hole bolts.

Pure mechanical diagram showing a lever mechanism with no text or symbols

Use a 6 mm ( ^1/_4 in.) hex wrench to bolt them.

Installation using the optional PIONEER stand or other mounting brackets

- Please be sure to request installation or mounting of this unit by an installation specialist or the dealer where purchased.

Wall-mount installation of the unit

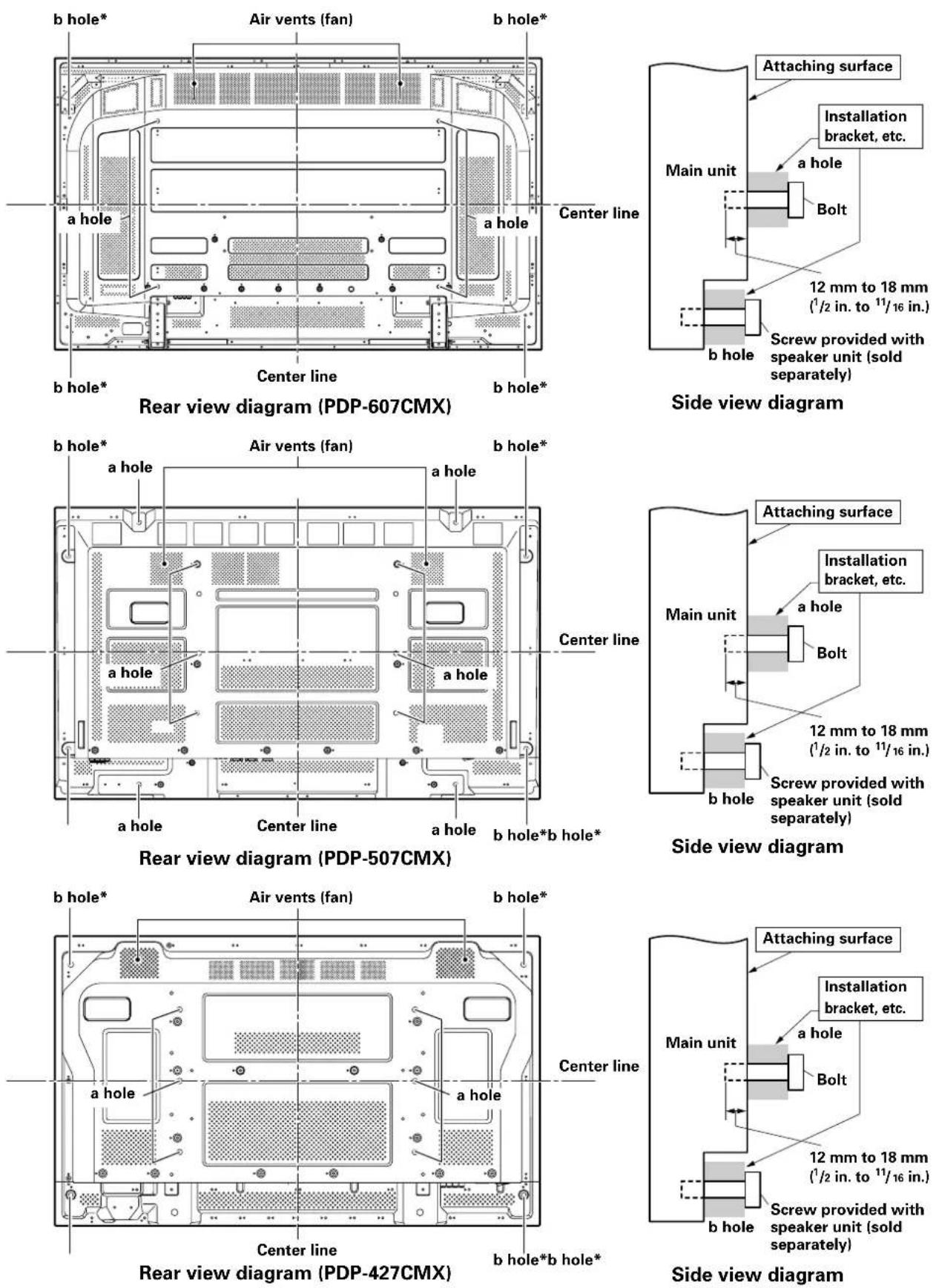

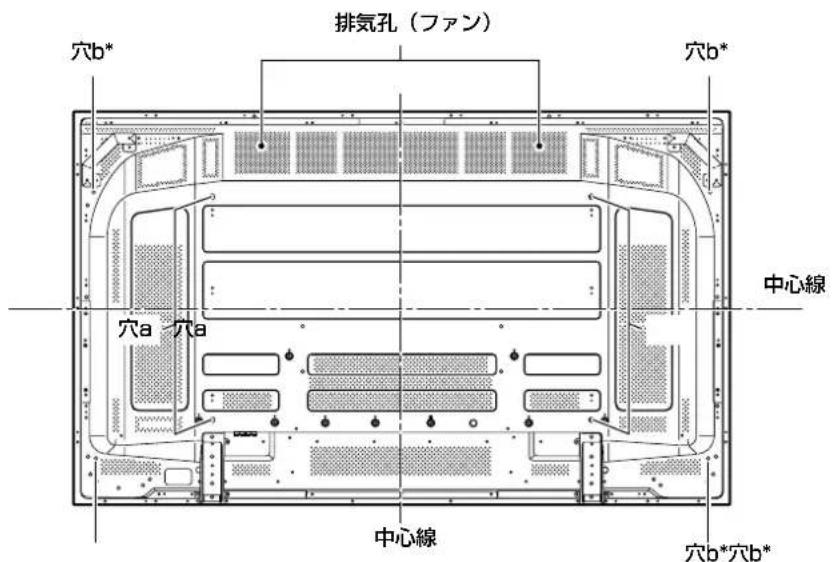

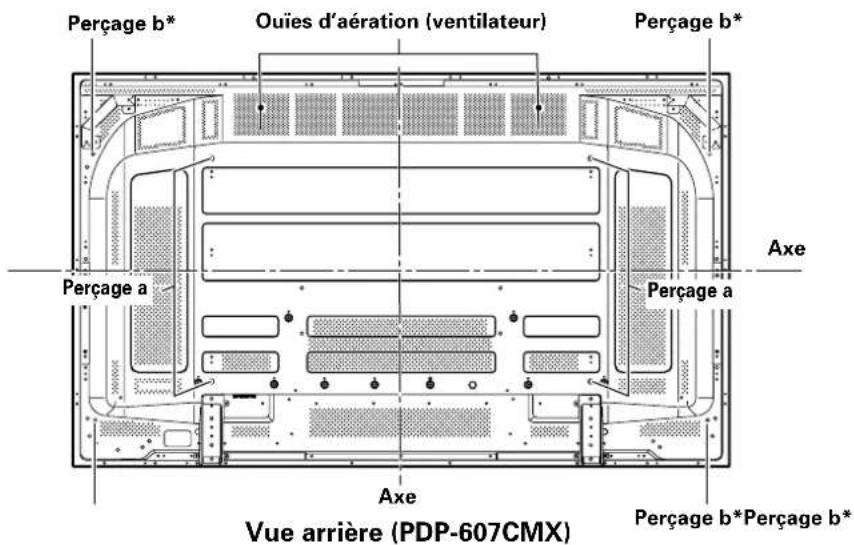

This unit has been designed with bolt holes for wall-mount installation, etc. The installation holes provided are shown in the accompanying illustration.

• Be sure to attach in 4 or more locations above and below, left and right of the center line.
• Use bolts that are long enough to be inserted 12 mm ( ^1/2 in.) to 18 mm ( ^11/16 in.) into the main unit from the attaching surface for a holes. Refer to the side view diagram in the accompanying illustration.
• As this unit is constructed with glass, be sure to install it on a flat, unwarped surface.

CAUTION

• Use only those stands or mounting brackets designated by Pioneer. If other non-recommended products are used, the unit may fall and be damaged or otherwise malfunction.
  ●Assemble stands or mounting brackets correctly in accordance with the instructions provided or other applicable installation instructions.
  ●Two or more people should always work together when installing or removing this unit.
  ●The installation location selected should be fully capable of supporting the weight of this unit, and be a stable, flat, and even surface. If installed in other locations, the unit may fall or be damage.
  ●After installation, take appropriate measures to prevent the installation from falling. The failure to take such measures could allow the unit to fall, causing injuries or damage.
• When this unit is installed on a wall, the work should be done by a professional technician possessing the requisite technical knowledge and abilities; consult your dealer for more information. Improper or insufficient installation may result in accidents, damage or personal injury.
  ●Handles should not be removed or reattached by anyone other than the professional installation technician or service personnel.

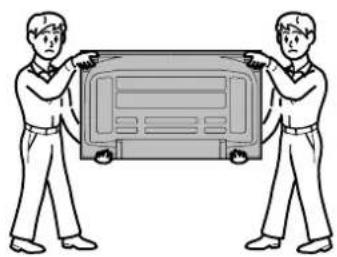

• When moving the display, it should always be carried by two persons holding the rear handles in the manner shown. Never attempt to move the Plasma Display by holding only one of the handles.

Two workers in uniform holding a large vehicle chassis (no text or symbols visible)

* Only for speaker unit

Connection to a personal computer

Connection method differs depending on the computer type. When connecting, please thoroughly read the computer's instruction manual.

Before making connections, be sure to make sure that the personal computer's power and this unit's main power is off.

Connection to INPUT1

Connect the display's D-sub input connector to the D-sub output (analog RGB) from the computer.

This connector also supports G ON SYNC (output with green signal combined with sync signal), and composite SYNC (output with combined horizontal and vertical sync signals).

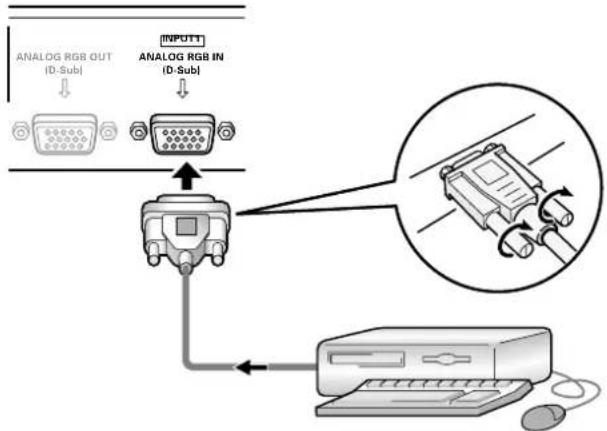

When connecting to ANALOG RGB IN (INPUT1)

Connect the cable corresponding to the shape of the input terminal on this unit and the personal computer's output terminal.

Secure by tightening the terminal screws on both units.

Following completing connections, on-screen setup is necessary. See pages 18 to 19 for details.

Note

Depending on the type of computer model being connected, a conversion connector or adapter etc. provided with the computer or sold separately may be necessary.

For details, please read your PC's instruction manual or consult the maker or nearest dealer of your computer.

NOTICE

●INPUT1 supports Microsoft "Plug & Play" (VESA DDC 1/2B) components. See Appendix 2-1/2 (page 49) when making connections to INPUT1.
- See Appendix 1-1/4, -3/4 (pages 43 and 46) for information regarding signals and display formats supported by INPUT1.

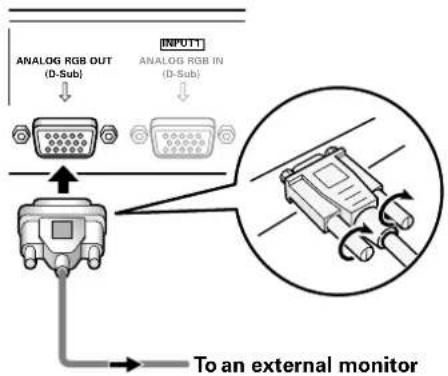

When connecting to ANALOG RGB OUT (INPUT1)

ANALOG RGB OUT (D-Sub) INPUTT ANALOG RGB IN (D-Sub) To an external monitor

With this unit, it is possible to output the video signal to an external monitor or other component from the ANALOG RGB OUT (INPUT1) terminal.

Note

A video signal will not be output from the ANALOG RGB OUT (INPUT1) terminal when the main power of this unit is off or in standby.

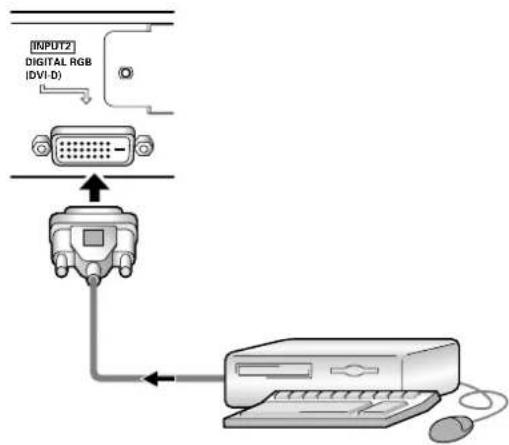

Connection to INPUT2

A computer equipped with DVI output (digital RGB signal) can be connected to the Plasma Display's DVI connector.

[INPUT2] DIGITAL RGB (DVI-D)

Following completing connections, on-screen setup is necessary. See pages 18 to 19 for details.

Notes

●Use a DVI-D 24-pin (digital only) cable for the connection.
●This unit does not support the display of copyguard-protected video signals.

NOTICE

●INPUT2 supports Microsoft "Plug & Play" (VESA DDC 2B) components. See Appendix 2-2/2 (page 49) when making connections to INPUT2.
- See Appendix 1-2/4, -4/4 (pages 44 and 47) for information regarding signals and display formats supported by INPUT2.

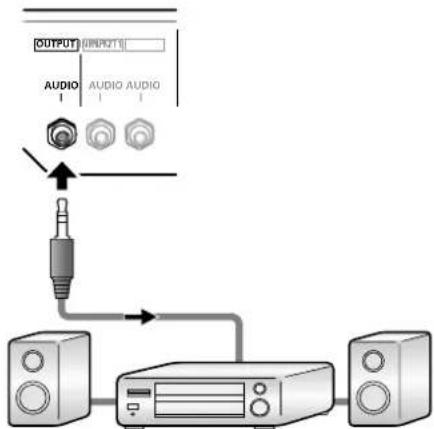

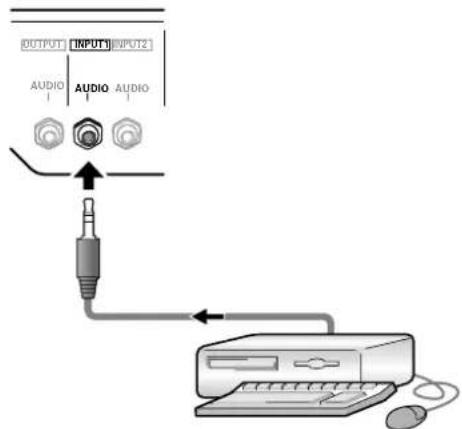

Audio connections

Before making connections, be sure to check that the audio component's power and the unit's main power is off.

Connecting the speakers

This unit is equipped with speaker output terminals for connection to the speaker system (not supplied) specially designed for use with this unit. Refer to the illustrations below when making connections to the speaker terminals on this unit.

on this drill. 12 mm

Twist exposed wire strands together.

Push tab to the open position, and insert the wire. Then, close tab firmly to secure the wire in place.

Notes

●After connecting the wires, pull gently on the cords to confirm that the wire cores are fastened securely in their terminals. Insecure connections will result in noise or interrupted sound.
- Do not allow the wire cores of the and speaker cords to protrude excessively, since they may touch each other, causing a short circuit. This will produce excessive load on the Plasma Display, causing operation to malfunction or stop.

Connection to audio output connector

Use a stereo miniplug to connect the Plasma Display's AUDIO (OUTPUT) stereo mini jack (L/R) to an AV amplifier or other component.

Making connections to the audio inputs on this unit

This unit features two audio inputs and one audio output. The following chart shows the video inputs and the corresponding audio input terminals.

Video input	Audio input jacks S	Sound output
INPUT1	Stereo mini jack (L/R)	Sound of the selected video input is output from theSPEAKER (L/R) terminalsStereo mini jack (L/R)
INPUT2	Stereo mini jack (L/R)

Audio connections for component (computer) connected to INPUT1

[OUTPUT] [INPUT] INPUT2 AUDIO AUDIO AUDIO

A stereo miniplug cable can be used to connect the audio output from the component connected to INPUT1, to the Plasma Display's AUDIO (INPUT1) stereo mini jack (L/R).

Sound is output from both the AUDIO (OUTPUT) stereo mini jack (L/R) and the SPEAKER (L/R) terminals according to the video input selection.

Audio connections for component (computer) connected to INPUT2

OUTPUT INPUT INPUT2 AUDIO AUDIO AUDIO

A stereo miniplug cable can be used to connect the audio output from the component connected to INPUT2, to the Plasma Display's AUDIO (INPUT2) stereo mini jack (L/R).

Sound is output from both the AUDIO (OUTPUT) stereo mini jack (L/R) and the SPEAKER (L/R) terminals according to the video input selection.

Power cord connection

Connect the power cord after all component connections have been completed.

1 Connect the power cord to this unit 2

1 Connect the power cord to this unit.

2 Plug the power cord into a power outlet.

CAUTION

• Use only the power cord provided.
  ●The wall outlet used to provide electricity to this unit should be as close as possible to the unit and within easy reach of the user.

In the event that it is necessary to disconnect power to the unit, first turn off the main unit's power switch, and then disconnect the power cord from its wall outlet.

- For the Plasma Display, use a three-core power cord with a ground terminal.

Always be sure to connect the power cord to a three-pronged grounded outlet and make sure that the cord is properly grounded. If you use a power source converter plug, use an outlet with a ground terminal and screw down the ground line.

NO!

Do not use a power supply voltage other than that indicated (AC 100 V to 120 V, 50 Hz/60 Hz) as this may cause fire or electric shock.

Attaching the ferrite cores

Power cord (PDP-427CMX)

Attach the accessory ferrite cores to the both connector ends of the power cord as shown in the accompanying illustration. Use the provided cable tie to prevent the ferrite core from slipping on the cable.

If you do not do this, this monitor will not conform to mandatory FCC standards.

1 2 3 4 Ferrite core Cable tie To power outlet AC power cord To AC IN As close as possible

Audio cable

Regarding the audio cable, attach the supplied ferrite core.

Wind the audio cable (not supplied) around the ferrite core once, and then fasten the catch.

If you do not do this, this monitor will not conform to mandatory FCC standards.

Audio cable (not supplied)

Ferrite core

How to route cables

Speed clamps are included with this unit for bunching cables together. Once components are connected, follow the following steps to route cables.

* As viewed from the rear of the display.

Diagram illustrating cable connection and molecular structure with labeled steps 1 and 2

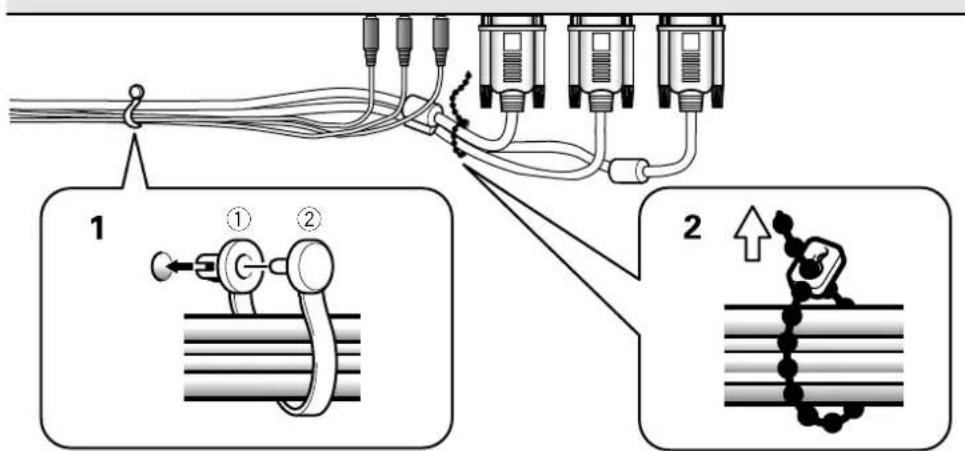

1 Organize cables together using the provided speed clamps.

Insert ① into an appropriate hole on the rear of the unit, then snap ② into the back of ① to fix the clamp. Speed clamps are designed to be difficult to undo once in place. Please attach carefully.

2 Bunch separated cables together and secure them with the provided bead bands.

Do not allow excessive stress to be placed on the ends of cables.

Note

Cables can be routed to the right or left.

To attach the speed clamps to the main unit

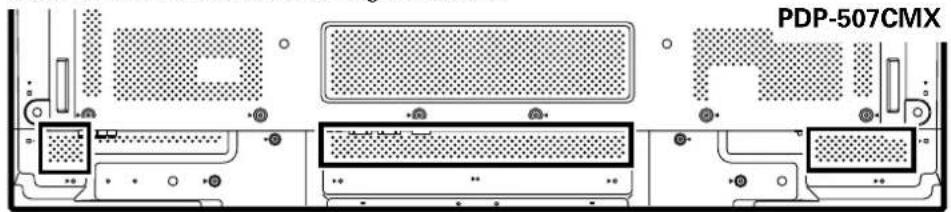

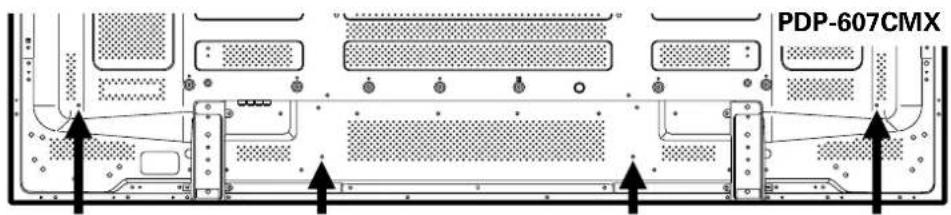

Connect the speed clamps using the 4 holes marked with "O" below, depending on the situation.

PDP-607CMX

Use the holes marked with the □ sign as needed.

PDP-507CMX

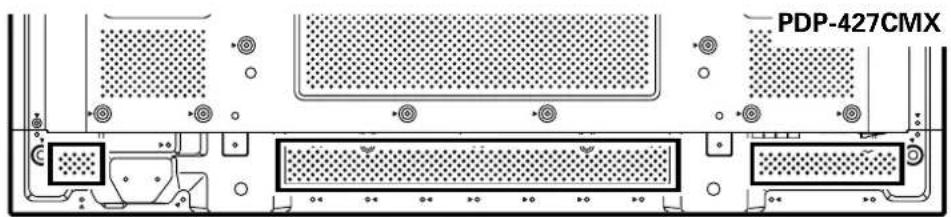

PDP-427CMX

* As viewed from the rear of the display.

To remove speed clamps

Using pliers, twist the clamp 90° and pull it outward. In some cases the clamp may have deteriorated over time and may get damaged when removed.

Setting the onscreen display language

The onscreen display language has been set to English as the factory default. To change to another language, the screen setting must be changed. Follow the procedures below to change the setting.

Pioneer SCREEN SIZE AUTO SET UP STANDBY/ON RGB/2-up1 DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADJYER FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT STANDBY/ ON MENU SET ▲/▼

Remote control unit

STANDBY/ON MENU DISPLAY / SET INPUT SCREEN SIZE - VOL + STANDBY/ON SET MENU

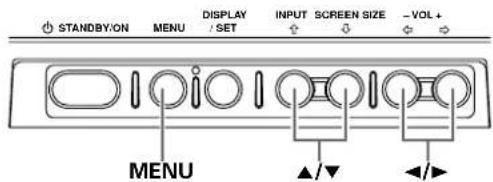

Main unit operating panel

1 Set the rear panel MAIN POWER switch to ON.

The STANDBY/ON indicator on the front panel will light red.

2 Press the STANDBY/ON button to turn the power ON.

The STANDBY/ON indicator on the front panel will light green.

3 Press the MENU button to display the menu screen.

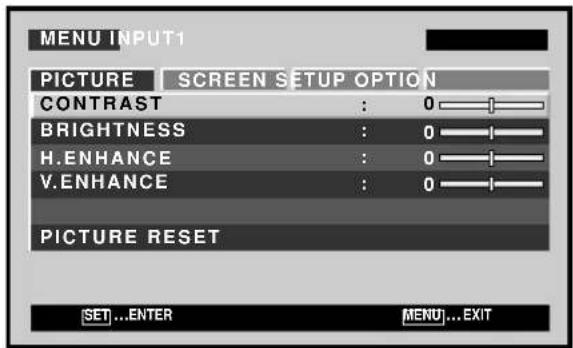

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET [SET] ...ENTER MENU ... EXIT

4 Use the ◀/▶ buttons to select [OPTION].

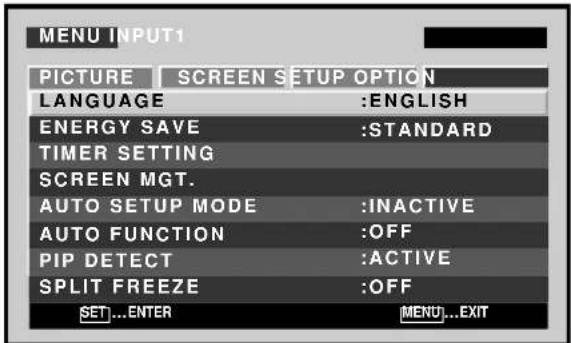

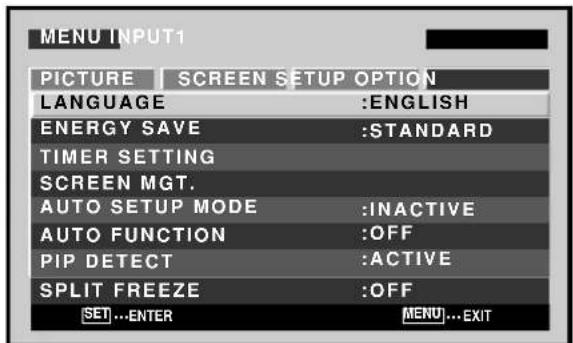

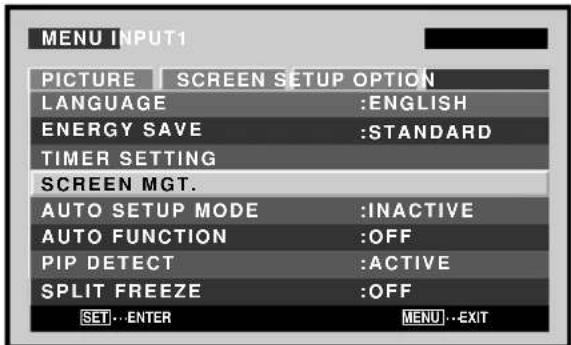

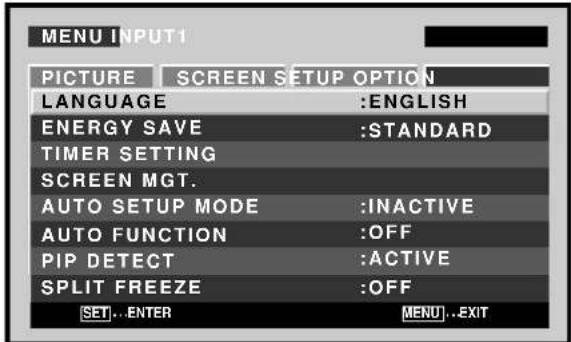

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET..ENTER MENU..EXIT

5 Use the ▲/▼ buttons to select [LANGUAGE], then press the SET button.

LANGUAGE ENGLISH : [SET]..SET [MENU]..EXIT

6 Use the ◀/▶ buttons to select the desired language.

Each time the ◀/▶ buttons are pressed, the language alternates between those available, in the following order:

LANGUAGE ENGLISH : [SET]..SET [MENU]..EXIT

7 With the desired language displayed, press the SET button.

The selected language will be set in memory, and the screen will return to that shown in step 4.

8 When settings are completed, press the MENU button to return to the normal screen image.

Note

When the onscreen display language is set for either INPUT1 or INPUT2, the display language for the other input will be set to the same language.

Settings after connections

After components have been connected to INPUT1 or INPUT2, on-screen setup is necessary.

Follow the procedure described below and make settings as they apply to the type of components connected.

[SIGNAL FORMAT] setup

Pioneer SCREEN AUTO SET UP STANDRY /ON RGB/CD wab1 DIGITAL RGB DISPLAY 3 4 5 INPUT MENU POINT ZOOM ADVISOR FREEZE SET MENU SET ▲/▼ SPLIT SUB INPUT SWAP REP SHIFT

Remote control unit

STANDBY/ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL MENU SET ▲/▼ ◄/►

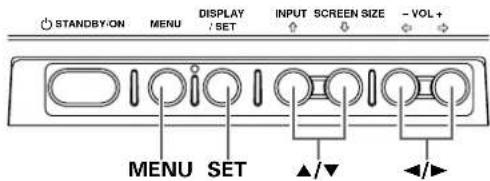

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [SETUP].

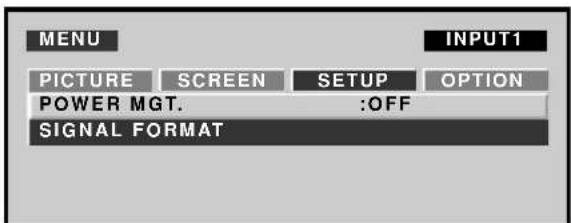

MENU INPUT1 PICTURE SCREEN SETUP OPTION POWER MGT. :OFF SIGNAL FORMAT

3 Use the ▲/▼ buttons to select [SIGNAL FORMAT], then press the SET button.

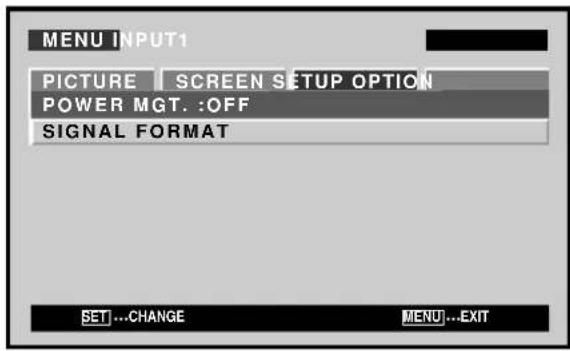

MENU INPUT1 PICTURE SCREEN SETUP OPTION POWER MGT. :OFF SIGNAL FORMAT SET...CHANGE MENU...EXIT

4 Use the ◀/▶ buttons to select the input signal.

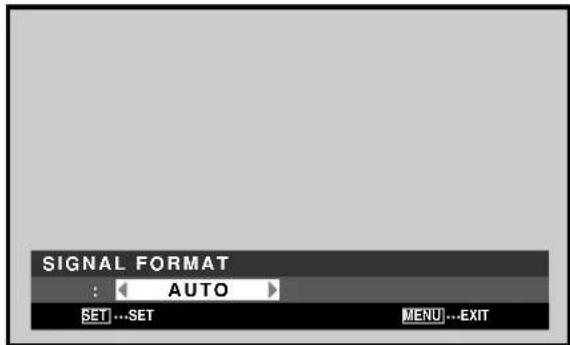

SIGNAL FORMAT : AUTO SET...SET MENU...EXIT

Each time the ◀/▶ buttons are pressed, the selection alternates as follows:

• AUTO .... Signals are detected automatically in accordance with the Computer signal compatibility table (pages 43 to 48)
• Others ... Selectable resolutions are displayed.

5 Press the SET button.

The setting is stored in memory and the screen returns to that shown in step 3.

6 When the setup is completed, press the MENU button to exit the menu screen.

Note

Make [SIGNAL FORMAT] setting for each input (INPUT1 and INPUT2).

Selecting input source

This section explains the basic operation of this unit. Outlined on the following pages is how to turn the main power on and off, put this unit in the operation or standby mode and how to select connected components.

Before you begin, make sure you have:

• Made connections between this unit and personal computer as described in the section "Installation and Connections" starting on page 12.
• Set up the on-screen menu to input signals from components connected to INPUT1 and INPUT2 as described in the section "System Settings" starting on page 18.

If no connections are made to these terminals, on-screen setup is not necessary.

Pioneer SCREEN SIZE AUTO SET UP STANDBY/ ON RGB/D-vai DIGITAL RGB 1 2 DISPLAY 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT MUTING VOLUME - + D NO. SET CLEAN STANDBY/ ON INPUT VOLUME [+/-]

Remote control unit

STANDBY/ON MENU DISPLAY /SET INPUT SCREEN SIZE -VOL+ STANDBY/ON INPUT VOL +/-

Main unit operating panel

1 Set the rear panel MAIN POWER switch to ON.

The STANDBY/ON indicator on the front panel will light red.

2 Press the STANDBY/ON button to turn the power ON.

The STANDBY/ON indicator on the front panel will light green.

3 Press the INPUT button to select the input.

• When the menu screen is displayed, changing the signal input will cause the menu screen to turn off.

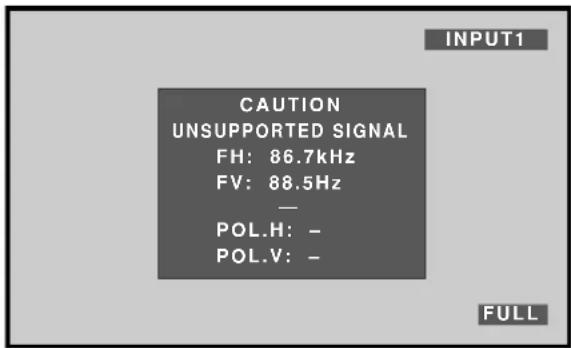

• If the input computer signal is not supported by the display, the following message will be displayed:

CAUTION UNSUPPORTED SIGNAL FH: 86.7kHz FV: 88.5Hz - POL.H: - POL.V: -

4 Use VOLUME (+/-) buttons to adjust the sound volume.

If no audio connections are made to this unit, this step is not necessary.

5 When viewing is finished, press the STANDBY/ON button to put the unit in standby mode.

6 Set the rear panel MAIN POWER switch to OFF.

The STANDBY/ON indicator may continue to light for a short while even after the main power is turned off. This is a result of residual electric load impressed on the circuitry, and the light will turn off presently.

Note

Please do not leave the same picture displayed on the screen for a long time. Doing so may cause a phenomenon known as "screen burn" which leaves a ghost, or residual, image of the picture on the screen.

Adjusting sound volume

Main unit operating panel

STANDBY/ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL+ VOL +/-

AVINO TRESS SET SPLIT SUBINPUT SWAP HIP SHIFT MUTING ID NO. SET VOLUME - + - CLAM FLASMA DISPLAY VOLUME [+/-] Remote co

Press the VOLUME buttons.

Press the [-] or [+] button to respectively decrease and increase the volume of sound from the speakers.

VOLUME : 10

Muting the sound

SET SPLIT SUB INPUT SWAP PIP SHIFT MUTING VOLUME ID CLEAR SET PLASMA DISPLAY MUTING

Press the MUTING button on the remote control unit.

Press the MUTING button again to restore the sound.

Press VOLUME + or VOLUME - to adjust the volume at a desired level.

Confirming current status

Main unit operating panel

STANDBY/ON MENU DISPLAY / SET INPUT SCREEN SIZE - VOL + DISPLAY/SET

Pioneer SCREEN AUTO STANDRY SIZE SET UP ON RGB (0+ wall) DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE SET SPLIT SUBINPUT SWAP POP SHIFT DISPLAY Remote control unit

Press the DISPLAY button.

The currently selected input, screen size and refresh rates will be displayed for about 3 seconds.

INPUT1 FH : 31.5kHz FV : 60.0Hz 640×480 POL.H : NEGA POL.V : POSI DOT BY DOT

Note

The displayed refresh rates may be slightly different from actual values.

Changing screen size

This unit incorporates screen modes of various height and width ratios. For optimal viewing, we recommend that you select the screen mode that best matches the video source that you are viewing. Although these modes are designed for full display of a picture on a wide screen, it is our hope that you make use of them with a full understanding of the manufacturer's intentions.

Screen size selection

The size of the image displayed on the screen, and the range of the image shown can be set in one of four modes.

Press the SCREEN SIZE button to select the size.

Pioneer SCREEN SIZE AUTO SET UP STANDRY/ON RGB ID/sub 1 2 3 4 5 DISPLAY INPUT MENU POINT ZOOM SCREEN SIZE

Remote control unit

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE - VOL + SCREEN SIZE

Main unit operating panel

The screen size changes each time the SCREEN SIZE button is pressed as follows.

Consult the Computer signal compatibility table (pages 43 to 48) for information regarding screen sizes supported by each signal format.

Notes

• When the [FULL] setting is used to display a non-wide screen 4:3 picture fully on a wide screen, a portion of the picture may be cut off or appear deformed.
• Be aware that when the display is used for commercial or public viewing purposes, selecting the [FULL] mode setting may violate the rights of authors protected under copyright law.
• When [DOT BY DOT] or [4:3] screen size is selected, the display position is moved slightly each time the power is turned on, in order to prevent image burning.

During personal computer signal input

① DOT BY DOT

The input signal and the screen maintain a dot to line ratio of 1:1 and is thus highly faithful to the source.

PDP-427CMX: This unit is designed with horizontally oblong elements, with the result that the image displayed will appear more oblong than the original input signal.

A

② 4:3

The display fills the screen as much as possible without altering the aspect ratio of the input signal.

A

③ FULL

The display is presented with a widescreen aspect ratio of 16:9 and fills the entire screen.

A

Enlarging one part of the screen (POINT ZOOM)

This Plasma Display allows enlarging of the screen image. When enlarging the screen, the ▲/▼/◄/► buttons can be used to move the enlarged viewing area around the screen.

- The range of zoom possible can be confirmed by viewing the Zoom-Area subscreen at the upper right of the main screen (A “+” mark will be displayed in the center). The Zoom-Area subscreen is displayed for about three seconds whenever the POINT ZOOM button, one of the ▲/▼/◄/► buttons, or DISPLAY button is pressed.

Pioneer SCREEN SIZE AUTO SET UP STANDBY /ON RGB/D-sub! DIGITAL RGB DISPLAY 1 2 3 4 5 DISPLAY INPUT MENU POINT ZOOM POINT ZOOM AND/USB FREEZE SET ▲/▼/◄/► SET

1 Press the remote control unit's POINT ZOOM button.

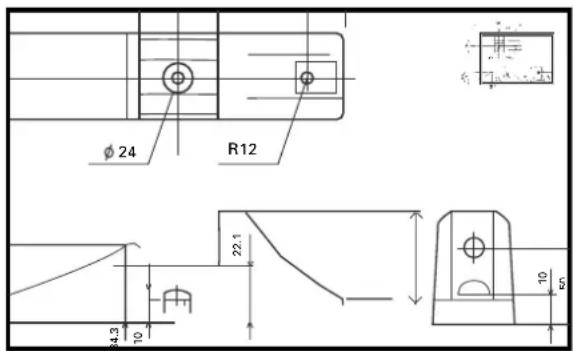

66.0 φ24 R12 22.1 10

Zoom-Area subscreen

Each time the POINT ZOOM button is pressed, the zoom ratio alternates in the following order:

• LEVEL1 ...... x1
• LEVEL2 ...... x1.5
• LEVEL3 ...... x2
• LEVEL4 ...... x3

2 Using the ▲/▼/◄/► buttons, move the screen to the desired part of the image.

Ø24 R12 22.1 4.3 10 10 50

Notes

● During use of the POINT ZOOM function, the screen size cannot be changed.
- When using the Plasma Display in a profit-making activity, or when exhibiting images publicly, using the screen size function to compress or stretch the image may result in infringement of the copyrights of the image owners.
- Pressing the POINT ZOOM and ▲/▼/◄/► buttons again will change the zoom ratio and the position of screen enlarged.
- If the input signal changes, or if the menu screen is displayed and the input is changed, or if the multiscreen mode is selected, the POINT ZOOM function will be canceled.

Multiscreen display

The Plasma Display's multiscreen function allows the simultaneous display of two inputs. The multiscreen display include two modes, side-by-side and picture-in-picture.

RGB (D-sub) DIGITAL RGB 1 2 3 4 5 DISPLAY INPUT MENU POINT ZOOM AXDISB FREEZE SET SPLIT SUB INPUT SWAP PIP SHIFT PIP SHIFT MUTING OLUME SUB INPUT SET PI EAD SWAP

1 Press the remote control unit's SPLIT button.

Each time the button is pressed the multiscreen display changes in the following order:

①Side-by-side

The main screen is displayed on the left and the subscreen on the right.

PDSP-1 Installation and Field Support Tool Description: Pure Type: Pure Type: Pioneer Sound, Vision, Sound 1Lid 56.0 R12 Ø24 Ø24 Ø24

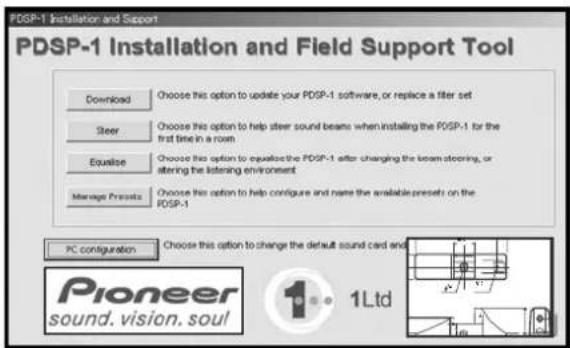

②Picture-in-picture

The subscreen is displayed in one of the four corners of the main screen.

PDSP-1 Installation and Support PDSP-1 Installation and Field Support Tool Download Choose this option to update your PDSP-1 software, or replace a filter set Steer Choose this option to help steer sound beams when installing the PDSP-1 for the first time in a room Equalise Choose this option to equalise the PDSP-1 after changing the beam steering, or altering the listening environment Manage Pressets Choose this option to help configure and note the available presset on the PDSP-1 PC configuration Choose this option to change the default sound card and Pioneer sound. vision. soul 1 Ltd

2 Press the remote control unit's SUB INPUT button to select the subscreen input source.

To exchange the main screen and subscreen inputs:

Press the remote control unit's SWAP button.

• When the side-by-side mode has been selected: The right and left sides of the display will switch; what was previously the main screen will now show the subscreen, and vice versa.
• When the picture-in-picture mode has been selected: What was previously the main screen image will now appear in reduced size as the subscreen image, and vice versa.

To change the position of the subscreen in picture-in-picture mode:

Press the remote control unit's PIP SHIFT button.

Each time the button is pressed, the position of the subscreen moves in the following order:

To display the currently selected input: Press the DISPLAY button.

If the DISPLAY button is pressed while in multiscreen mode, the main screen and sub-screen will each be displayed with its currently selected input.

Notes

• When using the Plasma Display in a profit-making activity, or when exhibiting images publicly, using the screen size function to compress or stretch the image may result in infringement of the copyrights of the image owners.
• If the multiscreen display is left on for an extended period of time, or if the same multiscreen display is repeatedly shown for short periods on an everyday basis, a residual image pattern may be burned onto the screen.
• When selecting the side-by-side mode, the screen image may appear somewhat rougher, depending on the source used.
  ● The multiscreen mode will be canceled if a menu is opened, or if POINT ZOOM is performed.
  ● The screen size cannot be changed during multiscreen display.
  ● The sound of the input selected in the main screen is outputted when using the multiscreen function.

Automatic power-off (POWER MANAGEMENT)

This display is equipped with [POWER MGT.] function, which allows the unit to automatically switch to standby mode when no sync signal is detected.

(A warning message is displayed before this function operates.)

Note

Always turn off the Plasma Display's main power switch when not using the display for extended periods of time.

Pioneer SCREEN SIZE AUTO SEV 1X STANDBY /ON RGB/ Digital RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM AX/80F FREEZE SET SPLIT SUB-INPUT SWAP PIP SHIFT INPUT INPUT MENU SET

Remote control unit

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE - VOL + MENU SET INPUT

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [SETUP].

MENU INPUT1 PICTURE SCREEN SETUP OPTION POWER MGT. :OFF SIGNAL FORMAT SET...CHANGE MENU...EXIT

3 Press the SET button to confirm selection of [POWER MGT.].

The factory default setting is [OFF].

Each time the button is pressed, the setting alternates as follows:

• OFF ..... The display will continue in operating mode, regardless of the presence/absence of an input sync signal.
• ON...... If a sync signal is not detected, a warning message is first displayed for 8 seconds, after which the display automatically enters the standby mode, and the STANDBY/ON indicator flashes green. If a sync signal is input again later, the Plasma Display automatically returns to normal operating mode (*1).
  *1. Except when input signal is G ON SYNC or composite SYNC

4 When the setup is finished, press the MENU button to exit the menu screen.

Note

The [POWER MGT.] function must be set individually for each input (INPUT1 or INPUT2).

To return to operating mode:

To return to normal operation from the [POWER MGT.] function's standby mode, either operate your computer, or press the INPUT button.

PICTURE/SCREEN Adjustment

PICTURE adjustment

Pioneer SCREEN USB AUTO SET UP STANDRY /ON RGB/USB DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE SET SET ▲/▼ SPLIT SUB INPUT SWAP PIP SHIFT

Remote control unit

STANDBY/ON MENU DISPLAY / SET -VOL INPUT SCREEN SIZE MENU SET ▲/▼ ◄/►

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ▲/▼ buttons to select the adjustment item, then press the SET button.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 ———— BRIGHTNESS : 0 ———— H. ENHANCE : 0 ———— V. ENHANCE : 0 ———— PICTURE RESET SET...ENTER MENU... EXIT

3 Use the ◀/▶ buttons to adjust the picture quality as desired.

BRIGHTNESS : 0 SET..SET MENU..EXIT

4 Press the SET button.

Pressing the SET button writes the value into the memory and returns the display to the step 2 screen.

5 When the setup is finished, press the MENU button to exit the menu screen.

Note

Make these adjustments for each input (INPUT1 or INPUT2) and signals.

[PICTURE] mode adjustment items

Below are brief descriptions of the options that can be set in the [PICTURE] mode.

CONTRAST ....Adjust according to the surrounding brightness so that the picture can be seen clearly.

BRIGHTNESS ...... Adjust so that the dark parts of the picture can be seen clearly.

H. ENHANCE…… Sharpens the image in the horizontal direction.

V. ENHANCE …… Sharpens the image in the vertical direction.

To reset [PICTURE] mode settings to the default

If settings have been adjusted excessively or the picture on the screen no longer appears natural, it may prove more beneficial to reset the [PICTURE] mode to default settings instead of trying to make adjustments under already adjusted conditions.

1 In step 2 in the previous procedure, use the ▲/▼ buttons to select [PICTURE RESET], then press the SET button.

PICTURE RESET ? YES NO SET..SET MENU..EXIT

2 Use the ◀/▶ buttons to select [YES], and press the SET button.

All [PICTURE] mode settings are returned to the factory set default.

Adjusting screen POSITION, CLOCK, and PHASE

By pressing the remote control unit's AUTO SET UP button or by selecting [AUTO SETUP MODE] from the menu, the unit will automatically set the screen position and clock to best match the current image input.

Note

This setting is supported only when INPUT1 is selected. The function is disabled when INPUT2 is selected.

When the button is pressed, the optimum settings are automatically selected for the current input source.

Pioneer SCREEN SIZE AUTO SET UP STANDBY /ON RGB/ID color DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM

Press the remote control unit's AUTO SET UP button.

AUTO SET UP

Note

Optimum settings may not be possible for low-luminance and certain other signals. In such cases, set the [AUTO SETUP MODE] to [INACTIVE], and use the manual adjustment methods explained in the following section, "Adjusting screen POSITION, CLOCK, and PHASE "

When the automatic setup mode is selected, the unit will automatically be adjusted to the optimum image settings whenever the power is turned on, the input source is changed, or the type of input signal is changed.

Pioneer SCREEN SIZE AUTO SETUP STANDBY/ON RGB Display DIGITAL RGB DISPLAY 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE MENU SET SET SPLIT SUB INPUT SWAP PP SHIFT ▲/▼

Remote control unit

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE -VOL + MENU SET

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 —— BRIGHTNESS : 0 —— H. ENHANCE : 0 —— V. ENHANCE : 0 —— PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...ENTER MENU...EXIT

3 Use the ▲/▼ buttons to select [AUTO SETUP MODE].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...CHANGE MENU...EXIT

4 Press the SET button to activate the setting.

The factory default setting is [INACTIVE].

Each time the button is pressed, the setting alternates as follows:

5 When finished with the setting, press the MENU button to return to the normal screen image.

Note

Optimum settings may not be possible for low-luminance and certain other signals. In such cases, set the [AUTO SETUP MODE] to [INACTIVE], and use the manual adjustment methods explained in the following section, "Adjusting screen POSITION, CLOCK, and PHASE "

Adjusting screen POSITION, CLOCK, and PHASE

Pioneer SCREEN HOT AUTO SET UP STANDBY /ON RGB/D-sub1 SIGNAL RGB DISPLAY INPUT MENU POINT ZOOM ARCHEN FREEZE SET SET ▲/▼ SPLIT SUBINPUT SWAP PIP SHIFT MENU ◄/►

Remote control unit

STANDBY-ON MENU DISPLAY / SET INPUT SCREEN SIZE -VOL+ MENU SET ▲/▼ ◄/►

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET..ENTER MENU..EXIT

2 Use the ◀/▶ buttons to select [SCREEN].

MENU INPUT1 PICTURE SCREEN SETUP OPTION POSITION : 0/0 CLOCK : 0 PHASE : 0 SCREEN RESET SET..ENTER MENU..EXIT

3 Use the ▲/▼ buttons to select the adjustment item, then press the SET button.

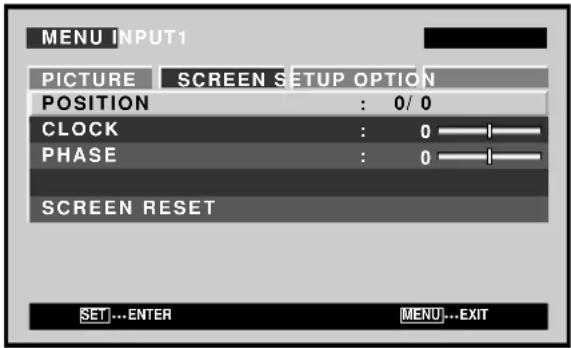

MENU INPUT1 PICTURE SCREEN SETUP OPTION POSITION : 0/0 CLOCK : 0 —— PHASE : 0 —— SCREEN RESET SET...ENTER MENU...EXIT

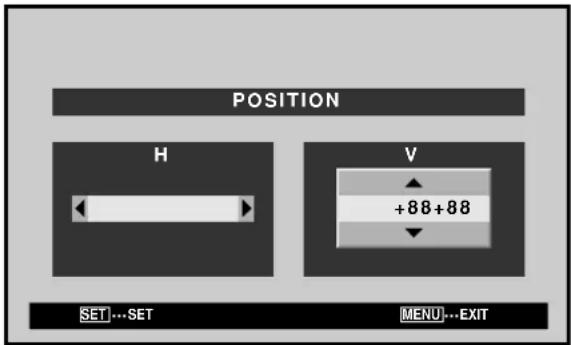

4 Use the ◀/▶ and ▲/▼ buttons to select the desired value.

- When the [POSITION] item is selected, the ◀/▶ buttons control movement in the Horizontal direction (H), and the ▲/▼ buttons control movement in the Vertical direction (V).

POSITION H V +88+88 SET...SET MENU...EXIT

- Use the ◀/▶ buttons for the adjustments of [CLOCK] and [PHASE].

CLOCK : 0 SET...SET [MENU]...EXIT

Note

If INPUT2 is selected, only the [POSITION] can be adjusted.

5 Press the SET button.

Pressing the SET button writes the value into the memory and returns the display to the step 3 screen.

6 When adjustment is finished, press the MENU button to exit the menu screen.

[SCREEN] mode adjustment items

Below are brief descriptions of the options that can be set in the [SCREEN] mode.

POSITION

H ....Adjust the picture's position to the left or right.

V ....Adjust the picture's position upward or downward.

CLOCK .... Adjust letter breakup or noise on the screen. This setting adjusts the unit's internal clock signal frequency that corresponds to the input video signal.

PHASE…… Adjust so that there is minimum flicker of screen letters or color misalignment. This setting adjusts the phase of the internal clock signal adjusted by the [CLOCK] setting.

Notes

• The [CLOCK] and [PHASE] adjustment items are supported only for INPUT1.
• When the [CLOCK] frequency is changed, the [POSITION] command's horizontal [H] option may require readjustment.
• If the adjustment items in the [SCREEN] mode are adjusted excessively, the picture may not be displayed properly.
• When the [AUTO SETUP MODE] set to [ACTIVE], selecting the [POSITION] and [CLOCK] adjust modes will cause a message to be displayed on the screen, but adjustment is possible. However, if the input source is changed, the adjustment value stored in memory will be the one automatically set with the auto setup mode. If you wish to record a manually set adjustment value, set the [AUTO SETUP MODE] to [INACTIVE] (pages 27 to 28) before beginning your adjustments.

To reset [SCREEN] mode settings to the default

If settings have been adjusted excessively or the picture on the screen no longer appears natural, it may prove more beneficial to reset the [SCREEN] mode to default settings instead of trying to make adjustments under already adjusted conditions.

1 In step 3 in the previous procedure, use the ▲/▼ buttons to select [SCREEN RESET], then press the SET button.

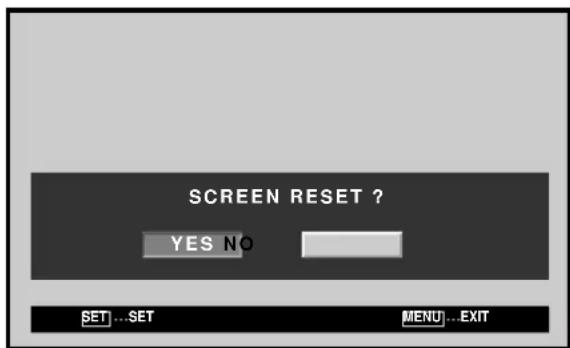

SCREEN RESET ? YES NO SET ...SET MENU ...EXIT

2 Use the ◀/▶ buttons to select [YES], and press the SET button.

All [SCREEN] mode settings are returned to the factory set default.

Setting the ORBITER

This function gradually shifts the screen position at time intervals.

● This function is not supported when using the POINT ZOOM function.

Pioneer SCREEN SIZE AUTO SET UP STANDBY/ON RGB/HD/ Digital/RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM AC/DCB FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT MENU OUTLINE MENU ▲/▼

Remote control unit

STANDBY/ON MENU DISPLAY /SET SCREEN SIZE -VOL +INPUT ◄►MENU ▲/▼

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET..ENTER MENU..EXIT

3 Use the ▲/▼ buttons to select [SCREEN MGT.], then press the SET button.

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...ENTER MENU...EXIT

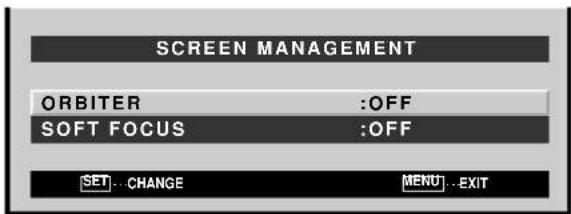

4 Use the ▲/▼ buttons to select [ORBITER].

SCREEN MANAGEMENT ORBITER :OFF SOFT FOCUS :OFF SET... CHANGE MENU...EXIT

5 Press the ◀/▶ buttons to activate the setting.

The factory default setting is [OFF]. Each time the button is pressed, the setting alternates as follows:

• OFF .... The [ORBITER] is not being used.
• MODE1 .... The image size is reduced, and the screen display position is changed.
• MODE2 .... The image size is enhanced, and the screen display position is changed.
• MODE3 ...... Screen position is shifted in accordance with dot-by-dot orientation.

6 When finished with the setting, press the MENU button to return to the normal screen image.

Note

The [ORBITER] setting affects all input sources.

Setting the SOFT FOCUS

Images are softened by suppressing the edge contrast.

Pioneer SCREEN USB AUTO SET UP STANDBY /ON RGB/WDI DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM AXXXXX FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT MENU ▲/▼

Remote control unit

STANDBY:ON MENU DISPLAY / SET INPUT SCREEN SIZE -VOL + MENU

Main unit operating panel

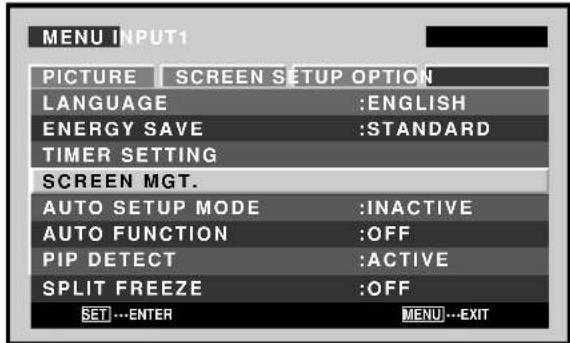

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...ENTER MENU...EXIT

3 Use the ▲/▼ buttons to select [SCREEN MGT.], then press the SET button.

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...ENTER MENU...EXIT

4 Use the ▲/▼ buttons to select [SOFT FOCUS].

SCREEN MANAGEMENT ORBITER :OFF SOFT FOCUS :OFF SET...CHANGE MENU...EXIT

5 Press the ◀/▶ buttons to activate the setting.

The factory default setting is [OFF].

Each time the button is pressed, the setting alternates as follows:

• OFF .... The [SOFT FOCUS] setting is canceled.
• 1 to 4 .... Settings for [SOFT FOCUS]. Softened increases in the order 1, 2, 3, 4.

6 When finished with the setting, press the MENU button to return to the normal screen image.

Note

The [SOFT FOCUS] setting affects all input sources.

Energy saving settings (ENERGY SAVE)

The power control function allows screen brightness to be suppressed as a means of lowering power consumption and reducing display deterioration.

Pioneer SCREEN SIZE AUTO SETUP STANDBY/ON HIGH/O-HI DIGITAL RUB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADJON FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT MENU ◄/► SET ▲/▼

Remote control unit

STANDBY-ON MENU DISPLAY INPUT SCREEN SIZE - VOL + MENU SET ▲/▼ ▲/▼

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE

3 Use the ▲/▼ buttons to select [ENERGY SAVE].

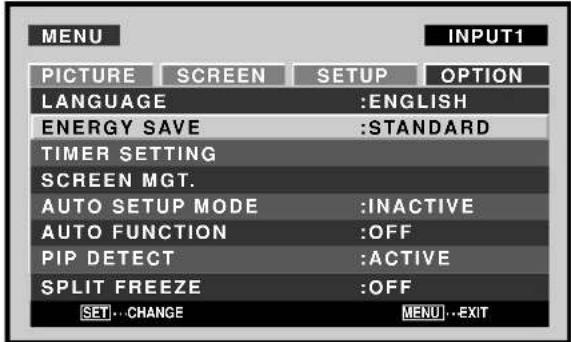

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...CHANGE MENU...EXIT

4 Press the SET button to select [ENERGY SAVE] setting.

The factory default setting is [STANDARD] (PDP-607CMX/PDP-427CMX)/[STANDARD1] (PDP-507CMX). Each time the SET button is pressed, the setting changes as follows:

• STANDARD ..... Normal image brightness (PDP-607CMX/PDP-427CMX)
• STANDARD1, STANDARD2 ...... Normal image brightness. The appearance may be different depending on the type of image. (PDP-507CMX)
  ● AUTO ...... Brightness is set automatically in response to ambient lighting conditions so as to produce optimum image appearance. (PDP-507CMX/PDP-427CMX)
  ● MODE1 ...... Brightness is controlled in accordance with input signal, but power consumption is less than that used in [STANDARD] (STANDARD1, STANDARD2) mode.
  ● MODE2 ...... Brightness is controlled in accordance with input signal, but power consumption is less than that used in [MODE1].
  ● MODE3 ...... Brightness is set at fixed level, regardless of input signal level. Effective at reducing screen aging due to burned lag images, etc.
• MUTE* .... Use to temporarily turn off the displayed image.

\* T o restore the image

• Press either of the MENU, DISPLAY, SUB INPUT, SPLIT, SWAP, or PIP SHIFT buttons.
• Switches the input signal.
• Sets unit to standby mode.

5 When finished with the setting, press the MENU button to return to the normal screen image.

Note

The [ENERGY SAVE] setting affects all input sources.

Automatic input switching (AUTO FUNCTION)

This display is equipped with an optional [AUTO

FUNCTION] selector. When enabled, the selector automatically switches the display's input source to INPUT1 when an image signal is detected at the INPUT1 terminal.

Pioneer SCREEN SET AUTO SET UP STANDBY /ON RGB/10+4 DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM AID/10 FREEZE SET SET ▲/▼ SPLIT SUB INPUT SWAP PIP SHIFT

Remote control unit

STANDBY:ON MENU DISPLAY INPUT SCREEN SIZE - VOL + MENU SET

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...ENTER MENU...EXIT

3 Use the ▲/▼ buttons to select [AUTO FUNCTION].

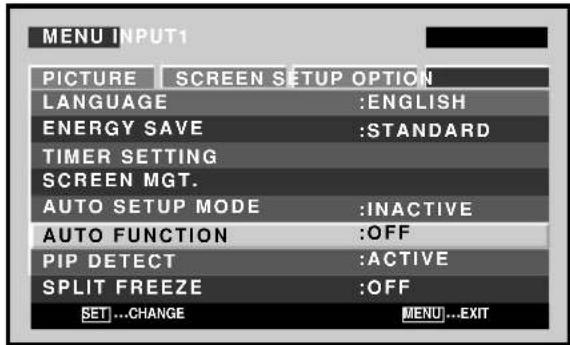

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...CHANGE MENU...EXIT

4 Press the SET button to select [INPUT1].

The factory default setting is [OFF]. Each time the SET button is pressed, the selector function switches alternately as shown:

• OFF ...... [AUTO FUNCTION] is disabled.
• INPUT1 ..... - When a signal is detected at INPUT1, the input source automatically switches to [INPUT1].
  ● After the [AUTO FUNCTION] mode has caused the input to switch, if the input signal is no longer detected, the input source reverts to the one selected before operation of the [AUTO FUNCTION] mode.
• If the input changes when the unit is in [AUTO FUNCTION] mode, pressing the INPUT button to select a different input will cause the [AUTO FUNCTION] mode to be temporarily disabled, but it can be enabled again by turning the power ON/OFF.

5 When finished with the setting, press the MENU button to return to the normal screen image.

Notes

• The [AUTO FUNCTION] for [INPUT1] is supported only when a separate SYNC or composite SYNC analog RGB signal is input. (When a G ON SYNC or component video signal is input, [AUTO FUNCTION] is disabled.)
  ● The [AUTO FUNCTION] setting affects all input sources.

Setting the PRESENT TIME

Sets the current time, day of the week and daylight savings time.

Pioneer SCREEN AUTO SET UP STANDBY /ON RGB/USB DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE SET SPLIT SUB INPUT SWAP REP SHIFT MENU SET ▲/▼

Remote control unit

STANDBY-ON MENU DISPLAY / SET INPUT SCREEN SIZE -VOL+ MENU SET ▲/▼ ◄/►

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF [SET]...ENTER MENU...EXIT

3 Use the ▲/▼ buttons to select [TIMER SETTING], then press the SET button.

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF [SET]..ENTER MENU..EXIT

4 Use the ▲/▼ buttons to select [PRESENT TIME], then press the SET button.

TIMER SETTING PRESENT TIME PROGRAM/REPEAT :OFF RETURN [SET]..ENTER MENU]..EXIT

5 Use the ◀/▶/▲/▼ buttons to set each menu item.

PRESENT TIME DAYLIGHT SAVING TIME :OFF MONDAY 12:00:00 SET RETURN [SET] .. CHANGE [MENU] .. EXIT

- DAYLIGHT SAVING TIME Use to set to daylight savings time.

ON: Displays time as present time + 1 hour. OFF: Disables [DAYLIGHT SAVING TIME] mode.

• Week.... Set current day of the week.
  ● Hour, Minute ...... Sets to current time.

6 When finished with the setting, use the ▲/▼ buttons to select [RETURN], then press the SET button to return to the [TIMER SETTING] menu.

Note

The [TIMER SETTING] setting affects all input sources.

Activating the timer

The timer can be used to operate a preset program.

Pioneer SCREEN AUTO RS119 STANDBY /ON RGB/12+ Digital RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE SET SPLIT SUBINPUT SWAP PIP SHIFT MENU SET ▲/▼

Remote control unit

STANDBY/ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL + MENU SET

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE | SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...ENTER [MENU]...EXIT

3 Use the ▲/▼ buttons to select [TIMER SETTING], then press the SET button.

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...ENTER MENU...EXIT

4 Use the ▲/▼ buttons to select [PROGRAM/REPEAT].

TIMER SETTING PRESENT TIME PROGRAM/REPEAT :OFF RETURN SET...CHANGE MENU...EXIT

5 Press the ◀/▶ buttons to activate the setting.

The factory default setting is [OFF]. Each time the button is pressed, the setting alternates as follows:

6 When finished with the setting, use the ▲/▼ buttons to select [RETURN], then press the SET button to return to the normal screen image.

[PROGRAM] setting

• Every day, power turns on at 10:00. Input and function settings are the same as those set the last time the unit was turned OFF.
• At 20:00 (8 o'clock PM), the screen turns white. At 21:00 (9 o'clock PM), power turns OFF.

[REPEAT] setting

- Screens for INPUT1 and INPUT2 are displayed alternately for ten minutes duration each.

Setting the subscreen mode (PIP DETECT)

During picture-in-picture display, if no subscreen input signal is detected, the black borders of the subscreen are automatically turned off.

The subscreen mode function is disabled during side-by-side display.

● The lack of a subscreen input signal means there is no video signal or sync signal.

Pioneer SCREEN SIZE AUTO SET UP STANDBY/ON RIGHT/OFF DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT MENU SET ▲/▼

Remote control unit

STANDBY:ON MENU DISPLAY INPUT SCREEN SIZE - VOL + ←/►MENU SET ▲/▼ Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET..ENTER MENU..EXIT

3 Use the ▲/▼ buttons to select [PIP DETECT].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...CHANGE MENU...EXIT

4 Press the SET button to activate the setting.

The factory default setting is [ACTIVE]. Each time the button is pressed, the setting alternates as follows:

• ACTIVE .... When no subscreen input signal is detected during multiscreen display, the black border of the subscreen will disappear after 3 seconds.
• INACTIVE .... Subscreens with no input will be left with the black border visible.

5 When finished with the setting, press the MENU button to return to the normal screen image.

Note

The [PIP DETECT] setting affects all input sources.

Setting the memo screen (SPLIT FREEZE)

When set to any setting other than [OFF], the image displayed when the FREEZE button is pressed will be displayed in a subscreen as a freeze-frame image.

Pioneer SCREEN HDD AUTO SET UP STANDBY /ON RGB 0-4 mini DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADD SUB FREEZE MENU FREEZE SET SET ▲/▼ SPLIT 5/8 INPUT SWAP FIP SHIFT

Remote control unit

STANDBY/ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL+ MENU SET ▲/▼ ◄/►

Main unit operating panel

1 Press the MENU button to display the menu screen.

MENU INPUT1 PICTURE SCREEN SETUP OPTION CONTRAST : 0 BRIGHTNESS : 0 H. ENHANCE : 0 V. ENHANCE : 0 PICTURE RESET SET...ENTER MENU...EXIT

2 Use the ◀/▶ buttons to select [OPTION].

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...ENTER MENU...EXIT

3 Use the ▲/▼ buttons to select [SPLIT FREEZE].

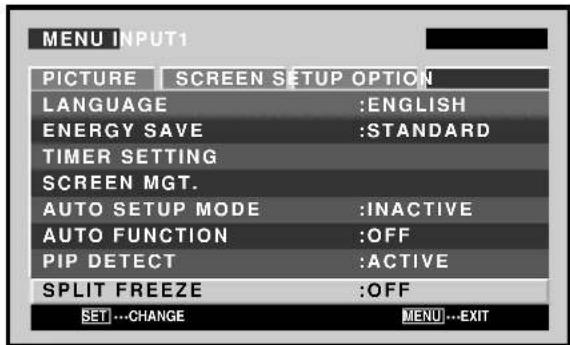

MENU INPUT1 PICTURE SCREEN SETUP OPTION LANGUAGE :ENGLISH ENERGY SAVE :STANDARD TIMER SETTING SCREEN MGT. AUTO SETUP MODE :INACTIVE AUTO FUNCTION :OFF PIP DETECT :ACTIVE SPLIT FREEZE :OFF SET...CHANGE MENU...EXIT

4 Press the SET button to activate the setting.

The factory default setting is [OFF].

Each time the button is pressed, the setting alternates as follows:

• OFF .... The still picture displayed at the time the FREEZE button was pressed is displayed as a single fullscreen image.
• S BY S ...... When the FREEZE button is pressed, the freeze-frame image will be displayed in the side-by-side subscreen.
• PIP.... When the FREEZE button is pressed, the freeze-frame image will be displayed in the picture-in-picture (left-bottom to left-top) subscreen.

5 When finished with the setting, press the MENU button to return to the normal screen image.

Notes

This function is subject to the following conditions:

• It does not function during multi-screen display.
• It will be disabled if the FREEZE button is pressed again while the function is operating.
• It will be disabled if set to multi-screen display while the function is operating.
• The [SPLIT FREEZE] setting affects all input sources.

Additional Information

Cleaning

Regular cleaning will extend the life and performance of this unit. The recommended way to clean the display and related parts is described below.

Before cleaning, be sure to unplug the power cord from the power outlet.

Cleaning the display panel body and remote control

Do not under any circumstances use solvents such as benzine or thinner for cleaner. Use of such liquids may cause deterioration or peeling of paint from the display or remote control unit.

Wipe the display and remote control gently with a soft cloth. In the case of excessive dirt buildup, dampen a soft cloth with a diluted neutral cleaning detergent and after wringing the cloth thoroughly, wipe the component and then dry it with a dry soft cloth.

Cleaning the screen

After dusting, wipe the screen gently using the supplied cleaning cloth or another soft cloth (cotton, flannel, etc.). Do not use tissue or a rough cloth. As the surface of the screen is easily scratched, do not rub it or hit it with a hard object.

If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Cleaning the vents

As a general rule, use a vacuum cleaner about once a month to clean the vents on the rear panel of the display of dust buildup (set the vacuum cleaner to its weakest setting when doing this).

Using the unit without cleaning it of dust will cause the internal temperature to increase, resulting in possible breakdown or fire.

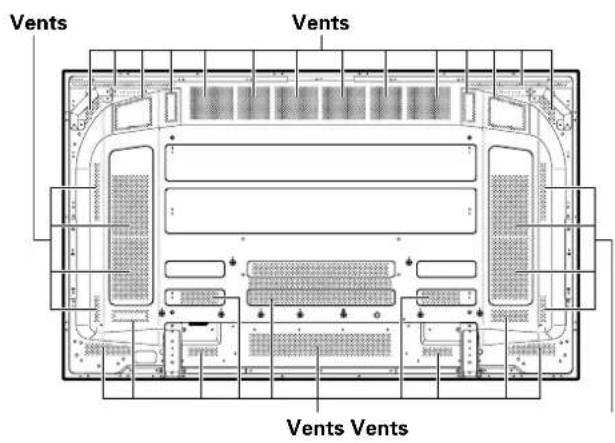

PDP-607CMX

Vents Vents Vents Vents

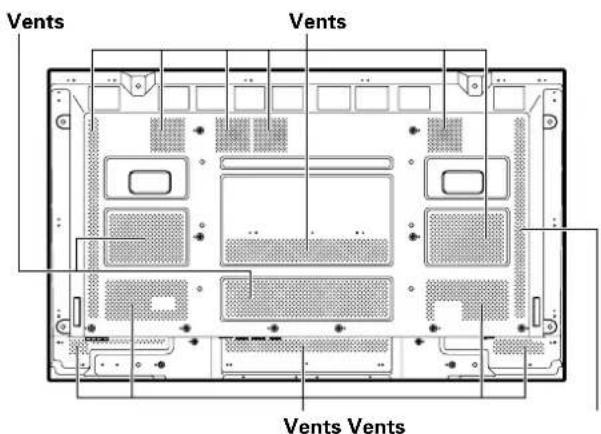

PDP-507CMX

Vents Vents Vents Vents

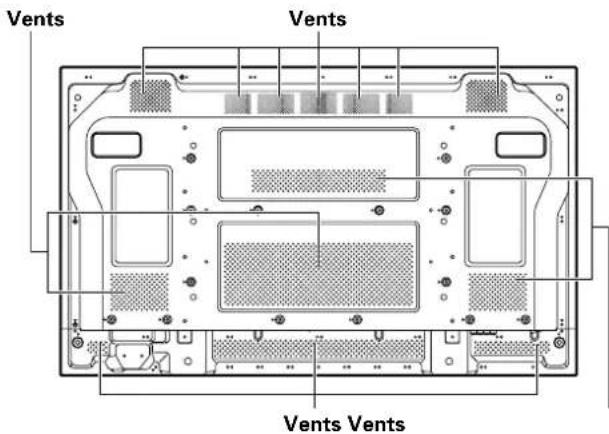

PDP-427CMX

Vents Vents Vents Vents

Troubleshooting

What may at first seem to be an malfunction, may be remedied with a quick check.

Please check to see if a warning is displayed on the screen. If displayed, refer to the table below and check the mode. If there is no display check to see if the problem is listed on page 40. The problem may also be caused by something other than this unit so please also check the other components being used such as a video deck. If the problem can still not be solved please consult the dealer where this unit was purchased.

About the self diagnosis mode

Messages appear on the bottom of this unit's screen to indicate operation or connection faults. After message confirmation, check the condition of the unit.

ERROR MESSAGE	REMEDY
CAUTIONOUT OF RANGEorCAUTIONUNSUPPORTED SIGNALorSIGNAL NG	●The current input signal is not supported by the unit. Check the Computer signal compatibility table on pages 43 to 48, and change the computer's output signal setting appropriately.
WARNINGTHERMAL ALERTSHUT DOWN	●Turn off main power (pages 9 to 11).●Is ambient temperature above 40 °C?●Remove any objects blocking the cooling vents on the Plasma Display.
WARNINGFAN FAILURESHUT DOWN	●Cooling fan has malfunctioned.Immediately turn off power, remove power plug from its outlet, and consult a Pioneer service center or your dealer.
ERRORINVALID KEY ENTRY	●An invalid operation has been attempted. Check input signals, connections and other settings.
SHUT DOWN	●Turn off main power, wait for 1 to 2 minutes, then try turning power on again. If problem persists, remove power plug from its outlet and consult a Pioneer service center or your dealer.

General problems

Problem Possible Solution
No power.	Is the power cord disconnected? (page 16)Has the MAIN POWER switch been switched on? (pages 9 to 11)
Unit cannot be operated.	External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the MAIN POWER off/on, or unplugging the power cord and re-plugging it in after 1 to 2 minutes.
Remote control does not operate.	Are batteries inserted with polarity (+, -) correctly aligned? (page 8)Are batteries worn out? (Replace with new batteries.)Is any object occluding the remote signal receiver? (page 8)Point the remote control unit toward the remote signal receiver when operating (page 8).
Picture is cut off.	Is the selected screen size correct?Switch to another screen size (page 22).Are [SCREEN] mode adjustments such as picture size made correctly? (pages 22 to 23 and 28 to 29)Is the POINT ZOOM function being used? (page 23)
Strange color, light color, or dark, or color misalignment.	Adjust the picture tone (page 26).Is the room too bright?The picture may look dark in a room that is too bright.
Power is suddenly turned off.	The unit's internal temperature has increased. (Air vents are blocked.)Remove any objects blocking vent or clean (page 38).Is the [POWER MGT.] function set to [ON]? (page 25)
No picture.	Is connection to other components correct? (pages 14 to 15)Has setup been done correctly after connection? (pages 18 to 19)Is the correct input selected? (page 20)Is a non-compatible signal being input? (pages 43 to 48)Is the [PICTURE] setting correct? (page 26)

Problems commonly mistaken as breakdown

Problem Possible Solution
The screen is displayed in a small size.	Is the correct screen size selected? (pages 22 to 23 and 28 to 29)
Letter breakup on screen.	Adjust using [SCREEN] mode on the menu screen (pages 28 to 29).If there is still no improvement, this unit may be limiting the displayable range. Check the Computer signal compatibility table (pages 43 to 48).
A sharp sound is sometimes heard from the cabinet.	Expansion/contraction caused by surrounding temperature change may result in sound being heard from the cabinet. This is not a malfunction.
Bright portions of image appear to be losing intensity.	When the video input signal's level is too high, the bright portions may appear to be losing their intensity.Increase the adjustment level of the contrast and check the picture (page 26).
Speckles or noise appears on screen.	May be caused by radio wave interference from appliances with motors such as hair dryers, electric vacuum cleaners, electric power drills, ignition systems of cars, motorcycles etc., switch devises such as thermostats etc., neon signs or electrical discharge from power lines etc.
Stripes appear on the screen.	May be caused by radio wave mingling from TV station, FM station, amateur radios, public radios (simplified radios) etc., or a nearby personal computer, TV, or video/audio component.A strong electromagnetic field may cause picture distortion and similar problems.
Sound is heard from inside the unit.	Normal sound of the cooling fan and internal sliding parts of the Plasma Display panel. Not a malfunction.
Fan speed changes.	Fan speed changes automatically in accordance with ambient conditions. Not a malfunction.
ON (green) indicator doesn't light.	The ON indicator may not light in some cases, depending on the settings performed by the installer. Consult with your installation technician.

Precautions regarding use

Panel sticking and after-image lag

- Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

1. After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

2. After-image (lag image) due to burning

Avoid displaying the same image on the Plasma Display continuously over a long period of time. If the same image is displayed continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

The same kind of burning of a lag image may also be produced after extended multi-hour use, or recurrent daily use for shorter periods of a single [4:3] screen size, or [DOT BY DOT] image. Except in cases where violation of intellectual property rights may be involved (pages 22 and 23), it is recommended that lag-image burning be avoided by selecting a screen size that displays images over the entire screen (page 22).

- In addition, the [ORBITER] function (page 30) and [ENERGY SAVE] function (page 32) can also be used to reduce the chance of lag image formation.

Note

Special precautions must be employed when using the Plasma Display as a surveillance monitor or in other applications where a fixed image will be displayed for extended periods of time. Before using the monitor in such applications, consult your dealer for advice.

When using this unit as a monitor for a surveillance camera, it is recommended to set the [ENERGY SAVE] function to [MODE3] or [MODE2].

About the Plasma Display's protection function

The brightness of this display will deteriorate slightly when an image with little movement such as a photograph or computer image is continuously displayed. This is caused by the Plasma Display's protection function which detects images with slight movement and automatically adjusts brightness to protect the display, and is not a malfunction.

The screen-saver function begins operating when the display detects no or little screen movement for a period of about three minutes; the function is an automatic feature and cannot be turned OFF.

Pixel failure

The Plasma Display screen is composed of a high numbers of tiny pixel elements constructed in a high-precision array, but on occasion one or more of the pixels may fail to light, or may light erratically. This is an inevitable by-product of the manufacturing process and not a malfunction.

Concerning infrared light

In principle, the Plasma Display radiates infrared light. Depending on the environment in which the monitor is installed and used, infrared remote control units for other nearby appliances may fail to operate properly, or noise may be heard in wireless headphones. In such cases, move the affected appliance to a location where its infrared sensor is not affected.

Electromagnetic interference

This unit is built in compliance with official standards for electromagnetic interference, but it nonetheless may produce a low level of radio noise. This noise may be noticeable if AM radios, computers, or video appliances are installed too close to the display. In such cases, remove the affected appliance to a location where it is not affected.

Drive Noise

When power is turned on, some degree of drive noise may be heard; this is normal and not a malfunction.

Plasma Display Temperature

When the display is used for long periods of time, some parts of the display may retain heat and the display may become hot to the touch; this is normal and not a malfunction.

Additional cautions

• If the power is automatically turned off during operation of this unit, the following reasons may be the cause.
  1 Is the [POWER MGT.] function set to [ON]? (page 25).
  2 The surrounding temperature has risen above 40 °C . The display should be used within ambient temperature conditions below 40 °C .
  3 The internal temperature has risen abnormally due to blocked cooling vents, overheating of internal electronic parts, or other factors.
  If the power is automatically turned off for a reason other than the above reasons, there could be a malfunction. In this case, unplug the power cord from the power outlet and request repair from your nearest sales outlet.
• The Plasma Display panel of this unit is very bright and viewing it a close distance will cause eye strain.
  We recommend that you view the screen from a suitable distance (3 m to 6 m).
• In order to protect the panel and internal circuitry, this display is provided with a cooling fan designed to turn on/off and change speed automatically in accordance with ambient temperature conditions (the fan sound will change in accordance with its speed). The display should be used within ambient temperature conditions below 40 °C.

STANDBY/ON indicator

During operation of the [POWER MGT.] function, this indicator will flash green at intervals of about 1 second (page 25).

This indicator lights steadily (green) under normal operating conditions. However, depending on the settings performed by the installation technician, the green indicator may not light even when power is turned on (page 40).

If the green light displays a flashing pattern other than the above, an error message is indicated. Consult any onscreen messages (page 39) and check ambient conditions (temperature, etc.) and respond accordingly (page 40).

If the problem persists, disconnect the power plug and consult your dealer or a service center.

Other than this, if the power turns off by itself, or refuses to turn on, or if this indicator conditions flashing red, a malfunction may be indicated. Immediately disconnect the power plug and consult your dealer or a service center.

Specifications

General (PDP-607CMX)

Light emission panel .... 60V type AC Plasma Panel 131.86 cm (W) x 74.19 cm (H) x 151.3 cm (diagonal)

Number of pixels 1365 x 768

Power supply ...... AC 100 V to 120 V, 50 Hz/60 Hz

Rated current 5.8 A to 4.8 A

Standby power consumption 0.8 W

External dimensions .... 1470 mm (W) x 880 mm (H) x 122 mm (D) 57-7/8 in. (W) x 34-21/32 in. (H) x 4-26/32 in. (D)

Weight.... 62.0 kg (136.7 lbs.)

Operating temperature range.... 0 °C to 40 °C

General (PDP-507CMX)

Light emission panel .... 50V type AC Plasma Panel 110.36 cm (W) x 62.09 cm (H) x 126.63 cm (diagonal)

Number of pixels 1365 x 768

Power supply ...... AC 120 V, 60 Hz

Rated current 3.1 A

Standby power consumption 0.6 W

External dimensions .... 1222 mm (W) x 736 mm (H) x 99 mm (D: Not including handles) 48-1/8 in. (W) x 28-31/32 in. (H) x 3-29/32 in. (D: Not including handles)

Weight.... 35.5 kg (78.3 lbs.)

Operating temperature range.... 0 °C to 40 °C

General (PDP-427CMX)

Light emission panel .... 42V type AC Plasma Panel 92.16 cm (W) x 51.53 cm (H) x 105.59 cm (diagonal)

Number of pixels 1024 x 768

Power supply ...... AC 100 V to 120 V, 50 Hz/60 Hz

Rated current 3.0 A to 2.5 A

Standby power consumption 1.2 W

External dimensions .... 1022 mm (W) x 610 mm (H) x 98 mm (D: Not including handles) 40-1/4 in. (W) x 24 in. (H) x 3-7/8 in. (D: Not including handles)

(including display stand) ..... 1218 mm (W) x 737 mm (H) x 300 mm (D) 47-31/32 in. (W) x 29-1/32 in. (H) x 11-13/16 in. (D)

Weight.... 30.5 kg (67 lbs.) (including display stand).... 31.1 kg (69 lbs.)

Operating temperature range.... 0 °C to 40 °C

Input/output

Video

INPUT1

Input Mini D-sub 15 pin (socket connector) RGB signal (G ON SYNC compatible) RGB ... 0.7 Vp-p/75 Ω/no sync. HD/VS, VD ... TTL level/ positive and negative polarity/ 2.2 kΩ

G ON SYNC

... 1 Vp-p/75 Ω/negative sync.

*Compatible with Microsoft "Plug & Play" (VESA DDC 1/2B)

Output Mini D-sub 15 pin (socket connector) 75 Ω/with buffer

INPUT2

Input DVI-D 24-pin connector

Digital RGB signal (DVI compliant TMDS signal)

*Compatible with Microsoft "Plug & Play" (VESA DDC 2B)

Audio

Input AUDIO INPUT (for INPUT1)

Stereo mini jack

L/R ... 500 mVrms/more than 10 kΩ

AUDIO INPUT (for INPUT2)

Stereo mini jack

L/R ... 500 mVrms/more than 10 kΩ

Output AUDIO OUTPUT

Stereo mini jack

L/R ... 500 mVrms (max)/less than 5 kΩ

SPEAKER

PDP-607CMX/PDP-507CMX

L/R ... 6 Ω to 16 Ω/9 W +9 W (at 6 Ω)

PDP-427CMX

L/R ... 6 Ω to 16 Ω/8 W +8 W (at 6 Ω)

Control

RS-232C ... D-sub 9 pin (pin connector)

COMBINATION IN/OUT

... Mini DIN 6 pin (x2)

Accessories

Power cord (2 m/6.6 feat) 1

Remote control unit 1

AA (R6) batteries 2

Cleaning cloth (for screen) 1

Speed clamps.... 3

Bead bands 3

Ferrite cores (for audio cables) 3

Ferrite cores (PDP-427CMX: for power cord) 2

Cable ties (PDP-427CMX) 2

Display stands (PDP-427CMX) 2

Washers (PDP-427CMX) 2

Hex hole bolts (M8 x 40 mm) (PDP-427CMX).... 2

Remote control unit holder (PDP-427CMX) 1

Operating Instructions.... 1

Warranty 1

●Due to improvements, specifications and design are subject to change without notice.

Appendix 1: Computer signal compatibility table

Appendix 1 -1/4: PDP-607CMX/PDP-507CMX (INPUT1)

: Not available.

Resolution(Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical DOT	BHDQ3/total 4:3			FULL
640x400	70.1 Hz	31.5 kHz	640x480		1365x768	NEC PC-9800
720x400	70.1 Hz	31.5 kHz	720x400		1365x768	NEC PC-9800
	85.1 Hz	37.9 kHz	↑		↑
640x480	59.9 Hz	31.5 kHz	640x480	1024x768	1365x768
	66.7 Hz	35.0 kHz	↑	↑	↑	Apple Macintosh 13"
	72.8 Hz	37.9 kHz	↑	↑	↑
	75 Hz	37.5 kHz	↑	↑	↑
	85 Hz	43.3 kHz	↑	↑	↑
	100.4 Hz	51.1 kHz	↑	↑	↑	I/O DATA
	120.4 Hz	61.3 kHz	↑	↑	↑	I/O DATA
848x480	60 Hz	31.0 kHz	848x480		1365x768
852x480	60 Hz	31.7 kHz	852x480		1365x768	I/O DATA
800x600	56.3 Hz	35.2 kHz	800x600	1024x768	1365x768
	60.3 Hz	37.9 kHz	↑	↑	↑
	72.2 Hz	48.1 kHz	↑	↑	↑
	75 Hz	46.9 kHz	↑	↑	↑
	85.1 Hz	53.7 kHz	↑	↑	↑
	99.8 Hz	63.0 kHz	↑	↑	↑	I/O DATA
	120 Hz	75.7 kHz	↑	↑	↑	I/O DATA
832x624	74.6 Hz	49.7 kHz	832x624	1024x768	1365x768	Apple Macintosh 16"
1024x768	60 Hz	48.4 kHz	1024x768		1365x768
	60 Hz	49.7 kHz	↑		↑	Work station (SGI)
	70.1 Hz	56.5 kHz	↑		↑
	75 Hz(74.9 Hz)	60.0 kHz(60.2 kHz)	↑		↑	() indicates Apple Macintosh 19"
	85 Hz	68.7 kHz	↑		↑
	100.6 Hz	80.5 kHz	↑		↑	I/O DATA
	119.4 Hz	95.5 kHz	↑		↑
1280x768	56.2 Hz	45.1 kHz	1280x768		1365x768
	59.8 Hz	48 kHz	↑		↑
	69.8 Hz	56 kHz	↑		↑
1360x768	60 Hz	47.7 kHz	1360x768		1365x768	I/O DATA
1376x768	59.9 Hz	48.3 kHz			1365x768	I/O DATA
1280x800	59.8 Hz	49.7 kHz			1365x768	CVT
1280x854	60 Hz	53.1 kHz			1365x768	PC
1152x864	60 Hz	53.7 kHz		1024x768	1365x768
	72 Hz	64.9 kHz		↑	↑
	75 Hz	67.5 kHz		↑	↑
1152x870	75.1 Hz	68.7 kHz		1024x768	1365x768	Apple Macintosh 21"
1152x900	66 Hz	61.8 kHz		1024x768	1365x768	Sun Microsystems LO
	76 Hz	71.7 kHz		↑	↑	Sun Microsystems HI
Vertical DOT	BNDOTENUE3
1440x900	59.9 Hz	55.9 kHz			1365x768	Apple Macintosh 17"
1280x960	60 Hz	60.0 kHz		1024x768	1365x768
	85 Hz	85.9 kHz		↑	↑
1280x1024	60 Hz	64.0 kHz		960x768	1365x768	Work station (SGI)
	60 Hz	64.6 kHz		↑	↑	Work station (EWS4800)
	71.2 Hz	75.1 kHz		↑	↑	Work station (EWS4800)
	72 Hz	78.1 kHz		↑	↑	Work station (HP)
	75 Hz	80.0 kHz		↑	↑
	76.1 Hz	81.1 kHz		↑	↑	Work station (SUN)
	85 Hz	91.1 kHz		↑	↑
	100.1 Hz	108.5 kHz		↑	↑	I/O DATA
1400x1050	60 Hz	65.3 kHz		1024x768	1365x768
	75 Hz	82.3 kHz		↑	↑
	85 Hz	93.9 kHz		↑	↑
1680x1050	60 Hz	65.3 kHz			1365x768
1600x1200	60 Hz	75.0 kHz		1024x768	1365x768
	65 Hz	81.3 kHz		↑	↑
	70 Hz	87.5 kHz		↑	↑
	75 Hz	93.8 kHz		↑	↑
	85 Hz	106.3 kHz		↑	↑
1920x1200	59.9 Hz	74.6 kHz			1365x768	CVT
1920x1200RB	60 Hz	74.0 kHz			1365x768	CVT

◎ : Optimal picture. Adjustment of picture position, refresh rate, phase etc., may be necessary.
○ : Picture will be enlarged but some fine detail will be hard to see.
△ : Simple reproduction. Fine detail will not be reproduced.

Appendix 1 -2/4: PDP-607CMX/PDP-507CMX (INPUT2)

: Not available.

Resolution(Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical DOT	BND0.01ntal 4:3			FULL
640x480	59.9 Hz	31.5 kHz	640x480	1024x768	1365x768
	72.8 Hz	37.9 kHz	↑	↑	↑
	75 Hz	37.5 kHz	↑	↑	↑
	85 Hz	43.3 kHz	↑	↑	↑
	100.4 Hz	51.1 kHz	↑	↑	↑
	120.4 Hz	61.3 kHz	↑	↑	↑
720x400	70.1 Hz	31.5 kHz	720x400		1365x768	NEC PC-9800
	85.1 Hz	37.9 kHz	↑		↑
848x480	60 Hz	31.0 kHz	848x480		1365x768
852x480	60 Hz	31.7 kHz	852x480		1365x768
800x600	56.3 Hz	35.2 kHz	800x600	1024x768	1365x768
	60.3 Hz	37.9 kHz	↑	↑	↑
	72.2 Hz	48.1 kHz	↑	↑	↑
	75 Hz	46.9 kHz	↑	↑	↑
	85.1 Hz	53.7 kHz	↑	↑	↑
	99.8 Hz	63.0 kHz	↑	↑	↑
	120 Hz	75.7 kHz	↑	↑	↑

: Not available.

Resolution(Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical	Horizontal	DOT BY DOT FULL 4:3
1024x768	60 Hz	48.4 kHz	1024x768		1365x768
	60 Hz	49.7 kHz	↑		↑	Work station (SGI)
	70.1 Hz	56.5 kHz	↑		↑
	75 Hz	60.0 kHz	↑		↑
	85 Hz	68.7 kHz	↑		↑
	100.6 Hz	80.5 kHz	↑		↑
1280x768	56.2 Hz	45.1 kHz	1280x768		1365x768
	59.8 Hz	48 kHz	↑		↑
	69.8 Hz	56 kHz	↑		↑
1280x800	59.8 Hz	49.7 kHz			1365x768
1280x854	60 Hz	53.1 kHz			1365x768
1360x768	60 Hz	47.7 kHz	1360x768		1365x768	I/O DATA
1376x768	59.9 Hz	48.3 kHz			1365x768	I/O DATA
1152x864	60 Hz	53.7 kHz		1024x768	1365x768
	72 Hz	64.9 kHz		↑	↑
	75 Hz	67.5 kHz		↑	↑
1152x900	66 Hz	61.8 kHz		1024x768	1365x768	Work station (SUN)
	76 Hz	71.7 kHz		↑	↑	Work station (SUN)
1440x900	59.9 Hz	55.9 kHz			1365x768	Apple Macintosh17"
1280x960	60 Hz	60.0 kHz		1024x768	1365x768
	85 Hz	85.9 kHz		↑	↑
1280x1024	60 Hz	64.0 kHz		960x768	1365x768	Work station (SGI)
	60 Hz	64.6 kHz		↑	↑	Work station (EWS4800)
	71.2 Hz	75.1 kHz		↑	↑	Work station (EWS4800)
	72 Hz	78.1 kHz		↑	↑	Work station (HP)
	76.1 Hz	81.1 kHz		↑	↑	Work station (SUN)
	75 Hz	80.0 kHz		↑	↑
	85 Hz	91.1 kHz		↑	↑
1400x1050	60 Hz	65.3 kHz		1024x768	1365x768
1680x1050	60 Hz	65.3 kHz			1365x768
1920x1080	50 Hz	56.2 kHz			1365x768
	60 Hz	67.5 kHz			↑
1600x1200	60 Hz	75.0 kHz		1024x768	1365x768
1920x1200RB	60 Hz	74.0 kHz			1365x768	CVT

Note

In rare cases, a normal picture may not be obtained when switching between compatible signal formats on the output device (PC, etc.).

Should this happen, turn off the power and then turn it back on again.

◎ : Optimal picture. Adjustment of picture position, refresh rate, phase etc., may be necessary.
○: Picture will be enlarged but some fine detail will be hard to see.
△ : Simple reproduction. Fine detail will not be reproduced.

Appendix 1 -3/4: PDP-427CMX (INPUT1)

: Not available.

◎ : Optimal picture. Adjustment of picture position, refresh rate, phase etc., may be necessary.
○ : Picture will be enlarged but some fine detail will be hard to see.
△ : Simple reproduction. Fine detail will not be reproduced.

Resolution (Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical	Horizontal	DOT BY DOT FULL 4:3
640x400	70.1 Hz	31.5 kHz			1024x768	NEC PC-9800
720x400	70.1 Hz	31.5 kHz			1024x768	NEC PC-9800
	85.1 Hz	37.9 kHz			↑
640x480	59.9 Hz	31.5 kHz		768x768	1024x768
	66.7 Hz	35.0 kHz		↑	↑	Apple Macintosh 13"
	72.8 Hz	37.9 kHz		↑	↑
	75 Hz	37.5 kHz		↑	↑
	85 Hz	43.3 kHz		↑	↑
	100.4 Hz	51.1 kHz		↑	↑	I/O DATA
	120.4 Hz	61.3 kHz		↑	↑	I/O DATA
848x480	60 Hz	31.0 kHz			1024x768
852x480	60 Hz	31.7 kHz			1024x768	I/O DATA
800x600	56.3 Hz	35.2 kHz		768x768	1024x768
	60.3 Hz	37.9 kHz		↑	↑
	72.2 Hz	48.1 kHz		↑	↑
	75 Hz	46.9 kHz		↑	↑
	85.1 Hz	53.7 kHz		↑	↑
	99.8 Hz	63.0 kHz		↑	↑	I/O DATA
	120 Hz	75.7 kHz		↑	↑	I/O DATA
832x624	74.6 Hz	49.7 kHz		768x768	1024x768	Apple Macintosh 16"
1024x768	60 Hz	48.4 kHz	1024x768	768x768
	60 Hz	49.7 kHz	↑	↑		Work station (SGI)
	70.1 Hz	56.5 kHz	↑	↑
	75 Hz(74.9 Hz)	60.0 kHz(60.2 kHz)	↑	↑		( ) indicates Apple Macintosh 19"
	85 Hz	68.7 kHz	↑	↑
	100.6 Hz	80.5 kHz	↑	↑		I/O DATA
	119.4 Hz	95.5 kHz	↑	↑
1280x768	56.2 Hz	45.1 kHz			1024x768
	59.8 Hz	48 kHz			↑
	69.8 Hz	56 kHz			↑
1360x768	60 Hz	47.7 kHz			1024x768	I/O DATA
1376x768	59.9 Hz	48.3 kHz			1024x768	I/O DATA
1280x800	59.8 Hz	49.7 kHz			1024x768	CVT
1280x854	60 Hz	53.1 kHz			1024x768	PC
1152x864	60 Hz	53.7 kHz		768x768	1024x768
	72 Hz	64.9 kHz		↑	↑
	75 Hz	67.5 kHz		↑	↑
1152x870	75.1 Hz	68.7 kHz		768x768	1024x768	Apple Macintosh 21"
1152x900	66 Hz	61.8 kHz		768x768	1024x768	Sun Microsystems LO
	76 Hz	71.7 kHz		↑	↑	Sun Microsystems HI
Vertical DOT	D0.0x10Hz	B
1440x900	59.9 Hz	55.9 kHz			1024x768	Apple Macintosh 17"
1280x960	60 Hz	60.0 kHz		768x768	1024x768
	85 Hz	85.9 kHz		↑	↑
1280x1024	60 Hz	64.0 kHz		720x768	1024x768	Work station (SGI)
	60 Hz	64.6 kHz		↑	↑	Work station (EWS4800)
	71.2 Hz	75.1 kHz		↑	↑	Work station (EWS4800)
	72 Hz	78.1 kHz		↑	↑	Work station (HP)
	75 Hz	80.0 kHz		↑	↑
	76.1 Hz	81.1 kHz		↑	↑	Work station (SUN)
	85 Hz	91.1 kHz		↑	↑
	100.1 Hz	108.5 kHz		↑	↑	I/O DATA
1400x1050	60 Hz	65.3 kHz		768x768	1024x768
	75 Hz	82.3 kHz		↑	↑
	85 Hz	93.9 kHz		↑	↑
1680x1050	60 Hz	65.3 kHz			1024x768
1600x1200	60 Hz	75.0 kHz		768x768	1024x768
	65 Hz	81.3 kHz		↑	↑
	70 Hz	87.5 kHz		↑	↑
	75 Hz	93.8 kHz		↑	↑
	85 Hz	106.3 kHz		↑	↑
1920x1200	59.9 Hz	74.6 kHz			1024x768	CVT
1920x1200RB	60 Hz	74.0 kHz			1024x768	CVT

Appendix 1 -4/4: PDP-427CMX (INPUT2)

: Not available.

Resolution (Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical	Horizontal	DOT BY DOT FULL 4:3
640x480	59.9 Hz	31.5 kHz		768x768	1024x768
	72.8 Hz	37.9 kHz		↑	↑
	75 Hz	37.5 kHz		↑	↑
	85 Hz	43.3 kHz		↑	↑
	100.4 Hz	51.1 kHz		↑	↑
	120.4 Hz	61.3 kHz		↑	↑
720x400	70.1 Hz	31.5 kHz			1024x768	NEC PC-9800
	85.1 Hz	37.9 kHz			↑
848x480	60 Hz	31.0 kHz			1024x768
852x480	60 Hz	31.7 kHz			1024x768
800x600	56.3 Hz	35.2 kHz		768x768	1024x768
	60.3 Hz	37.9 kHz		↑	↑
	72.2 Hz	48.1 kHz		↑	↑
	75 Hz	46.9 kHz		↑	↑
	85.1 Hz	53.7 kHz		↑	↑
	99.8 Hz	63.0 kHz		↑	↑
	120 Hz	75.7 kHz		↑	↑
1024x768	60 Hz	48.4 kHz	1024x768	768x768
	60 Hz	49.7 kHz	↑	↑		Work station (SGI)
	70.1 Hz	56.5 kHz	↑	↑
	75 Hz	60.0 kHz	↑	↑
	85 Hz	68.7 kHz	↑	↑
	100.6 Hz	80.5 kHz	↑	↑
1280x768	56.2 Hz	45.1 kHz			1024x768
	59.8 Hz	48 kHz			↑
	69.8 Hz	56 kHz			↑
1280x800	59.8 Hz	49.7 kHz			1024x768
1280x854	60 Hz	53.1 kHz			1024x768
1360x768	60 Hz	47.7 kHz			1024x768	I/O DATA
1376x768	59.9 Hz	48.3 kHz			1024x768	I/O DATA
1152x864	60 Hz	53.7 kHz		768x768	1024x768
	72 Hz	64.9 kHz		↑	↑
	75 Hz	67.5 kHz		↑	↑
1152x900	66 Hz	61.8 kHz		768x768	1024x768	Work station (SUN)
	76 Hz	71.7 kHz		↑	↑	Work station (SUN)
1440x900	59.9 Hz	55.9 kHz			1024x768	Apple Macintosh17"
1280x960	60 Hz	60.0 kHz		768x768	1024x768
	85 Hz	85.9 kHz		↑	↑
1280x1024	60 Hz	64.0 kHz		720x768	1024x768	Work station (SGI)
	60 Hz	64.6 kHz		↑	↑	Work station (EWS4800)
	71.2 Hz	75.1 kHz		↑	↑	Work station (EWS4800)
	72 Hz	78.1 kHz		↑	↑	Work station (HP)
	76.1 Hz	81.1 kHz		↑	↑	Work station (SUN)
	75 Hz	80.0 kHz		↑	↑
	85 Hz	91.1 kHz		↑	↑
1400x1050	60 Hz	65.3 kHz		768x768	1024x768
1680x1050	60 Hz	65.3 kHz			1024x768
1920x1080	50 Hz	56.2 kHz			1024x768
	60 Hz	67.5 kHz			↑
1600x1200	60 Hz	75.0 kHz		768x768	1024x768
1920x1200RB	60 Hz	74.0 kHz			1024x768	CVT

Note

In rare cases, a normal picture may not be obtained when switching between compatible signal formats on the output device (PC, etc.). Should this happen, turn off the power and then turn it back on again.

◎: Optimal picture. Adjustment of picture position, refresh rate, phase etc., may be necessary.
○: Picture will be enlarged but some fine detail will be hard to see.
△: Simple reproduction. Fine detail will not be reproduced.

Appendix 2: INPUT1/2 pin assignments

Appendix 2-1/2:

INPUT1 (Mini D-sub 15 pin female connector) pin allocation.

Pin No.	Input Output
1	R	←
2	G	←
3	B	←
4	NC (No connection)	←
5	GND	←
6	GND	←
7	GND	←
8	GND	←
9	DDC + 5V	NC (No connection)
10	GND	←
11	NC (No connection)	←
12	DDC SDA	NC (No connection)
13	HD or H/V SYNC	←
14	VD	←
15	DDC SCL	NC (No connection)

Appendix 2-2/2:

INPUT2 (DVI female connector) pin allocation.

1 8 9 17 24 16

Pin No.	Signal Assignment
1	T.M.D.S. Data2-
2	T.M.D.S. Data2+
3	T.M.D.S. Data2/4 Shield
4	NC (No connection)
5	NC (No connection)
6	DDC Clock
7	DDC Data
8	NC (No connection)
9	T.M.D.S. Data1-
10	T.M.D.S. Data1+
11	T.M.D.S. Data1/3 Shield
12	NC (No connection)
13	NC (No connection)
14	+5V Power
15	GND
16	Hot Plug Detect
17	T.M.D.S. Data0 -
18	T.M.D.S. Data0+
19	T.M.D.S. Data0/5 Shield
20	NC (No connection)
21	NC (No connection)
22	T.M.D.S. Clock Shield
23	T.M.D.S. Clock+
24	T.M.D.S. Clock-

Explanation of terms

Aspect ratio

The TV screen's width to height ratio is referred to as its aspect ratio. The aspect ratio on standard TVs is 4:3 and on wide TVs or High Definition TVs it is 16:9.

G ON SYNC

This indicates a video signal in the form of a synchronization signal added to the G (GREEN) signal of the R.G.B signal.

VGA

General term for "Video Graphics Array". Generally this indicates a 640 dot x 480 line resolution.

WVGA

General term for "Wide Video Graphics Array". Generally this indicates a 848 dot x 480 line resolution.

XGA

General term for "eXtended Graphics Array". Generally this indicates a 1024 dot x 768 line resolution.

WXGA

General term for "Wide eXtended Graphics Array". Generally this indicates a 1280 dot x 768 line resolution.

SXGA

General term for "Super eXtended Graphics Array". Generally this indicates a 1280 dot x 1024 line resolution.

SXGA+

General term for "Super eXtended Graphics Array plus". Generally this indicates a 1400 dot x 1050 line resolution.

DVI

General term for "Digital Visual Interface". An interface standard proposed by the Digital Display Working Group (DDWG) for digital displays.

Apple and Macintosh are registered trademarks of Apple Computer, Inc. Microsoft is a registered trademark of Microsoft Corporation. NEC and PC-9800 are trademarks of NEC Corporation. VESA and DDC are registered trademarks of Video Electronics Standards Association. Power Management and Sun Microsystems are registered trademarks of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Co., Inc.

Published by Pioneer Corporation. Copyright © 2006 Pioneer Corporation. All rights reserved.

Mode d'emploi

300, Allstate Parkway, Markham, Ontario L3R OP2

[phone]

1(877)283-5901

Raccordements audio 15

(GESTION D'ALIM.) 25

Line drawing of a remote control with keypad and buttons (no text or symbols)

③2 piles AA (R6)

Line drawing of four identical metal bars with circular ends and hooks (no text or symbols)

⑥3 serre-câble

Three identical cylindrical electronic components with mounting holes, shown in isometric line style without any text or symbols.

Technical line drawing of two cylindrical mechanical components with mounting flanges (no text or symbols)

⑨2 attaches de câble (PDP-427CMX)

Two identical metal tools with square end caps, no text or symbols present

Technical line drawing of two mechanical bracket components (no text or symbols)

⑪2 rondelles (petite) (PDP-427CMX)

⑫2 boulons hexagonaux (M8 x 40 mm) (PDP-427CMX)

Pioneer SCREEN SIZE AUTO SET UP STANDBY /ON RGB (D-sub) DIGITAL RGB 1 2 DISPLAY 3 4 5 INPUT MENU AXD1528 POINT ZOOM FREEZE SET SPLIT SUE INPUT SW IP PIP SHIFT MUTING ID NO. SET VOLUME - + CLEAR PLASMA DISPLAY ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

⑧ANALOG RGB OUT (INPUT1)

Diagram of computer rear panel with labeled ports and connectors, showing internal components like audio, USB, and display indicators.

①Borne SPEAKER (R)

⑧ANALOG RGB OUT (INPUT1)

Diagram of computer rear panel with labeled ports and connectors, showing internal components like USB drive, audio, and I/O ports.

①COMBINATION IN/OUT

Line drawing of a flat-screen monitor with stand and mounting bracket (no text or symbols)

Two workers holding a large vehicle chassis (no text or symbols visible)

Câble audio (non fourni)

Noyau en ferrite

Diagram illustrating cable connection and mechanical assembly steps, showing wire routing and component positioning with numbered instructions.

PDP-607CMX

Pioneer SCREEN SET AUTO SET UP STANDBY /ON RGB/2500 1 2 3 4 5 DISPLAY INPUT MENU POINT ZOOM ADDISK FREEZE MENU SET SET ▲/▼ SPLIT SUB INPUT SWAP FP SHIFT

Télécommande

STANDBY-ON MENU DISPLAY INPUT SCREEN SIZE - VOL + /►MENU SET ▲/▼

Pioneer SCREEN SIZE AUTO SET UP RGB/D-HAT DIGITAL RED 1 2 3 4 5 INPUT MENU POINT ZOOM ADJOG FREEZE SET SPLIT SUB INPUT SWAP P/P SHIFT MUTING VOLUME ID NO. + - SET CLEAR STANDBY/ ON INPUT VOLUME [+/-] Télécommande

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE - VOL + SET ↑ ↓ ← ← STANDBY/ON INPUT VOL +/- Panneau de commande de l'écran à plasma

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE - VOL + VOL +/- AMINO TIMELE SET SPLIT SUBINPUT SWAP PIP SHIFT MUTING VOLUME ID - + ID NO. SET CLEAR PLASMA DISPLAY VOLUME [+/-] Télécommande

VOLUME : 10

Coupure des sons

SET SPLIT SUB INPUT SWAP PIP SHIFT MUTING VOLUME ID IN CLEAR SET PLASMA DISPLAY MUTING

STANDBY/ON MENU DISPLAY / SET INPUT SCREEN SIZE - VOL + DISPLAY/SET

Pioneer SCREEN SIZE AUTO SET UP STANDRY ON RGB/USB1 DIGITAL RGB 1 2 DISPLAY 3 4 5 INPUT MENU POINT ZOOM AMD/SSM FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT Télécommande

RGB (D-sub) DIGITAL RGB 1 2 3 4 5 DISPLAY INPUT MENU POINT ZOOM AXD158 FREEZE SET SPLIT SUB INPUT SWAP PIP SHIFT PIP SHIFT SUB INPUT MUTING OLUME IN NO CIEAR SWAP

PDSP-1 Installation and Field Support Tool Description: Does not use a specific part or part of the PDSP-1 assembly, or reference file set. Type: Does not use a specific part or part of the PDSP-1 assembly, or reference file set. Features: Does not use a specific part or part of the PDSP-1 assembly, or reference file set. Design Parameters: Does not use a specific part or part of the PDSP-1 assembly, or reference file set. In configuration: Does not use a specific part or part of the PDSP-1 assembly and the PDSP-1 component. Pioneer sound, vision, soul 1 Ltd SE 0 R24 R12 OK Cancel OK

②Image dans image

PDSP-1 Installation and Support PDSP-1 Installation and Field Support Tool Download Choose this option to update your PDSP-1 software, or replace a filter set Steer Choose this option to help steer sound beams when installing the PDSP-1 for the first time in a room Equalise Choose this option to equalise the PDSP-1 after changing the team steering, or altering the listening environment Manage Pressets Choose this option to help configure and name the available pressets on the PDSP-1 PC configuration Choose this option to change the default sound card and Pioneer sound. vision. soul 1 Ltd

Pioneer SCREEN SET AUTO SET UP STANDBY ON RGB/2-USB DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADVISIE PRESIZE SET SPLIT SUBINPUT SWAP PIP SHIFT INPUT MENU SET

Télécommande

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE - VOL + MENU SET INPUT

Pioneer SCREEN AUTO SET UP STANDBY /ON RGB/D implicitly DIGITAL RGB 1 2 DISPLAY 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE MENU SET SET SPLIT SUBINPUT SWAP REP SHIFT Télécommande

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE - VOL + MENU SET Panneau de commande de l'écran à plasma

Pioneer SCREEN SIZE AUTO SET UP STANDBY /ON RGB/USB DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM AND/USB FREEZE MENU SET SET SPLIT SUB INPUT SWAP FIP SHIFT ▲/▼

Télécommande

STANDBY:ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL + MENU SET

Pioneer SCREEN AUTO SET UP STANDSY /ON RGB/D-HAT DIGITAL RGB 1 2 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT MENU SET ▲/▼

Télécommande

STANDBY/ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL + MENU SET ▲/▼ ◄/►

STANDBY/ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL + MENU SET

Pioneer SCREEN SIZE AUTO SET UP STANDBY /ON RGB/USB1 DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADC/GB FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT MENU SET ▲/▼

Télécommande

STANDBY:ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL+ MENU SET ▲/▼ ◄/►

STANDBY/ON MENU DISPLAY / SET INPUT SCREEN SIZE - VOL + MENU SET

Publication de Pioneer Corporation.

© 2006 Pioneer Corporation.

Line drawing of a remote control with keypad and function buttons (no text or symbols)

③单3形乾電池2個

④ワイピングクロス（画面用）

⑤スピードクランプ3個

Pure diagram of four identical metal rods with evenly spaced pins, no text or symbols present.

⑥ビーズバンド3個

Three identical cylindrical electronic components with mounting holes, shown in isometric view (no text or symbols)

Two identical cylindrical mechanical components with mounting flanges and internal slots (no text or symbols)

Two identical metal tools with clamps, shown in side profile (no text or symbols)

Technical line drawing of two mechanical bracket components (no text or symbols)

Pioneer SCREEN SIZE AUTO SETUP STANDBY/ON RGB (ID-sub) DIGITAL RGB 1 2 DISPLAY 3 4 5 INPUT MENU AXD1528 POINT ZOOM FREEZE SET SPLIT SUE INPUT SW IP PIP SHIFT MUTING VOLUME ID NO. SET CLEAR PLASMA DISPLAY

リモコンの取り扱いについて

Diagram of a computer drive rear panel with labeled ports and connectors, showing internal components and connection points.

IN OUT AUDIO AUDIO AUDIO ANALOG RGB OUT ID-242 ANALOG RGB IN ID-241 OUTPUT DIGITAL RGB (DVD 0) OUTPUT AUDIO AUDIO AUDIO OUTPUT1 ANALOG RGB IN ID-241 OUTPUT2 DIGITAL RGB (DVD 0) ⑩④③②①

①COMBINATION IN/OUT

Diagram of computer rear panel with labeled ports and connectors, showing internal structure and connector layout.

IN OUT CONSTRUCTION RS-213C OUTPUT INPUT AUDIO AUDIO ANALOG RGB OUT (D-Sub) INPUT1 ANALOG RGB IN (D-Sub) INPUT2 DIGITAL RGB (DV-D) ① ② ③ ⑥ ⑦ ⑧ ④ ⑤

Two workers in hard hats holding a large rectangular object (no text or symbols visible)

[INPUT2] DIGITAL RGB IDVI-D]

接続のあとは画面上の設定が必要です。

Diagram illustrating a mechanical or electrical setup with labeled components and two explanatory steps.

Technical diagram of a server rack with ventilation slots and mounting points (no text or labels)

Technical diagram of a mechanical or electronic component with grid patterns and mounting holes (no text or symbols)

スピードクランプを外すには

Pioneer SCREEN SIZE AUTO SET UP STANDBY /ON RGB/D=H1 DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE MENU SET SET SPLIT SUB INPUT SWAP PIP SHIFT ▲/▼

リモコン

STANDBY:ON MENU DISPLAY / SET INPUT SCREEN SIZE - VOL + MENU SET ▲/▼ ◄/►

本体の操作パネル

Pioneer SCREEN SET AUTO SET UP STANDBY/ ON RGB/USB DIGITAL RGB 1 2 DISPLAY 3 4 5 INPUT MENU POINT ZOOM ADVIS FREEZE SET SPLIT SUB INPUT SWAP PIP SHIFT MUTTING VOLUME ID NO. SET ULUM VOLUME [+/-] リモコン

STANDBY/ON MENU DISPLAY SET INPUT SCREEN SIZE -VOL+ STANDBY/ON INPUT VOL +/-

本体の操作パネル

SET SPLIT SUB INPUT SWAP PIP SHIFT MUTING VOLUME ID NO. CLEAR SET VOLUME [+/-] PLASMA DISPLAY VOLUME リモコン

VOLUMEボタンを押す

SET SPLIT SUBINPUT SWAP PIP SHIFT MUTING VOLUME ID SET CLEAR PLASMA DISPLAY MUTING

リモコンのMUTINGボタンを押す

STANDBY/ON MENU DISPLAY/ SET INPUT SCREEN SIZE -VOL + DISPLAY/SET

Pioneer SCREEN AUTO SET UP STANDAY ON RGB/D+net DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM DISPLAY

リモコン

DISPLAYボタンを押す

RGB/D-vall DIGITAL RGB 1 2 3 4 5 DISPLAY INPUT MENU POINT ZOOM AXD/528 FREEZE SET POINT ZOOM ▲/▼/◄/► SET SPLIT SUBINPUT SWAP PP SHIFT MUTING VOLUME ID NO. CLEAR SET PLASMA DISPLAY

RGB (RGB) DIGITAL RGB 1 2 3 4 5 DISPLAY INPUT MENU AID/IDE POINT ZOOM FREEZE SET SPLIT SUB INPUT SWAP PIP SHIFT PIP SHIFT SUB INPUT MUTING DHMO OLUME + - SET SWAP PLASMA DISPLAY

1 リモコンのSPLITボタンを押す

PDSF-1 Installation and Field Support Tool Description: ✓ Design the plan to update any PDSF-1 software, or update their top-up View: ✓ Design the plan to update the design of the PDSF-1 software in the design tool. View: ✓ Design the plan to update the PDSF-1 software in the design tool. Design Parameters: ✓ Design the plan to update the PDSF-1 software in the design tool. ✓ Design the plan to update the PDSF-1 software in the design tool. Pioneer bound vision tool 10.14d Next Next

②ピクチャーインピクチャー

PDSP-1 Installation and Support PDSP-1 Installation and Field Support Tool Download Choose this option to update your PDSP-1 software, or replace a filter set Steer Choose this option to help steer sound beats when installing the PDSP-1 for the first time in a room Equalise Choose this option to equise the PDSP-1 after changing the beam steering, or altering the listening environment Manage Presets Choose this option to help configure and name the available presets on the PDSP-1 PC configuration Choose this option to change the default sound card and Pioneer sound. vision. soul 1 Ltd

Pioneer SCREEN SIZE AUTO SET UP STANDBY /ON RGB/USB DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADJISH FREEZE SET SPLIT SUB INPUT SWAP PP SHIFT MENU SET

リモコン

STANDBY-ON MENU DISPLAY / SET INPUT SCREEN SIZE -VOL+ MENU SET INPUT

本体の操作パネル

Pioneer SCREEN SET AUTO SET ON STANDBY /ON RGB/12/01 DIGITAL RGB 1 2 DISPLAY 3 4 5 INPUT MENU POINT ZOOM AX/DLR FROZZB MENU SET SET ▲/▼ SPLIT SUB INPUT SWAP PIP SHIFT

リモコン

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE -VOL + MENU SET

本体の操作パネル

Pioneer SCREEN SEE AUTO SET UP STANDBY /ON GRID-UP DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADJ100 FREEZE MENU SET SET SET SPLIT SUBINPUT SWAP PIP SHIFT ▲/▼

リモコン

STANDBY/ON MENU DISPLAY INPUT SCREEN SIZE -VOL + MENU SET

本体の操作パネル

Pioneer SCREEN LED AUTO SET UP STANDBY /ON RGB/USB DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ARID/ARB FROZZIE MENU SET SET ▲/▼ SPLIT SUBINPUT SWAP PIP SHIFT

リモコン

STANDBY:ON MENU DISPLAY / SET INPUT SCREEN SIZE - VOL + MENU SET ▲/▼ ◄/►

本体の操作パネル

Pioneer SCREEN VDD AUTO SET UP STANDBY /ON RGB/USB DIGITAL RGB DISPLAY 1 2 3 4 5 INPUT MENU POINT ZOOM ADDRESS FREEZE MENU SET SET ▲/▼ SPLIT SUBINPUT SWAP PIP SHIFT

リモコン

STANDBY/ON MENU DISPLAY / SET INPUT SCREEN SIZE -VOL + MENU SET ▲/▼ ◄/►

本体の操作パネル

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

で表示されている画面は選べません。

解像度(ドット×ライン)	垂直周波数	水平周波数	表示画面サイズ(ドット×ライン)			備考
			DOT BY DOT	4:3	フル
1024x768	60 Hz	48.4 kHz	1024x768		1365x768
	60 Hz	49.7 kHz	↑		↑	Work station (SGI)
	70.1 Hz	56.5 kHz	↑		↑
	75 Hz	60.0 kHz	↑		↑
	85 Hz	68.7 kHz	↑		↑
	100.6 Hz	80.5 kHz	↑		↑
1280x768	56.2 Hz	45.1 kHz	1280x768		1365x768
	59.8 Hz	48 kHz	↑		↑
	69.8 Hz	56 kHz	↑		↑
1280x800	59.8 Hz	49.7 kHz			1365x768
1280x854	60 Hz	53.1 kHz			1365x768
1360x768	60 Hz	47.7 kHz	1360x768		1365x768	I/O DATA
1376x768	59.9 Hz	48.3 kHz			1365x768	I/O DATA
1152x864	60 Hz	53.7 kHz		1024x768	1365x768
	72 Hz	64.9 kHz		↑	↑
	75 Hz	67.5 kHz		↑	↑
1152x900	66 Hz	61.8 kHz		1024x768	1365x768	Work station (SUN)
	76 Hz	71.7 kHz		↑	↑	Work station (SUN)
1440x900	59.9 Hz	55.9 kHz			1365x768	Apple Macintosh 17"
1280x960	60 Hz	60.0 kHz		1024x768	1365x768
	85 Hz	85.9 kHz		↑	↑
1280x1024	60 Hz	64.0 kHz		960x768	1365x768	Work station (SGI)
	60 Hz	64.6 kHz		↑	↑	Work station (EWS4800)
	71.2 Hz	75.1 kHz		↑	↑	Work station (EWS4800)
	72 Hz	78.1 kHz		↑	↑	Work station (HP)
	76.1 Hz	81.1 kHz		↑	↑	Work station (SUN)
	75 Hz	80.0 kHz		↑	↑
	85 Hz	91.1 kHz		↑	↑
1400x1050	60 Hz	65.3 kHz		1024x768	1365x768
1680x1050	60 Hz	65.3 kHz			1365x768
1920x1080	50 Hz	56.2 kHz			1365x768
	60 Hz	67.5 kHz			↑
1600x1200	60 Hz	75.0 kHz		1024x768	1365x768
1920x1200RB	60 Hz	74.0 kHz			1365x768	CVT

ご注意

The image contains no text or characters. It is a graphical element (a rectangle) and does not contain any chart, graph, or data points that can be extracted. Therefore, the correct OCR output is an empty string.

で表示されている画面は選べません。

Printed on recycled paper.

Published by Pioneer Corporation.

Copyright © 2006 Pioneer Corporation.

All rights reserved.

Publication de Pioneer Corporation.

© 2006 Pioneer Corporation.

PIONEER ELECTRONICS OF CANADA INC. 300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]
