USER MANUAL HLVB315JP07 BLACK & DECKER

Please read before returning this product for any reason.

If you have a question or experience a problem with your BLACK+DECKER purchase, go to: http://www.blackanddecker.com/instantanswers

If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the CATALOG NUMBER available when you call.

To register your new product, visit www.BlackandDecker.com/NewOwner

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

ANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(### without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

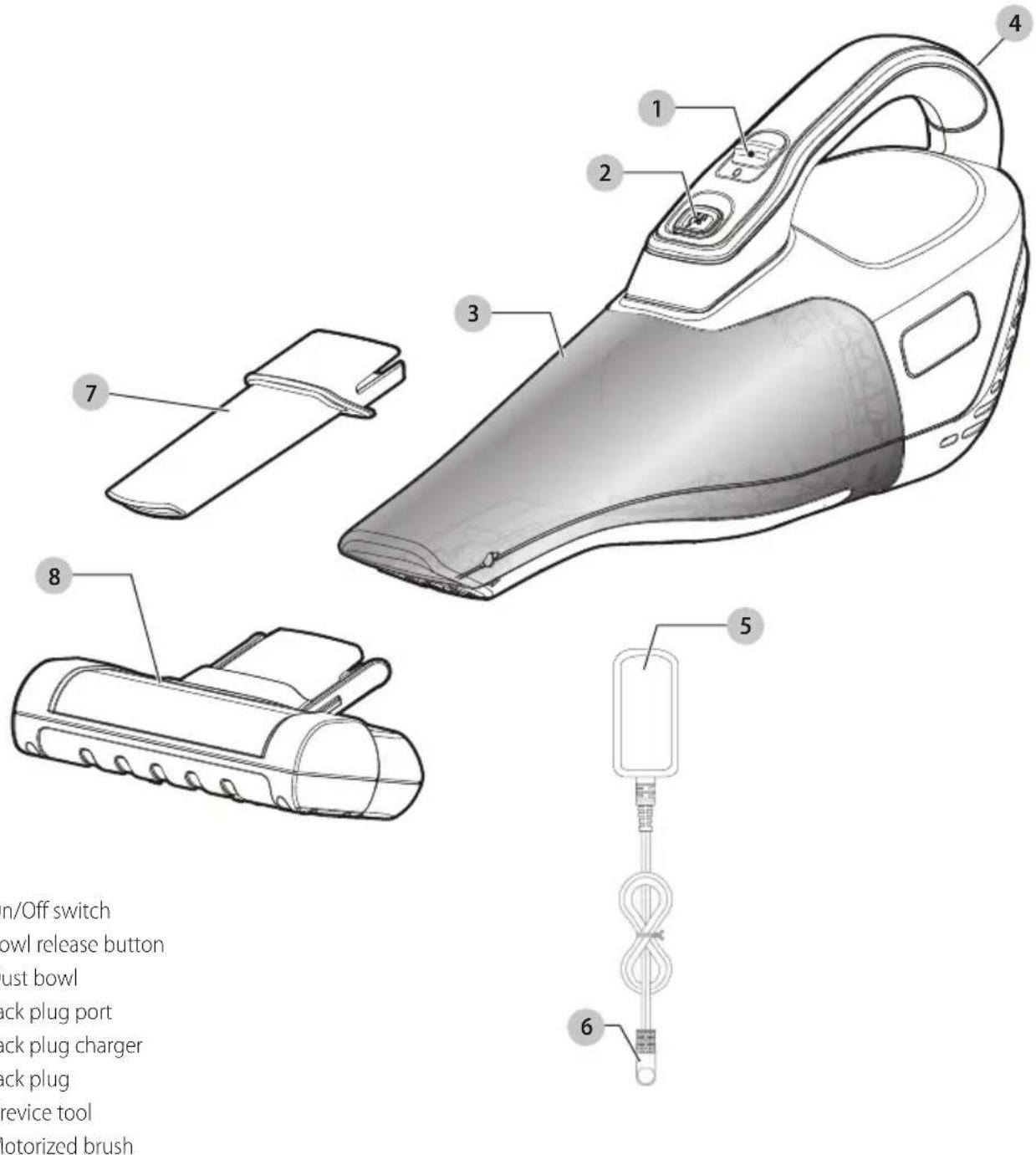

Fig. A

n/Off switch bowl release button ust bowl ack plug port ack plug charger ack plug revice tool motorized brush

WARNING! Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliances, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: Read all safety warnings

and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

WARNING: Some household dust contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm such as asbestos and lead in lead based paint.

WARNING: Do not attempt to modify or repair the appliance.

WARNING: Do not charge the battery at ambient temperatures below 39 °F (4 °C) or above 104 °F (40 °C). Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase risk of fire.

WARNING: To reduce the risk of fire, electrical shock or injury:

• Shock Hazard. To protect against risk of electrical shock, do not put charging base in water or other liquid.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug, and charger terminals with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or filters in place.
• Do not charge the unit outdoors.
• Use only the charger supplied by the manufacturer to recharge.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
• This appliance is intended for household use only and not for commercial or industrial use.
• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The unit should be placed or mounted away from sinks and hot surfaces.
• Plug the charger directly into an electrical outlet.
• Use the charger only in a standard electrical outlet (120V/60Hz).
• Unplug the charger from outlet before any routine cleaning or maintenance.
• Do not look into the air vents when the unit is switched on, as sometimes there is a possibility of small debris being discharged from the air vents, especially after cleaning / replacement of the filters as debris inside the unit can be disturbed.
• Leaks from battery cells can occur under extreme conditions. If the liquid, which is a 20 - 35% solution of potassium hydroxide, gets on the skin (1) wash quickly with soap and water or (2) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

ADDITIONAL SAFETY WARNINGS

a) Prevent unintentional starting. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

b) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

c) Do not use a battery pack or appliance that is damaged or modified. Damaged or modified

batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

d) Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266 °F (130 °C) may cause explosion.

e) Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

f) Only for use with S003AQU1500015 / SSC-150015US chargers.

SAVE THESE INSTRUCTIONS

SYMBOLS

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

A.....amperes

Hz.....hertz

W.....watts

min......minutes

\~or AC......alternating current

= = or DC......direct current

n_0 no load speed

Class I Construction

(grounded)

(grounded) earthing terminal

⚠️ ......safety alert symbol

回......Class II Construction (double insulated)

.../min or rpm. revolutions or reciprocation per minute

Wh......Watt Hours

Intended use

Your BLACK+DECKER lithium ion cordless vacuum cleaner has been designed for light, dry vacuum cleaning purposes. This appliance is intended for household use only.

Charging the battery

For use only with the supplied charger.

Before charging, be sure to empty all contents and dry thoroughly if needed to avoid damage to your appliance.

1. Before first use, the battery must be charged for at least 10 hours.

2. Make sure the appliance is switched off.

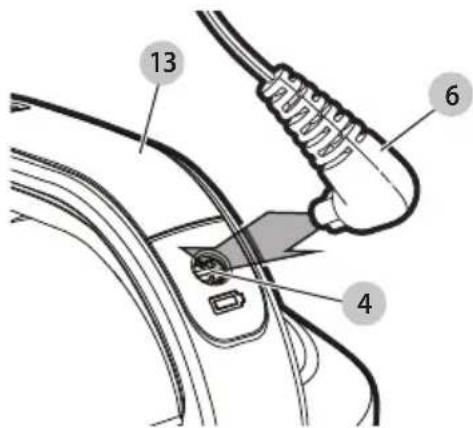

3. Fig. B - Plug the jack plug 6 of the jack plug charger 5 into the charging port 4 of the vacuum.

4. Plug the charger into any standard 120 Volt 60 Hz electrical outlet.

Fig. B

13 6 4

NOTE: While charging, the charger may become warm. This is normal and does not indicate a problem. The appliance can be left connected to the charger indefinitely.

Do not charge the battery is below 39^ F (4 °C) or above

Charging Indicator LED

1. While charging, the LED on the handle 13 will illuminate.

2. When charging is completed, the LED will turn off.

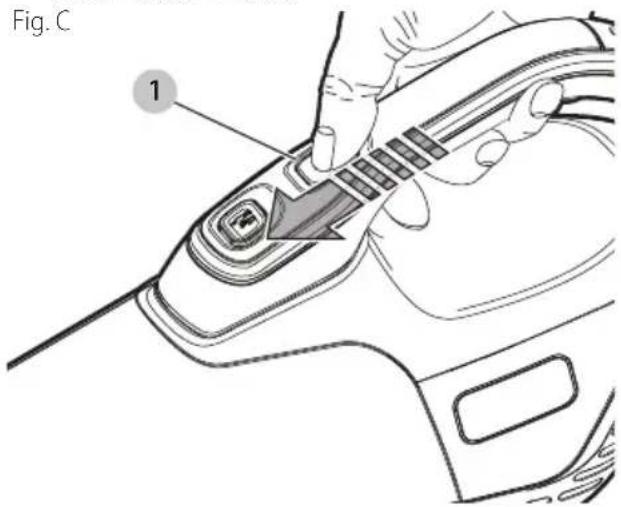

Switching On (Fig. C)

1. Fig. C - To start, slide the ON/OFF Switch 1 forward.
2. To switch the appliance OFF, slide the ON/OFF Switch 1 back.

Fig. C 1

Dry pick up

For everyday spills of dry material.

- Do not fill the dust bowl 3 beyond the end of the intake chute.

Optimizing the suction force

In order to keep the suction force optimized, the filters must be cleared regularly during use.

ENGLISH

Emptying and cleaning

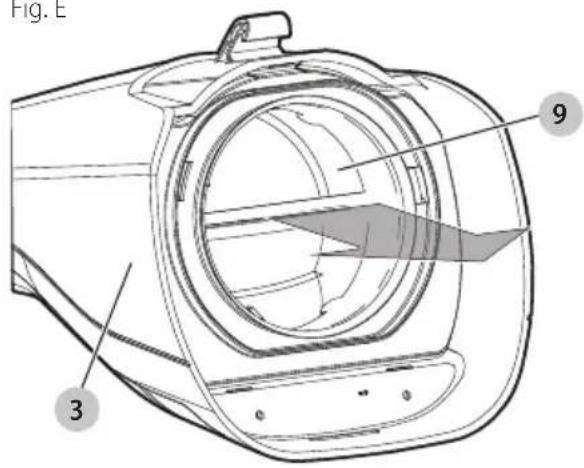

Removing the dust bowl and filters (Fig. D, E)

The filter is reusable and

should be cleaned regularly.

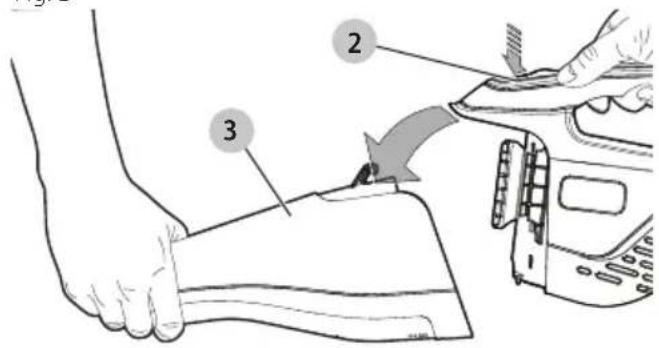

1. Press the bowl release button 2 and pull the dust bowl 3 straight off as shown in Fig. D.
2. While holding the dust bowl over a trash can, pull out the filter 9 to empty the contents as shown in Fig. E.
3. To replace the dust bowl, push it back onto the handle until it clicks firmly into place.

Never use the appliance

without the filters. Optimum dust collection will only be achieved with a clean filter.

Fig. D

Diagram showing a hand pressing down on a shoe with labeled parts 2 and 3, indicating a step in the process.

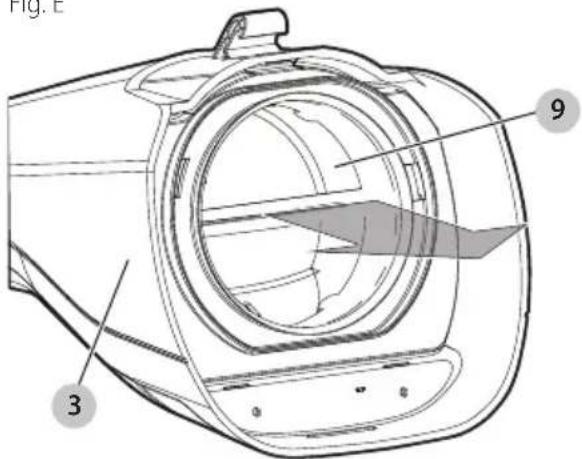

Fig. E

Fig. E 3 9

Cleaning the dust bowl and filter

The dust bowl 3 and filter 9 can be washed in warm soapy water.

1. Make sure the filter 9 and the dust bowl 3 are dry before installing.

Accessories (Fig. L)

Your hand vac may be supplied with some of the following accessory:

• A crevice tool 7 for confined spaces.
• A motorized brush 8 for easy debris pick up.

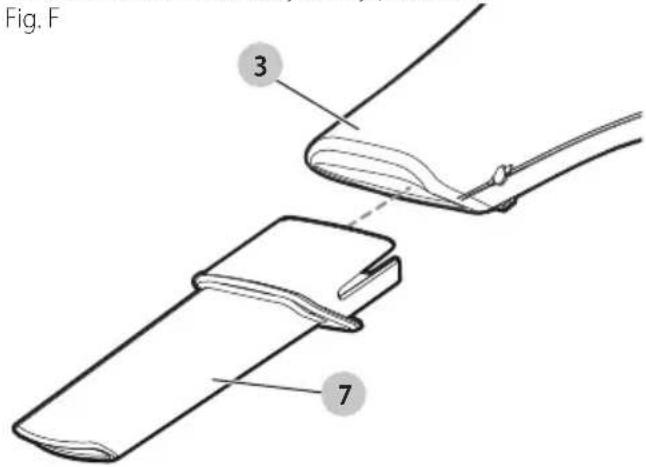

Fitting

1. Insert the appropriate accessory into the front of the appliance as show in Figure F.
2. Make sure the accessory is fully pushed in.

Fig. F 3 7

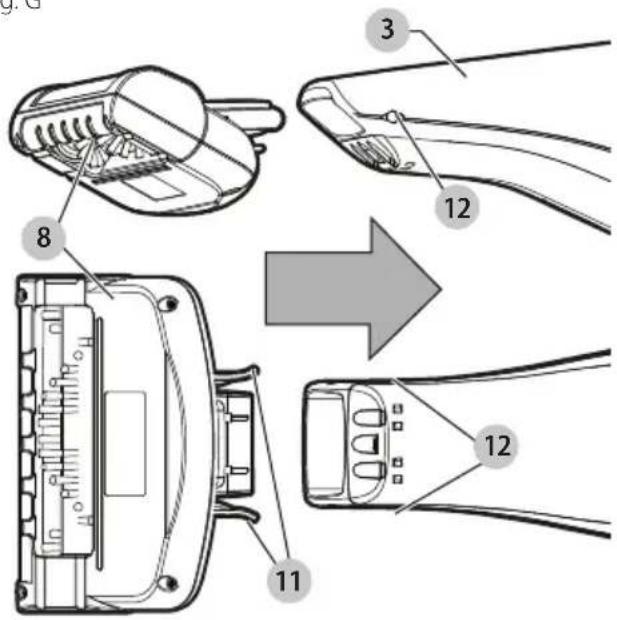

Attaching Motorized Brush (Fig. G)

The unit needs to be switched

off when the motorized brush is attached or detached.

NOTE: Do not use directly on pets.

1. Slide the dust bowl opening 3 into the opening of the motorized motorized brush 8.
2. Ensure that the plastic retaining tabs 11 engage with the recesses 12. An audible click will be heard.

Fig. G

Technical diagram showing exploded view of a connector with labeled parts and an arrow indicating assembly or transformation.

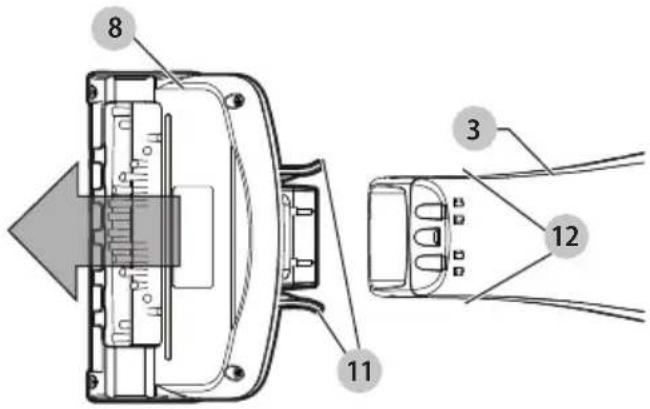

Removing motorized brush (Fig. H)

The unit needs to be switched

off when the motorized brush is attached or detached.

1. Pull the the plastic retaining tabs 11 outward away from the recesses 12.
2. Pull the dust bowl 3 from the motorized brush 8.

Fig. H

8 3 12 11

Replacing the filters

The filters should be replaced every 6 to 9 months and whenever worn or damaged. Replacement filters are available from your BLACK+DECKER dealer. Visit www.blackanddecker.com to locate dealers.

• Remove the old filters as described in Cleaning the Filters.
• Fit the new filters as described in Cleaning the Filters. (cat. no: HLVBF10)

These fit all units. When these filters reach the end of their lifespan they must be disposed of at a local recycling center. Filters are supplied in foil packaging which needs to be removed prior to use.

MAINTENANCE

Use only mild soap and damp cloth to clean the vac. Never let any liquid get inside the vac; never immerse any part of the vac into a liquid.

WARNING: Make sure the vacuum is completely dry before using it.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

TROUBLESHOOTING

If the product does not work, check the following:

• The charger was correctly plugged in for recharge. (It feels slightly warm to the touch.)
• The charger cord is not damaged and is correctly attached.
• The charger is plugged into a working electrical outlet. For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1-800-544-6986.

ACCESSORIES

Recommended accessories for use with your appliance are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call:

1-800-544-6986.

WARNING:

The use of any accessory

not recommended for use with this appliance could be hazardous.

SERVICE INFORMATION

All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit

www.blackanddecker.com

The RBRC® Seal

The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by BLACK+DECKER. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative.

Call 2 Recycle, Inc., in cooperation with BLACK+DECKER and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized BLACK+DECKER service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC ^ is a registered trademark of Call 2 Recycle, Inc.

ENGLISH

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways: The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER's option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286

BlackandDecker.com 1-800-544-6986

Diagram showing a hand pressing down on a device with labeled parts 2 and 3, indicating a step in the process.

Fig. E

Fig. E 3 9

Diagram showing a hand pressing down on a shoe with labeled parts 2 and 3, indicating a step in the process.

Fig. E

Fig. E 3 9

Technical diagram showing exploded view of a cable connector with labeled parts and an arrow indicating assembly or transformation.

Col. Fracc. Universidad

Chihuahua, Chihuahua

Tel. [phone]

Fernando González Armenta

Bolivia No. 605

Col. Felipe Carrillo Puerto

Cd. Madero, Tamaulipas

Tel. [phone]

Black & Decker (U.S.) Inc.

701 East Joppa Road, Towson, MD 21286

Part No. N596841

HLVB315JA, HLVB315JP, HLVB315JC

SEPTEMBER 2018
