Product Type	2-way bookshelf acoustic speaker
Brand	VOXX
Model	ARVP26
Frequency Response	45 Hz - 30 kHz
Nominal Impedance	8 ohms
Sensitivity	89 dB
Recommended Power	10 - 100 watts
Woofer	6.5-inch Polypropylene
Tweeter	1-inch Soft Dome
Finish	Black Ash Vinyl
Dimensions (H x W x D)	33.7 cm x 20.0 cm x 32.7 cm (13.25 x 7.875 x 12.875 in)
Weight	Approximately 5 kg (11 lbs)
Magnetic Shielding	Yes, video compatible
Connection Type	Screw terminals, compatible with bi-wiring and bi-amplification
Recommended Use	Front, rear, or surround speaker in a home theater system
Maintenance	Clean with a soft, dry cloth. Do not use solvents.
Safety	Avoid excessive amplifier power to prevent damage.
Spare Parts	Contact VOXX customer service for repairs.

Frequently Asked Questions - ARVP26 VOXX

How to connect the ARVP26 speakers?

Strip the ends of the cables, twist the strands, and insert them into the screw terminals. Respect polarity: red terminal (+) with positive wire, black terminal (-) with negative wire. Cables usually have a marker (color or ridge) to distinguish poles.

What is the recommended amplifier power?

The recommended power is 10 to 100 watts RMS per channel. Using an amplifier with power lower than the speakers' capacity can cause distortion and damage the speakers.

How to position the speakers for best sound?

Place them at the apex of the stereo triangle, with tweeters at ear height. Keep them at least 30 cm from side walls and 20 cm from the rear wall to avoid boomy bass. Avoid absorbent obstacles between the speakers and the listening position.

Can I use bi-wiring or bi-amplification?

Yes, the ARVP26 speakers have four terminals. At the factory, jumpers connect the upper and lower terminals for standard connection. For bi-wiring, remove the jumpers and use two cables per speaker. For bi-amplification, use two separate amplifiers.

Are these speakers magnetically shielded?

Yes, the ARVP26 speakers are fully shielded and can be placed next to a TV without affecting picture quality.

How to maintain the speakers?

Clean the surface with a soft, dry cloth. Do not use chemical or abrasive products. Avoid direct sunlight and moisture.

What to do if a speaker does not work?

Check cable connections and polarity. Make sure the amplifier is on and the audio source is correct. If the problem persists, contact VOXX customer service.

Can I use these speakers outdoors?

No, these speakers are designed for indoor use only. Exposure to moisture or weather can damage them.

Is there a warranty on these speakers?

Yes, the ARVP26 speakers are covered by a limited warranty. Please refer to the manual for detailed terms or contact customer service.

How to avoid damaging the speakers?

Do not exceed the recommended power. Avoid excessive tone settings (bass/treble). Immediately reduce volume if distortion is heard. Beware of CDs with boosted bass that can damage speakers at high volume.

USER MANUAL ARVP26 VOXX

This warranty remains in effect for two years from date of purchase for speaker components, one year on subwoofer amplifiers and electronics components.

Persons Protected. This warranty will only be anoreceable by the original owner during the warranty period so as to prove dale of purchase from an authothee daier is

where wthly eepre is required.

What is covered, Except as otherwise speled below this warranty covers all defects in materials and wortneship in this product. The fikwing are not covered damage reculing

The original print is a 100th birthday card.

How You Can Get Service

U.S. Purchases, Please contact us at 1-500-225-8347 or w/th to A (attnion Customer Service Department) 17C Airport Civa Hopea, MA On 747 We will other indv you the

Canadian Purchasers. The product should be returned to the dealer from whom it was purchased and such dealer either wil service or arrange for service of the products. Il shipment of the product is required, it should be warehaged properly. The original calcar bill of sales must always be included with the product as proof of warranty coverage.

What We Will Pay Fox: We will pay for all labor and essential services required to resorb the product but you must pay any labor cost for the removal and/or installation of the product. This includes the cost of shipping, handling, storage, and transport costs. We will also pay the initial shipping charges, but Amazon Technologies Corporation still buy the return shipping charges if this product is returned to an address inside the USA or Canada.

Limitation of Implied or Statulatory Warranties and Conditions.

Exe 10.2015 10.2016

t t

Pertes 10000000000000000000000000000000000000000000000000000000000000

Acoustic Research is a registered trademark of Audiovox Electronics Corporation. PRINTED IN CHINA

LOUDSPEAKERS

Important Notes

for Installation

Remarques importantes

What would the world sound like without us?

mastering acoustics for over 50 years (1954-2004).

INDEX/INHALT/INDICE

ENGLISH 2
FRANCAIS 5
ESPANOL 8

Standard Wiring
Cablage Standard
Cabledo Normal Figure 1, Schema 1, Figura 1
Bi-Wire
Bicâblage

Bi-cabledo Figure 2. Schema 2, Figure 2
BI-Amp
Bi-amplification

Bi-amplificador Figure 3, Schema 3, Figure 4.

ARVP Series Specifications

ARVP600

3-Way Tower

(2) 5.5 Polypropylene Woolers

1 Soft Dome Tweeter

Frequency Response: 38Hz-30kHz

Nominal Impedance

Sensitivty:90dB

Recommended Power: 10-200 Walls

Finnin Black Ash Vinyl

Dimensions:3925"X12.5"Wx14"D

Bi-Wireable Bi-Ampacie

Video Shieeded

Dimensions:39.25coHx12.5poLx14po

Capacite de bicablage

Bindage video

Torre acustica de 3 vias

(2) Woofers de Polipropilleno de 6.5

Tweeter de cuspula suave de 1

Frequency Response: 45Hz-30kHz

Nominal Impedance:8 ohms

Sensitivity: 80dB

Recommended Power: 10-100 Watts

Finish: Bleck Ash Vinyl

Dimensioe:13.25Hx7.875Wx12.875D

Video Shipped

Frequency Response: 50Hz, 30kHz

Nominal Impedance: 8 ohms

Sensitivity: 87dB

Recommended Power: 15-75 Watts

Finish: Black Ash Vinyl

Dimensioes:12375Hx7"Wx11.5D

Video Shielded

Frequency Response: 55Hz-310kHz

migonal immedanea 8 chrm

Sensibility 65d1

Sensitivity: 100%

Recommended Power: 15-65 Watts

Flesh Black Ash Vinyl Dispensing ( 108771 )

Dimension: 113.75 H65.87 Wx10.5 D

Video Shielded

Dimensions: 11.375" alt to x 5.875" anchor x

10.5" long

Video blindado

ARVP42C

2-Way Center Channel

[2]4 Polypropylene Midranges

SoftDomeTweeter

Frequency Response: 59Hz-30kHz

Nominal Impedance Bchms

Sensitivity: 87dB

Recommended Power: 15-125 Watts

Finish: Black Ash Vinyl

Dimensions:5.75"Hx14.75"Wx11"D

Video Shielded

Congratulations! Your new AR loudspeakers are an outstanding home hi-fi product that will give you many years of reliable service. The superlative quality of AR products is renowned all over the world and meets or exceeds all official audio standards.

In order to avoid possible errors or damage please take the time to study the following important information before installing your new speakers.

Connecting your AR speakers

Strip the insulation from the connection cable ends and twist the ends tightly or tin them with solder. Then insert the ends in the connection terminals and secure them with the terminal screws.

Caution: Take care to ensure that the speaker cables are connected with the correct polarity!

Connect the negative amplifier output terminal (black) to the negative connection terminal of the AR speaker (also black). Proceed in the same way to connect the positive terminals, which are normally red. Standard speaker connection cables normally have a colored marking or indentation in the surface of the insulation to distinguish the two leads from one another.

Choosing the best position for your AR speakers

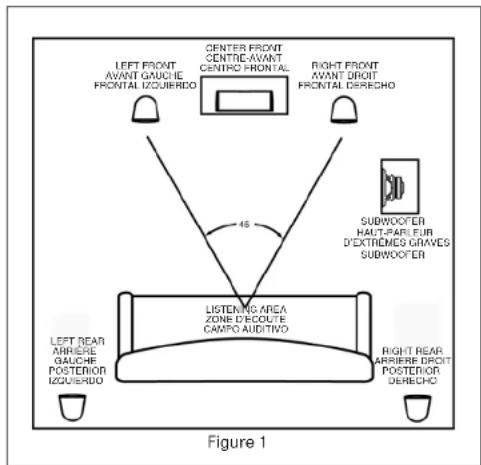

The optimum listening position is at the tip of the so-called "stereo triangle" (Pg. 11, Fig 1). The equilibrium between the right and left stereo channels is best in this position, providing the most balanced and realistic sound reproduction.

Your AR speakers will operate most efficiently when they are located in parts of the room with "hard" acoustics, i.e., areas including hard, smooth surfaces such as walls and wooden furniture. The speakers should radiate the sound from this hard area into the "softer" parts of the room containing sound-absorbing elements such as upholstered furniture, carpets and so on.

Make sure that there are no sound-absorbing obstacles between the speakers and your listening position, as this will muffle the sound and impair your listening pleasure.

Your AR VP Series speakers are fully shielded for use in audio/video applications. This allows you to place any of the speakers next to the television without affecting picture quality. If you are using other speakers, be sure to locate them at least 3 feet away from the television to avoid interference to the set's picture (Pg. 11, Fig. 2).

Some other AR speakers are also shielded. Please see page 1 to check if your speaker(s) are video shielded before placing them near a television. The speakers should be installed at least 1 foot away from the side walls (Pg. 11, Fig. 2) and 8 inches from the rear wall. This prevents exaggerated "booming" bass and helps to produce more balanced, detailed sound reproduction.

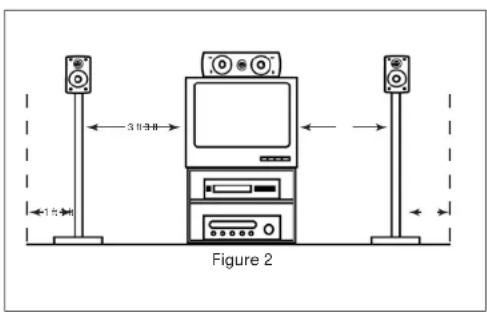

If possible, bookshelf speakers should be installed so that the tweeters are on the same level as the listener's ears. If you install the speakers in a wall unit, take care to ensure that the fronts of the speakers are flush with the front of the wall unit.

Mounting your Speakers

The speaker's foot bracket can be used to set the speaker on shelving in either a vertical or horizontal position, or to mount the speaker to the walls or ceilings. A clamp ring and four clamp screws hold the foot bracket to the speaker. Mount the foot bracket to a wall or ceiling using screws through the two holes in the foot bracket. Removing the foot bracket from the speaker may make mounting easier. After mounting, aim the speaker on its ball/swivel mount by loosening the clamp screws, adjusting the speaker, and retightening the screws.

Be sure that both the fasteners and the mounting surface can safely support the weight of the speaker, especially in earthquake prone regions.

Setting up and installing home cinema systems

The three-dimensional drawing on Pg.11, (Fig. 1), shows a typical configuration for a home cinema setup in a living room, using two floor-standing speakers and a special center speaker as the front speakers. Please study the manufacturers' instruction manuals carefully before connecting the equipment.

Bi-wiring and bi-amping

In conventional systems, the speaker connection cables carry all the frequencies together. The bass signals have much more power, however, this can cause losses in overall sound quality. "Bi-wiring," which means dividing the signal and using one set of cables for the high frequencies and another for the low frequencies, can bring an audible improvement in sound quality. "Bi-amping" goes one step further by using separate amplifiers as well as separate cables for the high and low frequency ranges. This method eliminates sound losses caused by the widely-different current levels in the lower and upper ranges by separating the signals right from the very start. Some AR speakers have specially designed connection terminals that can be used both for conventional operation and for bi-wiring/bi-amping.

This means that if you wish, you can use separate connections for the woofer and the mid/tweeter units. There are four screw terminals on each speaker: the top two are for the mid-range and tweeter units, the bottom two for the woofers.

When the speakers are delivered from the factory, the upper and lower terminals are connected with jumpers for operation in conventional mode (see Pg. 14, Fig. 1).

If you just wish to use one cable, simply leave the jumpers in place and connect the cable to either the upper or the lower terminals - which pair you use makes no difference.

If you wish to operate the speakers in bi-wiring/bi-amping mode, you must first remove the two jumpers from each speaker.

For bi-wiring (Pg.14, Fig. 2) you need two cables for each speaker and amplifier channel, or a special bi-wiring cable. Connect the two cables to the amplifier outputs in parallel - i.e., connect both positive

leads to the positive output terminal and both negative leads to the negative output terminal. Then connect the other ends of one cable to the mid/tweeter terminals and those of the other cable to the woofer terminals on the speaker. Taking care to maintain proper polarity of both sets of wires.

A bi-amping setup uses two amplifiers (Pg.14, Fig. 3), with the first handling the mid and high range frequencies and the second the low range frequencies.

The correct connections are very important: Connect the left output of the first amplifier to the upper terminals of the left speaker. Proceed in the same way to connect the outputs of the second amplifier to the lower terminal pairs on the speakers.

Only use tone controls when absolutely necessary

You will get the best sound from your speakers when all tone controls are in the middle position. This neutral setting enables the speakers to reproduce the music absolutely naturally and without distortion. AR speakers are designed to produce optimum sound without any bass or treble modifications.

WARNING: If you turn the tone controls too far at high volumes you may actually cause irreparable damage to the tweeters or woofers!

Use the volume control with care

You can also damage the speakers by using an amplifier whose power significantly exceeds the rated capacity of the speakers. In practice, however, this kind of damage is actually very rare. Surprisingly, weak amplifiers connected to speakers with a high power rating pose a much greater risk. In such a configuration it is quite possible to overdrive the music signal, even at medium volumes. This results in audible and measurable distortions, which cause excessive mechanical stresses that will ultimately destroy the speakers. Always remember that the power rating of your speakers is for clear music signals, not for distortion!

It is thus very important to match the output power of your amplifier to the capacity of your speakers. Always take care to adjust the volume so that there is no audible distortion. If you like listening to music at high volumes, ensure that the output power of your amplifier is at least as high as the capacity of your speakers.

CD's with "extended bass"

If the label of a CD indicates that it features "extended bass," this means that the recording includes subsonic frequencies below 30Hz . When played at high volumes these signals can cause serious mechanical damage to the speakers. Exercise great care when increasing the volume with such recordings and reduce it immediately if you notice any distortion.
