USER MANUAL CDXR3310 SONY

FM/AM Compact Disc Player

Operating Instructions

US

Mode d'emploi

FR

Owner's Record

The model and serial numbers are located on the bottom of the unit.

Record these numbers in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. ____ Serial No. ____

For installation and connections, see the supplied installation/connections manual.

Thank you for purchasing this Sony Compact Disc Player. You can enjoy your drive with the following functions.

- CD playback:

You can play CD-DA (also containing CD TEXT*), CD-R/CD-RW (MP3 files also containing Multi Session (page 13)) and ATRAC CD (ATRAC3 and ATRAC3plus format (page 14)).

Type of discs	Label on the disc
CD-DA
MP3ATRAC CD

• Radio reception:
• You can store up to 6 stations per band (FM1, FM2, FM3, AM1 and AM2).
  -BTM (Best Tuning Memory) function: the unit selects strong signal stations and stores them.
• You can assign a name to each radio station, store it in memory, and display station names on the list.
• Optional unit operation
  You can also control optional CD/MD changers, in addition to playing with this unit.
  * A CD TEXT disc is a CD-DA that includes

information such as disc, artist and track name.

About this manual

This manual explains the functions of 2 units, CDX-R3310 and CDX-R30M.

The table below shows the differences between the 2 units. It is also described in each section (example, "CDX-R30M only").

	CDX-R3310	CDX-R30M
Card remote commanderRM-X151(supplied)	●
Frequency select switch ●
Marine remote commanderRM-XM10 (optional)		●

Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

CAUTION

The use of optical instruments with this product will increase eye hazard.

Warning if your car's ignition has no ACC position

After turning the ignition off, be sure to press and hold OFF on the unit until the display disappears.

Otherwise, the display does not turn off and this causes battery drain.

CDX-R30M only

CLASS 1 LASER PRODUCT

This label is located on the bottom of the chassis.

Getting Started

Resetting the unit. 4

Setting the clock 4

DEMO mode 4

Detaching the front panel 4

Attaching the front panel 4

Inserting the disc in the unit 5

Ejecting the disc 5

Location of controls and basic operations

Main unit 6

Card remote commander RM-X151 ..... 6

CD

Display items 8

Repeat and shuffle play 8

Radio

Storing and receiving stations 8

Storing automatically — BTM .....8

Storing manually 8

Receiving the stored stations 8

Tuning automatically 8

Receiving a station through a list

— list-up 9

Other functions

Changing the sound settings. 9

Adjusting the sound characteristics — BAL/FAD/SUB 9

Adjusting the equalizer curve — EQ3 .... 9

Labeling a station/disc 10

Adjusting setup items — SET 10

Using optional equipment.... 11

CD/MD changer 11

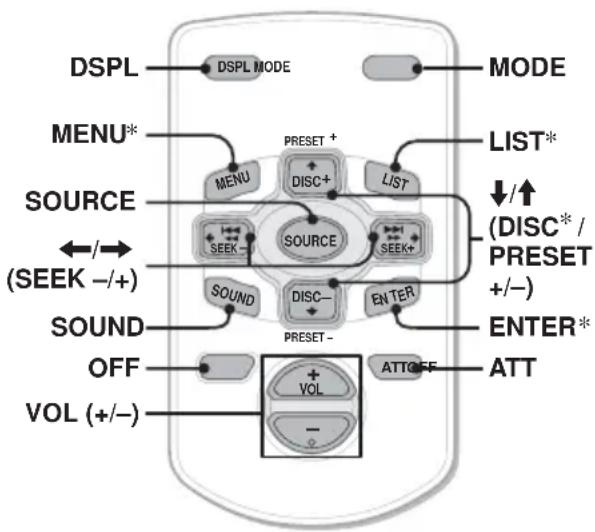

Card remote commander RM-X114 ..... 11

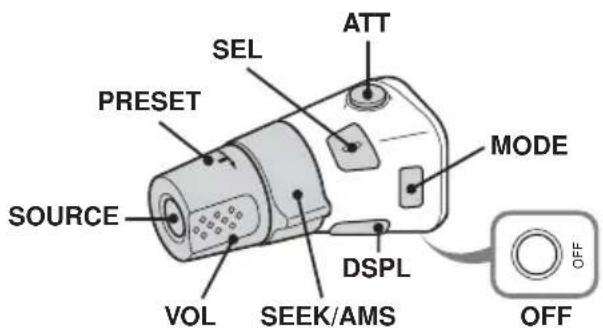

Rotary commander RM-X4S ..... 12

Additional Information

Precautions 13

Notes on discs 13

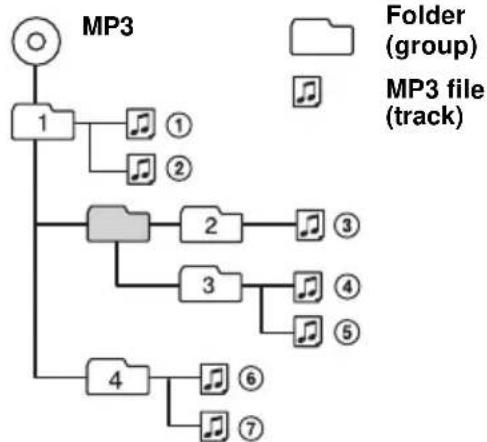

About MP3 files 13

About ATRAC CD 14

Maintenance 14

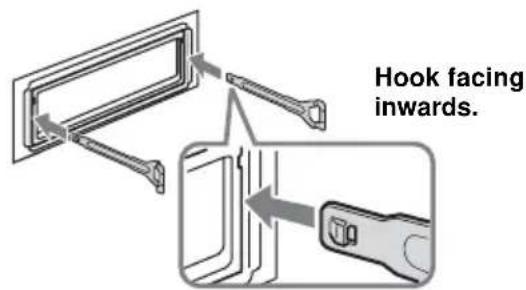

Removing the unit. 15

Specifications 15

Troubleshooting 16

Error displays/Messages 18

“XM Ready” logo indicates that product will control a Sony XM module (sold separately). Please your nearest authorized Sony

Dealer for details on the XM tuner module. For instructions on XM tuner operation, please refer to the XM tuner module's included instruction manual.

SonicStage and its logo are trademarks of Sony Corporation.

ATRAC, ATRAC3, ATRAC3plus and their logos are trademarks of Sony Corporation.

Getting Started

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Detach the front panel and press the RESET button with a pointed object, such as a ball-point pen.

RESET button

Note

Pressing the RESET button will erase the clock setting and some stored contents.

Setting the clock

The clock uses a 12-hour digital indication.

1 Press and hold SEL.

The setup display appears.

2 Press SEL repeatedly until "CLOCK-ADJ" appears.

3 Press DSPL.

The hour indication flashes.

4 Press the volume +/- button to set the hour and minute.

To move the digital indication, press DSPL.

5 Press SEL.

The clock starts and the next setup display appears.

6 Press and hold SEL.

The setup is complete.

To display the clock, press DSPL. Press DSPL again to return to the previous display.

With the card remote commander

In step 4, to set the hour and minute, press or .

DEMO mode

When the unit is turned off, the clock is displayed first, then demonstration (DEMO) mode starts the demonstration display.

To cancel the DEMO mode, set "DEMO-OFF" in setup (page 10) while the unit is turned off.

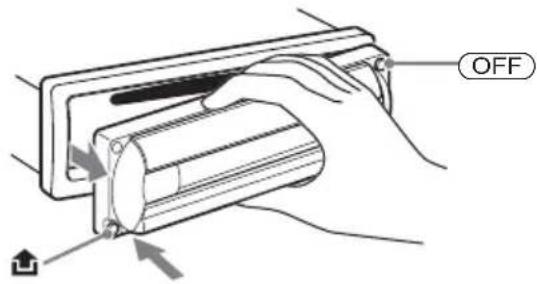

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

1 Press OFF.

The unit is turned off.

2 Press , then pull it off towards you.

OFF

Notes

• Do not drop or put excessive pressure on the front panel and display window.
• Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

Tip

When carrying the front panel, use the supplied front panel case.

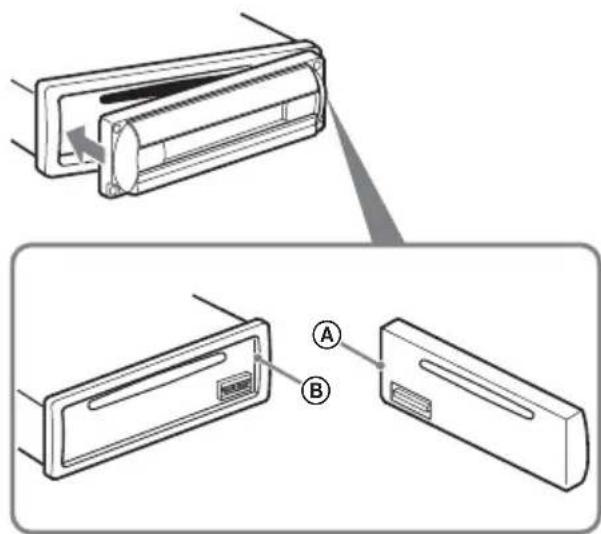

Attaching the front panel

Engage part Ⓐ of the front panel with part Ⓑ of the unit, as illustrated, and push the left side into position until it clicks.

Diagram showing two views of a car air conditioner with labeled parts A and B, likely illustrating the internal structure and mounting point.

Note

Do not put anything on the inner surface of the front panel.

Inserting the disc in the unit

1 Open the shutter.

Diagram of a cylindrical device with a downward arrow indicating rotation or movement (no text or symbols present)

2 Insert the disc label side up.

Diagram of a CD/DVD drive with an arrow indicating the disk (no text or symbols present)

Playback starts.

3 Close the shutter.

Technical line drawing of a rectangular device with internal components and a circular element, no text or symbols present.

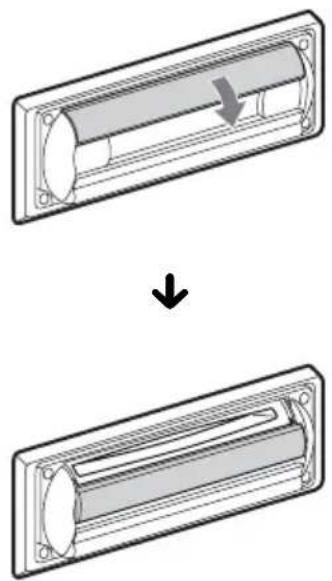

Ejecting the disc

1 Open the shutter.

Diagram showing a cylindrical device being processed into a rectangular housing, with an arrow indicating the process (no text or symbols present)

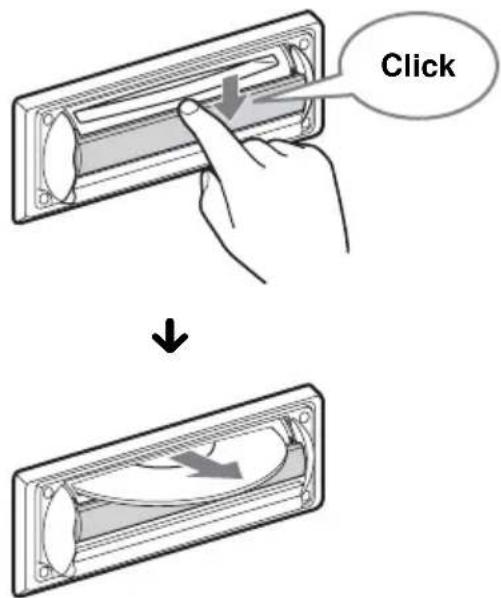

2 Push down the shutter until it clicks.

Click

The disc is ejected.

Notes

• While ejecting or inserting the disc, do not close the shutter. The disc may be caught and damaged.
• The disc may be ejected if you open the shutter forcefully.

Tip

The disc can be played with the shutter opened or closed.

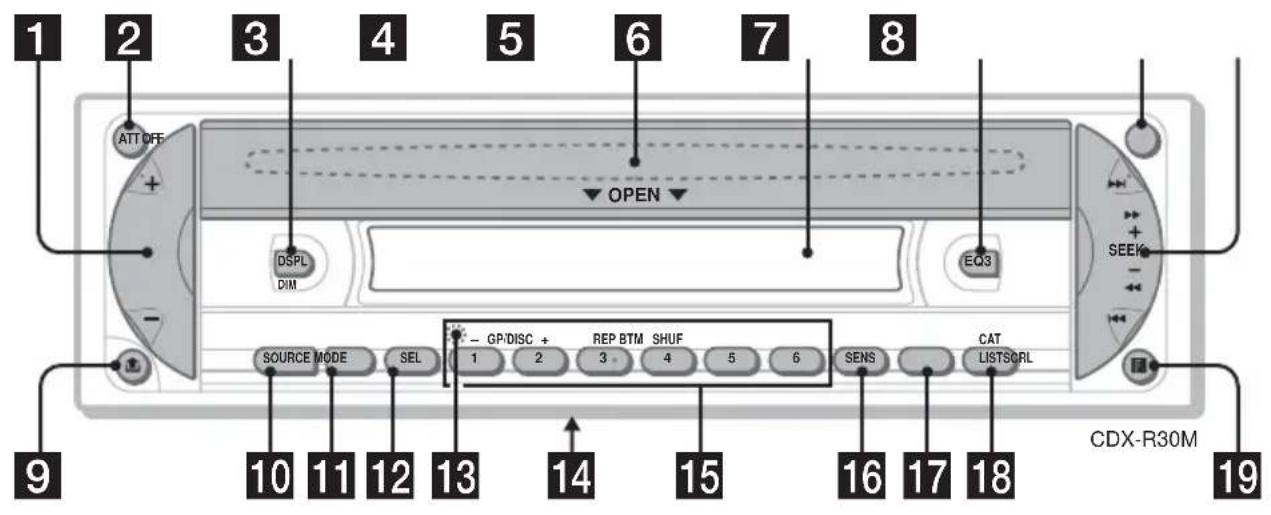

Location of controls and basic operations

Main unit

1 2 3 4 5 6 7 8 ATT OFF + - DSPL DIM OPEN SEE SOURCE MODE SEL GP/DISC + REP BTM SHUF 1 2 3 4 5 6 SENS CAT LISTSCRL CDX-R30M 9 10 11 12 13 14 15 16 17 18 19

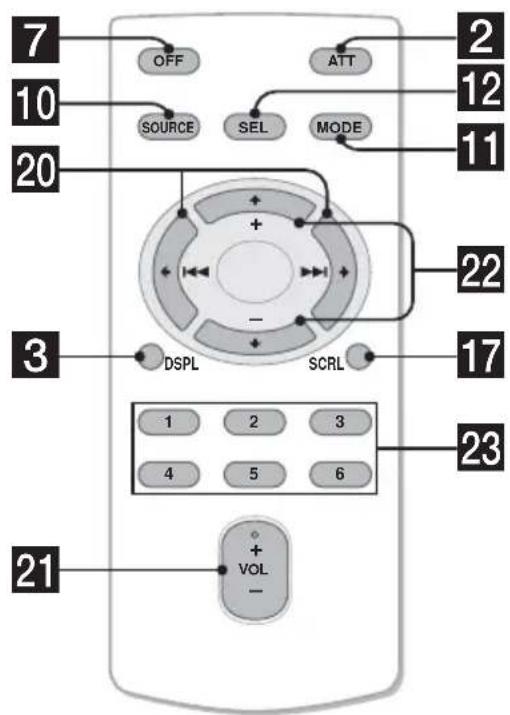

Card remote commander RM-X151

(CDX-R3310 only)

7 10 20 3 21 OFF SOURCE SEL MODE ATT 2 12 11 22 17 23 1 2 3 4 5 6 + VOL - DSPL SCRL

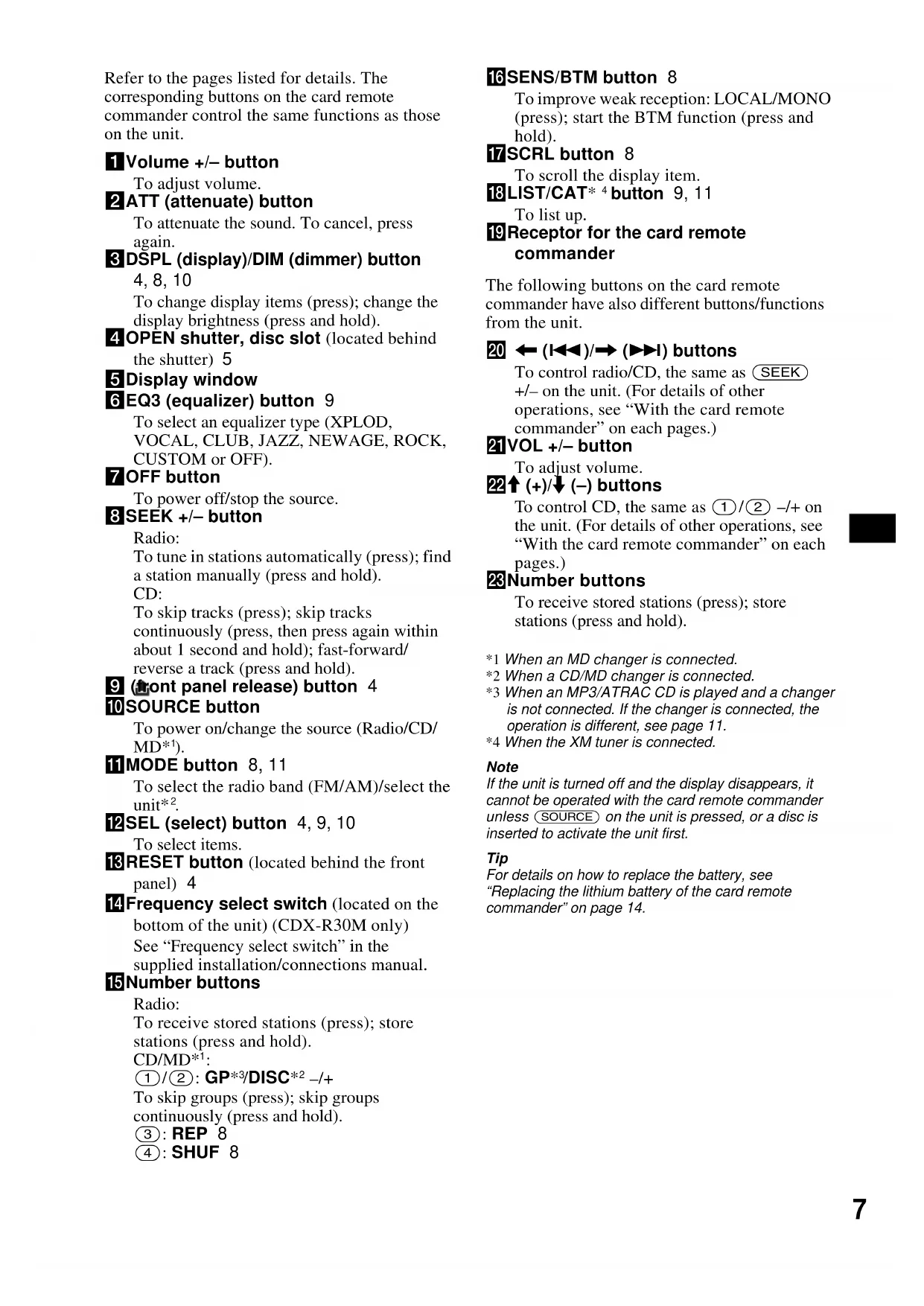

Refer to the pages listed for details. The corresponding buttons on the card remote commander control the same functions as those on the unit.

1 Volume +/- button

To adjust volume.

2 ATT (attenuate) button

To attenuate the sound. To cancel, press again.

3DSPL (display)/DIM (dimmer) button 4, 8, 10

To change display items (press); change the display brightness (press and hold).

4 OPEN shutter, disc slot (located behind the shutter) 5

5 Display window

6 EQ3 (equalizer) button 9

To select an equalizer type (XPLOD, VOCAL, CLUB, JAZZ, NEWAGE, ROCK, CUSTOM or OFF).

7 OFF button

To power off/stop the source.

8 SEEK +/- button

Radio:

To tune in stations automatically (press); find a station manually (press and hold).

CD:

To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); fast-forward/ reverse a track (press and hold).

9 (front panel release) button 4

10 SOURCE button

To power on/change the source (Radio/CD/MD ^*1 ).

11MODE button 8, 11

To select the radio band (FM/AM)/select the unit ^*2 .

12SEL (select) button 4, 9, 10

To select items.

13 RESET button (located behind the front panel) 4

14 Frequency select switch (located on the bottom of the unit) (CDX-R30M only)

See “Frequency select switch” in the supplied installation/connections manual.

15 Number buttons

Radio:

To receive stored stations (press); store stations (press and hold).

CD/MD*1:

①/②: GP*3/DISC*2 -/+

To skip groups (press); skip groups continuously (press and hold).

③: REP 8

④: SHUF 8

16SENS/BTM button 8

To improve weak reception: LOCAL/MONO (press); start the BTM function (press and hold).

17 SCRL button 8

To scroll the display item.

18LIST/CAT* 4 button 9, 11

To list up.

19 Receptor for the card remote commander

The following buttons on the card remote commander have also different buttons/functions from the unit.

20 ← (I◄◄)/→ (►►I) buttons

To control radio/CD, the same as SEEK +/- on the unit. (For details of other operations, see “With the card remote commander” on each pages.)

21 VOL +/- button

To adjust volume.

22↑ (+)/↓ (-) buttons

To control CD, the same as ①/② -/+ on the unit. (For details of other operations, see “With the card remote commander” on each pages.)

23Number buttons

To receive stored stations (press); store stations (press and hold).

*1 When an MD changer is connected.
*2 When a CD/MD changer is connected.
*3 When an MP3/ATRAC CD is played and a changer is not connected. If the changer is connected, the operation is different, see page 11.
*4 When the XM tuner is connected.

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless SOURCE on the unit is pressed, or a disc is inserted to activate the unit first.

Tip

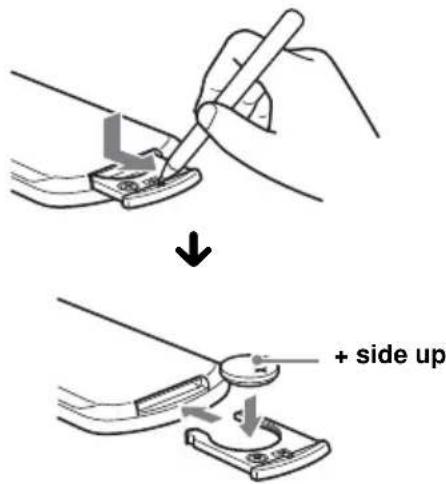

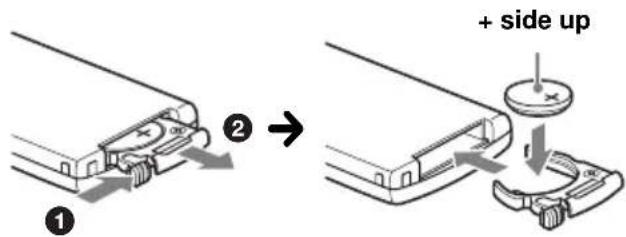

For details on how to replace the battery, see "Replacing the lithium battery of the card remote commander" on page 14.

CD

For details on connecting to a CD/MD changer, see page 11.

Display items

A B E03

A Source

Track number/Elapsed playing time, Disc/artist name, Group number ^1 , Group name, Track name, Text information ^2 , Clock

*1 Group number is displayed only when the group is changed.
*2 When playing an MP3, ID3 tag is displayed and when playing a ATRAC CD, text information written by SonicStage, etc is displayed.

To change display items B, press DSPL; scroll display items B, press SCRL or set "A.SCRL-ON" (page 10).

Note (CDX-R30M only)

When an ATRAC CD is played on the unit, optional RM-XM10 may not display track numbers after 512 correctly. However, this is not a malfunction.

Tip

Displayed item will differ, depending on the disc type and recorded format. For details on MP3, see page 13; ATRAC CD, see page 14.

Repeat and shuffle play

1 During playback, press ③ (REP) or ④ (SHUF) repeatedly until the desired setting appears.

Select To play

REP-TRACK track repeatedly.

REP-GP* group repeatedly.

SHUF-GP* group in random order.

SHUF-DISC disc in random order.

* When an MP3/ATRAC CD is played.

To return to normal play mode, select “REP-OFF” or “SHUF-OFF.”

Radio

Storing and receiving stations

Caution

When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Press SOURCE repeatedly until "TUNER" appears.

To change the band, press MODE repeatedly. You can select from FM1, FM2, FM3, AM1 or AM2.

2 Press and hold BTM until "BTM" flashes.

The unit stores stations in order of frequency on the number buttons.

A beep sounds when the setting is stored.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (① to ⑥) until “MEM” appears.

The number button indication appears in the display.

Note

If you try to store another station on the same number button, the previous stored station will be replaced.

Receiving the stored stations

1 Select the band, then press a number button (① to ⑥).

With the card remote commander

To select preset stations, press or .

Tuning automatically

1 Select the band, then press SEEK +/- to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, press and hold (SEEK) +/- to locate the approximate frequency, then press (SEEK) +/- repeatedly to fine adjust to the desired frequency (manual tuning).

Receiving a station through a list — list-up

You can list up the frequency or the name. For details on labeling a station, see page 10.

1 Select the band, then press LIST. The frequency or station name appears.

2 Press LIST repeatedly until the desired station appears.

L1 87.5 EQ3

After 5 seconds, the unit returns to normal reception mode.

3 Press SEEK +/- to receive the station.

With the card remote commander In step 2, to select the station, press ↑ or ↓.

Other functions

Changing the sound settings

Adjusting the sound characteristics — BAL/FAD/SUB

You can adjust the balance, fader, and subwoofer volume.

1 Press SEL repeatedly until "BAL," "FAD" or "SUB" appears.

The item changes as follows:

LOW*1 → MID*1 → HI*1 →

BAL (left-right) → FAD (front-rear) → SUB (subwoofer volume)*2

*1 When EQ3 is activated (page 9).
*2 When the audio output is set to "SUB" (page 10).
"ATT" is displayed at the lowest setting, and can be adjusted up to 20 steps.

2 Press the volume +/- button repeatedly to adjust the selected item.

After 3 seconds, the setting is complete and the display returns to normal play/reception mode.

Note

Adjust within 3 seconds of selecting the item.

With the card remote commander In step 2, to adjust the selected item, press ←, ↑, → or ↓.

Adjusting the equalizer curve — EQ3

You can adjust and store the equalizer settings for different tone ranges.

1 Select a source, then press EQ3 repeatedly to select the EQ3 type.
2 Press SEL repeatedly until "LOW," "MID" or "HI" appears.
3 Press the volume +/- button repeatedly to adjust the selected item. The volume level is adjustable in 1 dB steps, from -10 dB to +10 dB.

LOW + 6d8 EQ3

Repeat steps 2 and 3 to adjust the equalizer curve.

continue to next page →

To restore the factory-set equalizer curve, press and hold SEL before the setting is complete.

After 3 seconds, the setting is complete and the display returns to normal play/reception mode.

With the card remote commander

In step 3, to adjust the selected item, press ←, ↑, → or ↓.

Labeling a station/disc

When you receive a station, or play a disc in a CD changer with the CUSTOM FILE function, you can label each station/disc with a custom name up to 8 characters (Station Memo/Disc Memo).

If you label a station/disc, the name appears on the list (page 9 or 11).

1 While receiving a station or playing a disc that you want to label, press and hold LIST.

FM1 EQ3

2 Press the volume +/- button repeatedly until the desired character appears.

To move the digital indication, press SEL.

A ↔ B ↔ C ... ↔ 0 ↔ 1 ↔ 2 ... ↔ + ↔ - ↔ * ... ↔ _ (blank space) ↔ A

Repeat this operation until the entire name is entered.

3 Press and hold LIST.

The labeling is complete and the display returns to normal play/reception mode.

To display the name, press DSPL during reception or playback.

Tips

• To correct or erase a character, overwrite or enter “—.”
• The Disc Memo always takes priority over any prerecorded title.
• You can label a disc on the unit if a changer with the CUSTOM FILE function is connected.
• "REP-TRACK" and all shuffle play are suspended until the labeling is complete.

With the card remote commander

In step 2, to select the character, press ↑ or ↓.

Deleting the custom name

1 Select the radio, or the unit that has stored the custom name you want to delete, then press and hold LIST.
2 Press and hold DSPL. The stored name will flash.

3 Press the volume +/- button repeatedly to select the name you want to delete.
4 Press and hold SEL.

The name is deleted. Repeat steps 3 and 4 to delete other names.

5 Press and hold LIST.

The unit returns to normal play/reception mode.

With the card remote commander

In step 3, to select the name, press or .

Adjusting setup items — SET

1 Press and hold SEL.
The setup display appears.
2 Press SEL repeatedly until the desired item appears.
3 Press the volume +/- button to select the setting (example "ON" or "OFF").
4 Press and hold SEL.

The setup is complete and the display returns to normal play/reception mode.

Note

Displayed items will differ, depending on the source and setting.

With the card remote commander

In step 3, to select the setting, press ← or →.

The following items can be set (follow the page reference for details):

“●” indicates the default settings.

CLOCK-ADJ (page 4)

(Clock Adjust)

BEEP To set “BEEP-ON” (●) or “BEEP-OFF.”

SUB/REAR ^*1 To switch the audio output.

• “S U B ”●): to output to a subwoofer.
• “REAR”: to output to a power amplifier.

DIM (Dimmer) To change the brightness of the display.

• “DIM-ON”: to dim the display.
• “DIM-OFF” (●): to deactivate the dimmer.

DEMO*1 To set “DEMO-ON” (●) or (Demonstration) “DEMO-OFF” (page 4).

A.SCRL (Auto Scroll) To scroll long displayed items automatically when the group/ track is changed.

• “A.SCRL-ON”: to scroll.
• “A.SCRL-OFF” (●): to not scroll.

LPF*2 (Low Pass Filter)

To select the cut-off frequency "78HZ," "125HZ" or "OFF"

(●).

*1 When the unit is turned off.
*2 When the audio output is set to "SUB."

Using optional equipment

CD/MD changer

Selecting the changer

1 Press SOURCE repeatedly until "CD" or "MD" appears.
2 Press MODE repeatedly until the desired changer appears.

Disc numberUnit number

12 DISC EQ3

Playback starts.

Note (CDX-R30M only)

When an XM satellite radio program is received by the optional XM tuner, optional RM-XM10 may not display source name and channel number correctly. However, this is not a malfunction.

Skipping groups and discs

1 During playback press ①/② (GP/DISC) -/+

To skip Press ①/②

group and release (hold for a moment).
group continuously	within 2 seconds of first releasing.
discs repeatedly.
discs continuously	then, press again within 2 seconds and hold.

Repeat and shuffle play

1 During playback, press ③ (REP) or ④ (SHUF) repeatedly until the desired setting appears.

Select To play

REP-DISC*1	disc repeatedly.
SHUF-CHGR*1	tracks in the changer in random order.
SHUF-ALL*2	tracks in all units in random order.

*1 When one or more CD/MD changers are connected.
*2 When one or more CD changers, or two or more MD changers are connected.

To return to normal play mode, select “REP-OFF” or “SHUF-OFF.”

Tip

"SHUF-ALL" will not shuffle tracks between CD units and MD changers.

Locating a disc by name — list-up

You can select a disc from the list when connecting a CD changer with the CUSTOM FILE function or an MD changer. If you assign a name to a disc, the name appears on the list. For details on labeling a disc, see page 10.

1 During playback, press LIST.
The disc number or disc name appears.

2 Press LIST repeatedly until the desired disc appears.

After 5 seconds, the unit returns to normal play mode.

3 Press SEEK +/- to play the disc.

With the card remote commander

In step 2, to select the disc, press or .

Card remote commander RM-X114

Location of controls

The corresponding buttons on the card remote commander control the same functions as those on this unit.

continue to next page →

The following buttons on the card remote commander have also different buttons/functions from the unit.

• ←/→ (SEEK +/-) buttons

To control radio/CD, the same as SEEK +/- on the unit. (For details of other operations, see "With the card remote commander.")

- SOUND button

The same as SEL on the unit.

• ↑/↓ (DISC*/PRESET +/-) buttons

To control CD, the same as ①/② -/+ on the unit. (For details of other operations, see “With the card remote commander.”)

* Not available for this unit.

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless SOURCE on the unit is pressed, or a disc is inserted to activate the unit first.

Tip

For details on how to replace the battery, see "Replacing the lithium battery of the card remote commander" on page 14.

Rotary commander RM-X4S

Attaching the label

Attach the indication label depending on how you mount the rotary commander.

SEL MODE DSPL

DSPL MODE SBL

Location of controls

The corresponding buttons on the rotary commander control the same functions as those on this unit.

ATT SEL PRESET SOURCE VOL SEEK/AMS DSPL MODE OFF

The following controls on the rotary commander require a different operation from the unit.

- PRESET control

To select preset stations; control CD, the same as ①/② -/+ on the unit (push in and rotate).

- VOL control

The same as the volume +/- button on the unit (rotate).

- SEEK/AMS control

The same as SEEK +/- on the unit (rotate, or rotate and hold).

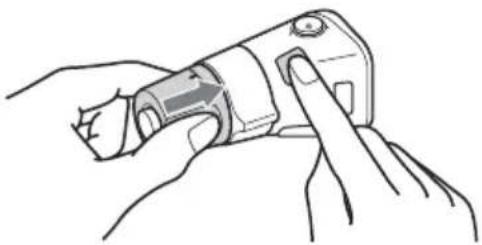

Changing the operative direction

The operative direction of the controls is factory-set as shown below.

To increase To decrease

If you need to mount the rotary commander on the right hand side of the steering column, you can reverse the operative direction.

1 While pushing the VOL control, press and hold SEL.

Line drawing of hands using a handheld tool to interact with a device (no text or symbols visible)

Additional Information

Precautions

• If your car has been parked in direct sunlight, allow the unit to cool off before operating it.
• Power antenna will extend automatically while the unit is operating.

Moisture condensation

On a rainy day or in a very damp area, moisture condensation may occur inside the lenses and display of the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks onto the unit or discs.

Notes on discs

• To keep a disc clean, do not touch its surface. Handle the disc by its edge.
• Keep your discs in their cases or disc magazines when not in use.
• Do not subject discs to heat/high temperature. Avoid leaving them in a parked car or on a dashboard/rear tray.
• Do not attach labels, or use discs with sticky ink/residue. Such discs may stop spinning when used, causing a malfunction, or may ruin the disc.

• Do not use any discs with labels or stickers attached.
  The following malfunctions may result from using such discs:
• Inability to eject a disc (due to a label or sticker peeling off and jamming the eject mechanism).
• Inability to read audio data correctly (e.g., playback skipping, or no playback) due to heat shrinking of a sticker or label causing a disc to warp.
• Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit.
  Attempting to do so may damage the unit. Do not use such discs.

• You cannot play 8 cm (3 in) CDs.

• Before playing, clean the discs with a commercially available cleaning cloth. Wipe each disc from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog discs.

Illustration of hands holding a CD or DVD disc with arrows indicating rotation (no text or symbols)

Notes on CD-R/CD-RW discs

• Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit.
• You cannot play a CD-R/a CD-RW that is not finalized.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

About MP3 files

MP3, which stands for MPEG-1 Audio Layer-3, is a music file compression format standard. It compresses audio CD data to approximately 1/10 of its original size.

- The unit is compatible with the ISO 9660 level 1/level 2 format, Joliet/Romeo in the expansion format, ID3 tag version 1.0, 1.1, 2.2, 2.3 and 2.4, and Multi Session.

• The maximum number of:

– folders (groups): 150 (including root and empty folders).
- MP3 files (tracks) and folders contained in a disc: 300 (if a folder/file names contain many characters, this number may become less than 300).
–displayable characters for a folder/file name is 32 (Joliet), or 32/64 (Romeo); ID3 tag is 15/30 characters (1.0, 1.1, 2.2 and 2.3), or 63/126 characters (2.4).

continue to next page →

Playback order of MP3 files

Notes

• Be sure to finalize the disc before using on the unit.
• When naming an MP3 file, be sure to add the file expansion “.mp3” to the file name.
• If you play a high-bit-rate MP3, such as 320 kbps, sound may be intermittent.
• During playback of a VBR (variable bit rate) MP3 file or fast-forward/reverse, elapsed playing time may not display accurately.
• When the disc is recorded in Multi Session, only the first track of the first session format is recognized and played (any other format is skipped). The priority of the format is CD-DA, ATRAC CD and MP3.
• When the first track is a CD-DA, only CD-DA of the first session is played.
• When the first track is not a CD-DA, an ATRAC CD or MP3 session is played. If the disc has no data in any of these formats, "NO MUSIC" is displayed.

About ATRAC CD

ATRAC3plus format

ATRAC3, which stands for Adaptive Transform Acoustic Coding3, is audio compression technology. It compresses audio CD data to approximately 1/10 of its original size. ATRAC3plus, which is an extended format of ATRAC3, compresses the audio CD data to approximately 1/20 of its original size. The unit accepts both ATRAC3 and ATRAC3plus format.

ATRAC CD

ATRAC CD is recorded audio CD data which is compressed to ATRAC3 or ATRAC3plus format using authorized software, such as SonicStage 2.0 or later, or SonicStage Simple Burner.

• The maximum number of:
– folders (groups): 255 – files (tracks): 999
- The characters for a folder/file name and text information written by SonicStage is displayed.

For details on ATRAC CD, see the SonicStage or SonicStage Simple Burner manual.

Note

Be sure to create the ATRAC CD using authorized software, such as SonicStage 2.0 or later, or SonicStage Simple Burner 1.0 or 1.1, which are supplied with Sony Network products.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.)

When the battery becomes weak, the range of the card remote commander becomes shorter.

Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

RM-X151 (CDX-R3310 only)

① ② → + side up

RM-X114

Diagram illustrating a step-by-step procedure for adding a side up a component, with Chinese annotations.

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Fuse (10A)

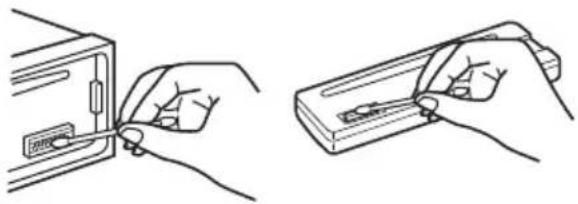

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 4) and clean the connectors with a cotton swab dipped in alcohol. Do not apply too much force. Otherwise, the connectors may be damaged.

Line drawing showing two hands inserting a card into a device (no text or symbols present)

Main unit Back of the front panel

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Removing the unit

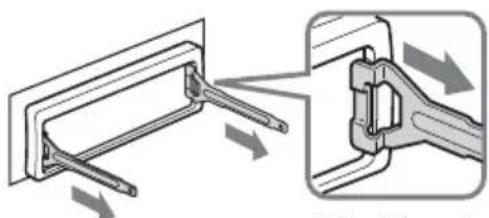

1 Remove the protection collar.

① Detach the front panel (page 4).
② Engage the release keys together with the protection collar.

Diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

Orient the release keys as shown.

③ Pull out the release keys to remove the protection collar.

Diagram showing two rectangular components with a curved arrow indicating rotation or assembly (no text or symbols)

2 Remove the unit.

①Insert both release keys simultaneously until they click.

Hook facing inwards.

② Pull the release keys to unseat the unit.

Pure mechanical assembly diagram showing a bracket with mounting holes and directional arrows (no text or symbols)

③Slide the unit out of the mounting.

Technical line drawing of a rectangular mechanical component with a downward arrow indicating force or motion (no text or symbols)

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.

CEA2006 Standard

Power Output: 17 Watts RMS × 4 at

4 Ohms < 1% THD+N

SN Ratio: 82 dBA

(reference: 1 Watt into 4 Ohms)

CD Player section

Signal-to-noise ratio: 120 dB

Frequency response: 10 - 20,000 Hz

Wow and flutter: Below measurable limit

Tuner section

FM

Tuning range:

CDX-R3310:

87.5 - 107.9 MHz

CDX-R30M:

87.5 - 108.0 MHz (at 50 kHz step)

87.5 - 107.9 MHz (at 200 kHz step)

FM tuning interval: 50 kHz/200 kHz switchable

(CDX-R30M only)

Antenna terminal: External antenna connector

Intermediate frequency: 10.7 MHz/450 kHz

Usable sensitivity: 9 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 67 dB (stereo), 69 dB (mono)

Harmonic distortion at 1 kHz: 0.5 % (stereo), 0.3 % (mono)

Separation: 35 dB at 1 kHz

Frequency response: 30 – 15,000 Hz

AM

Tuning range:

CDX-R3310:

530 - 1,710 kHz

CDX-R30M:

531 - 1,602 kHz (at 9 kHz step)

530 - 1,710 kHz (at 10 kHz step)

AM tuning interval: 9 kHz/10 kHz switchable (CDX-R30M only)

Antenna terminal: External antenna connector

Intermediate frequency: 10.7 MHz/450 kHz

Sensitivity: 30 μV

Power amplifier section

Outputs: Speaker outputs (sure seal connectors)

Speaker impedance: 4 - 8 ohms

Maximum power output: 52 W × 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (sub/rear switchable)

Power antenna relay control terminal

Power amplifier control terminal

Inputs:

BUS control input terminal

BUS audio input terminal

Remote controller input terminal

Antenna input terminal

Tone controls:

Low: ±10 dB at 60 Hz (XPLOD)

Mid: ±10 dB at 1 kHz (XPLOD)

High: ±10 dB at 10 kHz (XPLOD)

Power requirements: 12 V DC car battery (negative ground)

Dimensions: Approx. 178 × 50 × 179 mm

(7 1/8 × 2 × 7 1/8 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 161 mm

(7^1/4 × 2^1/8 × 6^3/8 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 10 oz)

Supplied accessories:

Card remote commander: RM-X151 (CDX-R3310 only)

Parts for installation and connections (1 set)

Front panel case (1)

Optional accessories/equipment:

Card remote commander: RM-X114

Rotary commander: RM-X4S

Marine remote commander: RM-XM10 (CDX-R30M only)

Bus cable (supplied with an RCA pin cord):

CD changer (10 discs): CDX-757MX

CD changer (6 discs): CDX-T69

MD changer (6 discs): MDX-66XLP

XM Satellite Radio Receiver: XT-XM1

Source selector: XA-C30

AUX-IN selector: XA-300

US and foreign patents licensed from Dolby Laboratories.

Note

This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS system compatible.

Design and specifications are subject to change without notice.

• Lead-free solder is used for soldering certain parts. (more than 80 %)
• Halogenated flame retardants are not used in the certain printed wiring boards.
• Halogenated flame retardants are not used in cabinets.
• Packaging cushions do not use polystyrene foam.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

General

No power is being supplied to the unit.

• Check the connection. If everything is in order, check the fuse.
• If the unit is turned off and the display disappears, it cannot be operated with the remote commander.
  → Turn on the unit.

The power antenna does not extend.

The power antenna does not have a relay box.

No sound.

• The volume is too low.
• The ATT function is activated.
- The position of the fader control (FAD) is not set for a 2-speaker system.
- The CD changer is incompatible with the disc format (MP3/ATRAC CD).
→ Play back with a Sony MP3 compatible CD changer, or this unit.

No beep sound.

• The beep sound is canceled (page 10).
• An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

• The RESET button has been pressed. → Store again into the memory.
• The power connecting lead or battery has been disconnected.
• The power connecting lead is not connected properly.

Stored stations and correct time are erased. The fuse has blown.

Makes noise when the position of the ignition key is switched.

The leads are not matched correctly with the car's accessory power connector.

The display disappears from/does not appear in the display window.

• The dimmer is set "DIM-ON" (page 10).
• The display disappears if you press and hold OFF.

→Press and hold OFF again until the display appears.

• The connectors are dirty (page 15).

CD/MD playback

The disc is automatically ejected.

The disc has trouble.

→ Check the following:

The disc cannot be loaded.

• Another disc is already loaded.
• The disc has been forcibly inserted upside down or in the wrong way.

The disc does not playback.

• Defective or dirty disc.
• The CD-Rs/CD-RWs are not for audio use (page 13).

MP3 files cannot be played back.

The disc is incompatible with the MP3 format and version (page 13).

MP3 files take longer to play back than others.

The following discs take a longer time to start playback.
-a disc recorded with a complicated tree structure.
-a disc recorded in Multi Session.
- a disc to which data can be added.

The ATRAC CD cannot play.

• The disc is not created by authorized software, such as SonicStage or SonicStage Simple Burner.
• Tracks that are not included in the group cannot be played.

The display items do not scroll.

• For discs with very many characters, those may not scroll.
• “A.SCRL” is set to off.

→ Set “A.SCRL-ON” (page 10) or press (SCRL).

The sound skips.

• Installation is not correct.
  → Install the unit at an angle of less than 45^ in a sturdy part of the car.
• Defective or dirty disc.

The operation buttons do not function. The disc will not eject.

Press the RESET button (page 4).

Radio reception

The stations cannot be received. The sound is hampered by noise

• Connect a power antenna control lead (blue) or accessory power supply lead (red) to the power supply lead of a car's antenna booster (only when your car has built-in FM/AM antenna in the rear/side glass).
• Check the connection of the car antenna.
  • The auto antenna will not go up.

→ Check the connection of the power antenna control lead.

- Check the frequency.

Preset tuning is not possible.

• Store the correct frequency in the memory.
  • The broadcast signal is too weak.

Automatic tuning is not possible.

- Setting of the local seek mode is not correct.

→ Tuning stops too frequently: Press (SENS) until “LOCAL-ON” appears.
→ Tuning does not stop at a station: Press (SENS) repeatedly until “MONO-ON” or “MONO-OFF” (FM), or “LOCAL-OFF” (AM) appears.

• The broadcast signal is too weak.

→ Perform manual tuning.

During FM reception, the "ST" indication flashes.

• Tune in the frequency accurately.
  • The broadcast signal is too weak.

→Press (SENS) to set the monaural reception mode to “MONO-ON.”

An FM program broadcast in stereo is heard in monaural.

The unit is in monaural reception mode.

→Press SENS "MONO-OFF" appears.

continue to next page →

Error displays/Messages

BLANK\*1

Tracks have not been recorded on the MD.*2

→ Play an MD with recorded tracks.

ERROR\*1

- The disc is dirty or inserted upside down.* 2

→ Clean or insert the disc correctly.

- The disc cannot play because of some problem.

→ Insert another disc.

FAILURE (Illuminates until any button is pressed.)

The connection of speakers/amplifiers is incorrect.

→ See the installation guide manual of this model to check the connection.

FAILURE (Illuminates for about 1 second.)

When the XM tuner is connected, storing an XM radio channel into a preset failed.

→ Be sure to receive the channel that you want to store, then try it again.

LOAD

The changer is loading the disc.

→ Wait until loading is complete.

L.SEEK +/-

The local seek mode is on during automatic tuning.

NO DATA

All custom names have been deleted, or none are stored.

NO DISC

The disc is not inserted in the CD/MD changer.

→ Insert discs in the changer.

NO ID3

ID3 tag information is not written in the MP3 file.

NO INFO

Text information is not written in the ATRAC3/ATRAC3plus file.

NO MAG

The disc magazine is not inserted in the CD changer.

→ Insert the magazine in the changer.

NO MUSIC

The disc is not a music file.

→ Insert a music CD in this unit or MP3 playable changer.

NO NAME

A track/group/disc name is not written in the track.

NOT READ

The disc information has not been read by the unit.

→ Loading the disc, then select it on the list.

NOTREADY

The lid of the MD changer is open or the MDs are not inserted properly.

→ Close the lid or insert the MDs properly.

OFFSET

There may be an internal malfunction.

→ Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer.

READ

The unit is reading all track and group information on the disc.

→ Wait until reading is complete and playback starts automatically. Depending on the disc structure, it may take more than a minute.

RESET

The CD unit and CD/MD changer cannot be operated because of some problem.

→ Press the RESET button (page 4).

“……” 7707 r “

”

During fast-forward or reverse, you have reached the beginning or the end of the disc and you cannot go any further.

“—”

The character cannot be displayed with the unit.

*1 If an error occurs during playback of a CD or MD, the disc number of the CD or MD does not appear in the display.
*2 The disc number of the disc causing the error appears in the display.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

Félicitations !

CLASS 1 LASER PRODUCT

Appareil principal 6

Diagram showing two views of a car air conditioner with labeled parts A and B, likely illustrating the internal structure and component.

Diagram of a cylindrical device with an arrow indicating direction, enclosed in a rectangular frame (no text or symbols)

Diagram of a CD or DVD disc being inserted into a rectangular frame (no text or symbols)

La lecture commence.

3 Fermez le volet.

Technical illustration of a rectangular device with internal components and mounting holes (no text or symbols)

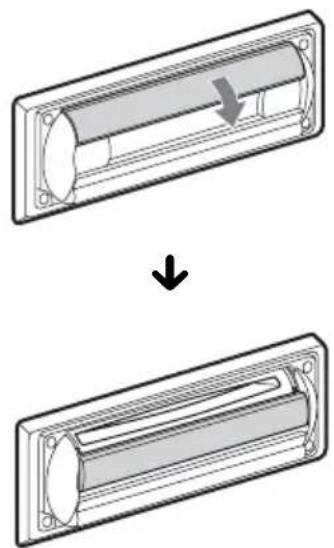

Éjection du disque

1 Ouvrez le volet.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

La lecture commence.

SOURCE PRESET SEL ATT MODE VOL SEEK/AMS DSPL OFF

Line drawing of hands using a handheld tool to interact with a button (no text or symbols present)

Illustration of hands holding a CD or DVD disc with an arrow indicating rotation (no text or symbols)

Line drawing showing two hands inserting a card into a device (no text or symbols present)

Cylinder brand

Diagram showing two rectangular components with a curved arrow indicating transformation or alignment (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Simple line drawing of a rectangular block with a downward arrow indicating compression or force (no text or symbols)
