USER MANUAL MP24WBG4LS Marvel

EN Installation, Operation and Maintenance Instructions

Unpacking your appliance ....3

Warranty registration ....3

Installing your appliance ....4

Cabinet clearances ....4

Leveling the appliance ....4

Electrical connection 5

Product dimensions 6

Using your Electronic control 8

Starting your appliance ....8

Sleep mode 8

Turning your appliance "ON" or "OFF" 8

Interior display lighting 9

Adjusting the temperature 9

Temperature mode 10

Control lock 10

Temperature sensor error codes 10

Alarms 11

Door ajar 11

Power failure 11

Temperature alarm 11

Vacation mode 12

Overlay door panel installation 12

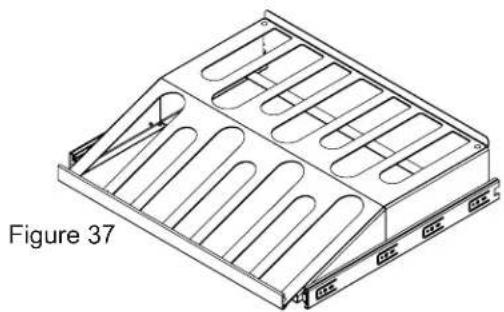

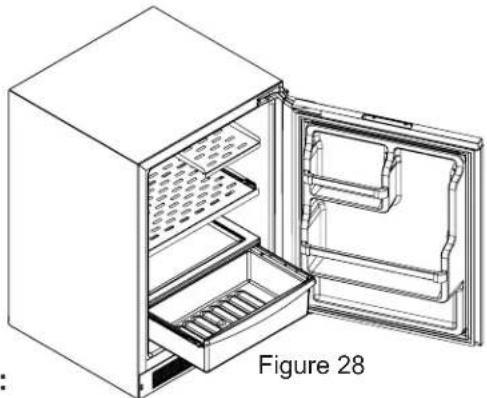

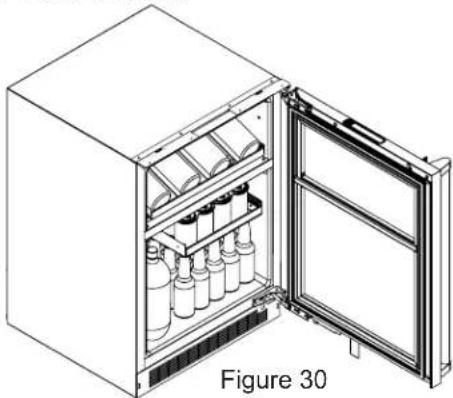

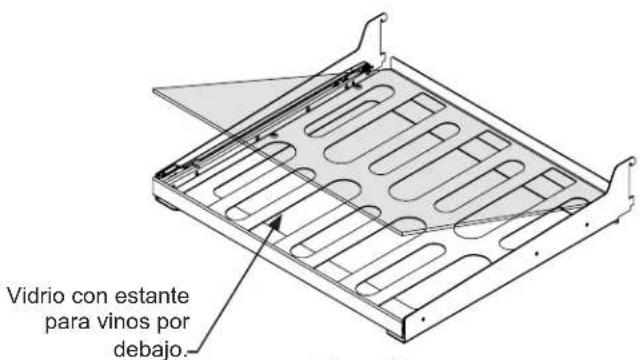

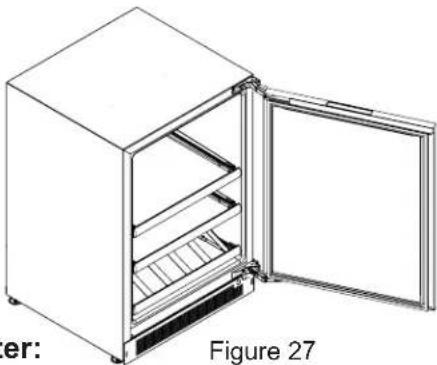

Shelving configurations ....18

Care and cleaning 21

Energy saving tips 21

Obtaining service 22

Troubleshooting 23

Warranty 24

Important Safety Instructions

Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.

Recognize Safety Symbols, Words, and Labels.

WARNING

WARNING - You can be killed or seriously injured if you do not follow these instructions.

CAUTION

CAUTION-Hazards or unsafe practices which could result in personal injury or property / product damage.

NOTE

NOTE-Important information to help assure a problem free installation and operation.

WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known to the State of California to cause cancer.

WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm..

ISO 9001

ISO 14001

OHSAS 18001

AGA MARVEL is committed to building a quality product in an environmentally friendly manner. Our processes are tightly controlled and closely monitored. We have achieved certifications in ISO 9001 for quality assurance, ISO 14001 for environmental management, and OHSAS 18001 for occupational health and safety from Lloyd's Register Quality Assurance.

WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.

Failure to do so can result in personal injury.

Remove Interior Packaging

Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened. Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items.

Important

Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly.

WARNING

WARNING - Dispose of the plastic bags which can be a suffocation hazard.

Note to Customer

This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer.

NOTE

DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.

CAUTION

If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the appliance in immediately may cause damage to internal parts.

Warranty Registration

It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at www.agamarvel.com.

The following information will be required when registering your appliance.

Service Number

Serial Number

Date of Purchase

Dealer's name and address

Online registration available at

www.agamarvel.com

The service number and serial number can be found on the serial plate which is located inside the cabinet on the left side near the top. See figure 1.

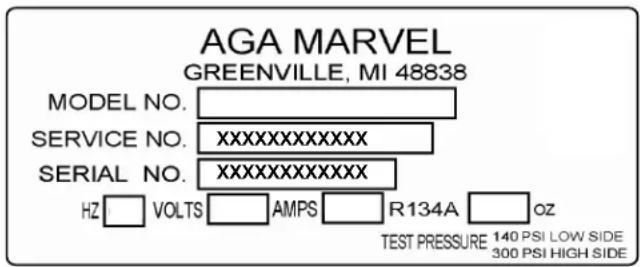

AGA MARVEL GREENVILLE, MI 48838 MODEL NO. SERVICE NO. XXXXXXXXXXXX SERIAL NO. XXXXXXXXXXXX HZ VOLTS AMPS R134A OZ TEST PRESSURE 140 PSI LOW SIDE 300 PSI HIGH SIDE

Figure 1

WARNING

WARNING - Help Prevent Tragedies

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they sit out for "just a few hours".

If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take off the doors or remove the drawers.
- Leave the shelves in place so children may not easily climb inside.

Select Location

The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specifications, the recommended installation location temperature range is from 55 to 100°F (13 to 38°C).

Cabinet Clearance

Ventilation is required from the bottom front of the appliance. Keep this area open and clear of any obstructions. Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstructed. All Marvel Professional models with articulated hinges are intended for built-in applications only.

WARNING

An optional stacking kit, for 24" wide models, is required to stack products. Failure to use a stacking kit could result in personal injury. Contact your dealer or Aga Marvel customer service at 800-223-3900 to order. For safety concerns 15" wide models should not be stacked.

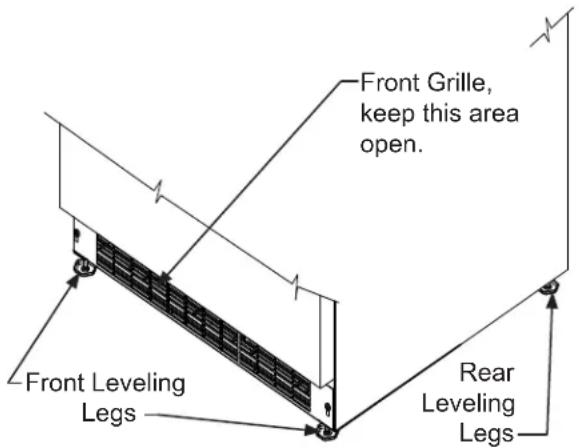

Front Grille, keep this area open. Front Leveling Legs Rear Leveling Legs

Figure 2

Leveling Legs

Adjustable legs at the front and rear corners of the appliance should be set so the unit is firmly positioned on the floor and level from side to side and front to back. The overall height of your Marvel appliance may be adjusted higher (by turning the leveling leg out, CCW) and lower (by turning the leveling leg in, CW) dimensions as shown in Table "A".

To adjust the leveling legs, place the appliance on a solid surface and protect the floor beneath the legs to avoid scratching the floor. With the assistance of another person, lean the appliance back to access the front leveling legs. Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appliance forward using caution. On a level surface check the appliance for levelness and adjust accordingly.

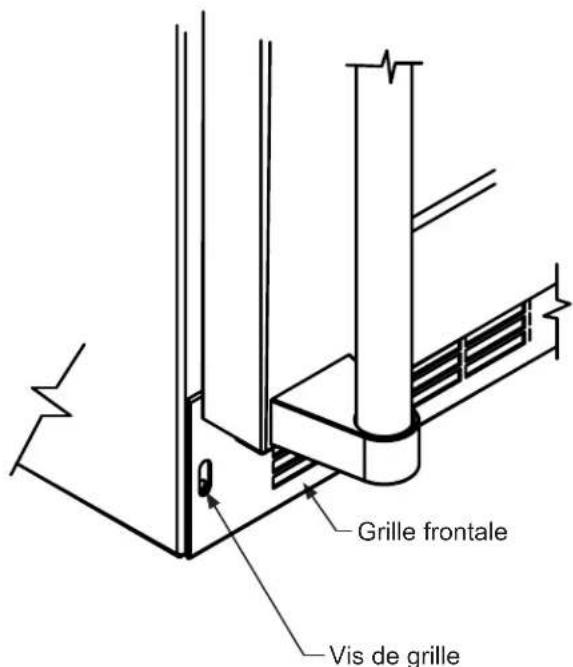

The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 5).

CAUTION

Front Grille

Do not obstruct the front grille. The openings within the front grille allow air to flow through the condenser heat exchanger. Restrictions to this air flow will result in increased energy usage and loss of cooling capacity. For this reason it is important this area to not be obstructed and the grille openings kept clean. AGA MARVEL does not recommend the use of a custom made grille as air flow may be restricted. (See Figure 2).

Model Door Style		Minimum Height	Maximum Height
MP(15)(24)* (S) or (G)		34"(86.4 cm)	35"(88.9 cm)
MP(15)(24)* (F)		34"(86.4 cm)	35"(88.9 cm)

Table A

Do not remove ground prong

Figure 3

Prohibition sign with crossed-out electrical components and a minus sign, commonly used in circuitry for safety or resistance.

Figure 4

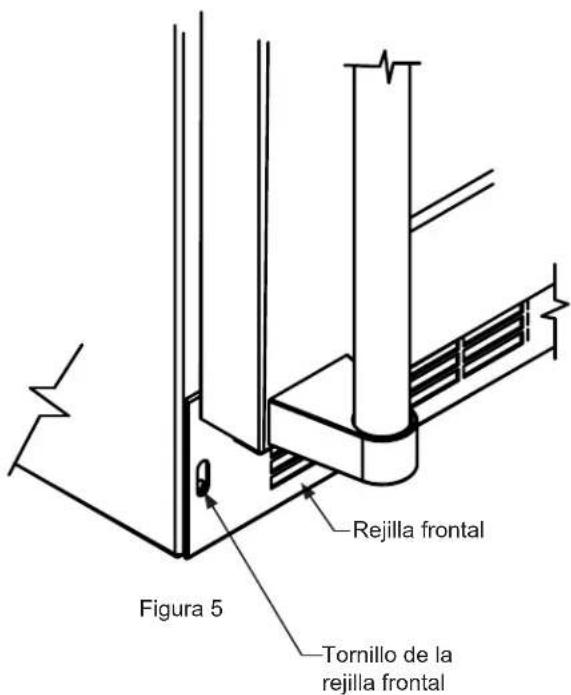

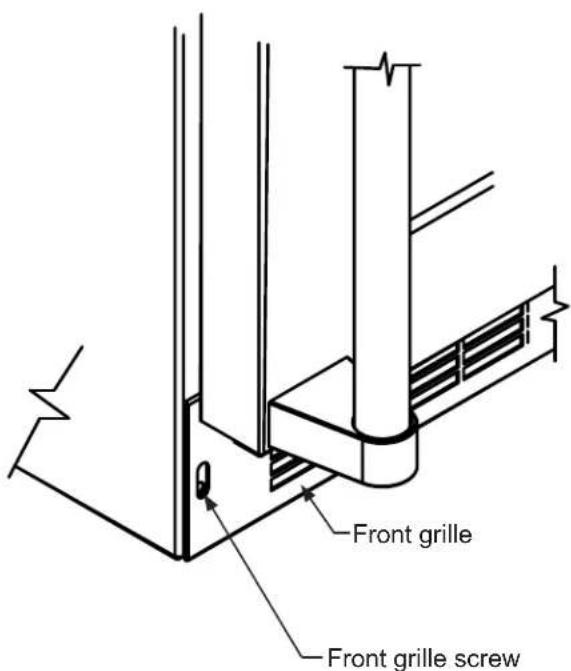

Front grille Front grille screw

Figure 5

WARNING

Electrical Shock Hazard

• Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance.
• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.

Electrical Connection

A grounded 115 volt, 15 amp dedicated circuit is required.

This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 6). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any circumstances, be cut or removed.

Electrical outlet diagram showing two socket plugs connected to a wall (no text or symbols)

Figure 6

NOTE

Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down. GFCI's are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances.

	ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL	"A"	"B"	"C"	"D"	"E"	"F"	"G"	"H"	"J"
MP15BCG	15"(38.1 cm)	** 3412" to 3514" (87 to 89.5 cm)	24"(61 cm)	1478" (37.8 cm)	34" to 35"(86.4 to 88.9 cm)	2323/_32" (60.2 cm)	26732" (66.6 cm)	3713/_32" (95 cm)	17115" (44.3 cm)
MP15BCF	15"(38.1 cm)	** 3414" to 3514" (87 to 89.5 cm)	*24"(61 cm)	1478" (37.8 cm)	34" to 35"(86.4 to 88.9 cm)	2278" (58.1 cm)	-	712" (95.2 cm)	1418" (35.9 cm)
MP24**S	24"(61 cm)	** 3412" to 3514" (87 to 89.5 cm)	24"(61 cm)	2313" (60.7 cm)	34" to 35"(86.4 to 88.9 cm)	2323/_32" (60.2 cm)	26732" (66.6 cm)	4613/_32" (117.9 cm)	26115" (67.2 cm)
MP24**G	24"(61 cm)	** 3412" to 3514" (87 to 89.5 cm)	24"(61 cm)	2313" (60.7 cm)	34" to 35"(86.4 to 88.9 cm)	1323/_32" (60.2 cm)	26732" (66.6 cm)	461332" (117.9 cm)	26115" (67.2 cm)
MP24**F	24"(61 cm)	** 3414" to 3514" (87 to 89.5 cm)	*24"(61 cm)	2313" (60.7 cm)	34" to 35"(86.4 to 88.9 cm)	2278" (58.1 cm)	-	4612" (118.1 cm)	2318" (58.7 cm)

DOOR STYLE

(S) Solid Door

(G) Glass Frame Door

(F) Frame Glass Overlay Door (no handle)

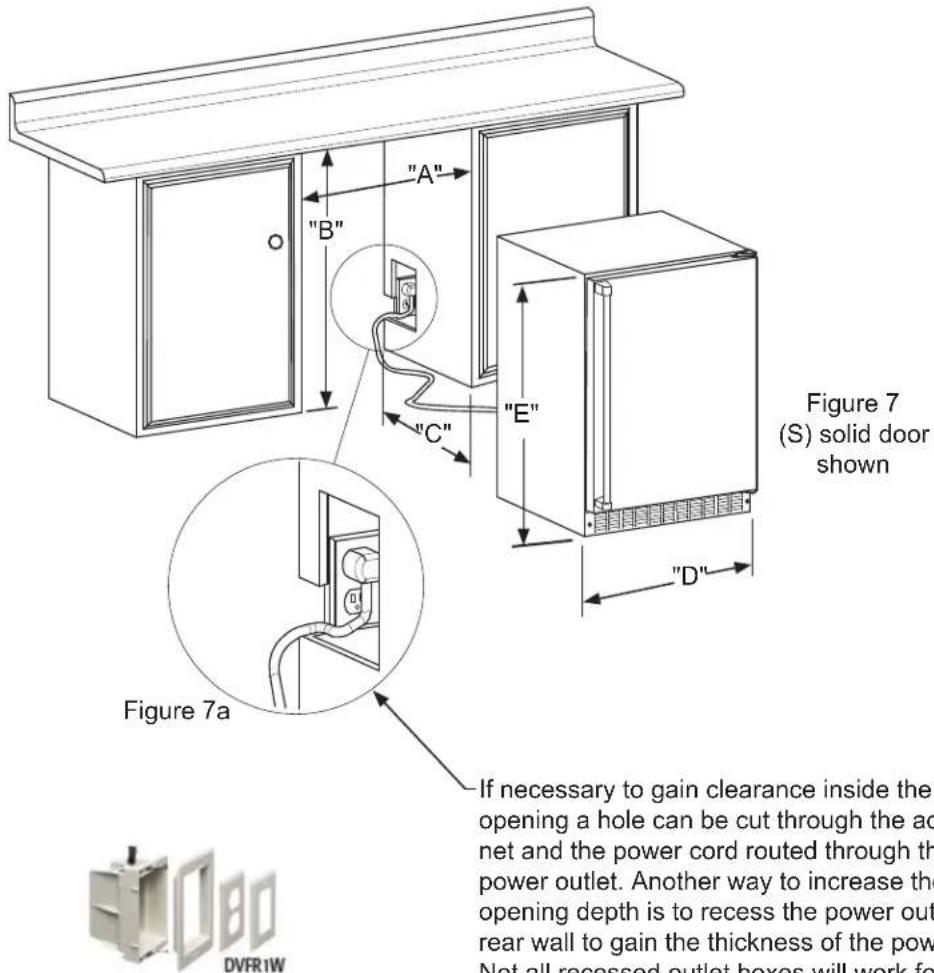

Figure 7 (S) solid door shown Figure 7a If necessary to gain clearance inside the opening a hole can be cut through the ac net and the power cord routed through the power outlet. Another way to increase the opening depth is to recess the power out rear wall to gain the thickness of the pow Not all recessed outlet boxes will work fo DVFR1W

Figure 8

- If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug. Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box equivalent to Arlington #DVFR1W is recommended for this application, (see Figure 8).

	PRODUCT DATA
MODEL	ELECTRICAL REQUIREMENTS #	PRODUCT WEIGHT
MP15BCG 115V/60Hz/15A		105 lbs(47.6 kg)
MP15BCF 115V/60Hz/15A		105 lbs(47.6 kg)
MP24**S 115V/60Hz/15A		140 lbs(63.6 kg)
MP24**G 115V/60Hz/15A		140 lbs(63.6 kg)
MP24**F 115V/60Hz/15A		140 lbs(63.6 kg)

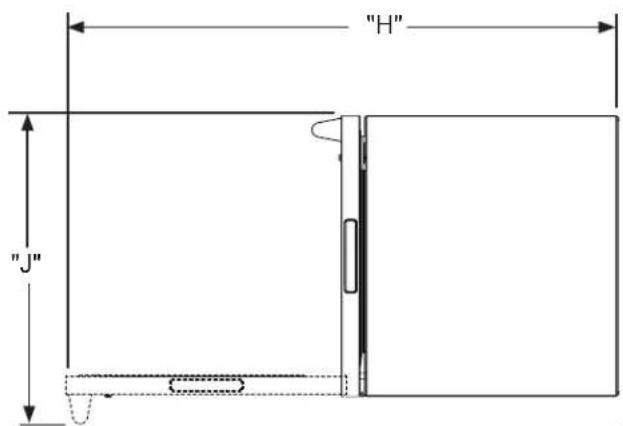

"H" "J"

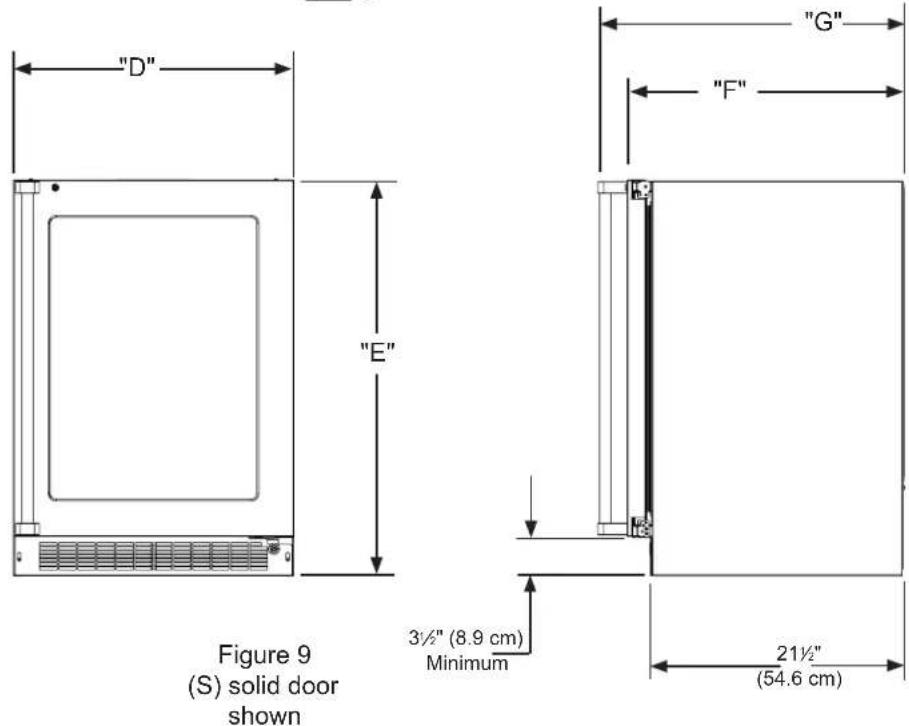

"D" "E" "G" "F" Figure 9 (S) solid door shown 3½" (8.9 cm) Minimum 21½" (54.6 cm)

* To install (F) models with the door face flush with adjacent cabinetry doors, custom decorative panel thickness cannot exceed 14 " (19 mm).

** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet.

# A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appliance.

USING YOUR ELECTRONIC CONTROL

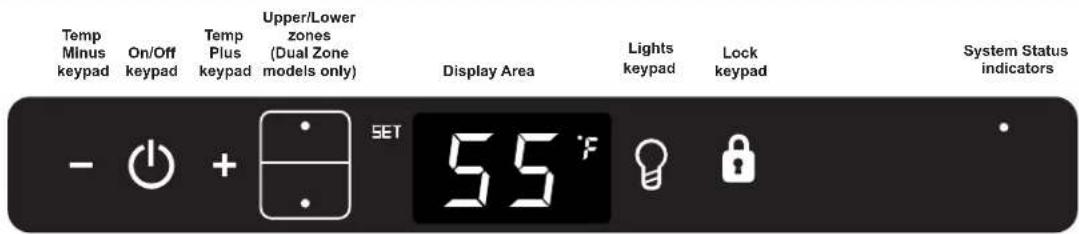

Temp Minus keypad On/Off keypad Temp Plus keypad Upper/Lower zones (Dual Zone models only) Display Area Lights keypad Lock keypad System Status indicators - ⏻ + SET 55 °F

Figure 10 Electronic control

Starting your appliance (single and dual zone):

Plug the appliance power cord into a 115 volt wall outlet. Your appliance is shipped from the factory in the "On" position and will begin start-up of cooling as soon as power is supplied. If the appliance does not start, confirm that the wall outlet has power, and that the control is in the "On" position, (See "Turning your appliance On and Off" below).

The control display is covered with a clear plastic film. This film may be removed by carefully lifting the film at a corner.

On initial power up, the control display will indicate a "Power Failure" alarm. This is a normal condition as the appliance was powered-up at the factory for quality inspection and then removed from power. A momentary press of the "On/Off" keypad will reset this alarm condition. (See Alarms section on page 11).

Sleep mode (single and dual zone):

If no keypads are pressed for 60 seconds, the display will enter sleep mode to conserve power. The control panel will go dark with the exception of the system status "OK" indicator which will remain enabled. Alarm conditions will wake the display, (see alarms on page 11).

To make the following changes to the control settings (turning the appliance ON/OFF, adjusting the temperature, changing the interior lights, and activating vacation mode), the control must be awake.

To wake the display press any keypad. A confirm tone will sound, and the current storage compartment temperature will be displayed.

The sleep mode can be disabled if you prefer to have the display on continuously. Press and hold the "Lock" keypad until the display goes past "Loc" and reads "nSL". To enable the sleep mode, repeat the instruction, again going past "Loc" until the display reads "SLP".

Turning your appliance ON and OFF (single and dual zone):

If the appliance is "On", (and out of sleep mode) the temperature will be shown in the display area of the control. To turn the appliance "Off", press and hold the "On/Off" keypad for 4-seconds. "OFF" will now be displayed on the control.

To turn the appliance "On", press and hold the "On/Off" keypad for 4-seconds.

Interior Lighting:

Display lighting :

Display lighting is intended for glass door models only, to illuminate the interior with the door closed.

With the control out of sleep mode press the "Light" keypad once to activate the interior lighting display feature at full illumination. A confirmation tone will sound, and the light bulb "Icon" will illuminate. Pressing the "Light" keypad a 2nd time will dim the lighting to 50%. A 3rd press will deactivate the display lighting feature. The display lighting will automatically deactivate after 4-hours.

If you have a solid door/drawer product the display lighting function is only used to select the color of the interior light.

Changing the Tri-Color lighting:

To change the color between white, amber, or blue, with the control out of sleep mode, momentarily press the "Light" keypad. The keypad will illuminate. Then press and hold the keypad for approximately 3 seconds the interior light will start to cycle through the 3 available colors. On solid door/drawer product this will need to be done with the door/ drawer open to be able to observe the colors. Release the keypad when the desired color is on, and your interior light will be changed to that color. After selection of color for solid door/drawer product, the display light feature should be turned-off, ("Light" keypad not illuminated).

Adjusting the Temperature:

NOTE

When initially loading your product with warm contents, it may take up to 48-hours for the storage compartment temperature to stabilize.

When making temperature set-point changes, it may take up to 24-hours for the stored contents to stabilize at your new set-point temperature.

Factors that affect the storage compartment stabilized temperature:

• Changes to temperature setting.
• Room temperature changes.
• Temperature of stored contents.

• Loading warm contents.
• Cold content load will delay the change to a warmer set-point temperature.
• Warm content load will delay the change to a colder set-point temperature.

• Usage, (number and duration of the door openings).
- Use of the storage compartment display lighting, (glass door product only).
- Installation of the appliance in direct sunlight or next to a heat source.

Single Zone Models:

To set or check the set-point temperature (with the control out of sleep mode), press the "-" or "+" keypads. "SET" will be indicated on the user interface panel and the current set-point temperature will display and flash. Subsequent presses of the "-" or "+" keypads will adjust the temperature colder or warmer respectively. When you have reached your desired set-point temperature, press the "On/Off" keypad to accept, or do nothing and the "Set" mode will time-out in 10-seconds accepting the displayed temperature as the new set-point.

The available set-point temperature range for your appliance is 34^ F ( 1.2^ C) to 42^ F ( 5.7^ C). If you attempt to adjust the temperature outside of this range you will receive an audible notification.

Lower zone selected

Upper zone selected

Dual Zone Models:

Temperatures can be set for each individual zone (upper and lower) in the dual zone wine / beverage center. To do so you must first select the zone you want to set the temperature for. You do so by pressing the upper or lower button on the display. When pressed the LED light will be illuminated for the respective display.

To change the set temperature for a particular zone, with the zone selected and out of sleep mode, press the "-" or "+" keypads. "SET" will be indicated on the user interface panel and the current set-point temperature will display and flash. Subsequent presses of the "-" or "+" keypads will adjust the temperature colder or warmer respectively. When you have reached your desired set-point temperature, press the "On/Off" keypad to accept, or do nothing and the "Set" mode will time-out in 10-seconds accepting the displayed temperature as the new set-point.

The available set-point temperature range for your appliance is 34^ F ( 1.2^ C) to 42^ F ( 5.7^ C) for the lower zone and 45^ F ( 7^ C) to 60^ F ( 16^ C) for the upper zone. If you attempt to adjust the temperature outside of these ranges you will receive an audible notification.

NOTE

The upper zone is designed exclusively for the storage of wine. The upper zone cannot attain storage temperatures suitable for fresh food storage.

Temperature Sensor Error Codes

The temperature sensors are monitored continuously. Any OPEN or SHORTED circuit condition will initiate an ERROR CODE as listed below:

Single Zone Models:

Temperature mode:

The temperature mode is preset from the factory in Fahrenheit (°F) but you have the option to change it to Centigrade (°C). To change the mode, press and hold the "-" keypad, while pressing the "+" keypad, then release the "-" keypad. The temperature will now be displayed in Centigrade (°C). Repeat the procedure to change the temperature mode back to Fahrenheit (°F).

Control lock:

The control panel can be locked to avoid unintentional changes. To lock the control, press and hold the "Lock" keypad until the display reads "Loc" then immediately release your finger from the keypad. The lock icon will flash 3-times and then continuously illuminate. When the control panel is locked, only the Lock keypad, System Status OK indicator, and the Alarm indicator are active. To un-lock the control panel, repeat this instruction until the display reads "nLc", then immediately release your finger from the keypad.

Temperature Sensor Error Codes
Sensor Displayed Code Error Description Action to Take
Single Zone Temperature Sensor		Failed temperature sensor in the single zone compartment. Can lead to unwanted wine storage temperatures.	Call service to have the temperature sensor replaced.
Defrost Sensor		Failed defrost temperature sensor. Causes unit to not defrost properly and can create large frost build-up. Can lead to water damage to the unit and surrounding floor.	Unplug the power cord immediately and call service to have the defrost sensor replaced.

Dual Zone Models:

Temperature Sensor Error Codes
Sensor Displayed Code Error Description Action to Take
Upper Zone Temperature Sensor		Failed temperature sensor in the upper zone compartment. Can lead to unwanted wine storage temperatures.	Call service to have the temperature sensor replaced.
Lower Zone Temperature Sensor		Failed temperature sensor in the lower zone compartment. Can lead to unwanted wine storage temperatures.	Call service to have the temperature sensor replaced.
Defrost Sensor		Failed defrost temperature sensor. Causes unit to not defrost properly and can create large frost build-up. Can lead to water damage to the unit and surrounding floor.	Unplug the power cord immediately and call service to have the defrost sensor replaced.

NOTE

If the control lock is active (illuminated lock icon) the control will have to be unlocked before using the keypad to reset an alarm condition. See page 10 (Control Lock) for instructions for unlocking the control.

Alarms (single and dual zone):

The control will alert you to conditions that could adversely affect the performance of the appliance.

- Door ajar - If the door is open, or not closed properly, for more than 5-minutes the System Status OK indicator will turn-off, the "Door Ajar" indicator will flash, and a tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad.

NOTE

The audible alarm can be muted, for each occurrence, by pressing the lock keypad.

This alarm condition can be reset by closing the door or momentarily pressing the "On/Off" keypad, (i.e.-if you are cleaning the storage compartment, etc.). The alarm will recur in 5-minutes if the alarm condition persists.

- Power failure - If power to the appliance is interrupted the System Status indicator will turn-off and the "Power Failure" indicator will flash. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad. No audible tone will sound. This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs, it is recommended that you check the condition of any perishables, even if the appliance is operating normally and the temperature has recovered, as prolonged power outages could result in excessive temperature excursions which may spoil perishables.

- Temperature alarm - If the storage compartment temperature deviates excessively from your set-point temperature for an extended period of time, the "TEMP" indicator will flash, and an audible tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "ON/OFF" keypad.

NOTE

After a high temperature alarm condition, check all perishables to ensure they are safe for consumption.

NOTE

The temperature alarm may occur as a result of high usage or introduction of warm contents to the storage compartment. If the temperature alarm continues to occur, your unit may require service.

NOTE

The audible alarm can be muted, for each occurrence, by pressing the lock keypad.

This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs it is recommended that you check the condition of your stored contents, even though the appliance is operating normally and the temperature has recovered, as prolonged temperature excursions could spoil perishables.

NOTE

Door Ajar Temp

Multiple alarms are possible, i.e.- "Door Ajar" for a prolonged period may trigger a "Temp" alarm, in which case both "Door Ajar" and "Temp" indicators will activate.

Vacation mode (single and dual zone):

This operating mode can be used to save energy during high cost energy periods, or when you won't be using your appliance for an extended period of time by disabling the lights, alarm tones, and keypad entry tones. Vacation mode also serves as a Sabbath mode, disabling functions and its controls in accordance with the weekly Sabbath and religious holidays observed within the Orthodox Jewish community. When used as Sabbath mode, you may open or close the door at any time to access contents without concern of directly turning on or off any lights, digital readouts, solenoids, fans, valves, compressor, icons, tones, or alarms.

When activated, the display, alarm indicators and tones, keypad touch tones, interior lights, and all options are disabled. All keypad functions are disabled, with the exception of the "On/Off" keypad which is required to exit Vacation-mode. Storage compartment temperatures are monitored and controlled at the settings prior to entering Vacation mode.

To enter Vacation Mode (with the control out of sleep mode), press and hold the "On/Off" keypad until the display goes past "OFF" and reads "VAC". The display will flash "VAC" 3-times to acknowledge your request, then will display "VAC" continuously until Vacation mode is exited. A power outage will not exit Vacation mode, exiting can only be accomplished manually. To exit Vacation mode and return to normal operation, press and hold the "On/Off" keypad until the control displays the temperature.

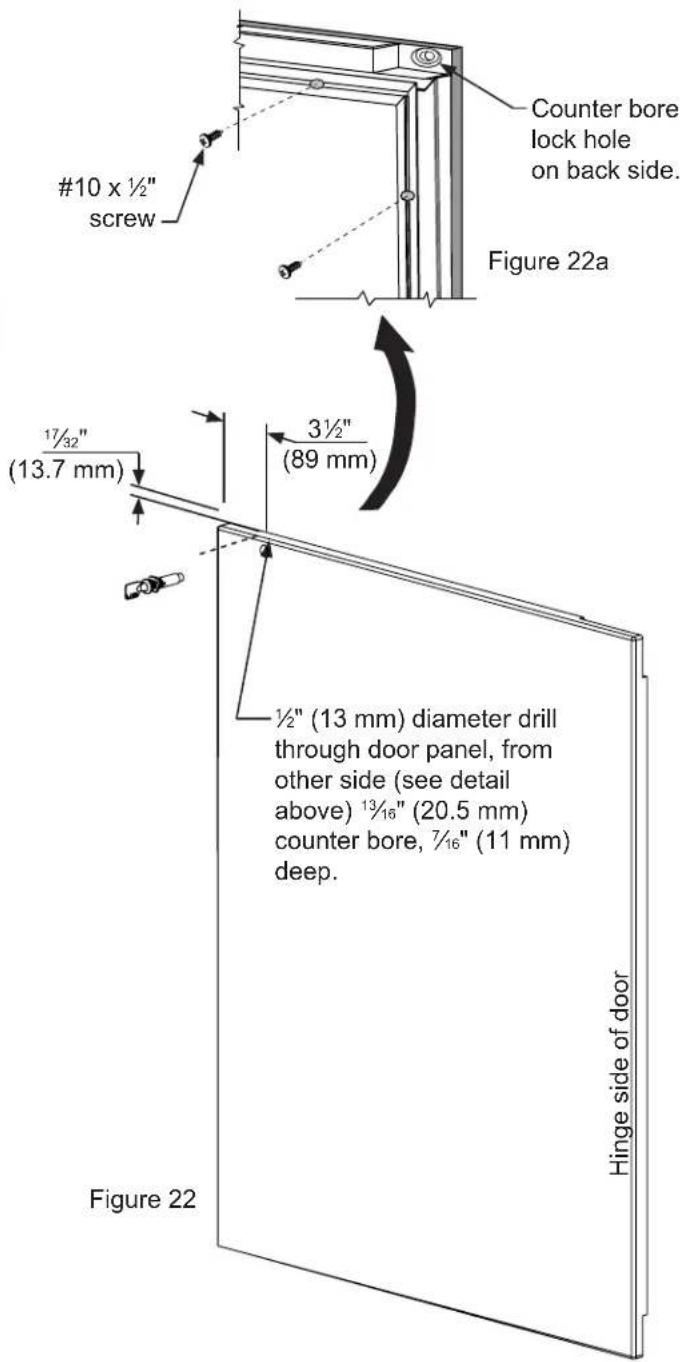

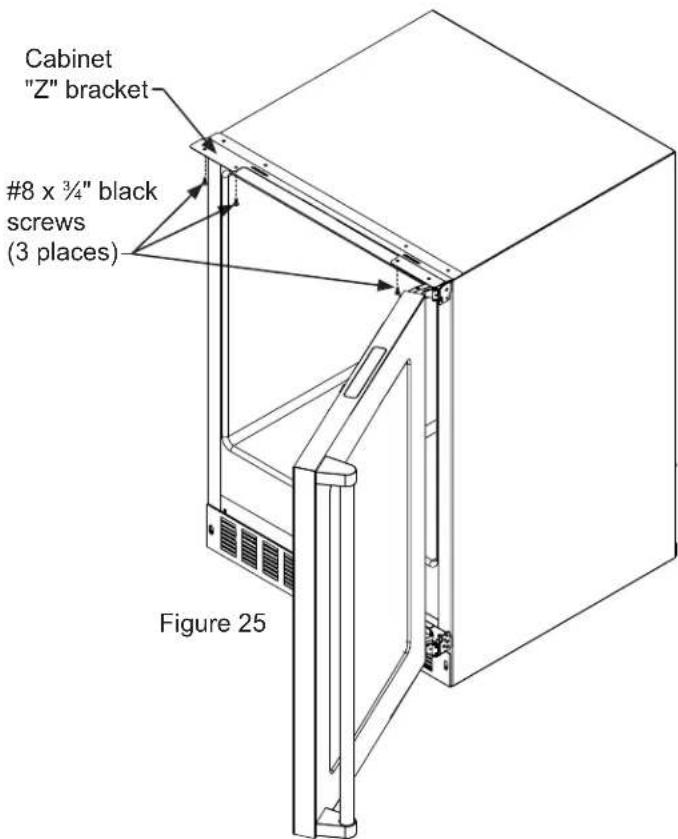

Overlay door panel installation:

If you purchased an overlay panel model, your unit is equipped with articulated hinges to allow fully integrated built-in installations. Custom panel thicknesses of 58 " (15 mm) and 34 " (18 mm) are accommodated.

CAUTION

It is important to use the factory provided grille that came with the product to assure proper air flow is maintained through the condenser. The use of a custom grille is not recommended and will void the warranty.

WARNING

Overlay panel models are designed for use with built-in installations only. Use in freestanding installations could result in personal injury.

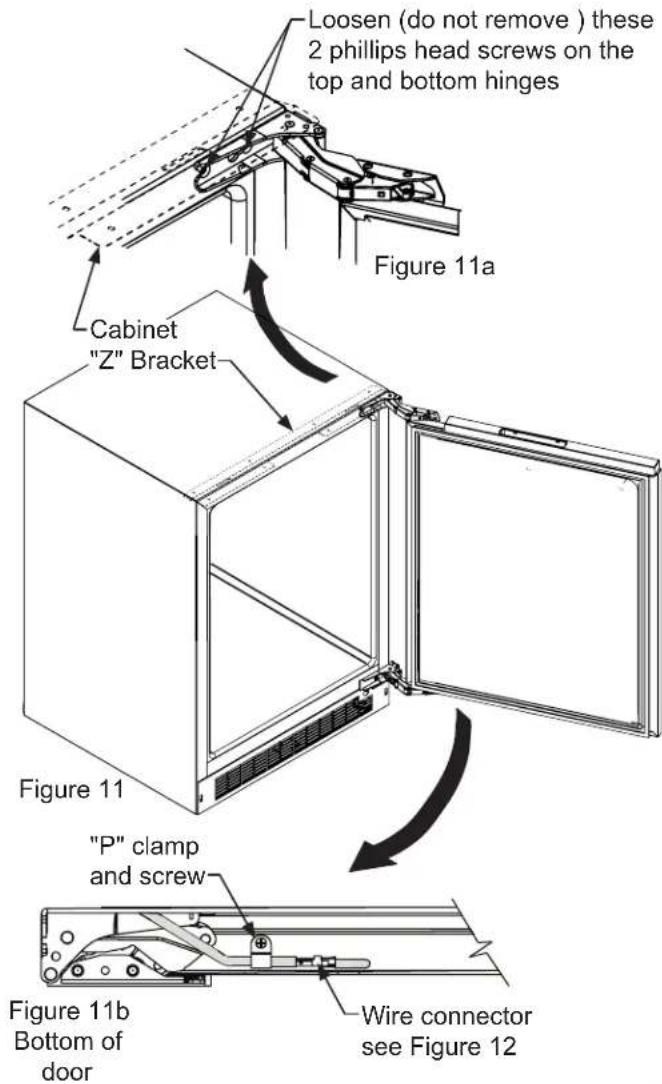

Step 1: Removing the Door

With a phillips screwdriver remove the screw and "P" clamp from the bottom of the door near the hinge. See Figure 11b.

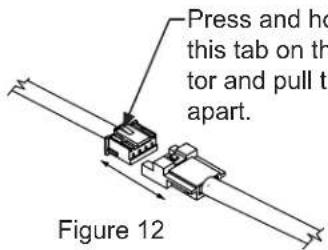

Disconnect the door wire harness by pressing and holding down the locking tab on the wire connector and pulling the connector apart. See Figure 12.

Open the door and loosen the screws holding the hinges to the cabinet (2 at the top and 2 at the bottom hinge). Do not remove the screws but loosen them enough so the hinges can be slipped off of the screws when sliding the door to the side.

WARNING

The articulated hinges have many pinch points. Carefully close / collapse the hinges as soon as the door is removed from the cabinet.

With a helper, and being careful not to scratch the cabinet or the door, slide the door to the side about 12 inch and remove the hinges and door from the unit.

WARNING

Use extreme caution with the articulated hinges. The hinge is self closing and many pinch points exist prior to built-in installation. Do not remove the cabinet "Z" bracket from the top of the cabinet.

Step 2: Remove the door gasket

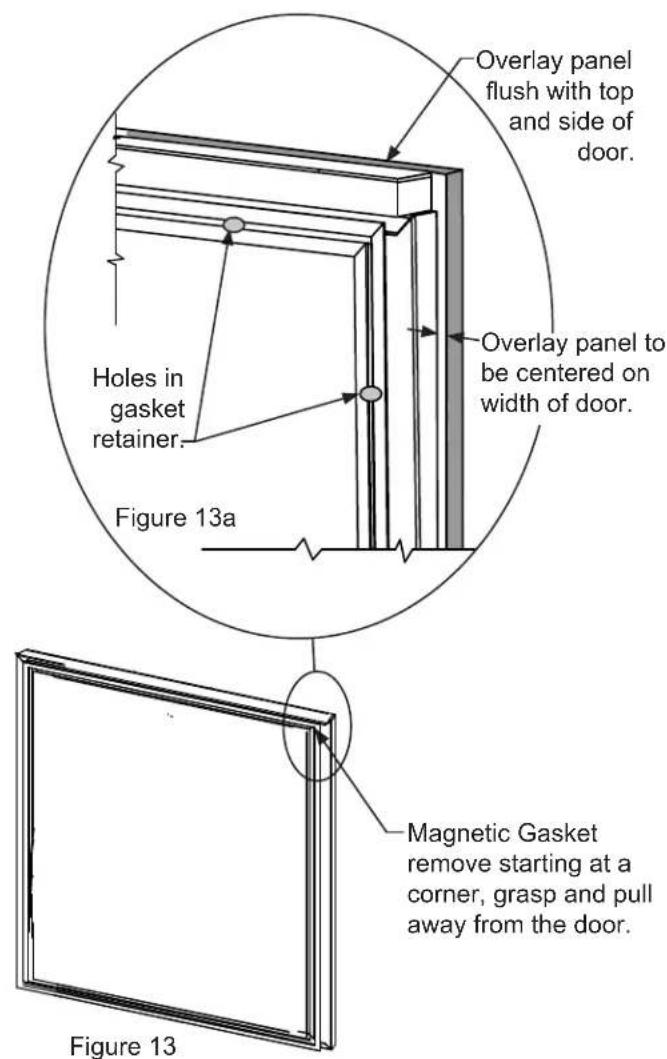

With the door laying on a flat surface and starting at a corner of the door remove the magnetic door gasket from the interior side of the door, see Figure 13. Set the gasket aside on a flat surface.

There are 10 holes in the gasket retainer extrusions, (3 on each side and 2 at the top and bottom which are used to fasten the panel to the front of the door. The screws are provided in the literature pack along with the door lock, which is provided on certain models.

Loosen (do not remove ) these 2 phillips head screws on the top and bottom hinges Figure 11a Cabinet "Z" Bracket Figure 11 "P" clamp and screw Figure 11b Bottom of door Wire connector see Figure 12

Press and how this tab on the tor and pull the apart. Figure 12

Overlay panel flush with top and side of door. Overlay panel to be centered on width of door. Holes in gasket retainer. Figure 13a Magnetic Gasket remove starting at a corner, grasp and pull away from the door. Figure 13

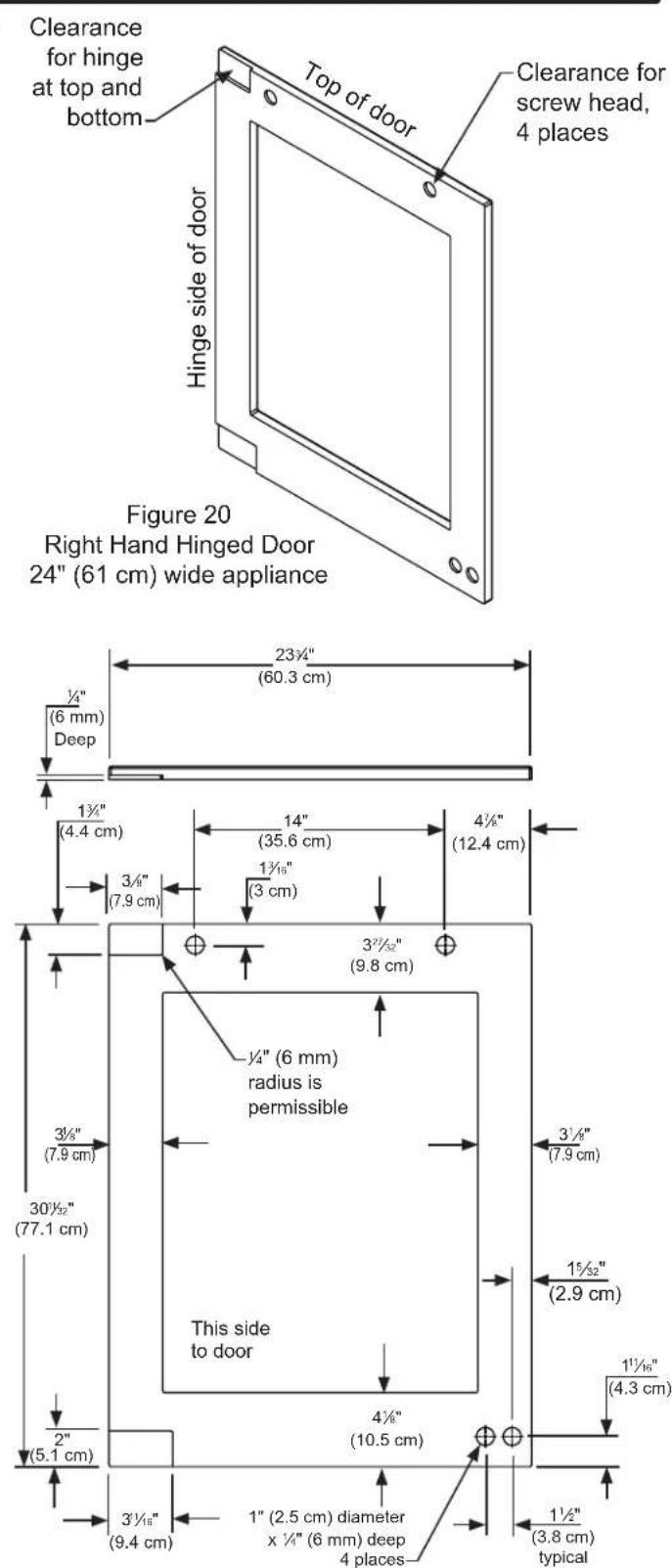

Step 3: Cut and drill the overlay panel

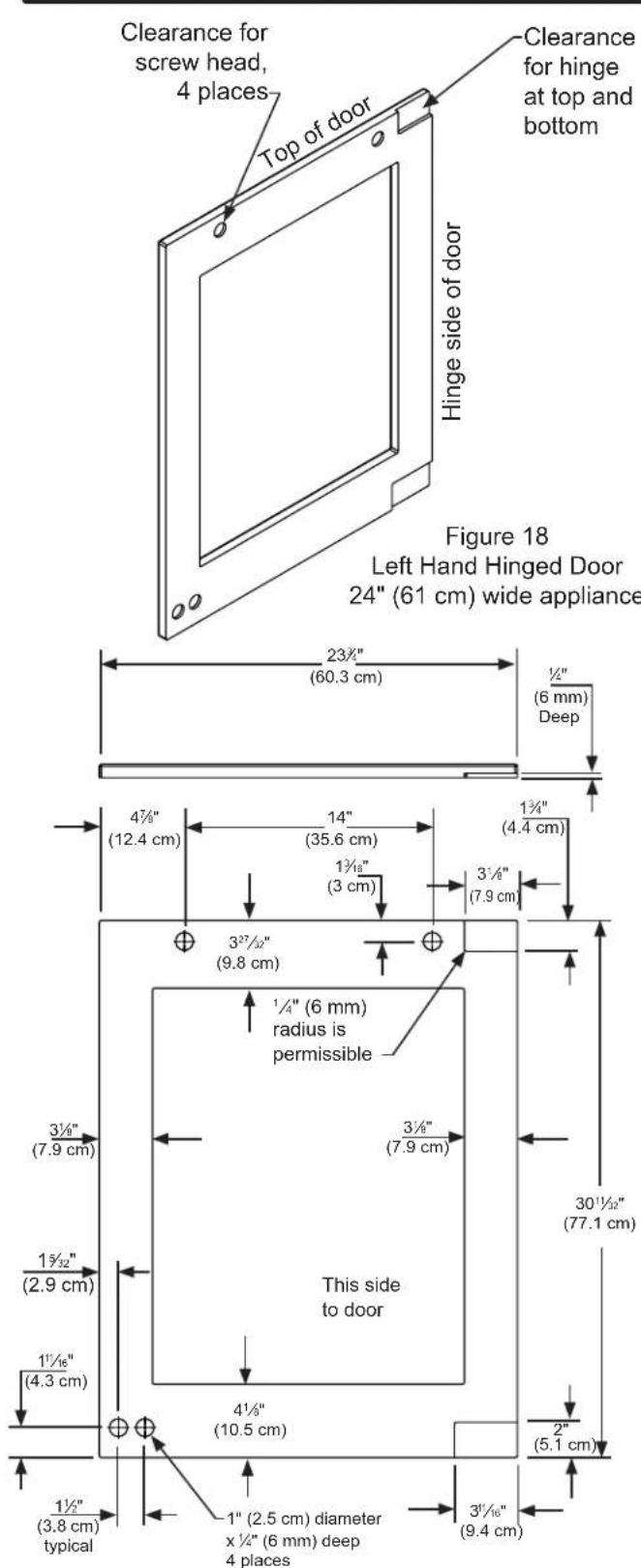

Depending on your model cut the overlay door panel to the dimensions shown in Figures 14 to 21. The window cut out is for glass door models only. If your appliance has a lock also drill the lock hole in the panel, see Figure 22.

©

Clearance for screw head, 4 places Top of door Clearance for hinge at top and bottom Hinge side of door Figure 18 Left Hand Hinged Door 24" (61 cm) wide appliance 23½" (60.3 cm) ½" (6 mm) Deep 4½" (12.4 cm) 14" (35.6 cm) 1¾" (4.4 cm) 1½" (3 cm) 3½" (7.9 cm) 3³/½" (9.8 cm) 1¼" (6 mm) radius is permissible 3½" (7.9 cm) This side to door 30½" (77.1 cm) 3½" (7.9 cm) 1½" (2.9 cm) 1½" (4.3 cm) 4½" (10.5 cm) 2" (5.1 cm) 1½" (3.8 cm) typical 1" (2.5 cm) diameter x ½" (6 mm) deep 4 places 3½" (9.4 cm)

Figure 19 Left Hand Hinged Door 24" (61 cm) wide appliance

Clearance for hinge at top and bottom Top of door Clearance for screw head, 4 places Hinge side of door Figure 20 Right Hand Hinged Door 24" (61 cm) wide appliance 23¼" (60.3 cm) ½" (6 mm) Deep 1¾" (4.4 cm) 14" (35.6 cm) 4¾" (12.4 cm) 3¾" (7.9 cm) 1¾" (3 cm) 3¾" (9.8 cm) 3½" (7.9 cm) 30½" (77.1 cm) ½" (6 mm) radius is permissible This side to door 4¾" (10.5 cm) 3½" (2.9 cm) 1½" (4.3 cm) 2" (5.1 cm) 3½" (9.4 cm) 1" (2.5 cm) diameter x ½" (6 mm) deep 4 places 1½" (3.8 cm) typical

Figure 21 Right Hand Hinged Door 24" (61 cm) wide appliance

CAUTION

Weight of overlay door panel must not exceed 15 pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model.

Material Type #10 Wood Screw
Hardwood	18 " (3.2 mm) Diameter. Pilot Hole
Softwood	764 (2.8 mm) Diameter. Pilot Hole

Table B

Step 4: Assemble the panel to the door

The preferred method of attaching the panel to the door is to clamp the panel to the door so it cannot move while drilling the screw pilot holes. Use bar clamps or "C" clamps with pads on the clamping surfaces that will not mar the panel or the door. The custom overlay panel should be flush with the top of the door and centered along the width of the door. See Figure 13a. Drill holes through the gasket extrusion using the 10 holes as pilot holes. Use the drill size from the chart in Table "B", being careful not to drill through the front surface of the panel. If the overlay panel is thinner than 58 " (16 mm) thick shorter screws will have to be obtained. Fasten the panel to the door with the 10 screws provided in the literature pack. (See Figure 22a). Remove the clamps and replace the gasket in the gasket extrusion channels of the door. Some force may be required to seat the gasket into the channels. Be sure the gasket corners are seated properly.

#10 x ½" screw Counter bore lock hole on back side. Figure 22a 3½" (89 mm) ½" (13 mm) diameter drill through door panel, from other side (see detail above) ⅓/₁₆" (20.5 mm) counter bore, ⅓/₁₆" (11 mm) deep. Figure 22 Hinge side of door

Step 5: Assemble lock parts

Two (2) lock extensions are provided with the lock. Use the longer extension for 34 " thick overlay panels and the shorter one for 58 " thick overlay panels. Assemble the lock extension, cam stop washer, spring washer, and set screw to the lock as shown in Figure 23 and 24.

Install this lock assembly into the lock hole in the overlay panel and secure with the retaining nut on the back side with a 15 mm socket and ratchet. Make sure the key slot in the front of the lock is vertical.

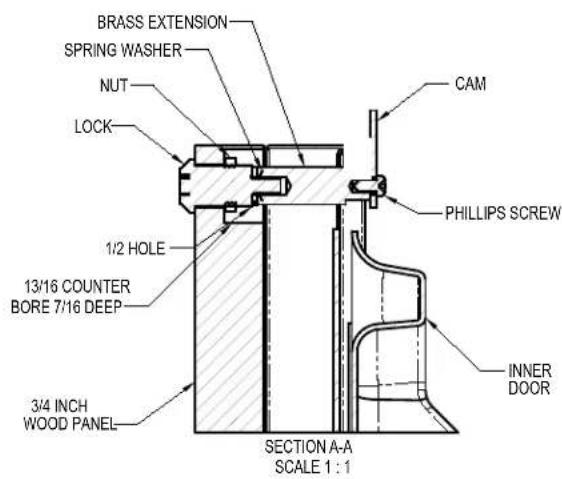

BRASS EXTENSION SPRING WASHER NUT LOCK CAM PHILLIPS SCREW 1/2 HOLE 13/16 COUNTER BORE 7/16 DEEP 3/4 INCH WOOD PANEL INNER DOOR SECTION A-A SCALE 1:1

Figure 23

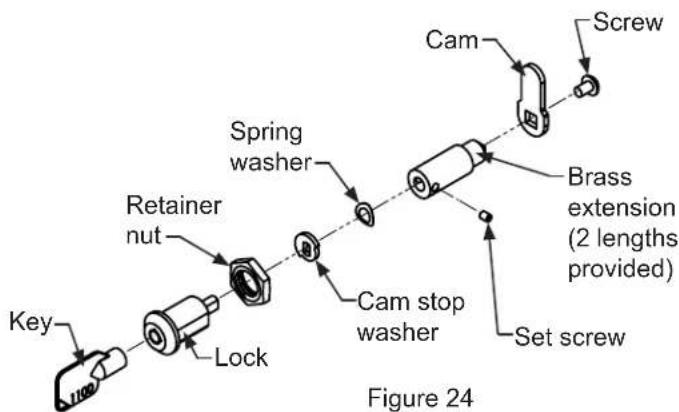

Step 6: Install lock cam

Attach the lock cam to the back of the lock assembly with the phillips head screw provided. Orient the lock cam vertically when installing on the lock.

Step 7: Install the door

Carefully open the top and bottom hinges on the door being careful as there are many pinch points. Place the hinges over the 4 screws in the cabinet, 2 at the top and 2 at the bottom and slide the door into position. Tighten the 4 hinge screws with a phillips screwdriver. (See Figures 11 and 11a). Place wire harness from the grille and mount to the bottom of the door with the screw and "P" clamp removed in step 1. (See Figure 11b). Reconnect the wire harness, (See Figure 12).

Step 8: Secure the cabinet

Use the #8 x 3/4" black screws from the literature pack to secure the counter top to the cabinet top through the holes in the cabinet "Z" bracket.

Cabinet "Z" bracket #8 x 3/4" black screws (3 places) Figure 25

Loading Tips and Suggestions

Your appliance is equipped with a cantilever shelf system which provides maximum adjust ability and customizing of the shelving arrangements listed below.

Line drawing of an open refrigerator with shelves and door, labeled as Figure 26 (no text or symbols on the diagram itself)

Beverage Center:

15" (38.1 cm) Wide Models:

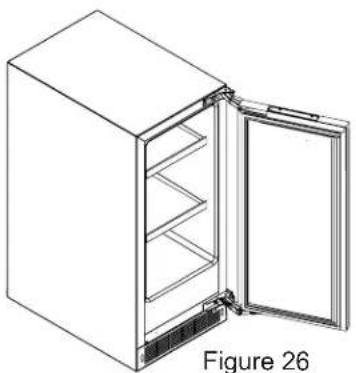

Shown with a glass door. Figure 26.

(2) glide out wine convertible glass shelf (See Figure 31).

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Beverage Center:

24" (61 cm) Wide Models:

Shown with a glass overlay door. Figure 27.

(2) glide out wine convertible glass shelf. (See Figure 32).
(1) Five bottle rollout display rack with vibration dampening mat (See Figure 33).

Dual Zone Wine / Beverage Center 24" (61 cm) Wide Models:

Upper Zone:

(1) Seven bottle rollout wine display rack with vibration dampening mat. (See figure 37).

Lower Zone:

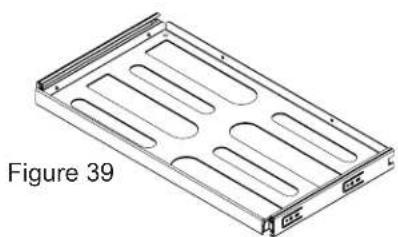

(1) Four bottle rollout wine shelf with glass and vibration dampening mat. (See figure 39).

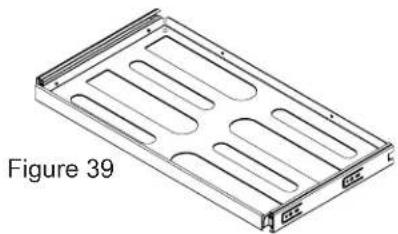

(1) Three quarter wide rollout glass shelf and frame. (See figure 38).

Line drawing of an open refrigerator with ventilation grilles and doorways (no text or symbols)

Refrigerator:

24" (61 cm) Wide Models:

Shown with a solid door with door racks. Figure 28.

(1) half width metal cantilever shelf (See Figure 36).
(1) full width slide out cantilever metal shelf. (See Figure 35).
(1) frame and flat glass crisper cover.
(1) roll-out crisper pan.
(1) full width door storage rack.
(1) half width door storage rack.

Line drawing of a refrigerator with open doors and a side panel, labeled 'Figure 29' (no text or symbols on the diagram itself)

Beverage Refrigerator:

24" (61 cm) Wide Models:

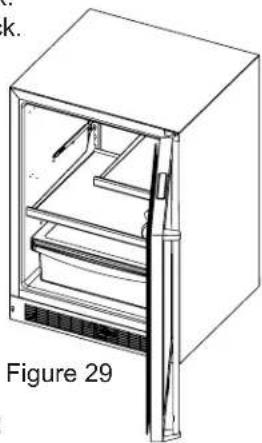

Shown with a glass door. Figure 29.

(1) half width flat glass cantilever shelf. (See Figure 34).
(1) wine cutout and flat glass cantilever shelf. (See Figure 32).
(1) frame and flat glass crisper cover.
(1) roll-out crisper pan

Line drawing of an open refrigerator with shelves and bottles, labeled as Figure 30 (no text or symbols on the diagram itself)

Technical line drawing of a rectangular metal tray with internal slots and mounting brackets (no text or symbols)

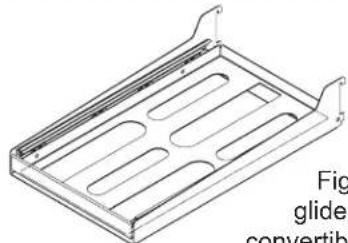

Figure 31 glide out wine convertible glass shelf

Isometric line drawing of a rectangular tray with evenly spaced slots and two side handles (no text or symbols)

Figure 36 half width metal cantilever shelf

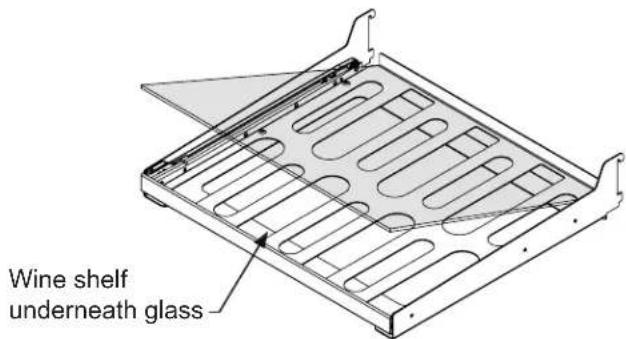

Wine shelf underneath glass

Figure 32 Wine cutout and flat glass shelf with vibration dampening mat, the glass can be removed for wine storage.

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

Technical line drawing of a mechanical component with multiple curved slots and a handle (no text or symbols)

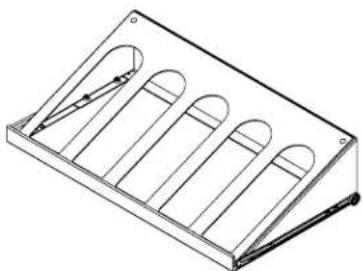

Figure 33 5 bottle rollout display rack with vibration dampening mat

Isometric line drawing of a rectangular frame with mounting brackets and a label 'Figure 38' (no other text or symbols)

Figure 34 Frame and flat glass shelf with trim

Line drawing of a rectangular metal tray or holder with two side handles (no text or symbols)

Technical line drawing of a slide-out panel with grid pattern (no text or symbols)

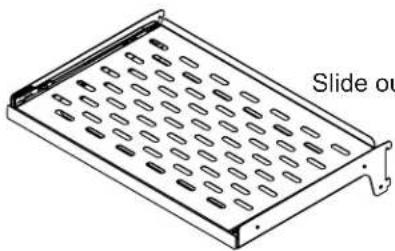

Figure 35 Slide out metal cantilever shelf

Isometric line drawing of a rectangular device with internal slots and mounting brackets (no text or symbols)

Pull out until it stops. Lift up on the front of the pan, and remove it from the frame.

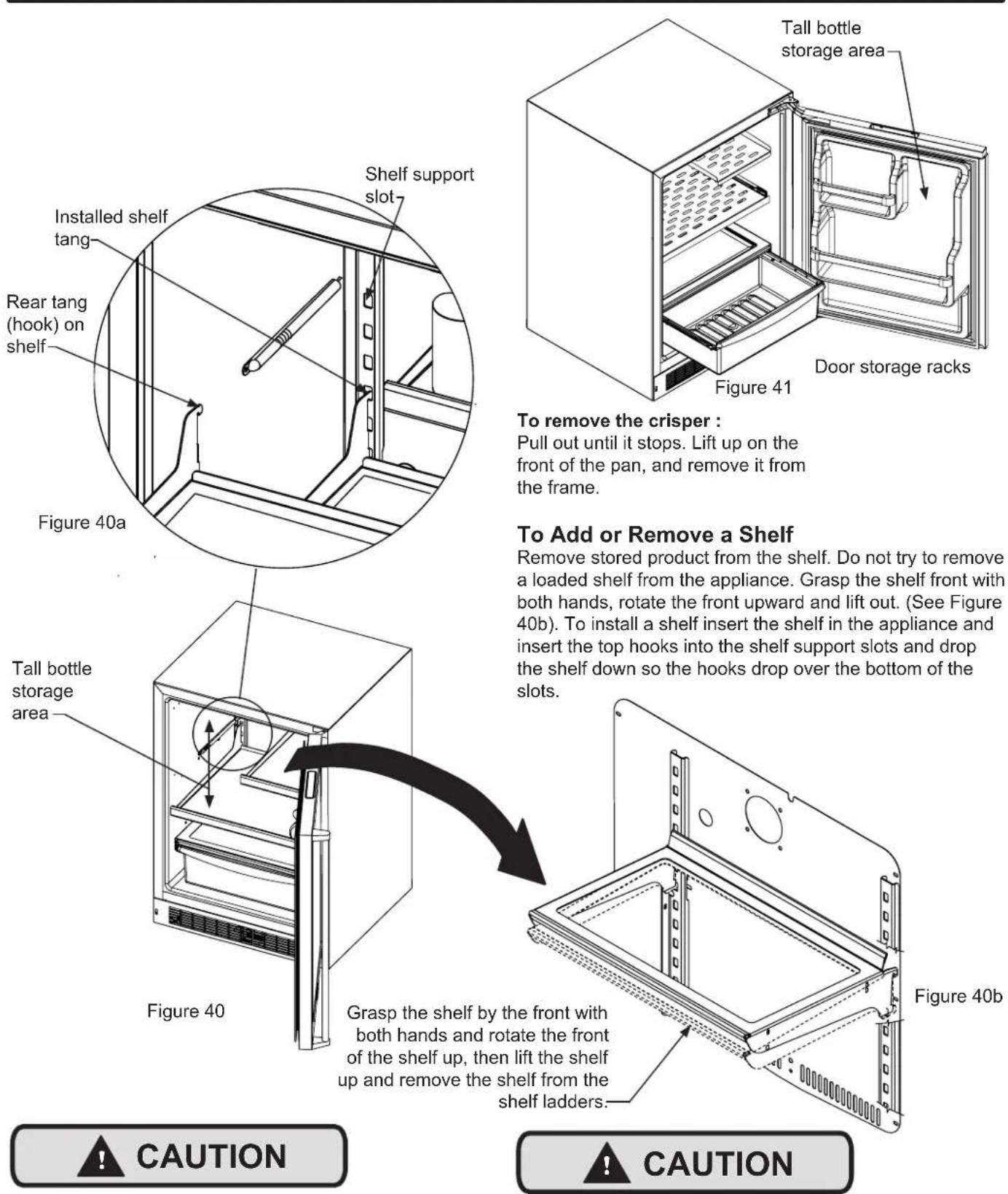

To Add or Remove a Shelf

Remove stored product from the shelf. Do not try to remove a loaded shelf from the appliance. Grasp the shelf front with both hands, rotate the front upward and lift out. (See Figure 40b). To install a shelf insert the shelf in the appliance and insert the top hooks into the shelf support slots and drop the shelf down so the hooks drop over the bottom of the slots.

CAUTION

Make sure your cantilever shelf is secure on the shelf supports by pressing down on the shelf before loading the shelf.

CAUTION

Never try to move a loaded shelf, remove everything from the shelf before moving. Use both hands when moving a shelf.

Front Grille

Be sure that nothing obstructs the required air flow openings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4).

CAUTION

SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water.

Cabinet

The painted cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. NEVER use abrasive scouring cleaners.

Interior

Wash interior compartment with mild soap and water. Do NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent.

Care of Appliance

1. Avoid leaning on the door, you may bend the door hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mopping near the front of the appliance. Damage to the grille can occur.
3. Periodically clean the interior of the appliance as needed.
4. Periodically check and/or clean the front grille as needed.

In the Event of a Power Failure

If a power failure occurs, try to correct it as soon as possible. Minimize the number of door openings while the power is off so as not to adversely affect the appliance's temperature.

Light assembly replacement

All models use an LED to illuminate the interior of the appliance. This component is very reliable, but should it fail, contact a qualified service technician for replacement of the LED.

The following suggestions will minimize the cost of operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance (cooker, dishwasher, etc.), heating air duct, or other heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance beneath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not shared with other appliances).
5. When initially loading your new product, or whenever large quantities of warm contents are placed within refrigerated storage compartment, minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature.
6. Maintaining a relatively full storage compartment will require less appliance run time than an empty compartment.
7. Ensure door closing is not obstructed by contents stored in your appliance.
8. Allow hot items to reach room temperature before placing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature that meets your personal preference and provides the proper storage for your stored contents.
11. When on vacation or away from home for extended periods, set the appliance to warmest acceptable temperature for the stored contents.
12. Set the control to the "off" position if cleaning the appliance requires the door to be open for an extended period of time.
13. For wine storage products:
    When serving temperatures are not required, return the compartment(s) set temperature to the ideal red and white wine long term storage temperature of 13^ C / 55^ F.

If Service is Required:

• If the product is within the first year warranty period please contact your dealer or call AGA MARVEL Customer Service at 800.223.3900 for directions on how to obtain warranty coverage in your area.
• If the product is outside the first year warranty period, AGA MARVEL Customer Service can provide recommendations of service centers in your area. A listing of authorized service centers is also available at www.agamarvel.com under the service and support section.
• In all correspondence regarding service, be sure to give the service number, serial number, and proof of purchase.
• Try to have information or description of nature of the problem, how long the appliance has been running, the room temperature, and any additional information that may be helpful in quickly solving the problem.
• Table "C" is provided for recording pertinent information regarding your product for future reference.

For Your Records
Date of Purchase
Dealer's name
Dealer's Address
Dealer's City
Dealer's State
Dealer's Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must be within 10 days of purchase).

Table C

Before You Call for Service

If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. However, it may be required to contact your dealer or a qualified service technician.

WARNING

Electrocution Hazard

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the units wiring.
• Replace all parts and panels before operating.

CAUTION

In the unlikely event you lose cooling in your unit, do not unplug the product from the electric supply, but do call a qualified service technician immediately. It is possible that the loss of cooling capacity is a result of excessive frost build-up on the evaporator cooling coil. In this case, removing power to the unit will result in the melting of this excessive quantity of ice, which could generate melt water that exceeds the capacity of the defrost drain system and could result in water damage to your home. The end-user will be ultimately responsible for any water damage caused by prematurely turning the unit off without appropriately managing the excess water run-off.

Problem Possible Cause	Remedy
Appliance not cold enough(See “Adjusting the temperature” on page 9)	Control set too warmContent temperature not stabilized.	Adjust temperature colder. Allow 24 hours for temperature to stabilize.
	Excessive usage or prolonged door openings.	Allow temperature to stabilize for at least 24 hours.
	Airflow to front grille blocked.	Airflow must not be obstructed to front grille. See “clearances” on page 4.
	Door gasket not sealing properly.	Check door alignment and/or replace door gasket.
Appliance too cold(See “Adjusting the Temperature” on page 9)	Control set too cold	Adjust temperature warmer.Allow 24 hours for temperature to stabilize.
	Door gasket not sealing properly.	Check door alignment and/or replace door gasket.
No interior light. • Failed LED light assembly or light switch.		Contact a qualified service technician.
Light will not go out when door is closed	Display light is turned on. (Glass door models only.	Turn off display light, shut door.
	Door not activating light switch.	Appliance not level, level appli-ance, (See page 4, “leveling legs”)
	Failed light switch	Contact a qualified service technician.
Noise or Vibration • Appliance not level		Level appliance, see “Leveling Legs” on page 4.
	Fan hitting tube obstruction.	Contact a qualified service technician.
Appliance will not run. • Appliance turned off		Turn appliance on. See “Starting your appliance” on page 8.
		Plug in power cord.
		Check house circuit.

Entire Product

Limited One Year Parts and Labor Warranty

AGA MARVEL warrants that it will supply all necessary parts and labor to repair or replace in the end user's home or office, any component which proves to be defective in material or workmanship, subject to the condition and exclusions stated below, for a period of one year from the date of purchase by the end user.

Additional Second Through Fifth Year Limited Parts Only Warranty

During the four years following expiration of the one year limited warranty, AGA MARVEL will supply replacement parts for the hermetically sealed refrigeration system which consists of the compressor, condenser, drier, accumulator, bypass valve, connecting tubing and the evaporator that are proven to be defective due to workmanship or materials subject to the conditions and exclusions below.

The above warranties do not cover:

• Shipping costs of replacement parts or returned defective parts.
• Customer education or instructions on how to use the appliance.
• Any content loss due to product failure.
• Removal or installation of product.

Nor do the above warranties cover failure of this product or its components due to:

• Transportation or subsequent damages.
• Commercial use or use other than normal household or small office.
• Improper installation, misuse, abuse, accident or alteration, use of wiring not conforming to electrical codes, low or high voltages, failure to provide necessary maintenance, or other unreasonable use.

Parts or Service

Not Supplied or Designated by AGA MARVEL

The above warranties also do not apply if:

• The original bill of sale, deliver date, or serial number cannot be verified.
• Defective parts are not returned for inspection if so requested by AGA MARVEL.
• The refrigeration equipment is not in the possession of the original end use purchaser.

The warranties set forth herein are the only warranties extended by AGA MARVEL. Any implied warranties, including the implied warranty of merchantability, are limited to the duration of these express warranties. In no event shall AGA MARVEL be liable for any consequential or incidental damages or expenses resulting from breach of these or any other warranties, whether express or implied.

Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may have other rights that may vary from state to state.

No person, firm, or corporation is authorized to make any other warranty or assume any other obligation for AGA MARVEL. These warranties apply only to products used in any of the fifty states of the United States and the District of Columbia.

To obtain performance of this warranty, report any defects to:

AGA MARVEL

1260 E. VanDeinse St.

Greenville MI 48838

Phone: [phone]

MARVEL PROFESSIONAL

www.agamarvel.com

AGA MARVEL

1260 E. VanDeinse St.

Greenville MI 48838

800.223.3900

41014796-EN Rev B

4/6/17

All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.

EN Installation, Operation and Maintenance Instructions

Pure mechanical diagram of a clamp or bracket assembly without any text, numbers, or symbols

Prohibition sign with crossed-out electrical component symbol and prohibition circle

Figure 4

Grille frontale Vis de grille

Figure 5
Vis de grille frontale

AVERTISSEMENT

Simple line drawing of an electrical outlet with two socket covers (no text or symbols)

Figure 6

REMARQUE

Line drawing of a refrigerator with an open door, labeled as Figure 26 (no text or symbols on the diagram itself)

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Réfrigérateur :

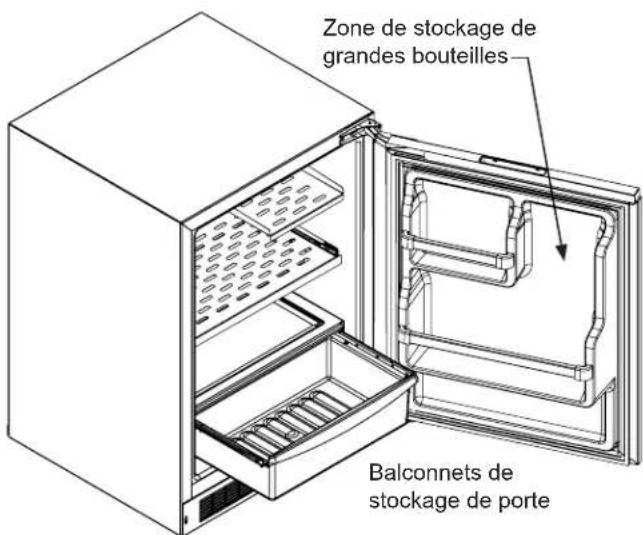

Line drawing of an open refrigerator with ventilation grilles and door opening (no text or symbols)

Line drawing of a refrigerator with open doors and ventilation slots (no text or symbols)

Diagram of an open refrigerator with liquid-filled compartments and a door, labeled Figure 30 (no text or symbols on the diagram itself)

Isometric line drawing of a mechanical device with three vertical slots and a handle (no text or symbols)

Isometric view of a rectangular tray with evenly spaced circular indentations, labeled 'Faites gliss' at the bottom (no other text or symbols)

Isometric line drawing of a rectangular tray with evenly spaced slots and two side handles (no text or symbols)

Technical line drawing of a rectangular metal tray with internal slots and mounting brackets (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting bracket (no text or symbols)

Isometric line drawing of a rectangular frame with mounting brackets and a label 'Figure 38' (no other text or symbols)

Technical line drawing of a rectangular electronic component with four recessed slots (no text or symbols)

ATTENTION

EN Installation, Operation and Maintenance Instructions

Pure mechanical component diagram without any text, numbers, or symbols

Prohibition sign showing a crossed-out electrical component with a diagonal line crossing it, indicating no protection or disapproval.

Figura 4

Rejilla frontal Tornillo de la rejilla frontal Figura 5

ADVERTENCIA

Electrical outlet diagram showing two socket plugs connected to a terminal block (no text or labels)

Figura 6

NOTA

DIMENSIONES DEL PRODUCTO

	DIMENSIONES DE LA ABERTURA DE INSTALACIÓN pulgadas (cm) DIMENSIONES DEL GABINETE pulgadas (cm)
MODELO	"A"	"B"	"C"	"D"	"E"	"F"	"G"	"H"	"J"
MP15BCG	15"(38,1 cm)	** 3414 " a 3514 ("87 a 89,5 cm)	24"(61 cm)	1478 ("37,8 cm)	34" a 35"(86,4 a 88,9 cm)	232332 ("60,2 cm)	26732 ("66,6 cm)	371332 ("95 cm)	17715 ("44,3 cm)
MP15BCF	15"(38,1 cm)	** 3414 " a 3514 ("87 a 89,5 cm)	* 24"(61 cm)	1478 ("37,8 cm)	34" a 35"(86,4 a 88,9 cm)	2278 ("58,1 cm)	-	712 ("95,2 cm)	1416 ("35,9 cm)
MP24**S	24"(61 cm)	** 3414 " a 3514 ("87 a 89,5 cm)	24"(61 cm)	2378 ("60,7 cm)	34" a 35"(86,4 a 88,9 cm)	232332 ("60,2 cm)	26732 ("66,6 cm)	461332 ("117,9 cm)	26715 ("67,2 cm)
MP24**G	24"(61 cm)	** 3414 " a 3514 ("87 a 89,5 cm)	24"(61 cm)	2378 ("60,7 cm)	34" a 35"(86,4 a 88,9 cm)	132332 ("60,2 cm)	26732 ("66,6 cm)	461332 ("117,9 cm)	26715 ("67,2 cm)
MP24**F	24"(61 cm)	** 3414 " a 3514 ("87 a 89,5 cm)	* 24"(61 cm)	2378 ("60,7 cm)	34" a 35"(86,4 a 88,9 cm)	2278 ("58,1 cm)	-	4612 ("118,1 cm)	2316 ("58,7 cm)

Loc → nSL Loc → SLP

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Figura 26

Centro de bebidas:

Modelos de 15" (38,1 cm) de ancho:

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

Centro de bebidas:

Modelos de 24" (61 cm) de ancho:

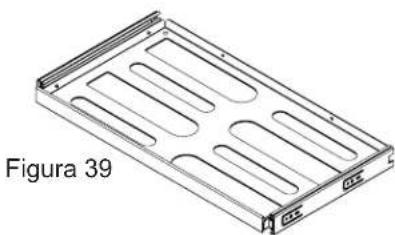

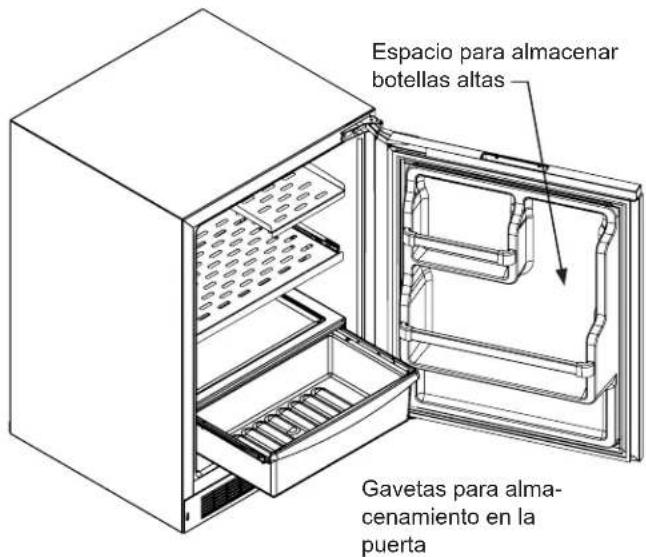

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or symbols)

Refrigerador:

Modelos de 24" (61 cm) de ancho:

Line drawing of a refrigerator with a door and side panel, labeled 'Figura 29' (no text or symbols on the diagram itself)

Line drawing of a refrigerator with open door and side compartments (no text or symbols)

Simple line drawing of a rectangular frame with two side protrusions (no text or symbols)

Technical line drawing of a mechanical device with three vertical slots and a handle (no text or symbols)

Isometric line drawing of a rectangular metal tray with evenly spaced circular indentations (no text or symbols)

Isometric line drawing of a rectangular tray with evenly spaced slots and two side handles (no text or symbols)

Isometric line drawing of a 3D rectangular tray with internal compartments and mounting brackets (no text or symbols)

Figura 36 glide out wine convertible glass shelf

Isometric technical drawing of a mechanical component with internal channels and mounting bracket (no text or symbols)

Isometric line drawing of a rectangular frame with mounting brackets and side handles, labeled 'Figura 38' (no other text or symbols)

Technical line drawing of a rectangular metal tray with four recessed slots (no text or symbols)

PRECAUCION
