USER MANUAL ML24WDG3RS Marvel

EN Installation, Operation and Maintenance Instructions

Note: Wine Cellars are designed exclusively for the storage of wine. Wine Cellars cannot attain storage temperatures suitable for fresh food storage.

Unpacking your appliance ....3

Warranty registration ....3

Installing your appliance ....4

Cabinet clearances ....4

Leveling the appliance ....4

Electrical connection ....5

Installing the anti-tip device 6

Product dimensions 8

Using your Electronic control ....10

Starting your appliance 10

Sleep mode ....10

Turning your appliance "ON" or "OFF" 10

Adjusting the temperature 10

Interior display lighting 11

Temperature mode 11

Control lock 12

Temperature sensor error codes ......12

Alarms 12

Door ajar 12

Power failure 13

Temperature alarm 13

Vacation mode 13

Overlay door panel installation ....14

Shelving configurations ....18

Care and cleaning 20

Energy saving tips ....20

Obtaining service 21

Troubleshooting 22

Warranty 23

Important Safety Instructions

Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.

Recognize Safety Symbols, Words, and Labels.

WARNING

WARNING - You can be killed or seriously injured if you do not follow these instructions.

CAUTION

CAUTION-Hazards or unsafe practices which could result in personal injury or property / product damage.

NOTE

NOTE-Important information to help assure a problem free installation and operation.

WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known to the State of California to cause cancer.

WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm..

ISO 9001

ISO 14001

OHSAS 18001

AGA MARVEL is committed to building a quality product in an environmentally friendly manner. Our processes are tightly controlled and closely monitored. We have achieved certifications in ISO 9001 for quality assurance, ISO 14001 for environmental management, and OHSAS 18001 for occupational health and safety from Lloyd's Register Quality Assurance.

WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.

Failure to do so can result in personal injury.

Remove Interior Packaging

Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened. Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items.

Important

Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly.

WARNING

WARNING - Dispose of the plastic bags which can be a suffocation hazard.

Note to Customer

This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer.

NOTE

DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.

CAUTION

If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the appliance in immediately may cause damage to internal parts.

Warranty Registration

It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at www.agamarvel.com.

The following information will be required when registering your appliance.

Service Number

Serial Number

Date of Purchase

Dealer's name and address

Online registration

available at

www.agamarvel.com

The service number and serial number can be found on the serial plate which is located inside the cabinet on the left side near the top. (See Figure 1).

AGA MARVEL GREENVILLE, MI 48838 MODEL NO. SERVICE NO. XXXXXXXXXXXX SERIAL NO. XXXXXXXXXXXX HZ VOLTS AMPS R134A OZ TEST PRESSURE 140 PSI LOW SIDE 300 PSI HIGH SIDE

Figure 1

WARNING

WARNING - Help Prevent Tragedies

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they sit out for "just a few hours".

If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take off the doors or remove the drawers.
- Leave the shelves in place so children may not easily climb inside.

Select Location

The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specifications, the recommended installation location temperature range is from 55 to 100°F (13 to 38°C).

Cabinet Clearance

Ventilation is required from the bottom front of the appliance. Keep this area open and clear of any obstructions. Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstructed. Overlay door models with articulated hinges are intended for built-in applications only.

WARNING

An optional stacking kit is required to stack products. Failure to use a stacking kit could result in personal injury. Contact your dealer or Aga Marvel customer service at 800-223-3900 to order.

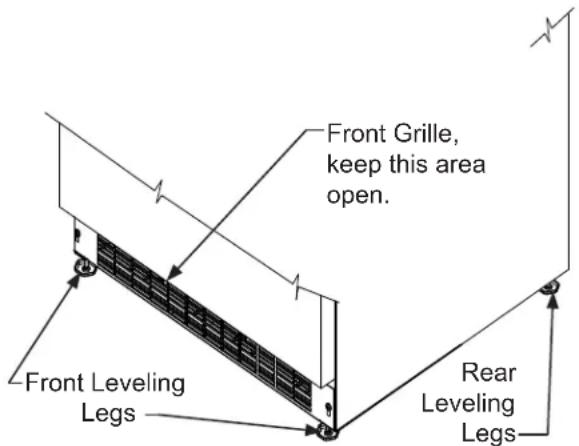

Front Grille, keep this area open. Front Leveling Legs Rear Leveling Legs

Figure 2

Leveling Legs

Adjustable legs at the front and rear corners of the appliance should be set so the unit is firmly positioned on the floor and level from side to side and front to back. The overall height of your Marvel appliance may be adjusted higher (by turning the leveling leg out, CCW) and lower (by turning the leveling leg in, CW) dimensions as shown in Table "A".

To adjust the leveling legs, place the appliance on a solid surface and protect the floor beneath the legs to avoid scratching the floor. With the assistance of another person, lean the appliance back to access the front leveling legs. Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appliance forward using caution. On a level surface check the appliance for levelness and adjust accordingly.

The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 5).

CAUTION

Front Grille

Do not obstruct the front grille. The openings within the front grille allow air to flow through the condenser heat exchanger. Restrictions to this air flow will result in increased energy usage and loss of cooling capacity. For this reason it is important this area not be obstructed and the grille openings kept clean. AGA MARVEL does not recommend the use of a custom made grille as air flow may be restricted. (See Figure 2).

Model Door Style		Minimum Height	Maximum Height
ML(15)(24)* (S) or (G)		33 3/4"(85.7 cm)	34 3/4"(88.3 cm)
ML(15)(24)* (P) or (F)		34"(86.4 cm)	35"(88.9 cm)

Table A

Pure mechanical component diagram without any text, numbers, or symbols

Do not remove ground prong
Figure 3

Prohibition sign with crossed-out electrical components and a diagonal line, indicating no protection or disapproval.

Figure 4

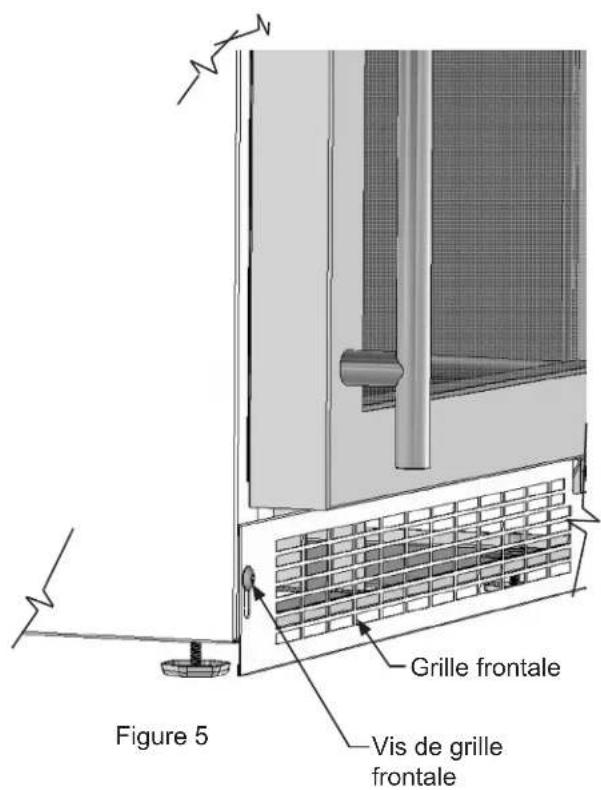

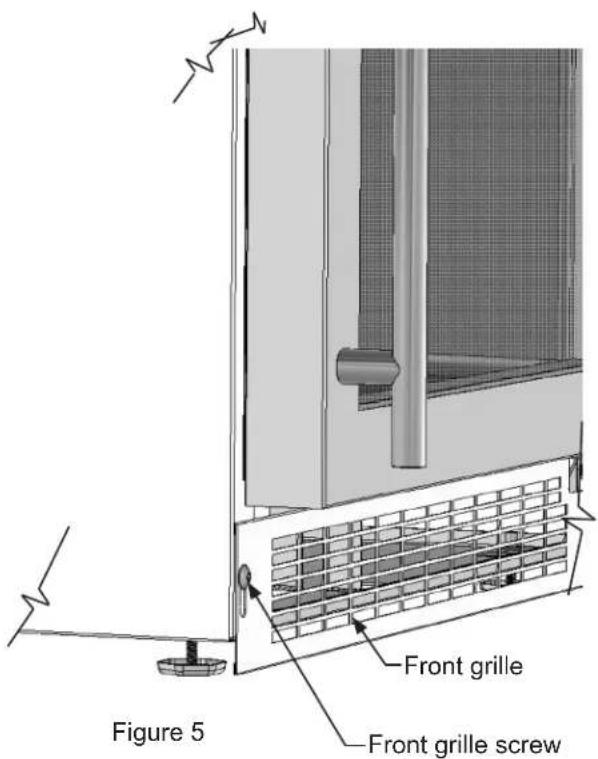

Front grille Front grille screw Figure 5

WARNING

Electrical Shock Hazard

• Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance.
• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power cord. (See Figure 3).
• Do not use an adapter. See Figure 4).
• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.

Electrical Connection

A grounded 115 volt, 15 amp dedicated circuit is required.

This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 6). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any circumstances, be cut or removed.

Electrical outlet diagram showing two socket plugs connected to a power plug (no text or labels)

Figure 6

NOTE

Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down. GFCI's are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances.

INSTALLING THE ANTI TIP DEVICE FOR FREESTANDING INSTALLATIONS

WARNING

• ALL APPLIANCES CAN TIP RESULTING IN INJURY.
• INSTALL THE ANTI-TIP BRACKET PACKED WITH THE APPLIANCE.
• FOLLOW THE INSTRUCTIONS BELOW

Anti-Tip Device

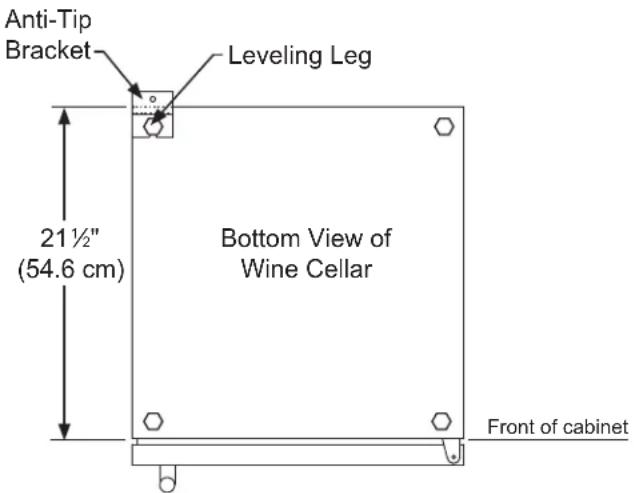

Anti-Tip Bracket Leveling Leg 21½" (54.6 cm) Bottom View of Wine Cellar Front of cabinet

Figure 7

WARNING

If your wine cellar is not located under a counter top (free standing), you must use an anti-tip device installed as per these instructions. If the wine cellar is removed from its location for any reason, make sure that the device is properly engaged with the anti-tip bracket when you push the wine cellar back into the original location. If the device is not properly engaged, there is a risk of the wine cellar tipping over, with the potential for property damage or personal injury.

NOTE

If installing on a concrete floor, concrete fasteners are required, (not included with the anti-tip kit).

CAUTION

Any finished flooring should be protected with appropriate material to avoid damage when moving the unit.

Floor Mount Installation

The anti-tip bracket is to be located on the floor in the left or right rear corner of the wine cellar as shown in Figure 7.

Step by step instructions for locating the position of the bracket:

1) Decide where you want to place the wine cellar. Slide it into place, being careful not to damage the floor, leaving 1" (2.5 cm) of clearance from the rear wall to allow room for the anti-tip bracket.
2) Raise the rear leveling legs approximately 14 " (6 mm) to allow engagement with the anti-tip bracket. Level the unit by adjusting all the leveling legs as required. Turning the leveling leg counterclockwise will raise the unit and clockwise will lower the unit.
3) Make sure the wine cellar is in the desired location, then mark on the floor the rear and side corner of the cabinet where the anti-tip bracket will be installed. If the installation does not allow marking the rear corner of the cabinet, then make temporary lines on the floor marking the front corner of the cabinet, excluding the door. Slide the wine cellar out of the way. From the temporary line extend the sidewall line back 21½" (54.6 cm) as shown in Figure 8.
4) Align the anti-tip bracket to the marks on the floor so the side of the bracket lines up with the side of the cabinet mark, and the "V" notches on the anti-tip bracket line up with the end of the 21½" (54.6 cm) line (Rear of cabinet line).
5) Fasten the anti-tip bracket to the floor using the supplied screw. (See Figure 8).
6) Slide the cabinet back into position, making sure the rear cabinet leveling leg slides under the anti-tip bracket engaging the slot.

INSTALLING THE ANTI TIP DEVICE FOR FREESTANDING INSTALLATIONS

NOTE

When the floor mounted anti-tip bracket is used the minimum adjusted height of the cabinet is increased by 38 " (9 mm).

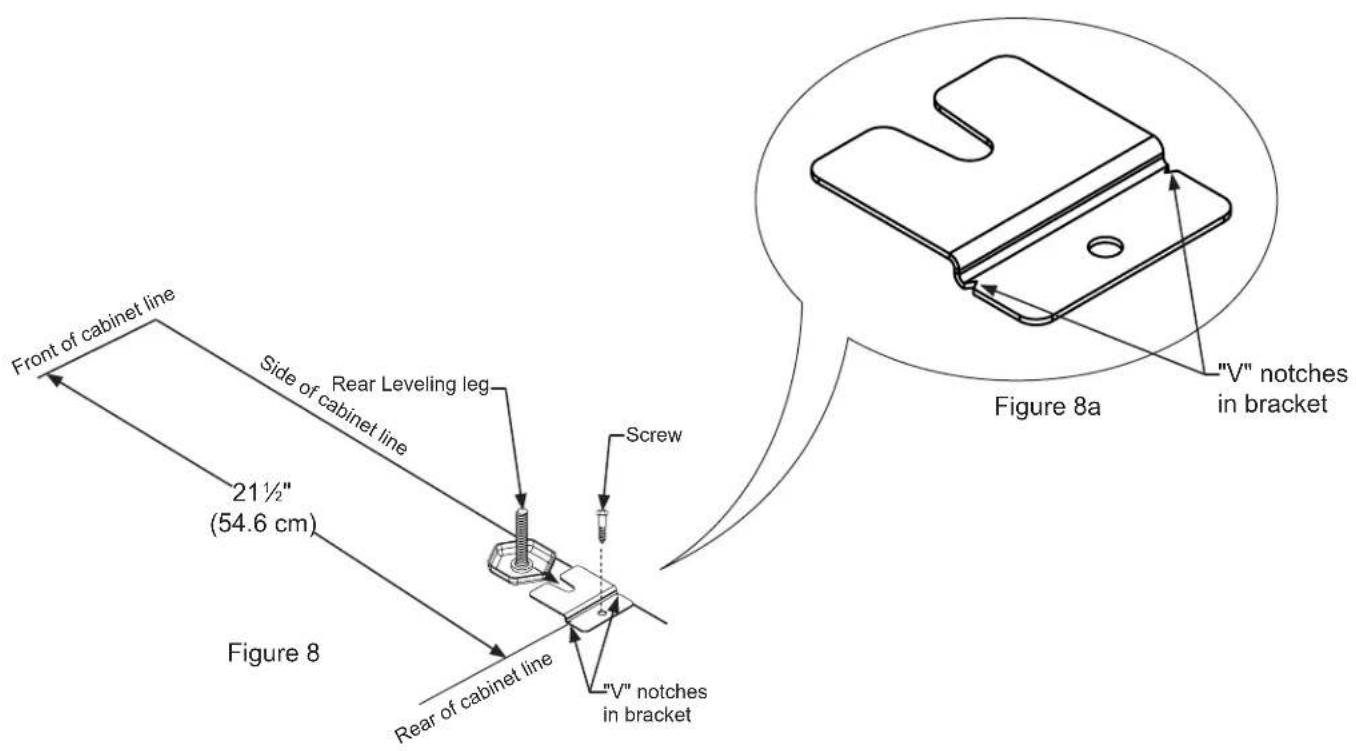

Front of cabinet line Side of cabinet line 21½" (54.6 cm) Figure 8 Rear Leveling leg Screw "V" notches in bracket Figure 8a "V" notches in bracket

	ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL	"A"	"B"	"C"	"D"	"E"	"F"	"G"	"H"	"J"
ML15WSG	15"(38.1 cm)	**34" to 35"(86.4 to 88.9 cm)	24"(61 cm)	14 78 " (37.8 cm)	33 34 " to 34 34 " (85.7 to 88.3 cm)	23 ^23/_32 " (60.2 cm)	25 ^21/_32 " (65.2 cm)	37 ^13/_32 " (95 cm)	16 ^11/_16 " (42.4 cm)
ML15WS(P) or (F)	15"(38.1 cm)	**34 14 " to 35 14 " (87 to 89.5 cm)	*24"(61 cm)	14 78 " (37.8 cm)	34" to 35"(86.4 to 88.9 cm)	22 18 " (58.1 cm)	-	37 12 " (95.2 cm)	14 18 " (35.9 cm)
ML24W*G	24"(61 cm)	**34" to 35"(86.4 to 88.9 cm)	24"(61 cm)	23 78 " (60.7 cm)	33 34 " to 34 34 " (85.7 to 88.3 cm)	23 ^23/_32 " (60.2 cm)	25 ^21/_32 " (65.2 cm)	46 ^13/_32 " (117.9 cm)	25 ^11/_16 " (65.2 cm)
ML24W*(P) or (F)	24"(61 cm)	**34 14 " to 35 14 " (87 to 89.5 cm)	*24"(61 cm)	23 78 " (60.7 cm)	34" to 35"(86.4 to 88.9 cm)	22 78 " (58.1 cm)	-	46 ^1/2 " (118.1 cm)	23 18 " (58.7 cm)

DOOR STYLE

(G) Glass Frame Door

(P) Solid Overlay Door (no handle)

(F) Frame Glass Overlay Door (no handle)

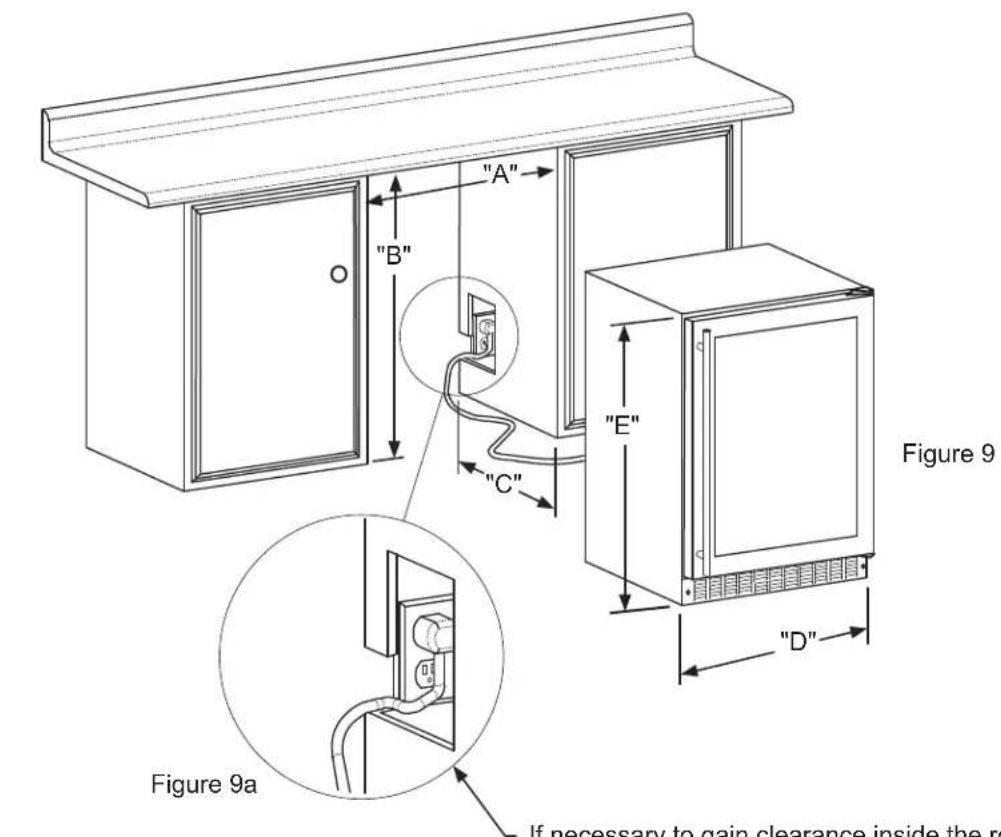

"A" "B" "C" Figure 9 "E" "D" Figure 9a If necessary to gain clearance inside the room

Figure 10

If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug. Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box equivalent to Arlington #DVFR1W is recommended for this application, (see Figure 10).

	PRODUCT DATA
MODEL	ELECTRICAL REQUIREMENTS #	PRODUCT WEIGHT
ML15WSG 115V	60Hz/15A	105 lbs(47.7 kg)
ML15WS(P) or (F) 1	15V/60Hz/15A	105 lbs(47.7 kg)
ML24W*G 115V	60Hz/15A	140 lbs(63.6 kg)
ML24W*(P) or (F) 1	15V/60Hz/15A	140 lbs(63.6 kg)

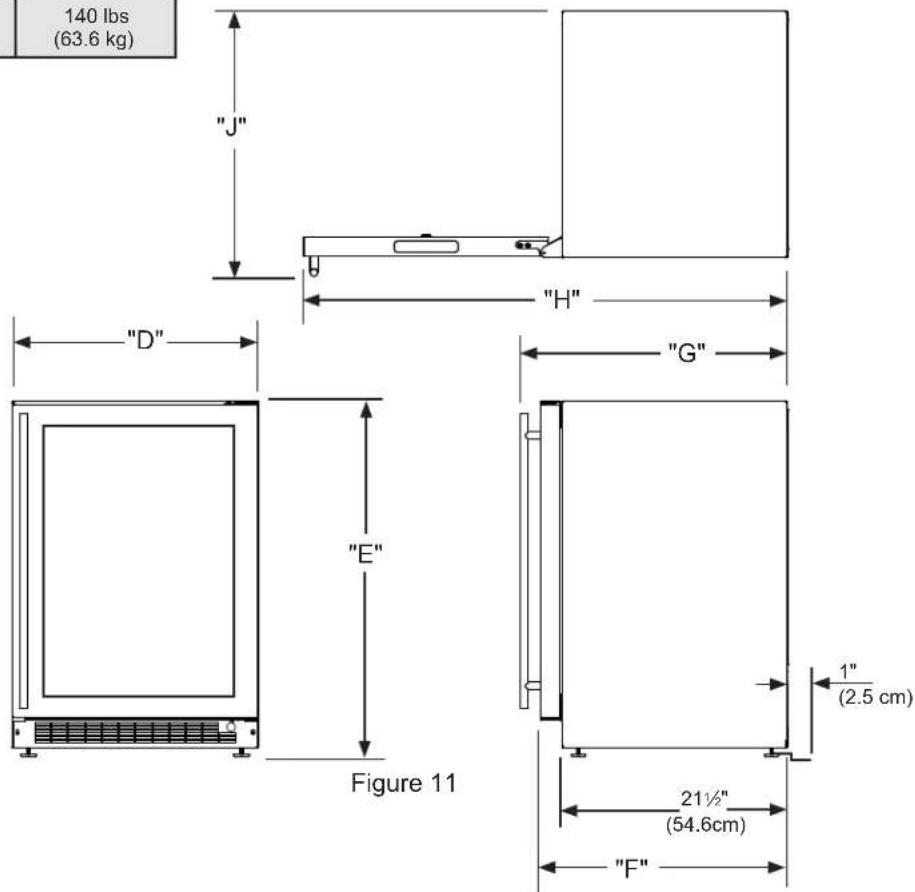

140 lbs (63.6 kg) "J" "D" "E" Figure 11 "H" "G" 1" (2.5 cm) 21½" (54.6cm) "F"

* To install (F) (P) models with the door face flush with adjacent cabinetry doors, custom decorative panel thickness cannot exceed 34 " (19 mm).

** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet.

# A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appliance.

APPLIES TO THE FOLLOWING MARVEL MODELS
ML15WS ML24WS
	ML24WD

WARNING

Floor mount Anti-tip Bracket must be installed for freestanding applications. Not required for built in applications.

USING YOUR ELECTRONIC CONTROL

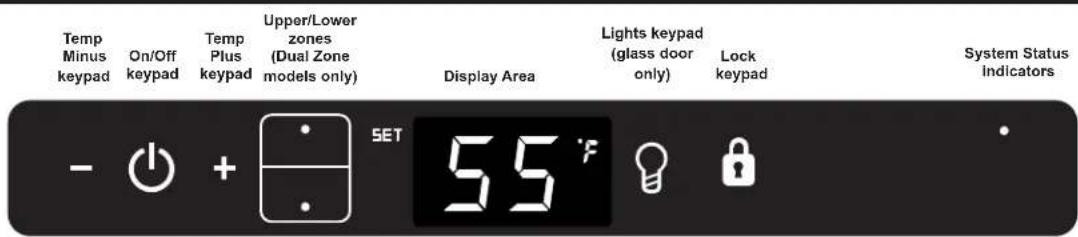

Temp Minus keypad On/Off keypad Temp Plus keypad Upper/Lower zones (Dual Zone models only) Display Area Lights keypad (glass door only) Lock keypad System Status Indicators - + SET 55°F

Figure 12 Electronic control

Starting your appliance (Single and Dual Zone:

Plug the appliance power cord into a 115 volt wall outlet. Your appliance is shipped from the factory in the "On" position and will begin start-up of cooling as soon as power is supplied. If the appliance does not start, confirm that the wall outlet has power, and that the control is in the "On" position, (See "Turning your appliance On and Off" below).

The control display is covered with a clear plastic film. This film may be removed by carefully lifting the film at a corner.

On initial power up, the control display will indicate a "Power Failure" alarm. This is a normal condition as the appliance was powered-up at the factory for quality inspection and then removed from power. A momentary press of the "On/Off" keypad will reset this alarm condition. (See Alarms section on page 12).

Sleep mode (Single and Dual Zone):

If no keypads are pressed for 60 seconds, the display will enter sleep mode to conserve power. The control panel will go dark with the exception of the system status "OK" indicator which will remain enabled. Alarm conditions will wake the display, (see alarms on page 12).

To make the following changes to the control settings (turning the appliance ON/OFF, adjusting the temperature, changing the interior lights, and activating vacation mode), the control must be awake.

To wake the display press any keypad. A confirm tone will sound, and the current storage compartment temperature will be displayed.

The sleep mode can be disabled if you prefer to have the display on continuously. Press and hold the "Lock" keypad until the display goes past "Loc" and reads "nSL". To enable the sleep mode, repeat the instruction, again going past "Loc" until the display reads "SLP".

Turning your appliance ON and OFF (Single and Dual Zone):

If the appliance is "On", (and out of sleep mode) the temperature will be shown in the display area of the control. To turn the appliance "Off", press and hold the "On/Off" keypad for 4-seconds. "OFF" will now be displayed on the control.

To turn the appliance "On", press and hold the "On/Off" keypad for 4-seconds.

Adjusting the temperature:

NOTE

When initially loading your product with warm contents, it may take up to 48-hours for the storage compartment temperature to stabilize.

When making temperature set-point changes, it may take up to 24-hours for the stored contents to stabilize at your new set-point temperature.

Factors that affect the storage compartment stabilized temperature:

• Changes to temperature setting.
• Room temperature changes.
• Temperature of stored contents.

• Loading warm contents.
• Cold content load will delay the change to a warmer set-point temperature.
• Warm content load will delay the change to a colder set-point temperature.

• Usage, (number and duration of the door openings).

- Use of the storage compartment display lighting, (glass door product only).

- Installation of the appliance in direct sunlight or next to a heat source.

Single Zone Models:

To set or check the set-point temperature (with the control out of sleep mode), press the "-" or "+" keypads. "SET" will be indicated on the user interface panel and the current set-point temperature will display and flash. Subsequent presses of the "-" or "+" keypads will adjust the temperature colder or warmer respectively. When you have reached your desired set-point temperature, press the "On/Off" keypad to accept, or do nothing and the "Set" mode will time-out in 10-seconds accepting the displayed temperature as the new set-point.

The available set-point temperature range for your appliance is 40^ F ( 4.5^ C) to 65^ F ( 18.4^ C). If you attempt to adjust the temperature outside of this range you will receive an audible notification.

Lower zone selected

Upper zone selected

Dual Zone Models:

Temperatures can be set for each individual zone (upper and lower) in the dual zone wine cellar. To do so you must first select the zone you want to set the temperature for. You do so by pressing the upper or lower button on the display. When pressed the LED light will be illuminated for the respective display.

To change the set temperature for a particular zone, with the zone selected and out of sleep mode, press the "-" or "+" keypads. "SET" will be indicated on the user interface panel and the current set-point temperature will display and flash. Subsequent presses of the "-" or "+" keypads will adjust the temperature colder or warmer respectively. When you have reached your desired set-point temperature, press the "On/Off" keypad to accept, or do nothing and the "Set" mode will time-out in 10-seconds accepting the displayed temperature as the new set-point.

The available set-point temperature range for your appliance is 45^ F ( 7.3^ C) to 55^ F ( 12.9^ C) for the lower zone and 55^ F ( 12.9^ C) to 62^ F ( 16.8^ C) for the upper zone. If you attempt to adjust the temperature outside of these ranges you will receive an audible notification.

Interior display lighting (Single and Dual Zone): (Glass door models only)

Your appliance is equipped with a dual light level display lighting feature. With the control out of sleep mode press the "Light" keypad once to activate the interior lighting display feature at full illumination. A confirmation tone will sound, and the light bulb "Icon" will illuminate. Pressing the "Light" keypad a 2nd time will dim the lighting to 50%. A 3rd press will deactivate the display lighting feature. The display lighting will automatically deactivate after 4-hours.

Temperature mode (Single and Dual Zone):

The temperature mode is preset from the factory in Fahrenheit (°F) but you have the option to change it to Centigrade (°C). To change the mode, press and hold the "-" keypad, while pressing the "+" keypad, then release the "-" keypad. The temperature will now be displayed in Centigrade (°C). Repeat the procedure to change the temperature mode back to Fahrenheit (°F).

Control lock:

The control panel can be locked to avoid unintentional changes. To lock the control, press and hold the "Lock" keypad until the display reads "Loc" then immediately release your finger from the keypad. The lock icon will flash 3-times and then continuously illuminate. When the control panel is locked, only the Lock keypad, System Status OK indicator, and the Alarm indicator are active. To un-lock the control panel, repeat this instruction until the display reads "nLc", then immediately release your finger from the keypad.

NOTE

If the control lock is active (illuminated lock icon) the control will have to be unlocked before using the keypad to reset an alarm condition. See page 12 (Control Lock) for instructions for unlocking the control.

Temperature Sensor Error Codes

The temperature sensors are monitored continuously. Any OPEN or SHORTED circuit condition will initiate an ERROR CODE as listed below:

Single Zone Models:

Alarms (Single and Dual Zone):

The control will alert you to conditions that could adversely affect the performance of the appliance.

- Door ajar - If the door is open, or not closed properly, for more than 5-minutes the System Status OK indicator will turn-off, the "Door Ajar" indicator will flash, and a tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad.

NOTE

The audible alarm can be muted, for each occurrence, by pressing the lock keypad.

This alarm condition can be reset by closing the door or momentarily pressing the "On/Off" keypad, (i.e.-if you are cleaning the storage compartment, etc.). The alarm will recur in 5-minutes if the alarm condition persists.

Temperature Sensor Error Codes
Sensor Displayed Code Error Description Action to Take
Single Zone Temperature Sensor		Failed temperature sensor in the single zone compartment. Can lead to unwanted wine storage temperatures.	Call service to have the temperature sensor replaced.
Defrost Sensor		Failed defrost temperature sensor. Causes unit to not defrost properly and can create large frost build-up. Can lead to water damage to the unit and surrounding floor.	Unplug the power cord immediately and call service to have the defrost sensor replaced.

Dual Zone Models:

Temperature Sensor Error Codes
Sensor Displayed Code Error Description Action to Take
Upper Zone Temperature Sensor		Failed temperature sensor in the upper zone compartment. Can lead to unwanted wine storage temperatures.	Call service to have the temperature sensor replaced.
Lower Zone Temperature Sensor		Failed temperature sensor in the lower zone compartment. Can lead to unwanted wine storage temperatures.	Call service to have the temperature sensor replaced.
Defrost Sensor		Failed defrost temperature sensor. Causes unit to not defrost properly and can create large frost build-up. Can lead to water damage to the unit and surrounding floor.	Unplug the power cord immediately and call service to have the defrost sensor replaced.

- Power failure - If power to the appliance is interrupted the System Status indicator will turn-off and the "Power Failure" indicator will flash. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad. No audible tone will sound. This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs, it is recommended that you check the condition of any perishables, even if the appliance is operating normally and the temperature has recovered, as prolonged power outages could result in excessive temperature excursions which may spoil perishables.

- Temperature alarm - If the storage compartment temperature deviates excessively from your set-point temperature for an extended period of time, the "TEMP" indicator will flash, and an audible tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "ON/OFF" keypad.

NOTE

After a high temperature alarm condition, check all perishables to ensure they are safe for consumption.

NOTE

The temperature alarm may occur as a result of high usage or introduction of warm contents to the storage compartment. If the temperature alarm continues to occur, your unit may require service.

NOTE

The audible alarm can be muted, for each occurrence, by pressing the lock keypad.

This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs it is recommended that you check the condition of your stored contents, even though the appliance is operating normally and the temperature has recovered, as prolonged temperature excursions could spoil perishables.

NOTE

Door Ajar

Temp

Multiple alarms are possible, i.e.- "Door Ajar" for a prolonged period may trigger a "Temp" alarm, in which case both "Door Ajar" and "Temp" indicators will activate.

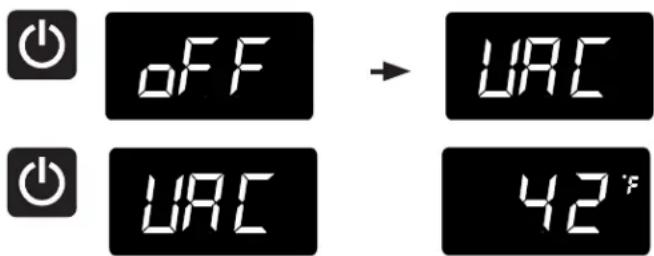

Vacation mode (Single and Dual Zone):

This operating mode can be used to save energy during high cost energy periods, or when you won't be using your appliance for an extended period of time by disabling the lights, alarm tones, and keypad entry tones. Vacation mode also serves as a Sabbath mode, disabling functions and its controls in accordance with the weekly Sabbath and religious holidays observed within the Orthodox Jewish community. When used as Sabbath mode, you may open or close the door at any time to access contents without concern of directly turning on or off any lights, digital readouts, solenoids, fans, valves, compressor, icons, tones, or alarms.

When activated, the display, alarm indicators and tones, keypad touch tones, interior lights, and all options are disabled. All keypad functions are disabled, with the exception of the "On/Off" keypad which is required to exit Vacation-mode. Storage compartment temperatures are monitored and controlled at the settings prior to entering Vacation mode.

OFF URC URC 42°F

To enter Vacation Mode (with the control out of sleep mode), press and hold the "On/Off" keypad until the display goes past "OFF" and reads "VAC". The display will flash "VAC" 3-times to acknowledge your request, then will display "VAC" continuously until Vacation mode is exited. A power outage will not exit Vacation mode, exiting can only be accomplished manually. To exit Vacation mode and return to normal operation, press and hold the "On/Off" keypad until the control displays the temperature.

If you purchased an overlay panel model, your unit is equipped with articulated hinges to allow fully integrated built-in installations. Custom panel thicknesses of 58" (15 mm) and 34" (18 mm) are accommodated.

CAUTION

It is important to use the factory provided grille that came with the product to assure proper air flow is maintained through the condenser. The use of a custom grille is not recommended and will void the warranty.

WARNING

Overlay panel models are designed for use with built-in installations only. Use in freestanding installations could result in personal injury.

Step 1: Removing the Door

With a phillips screwdriver remove the screw and "P" clamp from the bottom of the door near the hinge. See Figure 13b.

Disconnect the door wire harness by pressing and holding down the locking tab on the wire connector and pulling the connector apart. See Figure 14.

Open the door and loosen the screws holding the hinges to the cabinet (2 at the top and 2 at the bottom hinge). Do not remove the screws but loosen them enough so the hinges can be slipped off of the screws when sliding the door to the side.

WARNING

The articulated hinges have many pinch points. Carefully close / collapse the hinges as soon as the door is removed from the cabinet.

With a helper, and being careful not to scratch the cabinet or the door, slide the door to the side about 12 inch and remove the hinges and door from the unit.

WARNING

Use extreme caution with the articulated hinges. The hinge is self closing and many pinch points exist prior to built-in installation. Do not remove the cabinet "Z" bracket from the top of the cabinet.

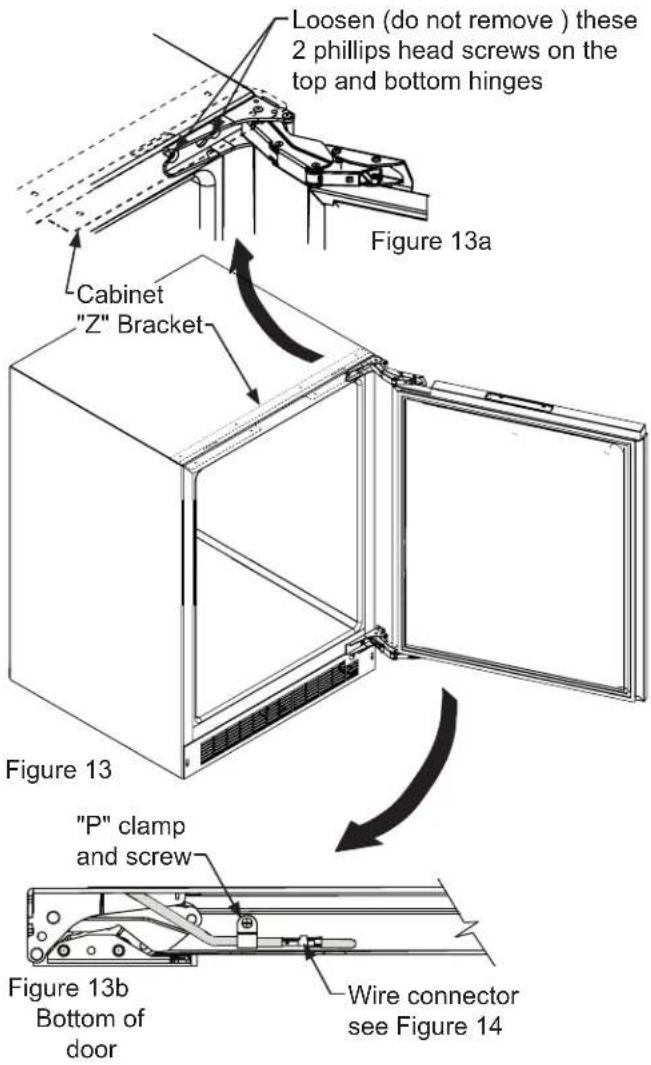

Loosen (do not remove ) these 2 phillips head screws on the top and bottom hinges Figure 13a Cabinet "Z" Bracket Figure 13 "P" clamp and screw Figure 13b Bottom of door Wire connector see Figure 14

Step 2: Remove the door gasket

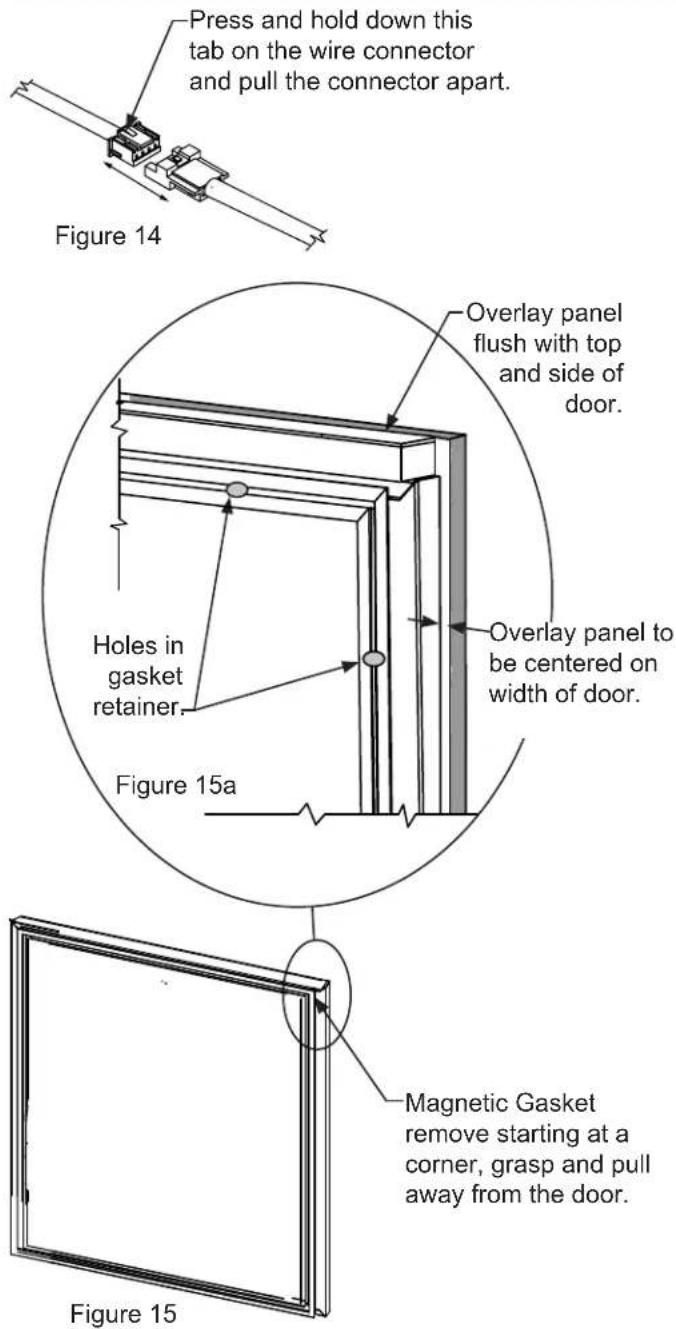

With the door laying on a flat surface and starting at a corner of the door remove the magnetic door gasket from the interior side of the door, see Figure 15. Set the gasket aside on a flat surface.

There are 10 holes in the gasket retainer extrusions, (3 on each side and 2 at the top and bottom which are used to fasten the panel to the front of the door. The screws are provided in the literature pack.

Press and hold down this tab on the wire connector and pull the connector apart. Figure 14 Overlay panel flush with top and side of door. Holes in gasket retainer. Figure 15a Overlay panel to be centered on width of door. Magnetic Gasket remove starting at a corner, grasp and pull away from the door. Figure 15

CAUTION

Weight of overlay door panel must not exceed 15 pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model.

Step 3: Cut and drill the overlay panel

Depending on your model cut the overlay door panel to the dimensions shown in Figure 16 to Figure 23. The window cut out is for glass door models only.

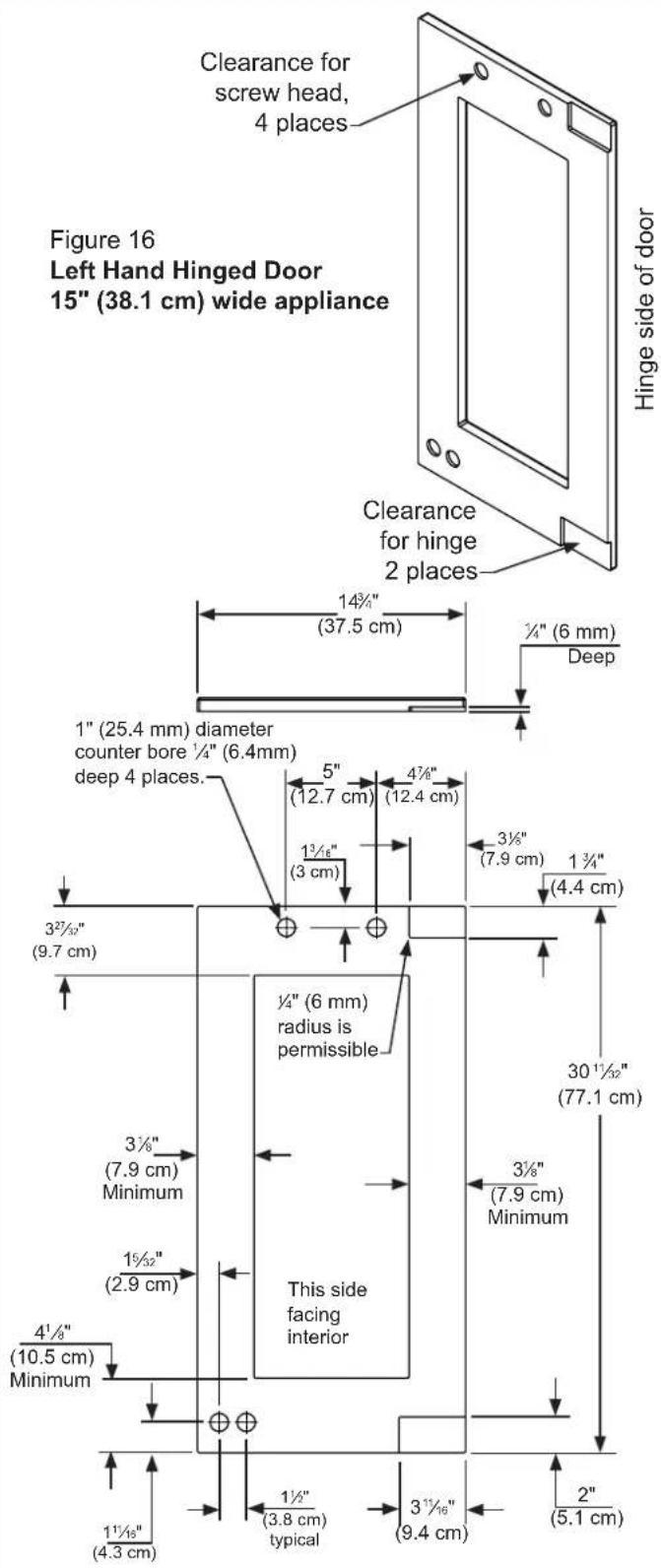

Clearance for screw head, 4 places Figure 16 Left Hand Hinged Door 15" (38.1 cm) wide appliance Clearance for hinge 2 places Hinge side of door 14¾" (37.5 cm) ¼" (6 mm) Deep 1" (25.4 mm) diameter counter bore ¼" (6.4mm) deep 4 places. 5" (12.7 cm) 4¾" (12.4 cm) 1¾" (3 cm) 3½" (7.9 cm) 1¾" (4.4 cm) 3²⁷/³²" (9.7 cm) ¼" (6 mm) radius is permissible 3¾" (7.9 cm) Minimum This side facing interior 3¾" (7.9 cm) Minimum 4¹/³" (10.5 cm) Minimum 1½" (3.8 cm) typical 3¹/¹⁶" (9.4 cm) 2" (5.1 cm)

Figure 17
Left Hand Hinged Door
15" (38.1 cm) Wide Appliance

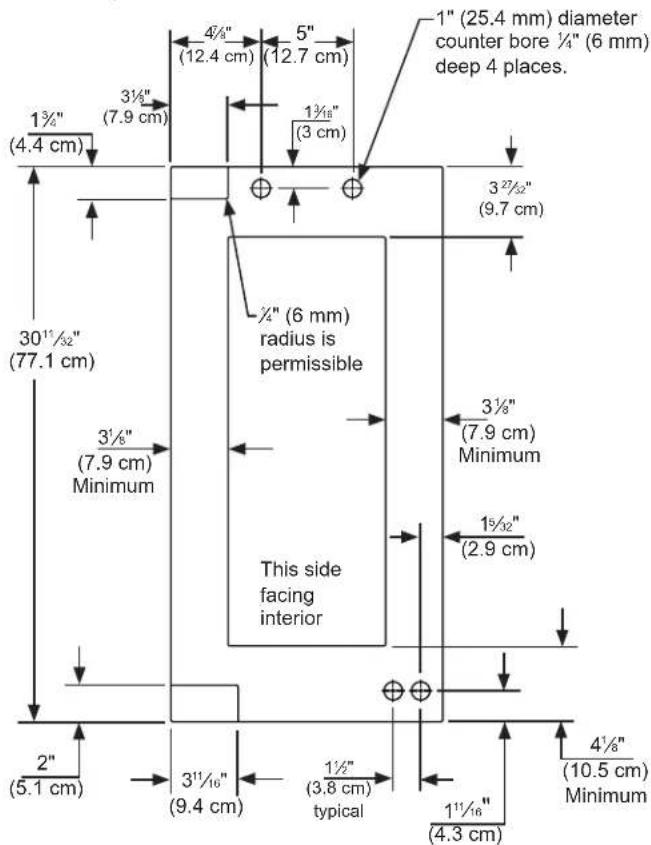

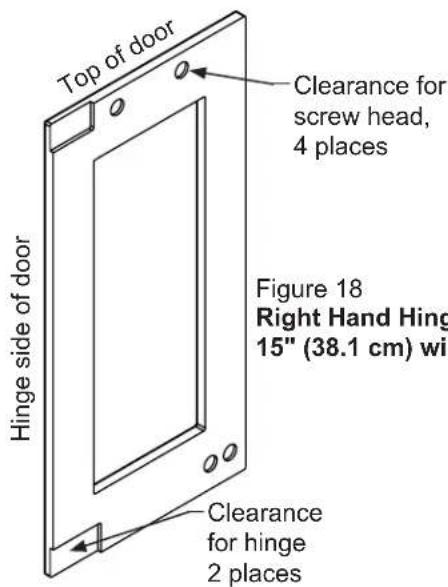

Top of door Clearance for screw head, 4 places Figure 18 Right Hand Hinge 15" (38.1 cm) wide Hinge side of door Clearance for hinge 2 places

CAUTION

Weight of overlay door panel must not exceed 15 pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model.

Clearance for screw head, 4 places

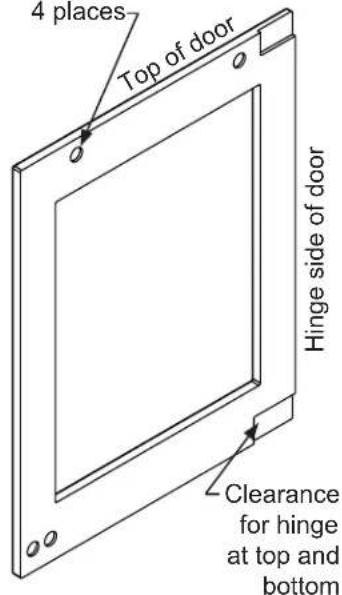

4 places Top of door Hinge side of door Clearance for hinge at top and bottom

Figure 18 Right Hand Hinged Door 15" (38.1 cm) wide appliance

1/4" (6 mm) Deep 14³/⁴" (37.5 cm)

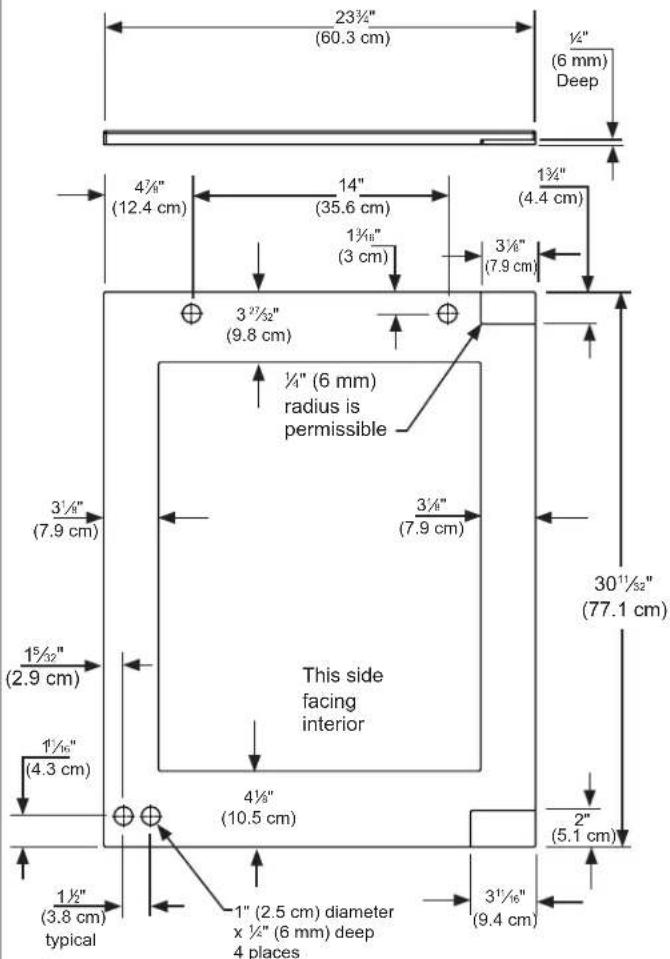

Figure 20 Left Hand Hinged Door 24" (61 cm) wide appliance

1½" (4.4 cm) 3½" (7.9 cm) 4½" (12.4 cm) 5" (12.7 cm) 1½" (3 cm) 1" (25.4 mm) diameter counter bore ¼" (6 mm) deep 4 places. 3½" (9.7 cm) 30½" (77.1 cm) 3½" (7.9 cm) Minimum ½" (6 mm) radius is permissible This side facing interior 3½" (7.9 cm) Minimum 1½" (2.9 cm) 1½" (4.3 cm) 2" (5.1 cm) 3½" (9.4 cm) 4½" (10.5 cm) Minimum

Figure 19 Right Hand Hinged Door 15" (38.1 cm) wide appliance

23½" (60.3 cm) ½" (6 mm) Deep 4½" (12.4 cm) 14" (35.6 cm) 1¾" (4.4 cm) 1½" (3 cm) 3½" (7.9 cm) 3½" (6 mm) radius is permissible 3½" (7.9 cm) 3½" (77.1 cm) 3½" (7.9 cm) This side facing interior 4½" (10.5 cm) 2" (5.1 cm) 1½" (3.8 cm) typical 1" (2.5 cm) diameter x ½" (6 mm) deep 4 places 1½" (4.3 cm) 1½" (2.9 cm) 1½" (4.3 cm)

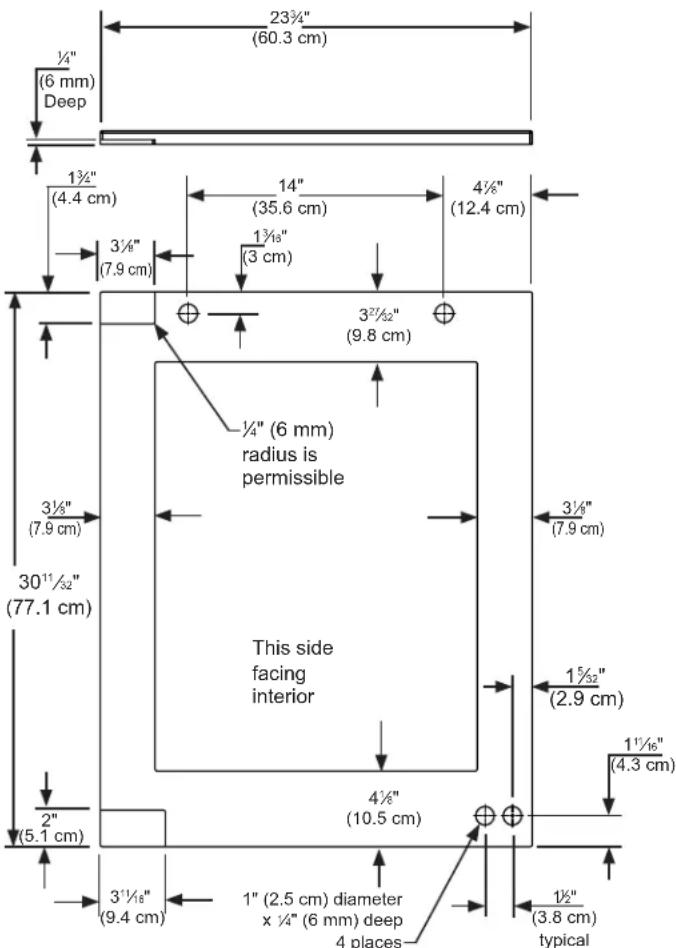

Figure 21 Left Hand Hinged Door 24" (61 cm) wide appliance

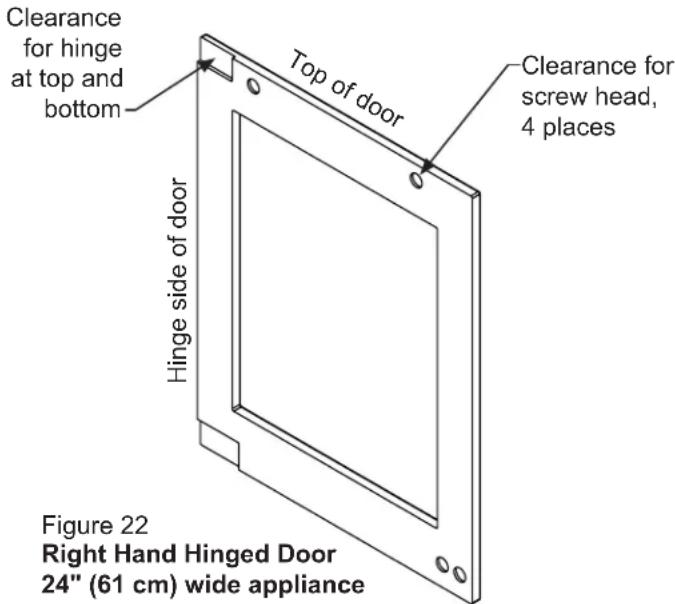

Clearance for hinge at top and bottom Top of door Clearance for screw head, 4 places Hinge side of door Figure 22 Right Hand Hinged Door 24" (61 cm) wide appliance

23¾"(60.3 cm) ½"(6 mm) Deep 1½"(4.4 cm) 3½"(7.9 cm) 14"(35.6 cm) 1¾"(3 cm) 4½"(12.4 cm) 3½" (6 mm) radius is permissible 3½" (7.9 cm) 30¹¹/³²"(77.1 cm) This side facing interior 2" (5.1 cm) 4½"(10.5 cm) 1½" (2.5 cm) diameter x ¼" (6 mm) deep 4 places 1½" (3.8 cm) typical

Figure 23
Right Hand Hinged Door
24" (61 cm) wide appliance

CAUTION

Weight of overlay door panel must not exceed 15 pounds (6.8 kg) for a solid door model or 10 pounds (4.5 kg) for a glass door model.

Material Type #10 Wood Screw
Hardwood	18 " (3.2 mm) Diameter. Pilot Hole
Softwood	764 (2.8 mm) Diameter. Pilot Hole

Table B

Step 4: Assemble the panel to the door

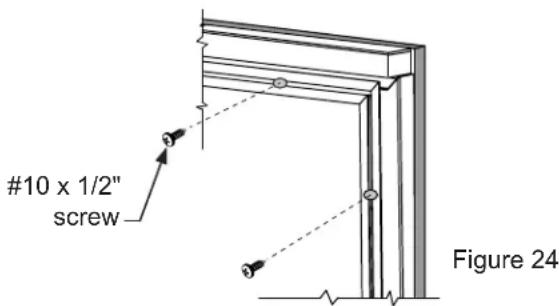

The preferred method of attaching the panel to the door is to clamp the panel to the door so it cannot move while drilling the screw pilot holes. Use bar clamps or "C" clamps with pads on the clamping surfaces that will not mar the panel or the door. The custom overlay panel should be flush with the top of the door and centered along the width of the door. See Figure 15a. Drill holes through the gasket extrusion using the 10 holes as pilot holes. Use the drill size from the chart in Table "B", being careful not to drill through the front surface of the panel. If the overlay panel is thinner than 58 " (16 mm) thick shorter screws will have to be obtained. Fasten the panel to the door with the 10 screws provided in the literature pack. (See Figure 24). Remove the clamps and replace the gasket in the gasket extrusion channels of the door. Some force may be required to seat the gasket into the channels. Be sure the gasket corners are seated properly.

#10 x 1/2" screw Figure 24

OVERLAY DOOR PANEL INSTALLATION AND SHELVING CONFIGURATIONS

Step 5: Install the door

Carefully open the top and bottom hinges on the door being careful as there are many pinch points. Place the hinges over the 4 screws in the cabinet, 2 at the top and 2 at the bottom and slide the door into position. Tighten the 4 hinge screws with a phillips screwdriver. (See Figure 13 and Figure 13a). Place wire harness from the grille and mount to the bottom of the door with the screw and "P" clamp removed in step 1. (See Figure 13b). Reconnect the wire harness, (See Figure 14).

Step 6: Secure the cabinet

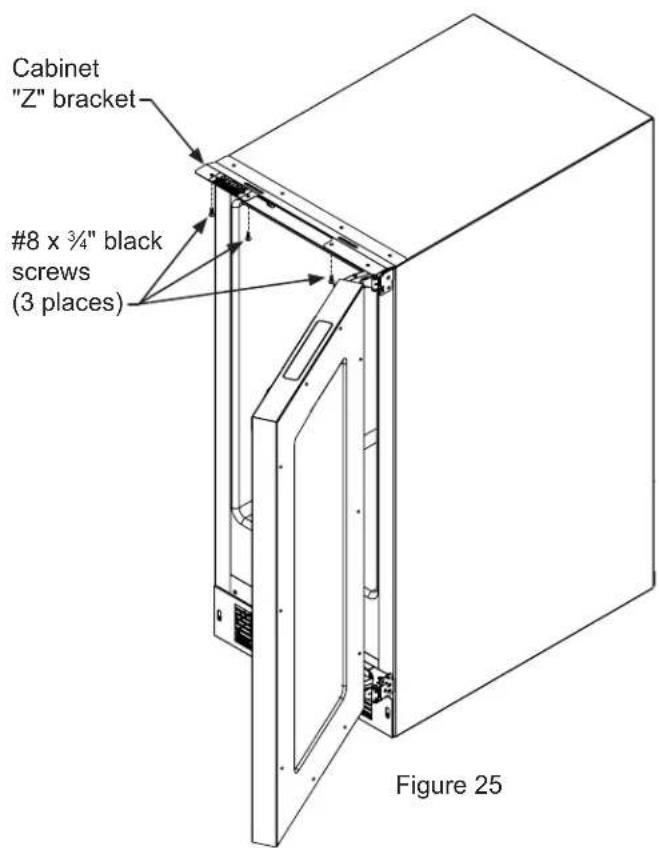

Use the #8 x 3/4" black screws from the literature pack to secure the counter top to the cabinet top through the holes in the cabinet "Z" bracket.

Cabinet "Z" bracket #8 x 3/4" black screws (3 places) Figure 25

Loading Tips and Suggestions

Your appliance is equipped with a rollout shelf system which provides maximum access and visibility for the product stored on the shelving arrangements listed below.

Line drawing of a refrigerator with multiple side compartments and an open door, labeled as Figure 26 (no text or symbols on the diagram itself)

Single Zone Wine Cellar:

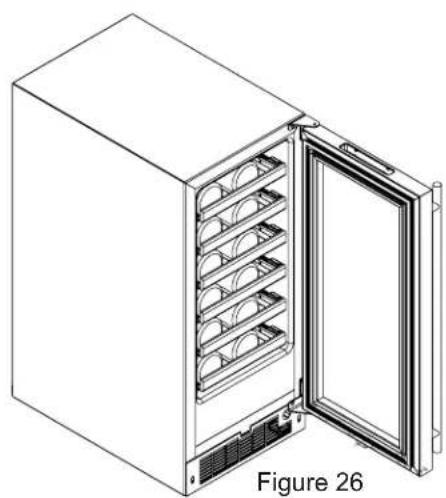

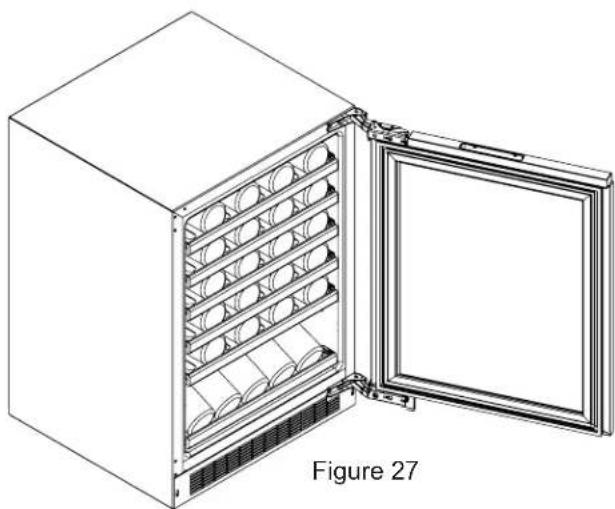

15" (38.1 cm) Wide models:

(6) 4 bottle wire rack

Line drawing of a 3D cabinet with multiple shelves and an open door, labeled Figure 27 (no text or symbols on the cabinet itself)

Single Zone Wine Cellar:

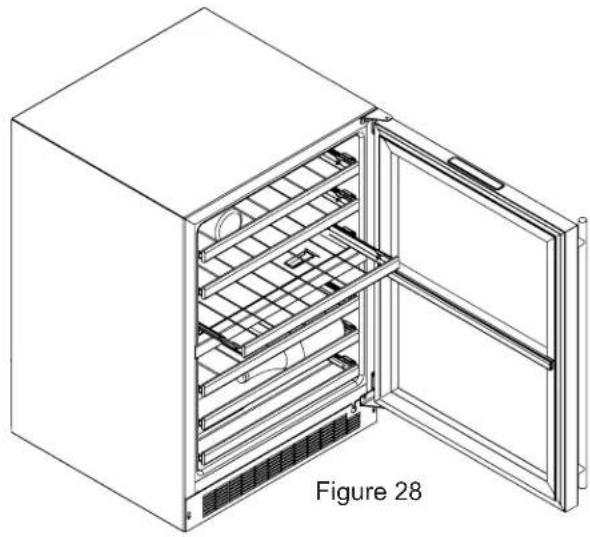

24" (61 cm) Wide models:

(5) 8 bottle wire rack

(1) 5 bottle rollout display rack with vibration dampening mat

Line drawing of a refrigerator with open door and side panel (no text or symbols)

Dual Zone Wine Cellar:

24" (61 cm) Wide models:

Upper Zone: (3) 8 bottle wire rack

Lower Zone: (1) 8 bottle wire rack

(2) 4 bottle half depth wire rack

CAUTION

Never try to move a loaded shelf, remove everything from the shelf before removing. Use both hands when removing the shelf.

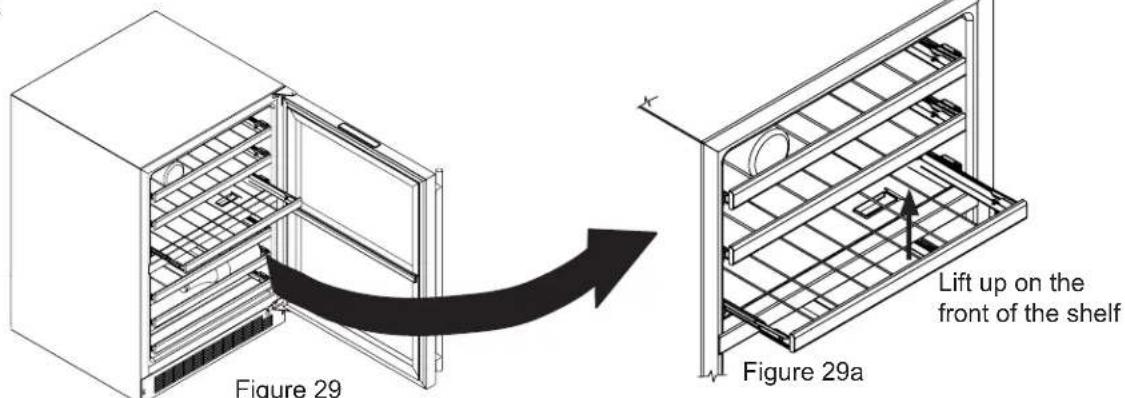

Figure 29 Figure 29a Lift up on the front of the shelf

To remove a shelf:

Extend the shelf out of the cabinet until it stops.

Unload the shelf.

Lift up on the front of the shelf and pull forward to disengage the slide stops. Remove the shelf from the cabinet. (See Figure 29a).

Front Grille

Be sure that nothing obstructs the required air flow openings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4).

CAUTION

SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water.

Cabinet

The painted cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. NEVER use abrasive scouring cleaners.

Interior

Wash interior compartment with mild soap and water. Do NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent.

Care of Appliance

1. Avoid leaning on the door, you may bend the door hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mopping near the front of the appliance. Damage to the grille can occur.
3. Periodically clean the interior of the appliance as needed.
4. Periodically check and/or clean the front grille as needed.

In the Event of a Power Failure

If a power failure occurs, try to correct it as soon as possible. Minimize the number of door openings while the power is off so as not to adversely affect the appliance's temperature.

Light assembly replacement

All models use LED lamps to illuminate the interior of the appliance. This component is very reliable, but should one fail, contact a qualified service technician for replacement of the LED.

The following suggestions will minimize the cost of operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance (cooker, dishwasher, etc.), heating air duct, or other heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance beneath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not shared with other appliances).
5. When initially loading your new product, or whenever large quantities of warm contents are placed within refrigerated storage compartment, minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature.
6. Maintaining a relatively full storage compartment will require less appliance run time than an empty compartment.
7. Ensure door closing is not obstructed by contents stored in your appliance.
8. Allow hot items to reach room temperature before placing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature that meets your personal preference and provides the proper storage for your stored contents.
11. When on vacation or away from home for extended periods, set the appliance to warmest acceptable temperature for the stored contents.
12. Set the control to the "off" position if cleaning the appliance requires the door to be open for an extended period of time.
13. For wine storage products:
    When serving temperatures are not required, return the compartment(s) set temperature to the ideal red and white wine long term storage temperature of 13^ C / 55^ F.

If Service is Required:

• If the product is within the first year warranty period please contact your dealer or call AGA MARVEL Customer Service at 800.223.3900 for directions on how to obtain warranty coverage in your area.
• If the product is outside the first year warranty period, AGA MARVEL Customer Service can provide recommendations of service centers in your area. A listing of authorized service centers is also available at www.agamarvel.com under the service and support section.
• In all correspondence regarding service, be sure to give the service number, serial number, and proof of purchase.
• Try to have information or description of nature of the problem, how long the appliance has been running, the room temperature, and any additional information that may be helpful in quickly solving the problem.
• Table "C" is provided for recording pertinent information regarding your product for future reference.

For Your Records
Date of Purchase
Dealer's name
Dealer's Address
Dealer's City
Dealer's State
Dealer's Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must be within 10 days of purchase).

Table C

Before You Call for Service

If the appliance appears to be malfunctioning, read through this manual first. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. However, it may be required to contact your dealer or a qualified service technician.

WARNING

Electrocution Hazard

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.

CAUTION

In the unlikely event you lose cooling in your unit, do not unplug the product from the electric supply, but do call a qualified service technician immediately. It is possible that the loss of cooling capacity is a result of excessive frost build-up on the evaporator cooling coil. In this case, removing power to the unit will result in the melting of this excessive quantity of ice, which could generate melt water that exceeds the capacity of the defrost drain system and could result in water damage to your home. The end-user will be ultimately responsible for any water damage caused by prematurely turning the unit off without appropriately managing the excess water run-off.

Problem Possible Cause	Remedy
Appliance not cold enough(See “Adjusting the temperature” on page 10)	Control set too warmContent temperature not stabilized.	Adjust temperature colder. Allow 24 hours for temperature to stabilize.
	Excessive usage or prolonged door openings.	Allow temperature to stabilize for at least 24 hours.
	Airflow to front grille blocked.	Airflow must not be obstructed to front grille. See “clearances” on page 4.
	Door gasket not sealing properly.	Replace door gasket.
Appliance too cold(See “Adjusting the Temperature” on page 10)	Control set too cold	Adjust temperature warmer.Allow 24 hours for temperature to stabilize.
	Door gasket not sealing properly.	Replace door gasket.
No interior light. • Failed LED light asse	mbly or light switch.	Contact a qualified service technician.
Light will not go out when door is closed	Display light is turned on. (Glass door models only.	Turn off display light, shut door.
	Door not activating light switch.	Appliance not level, level appliance, (See page 4, “leveling legs”)
	Failed light switch	Contact a qualified service technician.
Noise or Vibration • Appliance not level		Level appliance, see “Leveling Legs” on page 4.
	Fan hitting tube obstruction.	Contact a qualified service technician.
Appliance will not run. • Appliance turned off		Turn appliance on. See “Starting your appliance” on page 10.
		Plug in power cord.
		Check house circuit.

Entire Product

Limited One Year Parts and Labor Warranty

AGA MARVEL warrants that it will supply all necessary parts and labor to repair or replace in the end user's home or office, any component which proves to be defective in material or workmanship, subject to the condition and exclusions stated below, for a period of one year from the date of purchase by the end user.

Additional Second Through Fifth Year Limited Parts Only Warranty

During the four years following expiration of the one year limited warranty, AGA MARVEL will supply replacement parts for the hermetically sealed refrigeration system which consists of the compressor, condenser, drier, accumulator, bypass valve, connecting tubing and the evaporator that are proven to be defective due to workmanship or materials subject to the conditions and exclusions below.

The above warranties do not cover:

• Shipping costs of replacement parts or returned defective parts.
• Customer education or instructions on how to use the appliance.
• Any content loss due to product failure.
• Removal or installation of product.

Nor do the above warranties cover failure of this product or its components due to:

• Transportation or subsequent damages.
• Commercial use or use other than normal household or small office.
• Improper installation, misuse, abuse, accident or alteration, use of wiring not conforming to electrical codes, low or high voltages, failure to provide necessary maintenance, or other unreasonable use.

Parts or Service

Not Supplied or Designated by AGA MARVEL

The above warranties also do not apply if:

• The original bill of sale, deliver date, or serial number cannot be verified.
• Defective parts are not returned for inspection if so requested by AGA MARVEL.
• The refrigeration equipment is not in the possession of the original end use purchaser.

The warranties set forth herein are the only warranties extended by AGA MARVEL. Any implied warranties, including the implied warranty of merchantability, are limited to the duration of these express warranties. In no event shall AGA MARVEL be liable for any consequential or incidental damages or expenses resulting from breach of these or any other warranties, whether express or implied.

Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may have other rights that may vary from state to state.

No person, firm, or corporation is authorized to make any other warranty or assume any other obligation for AGA MARVEL. These warranties apply only to products used in any of the fifty states of the United States and the District of Columbia.

To obtain performance of this warranty, report any defects to:

AGA MARVEL

1260 E. VanDeinse St.

Greenville MI 48838

Phone: [phone]

MARVEL

www.agamarvel.com

AGA MARVEL

1260 E. VanDeinse St.

Greenville MI 48838

800.223.3900

41014801-EN Rev A

1/26/17

All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.

EN Installation, Operation and Maintenance Instructions

Note: Wine Cellars are designed exclusively for the storage of wine. Wine Cellars cannot attain storage temperatures suitable for fresh food storage.

Pure mechanical component diagram without any text, numbers, or symbols

Prohibition symbol of a mechanical component with diagonal line (no text or labels)

Figure 4

Figure 5 Grille frontale Vis de grille frontale

AVERTISSEMENT

Electrical outlet diagram showing two socket covers mounted on a terminal block (no text or symbols)

Figure 6

REMARQUE

Line drawing of a refrigerator with multiple doors open, labeled as Figure 26 (no text or symbols on the diagram itself)

Line drawing of a refrigerator with open door and side panel (no text or symbols)

Line drawing of an open refrigerator with visible internal compartments and ventilation slots (no text or symbols)

Diagram of a refrigerator with an open door and internal shelves, labeled as Figure 29 (no text or symbols on the diagram itself)

EN Installation, Operation and Maintenance Instructions

Note: Wine Cellars are designed exclusively for the storage of wine. Wine Cellars cannot attain storage temperatures suitable for fresh food storage.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Symbol of a crossed-out electrical component with no text or labels

Figura 4

Figura 5 Rejilla frontal Tornillo de la rejilla frontal

ADVERTENCIA

Electrical outlet diagram showing two socket plugs connected to a terminal block (no text or symbols)

Figura 6

NOTA

(47,7 kg) 140 lbs (63,6 kg) 140 lbs (63,6 kg) "J" "D" "E" Figura 11 "H" "G" 1" (2,5 cm) 21½" (54,6cm) "F"

Loc → nSL Loc → SLP

Line drawing of a refrigerator with multiple side panels and an open door, labeled 'Figura 26' (no text on the diagram itself)

Line drawing of a refrigerator with open door and side panel (no text or symbols)

Line drawing of a refrigerator with open door and side shelves, labeled Figura 28 (no text or symbols on the diagram itself)

Diagram of a refrigerator with an open door and internal shelves, labeled Figura 29 (no text or symbols on the diagram itself)
