USER MANUAL RTHD461S Royal Sovereign

Exterior view of a silver RS Smart Speaker device (no visible text or symbols on body)

Please read and retain these instructions.

USA: www.royalsovereign.com

Canada: www.royalsovereign.ca

Royal Sovereign International, Inc.

Thank you for choosing Royal Sovereign Touchless Automatic Hand Dryer. Please read and retain these instructions. This manual will provide you with valuable information necessary for the proper instructions, care and maintenance of your hand dryer. Installation should be done by a qualified electrician. Improper installation, alteration, service and use of this hand dryer can result in serious personal injury or damage to the unit.

If you have questions regarding the installation, use or operation of the hand dryer, please call Royal Sovereign customer service.

Because our products are subject to continuous improvement, Royal Sovereign reserves the right to modify product design and specifications without notice and without incurring any obligation. E&OE

CONTENTS

IMPORTANT SAFETY INFORMATION 4

DESCRIPTION 5

GENERAL USAGE 6

MOUNTING THE UNIT 6

INSTALLATION 7

OPERATION 8

CLEANING AND MAINTAINENCE 8

TROUBLESHOOTING 10

SPECIFICATIONS 11

LIMITED FIVE YEAR WARRANTY 12

PAGE EN FRANÇAIS 13

IMPORTANT SAFETY INFORMATION

Please read this manual thoroughly prior to installation. To reduce the risk of fire, electric shock, or personal injury.

PLEASE NOTE THE FOLLOWING PRECAUTIONS:

1. Do not allow the hand dryer to be used for any purpose other than drying hands. Use this unit only in the manner intended.
2. If service is required, turn the power OFF.
3. Any metallic items in contact with the hand dryer must be grounded.
4. The hand dryer is designed for indoor use only.
5. If the electrical outlet you intend to use is not adequately grounded, you should have a qualified electrician install the proper outlet.
6. Do not use this unit with any extension cords or adapter plugs.
7. If the cord or plug is damaged in any way, please call the Royal Sovereign Service Department.
8. Do not plug this cord into a loose electrical outlet.
9. Do not block air outlets or intake with obstacles.
10. Do not insert any objects into the hand dryer.
11. To clean the housing, use a soft cloth. Do not use any abrasive cleaning material as it may scratch the unit. Do not spray any cleaning liquids or water direction the hand dryer.

This hand dryer has Class II rating. As such it is designed for wall mounting

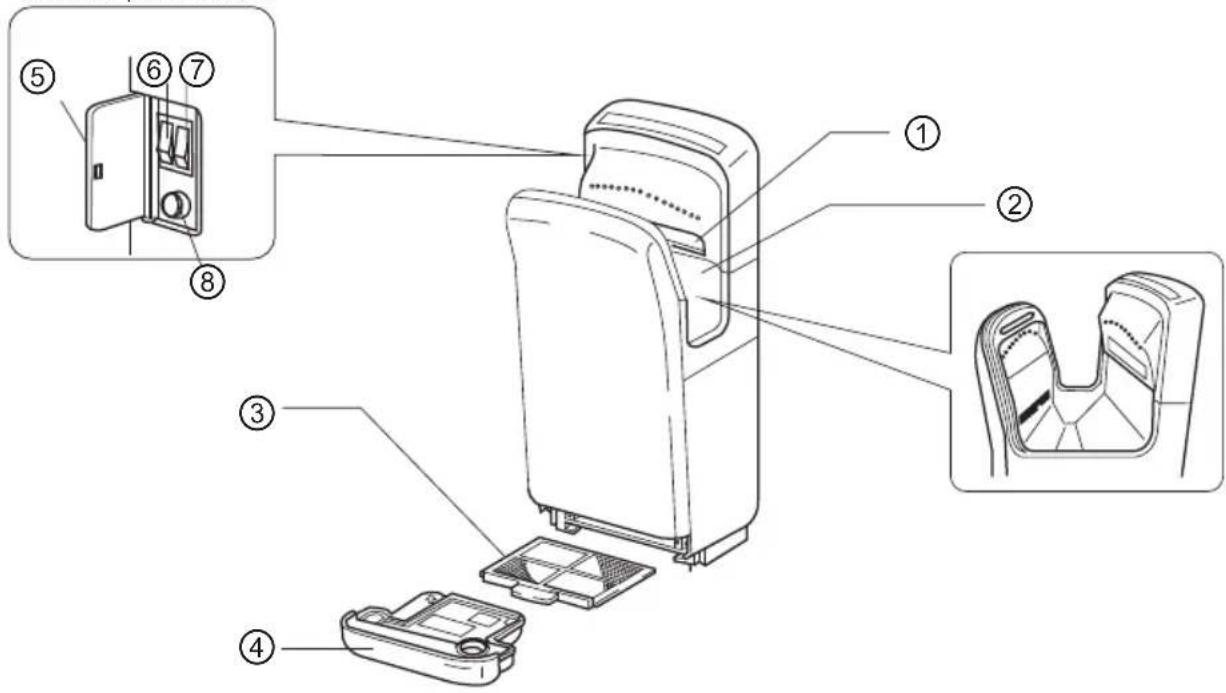

DESCRIPTION

1. LED Sensor

2. Air Outlets

3. Air filter

4. Removable drip tray

5. Controls

6. ON/OFF Button

7. Warm Dry /Cool Dry Switch

8. Master Power Switch

Access to power controls

Technical diagram of a refrigerator internal components with numbered parts for identification

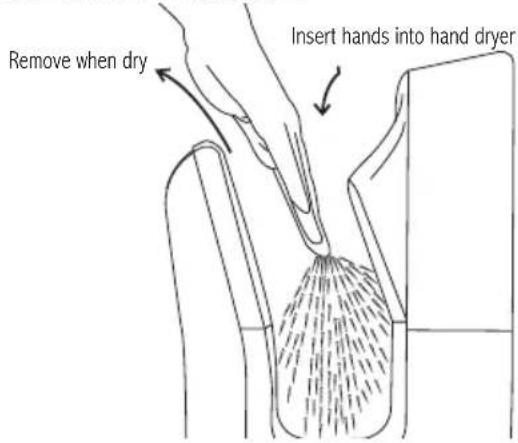

GENERAL USAGE

Remove when dry Insert hands into hand dryer

Ergonomic Design

• Easy to use

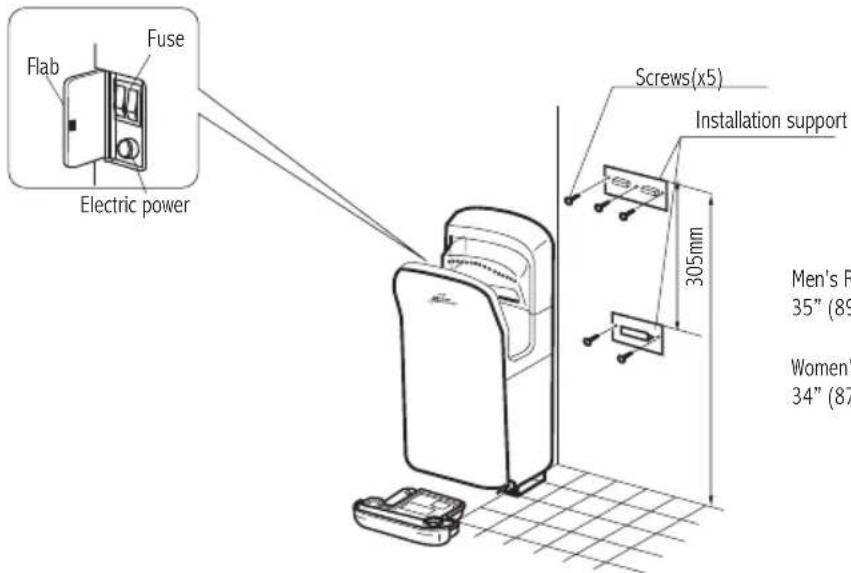

MOUNTING THE UNIT

Recommended Mounting Height

Flab Fuse Electric power Screws(x5) Installation support 305mm Men's R 35" (89" Women' 34" (87)

Men's Restroom

35" (890 mm) from top of Hand dryer to the floor

Women's Restroom

34" (870 mm) from top of hand dryer to the floor

INSTALLATION

STEP 1

Plug And play Ready Operation

To prepare the hand dryer for 'plug and play' ready operation, proceed as follows:

1. Remove the back cover (See picture).
2. Attach the negative cable to the negative terminal (labeled N).
3. Attach the ground cable to the ground terminal (labeled T).
4. Attach the positive cable to the positive ground terminal (labeled L).
5. Replace the cover (see picture)

Close-up of a white electrical socket with two mounting holes and a central socket (no text or symbols visible)

Step 1 -1 Step 1 -5 Step 1 -2\~4

Close-up of a white electronic component with a black cable inserted, showing internal circuitry (no text or symbols visible)

Close-up of a white electrical outlet with two black terminals and a black cable inserted (no visible text or symbols)

Hard Wire Operation

You have the option of utilizing the supplied power cord, or by utilizing you own wires. To utilize the supplied power cord, proceed as per the instructions 'Plug and Play Ready Operation'. To utilize your own wires.

1. Feed wires though the power supply hole (14 AWG or better); tighten clamp down on wire.
2. Connect the wires to the slots on the terminal marked N, L, T.

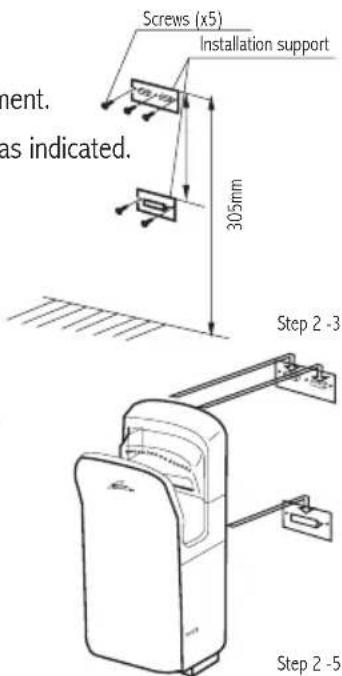

STEP 2

1. Select the ideal mounting location for the hand dryer.
   Refer to Mounting the Unit -Recommended Mounting Heights' - for ideal placement.
2. Use the supplied drill hole template sheet and proceed to mark and drill holes as indicated.
3. Secure the two brackets as shown.

Important Note: Depending on the structure of the wall, you may need to reinforce the wall to ensure that the hand dryer will be securely attached to the wall.

1. For 'Plug and Play Operation' plug into an electrical outlet, ensuring the power supply cable is not exposed. For Hard wired installation, ensure that the unit has the required power and is connected properly.

2. Carefully attach the hand dryer to wall brackets.

3. For 'Plug and Play Operation' plug into an electrical outlet, ensuring the power supply cable is not exposed. For Hard wired installation, ensure that the unit has the required power and is connected properly.

4. Carefully attach the hand dryer to wall brackets.

OPERATION

1. Open the Access to Power Button Controls located on the top left hand side (refer to page 5 -Description)
2. Press the RED Master Power Switch Button. The LED lights should turn on
3. Place your hand between the Hand Dryer outlets. The unit is defaulted to 'Warm' Dry. To select 'Cool Dry' press the Warm Dry/Cool Dry Switch.

CLEANING AND MAINTAINENCE

Attention

To ensure proper operation of the hand dryer, ensure the unit remains clean.

- Ensure the unit is turned OFF. Clean the hand dryer using a moistened wet soft cloth

- Do not use solvents that are acidic or alcohol based.

- Ensure the unit is turned OFF. Clean the hand dryer using a moistened wet soft cloth - Do not use solvents that are acidic or alcohol based.

Screws (x5) Installation support 305mm Step 2 -3 Step 2 -5 ment. as indicated.

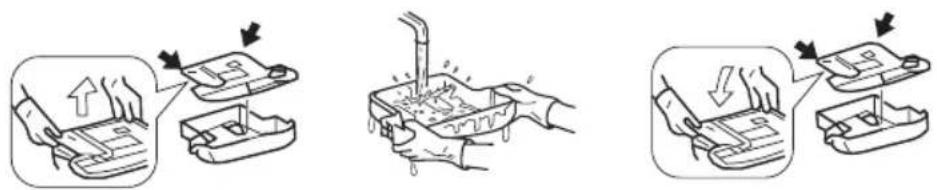

Emptying and cleaning of water in the Drip tray

1. Empty and clean the water container before it is full (Recommended weekly - depending on usage)
2. Remove the cover by pulling it upward as indicated by the arrow and empty water. Clean the water container.
   Close the lid and put the water container back into place.

drip tray

Diagram illustrating three steps of a mechanical or fluid handling process with arrows indicating movement and flow direction.

1. Pour about 1 cup of water through the drain to prevent it from clogging. Ensure the Drip tray is in place before putting the unit into operation.

Diagram of a mechanical component with a drain and internal structure (no text or symbols)

Cleaning the air filer

1. Remove the air filter by pulling the handle.
2. Clean by tapping on it lightly or by cleaning with water. Carefully place the air filter back into position

Attention: If you clean the filter with water, dry well before placing it back into the unit.

Handle

Air filter

TROUBLESHOOTING

Hand Dryer is not warm	·The Warm Dry/Cool Dry button is turned to 'Cool' dry. Set to the ON position. ·Possible defective heat element. Needs to be replaced. Call Royal Sovereign customer service.
Hand Dryer does not start	·No Power to the Unit. Set to the ON position ·Defective Sensor - Replace the IR Sensor. Call Royal Sovereign customer service. ·Defective Motor - Replace the motor. Call Royal Sovereign customer service
Hand Dryer will not shut off	·The sensor is dirty or there is a reflection. Clean the IR Sensor. Ensure that there is no possible reflection from another object

SPECIFICATIONS

Model RTHD-461S
Voltage/Frequency 120V, 60HZ
IP Rating IP22
Motor Rate /Type BRUSHED
Power Switch ON/OFF
Heat Setting Warm Dry /Cool Dry
Dimensions (w x d x h) 11.8" x 8.3"x 27.2" (30cm x 21cm x 69cm)
Weight 20 lbs (9 kg)

NEED HELP WITH INSTALLATION?

Royal Sovereign can help arrange professional certified installation of your hand dryer.

For more information:

USA: 800-397-1025

Canada: 866-961-6673

LIMITED FIVE YEAR WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for five years from the date of the original purchase (3 Year Motor). This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

TEL: [phone] FAX: [phone]

www.royalsovereign.com

RS INTERNATIONAL CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TEL: [phone] TF #: [phone]

FAX: [phone]

www.royalsovereign.ca

Exterior view of a silver RS Smart Thermostat device (no visible text or symbols on body)

É.-U.: www.royalsovereign.com

Canada : www.royalsovereign.ca

Royal Sovereign International, Inc.

SÈCHE-MAINS AUTOMATIQUE MAINS LIBRES À RENDEMENT ÉLEVÉ

Modèle RTHD-461S

INTRODUCTION

Technical diagram of a refrigerator internal components with numbered parts for identification

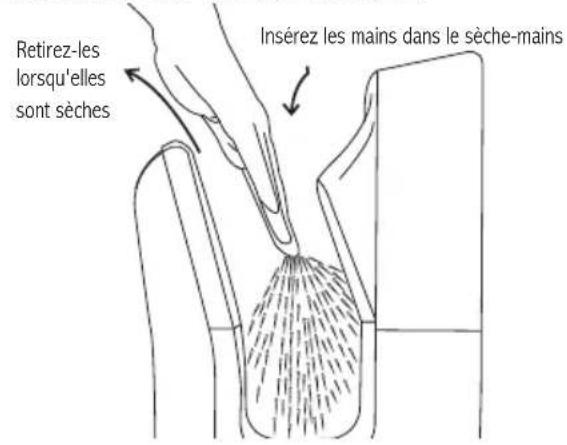

UTILISATION GÉNÉRALE
